14
13IN HIGH BAY LIGHT
SKU Number: 348-6308
Model Number: M-1124-0005-U
PATRIOT LIGHTING® is a registered trademark
of Menard, Inc. All Rights Reserved.

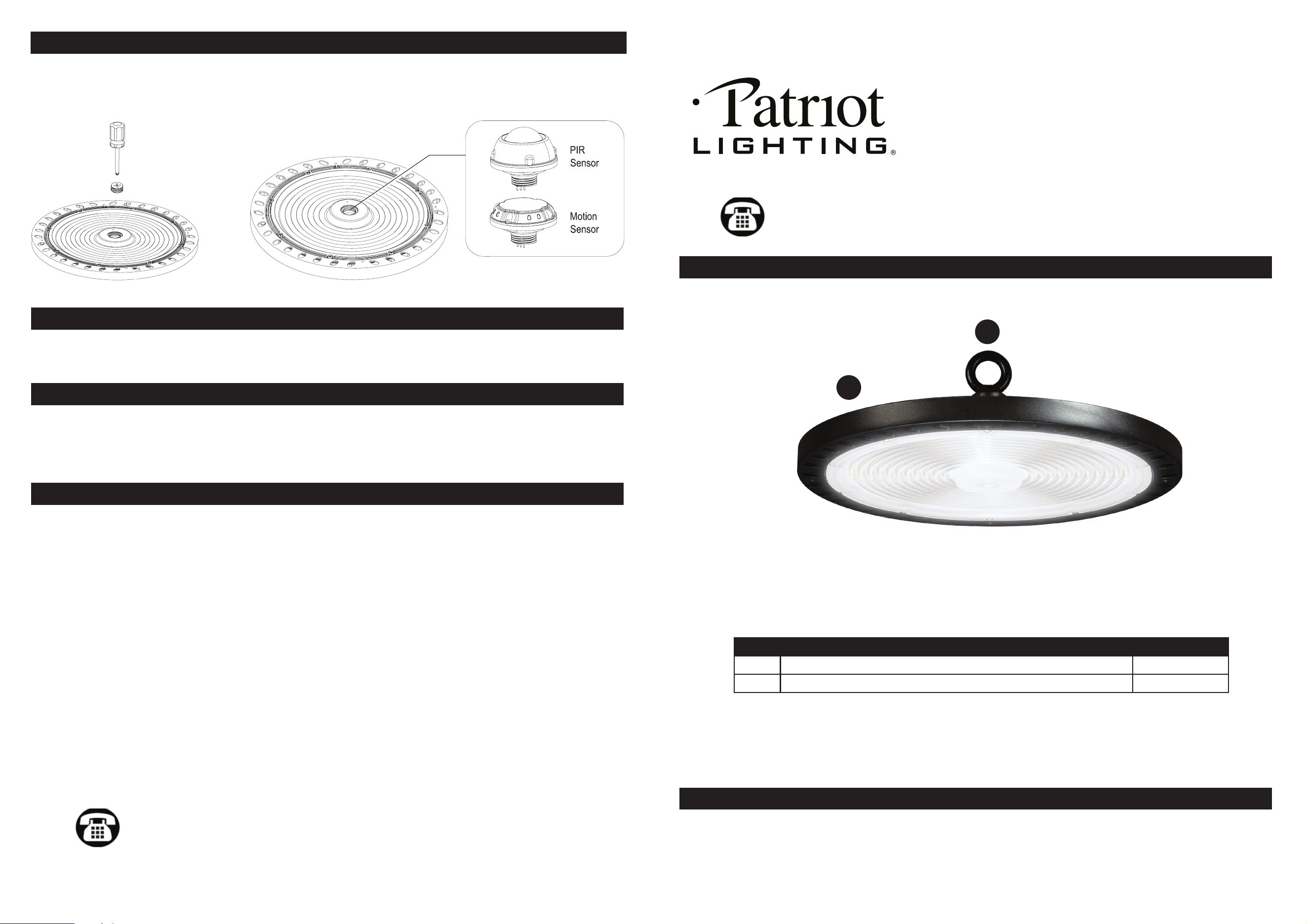

PACKAGE CONTENTS
Note: Hardware not shown to actual size.
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at
1-844-255-9692 Monday – Friday 8:00 a.m. – 5:00 p.m. MT
Questions, problems, missing parts?
Before returning to your retailer, call our customer service at
1-844-255-9692 Monday – Friday 9:00 a.m. – 6:00 p.m. CST
This PATRIOT LIGHTING® brand light xture carries a ve (5) Year Limited Warranty to the original purchaser.
If, during normal use, this PATRIOT LIGHTING® light xture fails due to a defect in material and workmanship
within ve (5) years from the date of purchase, simply bring this light xture with your original sales receipt back
to your nearest MENARDS® retail store. At its Discretion, PATRIOT LIGHTING® agrees to have the lighting
xture replaced with the same or similar PATRIOT LIGHTING® product free of charge, within the stated warranty
period, when returned by the original purchaser with original sales receipt. Notwithstanding the foregoing, this
limited warranty does not cover damage or failure caused by misuse or abuse including but not limited to improper
installation, accident, unauthorized repair, maintenance, or modications of the merchandise. This warranty: (1)
excludes expendable parts including but not limited to light bulbs, batteries; (2) carries a 2-year nish warranty
protecting nish against tarnishing, aking, and discoloration; (3) shall be void if this lighting xture is not installed
in the U.S.A; (4) does not cover products installed within three miles of saltwater coastline or any area prone
to salt spray; and (5) does not cover any losses, labor, injuries to persons/property or costs. This warranty
does give you specic legal rights and you may have other rights, which vary from state to state. Be careful, it
is recommended that installation be done by a qualied professional; the purchaser has sole responsibility for
proper installation in compliance with all state and local code requirements. Seller’s employees are not qualied
to advise you on the use of this Merchandise. Any oral representation(s) made will not be binding on seller
or its employees. The rights under this limited warranty are to the original purchaser of the Merchandise and
may not be transferred to any subsequent owner. This limited warranty is in lieu of all warranties, expressed or
implied including warranties or merchantability and tness for a particular purpose. Seller shall not be liable for
any special, incidental, or consequential damages. The sole exclusive remedy against the seller will be for the
replacement of any defects as provided herein, as long as the seller is willing or able to replace this product or is
willing to refund the purchase price as provided above.
SAVE YOUR RECEIPTS. THIS WARRANTY IS VOID WITHOUT THEM.
• Periodically, dust the outside surface of the lens with a dry soft cloth. Clean with a clean damp cloth if
needed. Do not use chemical solvents or harsh abrasives to clean xture.
CARE AND MAINTENANCE
WARRANTY
1) The light does not come on at all:
a) Turn off power at the source and check all wired connections.
b) If xture is on a switched circuit, make sure the wall switch and circuit breaker are on.
If unable to fix the above issue, please consult a certified electrician.
TROUBLESHOOTING
PART DESCRIPTION QUANTITY
A 13in High Bay Light 1
B Ring Hook 1
A
B
RV2511
INSTALLATION INSTRUCTIONS (continued)
Use a screwdriver to remove the 1/2 plug from the sensor. Twist-lock the DC sensor to the base to make it work
properly, use a remote control to adjust the working mode as per demand.
OPTIONAL PIR MOTION SENSOR (NOT INCLUDED)
B
32
Before beginning assembly, installation, or operation of product, make sure all parts are present. Compare
parts with package and hardware contents list on page 1. If any part is missing or damaged, do not attempt to
assemble, install or operate the product. Contact customer service for replacement parts: 1-844-255-9692
Monday – Friday 9:00 a.m. – 6:00 p.m. CST.
Tools Required for Assembly (not included): Suitable Fasteners (eye bolts & spring clips for use with in-
cluded v-hooks and chain, cable with spring clips, or 1/2”NPT with junction box), Screwdriver, Tape Measure,
Pencil, Safety Glasses, and Ladder
SAFETY INFORMATION
PREPARATION
WARNING
• This xture requires a 120-277V AC electrical input with direct wire installation for operation. Test that
power is shut off at the source with an electrical voltage tester before attempting installation.
• Do not use any electric generator to test the LED light.
• Ensure mounting surface is sturdy and capable of holding the weight of the xture safely.
• For additional safety purposes, do not use in recessed installation.
CCT SELECTION
This xture is designed with integrated function of 3CCT + AUTO selectable and 3 wattage selectable
Operation: Remove the plug, adjust the switches as indicated to select the desired CCT and wattage. The
original settings can be the factory default settings or be customized. Screw the plug back after the CCT and
wattage is well set.
INSTALLATION INSTRUCTIONS
INSTALLATION INSTRUCTIONS (continued)
WARNING: These products may represent a possible shock or re hazard if improperly installed or attached
in any way. Products should be installed in accordance with these instructions, current electrical codes, and/or
the current National Electric Code (NEC).
WARNING: To reduce risk of re, electric shock, or injury to persons, be sure that power supply is turned off
at fuse box or circuit breaker before attempting installation or servicing of the xture. For safest operation, read
and become familiar with complete installation instructions prior to use. Pay close attention to this manual and
stay within its guidelines when using this product.
SAVE THESE INSTRUCTIONS
ADDITIONAL SAFETY MEASURES
1. To avoid electrical shock, do not turn on xture with missing or damaged lens.
2. There are no serviceable parts inside LED module or xture.
3. LEDs emit bright light. Avoid looking directly at the light source.
4. Suitable for damp locations and operation in temperatures not exceeding 122°F (50°C)
5. For use in 120-277V, AC application
6. All parts must be used as indicated in this manual. Do not substitute any parts, leave parts out, or use parts
that are worn out or broken. Failure to obey this instruction could invalidate the UL certication.
7. Do not mount over a sink, tub or shower.
WARNING: PROPOSITION 65
This product can expose you to chemicals including Lead, which is known to the State of California to cause
cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Responsible Party:
BrightLux by American Lighting
Denver, CO 80239
1-844-255-9692

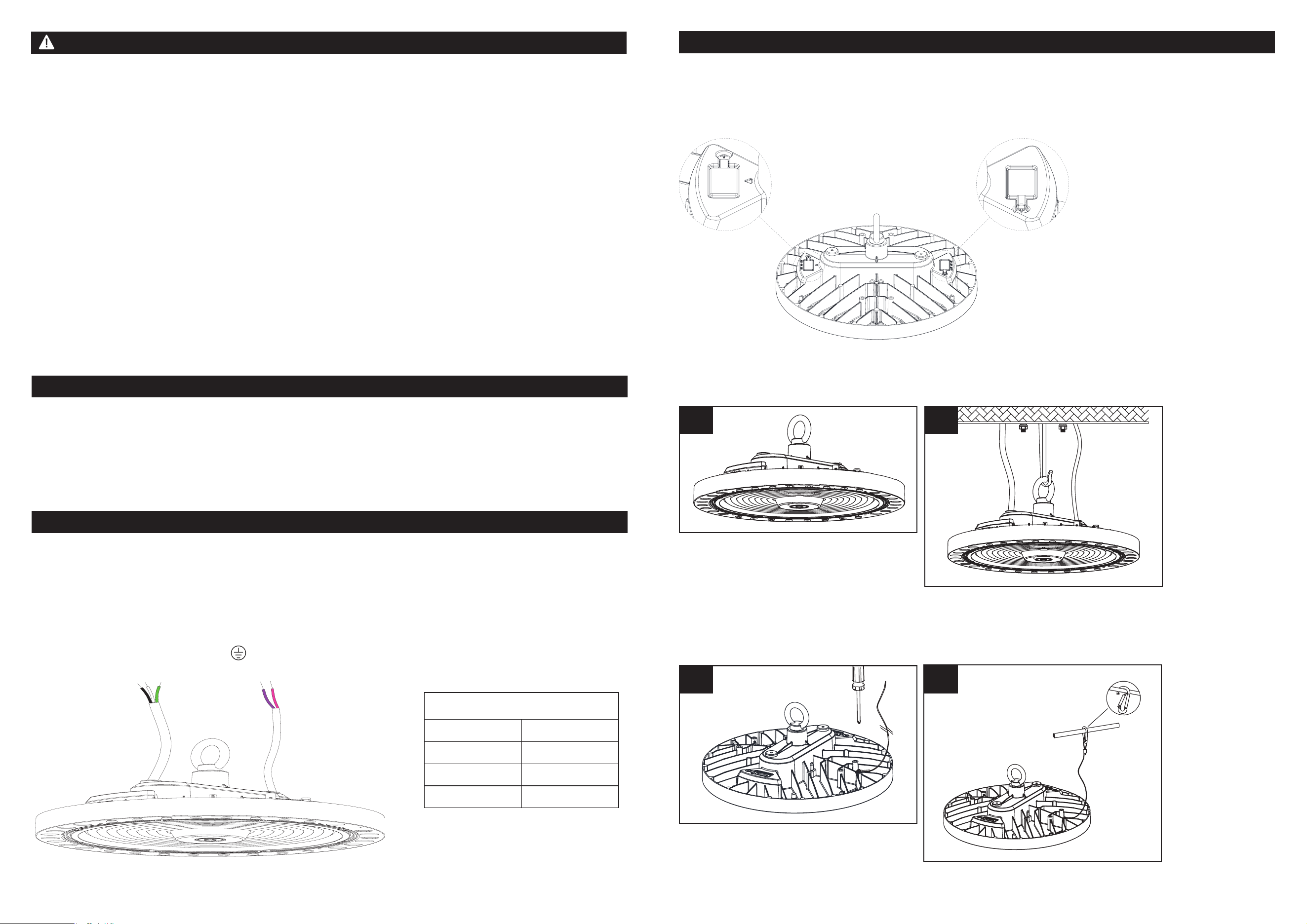

WIRING INSTRUCTIONS
ACL: Black/Brown, ACN: White/Blue, Green/Yellow, DIM +: Purple, DIM -: Pink.
*The product can not be connected to a
dimming device when it’s equipped with
Motion Sensor.
Brand Model
1. Screw the hook into the xture, tighten and x it.
1. Fix the safety cable on the lamp body with screws.
2. Fix the safety buckle on the rail.
2. Hang the xture on the ceiling hook or chain.
LUTRON
LEVI TON
LEGRAN D
NTST V-DV
DS710-10Z / IP71 0
RH4FBL3PW
This product is 0/1-10 V dimming,bel ow
dimmers are recommended:
HANGING MOUNT
OPTIONAL SAFETY CABLE (NOT INCLUDED)
1
1
2
2
40K 50K 65K AUTO
200W 150W 100W
Wattage adjustable
Color tunable
