Page 1
PRODUCT INFORMATION:
Study, understand and follow all instructions provided with
this product. Read these instructions carefully before installing,
operating, servicing or repairing this tool. Keep these
instructions in a safe accessible place.
INTENDED USE OF THE TOOL
Caution: To help prevent personal injury
WARNING
WARNING
DO NOT DISCARD – GIVE TO USER
The manufacturer warrants this product to the original user
against defective material or workmanship for a period of 1
year from the date of purchase.
The manufacturer reserves the right to determine whether
the part or parts failed because of defective material,
workmanship or other causes. Failures caused by accident,
alteration, or misuse are not covered by this warranty.
The manufacturer, at its discretion, will repair or replace
product covered under this warranty free of charge. Repairs
or replacements of products covered under this warranty are
warranted for the remainder of the original warranty period.
The manufacturer or its authorized service representatives
must perform all warranty repairs. Any repair to the product
by unauthorized service representatives voids this warranty.
The rights under this warranty are limited to the original user
and may not be transferred to subsequent owners.
The warranty is in lieu of all other warranties, expressed or
implied, including warranties of merchantability and fitness
for a particular purpose. Some states do not allow the
exclusion or limitations of incidental or consequential
damages, so the above limitations may not apply to you.
• Use of this product can expose you to chemicals including
ethylene glycol, gasoline vapors and engine exhaust, which
are known to the State of California to cause cancer, birth
defects, or reproductive harm. For more information, visit
www.P65Warnings.ca.gov. Always wear ANSI approved safety
equipment, safety glasses and clothing when using this
product. Study, understand, and follow all instructions
provided with this product. Failure to read and follow all
warnings and operating instructions may result in damages
and serious injury or death.
• Always wear ANSI approved goggles when using this
product. (Users and by standers).
• Never use this tool for any application other than for which
it was designed.
• Only use accessories designed for this tool.
• Never alter or modify this tool in any way.
• Improper operation and/or maintenance of the tool,
modification of the tool, or use of the tool with accessories
not designed for it could result in serious injury or death.
• Always select the correct accessories of the correct size and
design for the job that you are attempting to perform.
• Always work in a clean, safe, well-lit, organized and
adequately equipped area.
• Do not begin repairs without assurance that vehicle is in
secure position, and will not move during repair.
1 YEAR LIMITED WARRANTY
1903098-14
SPIN HANDLE TORQUE
LIMITING EXTENSION SET
TKSH6
The TKSH6 Spin Handle Torque Limiting Extensions are design
to limit torque delivered to lug nuts when using an impact
wrench. These tools are not designed for reaching the final
torque specification. Always follow use with torque wrench.
Do not use this tool outside of the designed intent. Never
modify the tool for any other purpose or use.

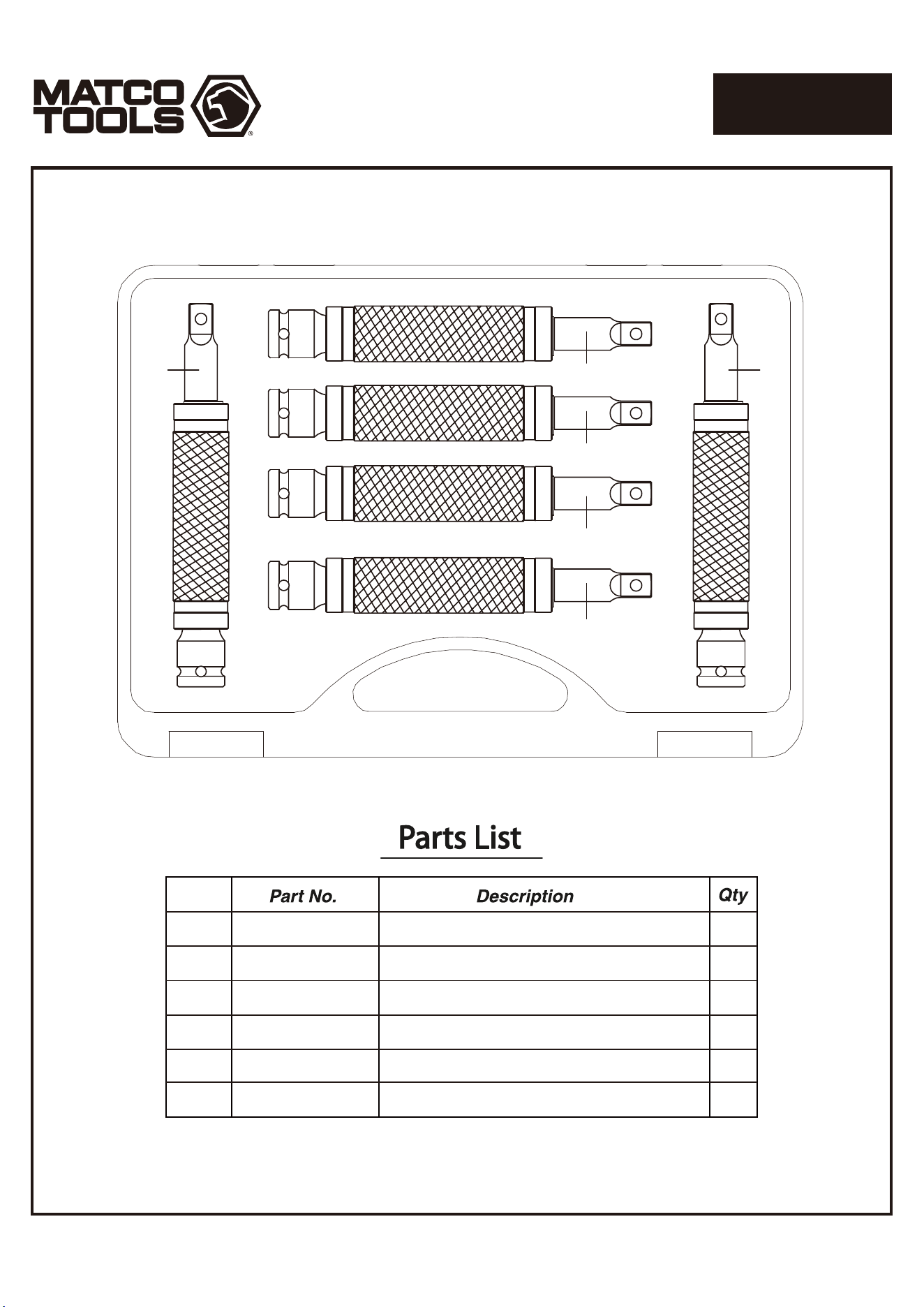

When unpacking, check the parts diagram and part number
listing on page 7 to make sure all parts are included. If any
parts are missing or damaged, please call your distributor.
BEFORE USE
Made in Taiwan
to Matco specifications
Innovative. Handles spin on roller bearings independently
of extension for holding more naturally and performing
quicker.
Wide application range. Six-piece set covers just over 95%
of vehicles on the road.
Lightweight. Unlike most limiting extensions, the TKSH6
are made from durable CRO-MO allowing them to stay
lightweight even with added features.
Because the purpose of these tools is to limit torque, some
extensions can be used for other applications within 5 ft. lbs.
above their rating.
70: Use on 70 ft. lbs
80: Use on 80 ft. lbs.
90: Use on 90 ft. lbs. & 95 ft. lbs.
100: Use on 100 ft. lbs. & 105 ft. lbs.
120: Use on 120 ft. lbs. & 125 ft. lbs.
140: Use on 140 ft. lbs.
Always calibrate (page 2) before use.
ALWAYS USE A TORQUE WRENCH AFTER USE TO
REACH FINAL TORQUE SPEC.
Page 2
1903098-14
SPIN HANDLE TORQUE
LIMITING EXTENSION SET
TKSH6
TKSH6 TORQUE LEVELS WITH YOUR IMPACT
The TKSH6 Spin Handle Torque Limiting Extension Set is calibrated from the factory and therefore it
is static. Because the torque level is determined when machined, it cannot change and the user
must calibrate how they use, and what they use with the extensions below to obtain the desired
torque level.
Explanation
Use a torque wrench with the adapter to torque a lug nut to the level you wish to limit torque to.
Mark with chalk or a paint pen on the lug nut and the face of the hub or wheel at the same location.
Remove the lug nut with a breaker bar. Select the TKSH6 extension whose rating matches closest to
the level you torqued the lug nut to. Install your impact socket and attach to your impact gun.
1.Torque
Set your impact to the middle power level and install the lug nut on with the torque limiting extension
until it appears to stop rotating (usually 1-2 seconds). Visually check if the marks on the lug nut and
hub or wheel face align. If the mark is not rotated far enough, remove the lug nut, increase the power
level and perform the test again until the power level of your impact reliability hits the mark you made.
If the mark rotates too far do the opposite. Once determined, always use this air pressure and power
setting.
2. Test
3. Adjust
4. Select
If in the less common instance that your impact gun at its lowest power setting is too high, or at the
highest power setting too low, and you are still unable to align your test marks closely enough and
adjusting air pressure supply is not an option consider these solutions:
A) Modify the mass of your extension. This can be done by choosing a different impact socket, for
instance deep vs. shallow. More mass will increase the calibration torque level of the whole tool.
B) Use a different impact gun if available. Power level has some effect, but IPM (impact per minute)
is the primary determinant of how close the extension will perform to its stated value from the
factory. An impact gun with a higher IPM will not allow a torque limiting extension to rotate back
and fight against the impact gun.
C) Ensure you are not over impacting the extension (i.e longer than around 2 seconds).
Depending on the impact gun and/or socket you need to use to get the job done on a daily basis, if
the torque range you wish to hit is still not obtainable, you may need to use a different torque
extension from the set. For instance, if through testing you determine your 90 ft. lb. stick is always
10 ft. lbs. low with your set-up it would not be uncommon to need to use the 100 ft. lb. extension from
then on, as long as the results are consistent. Consistent repeatable results are the intention of the
product in order to ensure it does not go over a certain value. Reaching specific torque values is meant
to be done with a torque wrench.
5. Always
Finish With
A Torque
Wrench
As mentioned above, this set is designed solely to LIMIT torque. It is not designed to hit a specific
torque range of your choosing, this task should always be done with a torque wrench. For example,
if you're wishing to torque a vehicle's lug nuts to 100 ft. lbs., the 80 or 90 ft. lbs. extension might be a
good choice to quickly install the wheels on the car and ensure in doing so, you will not exceed the
recommended torque level. Once the car is on the ground, torque the lug nuts to the final
100 ft. lbs. with a calibrated torque wrench.
Using this tool as the only method to fasten bolts and nuts with a required torque value is not
recommended and the user does so at their own risk.
Page 3
INFORMACIÓN DEL PRODUCTO:
EL USO DE LA HERRAMIETA
NO LO DESCARTE O DESECHE, ENTREGESELO AL USUARIO
GARANTÍA LIMITADA DE UN AÑO
The TKSH6 Spin Handle Torque Limiting Extensions are design
to limit torque delivered to lug nuts when using an impact
wrench. These tools are not designed for reaching the final
torque specification. Always follow use with torque wrench.
(IN SPANISH) No utilice esta herramienta para otra cosa fuera
de la intención de su diseño. Nunca modifique la herramienta
para cualquier otro propósito o uso.
DESEMPACADO
HECHO en Taiwan
para Matco especificaciones
Estudie, entienda y siga todas las instrucciones que se proveen
con este producto. Lea las instrucciones detenidamente antes
de instalar, operar, dar servicio o reparar esta herramienta.
Guarde estas instrucciones en un lugar seguro y accesible.
ADVERTENCIA
ADVERTENCIA
• El uso de este producto puede exponerlo a productos químicos
que incluyen etilenglicol, vapores de gasolina y gases de escape
del motor, que en el estado de California son causantes de cáncer,
defectos de nacimiento o daños reproductivos. Para obtener más
información, visite www.P65Warnings.ca.gov.
Siempre use equipo de seguridad aprobado por ANSI, gafas de
seguridad y ropa cuando use este producto. Estudie, comprenda y
siga todas las instrucciones proporcionadas con este producto. Si
no lee y sigue todas las advertencias e instrucciones de
funcionamiento puede ocasionar daños y lesiones graves o la
muerte.
• Siempre use guantes del tipo aprobado por la ANSI para
trabajar con esta herramienta. (tanto usuarios como
espectadores).
• Nunca utilice esta herramienta para cualquier otra cosa que
no sean las aplicaciones para lo que fue diseñada.
• Sólo utilice los accesorios diseñados para esta herramienta.
• No modifique o altere esta herramienta de ninguna manera.
• El funcionamiento y/o mantenimiento inadecuado de la
herramienta, la modificación, o la utilización de la
herramienta con accesorios inadecuados podrían causar
lesiones graves o la muerte.
• Siempre usar los correctos accesorios para el trabajo que
Ud. está realizando.
• Trabaje siempre en un área limpia, segura, bien iluminada,
organizada y equipada adecuadamente.
• No iniciar reparaciones sin tener la absoluta certeza de que
el vehículo está en posición segura, y de que no se moverá
durante la reparación.
Precaución: Para ayudar a evitar lesiones a las personas
El fabricante garantiza este producto al usuario original contra
defectos de materiales o de mano de obra durante un periodo
de un año a partir de la fecha de compra.
El fabricante se reserva el derecho a determinar si una pieza o
piezas fallaron debido a material defectuoso, mano de obra, o
por otras causas. Esta garantía no cubre fallas causadas por
accidentes, alteraciones o uso indebido.
El fabricante, a su entera discreción, reparará o reemplazará
los productos cubiertos por esta garantía sin costo alguno.
Las reparaciones o reemplazos de productos cubiertos por
esta garantía quedan garantizados durante el resto del periodo
original de garantía.
El fabricante o sus representantes autorizados de servicio
deben llevar a cabo todas las reparaciones de garantía. Toda
reparación hecha al producto por representantes de servicio
no autorizados invalida la presente garantía.
Los derechos que ampara esta garantía están limitados al
usuario original y no se pueden transferir a dueños posteriores.
Esta garantía reemplaza a todas las demás garantías expresas
o implícitas, incluyendo garantías de comercialización e
idoneidad para un propósito particular. Algunos estados no
permiten la exclusión o limitaciones de daños incidentales o
imprevistos, de manera que las limitaciones mencionadas
anteriormente pueden no ser aplicables en su caso.
Cuando desempaque el producto, revise el diagrama y la lista
de piezas en página 7 para verificar que se hayan enviado
todas las piezas. De perder piezas o tener piezas dañadas,
favor llamar a su distribuidor inmediatamente.
SPIN HANDLE TORQUE
EXTENSIONS(IN SPANISH)
TKSH6
(IN SPANISH)
Innovative. Handles spin on roller bearings independently
of extension for holding more naturally and performing
quicker.
Wide application range. Six-piece set covers just over 95%
of vehicles on the road.
Lightweight. Unlike most limiting extensions, the TKSH6
are made from durable CRO-MO allowing them to stay
lightweight even with added features.
ALWAYS USE A TORQUE WRENCH AFTER USE TO
REACH FINAL TORQUE SPEC.
1903098-14
Because the purpose of these tools is to limit torque, some
extensions can be used for other applications within 5 ft. lbs.
above their rating.
70: Use on 70 ft. lbs
80: Use on 80 ft. lbs.
90: Use on 90 ft. lbs. & 95 ft. lbs.
100: Use on 100 ft. lbs. & 105 ft. lbs.
120: Use on 120 ft. lbs. & 125 ft. lbs.
140: Use on 140 ft. lbs.
Always calibrate (page 2) before use.
Page 4
SPIN HANDLE TORQUE
EXTENSIONS(IN SPANISH)
TKSH6
1903098-14
The TKSH6 Spin Handle Torque Limiting Extension Set is calibrated from the factory and therefore it
is static. Because the torque level is determined when machined, it cannot change and the user
must calibrate how they use, and what they use with the extensions below to obtain the desired
torque level.
Use a torque wrench with the adapter to torque a lug nut to the level you wish to limit torque to.
Mark with chalk or a paint pen on the lug nut and the face of the hub or wheel at the same location.
Remove the lug nut with a breaker bar. Select the TKSH6 extension whose rating matches closest to
the level you torqued the lug nut to. Install your impact socket and attach to your impact gun.
Set your impact to the middle power level and install the lug nut on with the torque limiting extension
until it appears to stop rotating (usually 1-2 seconds). Visually check if the marks on the lug nut and
hub or wheel face align. If the mark is not rotated far enough, remove the lug nut, increase the power
level and perform the test again until the power level of your impact reliability hits the mark you made.
If the mark rotates too far do the opposite. Once determined, always use this air pressure and power
setting.
If in the less common instance that your impact gun at its lowest power setting is too high, or at the
highest power setting too low, and you are still unable to align your test marks closely enough and
adjusting air pressure supply is not an option consider these solutions:
A) Modify the mass of your extension. This can be done by choosing a different impact socket, for
instance deep vs. shallow. More mass will increase the calibration torque level of the whole tool.
B) Use a different impact gun if available. Power level has some effect, but IPM (impact per minute)
is the primary determinant of how close the extension will perform to its stated value from the
factory. An impact gun with a higher IPM will not allow a torque limiting extension to rotate back
and fight against the impact gun.
C) Ensure you are not over impacting the extension (i.e longer than around 2 seconds).
Depending on the impact gun and/or socket you need to use to get the job done on a daily basis, if
the torque range you wish to hit is still not obtainable, you may need to use a different torque
extension from the set. For instance, if through testing you determine your 90 ft. lb. stick is always
10 ft. lbs. low with your set-up it would not be uncommon to need to use the 100 ft. lb. extension from
then on, as long as the results are consistent. Consistent repeatable results are the intention of the
product in order to ensure it does not go over a certain value. Reaching specific torque values is meant
to be done with a torque wrench.
As mentioned above, this set is designed solely to LIMIT torque. It is not designed to hit a specific
torque range of your choosing, this task should always be done with a torque wrench. For example,
if you're wishing to torque a vehicle's lug nuts to 100 ft. lbs., the 80 or 90 ft. lbs. extension might be a
good choice to quickly install the wheels on the car and ensure in doing so, you will not exceed the
recommended torque level. Once the car is on the ground, torque the lug nuts to the final
100 ft. lbs. with a calibrated torque wrench.
Using this tool as the only method to fasten bolts and nuts with a required torque value is not
recommended and the user does so at their own risk.
TKSH6 TORQUE LEVELS WITH YOUR IMPACT
(IN SPANISH)
Explanation
1.Torque
2. Test
3. Adjust
4. Select
5. Always
Finish With
A Torque
Wrench
Page 5
INFORMATIONS PRODUIT:
NE PAS JETER-DONNER À L'UTILISATEUR
The TKSH6 Spin Handle Torque Limiting Extensions are design
to limit torque delivered to lug nuts when using an impact
wrench. These tools are not designed for reaching the final
torque specification. Always follow use with torque wrench.
(IN FRENCH) Ne pas utiliser cet outil en dehors de l'intention
conçue. Ne jamais modifier l'outil à d'autres fins ou d'utilisation.
Lors du déballage, vérifier que les pièces contenues dans
le schéma et la liste des numéros de pièces de la page 7
sont toutes incluses. Si une pièce est manquante ou abîmée,
veuillez appeler immédiatement votre distributeur.
DÉBALLAGE
Fabriqué à Taiwan
les spécifications de Matco
AVERTISSEMENT
AVERTISSEMENT
Etudier, comprendre et suivre toutes les instructions fournies
avec ce produit. Lire ces instructions attentivement avant
d’installer, d’utiliser, d’entretenir et de réparer cet outil.
Conserver ces instructions dans un endroit sécuritaire
et accessible.
UTILISATION PRÉVUE DE L’OUTIL
Mise en garde: Pour aider à prévenir les blessures
• L'utilisation de ce produit peut vous exposer à des produits
chimiques, notamment l'éthylène glycol, les vapeurs
d'essence et les gaz d'échappement des moteurs, qui sont
reconnus par l'État de Californie pour causer le cancer, des
anomalies congénitales ou des problèmes de reproduction.
Pour plus d'informations, visitez www.P65Warnings.ca.gov.
Toujours porter un équipement de sécurité, des lunettes de
sécurité et des vêtements homologués ANSI lors de
l'utilisation de ce produit. Étudier, comprendre et suivre
toutes les instructions fournies avec ce produit. Ne pas lire
et suivre tous les avertissements et instructions d'utilisation
peut entraîne.
• Toujours porter des lunettes à coques approuvées par
l’ANSI lorsque vous utilisez ce produit. (Utilisateurs et
Spectateurs).
• Ne jamais utiliser cet outil pour aucune application qui n’est
pas conçue.
• Seulement utiliser les accessoires conçus pour cet outil.
• Ne jamais modifier cet outil.
• Le fonctionnement et/ou l’entretien incorrect de cet outil, la
modification de cet outil, ou l’utilisation de cet outil avec les
accessoires non conçus pour lui devrait causer des blessures
graves ou la mort.
• Toujours utiliser les accessoires adéquats pour le travail que
vous effectuez.
• Toujours travailler dans un environnement propre,
sécuritaire, bien éclairé, organisé et suffisamment équipé.
• Ne pas commencer les réparations sans assurance que le
véhicule est en position de sécurité, et ne se déplace pas lors
de la réparation.
1 ANNÉE DE GARANTIE LIMITÉE
Le manufacturier garantit à l’acheteur initial que ce produit est
exempt de tout vice de matériau et de fabrication pendant une
période de une année suivant la date de l’achat.
Le manufacturier se réserve le droit de déterminer si la pièce ou
les pièces défectueuses sont imputables à un matériau défectueux,
à un défaut de fabrication ou à d’autres causes. Les défaillances
causées par un accident, une modification ou une utilisation
incorrecte ne sont pas couvertes par la présente garantie.
Le manufacturier, à sa seule discrétion, réparera ou remplacera
sans frais les produits couverts par cette garantie. Les réparations
ou les remplacements de produits couverts par cette garantie sont
garantis pour le reste de la période de garantie initiale.
Le manufacturier ou ses représentants de service autorisés doivent
exécuter les réparations sous garantie. Toute réparation du produit
effectuée par un représentant de service non-autorisé annulera
cette garantie. Les droits couverts par cette garantie sont limités à
l'acheteur initial et ne peuvent être transférés aux propriétaires
subséquents.
Cette garantie remplace toutes autres garanties, expresses ou
implicites, incluant les garanties de valeur marchande ou
d’adaptation à un usage particulier. Certains États ou provinces ne
permettent pas d’exclure ou de limiter les dommages consécutifs
ou indirects, donc les limitations ci-dessus pourraient ne pas
s’appliquer.
SPIN HANDLE TORQUE
EXTENSIONS(IN FRENCH)
TKSH6
(IN FRENCH)
Innovative. Handles spin on roller bearings independently
of extension for holding more naturally and performing
quicker.
Wide application range. Six-piece set covers just over 95%
of vehicles on the road.
Lightweight. Unlike most limiting extensions, the TKSH6
are made from durable CRO-MO allowing them to stay
lightweight even with added features.
ALWAYS USE A TORQUE WRENCH AFTER USE TO
REACH FINAL TORQUE SPEC.
1903098-14
Because the purpose of these tools is to limit torque, some
extensions can be used for other applications within 5 ft. lbs.
above their rating.
70: Use on 70 ft. lbs
80: Use on 80 ft. lbs.
90: Use on 90 ft. lbs. & 95 ft. lbs.
100: Use on 100 ft. lbs. & 105 ft. lbs.
120: Use on 120 ft. lbs. & 125 ft. lbs.
140: Use on 140 ft. lbs.
Always calibrate (page 2) before use.
Page 6
SPIN HANDLE TORQUE
EXTENSIONS(IN FRENCH)
TKSH6
1903098-14
The TKSH6 Spin Handle Torque Limiting Extension Set is calibrated from the factory and therefore it
is static. Because the torque level is determined when machined, it cannot change and the user
must calibrate how they use, and what they use with the extensions below to obtain the desired
torque level.
Use a torque wrench with the adapter to torque a lug nut to the level you wish to limit torque to.
Mark with chalk or a paint pen on the lug nut and the face of the hub or wheel at the same location.
Remove the lug nut with a breaker bar. Select the TKSH6 extension whose rating matches closest to
the level you torqued the lug nut to. Install your impact socket and attach to your impact gun.
Set your impact to the middle power level and install the lug nut on with the torque limiting extension
until it appears to stop rotating (usually 1-2 seconds). Visually check if the marks on the lug nut and
hub or wheel face align. If the mark is not rotated far enough, remove the lug nut, increase the power
level and perform the test again until the power level of your impact reliability hits the mark you made.
If the mark rotates too far do the opposite. Once determined, always use this air pressure and power
setting.
If in the less common instance that your impact gun at its lowest power setting is too high, or at the
highest power setting too low, and you are still unable to align your test marks closely enough and
adjusting air pressure supply is not an option consider these solutions:
A) Modify the mass of your extension. This can be done by choosing a different impact socket, for
instance deep vs. shallow. More mass will increase the calibration torque level of the whole tool.
B) Use a different impact gun if available. Power level has some effect, but IPM (impact per minute)
is the primary determinant of how close the extension will perform to its stated value from the
factory. An impact gun with a higher IPM will not allow a torque limiting extension to rotate back
and fight against the impact gun.
C) Ensure you are not over impacting the extension (i.e longer than around 2 seconds).
Depending on the impact gun and/or socket you need to use to get the job done on a daily basis, if
the torque range you wish to hit is still not obtainable, you may need to use a different torque
extension from the set. For instance, if through testing you determine your 90 ft. lb. stick is always
10 ft. lbs. low with your set-up it would not be uncommon to need to use the 100 ft. lb. extension from
then on, as long as the results are consistent. Consistent repeatable results are the intention of the
product in order to ensure it does not go over a certain value. Reaching specific torque values is meant
to be done with a torque wrench.
As mentioned above, this set is designed solely to LIMIT torque. It is not designed to hit a specific
torque range of your choosing, this task should always be done with a torque wrench. For example,
if you're wishing to torque a vehicle's lug nuts to 100 ft. lbs., the 80 or 90 ft. lbs. extension might be a
good choice to quickly install the wheels on the car and ensure in doing so, you will not exceed the
recommended torque level. Once the car is on the ground, torque the lug nuts to the final
100 ft. lbs. with a calibrated torque wrench.
Using this tool as the only method to fasten bolts and nuts with a required torque value is not
recommended and the user does so at their own risk.
TKSH6 TORQUE LEVELS WITH YOUR IMPACT
(IN FRENCH)
Explanation
1.Torque
2. Test
3. Adjust
4. Select
5. Always
Finish With
A Torque
Wrench
1
2
3
4
5 6
Page 7
903
SPIN HANDLE TORQUE
LIMITING EXTENSION SET
TKSH6
PARTS BREAKDOWN
Index
No.
1
2
3
4
5
6
TKSH6-01
TKSH6-02
TKSH6-03
TKSH6-04
TKSH6-05
TKSH6-06
1
1
1
1
1
1
75 ft. lbs. Spin Torque Extension
80 ft. lbs. Spin Torque Extension
90 ft. lbs. Spin Torque Extension
100 ft. lbs. Spin Torque Extension
120 ft. lbs. Spin Torque Extension
140 ft. lbs. Spin Torque Extension
1903098-14
BLACK
YELLOW
RED
BLUE
W
H
I
T
E
G
R
A
Y
