PLD40MU
USER MANUAL
FLIP DOWN AND REMOVABLE CONTROL PANEL
4.3”
Wide Color TFT Touch Screen
REMOTE CONTROL
DIGITAL VIDEO DISC PLAYER
CONTROL PANEL USB PORT AND AUX INPUT
SD/MMC CARD SLOT
BUILT-IN MW/FM-RDS TUNER
To ensure safety while driving
and to comply with laws,
drivers should not watch video or
operate the video device while driving.
PRECAUTION
Class 1 laser product
This car multi-media player is a class 1 laser product. However
This car multi-media player uses a visible/invisible laser beam
which could cause . Hazardous radiation exposure if directed.
Be sure to operate the car multi-media player correctly as
instructed. Use of controls or adjustments or performance of
procedures other
than those specified herein may result in
hazardous radiation exposure. Do not open covers and do not
repair yourself. Refer servicing to qualified personnel.
-1-
-2-
Content
Precaution.........................................................................................
Content.............................................................................................
Installation steps...............................................................................
General knowledge about remote control...........................................
Locations and Names of controls on main unit...................................
Locations and Names of controls on remote control..........................
Same functions in any work source mode..........................................
Radio operation................................................................................
Disc/USB/card operation...................................................................
1. Loading or unloading a disc, USB or card.....................................
1.1 Loading a disc, USB
or card.......................................................
1.2 Unloading a disc, USB or card....................................................

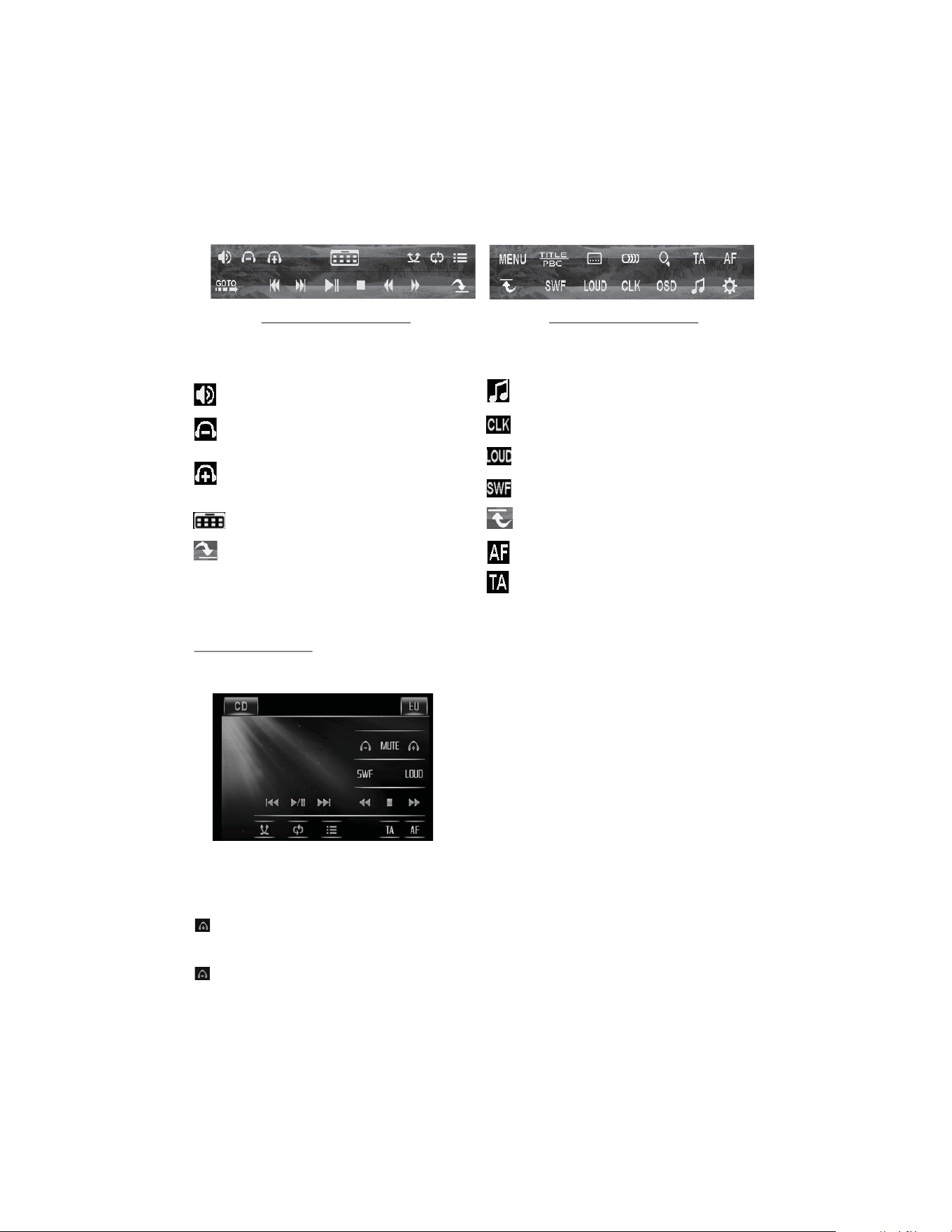

2. Popping up Function Icons-board................................................
2.1 Function Icons-board of Digital Video/VCD/MPEG4/Image
/MP3/WMA.................................................................................
2.2 CD interface..............................................................................
3. Function of controls on the touch screen/main unit/remote
control........................................................................................
* Region Code...............................................................................
*
Parental Control..........................................................................
AUX IN operation..............................................................................
External iPod operation....................................................................
Rear Vi ew Camera.............................................................................
Troubleshooting...............................................................................
Specification....................................................................................
1
2
3
7
8
9
10
13
16
16
16
17
17
17
18
19
28
29
30
31
32
33
34
-3-

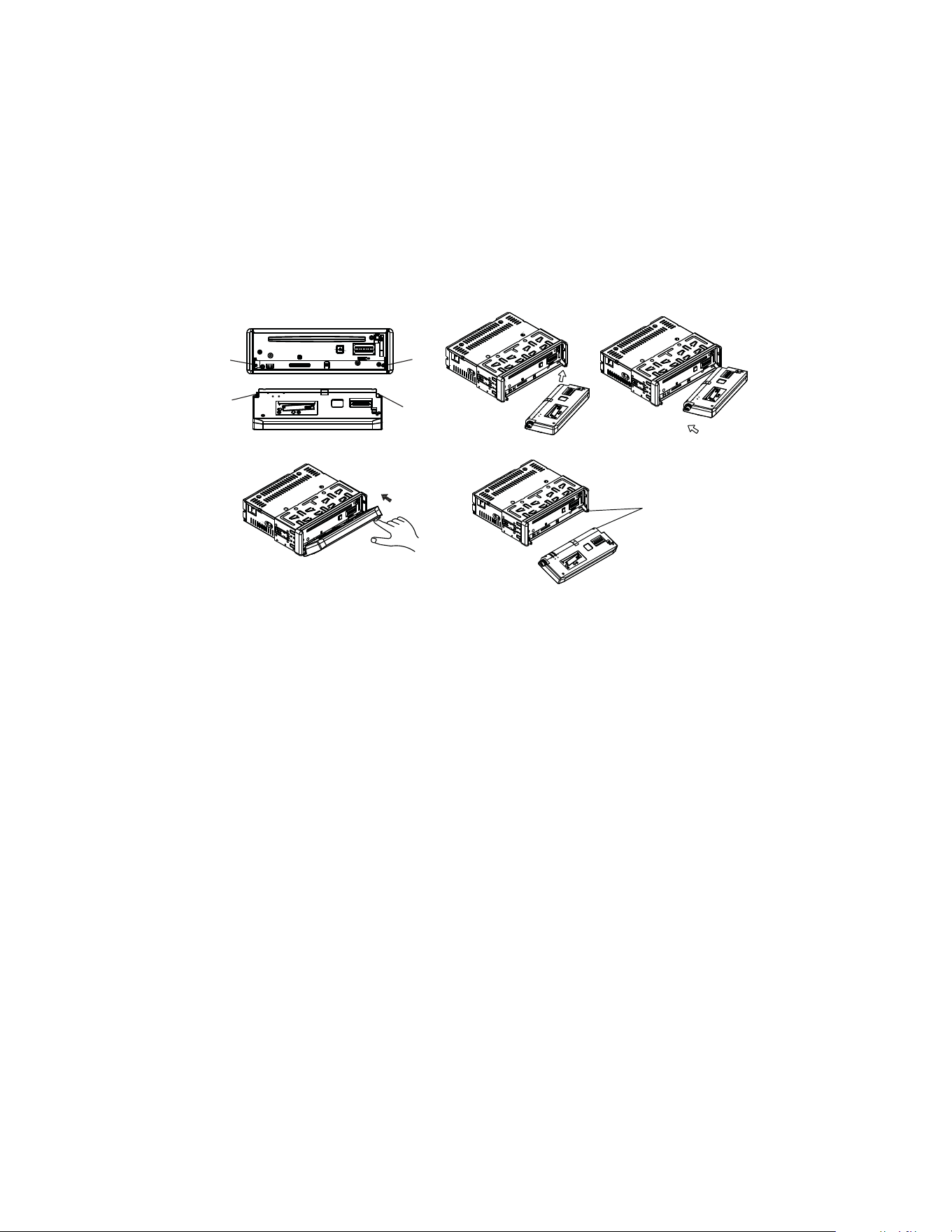

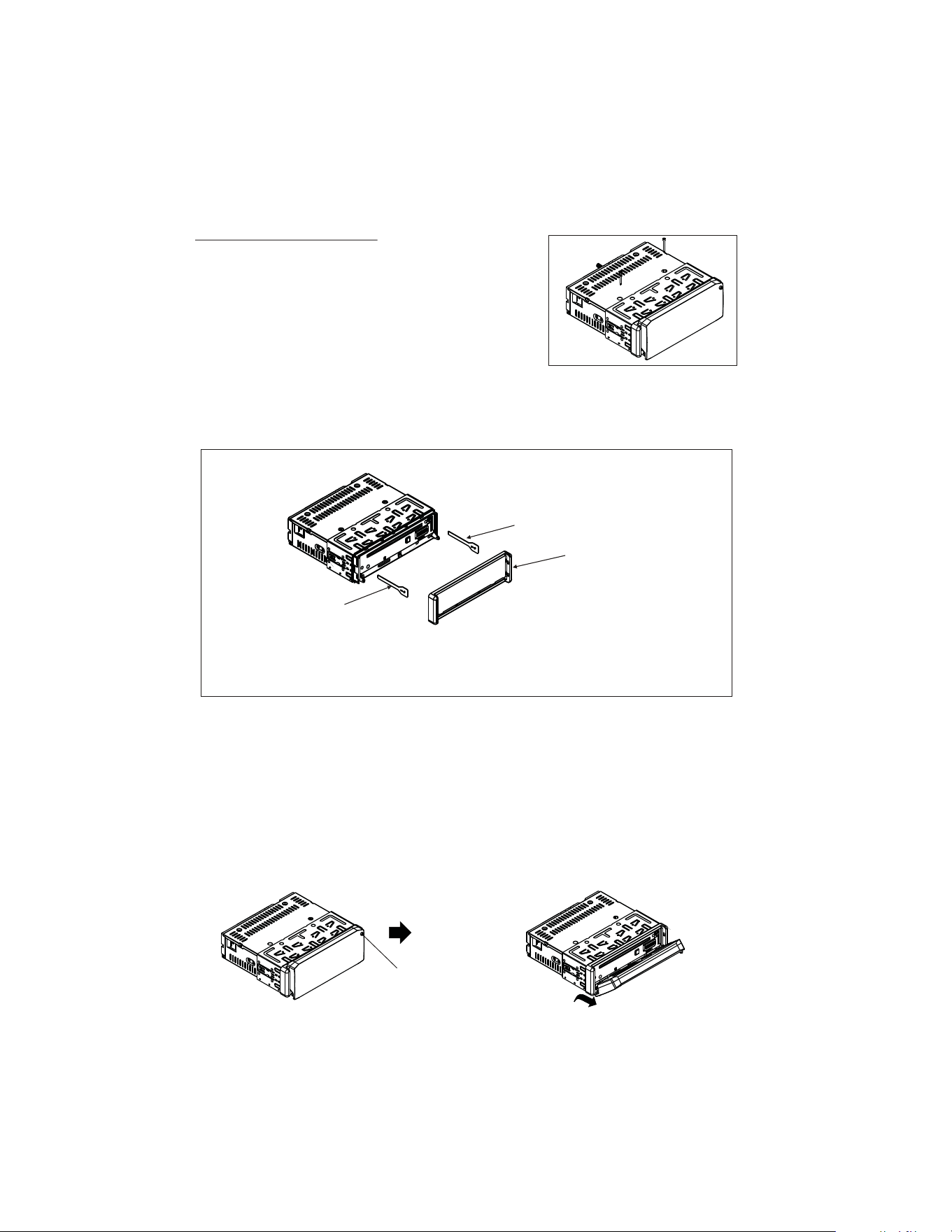

1. Remove the 2 deck screws as right;
2. Mounting Slide Bracket Housing;
1) Remove the PLASTIC FRAME from the chassis ;
2) Insert the 2 KEY PLATES into the grooves at the both sides of the chassis till
they click; then pulling the two KEY PLATES to
remove the chassis from the
Slide Bracket Housing ;
3) Mount the Sliding Bracket Housing in the position of car multi-media system and
bend some tabs of Sliding Bracket Housing to fix it.(see Installation Diagram)
3. Connecting all wires:
1) Remove control panel from chassis
as follows:
A. Press the OPEN button to flip down control panel .
INSTALLATION STEPS
KEY PLATE
PLASTIC FRAME
KEY PLATE
If you want to take CHASSIS out of the SLIDE BRACKET HOUSING , first remove
the PLASTIC FRAME of the both sides away, then insert the two KEY PLATES into
left and right sides of chassis as above illustration.
OPEN button
-4-
B. Hold the left end of the control panel to slide rightwards a little and pull it towards
you to remove it .
2) Connecting all wires according ot the wiring diagram as follows:

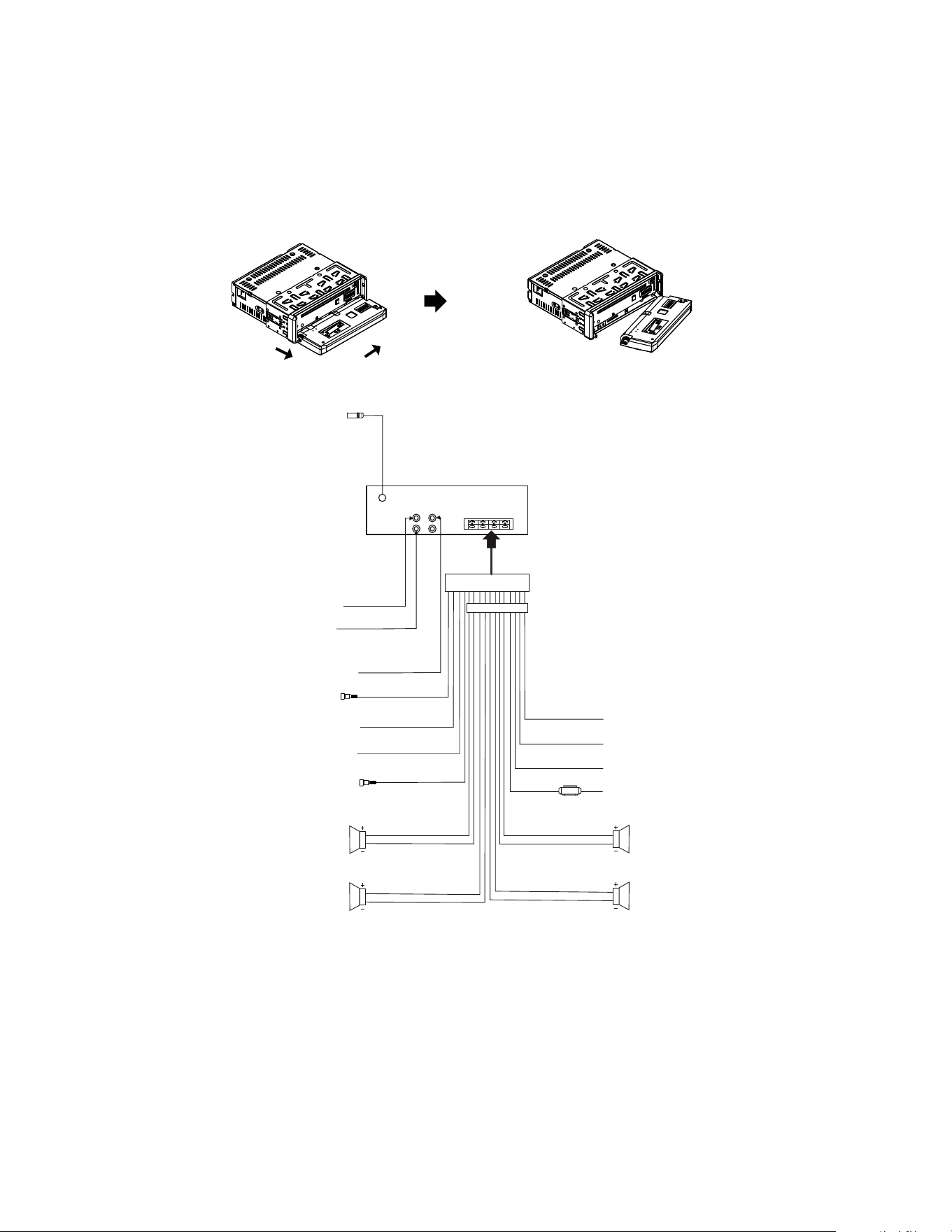

WIRING DIAGRAM
NOTE:
1. Must use 4 ohms impedance of speakers.
2. After connecting parking Line, video on screen of control panel
will be displayed only after
3. Before finishing wiring, do not attach control panel onto chassis.
applying parking brake.
1
2
IGNITION SWITCH
RED
WHITE
WHITE/BLACK
GREY
GREY/BLACK
GREEN
GREEN/BLACK
VIOLET
VIOLET/BLACK
YELLOW
CONSTANT 12 VOLTS
BLACK
GROUND(B-)
BLUE
AUTO ANTENNA
FRONT
Lch SPK.
REAR
Lch SPK.
FRONT
Rch SPK.
REAR
Rch SPK.
BROWN
(B-) PARKING BRAKE
PINK
RADIO ANTENNA JACK
(B+) 12V
REAR CAMERA SWITCH
REAR CAMERA INPUT
YELLOW
GREY
SUB WOOFER
AUDIO R OUT (red)
AUDIO L OUT (white)
VIDEO OUTPUT (brown)
FUSE
ISO CONNECTOR
-5-
3) Attach control panel onto chassis.
A. Make the right hollow of control panel aim at the right bulge of chassis, then push
and hold control panel rightwards; at one time, move the left end of control panel
towards chassis to make the left hollow
of control panel aim at the left bulge of
chassis and then release holding .
B. Flip control panel up till hearing a click sound to attach onto chassis.
* How to clean panel connector
Frequent detachment will deteriorate panel connectors. To minimize deterioration,
periodically wipe the panel connectors with a clean/soft/dry cloth .
4) Testing it for making sure that it can work properly .
4. Installing main unit according to installation diagram:
1) Insert the chassis of the car multi-media system
into the sliding metal housing.
2) Use the metal strap to fix the rear part of chassis.
* Uninstalling main unit:
1) Remove metal strap from main unit;
2) Remove plastic trim frame from main unit;
3) Insert a key plate into left and right side of main unit and draw
main unit out of
sliding metal housing.
Bulge
Hollow
Bulge
Hollow
Connector
-6-

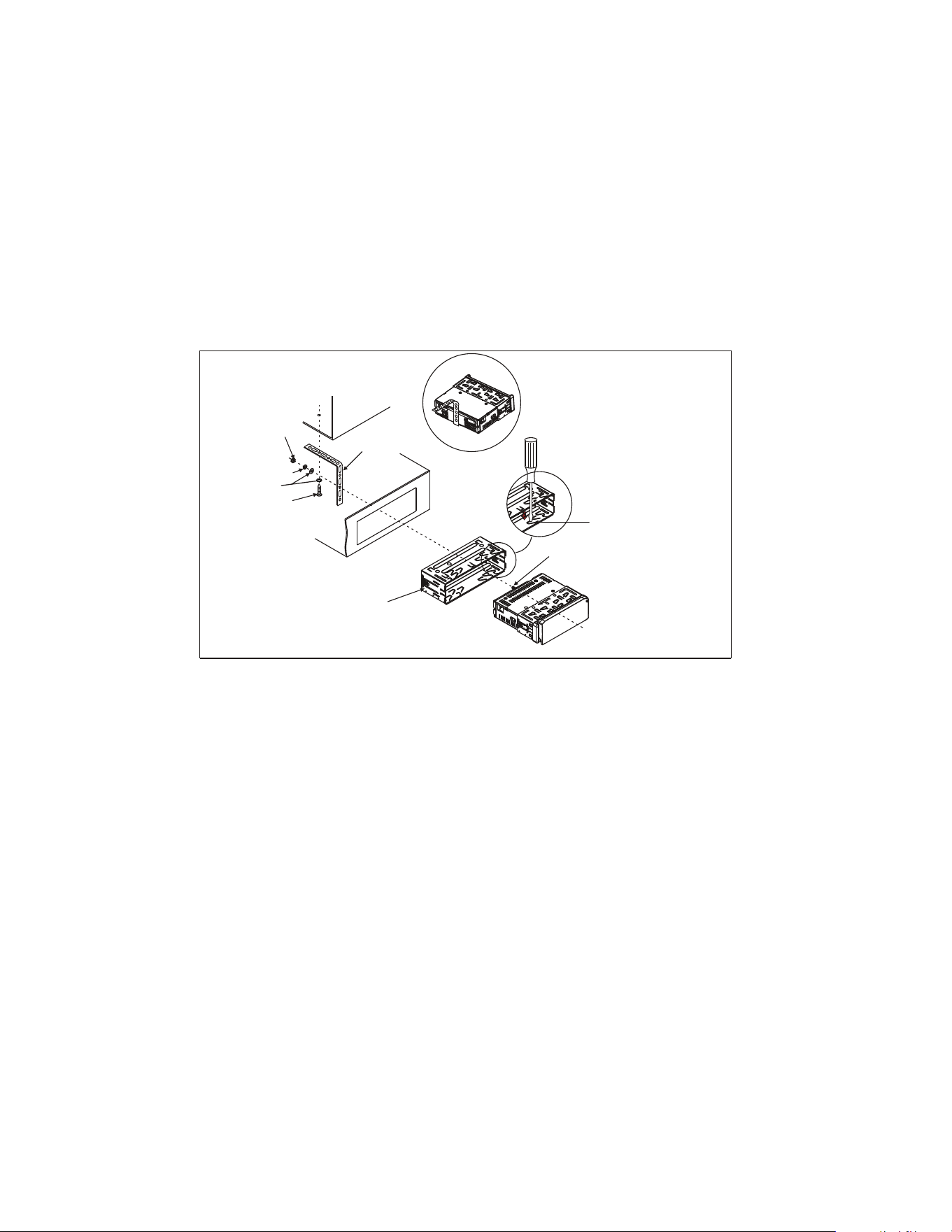

Installation diagram
HEX NUT
SPRING WASHER
PLAIN WASHER
TAPPING SCREW
DASH BOARD
METAL MOUNTING
STRAP
CONSOLE
SLIDE BRACKET
HOUSING
FIXING TAB
HEX BOLT

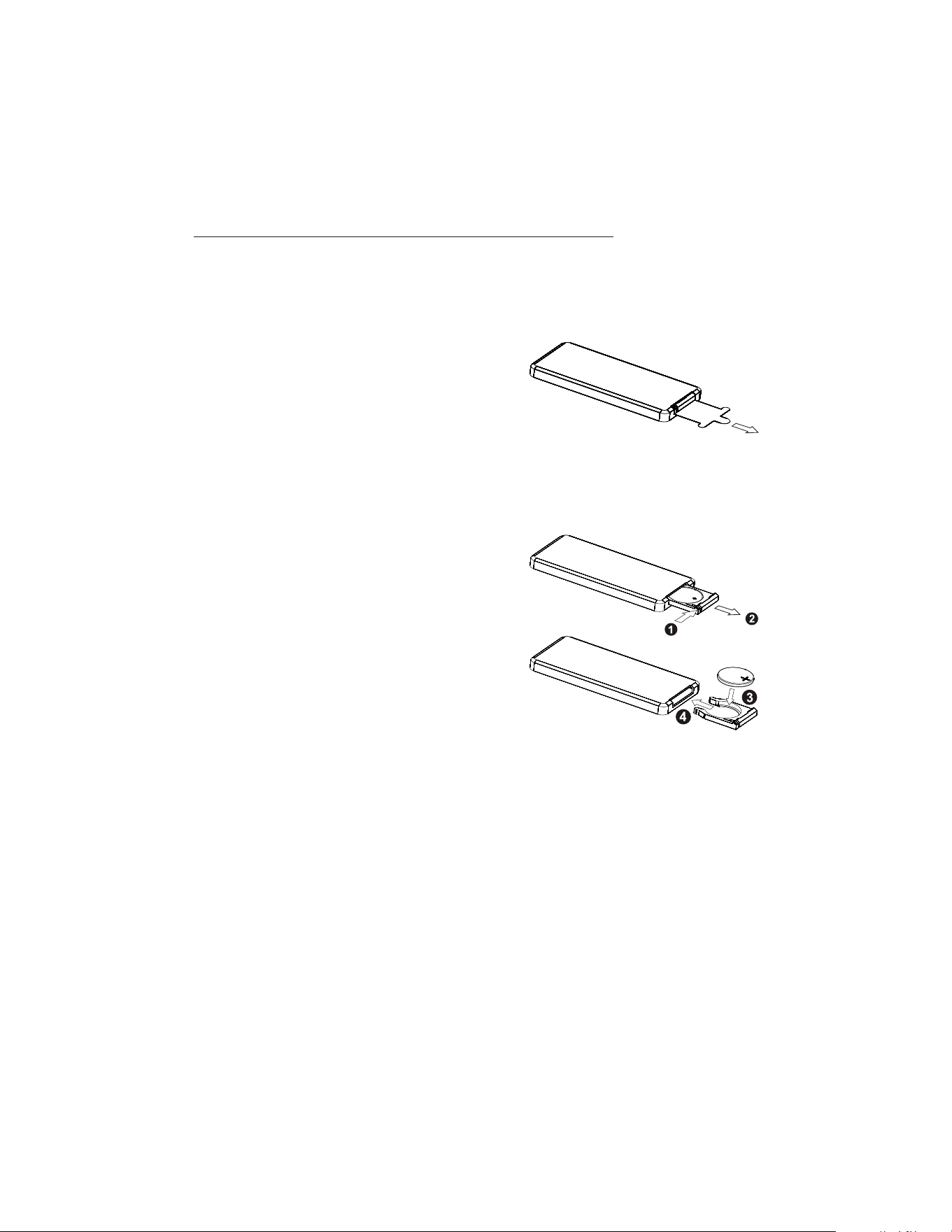

1. Removing insulating sheet
If
)
)
)
.
)
)
)
.
)
)
using remote control for the first time, you
can see an insulating sheet at the bottom
side of remote control as right.
you must remove the insulating sheet as right.
Otherwise, the remote control is disabled.
2. Replace lithium cell
If the electric energy of lithium cell is weak,
replace it.
1 Press and hold the movable block as direction
indicated by arrow 1 as right, at one time pull
cell holder out of remote control as direction
indicated by arrow 2 as right.
2 Replace the old cell by a new one with (+)
polarity side upward as right.
3 Insert the cell holder into remote control again
as right.
3 Note about
using remote control
1 You should face the emitting window of remote control towards the sensor
window of the unit.
2 Operation angle for front panel: About 30 degree
3 The distance between the emitting window of remote control and the sensor
window of the unit : <
5M .
4 Warning for lithium cells of remote control
leakage may cause damage to remote control.1 Cell
2Do not throw cells into fire, it may cause explosion.
.
3.To avoid risk of accident, keep cells out of reach of children.
GENERAL KNOWLEDGE ABOUT REMOTE CONTROL
-7-
-8-

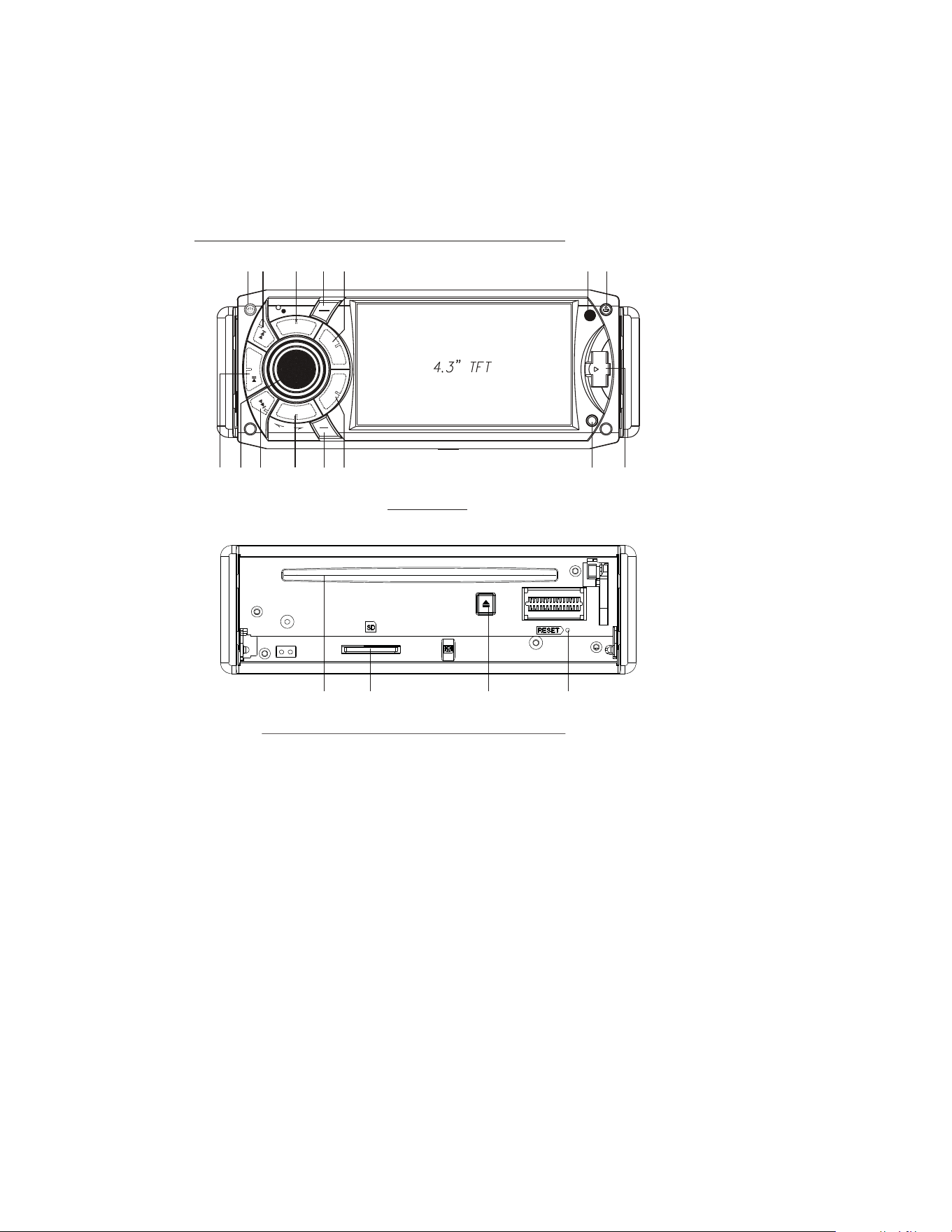

Control Panel
Front Facet of Chassis after removing Control Panel
Locations and Names of Controls on Main Unit
1. POWER BUTTON
2. >>| BUTTON
3. MODE BUTTON
4. MUTE or PTY BUTTON
5. LOUD BUTTON
6. IR SENSOR WINDOW
7. OPEN BUTTON
8. USB PORT AND COVER
9. AUX IN JACK
10. APS BUTTON
11. AF or TA BUTTON
12. BAND BUTTON
13. |<< BUTTON
14. SEL BUTTON AND VOL KNOB
15. >|| OR CH1~6 BUTTON
16. DISC SLOT
17. CARD SLOT
18. EJECT BUTTON
19. RESET BUTTON
1
8
2345 67
9101112131415
16 17 18 19
PUSH SEL
MU
PTY
MODE
/CH1~6
LOU
D
APS
BND
AF
TA
+
VOL
-
IR
OPEN
AUX
1
2
6
10
11
3
20
21
32
9
12
17
33
4
5
7
8
13
14
15
16
18
19
22
23
24
25
26
27
28
29
30
31

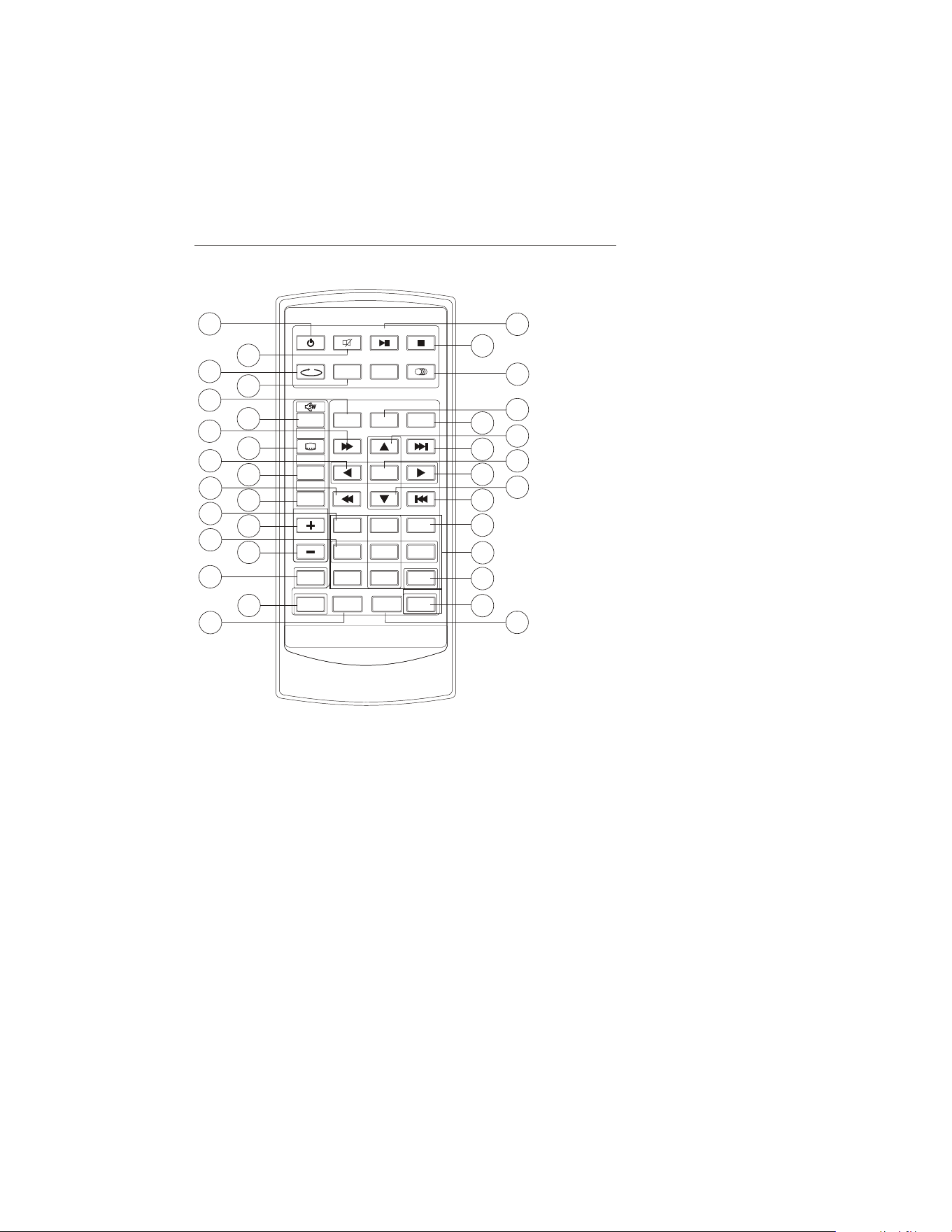

Locations and Names of Controls on Remote Control
16. VOL- BUTTON
17. SEL BUTTON
18. SETUP BUTTON
19. GOTO BUTTON
20. >|| BUTTON
21. STOP BUTTON
22. AUDIO or MO/ST BUTTON
23. EQ or LOUD BUTTON
24. CLK BUTTON
25. ^ BUTTON
2. > BUTTON
29. V BUTTON
30. |<< BUTTON
31. INT BUTTON
32. NUMBER(0~9) BUTTON
33. +10 BUTTON
34. AF BUTTON
35. TA
BUTTON
26. >>| BUTTON
27. ENTER BUTTON
8
1. POWER BUTTON
2. MUTE BUTTON
3. REPEAT BUTTON
4. ZOOM BUTTON
5. MODE BUTTON
6. MENU or SW BUTTON
7. >> BUTTON
8. SUBTITLE or LO/DX BUTTON
9. < BUTTON
BAND or OSD
<< BUTTON
12. A/PS or TITLE/PBC BUTTON
13. TO P BUTTON
14. VOL+ BUTTON
15. RDM
BUTTON
10. BUTTON
11.
-9-
34
35
MENU
MENU
SETUP
SETUP
ENTER
ENTER
1
2
3
4
5 6
7
8
9
0
VOL
SEL
SEL
A/PS
A/PS
MUTE
STOP
STOP
MO/ST
MO/ST
POWER
POWER
CLK
PLAY/PAUSE
PLAY/PAUSE
EQ
BAND
BAND
VOL
OSD
TITLE/PBC
TITLE/PBC
LO/DX
GOTO
+10
+10
TOP
INT
RDM
REPEAT
MODE
TA
AF
ZOOM
-10-
Same functions in any work source mode
1. POWER button or OFF icon
In power off mode, pressing POWER button on remote control or pressing POWER button on
control panel powers on main unit.
In power on mode, pressing POWER button on remote control or pressing POWER button on
control panel or touching OFF icon on source menu(see Source menu fig.on next page) powers
off main unit.
2. VOL knob & VOL+/VOL- buttons
To adjust volume level, rotate VOL knob on control panel or press or hold VOL+ or
VOL- button
on remote control.
3. SEL button
To switch between BASS,TREBLE,BALANCE, FADE,COLOR,BRIGHTNESS,CONTRAST, TINT
and VOLUME, briefly and repeatedly press SEL button.
After switching on the desired mode above, rotate VOL knob or press VOL+/VOL- buttons to set it.
To switch between REG, PI, TA, AF, LOUD, SWF, EQ, DX/LOCAL(in radio mode), STEREO/
MONO(in radio mode), TIME 12H/24H, CLOCK, BUZZ,EUR/USA FREQ,ANIMATION and BG,
long press SEL button to switch on REG, then briefly and repeatedly press SEL button.
After
switching on the desired mode above, rotate VOL knob or press VOL+/VOL- buttons to set it.
4. MUTE button
To switch MUTE mode on or off, press MUTE button on remote control or press MUTE button on
control panel.
5. EQ button
To select a desired preset EQ mode from JAZZ, CLASSIC, POP, ROCK and USER, press EQ
button on remote control continuously.
6. LOUD button
To switch on or off LOUD mode, long press LOUD button on remote control or press LOUD button
on
control panel.
7. SW button
To switch on or off SUBWOOFER mode, long press SW button on remote control.
8. CLK button
Press CLK button on remote control to display clock time .
9. MODE button and source menu
To switch work source
between RADIO, DISC(after inserting a disc), USB(after inserting a USB
storage), CARD(after inserting a card) and AUX , press MODE button on remote control or press
MODE button on control panel continuously.
During disc(non-CD)/USB/card playback, touch screen to pop up Function Icons-board and then
touch the icon in the Function Icons-board to enter the source menu(refer to Disc/USB/Card
Operation) .

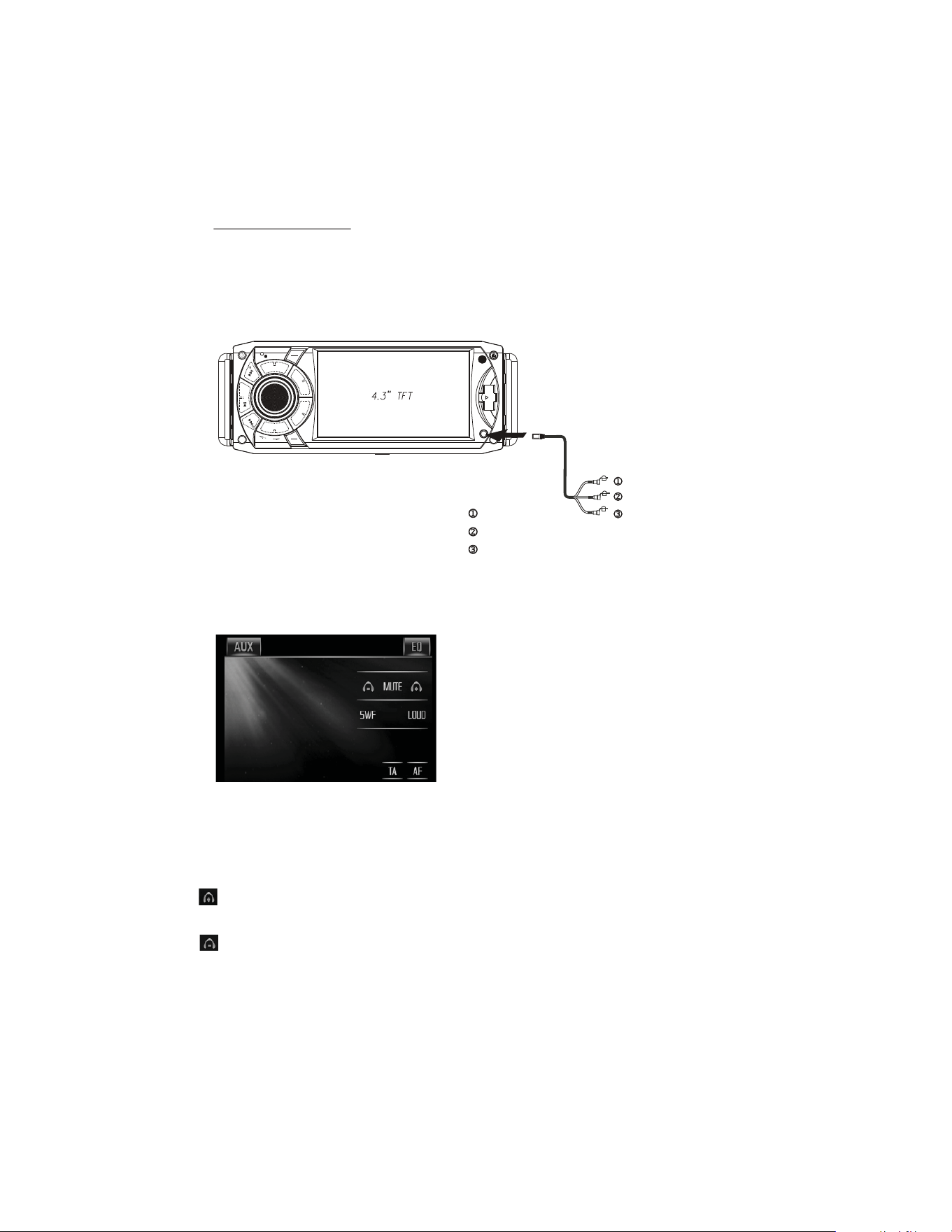

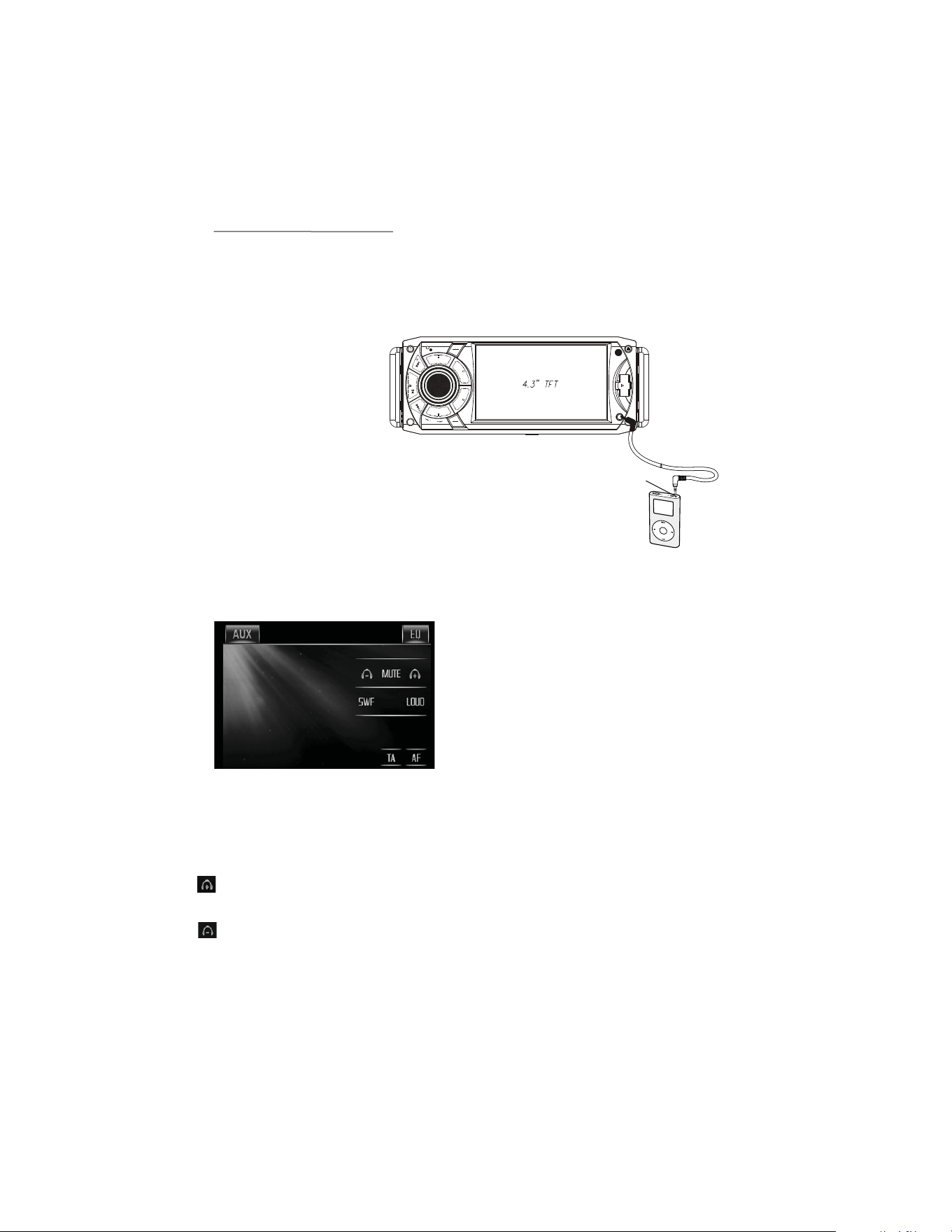

During AUX playback, touch screen to pop up AUX interface and then touch AUX icon to enter the
source menu(refer
to AUX Operation).

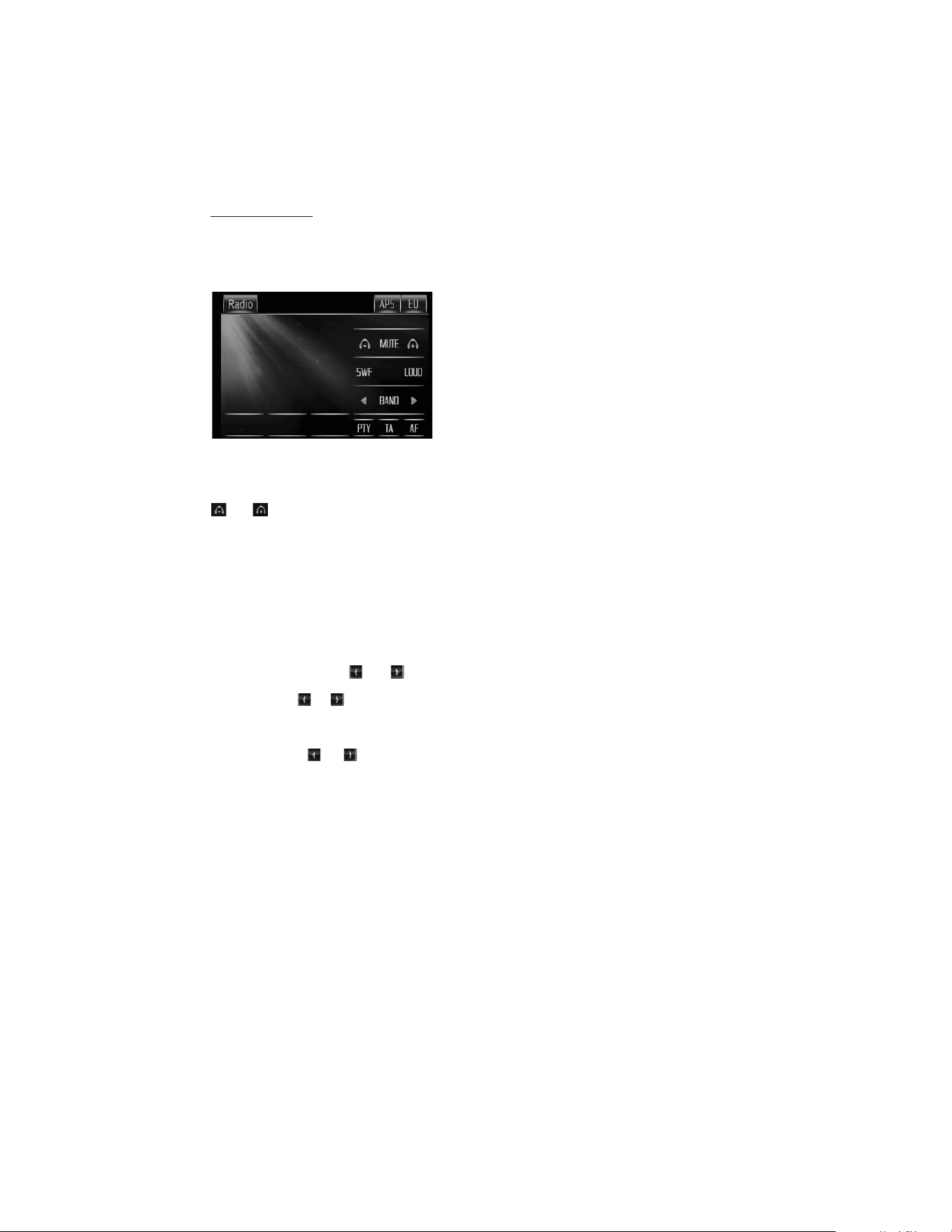

In radio or CD mode, touch Radio or CD icon to enter the source menu (refer to Radio Operation
and Disc/USB/Card Operation).
-11-

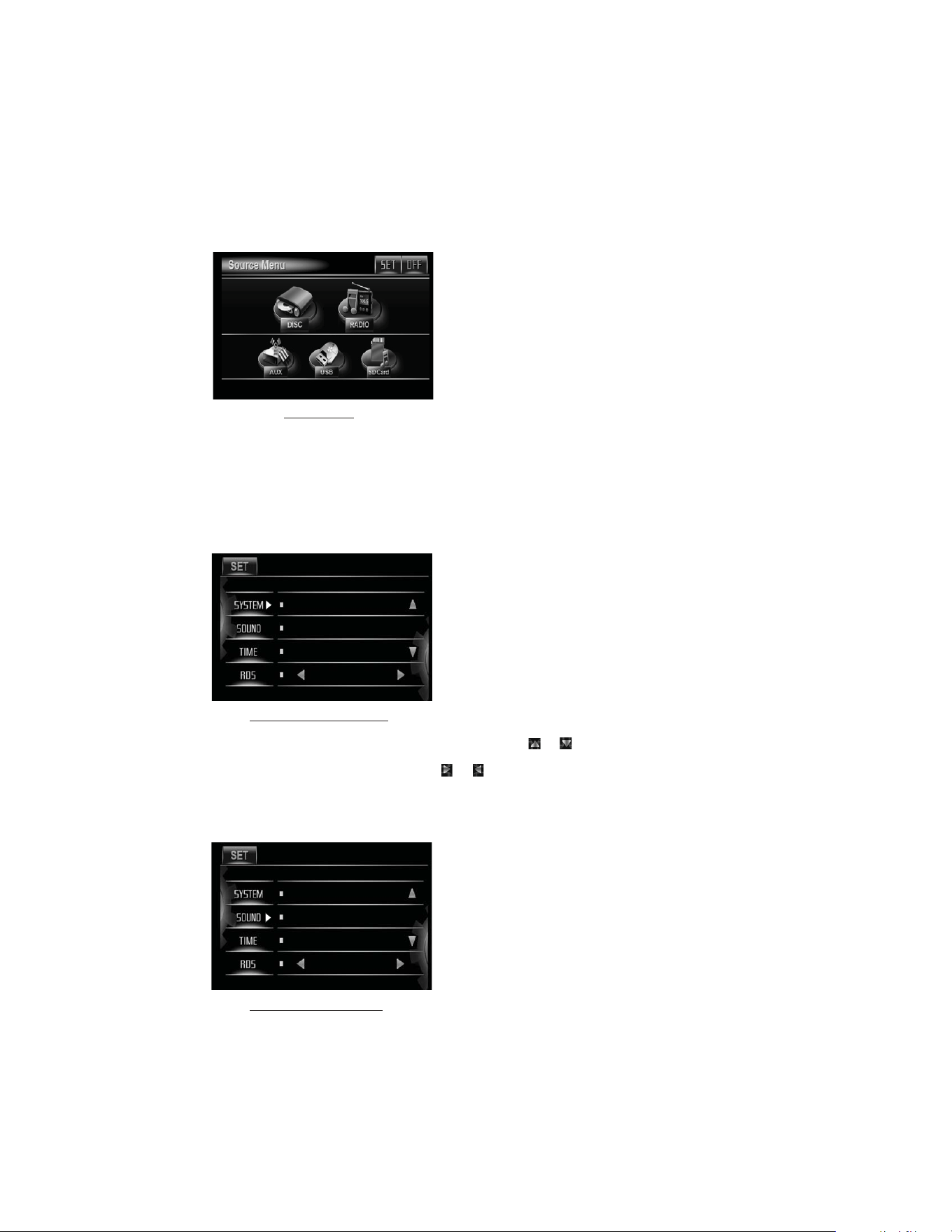

The source menu displays as follows:
In source menu, touch one icon of RADIO, DISC, AUX, SD CARD and USB to enter one work
source of RADIO, DISC, AUX, SD CARD and USB.
10.SET icon
1) SETTING SYSTEM
In source
menu, touch SET icon to display SYSTEM page of SET menu as follows:
In the SYSTEM page of SET menu, repeatedly touch the or icon to highlight one setting
item of BRIGHTNESS, CONTRAST, COLOR, TINT, ANIMATION and WALLPAPER. After high-
lighting a desired setting item, touch the or icon to set it.
2) SETTING SOUND
In SET menu, touch SOUND icon to display SOUND page of SET menu as follows:
Source Menu
System page of SET menu
Sound page of SET menu
BRIGHTNESS
CONTR AST
COLOR
15
TREBLE
BASS
BALANCE
+03
In the SOUND page of SET menu, repeatedly touch the or icon to highlight one setting
item of TREBLE, BASS, BALANCE, FADE, SUBWOOFER, LOUDNESS, RADIO LOC/DX(entering
Source Menu in radio mode), RADIO STEREO(entering Source Menu in radio mode) and BUZZER
ON/OFF. After highlighting a desired setting item, touch the or icon to set it.

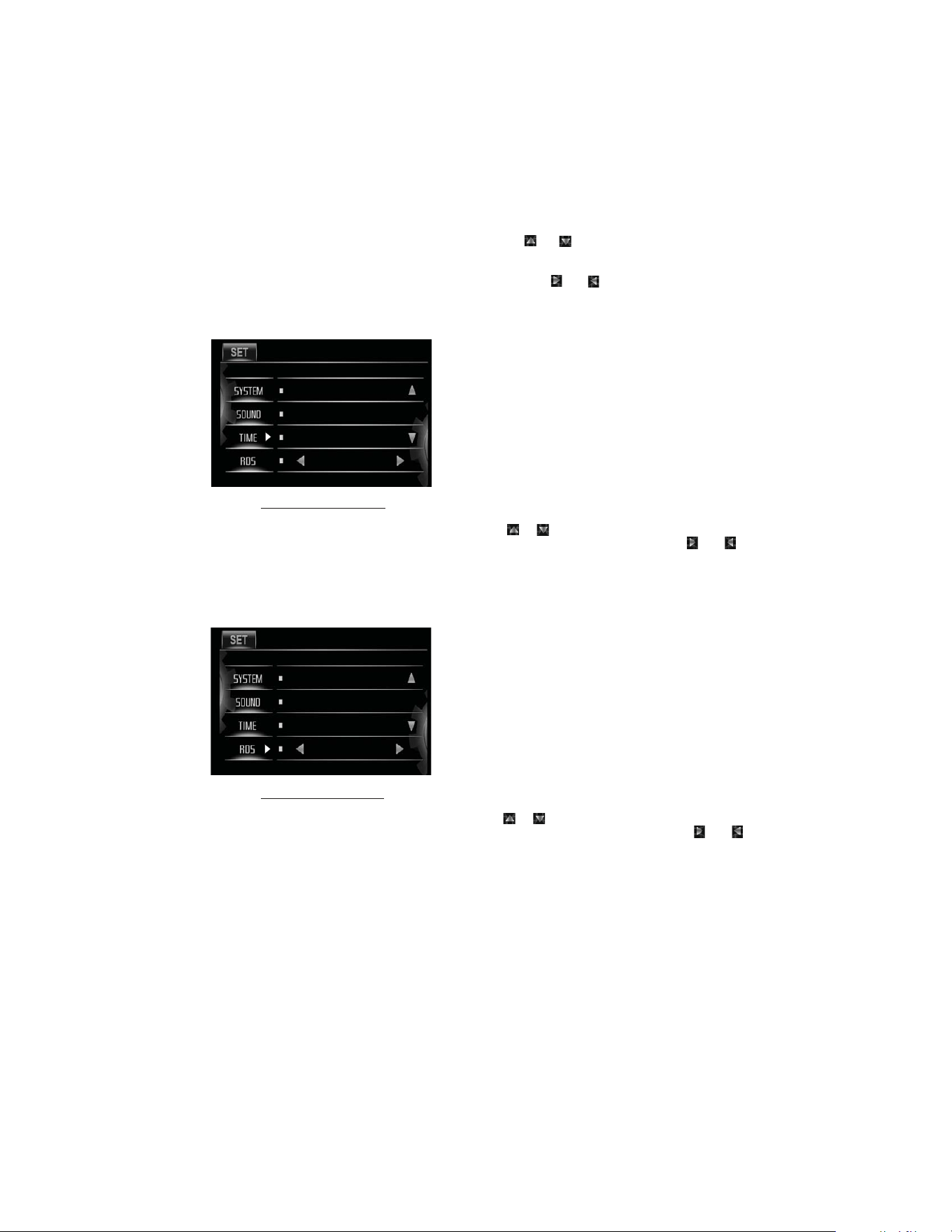

3) SETTING TIME
In SET menu, touch TIME icon to display TIME page of SET menu as follows:
In the TIME page of
SET menu, repeatedly touch the or icon to highlight one setting item
of HOUR, MINUTE and 24H/12H. After highlighting a desired setting item, touch the or
icon to set it.
4 ) SETTING RDS
In
SET menu, touch RDS icon to display RDS page of SET menu as follows:
In the RDS page of SET menu, repeatedly touch the or icon to highlight one setting item
of REGION and PI SOUND/MUTE. After highlighting a desired setting item,
touch the or
icon to set it.
After finishing setting, touch SET icon to return back to normal playback.
11.OPEN button
Press OPEN button on control panel to flip down the control panel, then hold the left part of the
control panel to push it rightwards and pull it to you to remove it.
12.RESET button
When LCD displays wrongly or some buttons are not available or sound is distorted, press OPEN
button to flip down the control panel, then remove it as above, then
use the sharp end of a pointed
object to press RESET button to reset the program to zero.
Ti me page of SET menu
-12-
RDS page of SET menu
HOUR
MINUTE
24H/12H
08:13AM
REGION
PI SOUND/MUTE
MUTE
-13-
Radio Operation
1. To enter RADIO mode(MODE button or RADIO icon)
When you use MODE button or source menu (tapping RADIO icon) to enter RADIO
mode, it will display radio interface as follows:
* Some icons on radio interface correspond with the buttons
on remote control or control
panel as follows:
MUTE icon = MUTE button
& icons = VOL- and VOL+ buttons = VOL knob
SWF icon : To switch SUBWOOFER
mode on or off.
LOUD icon : To switch LOUD mode on or off.
EQ icon = EQ button
APS icon = APS button = A/PS button
Radio icon: To enter source menu.
2. To switch between bands (BAND)
The BAND icon or button can switch between bands of FM1, FM2, FM3, MW1 and MW2,
and the word FM1,FM2,FM3,MW1 or MW2 will be displayed on screen.
3. To search for a station ( and icons or v and ^ or
|<< and >>| buttons)
1) Long touching or icon or long pressing v or ^ button on remote control or long
pressing |<< or >>| button on control panel can automatically search down or up for an
available station beginning from
the current frequency.
2) Briefly touching or icon or briefly pressing v or ^ button on remote control or
briefly pressing |<< or >>| button on control panel can manually search down or up
for a your desired station
beginning from the current frequency.
4. To preset and scan all memory stations (APS icon or A/PS and APS buttons)
1) When long touching APS icon or long pressing A/PS button on remote control or long
pressing APS button on control panel, the radio searches from the
lowest frequency
and checks the signal strength level until 1 cycle search is finished, and the 6 strongest
stations are preset to corresponding preset number memory bank for the current band.
The presetting function can be implemented in selected FM or MW band.
(It can presets
3x6 stations for FM and 2x6 stations for MW in all)
2) When briefly touching APS icon or briefly pressing A/PS or APS button, the radio scans
for each preset station in FM or MW band from NO.1 bank, each preset station
broad-
casts for 5 seconds. After finishing a circle of scanning, it will resume broadcasting the
station in NO.1 bank.
NOTE: In FM band, FM1,FM2 and FM3 are preset and scaned as one band at a time;
In MW band, MW1
and MW2 are preset and scaned as one band at a time.
87.50
87.50
FM1
MHZ
DX
DX
ST USER
ST USER
1 2
3
88.50
88.50 90.00 98.00
65
4
80.50
80.50
103.00
103.00106.00
-14-
5. To preset and listen to a memory station(1~6 icons or 1~6 buttons or CH1-6 button )
1) Long touching one of 6 number(1~6) icons or long pressing one of 6 number(1~6)
buttons can preset the current broadcasting station of the current band in the number
memory bank; .
2) Briefly touching one of 6 number(1~6) icons or briefly pressing one of 6 number(1~6)
buttons can listen to the memory station in the current band preset in the number
memory bank.
* CH1-6 button:
1)To preset a station in a
memory bank with CH1-6 button, first select a desired
band; then press CH1-6 button to select a desired memory bank; and then search
for a desired station; finally long press CH1-6 button to store the station in the
memory bank.
2)To listen to
a preset station with CH1-6 button, first switch on a desired band, then
continuously press CH1-6 button highlight and listen to it.
6. To switch on between stereo and mono mode (MO/ST button)
Press MO/ST button on remote control to select STEREO or MONO mode for
FM band.
When the STEREO mode is activated, it can get better audio effect; when the
MONO mode is activated, it can get clearer audio signal.
7. To switch on between local and distance mode (LO/DX button)
Press LO/DX button to turn LOC on
to tune for local stations with weak interference;
Press LO/DX button to turn DX on to tune for distance stations with stronger signal.
8. To search for a RDS station that is broadcasting a typed program (PTY)
Continuously touching PTY icon on touch screen or continuously
long pressing PTY
button on control panel switches between the program types such as: NEWS ...and
so on.
After selecting a desired program type, no operation for a while, it displays PTY
SEEK and automatically searches for a station that is
broadcasting the selected
type of program.
If the station that is broadcasting the selected type of program does not exist, it will
display NO PTY and return back to the previous normal station.
9. To automatically alternate a stronger signal of frequency
for the current RDS station(AF)
During broadcasting a typed program of a RDS station, use the AF icon in the RADIO
interface or SEL and VOL buttons to set AF mode on or long press AF button on control
panel or AF button on
remote control to switch on AF mode, then AF icon flashes on
screen.
After switching on AF mode, the radio checks the signal strength of AF(alternate
frequency) all the time. Whenever a new AF is stronger than the current frequency,
It switches over to the AF for a short time, and the AF icon is light on screen(not
flash).
* In FM mode, when switching on AF mode, the radio auto searches for or preset
only those RDS stations.
* In FM
mode, when switching on AF and TA modes, the radio auto searches for
only those RDS stations broadcasting traffic announcement.
10. REGION mode
use the RDS page of the SETUP MENU or the SEL and VOL buttons to set
REGION mode on or off.
In REGION on mode, when switching on AF mode, the radio can’t switch over to
those AF stations which have a different regional program content.
In REGION off mode, when switching on AF mode, the radio can switch over to
those AF
stations which have a different regional program content.
11. PI mode
use the RDS page of the SETUP MENU or the SEL and VOL buttons to set PI
SOUND or PI MUTE mode.
In PI SOUND mode, when switching on AF mode, if a car
cruises that critical area
back and forth, an oscillation phenomenon can be occurred, because the different
PI code can be receive from a same AF. when the different PI sound (DIP) is heard
once in a while, the different PI sound will be
heard for less than 1 second.
In PI MUTE mode, when switching on AF mode and under above same situation,
a mute sound will be heard for less than 1 second.
12.
To automatically search for traffic announcements (TA)
In any mode, use the TA icon or SEL and VOL buttons to set TA mode on or press TA
button on control panel or long press TA button on remote control to switch on TA mode,
then TA: ON will display on screen for a while and begin to search for those RDS radio
stations transmitting traffic announcement.
When an RDS radio station transmits traffic announcement and is received by the
radio, temporarily switch the current work source to an RDS radio station broad-
casting traffic announcement, and TRAFFIC will be displayed on screen.
When the traffic announcement is over,
it will return back to previous work source.
-15-

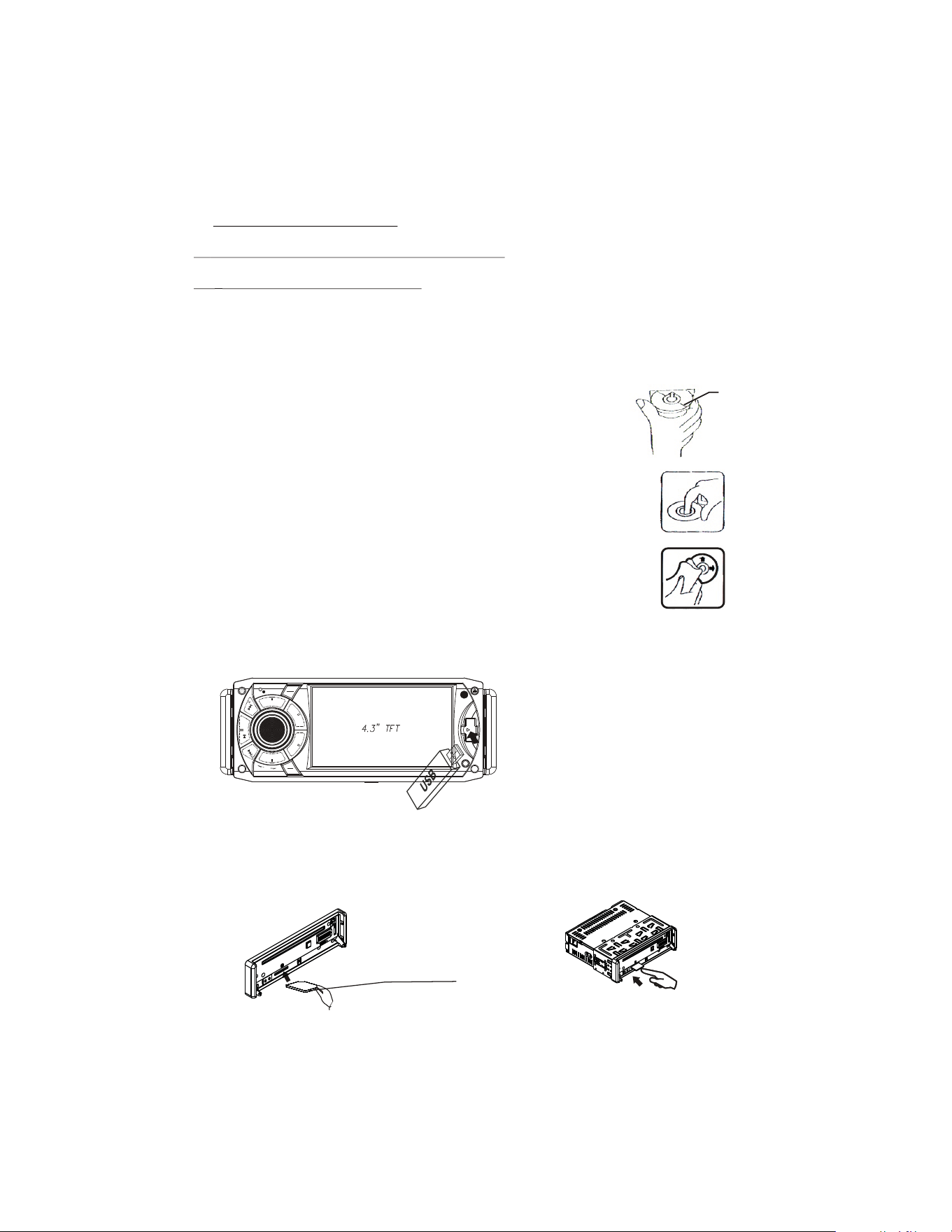

Disc/USB/Card Operation
1. Loading or unloading a disc, USB or card
1.1 Loading a disc, USB or card
To play files in a disc, press OPEN button on control panel to flip down the control
panel, then insert a disc with label surface up
into disc slot, then flip up the control
panel and attach onto chassis till hear a click sound, finally it will automatically play.
* CAUTION OF USING DISC
1) Handle a disc by its edge, do not touch the surface of play side.
2) Before inserting disc, wipe
the disc outwards from the disc
center with a clean, soft, dry, lint-free cloth. Do not use solvents
/thinner such as petrol/benzine, cleaner.
3) After taking a disc out of disc slot, put the disc inside disc case to
keep it clean.
4)
Do not stick paper or tape on the disc surface of play side. If
there is glue (or analog) on the disc surface, must wipe it up
before using.
To play files in a USB, firstly open USB port cover, then insert USB
storage into
USB port, and then it will play files in the USB automatically.
To play files in a card, firstly press OPEN button to flip down control panel, then
hold the left part of the control panel to push it rightwards and pull
it to you to
remove it, and then insert the card into card slot till hear a click sound, and then
attach the control panel onto chassis again, by now it will play files in the card
automatically .
Label
surface up
-16-
Label side
facing upward
Press in till heard a “CLICK”
PUSH SEL
MU
PTY
MODE
/CH1~6
LUD
O
AP
S
BND
AF
TA
+
VOL
-
IR
OPEN
AUX
1.2 Unloading a disc, USB or card
To unload the disc in disc slot, use STOP button to stop playback and then press
OPEN button to flip down the control panel, then press EJECT button to eject disc,
then remove it.
left
right
*
During MP3/WMA playback, the information of file, folder, title, artist and album
will be scrolling on LCD display. As long as the current playing MP3/WMA music
contains relevant ID3 tag information in version 1.0/2.0 format, the 3 items
underlined above will be
scrolling on LCD display; otherwise, they will not.
* There is ESP function for all formats of discs.
2. Popping up Function Icons-board
2.1 Function Icons-board of Digital Video/VCD/MPEG4/Image/MP3/WMA
During Digital Video/VCD/MPEG4/Image playback, tapping any place on touch
screen can pop up Function
Icons-board 1 as next page, then tap icon to pop
up Function Icons-board 2 as next page.
During MP3/WMA playback, tapping any place except folder area, track area and
MP3/WMA&Image&MPEG4 icons can pop up Function Icons-board 1 same as
one
of Digital Video/VCD/MPEG4/Image, then tap icon to pop up Function Icons-
board 2 same as one of Digital Video/VCD/MPEG4/Image.
To pull away the USB storage, use STOP button to stop playback, then you can
remove the
USB storage.
To unload the card in card slot, use STOP button to stop playback, then press
OPEN button to flip down the control panel and then hold the part of it to push
wards and pull it to you to remove it, and
then you can push the card for release
it and then pull it out of the card slot.
WMA
WMA
Mp3
Mp3
[MP3]
[MP3]
ITLE / SONG: TRACK 03 /
ITLE / SONG: TRACK 03 /
001
002
003
004
005
006
007
008
007
007
001
002
003
Folder area Track area
MP3/WMA icon Image icon MPEG4 icon
-17-
Remove the memory card
Press in till heard a “CLICK”
Function Icons-board 1 Function Icons-board 2
The Function Icons-boards display as follows:
* Some icons on the Function Icons-boards descript as follows:
: Same as MUTE button.
: Same as VOL- button or rotating
VOL knob with anti-clock wise.
: Same as VOL+ button or rotating
VOL knob with clock wise.
: Poping up source Menu.
: Poping up Function Icons-board 2.
2.2 CD interface
During CD playback, the
CD interface displays as follows:
* Some icons on the CD interface descript as follows:
CD icon : Poping up source Menu.
: Same as VOL+ button or rotating
VOL knob with clock wise.
: Same as
VOL- button or rotating
VOL knob with anti-clock wise.
MUTE icon : Same as MUTE button.
: Same as EQ button.
: Same as CLK button.
: Same as long pressing EQ button.
: Same as SW button.
: Poping up Function Icons-board 1.
:To switch AF mode on or off.
: To switch TA mode on or off.
EQ icon : Same as EQ button.
SWF: To switch SUBWOOFER mode
on or off.
LOUD : To switch LOUD mode on or off.
AF icon : To switch AF mode on or off.
TA icon : To switch TA mode on or off.
-18-
3. Function of controls on the touch screen/main unit/remote control
1. icon or button
During playback, use it to pause playback; in pause mode, use it to resume play-
back.
In CD interface, the icon displays as .
2. icon or button
During Digital Video/VCD/CD/MP3/WMA playback, tapping or pressing it pre-stop
or pause playback; in pre-stop or pause mode, use icon or button to resume
playback.
During playback, tapping or pressing it twice
to fully stop playback; in fully stop
mode, use icon or button to start playback from the beginning of the media.
During MPEG4/image playback, use icon or button to display root menu as
follows:
During MP3/WMA playback, the root menu above displays all the time.
/chapter
* Tapping folder icon, track icon or kind icon can execute the operation above.
3. / icons or buttons
During playback, continuously tapping or
icon or continuously pressing
or button can fast backwards or forwards at the following multiple of normal
When displaying root menu, use < or > button to highlight the current chapter/
track, the current folder or the kind icons.
* If there are no track for a kind icon, you can’t highlight the kind icon.
When highlighting a kind icon, press ENTER button to enter it.
When highlighting the current folder, use v or ^ button to highlight other folders
and then press ENTER button to enter it.
When highlighting the current track, use v or ^button to highlight other tracks and
then press ENTER button to play it.
* For image, after highlighting a track, press ENTER button to display only the high-
lighted track; press >|| button to display all tracks step by step from the highlighted
track.
WMA
Mp3
[MP3]
[MP3]
ITLE / SONG: TRACK 03 /
ITLE / SONG: TRACK 03 /
001
001
002
002
003
003
004
005
005
006
007
007
008
008
007
001
002
003
Folder area Track area
MP3/WMA icon Image icon MPEG4 icon
-19-
speed: x2, x4, x8, x20, x1.
During fast playback, use icon or button to resume normal playback.
For image files, no this function.
4. / icons or buttons
During playback, use one of
them to play previous or next chapter/track.
During playback, continuously long pressing or button on control panel can
fast backwards or forwards at the following multiple of normal speed: x2, x4, x8,
x20, x1.
5. Number buttons
During Digital Video/VCD(PBC OFF)/MPEG4/Image/CD/MP3/WMA playback,
use number buttons to input chapter/track SN. , then it will play or display it.
digit in s place digit
in
6. MENU icon and button
During Digital Vid eo playback, use MENU icon or button to
display the current
chapter list, then use direction buttons to select your desired chapter and then
press ENTER button to play it.
For VCD, MENU button and icon are disabled, track list is displayed on the monitor
screen by pressing TITLE/PBC
button or icon.
7. TITLE/PBC button and icon
During Digital Vid eo playback, use TITLE/PBC button or icon to display title list;
then use direction buttons to select your desired title and then press ENTER button
to open the chapter list of the title; then use direction buttons to select your desired
chapter and then press ENTER button to play.
* You can also tap a desired title and then chapter to play.
During VCD playback, use TITLE/PBC button or
icon to switch PBC mode on
or off. When PBC mode is switched on, it will play from the beginning of media till
it displays a track list. When a track list is displayed, use the number buttons to
select your desired track
to play.
the and icon
For CD, the TITLE/PBC button is disabled.
To input a chapter/track with an SN that is equal to or bigger than 10, use the +10
button to input the ten and then use 0-9 button to input the
units order.
I.e.
+10 ~ 1 = 11 (number 11 chapter/track will be displayed/played.)
During VCD playback, when it is in PBC ON mode, the number buttons are disabled.
For MPEG4/image, MENU button and icon are disabled, root menu is displayed
on the monitor screen by pressing
button or tapping icon.
For MP3/WMA, MENU button and icon are disabled, root menu displays on the
monitor screen all the time. Root menu of MP3/WMA is same as the one of MPEG4
/image.
For CD, MENU button is disabled.
For MP3/WMA/MPEG4/image, TITLE/PBC button are disabled.
-20-

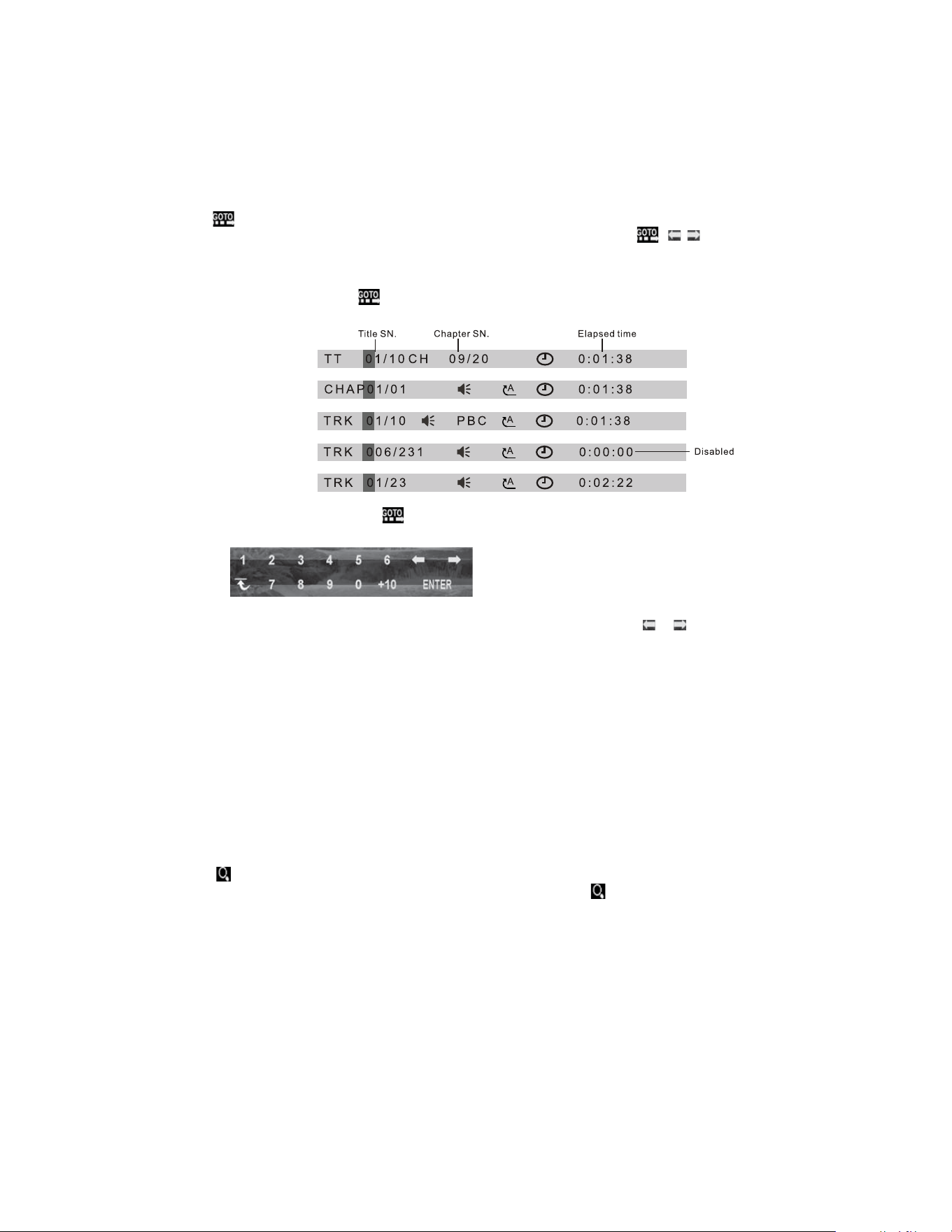

8. icon and GOTO button
For Digital Video/MPEG4/VCD/image/MP3/WMA, you can use , , ,number
and ENTER icons or GOTO, <, >, number and ENTER buttons to select a chapter
/track or from a playback
time point to play.
During playback, tap icon or press GOTO button to display changeable
playback information bar as follows:
Digital Video:
MPEG4:
VCD:
Image:
MP3/WMA:
* During playback, tapping
icon can also display the Goto Function icons-board
as follows:
When displaying the changeable playback information bar, use / icon or
< or > button to highlight title SN.(only for Digital Video) , chapter/track SN. or
elapsed time of current chapter/track(disabled for image).
When highlighting title SN. or chapter/track SN. , use number icons or buttons to
input desired SN. of title or chapter/track, then use ENTER icon or button to play
the selected chapter/track.
When highlighting elapsed time of current chapter/track(disabled for image), use
number icons or buttons to input desired playback time point for the playback time
of the whole media
for Digital Video/VCD and of the current chapter/track for
MPEG4/MP3/WMA, then use ENTER icon or button to play from the playback time
point.
9. icon or ZOOM button
During Digital Video/VCD/MPEG4/image playback, use icon or
ZOOM button
to switch zoom mode between ZOOM 2, ZOOM 3, ZOOM 4, ZOOM ½, ZOOM 1/3,
ZOOM 1/4 and ZOOM OFF.
When zooming in video/image, use direction buttons to move video/image
upwards, downwards, rightwards or leftwards.
For CD,
GOTO button is disabled.
When not zooming in image, direction buttons can switch on 4 fixed rotated
angles between >=90 deg cw, <=90 deg ccw, ^=UP-DOWN and LEFT-RIGHT.
-21-
icon and are
For CD, the ZOOM button is disabled.

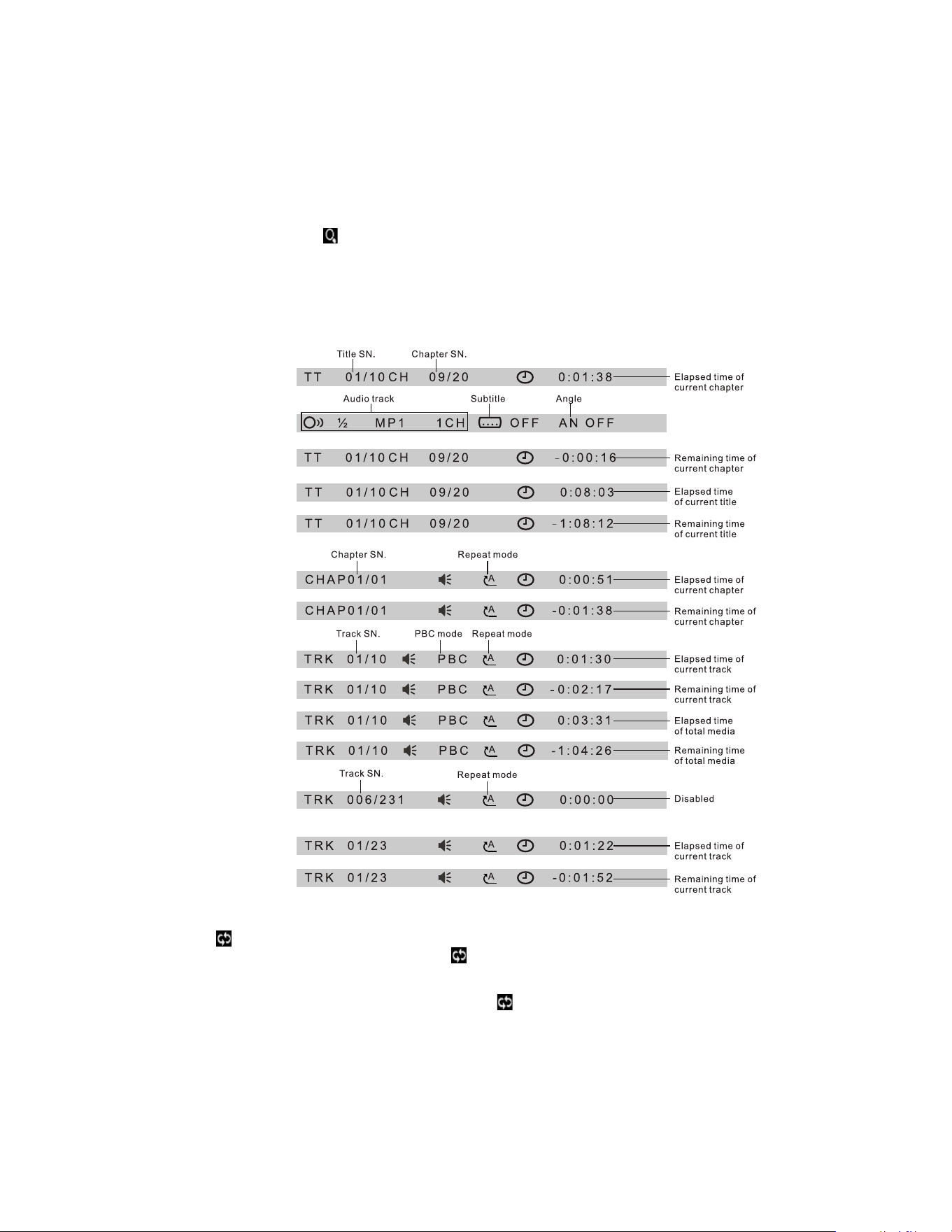

10. OSD icon or button
During Digital Video /MPEG4/Image/MP3/WMA playback, use OSD icon or
button to display playback information bar as bellows:
Digital Video:
MPEG4:
VCD:
Image:
MP3/WMA:
11. icon or REPEAT button
During Digital Vid eo playback, use icon or press REPEAT button to switch
repeat mode between REP CHAPTER, REP TITLE, REP ALL and REP OFF.
use icon or press
EEA to
E1
For MP3/WMA, ZOOM button disabled.
/VCD
For CD , OSD button is disabled.
During VCD(PBC OFF)/CD playback, RP T button
switch repeat mode between RP , REP ALL or REP OFF.
-22-
During MP3/WMA/MPEG4/image playback, use icon or press REPEAT button
to switch repeat mode between REP1,REP FOLDER(or DIR),REP ALL or REP OFF.
During VCD(PBC ON) playback, icon and REPEAT button are disabled.
2
For
MPEG4/image/VCD(PBC ON) playback, RDM button disabled.
14
During VCD playback, use button to switch audio channels between
MONO L, MONO R, MIX MONO and STEREO.
For MPEG4/MP3/WMA image, button disabled.
For VCD/MP3/WMA/MPEG4/image, button disabled.
1. icon or RDM button
During Digital Video/VCD(PBC OFF)/CD/MP3/WMA playback, tapping
icon or
long pressing RDM button switches random mode on or off.
icon and are
13. icon or INT button
During VCD/CD playback, tapping icon or long pressing INT button switches
intro mode on
or off.
For Digital Video/MP3/WMA/MPEG4/image, icon and INT button are disabled.
. icon or button
During Digital Video playback, use icon or button to switch between audio tracks
(depending on the current playing media).
/CD icon or
/ icon and are
15. icon or button
During Digital Vid eo playback, use icon or button to switch subtitle languages
on or off(depending on the current playing media).
icon
and are
For CD, the button is disabled.
-23-
16. icon or SETUP button
Use icon or SETUP button to enter Media Setup Menu for setting up all media
parameter values.
Use icon or SETUP button to display Media Setup Menu(the default page
is
SYSTEM SETUP);
Media Setup Menu has 4 pages in all. When highlighting a page, tap the aim page
icon or press > or < button to highlight another page;
After selecting a page, tapping the aim item icon or
press ^ or v button to highlight
a setup item in the selected page;
After selecting a setup item, tapping the aim value; or press > button to enter the
setup item, then press v or ^ button to select a desired
value, finally press ENTER
button to confirm it.
After finishing setting, tapping EXIT icon or press SETUP button to exit Media
Setup Menu to resume normal playback.
1) SYSTEM SETUP
TV SYSTEM
This setup item is for setting up video system in NTSC, PAL or AUTO .
If you set a non-matched video system for playing a video, the playing video will
display white-black or flash.
SCREEN SAVER
This setup
item is for switching screen saver on or off.
TV TYPE
This setup item is for setting up video display size.
Description of the 4 pages:
TV SYSTEM
SCREEN SAV ER
TV TYPE
PASSWORD
RATING
DEFAULT
SYSTEM SETUP
EXIT
-24-
(1) 4:3 PS: Choose this item when connecting a monitor with 4:3 screen. When
playing video with 16:9 size, the left and right part of video will be cut out, and
video will display in full screen.
(2) 4:3 LB: Choose this item
when connecting a monitor with 4:3 screen. When
playing video with 16:9 size, the top and bottom part of the monitor screen will
be turned into a black square .
(3) 16:9: Choose this item when connecting a monitor with 16:9 wide screen.
PASSWORD
This setup item is for locking or unlocking parental control. The default mode
is locked. The default unlocking password is 0000.
To lock or unlock parental control:
(1) Highlight PASSWORD item and then press > or ENTER button to enter it;
(2) Input password 0000;
(3) Press ENTER button to confirm, then it will unlock or lock parental control.
* eof the PASSWORD
RATING
This setup item is for setting a new rating level of parental control.
(1) First highlight PASSWORD item to see whether parental control is locked or not.
If it is in locked mode, unlock parental control referring to PASSWORD above.
(2) Highlight RATING item and press > or ENTER button to enter it, then use ^ or v
button to select your desired rating level, and then press ENTER button to
confirm.
(3) Highlight PASSWORD item again and then press > or ENTER
button to enter it,
then input password 0000, and press ENTER button to lock parental control
again.
DEFAULT
This setup item is to change all parameter back to the default factory values.
2) LANGUAGE SETUP
Remove th section of the User Manual to keep this sensitive
information confidential.
OSD LANGUAGE
AUD IO LANG
SUBTITLE LANG
MENU LANG
LANGUAGE SETUP
EXIT
-25-
OSD LANGUAGE
This item is for selecting the type of language displayed on the screen except for
subtitle language and menu language(depending on current playing media).
AUDIO LANG
This item is for selecting
the type of audio language(depending on current playing
media).
SUBTITLE LANG
This item is for selecting the type of subtitle language(depending on current
playing media).
MENU LANG
This item is
for selecting the type of menu language(depending on current playing
media).
3) VIDEO SETUP
BRIGHTNESS
For adjusting brightness of video output.
CONTRAST
For adjusting contrast of video output.
HUE
For adjusting hue of video output.
SATURATION
For adjusting saturation of video output.
SHARPNESS
For adjusting sharpness of video output.
BRIGHTNESS
CONTRAST
HUE
SATURATION
SHARPNESS
VIDEO SETUP
EXIT
-26-
4) DIGITAL SETUP
DYNAMIC RANGE
This item is for adjusting linear compression ratio. If you set it to FULL,
Peak-to-Peak value of audio signal is minimum; if you set it to OFF, Peak-to
-Peak value is maximum.
DYNAMIC RANGE
DIGITAL SETUP
EXIT
-27-
* Region Code
Appendix: Region code of D
Motion Picture Association of America (MPAA) divided the world into 6 regions, and
gave every region a region code for locking and unlocking D playback.
Please
Region codes and the countries or areas represented by region codes are as follows:
Region 1: America, Canada, East-Pacific Inlands;
Region 2: Japan, We st Europe, North Europe, Egypt, South Africa, Middle East;
Region 3: Taiwan, Hong Kong, South Korea,
Thailand, indonesia, etc.;
Region 4: Australia, New Zealand, Central South America, South Pacific Inlands;
Region 5: Russia, Mongolia, Indian Peninsula, Middle Asia, East Europe, North
Korea, North Africa, North-west Asia etc.;
Region 6: China mainland.
If you insert a disc into the disc slot and REGION ERROR is displayed, the car
multi-media system can not play the disc. The reason is that the region codes
of the car multi-media system and the used disc do not match each other.
igital Vi de o
igital Vi de o
igital Video
as the code of the igital Vi de o
igital Video igital Video
impose this restriction. igital
Video igital Video -
has motivated the
igital Video igital Video
-
Basically, a coded D player can play only the discs if its region code is the
same D player. Otherwise, it cannot play the disc.
note that only the D discs and D players produced by
the 8 biggest film-making companies of America The D
discs and D players not
produced by the 8 biggest film making
companies of America are not restricted by the rule of region code. Generally, they
are called Free Region Code or Full Region Code.
The problems caused by area code inconsistency production of
unlocked version D players and recodable
D players .
South-east Asian countries include
The 8 biggest film making companies of America are as follows:
1. WarnerBros;
2. Columbia;
3. 20thCenturyFOX;
4. Paramount;
5. Universal;
6. UA(UnitedArtist);
7. MGM(MetroDogwynMayer);
8. WaltDisney
-28-
* Parental Control
Q: After inserting a Digital Video disc into the disc slot,
?
A: The playing disc is locked by a rating level of parental control. If the current
rating level of parental control of the Digital Video
player is lower than the one
of current disc, you must input the correct password of parental control to
unlock the parental control and enter a rating level one
* For factory preset password of parental control of Digital
Vi deo player,
part of Media Setup Menu
Appendix: Parental Control
Parental Control function of a Digital Video player can control playback of
movie ratings on a disc. You can set the Digital Video player to be a certain
rating level of parental control using the Media Setup Menu. If the rating level
of parental control of a disc is higher than the one of the Digital Vi deo player,
the Digital Video player cannot play the disc.
The Digital Video movie can be designed so that the Digital Video player can
play different versions of content of a particular movie according to the different
rating levels of parental control. Depending on igital Vi deo , the
scenes
that are not suitable for children will be cleared or replaced by suitable
scenes automatically.
The rating levels of Parental Control are as follows:
1 Kid Safe
2 G
3 PG
4 PG 13
5 PG R
6 R
7 NC 17
8 Adult
if
a dialogue box pops up
and asks you to input a password, what should you do
equal to or higher than
of the current disc in order to play the disc.
the D features
please
see the .
-29-
AUX IN operation
An external AV system can use the car AV system as monitor and amplifier.
1. Use an AV cable to make the car AV system and the external AV system connected
through the AUX IN jack on control panel of the car AV system and the
AV Out jacks
of the external AV system.
2. Play the external AV system, then use MODE button or Source Menu to enter AUX
IN mode for the car AV system. By now, the program played by the external AV
system can be output
through the monitor of the car AV system and the speakers
connected to the car AV system.
* The icons on the AUX interface descript as follows:
AUX : Popping up Source Menu.
EQ : Same as EQ button.
: Same
as VOL+ button or rotating
VOL knob with clock wise.
: Same as VOL- button or rotating
VOL knob with anti-clock wise.
3. In AUX IN mode, you can use SEL, +, -, VOL, MUTE, EQ
, SW and LOUD buttons
or icons to adjust audio and video.
MUTE : Same as MUTE button.
SWF: Same as long pressing SW button.
LOUD: To switch LOUD mode on or off.
AF : To switch AF mode on or off.
TA : To switch TA mode on or off.
-30-
MOD
VIDEO IN (yellow)
RCH IN (red)
LCH IN (white)
PUSH SEL
MU
PTY
MODE
/CH1~6
O
LU
D
A
P
S
BND
AF
TA
+
VOL
-
IR
OPEN
AUX
External iPod operation
An external iPod can use the car AV system as a monitor and amplifier.
1. Use the iPod cable to make the car AV system and the external iPod connected
through the AUX IN jack on control panel of the car AV system and the headphone
port of the external iPod.
2. Play the external iPod, then use MODE button to enter AUX IN mode for the car AV
system. By now, the program played by the external iPod can be output through the
monitor of the car AV system
and the speakers connected to the car AV system.
* The icons on the AUX interface descript as follows:
AUX : Popping up Source Menu.
EQ : Same as EQ button.
: Same as VOL+ button or rotating
VOL knob with clock wise.
: Same as VOL- button or rotating
VOL knob with anti-clock wise.
3. In AUX IN mode, you can use SEL, +, -, VOL, MUTE, EQ , SW and LOUD buttons
or icons to adjust
audio and video.
pn
oHead
ho e p r t
PUSH SEL
MU
PTY
MODE
/CH1~6
L
OU
D
A
PS
BND
AF
TA
+
VOL
-
IR
OPEN
AUX
-31-
REAR VIEW CAMERA
The car AV system can make you look at the actual status behind your car when
you change the gear level to the back position.
1. Use an video cable to make the car AV system and
the rear view camera con-
nected through the REAR CAMERA INPUT jack in the rear cabinet of the car AV
system and the VIDEO OUTPUT jack of the rear view camera.
Make the REAR CAMERA SWITCH line in the rear cabinet of the
car AV system
connected to (B+)12V power supply.
2. When you change the gear level to the back position, the screen of the car AV
system will display the actual status behind your car.
* Note : the external monitor can
not display the actual status behind your car.
-32-
Troubleshooting
Please read the user manual carefully before using the car A/V system. If you have any
difficulty using this car A/V system, . If you still
after using all the suggestions, please contact
NO PICTURE, SOUND
* Ensure that the power switch is on.
* Ensure that the power cord is not damaged or the fuse is not blown.
NO SOUND BUT HAVE PICTURE
* Ensure that the player ’s audio
output speaker ’s audio
input.
* Check whether the audio connector is damaged.
* Check whether you have turned down the volume.
* Ensure that the audio is not in MUTE mode.
BLACK AND WHITE PICTURE OR
SCREEN ROLLING
* Ensure that you have set right mode of video system (e.g. PAL, NTSC).
FLAWS OF PICTURE OR SOUND
* Check whether disc is scratched or stained.
* Check whether AV connector and output terminal is stained.
*
Check whether there is condensation inside the lens. If so, power on the player and do
not work for an hour or so, then try again.
DISPLAYS: NO DISC OR BAD DISC
* Ensure that you have inserted a disc into the disc slot.
* Check whether disc is inserted with label side upwards.
* Check whether disc is bent.
* Check whether disc is stained or scratched badly.
* Ensure that disc format is compatible to the player.
* Ensure that temperature inside the car is not too high. If so, cool off until the ambient
temperature returns to normal.
* Insert another disc into the disc slot.
REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK
*
Check whether the lithium cell of the remote control is powerful and working properly.
* Direct the IR emitting window of the remote control to the IR sensor of main unit.
* Check whether there are some obstacles between remote control and main unit.
SOME FUNCTION BUTTONS DO NOT WORK
* Turn off ACC power, then turn on again.
* Reset unit to zero, then turn on again.
* Remove control panel from chassis, reattach it onto the chassis and then turn it on
again.
RADIO DOES NOT WORK
* Check whether antenna cable is connected firmly.
* Manually tune for a station.
refer to the troubleshooting guide are
unable to resolve the problem your dealer
or an authorised service centre .
is properly connected to the
-33-
Specification
General
Power Supply Requirement..................................................DC 12V
Current consumption..........................................................7A MAX.
Audio
Signal Output............................................................2ch&4ch line out
Frequency Response
...................................................20 Hz - 20 KHz
S/N Ratio
...........................................................................90 dB (JIS)
Wow and Flutter
............................................Below measurable limits
TFT Monitor
Monitor Screen Size......................................................4.3 Inch Wide
Color System
.....................................................................NTSC/PAL
Disc/USB/Card
Compatible Format....
Digital Video/MPEG4/VCD/IMAGE/MP3/WMA/CD
Radio
FM
Frequency range.............................................87.5MHz - 10
7.9MHz
Usable sensitivity..................................................................15dBu
I.F Frequency...................................................................10.7MHz
M
W
Frequency..........................................................530KHz - 1710KHz
Usable sensitivity..................................................................40dBu
I.F Frequency.....................................................................450KHz
NOTE:
Specification and design are subject to modification, without notice,
due to
improvements in technology.
-34-
88-J4321-03C
MADE IN CHINA
