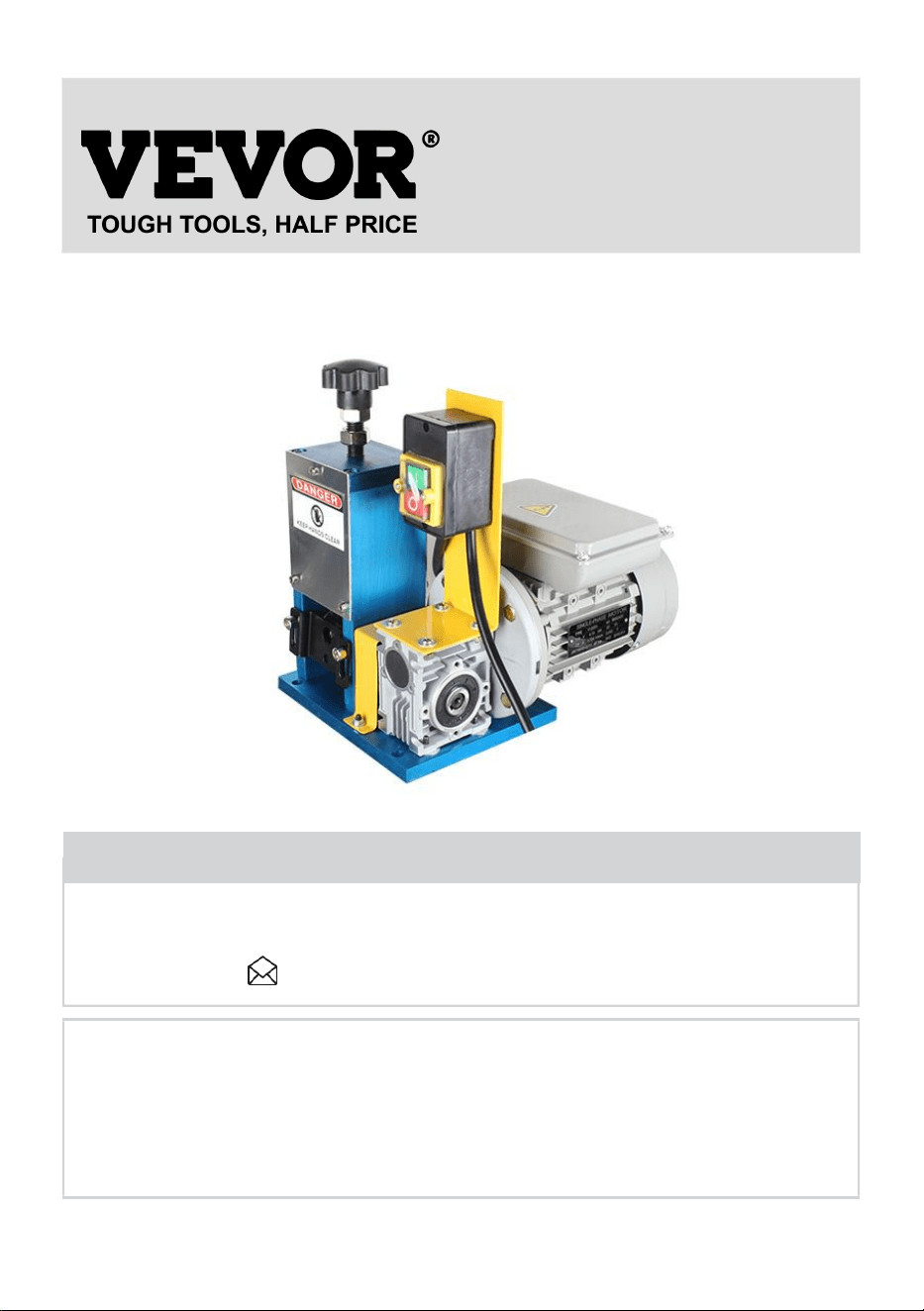

WIRE STRIPPING MACHINE
INSTRUCTION MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
- 1 -
MODEL:SMS-025
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
WIRE STRIPPING
MACHINE
- 2 -
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves clear interpretation of our user
manual. The appearance of the product shall be subject to the product you
received. Please forgive us that we won't inform you again if there is any
technology or software updates on our product.
WARNINGS
Read carefully and understand all ASSEMBLY AND OPERATION
INSTRUCTION before operating, When using the wire stripping machine,
basic safety precautions should always be followed including the following:
1. Read and follow all instructions before using the machine.
2. To prevent the risk of electrical shock, do not immerse in water or other
liquids. Use a damp cloth to clean the motor housing.
3. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
4. When not in use, unplug from the outlet before installing or removing
parts and before cleaning.
5. Avoid contacting moving parts.
6. Do not operate any machine with a damaged cord or plug or after the
appliance malfunctions, or is dropped or damaged in any manner.
Return appliance to the nearest authorized service facility for
examination, repair or electrical or mechanical adjustment.
7. The use of attachments not sold by the manufacturer is not
recommended and may cause fire, electric shock or injury.
8. Do not use outdoors.
9. Do not allow cord to hang over edge of table or counter.
10. Never run the machine unattended.
Operation Guide Video
- 3 -
11. Type Y attachment: If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.

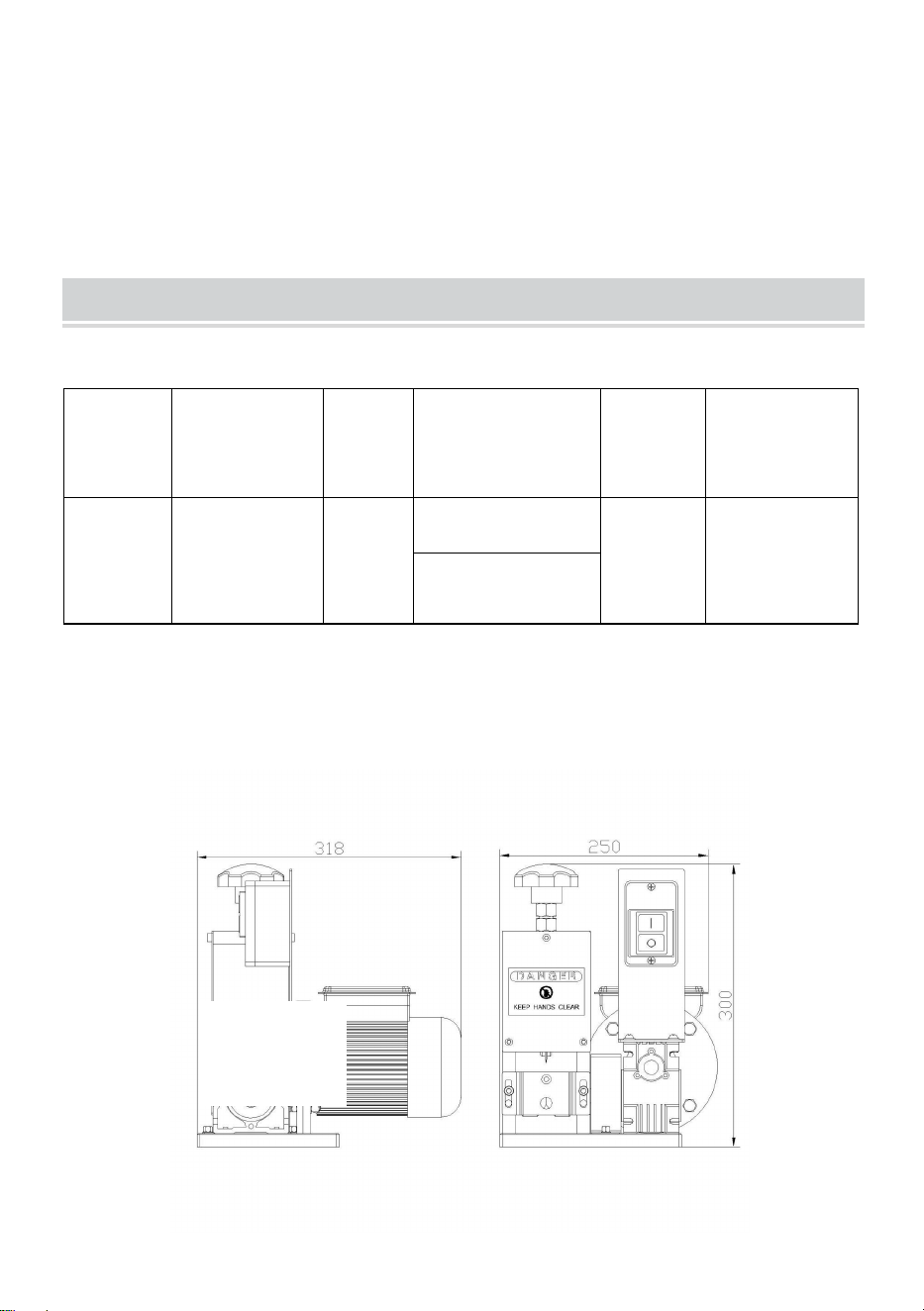

TECHNICAL PARAMETER
Note: This machine is not applicable to silicone rubber cables or armored
cables.
Model
Dimension
(L*W*H mm)
Weight
(kg)
Voltage
Power
(KW)
Stripping
Range
(mm)
SMS-025
318×250×300
15.5
220V-240V~ 50Hz
0.18
∅ 1.5～∅ 25
110V~ 60Hz
- 4 -

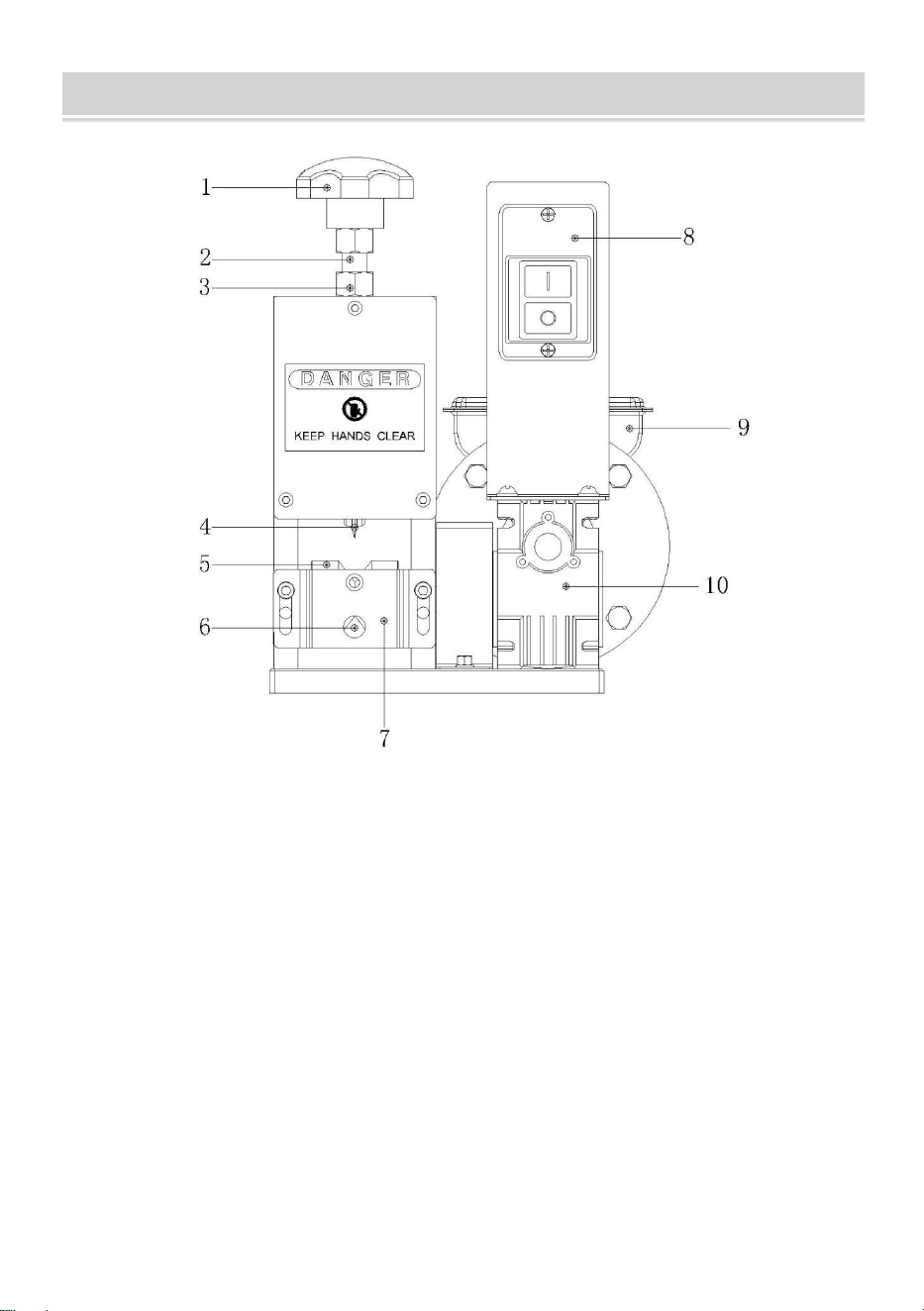

Parts List
1:M14 plastic nut for regulating blade up and down
2:M14 screw rod for regulating blade up and down
3:Nut for locking screw rod
4:Blade
5:Rolling Gear
6:Feeding Hole
7:Incoming Panel
8:Switch
9:Motor
10:Reducer
- 5 -

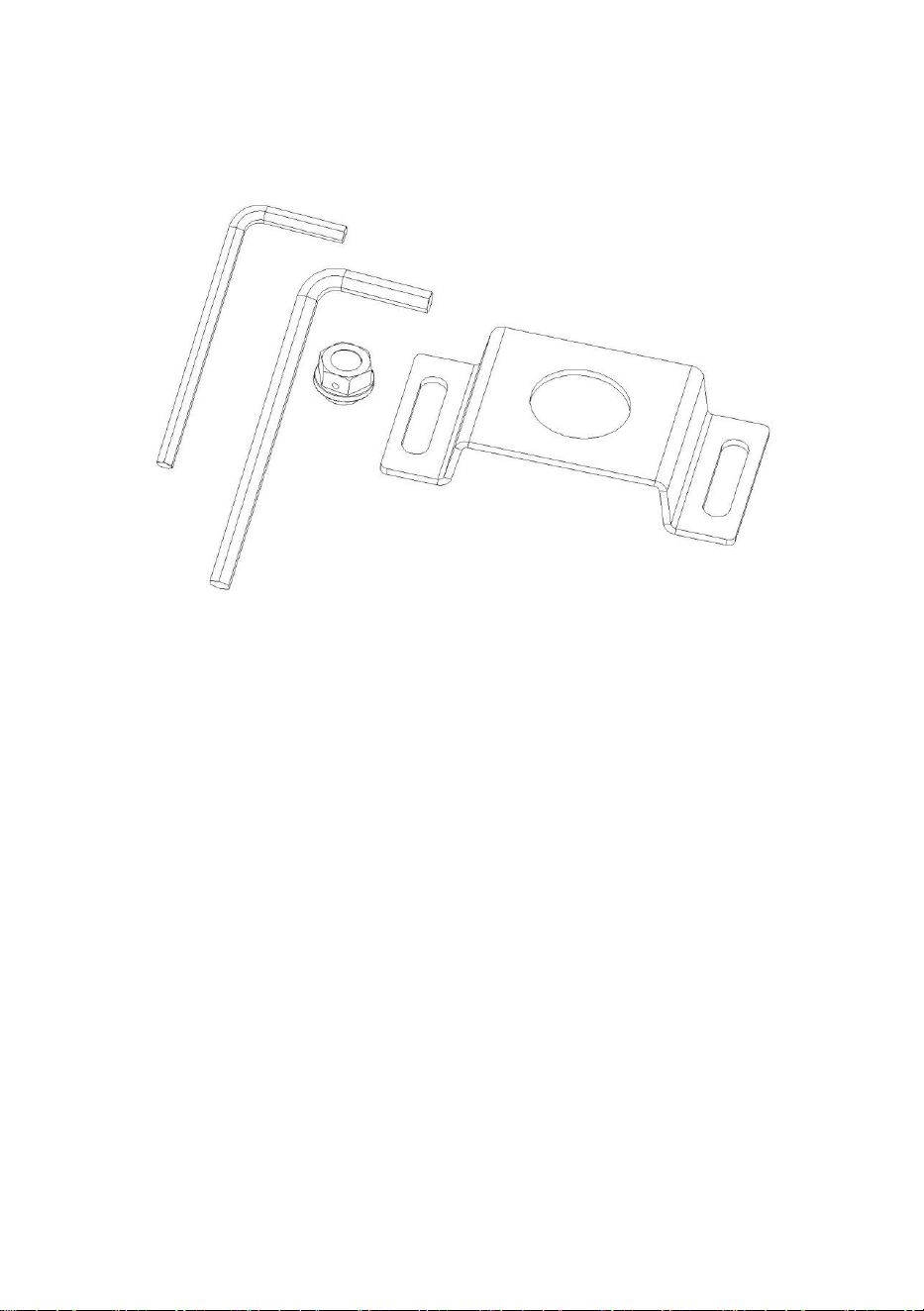

Accessories
Details：
1、 one 4# allen key 2、one 5# allen key
3、One feeding panle with one hole
4、Plastic nut for exhaust of reducer
- 6 -
Operation Instruction

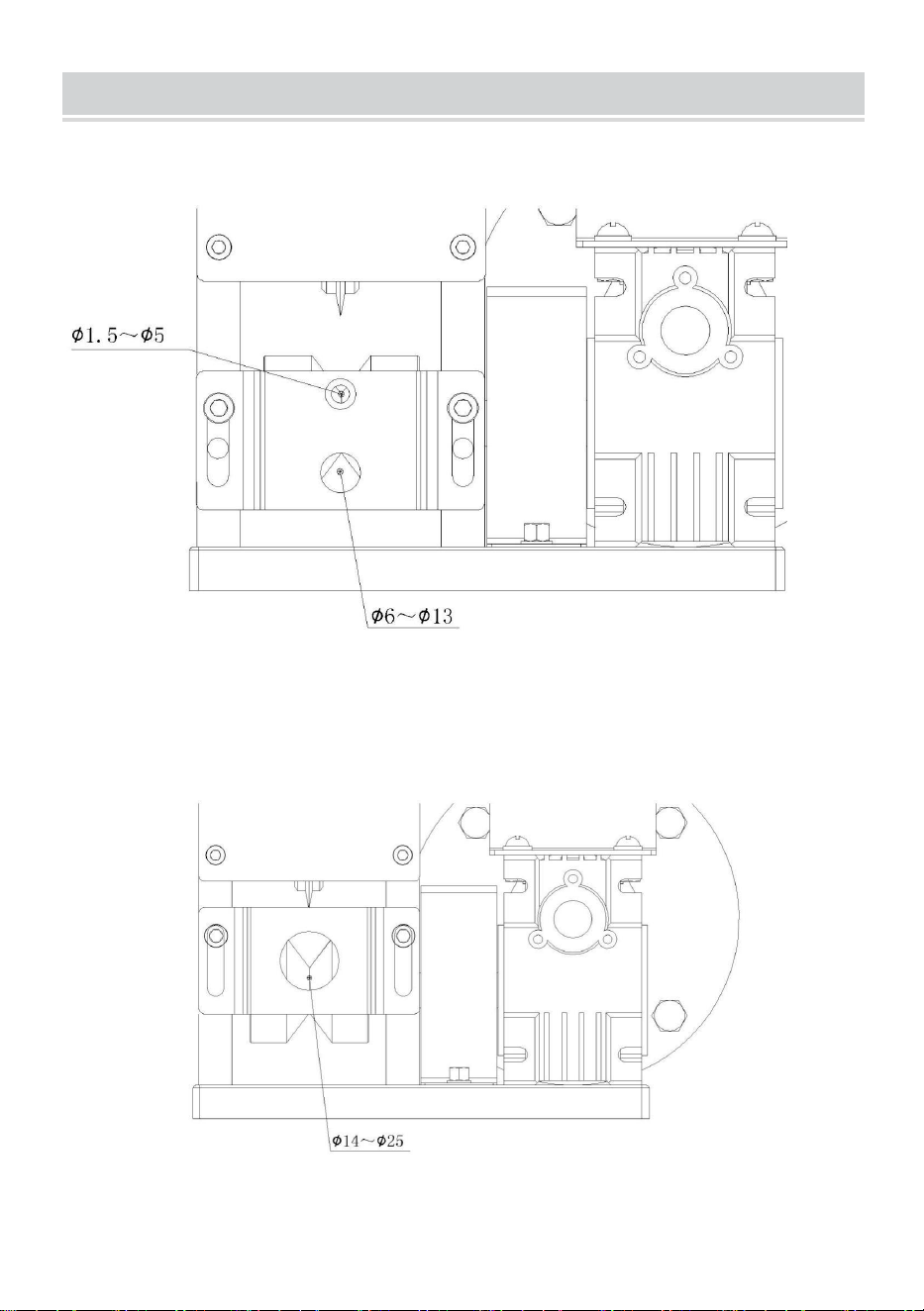

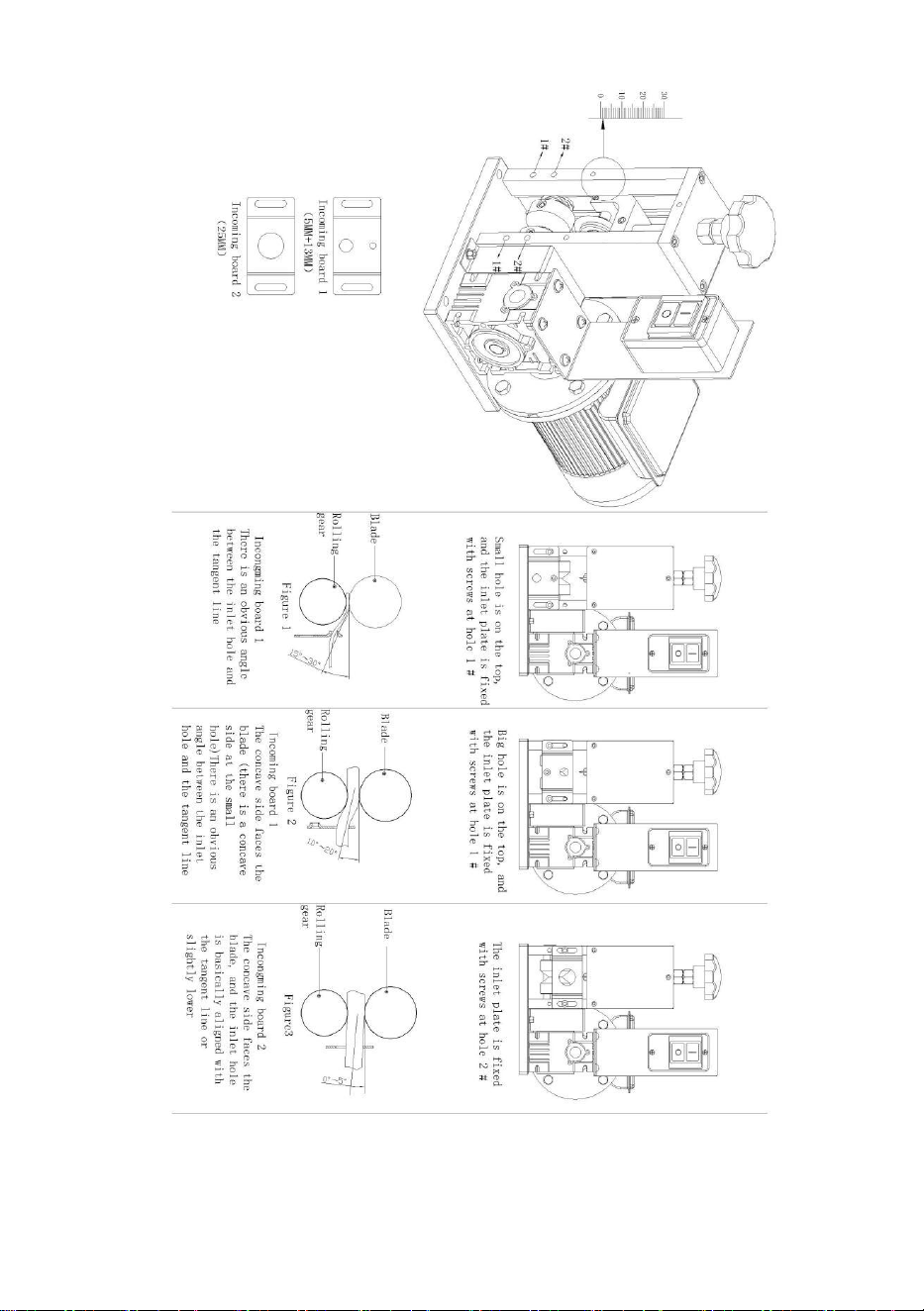

1.Select appropriate feeding hole according to the wire diameter.
When the diameter of the wires to be treated does not exceed 13mm,
select the two hole incoming board
When the diameter of the wires to be treated exceeds 13mm, select the
one hole incoming board
- 7 -

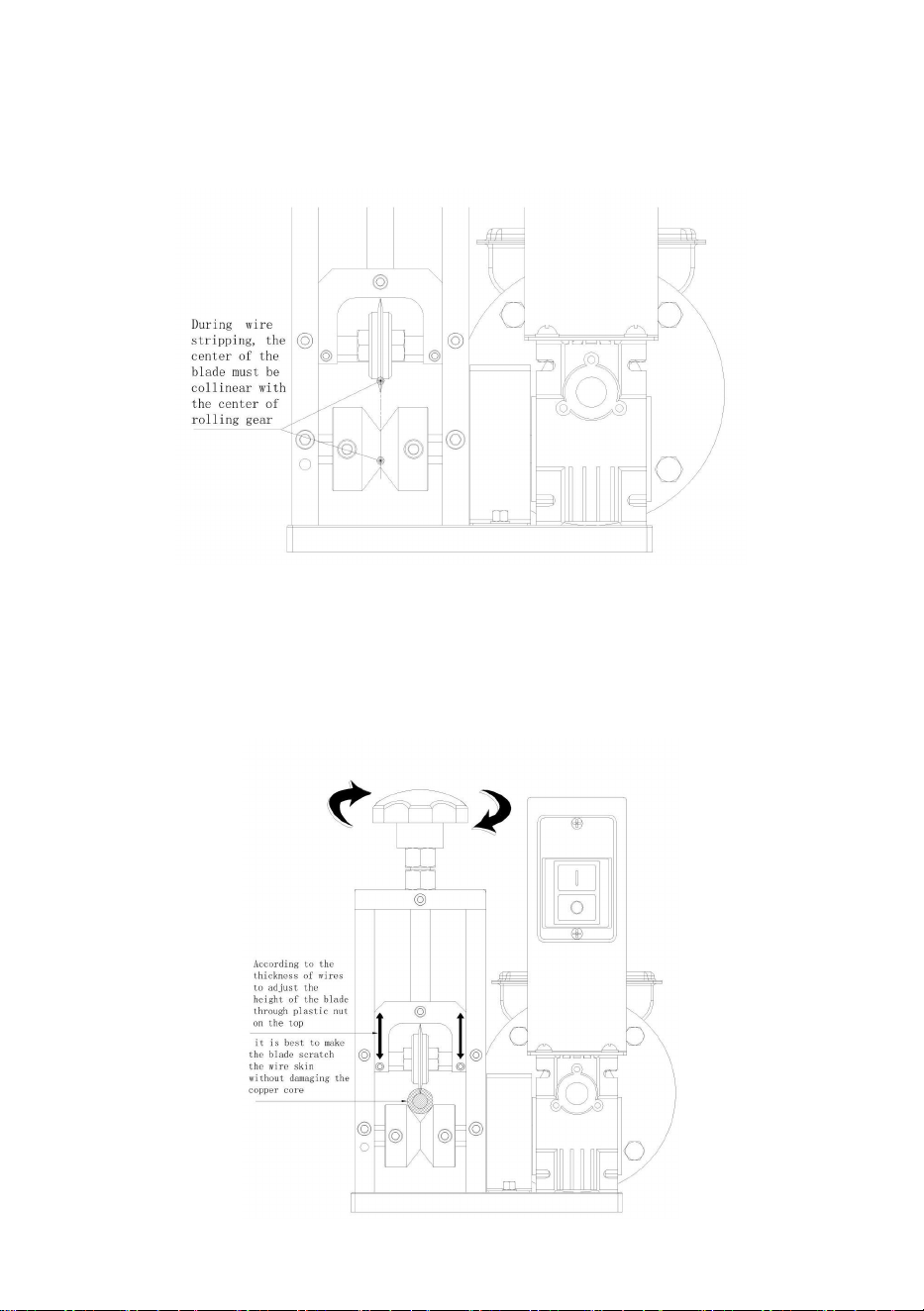

2.During wire stripping, the center of the blade must be collinear with the
center of rolling gear (as shown below)
3. Adjust the height of the blade, and it is best to make the blade scratch
the wire skin without damaging the copper core by rotating the plastic
handle screw (clockwise rotation is downward and counterclockwise
rotation is upward) as shown below.
- 8 -

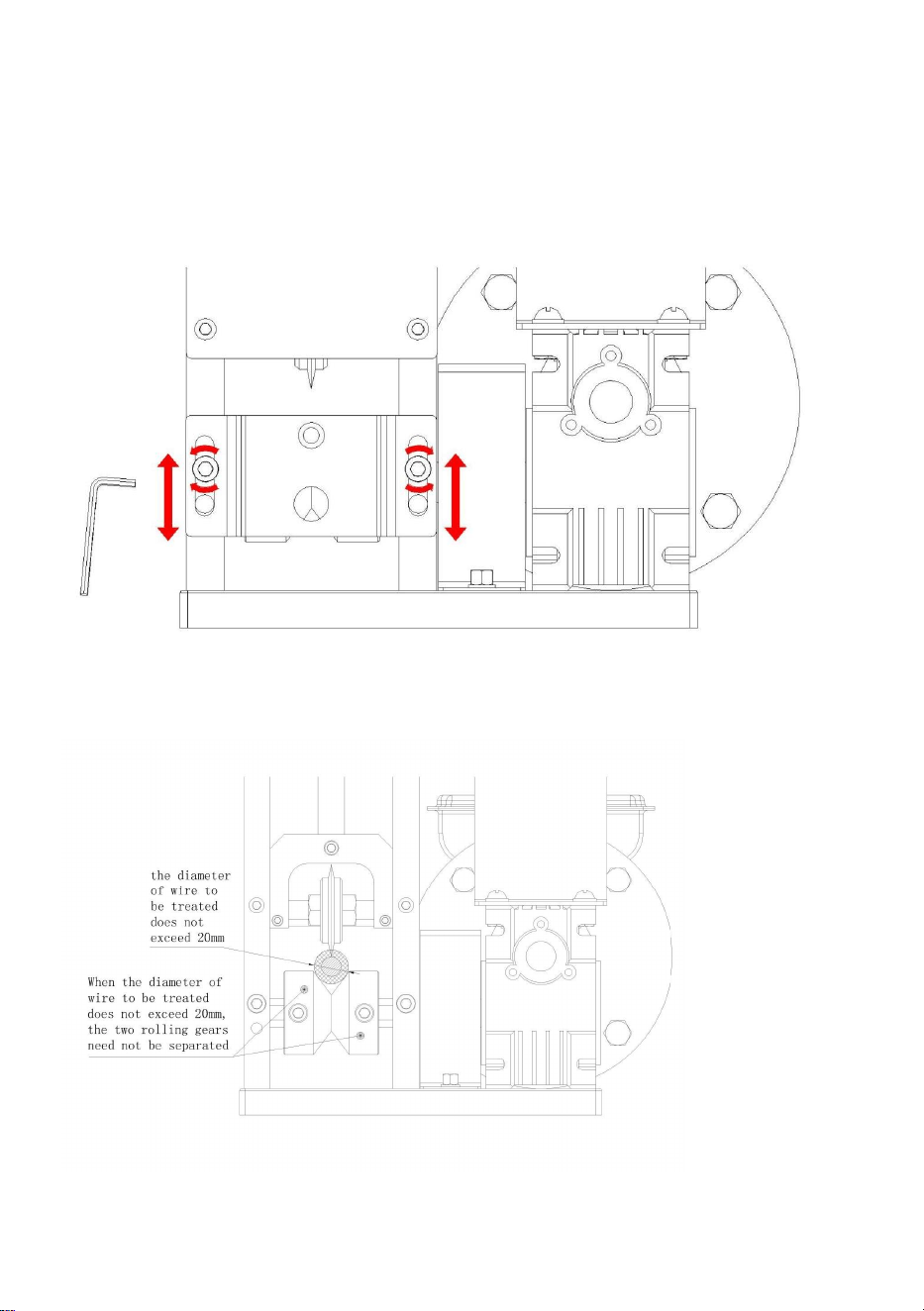

4.When stripping, adjust the height of the feeding plate according to the
thickness and hardness of the wire (generally, the feeding panel should be
adjusted higher for thick wire and hard wire, lower for soft wire and thin
wire). In this way, the wire is not easy to be eccentric when stripping

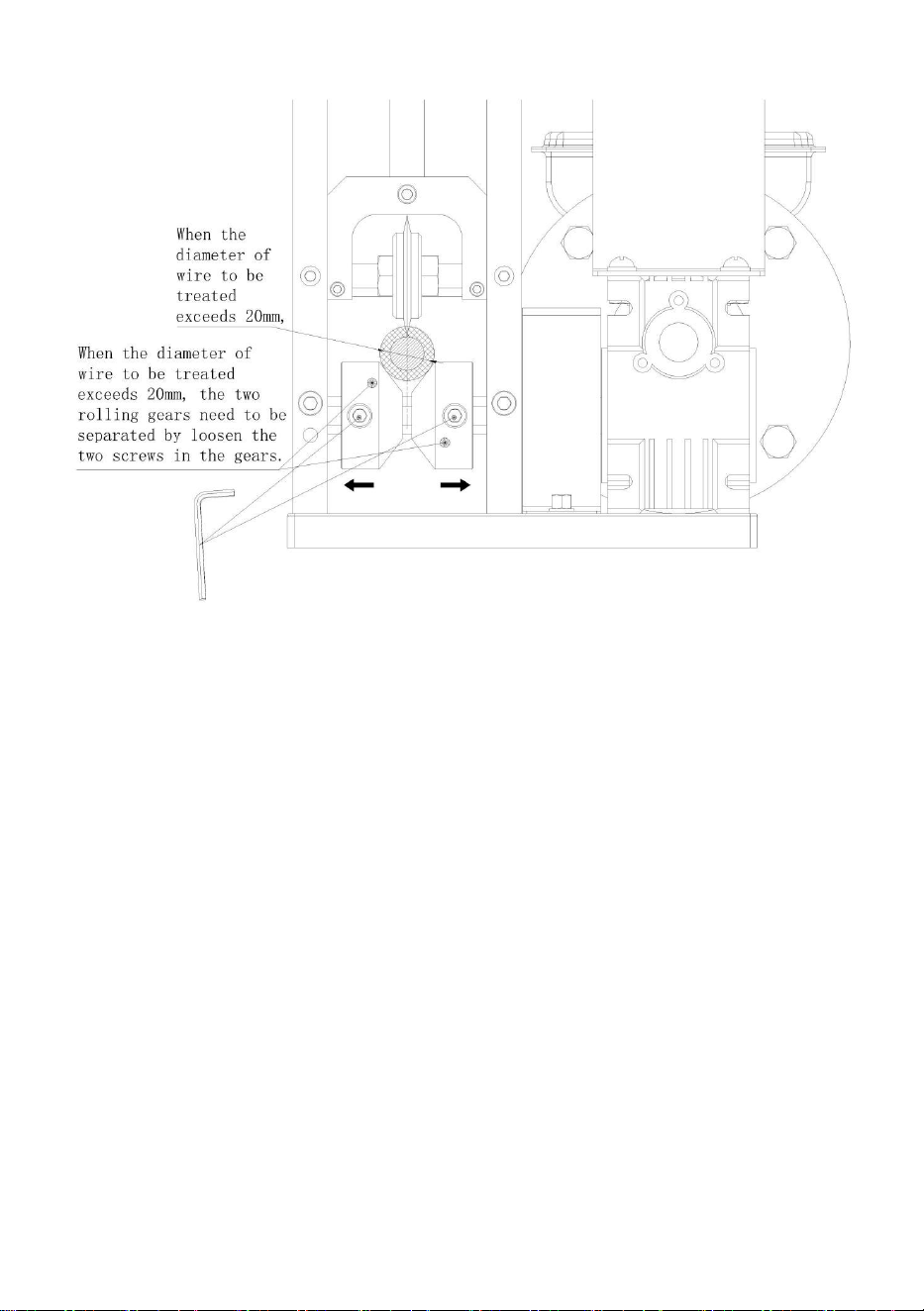

5. When the diameter of wire to be treated does not exceed 20mm, the two
rolling gears need not be separated
When the diameter of wire to be treated exceeds 20mm, the two rolling
gears need to be separated by loosen the two screws in the gears.
- 9 -
6. If the machine cannot strip the wire, there may be several reasons:
① The diameter of the stripped wire is too small (the diameter of the wire to
be treated, including the outer skin, shall not be less than 1.5mm)
② The center of the blade is not on the same line with center of the rolling
gear
③ The blade is not sharp
NOTE: Never put your hand in when the machine is running (you must stop
the machine before checking, debugging and troubleshooting the machine).
To avoid cutting your hand,do not touch the blade directly with your hand.
- 10 -
- 11 -
