Operating and installation
instructions
Downdraft extractor
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-GB M.-Nr. 12 467 451
Contents
2
Caring for the environment......................................................................................... 4
Warning and Safety instructions ............................................................................... 5

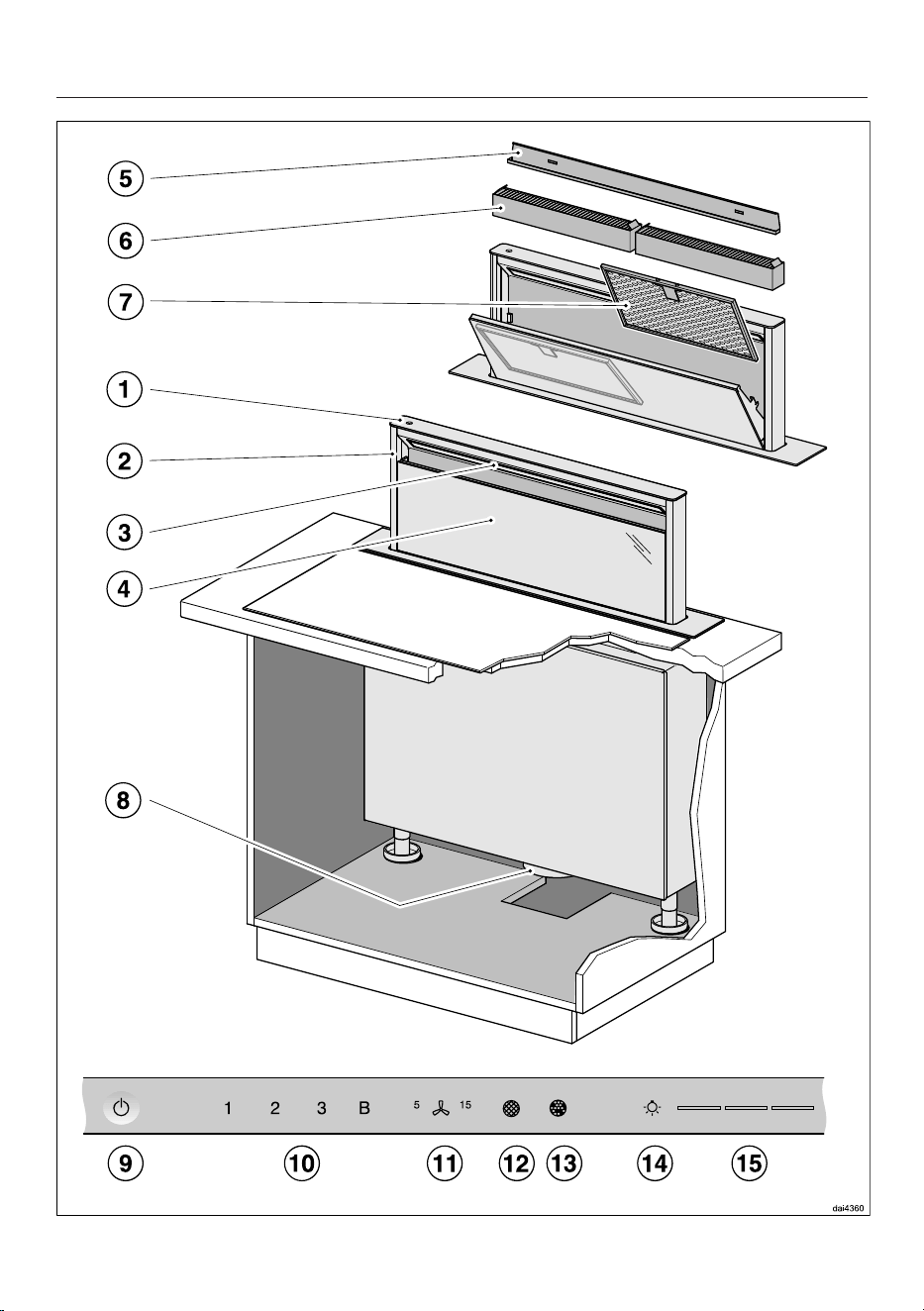

Guide to the cooker hood............................................................................................ 12
Modes of operation ...................................................................................................... 14
Recirculation mode Plug&Play ............................................................................... 14
Before using for the first time..................................................................................... 15
Selecting extraction mode or recirculation mode......................................................
15
Setting up Miele@home...............................................................................................
16
Performing Scan & Connect................................................................................... 16
Sign out of WiFi (reset to factory settings)........................................................... 17
Setting up Con@ctivity .................................................................................................
17
Con@ctivity via the home WiFi network (Con@ctivity 3.0) ............................. 18
Con@ctivity via a direct WiFi connection (Con@ctivity 3.0)............................ 18
Reattempting the connection ................................................................................. 18
Operation (Automatic mode) ..................................................................................... 19
Cooking with Con@ctivity (Automatic mode)...........................................................
19
Cooking process.............................................................................................................
19
Leaving automatic mode temporarily..........................................................................
20
Returning to automatic mode ................................................................................. 20

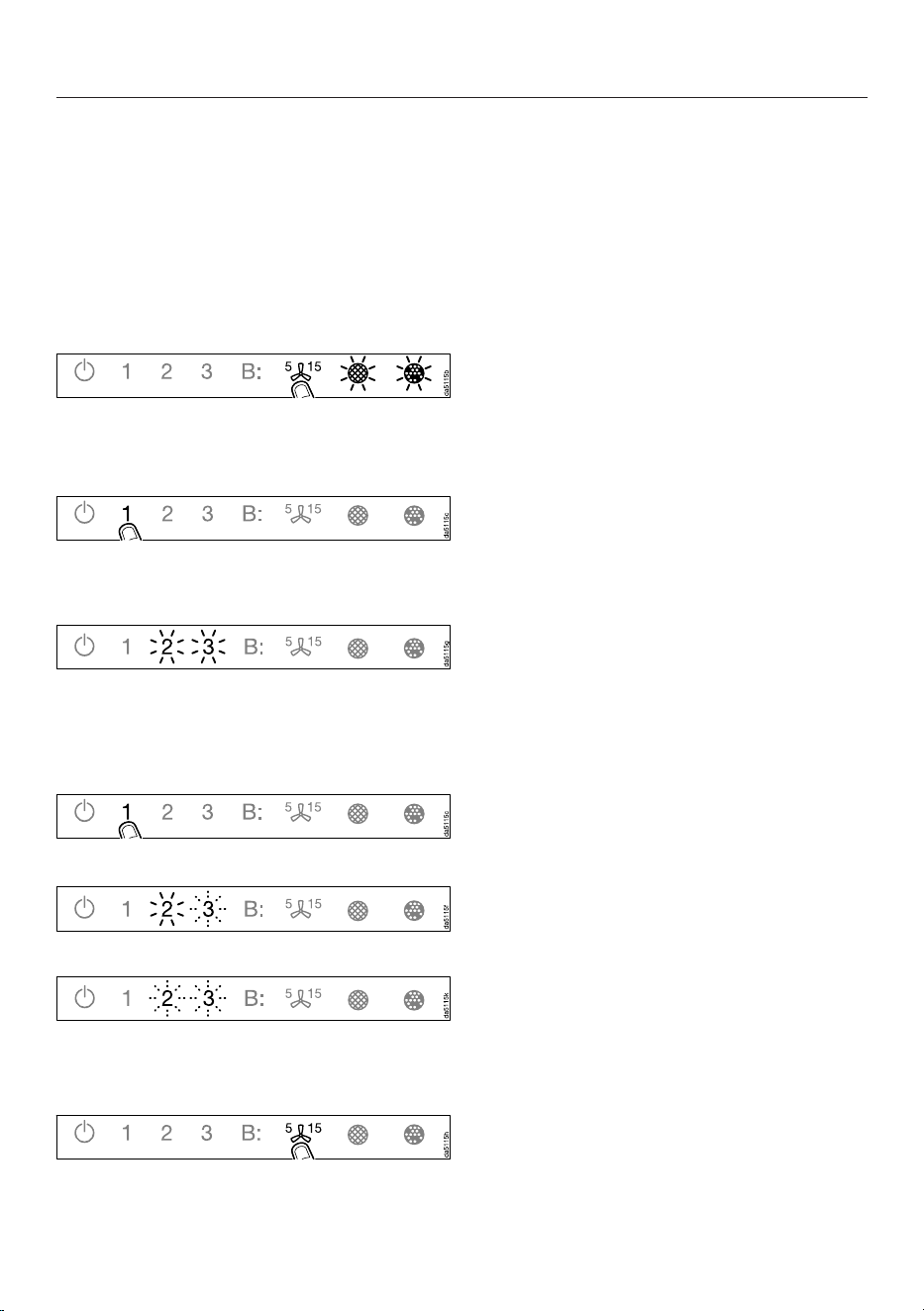

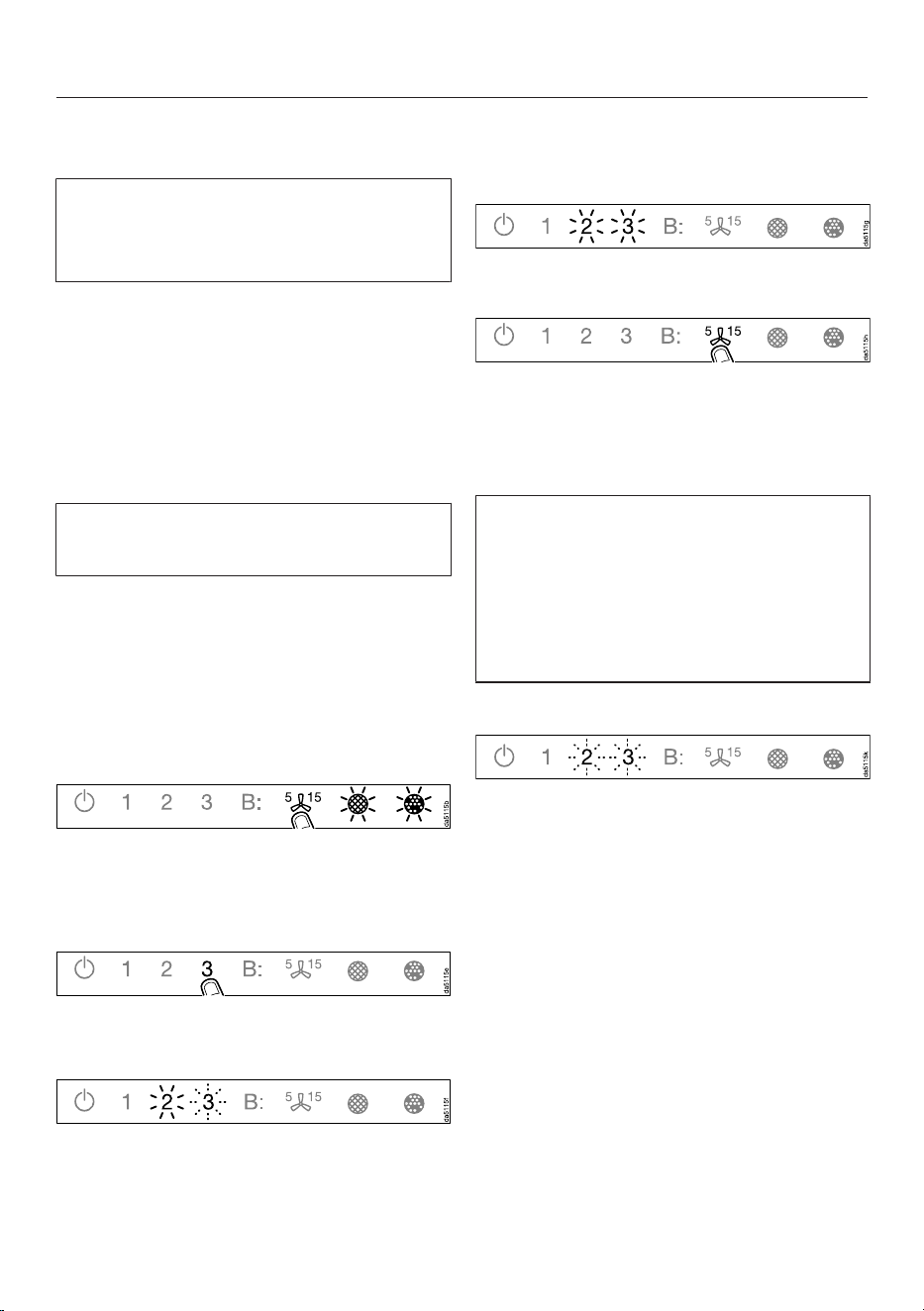

Operation (Manual mode)........................................................................................... 21
Cooking without Con@ctivity (Manual mode) ..........................................................
21
Switching on the fan ......................................................................................................
21
Selecting the second Booster level ....................................................................... 21
Selecting the run-on time .............................................................................................
21
Switching the fan off......................................................................................................
22
Run-on in Plug&Play operation .............................................................................. 22
Switching on and dimming the hob lighting ...............................................................
22
Switching the hob lighting off ......................................................................................
22
Retracting the deflector plate.......................................................................................
23
Automatic retraction ................................................................................................ 23
Power management.......................................................................................................
23
Changing settings ......................................................................................................... 24
Altering the operating hours counter for the grease filter(s)....................................
24
Altering or deactivating the charcoal filter operating hours counter.......................
24
Deactivating power management................................................................................
25
Buzzer for the sensor controls......................................................................................
25
Energy saving tips......................................................................................................... 26
Contents
3
Cleaning and care ......................................................................................................... 27
Housing............................................................................................................................
27
Important information for appliances with stainless steel surfaces................. 27
Grease filters and panel for edge extraction ..............................................................
27

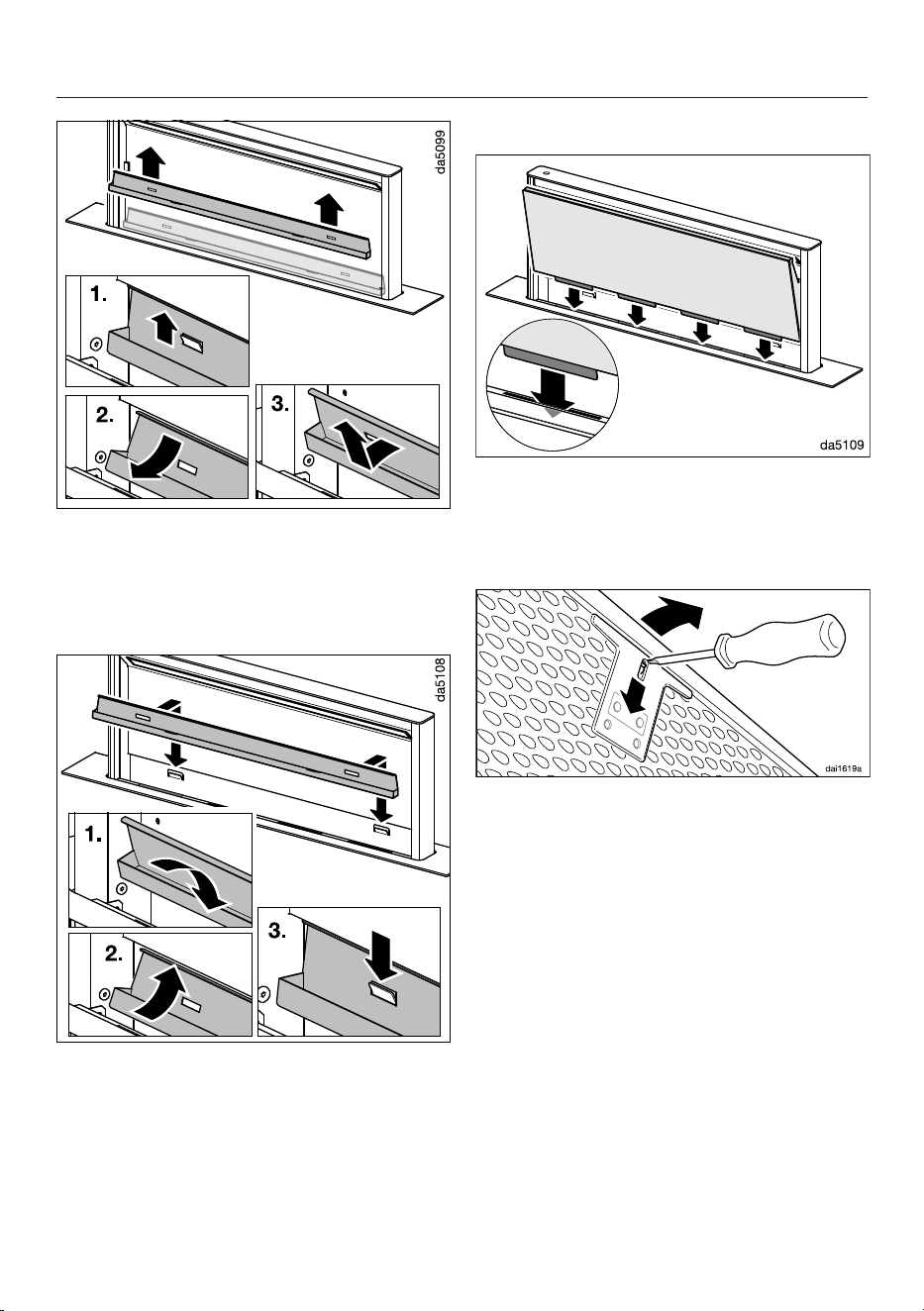

Removing the panel.................................................................................................. 29
Cleaning the drip tray............................................................................................... 29
Inserting the panel.................................................................................................... 30
Resetting the grease filter operating hours counter............................................ 30

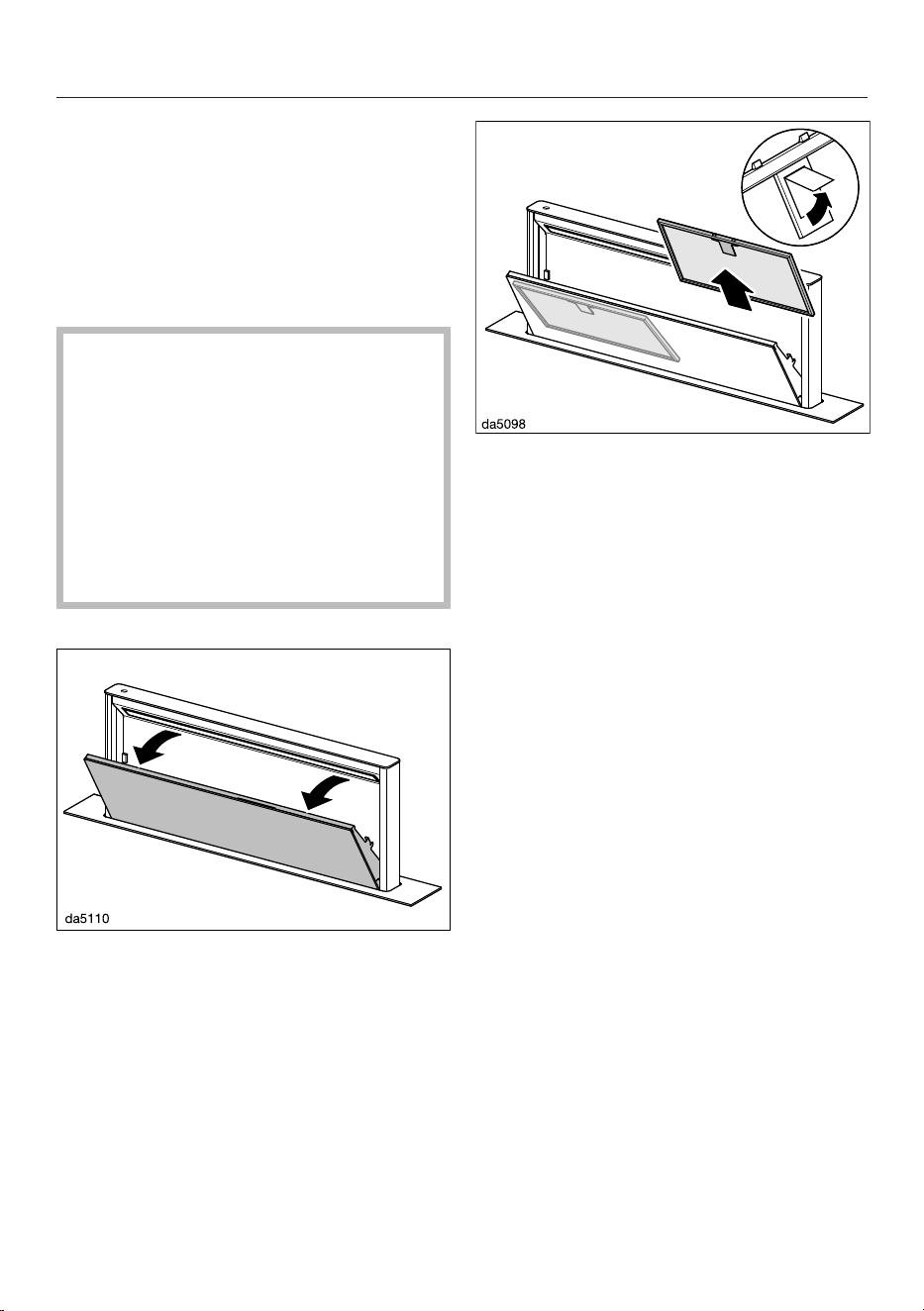

Replacing the grease filters ..................................................................................... 31
Charcoal filters................................................................................................................
31
Resetting the charcoal filter operating hours counter......................................... 31
Disposing of charcoal filters.................................................................................... 31
Reactivatable charcoal filters.................................................................................. 31
Problem solving guide.................................................................................................. 32
Service............................................................................................................................. 33
Contact in the event of a fault......................................................................................
33
Position of the data plate ..............................................................................................
33
Warranty ..........................................................................................................................
33
Copyrights and licences ................................................................................................
33
Installation...................................................................................................................... 34
Before installation ..........................................................................................................
34

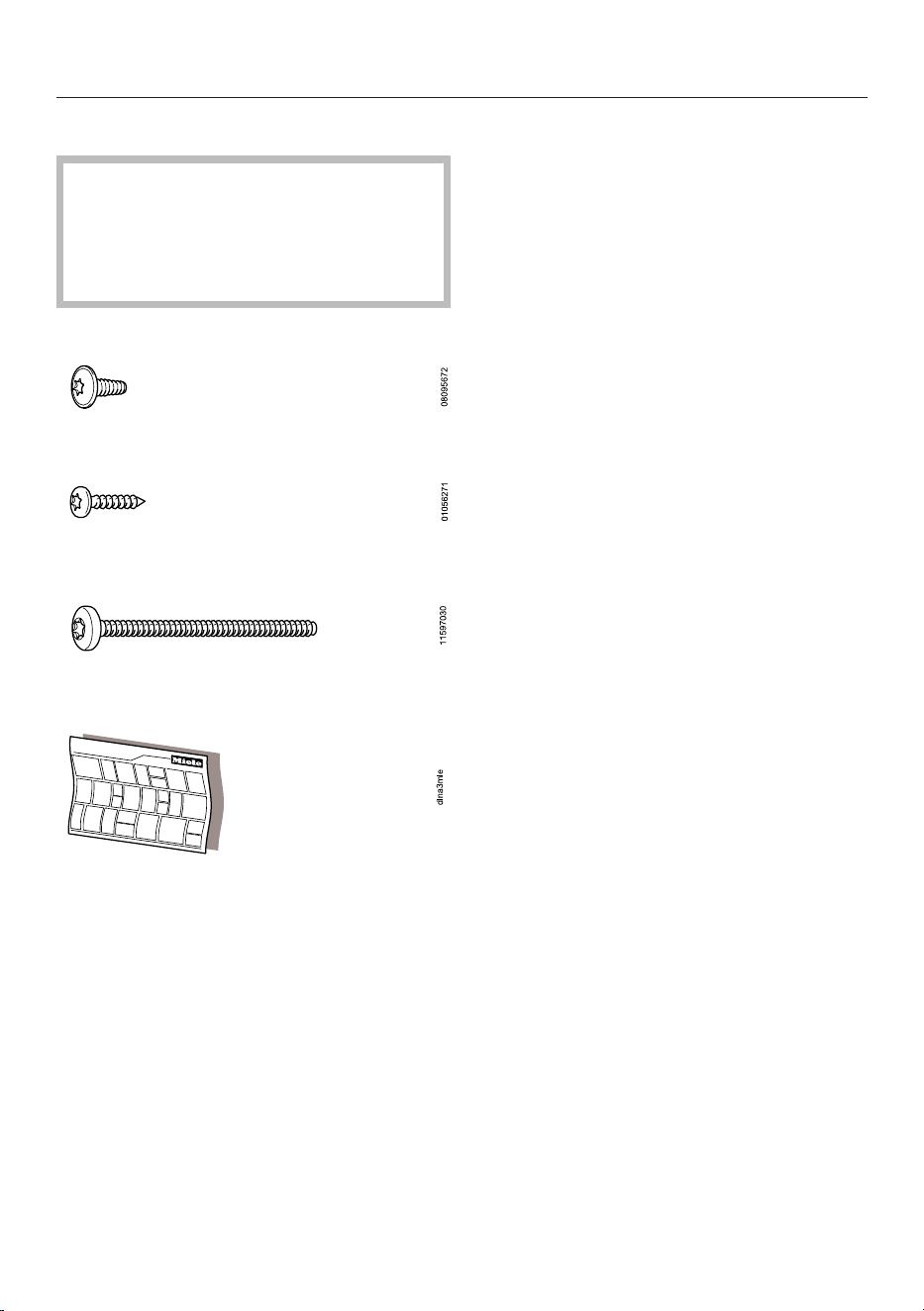

Installation materials......................................................................................................
34

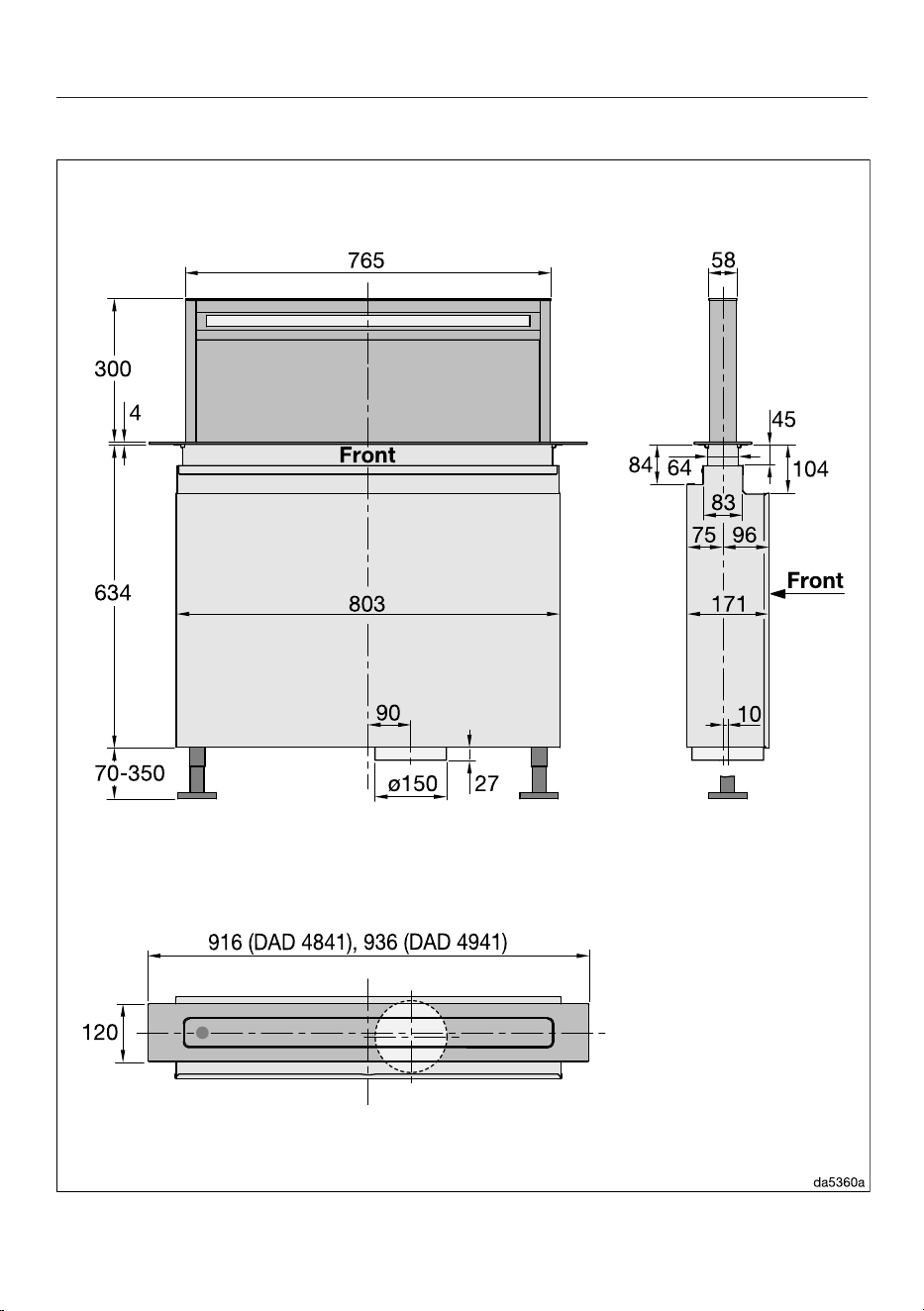

Appliance dimensions....................................................................................................
35

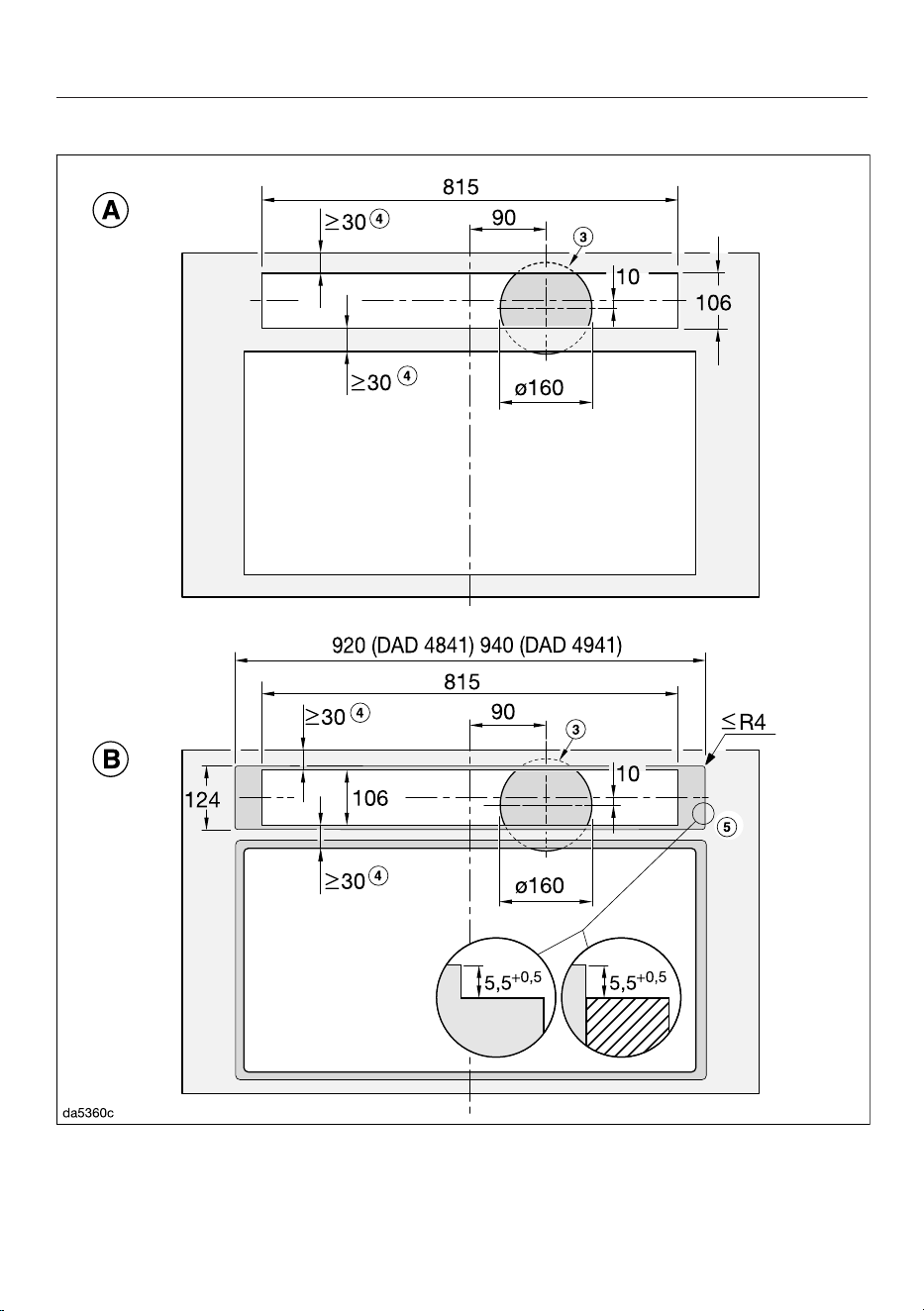

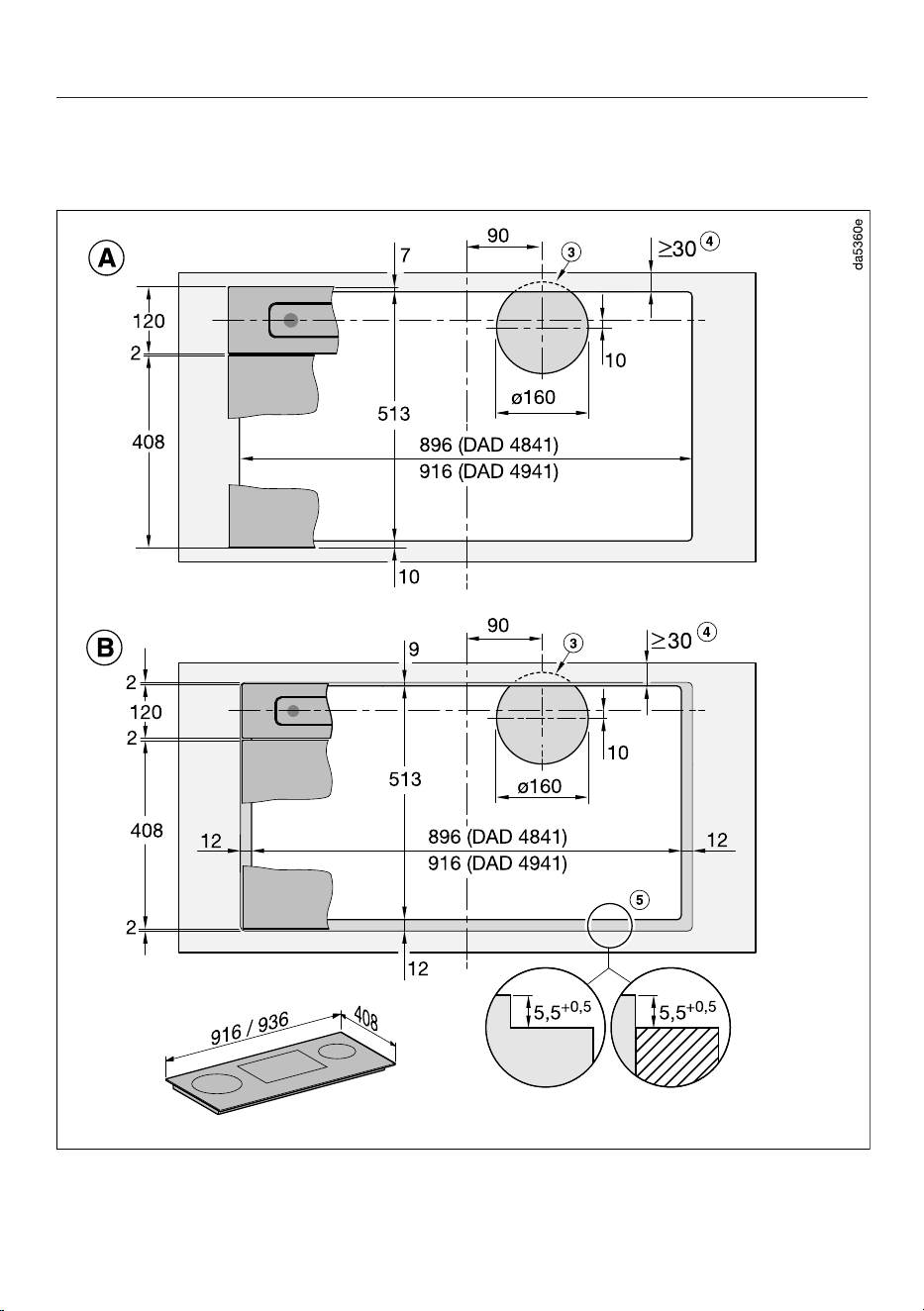

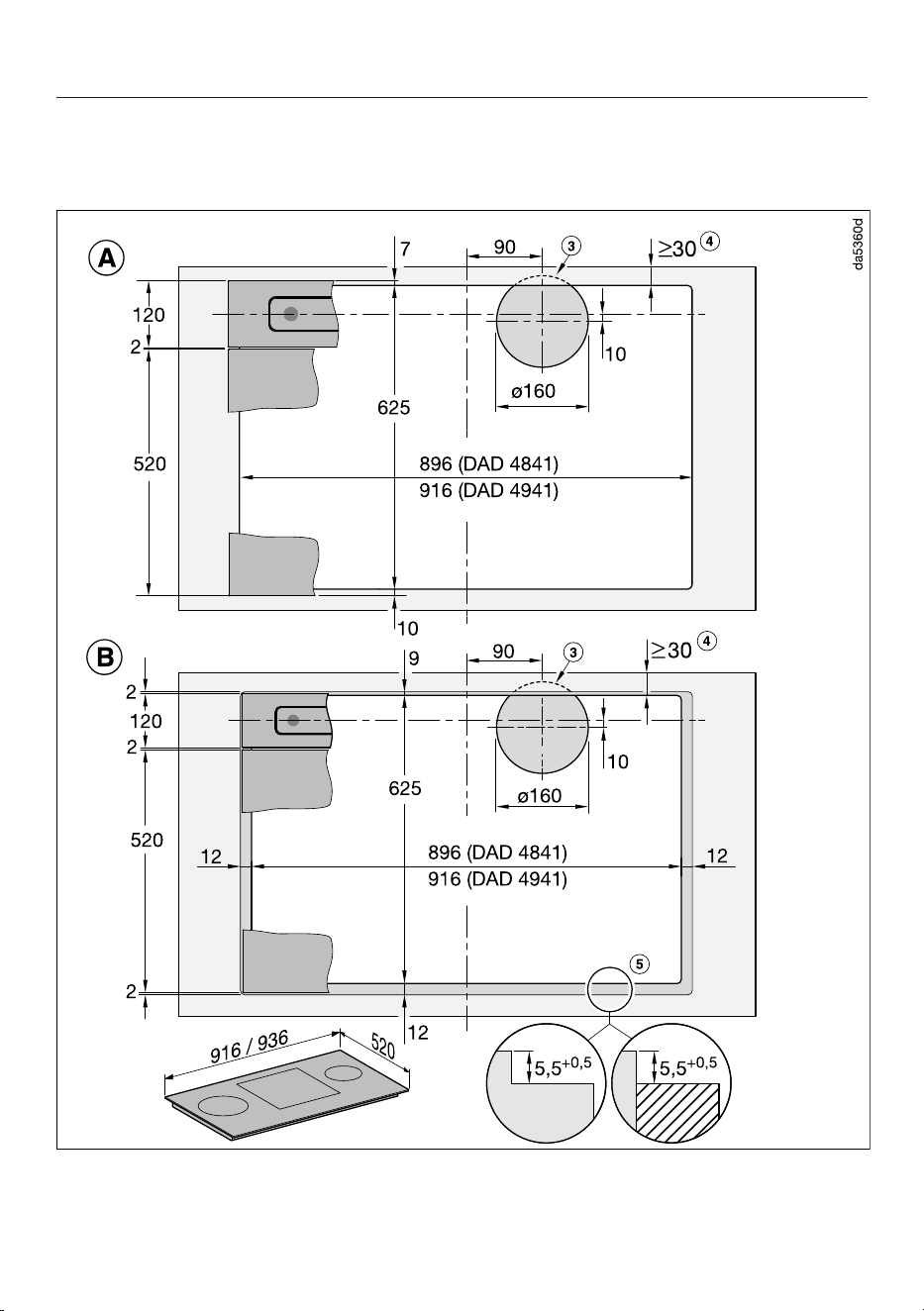

Installation dimensions .................................................................................................
36

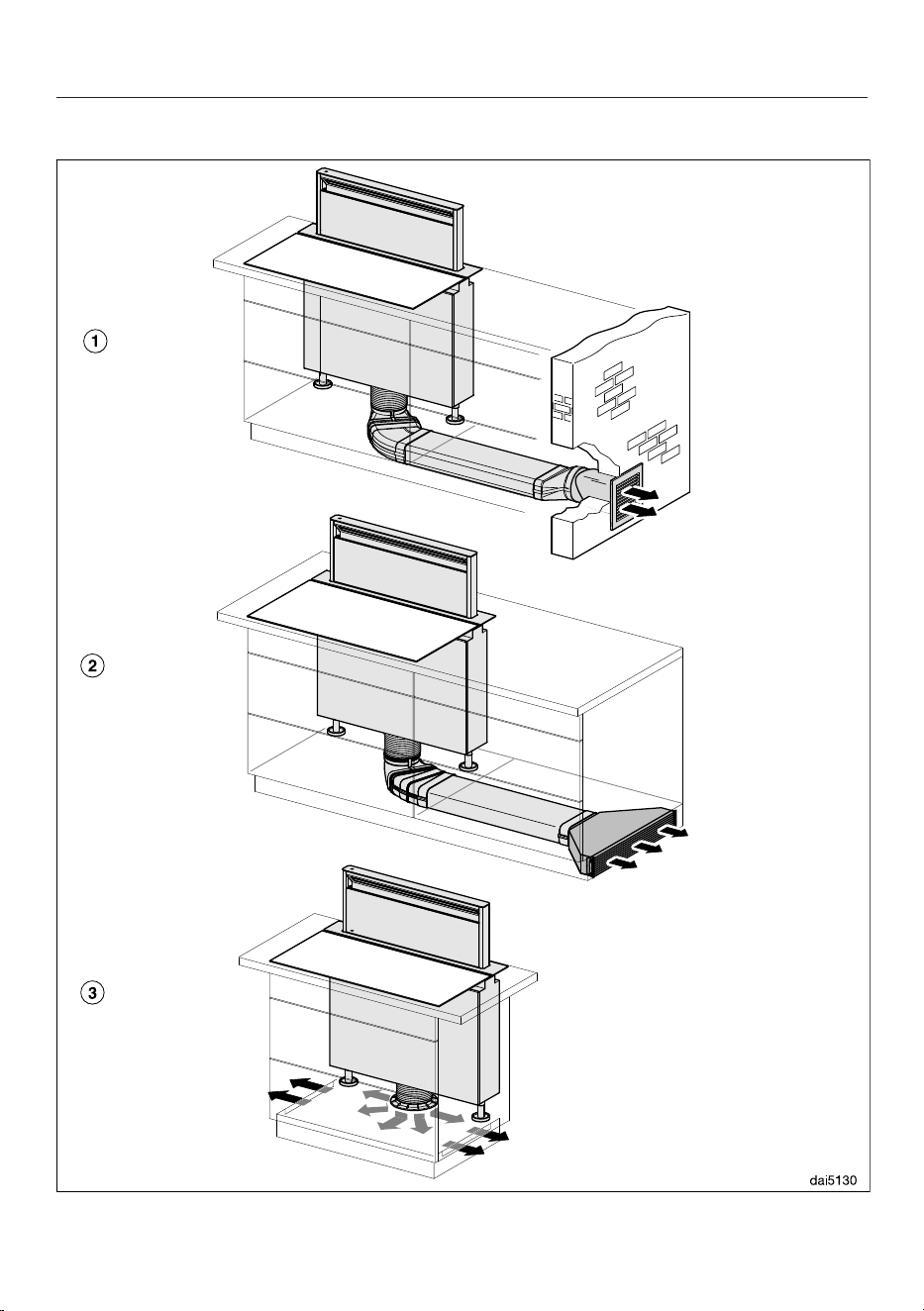

Installation examples.....................................................................................................
41
Sealing the gaps .............................................................................................................
42

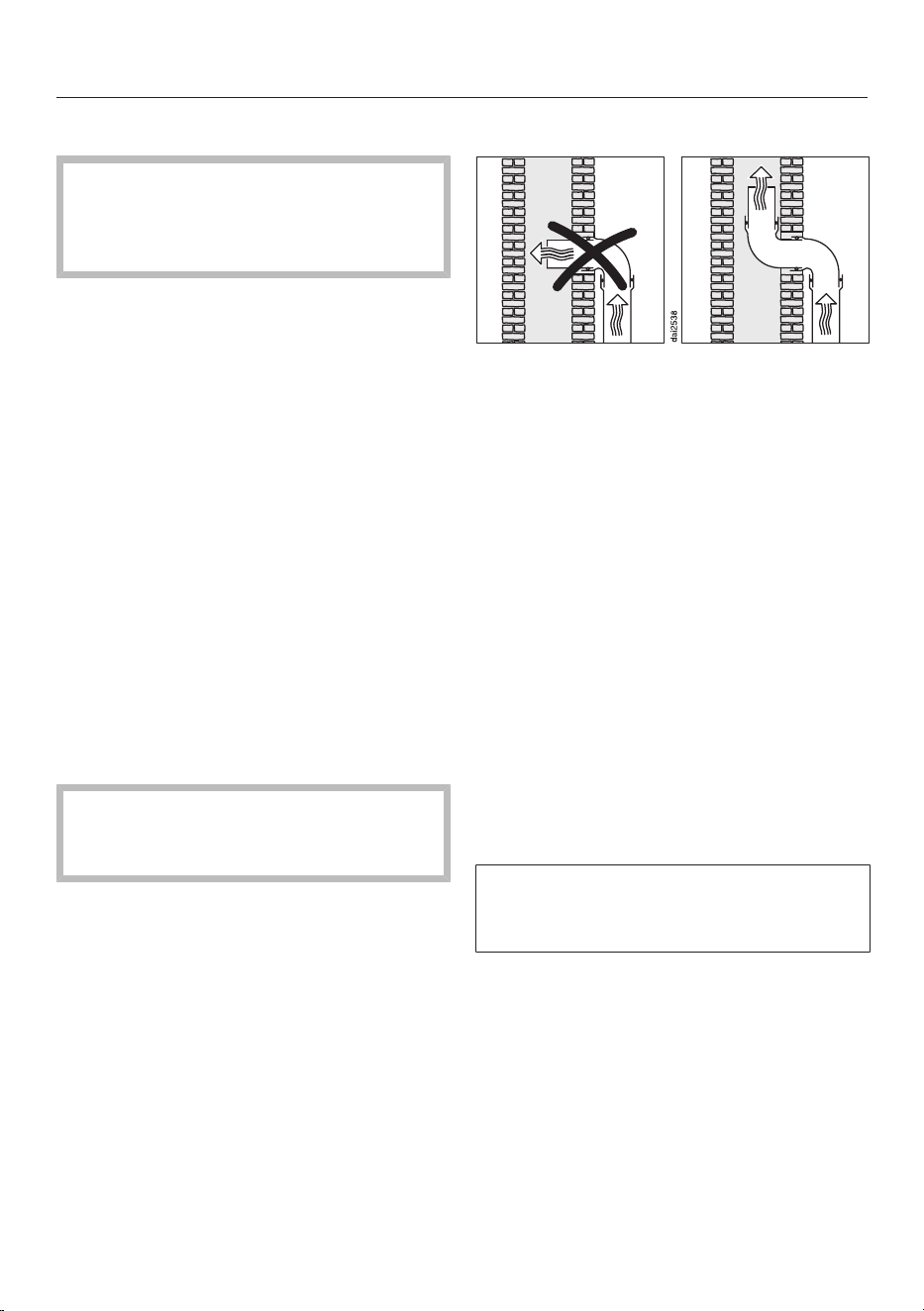

Connection for air extraction ........................................................................................
43
Non-return flap.......................................................................................................... 43
Electrical connection .....................................................................................................
44
Technical data................................................................................................................ 45
Optional accessories for recirculation mode..............................................................
45
EU Conformity declaration............................................................................................
46
UK Conformity declaration ...........................................................................................
46
Caring for the environment
4
Disposing of the packaging
material
The packaging material is used for
handling and protects the appliance
from transport damage. The packaging
material used is selected from materials
which are environmentally friendly for
disposal and can generally be recycled.
Recycling the packaging material
reduces the use of raw materials. Use
material-specific collection points for
valuable materials and take advantage
of return options. Your Miele dealer will
take the packaging material away.
Disposing of your old appliance
Electrical and electronic appliances
contain many valuable materials. They
also contain certain materials,
compounds and components which
were essential for their correct
functioning and safety. These could be
hazardous to human health and to the
environment if disposed of with
household waste or if handled
incorrectly. Please do not, therefore,
dispose of your old appliance with
household waste.
Instead, please make use of officially
designated collection and disposal
points to dispose of and recycle
electrical and electronic appliances in
your local community, with your dealer
or with Miele, free of charge. By law, you
are solely responsible for deleting any
personal data from the old appliance
prior to disposal. You are legally obliged
to remove any old batteries which are
not securely enclosed by the appliance
and to remove any lamps without
destroying them, where this is possible.
These must be taken to a suitable
collection point where they can be
handed in free of charge. Please ensure
that your old appliance poses no risk to
children while being stored for disposal.
Warning and Safety instructions
5
This cooker hood complies with all relevant local and national
safety requirements. Inappropriate use can, however, lead to
personal injury and material damage.
Read the operating and installation instructions carefully before
using the cooker hood. They contain important information on its
safety, installation, use and maintenance. This prevents both
personal injury and damage to the cooker hood.
In accordance with standard IEC60335-1, Miele expressly and
strongly advises that you read and follow the instructions in the
chapter on installing the appliance as well as the safety instructions
and warnings.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Correct application
The cooker hood is not intended for outdoor use.
It must only be used as a domestic appliance to extract vapours
and remove odours from cooking.
Any other usage is not supported by the manufacturer and could be
dangerous.
The cooker hood can only be used by people with reduced
physical, sensory or mental capabilities, or lack of experience and
knowledge, if they are supervised whilst using it, or have been shown
how to use it in a safe way and recognise and understand the
consequences of incorrect operation.
Safety with children
Children under 8 years of age must be kept away from the cooker
hood unless they are constantly supervised.
Children aged 8 and older may only use the cooker hood without
supervision if they have been shown how to use it and are able to do
so in a safe manner. Children must be able to understand and
recognise the possible dangers caused by incorrect operation.
Children must not be allowed to clean or maintain the cooker hood
unsupervised.
Warning and Safety instructions
6
Please supervise children in the vicinity of the cooker hood and do
not let them play with it.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Technical safety
Unauthorised installation, maintenance and repairs can pose a
considerable risk to the user. Installation, maintenance and repairs
must only be carried out by a Miele authorised technician.
A damaged appliance can be dangerous. Check it for visible signs
of damage. Do not use a damaged appliance.
The electrical safety of this appliance can only be guaranteed when
correctly earthed. It is essential that this standard safety requirement
is met. If in any doubt please have the electrical installation tested by
a qualified electrician.
Temporary or permanent operation on an autonomous power
supply system or a power supply system that is not synchronised
with the mains power supply (e.g. island networks, back-up systems)
is possible. A prerequisite for operation is that the power supply
system complies with the specifications of EN50160 or an
equivalent standard.
The function and operation of the protective measures provided in
the domestic electrical installation and in this Miele product must
also be maintained in isolated operation or in operation that is not
synchronised with the mains power supply, or these measures must
be replaced by equivalent measures in the installation. As described,
for example, in the current version of BS OHSAS 18001–2 ISO
45001.
The connection data (voltage and frequency) on the data plate of
the cooker hood must match the mains electricity supply in order to
avoid the risk of damage to the cooker hood
Compare this before connecting the appliance to the mains. Consult
a qualified electrician if in any doubt.
Do not connect the appliance to the mains electricity supply by a
multi-socket unit or an extension lead. These are a fire hazard and do
not guarantee the required safety of the appliance.
Warning and Safety instructions
7
For safety reasons, this appliance may only be used after it has
been built in.
The cooker hood must not be used in a non-stationary location
(e.g. on a ship).
Touching electrical components and tampering with electrical and
mechanical parts is highly dangerous to the user and can cause
operational faults.
Only open the housing as described in the instructions given in the
installation sheet and in the Cleaning and care section of this booklet.
Under no circumstances should any other parts of the housing be
opened.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised technician.
If the electrical connection cable is faulty it must only be replaced
by a Miele authorised technician to protect the user from danger.
The lamps are a built-in component of the lighting. Replacement
lamps may only be fitted by a Miele authorised technician or by the
Miele Customer Service Department.
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply.
Warning and Safety instructions
8

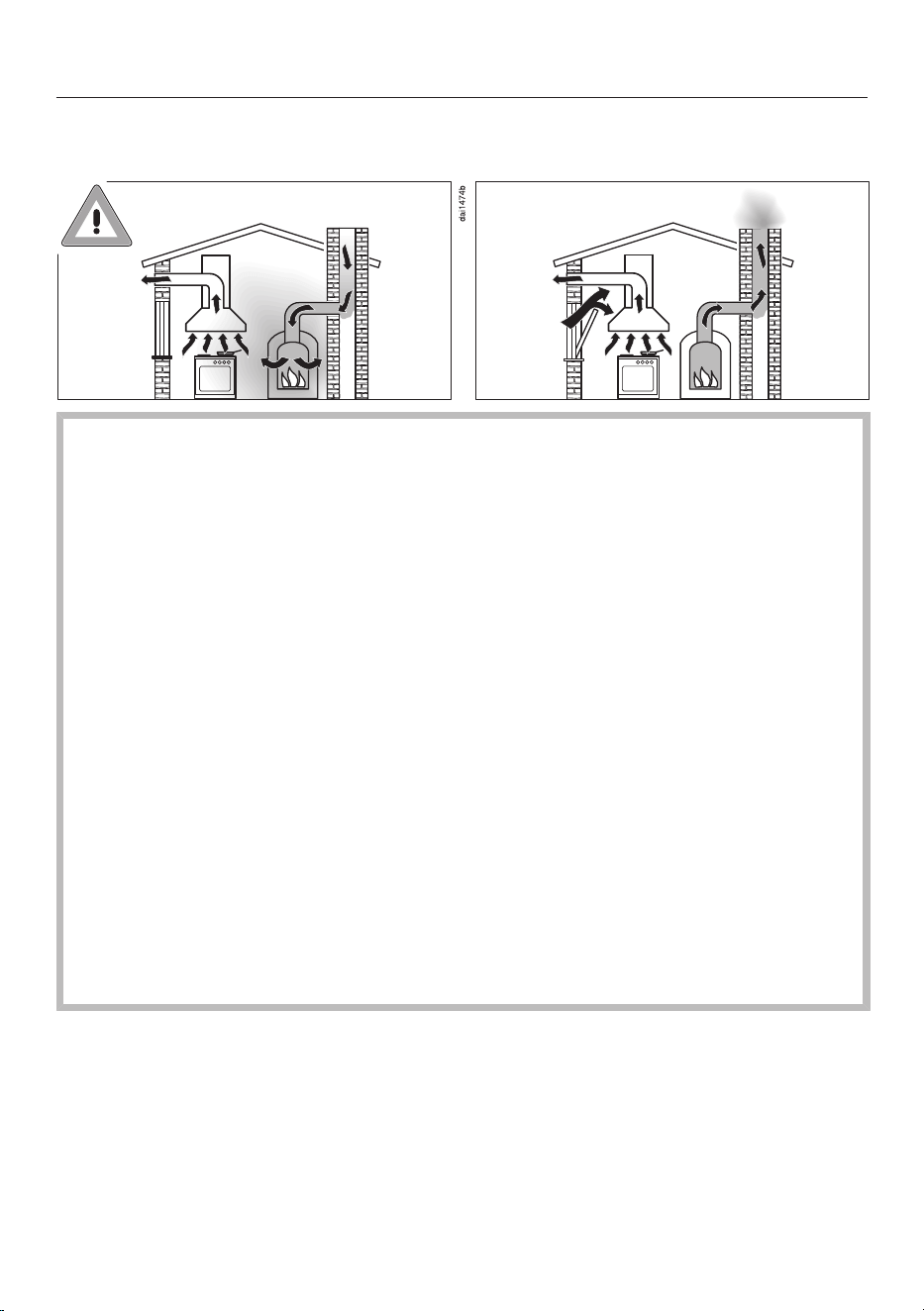

Using at the same time as another heating appliance that depends on the air
from the room
Danger of toxic fumes!
Great care should be taken when using the cooker hood in the
same room or the same area of the house at the same time as
another heating appliance that depends on the air from the room.
Such heating appliances draw in air from the room and duct
exhaust gases out through a chimney or extraction ducting. They
include gas, oil, wood and coal-fired boilers and heaters,
continuous flow or other water heaters, gas hobs and ovens.
The cooker hood draws in air from the kitchen and from
neighbouring rooms. This applies to the following modes of
operation:
– Extraction mode
– Recirculation mode with a recirculation box installed outside the
room.
If there is insufficient air, negative pressure will occur. The heating
appliance may be starved of oxygen. This impairs combustion.
Harmful gases could be drawn from the chimney or extraction
ducting back into the room.
Risk of death!
Warning and Safety instructions
9
In order to ensure safe operation and to prevent gases given off by
the heating appliance from being drawn back into the room when
the cooker hood and the heater are both operated simultaneously,
an underpressure in the room of 0.04mbar (4Pa) is the maximum
permissible.
Sufficient ventilation can be maintained by air inlets which cannot
be blocked, e.g. in windows, doors and outside wall vents. The
cross-section of the inlet openings must enable sufficient
ventilation. A ventilation brick alone is not generally sufficient to
ensure safe ventilation.
The overall ventilation condition of the dwelling must be taken into
account. If in any doubt, ask a competent building regulations
inspector or qualified gas fitter (if appropriate).
If the cooker hood is being operated in recirculation mode, whereby
the air is redirected into the room in which it is installed, the above
restrictions do not apply.
Correct use
Risk of crushing! Do not reach into the travel area of the extractor
as it moves up or down.
Open flames are a fire hazard.
The use of an open flame under the cooker hood is not permitted. To
avoid the danger of fire, do not flambé or grill over an open flame.
When switched on, the cooker hood could draw flames into the filter.
Fat deposits could ignite, presenting a fire hazard.
Always switch the cooker hood on when a cooking zone is in use,
otherwise condensation may collect in the hood, which could cause
corrosion.
Overheated oil and fat can ignite, causing fire damage to the
cooker hood.
When cooking with oil or fat, chip pans and deep fat fryers, etc, do
not leave the pans unattended. Similarly, never leave an open grill
unattended when grilling.
Do not use the cooker hood without the filters in place. This way
you will avoid the risk of grease and dirt getting into the appliance
and hindering its smooth operation.
There is a risk of fire if the cooker hood is not cleaned as described
in these operating instructions.
Warning and Safety instructions
10
The cooker hood can get very hot during cooking due to heat rising
from the hob.
Do not touch the housing or the grease filters until the cooker hood
has cooled down.
Proper installation
To determine whether a cooker hood may be operated above your
cooking appliance, please refer to the information provided by the
appliance’s manufacturer.
The downdraft extractor must not be installed next to solid fuel
stoves.
The cooker hood must not be operated in combination with a gas
hob.
The distances given in “Installation” must be observed when fitting
the downdraft extractor.
Exhaust ducting must be of non-inflammable material. Suitable
material is available from Miele specialist dealers or the Miele Spares
Dept.
The appliance must not be connected to a chimney or flue which is
in use. Neither should it be connected to ducting which ventilates
rooms with fireplaces.
If exhaust air is to be extracted into a chimney or ventilation duct
no longer used for other purposes, seek professional advice.
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach electrical components and cause a short
circuit.
Warning and Safety instructions
11
Accessories and spare parts
Only use genuine original Miele accessories and spare parts with
this appliance. Using accessories or spare parts from other
manufacturers will invalidate the warranty and Miele cannot accept
liability.
Miele can only guarantee the safety of the appliance when genuine
original Miele replacement parts are used. Faulty components must
only be replaced by Miele spare parts.
Miele will guarantee to supply functional spare parts for a
minimum of 10years and up to 15years following the discontinuation
of your vapour extraction unit.
Guide to the cooker hood
12
Guide to the cooker hood
13
a
Control elements
b
Retractable deflector plate
c
Hob lighting
d
Edge extraction panel
e
Drip tray
f
Charcoal filter
Single-use or reactivatable charcoal filters
Optional accessories for recirculation mode
g
Grease filters
h
Exhaust duct
i
Sensor control for switching the cooker hood on and off
j
Sensor controls for switching the fan on and off and for setting the fan power
level
k
Sensor control for the run-on function
l
Sensor control for the grease filter operating hours counter
m
Sensor control for the charcoal filter operating hours counter
n
Sensor control for switching the lighting on and off and for dimming the lighting
o
Sensor controls for selecting and displaying lighting levels
Modes of operation
14
Depending on the model of the cooker
hood, the following options are
available:
Extraction mode
The cooking vapours are drawn in by the
cooker hood. The air is then passed via
the edge extraction panel through the
grease filters, cleaned and then directed
outside.
Recirculation mode
(with conversion kit and charcoal filter
as optional accessories)
The air is drawn in via the edge
extraction panel and cleaned first by the
grease filters and then by charcoal
filters. The air is then circulated back
into the kitchen.
For recirculation operation, we
recommend that the air is fed into the
kitchen through a duct with an outlet,
e.g. in the plinth panel.
Recirculation mode Plug&Play
If the installation space is not sufficient
for an air duct, the air can also be guided
into the plinth under the kitchen
furniture in Plug&Play operation. Please
follow the instructions in “Installation”.
Kitchen ventilation
Ensure that the kitchen is well ventilated
when operating the cooker hood.
In extraction mode, the efficiency of the
cooker hood is improved by the
incoming air.
In recirculation mode, the moisture
produced during cooking remains in the
kitchen. Ventilation helps to dissipate
moisture.
Before using for the first time
15
Selecting extraction mode or
recirculation mode
The cooker hood is suitable for both
extraction mode and recirculation
mode. The power of the fan is adapted
to suit the selected operating mode.
The cooker hood is delivered set up for
recirculation mode. It has to be reset
for extraction mode.
To reset it for extraction mode, the
operating hours counter for the charcoal
filter(s) has to be deactivated.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Touch B.
Confirm your choice by touching the
charcoal filter control.
All the indicator lights will go out.
Extraction mode has now been set.
If you do not confirm your selection
within 4minutes, the cooker hood will
automatically revert to the original
setting.
Activating/Deactivating
Plug&Play
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 5seconds the 1 fan
power level indicator lights up.
The deflector plate extends.
Then touch the following controls in
turn:
- 1
- The lighting control and
- The lighting control again
When Plug&Play is deactivated, the
indicators 1 and 3 will flash.
When Plug&Play is activated, the
indicators 1 and 3 will light up
constantly.
To activate, touchB.
The 1 and 3 indicators light up
constantly.
Touch 1 to deactivate.
The 1 and 3 indicators flash.
Confirm the setting with the run-on
option control.
All the lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Before using for the first time
16
Setting up Miele@home
Requirements:
- A WiFi network
- The Miele app
- A Miele user account. The user
account can be created via the
Miele app.
Your cooker hood is equipped with an
integrated WiFi module. Connect the
cooker hood to your household WiFi
network. You will then be able to
operate the cooker hood via the Miele
app.
If your Miele hob is connected to a
home WiFi network, you can control the
cooker hood automatically via the
Con@ctivity function.
Before installing the cooker hood in
its final location, ensure that the
signal of your WiFi network is strong
enough.
You can connect to the household WiFi
network via the Miele app or via WPS.
Miele@home availability
The ability to use the Miele app
depends on the availability of the
Miele@home service in your country.
The Miele@home service is not
available in every country.
For information about availability, please
visit www.miele.com.
Performing Scan & Connect
Scan the QR code.
If you have installed the Miele app and
have a user account, you will be taken
directly to the networking steps.
If you have not yet installed the Miele
app, you will be taken to the Apple App
Store
®
or the Google Play Store™.
Install the Miele app and set up a user
account.
Scan the QR code again.
The Miele app will guide you through
the setup process.
Before using for the first time
17
Sign out of WiFi (reset to factory settings)
To set up a new WiFi connection, the
existing WiFi connection must be
disconnected.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter and
charcoal filtersymbols light up.
Touch 1.
The deflector plate extends.
If a WiFi connection exists, 2and 3will
light up constantly.
The cooker hood will be ready for
disconnection in the next 2minutes.
Touch 1.
2will light up constantly, 3will flash.
After a few seconds, 2and 3will flash.
The connection has now been
disconnected.
Quit signing-off mode on the cooker
hood by touching the run-on option
control.
The WiFi connection has now been
disconnected. A new connection can
now be set up.
Setting up Con@ctivity
Con@ctivity is the direct
communication system between an
electric Miele hob and a Miele cooker
hood. It enables the cooker hood to
operate automatically depending on the
operational state of a Miele hob with
onset controls.
- When the hob is switched on, the
cooker hood lighting comes on
automatically and then after a short
time the fan also comes on.
- The cooker hood selects the power
level automatically during cooking.
The power level selected by the
cooker hood depends on the number
of cooking zones being used and their
power levels.
- After switching the hob off the fan and
the hob lighting will switch off
automatically after a specified period
of time.
See “Operation” for detailed information
about this function.
Before using for the first time
18
Con@ctivity via the home WiFi
network (Con@ctivity 3.0)
Prerequisite:
- Home WiFi network
- WiFi-enabled Miele hob
Connect the cooker hood and hob to
your home WiFi network (see “Setting
up Miele@home”).
The Con@ctivity function will be
activated automatically.
Con@ctivity via a direct WiFi
connection (Con@ctivity 3.0)
Prerequisite:
- WiFi enabled Miele hob
If you do not have a home network, you
can establish a direct connection
between the hob and the cooker hood.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch 3.
The deflector plate extends.
2will light up constantly, 3will flash.
The cooker hood will be ready for
connection in the next 2minutes.
Start the WiFi connection on the hob.
For further details, see the hob
operating instructions.
When successfully connected, 2and
3will light up constantly.
Quit connection mode on the cooker
hood by touching the run-on option
control.
Con@ctivity is now activated.
With a direct WiFi connection, it is not
possible to connect the hob and the
cooker hood to a home network.
Should this be required at a later date,
the WiFi connection between the hob
and the cooker hood must be
disconnected (see “Sign out of WiFi”).
Reattempting the connection
If it is not possible to connect, 2 and 3
flash or the cooker hood cancels the
process.
Disconnect the connection to the
cooker hood (see “Signing out of
WiFi”) and to the hob.
Attempt to make the connection
again.
Operation (Automatic mode)
19
Risk of crushing!
Do not reach into the motion range of
the deflector plate as it moves up or
down.
When Con@ctivity is active, the
cooker hood always operates in
automatic mode (see “Before using for
the first time” – “Setting up
Con@ctivity”).
If you wish to manually operate the
cooker hood, see “Operation (Manual
mode)” – “Cooking without
Con@ctivity”.
Cooking with Con@ctivity
(Automatic mode)
Switch a cooking zone on at the
desired power level.
The deflector plate extends.
The hob lighting will come on.
After a few seconds the fan will come
on, first at power level 2, then it will
switch immediately to power level 1.
The cooker hood selects the fan power
level automatically during cooking.
This is determined by the total output of
the hob, i.e. the number of cooking
zones in operation and the power levels
selected.
If you select a higher power level or
are using several cooking zones on
the hob, the cooker hood will switch
to a higher fan power level.
When you reduce the power level or
the number of cooking zones on the
hob, the fan power level is also
reduced.
Examples for power levels 1 to B
Reaction time
The cooker hood reacts with a slight
delay because altering the power level
on the hob does not immediately result
in a reduction or increase in cooking
vapours.
Because the hob transmits the
information to the cooker hood at
intervals, this can also cause delays.
The reaction can vary from a few
seconds to a couple of minutes.
Cooking process
For example, you switch on a cooking
zone at the highest power level to
heat a pan for frying. You reduce the
power level after approx. 10seconds
to 4minutes (60seconds to
5minutes for a for a HiLight hob).
The cooker hood recognises a cooking
process.
The cooker hood switches itself on and
when the hob power level has been
reduced, the hood switches to fan
power level 3 and remains at that level
for approx. 5minutes.
After that, the cooker hood power level
is determined automatically by the
Con@ctivity function.
You can select another power level
manually before then.
Operation (Automatic mode)
20
Switching off
Switch off all cooking zones.
The power level is gradually reduced
until the fan finally switches off.
This helps to neutralise any lingering
vapours and odours in the air.
Depending on the last active fan level,
the process takes 2 to 5minutes.
30seconds after the fan is switched off,
the hob lighting switches off.
1minute later, the deflector plate
retracts.
The cooking process is then finished.
Leaving automatic mode
temporarily
To leave automatic mode temporarily
during cooking:
Manually select a different fan power
level, or
Manually switch the cooker hood off,
or
Activate the run-on function on
the cooker hood. The fan will switch
itself off after the selected run-on
time, and the lighting will remain on.
The cooker hood functions are now
operated manually (see “Operation
(Manual mode)”).
If you switch off the fan manually in
Plug&Play mode, it continues to run at
level 1 (see “Operation (Manual
mode)” – “Switching off the fan”).
Returning to automatic mode
The cooker hood will resume automatic
mode:
- If the cooker hood has not been used
for approx. 5minutes after selecting a
fan power level manually, or
- If the manually selected fan power
level corresponds to the automatic
one again, or
- The cooker hood fan and the hob have
been switched off for at least
30seconds.
Automatic mode will resume next
time the hob is switched on.
You can also operate the cooker hood
manually for a complete cooking
process.
Switch the cooker hood fan on before
the hob.
If the cooker hood fan and the hob have
been switched off for at least
30seconds after cooking, automatic
mode will resume next time the hob is
switched on.
Operation (Manual mode)
21
Risk of crushing!
Do not reach into the motion range of
the deflector plate as it moves up or
down.
Cooking without Con@ctivity
(Manual mode)
The cooker hood can be operated
manually if:
- The Con@ctivity function is not
activated.
- You have temporarily deactivated the
Con@ctivity function (see “Operation
(Manual operation)” – “Leaving
automatic mode temporarily”).
Switching on the fan
Select power levels 1 to 3 for light to
heavy cooking vapours, odours or
heating.
Increase the power level as the level of
vapours, odours or heat increases.
For short periods of cooking food with
intensive vapours, odours or heat, e.g.
when searing meat, select Booster level
B.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Touch one of the controls 1 to B.
The deflector plate extends.
The fan switches to the desired level.
Selecting the second Booster level
When you select the Booster level,
the Bsymbol lights up. To increase
the power level further, touch B again.
The Bsymbol lights up.
The second Booster level is activated.
The air throughput is increased for a
short time.
Switching back the Booster levels
If power management is activated
(default setting), the first Booster level
automatically switches back to level 3
after 5minutes.
The second Booster level switches back
to the first Booster level after 2minutes
(even if power management is
deactivated).
Selecting the run-on time
It is advisable to run the fan for a few
minutes after cooking has finished. This
helps to remove any lingering vapours
and odours from the air.
It also reduces the risk of residues
accumulating in the cooker hood and
any resultant odours.
The run-on function enables the fan to
continue running for a pre-determined
time before switching itself off
automatically.
After you have finished cooking, touch
the run-on option control.
- Once: the fan will switch itself off
after 5minutes (5 lights up).
- Twice: The fan will switch itself off
after 15minutes ( 15 lights up).
- If you touch the run-on option
control again, the fan will remain
on ( will go out).
Operation (Manual mode)
22
Switching the fan off
Touching the control for the active
power level again switches the fan off.
The deflector plate remains extended.
Run-on in Plug&Play operation
If you switch off the fan in Plug&Play
mode, it will run on at level1.
Run-on ensures that the plinth is
ventilated after cooking.
Depending on the last active fan level,
run-on lasts between 2 and 30minutes.
You can switch off the fan immediately
during run-on by pressing 1 or the On/
Off switch.
This function is independent of the run-
on function.
Switching on and dimming the
hob lighting
The hob lighting can be switched on and
off and dimmed independently of the
fan.
With the deflector plate retracted,
touch the On/Off switch.
All symbols light up with reduced
brightness.
Touch the lighting control briefly.
The deflector plate extends.
The lighting will switch on at maximum
brightness. All 3 bars next to the lighting
control light up.
With the lighting switched on, press
and hold the lighting control. The
brightness will gradually dim until you
release the control.
Press and hold the lighting control
again to increase the brightness to
the level required and then release it.
Alternatively, you can select 3
brightness levels by touching the bars
next to the lighting control.
Switching the hob lighting off
Touching the lighting control again
switches the hob lighting off.
The deflector plate remains extended.
Operation (Manual mode)
23
Retracting the deflector plate
Touch the On/Off switch.
The fan and the hob lighting are
switched off.
All symbols go out.
The deflector plate retracts.
Automatic retraction
If you switch off the fan and the lighting
when the deflector plate is extended,
the deflector plate will automatically
retract after 1minute.
Power management
The cooker hood is fitted with a power
management system. Power
management helps to save energy. It
ensures that the fan power level is
reduced automatically and that the
lighting is switched off.
- If the Booster setting has been
selected, the fan will automatically
switch to level 3 after 5minutes.
- From fan power levels 3, 2 or 1, the
power will be reduced by one level
after 2hours and then in 30-minute
stages until the fan finally switches
off.
- The hob lighting will switch off
automatically after 12hours.
Changing settings
24
All settings are made with the cooker
hood switched off.
Switch off the fan and the lighting and
retract the deflector plate.
Altering the operating hours
counter for the grease filter(s)
You can set the operating hours counter
to suit the type of cooking you do.
The factory default setting is a cleaning
interval of 30hours.
- Select a shorter time of 20hours if
you fry a lot.
- If you only cook occasionally, we
recommend that you still select a
short time. This is to prevent grease
hardening on the filter(s) and making
cleaning more difficult.
- Select a longer time of 40 or 50hours
if you use very little fat for cooking.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
Touch the grease filter symbol.
The grease filter symbol and one of
the fan power level indicators will flash.
Fan power level indicators 1 to B show
the time set:
Indicator 1................................... 20hours
Indicator 2 .................................. 30hours
Indicator 3 .................................. 40hours
Indicator B.................................. 50hours
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
grease filter control. If you do not
confirm your selection within 4minutes,
the cooker hood will automatically
revert to the original setting.
Altering or deactivating the
charcoal filter operating hours
counter
Charcoal filters are needed for
recirculation mode.
You can set the operating hours counter
to suit the type of cooking you do.
It has to be deactivated for extraction
mode.
It is set at the factory for 180hours of
use before the filters need replacing.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter and
charcoal filtersymbols light up.
Touch the charcoal filter symbol.
The charcoal filter symbol and one of
the fan power levels will flash.
Fan power level indicators 1 to B show
the time set:
Indicator 1................................. 120hours
Indicator 2 ................................ 180hours
Indicator 3 ................................ 240hours
Indicator B............................. deactivated
Touch the relevant control to select
the duration required.
Confirm your choice by touching the
charcoal filter control. If you do not
confirm your selection within
4minutes, the cooker hood will
automatically revert to the original
setting.
Changing settings
25
Deactivating power
management
Keep in mind that deactivating this
function may increase energy
consumption.
Activating/deactivating Power
management
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control.
After a few seconds, the grease filter
and charcoal filter symbols light up,
and after a further 5seconds the 1 fan
power level indicator lights up.
The deflector plate extends.
Then touch the following controls in
turn:
- the lighting control,
- the 1 control and then
- The lighting control again
When Power management is activated,
the 1 and B indicators light up
constantly.
When it is deactivated, the 1 and B
indicators flash.
To deactivate Power management,
touch 1.
The 1 and B indicators will flash.
To activate, touchB.
The 1 and B indicators will light up
constantly.
Confirm the setting with the run-on
option control.
All the lights will go out.
If you do not confirm your choice of
setting within 4minutes, the cooker
hood will revert to the old setting.
Buzzer for the sensor controls
When a function is selected with the
sensor controls, a short buzzer will
sound for confirmation.
The buzzer can be switched off.
Touch the On/Off switch.
All symbols light up with reduced
brightness.
Press and hold the run-on option
control until the grease filter
and charcoal filtersymbols light
up.
TouchB.
The buzzer is switched off.
If you want to switch the buzzer on
again, proceed in the same way.
Regardless of the previous setting, the
buzzer will be reactivated when power
is restored to the cooker hood after it
has been disconnected from the mains
electricity supply or after a power cut.
Energy saving tips
26
This cooker hood operates very
efficiently and economically. The
following will help you to save even
more energy when using it:
- Ensure that there is sufficient
ventilation in the kitchen when
cooking. In extraction mode, if there is
insufficient air flow the cooker hood
cannot operate efficiently and this
causes increased operating noise
levels.
- Always cook with the lowest possible
setting. This produces fewer cooking
vapours, so you can use a lower
cooker hood power level and therefore
benefit from reduced energy
consumption.
da5125
- If strong cooking vapours are
produced during cooking, place the
cookware as close as possible to the
cooker hood.
Cook in covered pots and pans if
possible. This prevents heat escaping
unnecessarily.
If you are cooking with open pots, put
a lid on at an angle. For example,
place a cooking spoon between the
pot and the lid. The deflection of the
cooking vapours in the direction of
the extractor ensures optimum
extraction.
- Clean or change the filters at regular
intervals. Heavily soiled filters reduce
performance, increase the risk of fire
and are unhygienic.
- Use the Con@ctivity function. The
cooker hood will switch on and off
automatically at the optimum power
level for the cooking you are doing,
which ensures low energy
consumption.
- If you are operating the cooker hood
manually, please note the following:
– Check the power level selected on
the cooker hood. A low power level
is usually sufficient. Only use the
Booster setting when necessary.
– When a large volume of cooking
vapours are being produced,
switch to a high power level in
good time. This is more efficient
than operating the cooker hood for
longer to try to capture cooking
vapours which have already been
distributed throughout the kitchen.
– Make sure that you switch the
cooker hood off after use.
If cooking vapours and odours still
need to be removed from the
kitchen air after cooking, use the
run-on function. The fan will switch
off automatically after the selected
run-on time.
Cleaning and care
27
Housing
General information
Unsuitable cleaning agents can
damage the surfaces and control
elements.
Do not use any cleaning agents
containing soda, acid, chloride or
solvent.
Do not use any abrasive cleaning
agents, e.g. powder cleaners or
cream cleaners and abrasive
sponges, as well as pot scourers or
sponges which have been used
previously with abrasive cleaning
agents.
Moisture in the cooker hood can
cause damage.
Make sure that water does not get
into the cooker hood.
All external surfaces and control
elements can be cleaned using hot
water with a small amount of
washing-up liquid applied with a well
wrung-out soft sponge or cloth.
After cleaning, wipe the surfaces dry
using a soft cloth.
Important information for appliances
with stainless steel surfaces
Stainless steel surfaces can be cleaned
with a non-abrasive cleaning agent
designed specifically for use on
stainless steel.
To prevent the surfaces from quickly
becoming dirty again, we recommend
treating them with a stainless steel care
product (available from Miele).
Important for appliances with glass
surfaces
Glass surfaces can be cleaned using a
proprietary non-abrasive cleaning
agent designed specifically for use on
glass.
Grease filters and panel for
edge extraction
Fire hazard
Oversaturated grease filters are a fire
hazard.
Clean the grease filters at regular
intervals.
The edge extraction panel and the re-
usable metal grease filters in the
appliance remove solid particles
(grease, dust, etc.) from the kitchen
vapours, preventing soiling of the cooker
hood.
The grease filters and the panel must be
cleaned at regular intervals.
Heavily soiled grease filters hinder air
extraction and will lead to increased
levels of soiling in the cooker hood and
in the kitchen.
Cleaning interval
The edge extraction panel should be
cleaned regularly (at least every 3 - 4
weeks) to avoid a build-up of grease.
The operating hours counter will
illuminate the grease filter symbol to
remind you to clean the edge extraction
panel and the grease filters regularly.
Cleaning and care
28
Removing the panel and grease filters
Opening the panel
With the deflector plate retracted,
touch the On/Off switch.
Touch the lighting control briefly.
The deflector plate extends.
Risk of crushing
If you switch off the fan and the
lighting when the deflector plate is
extended, the deflector plate will
automatically retract after 1minute.
Risk of injury. Risk of damage to the
opened panel.
To prevent the deflector plate from
retracting, leave the lighting switched
on.

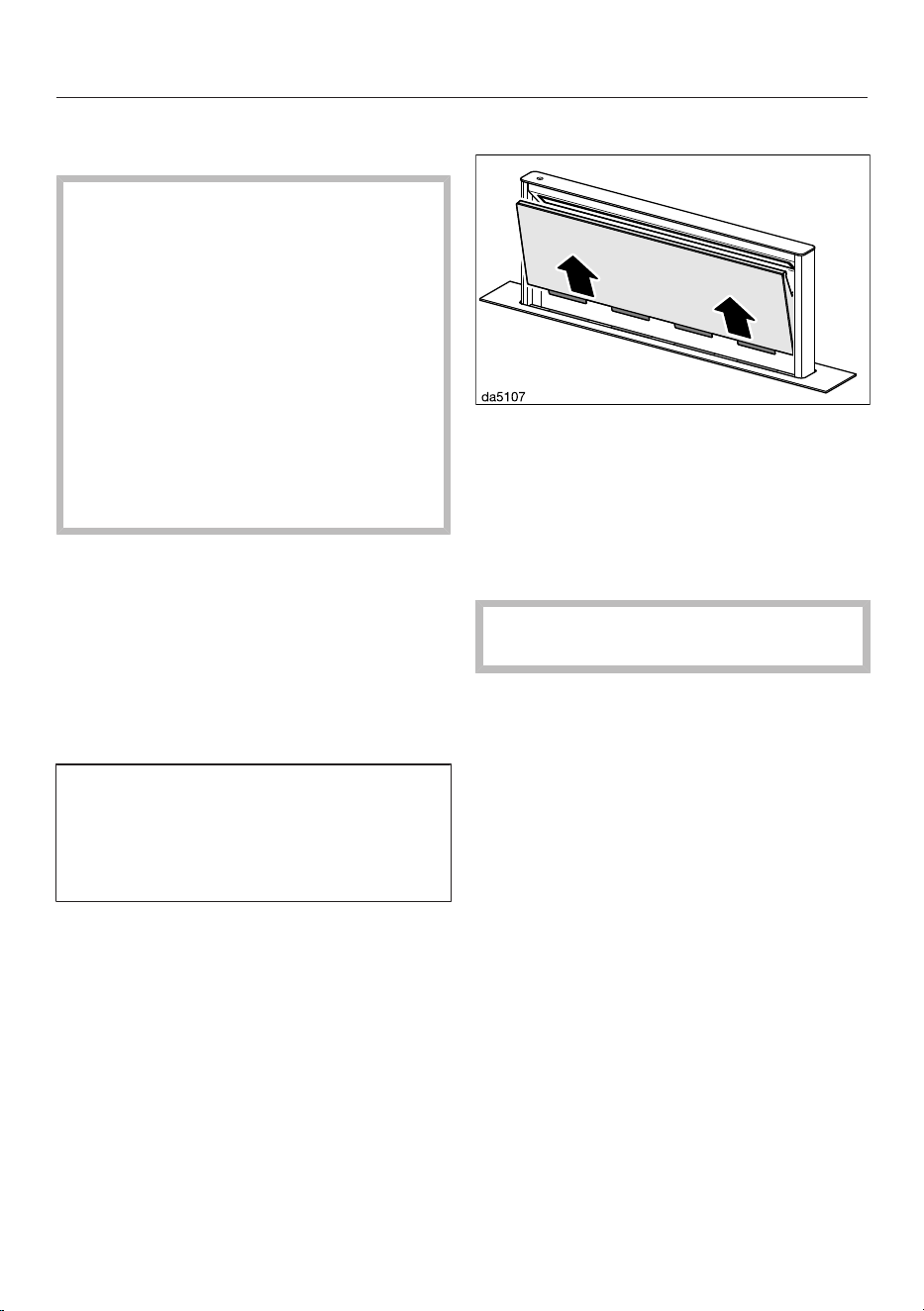

The panel is held in place by magnets.
Pull the top of the panel forwards and
swing it open.
Open the grease filter retainer catch
and remove them.
Cleaning the grease filters by hand
Clean the filters with a soft nylon
brush in a mild solution of hot water
and a small amount of washing-up
liquid. Do not use “neat” washing up
liquid.
Unsuitable cleaning agents
Unsuitable cleaning agents can cause
damage to the surface of the filters if
used regularly.
Do not use:
- cleaning agents containing descaling
agents
- powder cleaners, cream cleaners
- aggressive multi-purpose cleaning
agents or spray cleaners for grease
- oven sprays
Cleaning and care
29
Cleaning the grease filters in the
dishwasher
Risk of damage due to
excessively high temperatures in the
dishwasher.
Excessively high temperatures may
cause the grease filters to become
unusable, if they become deformed,
for example.
Select a programme that does not
exceed the recommended
temperature.
Also follow the information provided
in the operating instructions for the
dishwasher.
Place the grease filters upright or at a
slight angle in the lower basket.
Ensure the spray arm is not
obstructed.
Use a standard household cleaning
detergent.
Select a programme with a maximum
wash temperature of 65°C.
Depending on the detergent used, the
internal filter surfaces may become
discoloured. This will not affect the
functioning of the grease filters in any
way.
After cleaning, leave the filters to dry
on an absorbent surface before
replacing them.
Removing the panel
Pull the opened panel up and out to
remove it and place it on a soft
surface.
Cleaning the panel
Follow the instructions under
“Housing”.
The panel is not suitable for cleaning
in a dishwasher.
When removing the panel and filters
for cleaning, also clean off any
residues of oil or fat from the now
accessible parts of the casing to
prevent the risk of these catching fire.
Cleaning the drip tray
Condensate collects in the drip tray
underneath the grease filters. The drip
tray can be removed for cleaning.
Cleaning and care
30
Carefully pull the drip tray up and out
of the holders. Pour away any
condensate that has collected in it
and then clean the tray with a damp
cleaning cloth.
Hook the drip tray back into the
holders after cleaning.
Inserting the panel
Insert the panel into the slots on the
deflector plate.
Refit the grease filters, making sure
that the latch faces outwards.
If a grease filter is inadvertently fitted
upside down, insert a small
screwdriver blade into the slit to
disengage the clip.
Swing the panel closed until the
magnets hold it in place.
Resetting the grease filter operating
hours counter
After cleaning, the operating hours
counter needs to be reset.
With the fan switched on, press the
grease filter control for approx.
3seconds, until only 1 is flashing.
The grease filter symbol goes out.
Cleaning and care
31
Replacing the grease filters
Regular usage and cleaning can cause
the filter surfaces to become worn.
If you identify any damage, replace the
grease filters.
Grease filters are available to order via
the Miele Customer Service
Department (see end of these operating
instructions for contact details) or from
your Miele dealer.
Charcoal filters
With recirculation mode, two charcoal
filters must be fitted in addition to the
grease filters. These are designed to
absorb cooking odours.
Charcoal filters are available to order via
the Miele Webshop, the Miele Spare Parts
Department (see end of this booklet for
contact details) or from your Miele dealer.
The type of charcoal filter required is
listed under “Technical data” at the back
of this booklet.
Fitting/replacing charcoal filters
Remove the panel and remove the
drip tray as previously described.
Take the charcoal filters out of their
packaging.

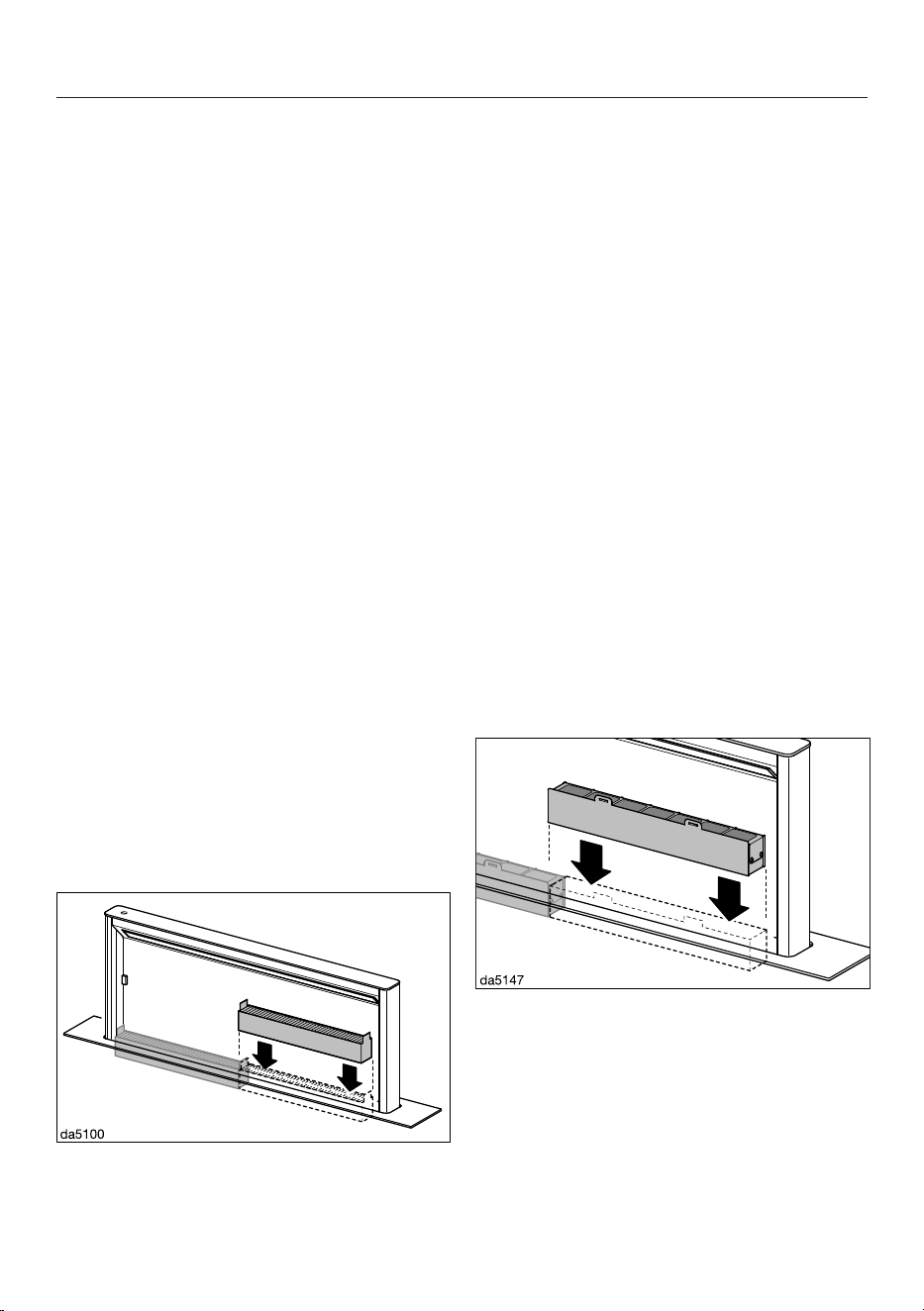

Insert the charcoal filters into the deflector
plate. Make sure the tabs are facing up.
Refit the drip tray and the panel.
When to change the charcoal filters
Replace the charcoal filters when they
no longer absorb kitchen odours
effectively, and at least every 6months.
The operating hours counter will remind
you to replace the charcoal filters by
lighting up the charcoal filter symbol .
Resetting the charcoal filter operating
hours counter
After changing the charcoal filters, the
operating hours counter needs to be
reset.
With the fan switched on, press the
charcoal filter control for approx.
3seconds, until only 1 is flashing.
The charcoal filter symbol will go out.
Disposing of charcoal filters
Used charcoal filters can be disposed
of with normal household waste.
Reactivatable charcoal filters
Reactivatable charcoal filters are
available for this cooker hood. They can
be used several times after being
reactivated in the oven.
Please follow the operating instructions
supplied with the filters.
Problem solving guide
32
Many malfunctions and faults that can occur in daily operation can be easily
remedied. You can save time and money in many cases, as you do not need to call
the Miele Customer Service Department.
Information to help you rectify faults yourself can be found at www.miele.com/
service.
The following tables are designed to help you to find the cause of a malfunction or a
fault and to resolve it.
Problem Cause and remedy
The deflector plate locks
when extended.
The deflector plate is blocked by a heavy object, for
example.
If the deflector plate is blocked when it is extended, it
retracts a little and stops.
Touch the On/Off switch.
The deflector plate extends and then retracts.
The deflector plate
blocks on retraction.
An object has become lodged in the deflector plate.
If the deflector plate is blocked during retraction, it
extends a little and stops.
Touch the On/Off switch.
Switch on the fan or the lighting.
The deflector plate extends.
Service
33
Information to help you rectify faults
yourself and about Miele spare parts can
be found at www.miele.com/service.
Contact in the event of a fault
In the event of any faults which you
cannot remedy yourself, please contact
your Miele dealer or the Miele
Customer Service Department.
You can book a Miele Customer
Service Department call-out online at
www.miele.com/service.
Contact information for the Miele
Customer Service Department can be
found at the end of this document.
Please quote the model identifier and
serial number of your appliance (Fabr./
SN/Nr.) when contacting the Miele
Customer Service Department. This
information can be found on the data
plate.
Please note that telephone calls may be
monitored and recorded for training
purposes and that a call-out charge will
be applied to service visits where the
problem could have been resolved as
described in this booklet.
Position of the data plate
The data plate can be found on the front
of the housing.
Warranty
For information on the appliance
warranty specific to your country please
contact Miele. See back cover for
address.
In the UK, your appliance warranty is
valid for 2 years from the date of
purchase. However, you must activate
your cover by calling 0330 160 6640 or
registering online at www.miele.co.uk.
Copyrights and licences
For the purpose of operating and
controlling the communication module,
Miele uses proprietary or third-party
software that is not covered by open
source licensing terms. This software/
these software components are
protected by copyright. The copyrights
held by Miele and third parties must be
respected.
Furthermore, the communication
module integrated in the appliance
contains software components which
are distributed under open source
licence conditions. The open source
components contained in the appliance
along with the corresponding copyright
notices, copies of the licensing terms
valid at the time and any further
information can be accessed locally by
IP via a web browser (http[s]://<IP
address>/Licenses). The liability and
warranty arrangements for the open
source licences displayed in this
location only apply in relation to the
respective rights holders.
Installation
*INSTALLATION*
34
Before installation
Before installation, it is important
to read the information given on the
following pages as well as the
“Warning and Safety instructions” at
the beginning of this booklet.
Installation materials
6 screws, M4x8mm
8 screws, 4x15mm
2 screws, M4x100mm
Montage
Installation
Montaje
Montaggio
Montering
Montagem
Asennus
Installation plan
See the installation plan for details on
the individual steps involved in the
installation of this appliance.
Installation
*INSTALLATION*
35
Appliance dimensions
Installation
*INSTALLATION*
36
Installation dimensions
Risk of heat damage.
The heat generated by a gas hob may damage the cooker hood.
The cooker hood must not be operated in combination with a gas hob.
If you are planning to install an oven/cooker in front of the appliance, the
appropriate installation advice and dimensions regarding cool air circulation
must be observed.
Make sure that the installation location is easily accessible. The cooker hood must
also be freely accessible and located such that it can be dismantled in the event of
future service requirements.
Installation
*INSTALLATION*
37
Installation of the downdraft extractor and the hob in separate cut-outs
Surface-mounted installation
Flush-fit installation
Installation
*INSTALLATION*
38
Side-by-side installation of the downdraft extractor and the hob in the same cut-
out
Example: combination with KM7697FL or KM7594FL
Surface-mounted installation
Flush-fit installation
Installation
*INSTALLATION*
39
Side-by-side installation of the downdraft extractor and the hob in the same cut-
out
Example: combination with KM7684FL or KM7689FL
Surface-mounted installation
Flush-fit installation
Installation
*INSTALLATION*
40
a
If you install the downdraft extractor and the hob flush-fit against each other in
the same cut-out, you must use the enclosed angle trim.
b
The minimum dimension is required if flat ducting is laid under the cabinets or
the DUU600 recirculation box is used.
c
Cut-out for exhaust ducting in unit floor
d
Ensure that the worktop is sufficiently stable.
e
Stepped cut-out for flush-fit installation in a worktop. Note the different milling
widths for the hob and the downdraft extractor. Instead of a stepped cut-out, a
wooden frame (not supplied) that has been moved downwards by 5.5mm can
be installed as an alternative.
Exhaust duct150mm.
See also the operating and installation instructions for the hob for more
information.
Installation
*INSTALLATION*
41
Installation examples
Installation
*INSTALLATION*
42
a
Extraction mode with flat ducting
and DMK150-1 wall box
b
Recirculation mode with flat ducting
and DUU600 recirculation box
c
Plug&Play operation with DUP150
conversion kit
During Plug&Play operation, ensure
sufficient ventilation of the plinth
area, e.g. through gaps in the plinth
panel.
The cross-section of the openings
must be at least 425cm² in total.
If the floor meets the ground or is
exposed to outside air, the heat
transfer coefficient of the floor must
not exceed 0.5W/(m²K).
The electronic module for vapour
extraction must be switched to
Plug&Play operation, see “Before
using for the first time” – “Setting up
Plug&Play”.
Sealing the gaps
Damage from unsuitable sealant.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Follow the
manufacturer’s instructions.
Use a silicone sealant that is heat-
resistant to at least 160°C to seal the
gap between the downdraft extractor
and worktop (flush-fit installation) or
between the downdraft extractor and
hob (side-by-side installation).
Installation
*INSTALLATION*
43
Connection for air extraction
Only use smooth pipes or flexible
exhaust ducting made from approved
non-flammable materials for exhaust
ducting.
To achieve the most efficient air
throughput with the lowest noise levels,
please note the following:
- The diameter of the exhaust ducting
must not be smaller than the cross-
section of the exhaust duct (see
“Appliance dimensions”). This applies
in particular when using flat ducting.
- The exhaust ducting should be as
short and straight as possible.
- Only use wide radius bends.
- The exhaust ducting must not be
kinked or compressed.
- All connections must be strong and
airtight.
- If the exhaust ducting has flaps, these
must be opened whenever the cooker
hood is switched on.
Any constriction of the air throughput
will reduce extraction performance
and increase operating noise.
Flue
If the exhaust air is to be ducted into a
flue, the ducting must be directed in the
flow direction of the flue.
If the flue is used by several ventilation
units, the cross-section of the flue must
be large enough.
Non-return flap
Use a non-return flap in the exhaust
system.
A non-return flap ensures that when the
cooker hood is not in operation, the
duct is closed to prevent unwanted
exchange of room air and outside air.
If the exhaust is ducted through an
outside wall, a Miele wall vent or roof
vent (available as an optional accessory)
is recommended. Both of these have a
built-in non-return flap.
Miele shall not accept warranty claims
for any functional defects or damage
caused by inadequate exhaust ducting.
Installation
*INSTALLATION*
44
Electrical connection
The cooker hood is supplied with a
mains cable with moulded plug ready
for connection to a suitable earthed
socket.
If the socket is not easily accessible or a
fixed connection is envisaged, ensure
that a suitable means of disconnection
is provided on the installation side for
each pole.
Risk of fire from overheating.
Connecting the cooker hood to multi-
socket adapters or extension cables
can overload the cables.
For safety reasons, do not use an
extension cable or multi-socket
adapter.
The electrical system must comply with
local and national safety regulations
(BS7671 in the UK).
For safety reasons, we recommend
using a type residual current device
(RCD) in the relevant electrical
installation for connecting the cooker
hood.
If the mains connection cable is
damaged, it must only be replaced with
a specific mains connection cable of the
same type (available from the Miele
Customer Service Department). For
safety reasons, such replacement may
only be carried out by a qualified
specialist or the Miele Customer
Service Department.
These operating instructions and the
data plate indicate the nominal power
consumption and the appropriate fuse
rating. Compare this information with
the data of the on-site electrical
connection.
If in any doubt, consult a qualified
electrician.
Temporary or permanent operation on
an autonomous power supply system or
a power supply system that is not
synchronised with the mains power
supply (e.g. island networks, back-up
systems) is possible. A prerequisite for
operation is that the power supply
system complies with the specifications
of EN50160 or an equivalent standard.
The function and operation of the
protective measures provided in the
domestic electrical installation and in
this Miele product must also be
maintained in isolated operation or in
operation that is not synchronised with
the mains power supply, or these
measures must be replaced by
equivalent measures in the installation.
As described, for example, in the current
version of VDE-AR-E 2510-2.
Technical data
45
Fan motor 180W
Deflector plate motor 60W
Hob lighting 11.2W
Total rated load 251.2W
Mains voltage, frequency AC230V, 50Hz
Fuse rating 10A
Length of mains connection cable 1.5m
Weight 34kg
WiFi module
Frequency band 2.400–2.4835GHz
Maximum transmission power <100mW
Optional accessories for recirculation mode
Charcoal filter set DKF30-P or DKF30-R (reactivatable). The sets contain
2charcoal filters.
You need the DUP150 installation kit for Plug&Play operation. The kit contains a
socket, a hose and the DKF30-P charcoal filter set.
Technical data
46
EU Conformity declaration
Miele hereby declares that this cooker hood complies with Directive 2014/53/EU.
The complete text of the EU declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.ie
- For service, information, operating instructions etc: go to
https://miele.co.uk/manuals and enter the name of the product or the serial
number
UK Conformity declaration
Miele hereby declares that this downdraft extractor complies with UK Radio
Equipment Regulations 2017, as amended.
The complete text of the UK declaration of conformity is available from one of the
following internet addresses:
- Products, Download from www.miele.co.uk
- For service, information, operating instructions etc: go to https://miele.co.uk/
manuals and enter the name of the product or the serial number
ThisStatement of Compliance confirms this Miele product fully complies with the
Product Security and Telecommunications Infrastructure (Security Requirements
for Relevant Connectable Products) Regulations 2023.
1) Household Appliance –
2)
Manufactured by: Miele & Cie KG,
Carl Miele Street 29, 33332 Gutersloh Germany
Imported by and contact point: Miele Company Ltd, Fairacres, Marcham Road,
Abingdon, Oxon, OX14 ITW Great Britain
The defined support period at the time of first supply is 10 years
3)
To report vulnerabilities and cybersecurity issues please contact: [email protected]4)
5) Signature
Name: Paul Wright
Company Position: Head of Technical Management
Date of signature: 19th March 2024
Place of signature:
Abingdon, Oxfordshire
Cooker Hood DAD 4841, DAD 4941
Note for test institutes
Energy efficiency must be calculated using extraction mode. The cooker hood is set
up ex-works for recirculation mode. To re-set it for extraction mode the operating
hours counter for the charcoal filter(s) has to be deactivated (see “Before using for
the first time”).
Technical data
47
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAD 4841 Black Levantar
Annual Energy Consumption (AEC
hood
) 41,6 kWh/year
Energy efficiency class A
Energy efficiency index (EEI
hood
) 49,3
Fluid Dynamic Efficiency (FDE
hood
) 34,0
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 35,7 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 87,4%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point 313,6 m
3
/h
Air flow (min. speed) 205 m
3
/h
Air flow (max. speed) 443 m
3
/h
Air flow (intensive or boost setting) 644 m
3
/h
Max. air flow (Q
max
) 644,0 m
3
/h
Air pressure at best efficiency point 447 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 44 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 62 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
72 dB
Electrical power input at best efficiency point 114,5 W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 11,2 W
Average illumination of the lighting system on the cooking surface 400 Ix
Time increase factor 0,8
Technical data
48
Data sheet for household cooker hoods
In acc. with delegated regulation (EU) No. 65/2014 and regulation (EU) No.
66/2014
MIELE
Model name/identifier DAD 4941 Black Levantar
Annual Energy Consumption (AEC
hood
) 41,6 kWh/year
Energy efficiency class A
Energy efficiency index (EEI
hood
) 49,3
Fluid Dynamic Efficiency (FDE
hood
) 34,0
Fluid Dynamic Efficiency class
A (most efficient) to G (least efficient) A
Lighting Efficiency (LE
hood
) 35,7 lx/W
Lighting Efficiency class
A (most efficient) to G (least efficient) A
Grease Filtering Efficiency 87,4%
Grease Filtering Efficiency class
A (most efficient) to G (least efficient) B
Airflow at best efficiency point 313,6 m
3
/h
Air flow (min. speed) 205 m
3
/h
Air flow (max. speed) 443 m
3
/h
Air flow (intensive or boost setting) 644 m
3
/h
Max. air flow (Q
max
) 644,0 m
3
/h
Air pressure at best efficiency point 447 Pa
Airborne acoustical A-weighted sound power emissions (min. speed) 44 dB
Airborne acoustical A-weighted sound power emissions (max. speed) 62 dB
Airborne acoustical A-weighted sound power emissions (intensive or
boost setting)
72 dB
Electrical power input at best efficiency point 114,5 W
Power consumption in standby mode (P
s
) 0,35 W
Nominal power of lighting system 11,2 W
Average illumination of the lighting system on the cooking surface 400 Ix
Time increase factor 0,8
United Kingdom
Miele Co. Ltd., Fairacres, Marcham Road, Abingdon, Oxon, OX14 1TW
Tel: 0330 160 6600, Internet: www.miele.co.uk, E-mail: [email protected]
Australia
Miele Australia Pty. Ltd.
ACN 005 635 398
ABN 96 005 635 398
Level 4, 141 Camberwell Road
Hawthorn East, VIC 3123
Tel: 1300 464 353
E-mail: [email protected]
Internet: www.miele.com.au
Miele Electrical Appliances Co. Ltd.
No. 82, Shimenyi Road, JingAn District
Shanghai, China, P.R.C
Post Code: 200040
Phone: +86 21 6157 3500
Fax: +86 21 6157 3511
E-mail: info@miele.cn
Internet: www.miele.cn
China Mainland
Miele (Hong Kong) Ltd.
41/F - 4101, Manhattan Place
23 Wang Tai Road
Kowloon Bay, Hong Kong
Tel: (852) 2610 1025
Fax: (852) 3579 1404
E-mail:
Website: www.miele.hk
Hong Kong, China
Miele India Pvt. Ltd.
1st Floor, Copia Corporate Suites,
Commercial Plot 9, Mathura Road,
Jasola, New Delhi - 110025
E-mail: customercare@miele.in
Website: www.miele.in
India
Miele Ireland Ltd.
2024 Bianconi Avenue
Citywest Business Campus
Dublin 24
Tel: (01) 461 07 10
Fax: (01) 461 07 97
E-mail: [email protected]
Internet: www.miele.ie
Ireland
Malaysia
Miele Sdn Bhd
Suite 12-2, Level 12
Menara Sapura Kencana
Petroleum
Solaris Dutamas No. 1
Jalan Dutamas 1
50480 Kuala Lumpur, Malaysia
Phone: +603-6209-0288
Fax: +603-6205-3768
Miele New Zealand Limited
IRD 98 463 631
8 College Hill
Freemans Bay, Auckland 1011
Tel: 0800 464 353
Internet: www.miele.co.nz
New Zealand
Miele Pte. Ltd.
29 Media Circle
#11-04 ALICE@Mediapolis
Singapore 138565
Tel: +65 6735 1191
Fax: +65 6735 1161
E-mail: [email protected]
Internet: www.miele.sg
Singapore
Miele (Pty) Ltd.
63 Peter Place, Bryanston 2194
Tel: (011) 875 9000
Fax: (011) 875 9035
E-mail: [email protected]
Internet: www.miele.co.za
South Africa
Miele Appliances Ltd.
Showroom 1, Eiffel 1 Building
P.O. Box 114782 - Dubai
Tel. +971 4 3044 999
Fax. +971 4 3418 852
800-MIELE (64353)
E-mail: [email protected]
Website: www.miele.ae
United Arab Emirates
Manufacturer: Miele & Cie. KG, Carl-Miele-Straße 29, 33332 Gütersloh, Germany
Thailand
Miele Appliances Ltd.
BHIRAJ TOWER at EmQuartier
43rd Floor Unit 4301-4303
689 Sukhumvit Road
North Klongton Sub-District
Vadhana District
Bangkok 10110, Thailand
Sheikh Zayed Road, Umm Al Sheif
E-mail: customercare@miele.co.nz
P.O. Box 69434, Bryanston 2021
M.-Nr. 12 467 451 / 01en-GB
DAD4841, DAD4941
