USER GUIDE
MODEL CJTG002 59B-120
Compact Upright Vacuum
Thank you for purchasing a BENNETT READ
POWER UP vacuum.
Your POWER UP vacuum incorporates the latest technological
advances in home cleaning systems. It imitates the most powerful
forces of nature in a sleek, elegant cleaning system to ensure that
your home is easily and properly cleaned.
Your new vacuum is manufactured to a high standard of quality and
is backed up by a 12 month guarantee by Tevo.
Should you need any support from us, please visit
www.tevo.co.za or call 0861 77 88 88.
PLEASE KEEP THIS USER GUIDE IN A SAFE PLACE AND
READ IT CAREFULLY BEFORE USING YOUR BENNETT READ
POWER UP VACUUM FOR THE FIRST TIME.
1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should be observed,
including the following:
To reduce the risk of fire, electric shock, or injury follow these instructions.
WARNING:
!
• Use indoors only
• For dry pick-up only
• Do not use with damaged cord or plug
• If appliance is not working as it should,
has been dropped, damaged, left
outdoors, or dropped into water, return it
to a service agent
• Do not pull or carry by cord, use cord
as a handle, close door on cord, pull
cord around sharp corners or edges, run
appliance over cord, or expose cord to
heated surfaces
• Do not unplug by pulling on cord.
Unplug by grasping plug
• Do not handle plug or appliance with
wet hands
• Do not expose hair, loose clothing,
fingers or body parts to openings or
moving parts
• Do not pick up hot or burning objects
such as cigarettes, matches, or hot ashes
• Do not pick up flammable or combustible
materials (lighter fluid, petrol, kerosene,
etc.) or use in the presence of explosive
liquids or vapour
• Do not use appliance in an enclosed
space filled with vapours given off by oil
based paints, paint thinners, some moth
proofing substances, flammable dust, or
other explosive or toxic vapours
• Not intended for use by persons
(including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety
• Young children should be supervised
to ensure that they do not play with the
appliance
• Unplug from outlet when not in use
• Do not put any object into opening
• Remove plug from electrical outlet before
cleaning or maintaining the appliance
• If the supply electric cord is damaged, it
must be replaced by the manufacturer or its
service agent in order to avoid danger
• Do not pick up toxic materials (chlorine,
bleach, ammonia, drain cleaner, petrol,
etc.)
• Do not use for any purpose other than
described in this User Guide
• Use only manufacturer’s recommended
attachments
• Do not use with any opening blocked; keep
free of dust, lint, hair, and anything that
may reduce air flow
• Keep appliance on a level surface
• Turn off all controls before unplugging
• Be extra careful when cleaning stairs
• This appliance is provided with double
insulation. Use only identical replacement
parts
• Do not use without the filters in place
• Pay close attention when working around
children and animals
For operation on a 220-240 volt
A.C. 50/60 Hz Power supply only.
SAVE THESE INSTRUCTIONS.
THIS MODEL IS FOR HOUSEHOLD
USE ONLY.
IMPORTANT:
!
PRODUCT VIEW
2

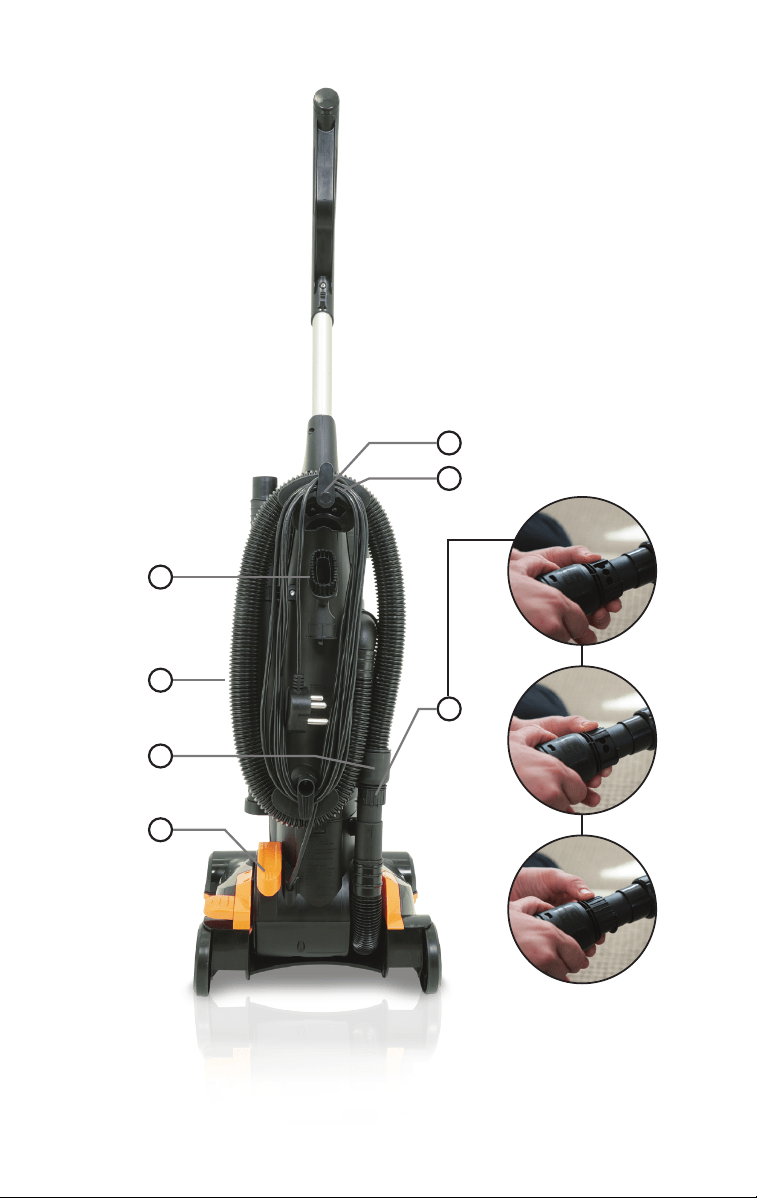

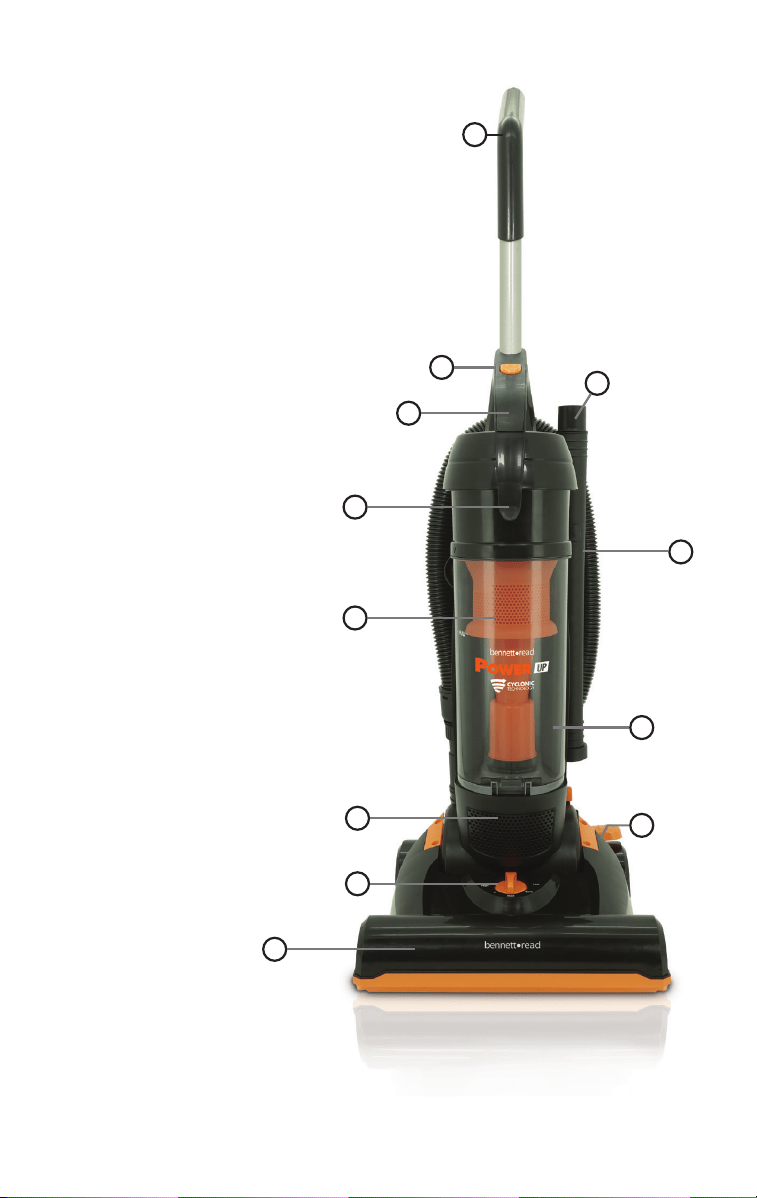

1. Handle
2. Crevice Tool
3. Extension Pipe
4. Height Adjustment Control
5. Carry Handle
6. Dirt Tank Release Button
7. Top Filter Release Catch
8. Multi-cyclonic Filter
9. Dirt Tank
10. Handle-Release Pedal
11. High Speed Turbo Brush
1
2
9
10
6
5
6
4
11
8
7
3
3
12. Quick-Release
Cord Reel
13. Power Cord
14. Variable Suction
Control Valve
15. Dusting Brush
16. On/Off Power
Switch
17. Hose Wand
18. Flex Hose
12
13
14
16
17
18
15
4
The only tool you’ll need to assemble your vacuum cleaner is a medium
sized flat-head screwdriver.
Do not plug in your vacuum cleaner until you are familiar with all
instructions and operating procedures.
Before using your vacuum, make sure that the dirt container is in the
locked position and that all filters are in place. Do not operate your
vacuum without these filters.
CAUTION:
CAUTION:
!
!

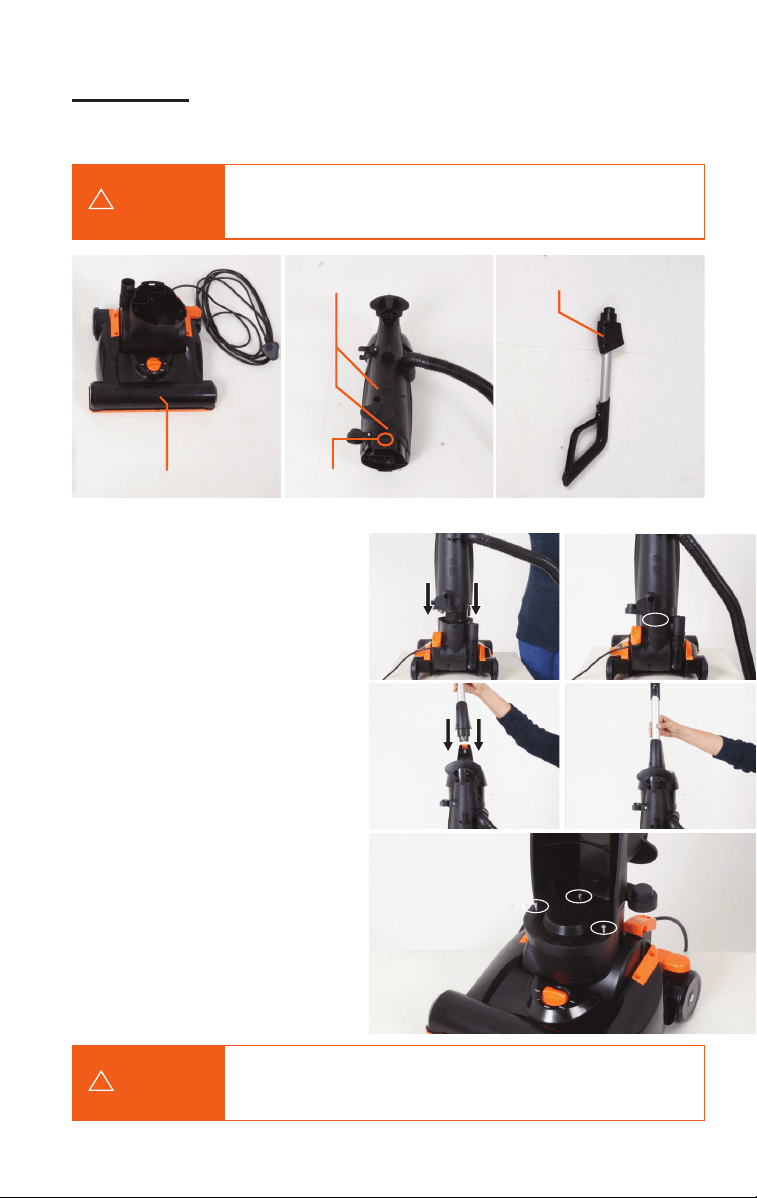

1. Insert Main vacuum body into
Bottom Motor unit
2. Ensure Main Vacuum Body
securing clip pushes firmly into
the slot on the Bottom Motor unit
3. Insert Handle, with the flat
side facing backward, into the
Main Vacuum Body
4. Insert and push the longest of the
4 screws provided into the hole
and tighten using a Philips
head screw driver
5. Insert the remaining 3 (shorter)
screws into the bottom of the
Main Vacuum body, and tighten
with a Philips head screw driver
ASSEMBLY:
1
3
3
2
4
Main Vacuum Body Handle Connector Rear
Bottom Motor Unit Main Vacuum Body Securing Clip
5

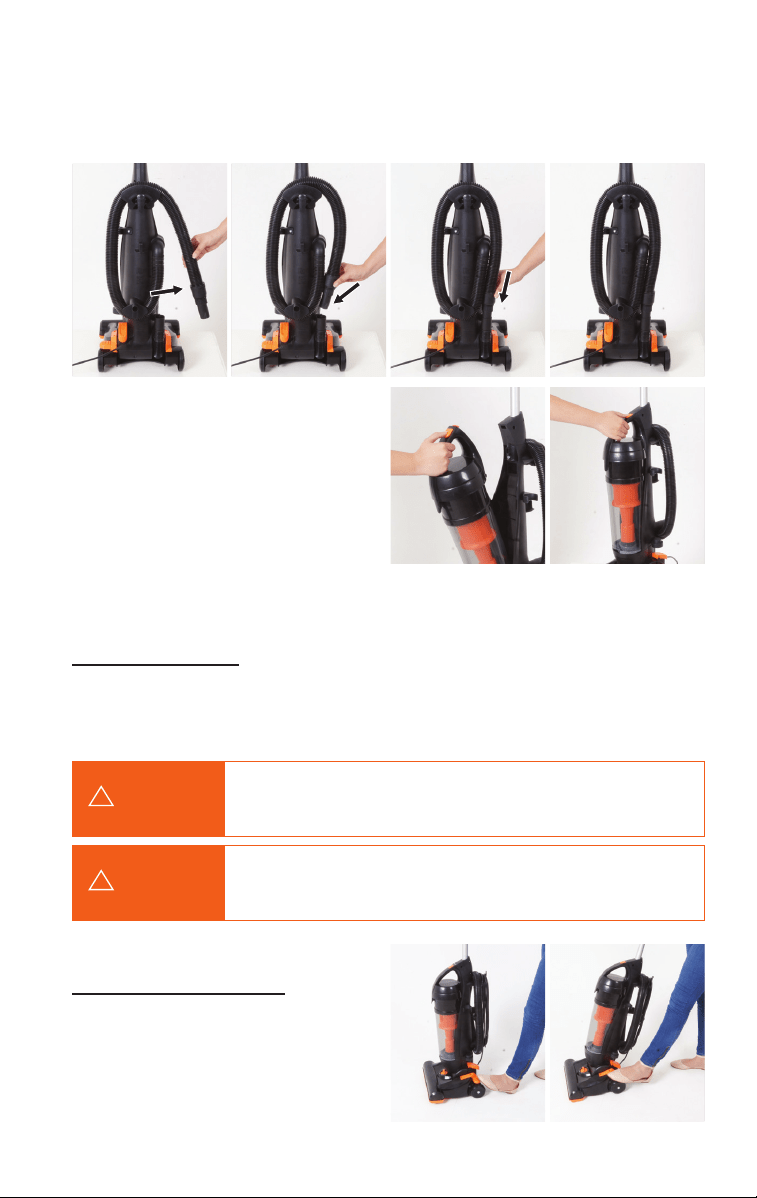

6. Connect the Flex hose as shown below:
7. Insert the Dirt Tank with the
bottom end first and then securing
it in place by pressing the Carry
Handle down and clipping it in
place
1 2 3
3
4
4
OPERATIONS
The Power Switch is located at the back of the vacuum. Gently press the Power Switch with
your foot to switch the machine on and press again to switch off. For the exact location of the
Power Switch please refer to page 3 of this guide.
For above-floor cleaning, the floor brush will continue to rotate but
is raised off the floor. To prevent carpet damage, do not lean on the
vacuum or let the powerfoot tilt forward.
To avoid personal injury and to prevent the cleaner from falling when
cleaning stairs, always place it at the bottom of the stairs.
NOTICE:
CAUTION:
!
!
POWER SWITCH

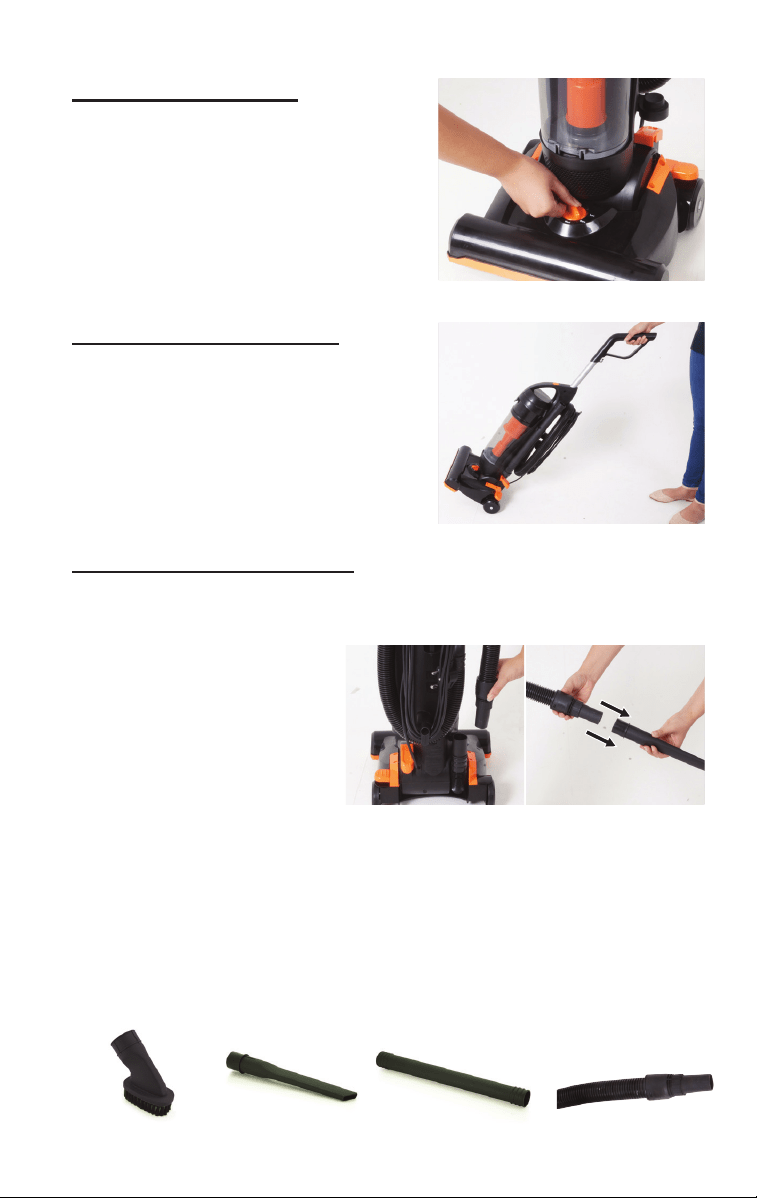

Press the handle-release pedal (located
on the lower left side of the vacuum)
with your foot to place your vacuum
into the cleaning position.
HANDLE POSITIONS
6
Your vacuum is not only a powerful carpet and rug cleaner, it’s also a versatile above-floor
vacuum cleaner when you select one of the special tools.
1. Dusting Brush:
Use the dusting brush to dust furniture,
blinds, books, lamps, shelves
and baseboards
2. Crevice Tool:
Use in tight narrow spaces
3. Extension Wand:
Use with desired attachment
for a longer reach
4. Hose Wand:
Use with desired attachment for a longer
reach or for cleaning hard to reach places
1. To move your vacuum cleaner
from room to room, put the handle
in the upright position, tilt the
cleaner back on its rear wheels
and push forward
2. The cleaner can also be moved
by using the carry handle
1. Raise the handle to the upright
position
2. Grasp the hose wand handle to
separate from hose wand base
3. Attach tools by firmly pushing
onto vacuum hose, hose wand or
extension wand. Be sure the hose
and tool fit snuggly together by
twisting tightly
TRANSPORTING CLEANER
SPECIAL ON-BOARD TOOLS
Turn height adjustment knob to desired setting:
Bare Floors - For non-carpeted, indoor surfaces
Lowest Setting - For flat pile carpets
Medium Setting - For short and medium pile carpets
High Setting - For medium to high pile carpets
Max Setting - For plush pile carpets
HEIGHT ADJUSTMENT
1 2 3 4
7
Hair, string and small objects can block
the vacuum hose or tools. Check them
occasionally for obstructions.
When vacuuming press gently down and pull
towards you in a raking motion. Too much
pressure will cause the brush to stop rotating.
TIPNOTICE:
!
The rotating floor brush continues to rotate while tools are in use. To
reduce the risk of injury from moving parts, always move the cleaner with
the carrying handle. Always place vacuum cleaner on the floor with handle
in upright position when using tools. Never place your fingers under the
cleaner when it is running. Never place vacuum foot on furniture or uneven
surfaces. Do not place vacuum cleaner close enough to objects to pull them
into rotating brush.
CAUTION:
!
1. To use your vacuum, remove the cord and plug it into
an electrical outlet. For your convenience, there is a
quick-release cord wrap for easy cord removal. There
is also a cord clip that is located at the back of the upper
handle where you can attach the cord while vacuuming
2. When you are finished cleaning, turn vacuum cleaner off
3. Unplug power cord by grasping the plug (NOT the cord)
and disconnect from outlet
4. Loop power cord around cord wraps on back of vacuum
cleaner. Be sure to first return the quick-release cord reel
back to its original position before wrapping the cord
POWER CORD USAGE
To maximize your cleaning performance and extend the life of your vacuum, it is very
important that you empty your dirt container and check and clean your filters frequently.
Perform the following maintenance steps:
To reduce the risk of electric shock, turn power switch OFF and
disconnect plug from electrical outlet before performing maintenance
or troubleshooting checks.
To maximize cleaning performance, check and clean or replace
all filters as suggested.
WARNING:
TIP
!
!
1. Empty the dirt container when the dirt reaches the “Full” line on the container, or more
frequently to prevent overfills. For best performance, empty after each use
2. Check the pre-motor filter at least twice a month, clean or replace as needed
MAINTENANCE AND CARE
8
The dirt container should to be emptied before the dirt reaches the “Full” line on the container.

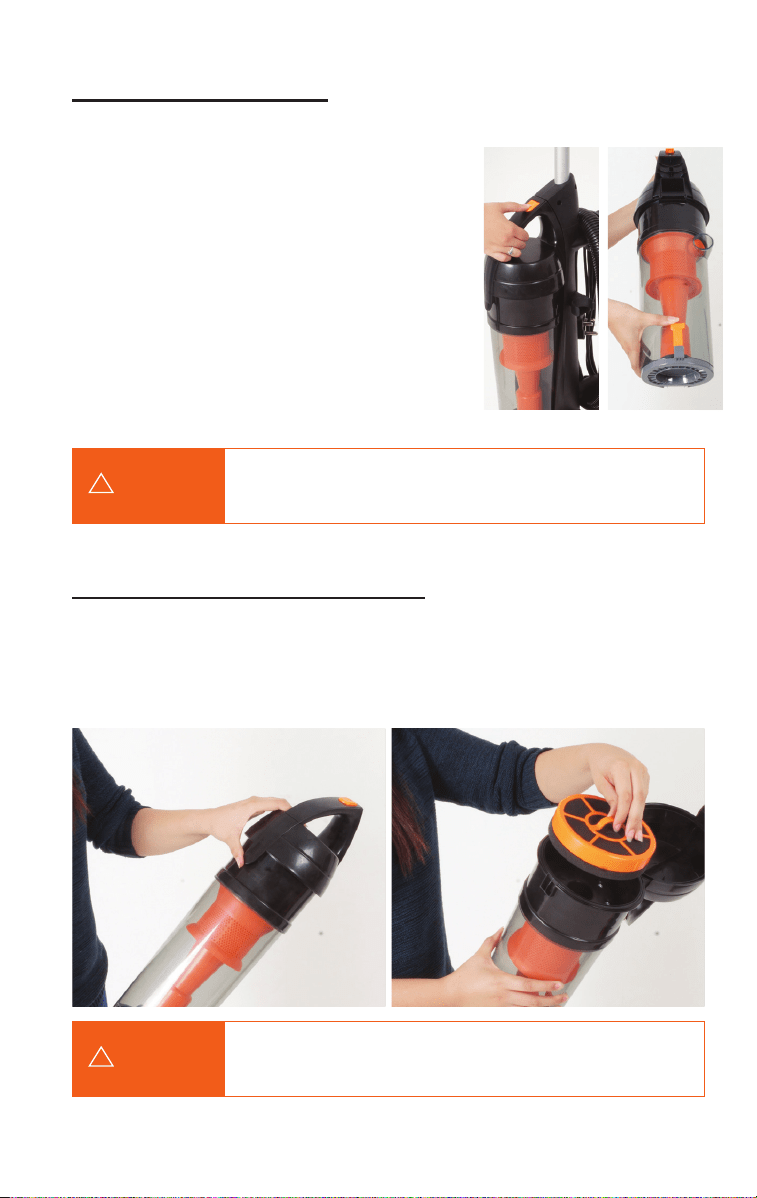

1. Unplug the vacuum from
the electrical outlet
2. Lift the Dirt Tank from
the vacuum cleaner
body by pressing the
Dirt Tank Release button
and pulling the Dirt
Tank towards you. The
release button is located
on the front of the Dirt
Tank carry handle.
3. Hold the dirt tank over
a dust bin and press
the release catch from
the top downwards to
release the bottom lid
4. Shake the Dirt Tank or
gently tap it on the side
to ensure all dirt and
dust is released into the
dust bin
5. Close the bottom lid and
return the Dirt Tank to
the Vacuum cleaner by
inserting the bottom part
first and then gently clip
the top back in place
1. Unplug the vacuum from thee electrical outlet
2. The pre-motor filter protects the motor from dirt particles and is located in the top of the Dirt
Tank. Remove the Dirt Tank as explained in the previous section. Lift the front clip (located
below the Dirt Tank Release button) to remove the foam filter and clean it
EMPTY DIRT CONTAINER
CLEANING THE PRE-MOTOR FILTER
2 3
Emptying the dirt container after every use will help prevent over-filling
and ensure that the vacuum is ready to go the next time you clean.
The pre-motor filter may be hand washed in cold water.
Rinse well and air dry thoroughly before replacing.
NOTE:
NOTE:
!
!
9
You should check your vacuum cleaner’s rotating floor brush and drive belt regularly for wear
or damage. You should also clean the brush and brush ends of string, hair and carpet fibers.
This type of debris can wrap around the brush and hamper its ability to effectively clean your
carpet. Also remove any debris that has accumulated under the brush cover.

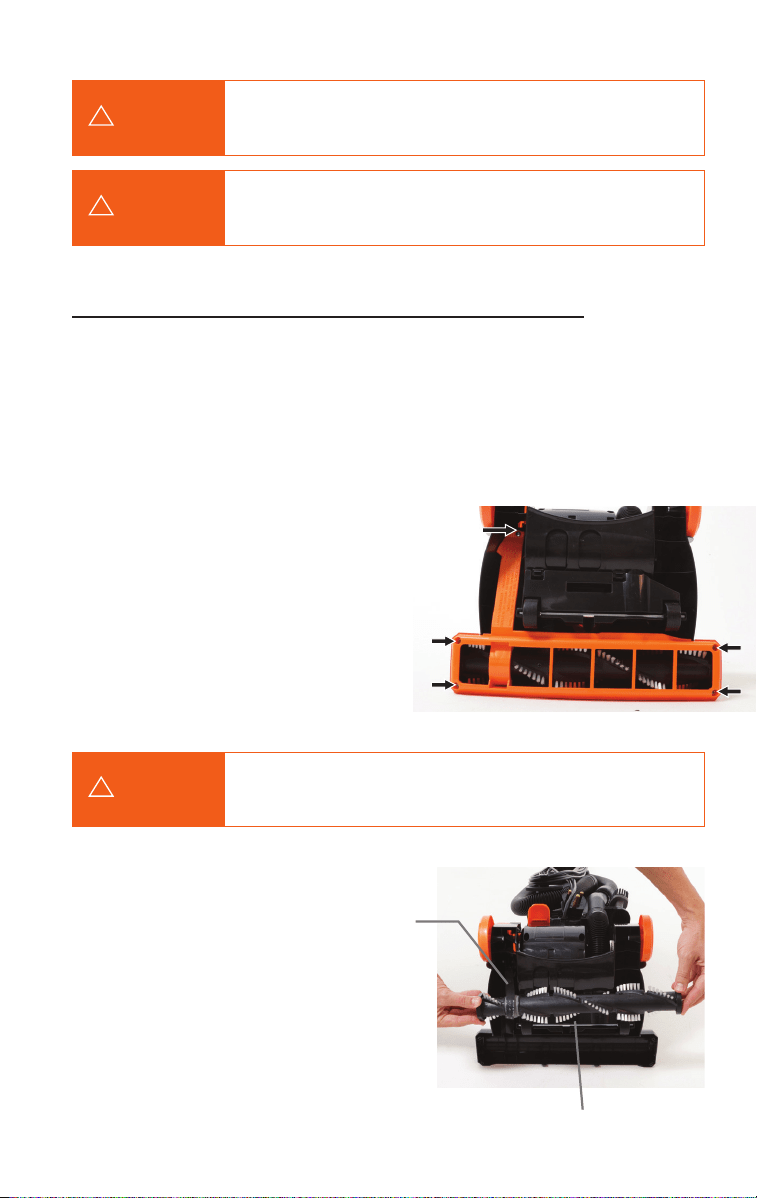

1. Unplug the vacuum from
electrical outlet
2. Place handle in low position
and turn vacuum cleaner over
so bottom side is facing up
3. Remove the five screws marked
on the picture to the right and gently
lift the base cover from the machine
4. Grasp rotating floor brush at both
ends and lift
5. Clean string, hair and other debris
from rotating floor brush, paying
particular attention to brush ends
6. Clean string, hair and other
debris from motor pulley and
drive belt areas
7. Check drive belt carefully
for wear, cuts or stressed areas
8. Check air passageway for
obstructions. Remove debris
from this area
9. Insert front edge of the brush
cover and rotate into place.
Fasten the latches and replace
the five screws
CHECK ROTATING FLOOR BRUSH AND DRIVE BELT
This product is intended for household use only and not for commercial
or industrial use. Vacuuming of dust from products like plaster, concrete
or ash will damage the motor and void the warranty.
Do not operate cleaner with damp or wet filters or without all filters in place.
To reduce the risk of injury from moving parts, turn vacuum
cleaner off and disconnect power plug from electrical outlet.
NOTICE:
WARNING:
WARNING:
!
!
!
Motor Pulley
Air Passageway
3
4
10
Low suction or poor pick-up may be due to a clog in the vacuum cleaner.
If you notice a change in the sound of the motor, check for clogs.
1. Unplug the vacuum from electrical outlet
2. Remove rotating floor brush from vacuum
cleaner (Steps 1-4 of check rotating floor
brush and drive belt), remove and discard
old drive belt
3. Place new drive belt over motor pulley and
loop other end over rotating floor brush in
the space between the bristles
4. Pull the rotating floor brush firmly into
position, stretching the drive belt, and
place ends of rotating floor brush down
into the slots on sides as shown. Alignment
of brush ends in slots may be necessary to
fully insert the brush
5. Turn rotating floor brush by hand several
times in the direction of motor pulley. If
properly installed, drive belt will center
itself on rotating brush crown
6. Insert front edge of brush cover and rotate
into place. Snap the front latches in place
and replace the five screws
1. Unplug the vacuum from electrical outlet
2. Empty Dirt Container
3. Check upper tank for build up or blockages
4. If you notice blockages in the upper tank, remove the inner cyclone
(see section below “Cleaning the upper tank”)
5. Grasp the hose wand and separate it from the hose wand base.
Check for blockages in the base, the wand or in the hose
6. If the blockage persists, follow the instructions for “Checking the
rotating floor brush and drive belt” on pages 11 and 12 and
inspect the air passageway for obstructions
REPLACE DRIVE BELT
CLEARING BLOCKAGES
It is important that you use only genuine Bennett Read replacement belts.
Generic belts may not meet the exact specifications required to keep your
vacuum operating at its peak performance. The use of unbranded belts
could lead to early failure of the vacuum and could void your warranty.
NOTE:
!
Motor Pulley
2
5
11
1. Remove the lid of the Dirt Tank by twisting the lid to the “unlock” position.
Separate the Dirt Tank and cyclone assembly
2. Wipe the inside of the upper tank and the cyclone assembly with a damp
cloth moistened with water or a mild cleaning solution
3. To thoroughly clean the filtration disk and inner cyclone, turn the entire cyclone
assembly upside-down, then turn the filtration disk anticlockwise to release. Lift the
inner cyclone and filtration disk up to remove
4. The inner cyclone and filtration disk may be washed using a mild detergent.
Be sure it is completely dry before reassembling or you may damage the unit.
5. Once cleaning is complete, reassemble by aligning the slots on the inner cyclone
with the tabs of the centre column as shown on FIG 5. Then place the filtration
disk over the centre column and slide it straight down on the top of the inner cyclone.
Line up the tabs with the slots and turn clockwise to lock
CLEANING THE UPPER TANK
1 3
4 5
12
USE THIS TROUBLESHOOTING GUIDE AS A FIRST STEP TO RESOLVE ANY
PROBLEMS YOU MAY BE EXPERIENCING.
Any faults not covered in the below table should be resolved by an authorized service
representative.
Other maintenance or service not included in the manual should be performed
by an authorized service representative.
Thank you for selecting a BENNETT READ product.
TROUBLESHOOTING:
To reduce the risk of electric shock, turn power OFF and disconnect plug
from electrical outlet before performing maintenance or troubleshooting.
WARNING:
!
PROBLEM POSSIBLE CAUSES REMEDIES
Vacuum cleaner
won’t run
1. Power cord not plugged in
2. Damaged power cord
1. Check electrical plug
2. Unplug, check for damage, replace if
necessary
Vacuum cleaner
and tools won’t pick
up dirt
1. Incorrect height adjustment
2. Hose not attached to suction
opening
3. Flex Hose not securely attached
4. Crack or hole in hose
5. Broken or worn drive belt
6. Rotating floor brush bristles worn
7. Rotating floor brush jammed
8. Blockage in vacuum
9. Dirt container full
10. Dirt container not installed
properly
11. Filters are dirty
1. Adjust Height Adjustment Control to
correct height
2. Firmly push hose wand into hose
wand base
3. Make sure Flex Hose is snapped into
locked position
4. Check hose and replace if needed
5. Replace drive belt, see page 11 & 12
6. Replace brush
7. Remove brush and clean debris from
brush ends
8. Clear blockages, see page 13
9. Empty dirt container
10. Position correctly and lock in place
11. Check pre-motor and post-motor filters
Vacuum cleaner is
difficult to push
1. Incorrect height setting 1. Adjust Height Adjustment Control to
correct height setting
Visible dirt escaping
from cleaner
1. Dirt Container full
2. Filters missing or installed
incorrectly
3. Dirt Container installed
incorrectly
1. Empty Dirt Container
2. Check pre-motor and post-motor
filters for correct installation
3. Remove and re-insert dirt
container correctly
13

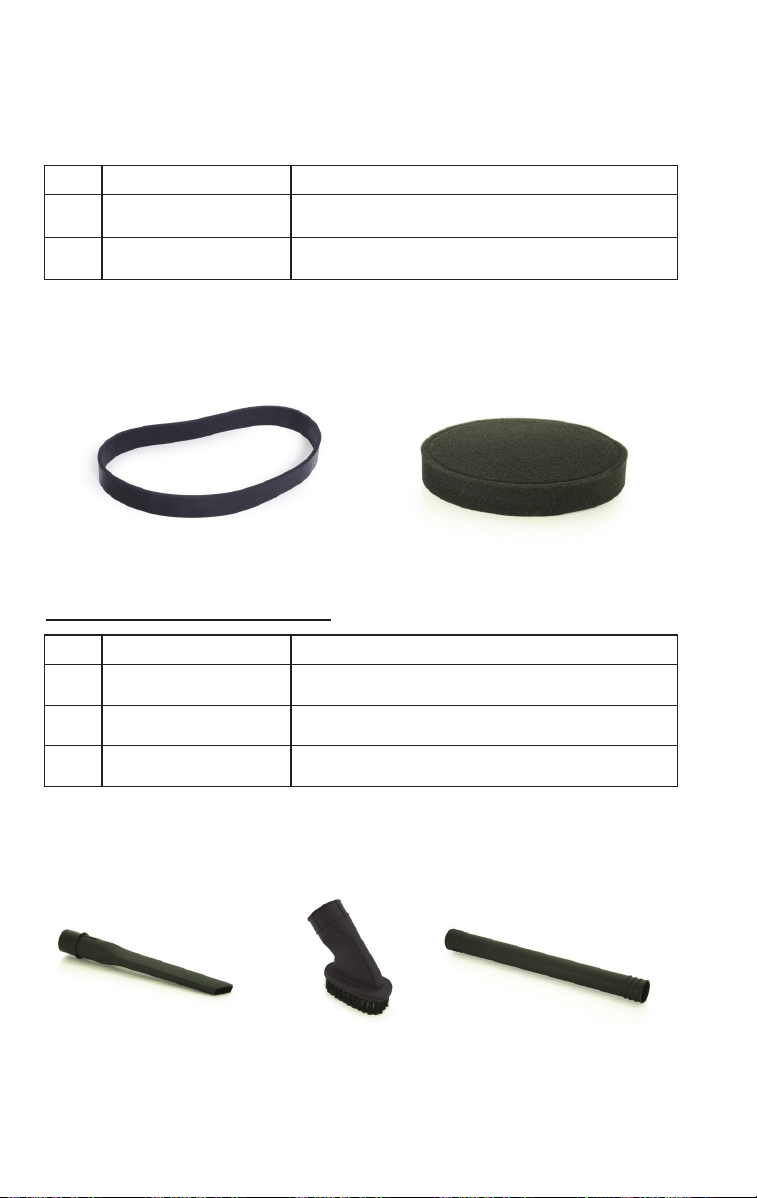

REPLACEMENTS PARTS
The items below are available for purchase as accessories for your BENNETT READ POWER
UP multi-cyclonic vacuum. To purchase, contact TEVO customer care in your area.
ITEM PART NO. PART NAME
1. 32074 Style 7/9/10/12/14 Drive Belt
2. 203-1073 Style 7/8/14 Pre-Motor Foam Filter
ITEM PART NO. PART NAME
1. 203-1056 Crevice Tool
2. 203-1059 Dusting Brush
3. 203-1068 Extension Wand
1
1 2 3
2
ADDITIONAL ACCESSORIES
14
CONSUMER GUARANTEE:
The BENNETT READ Power UP vacuum has a 12 month product guarantee
from TEVO (PTY) Ltd.
TEVO will replace or repair, at TEVO’s option, any defective or malfunctioning
part due to manufacturing defect, free of charge from the date of purchase by
the original purchaser for 12 months.
This guarantee applies to product used for personal or domestic use only, and
specifically excludes any malfunction or defect arising from commercial use.
This guarantee does not apply to routine maintenance components such as
filters and brushes. Damage or malfunction caused by negligence, abuse,
unauthorized repair, or use not in accordance with the user guide is not
covered.
TEVO is not liable for incidental or consequential damages of any nature
associated with the use of this product. TEVO’s liability will not exceed the
purchase price of this product.
Guarantee and service enquiries can be made by contacting:
TEVO (Pty) Ltd
Gauteng 086 111 8386 or 012 740 5000
Durban (031) 570 5900
Cape Town (021) 380 0038/9
Customer Service Help Line 0861 77 88 88
www.tevo.co.za
Brought to you by:
0861 77 88 88
www.tevo.co.za | info@tevo.co.za
Compact Upright Cleaning System
