INSTRUCTION MANUAL
ICE MAKER
Thank you for purchasing this product! If you have any questions about the product, such
as missing parts, damaged products, product assembling, or operation, please contact us
via Amazon
Message or customer service number: 213-4467172 or 661-4358826.
Item No: Z3908-BLACK
Model No: ICM1262A
IMPORTANT NOTICES
When using an electrical appliance, basic safety precautions should
always be followed to reduce the risk of fire, electric shock, and/or
injury, including the following:
1. Read all instructions before using.
2. Remove all packing material and carefully check your ice maker
to ensure it is in good condition and that there is no damage to
the ice maker or power cord and plug.
3. If the supply cord is damaged, it must be replaced by the
manufacturer or its service agent or a similarly qualified person in
order to avoid a hazard.
4. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety. Children should be
supervised to ensure that they do not play with the appliance.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
5. This appliance is intended to be used in household and similar
applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses, hotels, motels and other residential-type
environments;
–bed and breakfast type environments;
6. –Warning: Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
–Warning: Keep ventilation openings, in the appliance enclosure
or in the built-in structure, clear of obstruction.
–Warning: Do not use mechanical devices or other means to
accelerate the defrosting process, other than those
recommended by the manufacturer.
–Warning: Do not damage the refrigerant circuit.
–Warning: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
–WARNING: When positioning the appliance, ensure the supply
cord is not trapped or damaged.
–WARNING: Do not locate multiple portable socket-outlets or
portable power supplies at the rear of the appliance.
–WARNING : When disposing of the appliance, do so only at an
authorized waste disposal centre. Do not expose to flame.
–WARNING: fill with potable water only.
–WARNING: Connect to potable water supply only.
Caution: risk of fire / Flammable materials
The refrigerant isobutene (R600a) is contained within the refrigerant
c
ircuit of the appliance, natural gas with a high level of environmental
compatibility, which is nevertheless flammable. During transportation
and installation of the appliance, ensure that none of the
c
omponents of the refrigerant circuit becomes damaged.
If the refrigerant circuit should be damaged:
The refrigerant (R600a) is flammable.
Avoid opening flames and sources of ignition.
Thoroughly ventilate the room in which the appliance is situated.
7. Before using the Ice maker for the first time, please wait for 2
hours after positioning it, and keep the transparent lid open for at
least 2 hours.
8. Pure water is not allowed to be used on this unit, spring water is
recommended.
9. Ensure the voltage is compliant with the voltage range stated on
the rating label, and ensure the earthing of the socket is in good
condition.
10. D o not upend this product or incline it over a 45° angle.
11. To protect against risk of electric shock, do not pour water on
cord, plug and ventilation, immerse the appliance in water or any
other liquid.
12.Unplug the appliance after using or before cleaning.
13. Keep the appliance 8cm from other objects to ensure the good
heat releasing.
14. Do not use the accessories which are not recommended by
Manufacturer.
15.Do not use the appliance close to flames, hot plates or stoves.
16. Do not switch on the power button frequently (ensure 5min.
interval at least) to avoid the damage of compressor.
17.Do not use outdoors.
18.Never clean with scouring powders or hard implements.
19.Please keep the instruction manual.
20. To avoid contamination of food, please respect the following
instructions:
– Opening the door for long periods can cause a significant
increase in the temperature of the compartments of the
appliance.
– Clean regularly surfaces that can come in contact with food
and accessible drainage systems.
– Clean water tanks if they have not been used for 48 h; flush the
water system connected to a water supply if water has not been
drawn for 5 days.
– If the refrigerating appliance is left empty for long periods,
switch off, defrost, clean, dry, and leave the door open to prevent
mould developing within the appliance.)
21. Regarding the information pertaining to the use of the appliance,
please refer to the paragraphs below.
SPECIFICATIONS
Item no: Z3908-BLACK
Model no: ICM1262A
Voltage:120V/60Hz
Power Consumption: 120 W
Daily Ice Output: 12kg/24 hours
Ice Storage Capacity: 1.0L/600g
Water Reservoir Capacity: 1.0L
N.W: 14.52 pounds
G.W: 15.84 pounds
Compression-Type Refrigeration: 120V/60Hz
Cooling Agent: R600a environmental friendly refrigerant Max Overall
Dimensions (WXDXH): 8.0X10.9X10.5 inch
Packing Dimensions (LXWXH): 12.6X9.4X11.6 inch

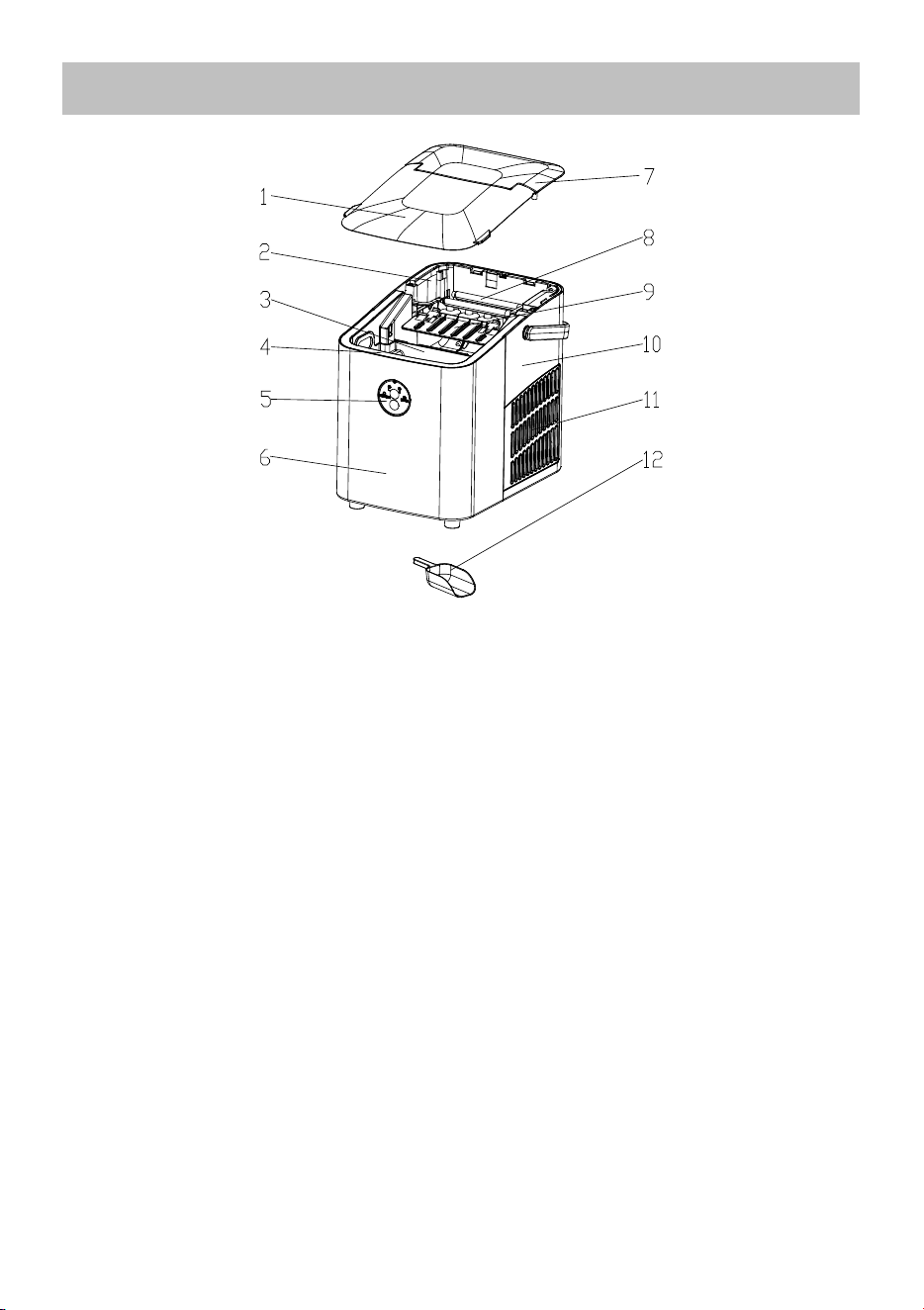

DESCRIPTION
1. Transparent lid
2. Micro switch support
3. Ice collecting tray
4. Water tank
5. Control panel
6. Front housing
7. Top Lid
8. Evaporator
9. Ice shovel board
10. Rear housing
11. Air vent
12. Ice scoop
FEATURE
Quick ice-making
P
rompt when the ice is full and the water is insufficient
Transparent bullet ice
8 pcs ice can be made in nine minutes
1. During transportation, do not tilt the machine more than 45
degrees, do not reverse the machine. This may damage the
compressor and the sealing system.
2. Remove all packing materials, check the machine carefully and
make sure that the machine, power cord and plug are normal.
3. The machine should be on a level surface. To ensure sufficient
ventilation, the distance of the back of ice maker to the wall should
be at least 150mm, it should be away from the oven, radiator or other
heat source.
4. Before using the machine for the first time, place the machine and
leave the transparent cover open for at least two hours.
5. Make sure that the home voltage is consistent with the voltage
indicated by the machine.
6. When the ambient temperature is lower than 15 degrees, please
choose small ice. When the ambient temperature is higher than 30
degrees, it is recommended to choose large ice.
7. Do not use chemicals, acidic or alkaline liquids to make ice.

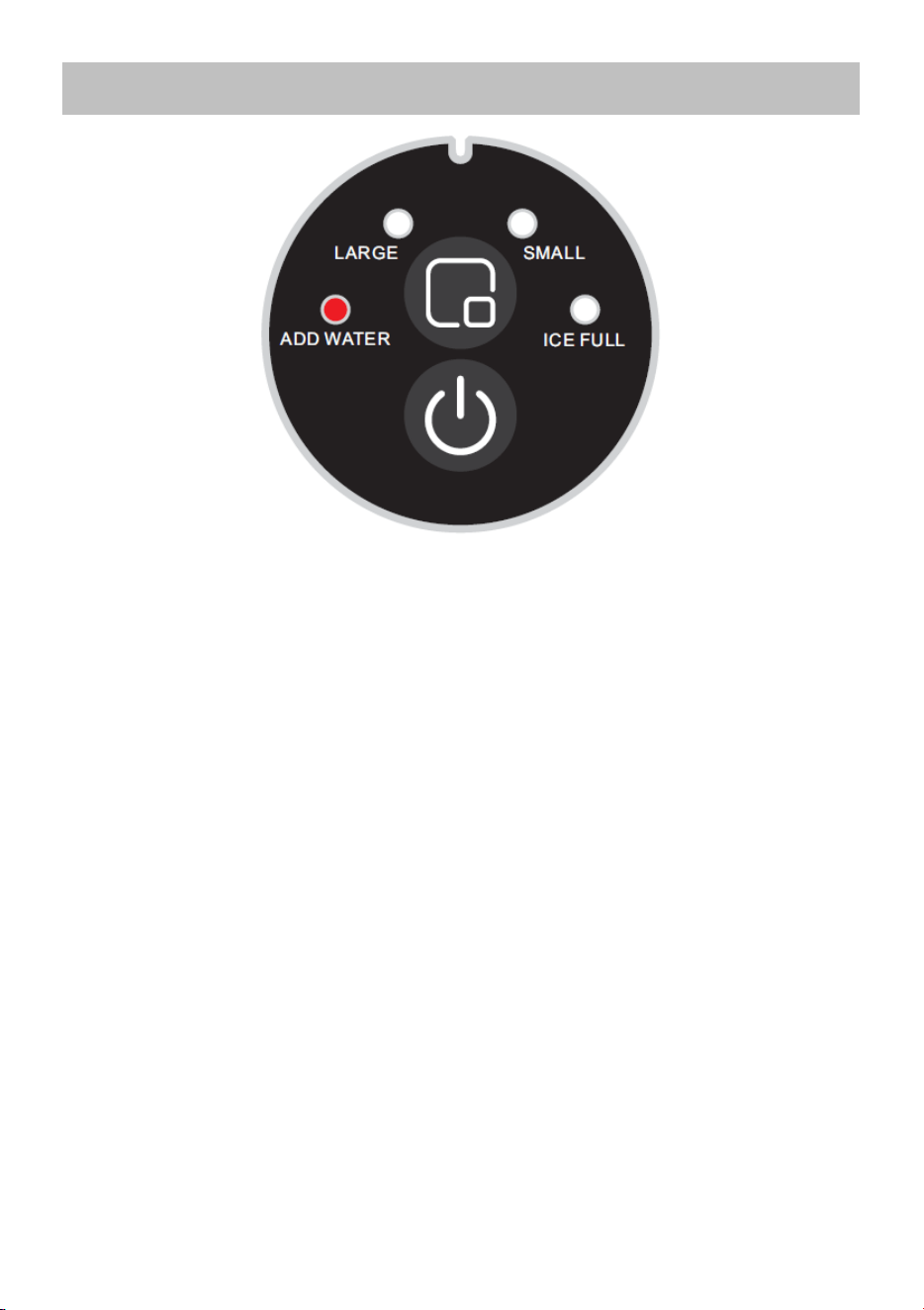

CONTROL PANEL OPERATION
LARGE: large ice indicator light
SMALL: small ice indicator light
ADD WATER: water shortage alarm
ICE FULL: ice full alarm
START/STOP: START/STOP button
ICE SIZE SELECTION BUTTON
1. Plug in power, the machine is in standby mode, and the large ice
indicator
light flashes green. Press the START/STOP button, and
the machine starts to work. The corresponding indicator lights up
for a long time, and the ice cube production starts. After the ice
making is completed, the ice is shed, and the machine enters the
deicing function, and so on.
2. ICE SIZE SELECTION BUTTON: Press the large and small ice
selection button to switch and select the large and small ice
modes.
3. CLEANING FUNCTION: Plug in power, press and press down the
START/STOP button for 3 seconds, the machine enters the
cleaning function, and the four lights flash alternately. Do not
disconnect the power supply during cleaning. After cleaning, the
machine will automatically enter the standby mode.
4. ADD WATER: water shortage alarm: when the light is on, it
means water shortage in the water tank. You need to add water
and press the START/STOP button to restart the machine.
5. ICE FULL: ice full alarm. When the ice reaches the maximum
amount of ice storage container, the "ICE FULL" indicator light is
on and the machine stops. At this time, the ice needs to be
poured out. When the ice position is lower than the full sensor
position, the machine will restart automatically.
OPERATING INSTRUCTION
S
Step 1
Open the lid and take out
the ice collecting tray and add water to the
reservoir.
Note: There is a maximum scale MAX in the reservoir. The water
should not exceed the MAX position. If the water exceeds the
maximum scale MAX, you need to open the bottom drain plug,
release the excess water, and cover it with a transparent cover.
Step 2
Plug in power, press the START/STOP button to start the machine.
1. In the first three cycles when used at the first time, the ice
produced may be
small and irregular.
2. When the ice collecting tray is full, please take out the ice
immediately, do not let the ice overflow the ice collecting tray.
CLEANING & USE GUIDANCE
1. Clean the inner liner, ice collecting tray, water tank and ice
shovel frequently. When cleaning, unplug the unit and remove
the ice cubes. Use a diluted solution of water and vinegar to
clean the inside and the outside surface of the Ice maker. Rinse
thoroughly before use.
2. Keep ventilation openings in the appliance enclosure, or in the
built-in structure, clear of obstruction. Do not use mechanical
devices or other means to accelerate the defrosting process,
other than those recommended by the manufacturer.
3. Reuse the machine after being idle for a period of time, it may
not be able to pump enough water up for air blockage. In this
case, the water shortage indicator sign is displayed, just
repress the START/STOP button to restart the ice maker.
4. To ensure the cleanness of ice, please change the water of
the water reservoir at least once a day. If do not use it for a
long time, please drain the water out and clean it up.
5. If the compressor does not work due to the lack of water, ice
full, power failure, etc, it will delay for 3 minutes to start
again after being restarted.
6. Always use fresh water before starting ice production either at
initial installation or after a long shut-off period.
7. According to the actual use of the machine, the filter screen in
the water tank shall be regularly cleaned after disassembly to
prevent the water inlet from being blocked by incrustation scale.

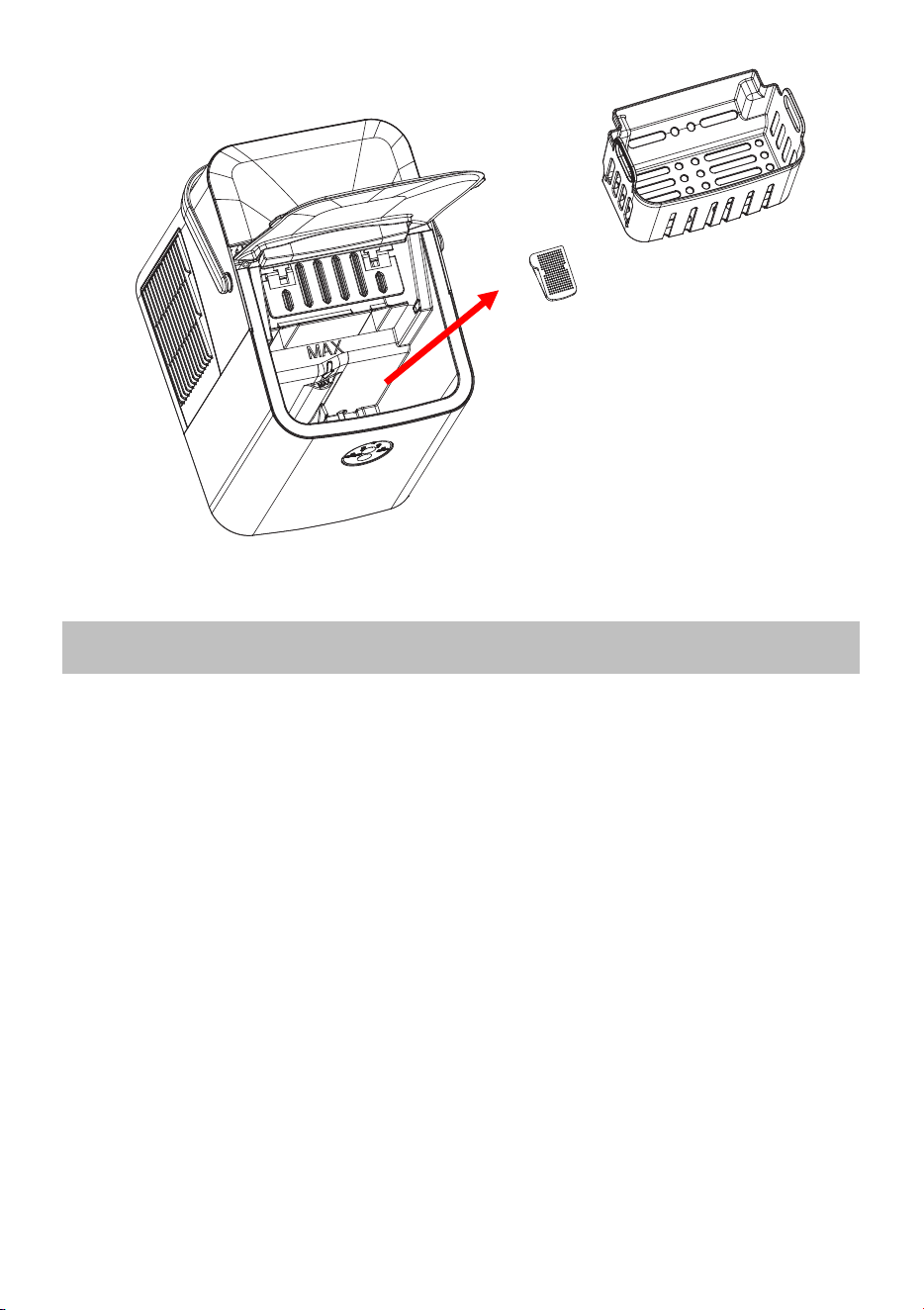

As shown in the figure below, take out the ice collecting tray and
filter cover from the water tank in turn, clean the filter cover with
clean water and a brush, and then put it back in place.
TROUBLESHOOTING
1. Please note, if a power failure occurs due to the disconnection of
the power cord, or the power button has been pushed off during
an ice-making cycle, small ice chips may form and lodge in
the automatic shovel causing it to jam. If this occurs, the ice chips
can be removed by disconnecting the power cord and gently
pushing the shovel to the rear of the cabinet and removing the
ice chips, and restarting it at last.
2. Please check if the water reservoir is flat when the ice shovel can
not remove the ice to the ice collecting tray. If not, please push
the ice shovel gently by finger, then press START/STOP button to
restart.
Filter cover
Ice collecting tray
PROBLEM POSSIBLE CAUSE SUGGESTED SOLUTIONS
The compressor works
abnormally
with a buzzing noise.
The voltage is lower than
recommended one.
Stop the ice maker and do not
restart it until the voltage is
normal.
Water shortage
indicator light is on.
Indicator lights on
control panel are not on.
Blown fuse/No power.
Replace fuse /Turn the power
on.
The ice made is too
large and with pieces
sticking together.
Ice of previous cycles
left in the water tray.
Take out the ice under the
standby state.
The ice making
process was correct,
but no ice came out.
Call the service hotline.
All indicator lights flash
at the same time.
The machine has been
working, but the water
has been warming.
Solenoid broke down.
Replace the solenoid valve.
When the ice is full, the
machine does not
display the ice full icon.
1.. Add some water until
reaches MAX position.
2.. Press START/STOP butt
to restart the machine.
1. There is no wat.
2. The pump is full of air.
1. The compressor h no
refrigerant.
2. Compressor damag.
3. Fan motor damag.
1. The water box
blocked by ice.
2. The motor is stuck,
the motor falls off, or the
motor is damaged.
3. Micro switch damage.
1. Take out the ice under t ice
shovel, plug in power again,
and press the POWER button.
After 3 minutes, the machine
will restart automatically.
2. Call the service hotlin.
1. Ice full sens damaged.
2. Solar light interferenc.
1. Replace the ice full senso.
2. Making ice indoor.
3. Call the service hotlin.
1. If the power cord is damaged, it must be replaced by the
manufacturer, its service agent or a similarly qualified person in
order to avoid a hazard.
2. Fill it with potable water only.
3. It is normal for the compressor and condenser surface to reach
temperatures between 158°F(70°C) and 194°F(90°C) during
operation and surrounding areas may be very hot.
4. Due to fast freezing, ice cubes may be opaque. This is air trapped
in the water and will not affect quality or taste of ice.
5. This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
6. Children should be supervised to ensure that they do not play
with the appliance.
7. Do not immerse in water.
Correct Disposal of this product
This marking indicates that this product should not be
disposed of with other household wastes throughout
the EU. To prevent possible harm to the environment
or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable
reuse of material resources. To return your used
device, please use the return and collec tion systems
or contact the retailer where the product was
purchased.They can take this product for
environmental safe recycling.
Thank you for purchasing this product! If you have any questions about the
product, such as missing parts, damaged products, product
assembling, and operation, please contact us via Amazon Message or
customer service number: 213-4467172 or 661-4358826
IMPORTANT
Please call our customer service department for any consulting:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
DATED PROOF OF PURCHASE IS REQUIRED FOR WARRANTY SERVICE.
AVIS
Veuillez appeler le service à la clientèle pour toutes questions au:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
PREUVE D’ACHAT ORIGINALE REQUISE POUR SERVICE DE GARANTIE.
IMPORTANTE
Sólo hay que llamar nuestro departamento de servicio
al cliente en caso de tener preguntas o inquietudes:
213-4467172
661-4358826
(8:30am - 5:30pm P.S.T.)
SE REQUIERE PRUEBA DE COMPRA CON FECHA PARA SERVICIO BAJO
GARANTÍA.
Address: ROWAN ELECTRIC APPLIANCE LLC
28407 Ascent Way, Santa Clarita, CA 91350
Phone: 213-4467172 or 661-4358826
