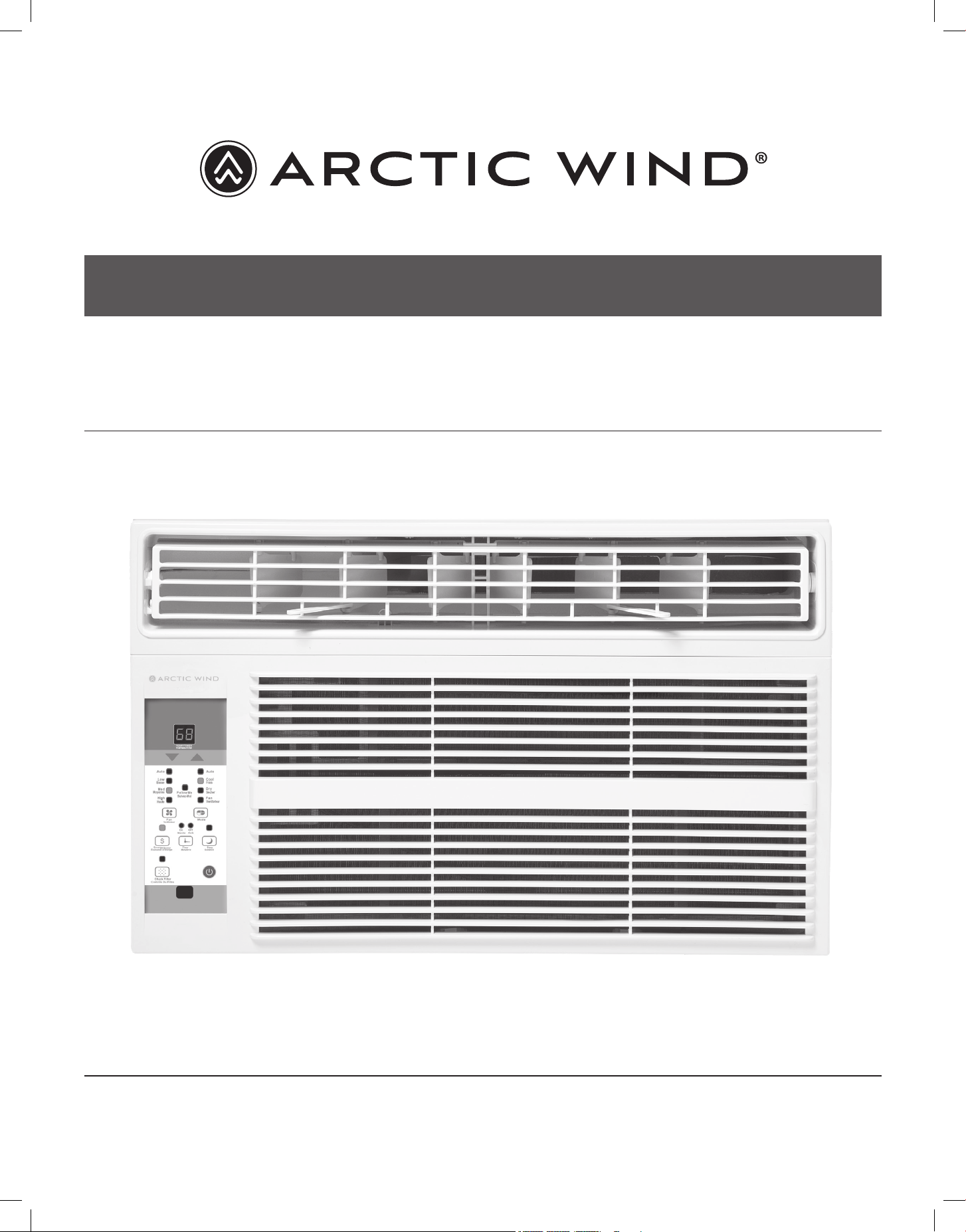

OWNER’S MANUAL
WINDOW AIR CONDITIONER
MODELS 3AW8000A, 4AW10000A, 4AW12000A
3
IMPORTANT SAFETY INSTRUCTION ......................................................................................................... 4
INSTALLATION INSTRUCTIONS ................................................................................................................13

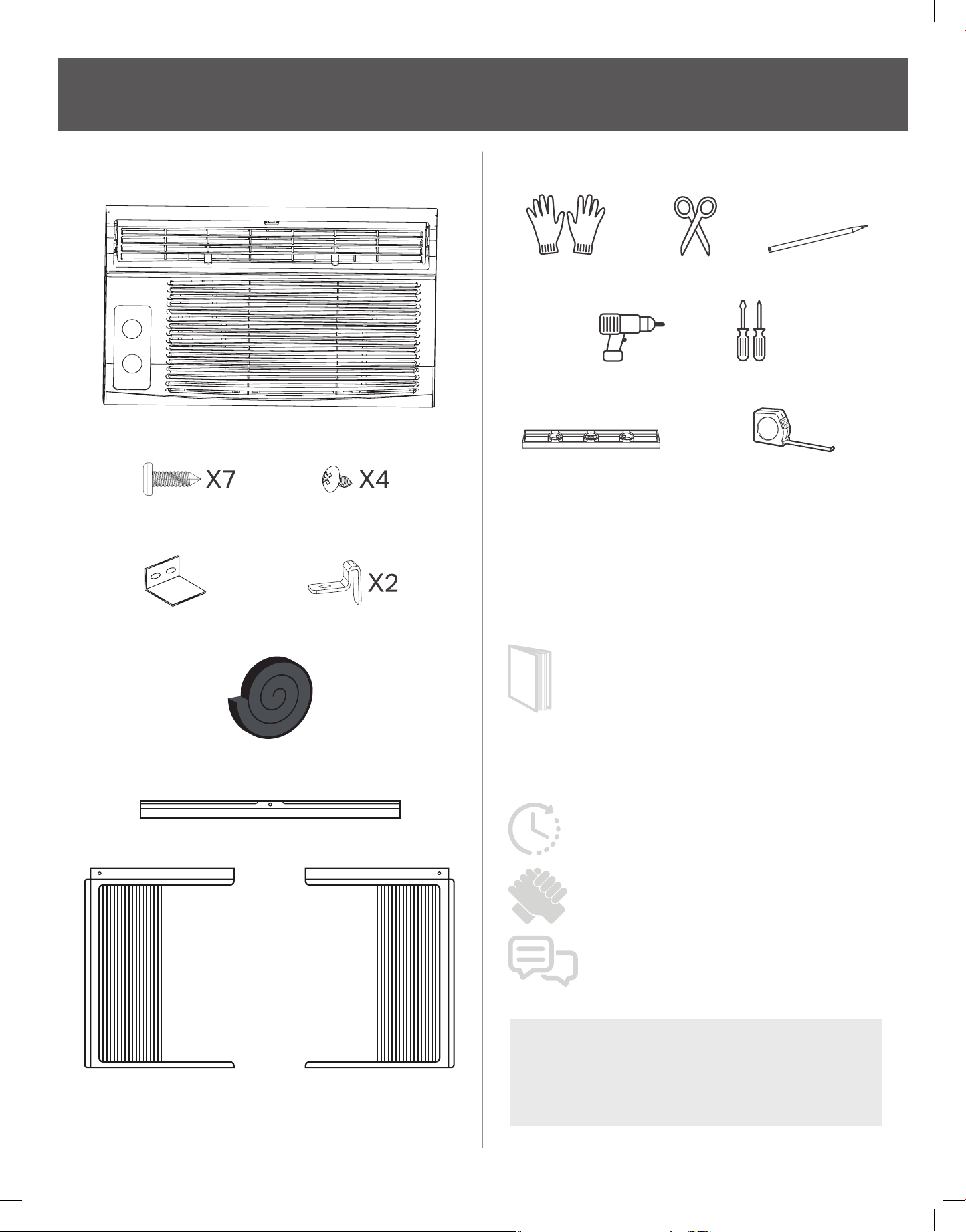

WHAT IS IN THE PACKAGE ......................................................................................................................................................13

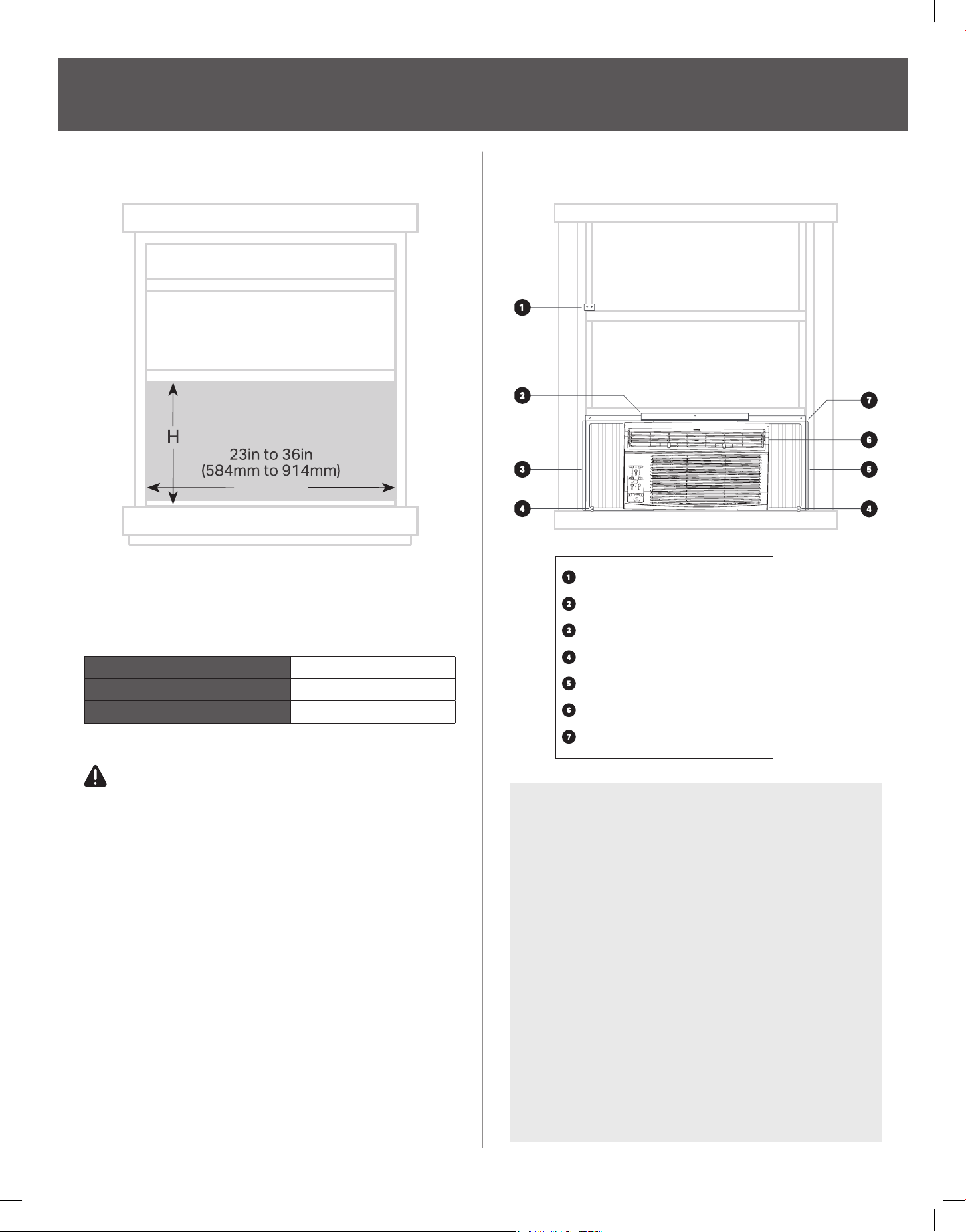

WINDOW REQUIREMENTS ....................................................................................................................................................14
INSTALLATION OVERVIEW .....................................................................................................................................................14

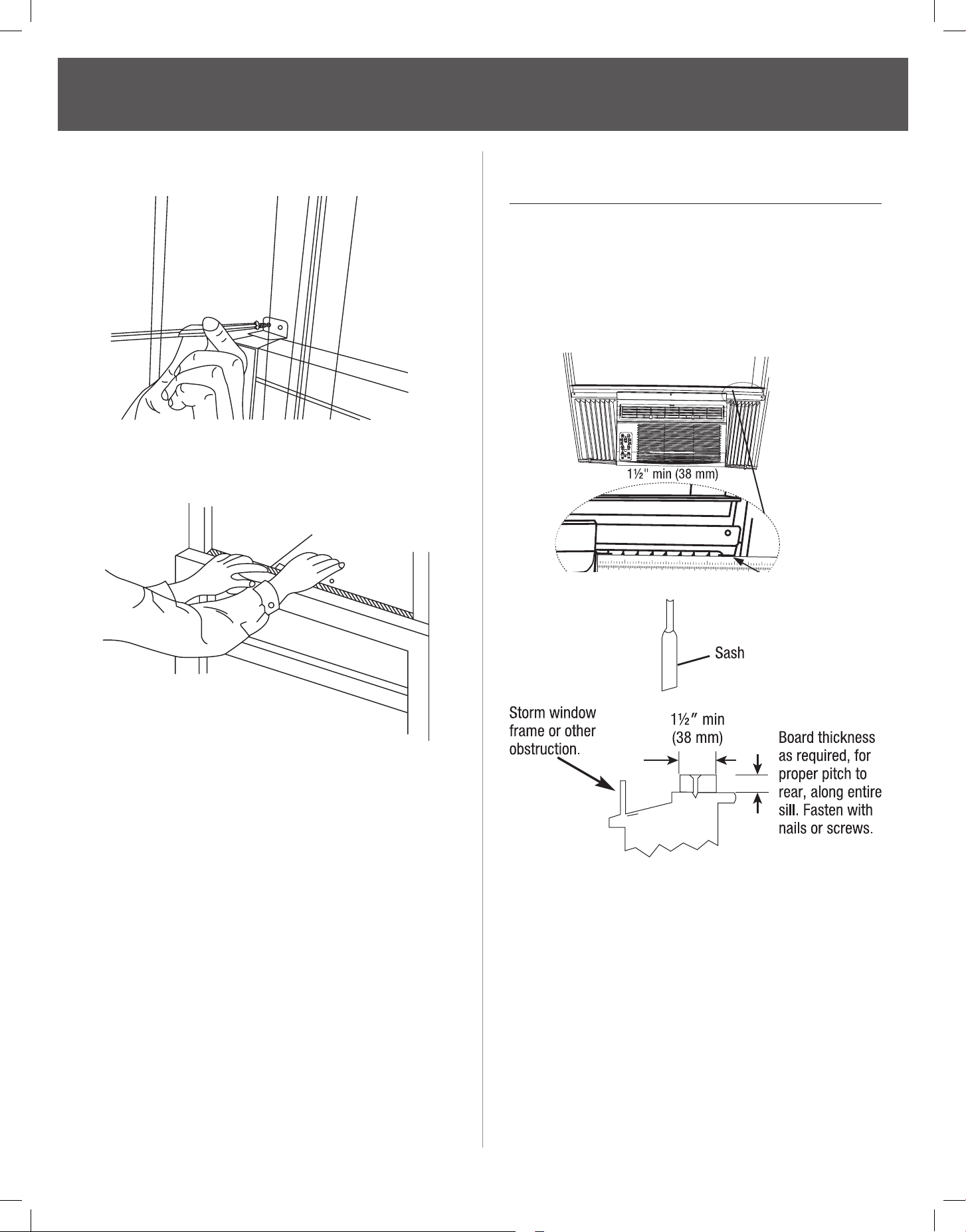

IF AC IS BLOCKED BY A STORM WINDOW .......................................................................................................................18
REMOVING AC FROM WINDOW............................................................................................................................................19
NORMAL SOUNDS .....................................................................................................................................................................19
OPERATION INSTRUCTIONS ......................................................................................................................20

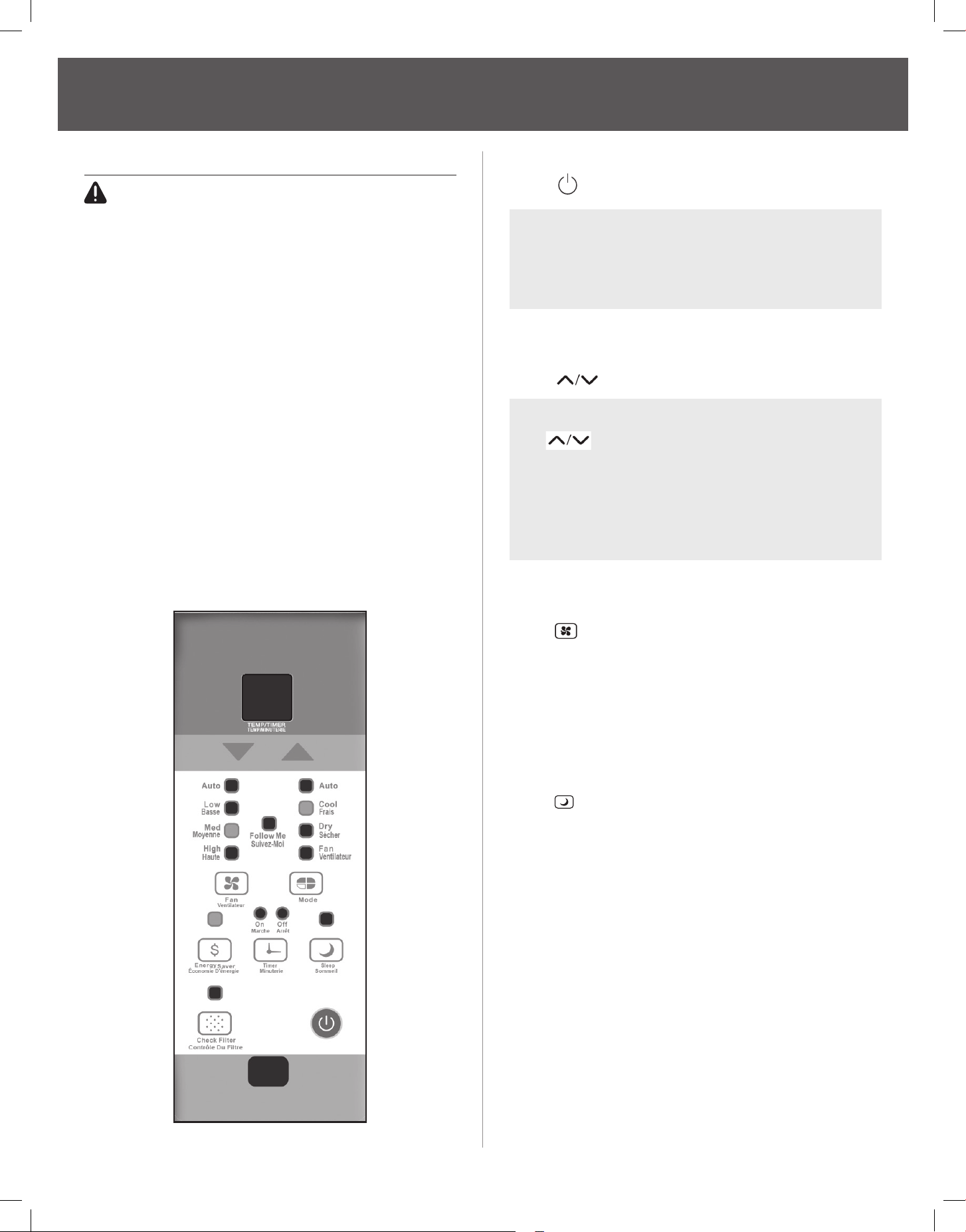

GET TO KNOW THE FEATURES .............................................................................................................................................20

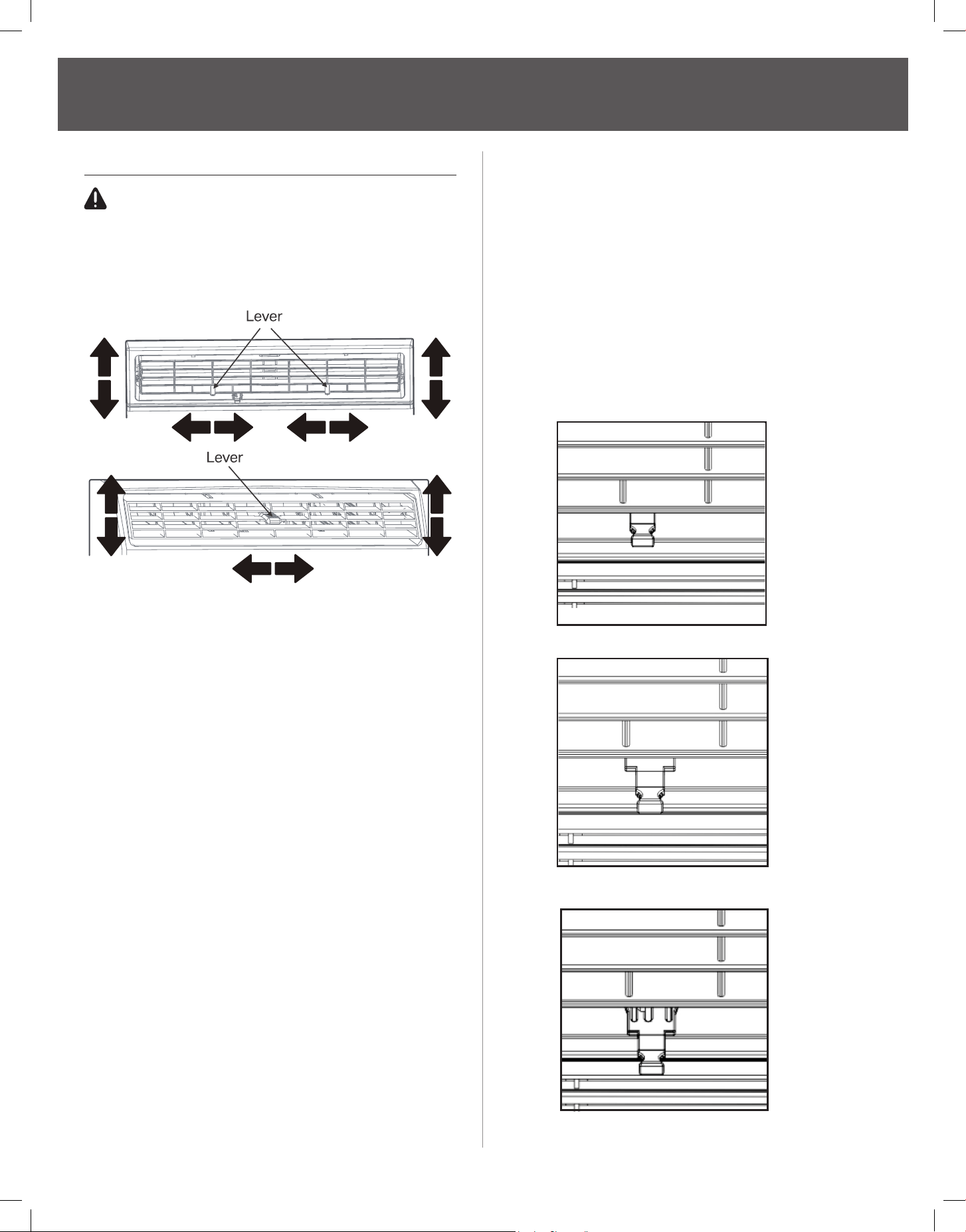

ADJUST YOUR AC DIRECTION ..............................................................................................................................................23
CARE & MAINTENANCE ................................................................................................................................24
TROUBLESHOOTING .....................................................................................................................................26
TABLE OF CONTENTS
IMPORTANT NOTE:
Read the manual carefully. Make sure to save this manual for future reference. Illustrations in this manual
are for explanatory purposes only, your actual product may look slightly dierent.
4
IMPORTANT SAFETY INSTRUCTION
Plug in power cord properly.
Failure to do so may cause electric shock or re due to
excess heat generation.
DO NOT operate or stop the unit by inserting or pulling out
the power plug directly from the wall.
Doing so may cause electric shock or re due to heat
generation.
DO NOT use a damaged power cord.
Doing so may cause electric shock or re. If the power
cord is damaged, it must be replaced by the manufacturer
or an authorized service center or a similarly qualied
person in order to avoid a hazard.
DO NOT modify power cord length or share the outlet with
other appliances.
Doing so may cause electric shock or re due to heat
generation.
DO NOT operate with wet hands or in damp environment. Doing so may cause electric shock.
DO NOT direct airow directly at room occupants. This could cause health issues.
Always ensure eective grounding. Incorrect grounding may cause electric shock.
DO NOT allow water to run into electric parts. Doing so may cause failure of machine or electric shock.
Always install circuit breaker and a dedicated power circuit. Incorrect installation may cause re and electric shock.
Always unplug the unit if strange sounds, smell or smoke
comes from the unit.
Failure to do so may cause re and electric shock.
DO NOT use the socket if it is loose or damaged. Doing so may cause re and electric shock.
DO NOT open the unit during operation. Doing so may cause electric shock.
DO NOT use rearms near unit. Doing so may cause re.
DO NOT use the power cord close to heating appliances. Doing so may cause re and electric shock.
DO NOT disassemble, modify, or drill holes into the air
conditioner.
Doing so may cause failure and electric shock and void
the manufacturer’s warranty.
Ventilate room before operating air conditioner if there is a
gas leak from another appliance such as a stove.
Failure to do so may cause explosion, re and burns.
DO NOT use the power cord near ammable gas or
combustibles, such as gasoline, benzene, thinner, etc.
Doing so may cause an explosion or re.
READ THESE SAFETY PRECAUTIONS BEFORE INSTALLATION AND
OPERATION. For your safety, it is important that you read and follow the instructions in this
manual to minimize the risk of personal injury, re or electrical shock.
To prevent injury to the user or other people and property damage, the following instructions must be
followed. Incorrect operation due to ignoring of instructions may cause harm or damage. The seriousness
is classied by the following indications.
NEVER DO THIS.
OTHER SYMBOLS:
ALWAYS DO THIS.
WARNING
This symbol indicates that ignoring instructions may cause death or
serious injury.
CAUTION
This symbol indicates that ignoring instructions may cause moderate
injury to your person, or damage to your unit or other property.
WARNING
5
IMPORTANT SAFETY INSTRUCTION
When removing air lter, DO NOT touch metal parts of the unit.
Doing so may cause an injury.
DO NOT clean with water.
Water may enter the unit and degrade the insulation
causing an electric shock.
Ensure proper ventilation, especially in rooms with a stove or
other appliances.
Failure to do so may result in an oxygen shortage.
Unit and circuit breaker/fuse must be switched OFF when
cleaning.
Cleaning unit when power is ON may cause re and
electric shock and may cause an injury.
DO NOT put a pet or house plant where it will be exposed to
direct air ow.
This could injure the pet or plant.
Use ONLY as intended.
This unit is NOT intended to preserve precision devices,
food, pets, plants, and art objects. It may cause
deterioration of quality, etc.
Stop operation and close the window in severe storms or
hurricanes.
Operation with windows open may cause moisture to
enter the room.
Hold the plug by the head of the power plug when taking it
out.
Failure to do so may cause electric shock and damage.
If unit will not be used for a long period of time, unplug or
turn OFF main power switch.
Leaving power on may cause unit failure or re.
DO NOT place obstacles around air-inlets or inside of air-outlet.
Obstacles may cause appliance failure or accident.
Periodically check installation bracket for damage.
Prolonged exposure to outdoor elements may cause
damage to installation bracket, causing unit to fall.
Always insert lter(s) securely. Clean lter(s) AT LEAST once
every two weeks.
Operation without secured, installed lters may cause
failure. A dirty lter can cause the unit to not run
eciently.
Use only a soft cloth to clean the unit.
Cleaners or detergents may change the color or scratch
the surface of the unit.
Use caution when unpacking and installing. Sharp edges could cause injury.
NEVER drink water drained from air conditioner.
Water from unit contains contaminants and could cause
illness.
DO NOT place heavy objects on the power cord and always
ensure that the cord is not compressed.
There is danger of re or electric shock.
If water enters the unit’s electrical components, turn the
unit o at the power outlet and switch o the circuit breaker.
Isolate supply by taking the power-plug out and contact a
qualied serviced technician.
There is danger of electric shock.
NOTE
This air conditioner is designed to be operated under the following conditions:
Performance may be reduced outside of these operating temperatures
Cooling
operation
Outdoor temp: 64-109°F/18-43°C (64-125° F/18-52°C for special tropical models)
Indoor temp: 62-90° F/ 17-32°C
CAUTION
6
IMPORTANT SAFETY INSTRUCTION
(Continued)
OPERATION OF CURRENT DEVICE
The power supply cord contains a current device
that senses damage to the power cord. To test
your power supply cord do the following:
• Plug in the Air Conditioner.
• The power supply cord will have TWO buttons
on the plug head. Press the TEST button, you
will notice a click as the RESET button pops out.
• Press the RESET button again, you will notice a
click as the button engages.
• The power supply cord is now supplying
electricity to the unit. (On some products this
is also indicated by a light on the plug head).
WARNING
ELECTRICAL INFORMATION
The complete electrical rating of your new room
air conditioner is stated on the serial plate.
Refer to the rating when checking the electrical
requirements.
• Be sure the air conditioner is properly
grounded. To minimize shock and re hazards,
proper grounding is important. The power cord
is equipped with a three-prong grounding plug
for protection against shock hazards.
• Your air conditioner must be used in a properly
grounded wall receptacle. If the wall receptacle
you intend to use is not adequately grounded or
protected by a time delay fuse or circuit breaker,
have a qualied electrician install the proper
receptacle.
• Ensure the receptacle is accessible after the
unit installation.
• Do not run air conditioner without side
protective cover in place. This could result in
mechanical damage within the air conditioner.
• Do not use an extension cord or an adapter
plug.
Avoid re hazard or electric shock. Do not use an
extension cord or an adapter plug. Do not remove
any prongs from the power cord.
FOR YOUR SAFETY
Do not store or use gasoline or other ammable
vapors and liquids in the vicinity of this or any
other appliance.
PREVENT ACCIDENTS
To reduce the risk of re, electrical shock, or injury
to persons when using your air conditioner, follow
basic precautions, including the following:
• Be sure the electrical service is adequate for the
model you have chosen. This information can
be found on the serial plate, which is located on
the side of the cabinet and behind the grille.
• If the air conditioner is to be installed in a
window, you will probably want to clean
both sides of the glass rst. If the window
is a triple track type and has a screen panel
included, remove the screen completely
before installation.
NOTE
• The power supply cord with this air
conditioner contains a current detection
device designed to reduce the risk of re.
In the event that the power cord is damaged,
it cannot be repaired – it must be replaced
with a cord from the product manufacturer.
• Do not use this device to turn the unit on
or o.
• Always make sure the RESET button is
pushed in for correct operation.
• The power supply cord must be replaced if
it fails to reset when either the TEST button
is pushed or if it cannot be reset.
• A new one can be obtained from the
product manufacturer.
• If power supply cord is damaged, it cannot
be repaired. It MUST be replaced by one
obtained from the product manufacturer.

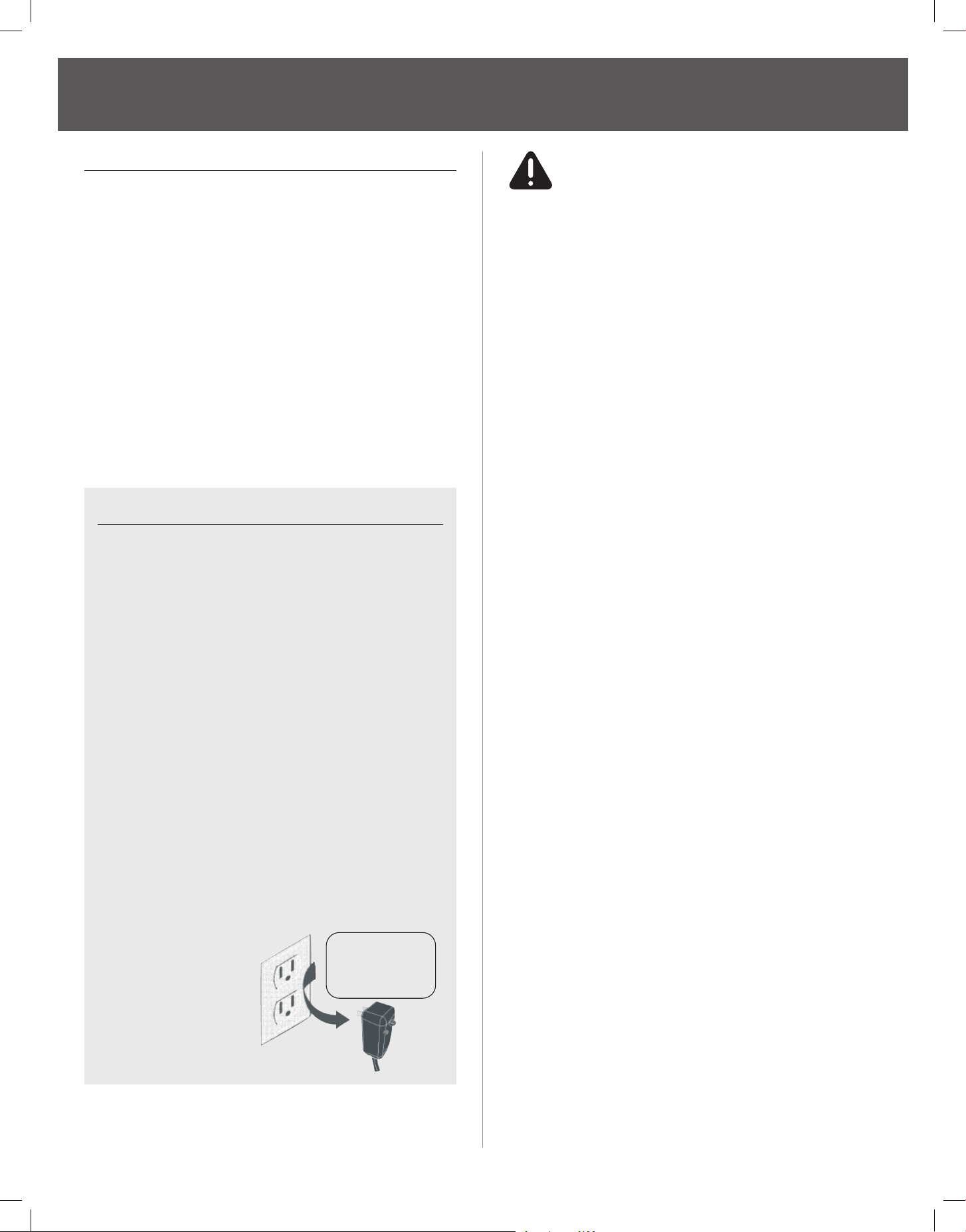

Grounding type
wall receptacle
Power supply cord
with 3-prong
grounding plug
and current
detection device.
Do not, under any
circumstances, cut,
remove, or bypass the
grounding prongs.
7
IMPORTANT SAFETY INSTRUCTION
(Continued)
• Be sure the air conditioner has been securely
and correctly installed according to the
installation instructions in this manual.
• Save this manual for possible future use in
removing or installing this unit.
• When handling the air conditioner, be careful to
avoid cuts from sharp metal ns on front and
rear coils.
ELECTRONIC WORK
WARNING
BEFORE PERFORMING ANY ELECTRICAL OR
WIRING WORK, TURN OFF THE MAIN POWER TO
THE SYSTEM
WARNING

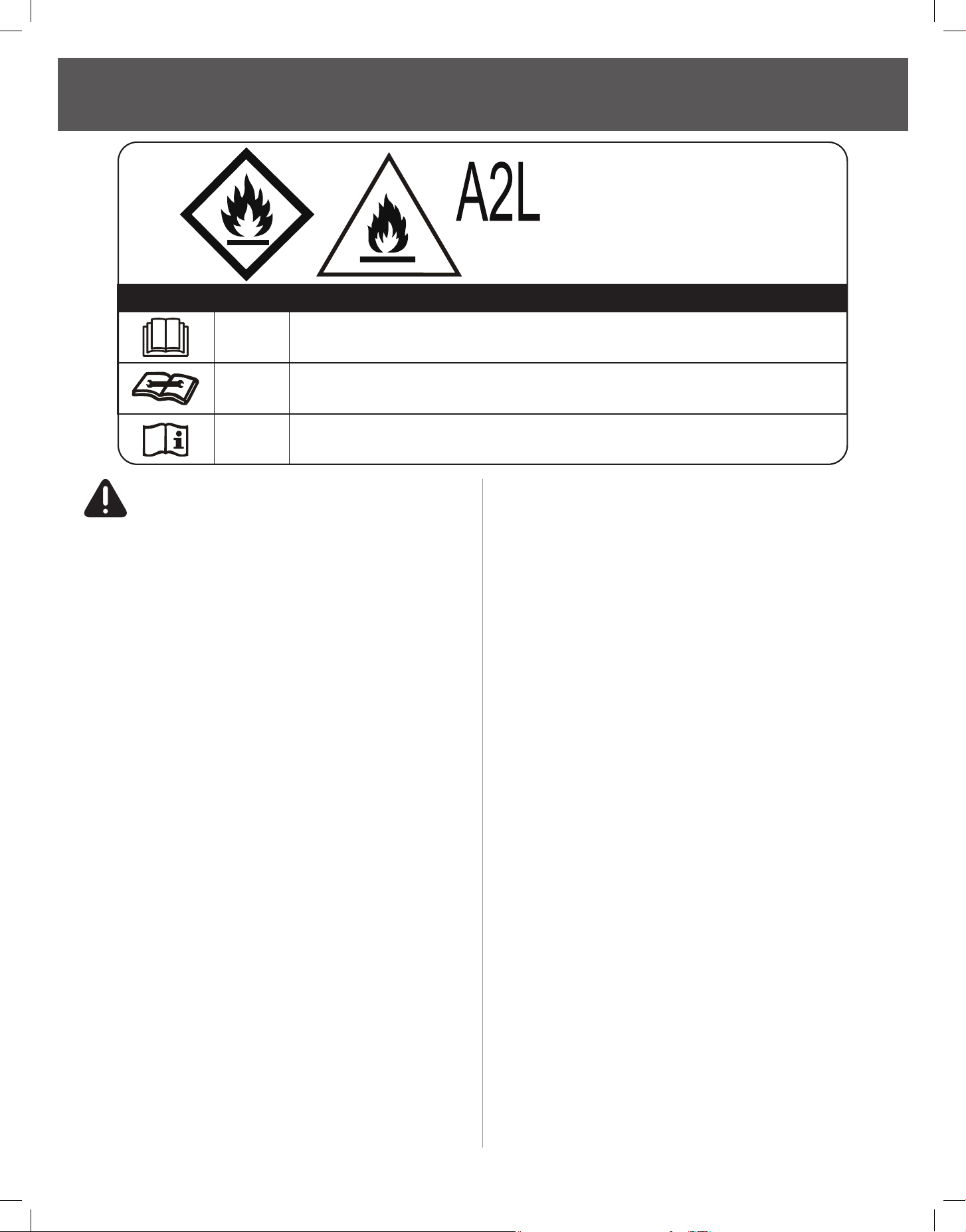

For using R32 refrigerant
• Do not use means to accelerate the defrosting
process or to clean, other than those
recommended by the manufacturer.
• The appliance shall be stored in a room without
continuously operating ignition sources
(for example: open ames, an operating gas
appliance or an operating electric heater).
• Do not pierce or burn.
• Be aware that the refrigerants may not contain
an odor.
• Appliance should be installed, operated and
stored in a room with a oor area according to
the amount of refrigerant to be charged. For
specic information on the type of gas and
the amount, please refer to the relevant label
on the unit itself. When there are dierences
between the label and the manual on the Min.
room area description, the description on label
shall prevail.
NOTE: The cographs are for explanation
purpose only. Your machine may be slightly
dierent. The actual shape shall prevail.
DISPLAY
MAIN
CONTROL
POWER SUPPLY
CORD
• Appliance shall be installed, operated and
stored in a room with a oor area larger than
43 sq. ft. (4 m
2
). Appliance shall not be installed
in an unvertilated space, if that space is smaller
than 43 sq. ft. (4 m
2
).
• No open re or device like switch which
may generate spark/arcing shall be around
appliance to avoid causing ignition of the
ammable refrigerant used. Please follow
the instructions carefully when storing
or maintaining the appliance to prevent
mechanical damage from occurring.
• Servicing should only be performed as
recommended by the equipment manufacturer.
Maintenance and repair requiring the
assistance of other skilled personnel shall be
carried out under the supervision of the person
competent in the use of ammable refrigerants.
• DO NOT modify the length of the power cord
or use an extension cord to power the unit.
• DO NOT share a single outlet with other
electrical appliances. Improper power supply
can cause re or electrical shock. When
maintaining or disposing the appliance, the
refrigerant shall be recovered properly, shall
not discharge to air directly.
• Compliance with national gas regulations shall
be observed.
• Keep ventilation openings clear of obstruction.
• The appliance shall be stored so as to prevent
mechanical damage from occurring.
• A warning that the appliance shall be stored
in a well-ventilated area where the room size
corresponds to the room area as specied for
operation.
• Any person who is involved with working on
or breaking into a refrigerant circuit should
hold a current valid certicate from an
industry-accredited assessment authority,
which authorizes their competence to handle
refrigerants safely in accordance with an
industry recognized assessment specication.
All training shall follow the ANNEX HH
requirements of UL 60335-2-40.
Examples for such working procedures are:
- breaking into the refrigerating circuit;
- opening of sealed components;
- opening of ventilated enclosures.
8
IMPORTANT SAFETY INSTRUCTION
(Continued)
WARNING
For using R32 refrigerant
TRANSPORT OF EQUIPMENT CONTAINING
FLAMMABLE REFRIGERANTS
• See transport regulations.
MARKING OF EQUIPMENT USING SIGNS
• See local regulations.
DISPOSAL OF EQUIPMENT USING
FLAMMABLE REFRIGERANTS
• See national regulations.
STORAGE OF EQUIPMENT/APPLIANCES
• The storage of equipment should be
in accordance with the manufacturer’s
instructions.
STORAGE OF PACKED (UNSOLD)
EQUIPMENT
• Storage package protection should be
constructed such that mechanical damage
to the equipment inside the package will not
cause a leak of the refrigerant charge.
• The maximum number of pieces of equipment
permitted to be stored together will be
determined by local regulations.
INFORMATION ON SERVICING
1. Checking the area: Prior to beginning work on
systems containing ammable refrigerants,
safety checks are necessary to ensure that the
risk of ignition is minimized. For repair to the
refrigerating system, the following precautions
shall be complied with prior to conducting
work on the system.
2. Work procedure: Work shall be undertaken
under a controlled procedure so as to minimize
the risk of a ammable gas or vapor being
present while the work is being performed.
3. General work area: All maintenance sta
and others working in the local area shall be
instructed on the nature of work being carried
out. Work in conned spaces shall be avoided.
The area around the workspace shall be
sectioned o. Ensure that the conditions within
the area have been made safe by control of
ammable material.
4. Checking for presence of refrigerant: The
area should be checked with an appropriate
refrigerant detector prior to and during work,
to ensure the technician is aware of potentially
ammable atmospheres. Ensure that the leak
detection equipment being used is suitable
for use with ammable refrigerants, i.e.
non-sparking, adequately sealed or
intrinsically safe.
5. Presence of a re extinguisher: If any hot
work is to be conducted on the refrigeration
equipment or any associated parts,
appropriate re extinguishing equipment
Explanation of symbols displayed on the unit
CAUTION
This symbol shows that the operation manual should be read carefully.
CAUTION
This symbol shows that a service professional should be handling this equipment
with reference to the installation manual.
CAUTION
This symbol shows that information is available such as the operation manual or
installation manual.
CAUTION:
Risk of re
ammable materials
9
IMPORTANT SAFETY INSTRUCTION
WARNING
For using R32 refrigerant
shall be available to hand. Have a dry powder
or CO2 re extinguisher adjacent to the
charging area.
6. No ignition sources: No person carrying out
work in relation to a refrigeration system which
involves exposing any pipe work that contains
or has contained ammable refrigerant shall
use any sources of ignition in such a manner
that it may lead to the risk of re or explosion.
All possible ignition sources, including
cigarette smoking, should be kept suciently
far away from the site of installation, repairing,
removing and disposal, during which
ammable refrigerant can possibly be released
to the surrounding space. Prior to work taking
place, the area around the equipment is to
be surveyed to make sure that there are
no ammable hazards or ignition risks. No
Smoking signs shall be displayed.
7. Ventilated area: Ensure that the area is in the
open or that it is adequately ventilated before
breaking into the system or conducting any
hot work. A degree of ventilation shall continue
during the period that the work is carried out.
The ventilation should safely disperse any
released refrigerant and preferably expel it
externally into the atmosphere.
8. Checks to the refrigeration equipment:
Where electrical components are being
changed, they shall be t for the purpose
and to the correct specication. At all times
the manufacturer’s maintenance and service
guidelines shall be followed. If in doubt consult
the manufacturer’s technical department for
assistance.
The following checks shall be applied to
installations using ammable refrigerants:
• The charge size is in accordance with the
room size within which the refrigerant
containing parts are installed.
• The ventilation machinery and outlets are
operating adequately and are not obstructed.
• If an indirect refrigerating circuit is being
used, the secondary circuit shall be checked
for the presence of refrigerant.
• Marking to the equipment continues to be
visible and legible. Markings and signs that
are illegible should be corrected.
• Refrigeration pipe or components are
installed in a position where they are unlikely
to be exposed to any substance which may
corrode refrigerant containing components,
unless the components are constructed of
materials which are inherently resistant to
being corroded or are suitably protected
against being so corroded.
9. Checks to electrical devices:
• Repair and maintenance to electrical
components should include initial safety
checks and component inspection
procedures. If a fault exists that could
compromise safety, then no electrical supply
shall be connected to the circuit until it is
satisfactorily dealt with. If the fault cannot be
corrected immediately but it is necessary to
continue operation, an adequate temporary
solution should be used. This should be
reported to the owner of the equipment, so
all parties are advised.
• Initial safety checks should include:
• That capacitors are discharged: this
shall be done in a safe manner to avoid
possibility of sparking.
• That there no live electrical components
and wiring are exposed while charging,
recovering or purging the system.
• That there is continuity of earth bonding.
SEALED ELECTRICAL COMPONENTS
SHALL BE REPLACED
1. During repairs to sealed components, all
electrical supplies shall be disconnected
from the equipment being worked upon prior
to any removal of sealed covers, etc. If it is
absolutely necessary to have an electrical
supply to equipment during servicing, then a
permanently operating form of leak detection
shall be located at the most critical point to
warn of a potentially hazardous situation.
2. Particular attention shall be paid to the
following to ensure that by working on
electrical components, the casing is not
altered in such a way that the level of
protection is aected. This shall include
(Continued)
10
IMPORTANT SAFETY INSTRUCTION
damage to cables, excessive number of
connections, terminals not made to original
specication, damage to seals, incorrect
tting of glands, etc. Ensure that apparatus is
mounted securely.
• Ensure that seals or sealing materials have
not degraded such that they no longer
serve the purpose of preventing the ingress
of ammable atmospheres. Replacement
parts should be in accordance with the
manufacturer’s specications.
NOTE: The use of silicon sealant may inhibit
the eectiveness of some types of leak
detection equipment. Intrinsically safe
components do not have to be isolated
prior to working on them.
INTRINSICALLY SAFE COMPONENTS
MUST BE REPLACED
• Do not apply any permanent inductive or
capacitance loads to the circuit without ensuring
that this will not exceed the permissible voltage
and current permitted for the equipment in use.
Intrinsically safe components are the only types
that can be worked on while live in the presence
of a ammable atmosphere. The test apparatus
shall be at the correct rating.
• Replace components only with parts specied
by the manufacturer. Other parts may result in
the ignition of refrigerant in the atmosphere from
a leak.
CABLING
• Check that cabling will not be subject to wear,
corrosion, excessive pressure, vibration, sharp
edges or any other adverse environmental
eects. The check shall also take into account
the eects of aging or continual vibration from
sources such as compressors or fans.
DETECTION OF FLAMMABLE
REFRIGERANTS
•
Under no circumstances, should potential sources
of ignition be used in the searching for or detection
of refrigerant leaks. A halide torch (or any other
detector using a naked ame) should not be used.
• The following leak detection methods are
deemed acceptable for systems containing
ammable refrigerants. Electronic leak detectors
shall be used to detect ammable refrigerants,
but the sensitivity may not be adequate, or
may need re-calibration. (Detection equipment
should be calibrated in a refrigerant-free area.)
Ensure that the detector is not a potential source
of ignition and is suitable for the refrigerant
used. Leak detection equipment should be set
at a percentage of the LFL of the refrigerant and
shall be calibrated to the refrigerant employed
and the appropriate percentage of gas (25 %
maximum) is conrmed.
• Leak detection uids are suitable for use with
most refrigerants but the use of detergents
containing chlorine shall be avoided as the
chlorine may react with the refrigerant and
corrode the copper pipework.
• If a leak is suspected, all naked ames should be
removed/ extinguished. If a leakage of refrigerant is
found which requires brazing, all of the refrigerant
should be recovered from the system, or isolated
(by means of shut o valves) in a part of the system
remote from the leak. Removal of refrigerant shall
be according to Removal and evacuation..
REMOVAL AND EVACUATION
• When breaking into the refrigerant circuit to make
repairs—or for any other purpose - conventional
procedures shall be used. However, for ammable
refrigerants it is important that best practice is
followed since ammability is a consideration.
• The following procedure shall be adhered to:
• Remove refrigerant
• Safely remove refrigerant following local
and national regulations;
• Evacuate;
• Purge the circuit with inert gas
(optional for A2L);
• Evacuate (optional for A2L);
• continuously ush or purge with inert gas
when using ame to open circuit; and
• open the circuit.
• The refrigerant charge should be recovered
into the correct recovery cylinders. if venting
is not allowed by local and national codes. For
WARNING
For using R32 refrigerant
(Continued)
11
IMPORTANT SAFETY INSTRUCTION
appliances containing ammable refrigerants,
the system shall be purged with oxygen-free
nitrogen ammable refrigerants. This process
might compressed air or oxygen shall not be
used for purging refrigerant systems.
• For appliances containing ammable
refrigerants, refrigerants purging shall be
achieved by breaking the vacuum in the system
with oxygen-free nitrogen and continuing to
ll until the working pressure is achieved, then
venting to atmosphere, and nally pulling down
to a vacuum (optional for A2L).
• This process shall be repeated until no
refrigerant is within the system (optional for A2L).
When the nal oxygen-free nitrogen charge
is used, the system shall be vented down to
atmospheric pressure to enable work to take
place. The outlet for the vacuum pump shall not
be close to any potential ignition sources, and
ventilation shall be available.
CHARGING PROCEDURES
• In addition to conventional charging procedures,
the following requirements should be followed.
• Ensure that contamination of dierent
refrigerants does not occur when using
charging equipment.
• Hoses or lines should be as short as possible
to minimize the amount of refrigerant
contained in them.
• Cylinders should be kept upright.
• Ensure that the refrigeration system is
earthed prior to charging the system with
refrigerant.
• Label the system when charging is complete
(if not already).
• Extreme care should be taken not to overll
the refrigeration system.
• Prior to recharging the system, it should be
pressure tested with OFN.
• The system should be leak tested on
completion of charging but prior to
commissioning.
• A follow up leak test should be carried out
prior to leaving the site.
DECOMMISSIONING
• Before carrying out this procedure, it is essential
that the technician is completely familiar with the
equipment and all its detail. It is recommended
good practice that all refrigerants are recovered
safely. Prior to the task being carried out, an oil
and refrigerant sample should be taken in case
analysis is required prior to re-use of reclaimed
refrigerant. It is essential that electrical power is
available before the task is commenced.
• Become familiar with the equipment and its
operation.
• Isolate the system electrically.
• Before attempting the procedure ensure that:
• When breaking into the refrigerant circuit
to make repairs or for any other purpose,
conventional procedures should be used.
• Mechanical handling equipment is available,
if required, for handling refrigerant cylinders.
• Personal protective equipment is available
and being used correctly.
• The recovery process is supervised at all
times by a competent person.
• Recovery equipment and cylinders conform
to the appropriate standards.
• Pump down refrigerant system, if possible.
• If a vacuum is not possible, make a manifold so
that refrigerant can be removed from various
parts of the system.
• Make sure that cylinder is situated on the scales
before recovery takes place.
• Start the recovery machine and operate in
accordance with manufacturer’s instructions.
• Do not overll cylinders. (No more than 80 %
volume liquid charge).
• Do not exceed the maximum working pressure
of the cylinder, even temporarily.
• When the cylinders have been lled correctly
and the process is completed, make sure that
the cylinders and the equipment are removed
from the site promptly and all isolation valves on
the equipment are closed o.
• Recovered refrigerant should not be charged
into another refrigeration system unless it has
been cleaned and checked.
WARNING
For using R32 refrigerant
(Continued)
12
LABELLING
• Equipment should be labelled stating that it
has been de-commissioned and emptied of
refrigerant. The label should be dated and
signed. Ensure that there are labels on the
equipment stating the equipment contains
ammable refrigerant.
RECOVERY
• When removing refrigerant from a system,
either for servicing or decommissioning, it is
recommended good practice that all refrigerants
are removed safely.
• When transferring refrigerant into cylinders,
ensure that only appropriate refrigerant recovery
cylinders are employed. Ensure that the correct
number of cylinders for holding the total system
charge is available. All cylinders to be used are
designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders
for the recovery of refrigerant). Cylinders shall
be complete with pressure relief valve and
associated shut-o valves in good working
order. Empty recovery cylinders are evacuated
and, if possible, cooled before recovery occurs.
• The recovery equipment shall be in good
working order with a set of instructions
concerning the equipment that is at hand and
shall be suitable for the recovery of ammable
refrigerants. If in doubt, the manufacturer should
be consulted. In addition, a set of calibrated
weighing scales shall be available and in good
working order.
• Hoses shall be complete with leak-free
disconnect couplings and in good condition.
• The recovered refrigerant shall be processed
according to local legislation in the correct
recovery cylinder, and the relevant waste
transfer note arranged. Do not mix refrigerants
in recovery units and especially not in cylinders.
If compressors or compressor oils are to be
removed, ensure that they have been evacuated
to an acceptable level to make certain that
ammable refrigerant does not remain within
the lubricant. The compressor body shall not
be heated by an open ame or other ignition
sources to accelerate this process. When oil
is drained from a system, it shall be carried
out safely.
WARNING
For using R32 refrigerant
(Continued)
IMPORTANT SAFETY INSTRUCTION
IMPORTANT NOTICE:
WARRANTY VOID
FOR IMPROPER INSTALLATION
Please note that the warranty for the
window air conditioner will be void if it is
installed in a wall sleeve through a wall
opening that will block any air vents, or
any other type of installation method not
specied in this user manual.
To ensure proper functioning and to maintain
the validity of the warranty, it is crucial to strictly
adhere to the installation procedure outlined in
this user manual. Failure to do so may lead to
damage or malfunctioning of the unit.
For detailed instructions on the correct
installation process, please refer to the
'Installation Instruction' section of this user
manual. Following these guidelines will help
guarantee optimal performance and protect
your warranty coverage.
If you have any questions or require further
assistance, please don't hesitate to contact
our US based customer service team at
855-663-9463. We are here to help ensure
your satisfaction and maximize the longevity
of your window air conditioner.
13

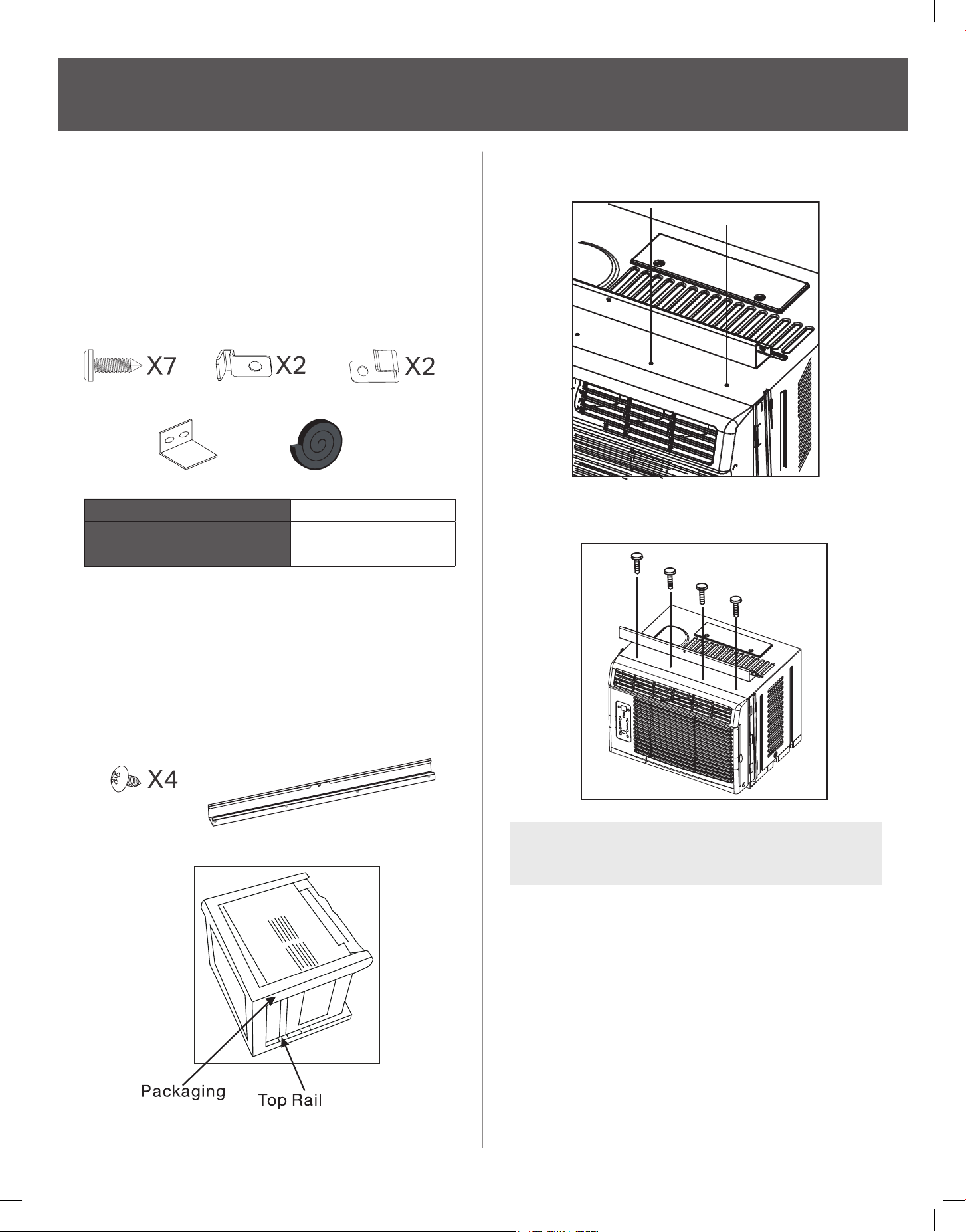

INSTALLATION INSTRUCTIONS
WHAT IS IN THE PACKAGE PREPARE THE FOLLOWING TOOLS
BEFORE THE INSTALLATION
The installation must be carried out in
strict accordance with the instructions
in this manual.
Do NOT install your air conditioner
into a wall sleeve or enclosure of any
type that interferes with any air vents.
Installing your AC should take about
60 minutes.
We recommend doing this with a helper.
We’re here if you need us, please
contact 855-663-9463 Mon-Fri
for assistance.
Manual
*Tools not included
Gloves
Screwdriver
Pencil
Drill
Ruler or tape measure
Level
Scissors
NOTE: Illustrations in this manual are for
explanatory purposes. The actual shape of
your unit may be slightly dierent. The actual
shape shall prevail.
Window Type Room Air Conditioner unit
Top Rail
Frame Assembly (Right)
RIGHT
Frame Assembly (Left)
LEFT
Lock Frame
Sash Lock
3/4" (or 1/2")
Screws
3/8" Screws
Window
Sash Seal Foam
14
INSTALLATION INSTRUCTIONS
(Continued)
WINDOW REQUIREMENTS
Your air conditioner is designed to install in
standard double hung windows with opening
widths of 23 to 36 inches (584mm to 914mm)
and a minimum height in chart.
Window opening height H
8000 Btu/h 14in (356mm)
10000~12000 Btu/h 15 - 1/2in (394mm)
CAUTION
• Do not, under any circumstances, cut
or remove the third (ground) prong from
the power cord.
• Do not change the plug on the
power cord of the air conditioner.
Aluminum house wiring may present
special problems- consult a qualied
electrician. When handling unit, be
careful to avoid cuts from sharp metal
edges and aluminum ns on front and
rear coils.
• The rear of the unit must be outdoors,
not inside a building or garage.
Sash Lock and 5/8in Screws
Top Rail and 3/8in Screws
Frame Assembly (Left)
Safety Lock and 5/8in Screw
Frame Assembly (Right)
Air Conditioner unit
Window Sash Seal Foam
INSTALLATION OVERVIEW
IMPORTANT NOTICE:
WARRANTY VOID
FOR IMPROPER INSTALLATION
Please note that the warranty for the
window air conditioner will be void if
it is installed in a wall sleeve or any
other type of enclosure that interferes
with any air vents. Failure of proper
installation will lead to damage or
malfunctioning of the unit.
For detailed instructions on the correct installation
process, please refer to the 'Installation' section
of this user manual. Following these guidelines will
help guarantee optimal performance and protect
your warranty coverage.
Listed in chart below
RIGHT
LEFT
15
INSTALLATION INSTRUCTIONS
(Continued)
STEP 1
PREPARE THE WINDOW
Lower sash must open suciently to allow a clear
vertical opening of 13 inches (330 mm). Side
louvers and the rear of the AC must have clear
air space to allow enough airow through the
condenser for heat removal. The rear of the unit
must be outdoors, not inside a building or garage.
MOUNTING HARDWARE:
3/4" (or 1/2")
Screws
Lock Frame
(Wooden Windows)
Lock Frame
(Vinyl-Clad Windows)
Sash Lock Window Sash Seal Foam
Window opening height H
8000 Btu/h 14in (356mm)
10000~12000 Btu/h 15 - 1/2in (394mm)
STEP 2
PREPARE AIR CONDITIONER
A. Remove the air conditioner from the carton
and place on a at surface.
B. Remove the top rail fromt he packaging
material as shown in Fig. A
TOP RAIL HARDWARE:
C. Align the hole in the top rail with those in
the top of the unit as shown in Fig. B.
Fig. B
D. Secure the top rail to the unit with the
3/8" screws as shown in Fig. C.
Fig. C
NOTE: or safety reasons, all four (4) screws
MUST be securely fastened.
3/8" Screws
Fig. A
X1
Top Rail
16
INSTALLATION INSTRUCTIONS
(Continued)

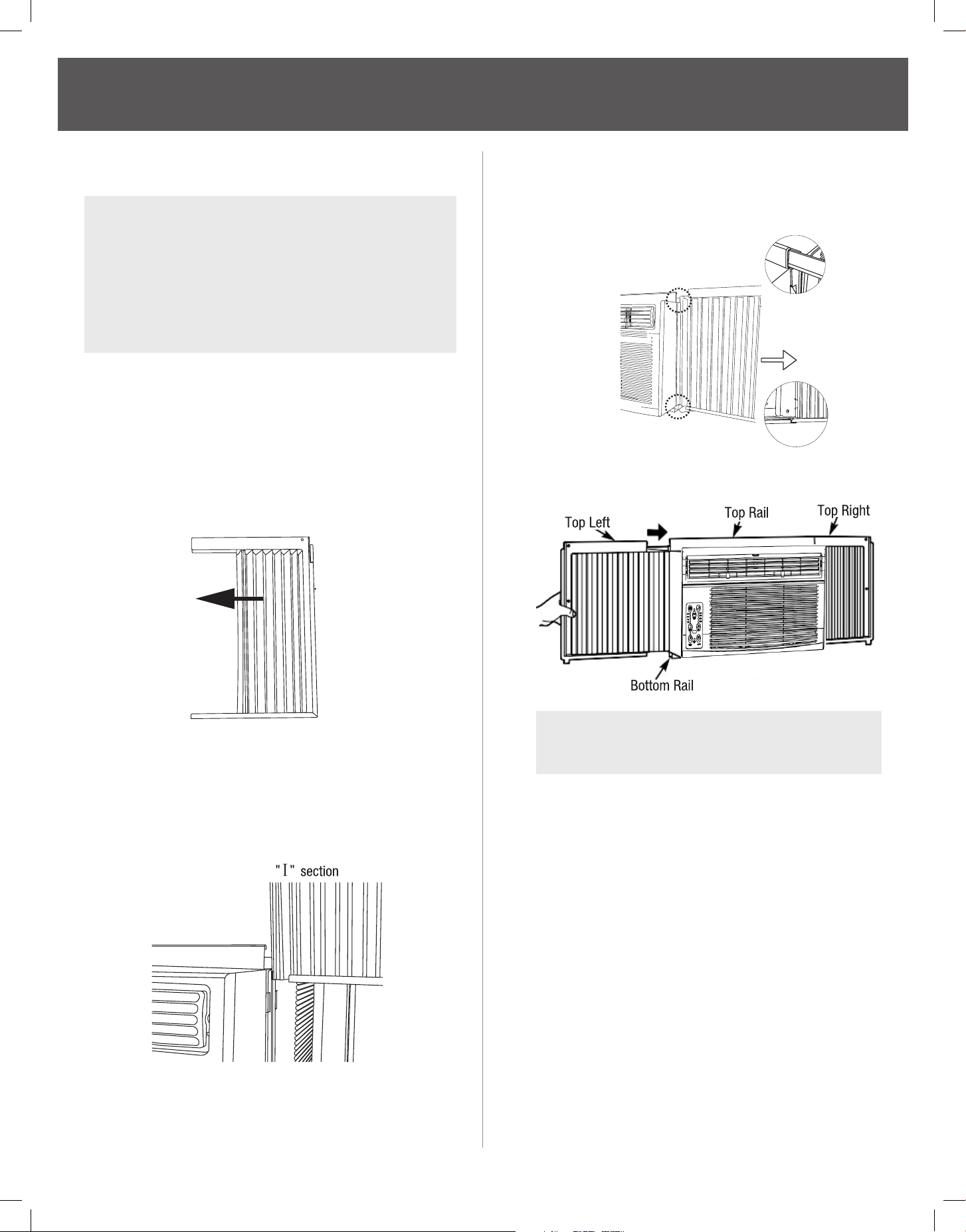

STEP 3
INSTALLING THE WINDOW AIR CONDITIONER
NOTE: Top rail and sliding panels on each
side are oset to provide the proper pitch of
5/16" to the rear. This is necessary for proper
condensed water utilization and drainage.
If you are not using the side panels for
any reason, this pitch to the rear must be
maintained.
A. Place unit on oor, a bench or a table. There is
one left and one right side ller panel. Be sure
to use the proper panel for each side. When
installed, the ange for securing the panel to
the window sill will be facing into the room.
B. Hold the accordion panel in one hand and
gently pull back the center to ll the
open end. See Fig. 1.
Fig. 1
C. Slide the free end "I" section of the panel
directly into the cabinet as shown in Fig. 2.
Slide the panel down. Be sure to leave enough
space to slip the top and bottom of the
frame into the rails on the cabinet.
Fig. 2
D. Once the panel has been installed on the
side of the cabinet, make sure it sits securely
inside the frame channel by making slight
adjustments. Slide the top and bottom ends of
the frame into the top and bottom rails of the
cabinet. Fig. 3.
Fig. 3
Top Rail
Bottom Rail
E. Slide the panel all the way in
and repeat on the other side. Fig. 4."
NOTE: If storm window blocks AC,
see Fig. 11, pg. 19.
STEP 4
17
INSTALLATION INSTRUCTIONS
(Continued)
SECURE THE ACCORDION PANELS

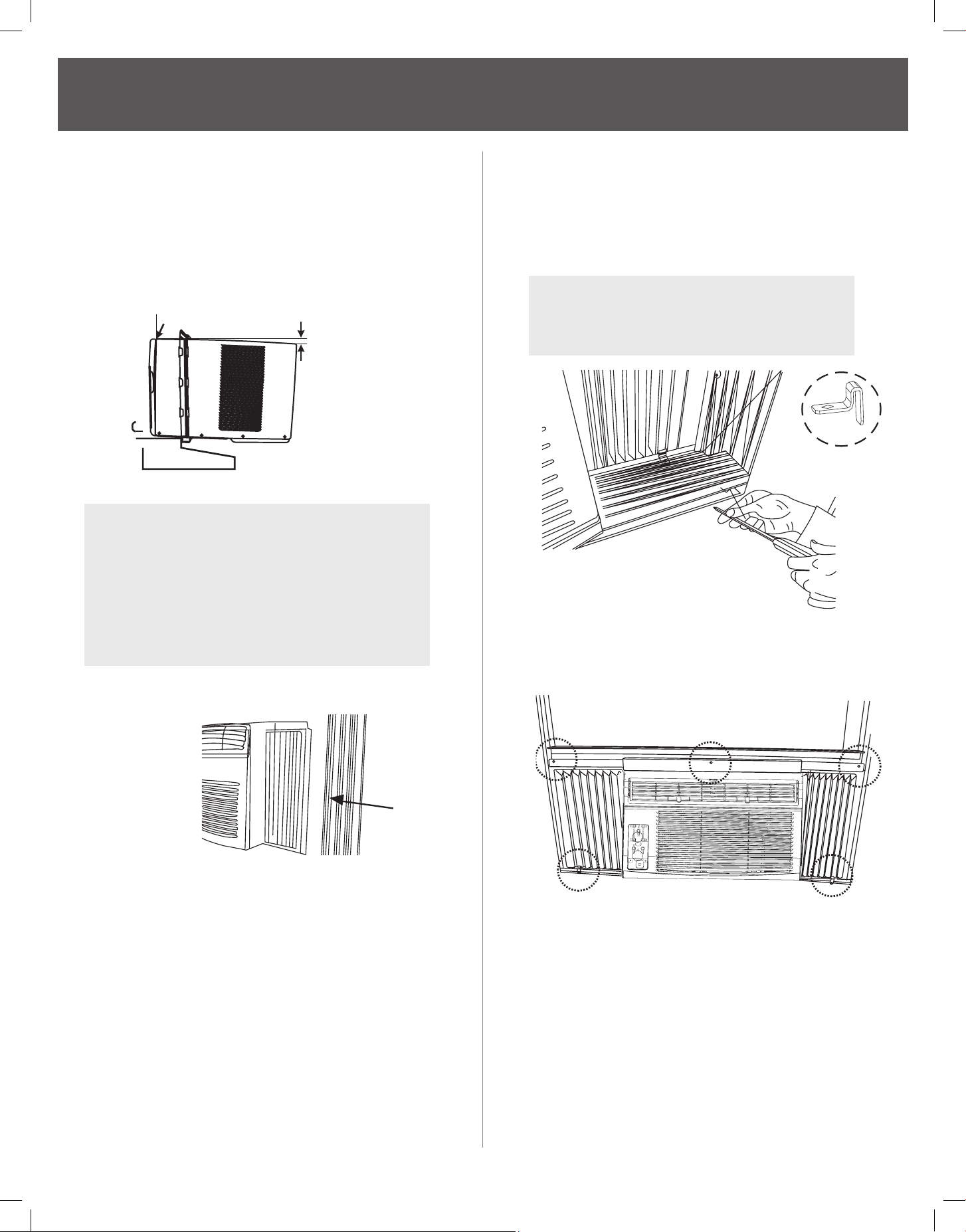

A. Keeping a rm grip on the air conditioner,
carefully place the unit into the window
opening so the bottom of the air conditioner
frame is against the window sill Fig. 5.
Carefully close the window behind the
top rail of the unit.
Measure from the cabinet edge
Wooden Windows
INSIDE
OUTSIDE
Fig. 5
H
H: Approx. 3/4" to 1" for
5,000–8,000 BTU units
H: Approx. 1" to 1-3/8" for
10,000–12,000 BTU units
NOTE: Check that air conditioner is tilted
back approximately " to 1"
Fig. 5 (tilted about 3° to 4° downward to
the outside). If, after proper installation,
condensation does not drain from the
overow drain hole during normal use,
adjust slope.
B. Extend the side panels out against the window
frame Fig. 6.
Fig. 6
Window
Frame
STEP 5
INSTALL SUPPORT BRACKET
A. Place the frame lock between the frame
extensions and the window sill as shown in
Fig. 7. Drive 3/4" (19 mm) or 1/2" (12.7 mm)
locking screws through the frame lock and
into the sill.
NOTE: To prevent window sill from
splitting, drill " (3 mm) pilot holes
before driving screws.
Fig. 7
B. Drive 3/4" (19 mm) or 1/2" (12.7 mm)
locking screws through frame holes
into window sash Fig. 8.
Fig. 8
C. To secure lower sash in place, attach right angle
18
INSTALLATION INSTRUCTIONS
(Continued)
sash lock with 3/4" (19 mm) or 1/2" (12.7 mm)
screw as shown Fig. 9.
Fig. 9
D. Cut window sash seal foam and insert it in
the space between the upper and lower
sashes Fig. 10.
Fig. 10
Foam Seal
IF AC IS BLOCKED BY A STORM
WINDOW
Add wood as shown in Fig.11, or remove storm
window before air conditioner is installed.
If storm window frame must remain, be sure the
drain holes or slots are not caulked or painted
shut. Accumulated rain water or condensation
must be allowed to drain out.
Fig. 11
1 2 3
4
5 6 7 8 9 10 11 12 13
14 15 16 17
1
2 3
4 5 6
Sash
Storm
window
f
rame or other
obstruction.
Board thickness
as required, for
proper pitch to
rear, along entire
sill. Fasten with
nails or screws.
Fig. 11
19
(Continued)
INSTALLATION INSTRUCTIONS
NORMAL SOUNDS
High Pitched Chatter
High eciency compressors may have a high
pitched chatter during the cooling cycle.
Sound of Rushing Air
At the front of the unit, you may hear the sound
of rushing air being moved by the fan.
Gurgle/Hiss
“Gurgling or hissing”noise may be heard due to
refrigerant passing through evaporator during
normal operation.
Vibration
Unit may vibrate and make noise because of
poor wall or window construction or incorrect
installation.
Pinging or Switching
Droplets of water hitting condenser during normal
operation may cause “pinging or swishing” sounds.
This noise can be reduce by removing the water plug
at the bottom of unit’s rear as shown below. Removing
this plug will lower the Energy Eciency of your unit.
NOTE:
Don’t try to drill any holes on the
base pan to eliminate the normal sounds,
otherwise it will void the warranty. Internal
parts can be permanently damaged by drilling
a hole into the base pan or any other location
on the machine. The machine is designed to
evaporate the water under normal conditions,
not continuously drain.
REMOVING AC FROM WINDOW
• Turn AC o, and disconnect power cord.
• Remove sash seal from between windows,
and unscrew safety sash lock.
• Remove screws installed through frame
and frame-lock.
• Close (slide) side accordion panels into frame.
• Keeping a rm grip on air conditioner, raise
sash and carefully remove.
• Be careful not to spill any remaining water
while lifting unit from window.
Store parts WITH air conditioner.
20
OPERATION INSTRUCTIONS
TO TURN UNIT ON OR OFF
Press POWER button to turn unit on or o.
NOTE: The unit will initiate automatically the
Energy Saver function under COOL, DRY and
AUTO modes. (only AUTO-COOLING and
AUTO-FAN modes).
TO CHANGE TEMPERATURE SETTING
Press button to change temperature setting.
NOTE: Press or hold either UP or DOWN
(or
symbols) button until the desired
temperature is shown on the display. This
temperature will be automatically maintained
anywhere between 62°F (17°C) and 86°F (30°C).
If you want the display to read the actual room
temperature, set the machine to Fan Mode.
TO ADJUST FAN SPEEDS
Press button to select the Fan Speed in
four steps-Auto, Low, Med or High. Each time the
button is pressed, the fan speed mode is shifted.
During DRY mode the fan speed is set to Low
and cannot be adjusted.
SLEEP FEATURE
Press SLEEP button to initiate the SLEEP
mode. In this mode the selected temperature
will increase (cooling) or decrease (heating) by
2°F/1°C 30 minutes after the mode is selected.
The temperature will then increase (cooling) or
decrease (heating) by another 2°F/1°C after an
additional 30 minutes. This new temperature will
be maintained for 6 or 7 hours before it returns to
the originally selected temperature.
This ends the
SLEEP
mode and the unit will continue
to operate
as originally programmed. The SLEEP mode
program can be cancelled at any time during
operation by pressing the SLEEP button again.
GET TO KNOW THE FEATURES
WARNING
• To reduce the risk of re, electric shock,
or injury to persons, read the IMPORTANT
SAFETY INSTRUCTIONS before operating this
appliance.
• Please always wait 3 minutes when turning unit
o then on again, and when changing from
cool to fan and back to cool. This prevents
compressor from overheating & possible
circuit breaker tripping.

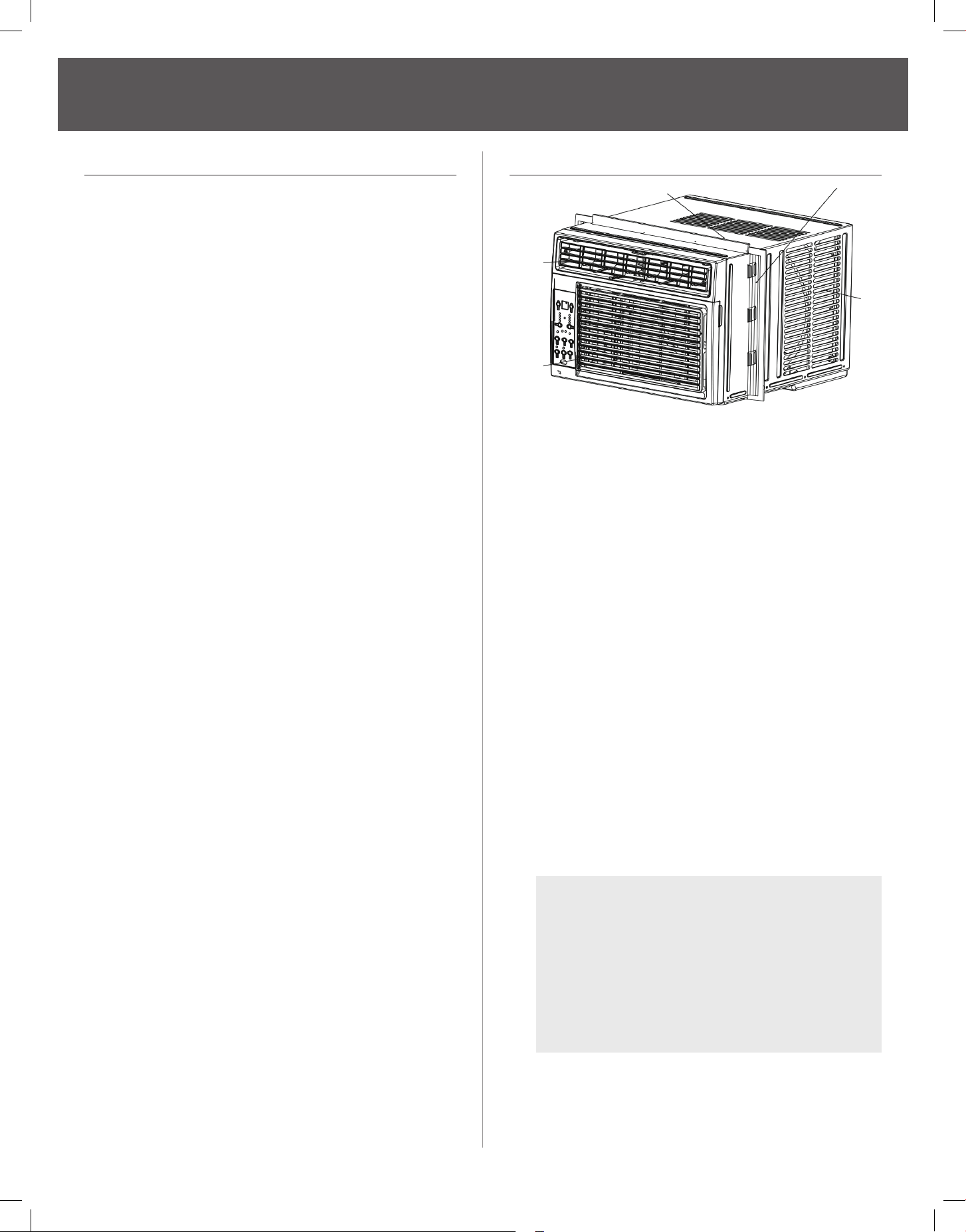

ELECTRONIC CONTROL OPERATING
INSTRUCTIONS
Thoroughly familiarize yourself with the control
panel as shown below and all of its functions.
Afterwards, follow the symbol for the functions
you desire BEFORE operating the unit. This unit
can be controlled by the unit control or with the
remote control.
21
OPERATION INSTRUCTIONS
(Continued)
TO SELECT THE OPERATING MODE
To choose operating mode, pressthe Mode
button. Each time you press the button, a mode
is selected in a sequence that goes from AUTO,
COOL, DRY, HEAT and FAN. The indicator light
beside will be illuminated and remained on once
the mode is selected.
The device activates the Energy Saver function
automatically when operating in COOL, DRY, or
AUTO mode, specically under AUTO-COOLING
and AUTO-FAN. You may turn it o by pressing
the "Energy Saver" button on the control panel.
To operate on COOL mode
• Choose COOL Mode to set the cooling function.
Use the buttons to choose the desired
temperature.
• When Cool Mode is selected, the fan speed can
be adjusted by pressing the FAN button.
To operate on AUTO mode
• Auto Mode is designed to automatically regulate
the room temperature around the temperature
point set by you. This means that once you have
set the desired temperature, the air conditioner
will rotate between modes accordingly to
maintain that temperature point.
• In this mode, the fan speed cannot be adjusted,
it starts automatically at a speed according to
the room temperature.
To operate on FAN ONLY mode
•
Use this function only when cooling is not
desired, such as for room air circulation or to
exhaust stale air. (Remember to open the vent
during this function, but keep it closed during
cooling for maximum cooling eciency.)
•
During Fan Mode:
•
You may chose any fan speed.
•
The display will show the actual room
temperature.
•
The temperature will not be adjustable.
To operate on DRY mode
• In this mode, the air conditioner will generally
operate in the form of a dehumidier. Since the
conditioned space is a closed or sealed area,
some degree of cooling will occur.
• In Dry Mode, the fan speed is automatically
set to Low and cannot be adjusted.

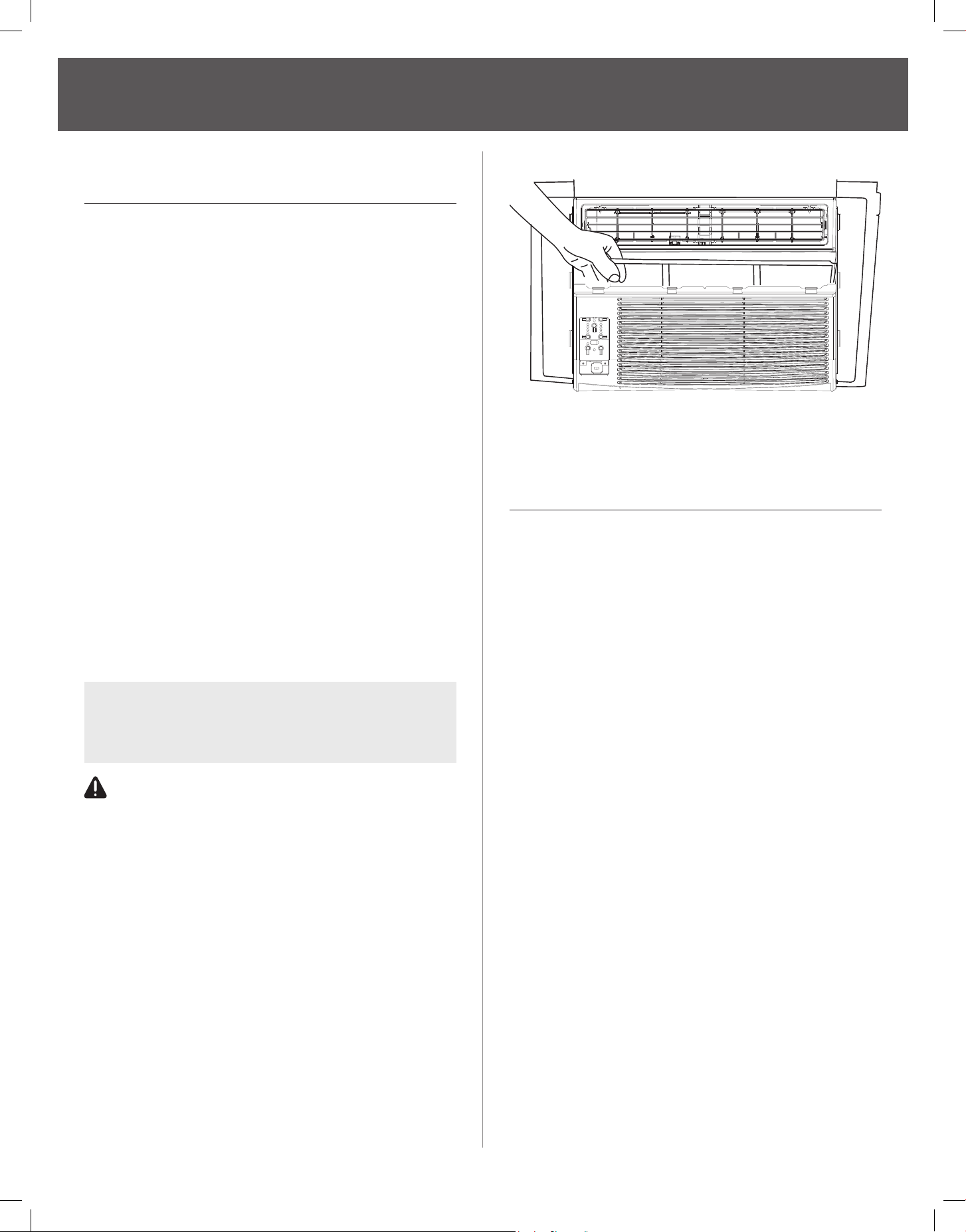

CHECK FILTER FEATURE
Press Check lter button to initiate this feature.
This feature is a reminder to clean the Air Filter
for more ecient operation. The LED (light) will
illuminate after 250 hours of operation. To reset
after cleaning the lter, press thebutton and the
light will go o.
ENERGY SAVER/ECO FEATURE
Press ENERGY SAVER button to initiate this
function.
This function is available on COOL, DRY,
AUTO (only
AUTO-COOLING and AUTO-FAN) modes.
The fan will
continue to run for 3 minutes after
the compressor shuts o. The fan then cycles
on for 2 minutes at 10 minute intervals until the
room temperature is above the set temperature,
at which time the compressor turns back on and
Cooling starts.
FOLLOW ME FEATURE
Light Flashing
This feature can be activated from the remote
control ONLY. The remote control serves as
a remote thermostat allowing for the precise
temperature control at its location.
To activate the FOLLOW ME feature, point the
remote control towards the unit and press the
Follow Me button. The remote display is actual
temperature at its location. The remote control
will send this signal to the air conditioner every
3 minutes interval until press the Follow Me button
again. If the unit does not receive the Follow Me
signal during any 7 minutes interval, the unit will
beep to indicate the Follow Me mode has ended.
22
OPERATION INSTRUCTIONS
(Continued)
TIMER: AUTO START/STOP FEATURE
• Press button, the TIMER ON or TIMER OFF
indicator light illuminates. It indicates the Auto
Start or Auto Stop program is initiated. For some
units, keep pressing the Timer button will cancel
the timer settings.
•
Press or hold the UP or DOWN button to change the
Auto time by 0.5 hour increments, up to 10 hours,
then at 1
hour increments up to 24 hours. The
control will count down the time remaining until start.
• The selected time will register in 5 seconds,
and the system will automatically revert back to
display the previous temperature setting or room
temperature when the unit is on. (When the unit
is o, there is no display.)
• Turning the unit ON or OFF at any time or
adjusting the timer setting to 0.0 will cancel the
Auto Start/Stop timed program.
NOTE: When you set the timer, the unit will
only go on once and o once. If you want the
air conditioner to cycle on and o based on
desired room temperature, you do not need
to set the timer. Instead, set your desired
temperature and the unit will cycle on and o
based on that temperature setting.
DISPLAY
Shows the set temperature in ”°F" or ”°C" and the
Auto-timer settings. While on FAN only mode, it
shows the room temperature.
TEMP/TIMER
Display
r
If the room temperature has more than two digits
and cannot be displayed on the screen, it will
display "HI" or "LO".
Error codes:
AS - Room Temperature Sensor Error
HS - Electric Heating Sensor Error
• - Evaporator Temperature Sensor error
Unplug the unit and plug it back in.
If error repeats, call Consumer Services
NOTE: If an error code occurs in
Fan only mode, the unit will display
"LO" (loose connection) or "HI" (short circuit).
CAUTION If the unit breaks o unexpectedly
due to the power cut, it will restart with the
previous function setting automatically when the
power resumes.
ADDITIONAL THINGS YOU SHOULD KNOW
Now that you have mastered the operating
procedure, here are more features in your control
that you should become familiar with.
•
The Cool circuit has an automatic 3 minutes
time delayed start if the unit is turned o and
on quickly. This prevents overheating of the
compressor and possible circuit breaker tripping.
The fan will continue to run during this time.
• The control is capable of displaying temperature
in degrees Fahrenheit or degrees Celsius. To
convert from one to the other, press and hold
the Up and Down (or +/- symbols) buttons at the
same time for 3 seconds.
23
OPERATION INSTRUCTIONS
(Continued)
ADJUST YOUR AC DIRECTION
CAUTION Do not stick your ngers in the air
outlet, it may cause an injury.
FOUR-WAY ADJUSTMENT
(UP OR DOWN, LEFT OR RIGHT)
The louvers will allow you to direct the air ow Up
or Down and Left or Right throughout the room as
needed. Pivot horizontal louvers until the desired
Up/Down direction is obtained. Move the Lever(s)
from side to side until the desired Left/Right
direction is obtained.
FRESH AIR VENT CONTROL
4AW10000A & 4AW12000A only
The Fresh Air Vent allows the air conditioner to:
1. Recirculate inside air -
Vent Closed (See Fig.A)
2.
Draw fresh air into the room -
Vent Open
(see Fig.B)
Knob is half extended.
3.
Exchange air from the room and
draws fresh air into the room -
Vent and Exhaust Open
(see Fig.C)
Knob is fully extended.
Fig. A (VENT CLOSED)
Fig. B (VENT OPEN)
Fig. C (VENT AND EXHAUST OPEN)
24
CARE & MAINTENANCE
CHECK THE AIR FILTER ONCE A MONTH
TO SEE IF CLEANING IS NECESSARY
The air lter should be checked at least once a
month to see if cleaning is necessary. Trapped
particles in the lter can build up and cause an
accumulation of frost on the cooling coils.
If the area usually has high air particle pollution, for
example animal fur or smoking, the lter will need
to be checked and cleaned more often.
Pull both sides (left and right) of the lower front
panel upwards and then out. Refer to the gures
on the left for visual guidance.
To clean the lter:
• Remove the lter as shown in the gure
on the right.
• Wash the lter using liquid dish washing
detergent and warm water.
• Rinse the lter thoroughly.
• Gently shake o excess water from the lter.
• Ensure the lter is completely dry before
replacing it.
You can vacuum the lter clean as an alternative
to washing.
NOTE: Never use hot water over 104°F (40°C) to
clean the air lter. Never attempt to operate the
unit without the air lter.
CAUTION
Clean your air conditioner occasionally to keep it
looking new. Be sure to unplug the unit before
cleaning to prevent electric shock or re hazards.
CABINET CLEANING
• Be sure to unplug the air conditioner to prevent
shock or re hazard. The cabinet and front may
be dusted with an oil-free cloth or washed with
a cloth dampened in a solution of warm water
and mild liquid dish washing detergent. Rinse
thoroughly and wipe dry.
• Never use harsh cleaners, wax or polish on the
cabinet front.
• Be sure to wring excess water from the cloth
before wiping around the controls. Excess water
in or around the controls may cause damage to
the air conditioner.
• Plug in air conditioner.
25
CARE & MAINTENANCE
INSTRUCTIONS FOR WINTER STORAGE
Choose the Storage Location
Select a dry, cool, and indoor location for
storage. Avoid places with extreme temperature
changes, for example, uninsulated garages,
crawlspaces, and sheds should be avoided.
Locate the Original Box
Retrieve the original box and packaging
materials that the air conditioner came in.
If the original box is unavailable, nd a suitable
cardboard box that is close in size and provides
a snug t for the unit and accessories.
1. Power Down and Unplug:
Turn o the air conditioner using the
power button or remote control. Unplug
the unit from the electrical outlet.
2. Remove Any Attachments:
If there are any detachable parts or
accessories, such as side accordion
panels, carefully remove them from the
air conditioner.
3. Clean the Air Conditioner:
Allow the unit to cool down if recently used.
Use a soft, damp cloth to clean the air
conditioner’s exterior, removing dirt or dust.
ALLOW THE AIR CONDITIONER TO DRY
A FULL 48 HOURS BEFORE STORAGE
4. Position the Air Conditioner in the Box:
Pack any detachable parts in Step 2
alongside the air conditioner and user
manual inside the box. Make sure they are
properly secured to avoid damage during
storage. Carefully place the air conditioner
inside the original or suitable replacement
box. Ensure the unit ts securely, leaving
little to no room for movement. Never use
a tarp, garbage bag, or similar material
to wrap the air conditioner, this will trap
moisture. Always store upright,
NEVER store on the side or upside down!
5. Store the Remote Control:
If your air conditioner has a remote control,
remove the batteries before storage to
prevent potential corrosion. Always use
fresh batteries the following year.
6. Seal the Box:
Close the box securely and seal all the
seams and edges using packing tape.
This will prevent dust and debris from
getting inside during storage.
7. Elevate the Air Conditioner:
Place the air conditioner on a clean and
dry surface. Elevate the unit slightly o
the ground using wooden blocks or other
suitable supports to protect it from moisture
damage.
Periodically check the air conditioner during
winter to ensure no water or moisture buildup
inside the box. If you notice any issues or
damage following summer, contact a technician
before using the unit again.
(Continued)
26
TROUBLESHOOTING
Before calling for service, review this list. It may save your time and expense. This list includes common
occurrences that are not the result of defective workman-ship or materials in this appliance.
Problem Solution
AIR CONDITIONER
NOT COOLING ROOM,
OR NOT BLOWING COLD AIR
Be sure unit is not too large or too small for the area of the room.
Verify that all doors, windows, curtains and any other openings are closed.
Verify nothing is obstructing the front grille of unit, such as curtains, etc.
Allow enough time for room to cool, especially if outside temp is very high.
Check that the lter is not dirty and louvers are open all the way and blowing
in the desired direction.
Check that unit is set to COOL mode and that temperature is down enough
(but not too low).
If unit is near a heat source, such as a stove, etc., relocate unit.
If air coming from unit is cool to the touch, then unit is working properly; please double
check the rst three bullet points above.
If using Follow Me remote feature, move remote away from unit.
Temperature sensor behind air lter touching cold coil. These two elements should not be
touching. Carefully straighten tube away from coil.
Unplug unit for at least 5 minutes. Follow Reset instructions on plug.
AIR CONDITIONER COOLING
BUT ROOM IS TOO WARM -
ICE FORMING ON COOLING COIL
BEHIND DECORATIVE FRONT
Outdoor temperature is below 64ºF (18ºC). To defrost the coil, set to FAN only mode.
Air lter may be dirty. Clean lter. Refer to Care and Cleaning section.
To defrost, set to FAN only mode.
Thermostat is set too cold for night-time cooling. To defrost the coil, set to FAN only mode.
Then, set temperature to a higher setting.
AIR CONDITIONER CYCLING
ON AND OFF TOO FREQUENTLY
OR NOT ENOUGH
Be sure unit is not too large or too small for the area of the room.
Remove grille and make sure the temperature sensor is not too close to the coils.
These two elements should not be touching. Carefully straighten tube away from coil.
Make sure nothing is blocking the grille or side vents.
Make sure there is no dirt or debris inside the unit or on the lter.
UNIT WILL NOT TURN ON
Reset circuit breaker. Make sure there are not too many items (i.e. lamps, TV’s, etc.)
working o the same breaker.
Check plug connection.
If plug is operating on an on/o switch, be sure that the switch is ‘on’.
Try plugging unit into another outlet.
Unplug unit for at least 5 minutes. Follow Reset instructions on plug.
27
TROUBLESHOOTING
(Continued)
Problem Solution
UNIT BLOWS FUSES OR
POPS CIRCUIT BREAKER
Make sure there are enough available amps on the circuit for the air conditioner.
Large units which run on a 230v will require a dedicated 20 or 30 amp circuit.
AIR CONDITIONER
IS MAKING NOISES
Check to be sure the unit is free from debris such as leaves, sticks, etc.
Verify nothing is obstructing the unit.
Check the fan blade for cracks or chips.
Make sure the unit is properly and securely mounted inside the window or wall.
Clean the air lter.
WATER PUDDLES INSIDE UNIT
OR IS COMING INTO ROOM
Adjust the slope of the unit so that it drains downward toward the exterior of the home.
(See Installation Instructions.)
Make sure that there is no debris blocking the drainage area of the unit.
WATER DRIPPING OUTSIDE
Unit is removing a large quantity of moisture from a humid room.
This is normal during excessively humid days.
REMOTE SENSING / FOLLOW ME
DEACTIVATING PREMATURELY
Remote control not located within range.
Place remote control within 20 ft and 180º radius of the front of the unit.
Remote control signal obstructed. Remove obstruction.
NOTE: A highly recommended troubleshoot for any issue in general consists of turning o unit and
unplugging for 5 minutes. It is also recommended to try another wall outlet. For further assistance,
contact customer service at 855-663-9463.
The design and specications are subject to change without prior notice for product improvement. Any updates to
the manual will be uploaded to the Arctic Wind website (www.arcticwindac.com), please check for the current version.
855-663-9463 | support@arcticwindac.com | www.arcticwindac.com
5401 Dansher Road
Countryside, IL 60525
Printed in China | 0224_M084
