WARNING
BE CERTAIN THAT YOUR FIREARM IS NOT
LOADED, THE SAFETY LOCK IS ENGAGED
AND IS POINTED AWAY FROM YOU IN A
SAFE DIRECTION
DIRECTLY VIEWING THE SUN OR ANY LIGHT SOURCE
WITH THIS OPTICAL DEVICE CAN CAUSE PERMANENT
EYE DAMAGE.
Adhere to all safe gun practices.
ATTENTION: Conduct all shootings in an approved area with
the necessary protection. Always wear eye and ear protection.
If using a boresighter or another bore-obstructing tool, remove it
first. Check for bore obstructions before shooting
The scope is not designed to be mounted with rings or on a rail.
- SAFETY NOTICE: Before handling, ensure the firearm is
unloaded, and the safety lock is engaged.
- Adhere to all safe gun practices.
- To ensure accurate shots and prevent potential scope damage,
proper mounting is crucial.
Steps to Mount:
1. Detach the connecting bracket from
the scope.
2. Rotate the nut-arm counter-clockwise
to release the bracket.
3. Align the scope with your firearm's
handle, ensuring the bolt fits the
handle hole.
4. Reconnect the bracket to the bolt
inside the handle, tightening clockwise.
5. Ensure the nut arm faces either front or back, avoiding
sideways protrusion.
Zeroing syncs your scope's aim point with the firearm's
iron sights.
Steps:
1. Place your unloaded firearm in a stable mounting brace or on
a gun rest.
2. Unscrew the bullet drop
compensator/elevation adjustment
cap counter-clockwise using a nickel
or a dime.
3. Set the dial to 1 on the bullet
drop compensator.
4. Position a target 100 yards away.
5. Hold the bullet drop compensator
(BDC) with one hand and adjust the
elevation to align the scope’s reticle
with your target at 100 yards.
6. Secure the bullet drop compensator/elevation adjustment cap
to keep moisture out.
7. The bullet drop compensator (BDC) is now tuned at 100
yards. You can quickly adjust the BDC to shoot up to 500
yards by rotating the BDC. Select 1 for 100 yards, 2 for 200
yards, and so on.
8. Now, let’s adjust the windage.
9. Remove the windage adjustment cap.
10. Use the Windage adjustments to align the scope’s reticle
with your target at 100 yards.
NOTE
- Each click represents 0.25 inches at 100 yards.
- This initial alignment is rudimentary. For precise adjustments,
test fire the firearm. Ensure the target area is secure. Use the
bullet drop compensator knob for distances up to 500 yards,
adjusting according to the yardage.
Stabilize the firearm on a secure support and aim at the target
100 yards away. Adjust the scope by turning the horizontal and
vertical dials until your scope and firearm are in tune. When you
are adjusting the horizontal dial, ensure that the scope is set at the
1 mark. Once the scope has been tuned at 100 yards, you can
quickly adjust it to shoot up to 500 yards by rotating the bullet drop
compensator knob. Select 1 for 100 yards, 2 for 200 yards, 3 for
300 yards, and so on.
BEFORE YOU TEST THE RIFLE, ENSURE THE TARGET IS
SAFE AND CLEAR.
This scope features a Mil-dot reticle. Here’s a brief guide:
Understanding Mil-Dot
Mil-dots are the markings in the reticle, and
Mils are measurements between
Mil-dot centers.
Determining Distance to Target
Using a 6ft target as an example: if it spans
4 mils in the reticle, it translates to 2yds
(6ft converted to yards). Multiply by 1000
(resulting in 2000yds) and divide by 4 (mils).
This equals 500yds – your distance to the target.
Formula:
Distance to target =

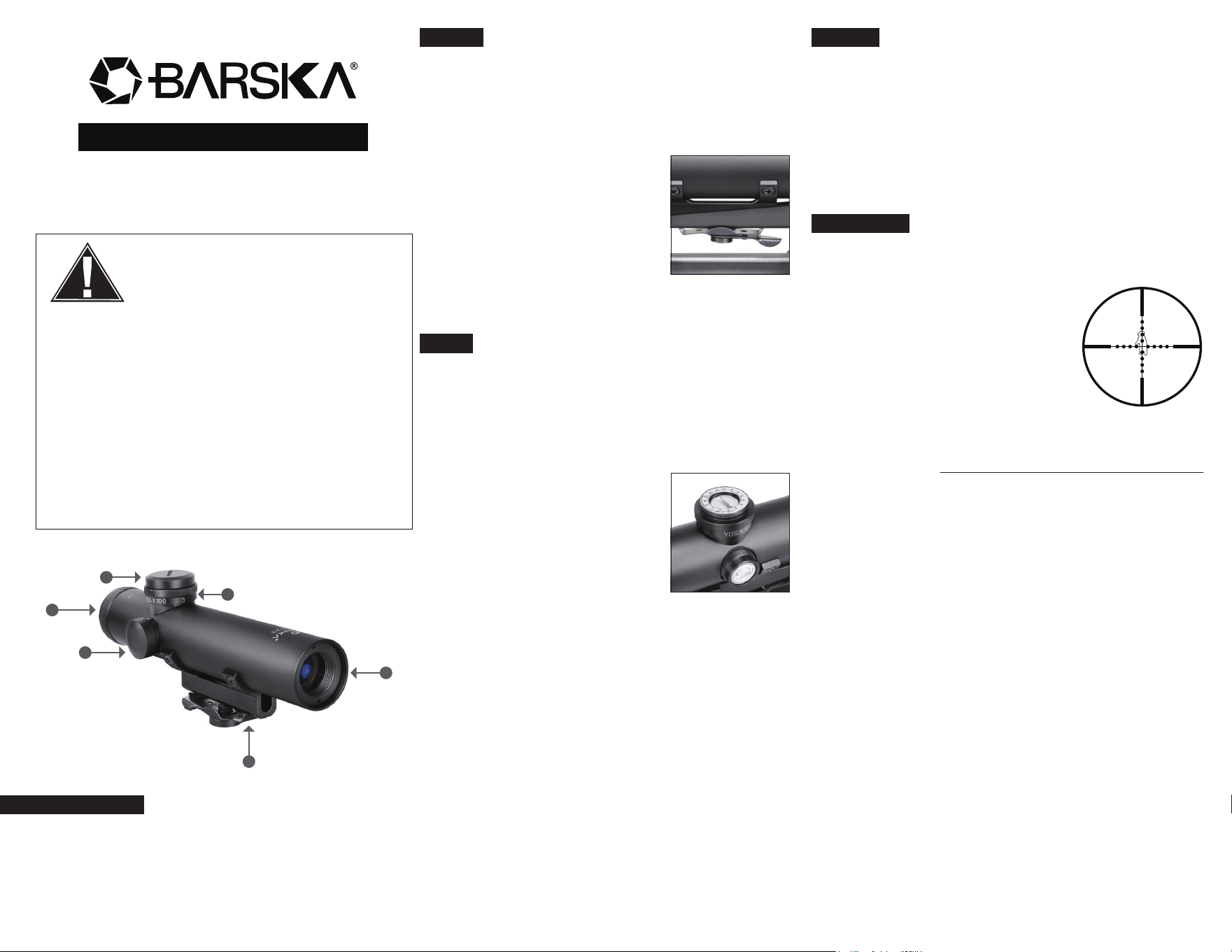

5. Objective Lens
6. Connecting Bracket
1. Windage Adjustment and Cap
2. Eyepiece
3. Bullet Drop Compensator and Cap
4. Elevation Adjustment
4x20mm Mil-Dot Electro Sight
See reverse side for more information
3
4
2
Congratulations on selecting the Barska 4x20 mil-dot scope. The
4x20 mil-dot scope is specifically designed to fit with a connecting
bracket.This scope also boasts a bullet drop compensation system
for up to 500 yards and a 2.7” eye relief, optimizing rapid targeting.
Height of Target (yards) x 1000 = Range (yards)
Height of Target (mils)
3/24
BC795
©2024 BARSKA® | Pomona, CA 91767 USA
www.barska.com
Mounting
Zeroing
Test Fire
Mil-Dot Reticle
Parts Of The Scope
6
BC774
1 YEAR LIMITED WARRANTY
BARSKA warrants this new precision optical product to be free
of defects in material and/ or workmanship under normal use for
a period of 1 year from the date product is purchased. This
limited warranty is delimited to repair or replacement only. This
warranty does not include damage caused by improper use or
maintenance. BARSKA disclaims all liabilities for incidental or
consequential damages such as misuse, abuse, accident (such
as dropping), flood, service or repairs other than those
performed by BARSKA, acts of nature, or arising out of any
breach of this warranty. Altering the product under any
circumstances will automatically void the warranty.
This warranty DOES NOT COVER ANY ACCESSORIES. Loss
of the product or lens caps/covers, eyepieces, cases/pouches,
or straps are not covered. Product normal wear and tear are not
covered and the determination of such is at the sole discretion
of BARSKA.
For service under this limited warranty, please have available
the proof of purchase and the purchase date and location as
well as a detailed description of the problem. This warranty is
not transferable and only applies to the original purchaser with a
proof of purchase from BARSKA or from an authorized dealer.
This warranty applies only to products purchased within the
United States, excludes Alaska, the Hawaiian Islands and all
U.S. territories in the Caribbean and the Pacific.
BARSKA will examine and go through troubleshooting
procedures, product repair or replacement of defective part(s) or
units with new part(s) or provide a new unit if necessary during
the warranty period. Shipping/handling charges may apply and
are at Baraka’s sole discretion. Purchaser shall be required to
prepay Shipping/handling charges with a check or money order
to BARSKA at time product is returned. The Return
Merchandise Authorization Number (RMA#) and
shipping/handling charge MUST be obtained from BARSKA in
advance of return. BARSKA shall not be liable for damages or
loss occurring during shipping. Please visit via www.barska.com
or call 909.445.8168 for more information.
BARSKA reserves the right to modify or discontinue, without
prior notice to the purchaser, any model or style of the product.
BARSKA will determine, at its sole discretion, whether a product
will be repaired or replaced. BARSKA reserves the right to
discontinue or change any feature of its products at any time. If
an exact replacement or product is not available, BARSKA
reserves the right to provide a part or product that matches as
closely as possible.
LIMITATION OF REMEDIES
BARSKA disclaims any warranties, express or implied, whether
of merchantability of fitness for a particular use, except as
expressly set forth herein. The sole obligation of BARSKA under
this limited warranty shall be to repair or replace the covered
product, in accordance with the terms set forth herein. BARSKA
expressly disclaims any lost profits, general, special, indirect or
consequential damages which may result from breach of any
warranty, or arising out of the use or inability to use any
BARSKA product. Any warranties which are implied and which
cannot be disclaimed shall be limited in duration to a term of
three year from the date of original retail purchase. Some states
do not allow the exclusion or limitation of incidental or
consequential damages or limitation on how long an implied
warranty lasts, so the above limitations and exclusions may not
apply to you.
