SPECIFICATION GUIDE | INTEGRATED HEAT PUMP DISHWASHER, 60CM DW60U4EI3
OVERVIEW
Our most energy ecient model, this Integrated Dishwasher
features the latest innovation in Heat Pump Technology to
reduce energy use.
PRODUCTS
DW60U4EI3*
Series 9, Integrated Heat Pump Dishwasher
*Handles sold separately.
SERIES & STYLE
Series 9
Integrated
ACCESSORIES
Stainless Steel Door Panel - ADDW60PX
Handles - Handles are available in Contemporary, Professional,
and Classic styles. Options include brushed aluminium and
stainless steel finishes. One handle is required for this model.
FEATURES
1 Heat Pump technology helps reduce energy usage by up to
50%* compared to a standard dishwasher
2 Designed to be integrated into cabinetry for a seamless
finish, this model can be installed under a bench with a
minimum height of 820mm
3 Auto Door Open ensures beautifully dry dishes with less
energy
4 Air Curtain channels steam away from the benchtop to
protect cabinetry
5 Flexible racking, pitch-adjustable tines, and glassware
supports provide tailored care for a wide range of items,
from wine glasses to oven trays
6 Nine wash programs including specialty Auto, Eco, 60 Min
and Glassware cycles
7 Quiet cycle runs at as low as 39dBA, ideal for open-plan
living
8 Extra Dry, Sanitise, Half Load and Intensive wash modifiers
provide extra wash options
9 With touch controls, floor-light cycle status indicator and
interior LED lighting
"0
Wi-Fi capability and a SmartHQ™ app connectivity for
remote control and notifications
*The 50% reduction in energy usage is on Eco Cycle, compared
to Fisher & Paykel DW60U412 on Eco Cycle which does not
have Heat Pump technology. Quiet and 60 min cycles do not
use Heat Pump technology.
Integrated Heat Pump Dishwasher with Stainless Steel Door
Panel ADDW60PX
Integrated Heat Pump Dishwasher with Custom Door Panel
<< CONTENTS
© FISHER & PAYKEL APPLIANCES LIMITED 2025 PAGE 590004872A PLANNING GUIDE DISHWASHING VERSION A - JULY 2025
The models shown in this Planning Guide may not be available in all markets and are subject to change at any time. Product specifications may vary from those shown. This Planning Guide should not be used as installation guidance for any product. Further information is required to safely and correctly
install the products featured here. Specific installation guidance will be available with the product on delivery and on our website fisherpaykel.com
CAVITY DIMENSIONS
Cavity Dimensions mm
A Height of cavity 820 - 880
B Minimum width of cavity 600
C Minimum depth of cavity* 560
Supply area**
- Height***
- Depth (from back of product)
- Hole diameter
80 - 140
min 40
70
*Excludes front panel and handle.
**Connections to be located in an adjacent cabinet on either side of the product.
***Depending on adjustment of levelling feet.
Note: The product is supplied with foam to be placed at the back of the cavity and toe
kick. Cavity requires sealed base and back.
PRODUCT DIMENSIONS
Product Dimensions mm
A Height of product 820 - 880
B Width of product 597
C Depth of product* 554
D Height from top of door panel to chassis 3
E Height of door panel
- Custom door panel**
- Accessory door panel (ADDW60PX)
min 677
716
F Width of door panel and toe kick panel
- Custom door panel and toe kick panel
- Accessory door panel (ADDW60PX)
min 595
595
G Thickness of door panel
- Custom door panel
- Accessory door panel (ADDW60PX)
min 16
18
H Depth of toe kick recess max 80
Minimum clearance between custom panel and adjacent
cabinetry
2
Depth of door opening* 640
Weight of custom door panel including handle max 10kg
*Excludes front panel and handle.
**Custom panel can be extended upwards in addition to stated dimension. Cabinetry
clearances must be met.

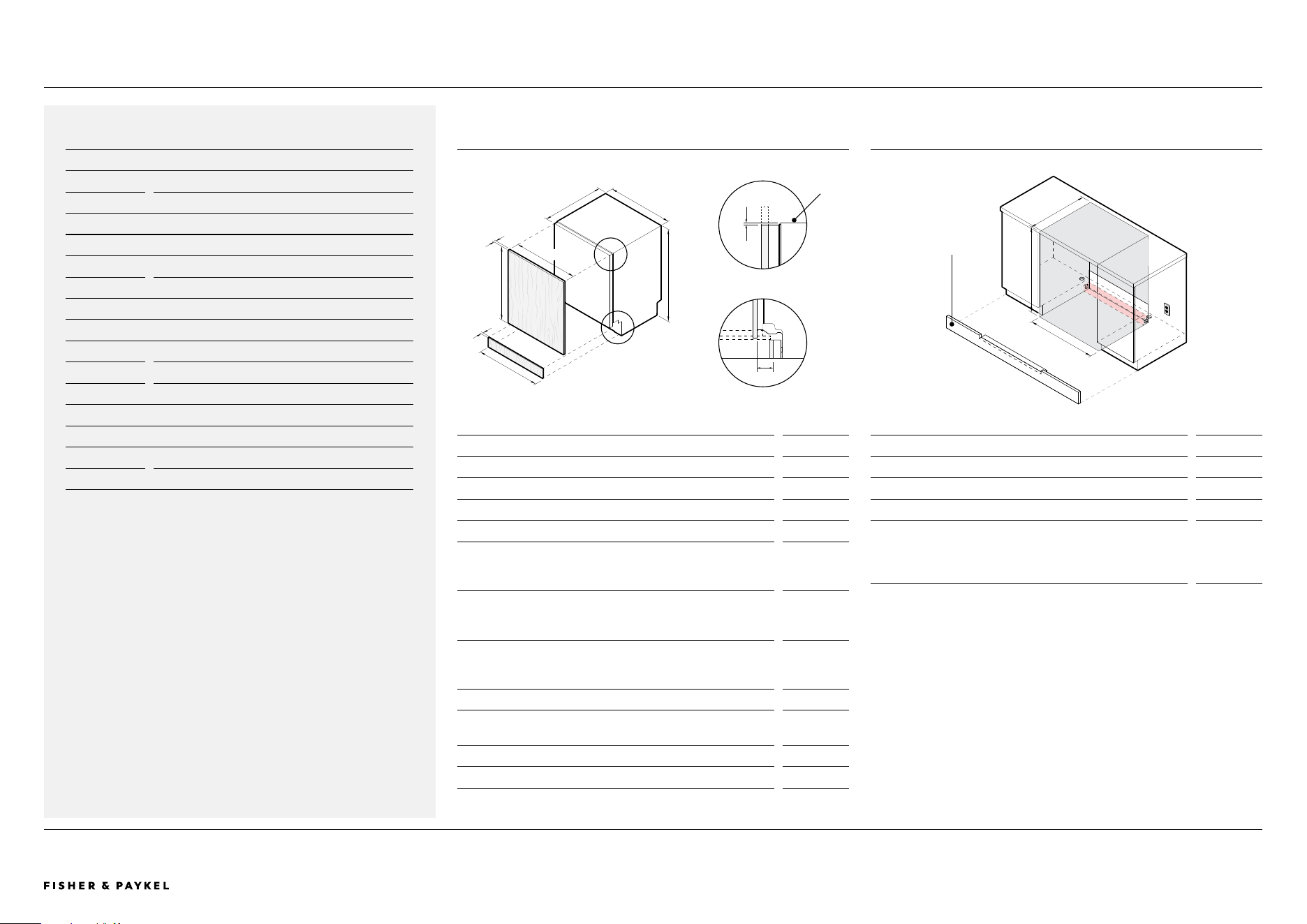

ISOMETRIC VIEWISOMETRIC VIEW SIDE VIEW
1
SPECIFICATION GUIDE | INTEGRATED HEAT PUMP DISHWASHER, 60CM DW60U4EI3
SPECIFICATIONS
Model Numbers
DW60U4EI3 Series 9, Integrated Heat Pump Dishwasher
ADDW60PX Door panel for Integrated Dishwasher
Weight
Packaged 60.5kg
Unpackaged 53kg
Electrical
Supply 220-240 V, 50 Hz
Service 10 A
Connection Plug with flex cord
Plumbing
Supply 20mm BSP connector water inlet hose
Pressure Min 0.03 Mpa (4.35psi)
Note: Electrical and Plumbing connections to be made in adjacent
cabinets either side of product.
DETAIL 2
a
b
c
b
a
c
e
f
f
g
g
d
h
Top of
chassis
Continuous toe
kick panel.
Cutout may be
required to
accommodate
door swing.
DETAIL 1
2
