BOYO®
WiFi High Resolution Rear w camera System
user·s manual
VTC525R
1.Parts list
A. 5" Wireless Monitor x 1 B. Wireless Bar•Type Camera x 1 C. Suction Cup Mount x 1 D. Suction Cup Mount Bracket x 1
E. Monitor & Camera Power Cable x 2
F. Cigarette Lighter Cord w/ USB Port x 1
G. Camera Mounting Hardware x 2 H. User's Manual x 1
2. Testing
3. Preparations
Testing,
When the vehicle is in reverse gear, the system will work
automatically. The wireless camera will send the video
signal to the wireless monitor. When the vehicle is shifted
out of reverse gear, the system will shut down.
Turn the key to the on position, the power of the vehicle is on. @ Shift to the reverse gear, the reverse light is on.

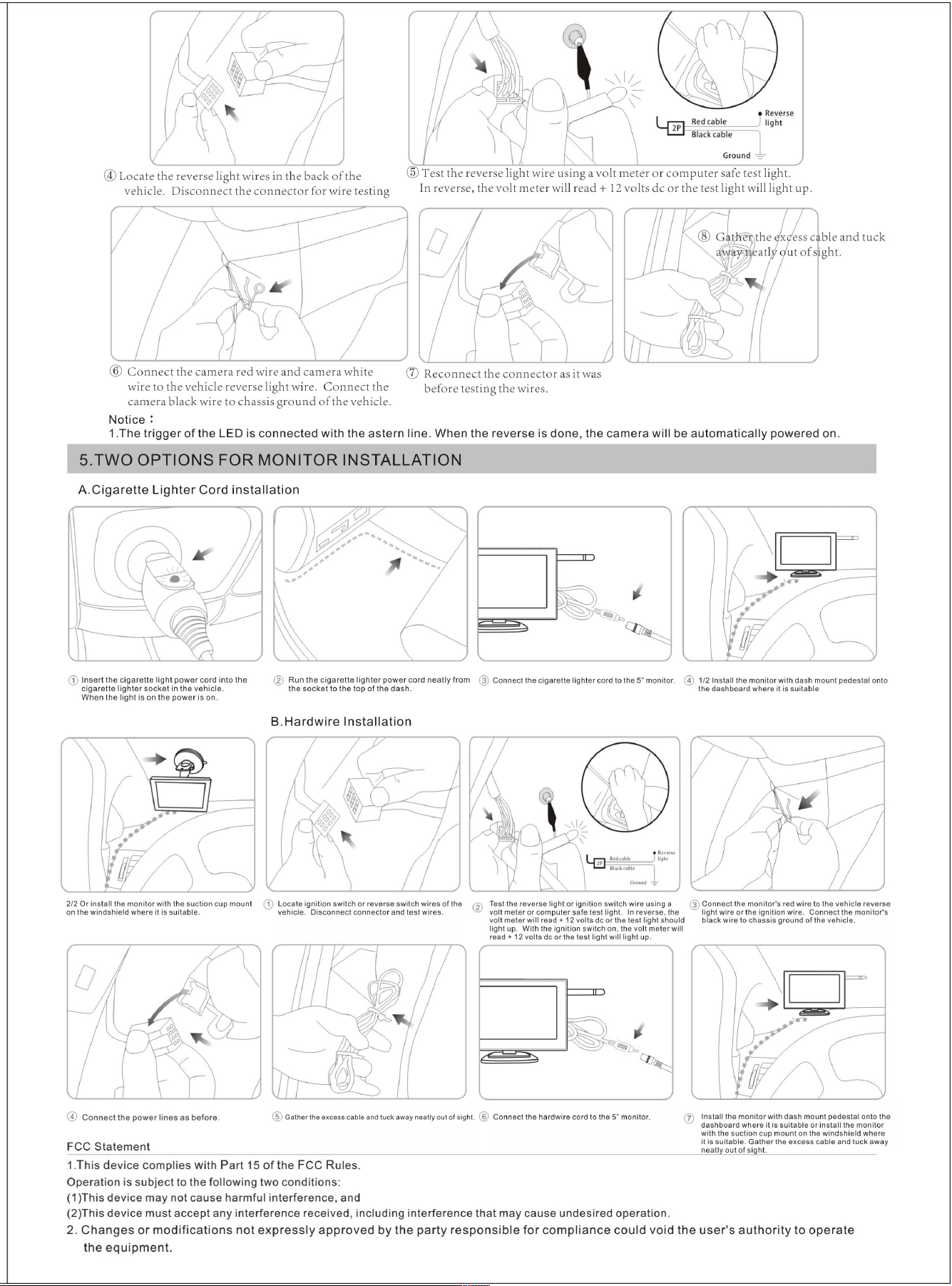

4.Camera Installation
Remove the license plate
@
@ Run the power cable of the camera
in the vehicle.
@ Install the camera onto the license plate,
use the supplied screws, washers and nuts.
Operation Guide:
Function and Operation:
1.0: Power:on/off.
2. "": Increase Brightness, Contrast, Color, Parking Lines ON/OFF
6.Pairing
3. MENU: Brightness, Contrast, Color, Parking Lines & Pairing
1.POWER ON/OFF
2.UP
4. "T ": Decrease Brightness, Contrast, Color, Parking Lines ON/OFF
5.VIEW: Press button to toggle screen view
(Reverse image, Upside Down, Upside Down Reverse, Normal)
3.MENU
4.DOWN
5.SWITCH
• Pairing between the camera and monitor•
All systems are paired at the factory. The following procedure is used if you have to replace the camera or monitor
oo
O
•
·
*
O
Press the MENU button for 3 seconds,
Pairing will appear on the monitor.
Press the pairing button at the camera for 3 seconds,
Pairing Successful will appear on the monitor.
Pairing ..
✓-
-
Pairing
Specifications:
Model:
Transmission method: Wifi digital signal
Video compress:H.264
Transmission distance:67ft
Working temperature:-68
°
F~ +140
°
F
Store temperature:-86
°
F~ +176
°
F
Working humidity:85%RH
Pairing Successful
Sensor: 1/3 Color
CMOS
Operating voltage: 9
-
16DCV
Pixel: 800*480
Operating frequency: 2400-2483.SMHz
Display: 5"TFT LCD
Transmission bandwidth: 20Mbps (Max)
Output Power: 15dBm
Operating
Temperature:
14 ° F-122
°
F
Rx sensitivity: -90dBm
Modulation Mode:BPSK, QPSK, 16-QAM, 64-QAM
