Radar-Assisted Smart Monitoring Camera
User Manual
Iniaves on the Use of Video Products
Thank you for choosing Hikvision products.
Technology aects every aspect of our life. As a high-tech company, we are increasingly aware of
the role technology plays in improving business eciency and quality of life, but at the same me,
the potenal harm of its improper usage. For example, video products are capable of recording
real, complete and clear images. This provides a high value in retrospect and preserving real-me
facts. However, it may also result in the infringement of a third party's legimate rights and
interests if improper distribuon, use and/or processing of video data takes place. With the
philosophy of "Technology for the Good", Hikvision requests that every end user of video
technology and video products shall comply with all the applicable laws and regulaons, as well as
ethical customs, aiming to jointly create a beer community.
Please read the following iniaves carefully:
●
Everyone has a reasonable expectaon of privacy, and the installaon of video products should
not be in conict with this reasonable expectaon. Therefore, a warning noce shall be given in
a reasonable and eecve manner and clarify the monitoring range, when installing video
products in public areas. For non-public areas, a third party's rights and interests shall be
evaluated when installing video products, including but not limited to, installing video products
only aer obtaining the consent of the stakeholders, and not installing highly-invisible video
products.
●
The purpose of video products is to record real acvies within a specic me and space and
under specic condions. Therefore, every user shall rst reasonably dene his/her own rights in
such specic scope, in order to avoid infringing on a third party's portraits, privacy or other
legimate rights.
●
During the use of video products, video image data derived from real scenes will connue to be
generated, including a large amount of biological data (such as facial images), and the data could
be further applied or reprocessed. Video products themselves could not disnguish good from
bad regarding how to use the data based solely on the images captured by the video products.
The result of data usage depends on the method and purpose of use of the data controllers.
Therefore, data controllers shall not only comply with all the applicable laws and regulaons and
other normave requirements, but also respect internaonal norms, social morality, good
morals, common pracces and other non-mandatory requirements, and respect individual
privacy, portrait and other rights and interests.
●
The rights, values and other demands of various stakeholders should always be considered when
processing video data that is connuously generated by video products. In this regard, product
security and data security are extremely crucial. Therefore, every end user and data controller,
shall undertake all reasonable and necessary measures to ensure data security and avoid data
leakage, improper disclosure and improper use, including but not limited to, seng up access
Radar-Assisted Smart Monitoring Camera User Manual
i
control, selecng a suitable network environment (the Internet or Intranet) where video
products are connected, establishing and constantly opmizing network security.
●
Video products have made great contribuons to the improvement of social security around the
world, and we believe that these products will also play an acve role in more aspects of social
life. Any abuse of video products in violaon of human rights or leading to criminal acvies are
contrary to the original intent of technological innovaon and product development. Therefore,
each user shall establish an evaluaon and tracking mechanism of their product applicaon to
ensure that every product is used in a proper and reasonable manner and with good faith.
Radar-Assisted Smart Monitoring Camera User Manual
ii
Legal Informaon
©2022 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instrucons for using and managing the Product. Pictures, charts, images and
all other informaon hereinaer are for descripon and explanaon only. The informaon
contained in the Manual is subject to change, without noce, due to rmware updates or other
reasons. Please nd the latest version of this Manual at the Hikvision website ( hps://
www.hikvision.com/ ).
Please use this Manual with the guidance and assistance of professionals trained in supporng the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properes of
Hikvision in various jurisdicons.
Other trademarks and logos menoned are the properes of their respecve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS IS" AND "WITH
ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR
PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY,
OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY
RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,
PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
Radar-Assisted Smart Monitoring Camera User Manual
iii
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATTER
PREVAILS.
Radar-Assisted Smart Monitoring Camera User Manual
iv
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or could
result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not avoided, could
result in equipment damage, data loss, performance degradaon, or
unexpected results.
Note
Provides addional informaon to emphasize or supplement
important points of the main text.
Radar-Assisted Smart Monitoring Camera User Manual
v
Contents
Chapter 1 Acvaon and Login ................................................................................................... 1
1.1 Acvaon ............................................................................................................................... 1
1.1.1 Default Informaon ...................................................................................................... 1

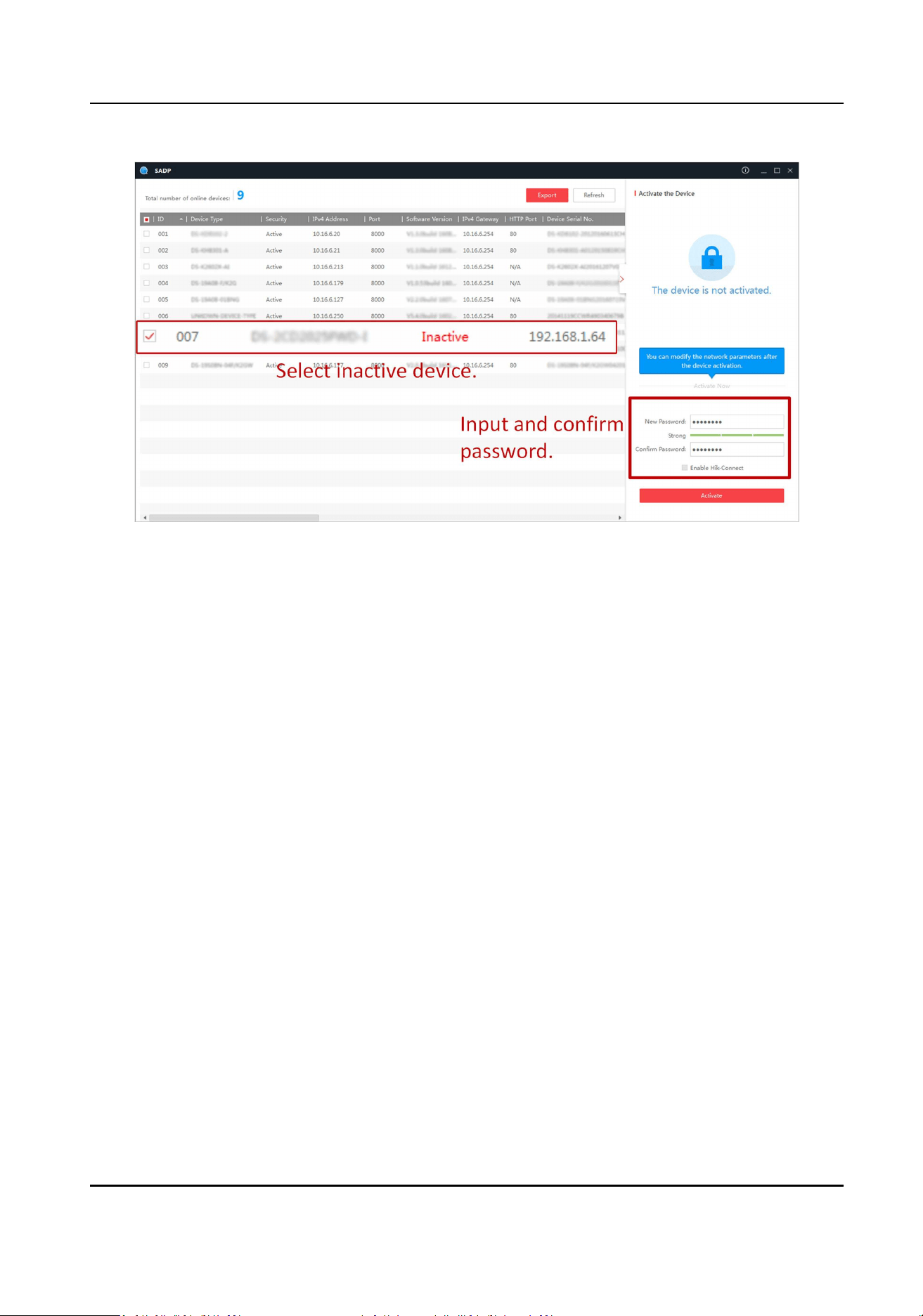

1.1.2 Acvate via SADP .......................................................................................................... 1
1.1.3 Acvate via Web Browser ............................................................................................. 2
1.2 Login ...................................................................................................................................... 3
Chapter 2 Capture Conguraon ................................................................................................ 4

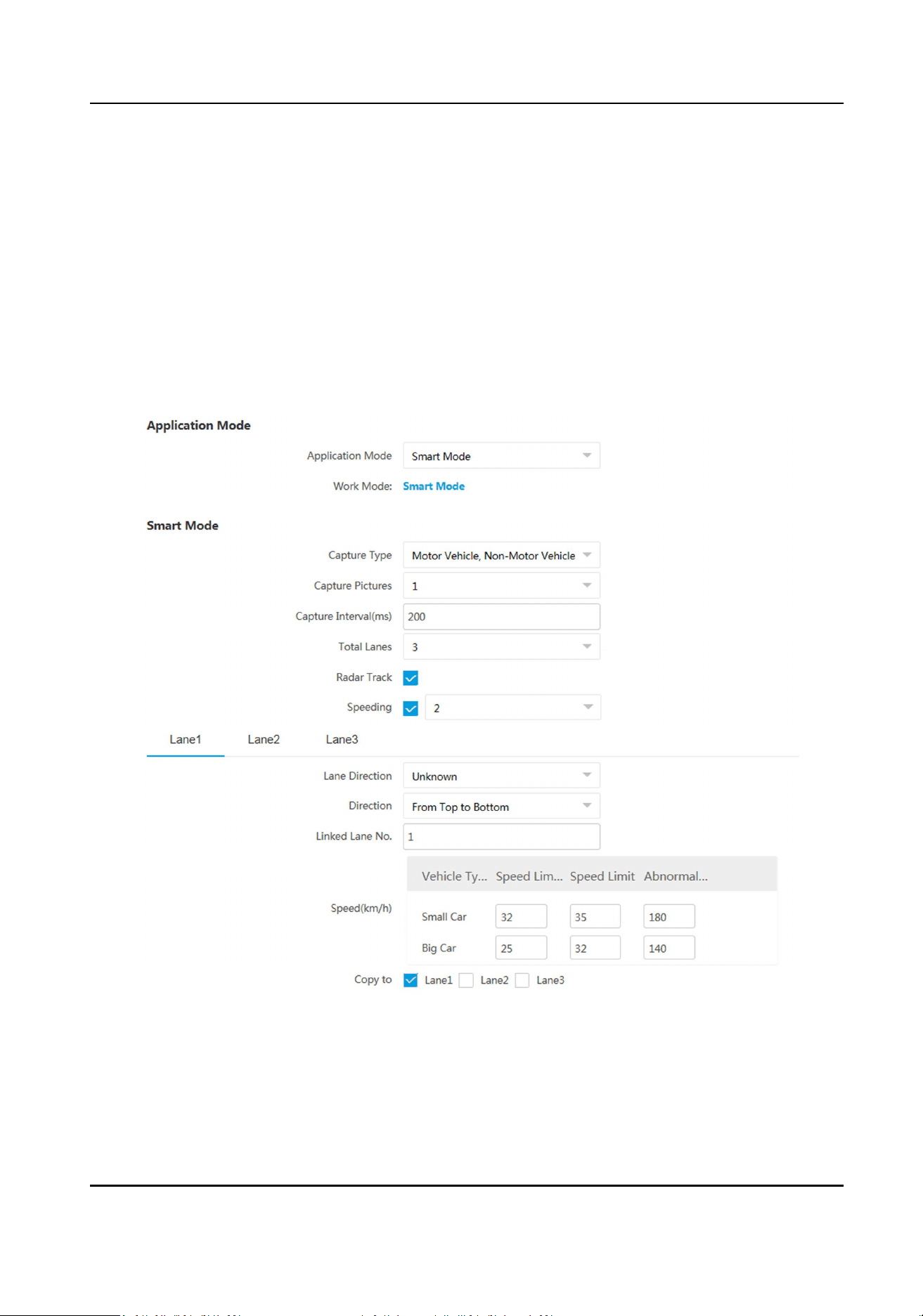

2.1 Set Smart Monitoring Capture ............................................................................................... 4
2.2 Set Capture Parameters ......................................................................................................... 7
2.2.1 Set Captured Image Parameters ................................................................................... 7

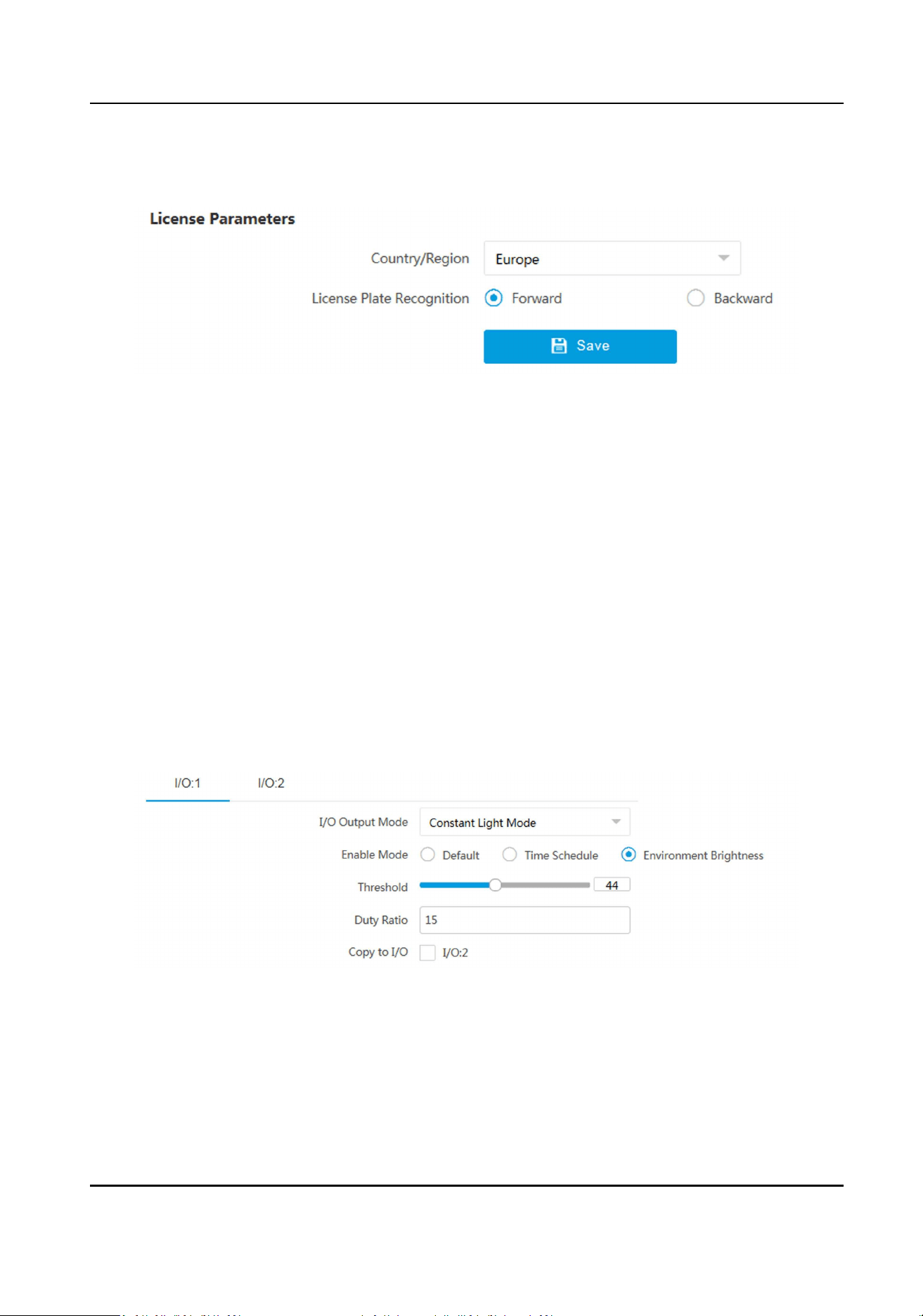

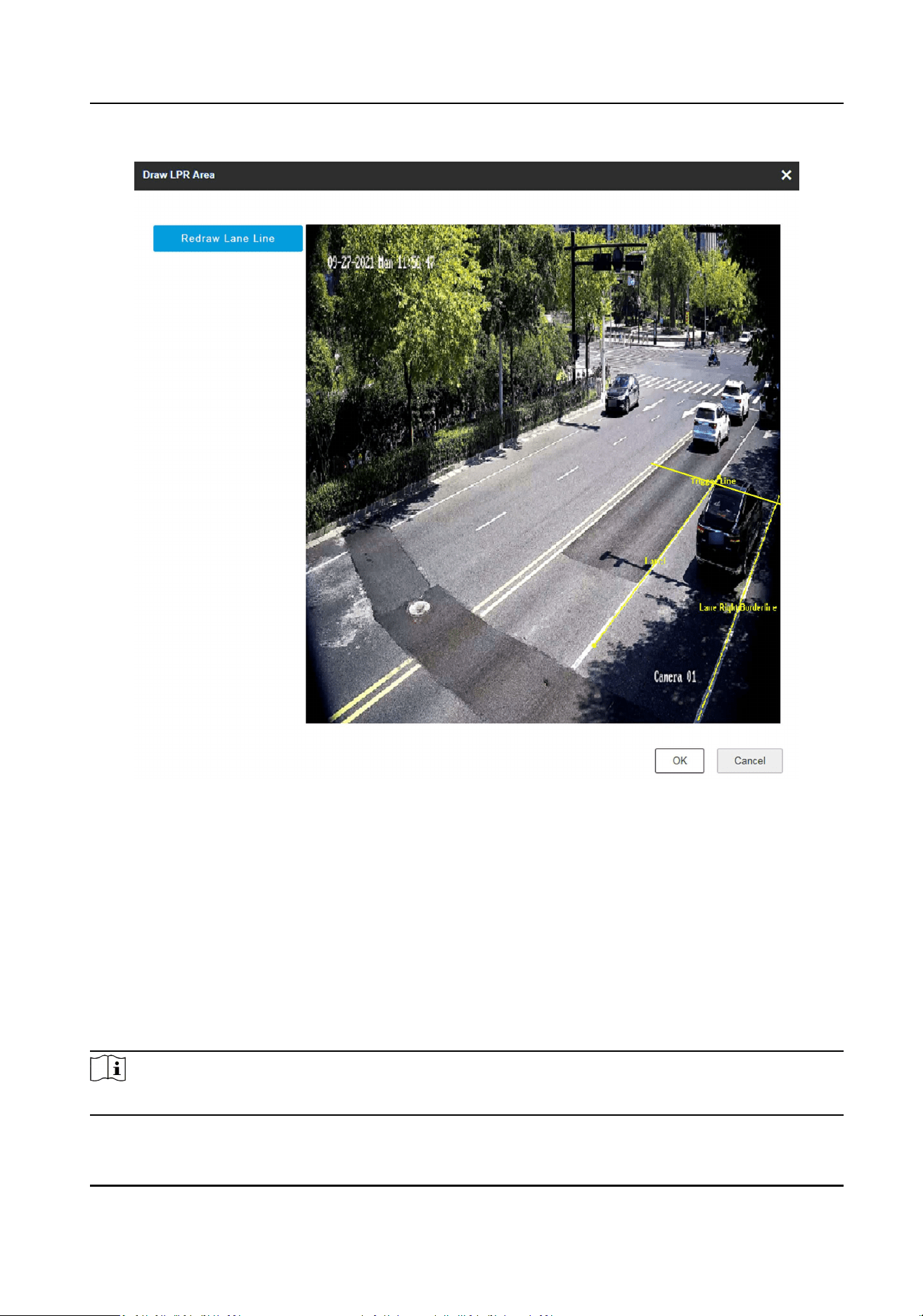

2.2.2 Set License Plate Recognion Parameters .................................................................... 8
2.2.3 Set Supplement Light Parameters ................................................................................. 9

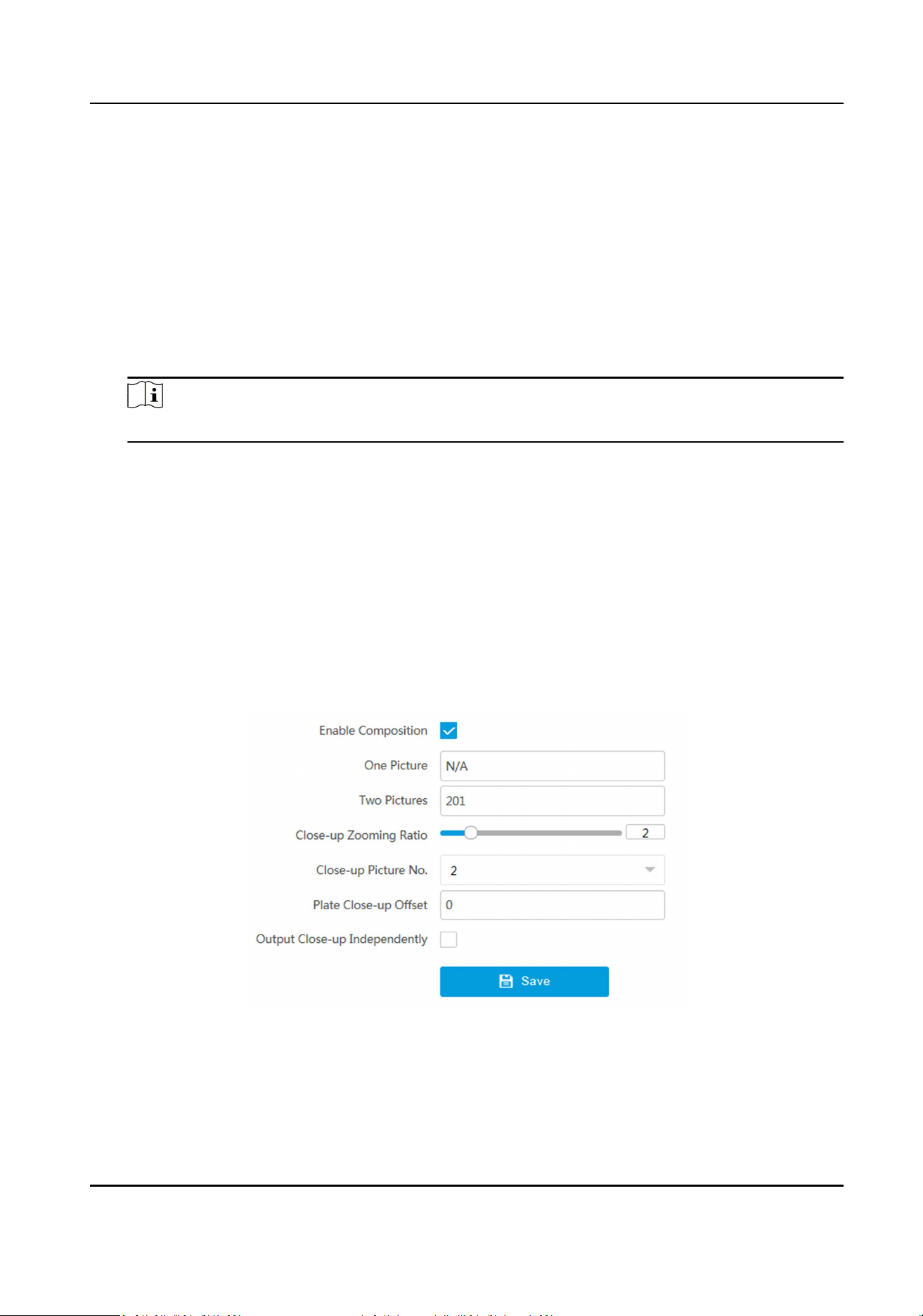

2.2.4 Set Picture Composion .............................................................................................. 10
2.2.5 Set Informaon Overlay .............................................................................................. 11
2.2.6 Set Body Picture Mang ............................................................................................ 14
2.2.7 Set Vehicle Feature Parameters .................................................................................. 15
2.2.8 Set Image Encoding Parameters .................................................................................. 15
Chapter 3 Radar Detecon ........................................................................................................ 17
3.1 Set Detecon Parameters .................................................................................................... 17
3.2 Set Radar Calibraon ........................................................................................................... 20
3.2.1 Manual Calibraon ...................................................................................................... 20
3.2.2 Auto Calibraon .......................................................................................................... 22
3.2.3 GPS Coordinate Calibraon ......................................................................................... 23
3.3 Search Detected Vehicles ..................................................................................................... 24
Chapter 4 View Trac Stascs ................................................................................................ 25
4.1 Search Picture ...................................................................................................................... 25
Radar-Assisted Smart Monitoring Camera User Manual
vi
4.2 View Real-Time Picture ........................................................................................................ 25
4.3 View Real-Time Trac Stascs .......................................................................................... 27
Chapter 5 Live View and Local Conguraon ............................................................................ 28
5.1 Live View .............................................................................................................................. 28
5.1.1 Start/Stop Live View .................................................................................................... 28
5.1.2 Select Image Display Mode ......................................................................................... 28
5.1.3 Select Window Division Mode .................................................................................... 28
5.1.4 Select Stream Type ...................................................................................................... 28
5.1.5 Capture Picture Manually ........................................................................................... 28
5.1.6 Record Manually ......................................................................................................... 28
5.1.7 Start/Stop Two-Way Audio .......................................................................................... 29
5.1.8 Enable/Disable Audio .................................................................................................. 29
5.1.9 Enable Digital Zoom .................................................................................................... 29
5.1.10 Enable Regional Focus .............................................................................................. 30
5.1.11 Enable Regional Exposure ......................................................................................... 30
5.1.12 Select Video Mode .................................................................................................... 30
5.2 PTZ Operaon ...................................................................................................................... 31
5.3 Local Conguraon .............................................................................................................. 32
Chapter 6 Playback ................................................................................................................... 36
Chapter 7 Record and Capture .................................................................................................. 37
7.1 Set Storage Path ................................................................................................................... 37
7.1.1 Set Storage Card .......................................................................................................... 37
7.1.2 Set FTP ........................................................................................................................ 37
7.1.3 Set SDK Listening ......................................................................................................... 39
7.1.4 Set Arm Host ............................................................................................................... 40
7.1.5 Set ISAPI Listening ....................................................................................................... 41
7.1.6 Set Cloud Storage ........................................................................................................ 42
7.2 Set Quota ............................................................................................................................. 43
Radar-Assisted Smart Monitoring Camera User Manual
vii
7.3 Set Record Schedule ............................................................................................................ 43
Chapter 8 Encoding and Display ................................................................................................ 45
8.1 Set Video Encoding Parameters ........................................................................................... 45
8.2 Set Image Parameters .......................................................................................................... 46
8.3 Set ICR .................................................................................................................................. 49

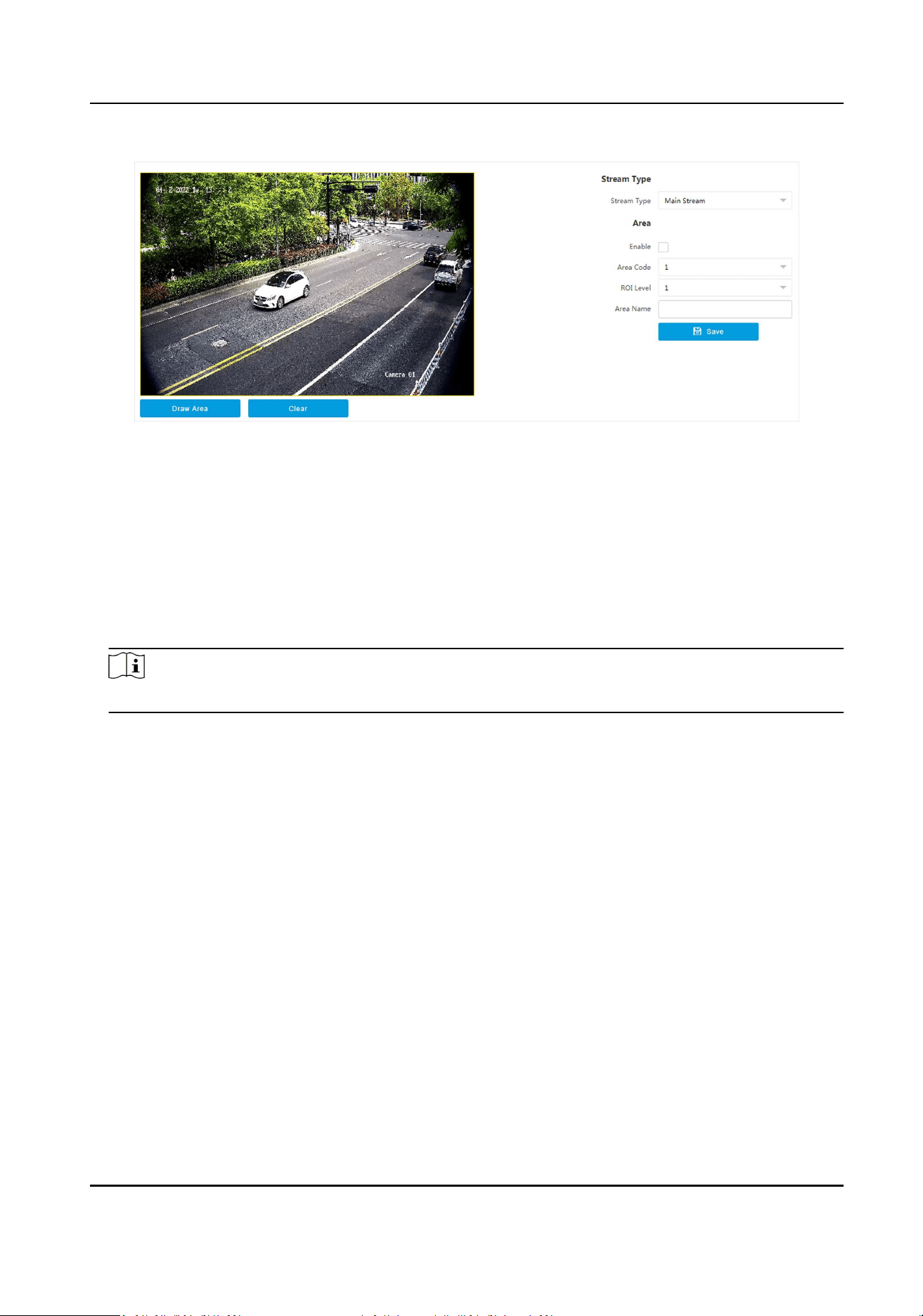

8.4 Set ROI ................................................................................................................................. 49

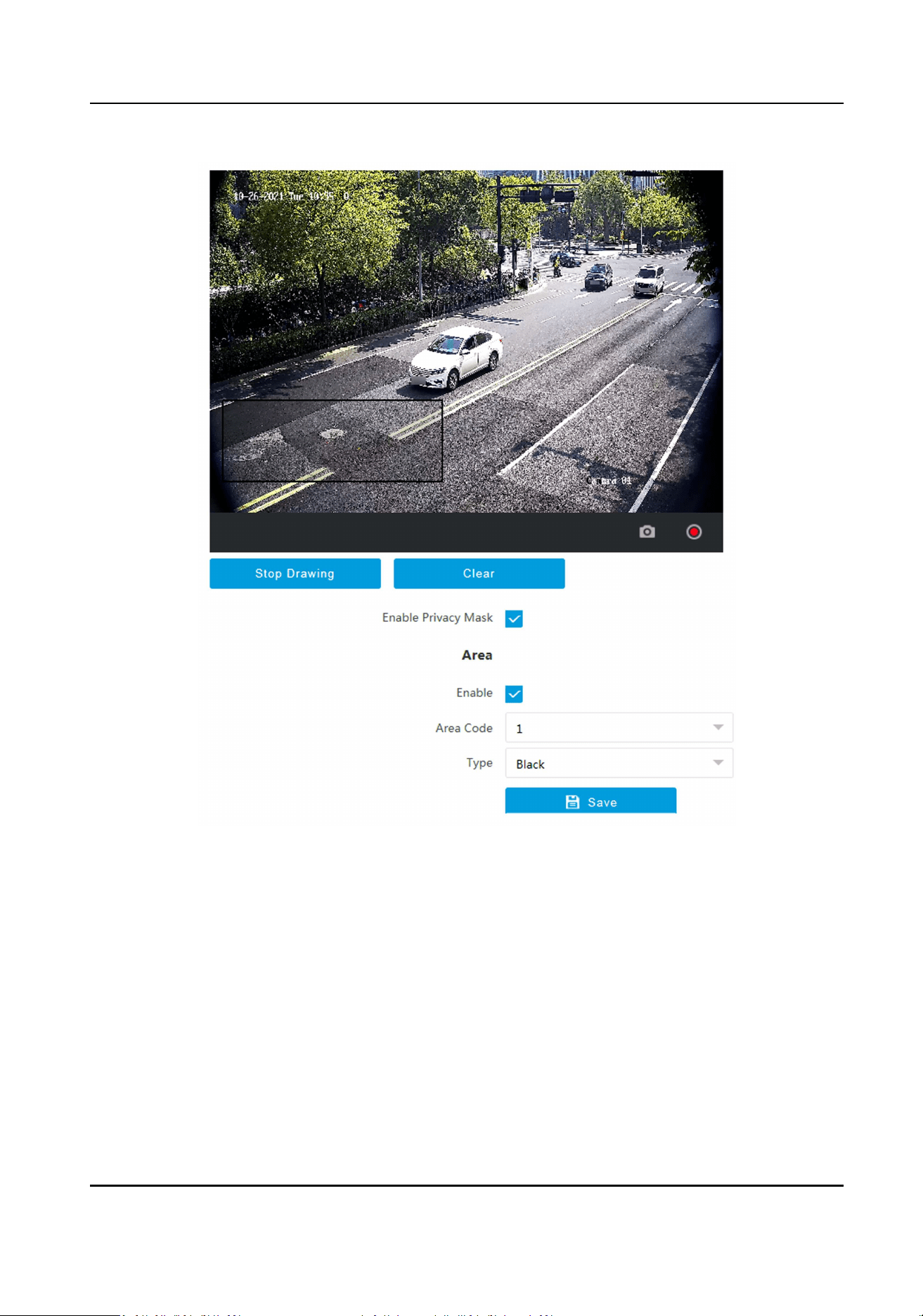

8.5 Set Privacy Mask .................................................................................................................. 50
8.6 Set OSD ................................................................................................................................ 52
Chapter 9 Network Conguraon ............................................................................................. 54

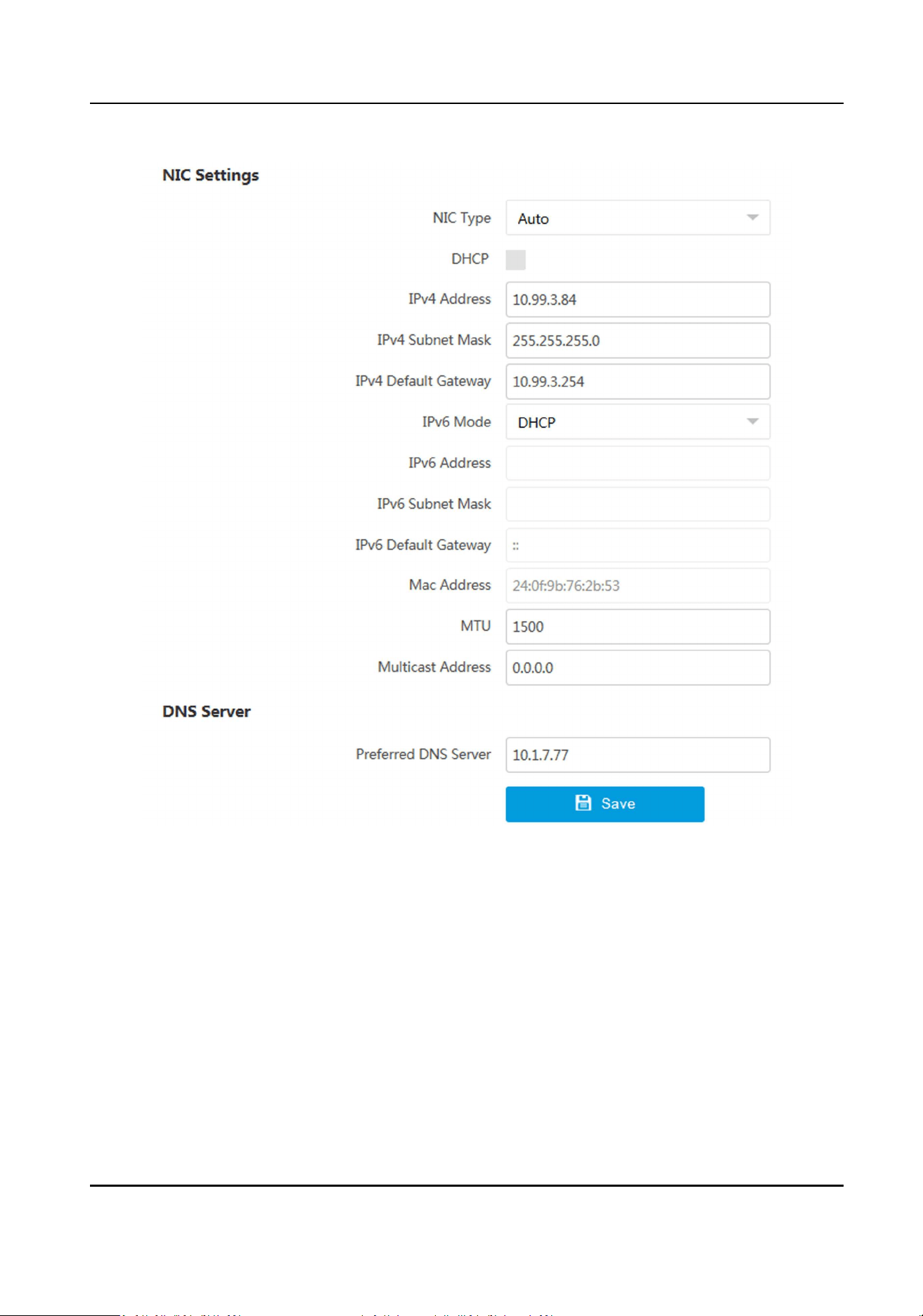

9.1 Set IP Address ...................................................................................................................... 54

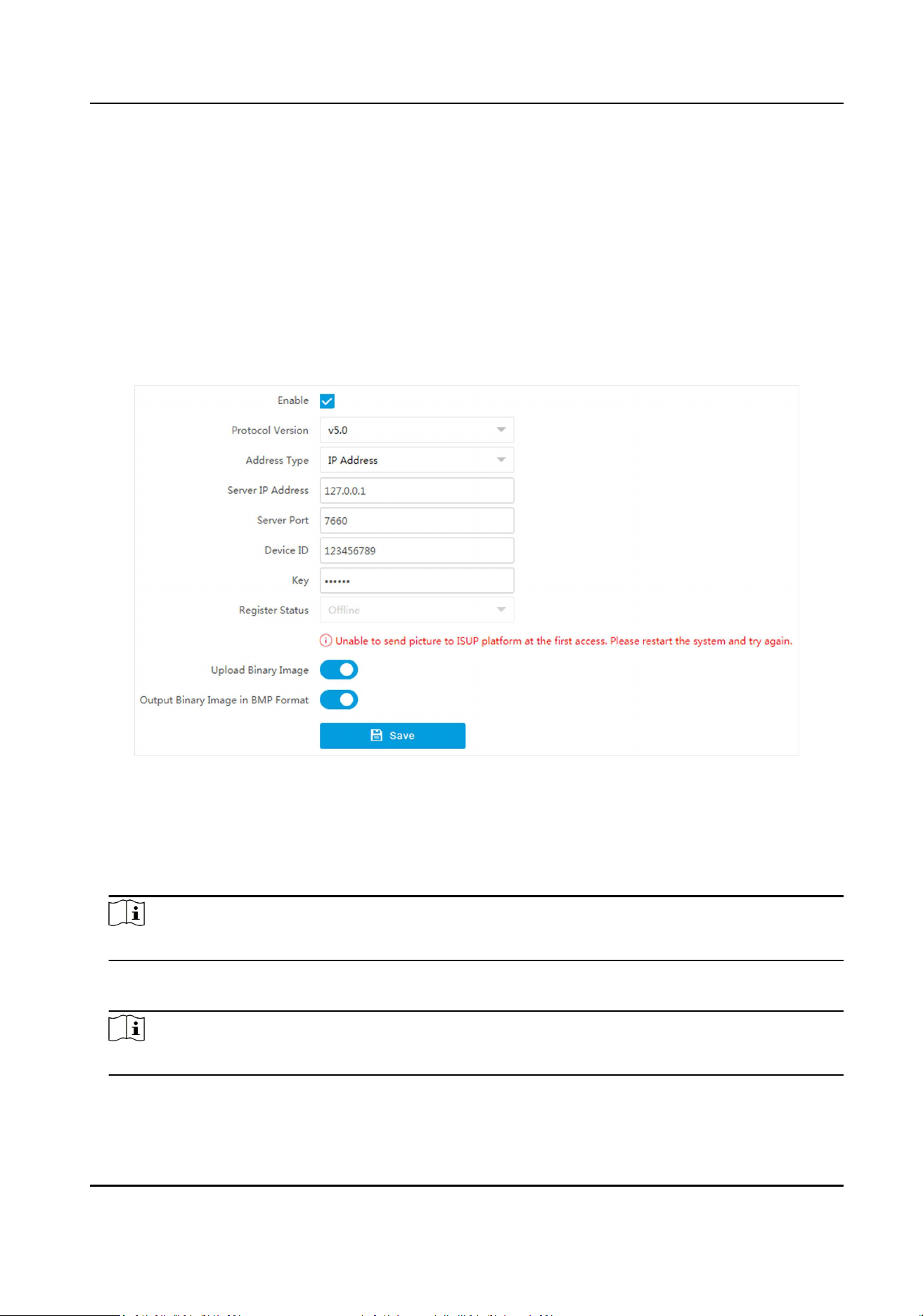

9.2 Connect to ISUP Plaorm .................................................................................................... 57

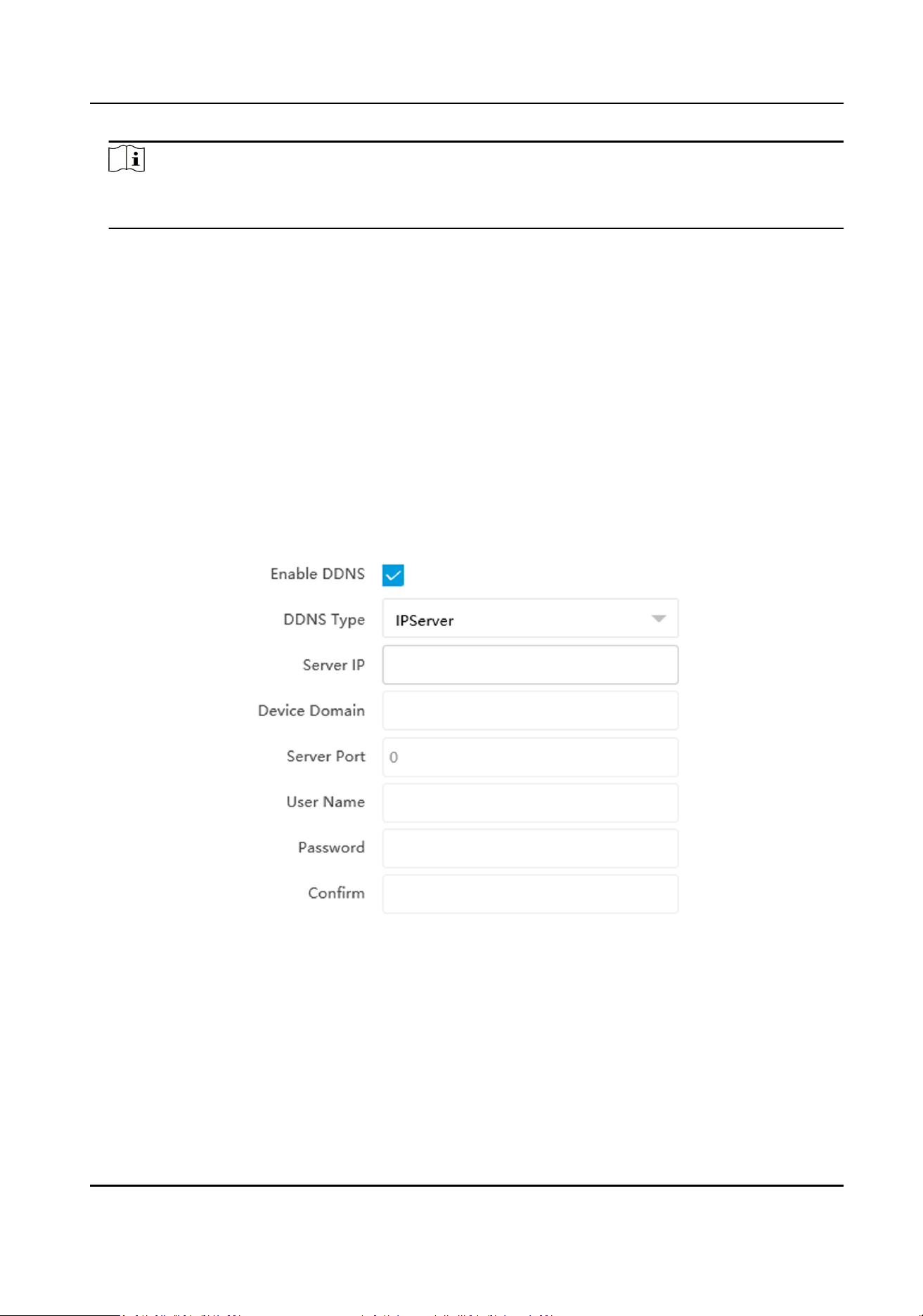

9.3 Set DDNS .............................................................................................................................. 58
9.4 Set SNMP ............................................................................................................................. 59

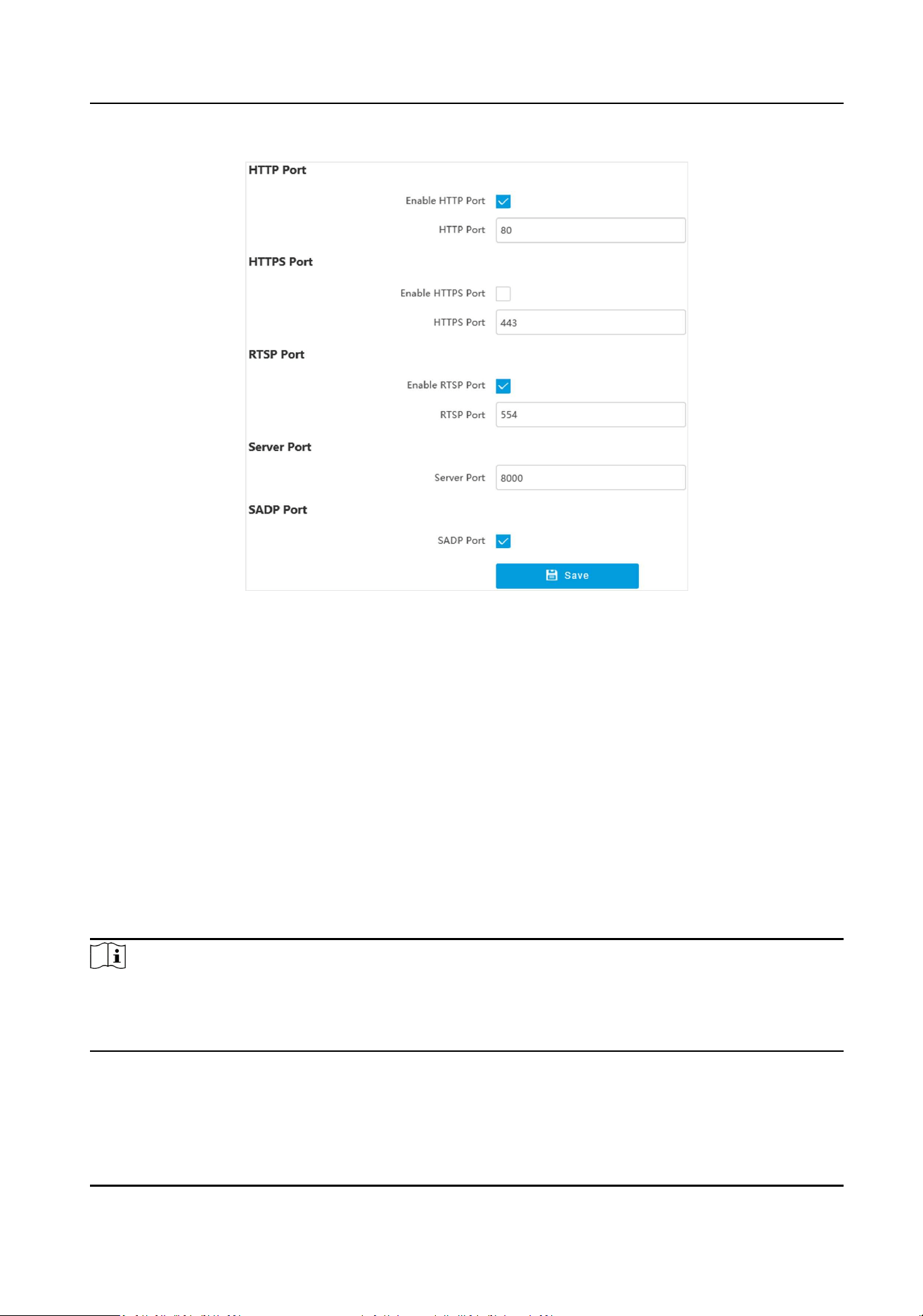

9.5 Set Port ................................................................................................................................ 59

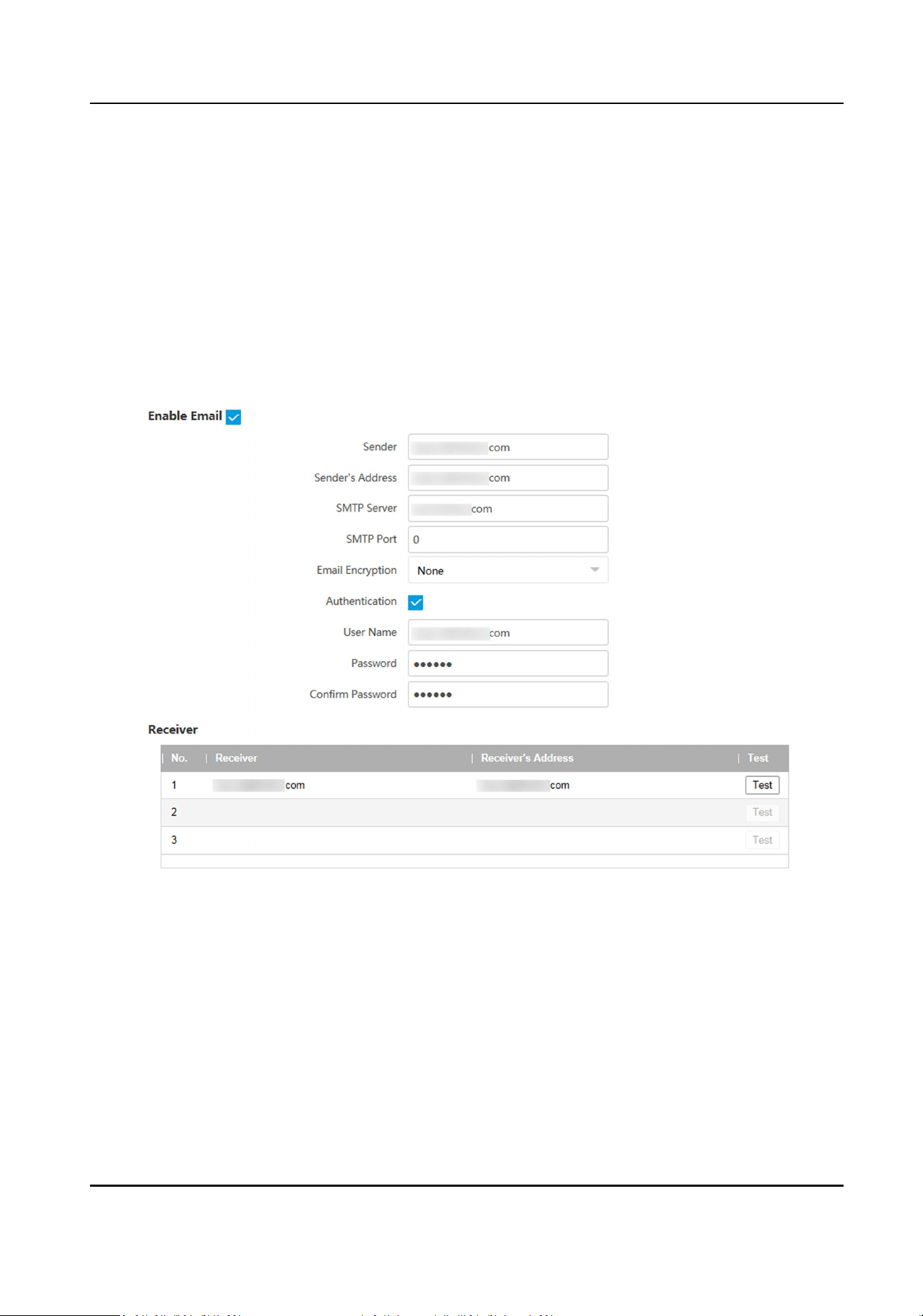

9.6 Set Email .............................................................................................................................. 61
Chapter 10 Serial Port Conguraon ......................................................................................... 63

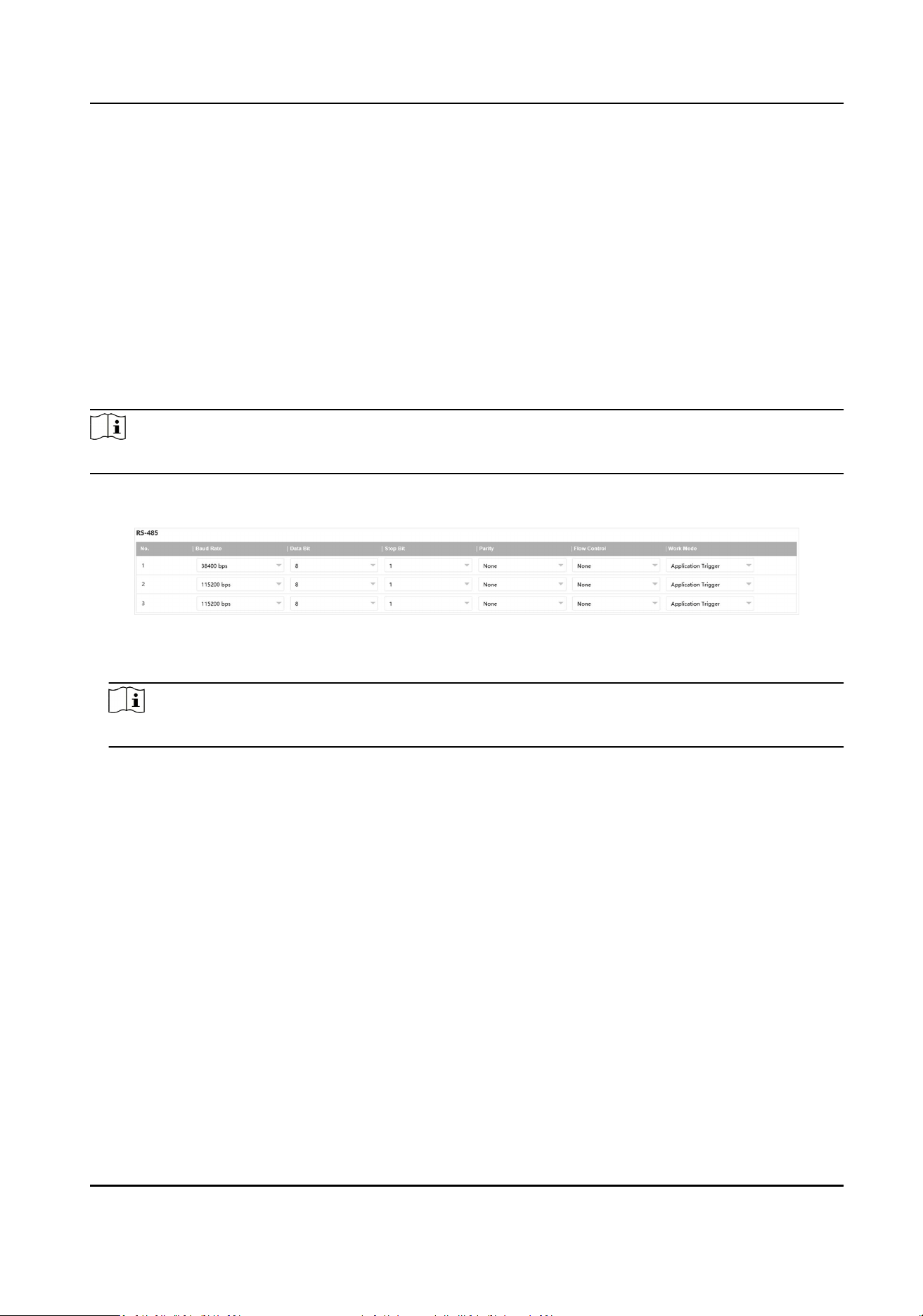

10.1 Set RS-485 .......................................................................................................................... 63
10.2 Set RS-232 .......................................................................................................................... 63
Chapter 11 Excepon Alarm ..................................................................................................... 65
Chapter 12 Safety Management ............................................................................................... 66
12.1 Manage User ...................................................................................................................... 66
12.2 Set IP Address Filtering ...................................................................................................... 66
12.3 Enable User Lock ................................................................................................................ 67
12.4 Set HTTPS ........................................................................................................................... 67
12.4.1 Create and Install Self-signed Cercate .................................................................. 67
12.4.2 Install Authorized Cercate ..................................................................................... 68
12.5 Set SSH ............................................................................................................................... 68
12.6 Set RTSP Authencaon .................................................................................................... 68
Radar-Assisted Smart Monitoring Camera User Manual
viii
12.7 Set Timeout Logout ............................................................................................................ 69
12.8 Set Password Validity Period .............................................................................................. 69
Chapter 13 Maintenance .......................................................................................................... 70
13.1 View Device Informaon .................................................................................................... 70
13.2 Log ..................................................................................................................................... 70
13.2.1 Enable System Log Service ........................................................................................ 70
13.2.2 Search Log ................................................................................................................. 70
13.3 Upgrade ............................................................................................................................. 71
13.4 Reboot ............................................................................................................................... 71
13.5 Restore Parameters ............................................................................................................ 71
13.6 Synchronize Time ............................................................................................................... 72
13.7 Set DST ............................................................................................................................... 73
13.8 Debug ................................................................................................................................. 73
13.8.1 Debug Device ............................................................................................................ 73
13.8.2 Vehicle Capture and Recognion Service .................................................................. 73
13.8.3 Set Image Format ...................................................................................................... 74
13.9 Export Parameters ............................................................................................................. 74
13.10 Import Conguraon File ................................................................................................. 74
13.11 Export Debug File ............................................................................................................. 75
13.12 Export Diagnosis Informaon .......................................................................................... 75
Appendix A. Communicaon Matrix and Device Command ...................................................... 76
Radar-Assisted Smart Monitoring Camera User Manual
ix
Chapter 1 Acvaon and Login
1.1 Acvaon
For the rst-me access, you need to acvate the device by seng an admin password. No
operaon is allowed before acvaon. The device supports mulple acvaon methods, such as
acvaon via SADP soware, web browser, and iVMS-4200 Client.
Note
Refer to the user manual of iVMS-4200 Client for the acvaon via client soware.
1.1.1 Default Informaon
The device default informaon is shown as below.
●
Default IP address: 192.168.1.64
●
Default user name: admin
1.1.2 Acvate via SADP
SADP is a tool to detect, acvate, and modify the IP address of the device over the LAN.
Before You Start
●
Get the SADP soware from the supplied disk or the ocial website ( hp://
www.hikvision.com/ ), and install it according to the prompts.
●
The device and the computer that runs the SADP tool should belong to the same network
segment.
The following steps show how to acvate one device and modify its IP address. For batch acvaon
and IP address modicaon, refer to User Manual of SADP for details.
Steps
1.
Run the SADP soware and search the online devices.
2.
Find and select your device in online device list.
3.
Enter a new password (admin password) and conrm the password.
Cauon
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
reseng the password monthly or weekly can beer protect your product.
4.
Click Acvate to start acvaon.
Radar-Assisted Smart Monitoring Camera User Manual
1
Figure 1-1 Acvate via SADP
Status of the device becomes Acve aer successful acvaon.
5.
Modify IP address of the device.
1) Select the device.
2) Change the device IP address to the same network segment as your computer by either
modifying the IP address manually or checking Enable DHCP (Dynamic Host Conguraon
Protocol).
3) Enter the admin password and click Modify to acvate your IP address modicaon.
1.1.3 Acvate via Web Browser
Use web browser to acvate the device. For the device with the DHCP enabled by default, use
SADP soware or client soware to acvate the device.
Before You Start
Ensure the device and the computer are in the LAN with the same network segment.
Steps
1.
Change the IP address of your computer to the same network segment as the device.
2.
Open the web browser, and enter the default IP address of the device to enter the acvaon
interface.
3.
Create and conrm the admin password.
Radar-Assisted Smart Monitoring Camera User Manual
2
Cauon
STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of
your own choosing (using a minimum of 8 characters, including upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And
we recommend you reset your password regularly, especially in the high security system,
reseng the password monthly or weekly can beer protect your product.
4.
Click OK to complete acvaon.
5.
Go to the network sengs interface to modify IP address of the device.
1.2 Login
You can log in to the device via web browser for further operaons such as live view and local
conguraon.
Before You Start
Connect the device to the network directly, or via a switch or a router.
Steps
1.
Open the web browser, and enter the IP address of the device to enter the login interface.
2.
Enter User Name and Password.
3.
Click Login.
4.
Download and install appropriate plug-in for your web browser. Follow the installaon prompts
to install the plug-in.
5.
Reopen the web browser aer the installaon of the plug-in and repeat steps 1 to 3 to login.
6.
Oponal: Click Logout on the upper right corner of the interface to log out of the device.
Radar-Assisted Smart Monitoring Camera User Manual
3
Chapter 2 Capture Conguraon
2.1 Set Smart Monitoring Capture
The smart monitoring mode supports capturing motor vehicles, non-motor vehicles, and
pedestrians via video triggering.
Steps
1.
Go to Conguraon → Capture → Applicaon Mode .
2.
Select Applicaon Mode as Smart Mode.
Figure 2-1 Set Smart Monitoring Capture
3.
Set smart mode parameters.
Capture Type
Radar-Assisted Smart Monitoring Camera User Manual
4
Motor Vehicle, Non-Motor Vehicle, and Pedestrian
The motor vehicles, non-motor vehicles, and pedestrians in the scene will be recognized
and captured.
Motor Vehicle
Only the motor vehicles in the scene will be recognized and captured.
Non-Motor Vehicle
Only the non-motor vehicles in the scene will be recognized and captured.
Pedestrian
Only the pedestrians in the scene will be recognized and captured.
Capture Pictures
The number of captured picture(s).
Capture Interval
The me between the adjacent captures.
Total Lanes
The sum of the linked lane(s) under the current applicaon mode.
Radar Track
Check it to enable radar track, and the target track will be displayed.
Speeding
The motor vehicle is driven in the speed larger than the max. speed limit of the lane. Check it
and select the number of captured picture(s).
4.
Select a lane, and set the lane parameters.
Lane Direcon
The guidance direcon of the lane.
Direcon
The driving direcon of the vehicle. If you set the direcon as From Top to Boom, then the
vehicle will be judged as wrong-way driving if it comes from boom to top, and vice versa.
Linked Lane No.
The corresponding lane No. linked with the current lane. The lane No. will be overlaid on the
captured picture.
5.
Oponal: If you have enabled speeding detecon, set the lane speed limit parameters for small-
sized and large-sized vehicles.
Speed Limit Sign
The speed limit on the sign for the vehicles. The value will be overlaid on the captured
pictures.
Speed Limit
Radar-Assisted Smart Monitoring Camera User Manual
5
The actual speed limit for the vehicles. When the vehicle speed exceeds the value, speeding
capture will be triggered.
Note
The speed limit of large-sized vehicles should be smaller than that of the small-sized vehicles.
Abnormal Speed Threshold
When the detected speed of the vehicle exceeds the value, the detecon is regarded as
abnormal, and a normal speed will be provided randomly.
6.
Oponal: Check the other lane(s) to copy the same sengs.
7.
Draw lane lines.
1) Click Draw Lane Line.
2) Select the default lane lines, trigger line, and right border line, and drag the two end points of
the line or drag the whole line to adjust its posion according to the actual scene.
3) Oponal: Click Redraw Lane Line to redraw the lines.
4) Click OK.
Radar-Assisted Smart Monitoring Camera User Manual
6
Figure 2-2 Draw Lane Line
8.
Click Save.
2.2 Set Capture Parameters
2.2.1 Set Captured Image Parameters
Set the parameters of captured images to raise the image quality.
Steps
Note
The funcon varies with dierent models. The actual device prevails.
Radar-Assisted Smart Monitoring Camera User Manual
7
1.
Go to Conguraon → Capture → Capture Images → Image Parameters .
Figure 2-3 Set Captured Image Parameters
2.
Set the captured image parameters.
Contrast Enhancement
Check Enable to capture clearer images. Select Contrast Enhancement Mode, and set
corresponding parameters.
Contrast Enhancement Mode Descripon
On The contrast enhancement mode is always enabled.
Time The contrast enhancement mode is enabled during the set
start me and end me. In other me, it is disabled.
Brightness The contrast enhancement mode is enabled according to the
brightness of the surroundings. In this case, you can set
Brightness Level.
Contrast Enhancement Level
The higher the level is, the more the contrast is enhanced.
Halo Suppression Level
Halo suppression is to suppress the halo of the vehicle headlights. The higher the level is,
the more the halo is suppressed.
2.2.2 Set License Plate Recognion Parameters
When there are vehicles of dierent types passing from dierent direcons, set the license plate
recognion parameters.
Radar-Assisted Smart Monitoring Camera User Manual
8
Steps
1.
Go to Conguraon → Capture → Capture Parameters → License Parameters .
Figure 2-4 Set License Plate Recognion Parameters
2.
Set Country/Region according to the actual needs.
3.
Select License Plate Recognion.
-
Select Forward when license plates of vehicles from the approaching direcon need to be
recognized.
-
Select Backward when license plates of vehicles from the leaving direcon need to be
recognized.
4.
Click Save.
2.2.3 Set Supplement Light Parameters
Supplement light can enhance the image stabilizaon and adjust the brightness and color
temperature.
Steps
1.
Go to Conguraon → Capture → Capture Parameters → Supplement Light Parameters .
Figure 2-5 Set Supplement Light Parameters
2.
Select the I/O and set the supplement light parameters.
I/O Output Mode
Constant Light Mode
The constant light supplements light for the scene.
Radar-Assisted Smart Monitoring Camera User Manual
9
Duty Rao
It is the me occupaon of the high level in a certain period. The higher the duty rao, the
brighter the solid light. High duty rao will cut life span of the solid light.
3.
Set the supplement light control mode.
-
Select Default to disable the supplement light.
-
Select Time Schedule when you want the supplement light to be enabled during a xed me
period. Set the start me and end me.
-
Select Environment Brightness when you want the supplement light to be controlled by
detecng the surroundings brightness automacally. Set the brightness threshold. The higher
the threshold is, the harder the supplement light can be enabled.
Note
The modes conict with each other. You can only enable one mode.
4.
Oponal: Select other I/O(s) to copy the same sengs.
5.
Click Save.
2.2.4 Set Picture Composion
You can enable the picture composion to composite several pictures into one to make it
convenient to view the violaon captured pictures.
Steps
1.
Go to Conguraon → Capture → Capture Parameters → Picture Encoding and Composion →
Image Composion .
Figure 2-6 Set Picture Composion
2.
Check Enable Composion.
3.
Set composion types for dierent picture quanes.
4.
Set other composion parameters.
Radar-Assisted Smart Monitoring Camera User Manual
10
Close-up Zooming Rao
The higher the value is, the larger the close-up is.
Close-up Picture No.
It is the picture where the close-up comes from.
Plate Close-up Oset
The default value is 0, which is recommended to be adopted. The device can capture close-up
pictures according to the set oset when no license plate is recognized.
5.
Oponal: Check Output Close-up Independently to output close-up pictures independently
when the picture composion is not enabled.
Note
Enabling composion and outpung close-up independently funcons conict with each other.
You can only enable one.
6.
Click Save.
2.2.5 Set Informaon Overlay
Set Single Picture Overlay
If you want to overlay informaon on the captured single pictures, set capture overlay.
Steps
Note
The supported parameters vary with dierent models. The actual device prevails.
1.
Go to Conguraon → Capture → Capture Parameters → Text Overlay .
2.
Select single picture channel.
3.
Check Capture Picture Overlay.
Radar-Assisted Smart Monitoring Camera User Manual
11
Figure 2-7 Set Single Picture Overlay
4.
Set the percentage, front size, color, overlay posion, etc.
Percentage
It is the percentage that the overlaid informaon occupies on the picture. For example, if you
set the percentage to 50, the overlaid informaon in a row will occupy up to half of the image
width, and the excess content will be overlaid from a new line.
Transparency
It is the condion of viewing the live view image through the overlaid informaon.
Overlay Number Zeroizing
When the overlaid number digits are smaller than the xed digits, 0 will be overlaid before
the overlaid number. E.g., the xed digits for lane No. is 2. If the lane No. is 1, 01 will be
overlaid on the picture.
Overlay Plate Close-up
Check it to overlay license plate close-up pictures on the captured pictures.
Overlay OSD on Close-up Picture
Check it to overlay the OSD informaon on the close-up pictures.
5.
Select the overlay informaon from the list.
Note
The overlay informaon varies with dierent models. The actual device prevails.
6.
Set the overlay informaon.
Set Type You can edit the type.
Set Overlay
Informaon
For some informaon types, you can edit the detailed informaon.
Radar-Assisted Smart Monitoring Camera User Manual
12
Set Overlay Posion If you check it, the current informaon will be displayed from a new
line.
Set Space Edit the number of space between the current informaon and the
next one from 0 to 255. 0 means there is no space.
Set Line Break
Characters
Edit the number of characters from 0 to 100 between the current
informaon line and the previous informaon line. 0 means no line
break.
Adjust overlay
sequence
Click
/ to adjust the display sequence of the overlay
informaon.
7.
Click Save.
Set Composite Picture Overlay
If you want to overlay informaon on the composite pictures, set composite picture overlay.
Steps
Note
The supported parameters vary with dierent models. The actual device prevails.
1.
Go to Conguraon → Capture → Capture Parameters → Text Overlay .
2.
Select composite picture channel.
3.
Check Capture Picture Overlay.
Figure 2-8 Set Composite Picture Overlay
4.
Set the font size, color, overlay posion, etc.
Percentage
Radar-Assisted Smart Monitoring Camera User Manual
13
It is the percentage that the overlaid informaon occupies on the picture. For example, if you
set the percentage to 50, the overlaid informaon in a row will occupy up to half of the image
width, and the excess content will be overlaid from a new line.
Transparency
It is the condion of viewing the live view image through the overlaid informaon.
Composite Picture Capture Time
The capture me of the selected picture sequence will be overlaid on the composite picture.
5.
Select the overlay informaon from the list.
Note
The overlay informaon varies with dierent models. The actual device prevails.
6.
Set the overlay informaon.
Set Type You can edit the type.
Set Overlay
Informaon
For some informaon types, you can edit the detailed informaon.
Set Overlay Posion If you check it, the current informaon will be displayed from a new
line.
Set Space Edit the number of space between the current informaon and the
next one from 0 to 255. 0 means there is no space.
Set Line Break
Characters
Edit the number of characters from 0 to 100 between the current
informaon line and the previous informaon line. 0 means no line
break.
Adjust overlay
sequence
Click
/ to adjust the display sequence of the overlay
informaon.
7.
Click Save.
2.2.6 Set Body Picture Mang
Set body picture mang rst if you need to upload body and vehicle pictures to the plaorm.
Steps
Note
The funcon varies with dierent models. The actual device prevails.
1.
Go to Conguraon → Capture → Capture Parameters → Vehicle Feature → Body Picture
Mang .
2.
Check Enable Body Picture Mang.
Radar-Assisted Smart Monitoring Camera User Manual
14
Figure 2-9 Set Body Picture Mang
3.
Set body picture mang parameters according to the actual needs.
4.
Click Save.
Result
If the device is level 1 armed, the mang pictures will be uploaded to this device directly. If the
device is level 2 armed, the mang pictures will be saved to the SD/TF card and uploaded to a
level 2 armed device.
2.2.7 Set Vehicle Feature Parameters
Set vehicle feature parameters if you need to detect the vehicle features of the passing vehicle.
Steps
Note
The parameters vary with dierent models. The actual device prevails.
1.
Go to Conguraon → Capture → Capture Parameters → Vehicle Feature → Vehicle Feature .
2.
Check Vehicle Color Recognion if you want to recognize the vehicle color.
3.
Click Save.
2.2.8 Set Image Encoding Parameters
If the captured pictures are not clear, set the resoluon of the captured pictures and the picture
size.
Steps
1.
Go to Conguraon → Capture → Capture Parameters → Picture Encoding and Composion →
Image Encoding .
Figure 2-10 Set Image Encoding Parameters
Radar-Assisted Smart Monitoring Camera User Manual
15
2.
Select Capture Resoluon.
3.
Enter the picture size.
JPEG Picture Size
The size of the compressed captured picture. The actual size is related to the scene
complexity.
Composite Picture Size
The size of the compressed composite picture. The actual size is related to the scene
complexity.
Note
Only the device supporng picture composion supports composite picture size sengs. The
actual device prevails.
4.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
16
Chapter 3 Radar Detecon
Radar is used to detect the target and link the capture. Set radar detecon parameters before
capturing vehicle pictures.
Note
The funcon varies with dierent models. The actual device prevails.
3.1 Set Detecon Parameters
Radar is used to detect the target and link the capture. Set radar detecon parameters before
capturing vehicle pictures.
Steps
Note
The funcon varies with dierent models. The actual device prevails.
1.
Click Radar.
Figure 3-1 Set Radar Parameters
2.
View the radar informaon.
Soware Version
The soware version of the radar.
Radar Status
Radar-Assisted Smart Monitoring Camera User Manual
17
The current radar status. The radar can be normally used in normal status. If the radar is in
upgrading status, do not reboot the device. Refresh the interface every one minute, and the
status can be restored to normal.
3.
Click on the right of the interface and follow the wizard to set the parameters.
1) Set Number of Lane and the width of each lane.
2) Set Scene Mode according to the actual condion.
3) Set Vehicle Direcon.
Approaching Direcon
The vehicles are driven towards the construcon posion of the camera.
Leaving Direcon
The vehicles are driven far away from the construcon posion of the camera.
Bidirecon
There are vehicles driven both towards and far away from the construcon posion of the
camera.
4) Set Construcon Height, Horizontal Correcon, and Angle Deviaon.
Construcon Height
The construcon height of the camera.
Horizontal Correcon
It is the horizontal posion deviaon between the radar detected lane and the actual lane.
You can set it in two ways.
●
Method 1: Move the detected lane in the diagram lewards or rightwards to overlap it
with the actual lane to correct the dierence.
●
Method 2: Enter the horizontal distance (m) from the radar installaon posion to the
middle line of the actual lane to correct the dierence.
Angle Deviaon
It is the angle deviaon between the radar detected lane and the actual lane. Rotate the
angle of the detected lane in the diagram to overlap it with the actual lane to correct the
dierence.
5) Set the coordinate calibraon and GPS calibraon.
Note
Refer to Set Radar Calibraon for details.
4.
Set the other parameters.
Display Track
Enable the funcon, and the target track will be displayed on the interface according to the
detected coordinates.
Advanced Sengs
Click Advanced Sengs to set the advanced parameters.
Radar-Assisted Smart Monitoring Camera User Manual
18
Debug Mode
Enable the radar debug mode. In this mode, the vehicles outside the drawn area will be
displayed, to make it convenient to debug the radar.
Auto Angle Correcon
Enable the funcon, and the radar will adjust the angle deviaon automacally according
to the target track.
Sensivity
The lower the sensivity is, the more sensive the detecon will be. For the detecon
which is too sensive (e.g., some xed facilies, such as the bus staon on the lane, are
detected as vehicles), you can adjust the sensivity higher.
Inuenal Range X
If you do not want to adjust the total sensivity, enter the vercal distance from the
possible mistakenly recognized area (such as the bus staon) to the camera.
Note
The inuenal range of the sensivity can be set every 50 m, and up to four areas can be
set.
Range X Sensivity
You can adjust the sensivity of each inuenal range independently.
Target Dwell Time
The dwell me of the vehicle. Set it as 0 when measuring the queue length.
Radar Predicon
Enable the funcon, and the radar will predict the target track which can be displayed on
the interface according to the detected coordinates.
Radar Port Mapping
Enable the funcon, and if you have enabled SSH, the debug commands including the
radar sengs informaon will be sent to the camera.
Radar Detecon Distance
It is the range of the radar track. The default value is 200 m. You can select the value to
adjust the radar track range.
Distance to Stop Line
It is the distance from the point on the ground just below the installed radar to the stop
line at the intersecon. The targets detected in this range will be ltered.
Wave Band ID
0 to 4 stand for ve frequencies. Set dierent wave bands for dierent radars in the same
scene to prevent the radars in the same wave band from inuencing each other.
5.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
19
What to do next
Aer seng the construcon and lane parameters, observe the real-me vehicle condion in the
middle window of the interface. The target track should be straight. The inial posion of the
target should be larger than the trigger distance, or the vehicle targets may be missed. For
example, if the trigger distance is 28 m from the approaching direcon, the inial posion of the
target should be approximately 35 m. The target track should correspond to the actual lane, or the
lane No. cannot be corresponded to when the data is uploaded. Adjust Angle Deviaon and
Horizontal Deviaon to guarantee the vehicle target is on the corresponding lane. Aer the debug,
enable Normal Mode to enter the normal working status.
3.2 Set Radar Calibraon
Calibrate radar aer the radar detecon parameters are set to display the targets detected by the
radar on the video.
Before You Start
Enable Rules Informaon in Conguraon → Local .
Steps
1.
Click Radar.
2.
Click Coordinate Calibraon or GPS Calibraon.
3.
Set the radar calibraon.
-
Set manual calibraon. Refer to
Manual Calibraon for details.
-
Set auto calibraon. Refer to
Auto Calibraon for details.
-
Set GPS calibraon. Refer to
GPS Coordinate Calibraon for details.
Note
The supported calibraon modes vary with dierent models. The actual device prevails.
3.2.1 Manual Calibraon
Steps
1.
Click Coordinate Calibraon.
2.
Select Calibraon Mode as Manual Calibraon.
Radar-Assisted Smart Monitoring Camera User Manual
20
Figure 3-2 Manual Calibraon
3.
Draw the lane lines.
1) Select the lane sum.
2) Select the lane line No.
3) Click Draw Lane Line.
The selected lane line will be displayed on the live view picture.
4) Drag the two end points of the line or drag the whole line to adjust its posion according to
the actual scene.
5) Repeat the steps above to draw more lane lines.
4.
Draw the calibraon area.
1) Select Calibraon Point.
2) Click Calibraon.
3) Click the le buon of the mouse to locate the vertexes of the calibraon area on the live
view image, and click the right buon of the mouse to nish the drawing.
Note
The number of vertexes should be consistent with the selected number of Calibraon Point.
4) Drag the vertexes of the calibraon area to align it to the lanes.
Note
●
If the lanes cannot be aligned, ensure the calibraon area can contain the detecon area.
●
You can refer to the schemac diagram and top view descripon to draw the calibraon
area.
5) Oponal: Click Clear to clear the drawn calibraon area.
5.
Measure the world coordinates of the vertexes, and enter the values in the corresponding
coordinate text elds.
Radar-Assisted Smart Monitoring Camera User Manual
21
Note
The origin (0, 0) of the world coordinates locates in the middle of the whole lanes detected by
the radar. You can refer to the top view of the diagram for the posions.
6.
Adjust the radar in two ways if the coordinates fed back from the radar cannot be matched with
the measured coordinates when the vehicle passes the calibraon posion.
-
Adjust the radar unl it can feed back the correct posion.
-
Adjust the X-coordinates of the calibraon points to make them adapt to the coordinates fed
back from the radar. The method is to enter the X-coordinates fed back from the radar into
the corresponding text elds when the vehicle passes the far le or far right. Adjust nely if
there is small deviaon to guarantee the radar frames and the video frames can be matched
in the eld of view.
7.
Oponal: Check Hide Calibraon Lines to hide the lines on the live view image.
8.
Click OK.
3.2.2 Auto Calibraon
Steps
1.
Click Coordinate Calibraon.
2.
Select Calibraon Mode as Auto Calibraon.
Figure 3-3 Auto Calibraon
3.
Draw the lane lines.
1) Select the lane sum.
2) Select the lane line No.
3) Click Draw Lane Line.
The selected lane line will be displayed on the live view picture.
Radar-Assisted Smart Monitoring Camera User Manual
22
4) Drag the two end points of the line or drag the whole line to adjust its posion according to
the actual scene.
5) Repeat the steps above to draw more lane lines.
4.
Click Start.
The auto calibraon starts, and you can view the calibraon status and progress. 100% means
the auto calibraon is nished.
5.
Oponal: Click End if the calibraon eect has met the requirement during the process.
6.
Oponal: Click Copy Parameters to Coordinate Mode to copy the auto calibrated coordinates to
the coordinate mode.
7.
Click OK.
3.2.3 GPS Coordinate Calibraon
The coordinates of vehicle posions can be converted to GPS coordinates to sasfy the
requirements of third party or other plaorms.
Steps
1.
Click GPS Calibraon.
Figure 3-4 GPS Coordinate Calibraon
2.
Enter the longitudes and latudes of the two calibraon points far away from the road middle
line.
3.
Enter the coordinates of the two calibraon points.
Radar-Assisted Smart Monitoring Camera User Manual
23
4.
Click OK.
3.3 Search Detected Vehicles
You can search the radar detected vehicles and export the informaon.
Steps
1.
Click Radar.
2.
View the vehicle informaon in the vehicle list.
3.
Enter the vehicle No. in the text eld, and press Enter to search the vehicle informaon.
4.
Oponal: Export the vehicle informaon.
-
Search the vehicle rst, and click Export to export the searched vehicle informaon to the
computer.
-
Click Export directly to export the informaon of all the detected vehicles to the computer.
Radar-Assisted Smart Monitoring Camera User Manual
24
Chapter 4 View Trac Stascs
4.1 Search Picture
You can search the captured pictures stored in the storage card and export the pictures you need.
Before You Start
Install the storage card, and ensure the storage status is normal.
Steps
1.
Click Picture.
2.
Set search condions.
Note
Search condions vary with dierent models. The actual device prevails.
3.
Click Search.
The searched pictures informaon will be displayed in the picture list.
Note
If you have set level 1 arming for the device, the captured pictures will not be saved in the
storage card. Go to the saving path of scene pictures to view them. You can go to Conguraon
→ Local to check the saving path.
4.
Oponal: Check picture(s) and click Download to save them to local.
The downloaded picture(s) will be marked as "Downloaded". You can go to Conguraon →
Local to check the saving path.
4.2 View Real-Time Picture
You can view the real-me captured pictures and license plate informaon.
Steps
1.
Go to Live View → Real-Time Capture .
2.
Click Arming.
3.
Select an item from the list, and you can view the capture scene picture and license plate
picture.
Radar-Assisted Smart Monitoring Camera User Manual
25
Figure 4-1 Real-Time Picture
4.
Oponal: You can also do the following operaons.
/ /
●
Level 1 Arming can only connect one client or web. The uploaded pictures
will not be stored in the storage card. The pictures in the storage card will be
uploaded to the level 1 arming.
●
Level 2 Arming can connect three clients or webs. The pictures will be
uploaded to the client/web, and stored in the storage card.
●
Disarming is to cancel the alarm status or real-me picture.
Click it to measure the license plate pixel. Click it again to disable the
measurement.
Click it to enable the ruler to measure the license plate.
Radar-Assisted Smart Monitoring Camera User Manual
26
Click it to enable manual capture.
Click it to set connuous capture parameters and the device will capture
pictures according to the set interval.
●
Capture Times: Up to ve pictures can be captured per connuous capture.
●
Interval: Up to four intervals can be set, and the default interval is 100 ms.
Display the images in full screen mode.
Capture All Open the saving path of captured pictures.
4.3 View Real-Time Trac Stascs
You can view the real-me trac stascs if the device supports this funcon.
Steps
1.
Go to Conguraon → Capture → Advanced → Trac Parameters → Trac Parameters .
2.
Check Enable.
3.
Set Interval.
4.
Go to Live View → Trac Stascs to view real-me data.
Radar-Assisted Smart Monitoring Camera User Manual
27
Chapter 5 Live View and Local Conguraon
5.1 Live View
5.1.1 Start/Stop Live View
Click to start live view. Click to stop live view.
5.1.2 Select Image Display Mode
Click to select an image display mode.
5.1.3 Select Window Division Mode
Click to select a window division mode.
5.1.4 Select Stream Type
Click to select the stream type. It is recommended to select the main stream to get the high-
quality image when the network condion is good, and select the sub-stream to get the uent
image when the network condion is not good enough. The third stream is custom.
Note
The third stream varies with dierent models. The actual device prevails.
5.1.5 Capture Picture Manually
You can capture pictures manually on the live view image and save them to the computer.
Steps
1.
Click to capture a picture.
2.
Oponal: Click Conguraon → Local → Live View Parameters and select Image Format.
3.
Oponal: Click Conguraon → Local → Picture and Clip Sengs to view the saving path of
snapshots in live view.
5.1.6 Record Manually
You can record videos manually on the live view image and save them to the computer.
Radar-Assisted Smart Monitoring Camera User Manual
28
Steps
1.
Click to start live view.
2.
Click to start recording.
3.
Click to stop recording.
4.
Oponal: Click Conguraon → Local → Record File Sengs to view the saving path of record
les.
5.1.7 Start/Stop Two-Way Audio
The device supports two-way audio with terminals, such as computers.
Before You Start
The device is equipped with an audio input interface and audio output interface, which support
connecng with the corresponding devices, such as microphones and loudspeakers.
Steps
Note
The funcon varies with dierent models. The actual device prevails.
1.
Select a window to start two-way audio.
2.
Click to start live view.
3.
Click to start two-way audio.
When speaking at the PC end, you can hear the voice at the device end and vice versa.
4.
Click to stop two-way audio.
5.1.8 Enable/Disable Audio
Enable the audio if necessary aer connecng an audio input device under the audio & video
stream. Click to enable and adjust it. Click again to disable this funcon.
Note
The funcon varies with dierent models. The actual device prevails.
5.1.9 Enable Digital Zoom
You can enable digital zoom to zoom in a certain part of the live view image.
Steps
1.
Click to start live view.
2.
Click to enable digital zoom.
3.
Place the cursor on the live view image posion which needs to be zoomed in. Drag the mouse
rightwards and downwards to draw an area.
Radar-Assisted Smart Monitoring Camera User Manual
29
The area will be zoomed in.
4.
Click any posion of the image to restore to normal image.
5.
Click to disable digital zoom.
5.1.10 Enable Regional Focus
Steps
Note
The funcon varies with dierent models. The actual device prevails.
1.
Click .
2.
Drag the cursor from the upper le corner to the lower right corner to select the area that needs
to be focused.
Result
The selected area is focused.
5.1.11 Enable Regional Exposure
Enable regional exposure to expose paral area of the live view image.
Steps
Note
The funcon varies with dierent models. The actual device prevails.
1.
Click .
2.
Click
to enable regional exposure.
3.
Drag the cursor to select an area.
The selected area will be exposed.
4.
Click to disable regional exposure.
5.
Oponal: You can also do the following operaons.
To display the drawn regional area.
To hide the drawn regional area.
5.1.12 Select Video Mode
Set the video mode when adjusng the device focus during construcon.
Click and select when the device is running normally.
Radar-Assisted Smart Monitoring Camera User Manual
30
5.2 PTZ Operaon
Click Live View. Click and click to show the PTZ control panel.
Note
●
The PTZ supports power-o memory. When the device is suddenly cut o power or restarted
normally, it can automacally return to the posion before the power cut or reboot.
●
The PTZ funcon varies with dierent models. The actual device prevails.
●
Other unmenoned buons are reserved buons.
Figure 5-1 PTZ Control Panel
Table 5-1 Buon Descripon
Buon Descripon
Adjust the PTZ speed.
/ Zoom + and Zoom -
●
Hold to zoom out the scene.
●
Hold to zoom in the scene.
/ Focus + and Focus -
●
Hold under the manual focus mode to make near objects
become clear and distant objects become vague.
●
Hold to make distant objects become clear and near
objects become vague.
/ Iris + and Iris –
Radar-Assisted Smart Monitoring Camera User Manual
31
Buon Descripon
●
Hold to increase the iris diameter when in a dark
environment.
●
Hold to decrease the iris diameter when in a bright
environment.
Lens Inializaon
It is applicable to devices with motorized lenses. You can use this
funcon when overcoming image blurs caused by overme
zooming or focusing.
Auxiliary Focus
It is applicable to devices with motorized lenses. Use this
funcon to focus the lens automacally and make images
become clear.
5.3 Local Conguraon
Go to Conguraon → Local to set the live view parameters and change the saving paths of videos,
captured pictures, scene pictures, etc.
Note
The parameters vary with dierent models. The actual device prevails.
Radar-Assisted Smart Monitoring Camera User Manual
32
Figure 5-2 Local Conguraon
Protocol Type
Select the network transmission protocol according to the actual needs.
TCP
Ensures complete delivery of streaming data and beer video quality, yet the real-me
transmission will be aected.
UDP
Provides real-me audio and video streams.
HTTP
Gets streams from the device by a third party client.
HTTPS
Gets streams in hps format.
Stream Type
Main Stream
Radar-Assisted Smart Monitoring Camera User Manual
33
Select it to get the high-quality image when the network condion is good.
Sub-Stream
Select it to get the uent image when the network condion is not good enough.
Live View Performance
Shortest Delay
The video is real-me, but its uency may be aected.
Balanced
Balanced mode considers both the real me and uency of the video.
Fluency
When the network condion is good, the video is uent.
Decoding Type
Soware Decoding
Decode via soware. It takes up more CPU resources but provides images with beer quality
when it compares to the hardware decoding.
Hardware Decoding
Decode via GPU. It takes up less CPU resources but provides images with worse quality when
it compares to the soware decoding.
Rules Informaon
If you enable the rule informaon, tracking frames will be displayed on the live view interface
when there are vehicles passing.
Feature Informaon
Enable it to display feature informaon of the target in the live view image.
Image Size
The display rao of live view.
Image Format
The saving format of manually captured images.
Record File Size
Select the packed size of the manually recorded video les. Aer the selecon, the max. record
le size is the value you selected.
Save record les to
Set the saving path for the manually recorded video les.
Save downloaded les to
Set the saving path for the download les.
Save snapshots in live view to
Set the saving path for the manually captured pictures in live view mode.
Radar-Assisted Smart Monitoring Camera User Manual
34
Save downloaded pictures to
Set the saving path for the downloaded pictures.
Save scene picture to
Set the saving path of the captured pictures in Live View → Real-Time Capture .
Save snapshots when playback to
Set the saving path for the manually captured pictures in playback mode.
Save clips to
Set the saving path for the clips.
Radar-Assisted Smart Monitoring Camera User Manual
35
Chapter 6 Playback
You can search, play back, and download videos that stored on the storage card.
Steps
1.
Click Playback.
2.
Select a channel.
3.
Select a date.
4.
Click Search.
5.
Click to start playback.
6.
Oponal: You can also do the following operaons.
Set playback me
●
Drag the me bar to the target me and click
to play the video.
●
Click the current me point showed above the me bar and enter
the target me point in the popup window. Click OK and click to
play the video.
Capture image Click
to capture an image.
Clip record Click
/ to start/stop clipping the record.
Play back in single
frame
Click
once to play back the video in one frame.
Download record a. Click
.
b. Select the start me and end me.
c. Click Search.
d. Check record les that need to be downloaded.
e. Click Download.
Stop playback Click
to stop playback.
Slow forward Click
to slow down the playback.
Fast forward Click
to speed up the playback.
Digital zoom Click
to enable digital zoom.
Click to disable digital zoom.
Adjust volume Click
to enable volume.
Radar-Assisted Smart Monitoring Camera User Manual
36
Chapter 7 Record and Capture
7.1 Set Storage Path
7.1.1 Set Storage Card
If you want to store the les to the storage card, make sure you insert and format the storage card
in advance.
Before You Start
Insert the storage card to the device.
Steps
1.
Go to Conguraon → Storage → Storage Management → HDD Management → HDD Storage .
Figure 7-1 Set Storage Card
2.
Format the storage card in two ways.
-
Check the storage card, and click Format to format it manually.
Note
For the newly installed storage card, you need to format it manually before using it normally.
-
If you want to format the storage card automacally when the card is abnormal, enable Auto-
Inialize Redundant Storage.
Note
If you enable Auto-Inialize Redundant Storage, reboot the device to take the sengs into
eect.
3.
Oponal: If the device has been connected to the plaorm, and you want to upload the storage
card informaon automacally, enable Auto-Upload Data in Redundant Storage.
4.
Click Save.
7.1.2 Set FTP
Set FTP parameters if you want to upload the captured pictures to the FTP server.
Radar-Assisted Smart Monitoring Camera User Manual
37
Before You Start
Set the FTP server, and ensure the device can communicate normally with the server.
Steps
1.
Go to Conguraon → Network → Data Connecon → FTP .
Figure 7-2 Set FTP
2.
Check Enable FTP.
3.
Select Number of Enabled FTP.
Note
You can only enable one FTP if the device does not support the violaon capture, or you should
set dierent uploaded data for each FTP respecvely.
Example
If you select FTP 1 as Upload Checkpoint Data, FTP 2 will be selected as Upload Violaon Data
by default.
4.
Set FTP Parameters.
1) Select Sever Address Type and enter corresponding informaon.
2) Enter Port.
3) Enter User Name, Password, and conrm the password.
4) Select Protocol Type.
5) Select Directory Structure.
Note
You can customize the directory structure according to your needs.
5.
Oponal: Enable upload funcons.
Note
Supported funcons vary with dierent models. The actual device prevails.
Not Upload Plate Close-up
The close-up pictures of a license plate will not be uploaded.
Upload Target Picture
Radar-Assisted Smart Monitoring Camera User Manual
38
Upload the maed pictures of the target detecon area to the FTP server.
Upload Addional Informaon to FTP
Add related informaon when uploading data to the FTP server.
6.
Select Path/Picture Name Encoding Mode.
GB2312
Chinese characters encoding.
UTF-8
UNICODE encoding.
7.
Oponal: Click FTP Test to check the FTP server.
8.
Set naming rules and separators according to the actual needs.
9.
Oponal: Edit OSD informaon which can be uploaded to the FTP server with the pictures to
make it convenient to view and disnguish the data.
10.
Click Save.
7.1.3 Set SDK Listening
The SDK listening can be used to receive the uploaded informaon and pictures of the device
arming alarm.
Before You Start
The listening service has been enabled for the SDK listening, and the network communicaon with
the device is normal.
Steps
1.
Go to Conguraon → Network → Data Connecon → Alarm Upload .
Figure 7-3 Set SDK Listening
2.
Set IP Address/Domain and Port if you need to upload the alarm informaon and pictures.
3.
Oponal: Enable the picture uploading listening if you need to upload image informaon.
4.
Select Protocol Type.
Note
Supported funcons vary with dierent models. The actual device prevails.
License Plate Upload Protocol
Radar-Assisted Smart Monitoring Camera User Manual
39
Uploads arming alarm images of the license plate. You can enable Upload Binary Image if you
need to upload images which are full of black or white pixel points. Enable Output Binary
Image in BMP Format if you want to output images in this format.
Mixed Target Upload Protocol
Uploads images of mulple targets such as humans and vehicles. You can enable the body
property to recognize clothes, bags, and other properes.
5.
Oponal: If you want to save the alarm informaon and pictures to the cloud storage, click to
set Cloud Storage. Refer to Set Cloud Storage for details.
6.
Click Save.
7.1.4 Set Arm Host
The device can upload the captured pictures via the arm host.
Steps
Note
For level 1 arm, the pictures can be uploaded normally. If uploading failed, the device will upload
again. For level 2 arm, the pictures will be uploaded once. No more upload if uploading failed. For
level 3 arm, pictures will not be uploaded.
1.
Go to Conguraon → Network → Data Connecon → Upload Arm .
Figure 7-4 Set Arm Host
2.
Select Protocol Type.
Note
Supported funcons vary with dierent models. The actual device prevails.
License Plate Upload Protocol
Uploads arming alarm images of the license plate. You can enable Upload Binary Image if you
need to upload binary images full of black or white pixel points. Enable Output Binary Image
in BMP Format if you want to output images in this format.
Radar-Assisted Smart Monitoring Camera User Manual
40
Mixed Target Upload Protocol
Uploads images of mulple targets such as humans and vehicles. You can enable the body
property to recognize clothes, bags, and other properes.
3.
Oponal: If you want to save the alarm informaon and pictures to the cloud storage, click to
set Cloud Storage. Refer to Set Cloud Storage for details.
4.
Click Save.
7.1.5 Set ISAPI Listening
ISAPI listening and SDK listening are mutually exclusive protocols. If you enable the picture
uploading listening, the device will transmit images via the SDK listening. If not, the device will
upload images via ISAPI protocol aer the ISAPI parameters are set.
Before You Start
The listening service has been enabled for the ISAPI host, and the network communicaon with
the device is normal.
Steps
1.
Go to Conguraon → Network → Data Connecon → ISAPIListen .
Figure 7-5 Set ISAPI Listening
2.
Set ANPR IP/Domain, ANPR Port, and Host URL.
3.
Oponal: Enable Upload Binary Image if you need to upload images which are full of black or
white pixel points.
Note
Enable Output Binary Image in BMP Format if you want to output images in this format.
4.
Oponal: If you want to save the alarm informaon and pictures to the cloud storage, click to
set Cloud Storage. Refer to Set Cloud Storage for details.
5.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
41
7.1.6 Set Cloud Storage
Cloud storage is a kind of network storage. It can be used as the extended storage to save the
captured pictures.
Before You Start
●
Arrange the cloud storage server.
●
You have enabled level 1 arming in Live View → Real-Time Capture .
Note
The real-me capture should be used with dedicated plaorm.
Steps
1.
Go to Conguraon → Storage → Storage Management → Cloud Storage .
Figure 7-6 Set Cloud Storage
2.
Check Enable.
3.
Select Version.
V1.0 a. Enter IP Address and Port No.
b. Enter User Name and Password.
c. Enter Cloud Storage ID and Violaon Cloud Storage ID according to the server
storage area No.
V2.0 a. Enter IP Address and Port No.
b. Enter accessKey and secretKey.
c. Enter Resource Pool ID according to the server storage area No. of uploading
pictures.
4.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
42
7.2 Set Quota
Set the video and picture rao in the storage.
Before You Start
Install the storage card.
Steps
1.
Go to Conguraon → Storage → Storage Management → HDD Quota .
Figure 7-7 Set Quota
2.
Set Capture Quota Rao and Video Quota Rao according to the actual needs.
Note
The percentage sum of the capture and video quota rao should be 100 %.
3.
Click Save.
What to do next
Format the storage card aer the sengs.
7.3 Set Record Schedule
Set record schedule to record video automacally during congured me periods.
Before You Start
Install the storage card.
Steps
1.
Go to Conguraon → Storage → Schedule Sengs → Record Schedule .
2.
Oponal: Enable the recording overwring.
When the storage is full, the earliest videos will be overwrien.
3.
Enable the record schedule.
Radar-Assisted Smart Monitoring Camera User Manual
43
Figure 7-8 Set Record Schedule
4.
Select Record Type.
5.
Drag the cursor on the me bar to set a recording me.
Note
Up to 8 me periods can be set on a me bar.
6.
Adjust the recording me.
-
Click a set recording period and enter the start me and end me in the pop-up window.
-
Drag two ends of the set recording period bar to adjust the length.
-
Drag the whole set recording period bar and relocate it.
7.
Oponal: Delete recording periods.
-
Click a set recording period and click Delete in the pop-up window.
-
Click a set recording period and click Delete on the record conguraon interface.
8.
Oponal: Click
to copy set recordings to other days.
9.
Click Save.
Result
The device will only record at the set periods.
Radar-Assisted Smart Monitoring Camera User Manual
44
Chapter 8 Encoding and Display
8.1 Set Video Encoding Parameters
Set video encoding parameters to adjust the live view and recording eect.
●
When the network signal is good and the speed is fast, you can set high resoluon and bitrate to
raise the image quality.
●
When the network signal is bad and the speed is slow, you can set low resoluon, bitrate, and
frame rate to guarantee the image uency.
●
When the network signal is bad, but the resoluon should be guaranteed, you can set low
bitrate and frame rate to guarantee the image uency.
●
Main stream stands for the best stream performance the device supports. It usually oers the
best resoluon and frame rate the device can do. But high resoluon and frame rate usually
means larger storage space and higher bandwidth requirements in transmission. Sub-stream
usually oers comparavely low resoluon opons, which consumes less bandwidth and storage
space. Third stream is oered for customized usage.
Steps
Note
The supported parameters vary with dierent models. The actual device prevails.
1.
Go to Conguraon → Video → Video Encoding → Video Encoding .
2.
Set the parameters for dierent streams.
Stream Type
Select the stream type according to your needs.
Note
The supported stream types vary with dierent models. The actual device prevails.
Bitrate
Select relavely large bitrate if you need good image quality and eect, but more storage
spaces will be consumed. Select relavely small bitrate if storage requirement is in priority.
Frame Rate
It is to describe the frequency at which the video stream is updated and it is measured by
frames per second (fps). A higher frame rate is advantageous when there is movement in the
video stream, as it maintains image quality throughout.
Resoluon
The higher the resoluon is, the clearer the image will be. Meanwhile, the network
bandwidth requirement is higher.
Radar-Assisted Smart Monitoring Camera User Manual
45
SVC
Scalable Video Coding (SVC) is an extension of the H.264/AVC and H.265 standard. Enable the
funcon and the device will automacally extract frames from the original video when the
network bandwidth is insucient.
Bitrate Type
Select the bitrate type to constant or variable.
Video Quality
When bitrate type is variable, 6 levels of video quality are selectable. The higher the video
quality is, the higher requirements of the network bandwidth.
Prole
When you select H.264 or H.265 as video encoding, you can set the prole. Selectable
proles vary according to device models.
I Frame Interval
It refers to the number of frames between two key frames. The larger the I frame interval is,
the smaller the stream uctuaon is, but the image quality is not that good.
Video Encoding
The device supports mulple video encoding types, such as H.264, H.265, and MJPEG.
Supported encoding types for dierent stream types may dier. H.265 is a new encoding
technology. Compared with H.264, it reduces the transmission bitrate under the same
resoluon, frame rate, and image quality.
3.
Click Save.
8.2 Set Image Parameters
You can adjust the image parameters to get clear image.
Steps
Note
The supported parameters may vary with dierent models. The actual device prevails.
1.
Go to Conguraon → Video → Camera Parameter → Camera Parameter .
Radar-Assisted Smart Monitoring Camera User Manual
46
Figure 8-1 Set Image Parameters
2.
Set the camera parameters.
Note
The supported parameters vary with dierent models. The actual device prevails.
General Parameter
Saturaon
It refers to the colorfulness of the image color.
Sharpness
It refers to the edge contrast of the image.
White Balance
It is the white rendion funcon of the device used to adjust the color temperature
according to the environment.
WDR Mode
Wide Dynamic Range (WDR) can be used when there is a high contrast of the bright area
and the dark area of the scene.
WDR Switch
On: Set WDR Level. The higher the level is, the higher the WDR strength is. Time: Enable
WDR according to me. Brightness: Set Light Threshold. When the brightness reaches the
threshold, WDR will be enabled.
Iris Mode
Select the iris mode as manual or auto.
Brightness Enhancement at Night
The scene brightness will be enhanced at night automacally.
Enable Defog
Radar-Assisted Smart Monitoring Camera User Manual
47
Enable defog to get a clear image in foggy days.
Light Compensaon on License Plate
Check it. The plate brightness compensaon can be realized, and various light supplement
condions can be adapted via seng license plate expectant brightness and supplement
light correcon coecient. The higher the sensivity is, the easier this funcon can be
enabled.
Enable Gamma Correcon
The higher the gamma correcon value is, the stronger the correcon strength is.
Black and White Mode at Night
When ICR is in night mode, you can check it to keep the video in black and white mode.
Video
Brightness
It refers to the brightness the image.
Contrast
It refers to the contrast of the image. Set it to adjust the levels and permeability of the
image.
Shuer Speed
If the shuer speed is quick, the details of the moving objects can be displayed beer. If
the shuer speed is slow, the outline of the moving objects will be fuzzy and trailing will
appear.
Gain
It refers to the upper limit value of liming image signal amplicaon. It is recommended
to set a high gain if the illuminaon is not enough, and set a low gain if the illuminaon is
enough.
Hue Range
Select the range to adapt to the display.
3D DNR
Digital Noise Reducon (DNR) reduces the noise in the video stream.
In Normal Mode, the higher the 3D DNR Level is, the stronger the noise will be reduced.
But if it is too high, the image may become fuzzy.
In Expert Mode, set Spaal Intensity and Time Intensity. If the space domain intensity is
too high, the outline of the image may become fuzzy and the details may lose. If the me
domain intensity is too high, trailing may appear.
2D DNR
The higher the 2D DNR Level is, the stronger the noise will be reduced. But if it is too high,
the image may become fuzzy.
Slow Shuer
Radar-Assisted Smart Monitoring Camera User Manual
48
It increases the exposure me on a single frame, which makes a camera more sensive to
the light so it can produce images even in low lux condions.
Video Standard
Select the video standard according to the actual power supply frequency.
3.
Oponal: Click Capture Test to check the image.
8.3 Set ICR
ICR adopts mechanical IR lter to lter IR in the day to guarantee the image eect, and to remove
the IR lter at night to guarantee full-spectrum rays can get through the device.
Steps
1.
Go to Conguraon → Capture → Capture Images → ICR .
2.
Select ICR Mode.
Auto Switch Switches to ICR mode automacally at night or in dark light condions.
Manual Switch Select Day-night Mode to switch to the day or night manually.
Schedule Switch Set Day-night Mode, Start Time, and End Time to switch to ICR mode only
during the set me period.
3.
Click Save.
8.4 Set ROI
ROI (Region of Interest) encoding helps to assign more encoding resources to the region of
interest, thus to increase the quality of the ROI whereas the background informaon is less
focused.
Before You Start
Please check the video encoding type. ROI is supported when the video encoding type is H.264 or
H.265.
Steps
1.
Go to Conguraon → Video → Video Encoding → ROI .
Radar-Assisted Smart Monitoring Camera User Manual
49
Figure 8-2 Set ROI
2.
Select Stream Type.
3.
Set ROI region.
1) Check Enable.
2) Select Area Code.
3) Click Draw Area.
4) Drag the mouse on the live view image to draw a xed area.
5) Select the xed area that needs to be adjusted and drag the mouse to adjust its posion.
4.
Select ROI Level and enter Area Name.
Note
The higher the ROI level is, the clearer the image of the detected area is.
5.
Click Save.
6.
Oponal: Select other area codes and repeat the steps above if you need to draw mulple xed
areas.
8.5 Set Privacy Mask
The privacy mask can be used to protect personal privacy by concealing parts of the image from
view or recording with a masked area.
Steps
1.
Go to Conguraon → Video → Video Encoding → Privacy Mask .
Radar-Assisted Smart Monitoring Camera User Manual
50
Figure 8-3 Set Privacy Mask
2.
Check Enable Privacy Mask.
3.
Enable the privacy mask area(s).
1) Check Enable.
2) Select Area Code.
3) Select Type.
4.
Draw the privacy mask area.
1) Click Draw Area.
2) In the live view image, drag the mouse to draw the privacy mask area of the selected area
code.
3) Click Stop Drawing.
4) Oponal: Click Clear to clear all the drawn areas.
Radar-Assisted Smart Monitoring Camera User Manual
51
5.
Oponal: Repeat step 3 and 4 to draw more privacy mask areas.
Note
Up to four privacy mask areas are supported.
6.
Click Save.
8.6 Set OSD
You can customize OSD informaon on the live view.
Steps
1.
Go to Conguraon → Video → Text Overlay on Video → Text Overlay on Video .
Note
The supported funcons vary with dierent models. The actual device prevails.
Figure 8-4 Set OSD
2.
Set display contents.
1) Check Display Name.
2) Enter Display Name.
3) Check Display Date, and set the me and date format.
4) Enable Display Week or Millisecond according to your needs.
3.
Oponal: Click Add and enter informaon if you want to add custom informaon.
Radar-Assisted Smart Monitoring Camera User Manual
52
Note
Up to 6 items of custom informaon can be added.
4.
Set display properes (font, color, etc.).
5.
Select Alignment.
Note
If you select Align Le or Align Right, set Min. Horizontal Margin and Min. Vercal Margin.
6.
Drag the red frames on the live view image to adjust their posions.
7.
Click Save.
Result
The set OSD will be displayed in live view image and recorded videos.
Radar-Assisted Smart Monitoring Camera User Manual
53
Chapter 9 Network Conguraon
9.1 Set IP Address
IP address must be properly congured before you operate the device over network. IPv4 and IPv6
are both supported. Both versions can be congured simultaneously without conicng to each
other.
Steps
Note
The supported parameters vary with dierent models. The actual device prevails.
1.
Go to Conguraon → Network → Network Parameters → Network Interface .
Radar-Assisted Smart Monitoring Camera User Manual
54
Figure 9-1 Set IP Address
2.
Set network parameters.
NIC Type
Select a NIC (Network Interface Card) type according to your network condion.
IPv4
Two modes are available.
DHCP
The device automacally gets the IP parameters from the network if you check DHCP. The
device IP address is changed aer enabling the funcon. You can use SADP to get the device
IP address.
Radar-Assisted Smart Monitoring Camera User Manual
55
Note
The network that the device is connected to should support DHCP (Dynamic Host
Conguraon Protocol).
Manual
You can set the device IP parameters manually. Enter IPv4 Address, IPv4 Subnet Mask, and
IPv4 Default Gateway.
IPv6
Three IPv6 modes are available.
Route Adversement
The IPv6 address is generated by combining the route adversement and the device Mac
address.
Note
Route adversement mode requires the support from the router that the device is
connected to.
DHCP
The IPv6 address is assigned by the server, router, or gateway.
Manual
Enter IPv6 Address, IPv6 Subnet Mask, and IPv6 Gateway. Consult the network
administrator for required informaon.
MTU
It stands for maximum transmission unit. It is the size of the largest protocol data unit that
can be communicated in a single network layer transacon.
The valid value range of MTU is 1280 to 1500.
Mulcast Address
Mulcast is group communicaon where data transmission is addressed to a group of
desnaon devices simultaneously. Aer seng the IP address of the mulcast host, you can
send the source data eciently to mulple receivers.
DNS
It stands for domain name server. It is required if you need to visit the device with domain
name. And it is also required for some applicaons (e.g., sending email). Set Preferred DNS
Address properly if needed.
3.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
56
9.2 Connect to ISUP Plaorm
ISUP (EHome) is a plaorm access protocol. The device can be remotely accessed via this plaorm.
Before You Start
●
Create the device ID on ISUP plaorm.
●
Ensure the device can communicate with the plaorm normally.
Steps
1.
Go to Conguraon → Network → Data Connecon → ISUP .
Figure 9-2 Connect to ISUP Plaorm
2.
Check Enable.
3.
Select Protocol Version.
4.
Select Address Type.
5.
Enter Sever IP Address, Server Port, and Device ID.
Note
You need to enter Key if you select Protocol Version as v5.0.
6.
Oponal: For protocol v5.0, you can enable Upload Binary Image if you need to upload images
which are full of black or white pixel points.
Note
Enable Output Binary Image in BMP Format if you want to output images in this format.
7.
Click Save.
8.
Oponal: View Register Status.
Radar-Assisted Smart Monitoring Camera User Manual
57
Note
When the registraon status shows online, you can add or manage the device via the plaorm
soware. Refer to its corresponding manual for details.
9.3 Set DDNS
You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the device can
be mapped to a domain name resoluon server to realize the network access via domain name.
Before You Start
●
Register the domain name on the DDNS server.
●
Set the LAN IP address, subnet mask, gateway, and DNS server parameters. Refer to "Set IP
Address" for details.
●
Complete port mapping. The default ports are 80, 8000, and 554.
Steps
1.
Go to Conguraon → Network → Network Parameters → DDNS .
Figure 9-3 Set DDNS
2.
Check Enable DDNS.
3.
Enter the server address and other informaon.
4.
Click Save.
5.
Access the device.
By Browsers Enter the domain name in the browser address bar to access the device.
Radar-Assisted Smart Monitoring Camera User Manual
58
By Client Soware Add domain name to the client soware. Refer to the client soware
manual for specic adding methods.
9.4 Set SNMP
You can set the SNMP network management protocol to get the alarm event and excepon
messages in network transmission.
Before You Start
Download the SNMP soware and manage to receive the device informaon via SNMP port.
Steps
1.
Go to Conguraon → Network → Network Parameters → SNMP .
2.
Check Enable SNMPv1/Enable SNMP v2c/Enable SNMPv3.
Note
●
The SNMP version you select should be the same as that of the SNMP soware.
●
Use dierent versions according to the security levels required. SNMP v1 is not secure and
SNMP v2 requires password for access. SNMP v3 provides encrypon and if you use the third
version, HTTPS protocol must be enabled.
3.
Set the SNMP parameters.
4.
Click Save.
9.5 Set Port
The device port can be modied when the device cannot access the network due to port conicts.
Go to Conguraon → Network → Network Parameters → Port for port sengs.
Radar-Assisted Smart Monitoring Camera User Manual
59
Figure 9-4 Set Port
HTTP Port
It refers to the port through which the browser accesses the device. For example, when the
HTTP Port is modied to 81, you need to enter hp://192.168.1.64:81 in the browser for login.
HTTPS Port
Set the HTTPS for accessing the browser. Cercate is required when accessing.
RTSP Port
It refers to the port of real-me streaming protocol.
Server Port
It refers to the port through which the client adds the device.
SADP Port
It refers to the port through which the SADP soware searches the device.
Note
●
Aer eding the port, access to the device via new port.
●
Reboot the device to take the new sengs into eect.
●
The supported ports vary with dierent models. The actual device prevails.
Radar-Assisted Smart Monitoring Camera User Manual
60
9.6 Set Email
When the email is enabled and set, the device will send an email nocaon to all designated
receivers if an alarm event is detected.
Before You Start
Set the DNS server before using the email funcon. Go to Conguraon → Network → Network
Parameters → Network Interface for DNS sengs.
Steps
1.
Go to Conguraon → Network → Data Connecon → Email .
Figure 9-5 Set Email
2.
Set email parameters.
1) Enter the sender's email informaon, including Sender, Sender's Address, SMTP Server, and
SMTP Port.
2) Select Email Encrypon.
SSL
Emails are sent aer encrypted by SSL. The SMTP port should be set as 465.
TLS
Emails are sent aer encrypted by TLS. The SMTP port should be set as 465.
Radar-Assisted Smart Monitoring Camera User Manual
61
3) Oponal: If your email server requires authencaon, check Authencaon and enter your
user name and password to log in to the server.
4) Enter the receiver's informaon, including the receiver's name and address.
5) Click Test to see if the funcon is well congured.
3.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
62
Chapter 10 Serial Port Conguraon
10.1 Set RS-485
Set RS-485 parameters if the device needs to be connected to other peripheral devices controlled
by RS-485 serial port.
Before You Start
The corresponding device has been connected via the RS-485 serial port.
Steps
Note
The number of available RS-485 serial port varies with dierent models.
1.
Go to Conguraon → System → System Sengs → Serial Port → RS-485 .
Figure 10-1 Set RS-485
2.
Set Baud Rate, Data Bit, Stop Bit, etc.
Note
The parameters should be same with those of the connected device.
3.
Set Work Mode.
Applicaon Trigger
Select it when the signal trigger devices (such as radar) are connected to the RS-485 serial
port of the device.
Transparent Channel
Select it when the other peripheral devices are connected to the RS-485 serial port of the
device for communicaon transmission.
4.
Click Save.
10.2 Set RS-232
Set RS-232 parameters if you need to debug the device via RS-232 serial port.
Before You Start
The debugging device has been connected via the RS-232 serial port.
Radar-Assisted Smart Monitoring Camera User Manual
63
Steps
1.
Go to Conguraon → System → System Sengs → Serial Port → RS-232 .
Figure 10-2 Set RS-232
2.
Set Baud Rate, Data Bit, Stop Bit, etc.
Note
The parameters should be same with those of the connected device.
3.
Select Work Mode.
Console
Select it when you need to debug the device via RS-232 serial port.
Transparent Channel
Select it, and the network command can be transmied to RS-232 control command via the
RS-232 serial port.
Narrow Bandwidth Transmission
Reserved.
4.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
64
Chapter 11 Excepon Alarm
Set excepon alarm when the network is disconnected, the IP address is conicted, etc.
Steps
Note
The supported excepon types vary with dierent models. The actual device prevails.
1.
Go to Conguraon → Event → Alarm Linkage → Excepon Event .
2.
Select the excepon type(s) and the linkage method.
3.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
65
Chapter 12 Safety Management
12.1 Manage User
The administrator can add, modify, or delete other accounts, and grant dierent permissions to
dierent user levels.
Steps
1.
Go to Conguraon → System → User Management → User List .
2.
Select Password Level.
The password level of the added user should conform to the selected level.
3.
Add a user.
1) Click Add.
2) Enter User Name and select Type.
3) Enter Admin Password, New Password, and conrm the password.
Cauon
To increase security of using the device on the network, please change the password of your
account regularly. Changing the password every 3 months is recommended. If the device is
used in high-risk environment, it is recommended that the password should be changed every
month or week.
4) Assign remote permission to users based on needs.
User
Users can be assigned permission of viewing live video and changing their own passwords,
but no permission for other operaons.
Operator
Operators can be assigned all permission except for operaons on the administrator and
creang accounts.
5) Click OK.
4.
Oponal: You can do the following operaons.
Change the password and permission Click
to change the password and permission.
Delete the user Click
to delete the user.
12.2 Set IP Address Filtering
You can set the IP addresses allowable and not allowable to access the device.
Steps
1.
Go to Conguraon → System → Security → Security Sengs .
2.
Check Enable IP Address Filtering.
Radar-Assisted Smart Monitoring Camera User Manual
66
3.
Set Filtering Mode.
Blocklist Mode
The added IP addresses are not allowed to access the device.
Allowlist Mode
The added IP addresses are allowed to access the device.
4.
Click Add, enter the IP address, and click OK.
Note
The IP address only refers to the IPv4 address.
5.
Oponal: Edit, delete, or clear the added IP addresses.
6.
Click Save.
12.3 Enable User Lock
To raise the data security, you are recommended to lock the current IP address.
Steps
1.
Go to Conguraon → System → Security → Security Service → Soware .
2.
Check Enable User Lock.
3.
Click Save.
Result
When the mes you entered incorrect passwords have reached the limit, the current IP address
will be locked automacally.
12.4 Set HTTPS
12.4.1 Create and Install Self-signed Cercate
HTTPS is a network protocol that enables encrypted transmission and identy authencaon,
which improves the security of remote access.
Steps
1.
Go to Conguraon → Network → Network Parameters → HTTPS .
2.
Select Create Self-signed Cercate.
3.
Click Create.
4.
Follow the prompt to enter Country/Region, Hostname/IP, Validity, and other parameters.
5.
Click OK.
Result
The device will install the self-signed cercate by default.
Radar-Assisted Smart Monitoring Camera User Manual
67
12.4.2 Install Authorized Cercate
If the demand for external access security is high, you can create and install authorized cercate
via HTTPS protocol to ensure the data transmission security.
Steps
1.
Go to Conguraon → Network → Network Parameters → HTTPS .
2.
Select Create cercate request rst and connue the installaon.
3.
Click Create.
4.
Follow the prompt to enter Country/Region, Hostname/IP, Validity, and other parameters.
5.
Click Download to download the cercate request and submit it to the trusted authority for
signature.
6.
Import cercate to the device.
-
Select Signed cercate is available, start the installaon directly. Click Browse and Install to
import the cercate to the device.
-
Select Create the cercate request rst and connue the installaon. Click Browse and
Install to import the cercate to the device.
7.
Click Save.
12.5 Set SSH
To raise network security, disable SSH service. The conguraon is only used to debug the device
for the professionals.
Steps
1.
Go to Conguraon → System → Security → Security Service → Soware .
2.
Disable SSH Service.
3.
Click Save.
12.6 Set RTSP Authencaon
You can improve network access security by seng RTSP authencaon.
Steps
1.
Go to Conguraon → System → Security → Security Sengs .
2.
Select RTSP Authencaon.
digest
The device only supports digest authencaon.
digest/basic
The device supports digest or basic authencaon.
3.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
68
12.7 Set Timeout Logout
You can improve network access security by seng meout logout.
Steps
1.
Go to Conguraon → System → Security → Security Service → Timeout Logout .
2.
Enable meout logout for stac page.
3.
Set Max. Timeout.
4.
Click Save.
Result
When the page stac me exceeds the set me, the device will automacally log out.
12.8 Set Password Validity Period
You can improve network access security by seng password validity period.
Steps
1.
Go to Conguraon → System → Security → Security Service → Password Validity Period .
2.
Select Validity Type.
-
Select Permanent. The password will be permanently valid.
-
Select Daily and set Password Expiry Time. It will prompt you that the password is expired
according to the set password expiry me, and you need to set the new password.
3.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
69
Chapter 13 Maintenance
13.1 View Device Informaon
Basic Informaon and Algorithms Library Version
Go to Conguraon → System → System Sengs → Basic Informaon to view the basic
informaon and algorithms library version of the device.
You can edit Device Name and Device No. The device No. is used to control the device. It is
recommended to reserve the default value.
Device Status
Go to Conguraon → System → System Sengs → Device Status to view the device status.
13.2 Log
13.2.1 Enable System Log Service
The security audit logs refer to the security operaon logs. You can search and analyze the security
log les of the device so as to nd out the illegal intrusion and troubleshoot the security events.
Security audit logs can be saved on device internal storage. The log will be saved every half hour
aer device boong. Due to limited storage space, you are recommended to save the logs on a log
server.
Steps
1.
Go to Conguraon → System → Security → Security Service → Log Audit Service .
2.
Enable system log service.
3.
Enter IP Address and Port No. of the log server.
4.
Click Save.
Result
The device will upload the security audit logs to the log server regularly.
13.2.2 Search Log
Log helps to locate and troubleshoot problems.
Steps
1.
Go to Conguraon → System → Maintenance → Log Search .
2.
Set search condions.
Radar-Assisted Smart Monitoring Camera User Manual
70
3.
Click Search.
The matched log les will be displayed on the log list.
4.
Oponal: Click Export to save the log les to your computer.
13.3 Upgrade
Upgrade the system when you need to update the device version.
Before You Start
Prepare the upgrade le. If the upgrade le is a compressed package, it needs to be decompressed
into the .dav format.
Steps
1.
Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Upgrade .
2.
Click Browse to select the upgrade le.
3.
Click Upgrade.
4.
Click OK in the popup window.
Note
The upgrade process will take 1 to 10 minutes. Do not cut o the power supply.
Result
The device will reboot automacally aer upgrade.
13.4 Reboot
When the device needs to be rebooted, reboot it via the soware instead of cung o the power
directly.
Steps
1.
Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Device
Maintenance .
2.
Click Reboot.
3.
Click OK to reboot the device.
Note
You can also click Reboot on the upper right corner of the page to reboot the device.
13.5 Restore Parameters
When the device is abnormal caused by the incorrect set parameters, you can restore the
parameters.
Radar-Assisted Smart Monitoring Camera User Manual
71
Steps
1.
Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Device
Maintenance .
2.
Select the restoraon mode.
-
Click Restore, and select the parameters to be saved instead of being restored. Click OK. Then
the parameters except the IP parameters, user parameters, and the saved parameters will be
restored to the default sengs.
-
Click Restore Factory Sengs and click OK to restore all the parameters to the factory
sengs.
3.
Click OK.
13.6 Synchronize Time
Synchronize the device me when it is inconsistent with the actual me.
Steps
1.
Go to Conguraon → System → System Sengs → Time Sengs .
2.
Select Time Zone.
3.
Select Sync Mode.
NTP Synchronizaon
Select it to synchronize the device me with that of the NTP server. Set Server IP, NTP Port,
and Interval. Click NTP Test to test if the connecon between the device and the server is
normal.
Manual Synchronizaon
Select it to synchronize the device me with that of the computer. Set me manually, or
check Sync. with computer me.
SDK
If the remote host has been set for the device, select it to synchronize me via the remote
host.
ONVIF
Select it to synchronize me via the third-party device.
No
Select it to disable me synchronizaon.
All
Select it, and you can select any mode above.
Note
The me synchronizaon modes vary with dierent models. The actual device prevails.
4.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
72
13.7 Set DST
If the region where the device is located adopts Daylight Saving Time (DST), you can set this
funcon.
Steps
1.
Go to Conguraon → System → System Sengs → DST .
2.
Check Enable DST.
3.
Set Start Time, End Time, and DST Bias.
4.
Click Save.
13.8 Debug
Note
The debug conguraons below are only provided to debug the device by the professionals.
13.8.1 Debug Device
You can enable the funcons to debug the device.
Steps
1.
Go to Conguraon → Capture → Advanced → System Service .
2.
Check the debug informaon according to your needs.
Enable Algorithm POS Informaon Debug
The algorithm POS informaon will be overlaid on the playback image when you play back
the video with the dedicated tool.
Enable Posioning Frame Debug
The posioning frames of vehicle bodies and license plates will be overlaid on the captured
pictures.
Enable Closed Posioning Frame
The boom lines of the posioning frames on the captured pictures will display. The frames
will be closed.
3.
Click Save.
13.8.2 Vehicle Capture and Recognion Service
Set the vehicle capture and recognion service to debug the device.
Steps
1.
Go to Conguraon → Capture → Advanced → Vehicle Capture and Recognion Service .
Radar-Assisted Smart Monitoring Camera User Manual
73
2.
Check the service according to your needs.
Filter Checkpoint Capture of Same Vehicle
It is used to debug the device with the same vehicle. When the same vehicle is triggered
many mes during a short period in the scene, the checkpoint pictures of the vehicle will not
be captured.
3.
Click Save.
13.8.3 Set Image Format
You can enable smartJPEG which can save the storage space without inuencing the resoluon.
Steps
1.
Go to Conguraon → Capture → Advanced → Image Service .
2.
Check smartJPEG.
3.
Click Save.
13.9 Export Parameters
You can export the parameters of one device, and import them to another device to set the two
devices with the same parameters.
Steps
1.
Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Data Export .
2.
Click Export aer Conguring Parameters.
3.
Set an encrypon password, conrm the password, and click OK.
Note
The password is used for imporng the conguraon le of the current device to other devices.
4.
Select the saving path, and enter the le name.
5.
Click Save.
13.10 Import Conguraon File
Import the conguraon le of another device to the current device to set the same parameters.
Before You Start
Save the conguraon le to the computer.
Steps
Cauon
Imporng conguraon le is only available to the devices of the same model and same version.
Radar-Assisted Smart Monitoring Camera User Manual
74
1.
Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Advanced
Sengs → Data Import .
2.
Select Imporng Method.
Note
If you select Import Part, check the parameters to be imported.
3.
Click Browse to select the conguraon le.
4.
Click Import.
5.
Enter the password which is set when the conguraon le is exported, and click OK.
6.
Click OK on the popup window.
Result
The parameters will be imported, and the device will reboot.
13.11 Export Debug File
The technicians can export the debug le to troubleshoot and maintain the device.
Steps
1.
Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Data Export .
2.
Click Export aer Debug File.
3.
Select the saving path, and enter the le name.
4.
Click Save.
13.12 Export Diagnosis Informaon
The technicians can export the diagnosis informaon to troubleshoot and maintain the device.
Steps
1.
Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Data Export .
2.
Click Export aer Diagnosis Informaon.
3.
Select the saving path, and enter the le name.
4.
Click Save.
Radar-Assisted Smart Monitoring Camera User Manual
75
Appendix A. Communicaon Matrix and Device
Command
Scan the QR code below to get the communicaon matrix of the device.
Scan the QR code below to get the device command.
Radar-Assisted Smart Monitoring Camera User Manual
76
UD29322B
