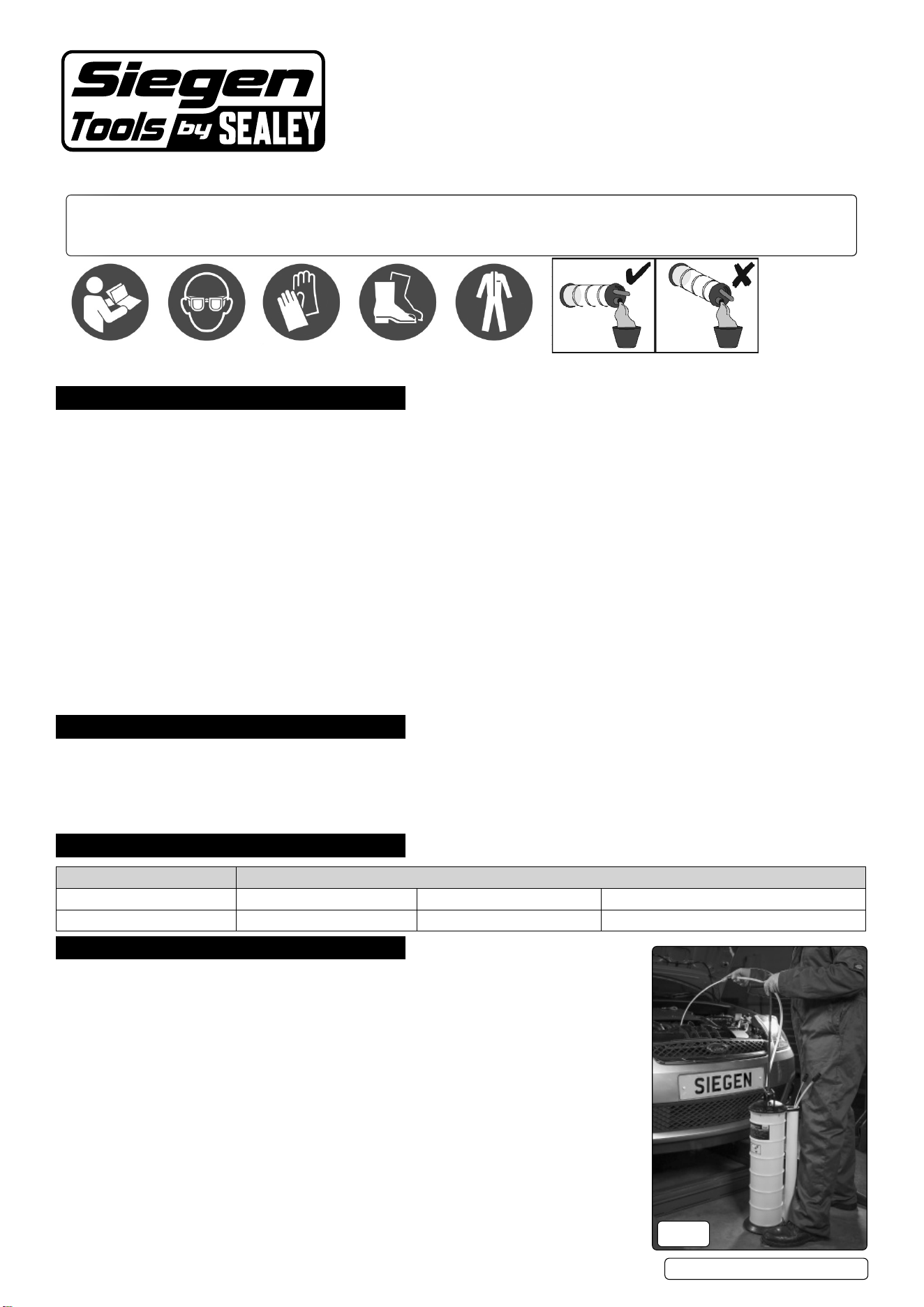

6.5L MANUAL VACUUM OIL & FLUID
EXTRACTOR PUMP
MODEL NO: S01169
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure health & safety, local authority, and general workshop practice regulations are strictly adhered to when using this
equipment.
9 Familiarise yourself with the extractors application and limitations, as well as the specic potential hazards peculiar to this product.
9 Maintain the extractor in good condition.
9 Replace or repair damaged parts. Use genuine parts only. Non authorised parts will invalidate the warranty.
9 Use only to extract engine or transmission oils, or similar NON-Corrosive uids. Unit may also be used for the transfer of water.
9 Ensure safety eye protection and protective clothing are worn when using this product.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Maintain correct balance and footing. Ensure the oor is not slippery and wear non slip shoes.
9 Keep children and unauthorised persons away from the working area.
9 Dispose of waste liquids in accordance with local authority regulations.
8 DO NOT store uids in the container. Once used to extract uid, it must be emptied into an approved receptacle as soon as possible.
8 DO NOT use to extract hazardous or harmful chemicals, solvents, petrol, diesel, kerosene, alkaline or acids. If by chance such uids
are used in the unit, it must be immediately drained and thoroughly cleaned. Use with prohibited uids will invalidate your warranty.
8 DO NOT dismantle, tamper or adapt the extractor for any purpose other than for which it is designed.
8 DO NOT use the unit if it has been dropped or mishandled, check the unit to ensure there is no damage. Keep the extractor clean and
store in a safe dry location.
8 DO NOT store in areas of high temperature, direct sunlight, rain or snow.
2. INTRODUCTION
6.5L Capacity device constructed from composite materials and suitable for the extraction of all types of engine, transmission and
lubricating oils from cars, motorcycles, marine engines, stationary engines and industrial machinery. Also suitable for low viscosity
uids such as water. Not to be used with Petrol. Supplied with Ø4, Ø6 and Ø8mm suction probes and Ø10mm x 1m extension tube. To
remove oil from a car engine, simply push the probe down the dipstick hole and pump the handle on the top of the unit. Probes can be
stored in the holder when not in use. Can also be used for draining sh tanks, basins and sinks.
3. SPECIFICATION
MODEL NO: S01169
Capacity: 6.5L Nett Weight: 2.20kg
Extension Tube: Ø10 x 1000mm Suction Probes: Ø4 x 1000mm, Ø6 x 1000mm, Ø8 x 1000mm
4. OPERATION
4.1. OIL EXTRACTION (g.1)
4.1.1. Ensure the vehicle is on level ground and run the engine for approximately 5 minutes to warm
the oil and allow any contaminants within the oil to thoroughly mix and turn the engine o.
4.1.2. Remove the vehicle’s oil dipstick.
4.1.3. Select and insert the appropriate diameter probe into the dipstick hole until it reaches the
bottom of the sump.
4.1.4. Connect the extension tube to both the pump inlet and probe.
4.1.5. Raise the handle to its highest limit and pump it fully several times to create a vacuum which
will automatically begin to extract the oil/uid. Observe the oil/uid as it rises up the chamber
and stop pumping when the uid is 6”(150mm) from the top. The unit will continue to ll and
will automatically shut o when the internal oat valve operates. DO NOT continue to pump
after the unit has shut o as this may result in liquid entering the inner pump chamber. If this
should occur refer to section 4.1.8 on how to expel uid from the pump.
4.1.6. Once completed, remove the main suction tube from the pump, pour the oil/uid into a suitable
container (the unit can be tipped, but no further than 90°, to facilitate emptying) and dispose of
it in accordance with local authority regulations.
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
DO NOT tip unit beyond 90°
FIG.1
S01169 Issue 3 (H,F) 15/05/24
Original Language Version
© Jack Sealey Limited
4.1.7. Before using the pump again press the vacuum release valve for 5 seconds to release the vacuum within the pump. This valve is
situated on the top of the unit underneath the handle.
4.1.8. In the event of uid entering the inner pump chamber it can be expelled from the unit as follows. Firstly press the vacuum release
valve for 5 seconds to release the vacuum within the pump. Seal o the uid entry/pouring hole by placing your hand over it,
then pump the handle up and down several times. Any uid that has entered the pump will be expelled from the air valve on the
underside of the unit.
4.2. OTHER FLUIDS
4.2.1. Select and insert the appropriate diameter probe into the fluid to be drained.
4.2.2. Connect the extension tube to both the pump inlet and the probe.
4.2.3. The operation of the extractor is the same as described in sections 4.1.5 to 4.1.7.
S01169 Issue 3 (H,F) 15/05/24
Original Language Version
© Jack Sealey Limited
Parts support is available for this product. Please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment. When
the product becomes completely unserviceable and requires disposal, drain any uids (if applicable) into approved
containers and dispose of the product and uids according to local regulations.
