www.dellonda.co.uk

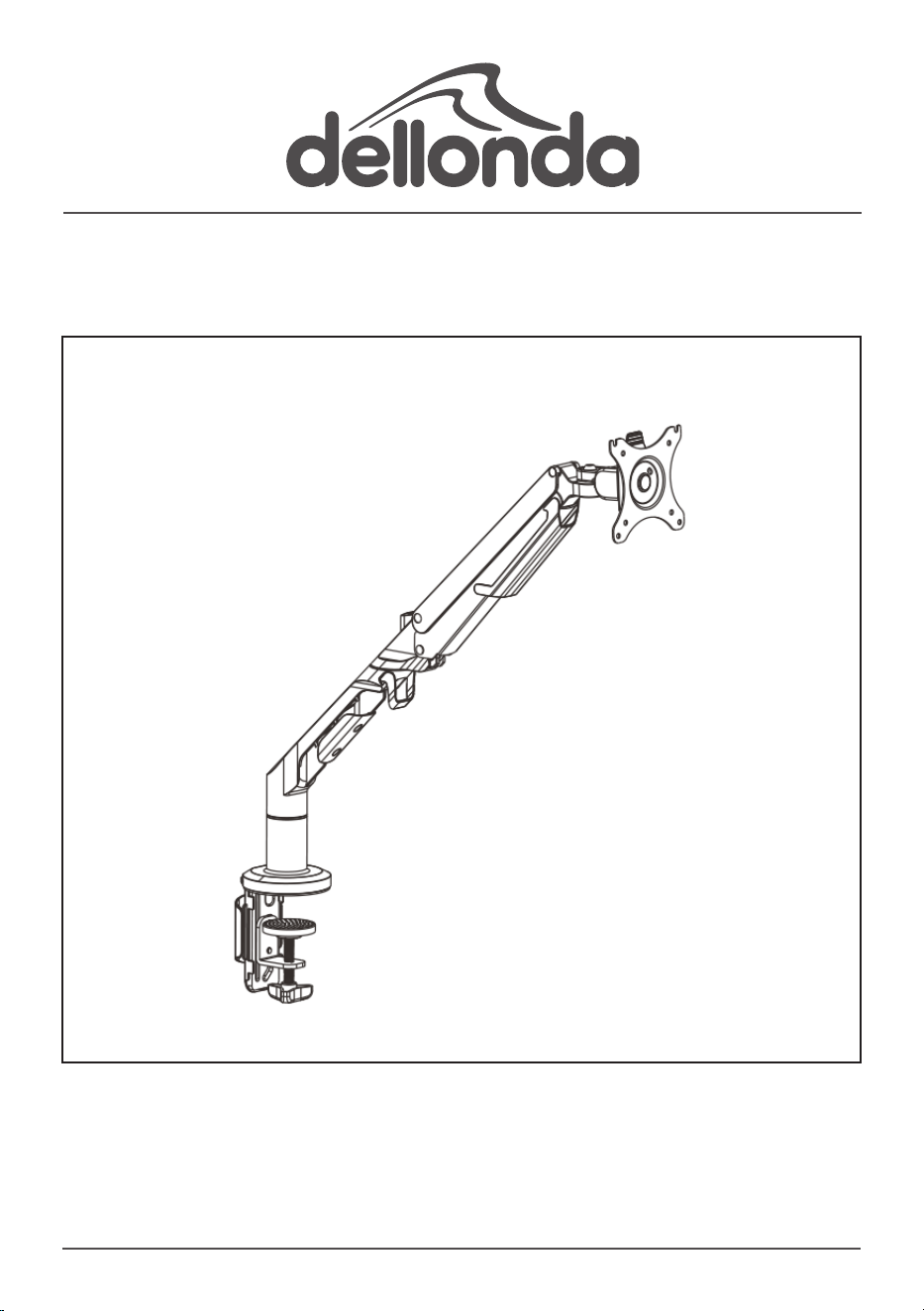

Dellonda Adjustable Single Monitor Arm
Quick Release Vesa Plate For 17-36” Screens
Model No. DH26
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used
according to these instructions, and properly maintained, give you years of trouble free performance.
DH26 Issue:2 29/07/24
2 www.dellonda.co.uk
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions.
Use the product correctly and with care for the purpose for which it is intended. Failure to do so
may cause damage and/or personal injury and will invalidate the warranty. Keep these instructions
safe for future use.

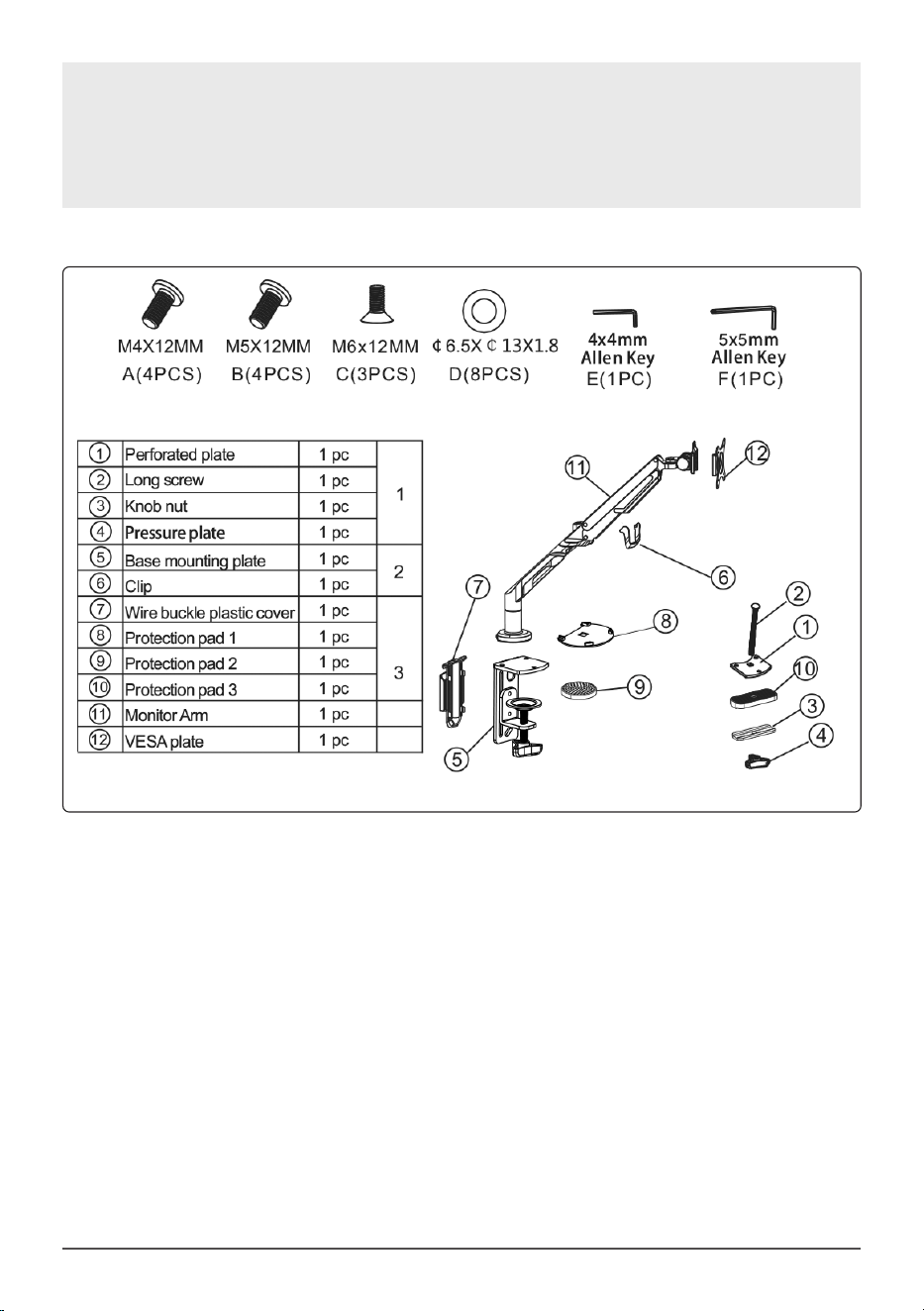

Contents
www.dellonda.co.uk 3
Installation With Clamp (Fig.2)
• For table thickness: 20-100mm.
• Select right holes according to the thickness
of the desk.
• If using the clamp to attach to the desktop.
Use the plastic cover/cable tidy to cover the
clamp and manage the cables.
g.2
About the Product
Adjustable single monitor arm creates a more
ergonomic workspace. Features quick release
VESA plate making the mounting process quick
and simple. Monitor arm easily adjusts using
gas spring system. Features 360° rotation
enabling you to convert your display orientation
from landscape to portrait. Features cable
management system ensuring a tidy desk.
Safety Instructions
• This product contains small items that could
be a choking hazard if swallowed. Keep these
items away from small children.
• Ensure instructions are read and completely
understood before attempting installation.
If unsure contact a professional installer for
assistance.
• The desk/mounting surface must be capable
of supporting the combined weight of the
mount and the display. Otherwise the structure
must be reinforced.
• Never exceed the max. load of 9kg.
• Safety gear (safety shoes) and proper tools
must be used.
• A minimum of 2 people are required for this
installation. Failure to use safety equipment
can result in property damage, serious injury
or death.
• Check xings for tightness every 2 months.
• Note: this product is intended for indoor use
only.
• WARNING! This product contains high
pressure gas spring parts. Do not put into a
re, high temperature or disassemble it.
• To ensure the sealing performance of the gas
spring the upper arm (with the spring) should
adjusted properly each month.

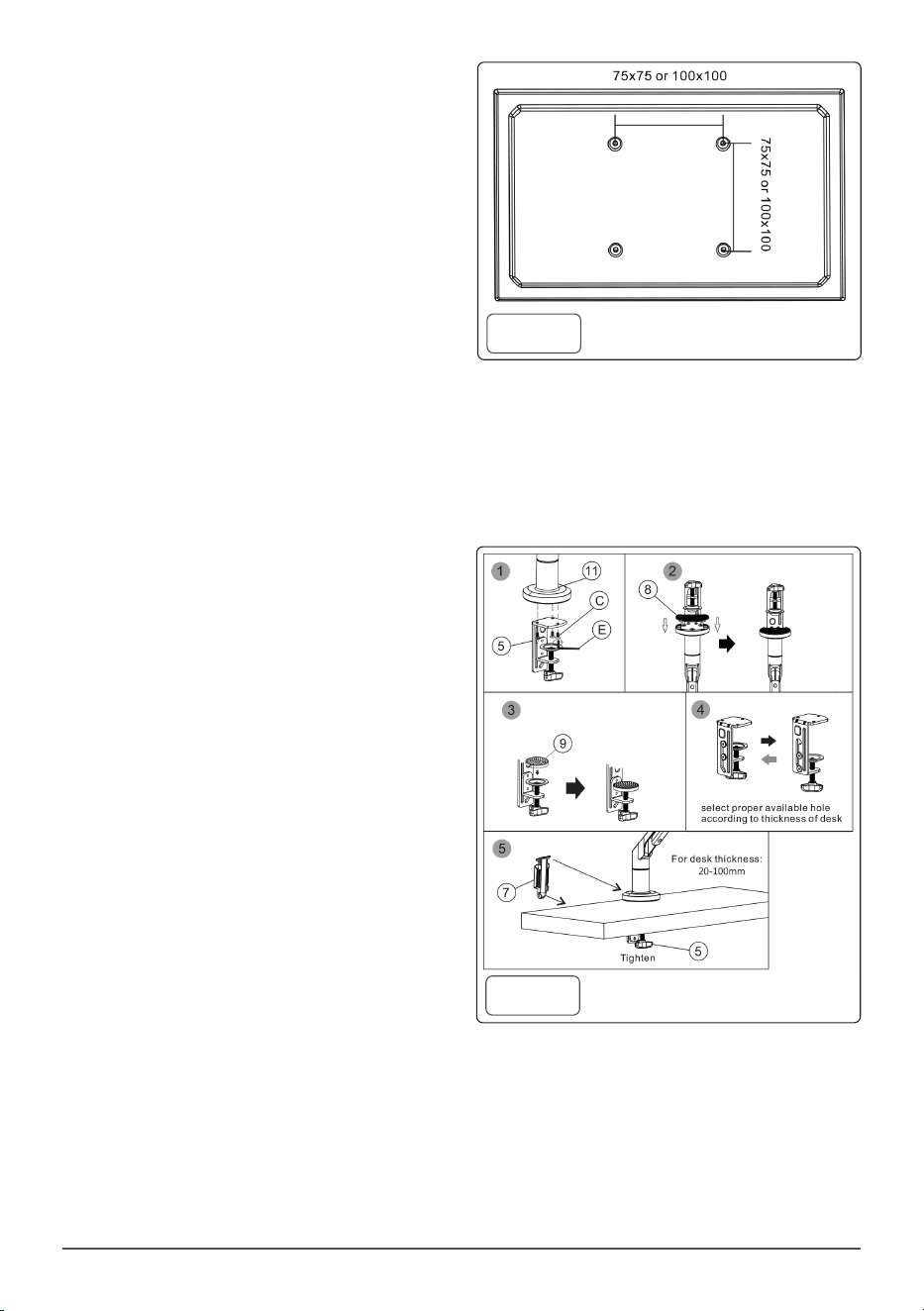

Preparation Before Assembly
• Make sure the VESA holes 100 x 100 mm or
75 x 75 mm in the monitor (g.1).
• Remove the original xed base of monitor.
g.1
4 www.dellonda.co.uk

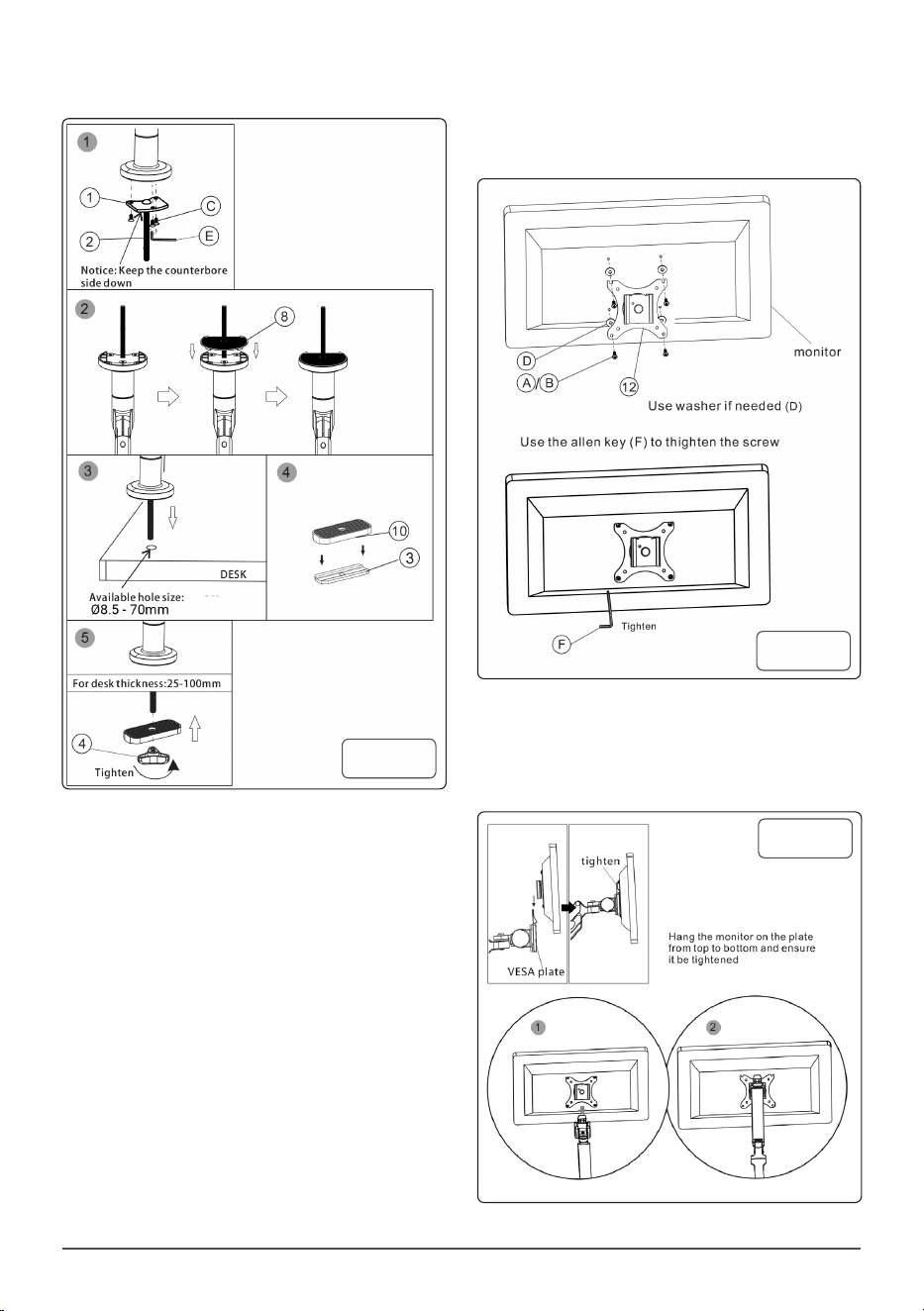

Attaching The VESA Plate
• Use the correct size washers (g.4.D) for your
monitor.
• The VESA plate must be orientated correctly
to work, see g.4.
Attaching The Monitor (Fig.5)
• Once you have attached the VESA plate to
the screen (g.4). Slide the screen into place
on the monitor arm making sure not to let the
monitor drop onto the desktop.
g.4
g.5
Installation With Bolt (Fig.3)
• For table thickness: 25-90mm
g.3
www.dellonda.co.uk 5

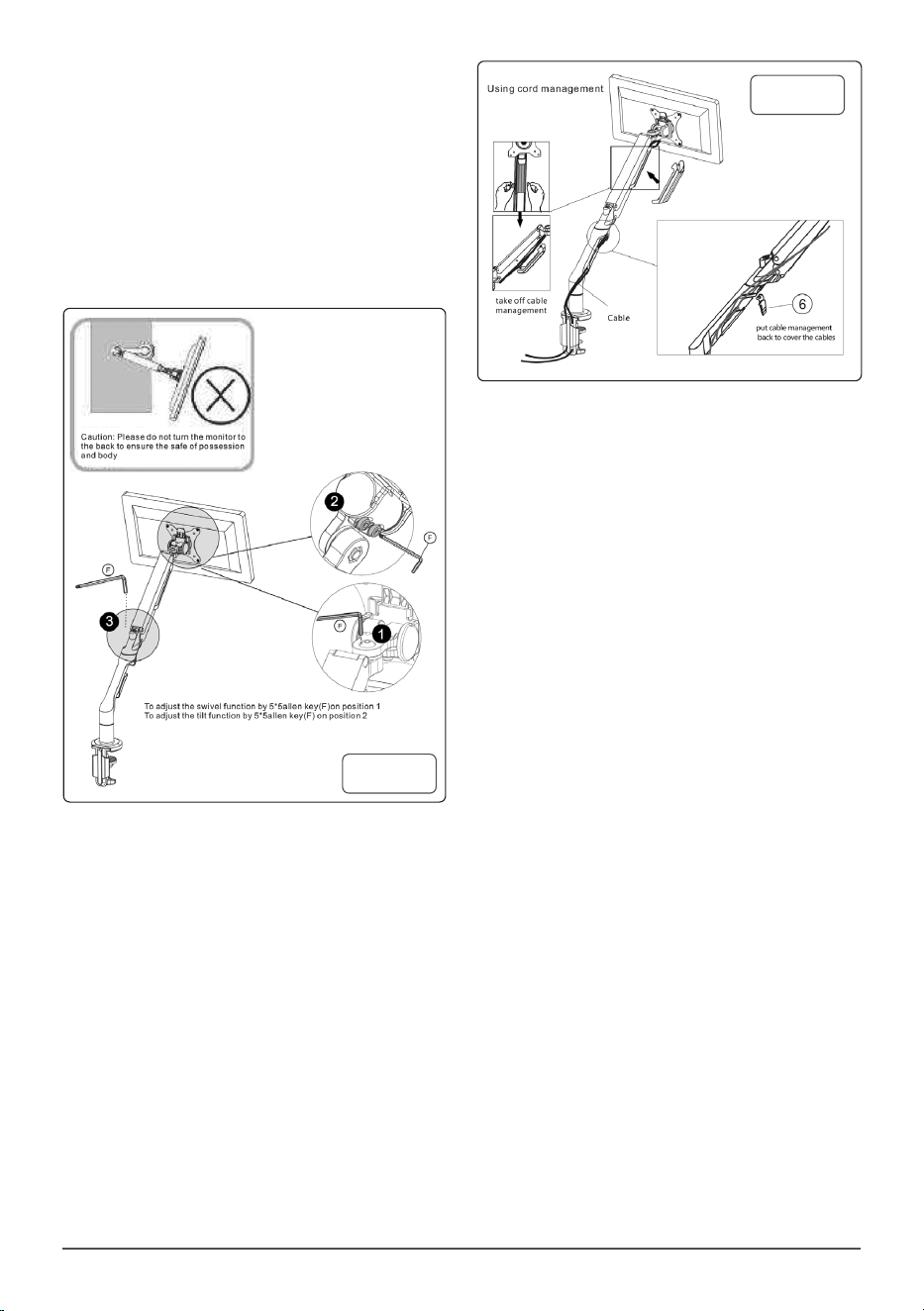

• To adjust the monitor use the supplied 5x5
Allen key (F)
• Adjust the monitor height after installing. If the
monitor keeps dropping, use the supplied 5x5
Allen key to adjust the screw on the arm in “-”
direction.
• If the monitor cannot be lowered use the
supplied 5x5 Allen key to adjust the screw on
the arm in “+” direction.
• Make the resistance of the arm equal to the
weight of the monitor.
Attaching And Using The Inbuilt
Cord Management
• Fig.7 Remove cover from top arm by gently
pulling until it comes away.
• Fig.6.8 use cable tie to secure cables in the
arm.
• To remove the cable tidy from the lower arm
remove the screw.
g.6
g.7
Environment Protection and Waste Protection and Electrical Equipment
Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of it’s useful life, please dispose of it in an environmentally friendly way. Drain
any fluids (if applicable) into approved containers, in accordance with local waste regulations.
Under the Waste Batteries and Accumulators Regulations 2009, Dellonda would like to inform the
user that this product contains one or more batteries. It is our policy to continually improve
products and we reserve the right to alter data, specifications and parts without prior notice.
No liability is accepted for incorrect use of this product. Guarantee is 12 months from purchase
date, proof of which is required for any claim.
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Supported VESA: 75 x 75, 100 x 100mm
Supported Screen Size: 17-36”
Load Capacity: 3-12kg
Tilt Range: -90 - 15°
Installation: Clamp & Grommet
Specications
