Adjustable Double Monitor Arms Quick
Release VESA Plate for 17-32” Screens
Model No. DH27
Thank you for purchasing a Dellonda product. Manufactured to a high standard, this product will, if used
according to these instructions, and properly maintained, give you years of trouble-free performance.
www.dellonda.co.uk 2
Important Information
Please read these instructions carefully. Note the safe operational requirements, warnings & cautions.
Use the product correctly and with care for the purpose for which it is intended. Failure to do so
may cause damage and/or personal injury and will invalidate the warranty. Keep these instructions
safe for future use.

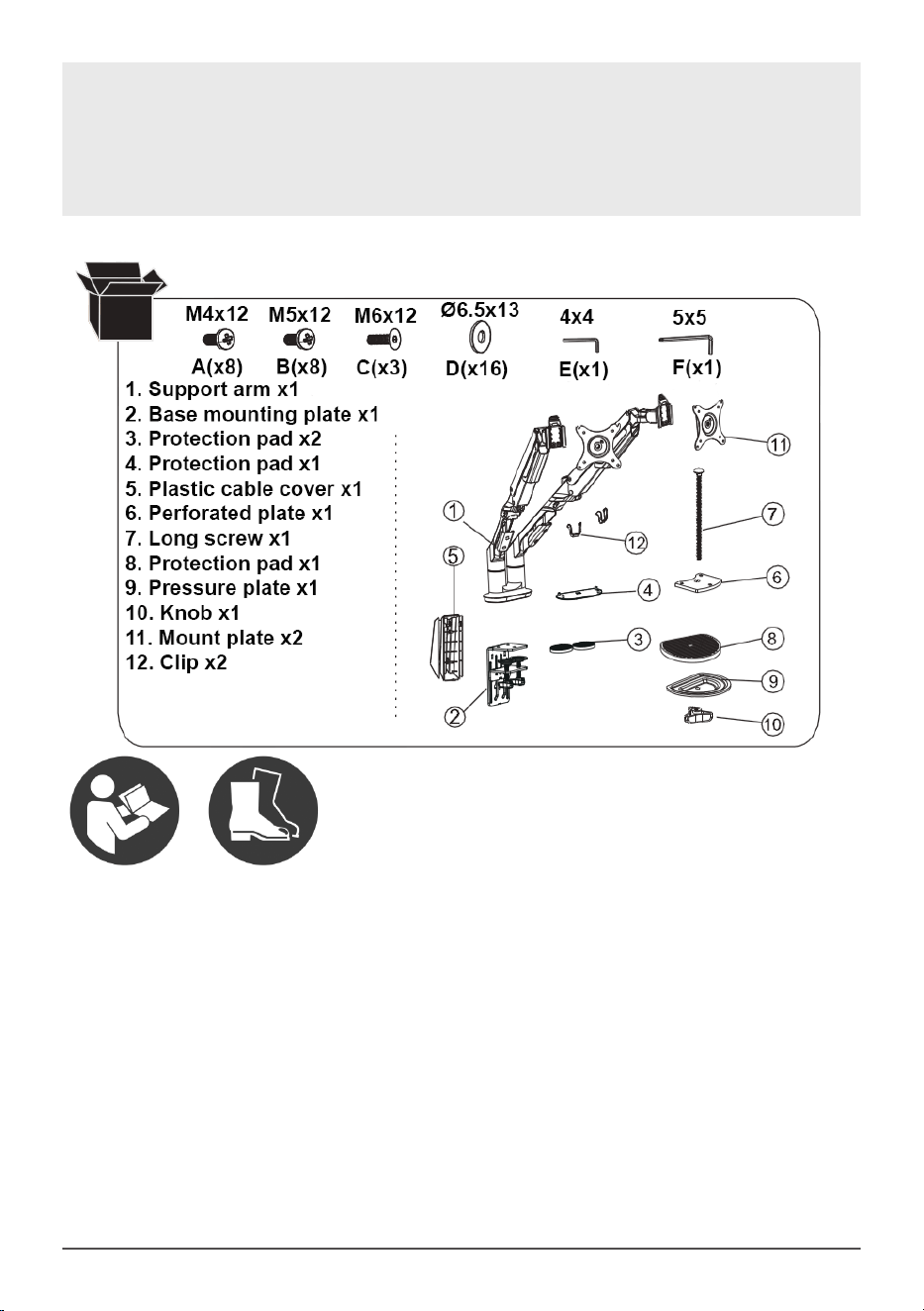

Contents
About the Product
Adjustable double monitor arm creates a more
ergonomic workspace. Features quick release
VESA plate making the mounting process quick
and simple. Monitor arms easily adjust using gas
spring system. Features 360° rotation enabling you
to convert your display orientation from landscape
to portrait. Features cable management system
ensuring a tidy desk.
Safety Instructions
• This product contains small items that could
be a choking hazard if swallowed. Keep these
items away from small children.
• Ensure instructions are read and completely
understood before attempting installation.
If unsure contact a professional installer for
assistance.
• The desk/mounting surface must be capable
of supporting the combined weight of the
mount and the display. Otherwise the structure
must be reinforced.
• Never exceed the max. load of 9kg.
• Safety gear (safety shoes) and proper tools
must be used.
• A minimum of 2 people are required for this
installation. Failure to use safety equipment
can result in property damage, serious injury
or death.
Refer to
instruction
manual
Wear
safety
footwear
www.dellonda.co.uk 3
• Check xings for tightness every 2 months.
• Note: this product is intended for indoor use
only.
• WARNING! This product contains high
pressure gas spring parts. Do not put into a
re, high temperature or disassemble it.
• To ensure the sealing performance of the gas
spring the upper arm (with the spring) should
adjusted properly each month.
Step 1: Preparation before
monitor installation
• Make sure there are VESA holes 100 x 100mm
or 75 x 75mm in the monitor. If not, the mount
can not be installed, refer to diagram above.
• Remove the original xed base of the monitor.
Be careful to not scratch the screen.

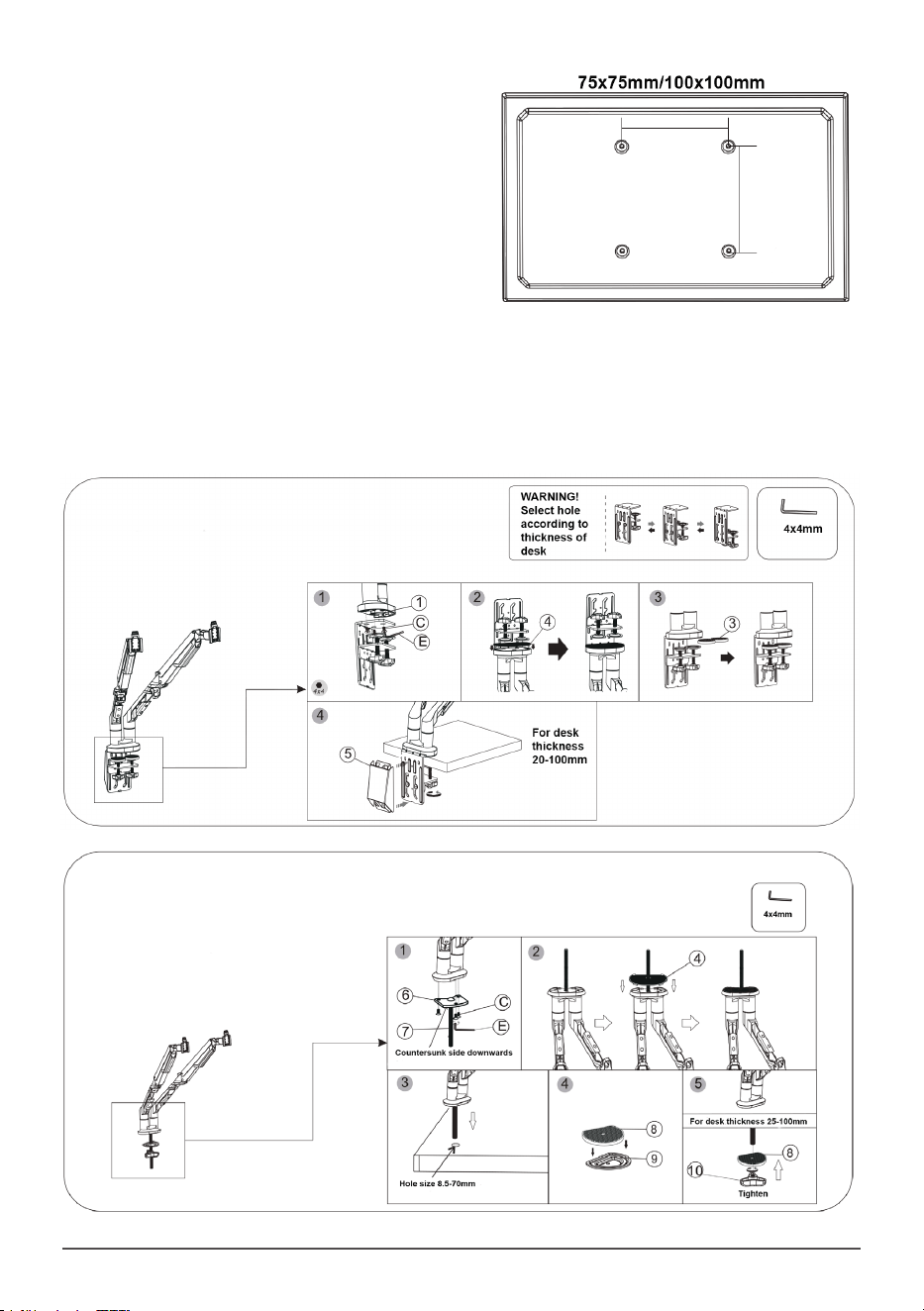

Step 2A: Option 1
Step 2B: Option 2 Grommet
www.dellonda.co.uk 4

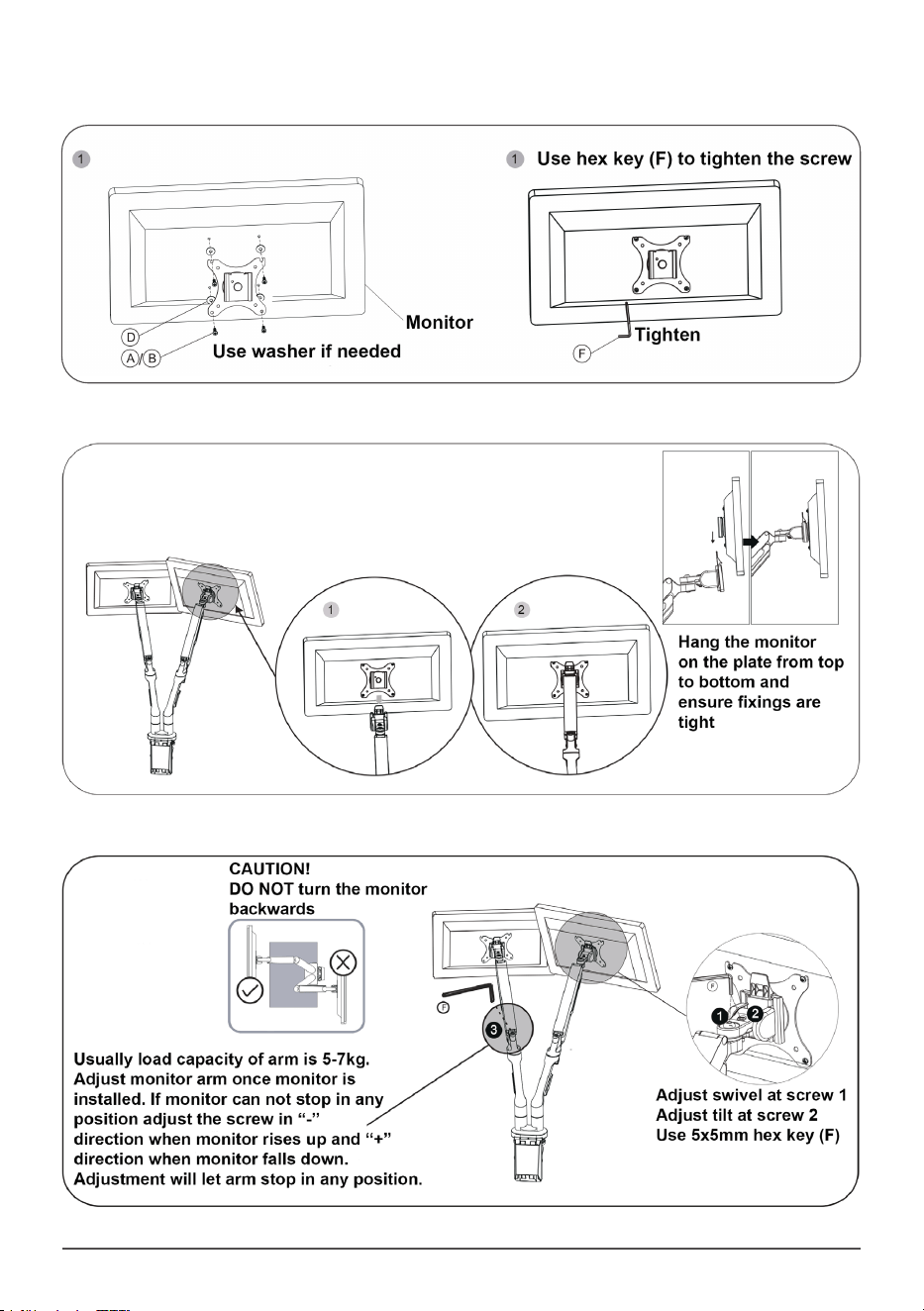

Step 3: Connect plate to
monitor
Step:4 Fit monitor to arm
Step:5 Adjust the monitor
Dellonda Limited
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Environment Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and
packaging should be sorted, taken to a recycling centre and disposed of in a manner which is
compatible with the environment. When the product becomes completely unserviceable and requires
disposal, drain any uids (if applicable) into approved containers and dispose of the product and
uids according to local regulations.
www.dellonda.co.uk 5

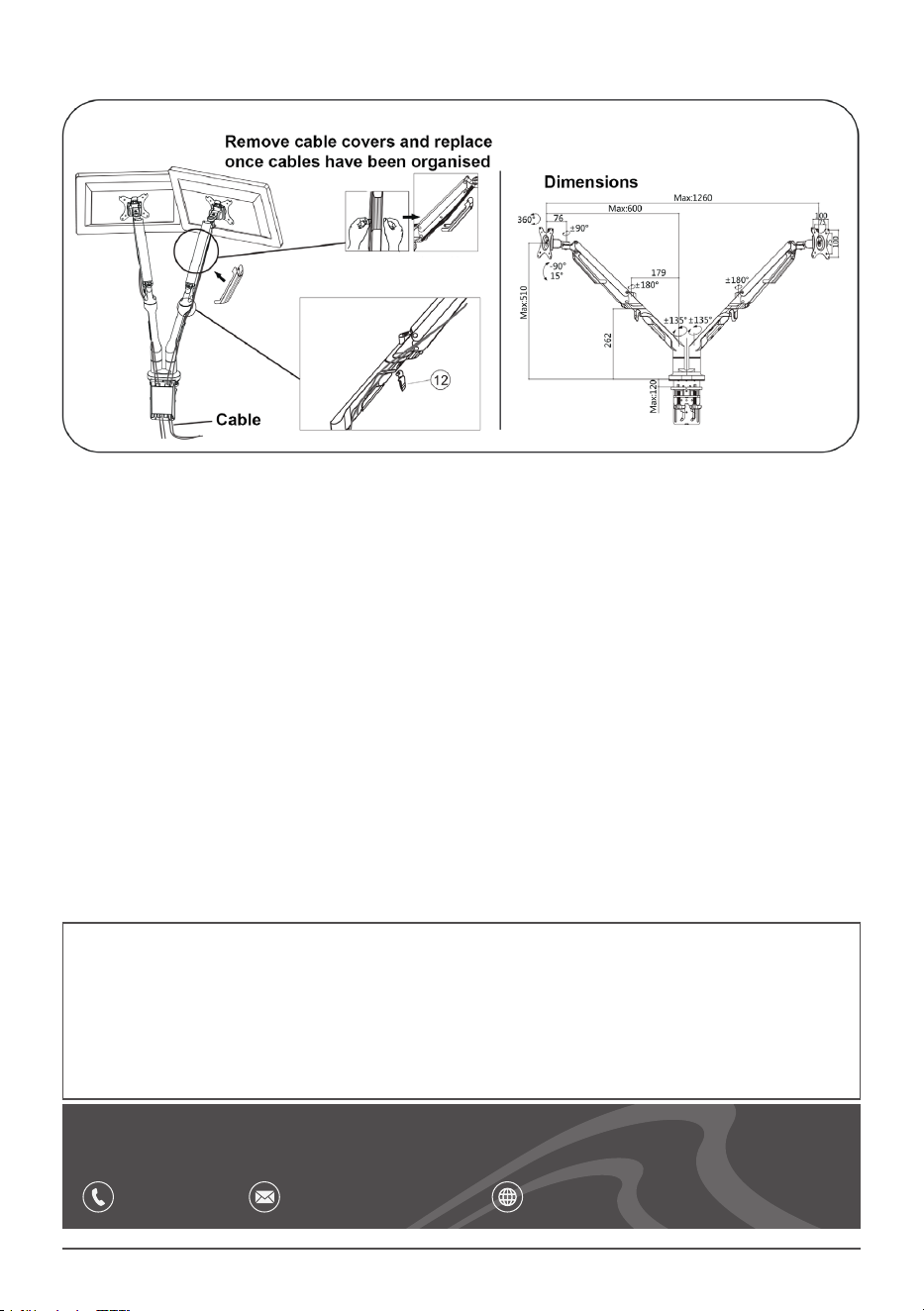

Step:6 Cable Management
Specication
• Supported VESA: 75 x 75, 100 x 100mm
• Supported screen size: 17-32”
• Load capacity: 2-9kg
• Tilt range: -90 - 15°
• Installation: Clamp & grommet
