Honda Accord Sedan 2025

User Manual - Transcript

• Page 1: 2025 ACCORD Hybrid Owners Manual
• Page 2 - English - : Event Data Recorders This vehicle is equipped with an event data recorder EDR The main purpose of an EDR is to record in certain crash or near crashlike situations such as an air bag deployment or hitting a road obstacle data that will assist in understanding how a vehicles systems performed The EDR is designed to record data related to vehicle dynamics and safety systems for a short period of time typically 30 seconds or less The EDR in this vehicle is designed to record such data as How various systems in your vehicle were operating Whether or not the driver and passenger safety belts were buckledfastened How far if at all the driver was depressing the accelerator andor brake pedal and How fast the vehicle was traveling 25 ACCORD 4D US HEV MAP3130B620001book 0 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 3 - English - : These data can help provide a better understanding of the circumstances in which crashes and injuries occur NOTE EDR data are recorded by your vehicle only if a nontrivial crash situation occurs no data are recorded by the EDR under normal driving conditions and no personal data eg name gender age and crash location are recorded However other parties such as law enforcement could combine the EDR data with the type of personally identifying data routinely acquired during a crash investigation To read data recorded by an EDR special equipment is required and access to the vehicle or the EDR is needed In addition to the vehicle manufacturer other parties such as law enforcement that have the special equipment can read the information if they have access to the vehicle or the EDR The data belongs to the vehicle owner and may not be accessed by anyone else except as legally required or with the permission of the vehicle owner Service Diagnostic Recorders This vehicle is equipped with servicerelated devices that record information about powertrain performance The data can be used to verify emissions law requirements andor help technicians diagnose and solve service problems It may also be combined with data from other sources for research purposes but it remains confidential Some diagnostic and maintenance information is uploaded to Honda upon vehicle start up 25 ACCORD 4D US HEV MAP3130B620001book 1 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 4 - English - : California Perchlorate Contamination Prevention Act The airbags seat belt tensioners and CR type batteries in this vehicle may contain perchlorate materials special handling may apply See wwwdtsccagovhazardouswasteperchlorate As you read this manual you will find information that is preceded by a symbol This information is intended to help you avoid damage to your vehicle other property or the environment NOTICE 25 ACCORD 4D US HEV MAP3130B620001book 2 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 5 - English - : System Updates Terms and Conditions General Your vehicle has an application that allows your System Updates to automatically search for Honda software updates that are specific to your System Updates and its connected devices when you set the power mode to ON via WiFi or every four 4 weeks via Telematics Control Unit TCU queries may occur more or less frequently due to internet outages retries direct user action WAP push from the server or a change in query policy on the Honda servers This application periodically transmits to our servers a limited amount of vehicle and device information Vehicle Identification Number VIN the Model Type MT Identification Number Hardware and Software Part Number Serial Number Software Version preferred language Internet Protocol IP address Transaction Log alert or update viewing update download and installation software status etc When the application finds an update from the server the application initially asks permission to download and install the update Where available in your settings menu you may elect to automatically download and install these updates or you may elect to manually update the system When your System Updates searches our servers for updates or alerts we will automatically provide you with the opportunity to update your devices or transmit the update or alert directly to your System Updates We will also maintain on our servers a log of the updates or alerts that are installed Your Personal Data Should the aforementioned information transmitted to Honda constitute personal information in your region please note that this information will be treated in strict accordance with the rules and regulations outlined in this notice as well as applicable data protection law The terms of our privacy notice are incorporated into these terms by reference and your use of system updates will be subject to the privacy notice Our privacy notice sets out information about how we and any named third parties will process any personal data we collect from you or that you provide to us via the application For further details see Hondas vehicle data privacy notice at Honda collects uses and stores your personal data for the reasons set out below to deliver the system updates and related services to you to allow us to improve and optimize the system updates products and services to respond to user questions and complaints and for internal record keeping where necessary for Hondas legitimate interests as listed below and where our interests are not overridden by your data protection rights as otherwise described in Honda s Privacy Notice and Vehicle Data Privacy Notice Protecting our legitimate business interests and legal rights includes but is not limited to use in connection with compliance regulatory auditing legal claims including disclosure of such information in connection with legal process or litigation and other ethics and compliance reporting requirements Honda will also convert personal data into anonymous data and use it normally on an aggregated statistical basis for uses such as market research and analysis to improve the system updates to analyze trends and to assess the success of software update releases Aggregated personal information does not personally identify you or any other use of the system updates Honda may share this data with Honda s worldwide support organization or affiliated Honda companies or other third parties engaged by Honda for the purposes of rendering support services in connection with system support US wwwhondacom Canada httpswwwhondacaprivacyvehicledata English httpswwwhondacafrconfidentialite politiquedeconfidentialité French Not available on all models 25 ACCORD 4D US HEV MAP3130B620001book 3 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 6 - English - : Software End User License Agreement Your vehicle comes equipped with software which is governed by the End User License Agreement in this Owners Manual and which contains a binding arbitration clause Please refer to the End User License Agreement for the terms and conditions governing your use of the installed software as well as the applications services functions and content provided through the software Your use of the installed software will serve as your consent to the terms and conditions of the End User License Agreement You may opt out within 30 days of your initial use of the Software by sending a signed written notice to HONDA at American Honda Motor Co Inc Honda Automobile Customer Service Mail Stop CHI5 1919 Torrance Blvd Torrance CA 905012746 Privacy Notice This vehicle may share location and usage information To manage this setting visit httpsmygaragehondacomsvehicledata privacysettingspagequestion To learn more about how we collect and use Personal Information including precise geolocation data please read our Privacy Notice and Vehicle Data Privacy Notice accessible at US wwwhondacom Canada wwwhondaca English wwwhondacafr French 25 ACCORD 4D US HEV MAP3130B620001book 4 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 7 - English - : A Few Words About Safety Your safety and the safety of others is very important And operating this vehicle safely is an important responsibility To help you make informed decisions about safety we have provided operating procedures and other information on labels and in this manual This information alerts you to potential hazards that could hurt you or others Of course it is not practical or possible to warn you about all the hazards associated with operating or maintaining your vehicle You must use your own good judgment You will find this important safety information in a variety of forms including Safety Labels on the vehicle Safety Messages preceded by a safety alert symbol and one of three signal words DANGER WARNING or CAUTION These signal words mean Safety Headings such as Important Safety Precautions Safety Section such as Safe Driving Instructions how to use this vehicle correctly and safely This entire book is filled with important safety information please read it carefully 3DANGER You WILL be KILLED or SERIOUSLY HURT if you dont follow instructions 3WARNING You CAN be KILLED or SERIOUSLY HURT if you dont follow instructions 3CAUTION You CAN be HURT if you dont follow instructions 25 ACCORD 4D US HEV MAP3130B620001book 5 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 8 - English - : Contents This owners manual should be considered a permanent part of the vehicle and should remain with the vehicle when it is sold This owners manual covers all models of your vehicle You may find descriptions of equipment and features that are not on your particular model The images throughout this owners manual including the front cover that depict features equipment and AudioInformation screen Meter screens are only examples and may not be representative of your particular model This owners manual is for vehicles sold in the United States and Canada The information and specifications included in this publication were in effect at the time of approval for printing Honda Motor Co Ltd reserves the right however to discontinue or change specifications or design at any time without notice and without incurring any obligation 2 Safe Driving P 41 For Safe Driving P 42 Seat Belts P 46 Airbags P 55 2 Instrument Panel P 89 Indicators P 90 Gauges and Displays P 110 2 Controls P 141 Clock P 142 Locking and Unlocking the Doors P 144 Moonroof P 168 Seats P 190 2 Features P 221 Audio System P 222 Audio System Basic Operation P 227 Customized Features P 314 Bluetooth HandsFreeLink P 337 2 Driving P 359 Before Driving P 360 Towing a Trailer P 365 Parking Your Vehicle P 488 MultiView Rear Camera P 497 2 Maintenance P 503 Before Performing Maintenance P 504 Maintenance Minder TM P 507 Checking and Maintaining Wiper Blades P 528 Climate Control System Maintenance P 544 2 Handling the Unexpected P 553 Tools P 554 If a Tire Goes Flat P 555 If the 12Volt Battery Is Dead P 573 Shift Lever Does Not Move P 575 Fuses P 586 Emergency Towing P 592 Refueling P 595 2 Information P 597 Specifications P 598 Identification Numbers P 600 Emissions Testing P 603 Warranty Coverages P 605 Open Source License P 610 25 ACCORD 4D US HEV MAP3130B620001book 6 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 9 - English - : Contents Child Safety P 74 Exhaust Gas Hazard P 87 Safety Labels P 88 Opening and Closing the Trunk P 159 Security System P 162 Windows P 165 Operating the Switches Around the Steering Wheel P 170 Mirrors P 188 Interior Convenience Items P 200 Climate Control System P 216 Audio Error Messages P 294 General Information on the Audio System P 295 When Driving P 366 Honda Sensing P 399 Braking P 478 Refueling P 499 Fuel Economy and CO Emissions P 502 Maintenance Under the Hood P 515 Replacing Light Bulbs P 526 Checking and Maintaining Tires P 531 12Volt Battery P 541 Remote Transmitter Care P 543 Cleaning P 545 Accessories and Modifications P 551 Handling of the Jack P 568 Power System Wont Start P 569 Overheating P 576 Indicator Coming OnBlinking P 579 If You Cannot Unlock the Fuel Fill Door P 593 If You Cannot Open the Trunk P 594 Devices that Emit Radio Waves P 601 Reporting Safety Defects P 602 Authorized Manuals P 608 Customer Service Information P 609 Quick Reference Guide P 8 Safe Driving P 41 Instrument Panel P 89 Controls P 141 Features P 221 Driving P 359 Maintenance P 503 Handling the Unexpected P 553 Information P 597 Index P 612 25 ACCORD 4D US HEV MAP3130B620001book 7 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 10 - English - : Quick Reference Guide Quick Reference Guide Visual Index POWER Button P170 Climate Control System P216 Hazard Warning Button System Indicators P90 Gauges P110 Audio System P227 Rear Defogger P184 Heated Door Mirror Button P184 Driver Information Interface P115 118 Front Seat Heater Buttons P213 Front Seat Heaters and Seat Ventilation Buttons P214 25 ACCORD 4D US HEV MAP3130B620001book 8 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 11 - English - : Quick Reference Guide Headlights Turn Signals P173 174 Deceleration Paddle Selector P376 Left Selector Wheel P225 Wipers Washers P181 Lane Keeping Assist System LKAS Button P452 Interval Button P442 Steering Wheel Adjustments P187 Heated Steering Wheel P212 Canadian models Deceleration Paddle Selector P376 Horn Press an area around Adaptive Cruise Control ACC with Low Speed Follow Buttons P429 Audio Remote Controls P225 Bluetooth HandsFreeLink System Buttons P337 Right Selector Wheel P119 Not available on all models 25 ACCORD 4D US HEV MAP3130B620001book 9 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 12 - English - : Visual Index Quick Reference Guide Power Window Switches P165 Master Door Lock Switch P157 Memory Buttons P186 SET Button P186 Door Mirror Controls P189 Passenger Airbag Off Indicator P71 Rearview Mirror P188 Drivers Front Airbag P58 Passengers Front Airbag P58 Shift Lever P374 USB Ports P223 Glove Box P202 Trunk Main Switch P161 Wireless Charger P208 Drive Mode Switch P380 e Button P17 Automatic Brake Hold Button P483 Electric Parking Brake Switch P366 Interior Fuse Box P588 Hood Release Handle P516 Trunk Opener P159 25 ACCORD 4D US HEV MAP3130B620001book 10 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 13 - English - : Quick Reference Guide Side Curtain Airbags P69 Interior Light P200 Grab Handle Rear Seat P194 Rear Seat Heater Buttons P215 Rear Side Airbags P66 Side Airbags P66 Seat Belt to Secure a Child Seat P84 Seat Belt Installing a Child Seat P82 LATCH to Secure a Child Seat P79 Front Seat P190 USB Ports P223 Seat Belts P46 Sun Visors Knee Airbags P63 Vanity Mirrors Interior Light P200 Map Lights P201 Moonroof Switch P168 Sunglasses Holder P204 SOS Button P357 Coat Hook P205 Accessory Power Socket P207 Not available on all models 25 ACCORD 4D US HEV MAP3130B620001book 11 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 14 - English - : Visual Index Quick Reference Guide Maintenance Under the Hood P515 Windshield Wipers P181 528 Door LockUnlock Control P146 Power Door Mirrors P189 Tires P531 555 Front Turn Signal Lights P173 526 Headlights P174 526 ParkingDaytime Running Lights P177 526 Front Side Marker Lights P526 Side Turn SignalEmergency Indicator Lights P174 526 25 ACCORD 4D US HEV MAP3130B620001book 12 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 15 - English - : Quick Reference Guide HighMount Brake Light P527 Emergency Trunk Opener P161 OpeningClosing the Trunk P159 Trunk Release Button P160 Brake Lights P527 Rear Turn Signal Lights P527 How to Refuel P500 MultiView Rear Camera P497 Rear License Plate Light P527 Rear Side MarkerTaillights P527 BackUp Lights P527 Taillights P527 Rear Turn Signal Lights P527 Not available on all models 25 ACCORD 4D US HEV MAP3130B620001book 13 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 16 - English - : Quick Reference Guide SPORT HYBRID iMMD intelligent MultiMode Drive Your SPORT HYBRID iMMD vehicle uses both an electric motor and a gasoline engine as propulsion sources with the electric motor receiving electricity from an internal High Voltage battery andor internal generator The High Voltage battery is charged from the generator driven by the engine or regenerative braking When driving your vehicle is propelled exclusively by the electric motor exclusively by the gasoline engine or by a combination of the two The system selects which propulsion source is most appropriate and automatically switches to it Under certain circumstances pressing the e button can manually enable EV driven only on electricity mode Energy efficiency As with a gasolinepowered vehicle hybrid vehicle fuel efficiency and driving range is most impacted by your driving style Aggressive acceleration and highspeed driving can easily trigger the system to switch the propulsion source to the gasolinepowered engine In addition heavy climate control system use negatively affects vehicle range and efficiency Either of these use patterns will more quickly reduce the High Voltage batterys state of charge Battery types There are two types of batteries used in this vehicle a standard 12volt battery that powers the airbags the interior and exterior lights and other standard 12volt systems and a high voltage battery that is used to power the propulsion motor and recharge the 12volt battery 25 ACCORD 4D US HEV MAP3130B620001book 14 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 17 - English - : Quick Reference Guide SPORT HYBRID iMMD SYSTEM MAIN COMPONENTS Gasoline Engine Runs the generator and under certain conditions drives the wheels directly Generator Starts the engine and generates electric power when driven by the gasoline engine to supply electricity to power the electric motor andor to charge the High Voltage battery Electric Motor Provides propulsion to drive the wheels in conjunction with the gasoline engine in certain conditions and provides electricity to the High Voltage battery through regenerative braking High Voltage Battery Provides electrical storage and serves as a power source for the electric motor Learning about the High Voltage batterys characteristics will help you get the best handling and maximize the range of your electric vehicle P398 High Voltage Battery Generator amp Electric Motor Gasoline Engine 25 ACCORD 4D US HEV MAP3130B620001book 15 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 18 - English - : Quick Reference Guide Operating mode Electric Vehicle EV Hybrid HV Engine Direct Drive Regeneration Driving state Stopped or driven at low speeds Only the electric motor provides propulsion to the wheels Driven in highload conditions eg when accelerating going uphill The Electric Motor provides propulsion to the wheels The gasoline engine drives the generator supplying electricity to the electric motor for added propulsion or to the High Voltage battery for charging Driven in highspeed lowload conditions The gasoline engine provides propulsion to the wheels The High Voltage battery supplies electricity to the electric motor for added propulsion The electric motor provides electricity to the High Voltage battery through regenerative braking The accelerator pedal is released and the vehicle is decelerating The electric motor provides electricity to the High Voltage battery through regenerative braking Power Flow Monitor Electric motor StoppedRunning Running GeneratingRunning Regenerating Generator Stopped Generating No Output StoppedNo Output Engine Stopped Running Running StoppedNo Output High Voltage battery Discharge ChargingDischarge ChargingDischarge Charging Vehicle Speed Time 25 ACCORD 4D US HEV MAP3130B620001book 16 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 19 - English - : Quick Reference Guide e Button AUTO Mode When driving your vehicle is propelled exclusively by the electric motor exclusively by the gasoline engine or by a combination of the two The system selects which propulsion source is most appropriate and automatically switches to it EV Mode When EV mode is activated your vehicle is propelled exclusively by the electric motor When you press the e button and select EV mode EV mode is enabled and the EV mode indicator comes on When you press the e button again and select AUTO mode the AUTO mode indicator comes on Shifts in vehicle driving or road conditions may automatically cancel EV mode andor keep the system from manually switching into EV mode When this happens the beeper sounds and a message appears on the driver information interface CHARGE Mode When CHARGE mode is activated the engine starts and the High Voltage battery begins charging When you press and hold the e button CHARGE mode is enabled and the CHARGE mode indicator comes on When you press and hold the e button again and select AUTO mode the AUTO mode indicator comes on By pressing the e button you can select a mode to change to and the indicator for the selected mode will come on Shifts in vehicle driving or road conditions may automatically cancel CHARGE mode andor keep the system from manually switching into CHARGE mode When this happens the beeper sounds and a message appears on the driver information interface AUTOEVCHARGE Mode Indicator Driver Information Interface e Button 25 ACCORD 4D US HEV MAP3130B620001book 17 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 20 - English - : Quick Reference Guide Regenerative Energy and Regenerative Braking When decelerating without the accelerator being depressed or the brake pedal being applied or while driving downhill the electric motor acts as a generator that recovers a portion of the electrical energy that was used to accelerate the vehicle This regenerative braking slows the vehicle in a manner similar to engine braking in a gasolinepowered vehicle Auto Engine StopStart Your vehicles gasoline engine automatically stops running during vehicle operation or restarts while the vehicle is stationary when it is appropriate In the following cases however auto engine stop may not activate The vehicle momentarily needs additional power for aggressive acceleration or driving uphill or at high speed The climate control system is in heavy use The High Voltage battery temperature is high or low The High Voltage battery is too low on charge Sounds Unique to the SPORT HYBRID iMMD System When you first start driving this vehicle you will likely hear some unfamiliar sounds particularly when you turn on the power system or while you are driving or accelerating from a stop Some of these sounds are unique to this vehicles powertrain fuel and climate control systems others are similar to sounds generated by conventional automobiles that typically are masked by louder noises absent from a vehicle of this design These sounds are not a cause for concern and you will soon recognize them as normal and thus be able to detect any new or unusual noise should one develop After shutting off the engine you may hear certain noises coming from the vehicle Heres the lowdown Noise from Under Vehicle This noise is caused by the vacuum pump inside the fuel evaporation leakage check module ELCM Depending on conditions the pump will come on for about 15 minutes about 5 to 10 hours after engine shutoff This noise is just normal vehicle operation and doesnt indicate a vehicle problem When regenerative braking is in operation Motor High Voltage Battery 25 ACCORD 4D US HEV MAP3130B620001book 18 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 21 - English - : Quick Reference Guide Safety Precautions Do not touch the High Voltage system Attempting to take a High Voltage system component apart or disconnect one of its wires can cause severe electrical shock Make sure that any maintenance or repairs to the High Voltage system are performed by a Honda dealer If a crash occurs Be careful of electric shock hazard uIf a severe crash damages your vehicles High Voltage system there is a possibility of electrical shock due to exposed High Voltage components or wires If this happens do not touch any of the High Voltage system components or any of its orange wires Avoid contact with High Voltage battery fluid uThe High Voltage battery contains a flammable electrolyte that could leak as a result of a severe crash Avoid skin or eye contact with the electrolyte as it is corrosive If you accidentally come into contact with the electrolyte rinse the exposed skin or flush your eyes with copious amounts of water for at least five minutes and seek medical attention immediately Use a fire extinguisher for an electrical fire uAttempting to extinguish an electrical fire with even a small quantity of water from a garden hose for instance can be dangerous Any time the vehicle is damaged in a crash have it repaired by a dealer Emergency Shutdown System for the High Voltage System If the vehicle is involved in a crash the emergency shutdown system will activate depending on the severity of the impact When the system activates the High Voltage system automatically shuts down and the vehicle can no longer move under its own power To return the High Voltage system back to normal operation consult a dealer Honda collects and recycles High Voltage batteries used in its vehicles consult a dealer for more information Do not cover the air intake If the air intake is obstructed during vehicle operation the High Voltage battery can become too hot To protect the battery the system may start to limit the batterys output and cause the power system and 12volt battery charging system indicators to come on Air Intake 25 ACCORD 4D US HEV MAP3130B620001book 19 ページ ２０２４年７月９日　火曜日　午後７時１６分

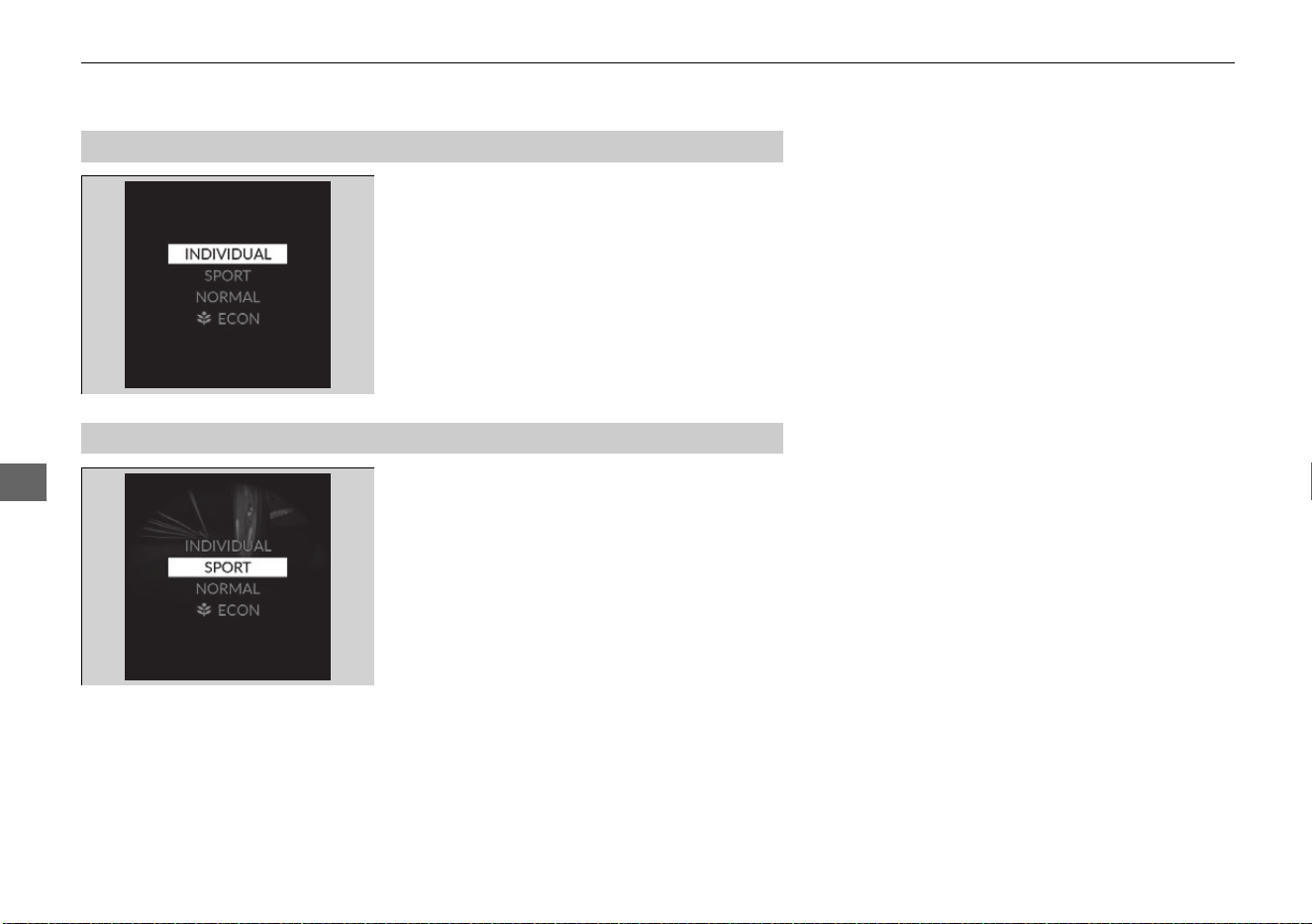

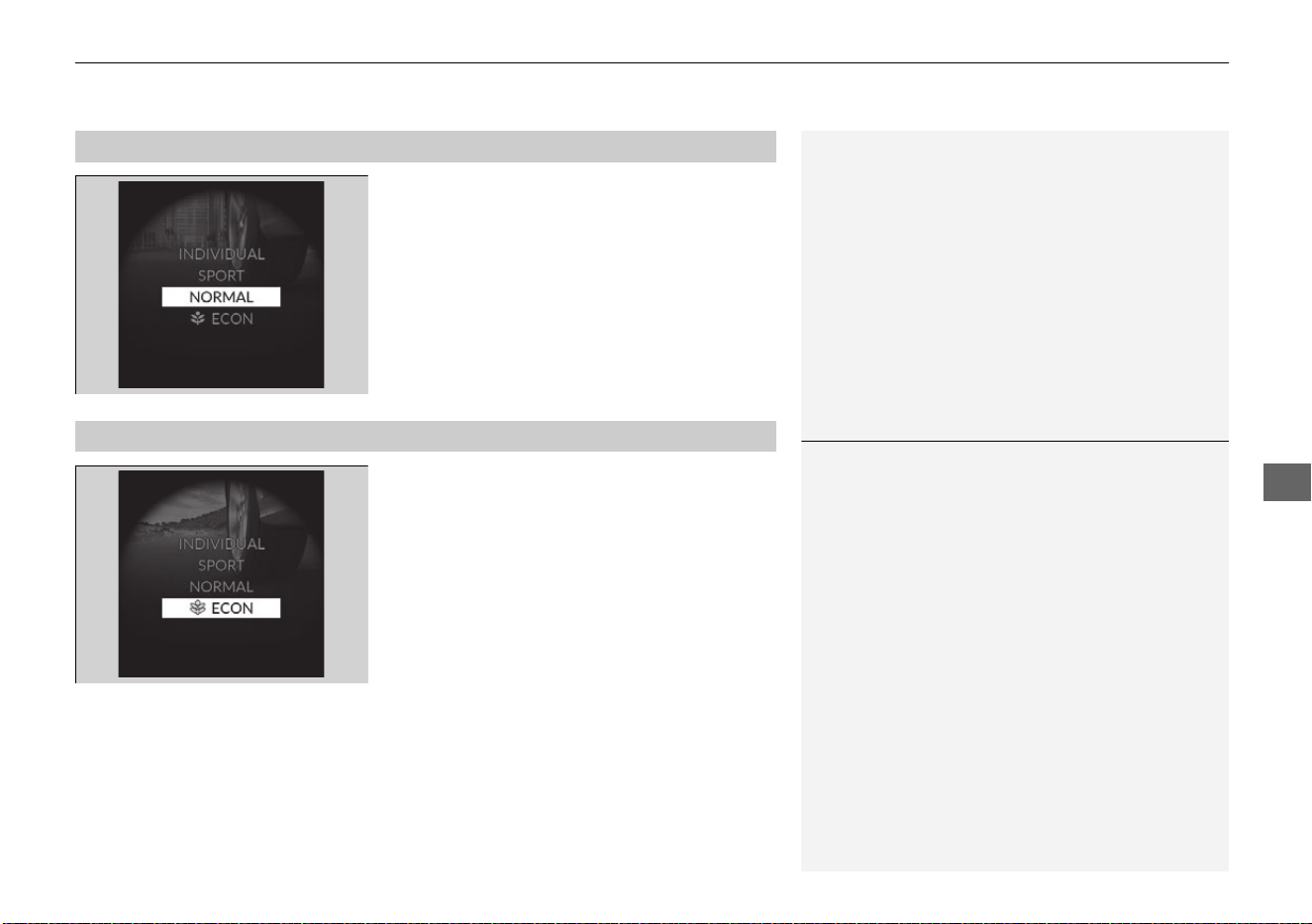

• Page 22 - English - : Quick Reference Guide Eco Assist System P 380 Ambient Meter With SPORT mode off the color of the ambient meter changes to green to indicate that the vehicle is being driven in a fuelefficient manner DRIVE MODE Switch P380 Select the ECON mode to help maximize fuel economy ECON Mode Indicator P102 Comes on when the ECON mode is selected Ambient Meter 25 ACCORD 4D US HEV MAP3130B620001book 20 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 23 - English - : Quick Reference Guide Safe Driving P 41 Airbags P 55 Your vehicle is fitted with airbags to help protect you and your passengers during a moderatetosevere collision Child Safety P 74 All children 12 and younger should be seated in the rear seat Smaller children should be properly restrained in a forwardfacing child seat Infants must be properly restrained in a rearfacing child seat Exhaust Gas Hazard P 87 Your vehicle emits dangerous exhaust gases that contain carbon monoxide Do not run the engine in confined spaces where carbon monoxide gas can accumulate Before Driving Checklist P 45 Before driving check that the front seats head restraints steering wheel and mirrors have been properly adjusted Seat Belts P 46 Fasten your seat belt and sit upright well back in the seat Check that your passengers are wearing their seat belts correctly Fasten your lap belt as low as possible 25 ACCORD 4D US HEV MAP3130B620001book 21 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 24 - English - : Quick Reference Guide Instrument Panel P89 Indicators P90 Gauges P110 Driver Information Interface P115 118 HeadUp Display P135 Shift Position IndicatorTransmission System Indicator P96 97 Deceleration Paddle Selector Indicator P97 Fuel Gauge P111 Driver Information Interface Right Side Area P118 POWER Gauge P111 CHARGEDECEL Gauge P111 Speedometer P110 Traffic Sign Recognition System P113 Odometer P111 High Voltage Battery Charge Level Gauge P112 Driver Information Interface Left Side Area P115 Outside Temperature P113 HeadUp Display You can change the gauge design 2 Change gauge design P134 25 ACCORD 4D US HEV MAP3130B620001book 22 ページ ２０２４年７月９日　火曜日　午後７時１６分

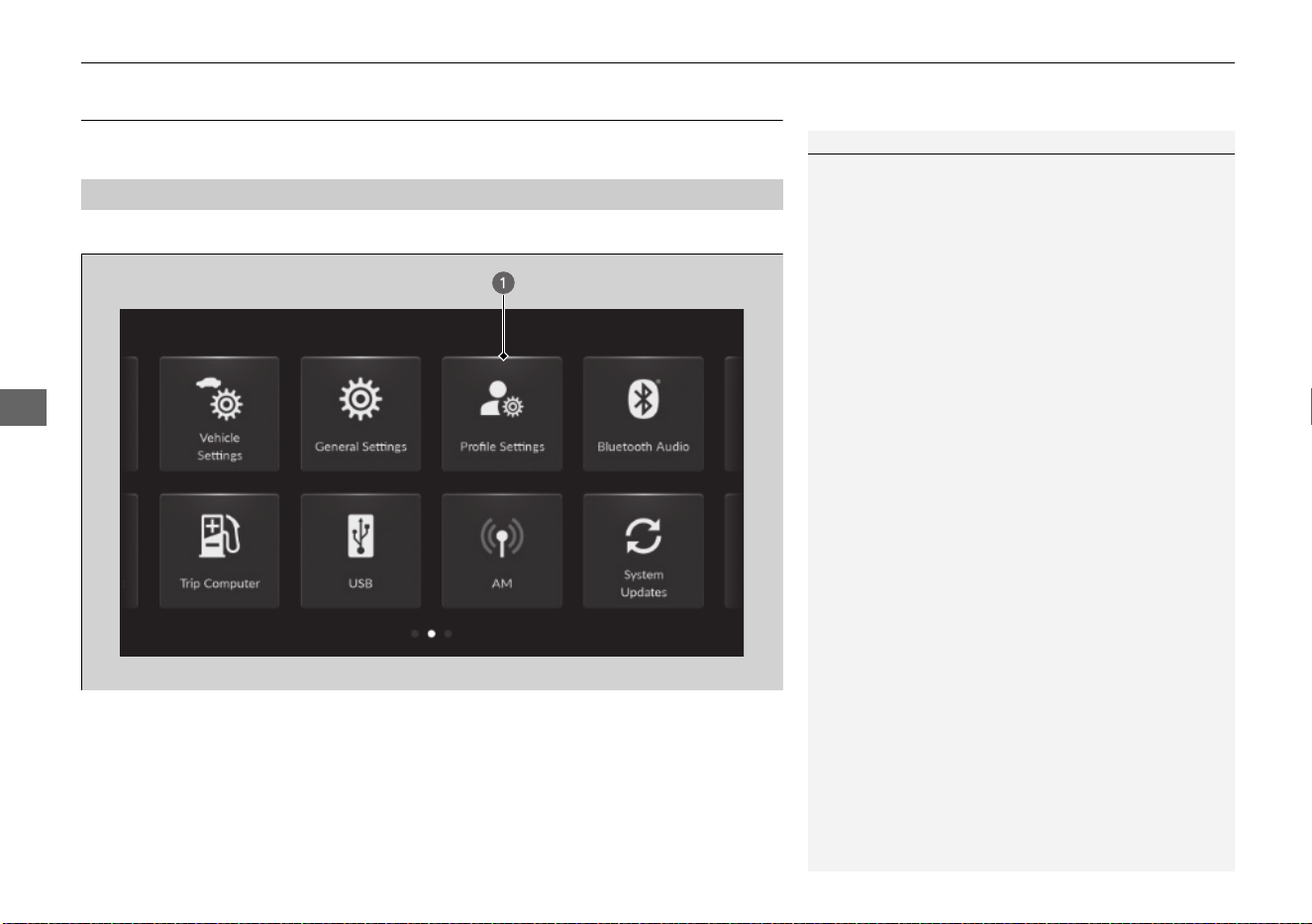

• Page 25 - English - : Quick Reference Guide Controls P 141 Clock P 142 To adjust time To adjust date a Select the HOME icon then select General Settings b Select System then Date amp Time c Select Set Date amp Time d Select Automatic Date amp Time then select Off e Select Set Date or Set Time f Adjust the dates hours and minutes by selecting g Select the back icon to set the time The clock is automatically updated through the audio system POWER Button P 170 Press the button to change the vehicles power mode Turn Signals P 173 Lights P 174 Turn Signal Control Lever Light Control Switches Low Beam High Beam Flashing Not available on all models 25 ACCORD 4D US HEV MAP3130B620001book 23 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 26 - English - : Quick Reference Guide Wipers and Washers P 181 1Models with automatic intermittent wipers 2Models without automatic intermittent wipers WiperWasher Control Lever Adjustment Ring Low Sensitivity 1 Lower speed fewer sweeps 2 High Sensitivity 1 Higher speed more sweeps 2 MIST OFF AUTO 1 Wiper speed varies automatically INT 2 Low speed with intermittent LO Low speed wipe HI High speed wipe Pull toward you to spray washer fluid AUTO should always be turned OFF before the following situations in order to prevent severe damage to the wiper system Cleaning the windshield Driving through a car wash No rain present Steering Wheel P 187 To adjust push the adjustment lever down adjust to the desired position then lock the lever back in place Models with automatic intermittent wipers To lock To adjust Unlocking the Front Doors from the Inside P 156 Pull either front door inner handle to unlock and open it at the same time 25 ACCORD 4D US HEV MAP3130B620001book 24 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 27 - English - : Quick Reference Guide Trunk P 159 Press and hold the trunk opener under the drivers side corner of the dashboard unlocks and opens the trunk Press the trunk release button on the keyless remote to unlock and open the trunk Press the trunk release button on the trunk lid to unlock and open the trunk Trunk Opener Power Door Mirrors P 189 With the power mode in ON move the selector switch to L or R Push the appropriate edge of the adjustment switch to adjust the mirror Selector Switch Adjustment Switch Power Windows P 165 With the power mode in ON open and close the power windows If the power window lock button is in the off position each passengers window can be opened and closed with its own switch If the power window lock button is in the ON position indicator on each passengers window switch is disabled Power Window Lock Button Window Switch Indicator 25 ACCORD 4D US HEV MAP3130B620001book 25 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 28 - English - : Quick Reference Guide Climate Control System P 216 Press the AUTO button to activate the climate control system Press the button to turn the system on or off Press the button to defrost the windshield Drivers Side Temperature Control Dial Windshield Defroster Button SYNC Synchronization Button Floor and defroster vents Floor ventsDashboard and floor vents and back of the center console Dashboard vents and back of the center console AUTO Button OnOff Button Recirculation Button MODE Control Button Fan Control Dial AC Air Conditioning Button Passengers Side Temperature Control Dial 25 ACCORD 4D US HEV MAP3130B620001book 26 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 29 - English - : Quick Reference Guide Features P 221 Audio Remote Controls P 225 VOLVOL Volume Switch Press to adjust the volume updown SeekSkip Buttons Left Selector Wheel VOL VOL Volume Switch SeekSkip Buttons Left Selector Wheel Roll up or down To cycle through the audio modes roll up or down and then press the left selector wheel Customize displayPhoneFMAMUSB Apple CarPlayAndroid AutoBluetooth AlexaBack u Depending on a connected device the displayed modes may be changed Radio Press to change the preset station A wired connection USB device Bluetooth Audio or Smartphone Connection Press to skip to the beginning of the next song or return to the beginning of the current song USB device Press and hold to change a folder 25 ACCORD 4D US HEV MAP3130B620001book 27 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 30 - English - : Quick Reference Guide Audio System P 227 Home Back AudioInformation Screen VOL VolumePower Knob 25 ACCORD 4D US HEV MAP3130B620001book 28 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 31 - English - : Quick Reference Guide About System Updates When a software update is available for your vehicle a notification will be displayed on the Meter or the Audio information screen Instructions for performing updates via the audio information screen are included in this manual For details on other methods of performing an update please refer to the HondaLink manual or ask a dealer System updates that change specifications may result in some discrepancies with the information in this owners manual Instructions 2 System Updates P244 25 ACCORD 4D US HEV MAP3130B620001book 29 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 32 - English - : Quick Reference Guide Driving P359 Transmission P373 Shift to P and depress the brake pedal when turning on the power Shift selection Park Used when parking before turning off or starting the power system Reverse Used when reversing Neutral Transmission is not locked Drive Used For normal driving The deceleration paddle selector can be used temporarily The deceleration paddle selector can be used while locked when the M indicator is on Depress the brake pedal and press the shift lever release button to shift Shift without pressing the shift lever release button Press the shift lever release button and shift Shift Lever Release Button READY Indicator On You can start to drive Shift Position Indicator The shift position indicator indicates the current shift selection Shift Position Indicator 25 ACCORD 4D US HEV MAP3130B620001book 30 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 33 - English - : Quick Reference Guide Deceleration Paddle Selector P376 When you release the accelerator pedal you can control the rate of deceleration without removing your hands from the steering wheel Using the deceleration paddle selector situated on the steering wheel you can sequentially shift through six stages of deceleration Using the deceleration paddle selector temporarily If you pull back the paddle selector while the drive mode is not in SPORT mode the rate of deceleration will change temporarily and the stage will appear on the gauge Locking the deceleration paddle selector While M is displayed on the gauge the deceleration stage can be locked at its current setting M will appear on the gauge if you pull and hold back the selector or if you change the drive mode to SPORT mode To make M disappear change out of SPORT mode or if M is displayed in a mode other than SPORT mode pull and hold back the selector Paddle Selector Paddle Selector Deceleration Paddle Selector Indicator Deceleration Stage 25 ACCORD 4D US HEV MAP3130B620001book 31 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 34 - English - : Quick Reference Guide CMBS TM On and Off P406 When a possible frontal collision is likely unavoidable the Collision Mitigation Braking System TM CMBS TM can reduce the vehicle speed and the severity of the collision The CMBS TM is turned on every time you turn on the power system To turn the CMBS TM on or off use the safety support of the driver information interface VSA On and Off P 387 The Vehicle Stability Assist TM VSA system helps stabilize the vehicle during cornering and helps maintain traction while accelerating on loose or slippery road surfaces VSA comes on automatically every time you turn on the power system The VSA function can be partially disabled or fully restored in VSA settings using the driver information interface 2 Vehicle Stability Assist Mode P131 Tire Pressure Monitoring System TPMS P 389 Detects a change in tire conditions and overall dimensions due to decrease in tire pressures The TPMS is turned on automatically every time you turn on the power system A calibration procedure must be performed when certain conditions arise Refueling P 499 Fuel recommendation Unleaded gasoline pump octane number 87 or higher Fuel tank capacity 1281 US gal 485 L US models a Unlock the drivers door P157 b Press and release the rear edge of the fuel fill door to make it open slightly c After refueling wait for about five seconds before removing the filler nozzle 25 ACCORD 4D US HEV MAP3130B620001book 32 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 35 - English - : Quick Reference Guide Honda Sensing P399 Assists with functions such as acceleration braking and steering in order to reduce the burden on the driver as well as help avoid or reduce the severity of collisions Honda Sensing has the following functions Collision Mitigation Braking System TM CMBS TM P402 The system can assist you when it determines there is a possibility of your vehicle colliding with a vehicle including motorcycles ahead from behind an oncoming vehicle in front a pedestrian or someone riding a bicycle moving bicycle The CMBS TM is designed to alert you when the potential for a collision is determined as well as assist in reducing speed avoiding collisions and reducing collision severity Low Speed Braking Control P414 Using sonar sensors located on the front and rear bumpers this system can detect if there is danger of a potential collision with a wall or other obstacle during normal driving or when the accelerator pedal is depressed with too much force The system then assists in avoiding collisions and reducing damage from impact through assistive braking and or assistive driving power suppression Road Departure Mitigation System P 420 Alerts and helps assist you when the system detects a possibility of your vehicle crossing over detected lane markings or approaching the outer edge of the pavement into grass or gravel road shoulder or a detected oncoming vehicle Adaptive Cruise Control ACC with Low Speed Follow P428 Helps maintain a constant vehicle speed and a set followinginterval behind a vehicle detected ahead of yours and if the detected vehicle comes to a stop can decelerate and stop your vehicle without you having to keep your foot on the brake or the accelerator Lane Keeping Assist System LKAS P449 Provides steering input to help keep the vehicle in the middle of a detected lane and provides tactile and visual alerts if the vehicle is detected drifting out of its lane Traffic Jam Assist P459 The Traffic Jam Assist system uses a camera mounted to the upper portion of the windshield to detect and monitor left and right white or yellow traffic lane lines Based on inputs from the camera the system can apply steering torque to keep your vehicle in the center of the detected lane Not available on all models 25 ACCORD 4D US HEV MAP3130B620001book 33 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 36 - English - : Quick Reference Guide Traffic Sign Recognition System P468 Reminds you of road sign information such as the current speed limit your vehicle has just passed showing it on the gauge and the headup display Auto HighBeam P 178 The front sensor camera detects the light sources ahead of the vehicle such as the lights of a preceding or oncoming vehicle or street lights When you are driving at night the system automatically switches the headlights between low beam and high beam depending on the situation Blind Spot Information System P 394 When the system detects vehicles approaching from behind in adjacent lanes the appropriate indicator comes on providing assistance when you change lanes Cross Traffic Monitor P 493 Monitors the rear corner areas using the radar sensors when reversing and alerts you if a vehicle approaching from a rear corner is detected The system is convenient when you are backing out of a parking space Parking Sensor System P 490 The corner and center sensors monitor obstacles around your vehicle and the beeper driver information interface and audioinformation screen let you know the approximate distance between your vehicle and the obstacle Driver Attention Monitor P 125 The Driver Attention Monitor analyzes steering inputs to determine if the vehicle is being driven in a manner consistent with drowsy or inattentive driving If it determines that the vehicle is being driven in such a manner it will display the degree of the drivers attention on the driver information interface 25 ACCORD 4D US HEV MAP3130B620001book 34 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 37 - English - : Quick Reference Guide Maintenance P 503 Under the Hood P 515 Check engine oil engine coolant and windshield washer fluid Add when necessary Check brake fluid and high voltage system coolant Check the 12volt battery condition monthly a Pull the hood release handle under the corner of the dashboard b Locate the hood latch lever push it to the side and then raise the hood Once you have raised the hood slightly you can release the lever c When finished close the hood and make sure it is firmly locked in place Lever Lights P 526 Inspect all lights regularly Wiper Blades P 528 When lifting the front wiper arms move them into the maintenance position before lifting them Replace blades if they leave streaks across the windshield or become noisy Tires P 531 Inspect tires and wheels regularly Check tire pressures regularly Install snow tires for winter driving Not available on all models 25 ACCORD 4D US HEV MAP3130B620001book 35 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 38 - English - : Quick Reference Guide Handling the Unexpected P 553 Flat Tire P 555 Park in a safe location and repair the flat tire using the tire repair kit in the trunk Indicators Come On P 579 Identify the indicator and consult the owners manual Power System Wont Start P 569 If the 12volt battery is dead jump start using a booster battery Blown Fuse P 586 Check for a blown fuse if an electrical device does not operate Overheating P 576 Park in a safe location If you do not see steam under the hood open the hood and let the power system cool down Emergency Towing P 592 Call a professional towing service if you need to tow your vehicle 25 ACCORD 4D US HEV MAP3130B620001book 36 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 39 - English - : Quick Reference Guide What to Do If The power mode does not change from ACCESSORY to VEHICLE OFF Why The shift lever should be moved to P Why does the brake pedal pulsate slightly when applying the brakes This can occur when the ABS activates and does not indicate a problem Apply firm steady pressure on the brake pedal Never pump the brake pedal 2 Antilock Brake System ABS P 486 The rear door cannot be opened from inside the vehicle Why Check if the childproof lock is in the lock position If so open the rear door with the outside door handle To cancel this function slide the lever up to the unlock position Why do the doors lock after I unlocked the doors If you do not open the doors within 30 seconds the doors or trunk are relocked automatically for security 25 ACCORD 4D US HEV MAP3130B620001book 37 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 40 - English - : Quick Reference Guide Why does the beeper sound when I open the drivers door The beeper sounds when The power mode is in ACCESSORY The exterior lights are left on Why does a beeper sound when I walk away from the vehicle after I close the door The beeper sounds if you move outside the walk away auto lock operating range before the door completely closes 2 Locking the doors and trunk Walk away auto lock P149 Why does the beeper sound when I start driving The beeper sounds when the driver andor any passengers are not wearing their seat belts Why do I hear a screeching sound when I apply the brake pedal The brake pads may need to be replaced Have your vehicle inspected by a dealer Im seeing an amber indicator of a tire with an exclamation point What is that The Tire Pressure Monitoring System TPMS needs attention If you recently inflated or changed a tire you have to recalibrate the system 2 Tire Pressure Monitoring System TPMS P 389 Models with TPMS 25 ACCORD 4D US HEV MAP3130B620001book 38 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 41 - English - : Quick Reference Guide Pressing the electric parking brake switch does not release the parking brake Why Press the electric parking brake switch with the brake pedal depressed Depressing the accelerator pedal does not release the parking brake automatically Why Fasten the drivers seat belt Check if the transmission is in P or N If so select any other position 25 ACCORD 4D US HEV MAP3130B620001book 39 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 42: 25 ACCORD 4D US HEV MAP3130B620001book 40 ページ ２０２４年７月９日　火曜日　午後７時１６分 This page intentionally left blank
• Page 43 - English - : Safe Driving You can find many safety recommendations throughout this chapter and throughout this manual For Safe Driving Important Safety Precautions 42 Your Vehicles Safety Features 44 Safety Checklist 45 Seat Belts About Your Seat Belts 46 Fastening a Seat Belt 51 Seat Belt Inspection 54 Airbags Airbag System Components 55 Types of Airbags 58 Front Airbags SRS 58 Knee Airbags 63 Side Airbags 66 Side Curtain Airbags 69 Airbag System Indicators 70 Airbag Care 73 Child Safety Protecting Child Passengers 74 Safety of Infants and Small Children 76 Safety of Larger Children 85 Exhaust Gas Hazard Carbon Monoxide Gas 87 Safety Labels Label Locations 88 25 ACCORD 4D US HEV MAP3130B620001book 41 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 44 - English - : Safe Driving For Safe Driving The following pages explain your vehicles safety features and how to use them properly The safety precautions below are ones that we consider to be among the most important Important Safety Precautions Always wear your seat belt A seat belt is your best protection in all types of collisions Airbags are designed to supplement seat belts not replace them So even though your vehicle is equipped with airbags make sure you and your passengers always wear your seat belts and wear them properly Restrain all children Children ages 12 and under should ride properly restrained in a back seat not the front seat Infants and small children should be restrained in a child seat Larger children should use a booster seat and a lapshoulder seat belt until they can use the belt properly without a booster seat Be aware of airbag hazards While airbags can save lives they can cause serious or fatal injuries to occupants who sit too close to them or are not properly restrained Infants young children and short adults are at the greatest risk Be sure to follow all instructions and warnings in this manual Dont drink and drive Alcohol and driving dont mix Even one drink can reduce your ability to respond to changing conditions and your reaction time gets worse with every additional drink So dont drink and drive and dont let your friends drink and drive either 1Important Safety Precautions Some states provinces and territories prohibit the use of cell phones other than handsfree devices by the driver while driving 25 ACCORD 4D US HEV MAP3130B620001book 42 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 45 - English - : uuFor Safe DrivinguImportant Safety Precautions Safe Driving Pay appropriate attention to the task of driving safely Engaging in cell phone conversation or other activities that keep you from paying close attention to the road other vehicles and pedestrians could lead to a crash Remember situations can change quickly and only you can decide when it is safe to divert some attention away from driving Control your speed Excessive speed is a major factor in crash injuries and deaths Generally the higher the speed the greater the risk but serious injuries can also occur at lower speeds Never drive faster than is safe for current conditions regardless of the maximum speed posted Keep your vehicle in safe condition Having a tire blowout or a mechanical failure can be extremely hazardous To reduce the possibility of such problems check your tire pressures and condition frequently and perform all regularly scheduled maintenance Do not leave children unattended in the vehicle Children pets and people needing assistance left unattended in the vehicle may be injured if they activate one or more of the vehicle controls They may also cause the vehicle to move resulting in a crash in which they andor another persons can be injured or killed Also depending on the ambient temperature the temperature of the interior may reach extreme levels which can result in harm or death Even if the climate control system is on never leave them in the vehicle unattended as the climate control system can shut off at any time 25 ACCORD 4D US HEV MAP3130B620001book 43 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 46 - English - : uuFor Safe DrivinguYour Vehicles Safety Features Safe Driving Your Vehicles Safety Features The following checklist will help you take an active role in protecting yourself and your passengers 1Your Vehicles Safety Features Your vehicle is equipped with many features that work together to help protect you and your passengers during a crash Some features do not require any action on your part These include a strong steel framework that forms a safety cage around the passenger compartment front and rear crush zones a collapsible steering column and tensioners that tighten the front and outer rear seat belts in a sufficient crash However you and your passengers cannot take full advantage of these features unless you remain seated in the correct position and always wear your seat belts In fact some safety features can contribute to injuries if they are not used properly Safety Cage Crush Zones Seats and SeatBacks Head Restraints Collapsible Steering Column Seat Belts Front Airbags Side Curtain Airbags Door Locks Side Airbags Seat Belt Tensioners Knee Airbags Outer Lap Pretensioners 25 ACCORD 4D US HEV MAP3130B620001book 44 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 47 - English - : uuFor Safe DrivinguSafety Checklist Safe Driving Safety Checklist For the safety of you and your passengers make a habit of checking these items each time before you drive After everyone has entered the vehicle be sure all doors are closed and locked Locking the doors helps prevent an occupant from being ejected and an outsider from unexpectedly opening a door 2 LockingUnlocking the Doors from the Inside P 155 Adjust your seat to a position suitable for driving Be sure the front seats are adjusted as far to the rear as possible while allowing the driver to control the vehicle Sitting too close to a front airbag can result in serious or fatal injury in a crash 2 Seats P 190 Adjust head restraints to the proper position Head restraints are most effective when the center of the head restraint aligns with the center of your head Taller persons should adjust their head restraint to the highest position 2 Adjusting the Front Head Restraint Positions P 197 Always wear your seat belt and make sure you wear it properly Confirm that any passengers are properly belted as well 2 Fastening a Seat Belt P 51 Protect children by using seat belts or child seats according to a childs age height and weight 2 Child Safety P 74 1Safety Checklist If the door andor trunk open message appears on the driver information interface a door andor the trunk is not completely closed Close all doors and the trunk tightly until the message disappears 2 Driver Information Interface Right Side Area P 118 25 ACCORD 4D US HEV MAP3130B620001book 45 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 48 - English - : Safe Driving Seat Belts About Your Seat Belts Seat belts are the single most effective safety device because they keep you connected to the vehicle so that you can take advantage of many builtin safety features They also help keep you from being thrown against the inside of the vehicle against any passengers or out of the vehicle When worn properly seat belts also keep your body properly positioned in a crash so that you can take full advantage of the additional protection provided by the airbags In addition seat belts help protect you in almost every type of crash including frontal impacts side impacts rear impacts rollovers Lapshoulder seat belts All five seating positions are equipped with lapshoulder seat belts with emergency locking retractors In normal driving the retractor lets you move freely while keeping some tension on the belt During a collision or sudden stop the retractor locks to restrain your body The front passengers and rear seat belts also have a lockable retractor for use with child seats 2 Installing a Child Seat with a LapShoulder Seat Belt P 82 1About Your Seat Belts If you extend the seat belt too quickly it will lock in place If this happens slightly retract the seat belt then extend it slowly Seat belts cannot completely protect you in every crash But in most cases seat belts can reduce your risk of serious injury Most states and all Canadian provinces and territories require you to wear seat belts WARNING Not wearing a seat belt properly increases the chance of serious injury or death in a crash even though your vehicle has airbags Be sure you and your passengers always wear seat belts and wear them properly 25 ACCORD 4D US HEV MAP3130B620001book 46 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 49 - English - : Continued uuSeat BeltsuAbout Your Seat Belts Safe Driving Proper use of seat belts Follow these guidelines for proper use All occupants should sit upright well back in the seat and remain in that position for the duration of the trip Slouching and leaning reduce the effectiveness of the belt and can increase the chance of serious injury in a crash Never place the shoulder part of a lapshoulder seat belt under your arm or behind your back This could cause very serious injuries in a crash Two people should never use the same seat belt If they do they could be very seriously injured in a crash Do not put any accessories on the seat belts Devices intended to improve comfort or reposition the shoulder part of a seat belt can reduce the protective capability and increase the chance of serious injury in a crash 1About Your Seat Belts If a passenger moves around and extends the seat belt the lockable retractor may activate If this happens release the retractor by unfastening the seat belt and allow the belt to retract completely Then refasten the belt 25 ACCORD 4D US HEV MAP3130B620001book 47 ページ ２０２４年７月９日　火曜日　午後７時１６分
• Page 50 - English - : uuSeat BeltsuAbout Your Seat Belts Safe Driving Front seats The seat belt system includes an indicator on the instrument panel to remind the driver or a front passenger or both to fasten their seat belts If you set the power mode to ON and a seat belt is not fastened a beeper will sound and the indicator will blink After a few seconds the beeper will stop and the indicator will come on and remain illuminated until the seat belt is fastened When the vehicle is moving the beeper will sound and the indicator will blink for a while until the seat belt is fastened Then the beeper will stop and the indicator will stay on Seat Belt Reminder 1Seat Belt Reminder The indicator will also come on if a front passenger does not fasten their seat belt within six seconds after the power mode is set to ON When no one is sitting in the front passengers seat the indicator will not come on and the beeper will not sound The indicator also may not come on and the beeper may not sound when the occupant is not heavy enough to trigger the weight sensor Such occupants eg infants and smaller children should be moved to the rear seat as a deploying front airbag likely will injure or kill them 2 Protecting Child Passengers P 74 The driver information interface uses colors to aid the driver in checking the status of the passengers For the front seating positions Green indicates the seat belt is fastened An unfastened gray graphic indicates the seat belt is not fastened and an occupant has not been detected An unfastened red graphic indicates the seat belt is unfastened and an occupant has been detected Fastened Unfastened 25 ACCORD 4D US HEV MAP3130B620001book 48 ページ ２０２４年７月９日　火曜日　午後７時１６分
