Hikvision IDS-TCE500-B 5 MP ANPR Intersection Violation User Manual

Network Trac Camera

Operaon Manual

Legal Informaon

About this Document

●

This Document includes instrucons for using and managing the Product. Pictures, charts,

images and all other informaon hereinaer are for descripon and explanaon only.

●

The informaon contained in the Document is subject to change, without noce, due to

rmware updates or other reasons. Please nd the latest version of the Document at the

Hikvision website ( hps://www.hikvision.com ). Unless otherwise agreed, Hangzhou Hikvision

Digital Technology Co., Ltd. or its aliates (hereinaer referred to as "Hikvision") makes no

warranes, express or implied.

●

Please use the Document with the guidance and assistance of professionals trained in

supporng the Product.

About this Product

●

This product can only enjoy the aer-sales service support in the country or region where the

purchase is made.

●

If the product you choose is a video product, please scan the following QR code to obtain the

"Iniaves on the Use of Video Products", and read it carefully.

Acknowledgment of Intellectual Property Rights

●

Hikvision owns the copyrights and/or patents related to the technology embodied in the

Products described in this Document, which may include licenses obtained from third pares.

●

Any part of the Document, including text, pictures, graphics, etc., belongs to Hikvision. No part

of this Document may be excerpted, copied, translated, or modied in whole or in part by any

means without wrien permission.

●

and other Hikvision’s trademarks and logos are the properes of Hikvision in

various jurisdicons.

●

Other trademarks and logos menoned are the properes of their respecve owners.

LEGAL DISCLAIMER

●

TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS DOCUMENT AND THE

PRODUCT DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED "AS

IS" AND "WITH ALL FAULTS AND ERRORS". HIKVISION MAKES NO WARRANTIES, EXPRESS OR

Network Trac Camera Operaon Manual

IMPLIED, INCLUDING WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR

FITNESS FOR A PARTICULAR PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK.

IN NO EVENT WILL HIKVISION BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL,

INCIDENTAL, OR INDIRECT DAMAGES, INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF

BUSINESS PROFITS, BUSINESS INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR

LOSS OF DOCUMENTATION, WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING

NEGLIGENCE), PRODUCT LIABILITY, OR OTHERWISE, IN CONNECTION WITH THE USE OF THE

PRODUCT, EVEN IF HIKVISION HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR

LOSS.

●

YOU ACKNOWLEDGE THAT THE NATURE OF THE INTERNET PROVIDES FOR INHERENT SECURITY

RISKS, AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION,

PRIVACY LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK,

VIRUS INFECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE

TIMELY TECHNICAL SUPPORT IF REQUIRED.

●

YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE

SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.

ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT

INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF

PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY

RIGHTS. YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE

DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR

PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT

RELATED TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF

HUMAN RIGHTS ABUSES.

●

IN THE EVENT OF ANY CONFLICTS BETWEEN THIS DOCUMENT AND THE APPLICABLE LAW, THE

LATTER PREVAILS.

Network Trac Camera Operaon Manual

Symbol Convenons

The symbols that may be found in this document are dened as follows.

Symbol Descripon

Danger

Indicates a hazardous situaon which, if not avoided, will or could

result in death or serious injury.

Cauon

Indicates a potenally hazardous situaon which, if not avoided, could

result in equipment damage, data loss, performance degradaon, or

unexpected results.

Note

Provides addional informaon to emphasize or supplement

important points of the main text.

Network Trac Camera Operaon Manual

iii

Contents

Chapter 1 Acvaon and Login ................................................................................................... 1

1.1 Acvaon ............................................................................................................................... 1

1.1.1 Default Informaon ...................................................................................................... 1

1.1.2 Acvate via SADP .......................................................................................................... 1

1.1.3 Acvate via Web Browser ............................................................................................. 2

1.2 Login ...................................................................................................................................... 3

Chapter 2 Live View and Local Conguraon .............................................................................. 4

2.1 Live View ................................................................................................................................ 4

2.1.1 Start/Stop Live View ...................................................................................................... 4

2.1.2 Select Image Display Mode ........................................................................................... 4

2.1.3 Select Window Division Mode ...................................................................................... 4

2.1.4 Select Stream Type ........................................................................................................ 4

2.1.5 Capture Picture Manually ............................................................................................. 4

2.1.6 Record Manually ........................................................................................................... 4

2.1.7 Start/Stop Two-Way Audio ............................................................................................ 5

2.1.8 Enable/Disable Audio .................................................................................................... 5

2.1.9 Enable Digital Zoom ...................................................................................................... 5

2.1.10 Enable Regional Focus ................................................................................................. 6

2.1.11 Enable Regional Exposure ........................................................................................... 6

2.1.12 Select Video Mode ...................................................................................................... 7

2.2 PTZ Operaon ........................................................................................................................ 7

2.3 Local Conguraon ................................................................................................................ 8

Chapter 3 Playback ................................................................................................................... 12

Chapter 4 Record and Capture .................................................................................................. 13

4.1 Set Storage Path ................................................................................................................... 13

4.1.1 Set Storage Card .......................................................................................................... 13

Network Trac Camera Operaon Manual

4.1.2 Set FTP ........................................................................................................................ 14

4.1.3 Set SDK Listening ......................................................................................................... 15

4.1.4 Set Arm Host ............................................................................................................... 16

4.1.5 Set ISAPI Listening ....................................................................................................... 17

4.1.6 Set Cloud Storage ........................................................................................................ 18

4.2 Set Quota ............................................................................................................................. 19

4.3 Set Record Schedule ............................................................................................................ 20

Chapter 5 Encoding and Display ................................................................................................ 22

5.1 Set Video Encoding Parameters ........................................................................................... 22

5.2 Set Image Parameters .......................................................................................................... 23

5.3 Set ICR .................................................................................................................................. 26

5.4 Set ROI ................................................................................................................................. 26

5.5 Set Privacy Mask .................................................................................................................. 27

5.6 Set OSD ................................................................................................................................ 29

Chapter 6 Network Conguraon ............................................................................................. 31

6.1 Set IP Address ...................................................................................................................... 31

6.2 Connect to Plaorm ............................................................................................................. 33

6.2.1 Connect to ISUP Plaorm ........................................................................................... 33

6.2.2 Connect to OTAP ......................................................................................................... 34

6.2.3 Connect to Hik-Connect .............................................................................................. 35

6.3 Set DDNS .............................................................................................................................. 36

6.4 Set SNMP ............................................................................................................................. 37

6.5 Set QoS ................................................................................................................................. 39

6.6 Set IEEE 802.1X .................................................................................................................... 39

6.7 Set Port ................................................................................................................................ 40

Chapter 7 Serial Port Conguraon ........................................................................................... 43

7.1 Set RS-485 ............................................................................................................................ 43

7.2 Set RS-232 ............................................................................................................................ 44

Network Trac Camera Operaon Manual

Chapter 8 Event and Alarm ....................................................................................................... 45

8.1 Excepon Alarm ................................................................................................................... 45

8.2 Set Email .............................................................................................................................. 45

8.3 Set Email Event .................................................................................................................... 46

Chapter 9 Safety Management ................................................................................................. 48

9.1 Manage User ........................................................................................................................ 48

9.2 Set IP Address Filtering ........................................................................................................ 48

9.3 Enable User Lock .................................................................................................................. 49

9.4 Set HTTPS ............................................................................................................................. 49

9.4.1 Create and Install Self-signed Cercate .................................................................... 49

9.4.2 Install Authorized Cercate ....................................................................................... 50

9.5 Set SSH ................................................................................................................................. 50

9.6 Set RTSP Authencaon ...................................................................................................... 50

9.7 Set Timeout Logout .............................................................................................................. 51

9.8 Set Password Validity Period ................................................................................................ 51

Chapter 10 Maintenance .......................................................................................................... 52

10.1 View Device Informaon .................................................................................................... 52

10.2 Log ..................................................................................................................................... 52

10.2.1 Enable System Log Service ........................................................................................ 52

10.2.2 Enable Log According to Module .............................................................................. 52

10.2.3 Search Log ................................................................................................................. 53

10.3 Upload Radar Debugging Informaon ............................................................................... 53

10.4 Upgrade ............................................................................................................................. 53

10.5 Reboot ............................................................................................................................... 54

10.6 Restore Parameters ............................................................................................................ 54

10.7 Synchronize Time ............................................................................................................... 55

10.8 Set DST ............................................................................................................................... 56

10.9 Debug ................................................................................................................................. 56

Network Trac Camera Operaon Manual

10.9.1 Debug Device ............................................................................................................ 56

10.9.2 Vehicle Capture and Recognion Service .................................................................. 57

10.9.3 Set Image Format ...................................................................................................... 59

10.10 Export Parameters ........................................................................................................... 59

10.11 Import Conguraon File ................................................................................................. 59

10.12 Export Debug File ............................................................................................................. 60

10.13 Export Diagnosis Informaon .......................................................................................... 60

Network Trac Camera Operaon Manual

vii

Chapter 1 Acvaon and Login

1.1 Acvaon

For the rst-me access, you need to acvate the device by seng an admin password. No

operaon is allowed before acvaon. The device supports mulple acvaon methods, such as

acvaon via SADP soware, web browser, and iVMS-4200 Client.

Note

Refer to the user manual of iVMS-4200 Client for the acvaon via client soware.

1.1.1 Default Informaon

The device default informaon is shown as below.

●

Default IP address: 192.168.1.64

●

Default user name: admin

1.1.2 Acvate via SADP

SADP is a tool to detect, acvate, and modify the IP address of the device over the LAN.

Before You Start

●

Get the SADP soware from the supplied disk or the ocial website ( hp://

www.hikvision.com/ ), and install it according to the prompts.

●

The device and the computer that runs the SADP tool should belong to the same network

segment.

The following steps show how to acvate one device and modify its IP address. For batch acvaon

and IP address modicaon, refer to User Manual of SADP for details.

Steps

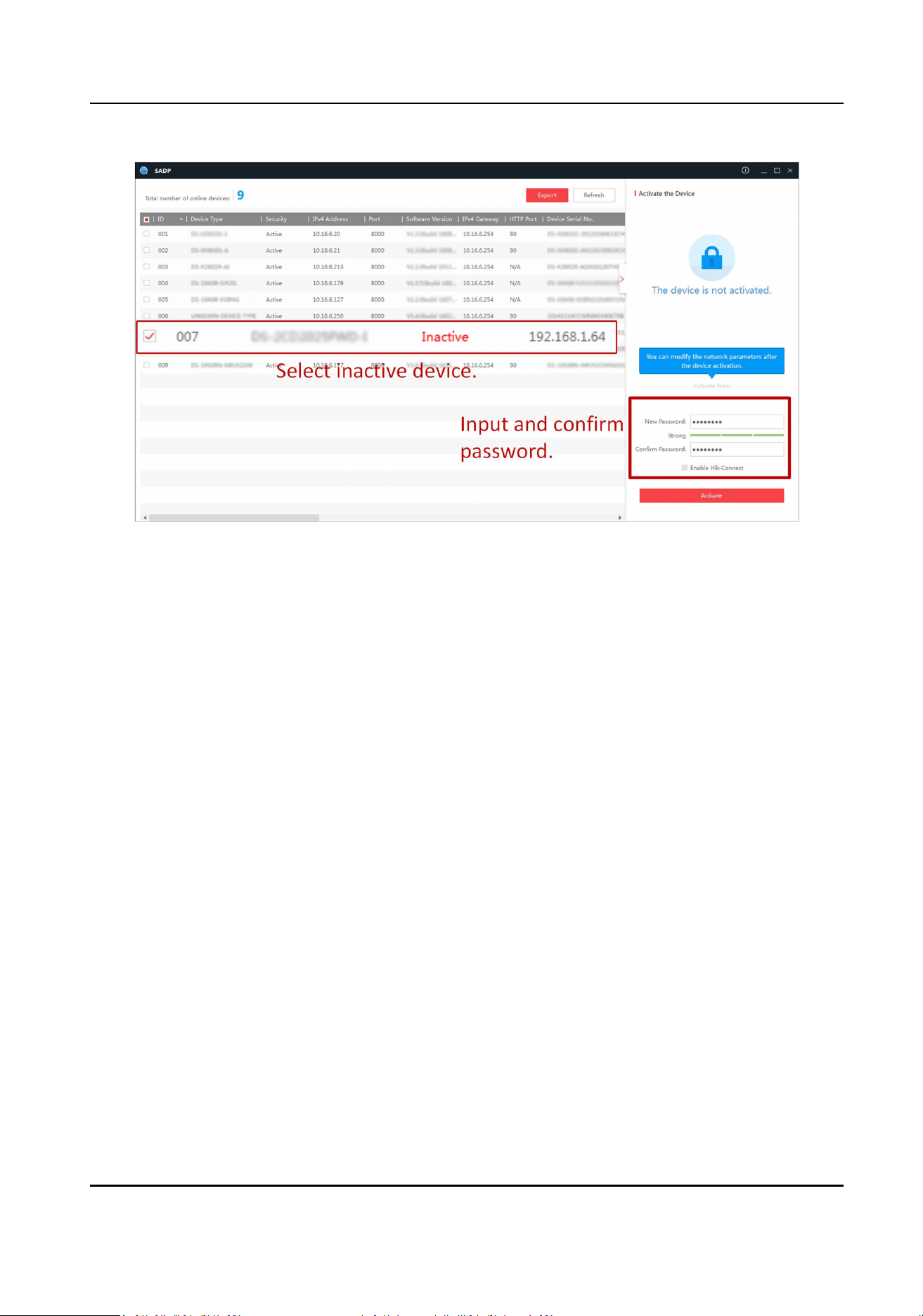

Run the SADP soware and search the online devices.

Find and select your device in online device list.

Enter a new password (admin password) and conrm the password.

Cauon

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of

your own choosing (using a minimum of 8 characters, including upper case leers, lower case

leers, numbers, and special characters) in order to increase the security of your product. And

we recommend you reset your password regularly, especially in the high security system,

reseng the password monthly or weekly can beer protect your product.

Click Acvate to start acvaon.

Network Trac Camera Operaon Manual

Figure 1-1 Acvate via SADP

Status of the device becomes Acve aer successful acvaon.

Modify IP address of the device.

1) Select the device.

2) Change the device IP address to the same network segment as your computer by either

modifying the IP address manually or checking Enable DHCP (Dynamic Host Conguraon

Protocol).

3) Enter the admin password and click Modify to acvate your IP address modicaon.

1.1.3 Acvate via Web Browser

Use web browser to acvate the device. For the device with the DHCP enabled by default, use

SADP soware or client soware to acvate the device.

Before You Start

Ensure the device and the computer are in the LAN with the same network segment.

Steps

Change the IP address of your computer to the same network segment as the device.

Open the web browser, and enter the default IP address of the device to enter the acvaon

interface.

Create and conrm the admin password.

Network Trac Camera Operaon Manual

Cauon

STRONG PASSWORD RECOMMENDED-We highly recommend you create a strong password of

your own choosing (using a minimum of 8 characters, including upper case leers, lower case

leers, numbers, and special characters) in order to increase the security of your product. And

we recommend you reset your password regularly, especially in the high security system,

reseng the password monthly or weekly can beer protect your product.

Click OK to complete acvaon.

Go to the network sengs interface to modify IP address of the device.

1.2 Login

You can log in to the device via web browser for further operaons such as live view and local

conguraon.

Before You Start

Connect the device to the network directly, or via a switch or a router.

Steps

Open the web browser, and enter the IP address of the device to enter the login interface.

Enter User Name and Password.

Click Login.

Download and install appropriate plug-in for your web browser. Follow the installaon prompts

to install the plug-in.

Reopen the web browser aer the installaon of the plug-in and repeat steps 1 to 3 to login.

Oponal: Click Logout on the upper right corner of the interface to log out of the device.

Network Trac Camera Operaon Manual

Chapter 2 Live View and Local Conguraon

2.1 Live View

2.1.1 Start/Stop Live View

Click to start live view. Click to stop live view.

2.1.2 Select Image Display Mode

Click to select an image display mode.

2.1.3 Select Window Division Mode

Click to select a window division mode.

2.1.4 Select Stream Type

Click to select the stream type. It is recommended to select the main stream to get the high-

quality image when the network condion is good, and select the sub-stream to get the uent

image when the network condion is not good enough. The third stream is custom.

Note

The third stream varies with dierent models. The actual device prevails.

2.1.5 Capture Picture Manually

You can capture pictures manually on the live view image and save them to the computer.

Steps

Click to capture a picture.

Oponal: Click Conguraon → Local → Live View Parameters and select Image Format.

Oponal: Click Conguraon → Local → Picture and Clip Sengs to view the saving path of

snapshots in live view.

2.1.6 Record Manually

You can record videos manually on the live view image and save them to the computer.

Network Trac Camera Operaon Manual

Steps

Click to start live view.

Click to start recording.

Click to stop recording.

Oponal: Click Conguraon → Local → Record File Sengs to view the saving path of record

les.

2.1.7 Start/Stop Two-Way Audio

The device supports two-way audio with terminals, such as computers.

Before You Start

The device is equipped with an audio input interface and audio output interface, which support

connecng with the corresponding devices, such as microphones and loudspeakers.

Steps

Note

The funcon varies with dierent models. The actual device prevails.

Select a window to start two-way audio.

Click to start live view.

Click to start two-way audio.

When speaking at the PC end, you can hear the voice at the device end and vice versa.

Click to stop two-way audio.

2.1.8 Enable/Disable Audio

Enable the audio if necessary aer connecng an audio input device under the audio & video

stream. Click to enable and adjust it. Click again to disable this funcon.

Note

The funcon varies with dierent models. The actual device prevails.

2.1.9 Enable Digital Zoom

You can enable digital zoom to zoom in a certain part of the live view image.

Steps

Click to start live view.

Click to enable digital zoom.

Place the cursor on the live view image posion which needs to be zoomed in. Drag the mouse

rightwards and downwards to draw an area.

Network Trac Camera Operaon Manual

The area will be zoomed in.

Click any posion of the image to restore to normal image.

Click to disable digital zoom.

2.1.10 Enable Regional Focus

Steps

Note

The funcon varies with dierent models. The actual device prevails.

Click .

Drag the cursor from the upper le corner to the lower right corner to select the area that needs

to be focused.

Result

The selected area is focused.

2.1.11 Enable Regional Exposure

Enable regional exposure to adjust the brightness of the whole live view image according to the

drawn paral area.

Steps

Go to Conguraon → Video → Video Encoding → BLC .

Check Enable.

Drag the mouse to draw an area.

The brightness of the whole live view image will be adjusted according to the drawn area.

Figure 2-1 Enable Regional Exposure

Network Trac Camera Operaon Manual

Click Save.

2.1.12 Select Video Mode

Set the video mode when adjusng the device focus during construcon.

Click and select when the device is running normally.

2.2 PTZ Operaon

Click Live View. Click and click to show the PTZ control panel.

Note

●

The PTZ supports power-o memory. When the device is suddenly cut o power or restarted

normally, it can automacally return to the posion before the power cut or reboot.

●

The PTZ funcon varies with dierent models. The actual device prevails.

●

Other unmenoned buons are reserved buons.

Figure 2-2 PTZ Control Panel

Table 2-1 Buon Descripon

Buon Descripon

Adjust the PTZ speed.

/ Zoom + and Zoom -

●

Hold to zoom in the scene.

●

Hold to zoom out the scene.

Network Trac Camera Operaon Manual

Buon Descripon

/ Focus + and Focus -

●

Hold under the manual focus mode to make near objects

become clear and distant objects become vague.

●

Hold to make distant objects become clear and near

objects become vague.

/ Iris + and Iris –

●

Hold to increase the iris diameter when in a dark

environment.

●

Hold to decrease the iris diameter when in a bright

environment.

Lens Inializaon

It is applicable to devices with motorized lenses. You can use this

funcon when overcoming image blurs caused by overme

zooming or focusing.

Auxiliary Focus

It is applicable to devices with motorized lenses. Use this

funcon to focus the lens automacally and make images

become clear.

2.3 Local Conguraon

Go to Conguraon → Local to set the live view parameters and change the saving paths of videos,

captured pictures, scene pictures, etc.

Note

The parameters vary with dierent models. The actual device prevails.

Network Trac Camera Operaon Manual

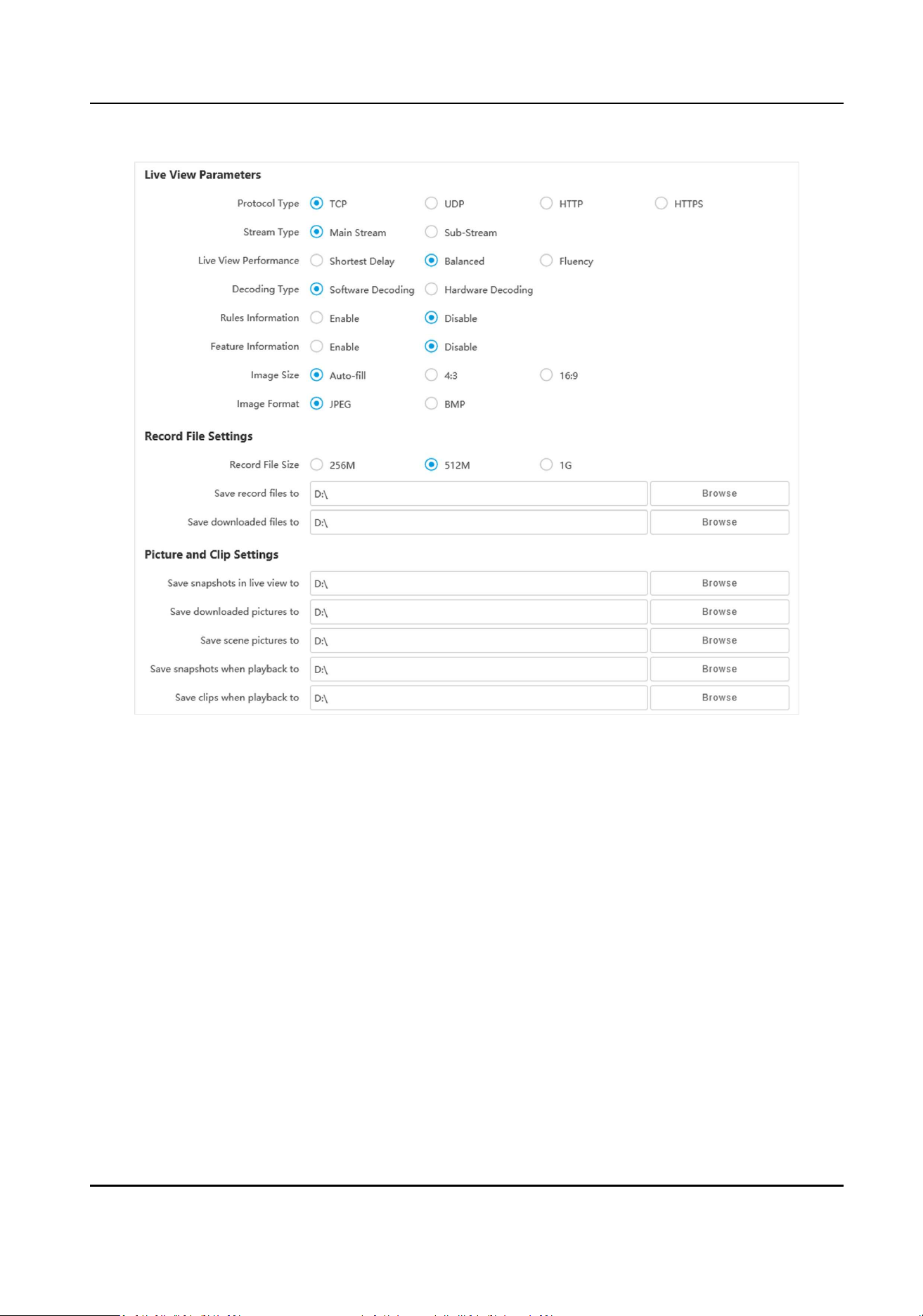

Figure 2-3 Local Conguraon

Protocol Type

Select the network transmission protocol according to the actual needs.

TCP

Ensures complete delivery of streaming data and beer video quality, but the real-me

transmission will be aected.

UDP

Provides real-me audio and video streams.

HTTP

Gets streams from the device by a third party client.

HTTPS

Gets streams in hps format.

Stream Type

Network Trac Camera Operaon Manual

Main Stream

Select it to get the high-quality image when the network condion is good.

Sub-Stream

Select it to get the uent image when the network condion is not good enough.

Live View Performance

Shortest Delay

The video is real-me, but its uency may be aected.

Balanced

Balanced mode considers both the real me and uency of the video.

Fluency

When the network condion is good, the video is uent.

Decoding Type

Soware Decoding

Decode via soware. It takes up more CPU resources but provides images with beer quality

when it compares to the hardware decoding.

Hardware Decoding

Decode via GPU. It takes up less CPU resources but provides images with worse quality when

it compares to the soware decoding.

Rules Informaon

If you enable this funcon, tracking frames will be displayed on the live view interface when

there are vehicles passing.

Feature Informaon

Enable it to display feature informaon of the target on the live view image.

Image Size

The display rao of the live view image.

Image Format

The saving format of manually captured images.

Radar Track

When the radar is connected, enable it to make the linked camera be able to track the detected

target.

Record File Size

Select the packed size of the manually recorded video les. Aer the selecon, the max. record

le size is the value you selected.

Save record les to

Set the saving path of the manually recorded video les.

Network Trac Camera Operaon Manual

Save downloaded les to

Set the saving path of the download les.

Save snapshots in live view to

Set the saving path of the manually captured pictures in live view mode.

Save downloaded pictures to

Set the saving path of the downloaded pictures.

Save scene picture to

Set the saving path of the captured pictures in Live View → Real-Time Capture .

Save snapshots when playback to

Set the saving path of the manually captured pictures in playback mode.

Save clips when playback to

Set the saving path of the clips in playback mode.

Network Trac Camera Operaon Manual

Chapter 3 Playback

You can search, play back, and download videos that stored on the storage card.

Steps

Click Playback.

Select a channel.

Select a date.

Click Search.

Click to start playback.

Oponal: You can also do the following operaons.

Set playback me

●

Drag the me bar to the target me and click

to play the video.

●

Click the current me point showed above the me bar and enter

the target me point in the popup window. Click OK and click to

play the video.

Capture image Click

to capture an image.

Clip record Click

/ to start/stop clipping the record.

Play back in single

frame

Click

once to play back the video in one frame.

Download record a. Click

b. Select the start me and end me.

c. Click Search.

d. Check record les that need to be downloaded.

e. Click Download.

Stop playback Click

to stop playback.

Slow forward Click

to slow down the playback.

Fast forward Click

to speed up the playback.

Digital zoom Click

to enable digital zoom.

Click to disable digital zoom.

Adjust volume Click

to enable volume.

Network Trac Camera Operaon Manual

Chapter 4 Record and Capture

4.1 Set Storage Path

4.1.1 Set Storage Card

If you want to store the les to the storage card, make sure you insert and format the storage card

in advance.

Before You Start

Insert the storage card to the device.

Steps

Go to Conguraon → Storage → Storage Management → HDD Management → HDD Storage .

Figure 4-1 Set Storage Card

Format the storage card in two ways.

Check the storage card, and click Format to format it manually.

Note

For the newly installed storage card, you need to format it manually before using it normally.

If you want to format the storage card automacally when the card is abnormal, enable Auto-

Inialize Redundant Storage.

Note

If you enable Auto-Inialize Redundant Storage, reboot the device to take the sengs into

eect.

Oponal: If the device has been connected to the plaorm, and you want to upload the storage

card informaon automacally, enable Auto-Upload Data in Redundant Storage and set the

interval.

Click Save.

Network Trac Camera Operaon Manual

4.1.2 Set FTP

Set FTP parameters if you want to upload the captured pictures to the FTP server.

Before You Start

Set the FTP server, and ensure the device can communicate normally with the server.

Steps

Go to Conguraon → Network → Data Connecon → FTP .

Figure 4-2 Set FTP

Check Enable FTP.

Select Number of Enabled FTP.

Note

You can only enable one FTP if the device does not support the violaon capture. If more than

one FTP is enabled, you should set upload data type for each FTP according to your needs.

Set FTP Parameters.

1) Select Sever Address Type and enter corresponding informaon.

2) Enter Port.

3) Enter User Name and Password, and conrm the password.

4) Select Protocol Type.

5) Select Directory Structure.

Note

You can customize the directory structure according to your needs.

6) Select Connecon Mode.

Transitory Connecon

The connecon is temporarily made for one data transmission task. Aer this task, the

connecon will be broken.

Persistent Connecon

Network Trac Camera Operaon Manual

The connecon is made for long-term data transmission, which will be broken only when

the device is disconnected from the FTP server.

Oponal: Enable upload funcons.

Note

Supported funcons vary with dierent models. The actual device prevails.

Not Upload Plate Close-up

The close-up pictures of a license plate will not be uploaded.

Upload Face Picture

Upload face close-up pictures to the FTP server.

Upload Target Picture

Upload the pictures of the target detecon area to the FTP server.

Upload Addional Informaon to FTP

Add related informaon when uploading data to the FTP server.

Upload CSV Vehicle Passing Stascs Informaon to FTP

Upload the CSV vehicle passing stascs informaon to the FTP server.

Select Path/Picture Name Encoding Mode.

UTF-8

UNICODE encoding.

Oponal: Click FTP Test to check the FTP server.

Set naming rules and separators according to the actual needs.

Note

For the European version, select Custom and enter adr or ADR in the text eld, and the ADR

(Autorisaon Dangerous Road) vehicle plate number will be added in the corresponding vehicle

picture name.

Oponal: Edit OSD informaon which can be uploaded to the FTP server with the pictures to

make it convenient to view and disnguish the data.

10.

Click Save.

4.1.3 Set SDK Listening

The SDK listening can be used to receive the uploaded informaon and pictures of the device

arming alarm.

Before You Start

The listening service has been enabled for the SDK listening, and the network communicaon with

the device is normal.

Network Trac Camera Operaon Manual

Steps

Go to Conguraon → Network → Data Connecon → SDK Listening .

Figure 4-3 Set SDK Listening

Enable SDK listening.

Set IP Address/Domain and Port if you need to upload the alarm informaon and pictures.

Oponal: The device will transmit images via the SDK listening if you enable the picture

uploading listening.

Select Protocol Type.

Note

Supported funcons vary with dierent models. The actual device prevails.

License Plate Upload Protocol

Uploads arming alarm images of the license plate. You can enable Upload Binary Image if you

need to upload images which are full of black or white pixel points. Enable Output Binary

Image in BMP Format if you want to output images in this format.

Mixed Target Upload Protocol

Uploads images of mulple targets such as humans and vehicles. You can enable the body

property to recognize clothes, bags, and other properes.

Oponal: If you want to save the alarm informaon and pictures to the cloud storage, click

set Cloud Storage. Refer to Set Cloud Storage for details.

Click Save.

4.1.4 Set Arm Host

The device can upload the captured pictures via the arm host.

Network Trac Camera Operaon Manual

Steps

Note

For level 1 arm, the pictures can be uploaded normally. If uploading failed, the device will upload

again. For level 2 arm, the pictures will be uploaded once. No more upload if uploading failed. For

level 3 arm, pictures will not be uploaded.

Go to Conguraon → Network → Data Connecon → Arm Upload .

Figure 4-4 Set Arm Host

Select Protocol Type.

Note

Supported funcons vary with dierent models. The actual device prevails.

License Plate Upload Protocol

Uploads arming alarm images of the license plate. You can enable Upload Binary Image if you

need to upload binary images full of black or white pixel points. Enable Output Binary Image

in BMP Format if you want to output images in this format.

Mixed Target Upload Protocol

Uploads images of mulple targets such as humans and vehicles. You can enable the body

property to recognize clothes, bags, and other properes.

Oponal: If you want to save the alarm informaon and pictures to the cloud storage, click

set Cloud Storage. Refer to Set Cloud Storage for details.

Click Save.

4.1.5 Set ISAPI Listening

ISAPI listening and SDK listening are mutually exclusive protocols. If you enable the picture

uploading listening, the device will transmit images via the SDK listening. If not, the device will

upload images via ISAPI protocol aer the ISAPI parameters are set.

Network Trac Camera Operaon Manual

Before You Start

The listening service has been enabled for the ISAPI host, and the network communicaon with

the device is normal.

Steps

Go to Conguraon → Network → Data Connecon → ISAPI Listening .

Enable the ISAPI listening.

Figure 4-5 Set ISAPI Listening

Set ANPR IP/Domain, ANPR Port, and Host URL.

Set uploaded picture type.

Oponal: Enable Upload Binary Image if you need to upload images which are full of black or

white pixel points.

Note

Enable Output Binary Image in BMP Format if you want to output images in this format.

Oponal: If you want to save the alarm informaon and pictures to the cloud storage, click to

set Cloud Storage. Refer to Set Cloud Storage for details.

Click Save.

4.1.6 Set Cloud Storage

Cloud storage is a kind of network storage. It can be used as the extended storage to save the

captured pictures.

Before You Start

●

Arrange the cloud storage server.

●

You have enabled level 1 arming in Live View → Real-Time Capture .

Network Trac Camera Operaon Manual

Note

The real-me capture should be used with dedicated plaorm.

Steps

Go to Conguraon → Storage → Storage Management → Cloud Storage .

Figure 4-6 Set Cloud Storage

Check Enable.

Select Version.

V1.0 a. Enter IP Address and Port

b. Enter User Name and Password.

c. Enter Cloud Storage ID and Violaon Cloud Storage ID according to the server

storage area No.

V2.0 a. Enter IP Address and Port

b. Enter accessKey and secretKey.

c. Enter Resource Pool ID according to the server storage area No. of uploading

pictures.

Click Save.

4.2 Set Quota

Set the video and picture rao in the storage.

Before You Start

Install the storage card.

Network Trac Camera Operaon Manual

Steps

Go to Conguraon → Storage → Storage Management → HDD Management → HDD Quota .

Figure 4-7 Set Quota

Set Capture Quota Rao and Video Quota Rao according to the actual needs.

Note

The percentage sum of the capture and video quota rao should be 100 %.

Click Save.

What to do next

Format the storage card aer the sengs.

4.3 Set Record Schedule

Set record schedule to record video automacally during congured me periods.

Before You Start

Install the storage card.

Steps

Go to Conguraon → Storage → Schedule Sengs → Record Schedule .

Oponal: Enable the recording overwring.

When the storage is full, the earliest videos will be overwrien.

Enable the record schedule.

Network Trac Camera Operaon Manual

Figure 4-8 Set Record Schedule

Select Record Type.

Drag the cursor on the me bar to set a recording me.

Note

Up to 8 me periods can be set on a me bar.

Adjust the recording me.

Click a set recording period and enter the start me and end me in the pop-up window.

Drag two ends of the set recording period bar to adjust the length.

Drag the whole set recording period bar and relocate it.

Oponal: Delete recording periods.

Click a set recording period and click Delete in the pop-up window.

Click a set recording period and click Delete on the record conguraon interface.

Oponal: Click

to copy set recordings to other days.

Click Save.

Result

The device will only record at the set periods.

Network Trac Camera Operaon Manual

Chapter 5 Encoding and Display

5.1 Set Video Encoding Parameters

Set video encoding parameters to adjust the live view and recording eect.

●

When the network signal is good and the speed is fast, you can set high resoluon and bitrate to

raise the image quality.

●

When the network signal is bad and the speed is slow, you can set low resoluon, bitrate, and

frame rate to guarantee the image uency.

●

When the network signal is bad, but the resoluon should be guaranteed, you can set low

bitrate and frame rate to guarantee the image uency.

●

Main stream stands for the best stream performance the device supports. It usually oers the

best resoluon and frame rate the device can do. But high resoluon and frame rate usually

means larger storage space and higher bandwidth requirements in transmission. Sub-stream

usually oers comparavely low resoluon opons, which consumes less bandwidth and storage

space. Third stream is oered for customized usage.

Steps

Note

The supported parameters vary with dierent models. The actual device prevails.

Go to Conguraon → Video → Video Encoding → Video Encoding .

Set the parameters for dierent streams.

Stream Type

Select the stream type according to your needs.

Note

The supported stream types vary with dierent models. The actual device prevails.

Bitrate

Select relavely large bitrate if you need good image quality and eect, but more storage

spaces will be consumed. Select relavely small bitrate if storage requirement is in priority.

Frame Rate

It is to describe the frequency at which the video stream is updated and it is measured by

frames per second (fps). A higher frame rate is advantageous when there is movement in the

video stream, as it maintains image quality throughout.

Resoluon

The higher the resoluon is, the clearer the image will be. Meanwhile, the network

bandwidth requirement is higher.

Network Trac Camera Operaon Manual

SVC

Scalable Video Coding (SVC) is an extension of the H.264/AVC and H.265 standard. Enable the

funcon and the device will automacally extract frames from the original video when the

network bandwidth is insucient.

Bitrate Type

Select the bitrate type to constant or variable.

Video Quality

When bitrate type is variable, 6 levels of video quality are selectable. The higher the video

quality is, the higher requirements of the network bandwidth.

Prole

When you select H.264 or H.265 as video encoding, you can set the prole. Selectable

proles vary according to device models.

I Frame Interval

It refers to the number of frames between two key frames. The larger the I frame interval is,

the smaller the stream uctuaon is, but the image quality is not that good.

Video Encoding

The device supports mulple video encoding types, such as H.264, H.265, and MJPEG.

Supported encoding types for dierent stream types may dier. H.265 is a new encoding

technology. Compared with H.264, it reduces the transmission bitrate under the same

resoluon, frame rate, and image quality.

Click Save.

5.2 Set Image Parameters

You can adjust the image parameters to get clear image.

Steps

Note

The supported parameters may vary with dierent models. The actual device prevails.

Go to Conguraon → Video → Camera Parameter → Camera Parameter .

Network Trac Camera Operaon Manual

Figure 5-1 Set Image Parameters

Set the camera parameters.

Note

●

The supported parameters vary with dierent models. The actual device prevails.

●

Click Default to reset parameters.

General Parameter

Enable Dual-Shuer

Set the stream type aer enabling it.

Saturaon

It refers to the colorfulness of the image color.

Sharpness

It refers to the edge contrast of the image.

White Balance

It is the white rendion funcon of the device used to adjust the color temperature

according to the environment.

WDR Mode

Wide Dynamic Range (WDR) can be used when there is a high contrast of the bright area

and the dark area of the scene.

Select WDR Switch and set corresponding parameters according to your needs.

Set WDR Level. The higher the level is, the higher the WDR strength is.

Time

Network Trac Camera Operaon Manual

Enable WDR according to the set me period and level.

Brightness

Set Light Threshold and WDR Level. When the brightness reaches the threshold, WDR

will be enabled.

Iris Mode

Select the iris mode as manual or auto.

Brightness Enhancement at Night

The scene brightness will be enhanced at night automacally.

Light Compensaon on License Plate

Check it. The plate brightness compensaon can be realized, and various light supplement

condions can be adapted via seng license plate expectant brightness and supplement

light correcon coecient. The higher the sensivity is, the easier this funcon can be

enabled.

Enable Gamma Correcon

The higher the gamma correcon value is, the stronger the correcon strength is.

Black and White Mode at Night

When ICR is in night mode, you can check it to keep the video in black and white mode.

Video

Brightness

It refers to the brightness the image.

Contrast

It refers to the contrast of the image. Set it to adjust the levels and permeability of the

image.

Shuer

If the shuer speed is quick, the details of the moving objects can be displayed beer. If

the shuer speed is slow, the outline of the moving objects will be fuzzy and trailing will

appear.

Gain

It refers to the upper limit value of liming image signal amplicaon. It is recommended

to set a high gain if the illuminaon is not enough, and set a low gain if the illuminaon is

enough.

Hue Range

Select the range to adapt to the display.

3D DNR

Digital Noise Reducon (DNR) reduces the noise in the video stream.

Network Trac Camera Operaon Manual

In Normal Mode, the higher the 3D DNR Level is, the stronger the noise will be reduced.

But if it is too high, the image may become fuzzy.

In Expert Mode, set Spaal Intensity and Time Intensity. If the space domain intensity is

too high, the outline of the image may become fuzzy and the details may lose. If the me

domain intensity is too high, trailing may appear.

2D DNR

The higher the 2D DNR Level is, the stronger the noise will be reduced. But if it is too high,

the image may become fuzzy.

Slow Shuer

This funcon can be used in underexposure condion. It lengthens the shuer me to

ensure full exposure. The higher Slow Shuer Level is, the slower the shuer speed is.

Video Standard

Select the video standard according to the actual power supply frequency.

Power Synchronizaon

The street lights and trac lights will cause image ashing in live view. Check it, and set Phase

Posion and Signal Frequency to overcome the image ashing in live view.

Oponal: Click Capture Test to check the image.

5.3 Set ICR

ICR adopts mechanical IR lter to lter IR in the day to guarantee the image eect, and to remove

the IR lter at night to guarantee full-spectrum rays can get through the device.

Steps

Go to Conguraon → Capture → Capture Images → ICR .

Select ICR Mode.

Auto Switch Switches to ICR mode automacally at night or in dark light condions.

Manual Switch Select Day-night Mode to switch to the day or night manually.

Schedule Switch Set Day-night Mode, Start Time, and End Time to switch to ICR mode only

during the set me period.

Click Save.

5.4 Set ROI

ROI (Region of Interest) encoding helps to assign more encoding resources to the region of

interest, thus to increase the quality of the ROI whereas the background informaon is less

focused.

Network Trac Camera Operaon Manual

Before You Start

Please check the video encoding type. ROI is supported when the video encoding type is H.264 or

H.265.

Steps

Go to Conguraon → Video → Video Encoding → ROI .

Figure 5-2 Set ROI

Select Stream Type.

Set ROI region.

1) Check Enable.

2) Select Area Code.

3) Click Draw Area.

4) Drag the mouse on the live view image to draw a xed area.

5) Select the xed area that needs to be adjusted and drag the mouse to adjust its posion.

Select ROI Level and enter Area Name.

Note

The higher the ROI level is, the clearer the image of the detected area is.

Click Save.

Oponal: Select other area codes and repeat the steps above if you need to draw mulple xed

areas.

5.5 Set Privacy Mask

The privacy mask can be used to protect personal privacy by concealing parts of the image from

view or recording with a masked area.

Steps

Go to Conguraon → Video → Video Encoding → Privacy Mask .

Network Trac Camera Operaon Manual

Figure 5-3 Set Privacy Mask

Check Enable Privacy Mask.

Enable the privacy mask area(s).

1) Check Enable.

2) Select Area Code.

3) Select Type.

Draw the privacy mask area.

1) Click Draw Area.

2) In the live view image, drag the mouse to draw the privacy mask area of the selected area

code.

3) Click Stop Drawing.

4) Oponal: Click Clear to clear all the drawn areas.

Network Trac Camera Operaon Manual

Oponal: Repeat step 3 and 4 to draw more privacy mask areas.

Note

Up to four privacy mask areas are supported.

Click Save.

5.6 Set OSD

You can customize OSD informaon on the live view.

Steps

Go to Conguraon → Video → Text Overlay on Video → Text Overlay on Video .

Note

The supported funcons vary with dierent models. The actual device prevails.

Figure 5-4 Set OSD

Set display contents.

1) Check Display Name.

2) Enter Display Name.

3) Check Display Date, and set the me and date format.

4) Enable Display Week or Millisecond according to your needs.

Oponal: Click Add and enter informaon if you want to add custom informaon.

Network Trac Camera Operaon Manual

Note

Up to 6 items of custom informaon can be added.

Set display properes (font, color, etc.).

Select Alignment.

Note

If you select Align Le or Align Right, set Min. Horizontal Margin and Min. Vercal Margin.

Drag the red frames on the live view image to adjust their posions.

Click Save.

Result

The set OSD will be displayed in live view image and recorded videos.

Network Trac Camera Operaon Manual

Chapter 6 Network Conguraon

6.1 Set IP Address

IP address must be properly congured before you operate the device over network. IPv4 and IPv6

are both supported. Both versions can be congured simultaneously without conicng to each

other.

Steps

Note

The supported parameters vary with dierent models. The actual device prevails.

Go to Conguraon → Network → Network Parameters → Network Interface .

Figure 6-1 Set IP Address

Select Dual-NIC Mode.

Dual-Network Backup

Network Trac Camera Operaon Manual

Select it when the two network interfaces are connected to two network cables respecvely.

When one network interface fails, the other network interface will be employed

automacally without inuencing the data transmission.

Mul-Network Isolaon

Select it when dierent LANs are connected. Set the IP addresses of dierent network

segments.

Note

The dual-NIC mode varies with dierent models. The actual device prevails.

Set network parameters.

NIC Type

Select a NIC (Network Interface Card) type according to your network condion.

IPv4

Two modes are available.

DHCP

The device automacally gets the IP parameters from the network if you check DHCP. The

device IP address is changed aer enabling the funcon. You can use SADP to get the device

IP address.

Note

The network that the device is connected to should support DHCP (Dynamic Host

Conguraon Protocol).

Manual

You can set the device IP parameters manually. Enter IPv4 Address, IPv4 Subnet Mask, and

IPv4 Default Gateway.

IPv6

Three IPv6 modes are available.

Route Adversement

The IPv6 address is generated by combining the route adversement and the device Mac

address.

Note

Route adversement mode requires the support from the router that the device is

connected to.

DHCP

The IPv6 address is assigned by the server, router, or gateway.

Manual

Network Trac Camera Operaon Manual

Enter IPv6 Address, IPv6 Subnet Mask, and IPv6 Default Gateway. Consult the network

administrator for required informaon.

MTU

It stands for maximum transmission unit. It is the size of the largest protocol data unit that

can be communicated in a single network layer transacon.

The valid value range of MTU is 1280 to 1500.

Mulcast

Mulcast is group communicaon where data transmission is addressed to a group of

desnaon devices simultaneously. Aer seng the IP address of the mulcast host, you can

send the source data eciently to mulple receivers.

Router

Enter Route Address and Subnet Mask if the device is connected to a router in mul-network

isolaon mode.

DNS

It stands for domain name server. It is required if you need to visit the device with domain

name. And it is also required for some applicaons (e.g., sending email). Set Preferred DNS

Address properly if needed.

Click Save.

6.2 Connect to Plaorm

6.2.1 Connect to ISUP Plaorm

ISUP is a plaorm access protocol. The device can be remotely accessed via this plaorm.

Before You Start

●

Create the device ID on ISUP plaorm.

●

Ensure the device can communicate with the plaorm normally.

Steps

Go to Conguraon → Network → Data Connecon → ISUP .

Network Trac Camera Operaon Manual

Figure 6-2 Connect to ISUP Plaorm

Check Enable ISUP.

Select Protocol Version.

Select Address Type.

Enter Sever IP Address, Server Port, and Device ID.

Note

You need to enter Key if you select Protocol Version as v5.0.

Oponal: For protocol v5.0, you can enable Upload Binary Image if you need to upload images

which are full of black or white pixel points.

Note

Enable Output Binary Image in BMP Format if you want to output images in this format.

Click Save.

Oponal: View Register Status.

Note

Aer the device is added successfully on the ISUP plaorm, the registraon status will show

online. Refer to the plaorm user manual for details.

6.2.2 Connect to OTAP

The device can be accessed to the maintenance plaorm via OTAP protocol, in order to search and

acquire device informaon.

Network Trac Camera Operaon Manual

Before You Start

Ensure the device can communicate with the plaorm normally.

Steps

Go to Conguraon → Network → Data Connecon → OTAP .

Select Plaorm Access Mode.

Check Enable.

Figure 6-3 Connect to OTAP

Set corresponding parameters.

Note

The device ID should be the same with the added one on the OTAP plaorm.

Click Save.

What to do next

When the registraon status is online, you can add or manage the device via the plaorm

soware. Refer to its corresponding manual for details.

6.2.3 Connect to Hik-Connect

The device can be remotely accessed via Hik-Connect.

Before You Start

●

Connect the device to the Internet.

●

Set the IP address, subnet mask, gateway, and DNS server of the LAN.

Network Trac Camera Operaon Manual

Steps

Note

This funcon varies with dierent models. The actual device prevails.

Go to Conguraon → Network → Data Connecon → Hik-Connect Plaorm .

Check Enable Hik-Connect Plaorm.

Figure 6-4 Connect to Hik-Connect

Select Plaorm Access Mode.

Enter a custom Vericaon Code used to add the device via Hik-Connect.

Cauon

The vericaon code should be 6 leers or numbers, case sensive. You are recommended to

use a combinaon of leers or numbers.

Click Save.

Note

Refer to the user manual of the plaorm for details.

6.3 Set DDNS

You can use the Dynamic DNS (DDNS) for network access. The dynamic IP address of the device can

be mapped to a domain name resoluon server to realize the network access via domain name.

Before You Start

●

Set the LAN IP address, subnet mask, gateway, and DNS server parameters. Refer to

Set IP

Address for details.

●

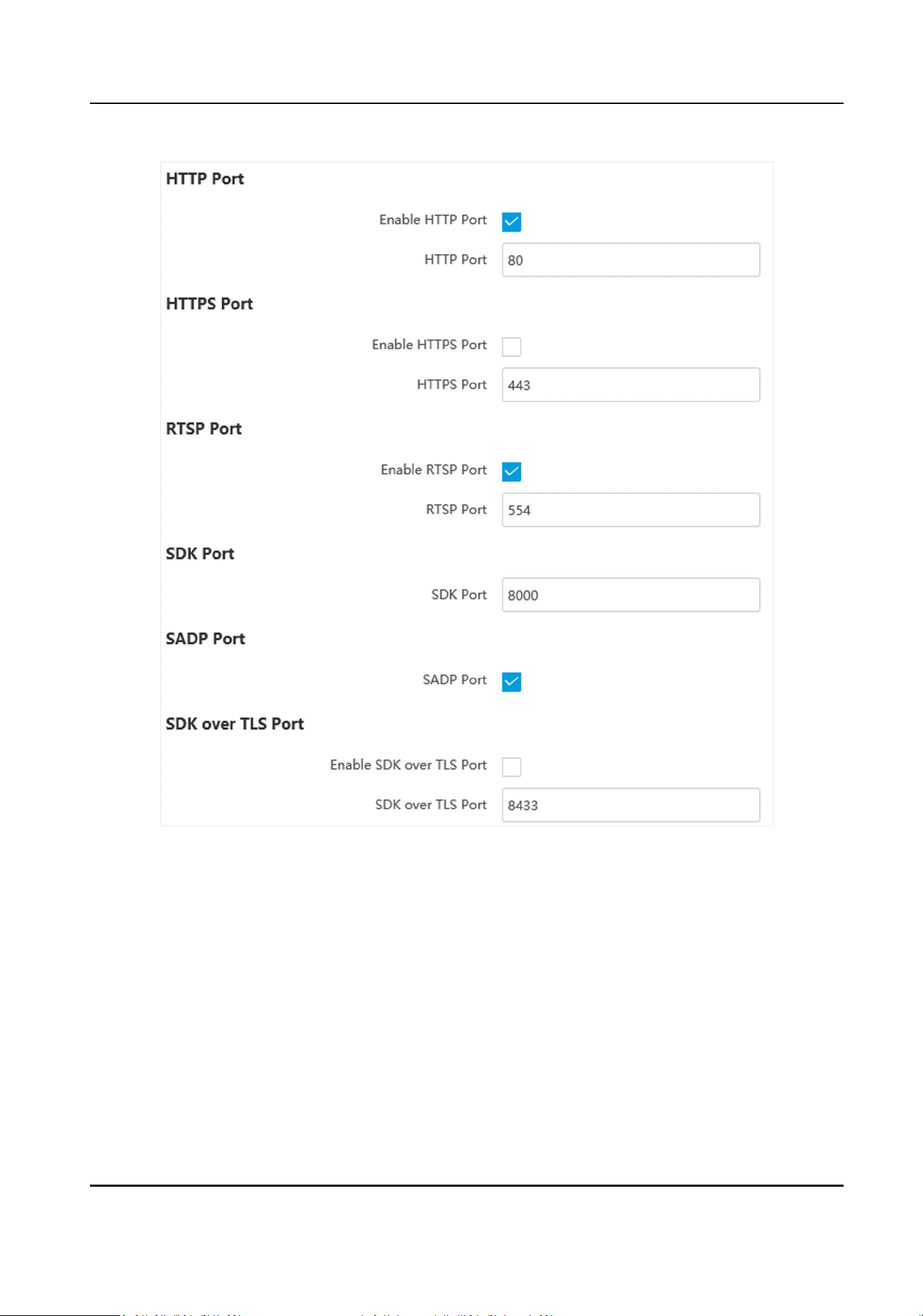

Complete port mapping. The default ports are 80, 8000, and 554.

Network Trac Camera Operaon Manual

Steps

Go to Conguraon → Network → Network Parameters → DDNS .

Figure 6-5 Set DDNS

Check Enable DDNS.

Enter the server address and other informaon.

Note

You can select IPServer, DynDNS, and NO-IP for the DDNS type.

Click Save.

Access the device.

By Browsers Enter the domain name in the browser address bar to access the device.

By Client Soware Add domain name to the client soware. Refer to the client soware

manual for specic adding methods.

6.4 Set SNMP

You can set the SNMP network management protocol to get the alarm event and excepon

messages in network transmission.

Before You Start

Download the SNMP soware and manage to receive the device informaon via SNMP port.

Steps

Go to Conguraon → Network → Network Parameters → SNMP .

Network Trac Camera Operaon Manual

Figure 6-6 Set SNMP

Check Enable SNMPv1/Enable SNMP v2c/Enable SNMPv3.

Note

●

The SNMP version you select should be the same as that of the SNMP soware.

●

Use dierent versions according to the security levels required. SNMP v1 is not secure and

SNMP v2 requires password for access. SNMP v3 provides encrypon and if you use the third

version, HTTPS protocol must be enabled.

Set the SNMP parameters.

Click Save.

Network Trac Camera Operaon Manual

6.5 Set QoS

QoS (Quality of Service) can help improve the network delay and network congeson by seng

the priority of data sending.

Note

QoS needs support from network devices such as routers and switches.

Steps

Go to Conguraon → Network → Network Parameters → QoS .

Figure 6-7 Set QoS

Enable Video/Audio DSCP, Event/Alarm DSCP, and Management DSCP according to the actual

needs.

Note

Network can idenfy the priority of data transmission. The bigger the DSCP value is, the higher

the priority is. Same sengs need to be set in the router for conguraon.

Click Save.

6.6 Set IEEE 802.1X

IEEE 802.1X is a port-based network access control. It enhances the security level of the LAN/

WLAN. When devices connect to the network with IEEE 802.1X standard, the authencaon is

needed.

Steps

Go to Conguraon → Network → Network Parameters → 802.1X .

Network Trac Camera Operaon Manual

Figure 6-8 Set IEEE 802.1X

Check Enable 802.1X.

Select Protocol Type and EAPOL Version.

Protocol Type

The authencaon server must be congured. Register a user name and password for 802.1X

in the server in advance. Enter the user name and password for authencaon.

EAPOL Version

The EAPOL version must be idencal with that of the router or the switch.

Enter User Name and Password registered in the server.

Conrm the password.

Click Save.

6.7 Set Port

The device port can be modied when the device cannot access the network due to port conicts.

Go to Conguraon → Network → Network Parameters → Port for port sengs.

Network Trac Camera Operaon Manual

Figure 6-9 Set Port

HTTP Port

It refers to the port through which the browser accesses the device. For example, when the

HTTP Port is modied to 81, you need to enter hp://192.168.1.64:81 in the browser for login.

HTTPS Port

It refers to the port through which the browser accesses the device, but cercate vericaon is

needed.

RTSP Port

It refers to the port of real-me streaming protocol.

SDK Port

Network Trac Camera Operaon Manual

It refers to the port through which the client adds the device.

SADP Port

It refers to the port through which the SADP soware searches the device.

SDK over TLS Port

It refers to the port that adopts TLS protocol over the SDK service, to provide safer data

transmission.

Note

●

Aer eding the port, access to the device via the new port.

●

Reboot the device to bring the new sengs into eect.

●

The supported ports vary with dierent models. The actual device prevails.

Network Trac Camera Operaon Manual

Chapter 7 Serial Port Conguraon

7.1 Set RS-485

Set RS-485 parameters if the device needs to be connected to other peripheral devices controlled

by RS-485 serial port.

Before You Start

The corresponding device has been connected via the RS-485 serial port.

Steps

Note

The number of available RS-485 serial port varies with dierent models.

Go to Conguraon → System → System Sengs → Serial Port → RS-485 .

Figure 7-1 Set RS-485

Set Baud Rate, Data Bit, Stop Bit, etc.

Note

The parameters should be same with those of the connected device.

Set Work Mode.

Note

●

The supported work modes vary with dierent models. The actual device prevails.

●

You need to reboot the device aer eding the work mode to take eect.

Applicaon Trigger

Select it when a signal trigger device (such as a radar) is connected to the RS-485 serial port

of the device.

Transparent Channel

Select it when the other peripheral device is connected to the RS-485 serial port of the device

for communicaon transmission.

GPS

Select it when a GPS device is connected to the RS-485 serial port of the device to receive

posioning informaon.

Click Save.

Network Trac Camera Operaon Manual

7.2 Set RS-232

Set RS-232 parameters if you need to debug the device via RS-232 serial port.

Before You Start

The debugging device has been connected via the RS-232 serial port.

Steps

Go to Conguraon → System → System Sengs → Serial Port → RS-232 .

Figure 7-2 Set RS-232

Set Baud Rate, Data Bit, Stop Bit, etc.

Note

The parameters should be same with those of the connected device.

Select Work Mode.

Note

●

The supported work modes vary with dierent models. The actual device prevails.

●

You need to reboot the device aer eding the work mode to take eect.

Console

Select it when you need to debug the device via RS-232 serial port.

Transparent Channel

Select it, and the network command can be transmied to RS-232 control command via the

RS-232 serial port.

Narrow Bandwidth Transmission

Reserved.

Click Save.

Network Trac Camera Operaon Manual

Chapter 8 Event and Alarm

8.1 Excepon Alarm

Set excepon alarm when the network is disconnected, the IP address is conicted, etc.

Steps

Note

The supported excepon types vary with dierent models. The actual device prevails.

Go to Conguraon → Event → Alarm Linkage → Excepon .

Select the excepon type(s) and the linkage method.

Click Save.

8.2 Set Email

When the email is enabled and set, the device will send an email nocaon to all designated

receivers if an alarm event is detected.

Before You Start

Set the DNS server before using the email funcon. Go to Conguraon → Network → Network

Parameters → Network Interface for DNS sengs.

Steps

Go to Conguraon → Network → Data Connecon → Email .

Check Enable Email.

Network Trac Camera Operaon Manual

Figure 8-1 Set Email

Set email parameters.

1) Enter the sender's email informaon, including Sender, Sender's Address, SMTP Server, and

SMTP Port.

2) Select Email Encrypon.

None

Emails are sent without encrypon.

TLS

Emails are sent aer being encrypted by TLS.

3) Oponal: If you want to upload no-plate data, check Upload No-Plate Data.

4) Oponal: If your email server requires authencaon, check Authencaon and enter your

user name and password to log in to the server.

5) Enter the receiver's informaon, including the receiver's name and address.

6) Oponal: Click Test to see if the funcon is well congured.

Click Save.

8.3 Set Email Event

When the set event occurs, the device can be set to send an email with alarm informaon to the

user.

Network Trac Camera Operaon Manual

Before You Start

The email has been enabled and related email parameters have been congured.

Steps

Go to Conguraon → Event → Alarm Linkage → Email Event .

Check Enable to trigger an email alarm.

Click Save.

Network Trac Camera Operaon Manual

Chapter 9 Safety Management

9.1 Manage User

The administrator can add, modify, or delete other accounts, and grant dierent permissions to

dierent user levels.

Steps

Go to Conguraon → System → User Management → User List .

Select Password Level.

The password level of the added user should conform to the selected level.

Add a user.

1) Click Add.

2) Enter User Name and select Type.

3) Enter Admin Password, New Password, and conrm the password.

Cauon

To increase security of using the device on the network, please change the password of your

account regularly. Changing the password every 3 months is recommended. If the device is

used in high-risk environment, it is recommended that the password should be changed every

month or week.

4) Assign remote permission to users based on needs.

User

Users can be assigned permission of viewing live video and changing their own passwords,

but no permission for other operaons.

Operator

Operators can be assigned all permission except for operaons on the administrator and

creang accounts.

5) Click OK.

Oponal: You can do the following operaons.

Change the password and permission Click

to change the password and permission.

Delete the user Click

to delete the user.

9.2 Set IP Address Filtering

You can set the IP addresses allowable and not allowable to access the device.

Steps

Go to Conguraon → System → Security → Security Sengs .

Check Enable IP Address Filtering.

Network Trac Camera Operaon Manual

Set Filtering Mode.

Blocklist Mode

The added IP addresses are not allowed to access the device.

Allowlist Mode

The added IP addresses are allowed to access the device.

Click Add, enter the IP address, and click OK.

Note

The IP address only refers to the IPv4 address.

Oponal: Edit, delete, or clear the added IP addresses.

Click Save.

9.3 Enable User Lock

To raise the data security, you are recommended to lock the current IP address.

Steps

Go to Conguraon → System → Security → Security Service → Soware .

Check Enable User Lock.

Click Save.

Result

When the mes you entered incorrect passwords have reached the limit, the current IP address

will be locked automacally.

9.4 Set HTTPS

9.4.1 Create and Install Self-signed Cercate

HTTPS is a network protocol that enables encrypted transmission and identy authencaon,

which improves the security of remote access.

Steps

Go to Conguraon → Network → Network Parameters → HTTPS .

Select Create Self-signed Cercate.

Click Create.

Follow the prompt to enter Country/Region, Domain/IP, Validity, and other parameters.

Click OK.

Result

The device will install the self-signed cercate by default.

Network Trac Camera Operaon Manual

9.4.2 Install Authorized Cercate

If the demand for external access security is high, you can create and install authorized cercate

via HTTPS protocol to ensure the data transmission security.

Steps

Go to Conguraon → Network → Network Parameters → HTTPS .

Select Create cercate request rst and connue the installaon.

Click Create.

Follow the prompt to enter Country/Region, Domain/IP, Validity, and other parameters.

Click Download to download the cercate request and submit it to the trusted authority for

signature.

Import cercate to the device.

Select Signed cercate is available, start the installaon directly. Click Browse and Install to

import the cercate to the device.

Select Create the cercate request rst and connue the installaon. Click Browse and

Install to import the cercate to the device.

Click Save.

9.5 Set SSH

To raise network security, disable SSH service. The conguraon is only used to debug the device

for the professionals.

Steps

Go to Conguraon → System → Security → Security Service → Soware .

Disable SSH Service.

Click Save.

9.6 Set RTSP Authencaon

You can improve network access security by seng RTSP authencaon.

Steps

Go to Conguraon → System → Security → Security Sengs .

Select RTSP Authencaon.

digest

The device only supports digest authencaon.

digest/basic

The device supports digest or basic authencaon.

Click Save.

Network Trac Camera Operaon Manual

9.7 Set Timeout Logout

You can improve network access security by seng meout logout.

Steps

Go to Conguraon → System → Security → Security Service → Timeout Logout .

Enable meout logout for stac page.

Set Max. Timeout.

Click Save.

Result

When the page stac me exceeds the set me, the device will automacally log out.

9.8 Set Password Validity Period

You can improve network access security by seng password validity period.

Steps

Go to Conguraon → System → Security → Security Service → Password Validity Period .

Select Validity Type.

Select Permanent. The password will be permanently valid.

Select Daily and set Password Expiry Time. It will prompt you that the password is expired

according to the set password expiry me, and you need to set the new password.

Click Save.

Network Trac Camera Operaon Manual

Chapter 10 Maintenance

10.1 View Device Informaon

Basic Informaon and Algorithms Library Version

Go to Conguraon → System → System Sengs → Basic Informaon to view the basic

informaon and algorithms library version of the device.

You can edit Device Name and Device No. The device No. is used to control the device. It is

recommended to reserve the default value.

Device Status

Go to Conguraon → System → System Sengs → Device Status to view the device status.

10.2 Log

10.2.1 Enable System Log Service

The security audit logs refer to the security operaon logs. You can search and analyze the security

log les of the device so as to nd out the illegal intrusion and troubleshoot the security events.

Security audit logs can be saved on device internal storage. The log will be saved every half hour

aer device boong. Due to limited storage space, you are recommended to save the logs on a log

server.

Steps

Go to Conguraon → System → Security → Security Service → Log Audit Service .

Enable system log service.

Enter IP Address and Port of the log server.

Click Save.

Result

The device will upload the security audit logs to the log server regularly.

10.2.2 Enable Log According to Module

You can enable the log according to the module for debugging.

Network Trac Camera Operaon Manual

Steps

Note

The funcon varies with dierent models. The actual device prevails.

Go to Conguraon → System → Maintenance → Debug → Log .

Check the module(s) according to your needs.

Note

If you want to disable the log automacally, you can enable auto close log and set close me.

Click Save.

10.2.3 Search Log

Log helps to locate and troubleshoot problems.

Steps

Go to Conguraon → System → Maintenance → Log Search .

Set search condions.

Click Search.

The matched log les will be displayed on the log list.

Oponal: Click Export to save the log les to your computer.

10.3 Upload Radar Debugging Informaon

You can upload the radar debugging informaon to the plaorm.

Steps

Note

The funcon varies with dierent models. The actual device prevails.

Go to Conguraon → System → Maintenance → Debug → Debug .

Enable Radar Debugging Informaon Upload.

Click Save.

10.4 Upgrade

Upgrade the system when you need to update the device version.

Before You Start

Prepare the upgrade le. If the upgrade le is a compressed package, it needs to be decompressed

into the .dav format.

Network Trac Camera Operaon Manual

Steps

Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Upgrade .

Click Browse to select the upgrade le.

Click Upgrade.

Click OK in the popup window.

Note

The upgrade process will take 1 to 10 minutes. Do not cut o the power supply.

Result

The device will reboot automacally aer upgrade.

10.5 Reboot

When the device needs to be rebooted, reboot it via the soware instead of cung o the power

directly.

Steps

Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Device

Maintenance .

Click Reboot.

Click OK to reboot the device.

Note

You can also click Reboot on the upper right corner of the page to reboot the device.

10.6 Restore Parameters

When the device is abnormal caused by the incorrect set parameters, you can restore the

parameters.

Steps

Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Device

Maintenance .

Select the restoraon mode.

Click Restore, and select the parameters to be saved instead of being restored. Click OK. Then

the parameters except the IP parameters, user parameters, and the saved parameters will be

restored to the default sengs.

Click Restore Factory Sengs and click OK to restore all the parameters to the factory

sengs.

Click OK.

Network Trac Camera Operaon Manual

10.7 Synchronize Time

Synchronize the device me when it is inconsistent with the actual me.

Steps

Go to Conguraon → System → System Sengs → Time Sengs .

Select Time Zone.

Select Sync Mode.

NTP Synchronizaon

Select it to synchronize the device me with that of the NTP server. Set Server IP, NTP Port,

and Interval. Click NTP Test to test if the connecon between the device and the server is

normal.

Manual Synchronizaon

Select it to synchronize the device me with that of the computer. Set me manually, or

check Sync. with computer me.

Satellite Time

Select it to synchronize the device me with that of the satellite. Set Interval.

SDK

If the remote host has been set for the device, select it to synchronize me via the remote

host.

ONVIF

Select it to synchronize me via the third-party device.

PTP

Select it to synchronize me more accurately. Precision Time Protocol (PTP) is a protocol to

synchronize clocks in a computer network, similar to NTP. NTP is accurate, under ten

milliseconds. PTP, however, is accurate up to less than a microsecond and is measured in

nanoseconds.

Select it to disable me synchronizaon.

All

Select it, and you can select any mode above.

Note

The me synchronizaon modes vary with dierent models. The actual device prevails.

Click Save.

Network Trac Camera Operaon Manual

10.8 Set DST

If the region where the device is located adopts Daylight Saving Time (DST), you can set this

funcon.

Steps

Go to Conguraon → System → System Sengs → DST .

Check Enable DST.

Set Start Time, End Time, and DST Bias.

Click Save.

10.9 Debug

Note

The debug conguraons below are only provided to debug the device by the professionals.

10.9.1 Debug Device

You can enable the funcons to debug the device.

Steps

Go to Conguraon → Capture → Advanced → System Service .

Check the debug informaon according to your needs.

Note

The supported parameters vary with dierent models. The actual device prevails.

Enable Algorithm POS Informaon Debug

The algorithm POS informaon will be overlaid on the playback image when you play back

the video with the dedicated tool.

Enable Posioning Frame Debug

The posioning frames of vehicle bodies and license plates will be overlaid on the captured

pictures.

Enable Closed Posioning Frame

The boom lines of the posioning frames on the captured pictures will be displayed. The

frames will be closed.

Enable LPR Area Frame

The LPR area frames on the captured pictures will be displayed.

Network Trac Camera Operaon Manual

Note

The funcon is only valid in the trigger modes of checkpoint single I/O and RS-485 radar, and

manual capture. In these modes, the license plate may not be included in the LPR area, and

the LPR rate is low. To solve the problem, you can enable the funcon to add a green frame

on the captured picture to check whether the license plate is included in the LPR area.

LPR Area Frame Y-Direcon Deviaon

If the license plate is not included in the LPR area frame, adjust the LPR area frame posion in

the Y-direcon by pixel. Enter the deviaon pixel in the text eld. The value = image height ×

(deviaon distance/100). Set the value according to the actual needs. Range: -100% to 100%.

The LPR area frame moves up if the value is negave, and it moves down if the value is

posive.

Enable License Plate Frame

The license plate frames will be overlaid on the captured pictures.

Enable Mul-Way Upload

Data will be uploaded in mulple set ways simultaneously.

Enable Lane Line Debug

Check it to overlay lane lines on a captured picture.

Click Save.

10.9.2 Vehicle Capture and Recognion Service

Set the vehicle capture and recognion service to debug the device.

Steps

Note

The funcon varies with dierent models. The actual device prevails.

Go to Conguraon → Capture → Advanced → Vehicle Capture and Recognion Service .

Check the service(s) according to your needs.

Note

The supported services vary with dierent models. The actual device prevails.

Filter Checkpoint Capture of Same Vehicle

It is used to debug the device with the same vehicle. When the same vehicle is triggered

many mes during a short period in the scene, the checkpoint pictures of the vehicle will not

be captured.

Network Trac Camera Operaon Manual

Note

For some models, you can set Eecve Time of Filtering.

Enable Turning Trac Flow Stascs

In video analysis E-police mode, the turning trac ow stascs will be uploaded to the

connected plaorm.

Filter Violaon Capture of Same Vehicle

It is used to debug the device with the same vehicle. When the same vehicle is triggered

many mes during a short period in the scene, the violaon pictures of the vehicle will not be

captured.

Not Add No. Aer Violaon Type

The No. of the captured pictures will not be added aer the overlaid violaon type on the

pictures.

Filter Violaon Capture of Motorcycle

The violaon pictures of motorcycles will not be captured.

Do Not Capture Reverse-driving Vehicle

The reverse-driving vehicles will not be captured. For example, if you need to capture the

vehicles driven from the west to the east, enable the funcon and the vehicles driven from

the east to the west will not be captured.

Disable Motorcycle Speed Detecon

The speeds of motorcycles will not be detected.

Enable SIRA Protocol

For the device supporng Middle East SIRA protocol, check it to enable the protocol. Then

the license plates will be overlaid on the captured pictures according to the license plate

types of the Middle East license plate recognion library.

Enable Non-Motor Vehicle Flow Stascs

Check it to enable the non-motor vehicle ow stascs.

VCA Alarm for Target Picture Mang

Check it to upload alarms via VCA protocol if the target picture mang is enabled.

Enable Stascs Integral Upload

The device will upload data at every integral minute according to the set me interval under

the collecon mode. For example, if the set me interval is 2, the device will upload data at

8:00:00, 8:02:00, 8:04:00, etc.

Capture Frame Priority Mode

Check it to adopt license plate recognion results that processed by the single frame

recognion algorithm.

Click Save.

Network Trac Camera Operaon Manual

10.9.3 Set Image Format

You can enable smartJPEG which can save the storage space without inuencing the resoluon.

Steps

Go to Conguraon → Capture → Advanced → Image Service .

Check smartJPEG.

Set image quality according to your needs.

Note

The higher the value is, the beer the image quality is.

Oponal: Set Expansion Rao of License Plate Image to expand the cutout scale of license plate

image.

Click Save.

10.10 Export Parameters

You can export the parameters of one device, and import them to another device to set the two

devices with the same parameters.

Steps

Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Data Export .

Click Export aer Conguring Parameters.

Set an encrypon password, conrm the password, and click OK.

Note

The password is used for imporng the conguraon le of the current device to other devices.

Select the saving path, and enter the le name.

Click Save.

10.11 Import Conguraon File

Import the conguraon le of another device to the current device to set the same parameters.

Before You Start

Save the conguraon le to the computer.

Steps

Cauon

Imporng conguraon le is only available to the devices of the same model and same version.

Network Trac Camera Operaon Manual

Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Advanced

Sengs → Data Import .

Select Imporng Method.

Note

If you select Import Part, check the parameters to be imported.

Click Browse to select the conguraon le.

Click Import.

Enter the password which is set when the conguraon le is exported, and click OK.

Click OK on the popup window.

Result

The parameters will be imported, and the device will reboot.

10.12 Export Debug File

The technicians can export the debug le to troubleshoot and maintain the device.

Steps

Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Data Export .

Click Export aer Debug File.

Select the saving path, and enter the le name.

Click Save.

10.13 Export Diagnosis Informaon

The technicians can export the diagnosis informaon to troubleshoot and maintain the device.

Steps

Go to Conguraon → System → Maintenance → Upgrade & Maintenance → Data Export .

Click Export aer Diagnosis Informaon.

Select the saving path, and enter the le name.

Click Save.

Network Trac Camera Operaon Manual

UD33088B

Hikvision IDS-TCE500-B 5 MP ANPR Intersection Violation Capture Unit

Product's Documents

Operation User Manual

Specifications

Hikvision IDS-TCE500-B Questions and Answers
