READING AND STORING THE USER MANUAL
Before using this product, please read through this manual
carefully paying particular attention to the safety instructions.
Failure to do so may result in personal injury or damage to the
product.
Carefully save this instruction manual for future reference. Ensure the
user manual is included when passing the product on to any third
parties.
IMPORTANT SAFETY INSTRUCTIONS FOR PROPER USE
When using electrical appliances, basic safety precautions should always
be followed.
Only use the product as described in this user manual. Any other use is
considered improper and may result in damage to property or persons.
The manufacturer or vendor cannot be held liable for damages or injury
incurred through improper or incorrect use.
• Read and familiarise yourself with all operating instructions before
using this Gaming Combo.
• Before using your Gaming Combo, visually check that the unit is
intact and has not suffered any transit damage.
• Only connect items as described in this manual, incorrect
connections may cause permanent damage to the product.
• DO NOT operate this product after a malfunction or after being
dropped or damaged in any way.
• Never allow children to play with the product. Small parts and
cables may be a choking hazard.
• DO NOT allow cables to hang over sharp edges or come in contact
with hot surfaces.
• This product is intended for household use only and should not be
used for industrial or commercial purposes.
• DO NOT use this product for anything other than its intended use.
• DO NOT immerse the product in water or any other liquids.
• DO NOT expose the product to moisture, rain or humidity, they are
not waterproof.
• Never clean the product with solvents or harsh or abrasive cleaners.
• DO NOT attempt to dismantle the product, it does not contain any
user serviceable parts.
• Whilst not in use, store the product in a cool dry place free from
extreme temperatures, humidity or dust.
4
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Explanation of Symbols
The following symbols or words are used in this instruction manual:
Products labelled with UK Conformity Assessment identifies
products conforming to UK statutory requirements.
Products labelled with this symbol conform to applicable provisions
of the European Economic Area.
This symbol provides useful additional information on the use of
this product.
This symbol identifies voltage and the current rating for direct
current.
You should now recycle your waste electrical goods and in doing
so help the environment. This symbol means waste electrical
products at the end of their useful life should not be disposed of
with normal household waste and not sent to landfill. Please
ensure it is taken to a suitable facility for disposal. Check with your
Local Authority or retailer for recycling advice or visit
www.recycle-more.co.uk, enter your postcode to find out your
nearest recycling site.
Before the first time you use your 4 in 1 Gaming Combo
Remove all packing materials and discard responsibly.
Check that all the parts are present with your Gaming Combo see ‘Description of
Parts’ below.
About your 4 in 1 Gaming Combo
All the devices in this 4 in 1 Gaming Combo set are plug and play devices.
This means that after the computer has started, insert the USB plug into a USB
port and after a short delay the driver for the device will automatically install and
your device will start working.
The time taken for the driver to install will vary according to the computer’s
hardware and system.
5
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

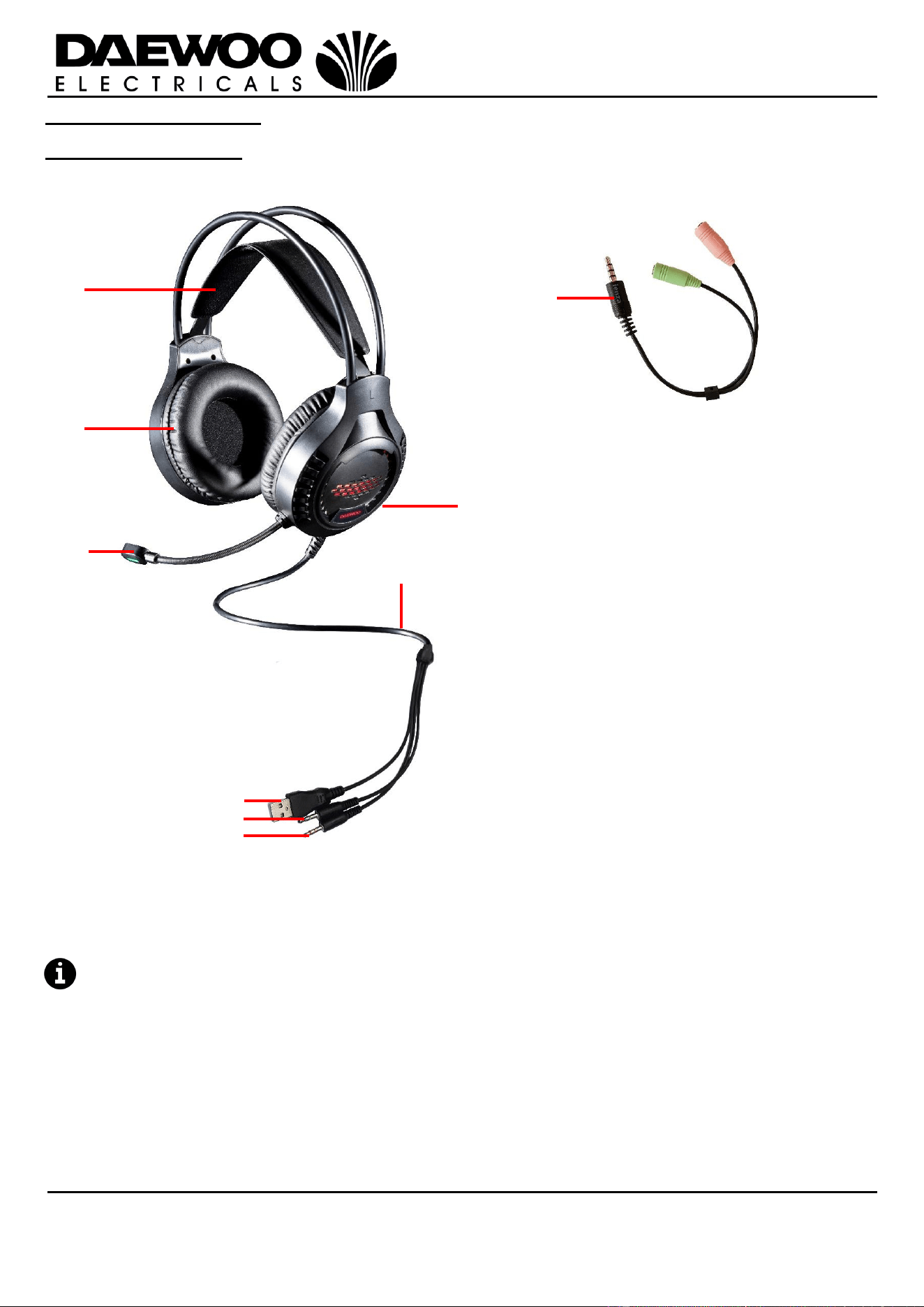

Gaming Headphones
Description of Parts
*Adaptor converts 2x 3pole 3.5mm plugs to 1x 4pole 3.5mm plug.
The supplied Adaptor (9) may not be suitable for the device being used and
another Adaptor (not supplied) may be required.
1
2
3
8
1. Headband
2. Padded Earpieces
3. Flexible Microphone
4. USB Power Plug
5. Mic 3.5mm Plug (Red)
6. Headphone 3.5mm Plug (Green)
7. Cable
8. Volume Control (Rear)
9. Adaptor*
7
9
4
6
5
6
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

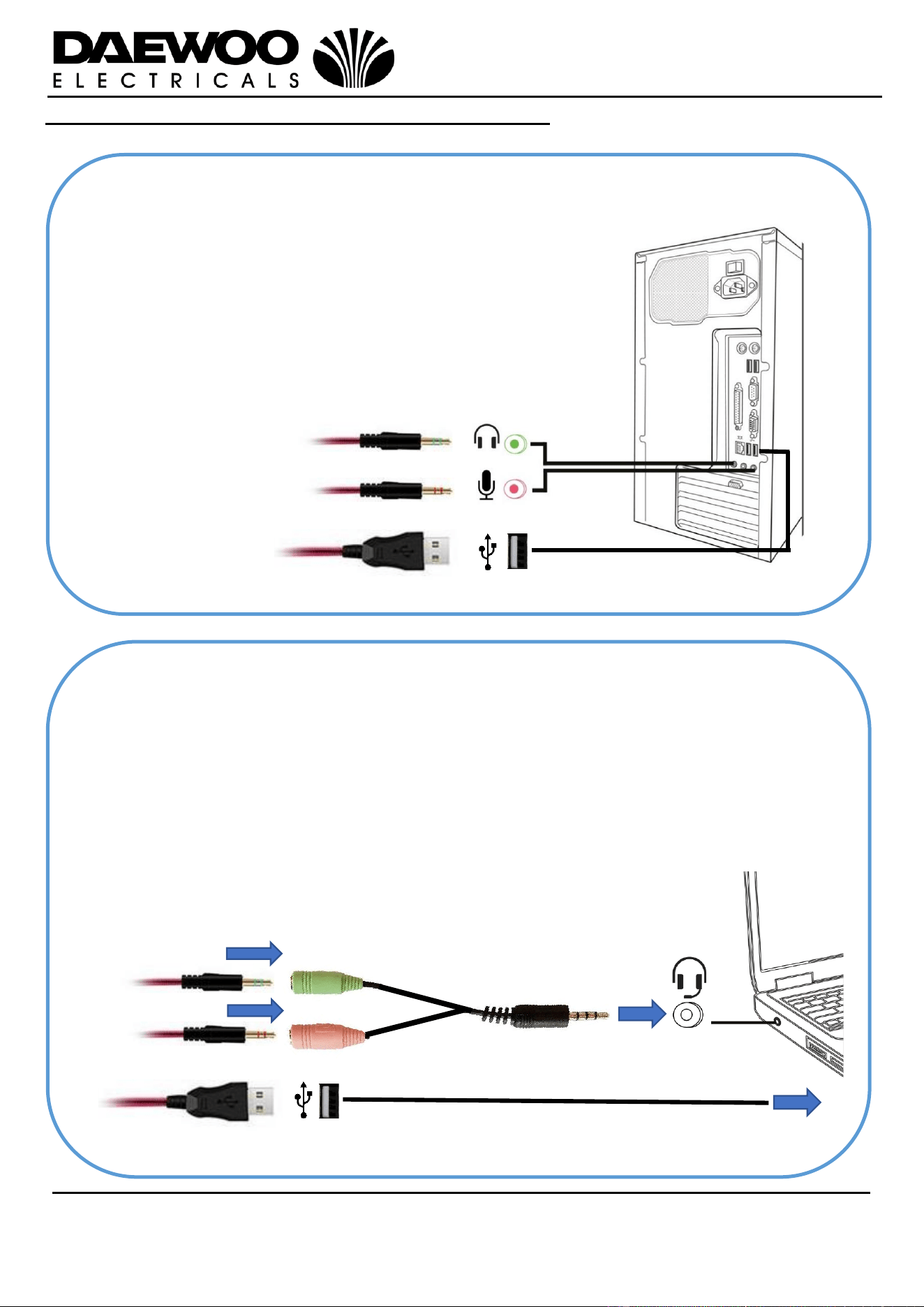

Connecting up your Gaming Headphones When…
…Using a Laptop
…Using a PC
a. Insert the green Headphone 3.5mm Plug (6)
into the Green coloured Headphone socket on
your PC.
b. Insert the red Mic 3.5mm Plug (5) into the
Red/Pink coloured Mic. socket on your PC.
c. Insert the USB Power Plug (4) into any spare
USB socket on your PC.
a. Insert the green Headphone 3.5mm Plug (6) into the
Green coloured socket in the Adaptor (9).
b. Insert the red Mic 3.5mm Plug (5) into the Red/Pink
coloured socket in the Adaptor (9).
c. Insert the plug of the Adaptor (9) into the headphone
socket in your Laptop.
d. Insert the USB Power Plug (4) into any spare USB
socket on your Laptop.
7
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Wearing your Gaming Headphones
1. Place the Headphones on your Head
until the Headband (1) automatically
adjusts and they sit comfortably.
2. Adjust the Flexible Microphone (3)
so that it is level with your mouth.
3. Adjust the Volume Control (8) as
desired.
The Headphones are now ready to use.

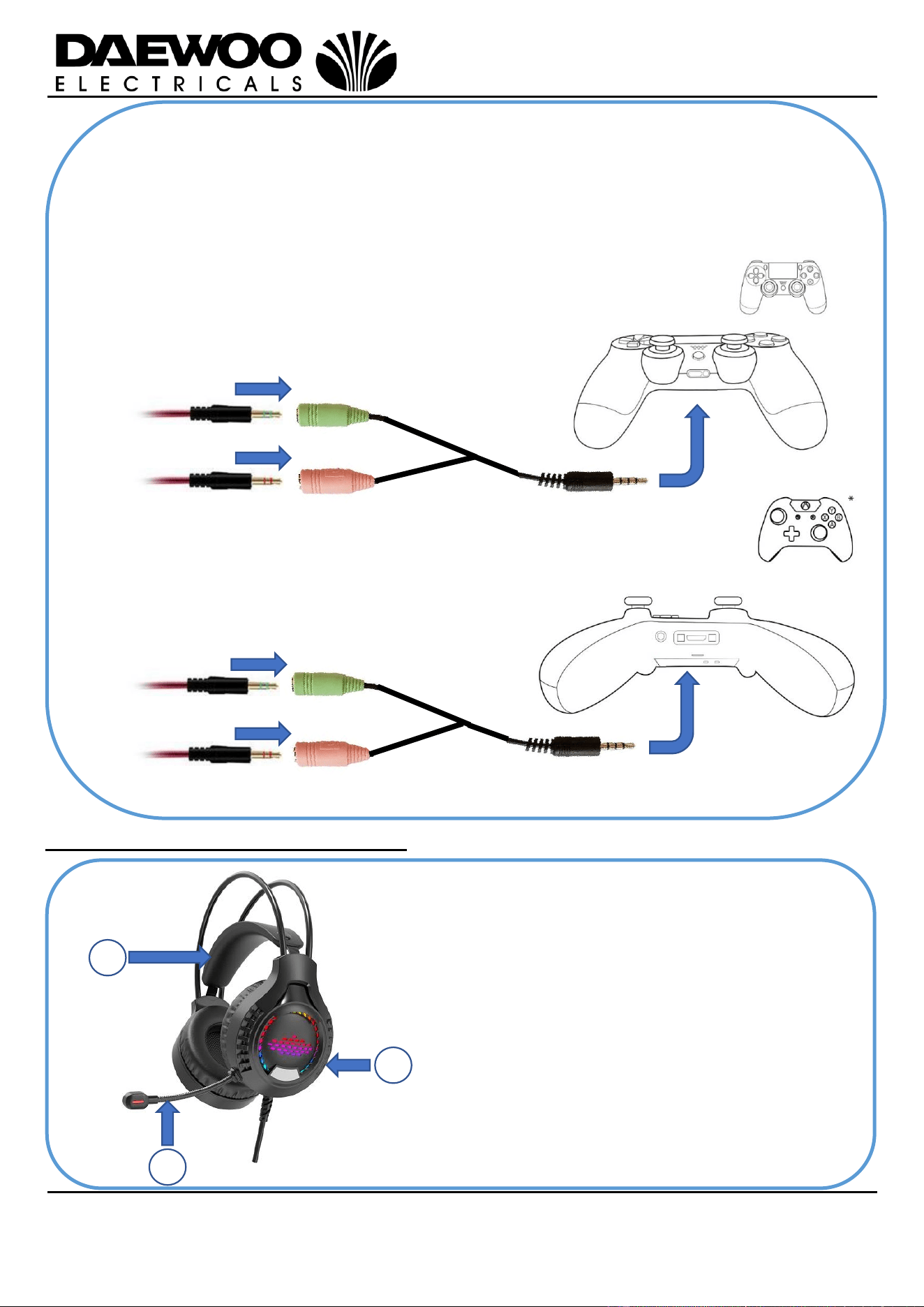

…Using a PS4 Controller
*PS4 is a registered trademark of Sony Group Corporation.
1
3
8
a. Insert the green Headphone 3.5mm Plug (6) into the
Green coloured socket in the Adaptor (9).
b. Insert the red Mic 3.5mm Plug (5) into the Red/Pink
coloured socket in the Adaptor (9).
c. Insert the plug of the Adaptor (9) into the headphone
socket in your PS4 Controller/Xbox One/S Controller.
2015 Xbox One/S model onwards shown. Earlier models will require a Microsoft adaptor.
…Using an Xbox One/S Controller
*S Controller & Xbox One are trademarks of the Microsoft group of companies.
*
*
8
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE

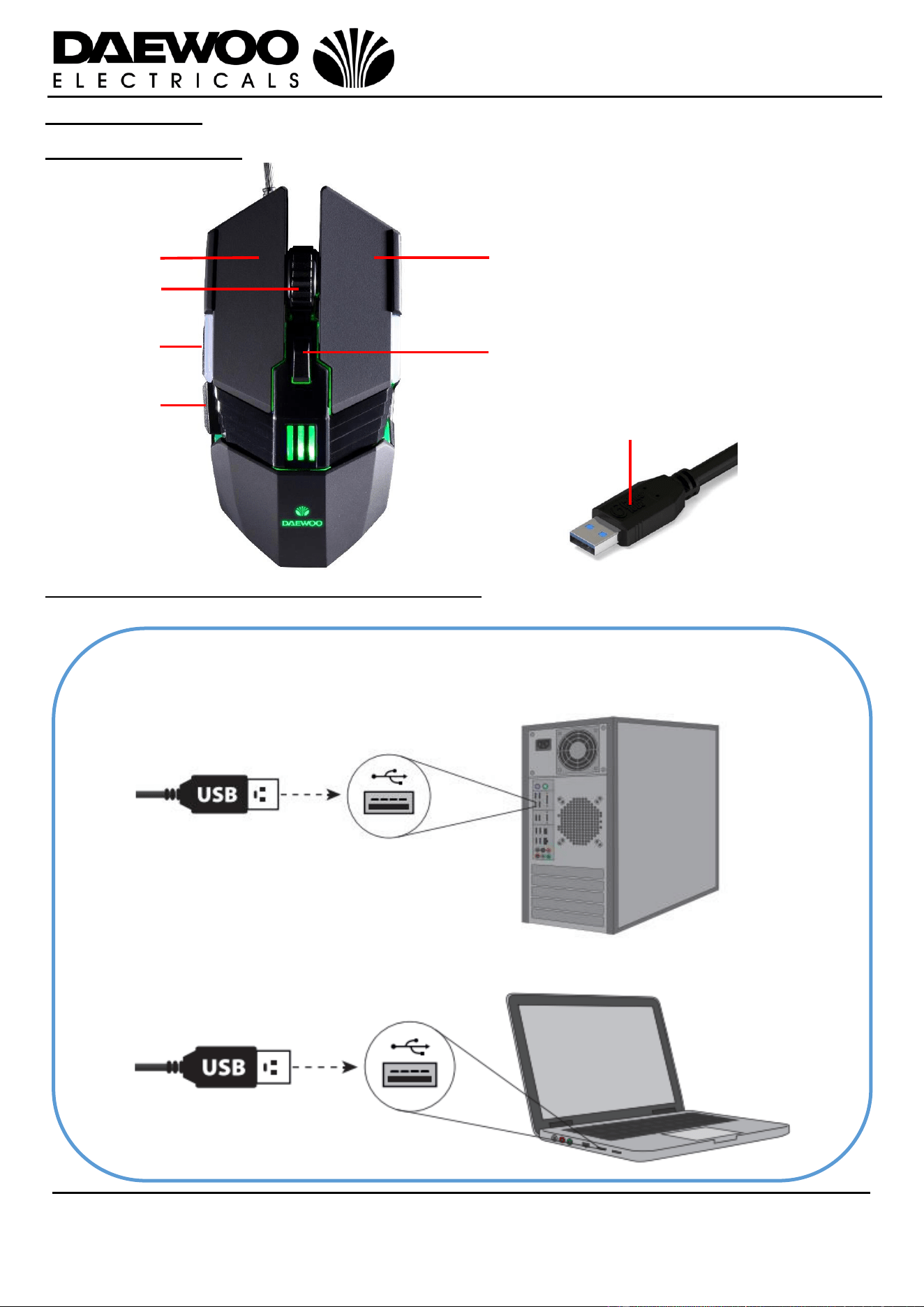

Gaming Mouse
Description of Parts
Connecting up your Gaming Mouse When…
10
11
12
13
14
15
10. Left Mouse Button
11. Scroll Wheel
12. Forwards Button
13. Backwards Button
14. DPI Button
15. Right Mouse Button
16. Mouse USB plug
16

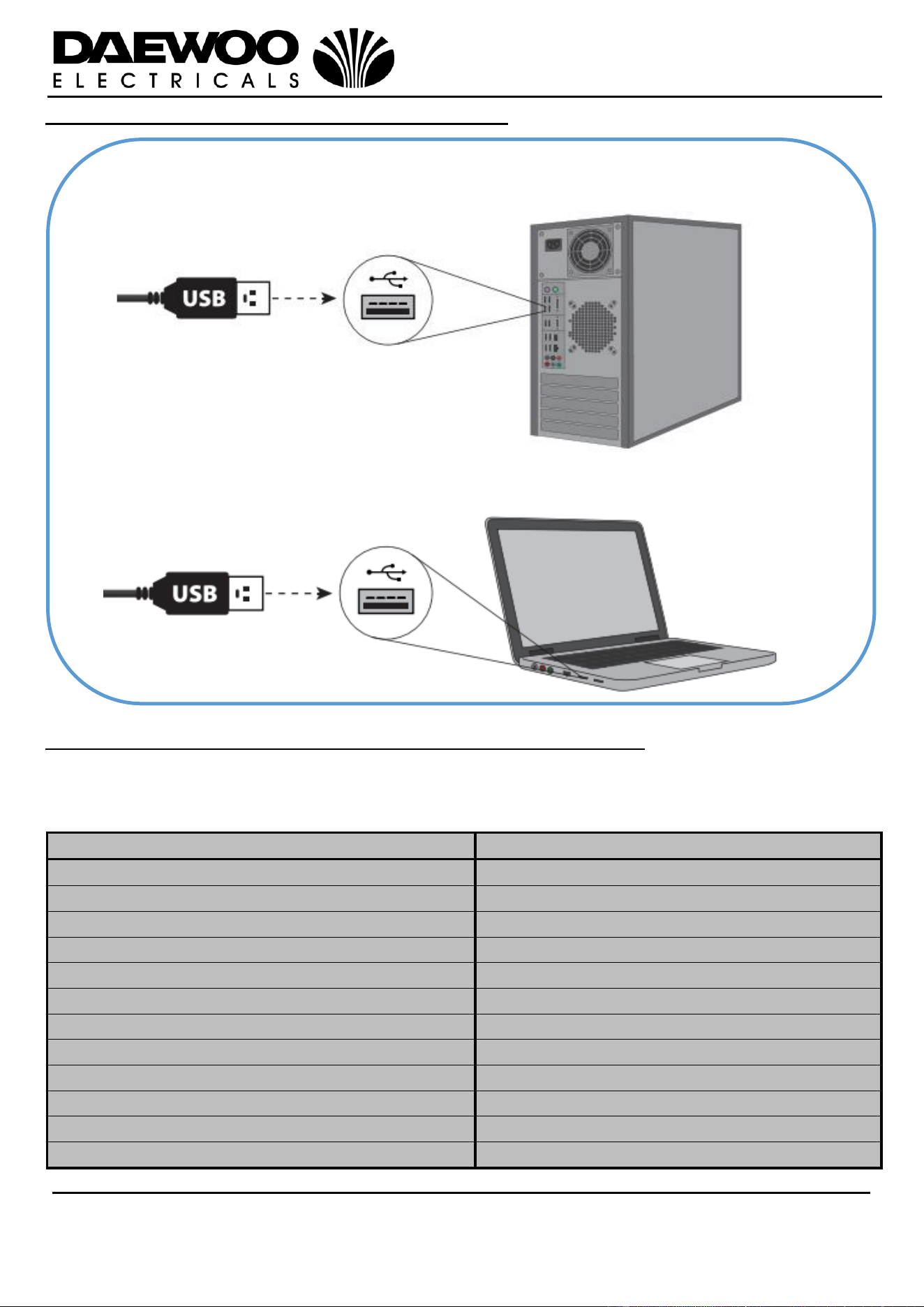

…Using a PC
Insert the Mouse USB Plug (16) into any spare USB socket on your PC:
Insert the Mouse USB Plug (16) into any spare USB socket on your Laptop:
…Using a Laptop
9
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Adjusting the Resolution (DPI) of Your Gaming Mouse
The resolution of this Gaming Mouse can be adjusted so the mouse pointer on the
screen moves a large distance or a shorter distance for the same movement.
Press the DPI Button (14) to change the distance the mouse moves on the screen.
Select the desired mouse resolution from the table below:
DPI setting
Mouse Resolution
1200
Low
1800
2400
3600
High

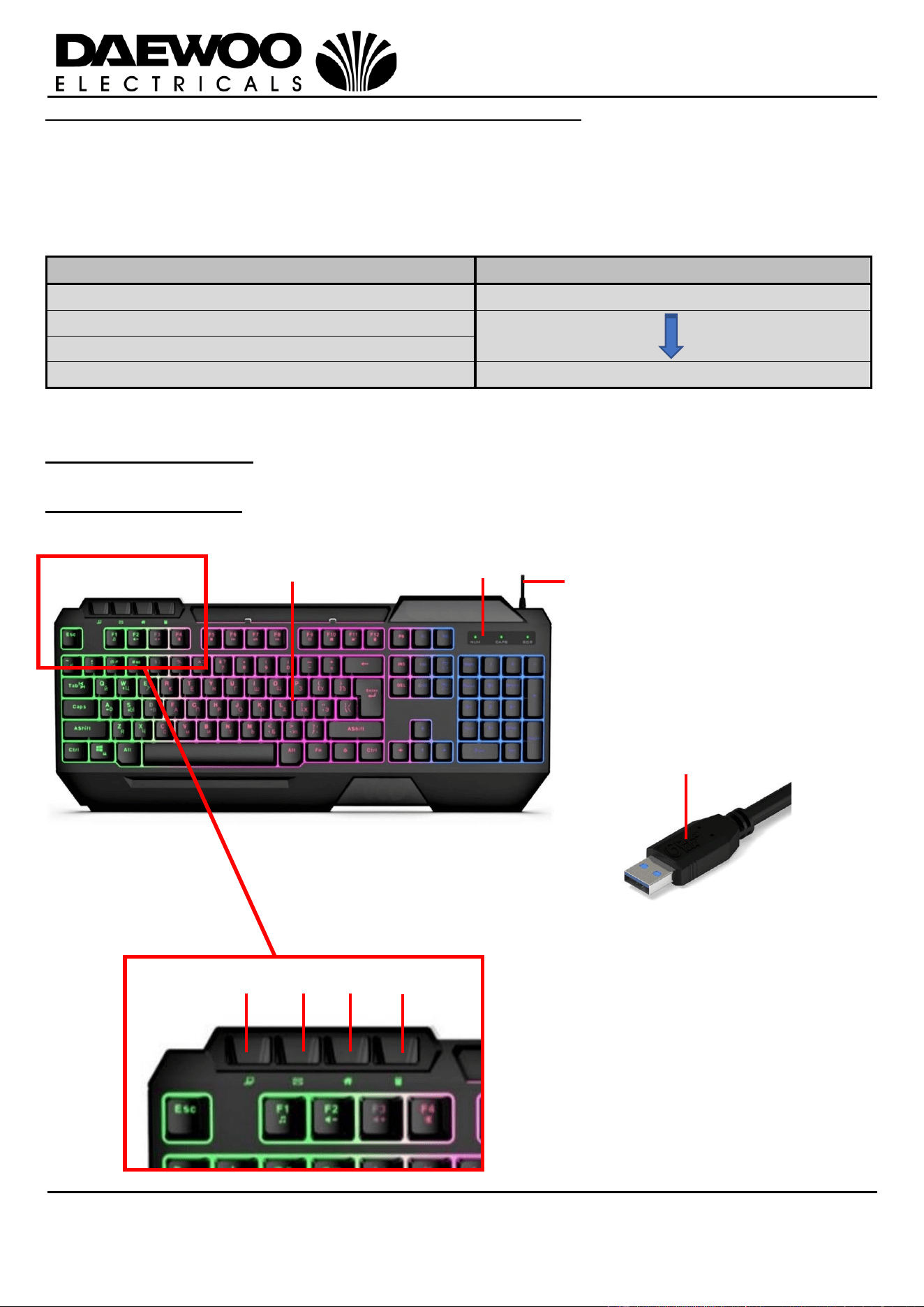

Gaming Keyboard
Description of Parts
17. RGB Backlit Keys
18. Keyboard Mode Lights
19. USB Cable
20. Keyboard USB plug
17
18
19
20
21
22
23
24
21. ‘This PC’ button
22. Email button (opens Email)
23. Internet Home Page button
24. Calculator button
10
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Connecting up your Gaming Keyboard When…
Function Button (FN) and the F-Key Multi Media Commands
Press and hold the Function (FN) key down whilst pressing the Function keys (F1 to
F12) for the below commends:
FN+
Command
F1
Multimedia Player
F2
Volume Down
F3
Volume Up
F4
Mute (cut) Sound
F5
Stop
F6
Play Previous Track
F7
Play/Pause
F8
Play Next Track
F9
Email
F10
Web Home Page
F11
Lock/Unlock Keyboard
F12
Calculator
…Using a Laptop
…Using a PC
Insert the Keyboard USB Plug (20) into any spare USB socket on your PC:
Insert the Keyboard USB Plug (20) into any spare USB socket on your Laptop:
11
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
RGB Backlit Key Modes:
1. To Switch the RGB Backlit Keys (17) on and off press the light key.
2. To change the RGB Backlit Keys (17) colour mode from continuous to fading
mode, hold the Function [ ] key down and press the light key.
3. To adjust the brightness of the RGB Backlit Keys (17), hold the Function [ ]
down and press the Page Up [ ] and Page Down [ ] Keys to choose
three different light levels.
Key Swapping
The W, S, A, D keys can be swapped with the↑, ↓, ← , → arrow keys.
To do this hold the Function [ ] key down and press the ‘ ’ key.
To return the keys to their normal state, hold the Function [ ] key down and press
the ‘ ’ key again.
Anti-Ghosting Keys
The 19 Anti-Ghosting keys are: Q, A, Z, W, S, X, E, D, C, B, Space,↑, ↓ , ← , →,
Tab, Alt-L/V, Ctrl_L/F, Shift_L.
Locking and Unlocking Windows and the Screen
Press WIN-L is the windows function
Press function [Fn]+WIN-L keys to lock windows
Press the same combination keys to unlock windows
Press WIN-L +L keys to lock screen.
Care and Maintenance of your 4 in 1 Gaming Combo Set
• Always unplug the Gaming Combo set before cleaning.
• Clean the outside of the Gaming Combo set with a clean damp cloth. Never
clean with harsh or abrasive cleaners.
• Do not submerge the Gaming Combo set in water or any other liquids.
12
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Technical Specifications
Model Number
AVS1566
Headphones
Impedance
16Ω ±15%
Speaker Sensitivity
108 ±3dB @1Khz; 1mW
Speaker Diameter
50mm
Rated Power
10mW (20mW max.)
Frequency Response
20Hz – 20Khz
Microphone Diameter
6.5mm
Microphone Current
≤0.3mA
Microphone Sensitivity
-40dB ±3db
Connectors
2x 3.5mm Jack Plugs, USB Plug
USB Supply
5V DC
Cable Length
1800mm (inc. connectors)
Weight (approx.)
299g
Dimensions (approx.)
225mm (h) x 190mm (w) x 100mm (d)
Adaptor
2x 3.5mm Sockets to 1x 4 pole 3.5mm plug
Mouse
Supply Current
100mA (maximum)
Supply Voltage
5.0V ±0.5V DC
Number of Buttons
6
DPI Modes
1200/1800/2400/3600
USB Connection
A-Type USB Plug
USB Cable Length
1500mm
Weight (approx.)
100g
Dimensions (approx.)
39mm (h) x 63mm (w) x 125mm (d)
Keyboard
Supply Current
≤140mA (maximum)
Supply Voltage
5.0V ±0.5V DC
Keyboard Type
108 Key QWERTY
USB Connection
A-Type
USB Cable Length
1500mm
USB Compatibility
USB 1.1/2.0.3.0
Weight (approx.)
0.6kg
Dimensions (approx.)
33mm (h) x 440mm (w) x 193mm (d)
13
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
Recycling Information
Disposal of the Packaging
Dispose of paper and cardboard in appropriate paper re-cycling
facilities.
Dispose of recyclable plastics in appropriate plastic re-cycling
facilities.
Dispose of non-recyclable plastics in the appropriate plastics
collection service.
Disposal of the Product
You should now recycle your waste electrical goods and in doing so
help the environment. This symbol means waste electrical products
at the end of their useful life should not be disposed of with normal
household waste and not sent to landfill. Please ensure it is taken to
a suitable facility for disposal. Check with your Local Authority or
retailer for recycling advice or visit www.recycle-more.co.uk, enter
your postcode to find out your nearest recycling site.
14
4 in 1 Gaming Combo
Model No. AVS1566
User Manual
IMPORTANT – RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE
WARRANTY
Thank you for purchasing your Daewoo Audio product.
As part of our commitment to quality, we are offering you an extra 2 years warranty in
addition to your 1 year guarantee
Your Daewoo audio product is guaranteed for 1 year from the date of original purchase, with
proof of purchase or receipt. If any defect should occur due to faulty workmanship or material,
your faulty product should be returned to the place of purchase, replacement or refund is at the
discretion of the retailer.
The guarantee is subject to the following provisions:
•
The product must be correctly installed and operated in accordance with the requirements
contained in the instruction manual.
•
The product must be used solely for domestic purposes.
•
It does not cover general wear and tear, damage, misuse or any consumable parts.
•
The guarantee will be rendered invalid if the product is re-sold or has been damaged through
inexpert repair.
•
The guarantee is only valid within the UK and Eire.
Your standard 1 year guarantee will only be extended to the maximum available for your
individual product upon registration. (Note: products must be registered individually and covers
the main body and housing). If you do not register your product within 28 days of the original
purchase date, your product will only be guaranteed for 1 year.
To validate your extended 2 year warranty*please register your purchase online within 28 days
of the original purchase date by registering at:
https://help.daewooelectricals.com
or
Contact Us (daewooelectricals.com)
*Your extended warranty is only valid with proof of purchase receipt and subject to the
conditions outlined above.
Daewoo is a registered trademark.
Produced and imported under licence by
ESG Ltd. Manchester M3 1JS
EU Rep: EuroSonic Magppie (ESM) Ltd. Ireland D05 X006
www.esgltd.com
