2N Access Unit M Installation Manual
2 / 50
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Content
1. Product Overview
1.1 Components and Associated Products
1.2 Terms and Symbols
2. Description of Installation
2.1 Before You Start

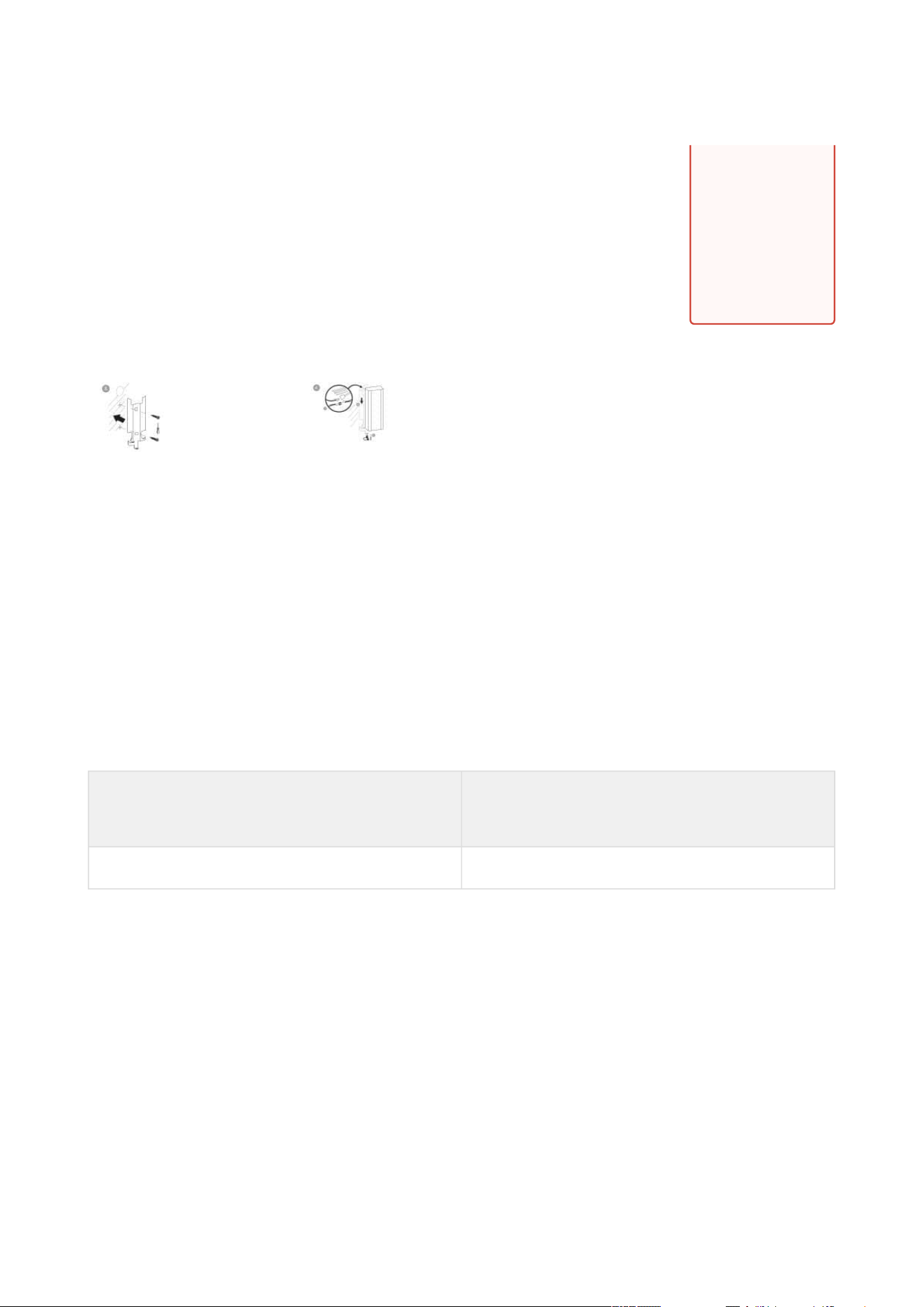

2.2 Mechanical Installation

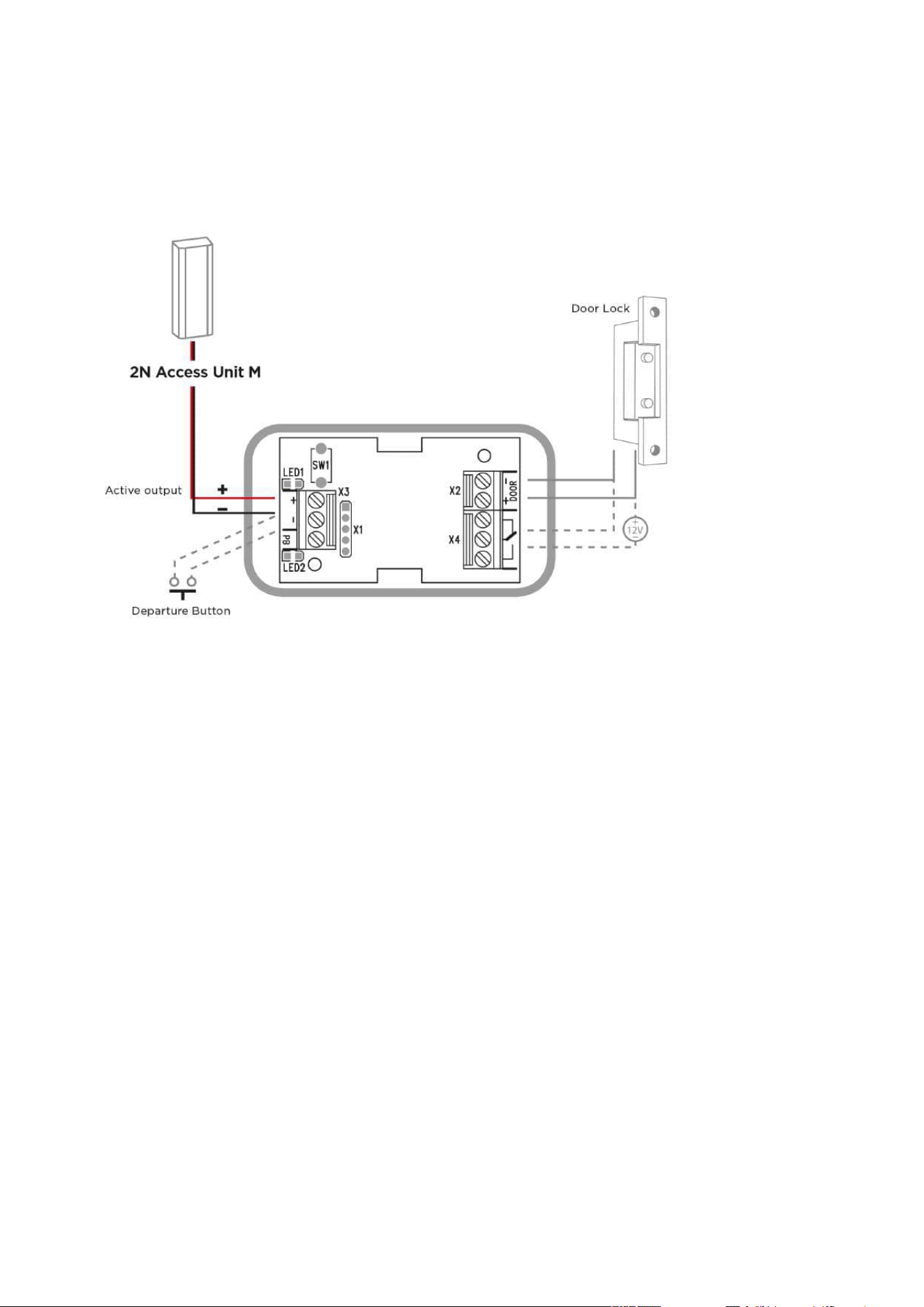

2.3 Electric Installation
2.4 Extending Module Connection

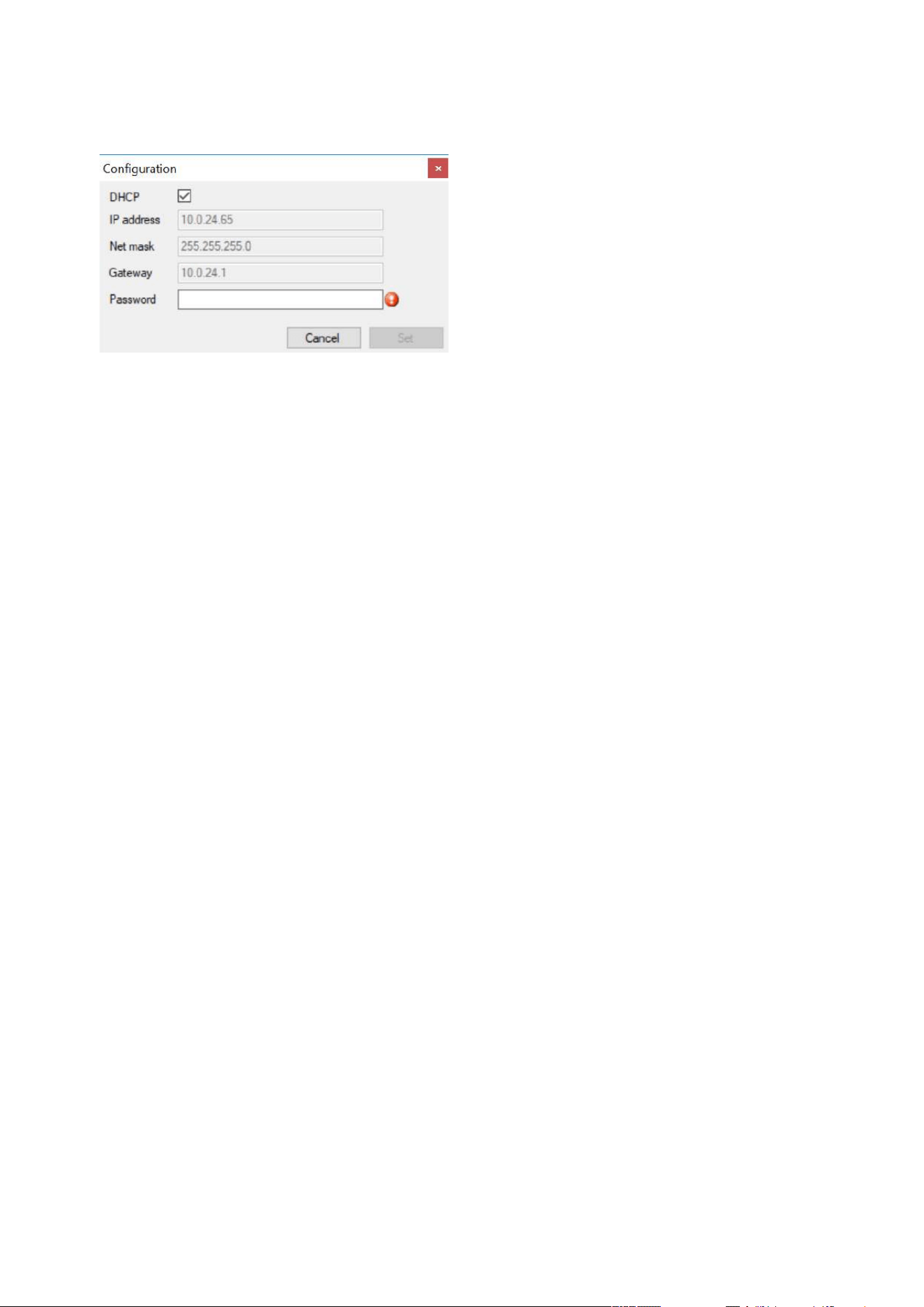

3. Detection of 2N Access Unit M using 2N® Network Scanner

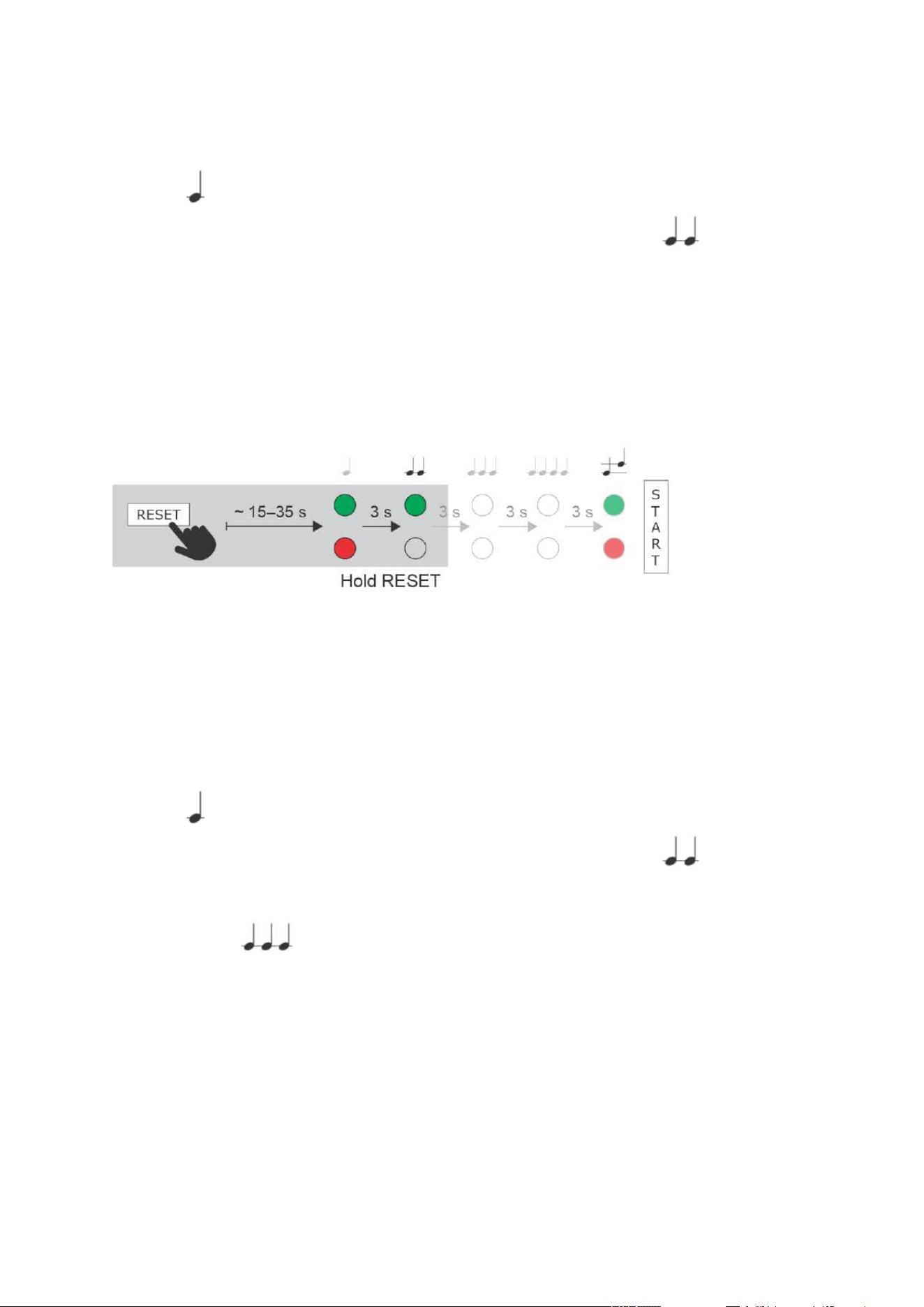

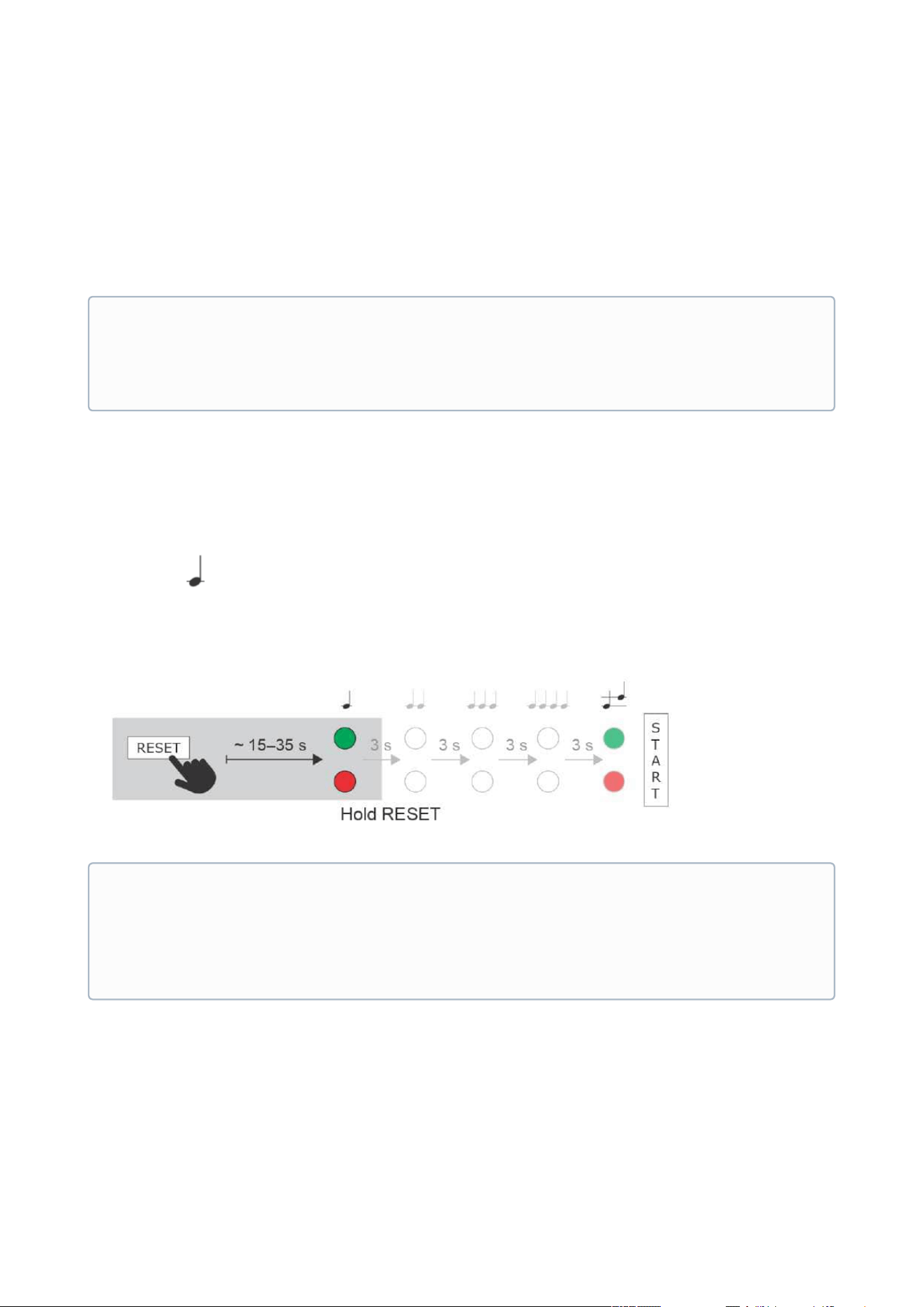

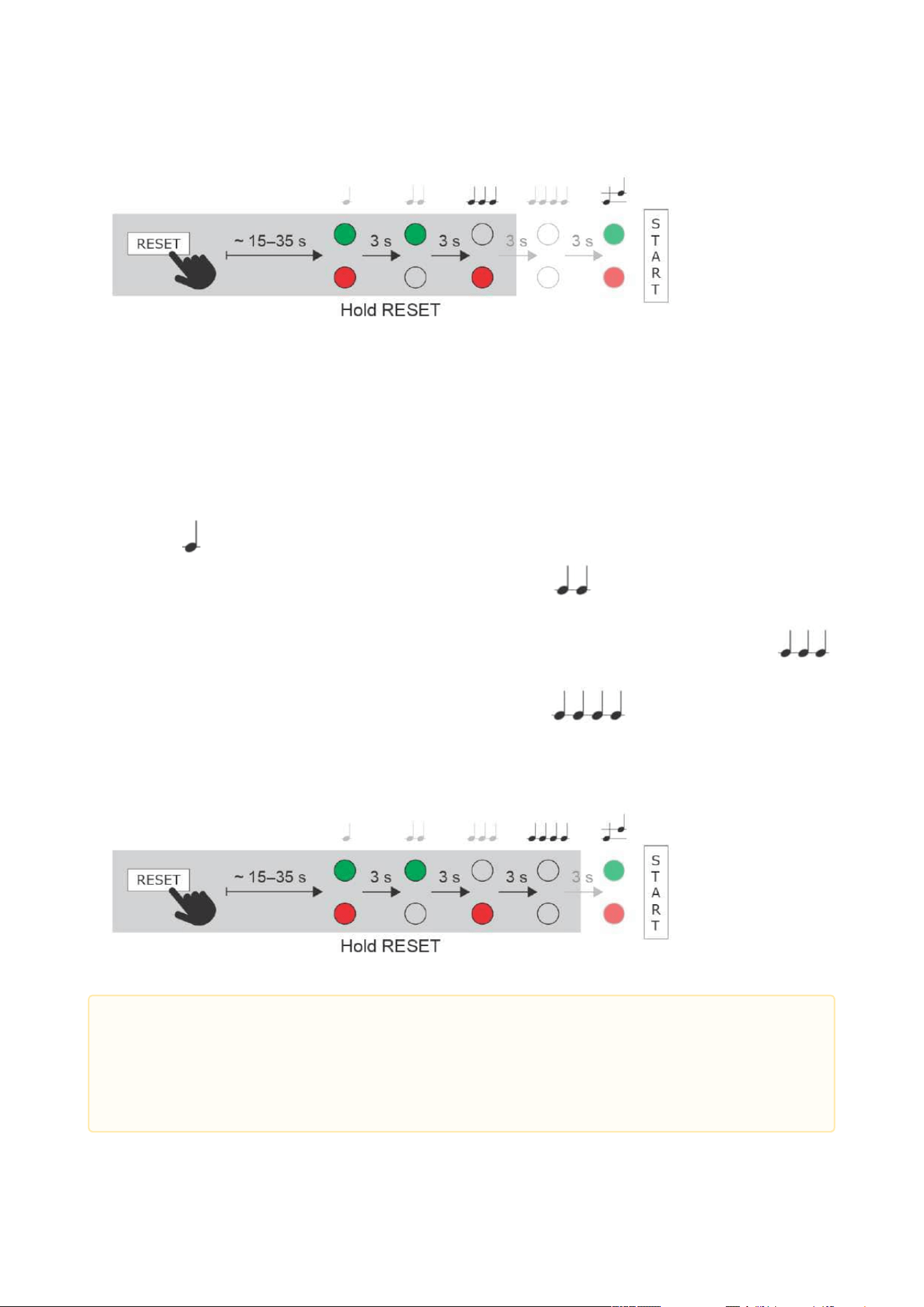

4. Factory Reset
5. Maintenance
6. Status Signaling
7. Technical Parameters

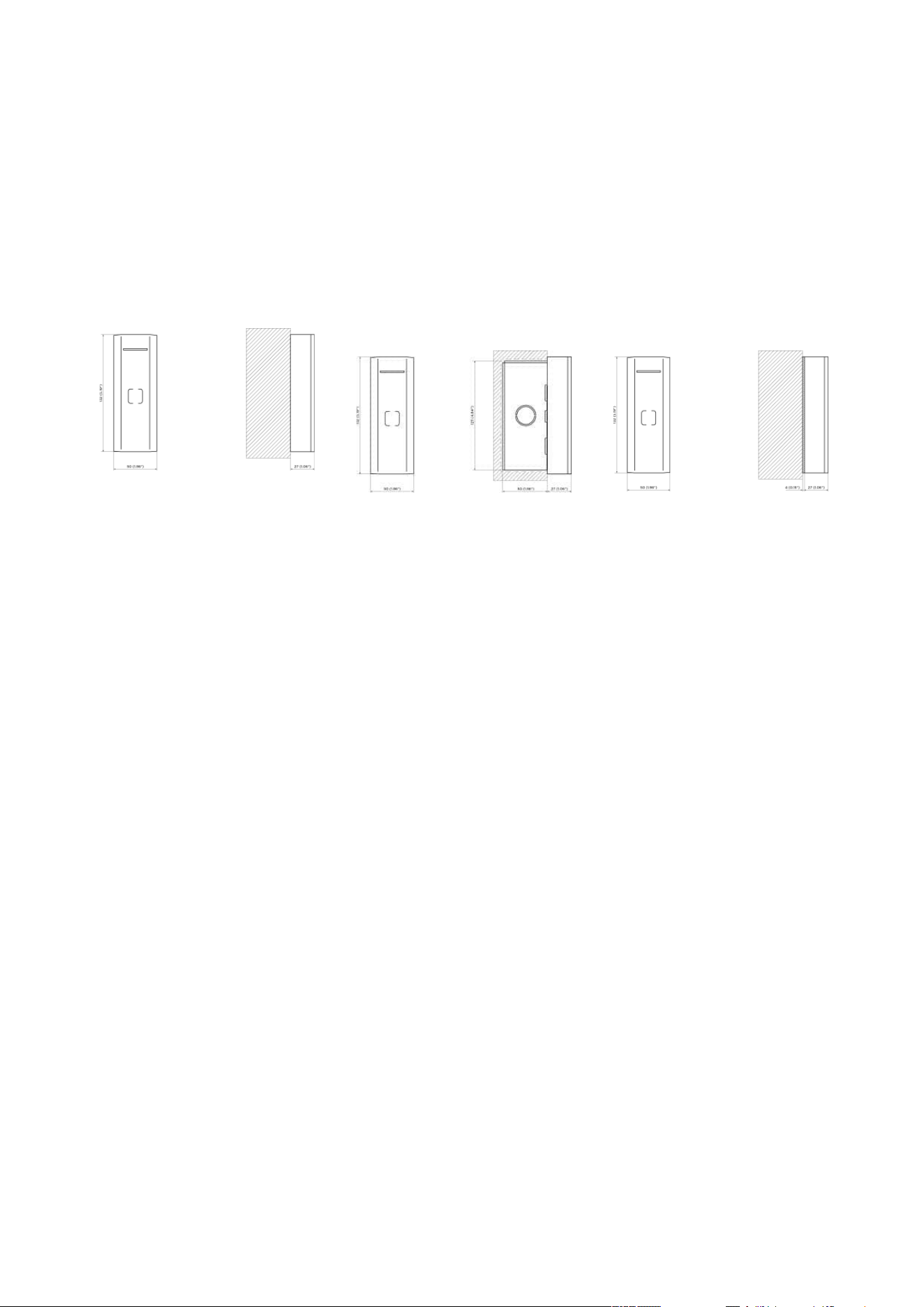

7.1 General Drawings
8. Supplementary Information
8.1 General Instructions and Cautions
8.2 Troubleshooting
8.3 Other Countries' Legislation
8.4 Directives, Laws and Regulations
2N Access Unit M Installation Manual
3 / 50
•
•
•
•
•
•
•
•
•
•
•
•
•
•
1. Product Overview
Here is what you can find in this section:
1.1 Components and Associated Products
1.2 Terms and Symbols
Basic Features
2N Access Unit M is an elegant and reliable access IP system equipped with a number of useful
functions.
2N Access Unit M is a single-module access system available in several versions.
All the 2N Access Unit M versions include an integrated card reader module, which helps
control access using an RFID card. With additional software settings, you can use the card to
control more functions than just door lock switching too.
The 2N Access Unit M keypad versionhelps you control the electric lock switch by entering a
valid numeric code via the numeric keypad. With additional software settings, you can use the
numeric code to control more functions than just door lock switching too.
The 2N Access Unit M Bluetooth version helps you control the lock switch using the 2N
®
Mobile
Key application installed in your smartphone.
2N Access Unit M is designed as a robust, mechanically resistant IP55-rated access system,
which withstands any weather conditions without requiring additional accessories.
The installation of 2N Access Unit M is very easy. All you have to do is connect the system to
your LAN via a mains cable. Feed the access system either from a 12V power supply or your PoE
supporting LAN.
To configure 2N
Access Unit M use a PC equipped with any Internet browser. Use2N
®
Access
Commander to bulk manage extensive access system installations easily.
Advantages of Use
Elegant mullion design
Weather resistance (IP 55)
Easy wall (surface) mounting (brick/pasterboard walls, door frames)
Integrated electric lock switches with wide setting options
Integrated RFID card reader module
Bluetooth module version
Backlit touch keypad version
LAN (PoE) or external 12V power supply
Configuration using web interface
HTTP server for API configuration
SNTP client for time synchronization
SMTP client for email sending, Picture to Email feature
2N Access Unit M Installation Manual
4 / 50
•
•
•
•
•
•
•
•
•
TFTP/HTTP client for automated firmware and configuration upgrade and update
1.1 Components and Associated Products
Main Units
2N Part No.
916112
Axis Part No.
02393-001
2N
®
Access Unit M 13.56 MHz, NFC ready
is used for reading RFID cards in the 13.56 MHz bandwidth with the
NFC support. Combining an access reader and a controller, the
device is used for access control inside and outside of buildings.
The following RFID cards can be read:
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
Felica
ST SR(IX)
2N
®
Mobile Key
2N Access Unit M Installation Manual
5 / 50
•
•
•
•
•
•
•
•
•
Main Units
2N Part No.
916114
Axis Part No.
02394-001
2N
®
Access Unit M RFID 125 kHz, 13.56 MHz, NFC
is used for reading RFID cards in the 125 kHz and 13.56 MHz
bandwidths with the NFC support. Combining an access reader and
a controller, the device is used for access control inside and outside
of buildings.
The following RFID cards can be read:
EM4xxx
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
Felica
ST SR(IX)
2N
®
Mobile Key
2N Access Unit M Installation Manual
6 / 50
•
•
•
•
•
•
•
•
•
Main Units
2N Part No.
916115
Axis Part No.
02395-001
2N
®

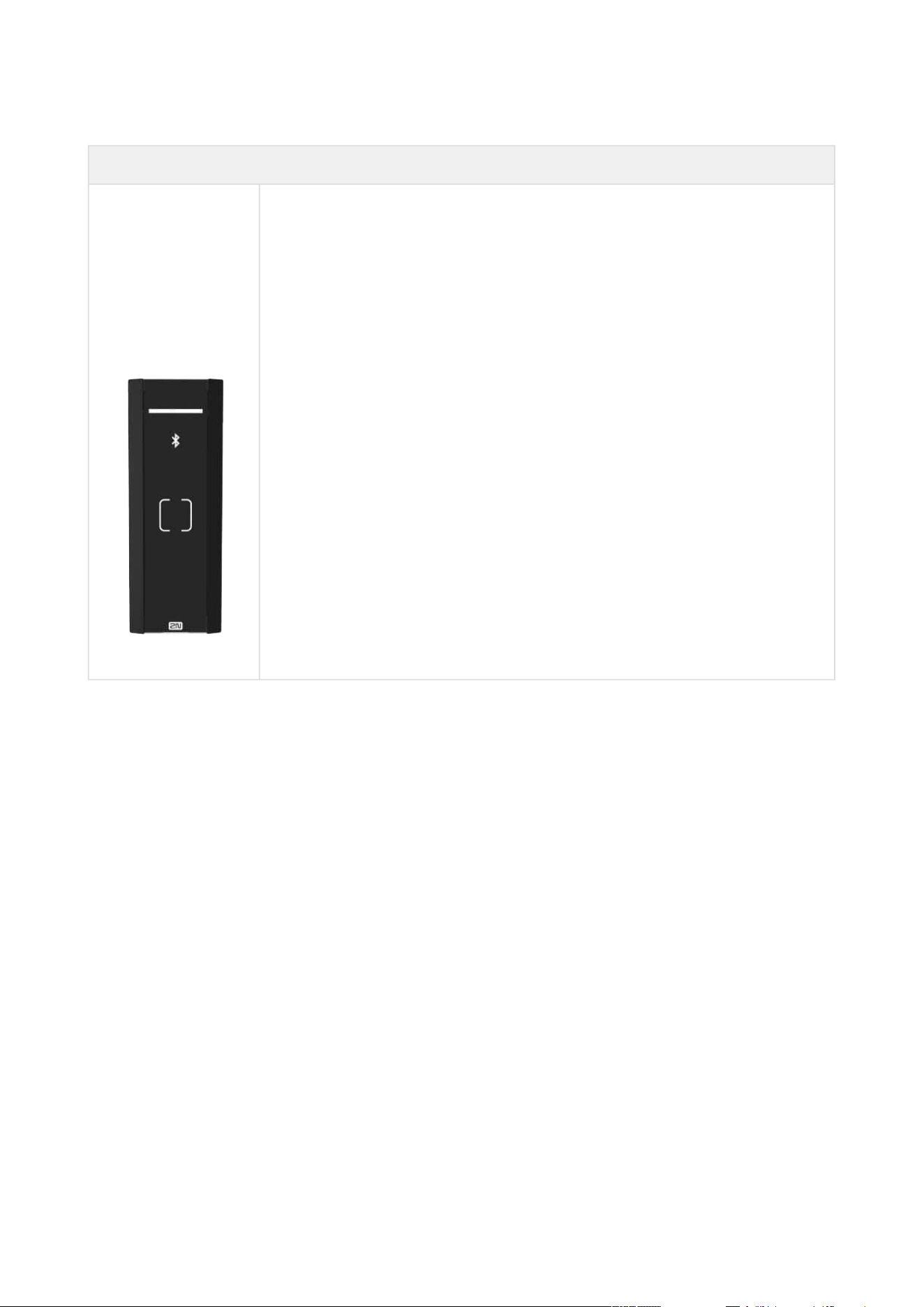

Access Unit M Bluetooth & RFID 125 kHz, 13.56 MHz, NFC
is used for reading RFID cards in the 125 kHz and 13.56 MHz
bandwidths with the NFC support. Combining an access reader, a
Bluetooth module and a controller, the device is used for access
control inside and outside of buildings.
The following RFID cards can be read:
EM4xxx
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
Felica
ST SR(IX)
2N
®
Mobile Key
2N Access Unit M Installation Manual
7 / 50
•
•
•
•
•
•
•
•
•
•
•
Main Units
2N Part No.
916116
Axis Part No.
02396-001
2N
®

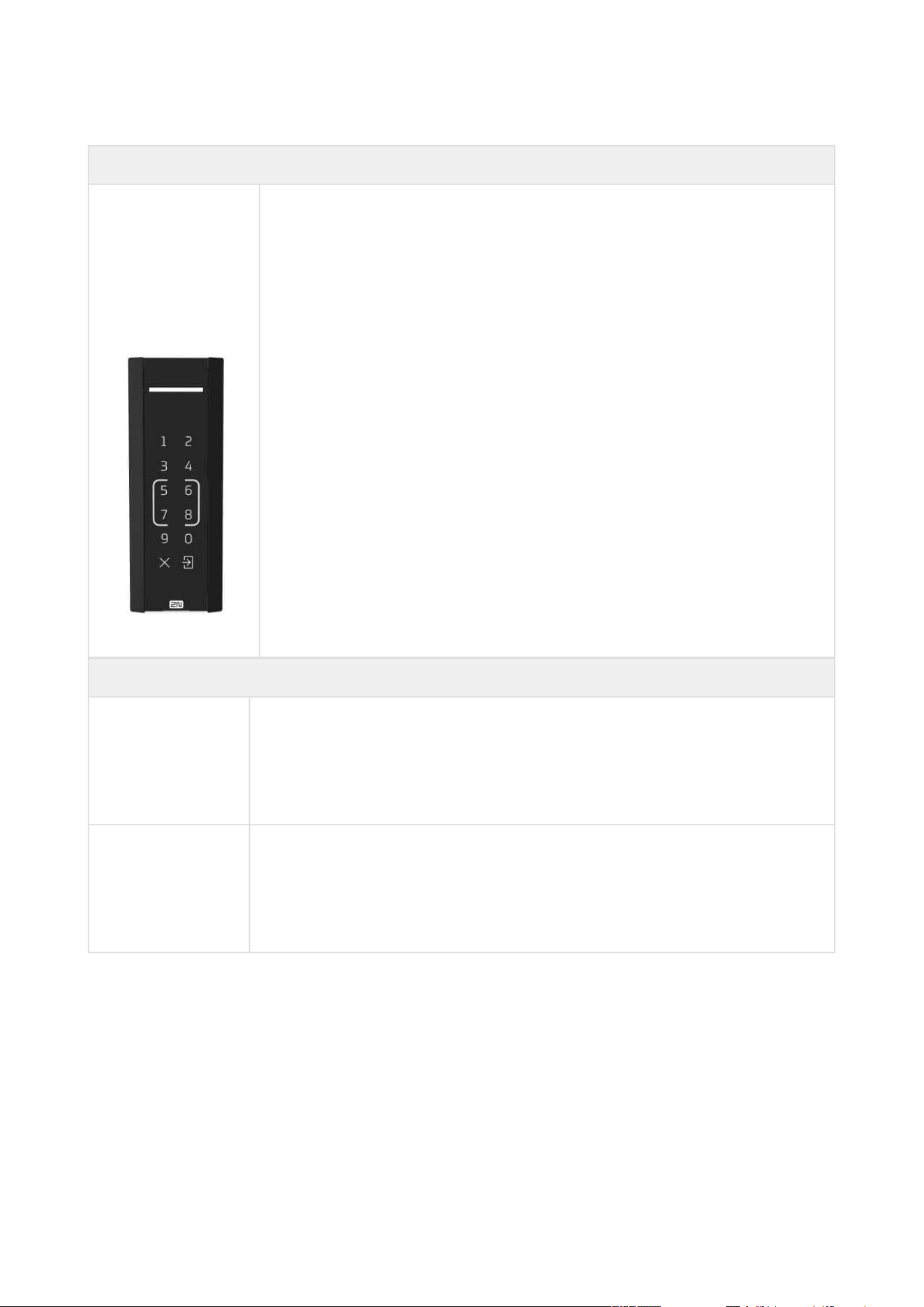

Access Unit M Touch Keypad & RFID 125 kHz, 13.56 MHz, NFC
is used for reading RFID cards in the 125 kHz and 13.56 MHz
bandwidths with the NFC support. Combining an access reader, a
touch keypad and a controller, the device is used for access control
inside and outside of buildings.
The following RFID cards can be read:
EM4xxx
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
Felica
ST SR(IX)
2N
®
Mobile Key
License
2N Part No.
916012
Axis Part No.
01369-001
2N Access Unit NFC license
2N Part No.
9160401
Axis Part No.
02000-001
2N Access Unit Lift module license
2N Access Unit M Installation Manual
8 / 50
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

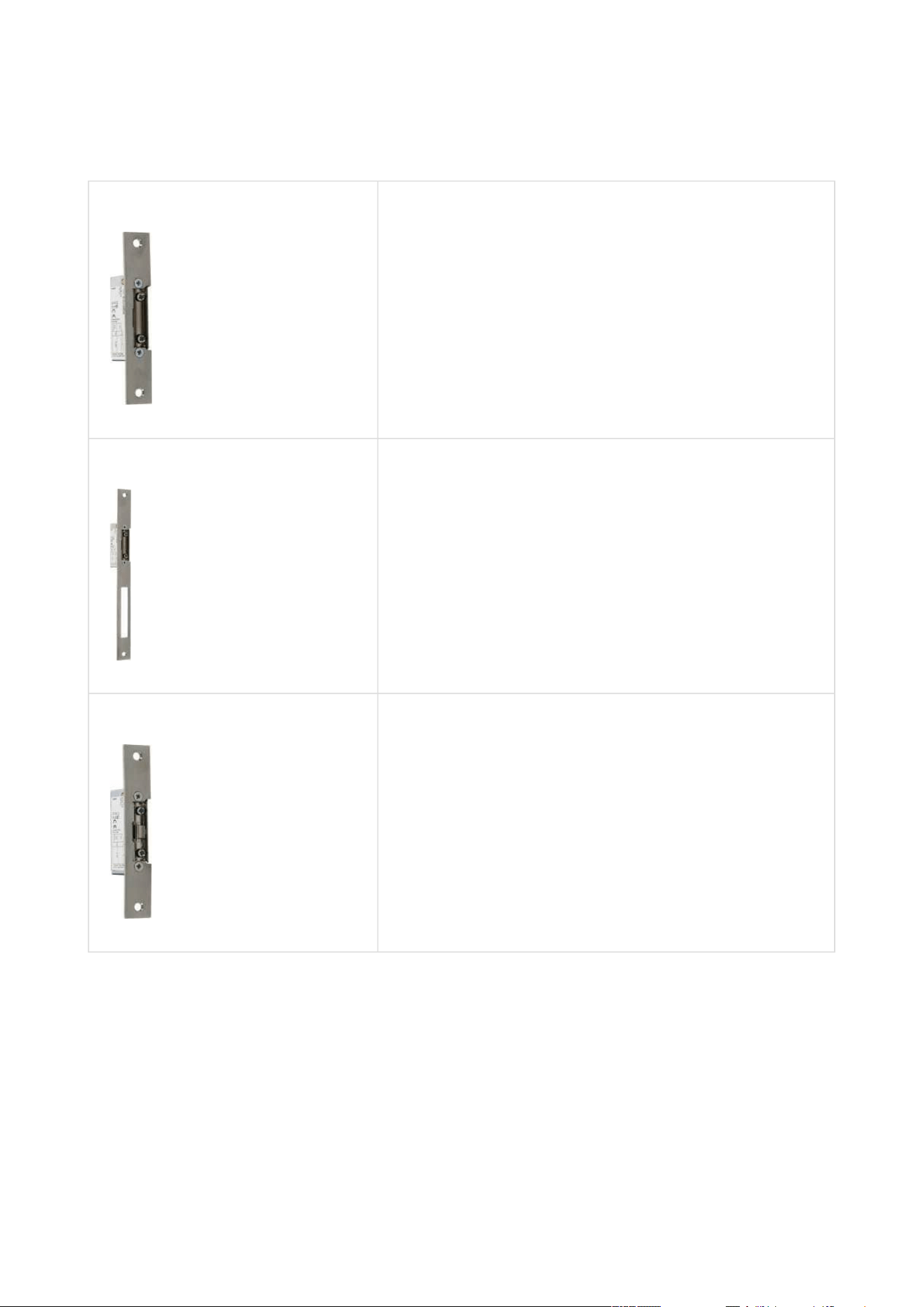

Electric Locks

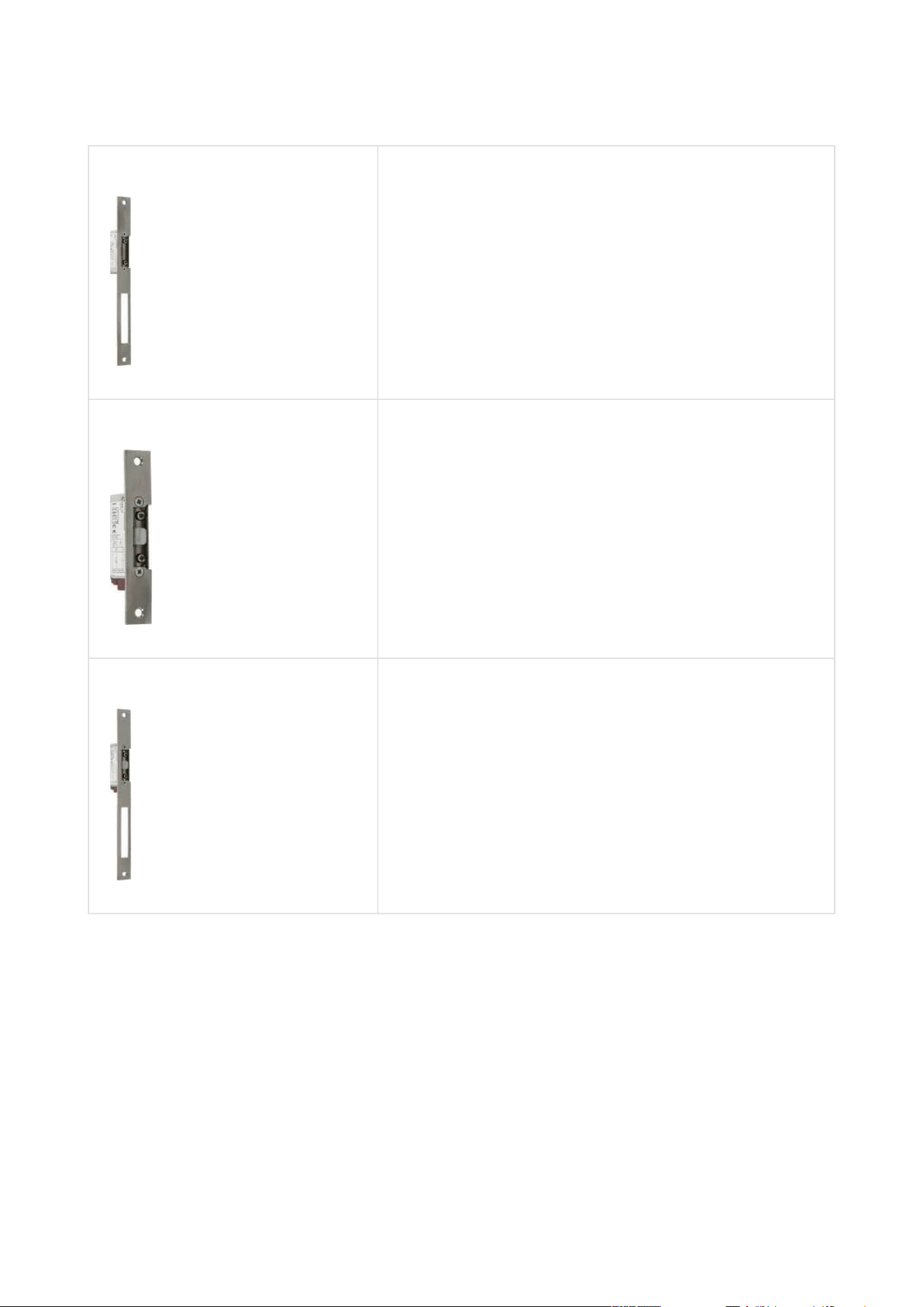

Part No. 11202101 Mini electronic doorstrike series 5
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
short sheet metal front cover version (130 mm)
16 mm width
Part No. 11202101-L Mini electronic doorstrike series 5 – long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
long sheet metal front cover version (250 mm)
16 mm width
Part No. 11202102 Mini electronic doorstrike series 5 – with
momentum pin
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
short sheet metal front cover version (130 mm)
16 mm width
2N Access Unit M Installation Manual
9 / 50
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•

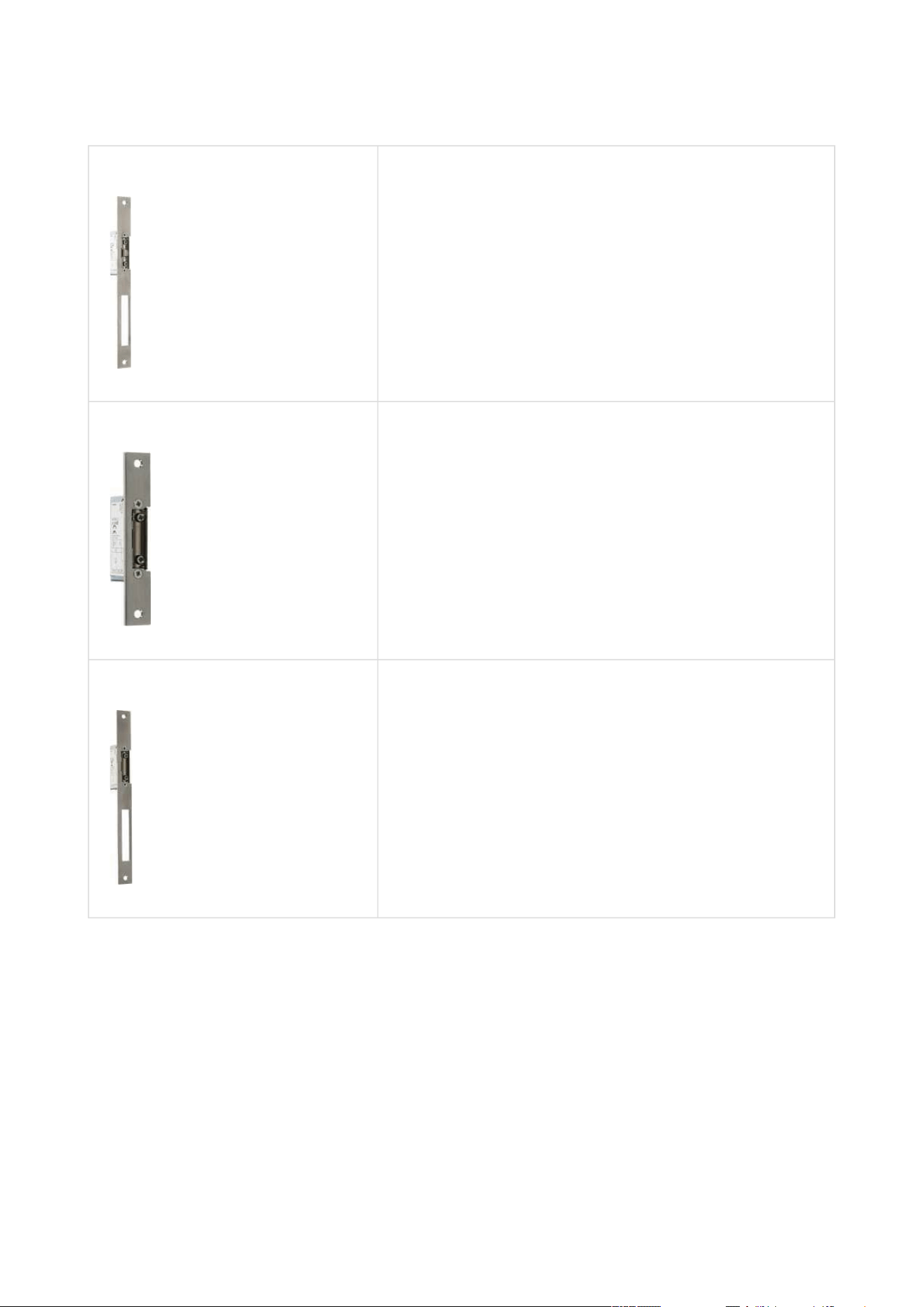

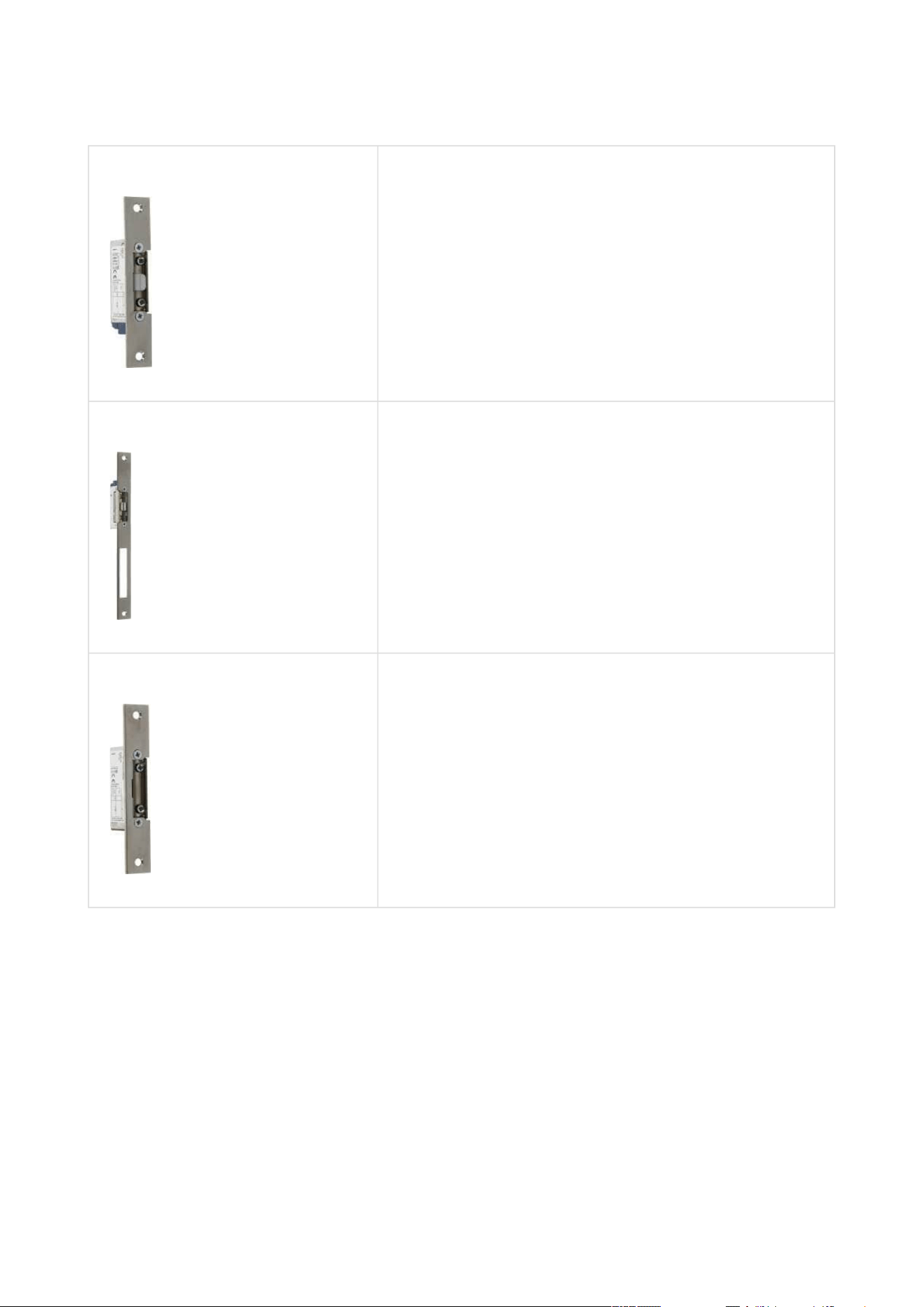

Part No. 11202102-L Mini electronic doorstrike series 5 – with
momentum pin, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
long sheet metal front cover version (250 mm)
16 mm width
Part No. 11202103
Mini electronic doorstrike series 5 – with
mechanical blocking
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
short sheet metal front cover version (130 mm)
16 mm width
Part No. 11202103-L Mini electronic doorstrike series 5 – with
mechanical blocking, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
long sheet metal front cover version (250 mm)
16 mm width
2N Access Unit M Installation Manual
10 / 50
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Part No. 11202104 Mini electronic doorstrike series 5 – door signaling
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
including a door state monitoring micro switch:
open/closed
short sheet metal front cover version (130 mm)
16 mm width
Part No. 11202104-L Mini electronic doorstrike series 5 – door
signaling, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
including a door state monitoring micro switch:
open/closed
long sheet metal front cover version (250 mm)
16 mm width
Part No. 11202105 Mini electronic doorstrike series 5 – fail-safe
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can
be opened
short sheet metal front cover version (130 mm)
16 mm width
2N Access Unit M Installation Manual
11 / 50
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Part No. 11202105-L Mini electronic doorstrike series 5 – fail-safe, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can
be opened
long sheet metal front cover version (250 mm)
16 mm width
Part No. 11202106 Mini electronic doorstrike series 5 – fail-safe and
door signaling
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can
be opened
short sheet metal front cover version (130 mm)
16 mm width
Part No. 11202106-L Mini electronic doorstrike series 5 – fail-safe and
door signaling, long
electric opener designed for door frame installation
intended for such narrow profiles as aluminum,
wood or PVC in particular
under voltage: opener secured, blocked
at voltage interruption: opener unblocked, door can
be opened
long sheet metal front cover version (250 mm)
16 mm width
2N Access Unit M Installation Manual
12 / 50
•
•
•
•
•
•
•
•
•
•
•
•

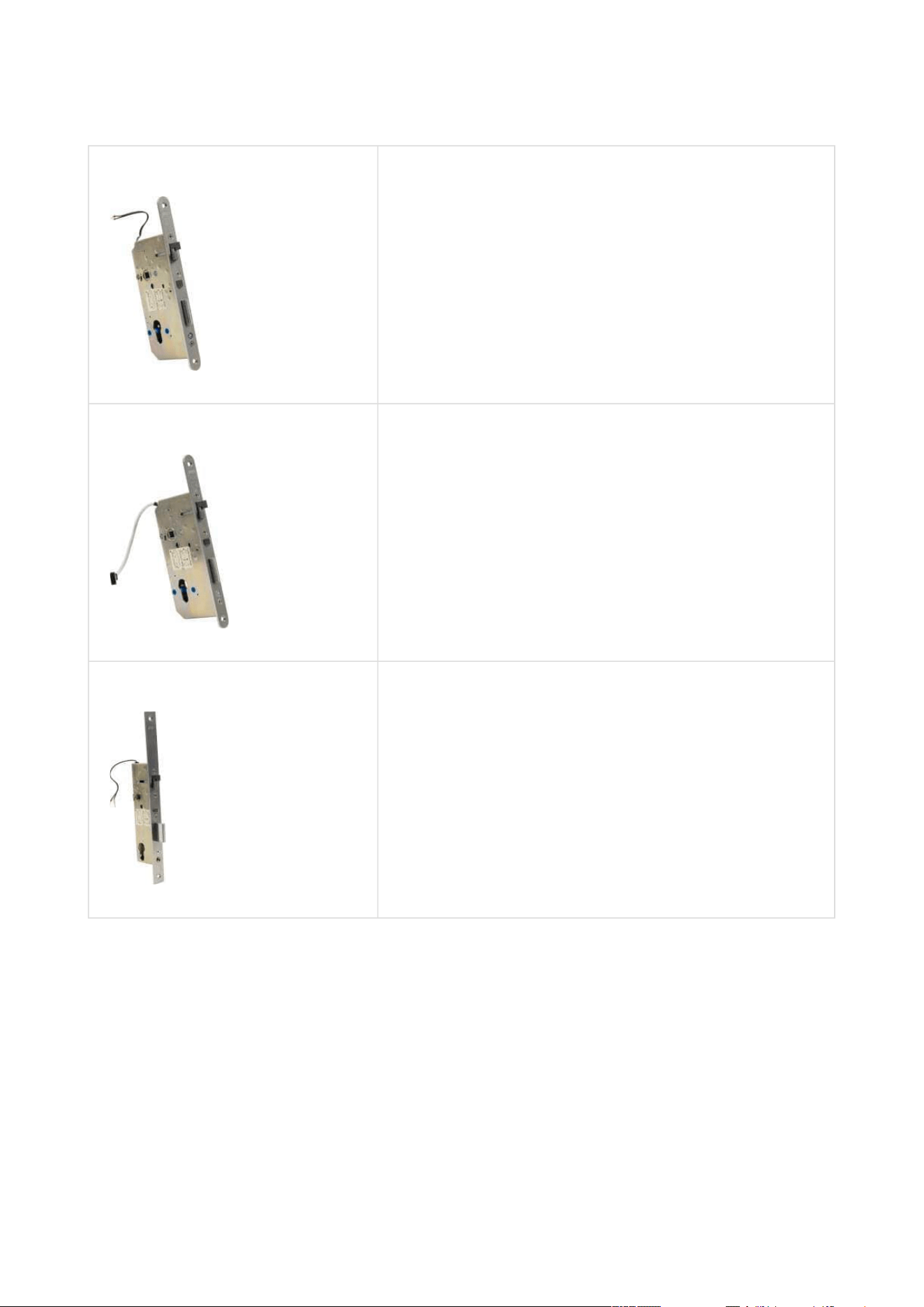

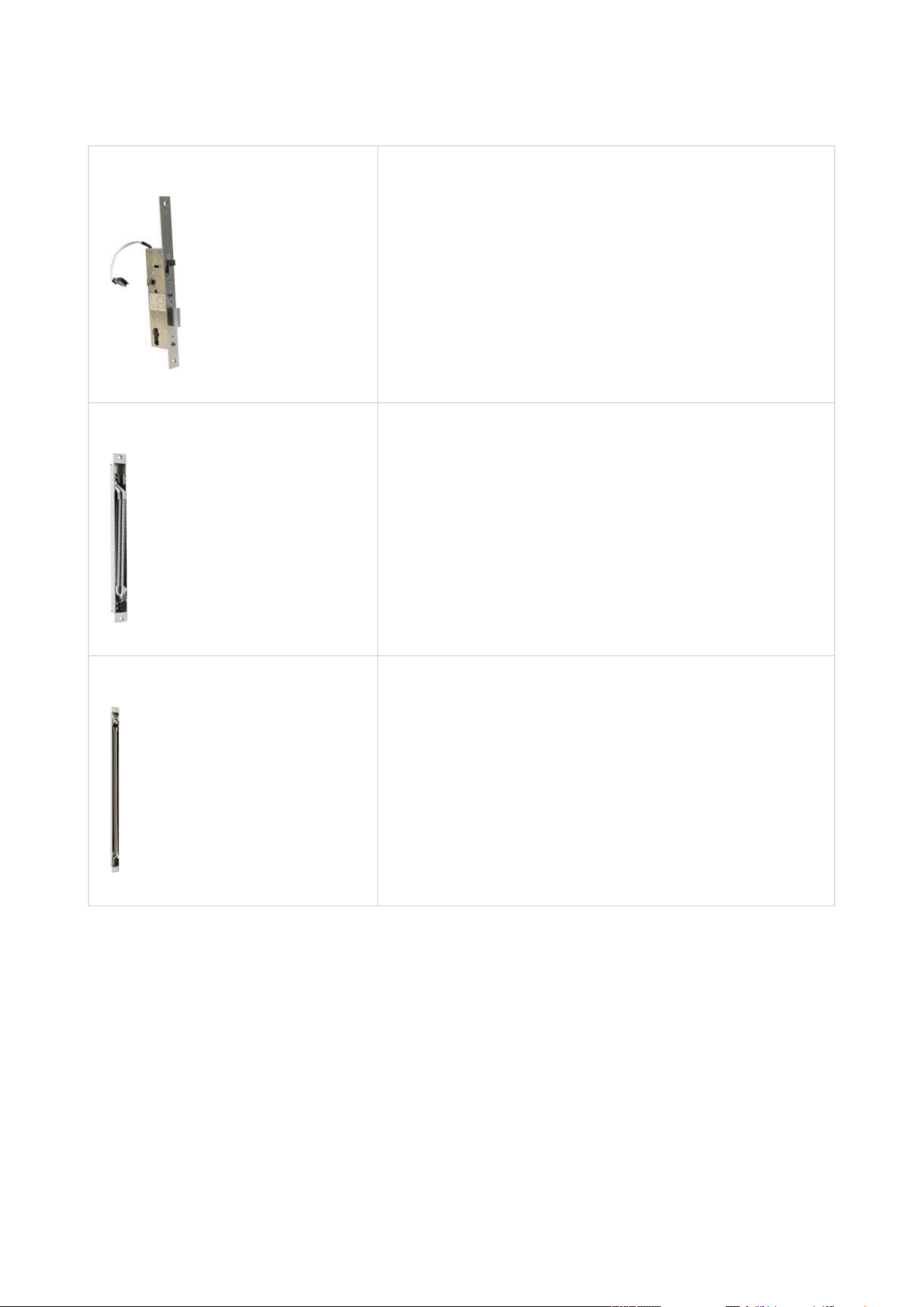

Part No. 11202201 Electromechanical lock SAM 7255
72/55 self-locking lock with panic function
A key is necessary for door opening from the outside
(or an electric pulse from a connected 2N IP
intercom / reader).
convenient solution for emergency exits
Part No. 11202201-M Electromechanical lock SAM 7255 with monitoring
72/55 self-locking lock with panic function
A key is necessary for door opening from the outside
(or an electric pulse from a connected 2N IP
intercom / reader).
convenient solution for emergency exits
Part No. 11202202 Electromechanical lock SAM 9235
92/35 self-locking lock with panic function
A key is necessary for door opening from the outside
(or an electric pulse from a connected 2N IP
intercom / reader).
convenient solution for emergency exits
2N Access Unit M Installation Manual
13 / 50
•
•
•
•
•
•
•
•
•
•
Part No. 11202202-M Electromechanical lock SAM 9235 with
monitoring
92/35 self-locking lock with panic function
A key is necessary for door opening from the outside
(or an electric pulse from a connected 2N IP
intercom / reader).
convenient solution for emergency exits
Part No. 11202301 Cable protector FX290
Provides secure passage and protection of the
supply cable between the door frame and the door
leaf.
290 mm length

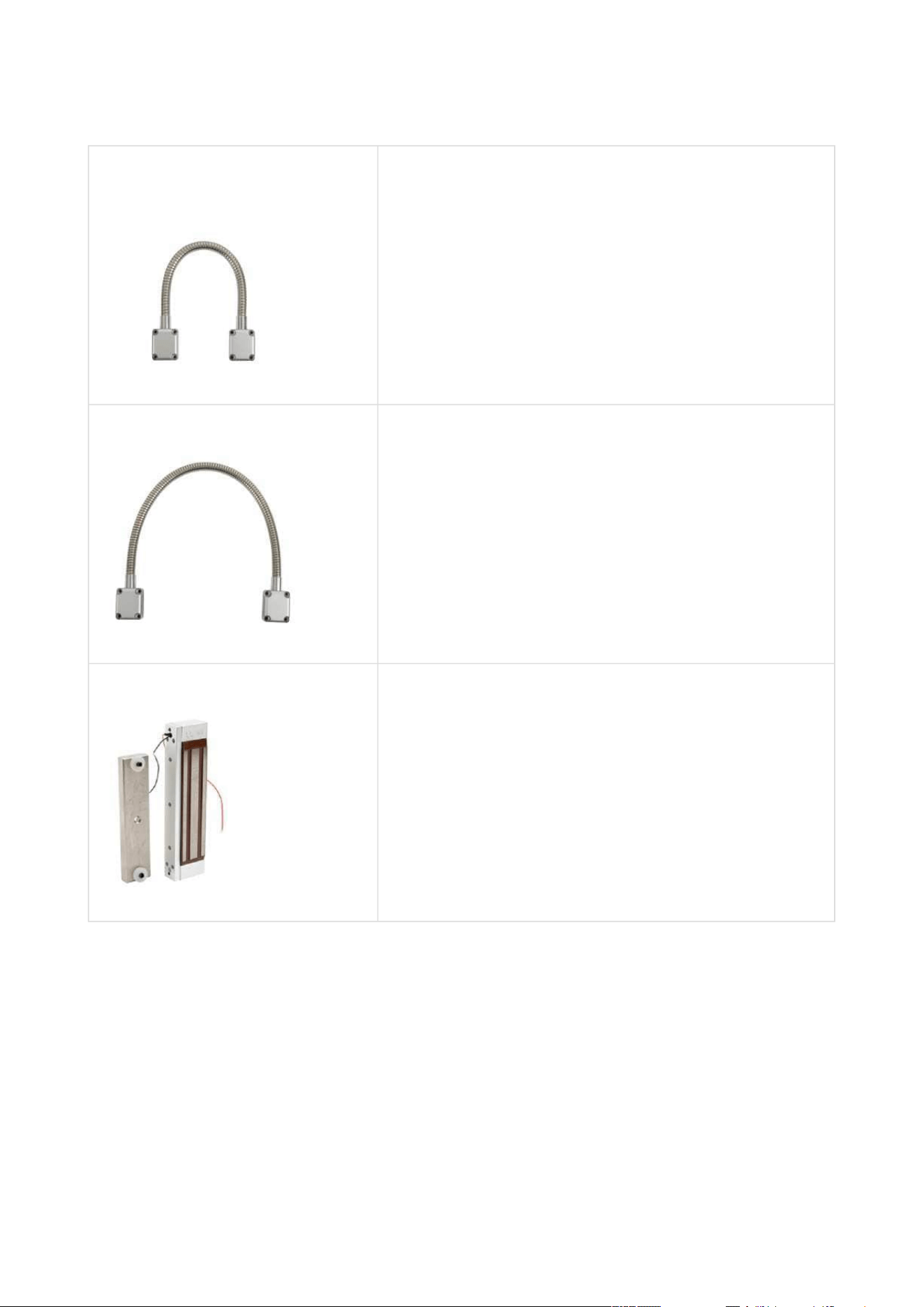

Part No. 11202302 Cable protector FX510
Provides secure passage and protection of the
supply cable between the door frame and the door
leaf.
510 mm length
2N Access Unit M Installation Manual
14 / 50
•
•
•
•
•
•
•
•
•
•
•
Part No. 11202303 Cable protector FX300G
Provides secure passage and protection of the
supply cable between the door frame and the door
leaf.
440 mm length
Part No. 11202304 Cable protector FX500G
Provides secure passage and protection of the
supply cable between the door frame and the door
leaf.
640 mm length

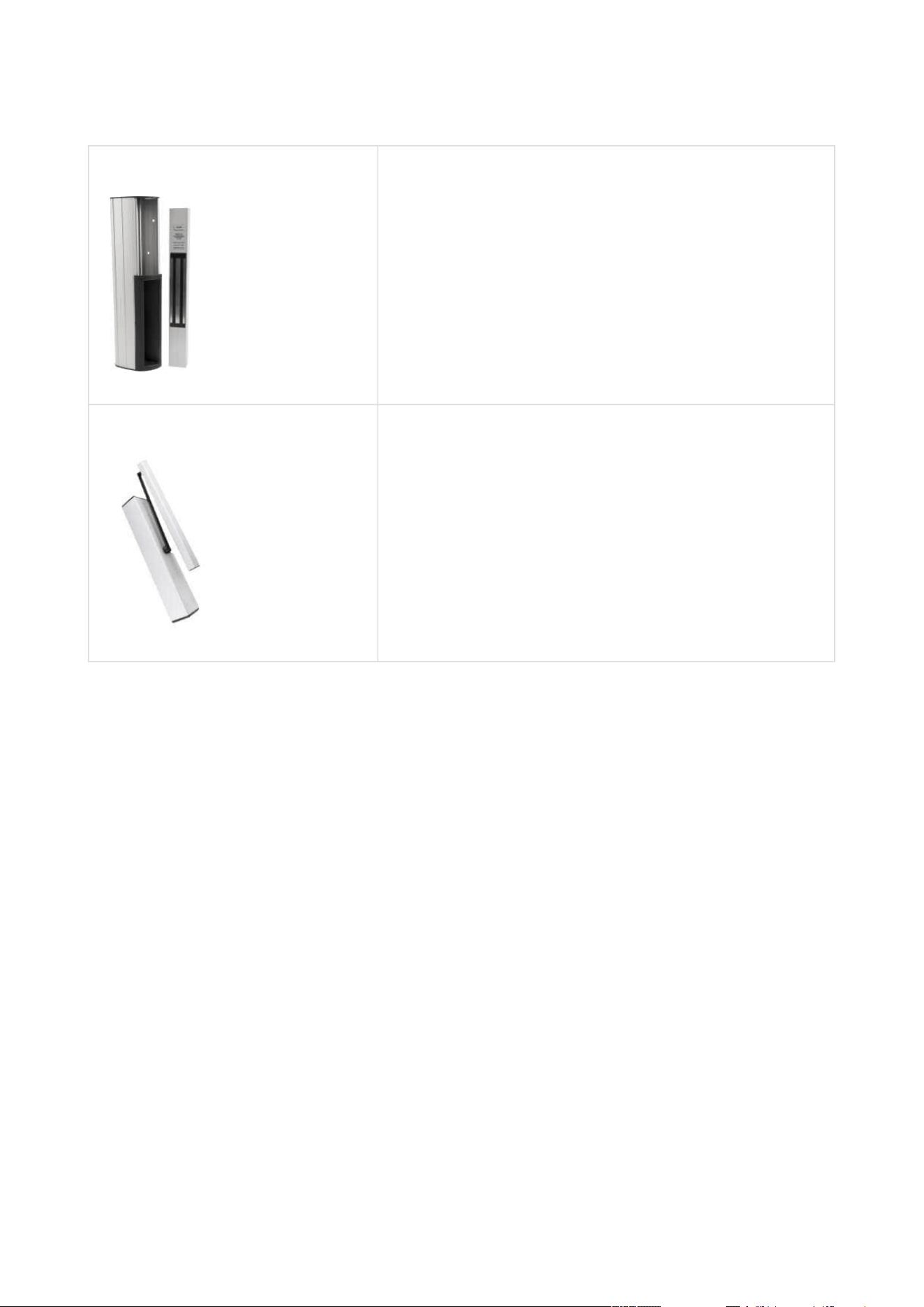

Part No. 11202107 Maglock MEX100
used as a door holding supplement, not replacing
the lock
consists of two parts: supplied part and counterpart
under voltage: door cannot be opened
at voltage interruption: magnets get disconnected,
door opens
2N Access Unit M Installation Manual
15 / 50
•
•
•
•
•
•
•
•
•
•
•
Part No. 11202501 Magnetic handle P300RP
fully replaces a mortise lock and handle
under voltage: door cannot be opened
at voltage interruption: magnets get disconnected,
door opens
suitable for wooden, metal and glass doors
Part No. 11202401 ED100
low energy simple door operator
contactless operation
can be interconnected with a motion sensor and
electronic access control system
applicable for right / left doors
in / out opening versions
2N Access Unit M Installation Manual
16 / 50
•
•
•
•
•
•
•
•

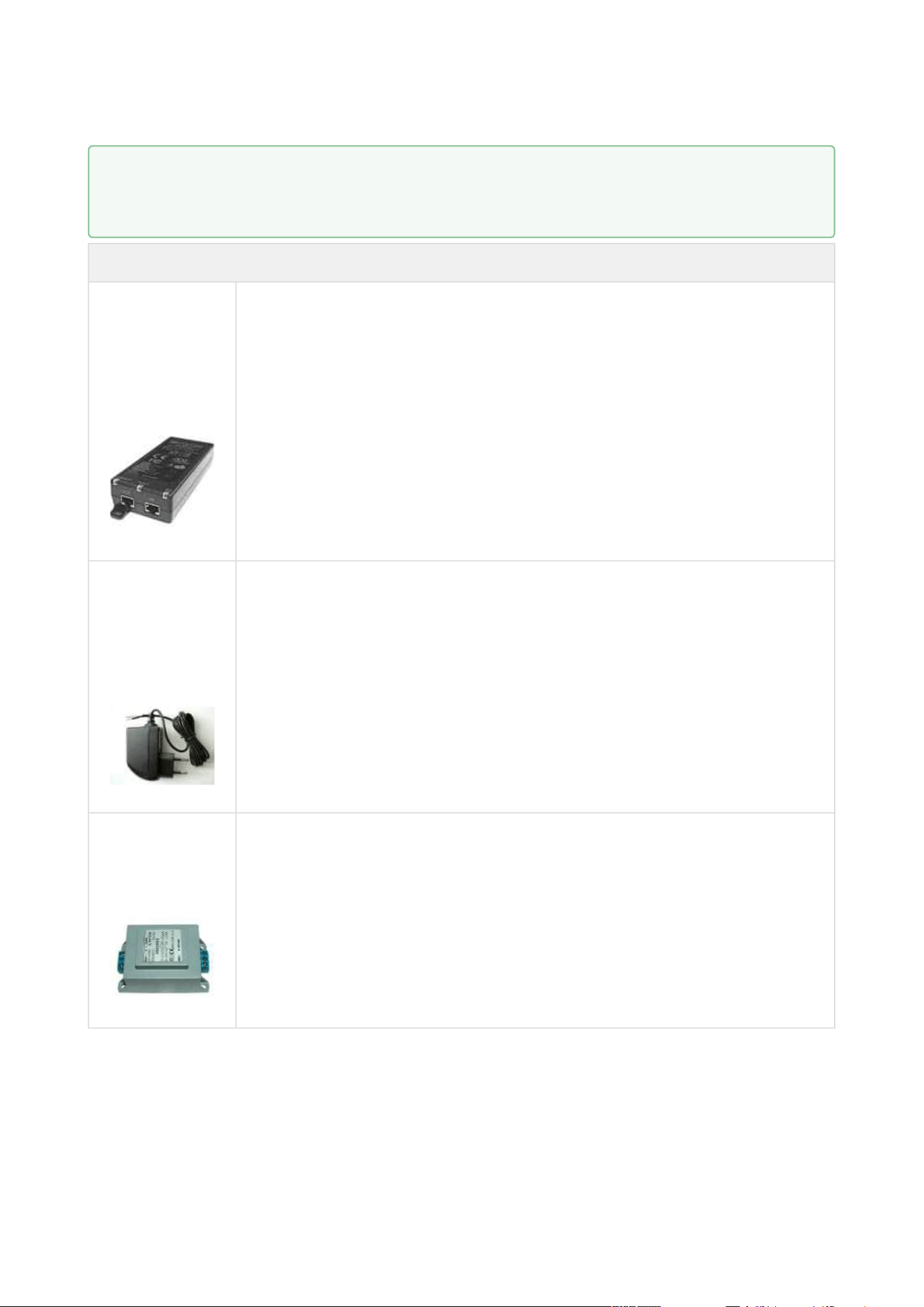

Power Supply
Part Numbers
91378100E
91378100US
PoE injector – without cable
PoE injector – with EU cable
PoE injector – with US cable
For intercom supply via Ethernet cable where the PoE switch is absent.
Part Nos.
91341482E
91341482US
12 V / 1 A adapter
A stabilized power supply needs to be used where no PoE is available.
Part
No.932928
12 V transformer
for electric lock
•
Tip
FAQ: Electric locks – Differences between locks for 2N IP access systems
2N Access Unit M Installation Manual
17 / 50
•
•
•
•
•
•

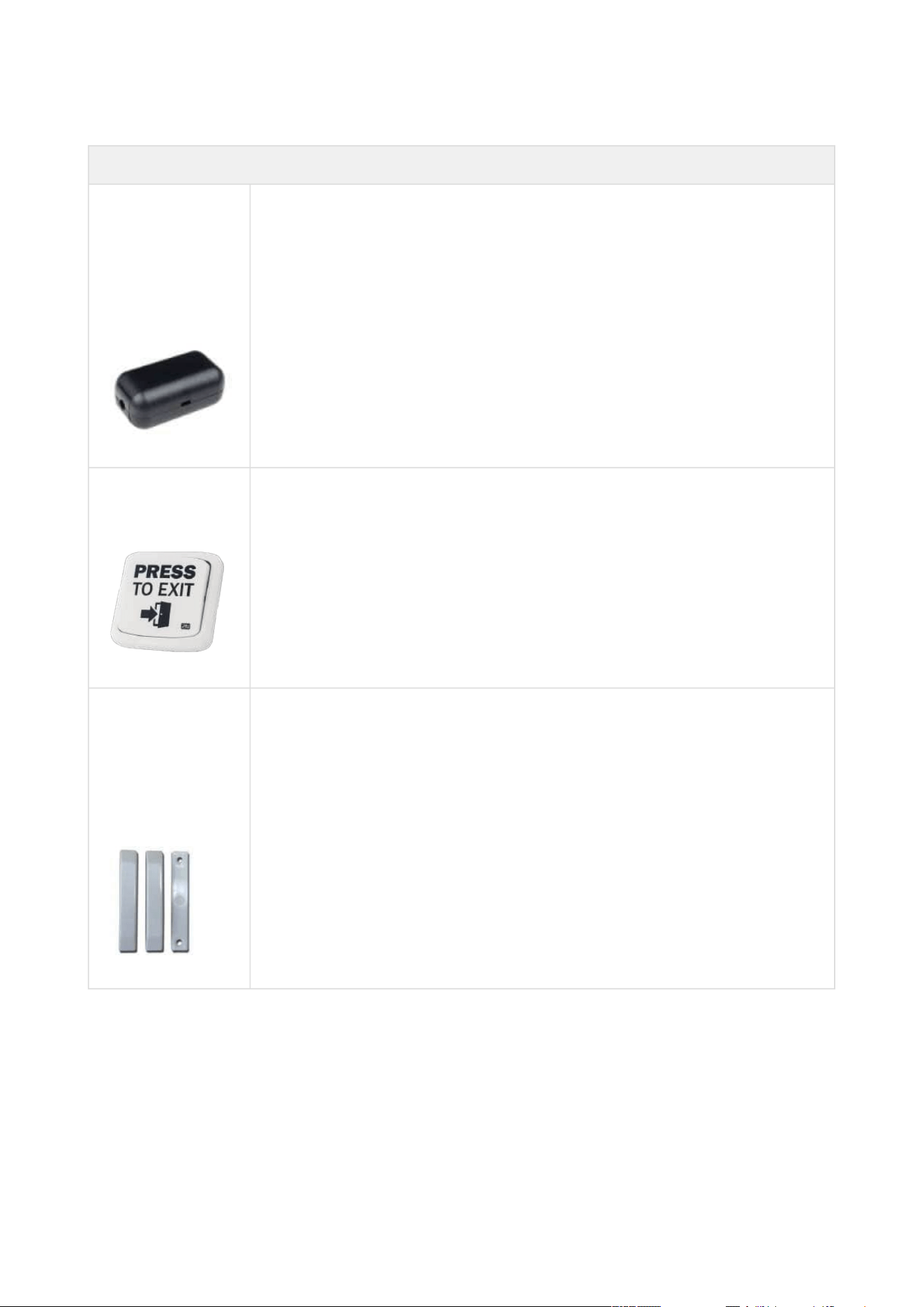

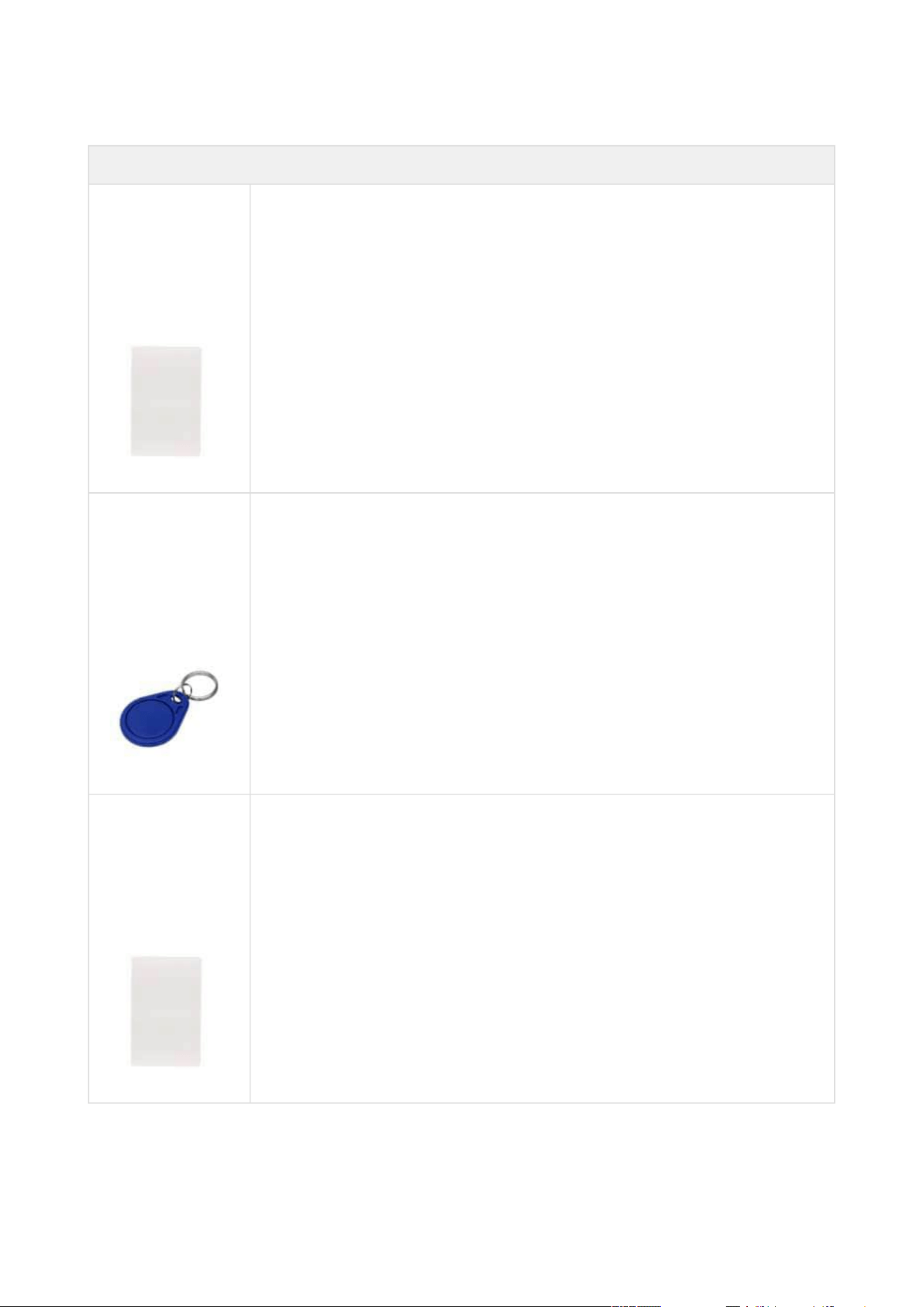

Additional Modules
2N Part No.
9159010
Axis Part No.
01386-001
Security Relay
A handy add-on that significantly enhances door entry security
Prevents lock tampering. Installed between the intercom, from which
it is also supplied, and the lock to be controlled.
Part No. 9159013
Departure button
Connects the logic input for door unlocking from inside the building.
2N Part No.
9159012
Axis Part No.
01388-001
Magnetic door contact
Set for installation on a door, enabling the status of door opening to
be ascertained. Used when the intercom is used for door protection,
to detect when the door is not closed or forced open.
2N Access Unit M Installation Manual
18 / 50
•
•
•
Additional Modules
2N Part No.
9134173
Axis Part No.
01384-001
RFID card, Mifare Classic 1k, 13.56 MHz
2N Part
No.9134174
Axis Part No.
01385-001
RFID fob, Mifare Classic 1k, 13.56 MHz
2N Part
No.9134165E
Axis Part No.
01395-001
RFID card, type EM4100, 125 kHz
2N Access Unit M Installation Manual
19 / 50
•
•
•
•
•
•
•
•
•
•

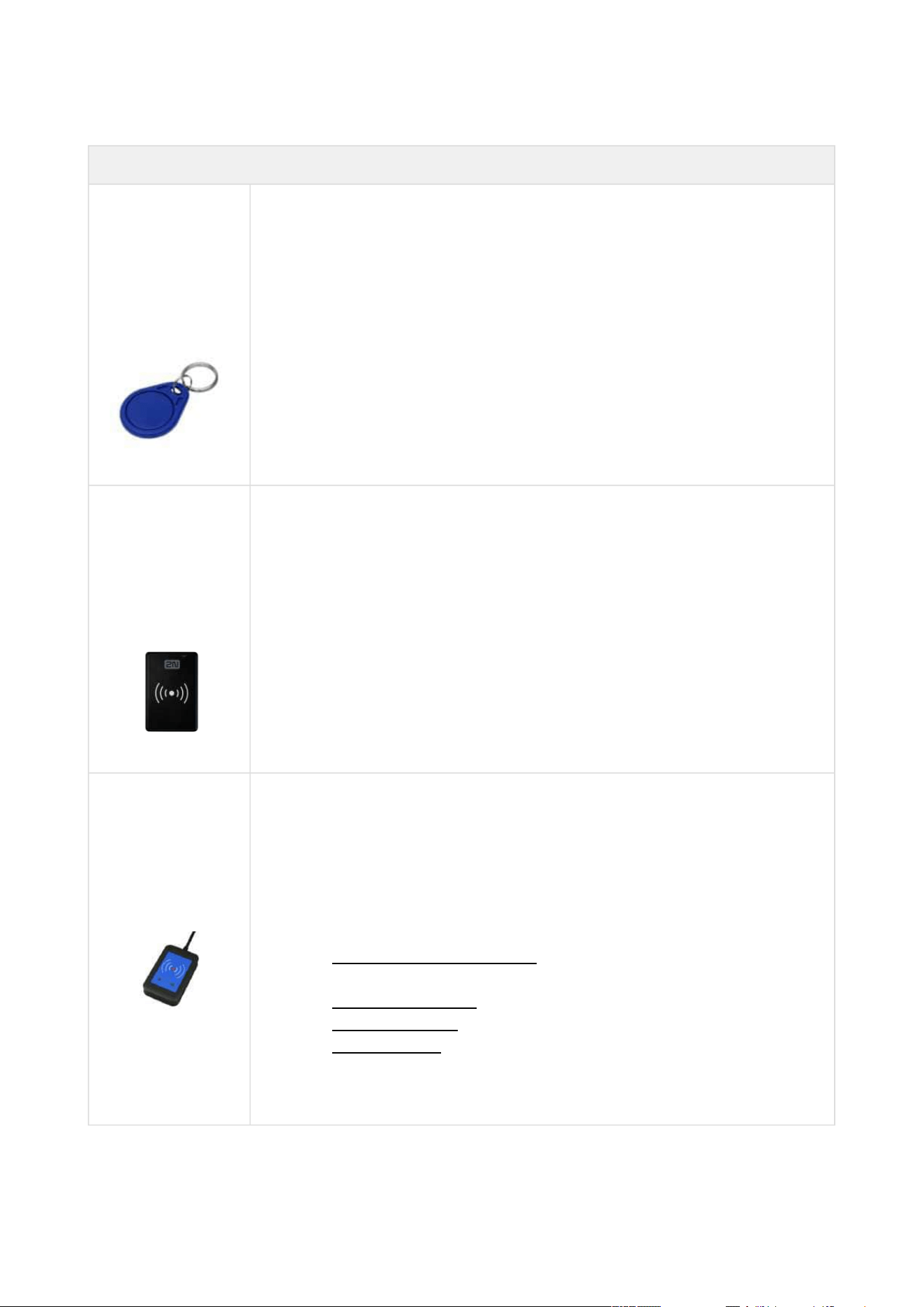

Additional Modules
2N Part
No.9134166E
Axis Part No.
01396-001
RFID fob, type EM4100, 125 kHz
2N Part No.
9137420E
Axis Part No.
01399-001
External RFID card reader connectable to a PC via a USB
interface.
Suitable for system administration and adding of EM41xx cards (125
kHz) via a web interface or 2N
®
Access Commander.
2N Part No.
9137421E
Axis Part No.
01400-001

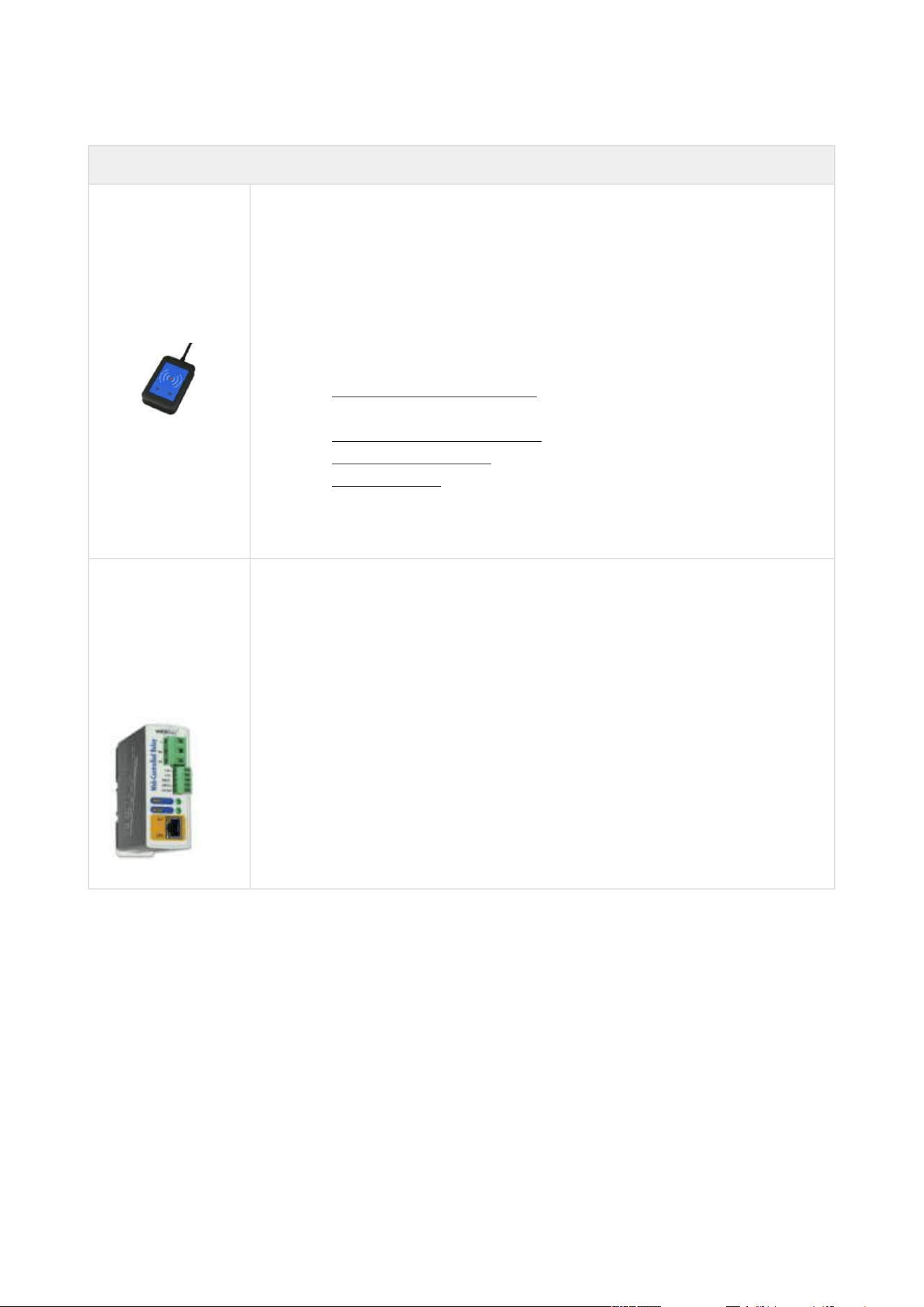

USB Reader of 13.56 MHz, 125 kHz RFID Cards and NFC/HCE
devices
External RFID card reader connectable to a PC via a USB interface.
Suitable for system administration and adding 13.56 MHz, 125 kHz
cards and Android platform devices supporting NFC/HCE using 2N IP
intercom web interface or 2N
®
Access Commander. It reads the
same types of cards and devices as card readers in2N IP intercoms.
13.56 MHz/ISO/IEC 14443A
Mifare Classic 1k & 4k, DESFire EV1,
Mini, Plus S&X, Ultralight, Ultralight C
13.56 MHz/ISO/IEC
14443B CEPAS, HID iCLASS (CSN only)
13.56/JIS X 6319
Felica
ISO/IEC 18092
SmartPhone with NFC/HCE support, Android
version 6.0 Marshmallow and higher (2N
®
Mobile Key required)
EMarine
2N Access Unit M Installation Manual
20 / 50
•
•
•
•
•
•
•
•
•
Additional Modules
2N Part No.
9137424E
Axis Part No.
01527-001
SecuredUSB Reader of 13.56 MHz, 125 kHz RFID Cards and NFC/
HCE devices
External secured RFID card reader connectable to a PC via a USB
interface. Suitable for system administration and adding 13.56 MHz,
125 kHz cards and Android platform devices supporting NFC/HCE
using the 2N IP intercom web interface or 2N
®
Access Commander.
It reads the same types of cards and devices as card readers in2N IP
intercoms.
13.56 MHz/ISO/IEC 14443A
Mifare Classic 1k & 4k, DESFire EV1,
Mini, Plus S&X, Ultralight, Ultralight C
13.56 MHz/ISO/IEC 14443B
CEPAS, HID iCLASS (CSN or PAC ID)
13.56MHz/JIS X 6319
Felica
ISO/IEC 18092
SmartPhone with NFC/HCE support, Android
version 6.0 Marshmallow and higher (2N
®
Mobile Key required)
EMarine
2N Part No.
9137410E
Axis Part No.
01397-001
External IP relay – 1 output
A stand-alone IP device, which can be controlled from an IP intercom
via HTTP commands, which can thus control devices on unlimited
distance.
2N Access Unit M Installation Manual
21 / 50
•
•
•
•
•
•
•
Additional Modules
2N Part

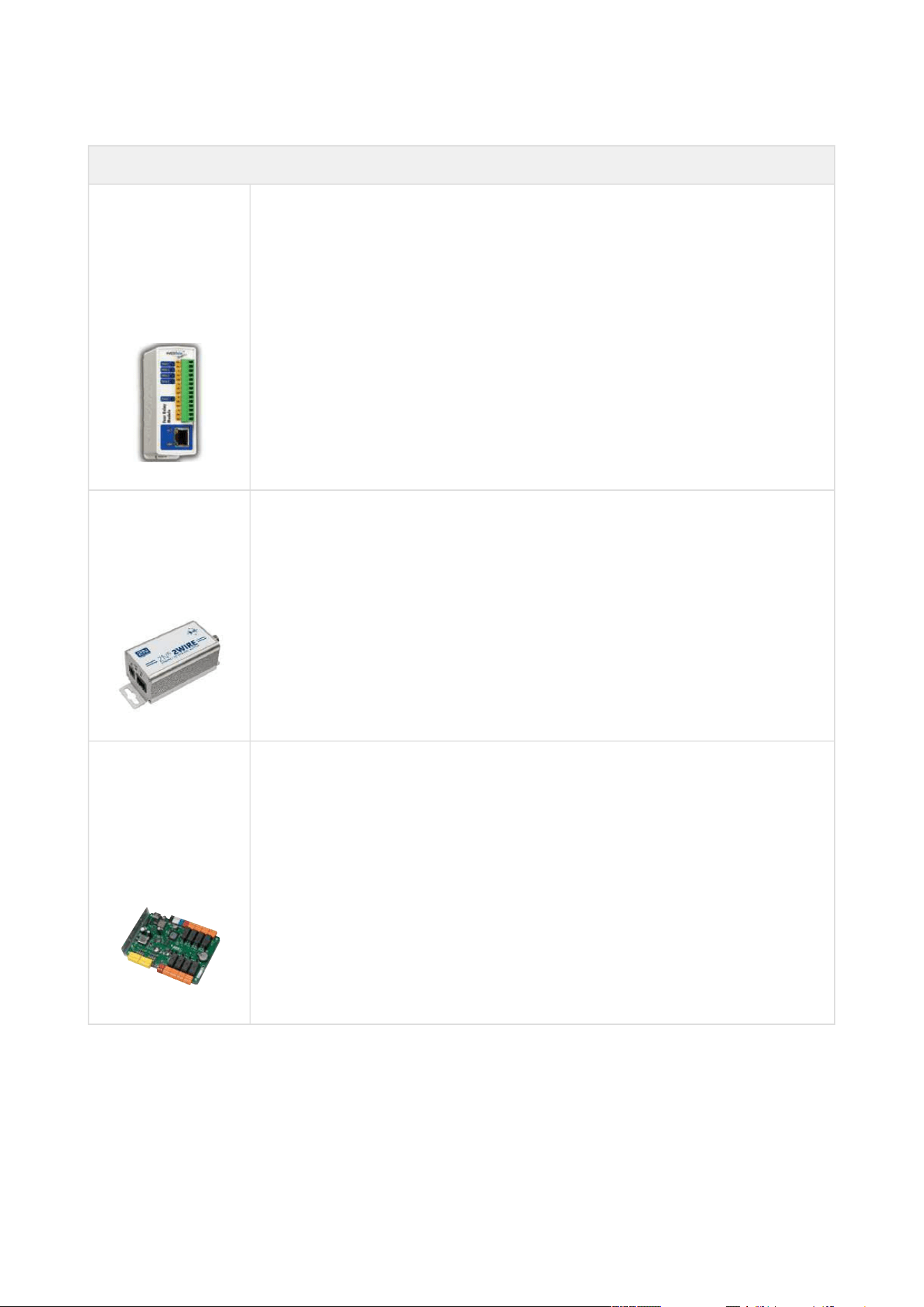

No.9137411E
Axis Part No.
01398-001
External IP relay – 4 outputs, PoE
A stand-alone IP device, which can be controlled from an IP intercom
via HTTPcommands, which can thus control devices on unlimited
distance.
Part No.
9159014EU/US/
UK
2N
®
2Wire
(set of 2 adapters plus EU/US/UK power supply)
The 2N
®
2Wire converter allows you to use the existing 2-wire cabling
from your original door bell or door intercom to connect any IP
device. You do not have to configure anything, all you need is one 2N
®
2Wire unit at each end of the cable and a power supply connected to
at least one of these units. 2N
®
2Wire then provides PoE power not
only to the second converter, but also to all the other IP end devices
connected.
2N Part No.
9160501
Axis Part No.
0820-001
AXIS A9188 Network I/O relay module
Lift control relay module for up to 8 floors
2N Access Unit M Installation Manual
22 / 50
•
•
License
2N Part No. 9137909
Gold
2N Part No. 9137910
Axis Part No.
01381-001
InformaCast
1.2 Terms and Symbols
The following symbols and pictograms are used in the manual:
•
Tip
Refer to the local 2N distributor for more accessories and recommendations
please.
•
Safety
Always abide by this information to prevent persons from injury.
•
Warning
Always abide by this information to prevent damage to the device.
•
Caution
Important informationfor system functionality.
•
Tip
Useful informationfor quick and efficient functionality.
•
Note
Routines or advice for efficient use of the device.
2N Access Unit M Installation Manual
23 / 50
•
•
•
•
2. Description of Installation
Here is what you can find in this section:
2.1 Before You Start
2.2 Mechanical Installation
2.3 Electric Installation
2.4 Extending Module Connection
2.1 Before You Start
Before starting the installation, please check whether your2NAccess Unit Mpackage complies
with the following list.
Package complies with the following list.
1x 2N Access Unit M
1x Wall holder (screwed to the device)
2x 8 mm dowel
2x Screw with a washer
1x Screw for fitting the device in the holder
1x Torx key (10/20 size)
1x Certificate of ownership
1x Brief Manual
2.2 Mechanical Installation
2N Access Unit M is designed for surface mounting (wall, plasterboard, door frames).
Use the drilling template shown on the
device box to prepare holes of the
required sizes for cabling and dowels on
the selected place in the required
height.Feed the cables out of the pre-
predrilled hole.
Pull the
holder
downwards
to remove it
from the
device back
side.
•
Warning
Do
not
hand
le
the
scre
2N Access Unit M Installation Manual
24 / 50
Then fit the
holder through
the dedicated
holes using the
screws
enclosed.
Interconnect the fed-out cables with the 2N Access Unit
M
cabling. Put the device carefully on the installed
holder from above downwards and fix its position on the
holder carrying elements by tightening the screw from
the bottom through the holder hole.
2.3 Electric Installation
2NAccess Unit Mcan be fed either from an external 12 V / 1 A DC power supply or from a PoE
802.3af supporting LAN.
External Power Supply
Use a 12 V ± 15 % SELV supply dimensioned to the current consumption required for the access
unit power output to make your device work reliably.
Current consumption
[A]
Available power output
[W]
1 12
PoE Supply
2N Access Unit M is compatible with the PoE 802.3af (Class 0–12.95 W) technology and can be
supplied directly from the LAN via compatible network elements. If your LAN does not support
this technology, insert a PoE injector, Part No. 91378100, between 2N Access Unit M and the
nearest network element. This power supply provides
2N Access Unit M with 12 W for its own feeding.
ws
on
the
devi
ce
back
side!
2N Access Unit M Installation Manual
25 / 50
Combined Power Supply
2N Access Unit can be fed from an external power supply and PoE at the same time. In this
configuration, the maximum supply power is available.
Connection to LAN
2N Access Unit M is connected to the LAN using a UTP/STP cable (category Cat-5e or higher) via
the dedicated LAN connector. As the device is equipped with the Auto-MDIX function, you can
use both the straight and crossed cable version.
•
Tip
The external power supply can also be used a PoE switch failure backup making
the unit constantly functional.
2N Access Unit M Installation Manual
26 / 50
•
•
Caution
We recommend the use of a LAN surge protection.
We recommend the use of a shielded SSTP Ethernet cable.
2N Access Unit M Installation Manual
27 / 50
Status Power Consumption
[W]
91611
2
91611
2-S
916114 91611
4-S
916115 916115-
S
91611
6
916116-S
At relax 1.6 W 1.8 W 1.5 W 1.7 W 1.5 W 1.7 W 1.5 W 1.7 W
LED – white strip
100 %
0.12
W
0.12
W
0.12 W 0.12
W
0.12 W 0.12 W 0.12
W
0.12 W
LED – green strip
100 %
0.15
W
0.15
W
0.15 W 0.15
W
0.15 W 0.15 W 0.15
W
0.15 W
LED – red strip 100
%
0.20
W
0.20
W
0.20 W 0.20
W
0.20 W 0.20 W 0.20
W
0.20 W
LED – Bluetooth
100 %
– – – – 0.06 W 0.06 W – –
LED – keypad
backlight 100 %
– – – – – – 0.15
W
0.15 W
Standard room
temperature mode
0.14
W
0.14
W
0.14 W 0.14
W
0.14 W 0.14 W 0.14
W
0.14 W
OUT1 at maximum
possible load
6 W 6 W 6 W 6 W 6 W 6 W 6 W 6 W
Audio 0.7 W 0.7 W 0.7 W 0.7 W 0.7 W 0.7 W 0.7 W 0.7 W
2N Access Unit M Installation Manual
28 / 50
•
•
•
•
•

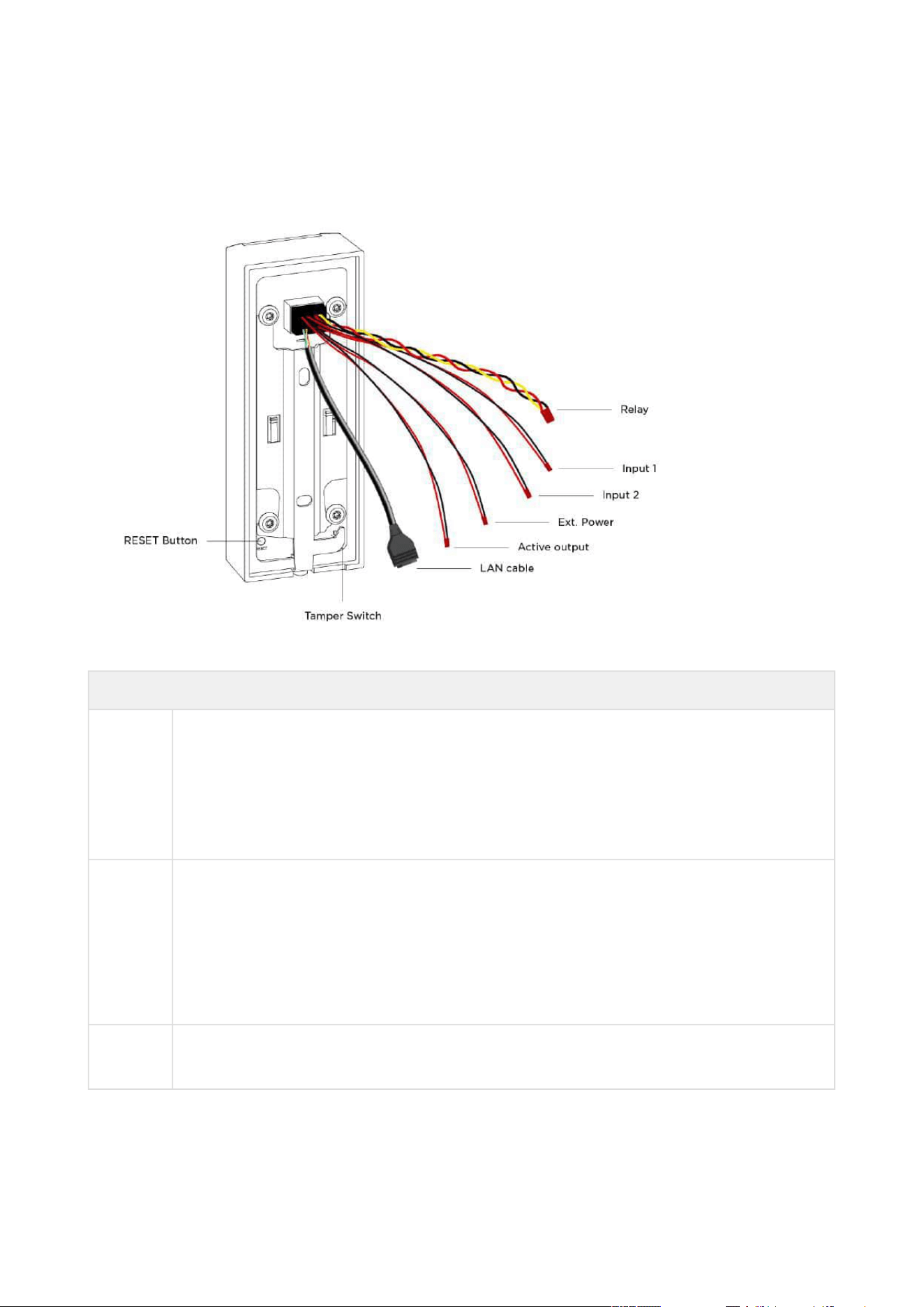

Description of 2N Access Unit M Cabling
Legend
Relay Relay cable with a 30 V / 1 A AC/DC NO/NC contact. Used for connection of non-
critical devices only (lights, e.g.).
NO – yellow
NC – red
COM – black

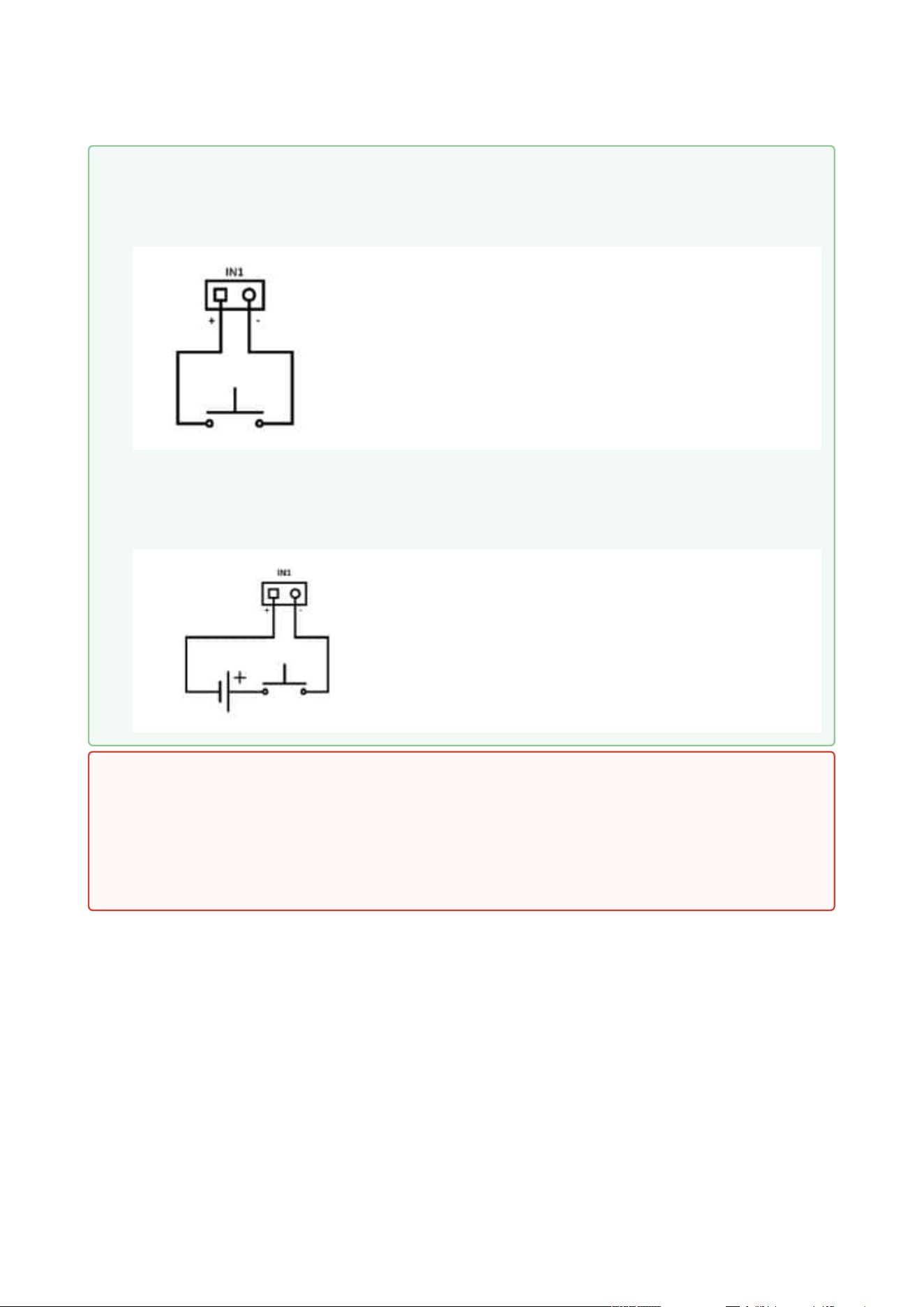

Input 1,
2
An input cable used for the connection of a departure button, open door sensor,
ESS etc. in the passive/active mode (−30 V to +30 V DC).
OFF = open contact OR U
IN
> 1.5 V
ON = closed contact OR U
IN
< 1.5 V
Ext.
Power
For external power supply connection (12 V / 1 A).
2N Access Unit M Installation Manual
29 / 50
•
•
•
•
•
•
•
Legend
Active
output
An active output cable for the connection of Security Relay or an electric lock:8 to
12 V DC according to power supply (PoE: 10 V; adapter: power supply voltage
minus 2 V), up to 600 mA.
LAN
cable
For LAN connection (PoE 802.3af (Class –13.95 W)).
Tamper
Switch
A switch that helps detect the removal of a device from the holder installed.
RESET
button
RESET / FACTORY RESET button.
All the available cables are 35 cm long.
Cable Joining
The 2N Access Unit Msignals are led by insulated wires, which are 1 cm stripped at the ends
(excluding the Ethernet cable with a connector). The cables can be joined using any of the below
listed methods:
twisted joint
terminal block
soldering
screw connection
WAGO terminals
OOP cap
crimping using sockets
•
Tip
Output wiring diagram for Relay
2N Access Unit M Installation Manual
30 / 50

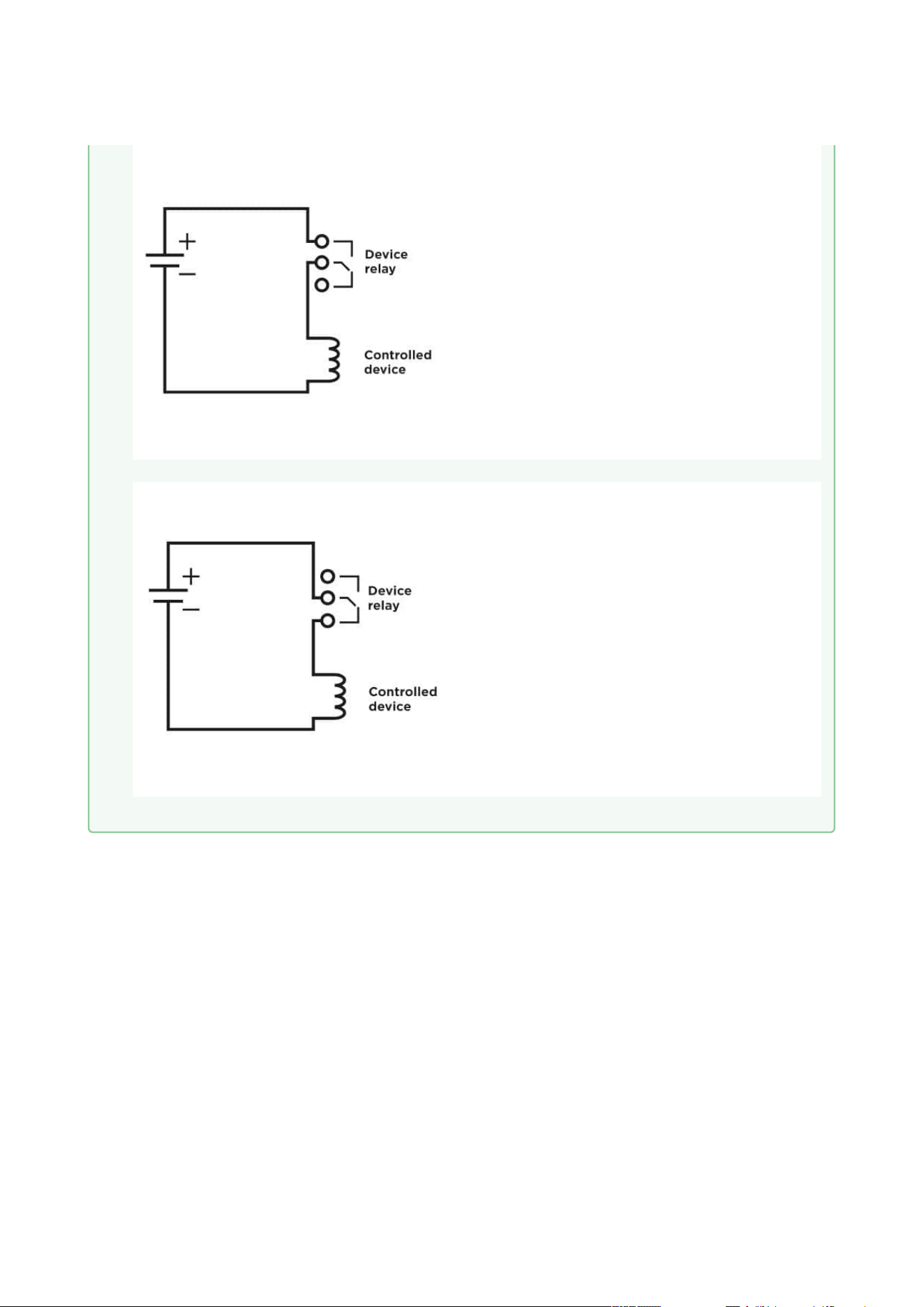

Wiring diagram for the controlled device’s electric circuit closing
Wiring diagram for the controlled device’s electric circuit opening
2N Access Unit M Installation Manual
31 / 50
•
•
Tip
Wiring Diagram for IN1, IN2 Wires in Active Mode
Wiring Diagram for IN1, IN2 Wires in Passive Mode
•
Security
The 12 V output is used for lock connection. If, however, the unit (2N IP Intercom,
2N Access Unit) is installed where unauthorized tampering may happen (building
envelopes), we strongly recommend that Security Relay (Part No. 9159010) be
used for enhanced installation security.
2N Access Unit M Installation Manual
32 / 50
•
•
2.4 Extending Module Connection
The Security Relay (Part No. 9159010) is used for enhancing security between the access unit
and the connected electric lock. It significantly enhances security of the connected electric lock
as it prevents unlocking by forced opening of 2NAccess Unit M.
Function:
The Security Relayis a device installed between the access unit (outside the secured area) and
an electric lock (inside the secured area).The Security Relay includes a relay that can only be
activated if a valid access card is detected by the unit.
Specifications:
Passive switch: NO and NC contacts, up to 30 V / 1 A AC / DC
Switched output:
Where the security relay is fed from the intercom, 9 to 13 V DC is available on the output
depending on the power supply (PoE: 9 V; adapter: source voltage of minus 1 V) / 400 mA
DC.
Where the security relay is fed from an external power supply, 12 V / 700 mA DC is available
on the output.
Dimensions: (56 x31 x 24) mm

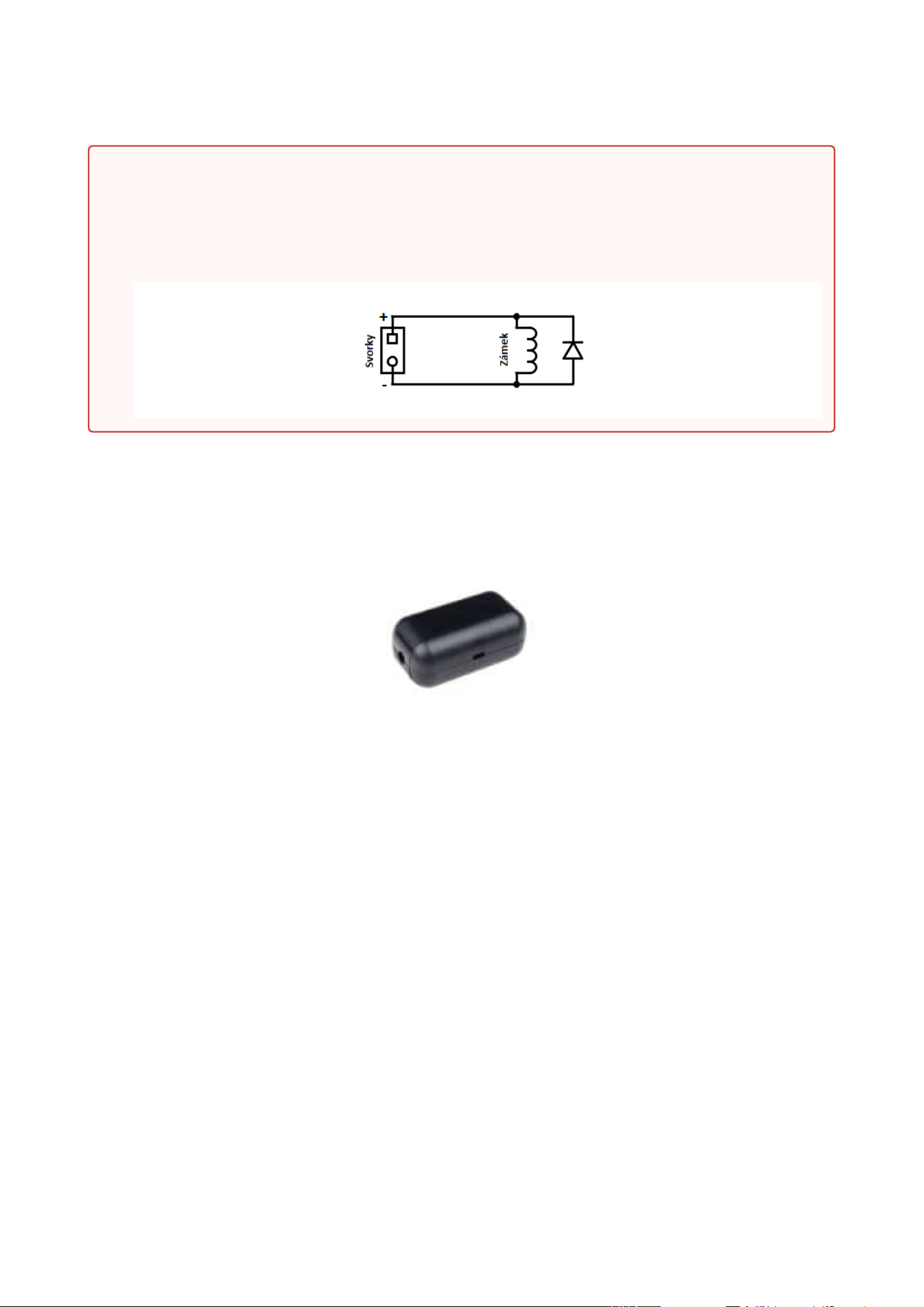

Warning
When you connect a device containing a coil, such as a relay or an electromagnetic lock,
it is necessary to protect the access system output against voltage peak while switching
off the induction load. For this way of protection we recommend a diode 1 A / 1000 V
(e.g., 1N4007, 1N5407, 1N5408) connected antiparallel to the device.
2N Access Unit M Installation Manual
33 / 50
•
•
•
•
•
•
Weight: 20 g
Installation:
The Security Relay is installed onto a two-wire cable between the access unit and the electric
lock inside the area to be secured (typically behind the door). The device is powered and
controlled via this two-wire cable and thus can be added to an existing installation. Thanks to its
compact dimensions, the device can be installed into a standard mounting box.
Connection:
Connect the Security Relay to the access unit as follows:
To the Active output
Connect the electric lock to the Security Relay output as follows:
To the switched output.
To the passive output in series with an external power supply.
The device also supports a Departure button connected between the ‘PB’ and – Helios/2N IP
intercom’ terminals. Press the Departure button to activate the output for 5 seconds.
Status Signaling:
Green LED Red LED Status
flashing off Operational mode
on off Activated output
flashing flashing Programming mode – waiting for
initialization
on flashing Error – wrong code received
Configuration:
Connect the Security Relay to the properly set access unit security output.Refer to the
2NAccess Unit Configuration Manual. Make sure that one LED at least is on or flashing.
Press and hold the Security Relay Reset button for 5 seconds to put the device in the
programming mode (both the red and green LEDs are blinking).
Activate the output switch using the keypad, telephone, etc. The first code sent from the
intercom will be stored in the memory and considered valid. After code initialization, the
Security Relay will pass into the operational mode (the green LED is blinking).
2N Access Unit M Installation Manual
34 / 50
•
Caution
In case the factory default values are reset on a device with a firmware version 2.18
or higher, it is necessary to reprogram Security Relay using the instructions
above.
•
Tip
FAQ: 2N® Security Relay – description of the device and use with the 2N IP
intercoms
•
Tip
Video Tutorial:2N IP Door Intercoms – Security Relay
Sorry, the widget is not supported in this export.
But you can reach it using the following URL:
https://www.youtube.com/watch?v=H-z-6kVyWrI&list=UUL4rQtjCnq3cT5-
A9N0Xr4Q
2N Access Unit M Installation Manual
35 / 50
Connection:
2N Access Unit M Installation Manual
36 / 50
1.
2.
3.
3. Detection of 2N Access Unit M using 2N® Network Scanner
2N Access Unit M is configured via the administration web server. Connect the device to the LAN
IP and make sure it is properly powered.
2N
®
Network Scanner Description
The application helps you find the IP addresses of all the 2N Access Unit M devices in the LAN.
Download the app from the 2N web sites (www.2n.cz). Make sure that Microsoft .NET Framework
2.0 is installed for successful app installation.
Run the 2N
®
Network Scanner installer.

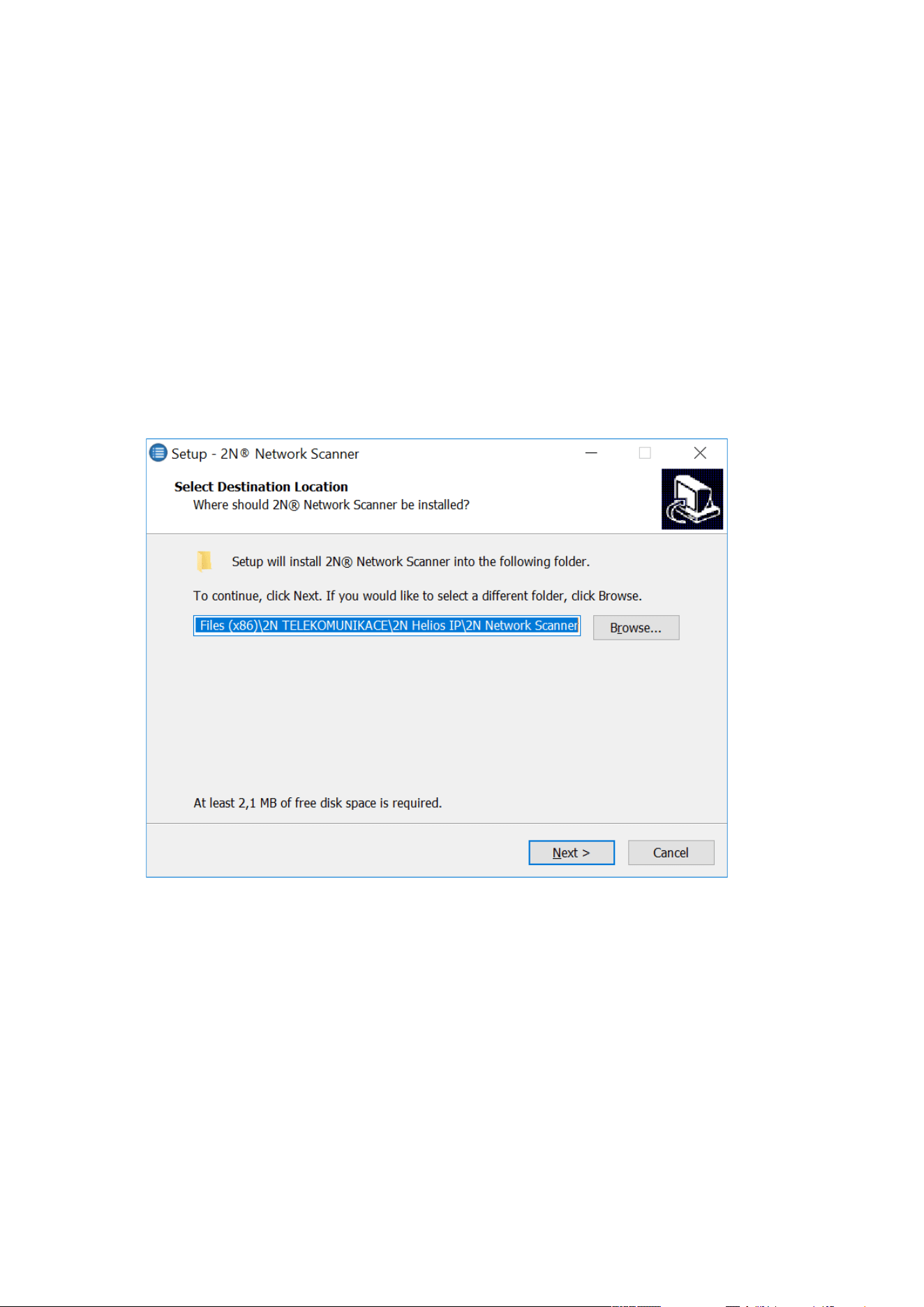

Use the Setup Wizard for successful installation.
Setup Wizard of 2N
®
IP Network Scanner
Having installed 2N
®
IP Network Scanner, start the application using the Microsoft
Windows Start menu.
2N Access Unit M Installation Manual
37 / 50
1.

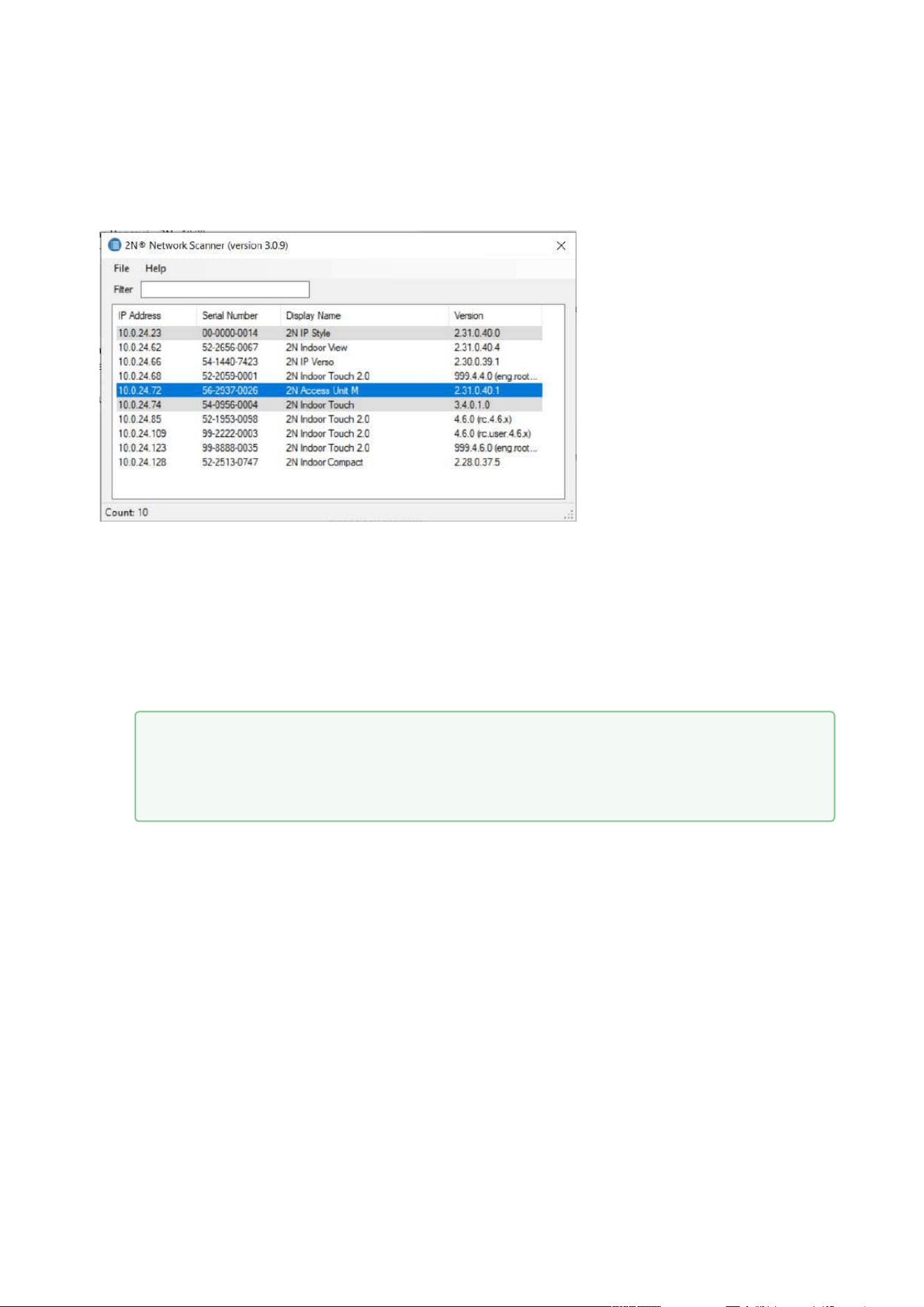

Once started, the application begins to automatically search for all the 2N devices in the LAN
including their smart extensions which are DHCP/statically assigned IP addresses. All the devices
are then displayed in a table
Window of 2N
®
IP Network Scanner
Select the 2N Access Unit M device to be configured and right-click it. Select Browse… to
open the 2N Access Unit Madministration web interface login window for configuration.
To change the device IP address, select Config and enter the required static IP address or
activate DHCP. The default configuration password is 2n. If the found device is grey
highlighted, its IP address cannot be configured using this application. In that case, click
Refresh to find the device again and check whether multicast is enabled in your network.
•
Tip
Double click the selected row in the 2N
®
IP Network Scanner list to access
the device web interface easily.
2N Access Unit M Installation Manual
38 / 50
2N
®
IP Network Scanner IP Address Change
2N Access Unit M Installation Manual
39 / 50
•
•
•
•
•
4. Factory Reset
Located in the left-hand bottom corner of device backside, the Reset button helps you reset the
factory default values, restart the device, find the device IP address and switch the static/
dynamic mode.The LED indicators are located on the device backside.
Press the button shortly (< 1 s) to restart the system without changing configuration.
IP Address Finding
Follow the instructions below to identify the current IP address:
Press and hold the RESET button.
Wait until the red and green LEDs go on simultaneously on the device and the acoustic
signal can be heard (approx. 15–35 s).
Release the RESET button.
The device announces the current IP address via the speaker automatically.
Static IP Address Setting
Follow the instructions below to switch on the Static IP address mode (DHCP OFF):
Press and hold the RESET button.
•
Note
The 2N Access Unit M time interval between the short press of the RESET button
and reconnection of the device to the network is 26 s.
•
•
Note
The delay between the RESET button press and the first light and sound signaling
is 15–35 s depending on the 2N Access Unit model used.
For 2N Access Unit M the time interval is 14 s.
2N Access Unit M Installation Manual
40 / 50
•
•
•
•
•
•
•
•
•
•
•
Wait until the red and green LEDs go on simultaneously on the device and the acoustic
signal can be heard (approx. 15–35 s).
Wait until the red LED goes off and the acoustic signal can be heard (approx. for
another 3 s).
Release the RESET button.
The following network parameters will be set after restart:
IP address:192.168.1.100
Network mask: 255.255.255.0
Default gateway: 192.168.1.1
Dynamic IP Address Setting
Follow the instructions below to switch on the Static IP address mode (DCHP ON):
Press and hold the RESET button.
Wait until the red and green LEDs go on simultaneously on the device and the acoustic
signal can be heard (approx. 15–35 s).
Wait until the red LED goes off and the acoustic signal can be heard (approx. for
another 3 s).
Wait until the green LED goes off and the red LED goes on again and the acoustic signal
can be heard (approx. for another 3 s).
Release the RESET button.
2N Access Unit M Installation Manual
41 / 50
•
•
•
•
•
•
Factory Reset
Follow the instructions below to reset the factory default values:
Press and hold the RESET button.
Wait until the red and green LEDs go on simultaneously and the acoustic signal can be
heard (approx. 15–35 s).
Wait until the red LED goes off and the acoustic signal can be heard (approx. for
another 3 s).
Wait until the green LED goes off and the red LED goes on again and acoustic signal
can be heard (approx. for another 3 s).
Wait until the red LED goes off and the acoustic signal can be heard (approx. for
another 3 s).
Release the RESET button.
•
Caution
In case the factory default values are reset on the device with a firmware version
2.18 or higher, it is necessary to reprogram Security Relay using the instructions
from Subsection 2.4 Extending ModuleConnection
2N Access Unit M Installation Manual
42 / 50
•
•
5. Maintenance
If used frequently, the device, its keypad in particular, gets unavoidably dirty. Use a piece of soft
cloth moistened with clean water to clean the device. You are recommended to follow the
principles below while cleaning:
Do not use aggressive detergents (such as abrasives or strong disinfectants).
Clean the device in dry weather in order to make waste water evaporate quickly.
•
•
Warning
Prevent water from getting inside the access unit.
Do not use alcohol-based cleaners.
2N Access Unit M Installation Manual
43 / 50

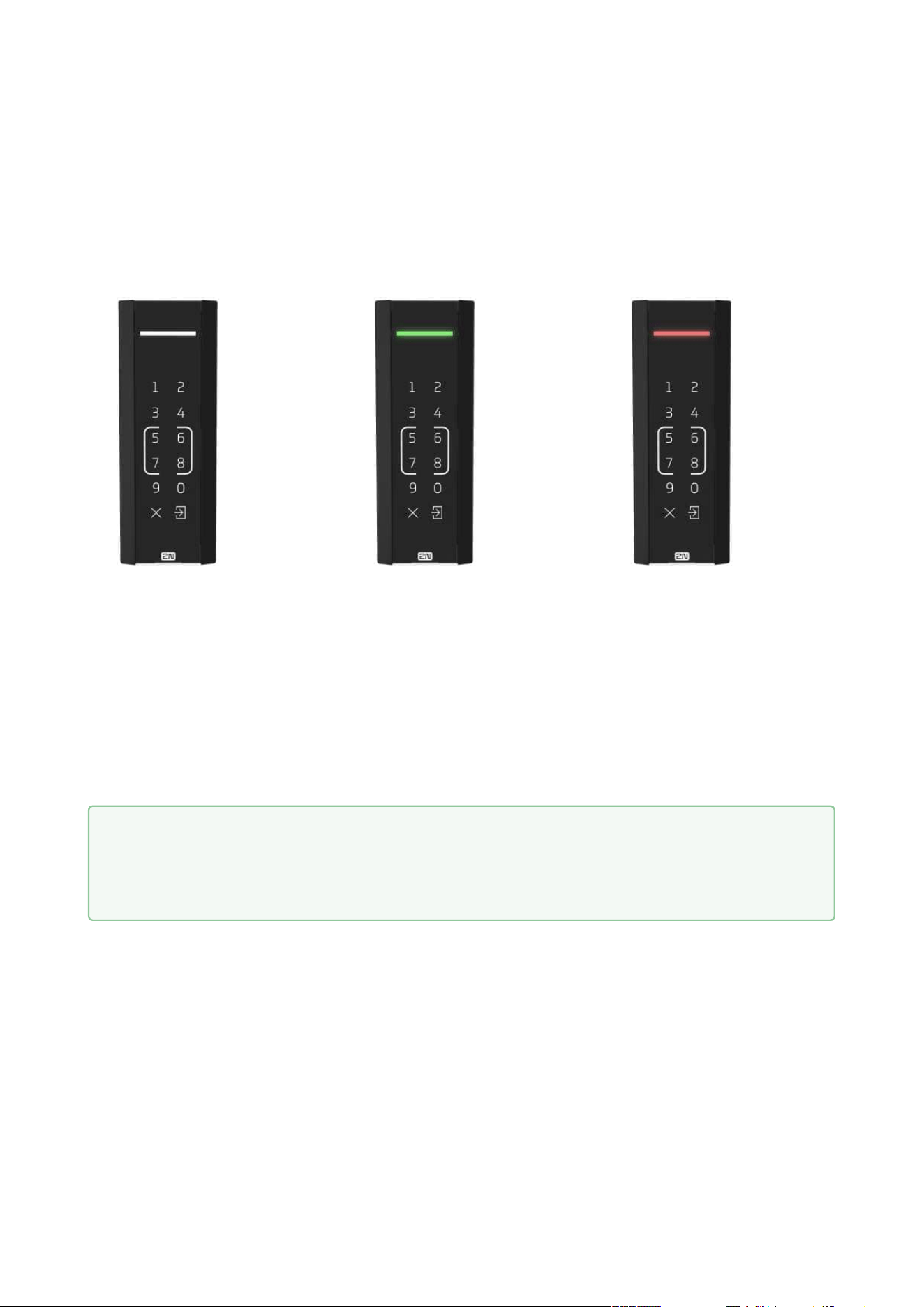

6. Status Signaling
The 2N Access Unit M operational statuses are indicated by a light signal on the device front
side. The light signal can be accompanied with an acoustic signal if set so. Refer to 5.3.3 Audio of
the 2N Access Unit Configuration Manual for the setting options.
The white LED light indicates
the power supply and
operation states.
The green LED light goes on
whenever a valid PIN code in
entered via the keypad or a
valid RFID card is applied.
Subsequently, the set switch
is activated. A valid
authentication is indicated by
an acoustic signal if set so.
The red LED light goes on
whenever an invalid PIN code
is entered via the keypad or
an invalid RFID card is
applied. Subsequently, the
set switch is not activated. An
invalid authentication is
indicated by an acoustic
signal if set so.
•
Tip
Set the LED backlight level in the Hardware/Backlight section, refer to 5.3.4
Backlight of the Configuration Manual for more details.
2N Access Unit M Installation Manual
44 / 50
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
7. Technical Parameters
Audio
Loudspeaker:1 W / 8 Ω
Power Supply
12 V ±15 % / 1 A
PoE 802.3af (Class 0–12.95 W)
Interface
LAN:10/100BASE-TX with Auto-MDIX, RJ-45 female (pigtail)
Recommended cabling:Cat-5e or higher
Supported protocols:DHCP opt. 66, SMTP, 802.1x, TFTP, HTTP, HTTPS, Syslog
Passive switch:NO/NC contact, up to 30 V / 1 A AC/DC
Active switch output:8 to 12 V DC according to power supply (PoE: 10 V; adapter: supply
voltage minus 2 V), up to 600 mA
Tamper switch:part of 2NAccess Unit M
Inputs (Input 1,2): passive/active mode (−30 V to +30 V DC)
OFF = open or U
in
> 1.5 V
ON = short-circuited or U
in
< 1.5 V
RFID card reader
Frequency:13.56 MHz & 125 kHz
Supported 13.56 MHz cards(card serial number is only read):
ISO14443A (Mifare, DESFire)
PicoPass (HID iClass)
FeliCa
ST SR(IX)
2N
®
Mobile Key
Supported 125 kHz cards:EM41xx
Bluetooth
Bluetooth 5.0 in compliance with BLE (Bluetooth Low Energy)
RX sensitivity:up to −94.8 dBm per 1Mbps
Support of higher applications:Android6.0 Marshmallow and higher, iOS 12.0and
higher
Mechanical properties
Cover: robust ASA/PC construction material, which is also used for such car parts as
lateral mirrors, radiator masks, etc. + chemically hardened 3 mm thick glass
Operating temperature:−40 °C to 60 °C
Working relative humidity:10 % – 95 % (non-condensing)
Maximum altitude for intended use:2000 m a.s.l.
2N Access Unit M Installation Manual
45 / 50
•
•
•
•
Storage temperature:−40 °C to 70 °C
Dimensions: 132 (H) x 50 (W) x 27 (D) [mm]
Weight:460 g
Covering level:IP55
7.1 General Drawings
2N Access Unit M Installation Manual
46 / 50
•
•
•
•
8. Supplementary Information
8.1 General Instructions and Cautions
8.2 Troubleshooting
8.3 Other Countries' Legislation
8.4 Directives, Laws and Regulations
8.1 General Instructions and Cautions
Please read this User Manual carefully before using the product. Follow all instructions and
recommendations included herein.
Any use of the product that is in contradiction with the instructions provided herein may result
in malfunction, damage or destruction of the product.
The manufacturer shall not be liable and responsible for any damage incurred as a result of a
use of the product other than that included herein, namely undue application and disobedience
of the recommendations and warnings in contradiction herewith.
Any use or connection of the product other than those included herein shall be considered
undue and the manufacturer shall not be liable for any consequences arisen as a result of such
misconduct.
Moreover, the manufacturer shall not be liable for any damage or destruction of the product
incurred as a result of misplacement, incompetent installation and/or undue operation and use
of the product in contradiction herewith.
The manufacturer assumes no responsibility for any malfunction, damage or destruction of the
product caused by incompetent replacement of parts or due to the use of reproduction parts or
components.
The manufacturer shall not be liable and responsible for any loss or damage incurred as a result
of a natural disaster or any other unfavourable natural condition.
The manufacturer shall not be held liable for any damage of the product arising during the
shipping thereof.
The manufacturer shall not make any warrant with regard to data loss or damage.
The manufacturer shall not be liable and responsible for any direct or indirect damage incurred
as a result of a use of the product in contradiction herewith or a failure of the product due to a
use in contradiction herewith.
All applicable legal regulations concerning the product installation and use as well as provisions
of technical standards on electric installations have to be obeyed. The manufacturer shall not be
liable and responsible for damage or destruction of the product or damage incurred by the
consumer in case the product is used and handled contrary to the said regulations and
provisions.
2N Access Unit M Installation Manual
47 / 50
The consumer shall, at its own expense, obtain software protection of the product. The
manufacturer shall not be held liable and responsible for any damage incurred as a result of the
use of deficient or substandard security software.
The consumer shall, without delay, change the access password for the product after
installation. The manufacturer shall not be held liable or responsible for any damage incurred by
the consumer in connection with the use of the original password.
The manufacturer also assumes no responsibility for additional costs incurred by the consumer
as a result of making calls using a line with an increased tariff.

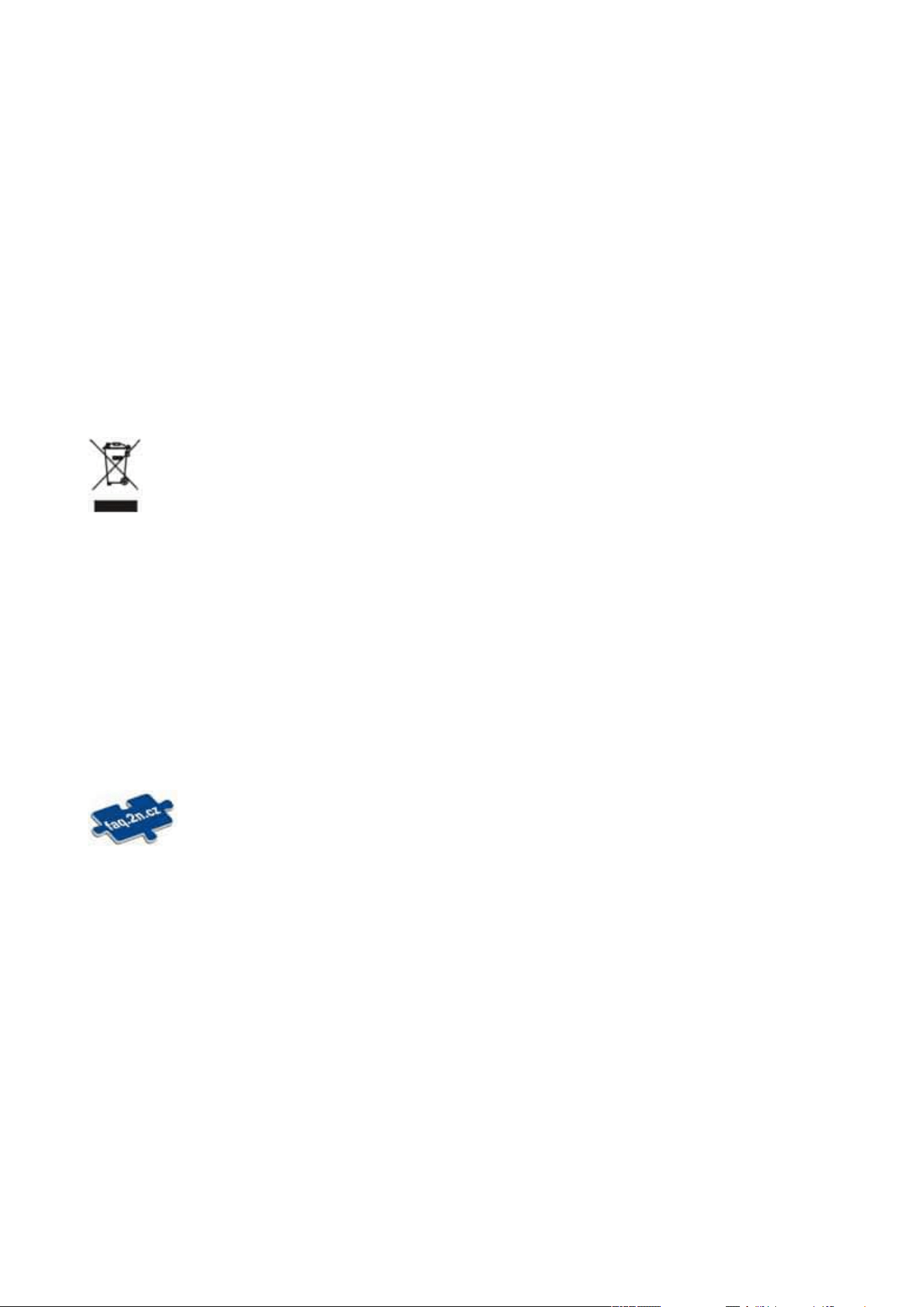

Electric Waste and Used Battery Pack Handling
Do not place used electric devices and battery packs into municipal waste containers. An undue
disposal thereof might impair the environment!
Deliver your expired electric appliances and battery packs removed from them to dedicated
dumpsites or containers or give them back to the dealer or manufacturer for environmental-
friendly disposal. The dealer or manufacturer shall take the product back free of charge and
without requiring another purchase. Make sure that the devices to be disposed of are complete.
Do not throw battery packs into fire. Battery packs may not be taken into parts or short-circuited
either.
8.2 Troubleshooting
For the most frequently asked questions refer to faq.2n.cz.
2N Access Unit M Installation Manual
48 / 50
•
•
•
8.3 Other Countries' Legislation

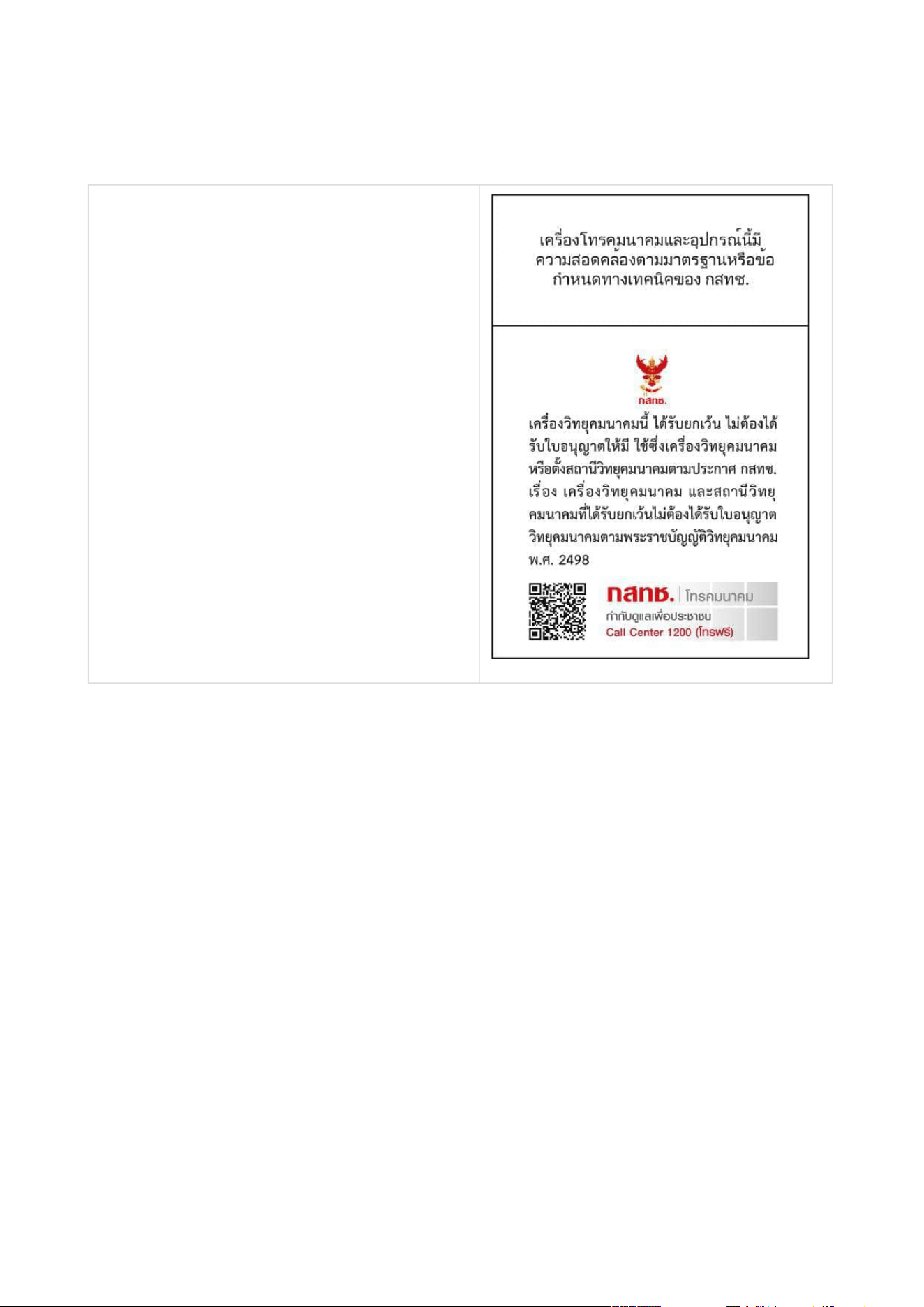

Thailand
8.4 Directives, Laws and Regulations
2N
®
Access Unit M conforms to the following directives and regulations:
2014/53/EU for radio equipment
2011/65/EU on the restriction of the use of certain hazardous substances in electrical and
electronic equipment
2012/19/EU on waste electrical and electronic equipment
Industry Canada
This Class A digital apparatus complies with Canadian ICES-003/NMB-003.
FCC
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules.
NOTE: These limits are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate radio frequency
2N Access Unit M Installation Manual
49 / 50
•
•
•
•
energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna
Increase the separation between the equipment and receiver
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected
Consult the dealer or an experienced radio/TV technician for help
Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
Warning
In order to ensure the full functionality and guaranteed performance, we strongly recommend
that the topicality of the product / device version in use be verified as early as in the installation
process. The customer hereby acknowledges that the product / device can achieve the
guaranteed performance and full functionality pursuant to the manufacturer’s instructions only
if the latest product / device version is used after having been tested for full interoperability and
not having been determined by the manufacturer as incompatible with certain versions of other
products, and only in conformity with the manufacturer’s instructions, guidelines or
recommendations and in conjunction with suitable products and devices of other suppliers. The
latest versions are available at https://www.2n.com/cs_CZ/ or can be updated via the
configuration interface if the devices are adequately technically equipped. Should the customer
use a product / device version other than the latest one or a version determined by the
manufacturer as incompatible with certain versions of other products, or should the customer
use the product / device in contradiction to the manufacturer’s instructions, guidelines or
recommendations or in conjunction with unsuitable products / devices of other suppliers, the
customer is aware of and agrees with all functionality limitations of such a product / device if
any as well as with all consequences incurred as a result thereof. Using a product / device
version other than the latest one or a version determined by the manufacturer as incompatible
with certain versions of other products, or using the product / device in contradiction to the
manufacturer’s instructions, guidelines or recommendations or in conjunction with unsuitable
products / devices of other suppliers, the customer agrees that the 2N TELEKOMUNIKACE a.s.
company shall not be held liable for any functionality limitation of such a product or any
damage, loss or injury related to this potential functionality limitation.
Instalační manuál 2N Access Unit M
50 / 50
