Arc WLDCRTROSBD55 ROSSI Welding Trolley Cart Drawer Ideal User Manual

Welding Cart with Drawers

Assembly Guide

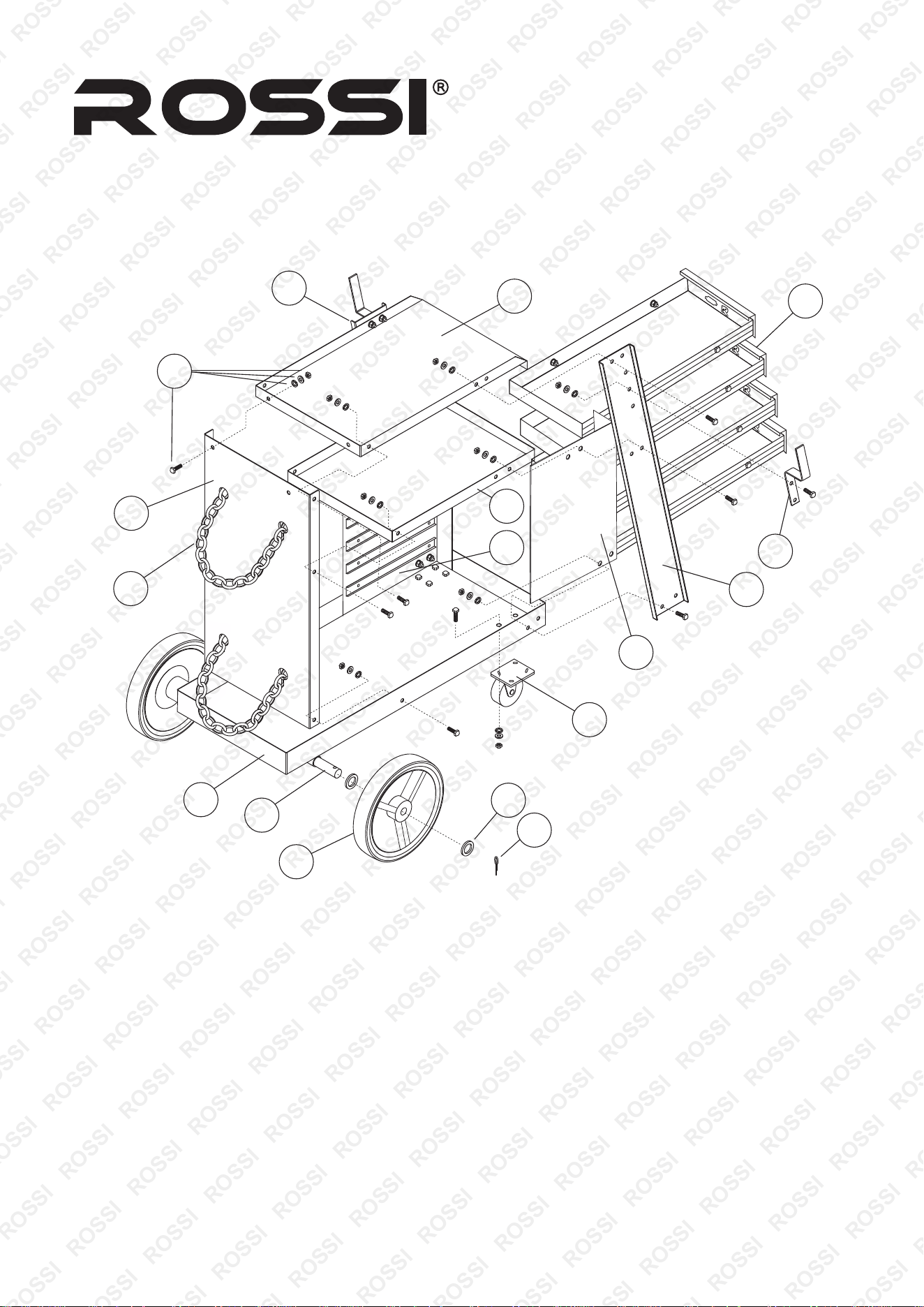

Parts List

1. Base (1)

2. Wheel (2)

3. Caster (2)

4. Rear Panel (1)

5. Shelf (1)

6. Welder Tray (1)

7. Left-Side Support Leg (1)

8. Right-Side Support Leg (1)

9. Hook (2)

10. Axle (1)

11. M6x12 Bolt/Flat Washer/Lock Washer/Nut (33)

12. M12 Flat Washer (4)

13. Split Pin (2)

14. Bottle Chain (1)

15. Drawer Assembly (4)

16. Left-Side Drawer Runner Plate (1)

17. Right-Side Drawer Runner Plate (1)

18. Keys (2) (for top drawer only. Not shown)

Note: Tools required for assembly: Suitable spanners.

Revision 5.0 October 2022

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

Welding Cart with Drawers

Assembly Guide

Install axle (10) to base (1), then on each side place a washer (12) then wheel (2) (wheel “spokes”

facing out). Place another washer (12) on outside of wheel, then secure with split pin (13). Bend legs of

split pins to prevent them falling out.

Attach casters (3) to base (1) using 8 M6 fastener sets (11).

Assemble rear panel (4) to base (1) using 2 M6 fastener sets (11).

Install the left-side drawer runner plate (16) and left-side support leg (7) to the base (1) using 2 M6

fastener sets (11). The drawer runner plate sits on the inside of the base, with support leg on outer side

of base. Do not tighten the fasteners at this stage.

Install the right-side drawer runner plate (16) and right-side support leg (7) to the base (1) using 2 M6

fastener sets (11). The drawer runner plate sits on the inside of the base, with support leg on outer side

of base. Do not tighten the fasteners at this stage.

Install the shelf (5) to the back panel (4) and to the left and right-side drawer runner plates and left and

right-side support legs using 6 M6 fasterner sets (11). The shelf sits in the inside of the drawer runner

plates. Do not tighten the fasteners at this stage.

Install the welder tray (6) to the back panel (4) and to the left and right-side support legs using 8 M6

fasterner sets (11). Tighten all fasteners installed in steps 4 to 7.

Insert the drawers (15) into the drawer runners. Do this gently and do not force the drawers. The

lockable drawer must be at the top.

Attach the hooks (9) to the left and right-side suport legs using 4 M6 fastener sets (11).

Spare parts available for

purchase, scan QR code below:

ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI ROSSI

Some experts believe that the incorrect or prolonged use of almost any product may

cause serious injury or death. To help reduce your risk of serious injury or death, refer

to the information below. For more information, see www.datastreamserver.com/safety



Consult all documentation, packaging and product

labelling before use. Note that some products feature

documentation available online. It is recommended to

print and retain the documentation.



Before each use, check the product for loose/broken/

damaged/missing parts, wear or leaks (if applicable).

Never use a product with

loose/broken/damaged/missing parts, wear or leaks.



Products must be inspected and serviced (if

applicable) by a qualified technician every 6 months.

This is based on average residential use by persons of

average size and strength, and on a property of

average metropolitan size. Use beyond these

recommendations may require more frequent

inspections/servicing.



Ensure that all users of the product have completed a

suitable industry recognised training course before

being allowed access to the produc



If this product has been purchased in error when

considering the information presented here, contact

the retailer directly for details of their returns policy, if

required.



The product has been supplied by a general

merchandise retailer that may not be familiar with your

specific application or description of application. Be

sure to attain third-party approval from a qualified

specialist for

your application before use, regardless of

any assurances from the retailer or its representatives.



This product is not intended for use where fail-safe

operation is required. As with any product (for

example, automobile, computer, toaster), there is the

possibility of technical issues that may require the

repair or replacement of parts, or the product itself. If

the possibility of such failure and the as

sociated time it

may take to rectify could in any way inconvenience the

user, business or employee, or financially affect the

user, business or employee, then the product is not

suitable for your requirements. This product is not

intended for use where incorrect operation or a failure

of any kind, including but not limited to, a condition

requiring product return, replacement, parts

replacement or service by a technic

ian may cause

financial loss, loss of employee time or an

inconvenience requiring compensation.
