Battery System Tester
AUTOOL BT460
User Manual
www.autooltech.com
企业标准 / Corporate standard: Q/OR 003-2023
COPYRIGHT INFORMATION
Copyright
Trademark
Manual are either trademarks, registered trademarks, service
marks, domain names, logos, company names or are otherwise
the property of AUTOOL or its affiliates. In countries where any of
the AUTOOL trademarks, service marks, domain names, logos
and company names are not registered, AUTOOL claims other
rights associated with unregistered trademarks, service marks,
domain names, logos, and company names. Other products or
company names referred to in this manual may be trademarks of
their respective owners. You may not use any trademark, service
mark, domain name, logo, or company name of AUTOOL or any
third party without permission from the owner of the applicable
trademark, service mark, domain name, logo, or company name.
You may contact AUTOOL by visiting AUTOOL at https://www.au-
tooltech.com, or writing to aftersale@autooltech.com, to request
written permission to use materials on this manual for purposes or
for all other questions relating to this manual.
●
●
●
●
All rights reserved by AUTOOL TECH. CO., LTD. No part of this
publication may be reproduced, stored in a retrieval system, or
transmitted in any form or by any means, electronic, mechanical,
photocopying, recording or otherwise, without the prior written
permission of AUTOOL. The information contained herein is
designed only for the use of this unit. AUTOOL is not responsi-
ble for any use of this information as applied to other units.
Neither AUTOOL nor its affiliates shall be liable to the purchaser
of this unit or third parties for damages, losses, costs, or
expenses incurred by the purchaser or third parties as a result
of: accident, misuse, or abuse of this unit, or unauthorized modi-
fications, repairs, or alterations to this unit, or failure to strictly
comply with AUTOOL operating and maintenance instructions.
AUTOOL shall not be liable for any damages or problems
arising from the use of any options or any consumable products
other than those designated as original AUTOOL products or
AUTOOL approved products by AUTOOL.
Other product names used herein are for identification purpos-
es only and may be trademarks of their respective owners.
AUTOOL disclaims any and all rights in those marks.
ATTENTION
Warning
Non- technical person shall not change, disassemble or repair
the product, otherwise all losses caused by this shall be bared
by the user himself.
Please do not scratch, bend, twist or stretch the wires. Do not
place the wires in high temperature. Do not press hard or
decompose the on-board charging adapter.
Please do not place nails, pins, and other small debris on the
charging port, in order to avoid damaging the charging
connector.
Do not place the product in unstable place such as high
altitude area, slope, or shelf.
This product is powered by electricity and should not be used
as a toy for children.
To avoid short circuit, do not immerse the product in water or
other liquid.
Please try to use the power supply and power cord supplied by
manufacturer as standard.
Please do not expose this product to strong light or high
temperature when it’s not at use.
Before using the instrument, please read this manual careful-
ly for proper operation.
1
TABLE OF CONTENTS
PRODUCT INTRODUCTION ............................................................................... 2
Overview ......................................................................................................... 2
Measure range ................................................................................................ 2
Product specifications ..................................................................................... 2
Product Structure............................................................................................... 3
Structure diagram............................................................................................ 3
Operations Instruction....................................................................................... 4
Battery test ...................................................................................................... 4
Cranking test ................................................................................................... 5
Charging test ................................................................................................... 5
Load test.......................................................................................................... 6
Language ........................................................................................................ 7
Maintenance Service.......................................................................................... 8
Maintenance.................................................................................................... 8
Warranty .............................................................................................................. 9
Warranty access.............................................................................................. 9
Disclaimer........................................................................................................ 9
Return & Exchange Service .............................................................................. 10
Return & Exchange ......................................................................................... 10
2
BT460 Battery Tester adopts currently the world's most advanced
conductance testing technology to easily, quickly and accurately
measure the actual cold cranking amps capability of the vehicle
starting battery, healthy state of the battery itself, and common
fault of the vehicle cranking system and charging system, which
can help maintenance personnel to find the problem quickly and
accurately, thus to achieve quick vehicle repair.
PRODUCT INTRODUCTION
Overview
Application: 12V automotive cranking lead acid battery, new
cranking lithium battery and 12V / 24V car system test.
●
Measure
range
Standard Range
CCA 30-2000
IEC 30-2500
EN 30-3000
DIN 30-2500
JIS 26A17R-N135
GB 30-300AH
Product
specifica-
tions
Working environment temp
Special test clip
-20°C~50°C
Double conductance
Kelvin clamp
Current measure range
Voltage measure range
4AH~240AH
6V~30V
Housing material Acid-resistant ABS plastic
3

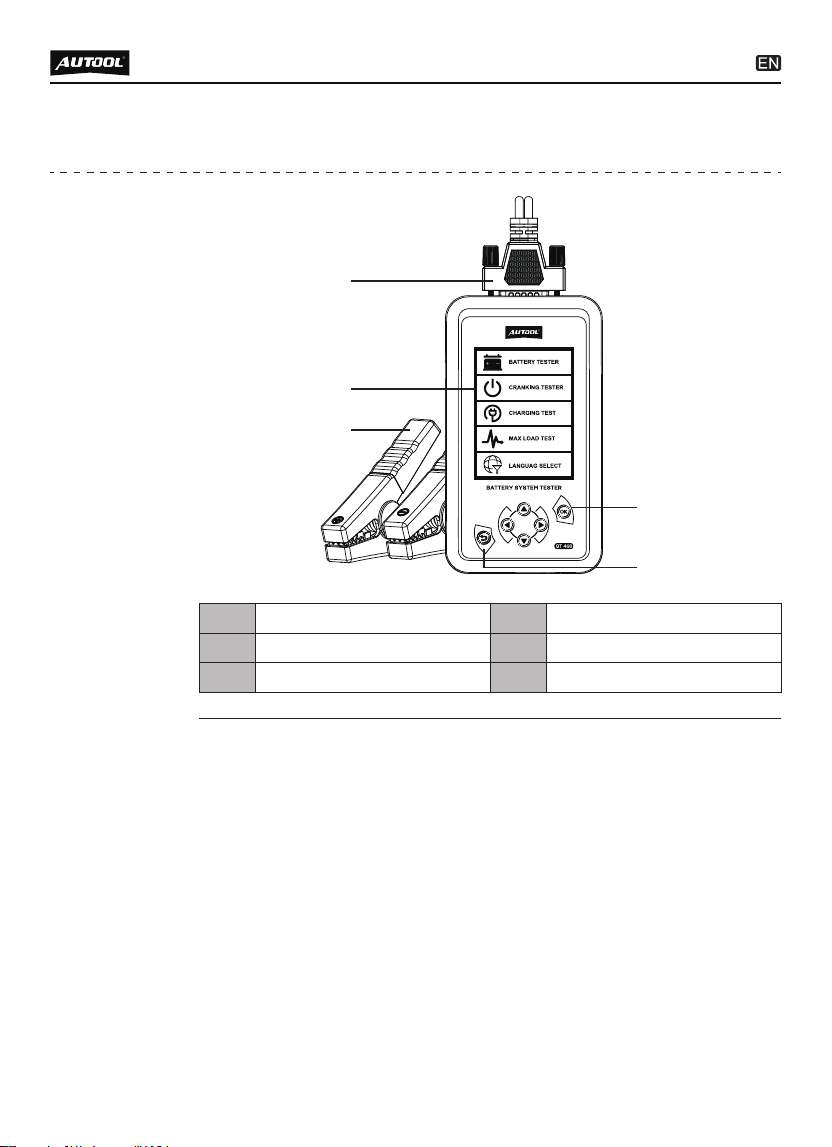

PRODUCT STRUCTURE
COM Connecting line
Clamps
A
C
LCD screen
OK button
B
D
ESC button
E
A
B
D
E
C
Structure
diagram
4
OPERATIONS INSTRUCTION
When battery voltage is lower than normal test voltage, the test
result cannot check the battery state properly. It will show
“Re-test after charging”. At this time, please charge the
battery, then test it.
When battery voltage is too high or the vehicle is starting, the
test can’t be proceeded. It will show “The voltage is too high.
Please turn off the engine! Please turn on the headlights in 3
NOTE:
Connect the red test clamp with battery positive (+) and the
black clamp with negative (-), the tester will power on automati-
cally. Battery voltage below 6.0V can’t be tested properly, then
press any key to continue.
Select according to the tester display:
(1) Test standard:
The standard which you can read from the top or front of the
battery , such as CCA, IEC, DIN. If you can’t find any informa-
tion about the standard, AH of battery capacity can be used as
a reference. Choose similar battery standard, and it will cause
small error.
(2) Rated capacity:
You can read the cranking current standard in the top or front
of the battery, such as CCA 370.
(3) Press ENTER key to start testing.
For small battery, the lower resistance it is, the healthier the
battery is (except short-circuit). Resistance can be used as a
reference for the battery state.
●
●
Battery test
Life
Battery voltage
Measurement
Resistance
Test result
12.5V---Voltage when testing the battery
400A(CCA)--cranking current for testing
18.5mΩ--Battery resistance
95%--Battery remaining life
Good--Battery state
Battery Test Result (for example).
5
minutes, then test it.”
For serious battery shortage (For example, the vehicle is on
hold for a long time; the battery is not charged in time; the
headlight or door is forgotten to be turned off, which cause
serious battery shortage, and vehicle can’t start), it may show
“Please replace the battery” during test. For such batteries,
please consult the battery manufacturer to restore charging,
then test it.
After battery test, press UP / DOWN key to select cranking test.
Then, press ENTER key to cranking test:
●
In the state of engine off, it will show “Start engine, and wait for
15 seconds!” Start engine, and wait for the test result.
●
Cranking test
In the menu, press UP / DOWN key to select charging test.
Press ENTER key to charging test. It will show “ Start engine,
and wait for 15 seconds! Press ENTER key to start charging
test!”
At the same time, start engine. When engine running is stable,
press ENTER key to display test state:
●
●
Charging test
Current
Minimum voltage
Minimum cranking
voltage
12.5V--Current voltage
11.1V--Minimum voltage tested
9.6V--Cranking voltage lower than 9.6V
is regarded as abnormal, which may be
caused by battery aging which can’t
provide sufficient cranking current, or
because of starter worn or poor
mechanical lubrication.
Maximum
Current
14.5V <15.0V normal
11.1V--Minimum voltage tested
Minimum 13.6 >13.3V normal
In the menu, press UP / DOWN key to select load test. Press
ENTER key to load test. It will show:
6
Do not shut down the engine during the test. All electrical
appliance and device should be in OFF. During the test,
turning on / off any electrical appliance in the vehicle will affect
the accuracy of the test result.
The battery voltage will be different because of different
engine conditions.
Normally, charging voltage cannot be lower than 13.3V, higher
than 15.0V even in high-speed rotation.
NOTE:
Charging system voltage is not enough.
Please check if generator belt slips or runs off, if the generator
connects well with the battery.
If the generator belt and connection are good, please follow
the manufacturer’s suggestion to avoid generator failure.
●
●
●
Please turn on all the electrical appliance and device
Start engine, and wait for 15 seconds! Press ENTER key to
start load test!
At the same time, start engine. When engine running is stable,
press ENTER key to display test state:
●
●
●
Load test
Charging voltage is too low:
Generator output voltage is too high.
Since most of the vehicle generators are using internal regula-
tor, the generator assembly has to be replaced. (Some old
vehicle are using external regulator, then replace the regulator
directly.)
Normally, the maximum voltage of regulator is 14.7V. If
charging voltage is too high, the battery will be overcharged,
which will shorten battery life and cause battery failure.
●
●
●
Charging voltage is too high:
7
Language
When all appliances are in ON state, normally, charging
voltage is more than 12.8V if the power supply from generator
is sufficient. If the voltage is less than 12.8V, it may be caused
by insufficient output current from generator, reduced power
generation, excessive electrical load or leakage. Increasing
the electrical appliances in the vehicle, it will also cause a
voltage drop.
●
In the menu, press UP / DOWN to select language setting.
Press ENTER key to language setting. It will show:
Language：English; Portuguese; España; French...
Press UP / DOWN to select the language, then press ENTER
key to save.
Press ESC to exit. Then, you can proceed other test.
●
●
●
●
Current
Minimum
14.1V
13.5V
Minimum when all on 12.8V
Be careful not to rub the product against rough surfaces or
wear the product, especially the sheet metal housing.
Please regularly check the product parts that need to be
tightened and connected. If found loose, please tighten it in
time to ensure the safe operation of the equipment. The exter-
nal and internal parts of the equipment in contact with various
chemical media should be frequently treated with anti-corrosion
treatment such as rust removal and painting to improve the
corrosion resistance of the equipment and extend its service
life.
Comply with the safe operating procedures and do not
overload the equipment. The safety guards of the products
are complete and reliable.
Unsafe factors are to be eliminated in time. The circuit part
should be checked thoroughly and the aging wires should be
replaced in time.
Regularly clean and replace consumable parts such as oil
pump and oil filter; adjust the clearance of various parts and
replace worn (broken) parts. Avoid contact with corrosive
liquids.
When not in use, please store the product in a dry place. Do
not store the product in hot, humid, or non-ventilated places.
Our products are made of long-lasting and durable materials, and
we insist on perfect production process. Each product leaves the
factory after 35 procedures and 12 times of testing and inspec-
tion work, which ensures that each product has excellent quality
and performance.
To maintain the performance and appearance of the product, it is
recommended that the following product care guidelines be read
carefully：
●
●
●
●
●
●
MAINTENANCE SERVICE
Maintenance
8
9
WARRANTY
The repair or replacement of products is determined by the
actual breakdown situation of product.
It is guaranteed that AUTOOL will use brand new component,
accessory or device in terms of repair or replacement.
If the product fails within 90 days after the customer receives
it, the buyer should provide both video and picture, and we will
bear the shipping cost and provide the accessories for the
customer to replace it free of charge. While the product is
received for more than 90 days, the customer will bear the
appropriate cost and we will provide the parts to the customer
for replacement free of charge.
The product is not purchased through official or authorized
channels.
The product breakdown because the user does not follow
product instructions to use or maintain the product.
From the date of receipt, we provide a three-year warranty for the
main unit and all the accessories included are covered by a
one-year warranty.
We AUTOOL pride ourselves on superb design and excellent
service. It would be our pleasure to provide you with any further
support or services.
All information, illustrations, and specifications contained in this
manual, AUTOOL resumes the right of modify this manual and the
machine itself with no prior notice. The physical appearance and
color may differ from what is shown in the manual, please refer to
the actual product. Every effort has been made to make all
descriptions in the book accurate, but inevitably there are still
inaccuracies, if in doubt, please contact your dealer or AUTOOL
after-service centre, we are not responsible for any consequences
arising from misunderstandings.
●
●
●
●
●
Warranty
access
Disclaimer
These conditions below shall not be in warranty range
10
China
Oversea Zone
E-mail
Facebook
YouTube
400-032-0988
+86 0755 23304822
aftersale@autooltech.com
https://www.facebook.com/autool.vip
https://www.youtube.com/c/autooltech
If you are an AUTOOL user and are not satisfied with the
AUTOOL products purchased from the online authorized
shopping platform and offline authorized dealers, you can
return the products within seven days from the date of receipt;
or you may exchange it for another product of the same value
within 30 days from the date of delivery.
Returned and exchanged products must be in fully saleable
condition with documentation of the relevant bill of sale, all
relevant accessories and original packaging.
AUTOOL will inspect the returned items to ensure that they
are in good condition and eligible. Any item that does not pass
inspection will be returned to you and you will not receive a
refund for the item.
You can exchange the product through the customer service
center or AUTOOL authorized distributors; the policy of return
and exchange is to return the product from where it was
purchased. If there are difficulties or problems with your return
or exchange, please contact AUTOOL Customer Service.
●
●
●
●
RETURN & EXCHANGE SERVICE
Return &
Exchange
