Package Contents - SRXV-WMP
For installation cabling and conguration details with each network camera, please refer to
their documentation.
Refer to the table below for the description of the included screws:
Screw Description No. of
screws
Material characteristics
M5X14 4 Stainless steel, hex and cross head
Dimensions
3
English
1. It is presumed that this wall-mount bracket is installed with a hole drilled on the wall for
routing power lines, DI/DO, and Ethernet cables.
2. Route cables before you secure the wall-mount bracket to a wall.
3. For details on the cable connections with each camera, please refer to their Quick
Installation Guide.
NOTE:
Wall Mount Installation

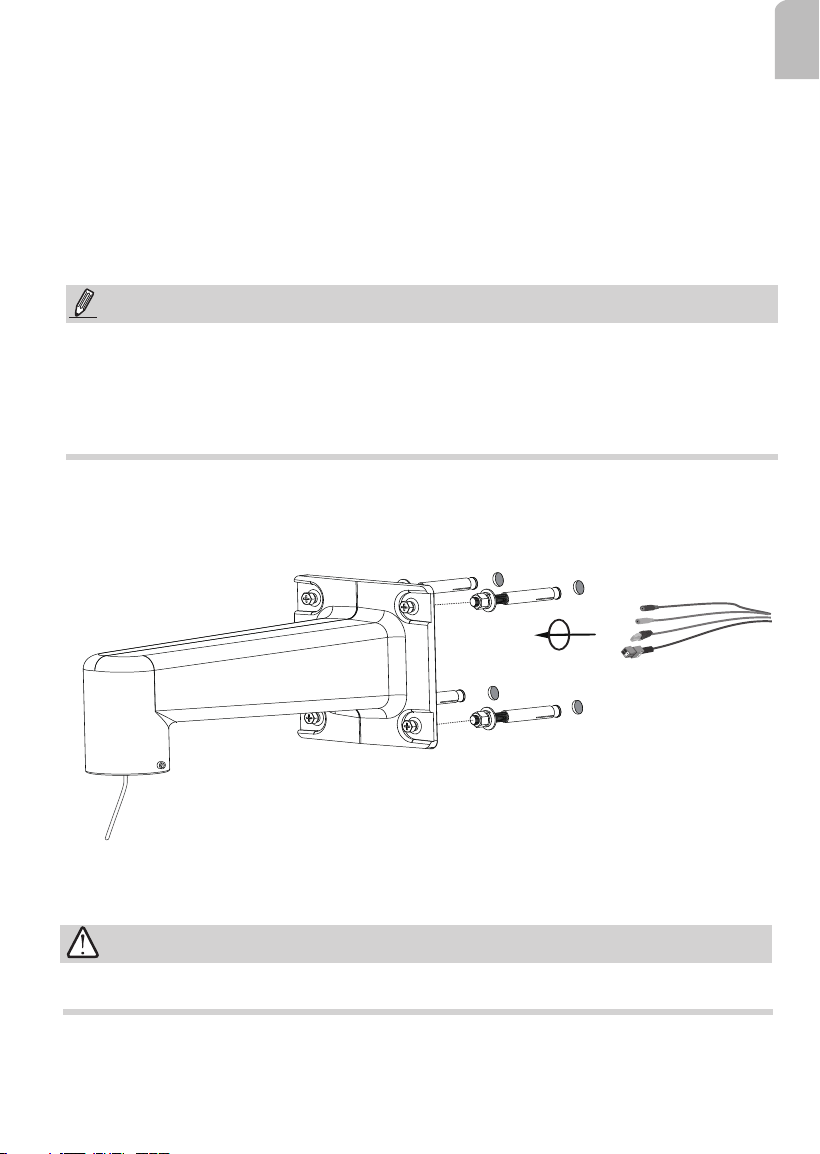

Use the wall mount as a guide to make markings on a preferred position.
Drill holes on the wall for securing the bracket and for routing the cables.
Route the Ethernet and/or other cables through the wall and the bracket and then secure
the bracket to the wall.
Make sure water can not enter the drilled hole. Use silicon or caulk to prevent water
leakage.
IMPORTANT:
Select mounting fasteners which are appropriate for the mounting surface medium. The
screws and mounting surface must be able to support a weight of 5 kg.
4
Follow the instructions in the Pendant Adapter Installation Guide to continue the camera
installation process.
5
English

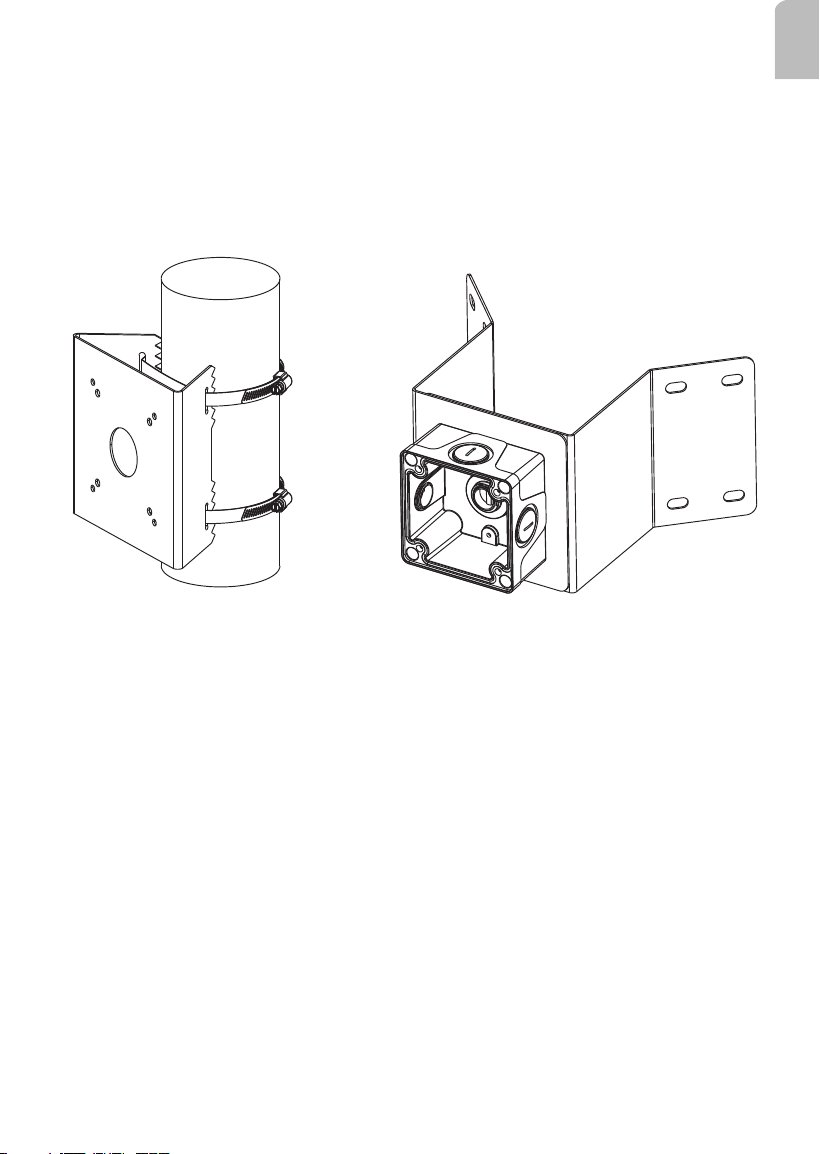

Conduit box, pole mount, and corner mount are also supported. Please refer to their
Installation Guides for more information.
