I n s t a l l a t I o n G u I d e
for the
SB-GM-EQNX/10W1v2/BK
sKu#94503
2010+
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your authorized JL Audio
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
s t e P 1
Empty out the trunk of the vehicle so that you have a clean
area to work in.
Continued on Next Page
s t e P 2
Remove the trunk floor, as well as the rear sill panel, by
pulling up on the panel to release the clips.
s t e P 3
Lift up on the covers of each tie down hook to expose the
screws, and remve both screws and hooks.
SB-GM-EQNX/10W1v2/BK INSTR_SKU# 011318
InstallatIon
d I F F I C u lt Y :
25
out
oF
estImated tIme:
1 HouR
I n s t a l l a t I o n G u I d e
for the
SB-GM-EQNX/10W1v2/BK
sKu#94503
2010+
Thank you for choosing a JL Audio Stealthbox
®
for your automotive sound system. With proper
installation, your new vehicle-specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox
®
installed by your authorized JL Audio
dealer. The installation professionals employed by your dealer have the necessary tools and experience
to disassemble and reassemble your vehicle properly. Also, keep in mind that your warranty coverage
extends to 2 years if your system is installed or approved by your authorized JL Audio dealer. If you
prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox
®
be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
s t e P 1
Empty out the trunk of the vehicle so that you have a clean
area to work in.
Continued on Next Page
s t e P 2
Remove the trunk floor, as well as the rear sill panel, by
pulling up on the panel to release the clips.
s t e P 3
Lift up on the covers of each tie down hook to expose the
screws, and remve both screws and hooks.
SB-GM-EQNX/10W1v2/BK INSTR_SKU# 011318
InstallatIon
d I F F I C u lt Y :
25
out
oF
estImated tIme:
1 HouR
Continued on Next Page
SB-GM-EQNX/10W1v2/BK INSTR_SKU# 011318
s t e P 7
Remove the two nuts holding the top of the enclsoure in
place. Continue by removing the two nuts holding the
bottom of the enclosure in place. Disconnect the sub wiring
and remove the factory sub enclosure. Retain all four nuts
for the installation of the Stealthbox®.
s t e P 6
With the side panel out of the vehicle, the factory sub
enclosure can now be removed.
s t e P 5
Pictured is the weatherstripping removed from the side
panel. Starting here, begin unclipping the side panel and
continue toward the rear of the vehicle, and remove the
panel.
s t e P 4
Open the rear passenger side door. Pull up the
weatherstripping to allow access to the sill panel and side
panel. Remove the sill panel by pulling up on the panel to
release the clips.
Page 2 • JL Audio, Inc 2010

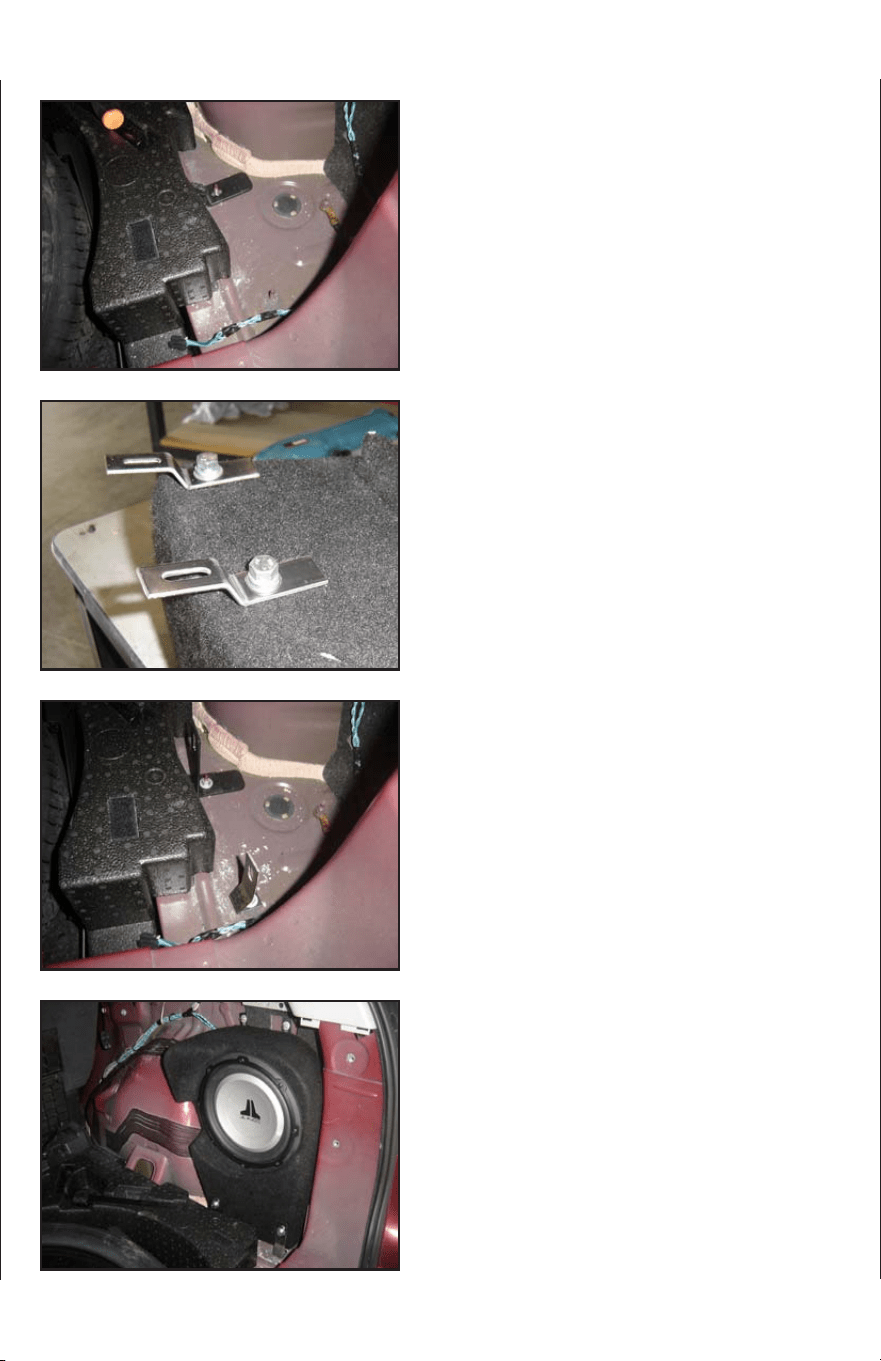

S T E P 9
Attach the two Upper Brackets to the Stealthbox® as shown
using a 1/4” Flat Washer, 1/4” Lock Washer, and 6mm x 25mm
Bolt on each. Hand tighten to allow the brackets to be
adjusted later.
S T E P 1 1
Set the Stealthbox® in place by sliding the bottom of the
enclosure behind the Lower Brackets, and aligning the Upper
Brackets with the upper threaded studs. Hand tighten the
factory nuts on the threaded studs, and mark the location of
the Upper Brackets on the top of the enclosure. Firmly press
the enclosure toward the side of the vehicle, slide the Lower
Brackets into place, and mark the location of the Lower
Brackets on the floor of the vehicle.
Remove the Stealthbox®, align the Upper Brackets with the
marks on the enclosure, and firmly tighten. Align the Lower
Brackets with the marks in the vehicle, and firmly tighten.
S T E P 1 0
Attach the two Lower Brackets to the threaded studs using
the factory nuts, as shown. The smaller, angled bracket goes
on the stud closest to the rear of the vehicle. Hand tighten
to allow the brackets to be adjusted later.
S T E P 8
Pictured without the factory sub enclosure are the threaded
studs that held the bottom of the enclosure in place. It is not
necessary to remove the bracket for the foam floor support.
Continued on Next Page
SB-GM-EQNX/10W1v2/BK INSTR_SKU# 011318
s t e P 7
Remove the two nuts holding the top of the enclsoure in
place. Continue by removing the two nuts holding the
bottom of the enclosure in place. Disconnect the sub wiring
and remove the factory sub enclosure. Retain all four nuts
for the installation of the Stealthbox®.
s t e P 6
With the side panel out of the vehicle, the factory sub
enclosure can now be removed.
s t e P 5
Pictured is the weatherstripping removed from the side
panel. Starting here, begin unclipping the side panel and
continue toward the rear of the vehicle, and remove the
panel.
s t e P 4
Open the rear passenger side door. Pull up the
weatherstripping to allow access to the sill panel and side
panel. Remove the sill panel by pulling up on the panel to
release the clips.
Page 2 • JL Audio, Inc 2010
S T E P 9
Attach the two Upper Brackets to the Stealthbox® as shown
using a 1/4” Flat Washer, 1/4” Lock Washer, and 6mm x 25mm
Bolt on each. Hand tighten to allow the brackets to be
adjusted later.
S T E P 1 1
Set the Stealthbox® in place by sliding the bottom of the
enclosure behind the Lower Brackets, and aligning the Upper
Brackets with the upper threaded studs. Hand tighten the
factory nuts on the threaded studs, and mark the location of
the Upper Brackets on the top of the enclosure. Firmly press
the enclosure toward the side of the vehicle, slide the Lower
Brackets into place, and mark the location of the Lower
Brackets on the floor of the vehicle.
Remove the Stealthbox®, align the Upper Brackets with the
marks on the enclosure, and firmly tighten. Align the Lower
Brackets with the marks in the vehicle, and firmly tighten.
S T E P 1 0
Attach the two Lower Brackets to the threaded studs using
the factory nuts, as shown. The smaller, angled bracket goes
on the stud closest to the rear of the vehicle. Hand tighten
to allow the brackets to be adjusted later.
S T E P 8
Pictured without the factory sub enclosure are the threaded
studs that held the bottom of the enclosure in place. It is not
necessary to remove the bracket for the foam floor support.
SB-GM-EQNX/10W1v2/BK INSTR_SKU# 011318

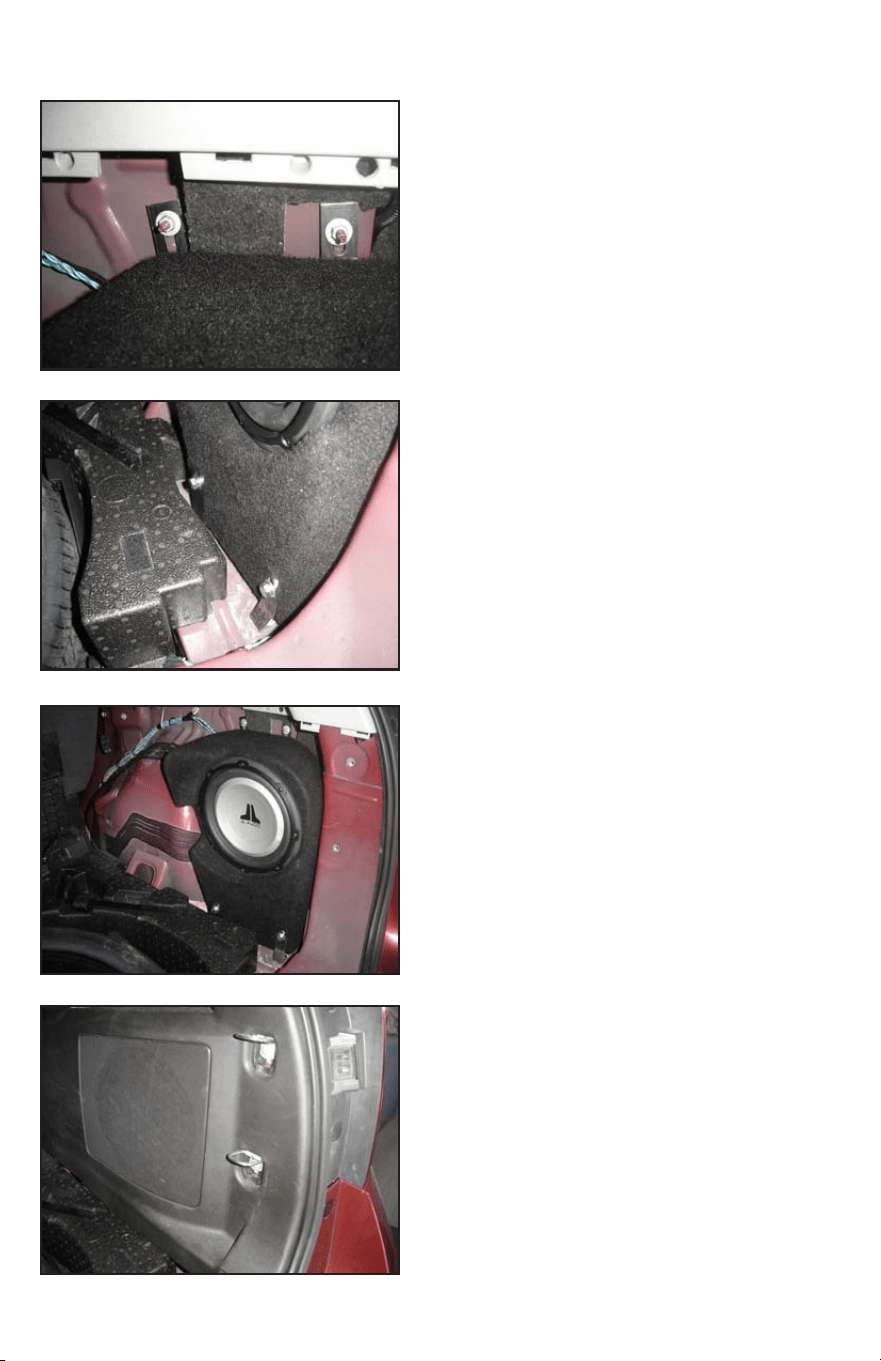

s t e P 1 5
Reinstall the side panel, tow hooks, sill panels,
weatherstripping, and floor.
s t e P 1 4
Pictured is the Stealthbox® mounted in place.
s t e P 1 3
Attach the two Lower Brackets to the Stealthbox® as shown
using a 1/4” Flat Washer, 1/4” Lock Washer, and a 6mm x
25mm Bolt on each, and firmly tighten.
s t e P 1 2
Attach the speaker wire to the Stealthbox®, set the enclosure
back in place, and firmly tighten the factory nuts on the
upper threaded studs.
Page 3 • JL Audio, Inc 2010

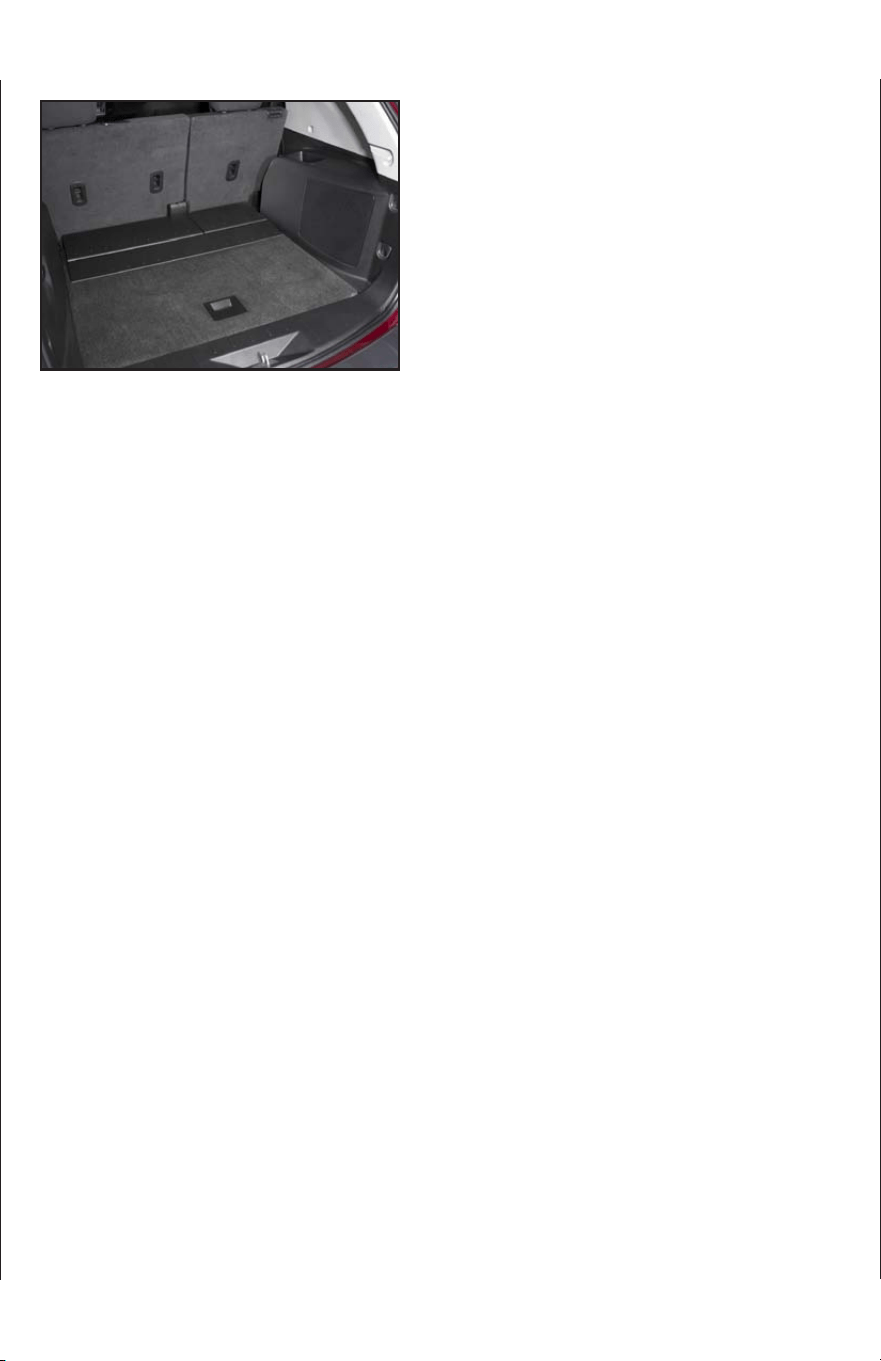

S T E P 1 6
C o n G R a t u l a t I o n s !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
