13 DRAWER TOPCHEST & ROLLCAB
COMBINATION WITH BALL-BEARING SLIDES
MODEL NO: AP2513B.V4, AP22513BB.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this Topchest
& Rollcab combination.
9 Locate the Topchest & Rollcab combination in a suitable working area.
9 Keep the work area clean, uncluttered and ensure there is adequate lighting.
9 Keep the Nonstop & Rollcab combination clean and tidy in accordance with good workshop practice.
9 Keep children and unauthorised persons away from the working area.
8 DO NOT use the Topchest & Rollcab combination for any purpose other than that for which it is designed.
8 DO NOT move the Topchest & Rollcab combination with drawers open.
8 DO NOT open more than one drawer at the same time.
8 DO NOT step on the drawers.
8 DO NOT use in damp work areas.
WARNING! The warnings, cautions and instructions referred to in this instruction manual cannot cover all possible conditions and situations
that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be applied
by the operator.
2. INTRODUCTION
The economical way to buy American PRO® Ball-Bearing quality tool chests. Supplied packed one inside the other. This combo has smooth
25mm ball-bearing slides and all the features of the professional chests except that the swivel castors are Ø100mm. Features locks on both the
topchest and rollcab, with removable steel bar on the rollcab and integral bars on the topchest. Supplied with two keys for each lock.
3. SPECIFICATION
Model No: .................................AP2513B.V4/AP22513BB.V3
(W x D x H):
9 Drawer Topchest:
Overall size: ............................................600 x 260 x 380mm
Small 1/2 Drawer (x6):
Small Drawer (x2): ....................................510 x 220 x 35mm
Medium Drawer (x1): .................................510 x 220 x 80mm
4 Drawer Rollcab:
Overall Size: ............................................680 x 330 x 935mm
Small Drawer (x2): ....................................515 x 305 x 45mm
Medium Drawer (x2): .................................515 x 305 x 80mm
Cupboard (x1): ........................................610 x 295 x 425mm
Refer to
instruction
manual
AP2513B.V4, AP22513BB.V3 Issue 1 11/03/22
© Jack Sealey Limited
Original Language Version

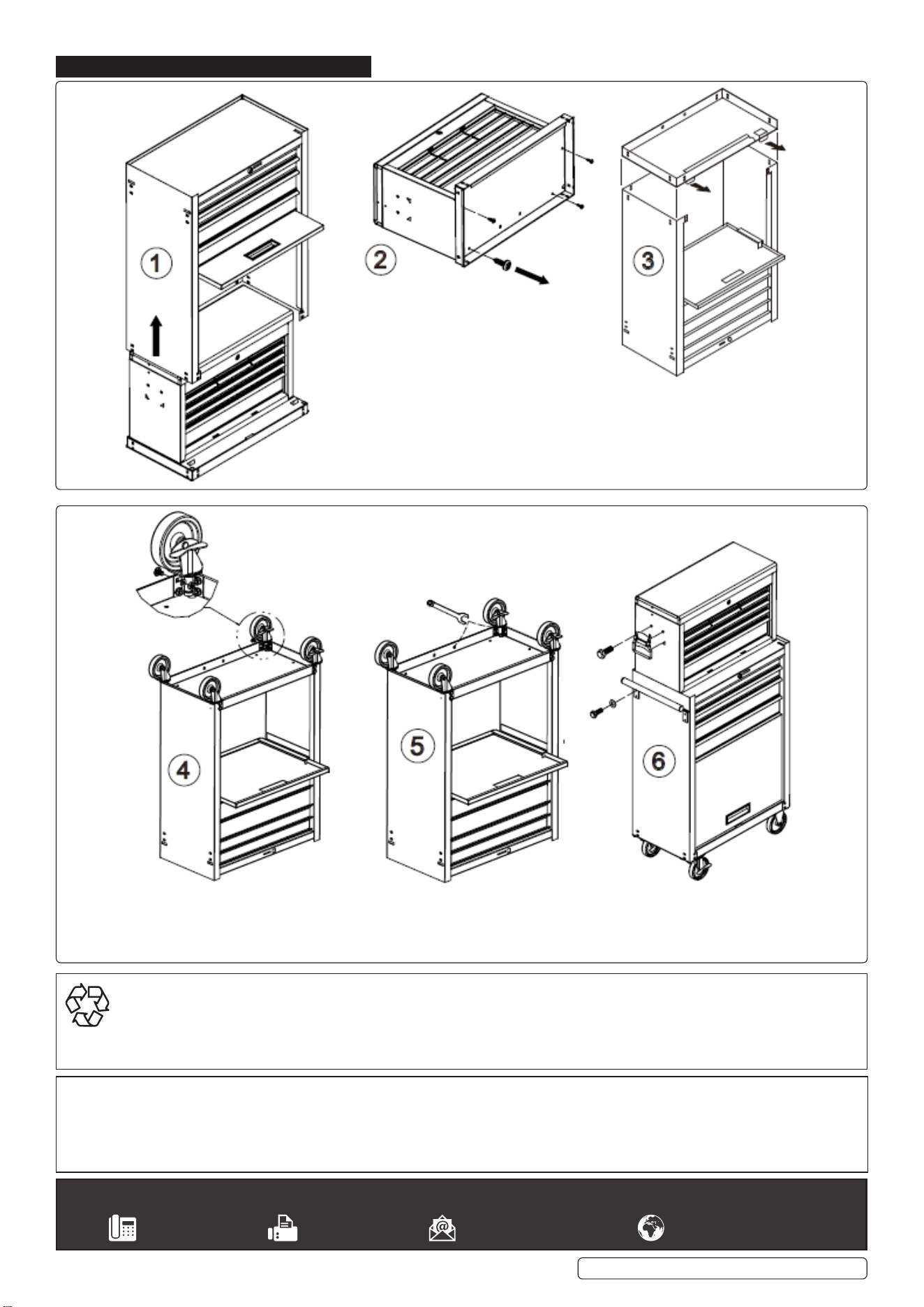

4. ASSEMBLY
.
Original Language Version
© Jack Sealey Limited
BG150BS | Issue:2 H,F) 10/06/18
2.
Remove the 4 screws on
the bottom of the topchest
assembly, then remove the
base from the bottom of the
topchest.
3.
Reattach the base to the
bottom of the rollcab ensuring
it is the correct way up and
secure with the supplied
xings.
1.
Lift the main rollcab body off
the base and topchest.
4 & 5.
In each corner of the base attach the
Castor and tighten the xings.
6.
Attach the topchest side handles using the
2 x bolts. Insert the side handle into the
Rollcab and attach using 4 x bolts and
Washers.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call our
technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
AP2513B.V4, AP22513BB.V3 Issue 1 11/03/22
