CONTENTS
1
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATION

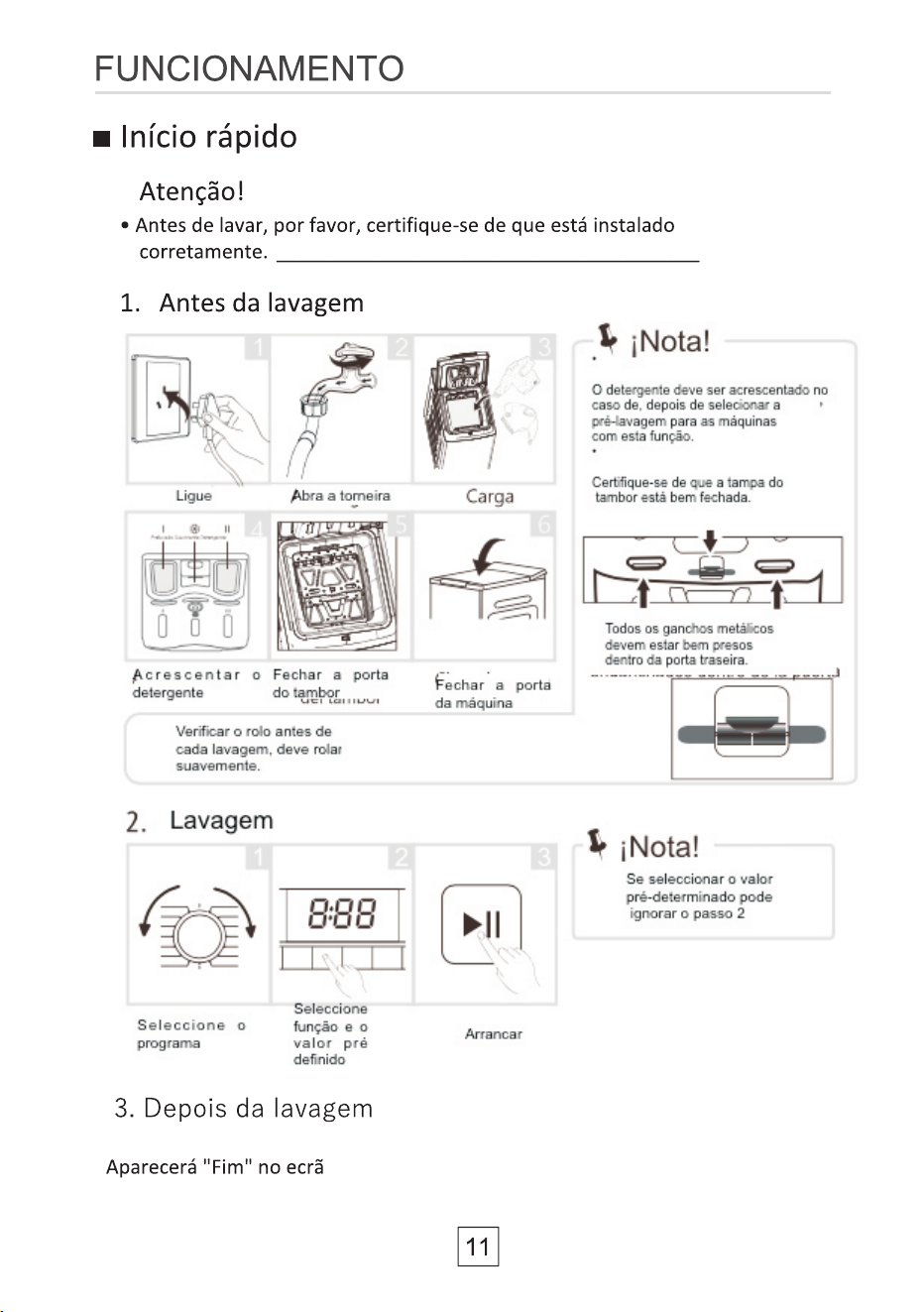

Quick Start .............................................................

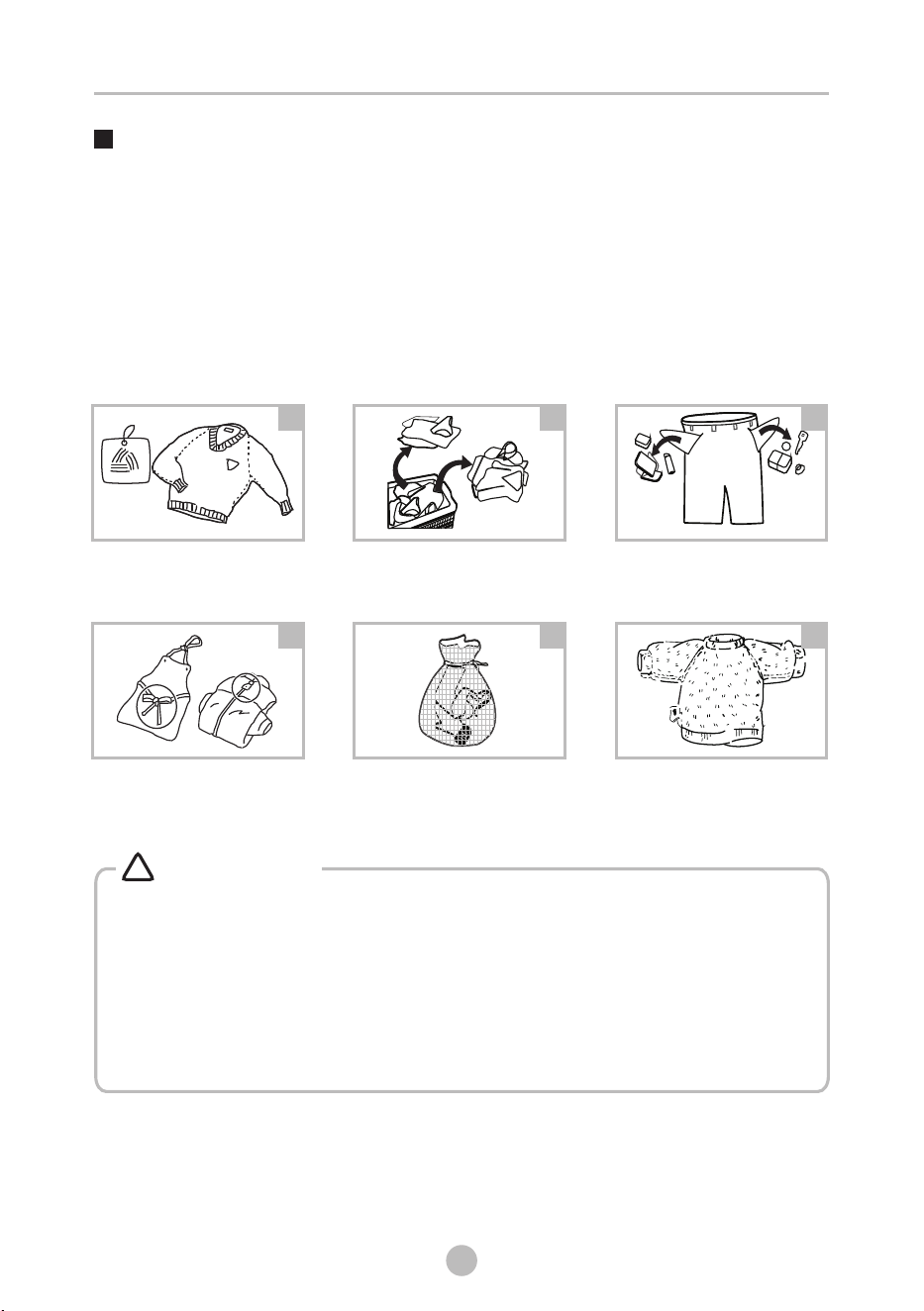

Before Each Washing ..............................................

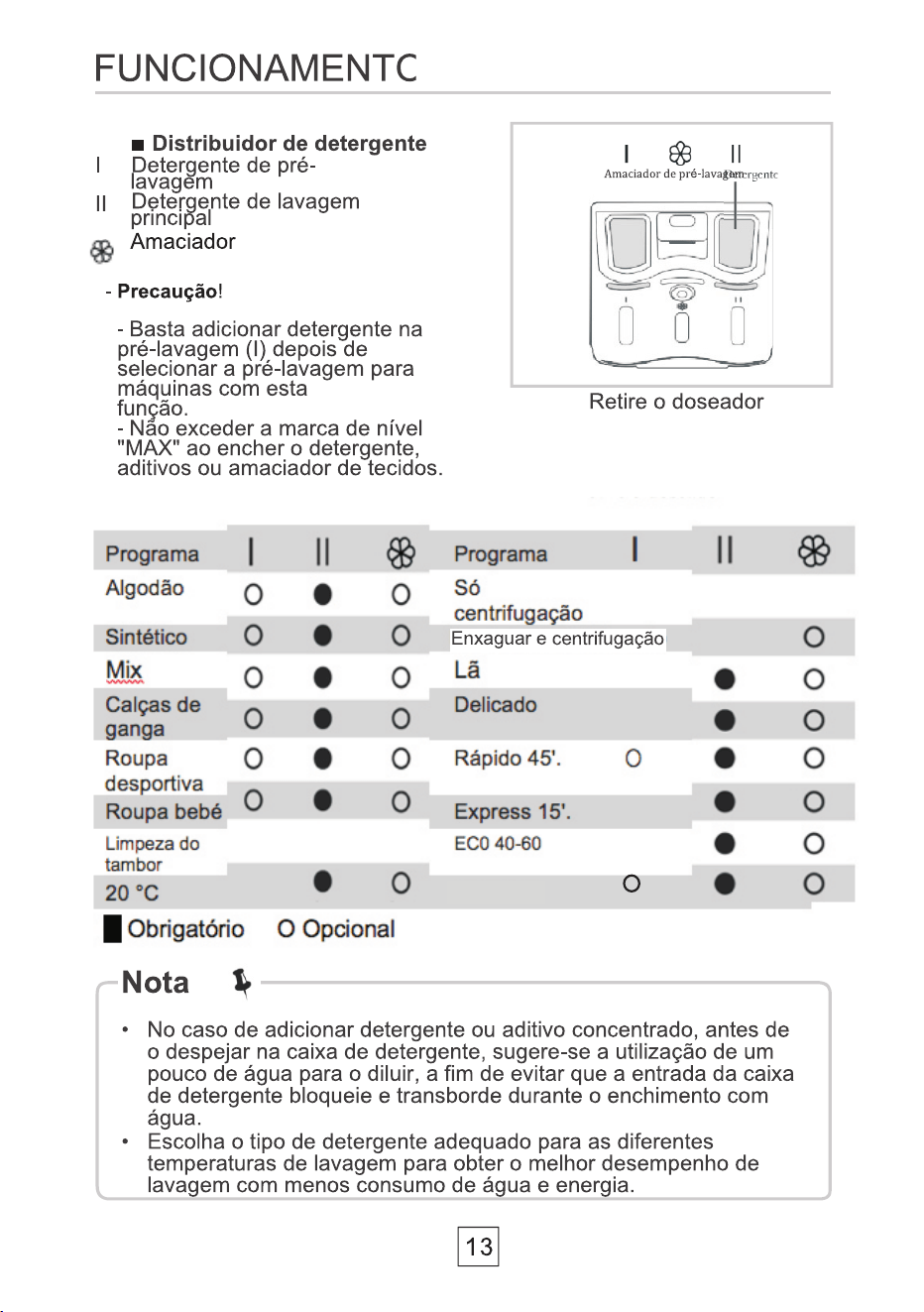

Detergent Dispenser ...............................................
Control Panel .........................................................

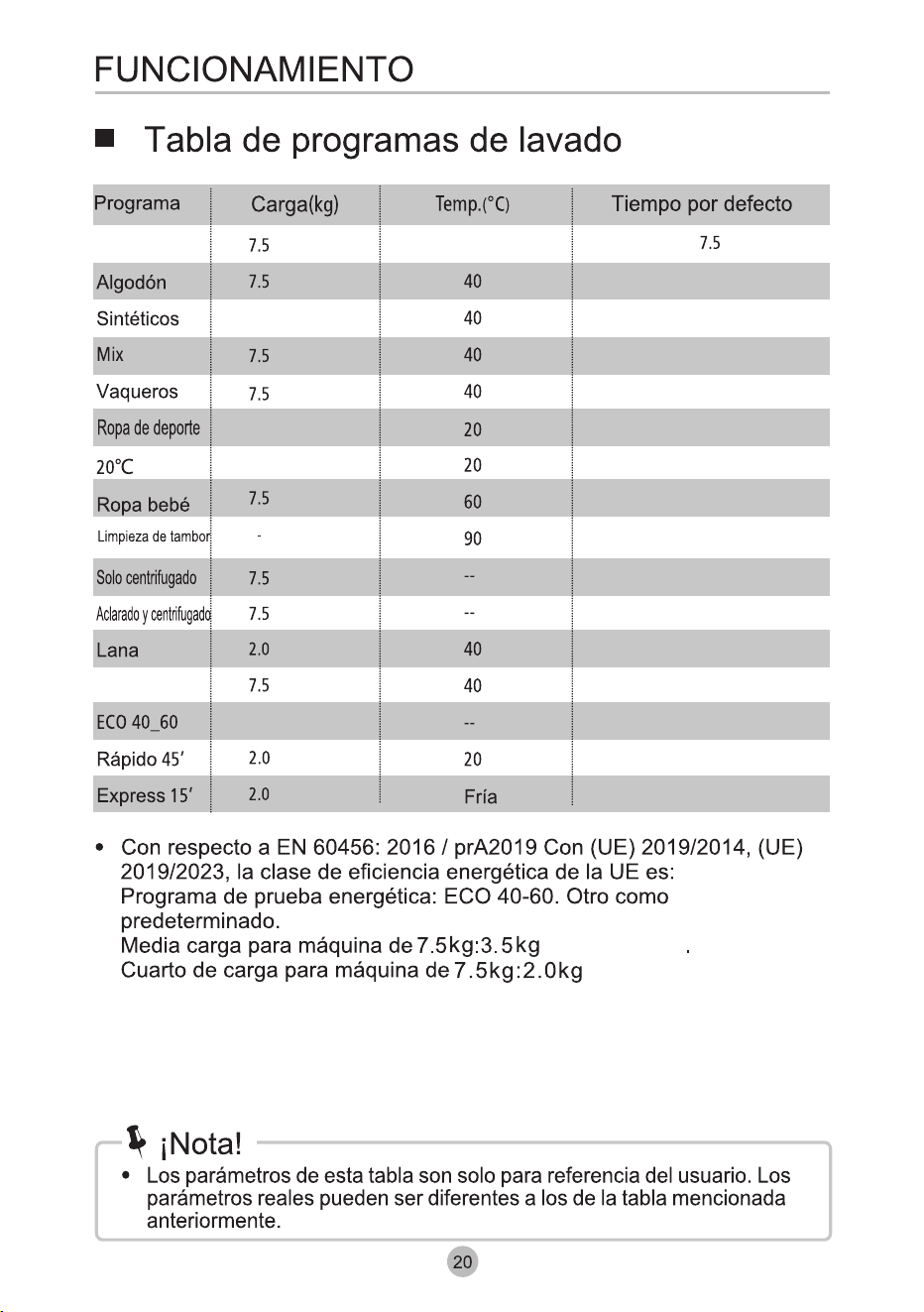

Programmes............................................................
Option....................................................................
MAINTENANCE
Cleaning and Care .................................................
Trouble Shooting ....................................................

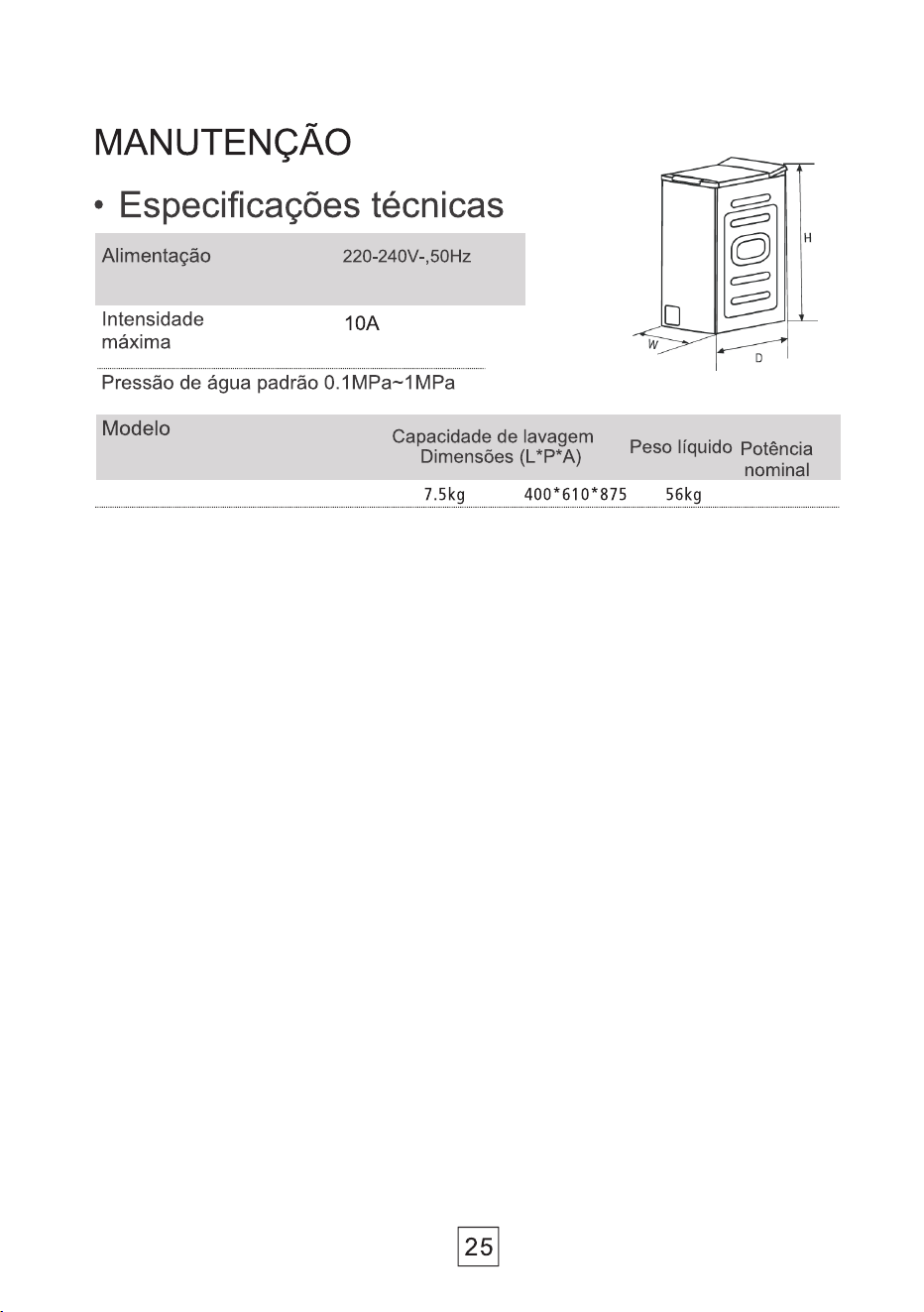

Technical Specifications .........................................

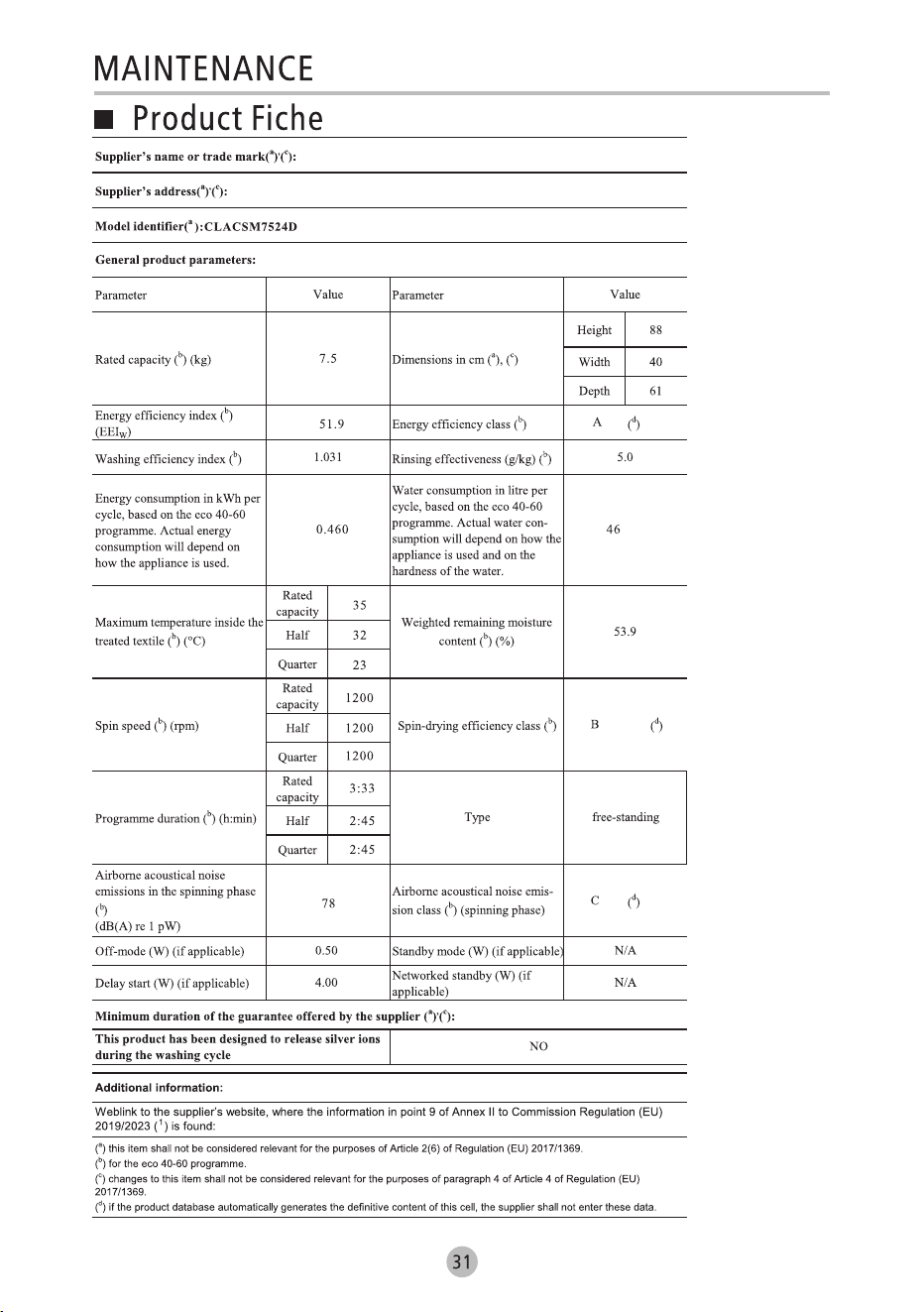

Product Fiche ........................................................
Customer Service....................................................
2
9
10
13
15
16
18
19
23
26
29
30
30
31
Please read the following safety information thoroughly and follow it
strictly to minimize the risk of fire or explosion, electric shock and to
prevent property damage, personal injury or loss of life. Failing to follow
these instructions shall void any warranty.
its service agent or similarly qualified persons in order to avoid a hazard.
•If the machine is damaged, it must not be operated unless repaired by
the manufacturer, its service agent or similarly qualified persons.
Risk of electric shock!
•If the supply cord is damaged, it must be replaced by the manufacturer,
ELECTRIC SHOCK HAZARD
SAFETY INSTRUCTIONS

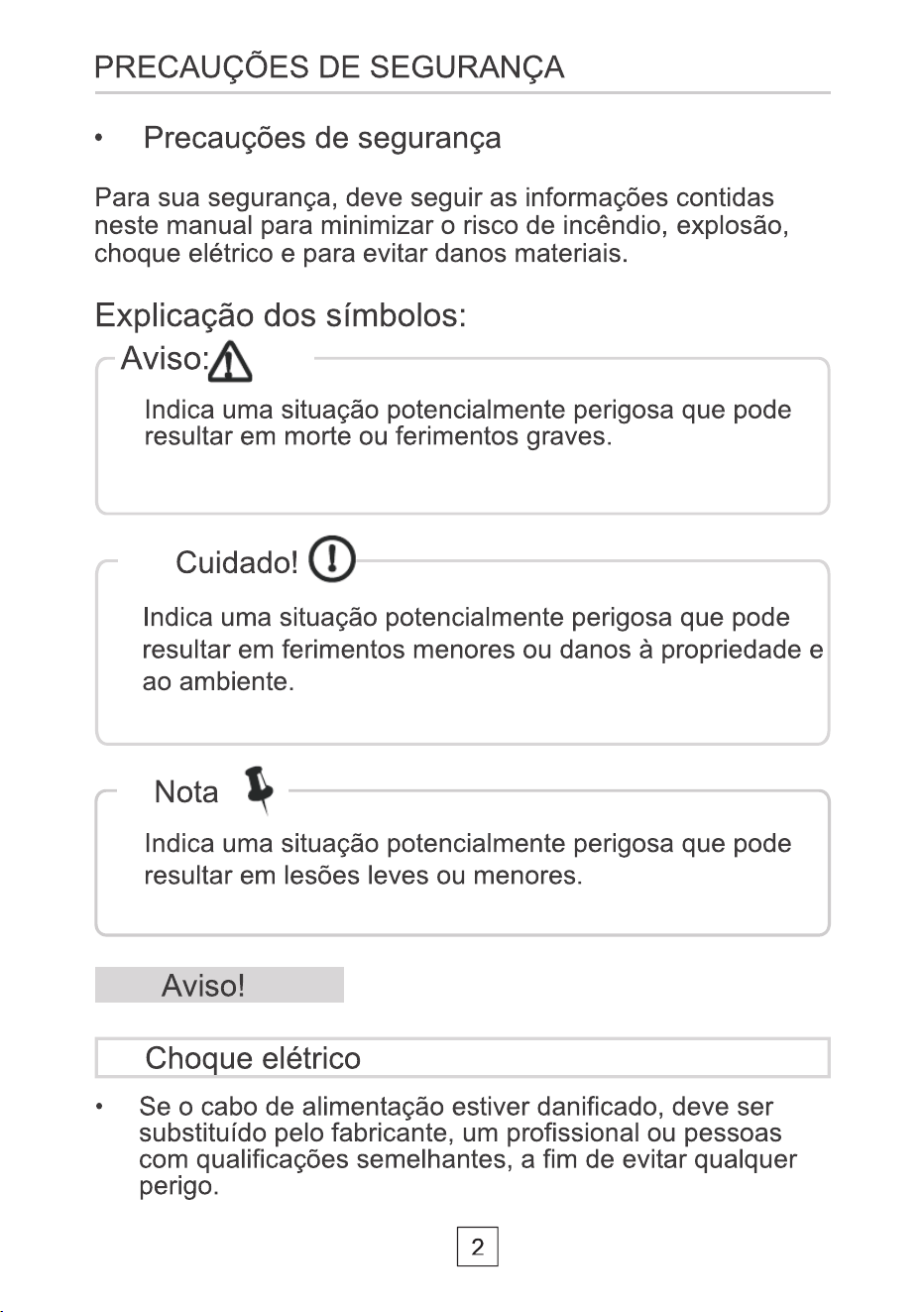

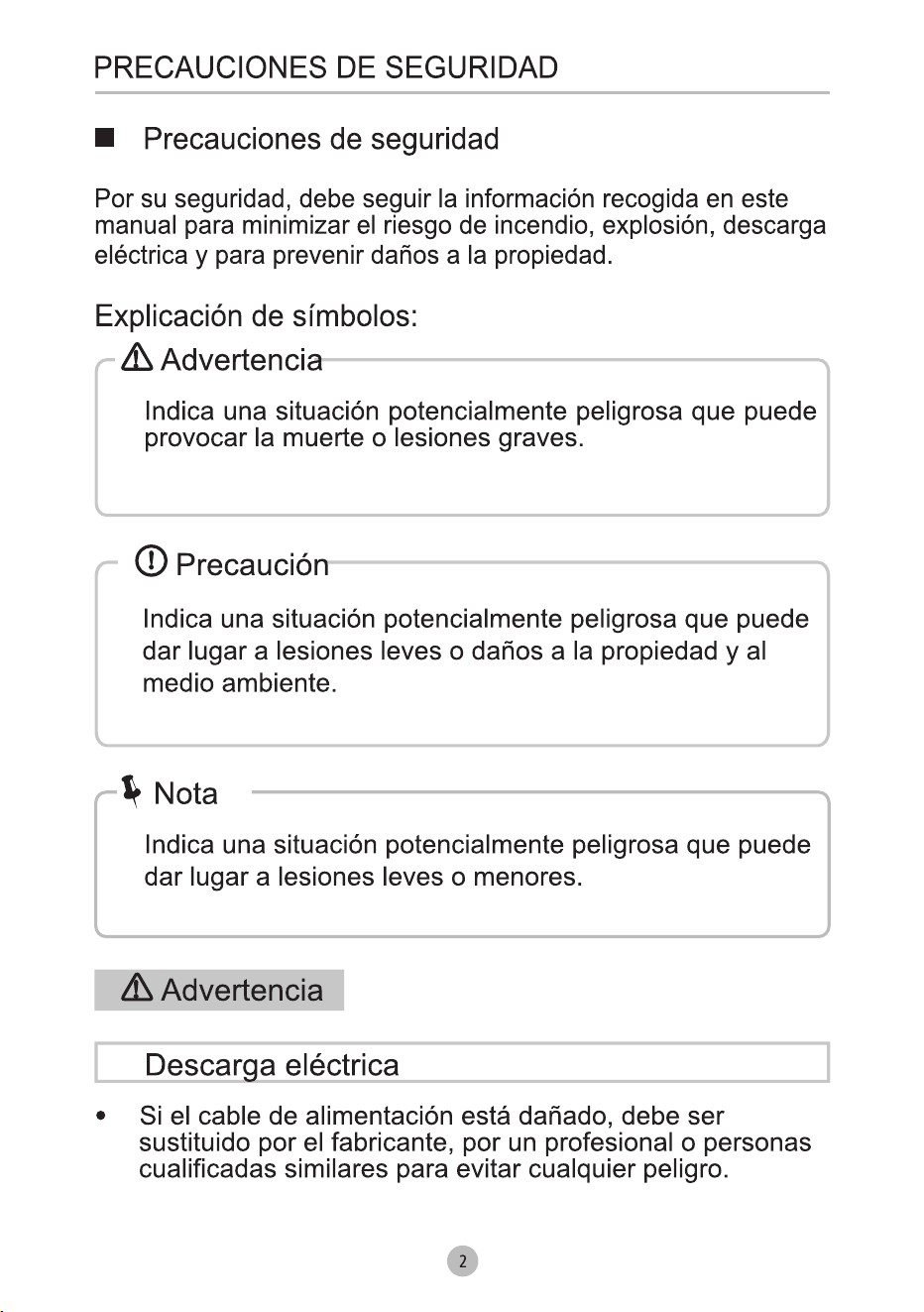

Safety Instructions
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
This combination of symbol and signal word indicates
Warning!
！
a potentially dangerous situation which may result in
slight or minor injuries.
This combination of symbol and signal word indicates
Note!
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
This combination of symbol and signal word indicates
Caution!
Warning!
！
2
SAFETY INSTRUCTIONS

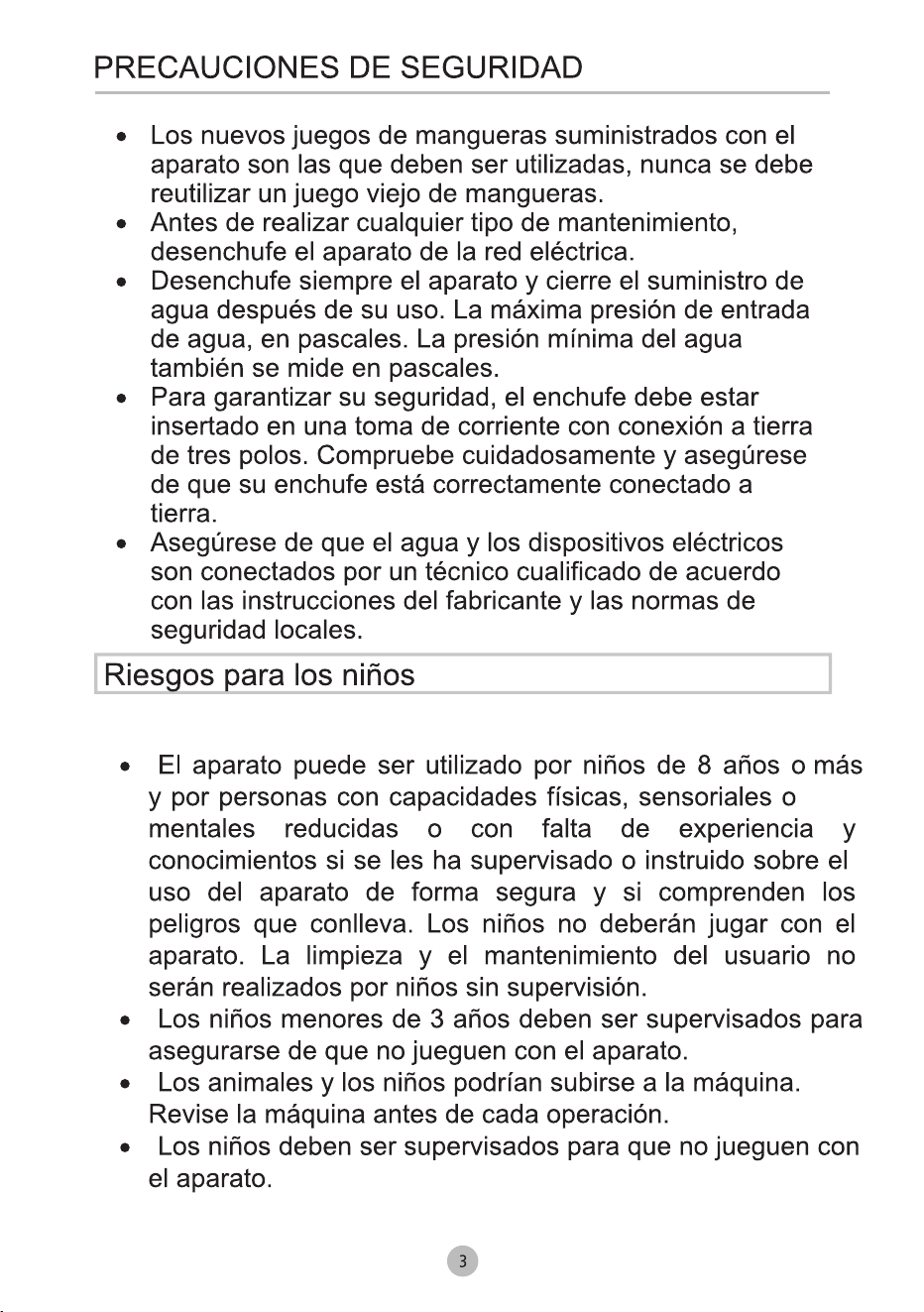

•The appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
•Children should be supervised that they do not play with the
appliance.
•Children 3 years and under shall be kept away from the appliance
or continuously supervised.
•Animals and children may climb into the machine. Check the
machine before every operation.
•Do not climb or sit on the appliance.
INSTALLATION LOCATION AND SURROUNDING
•All washing and additional substances are to be kept in a safe place
out of the reach of children.
•Do not install the machine on a carpet floor. The obstruction of the
openings by a carpet can damage the machine.
•Keep the appliance clear from heating sources and direct sunlight
to avoid plastic and rubber parts to corrode.
•Do not use the appliance in humid environments or rooms
containing explosive or caustic gas. In case of water leakage or
water splashes let the appliance dry in the open air.
•The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of the
washing machine.
3
SAFETY INSTRUCTIONS
•Do not operate the machine in rooms with a temperature of below
5°C. This can cause damages to parts of it. If it is unavoidable, make
sure to drain the water completely from the appliance after every
use (see „Maintenance - Cleaning of drain pump filter“) to avoid
damages caused by frost.
•Never use flammable sprays or substances in the immediate
proximity of the appliance.

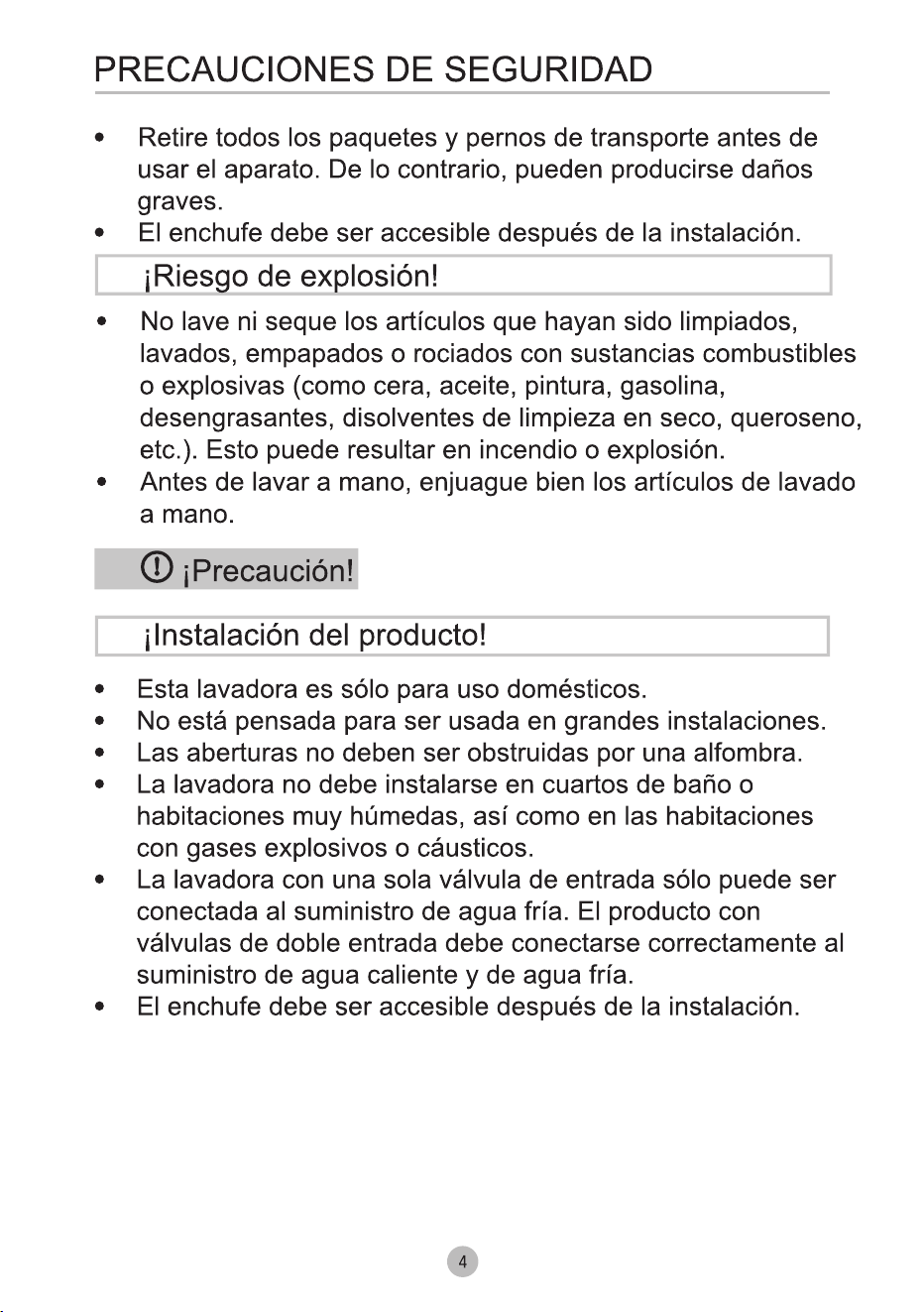

INSTALLATION

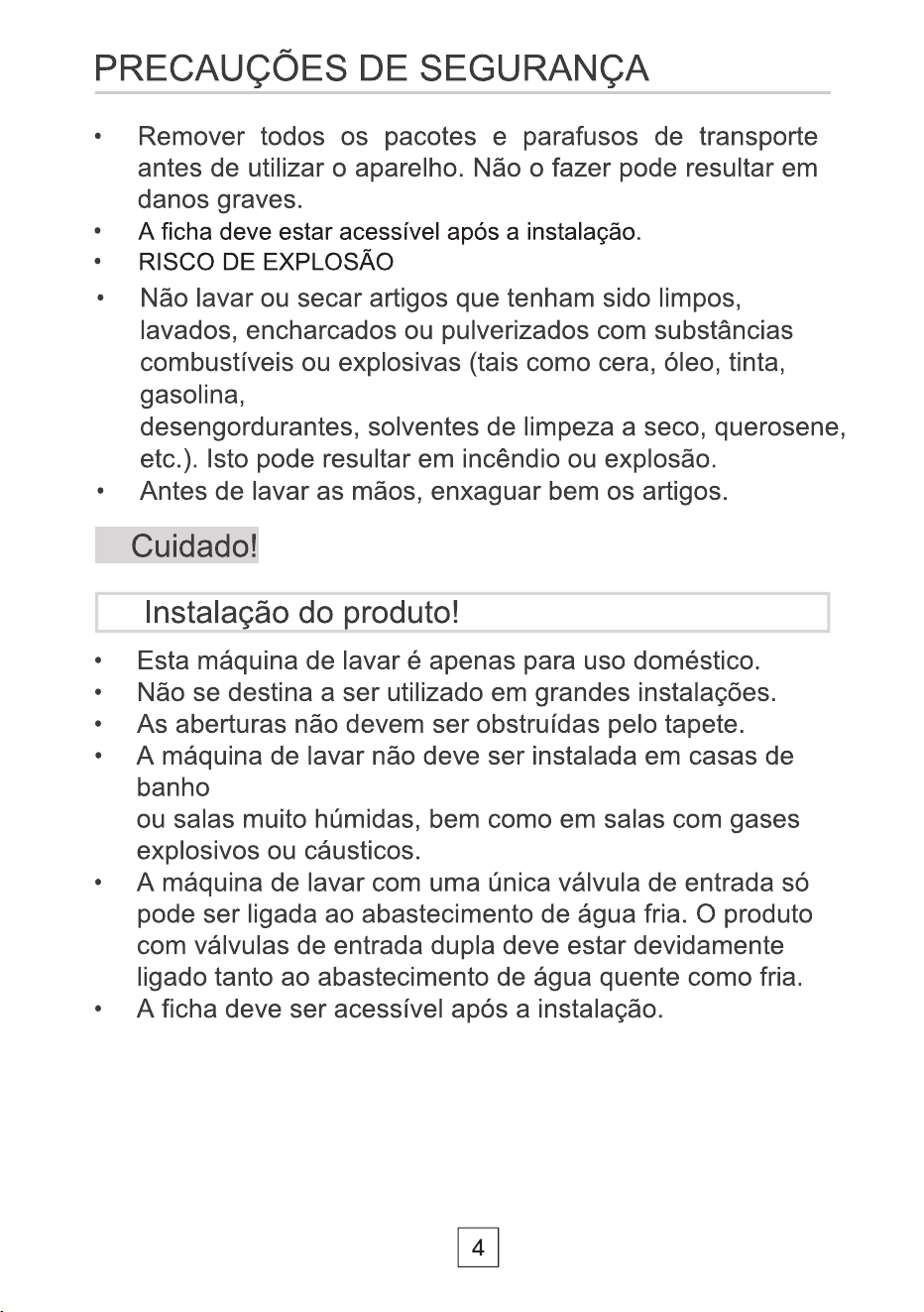

•Remove all packaging material and transport bolts before using the
appliance. Otherwise, serious damage may result.
•This appliance is equipped with a single inlet valve and can be
connected to the cold water supply only.
•Mains plug must be accessible after installation.
•Before washing clothes for the first time, the product shall be
operated once throughout all the procedures without any clothes
inside.
•Do not put any excessively heavy objects on the appliance, like
water containers or heating devices.

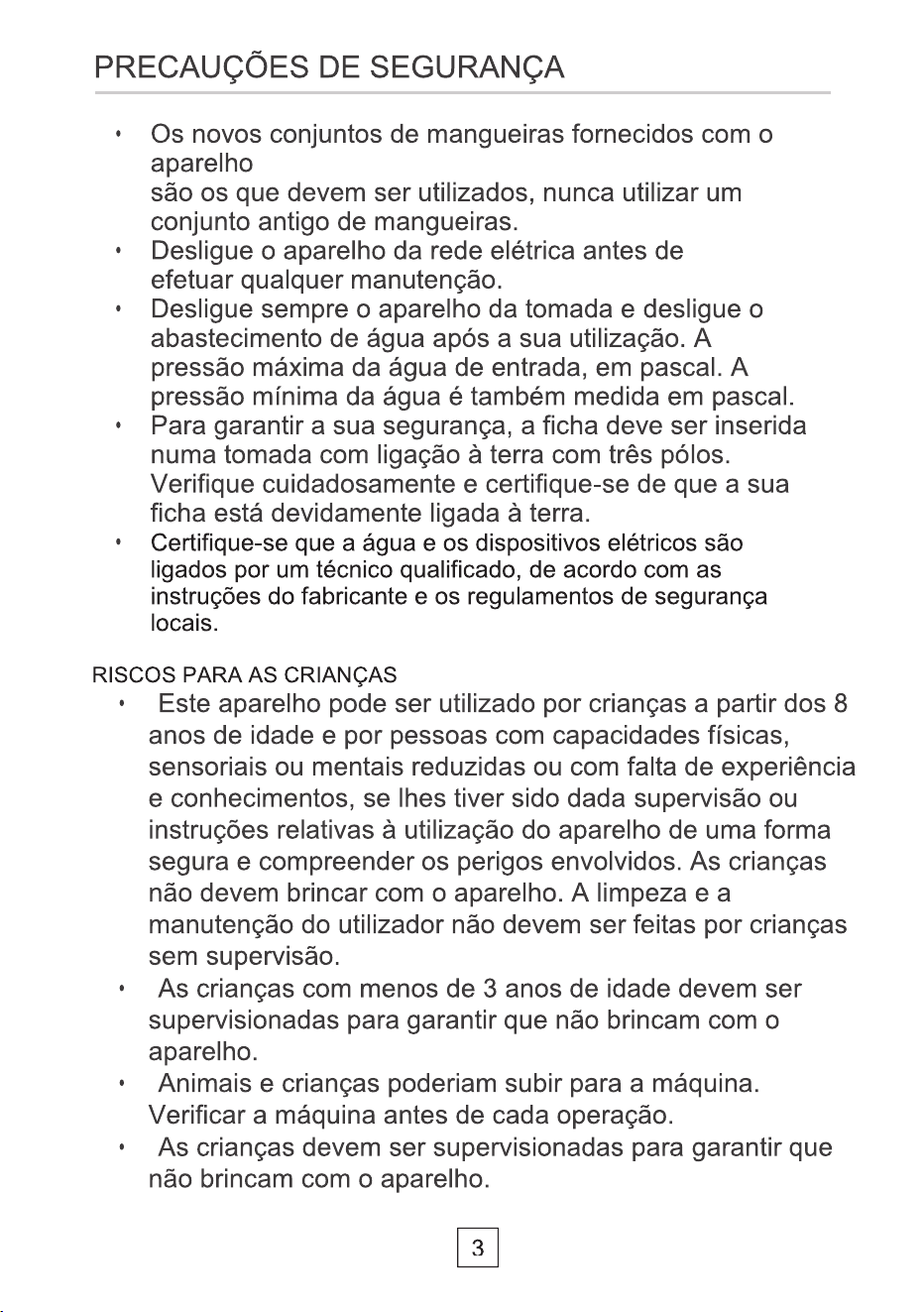

•The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
•Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.1MPa.
ELECTRICAL CONNECTION
•Make sure the supply cable is not trapped by the machine, it can get
damaged.
•Connect the product to a grounded outlet protected by a fuse
complying with the values in the “ Technical specifications“ table.
The grounding installation has to be made by a qualified electrician.
Ensure that the machine is installed in accordance with the local
regulations.
4
SAFETY INSTRUCTIONS
•Water and electrical connections must be carried out by a qualified
technician in accordance with the manufacturer‘s instructions and
local safety regulations.
•Don´t use multiple plugs or extension cords.
•The appliance must not have an external switching device such as a timer or
connected to a circuit that is regularly switched on and off.
•Do not pull the plug out of the mains outlet if there is flammable gas around.
•Never pull out power plug with wet hands.
•Always pull at the plug, not at the cable.
•Always unplug the appliance if it is not being used.
Warning!
！
WATER CONNECTIONS
•Check the connections of the water inlet tubes, the water tap and
the outlet hose for possible problems due to changes of water
pressure. If the connections loosen or leak close the water tap and
get it repaired. Do not use the appliance before the pipes and hoses
are installed properly by qualified persons.
•Glass door may become very hot during the operation. Keep
children and pets far away from the machine while it is operating.
•The water inlet and outlet hoses have to be safely installed and
remain undamaged. Otherwise, water leakage can occur.
•Do not remove the drain pump filter while there is still water in the
appliance. Big quantities of water can leak out, and there is a risk of
scalding due to hot water.
5
SAFETY INSTRUCTIONS

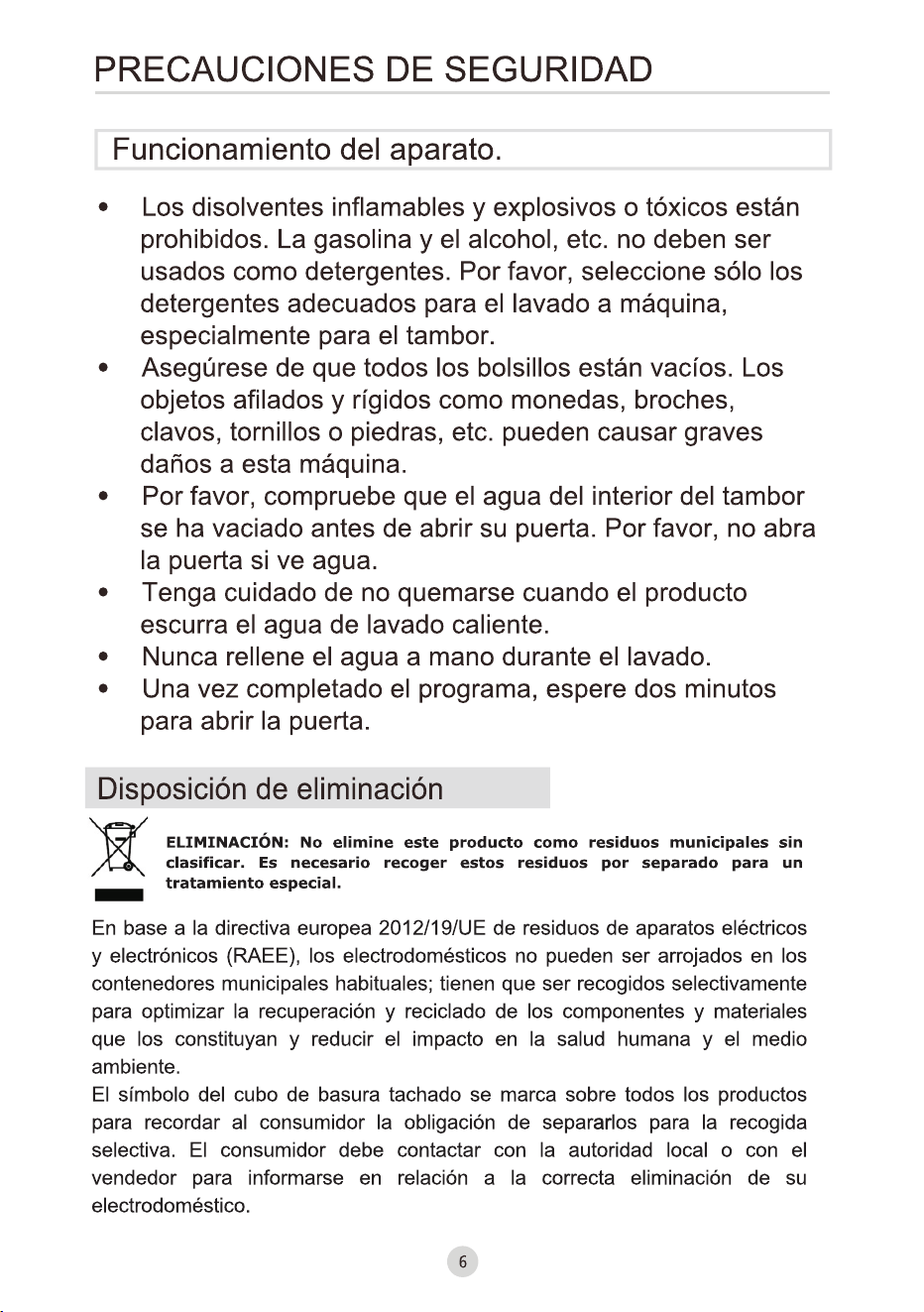

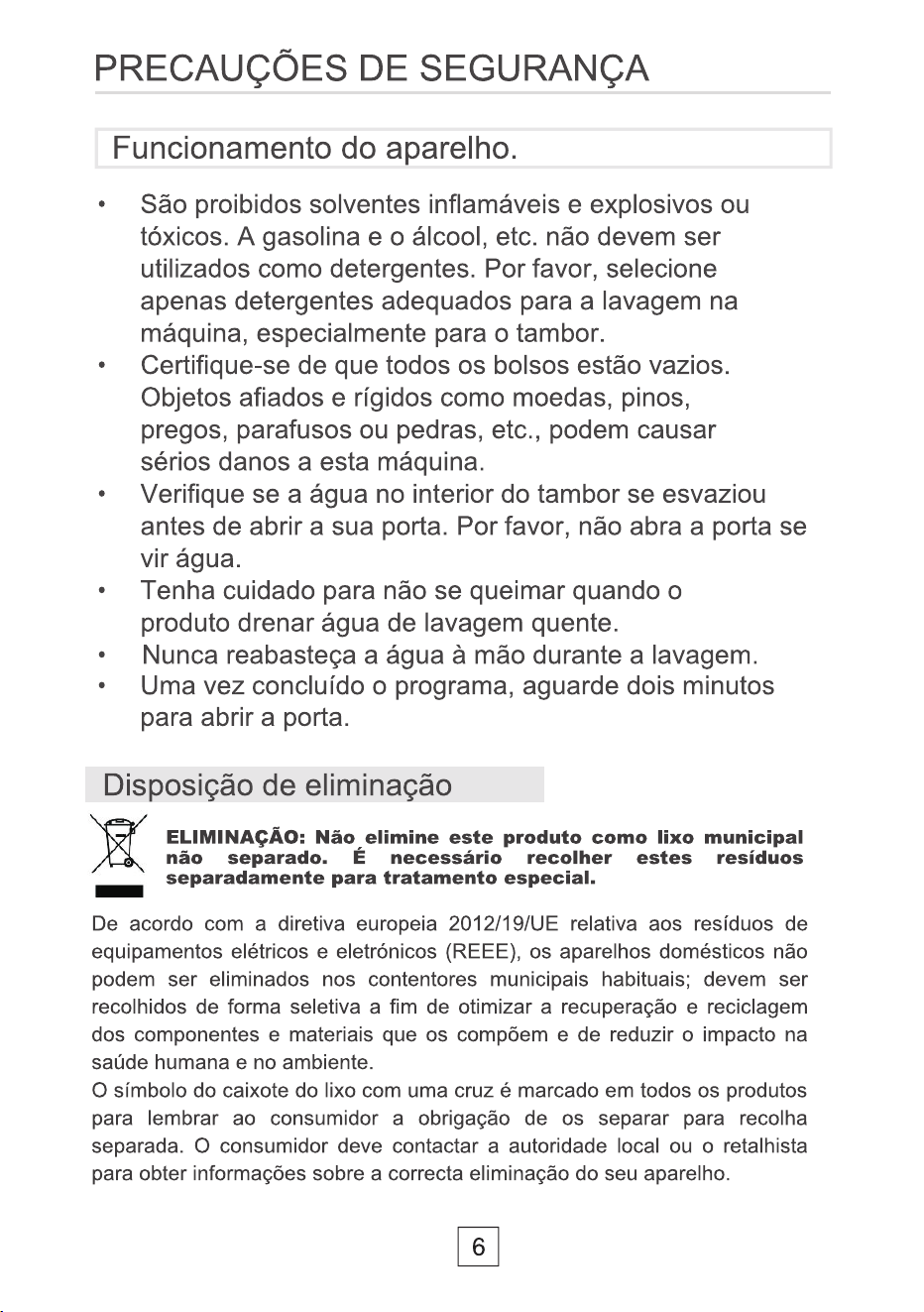

OPERATION AND MAINTENANCE
•Never use any flammable, explosive or toxic solvents. Do not use
gasoline and alcohol etc. as detergents. Only select detergents that
are suitable for machine washing.
•Make sure that all pockets are emptied. Sharp and rigid items such
as coins, brooches, nails, screws, stones etc. may cause serious
damages to this machine.
•Remove all objects from pockets such as lighters and matches
before use the appliance.
•Thoroughly rinse items that have been washed by hand.
•Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax
and wax removers should be washed in hot with an extra amount of
detergent before being dried in the appliance.
•Items containing foam rubber (latex foam), shower caps, water
proof textiles, rubber backed articles and clothes or pillows fitted
with foam rubber pads should not be dried in the machine
•Fabric softeners or similar products should be used as
recommended in their instructions.
•Never try to open the door forcefully. The door will unlock shortly
after the end of a cycle.
•Please do not close the door with excessive force. If it is found
difficult to close the door, please check if the clothes are properly
inserted and distributed.
6
SAFETY INSTRUCTIONS
•Always unplug the appliance and close the water tap before
cleaning and maintenance and after each use.
•Never pour water over the appliance for cleaning purpose. Risk of
electric shock!
•Repairs shall only be carried out by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard. The
producer will not be responsible for damages caused by the
intervention of not authorized persons.

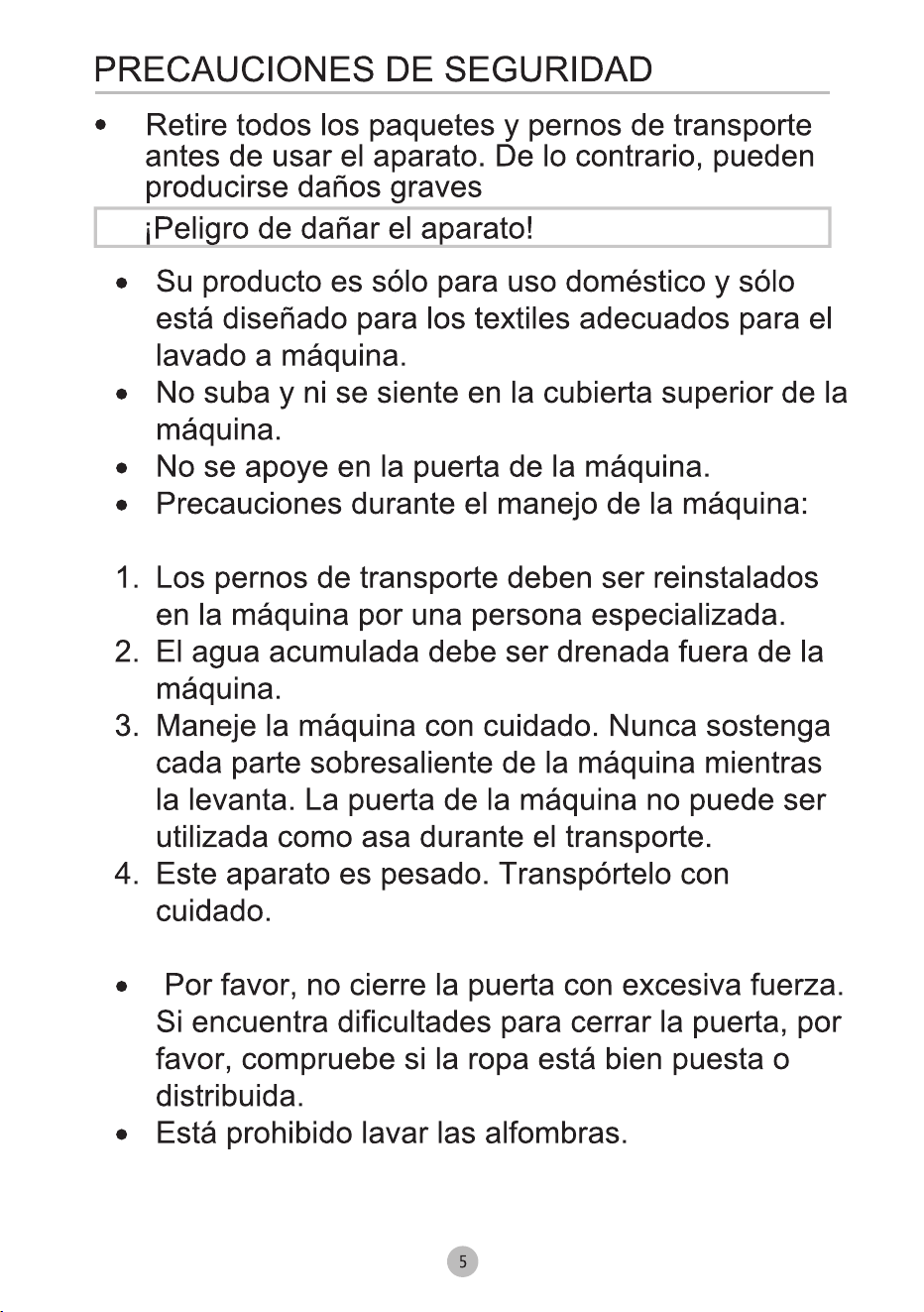

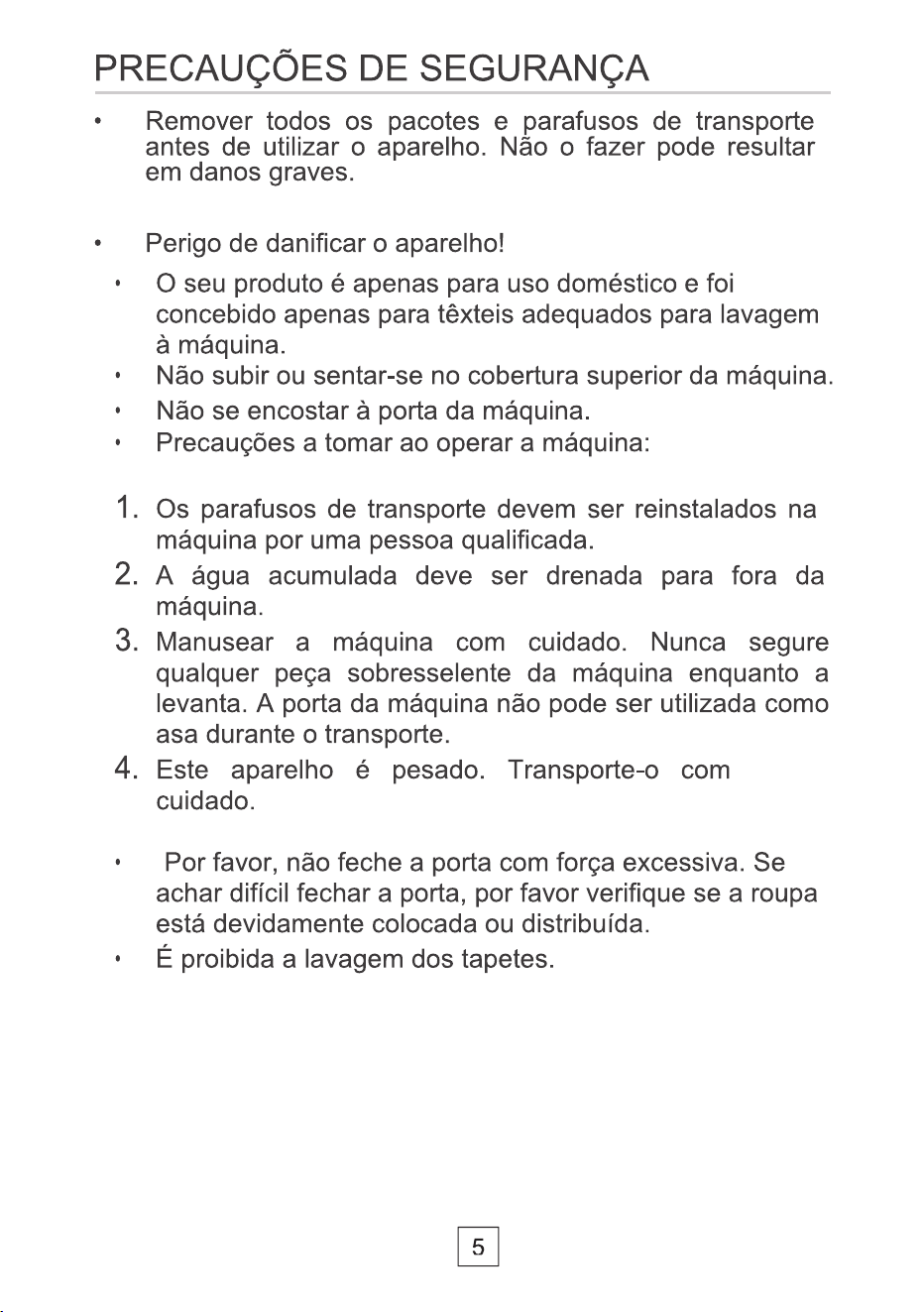

TRANSPORT
•Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person
-Accumulated water shall be drained out of the machine
•This appliance is heavy. Transport with care. Never hold any
protruding part of the machine when lifting. The machine door
cannot be used as a handle.
INTENDED USE
The product is intended only for home use and for textiles in
household amounts suitable for machine washing and drying. This
appliance is for indoor use only and not intended for built in use.
Only use according to these instructions. The appliance is not
intended for commercial use.
Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
•Thisapplianceisintendedtobeusedinhouseholdand similar
applicationssuchas:
-Staffkitchenareasinshops,officesandother workingenvironments;
-Farmhouses;
-Byclientsinhotels,motelsandother residentialtypeenvironments;
-Bedandbreakfasttypeenvironments;
-Areasforcommunaluseinblocksofflatsorin launderettes.
7
SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
8
INSTALLATION

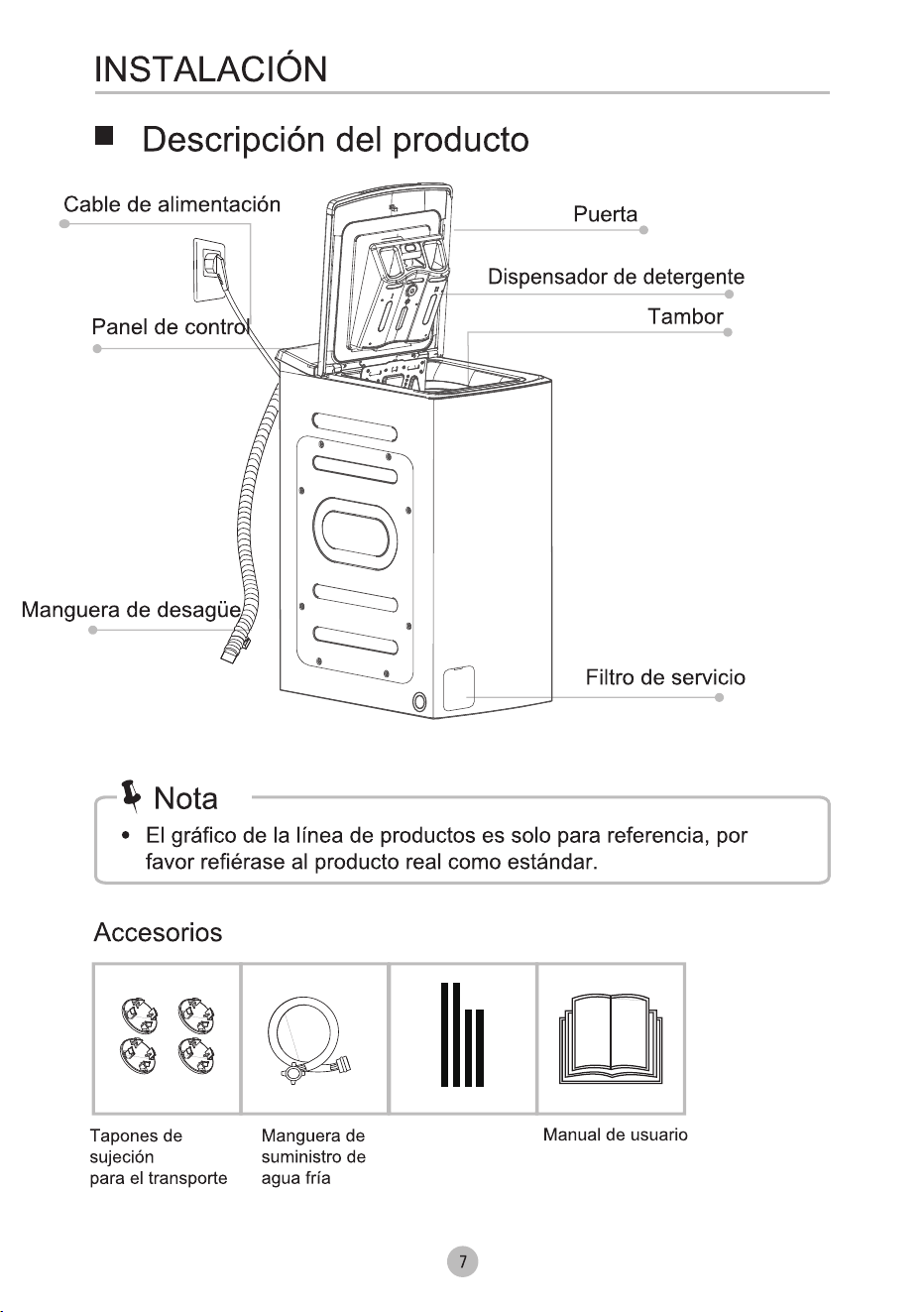

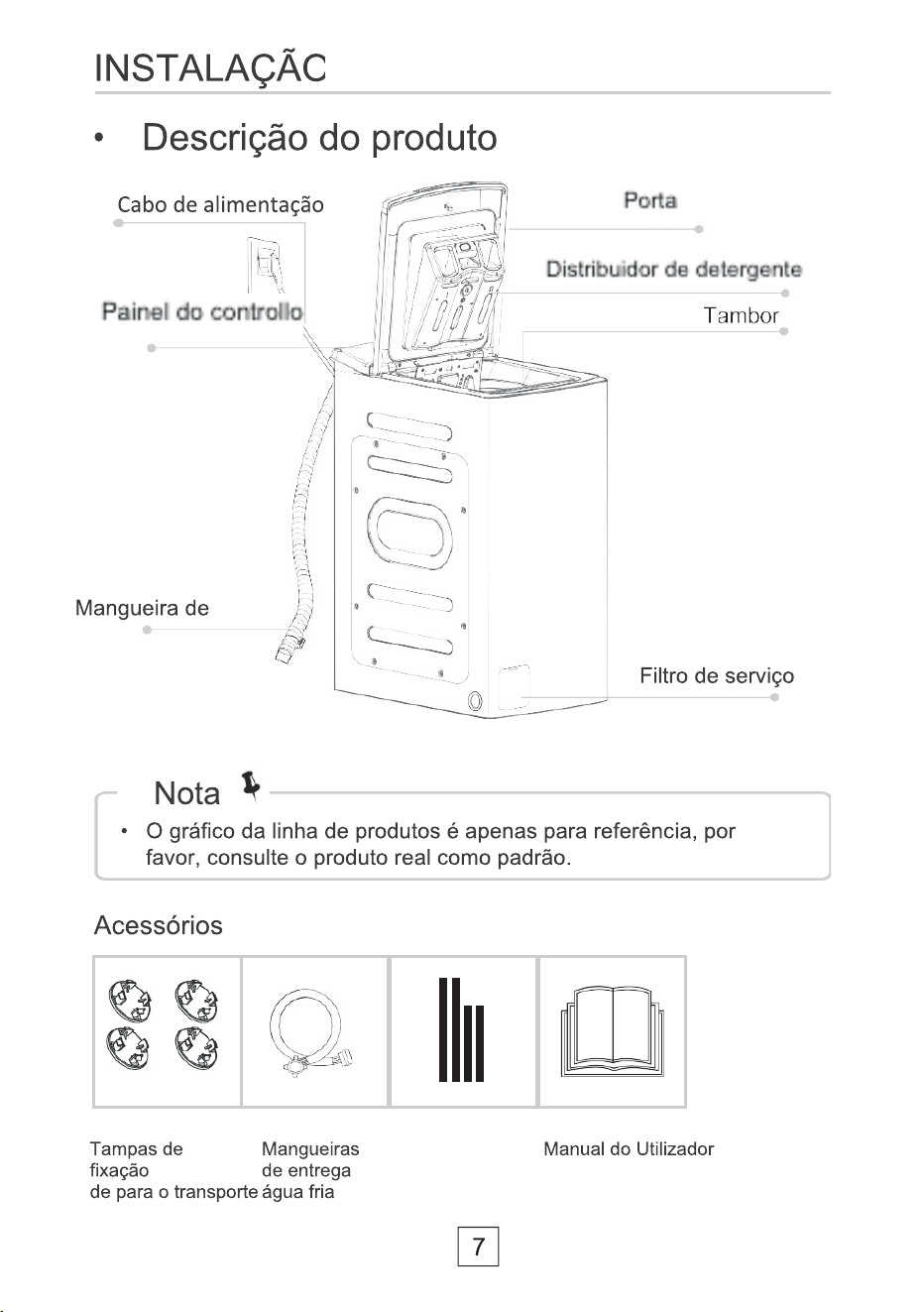

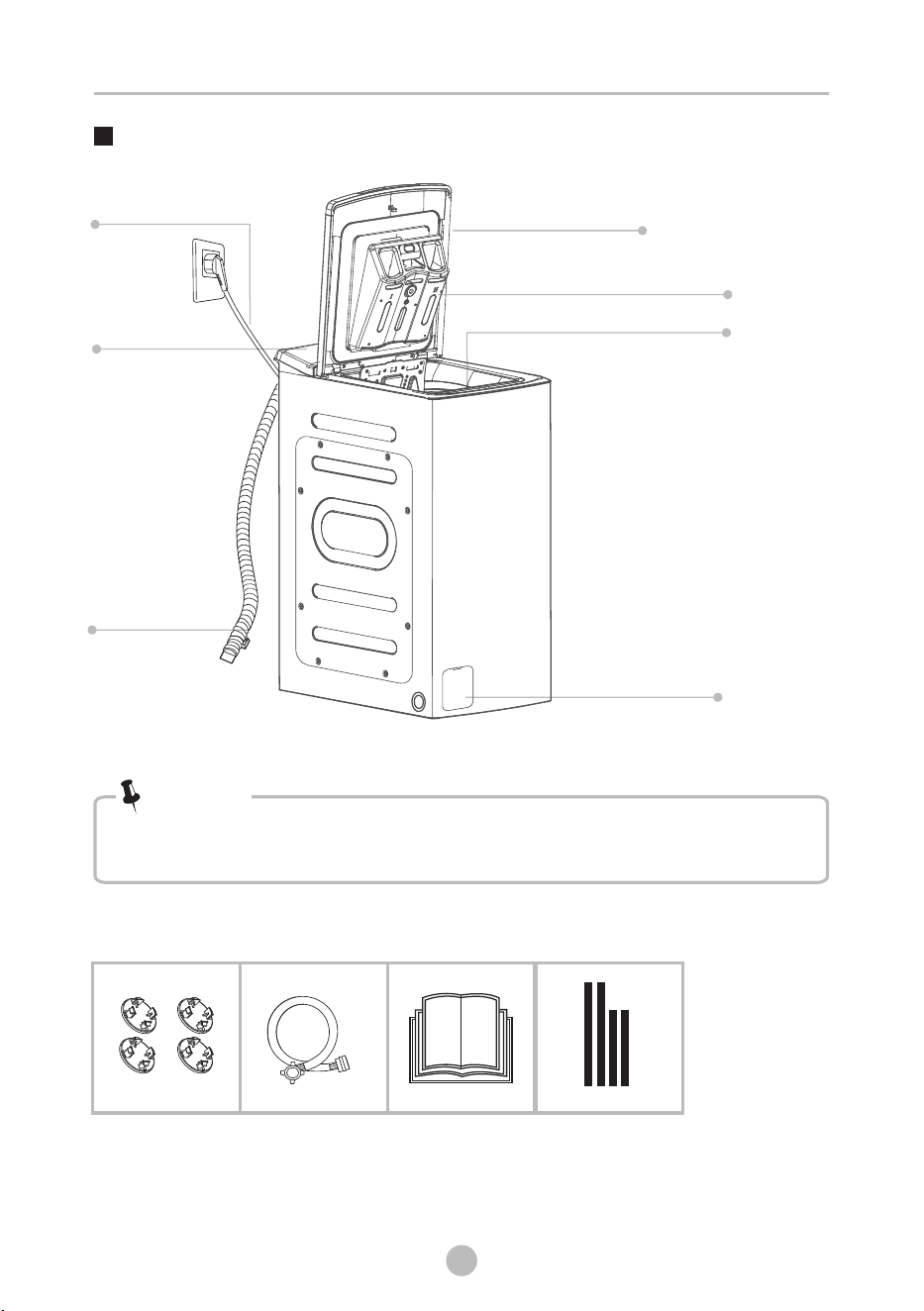

Product Description
Accessories
Transport
plughole
Supply hose
cold water
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Control panel
Detergent dispenser
Service filter
Door
Drain hose
Owner’s manual
Power supply cord
9
Acoustic
sponge
(Optional)
INSTALLATION

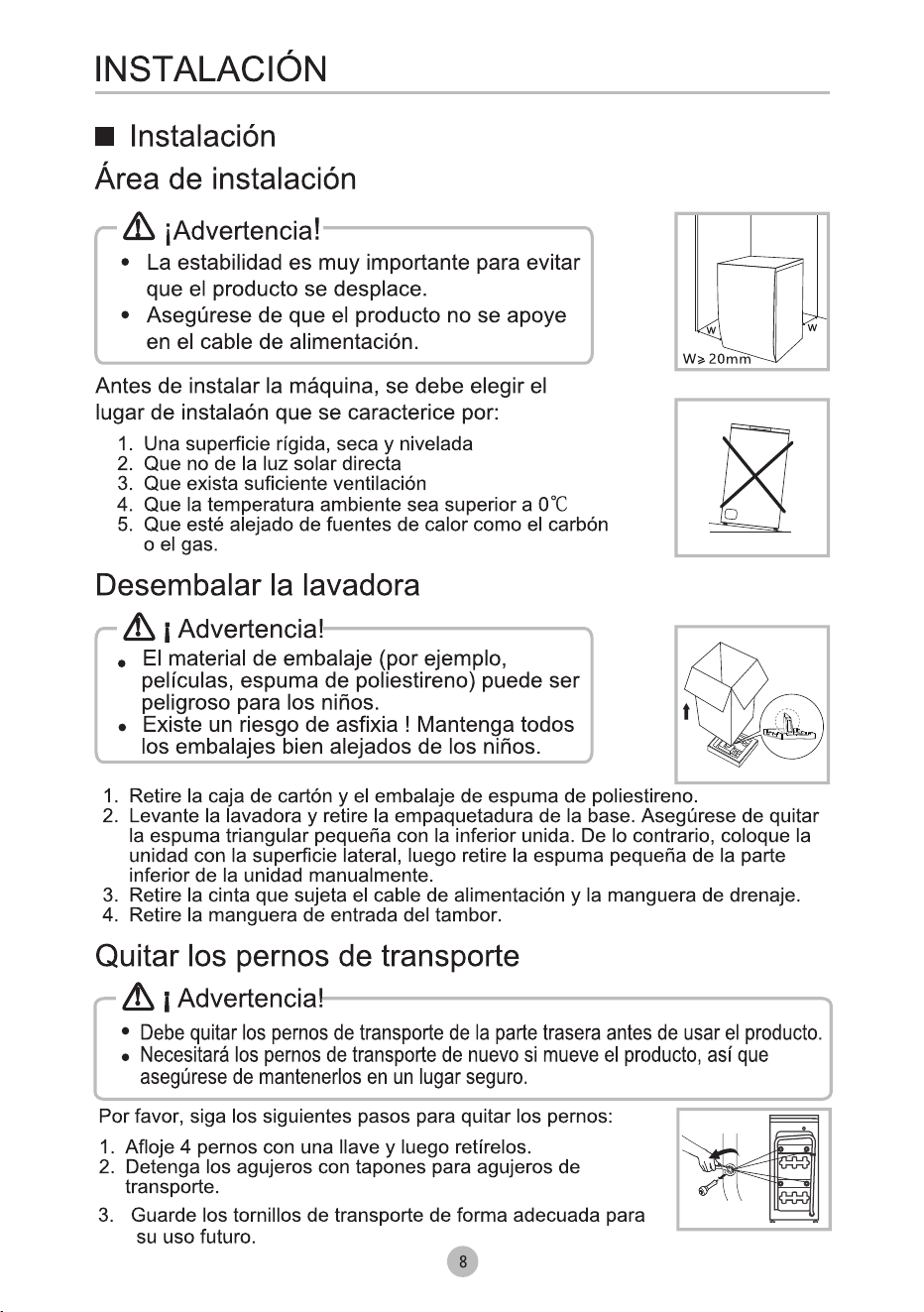

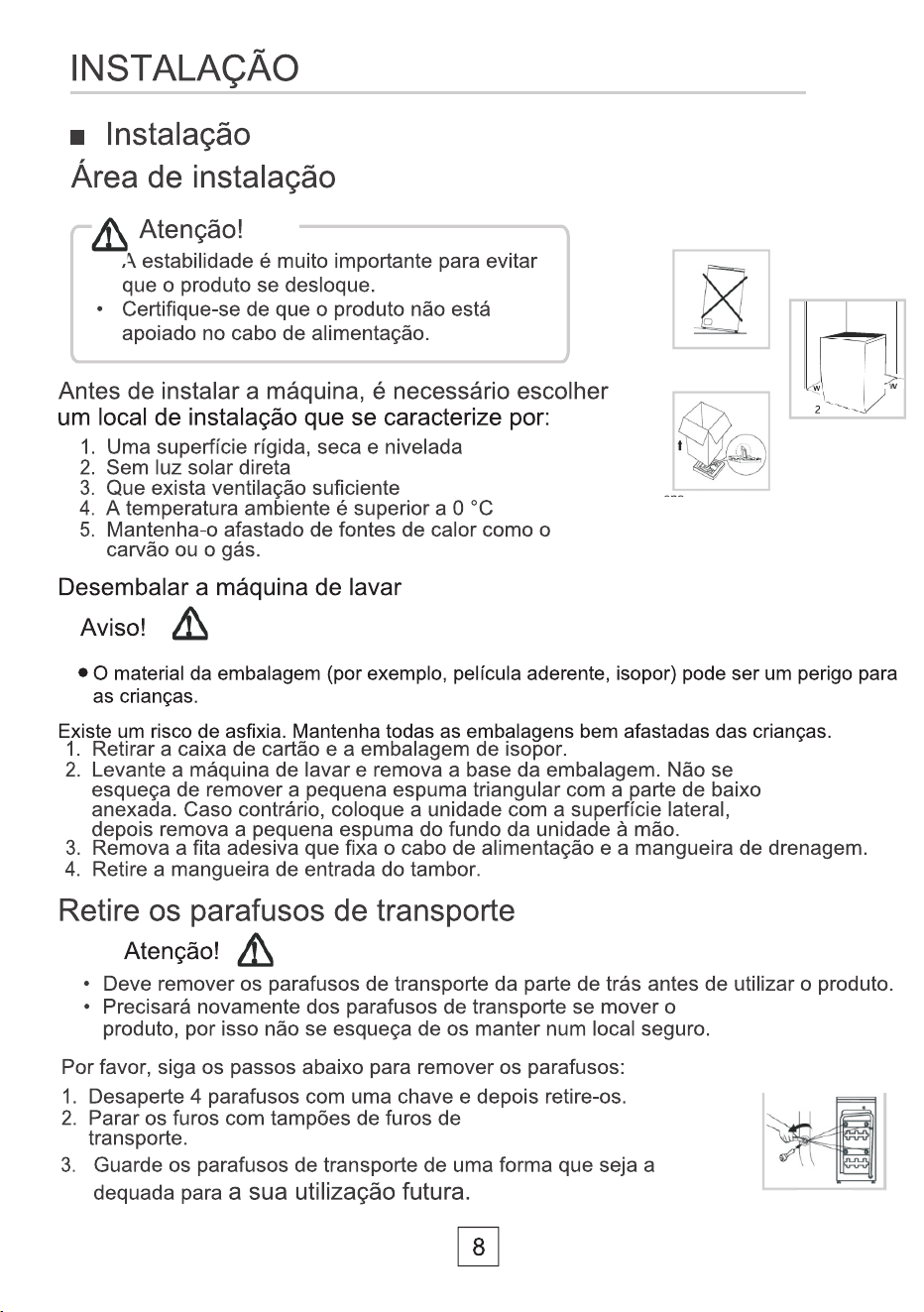

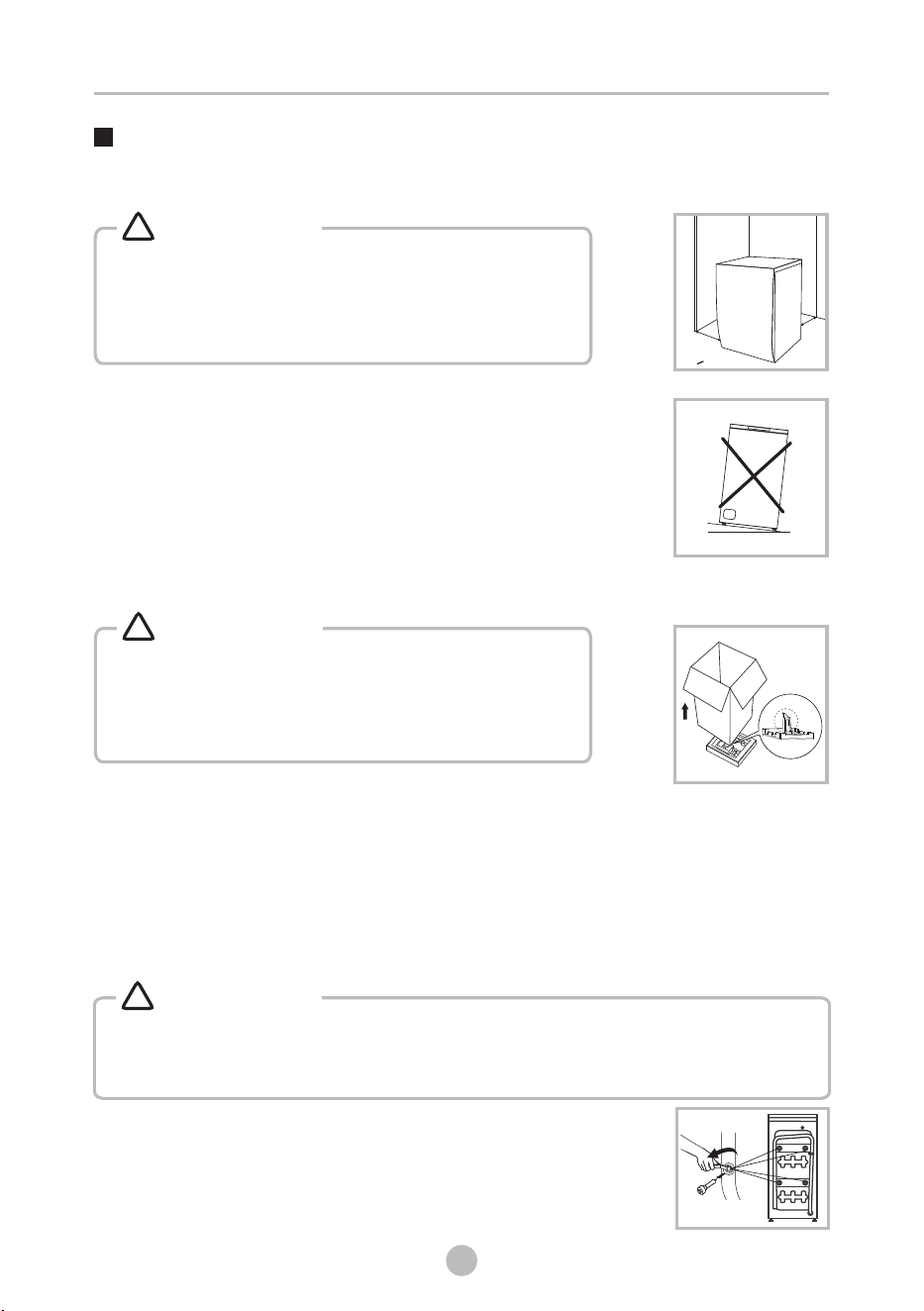

Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as
Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
•product
you
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the , so make sure
keep them in a safe place.
Warning!
！
w
w
W> 20mm
Installation area
10
INSTALLATION
Remove transport bolts
• You must remove the transport bolts from the backside before using the product.
Warning!
！

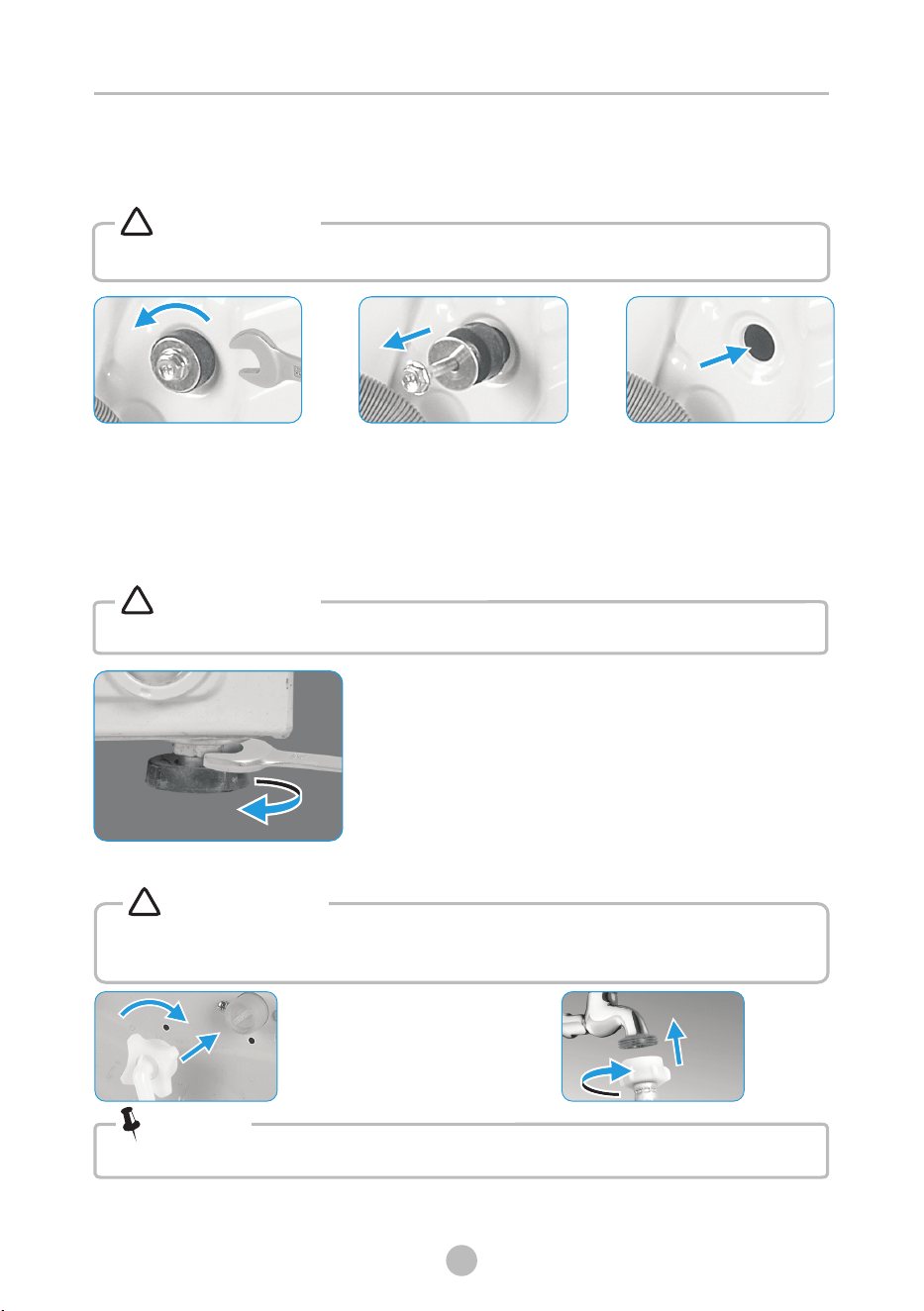

Loosen the 4 transport
bolts with a spanner.
Remove the bolts
including the rubber parts
and keep them for future
use.
Close the holes using the
cover caps.

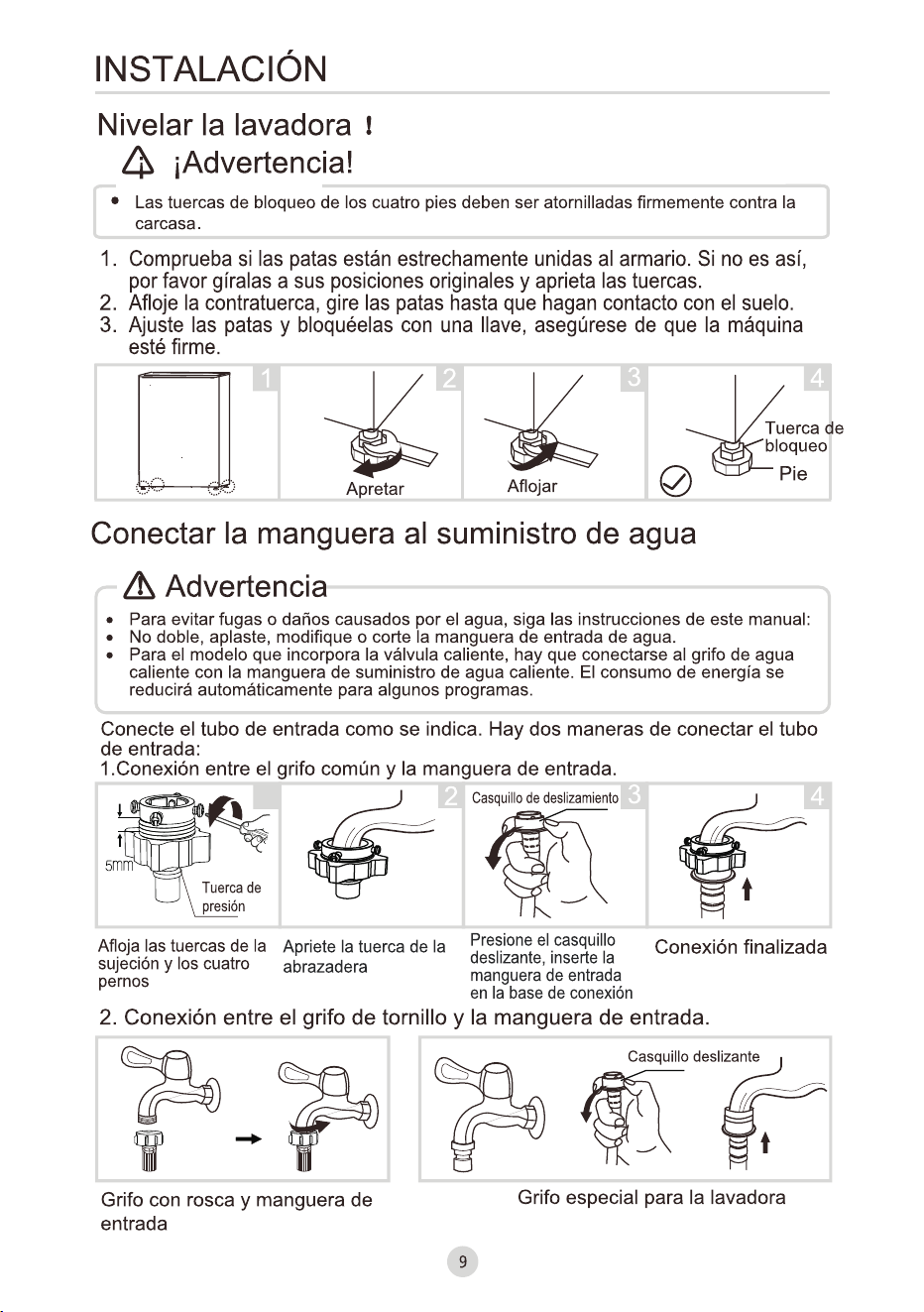

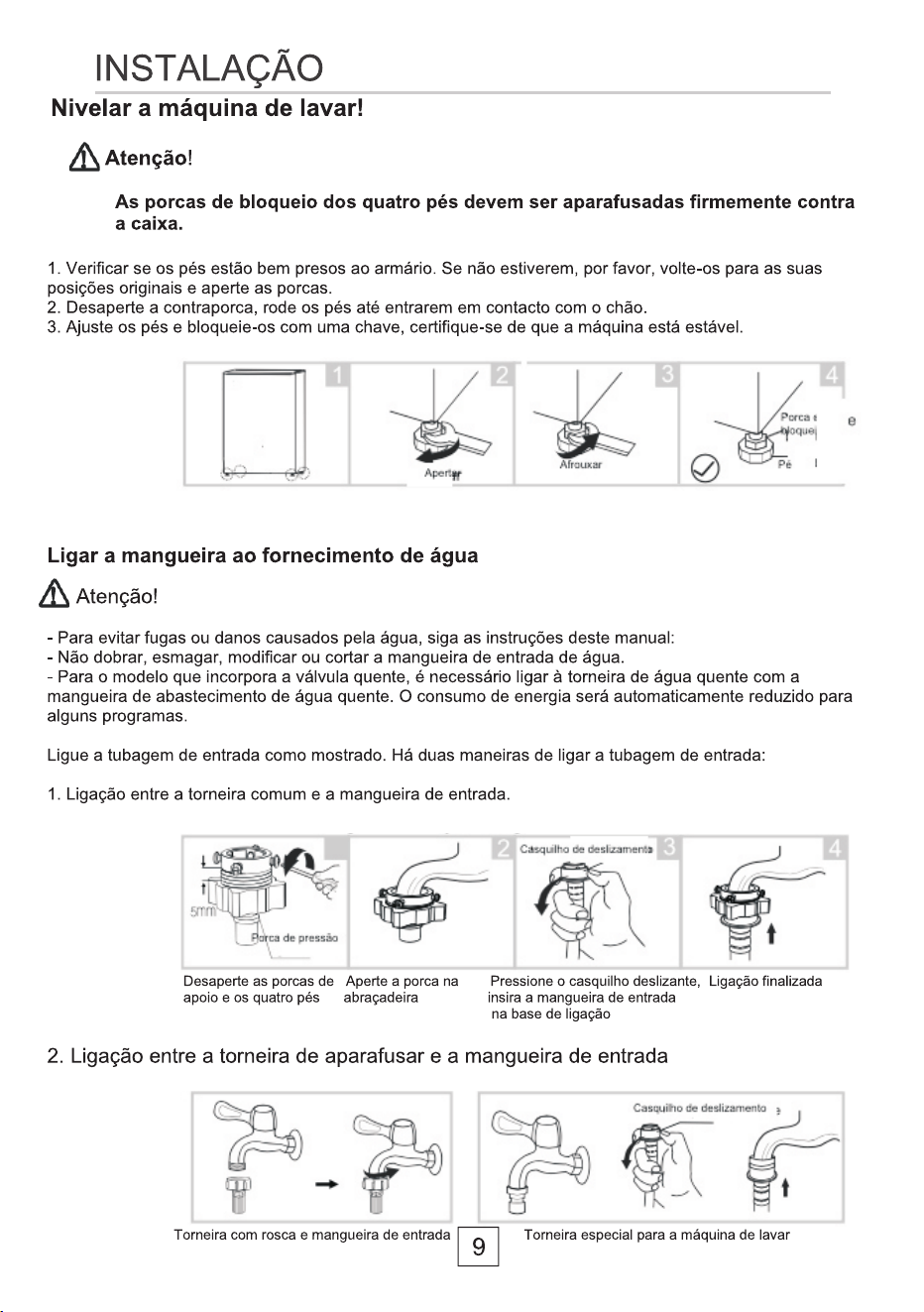

Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Warning!
！
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a
spanner. Make sure the machine is level and
steady.
Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush or modify water inlet hose.
Warning!
！
Connect the water supply hose
to the water inlet valve and a
water tap with cold water as
indicated.
• Connect manually, do not use tools. Check if the connections are tight.
Note!
11
INSTALLATION
Warning!
！

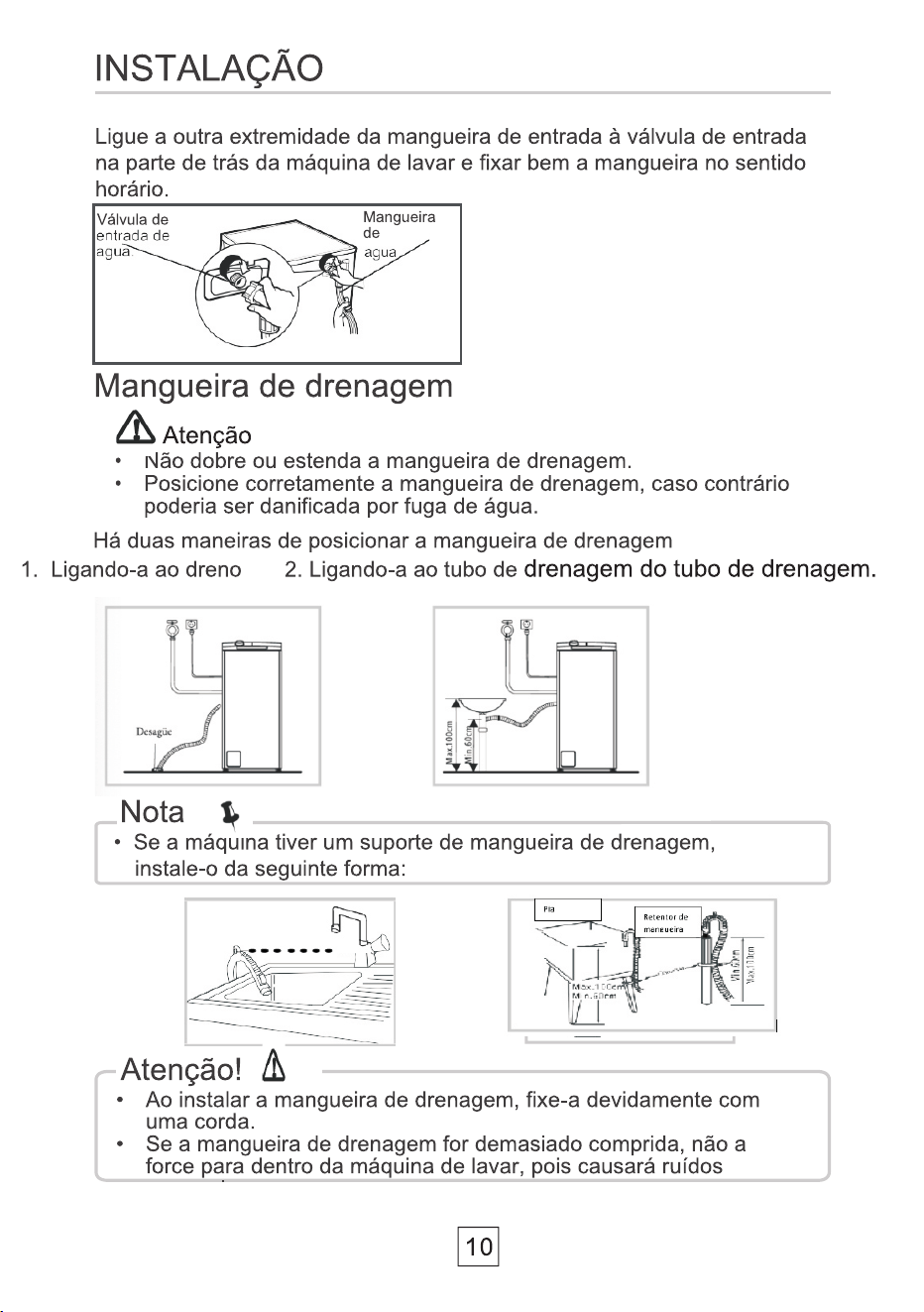

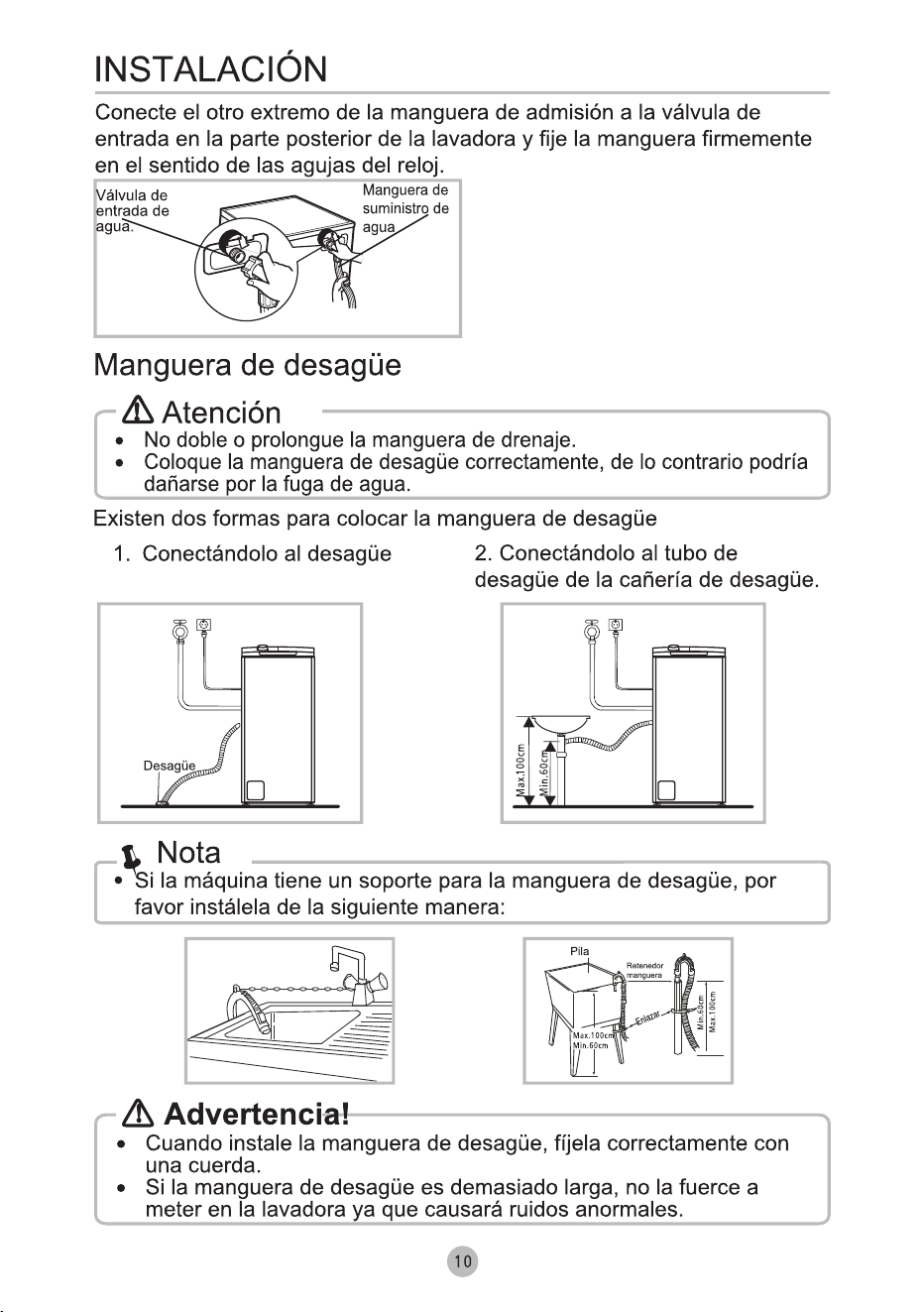

Drain Hose

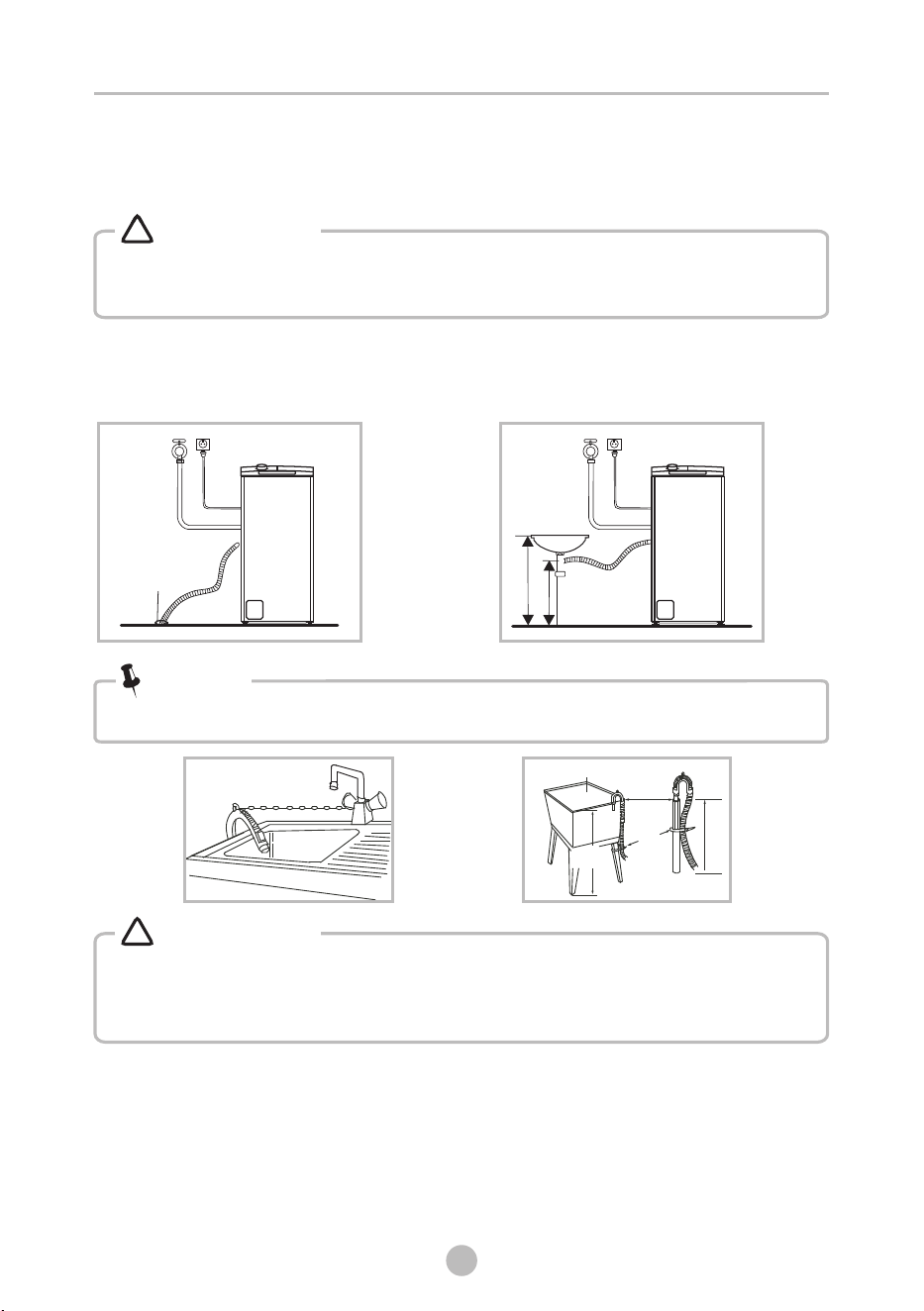

There are two ways to place the end of drain hose:
1.Put it into the water trough.2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
•Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Water
trough
Min
.60cm
10
0cm
Max
.
Trough
Hose Retainer
Bi
nd
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has • drain hose support, please install it like the following .
Warning!
！
Warning!
！
Note!
12

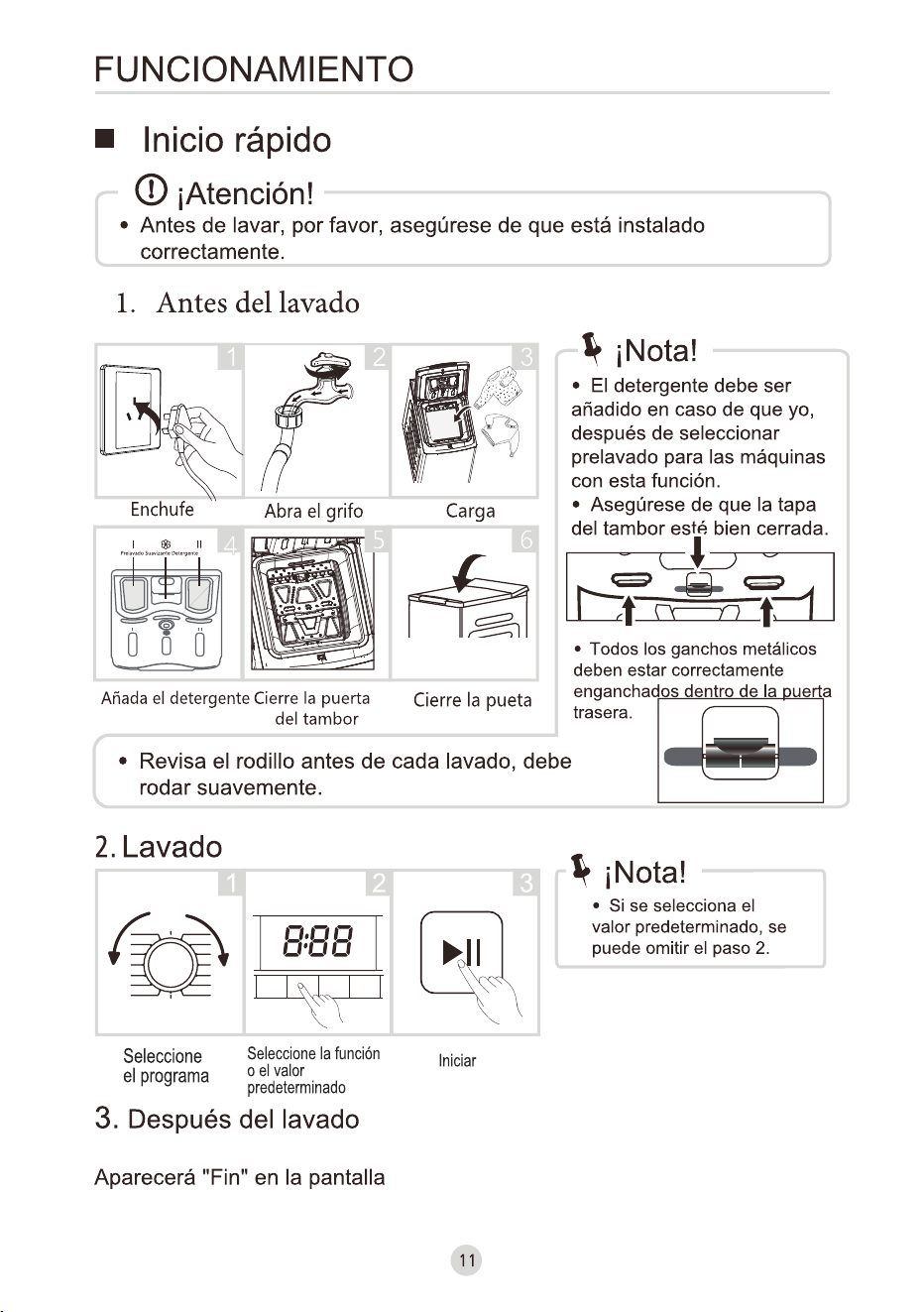

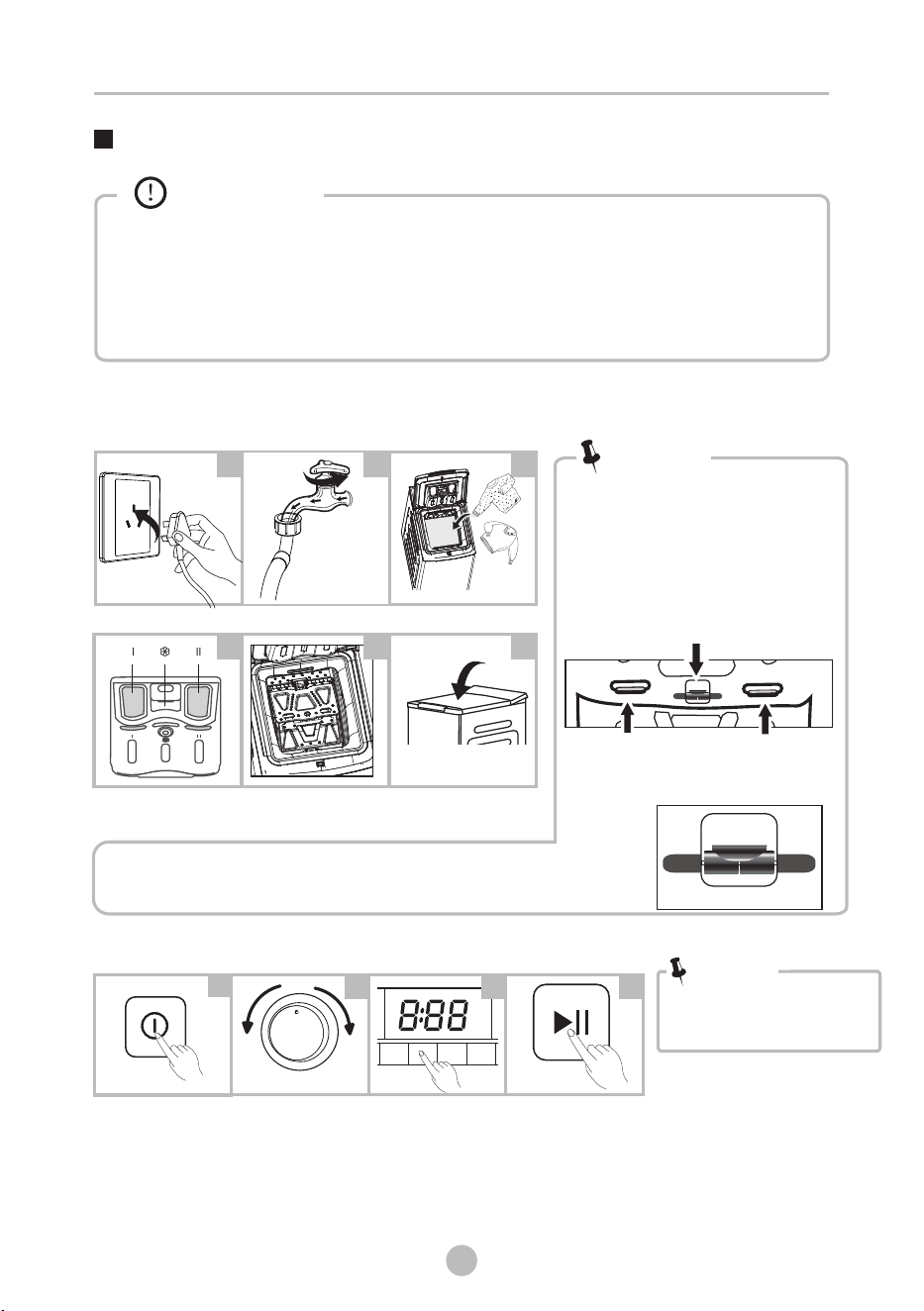

Quick Start
OPERATION
• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove
any residual water and to neutralize potential odors, it’s recommended to
clean your appliance before first use. For this reason, start the Drum Clean
without laundry and detergent.
Caution!
1. Before Washing
Open tap
Load
Close
machine door
Plug in
Add detergent
• Detergent need to be added
in "case I “after selecting
pre-washing for machines
with this function.
• Make sure that the drum flaps
are properly locked.
• All metal hooks must be
properly hooked inside the rear
door flap.
123
56
Note!
Prewash
Softener
Main wash
4
Close
drum door
• Check the roller before each laundry ,it must roll smoothly.
2. Washing
Select programme
Select function or
remain default
settings
Press
Start/Pause to
start the program
234
Power On
1
All lights off.
3. After Washing
• Step 3 is optional.
Note!
13
INSTALLATION
14
• Please make sure to assemble the acoustic sponges, which can effectively
reduce the noise caused by the machine while working, in order to provide
you with a more peaceful and quiet living environment.
Note!
Acoustic Sponge
2x
2x
1. Get the machine laid on the floor, using some soft material like foam or clothes
between the machine and floor for a protection;
2. Stick the 2x longer sponges to the longer bottom edges of machine, and the 2x
shorter sponges to the shorter bottom edges.
• Do not wash articles that have been cleaned in, washed in, soaked in,
or dabbed with combustible or explosive substances like wax, oil, paint,
gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause
alarm due to unbalance. Therefore it is suggested to add one or two more
laundry items to the wash so that spin can be done smoothly.
Do not wash, or spin water-proof seats, mats, or clothing.
•
• The ambient temperature of the washing machine should be 5-40°C. If used under
0°C, the inlet valve and draining system may be damaged. If the machine is
installed under freezing conditions, it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose can unfreeze before
use.
• Please check your laundry care labels and the detergent use instructions before
wash. Use non-foaming or less-foaming detergent suitable for machine
washing properly.
Tie together long textile
strips and belts, close zips
and button
Take all items out of the
pockets
Put small items into a
laundry bag
Check the care label

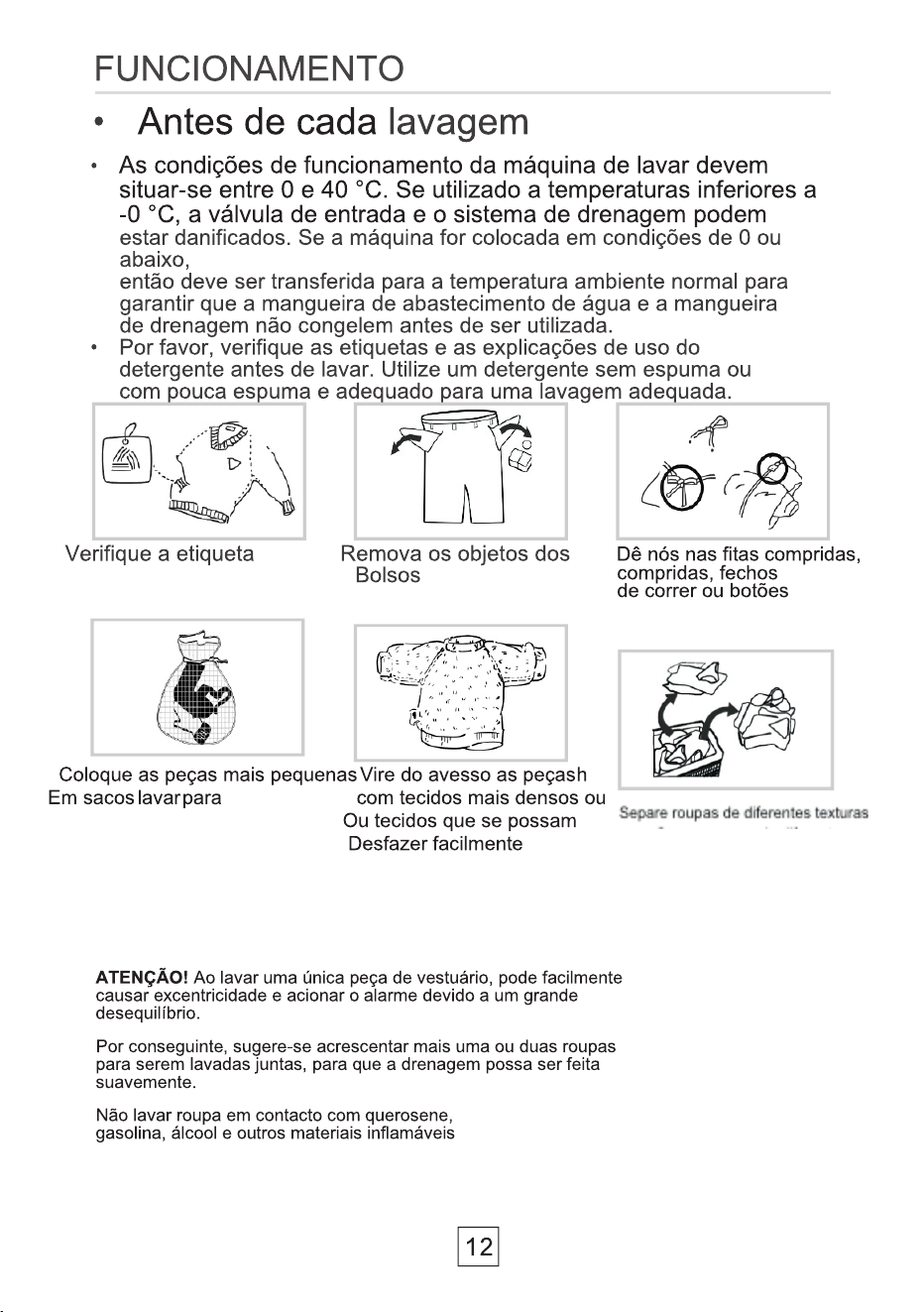

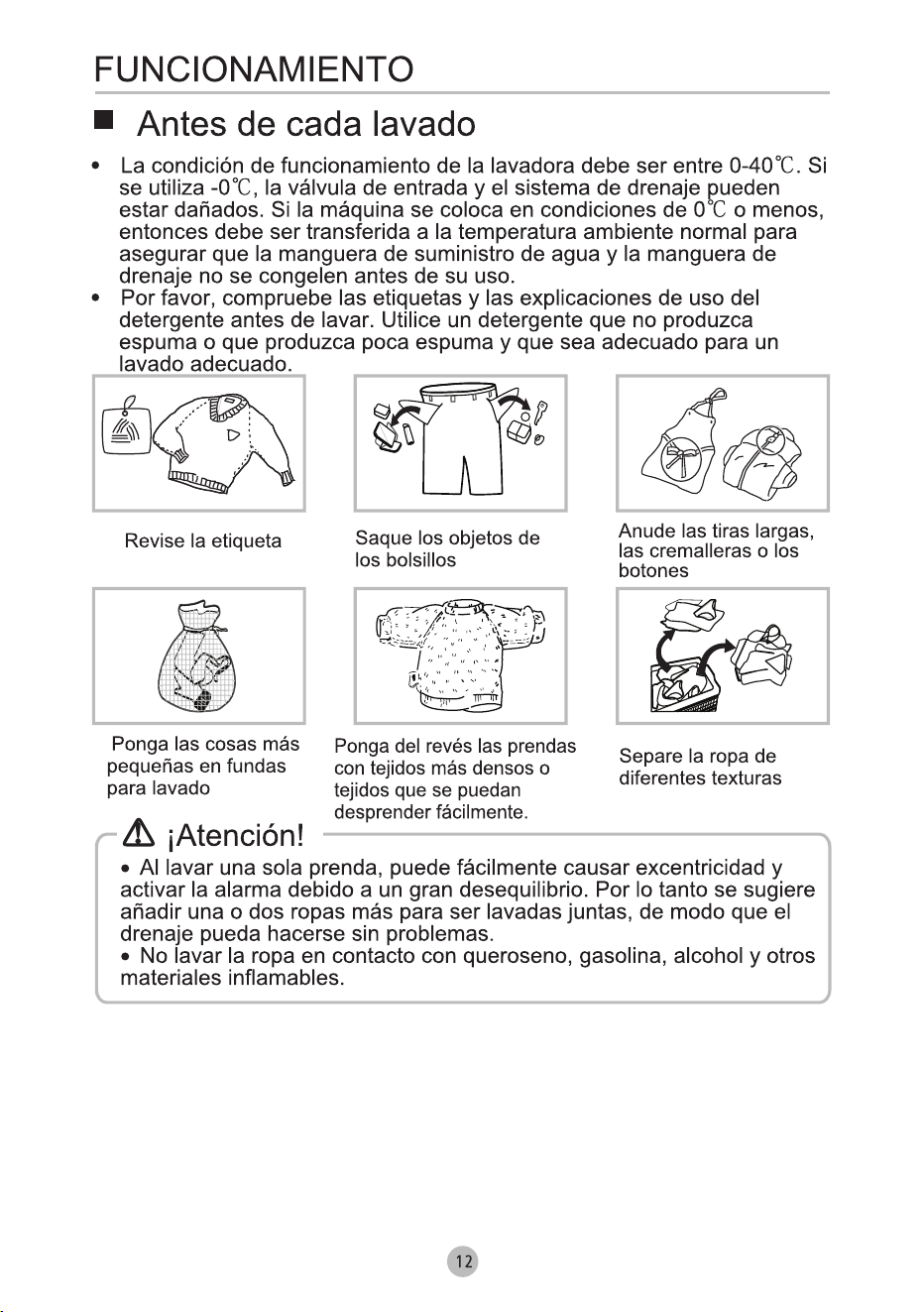

Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Sort laundry according to
color and textile type
Warning!
！
OPERATION
123
456
15
OPERATION

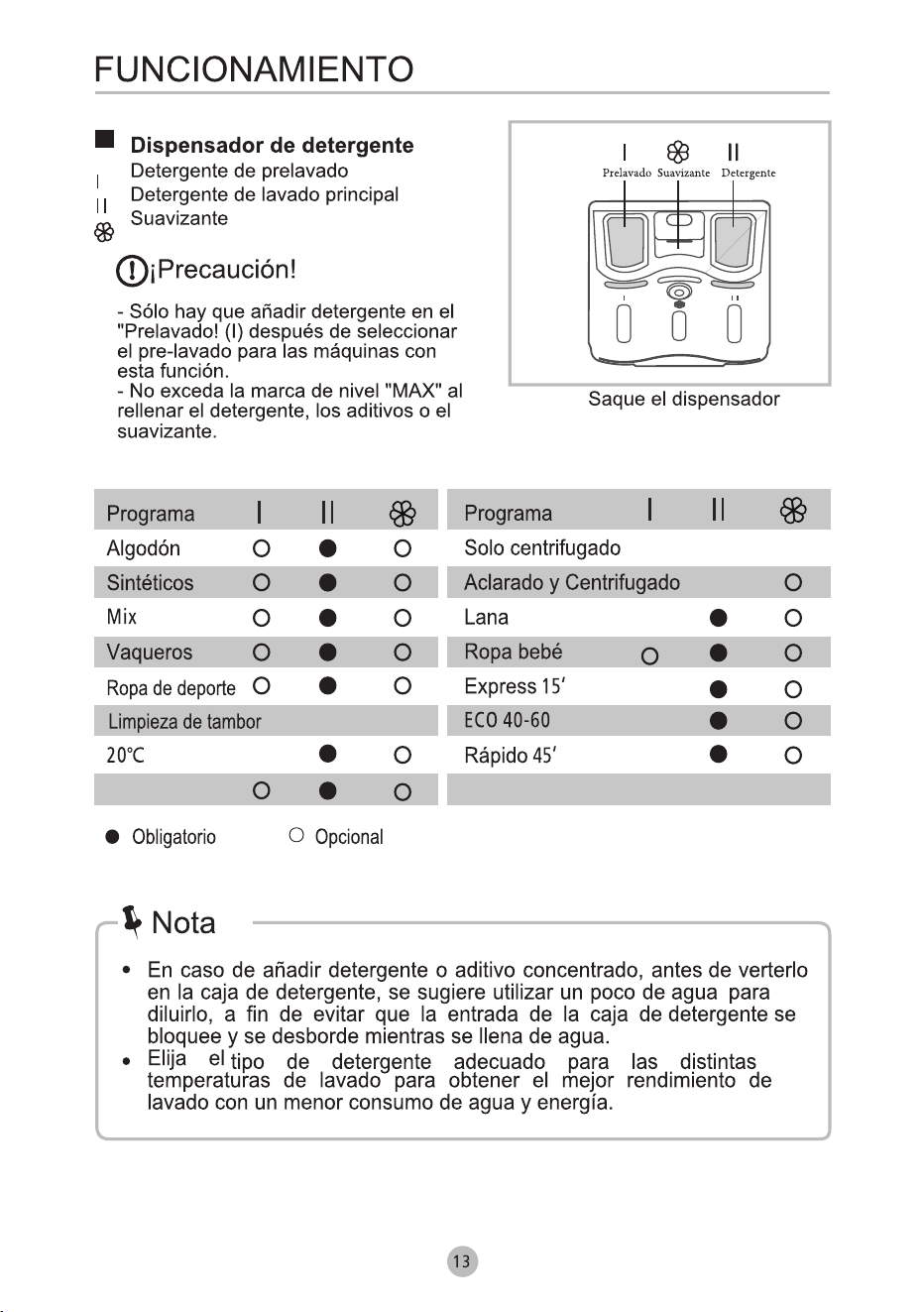

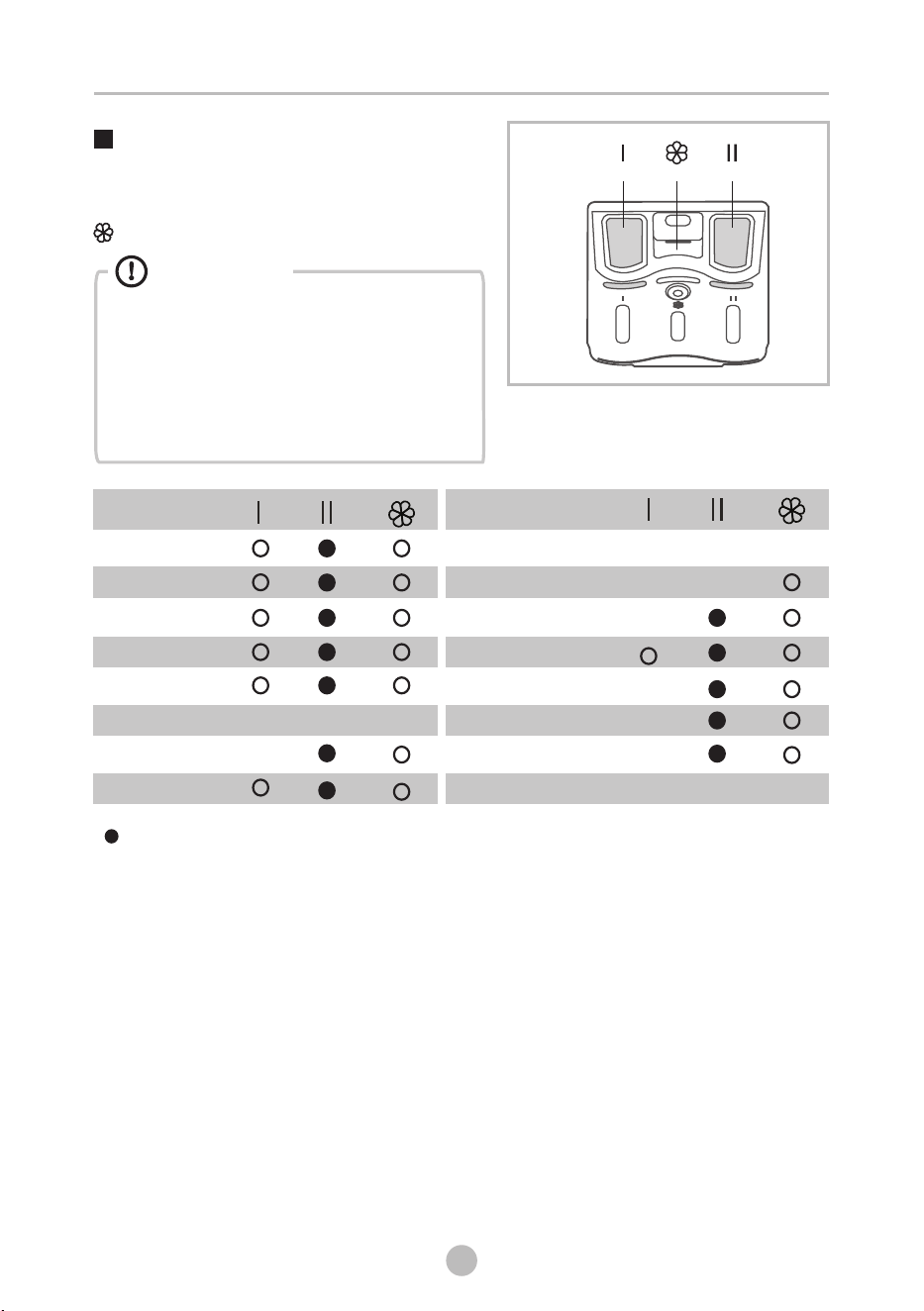

Detergent Dispenser
Pre Wash detergent
Main Wash detergent
Softener
II
I
Pull out the dispenser
Caution!
• Detergent only need to be added in
"case I “after selecting pre-washing
for machines with this function.
• Do not exceed the “MAX”level mark
when filling in detergent,additives or
softener.
Pre Wash
Softener
Main Wash
Programme
Cotton
Synthetic
Mix
Jeans
Sportswear
Drum Clean
20℃
Steam
Means must ○ Means optional
Programme
Spin Only
Rinse & Spin
Wool
Baby Care
Quick 15’
ECO 40-60
Rapid 45’
16
Detergent Recommendation
OPERATION
Agglomerating or ropy detergent or additive can be diluted in some water
before pouring it into the detergent dispenser, to avoid its inlet to get blocked
and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap
water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less
detergent.
• Highly concentrated (compact detergent) requires particularly accurate
dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element and/or the
laundry
•
Note!
17
Recommended washing
detergent
Heavy-duty detergent with
bleaching agents and
optical brighteners
Colour detergent without
bleaching agent and optical
brighteners
Color or mild detergent
without optical brighteners
Mild washing detergent
Special wool detergent
Wash cycles
Cotton,Mix
Cotton,Mix
Synthetic
Synthetic
Wool
Washing
temp.
20/
40/60
2040/
Type of laundry and textile
White laundry made from
boil-proof cotton or linen
Coloured laundry made
from cotton or linen
Coloured laundry made
from easy care fibres or
synthetic materials
Delicate textiles, silk,
viscose
Wool
Cold/20/
40
Cold/20/
40
2040/
OPERATION

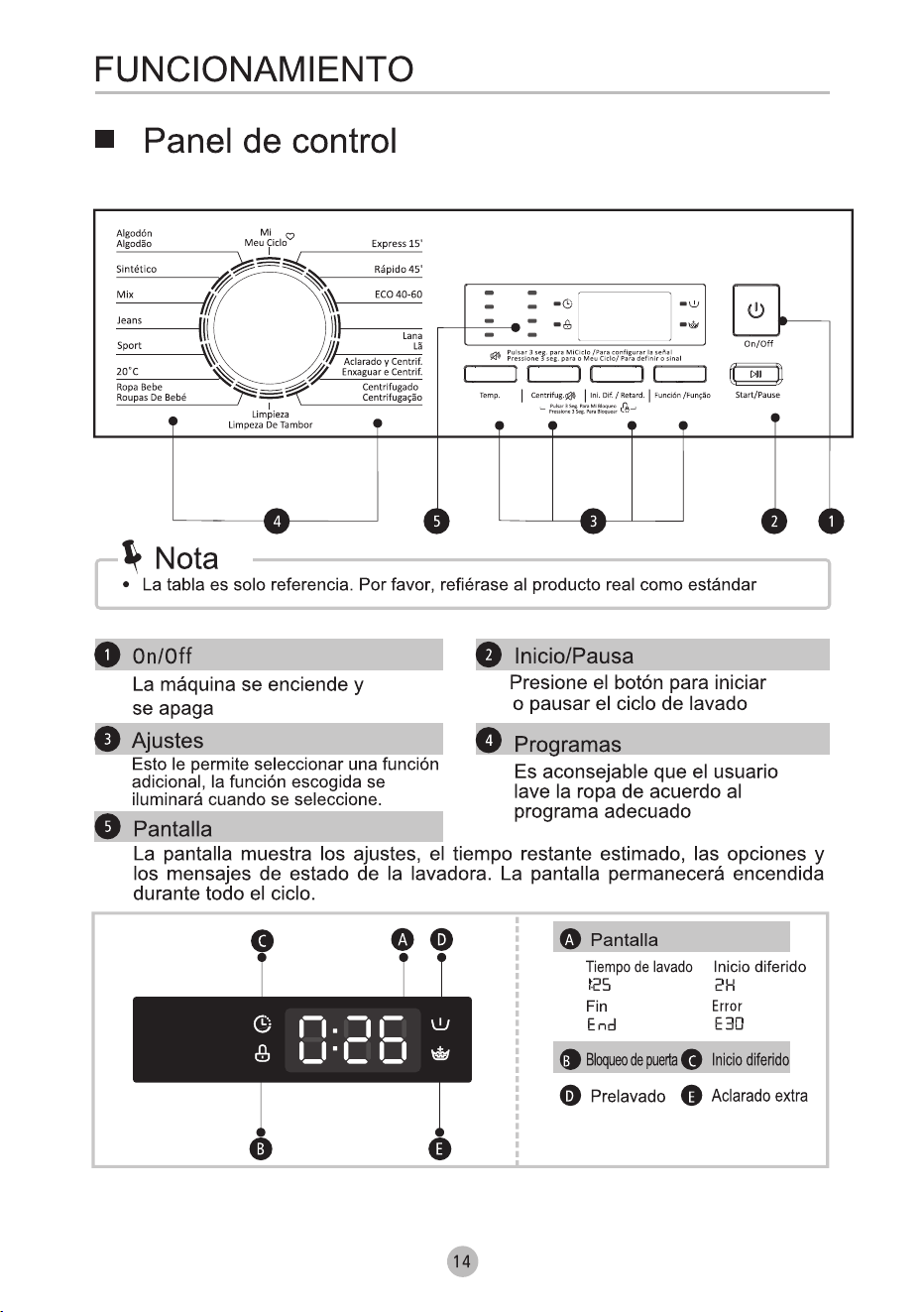

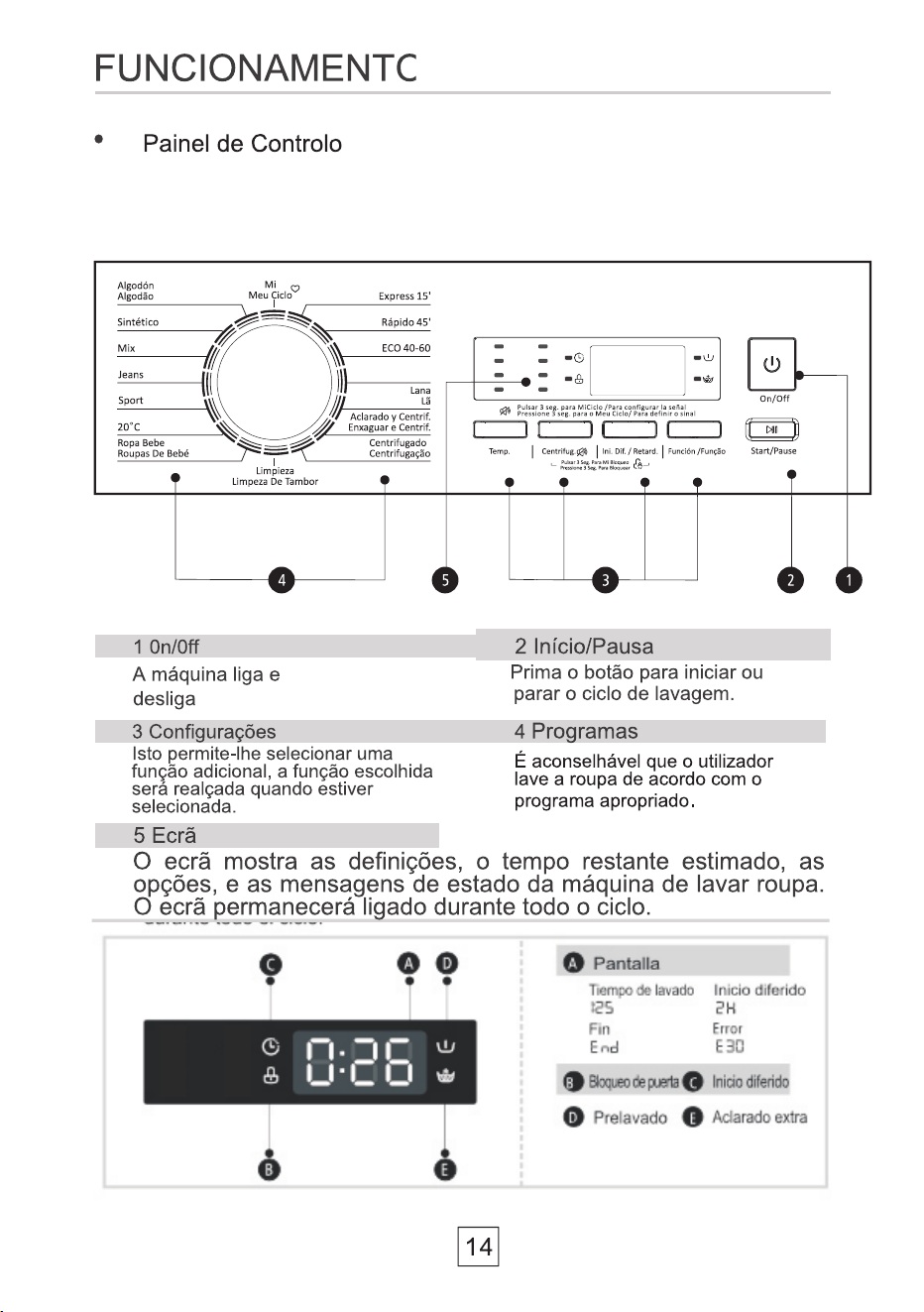

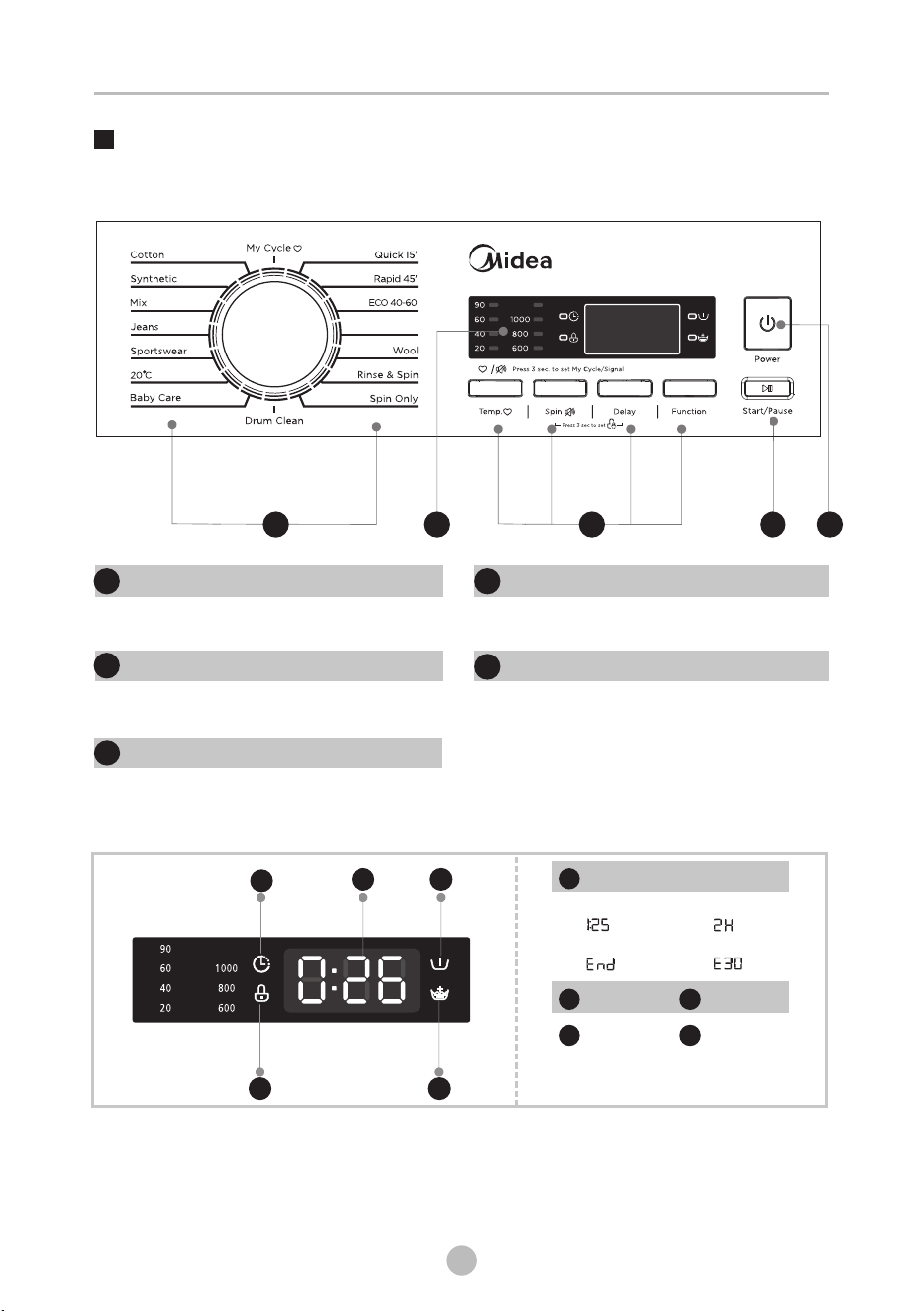

Control Panel
Power
Product is on/off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
3
1
2
4
1
1
Model:MFE75-JT1212B/F02E-EU(NA)
Door Lock
B
Pre Wash
D
Display
A
Wash Time Delay Time
End
Error
A
C
Delay
C
Extra Rinse
E
BE
D
1200
18
Steam
1200
5

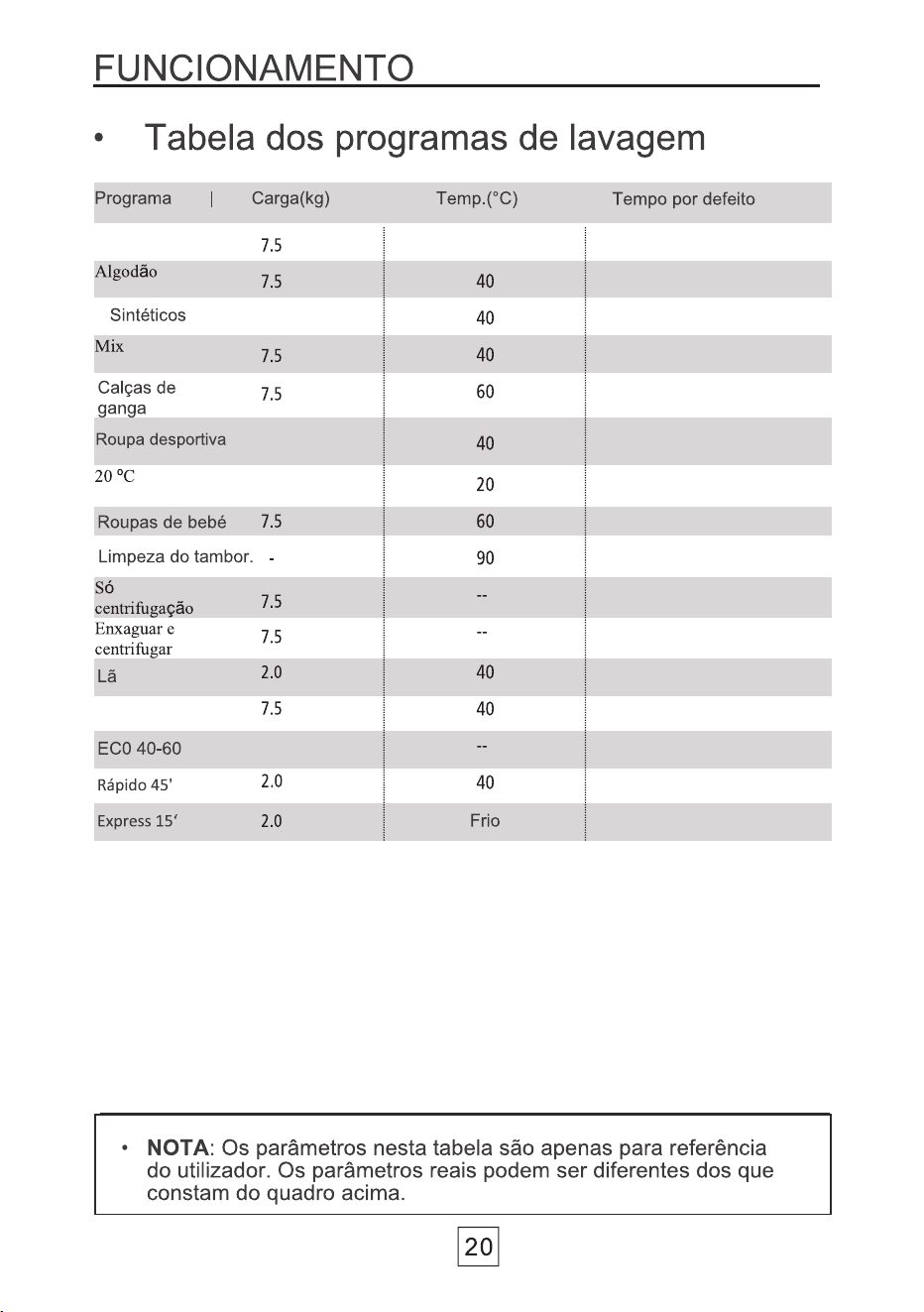

Programme
Load(kg)Display Time
Cotton
Synthetic
Mix
Jeans
Sportswear
20℃
Baby Care
Drum Clean
Spin Only
Rinse & Spin
Wool
Steam
ECO 40-60
Rapid 45’
Quick 15’
• The parameters in this table are only for user's reference. The actual parameters
maybe different with the parameters in above mentioned table.
Note!
2:40
2:20
1:20
1:40
0:47
1:01
2:01
1:18
0:12
0:20
1:07
1:47
3:33
0:45
0:15
7.5
2.0
3.5
7.5
2.0
-
7.5
3.5
3.5
7.5
7.5
7.5
3.5
7.5
2.0
7.5
OPERATION
Programmes
19

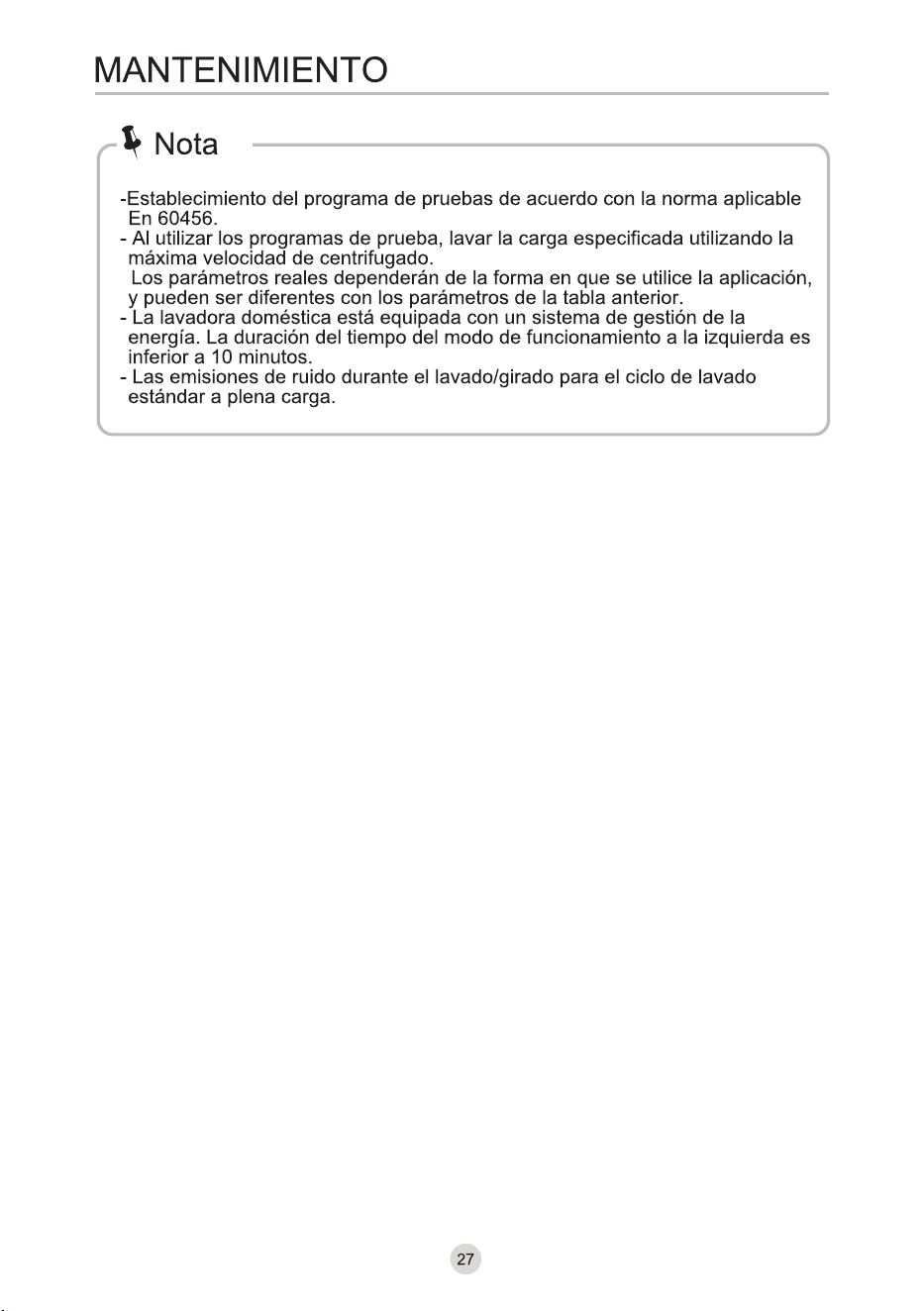

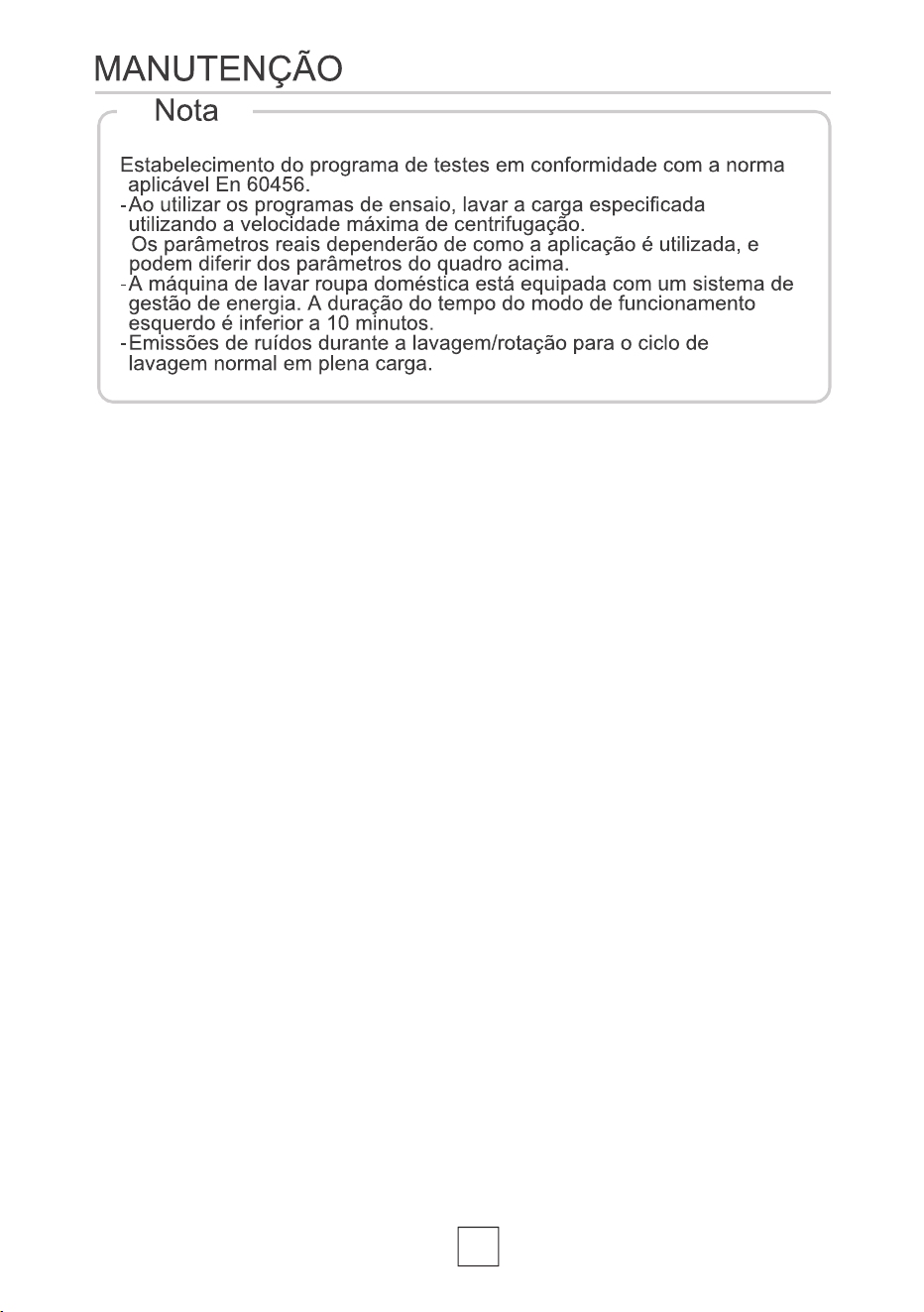

• The above data is for reference only, and the data may change due to different
actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme
are indicative only.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023,
The EU energy efficiency class is: A
Energy test program: ECO 40-60. Other as the default.
Half load for 7.5kg machine:3.5kg.
Quarter load for 7.5kg machine:2.0kg.
OPERATION
Programmes
20
Cycle
Nominal capacity in kg
Temperaturesetting
Cycleduration in hoursand
minutes
Energy consumption in
kWh/operalling cycle
Water consumption in
liter/operalling cycle
Highest temperature
℃
1)
R
esidual moitsurein % /spin
speed
2)
Quick 15‘2.0cold0:150.02633cold70%/800
20℃3.5201:010.18452070%/800
Cotton7.5602:451.342686053%/1200
Synthetic3.5402:200.596414035%/800
Mix7.5401:200.755684070%/800
7.5-3:330.70155-53.9%/1200
3.5-2:450.43645-53.9%/1200
2.0-2:450.18635-53.9%/1200
CLACSM7524D
ECO 40-60
3)
OPERATION
1) The highest temperature reached by the laundry in the wash cycle for at least 5
minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at
which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to
be washable at 40°C or 60°C, together in the same cycle. This programme is used to
assess the compliance with the regulation (EU) 2019/2023.
The most efficient programmes in terms of energy consumption are generally those that
perform at lower temperatures and longer duration.
Loading the household washer up to the capacity indicated for the respective
programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the higher
the spinning speed in the spinning phase, the higher the noise and the lower the
remaining moisture content.
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme. The machine will continue
the programme when the power supply is re-established.
21
OPERATION

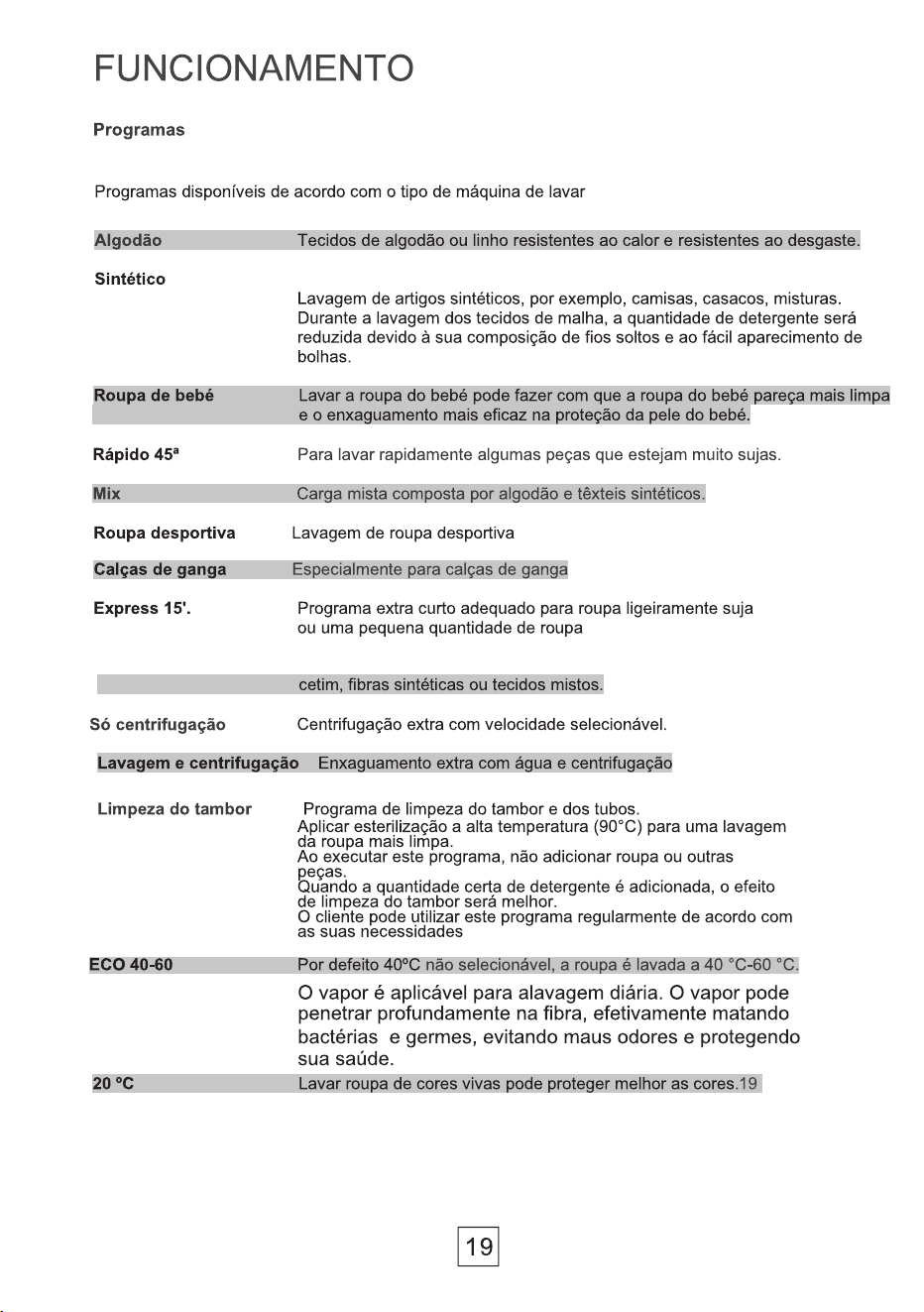

Programmes

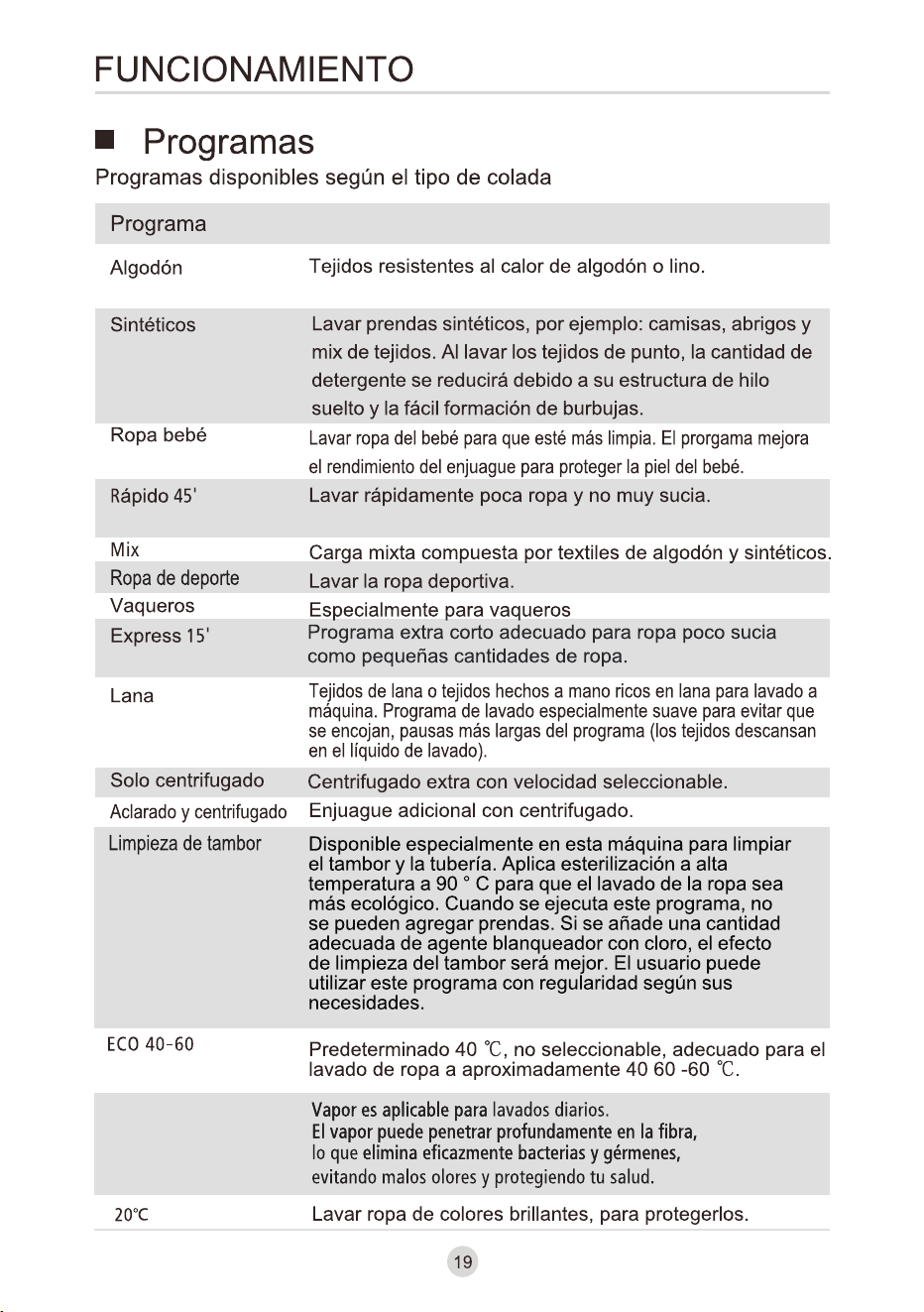

Programmes are available according to the laundry type.
Programmes
Quick 15‘
Wool
Mix
Cotton
Hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
Wash synthetic articles, for example: shirts, coats, blending.
While washing the knitting textiles, detergent quantity shall be
reduced due to its loose string construction and easily forming
bubbles.
Washing the baby’s clothes, it can make the baby's wear cleaner
and make the rinse performance better to protect the baby skin.
Washing few and not very dirty clothes quickly.
Mixed load consisting of textiles made of cotton and synthetic.
Washing the activewear.
Specially for jeans.
Extra short programme approx, suitable for lightly soiled
washing as a small amounts of laundry.
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer
programme pauses (textiles rest in wash liquor).
Spins and drains the water.
Rinses and then spins the laundry, and then drains the water.
Spin Only
Rinse&Spin
Baby Care
Jeans
Synthetic
Rapid 45‘
Sportswear
Drum Clean
Able to clean normally soiled cotton laundry declared to be
washable at 40 °C or 60 °C, together in the same cycle.
The Steam Wash can deeply penetrate the fiber, which effectively
eliminate bacterias and germs, preventing odors and protecting
health.
ECO 40-60
Steam
Specially set in this machine to clean the drum and tube. It
applys 90 °C high temperature sterilization to make the
clothes washing more green. When this programme is
performed, the clothes or other washing cannot be added.
When proper amount of chlorine bleaching agent is put in,
the barrel cleaning effect will be better. The customer can use
this programme regularly according to the need.
20℃
Able to clean lightly soiled cotton laundry, at a nominal
temperature of 20 °C.
22
OPERATION

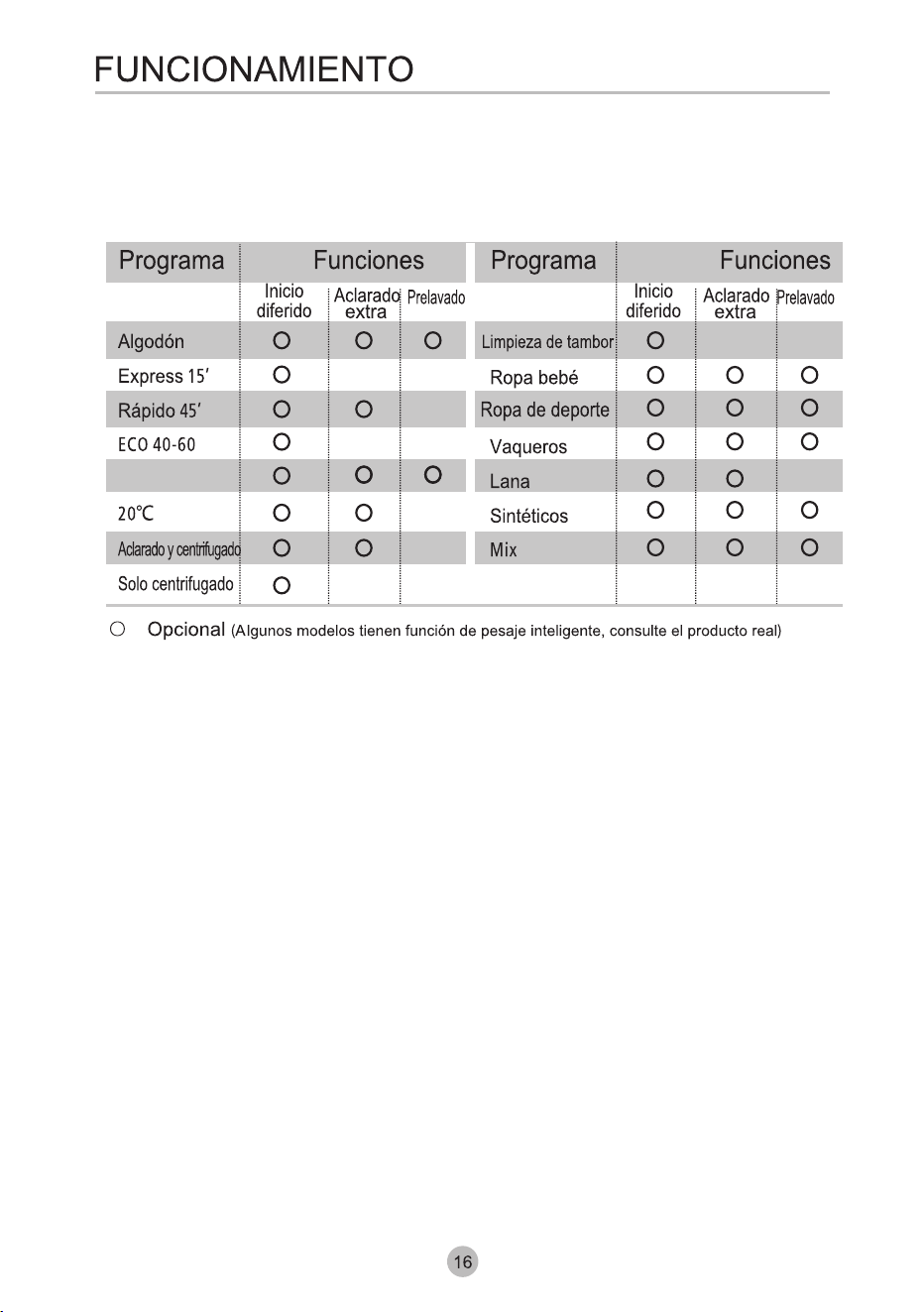

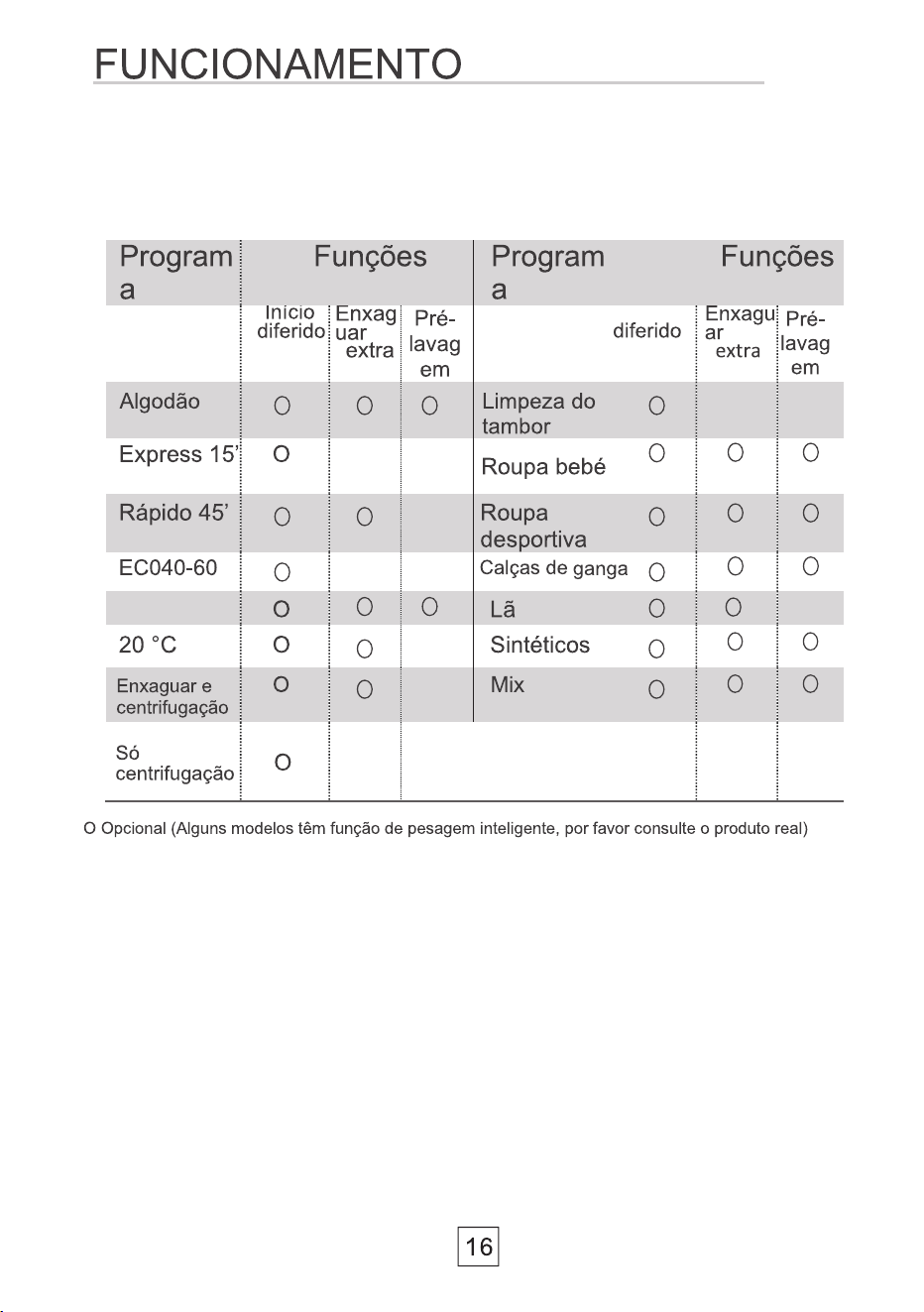

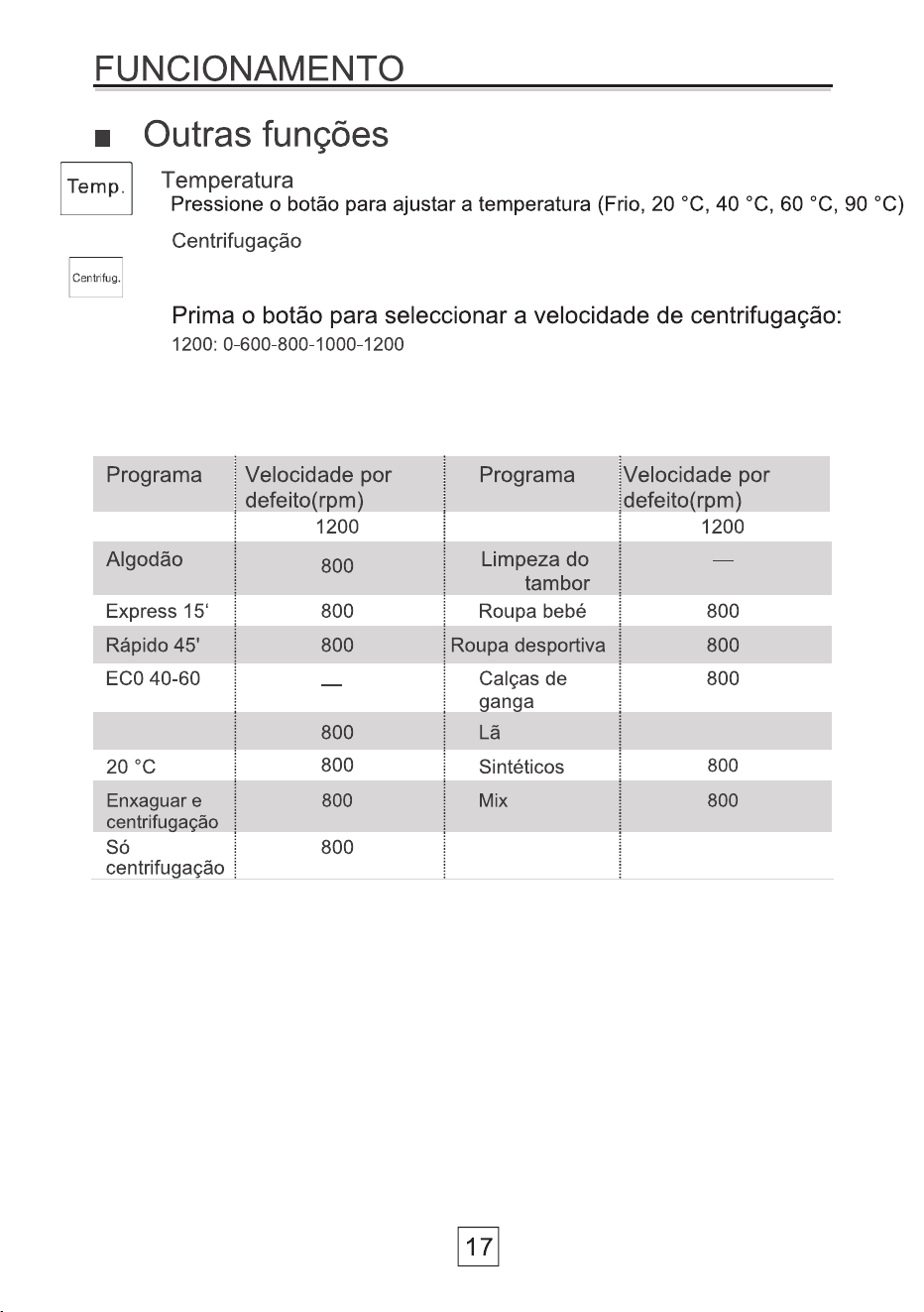

Option
1200
40
40
40
40
20
20
60
90
--
--
40
40
--
20
Cold
Default
Temp.(℃)

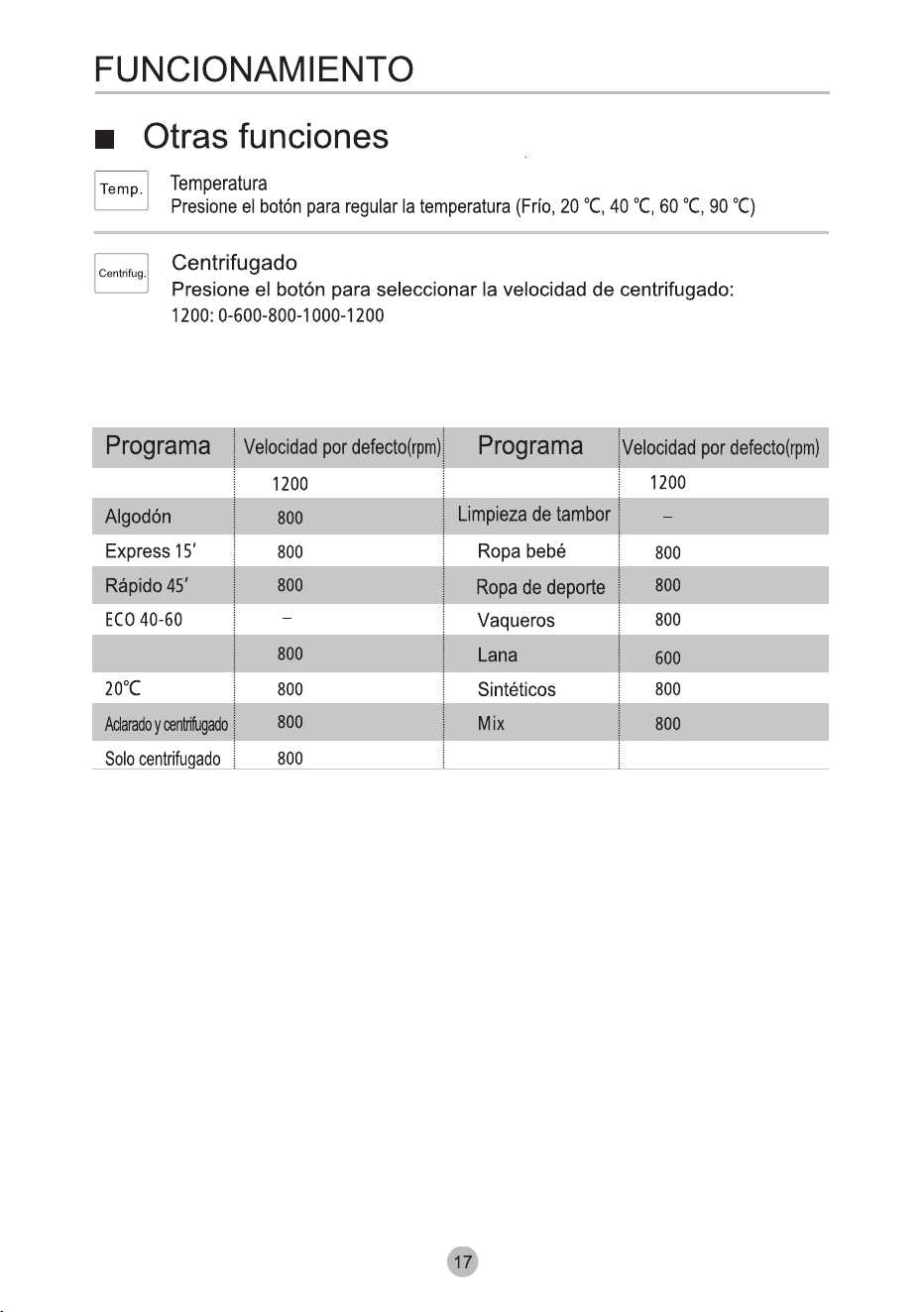

Default spin
speed in rpm
Cotton
Synthetic
Mix
Jeans
Sportswear
20℃
Baby Care
Drum Clean
Spin Only
Rinse & Spin
Wool
Steam
ECO 40-60
Rapid 45’
Quick 15’
For the maximum spin speed, program time, and other details of the
ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment.
•
Note!
800
800
800
800
800
800
800
--
800
800
600
800
--
800
800
23
OPERATION

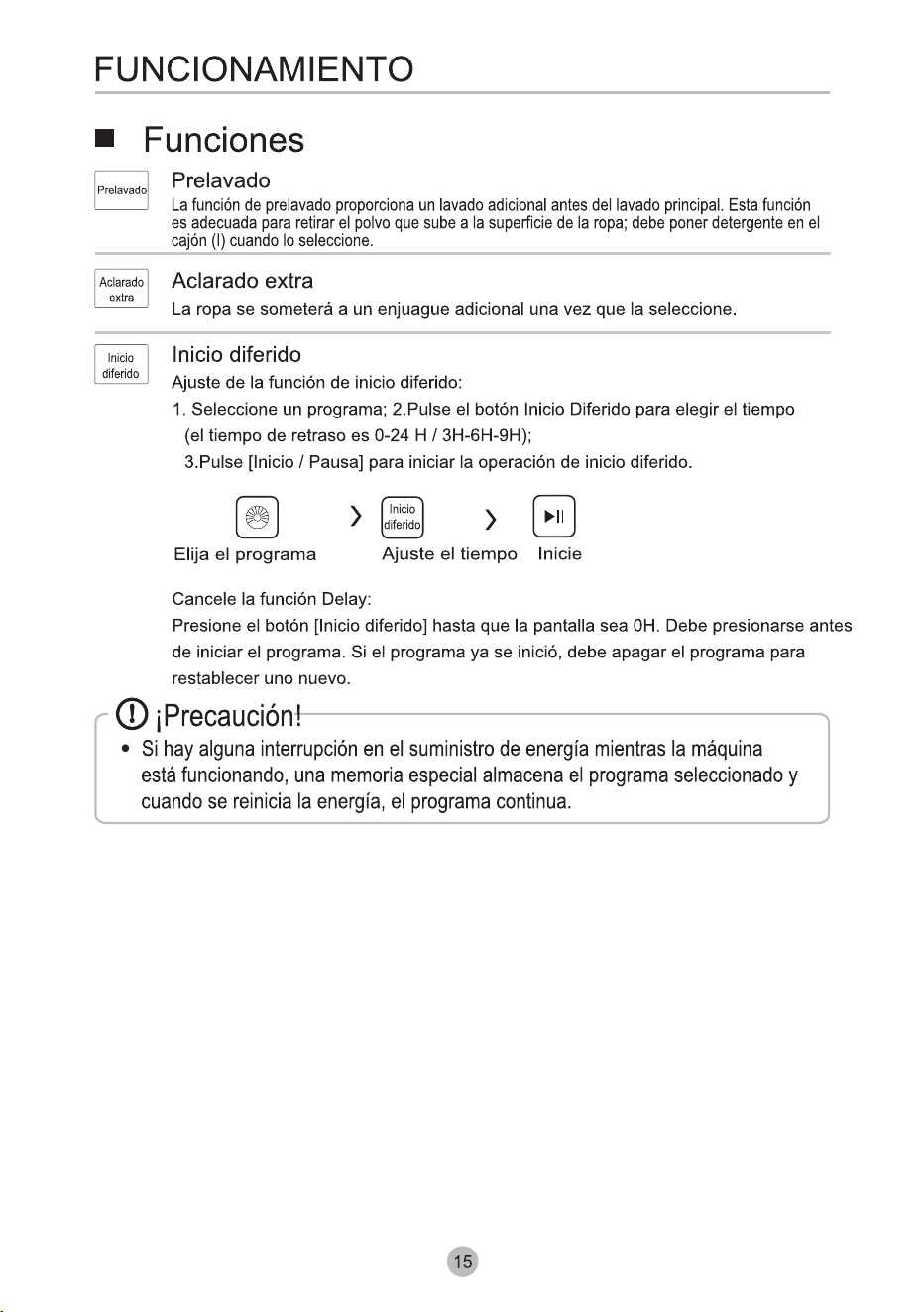

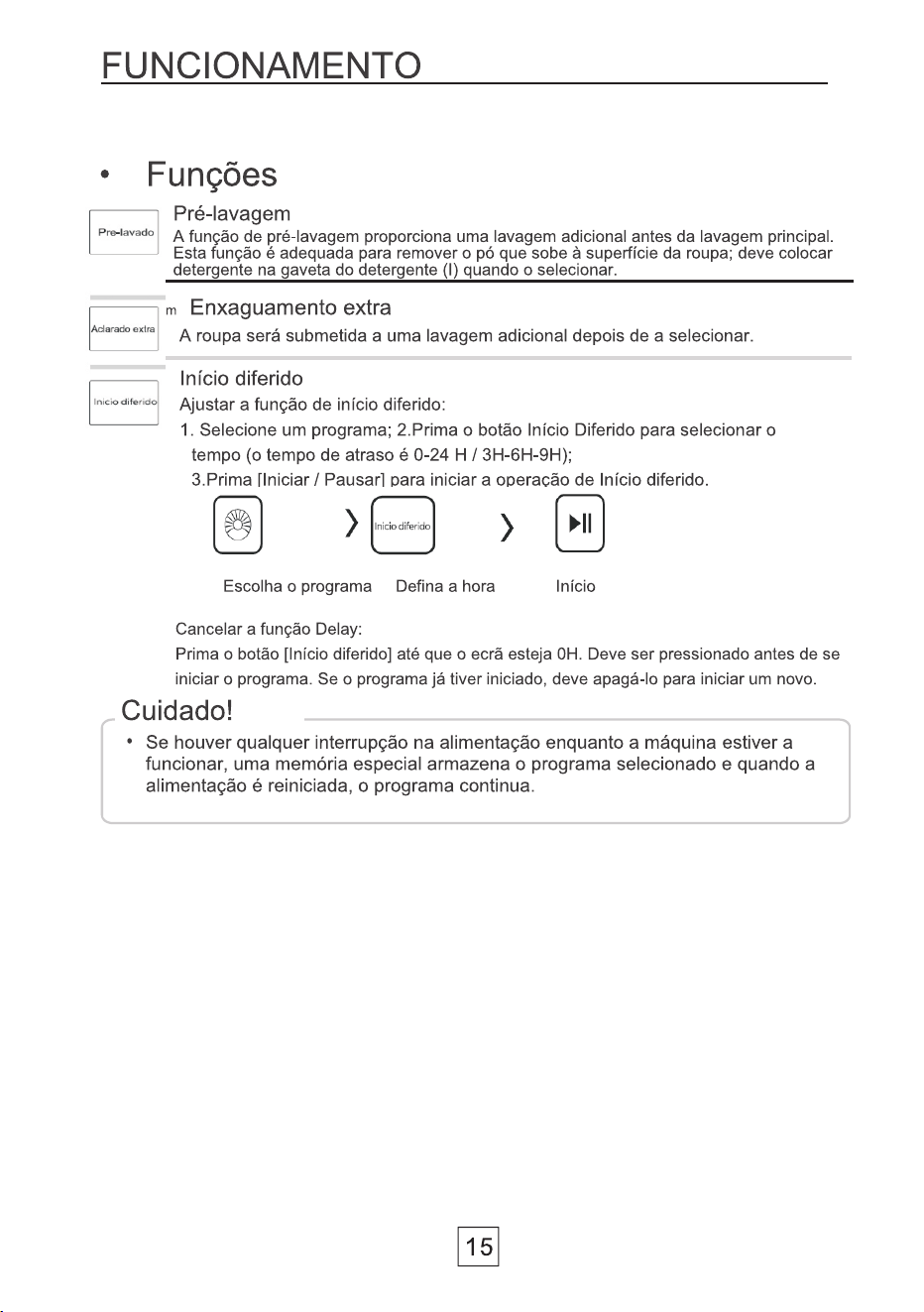

Delay
Set the Delay function:
1. Select a programme; 2.Press the Delay button to choose the time0-24H;
3.Press [Start/Pause] to commence the delay operation
Choose the Programme
Start
Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the
programme. If the programme already started, should switch off programme to reset a new one.
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, the program will continue.
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.
Spin
Press the button to change the speed.
1200: 0-600-800-1000-1200
Temp.
℃,Press the button to regulate the temperature(Cold,20 40℃,60℃,90℃)
Spin
24
My Cycle
To memory the frequently used programme.
After choosing the programme and setting the options, press [Temp.] 3 sec. before
start to wash.The default setting course is Cotton.

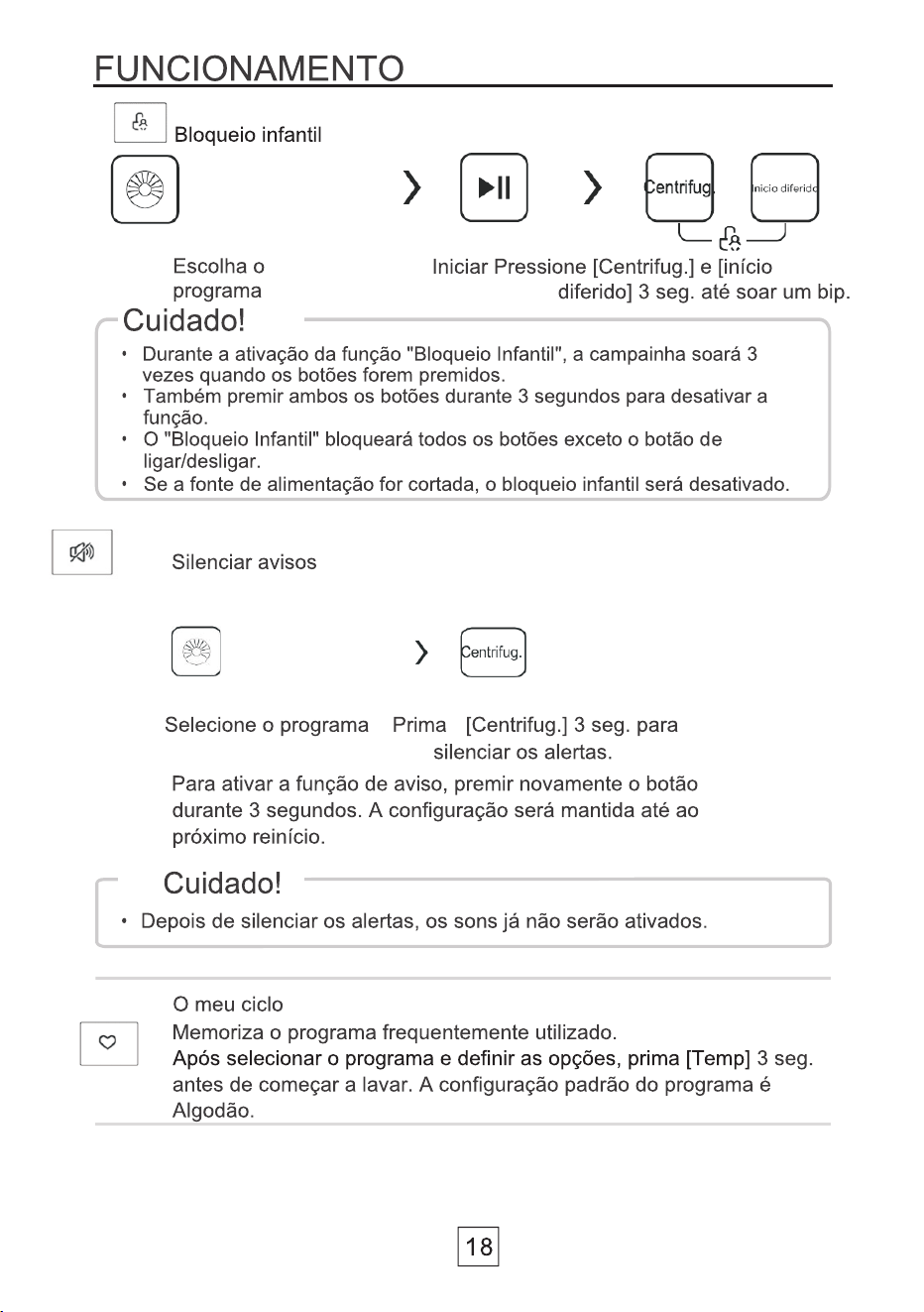

Mute the buzzer
To act the buzzer function, press the button again for 3 seconds. The setting
until the next reset.
will be kept
• MuAfter ting the buzzer function, the sounds will not be activated any more.
Caution!
Press the [Spin]button for 3sec.,
the buzzer is mute.
Spin
Choose the Programme
Cut off the power supply , the kid’s protection is to be released.
• During the “Child Lock”function is activing, the buzzer will beep,When the
buttons are pressed.
• Press the two button 3sec. also to be released the function.
• The “Child Lock” will lock all buttons except Power button.
•
Caution!

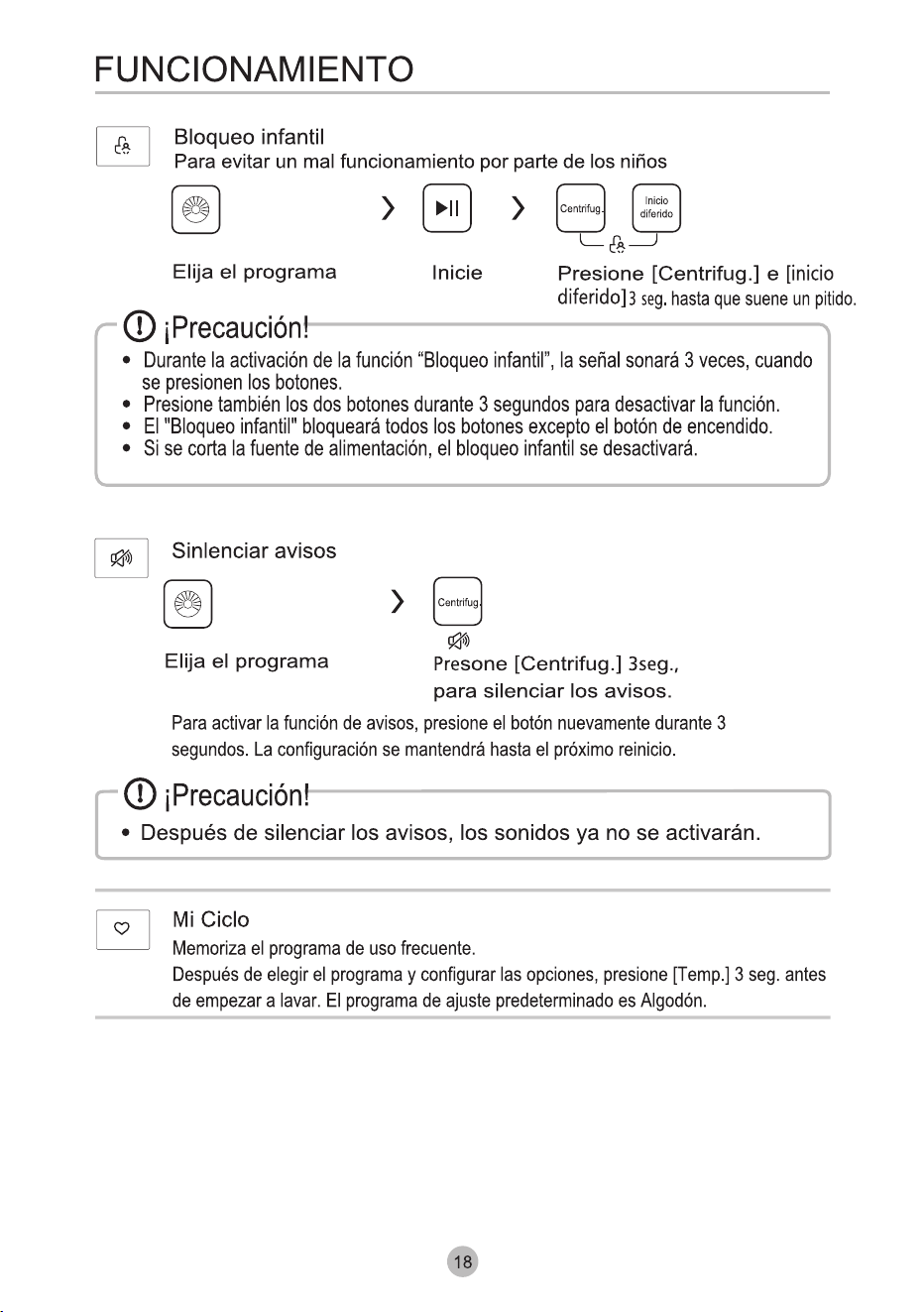

Child Lock
To avoid mis operation by children.
Start
Press [] and []
3 sec. till buzzer beep.
SpinDelay
Spin
Choose the Programme
Delay
OPERATION
25
Usage counter
1Unplug the equipment for 10s and reconnect again.
2Power on and within 10s, please press " Temp." and "Function" on control panel
for around 5s until the device display shows
digits--the value can indicate the times of equipment usage.
3Repeat step 1 again and customer can resume to normal operation.
.
.
simultaneously and continuously
.
Note!

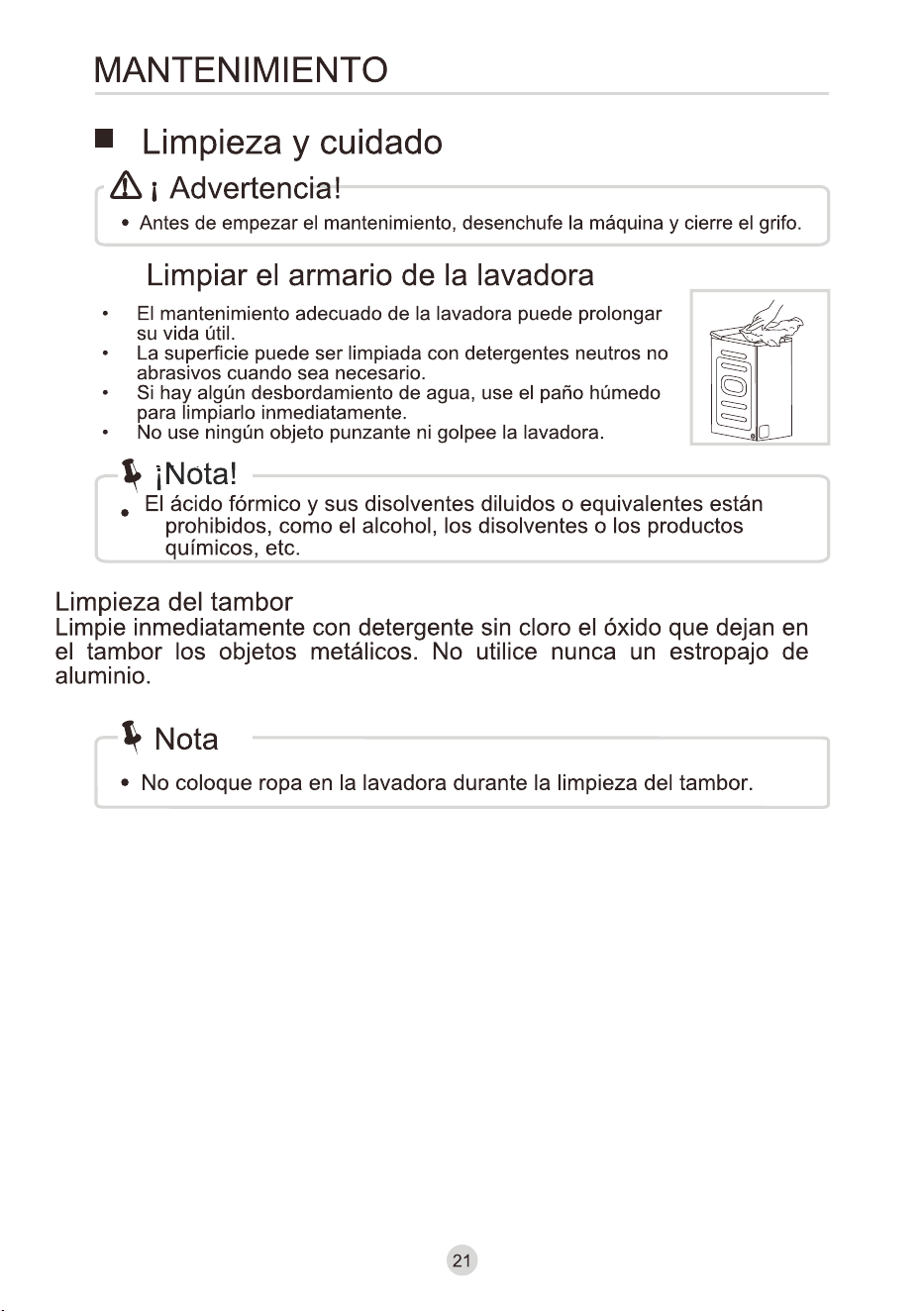

MAINTENANCE
• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning The Cabinet
Cleaning The Drum
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
• Don’t put laundry in the washing machine during the drum cleaning.
Warning!
！
Note!
Note!

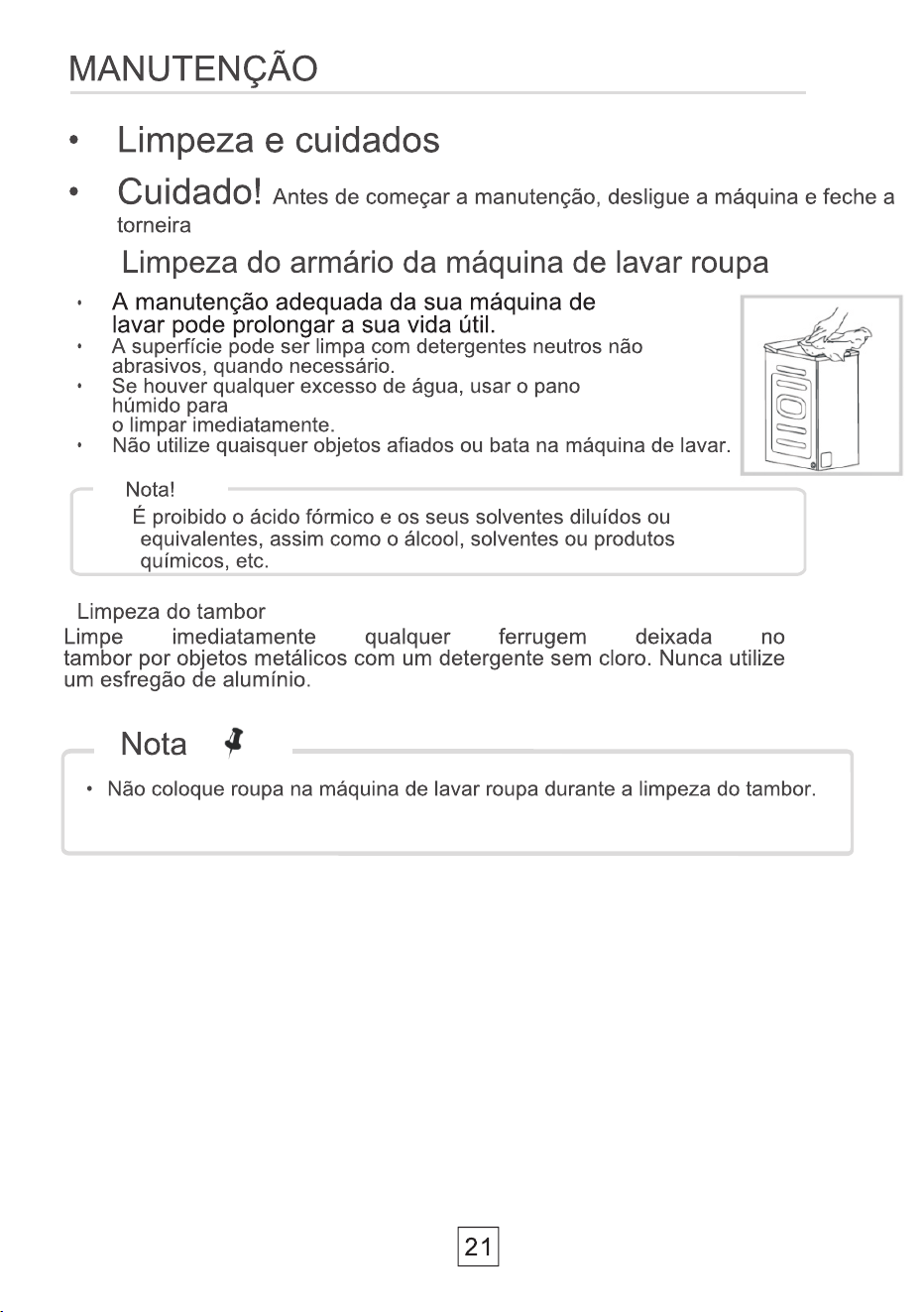

Cleaning and Care
The rusts left inside the drum by the metal articles shall be removed immediately
with chlorine-free detergents.
Never use steel wool.
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
26
MAINTENANCE

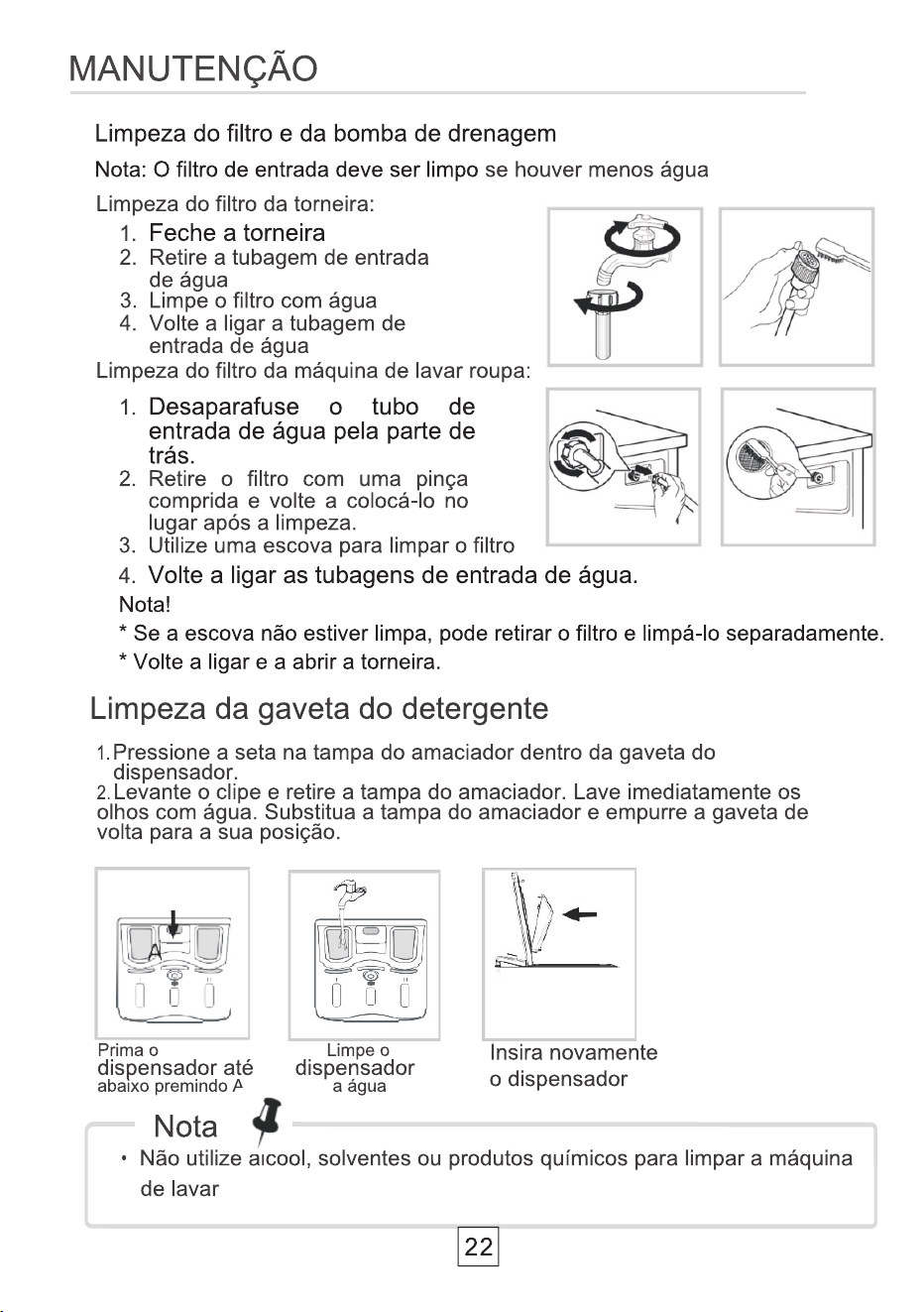

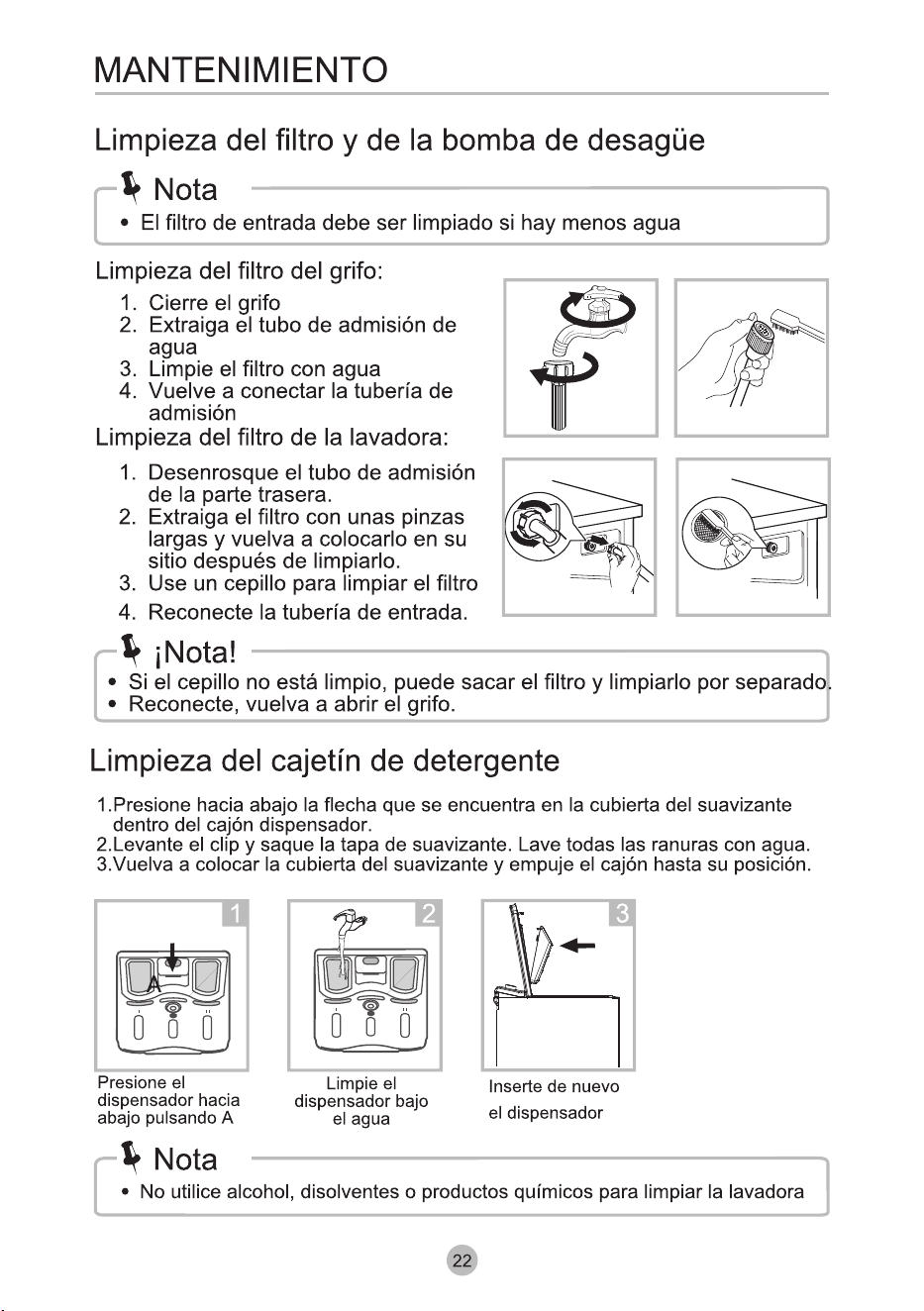

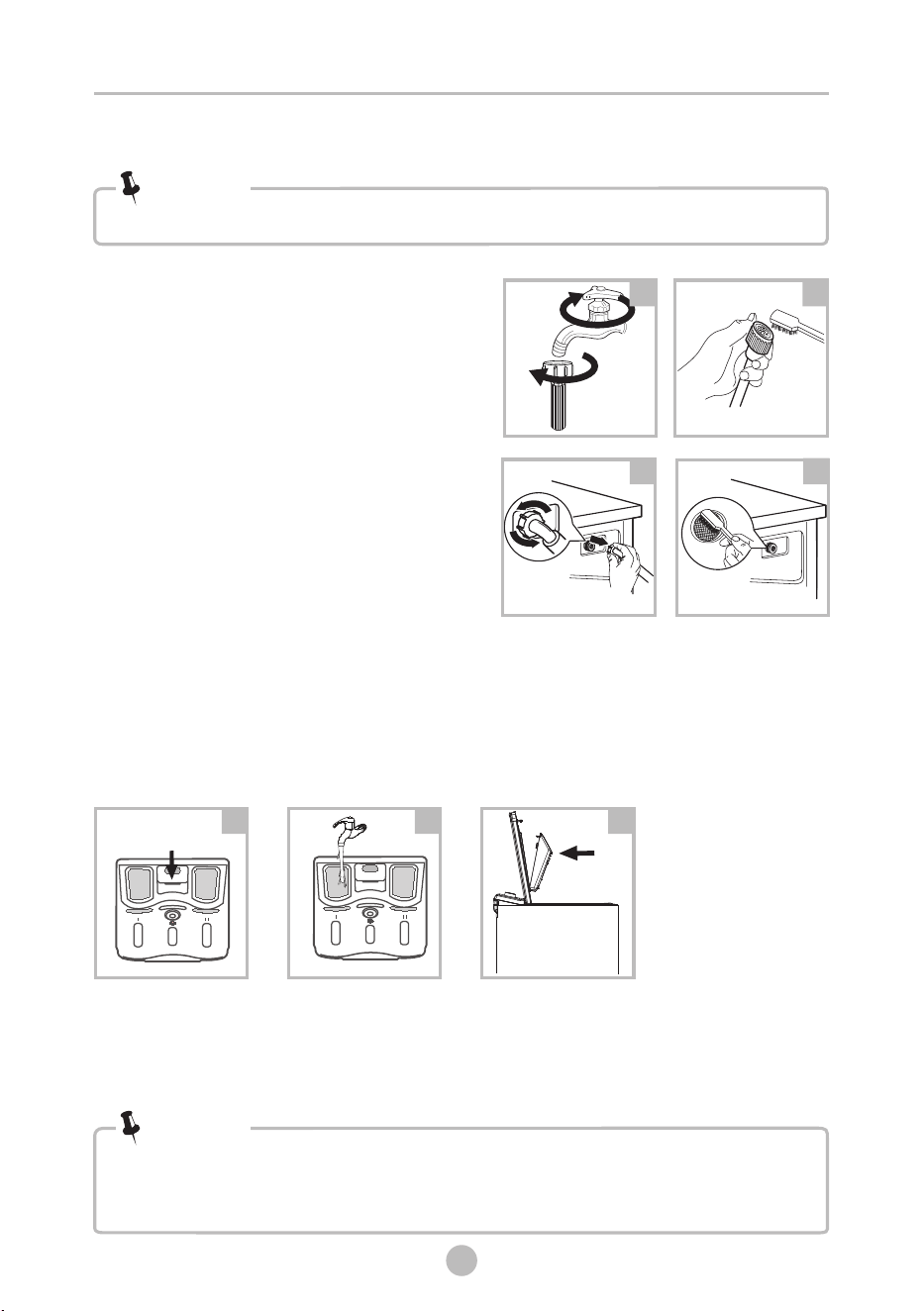

1. Close the tap and remove the water supply
hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the
backside of the machine. Pull out the filter
with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and
reconnect the water supply hose.
6. Clean the Inlet filter every 3 months
to ensure the normal operation of the
appliance.
Cleaning the Inlet Filter
• Diminishing water flow is a sign that the filter need to be cleaned.
Note!
12
34
Clean The Detergent Dispenser
A
Pull out the dispenser
drawer with press the A
Clean the dispenser
drawer under water
Insert the dispenser
drawer
1
2
3
1.Press down the arrow location on softener cover inside the dispenser drawer.
2.Lift the clip up and take out softener cover and wash all grooves with water.
3.Restore the softener cover and push the drawer onto position.
• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the
appliance.
Note!
27
MAINTENANCE

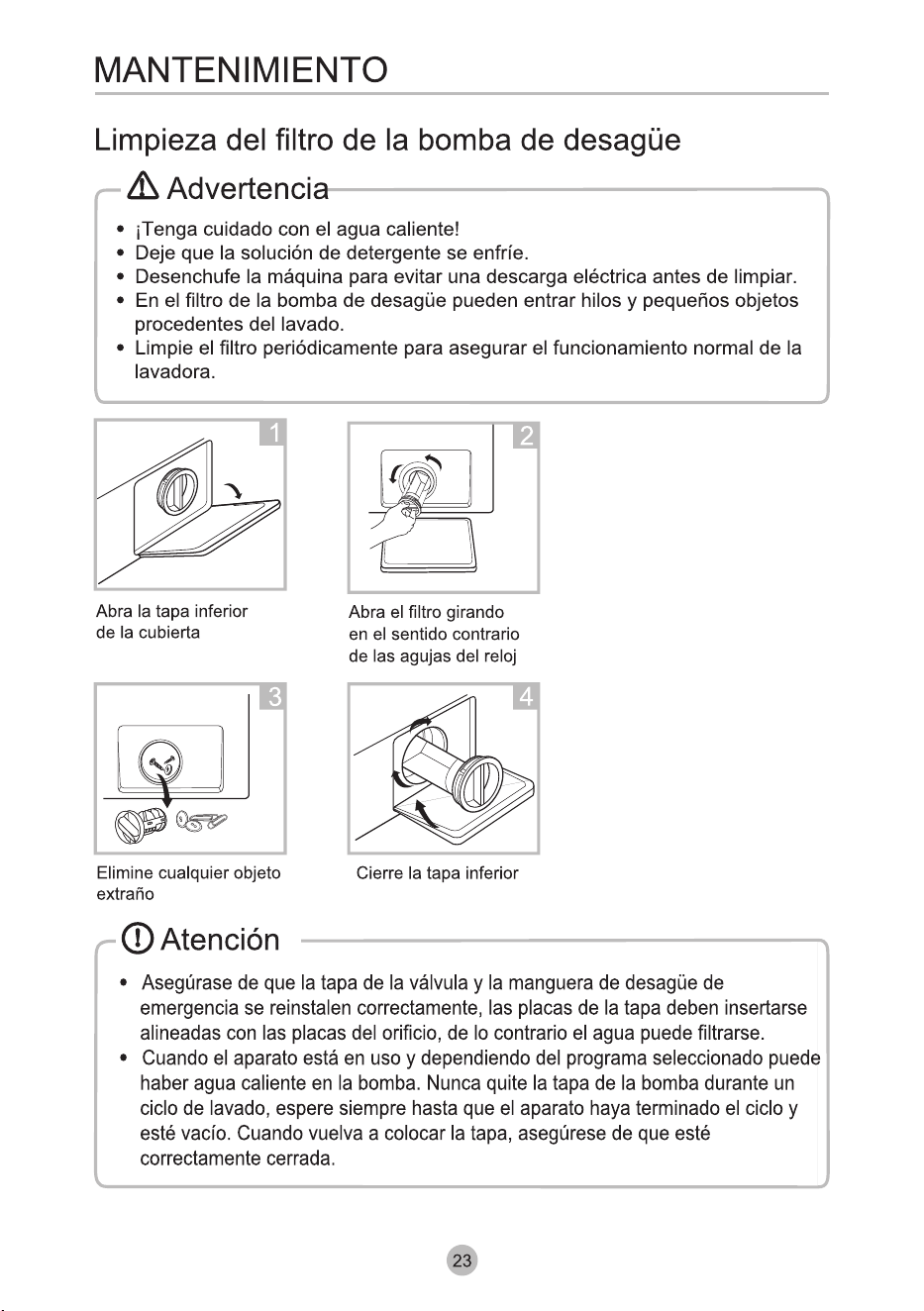

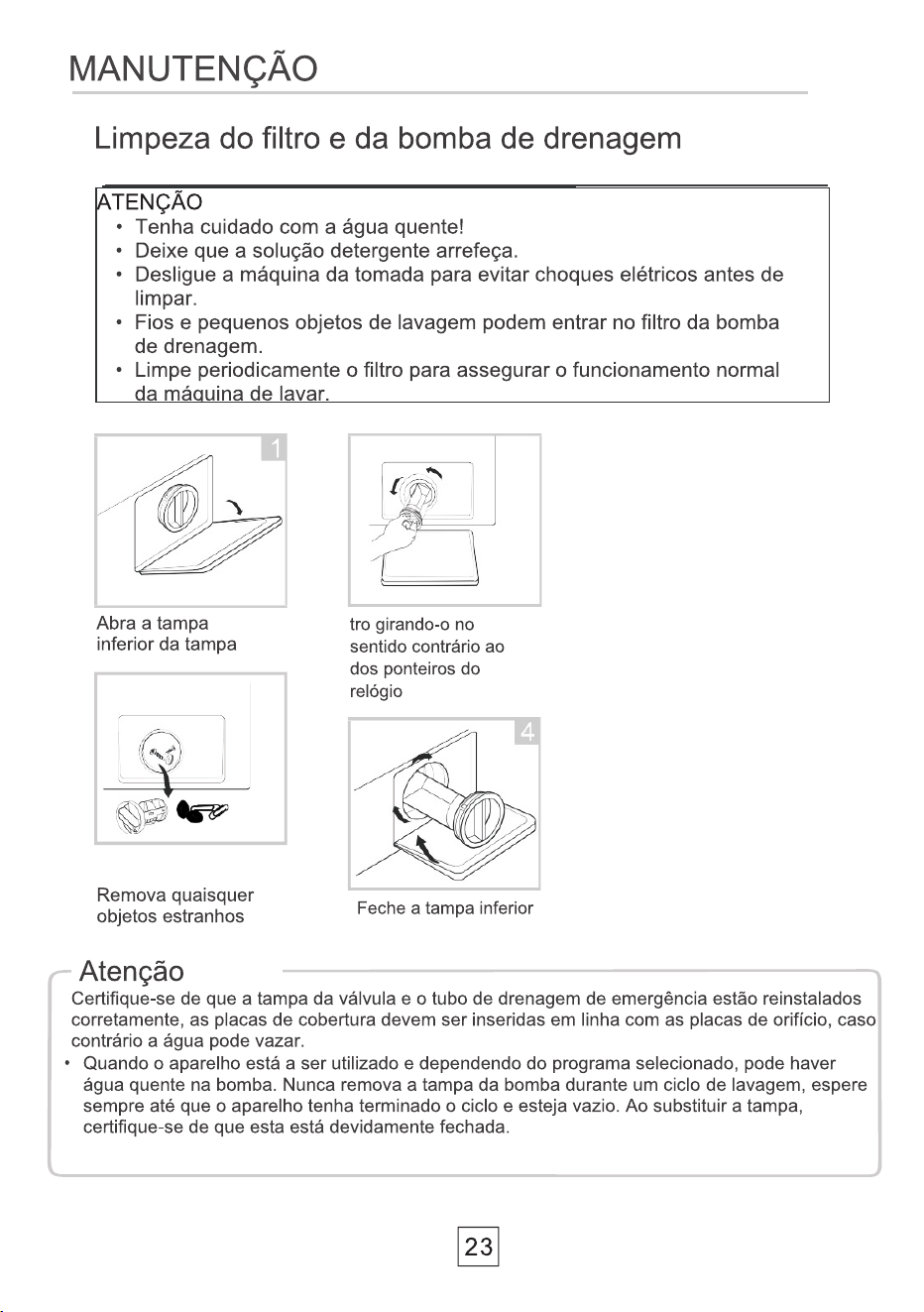

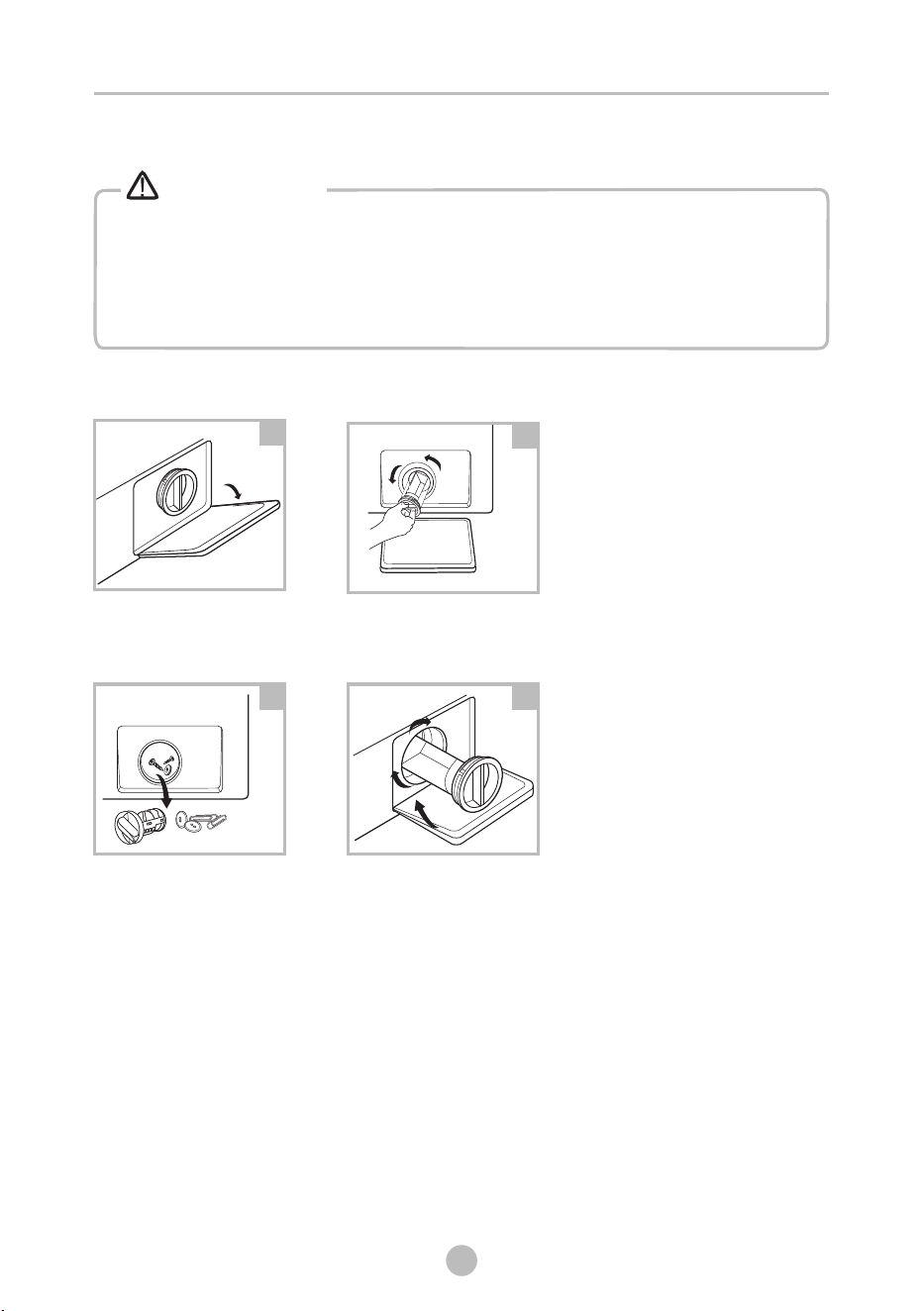

Cleaning the Drain Pump Filter
Open the lower cover cap
Open the filter by turning
to the counter clockwise
Remove extraneous matter
1
Close the lower cover cap
4
3
2
•
and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the
appliance.
Make sure that the machine has finished the washing cycle and is empty. Switch it off
Warning!
28

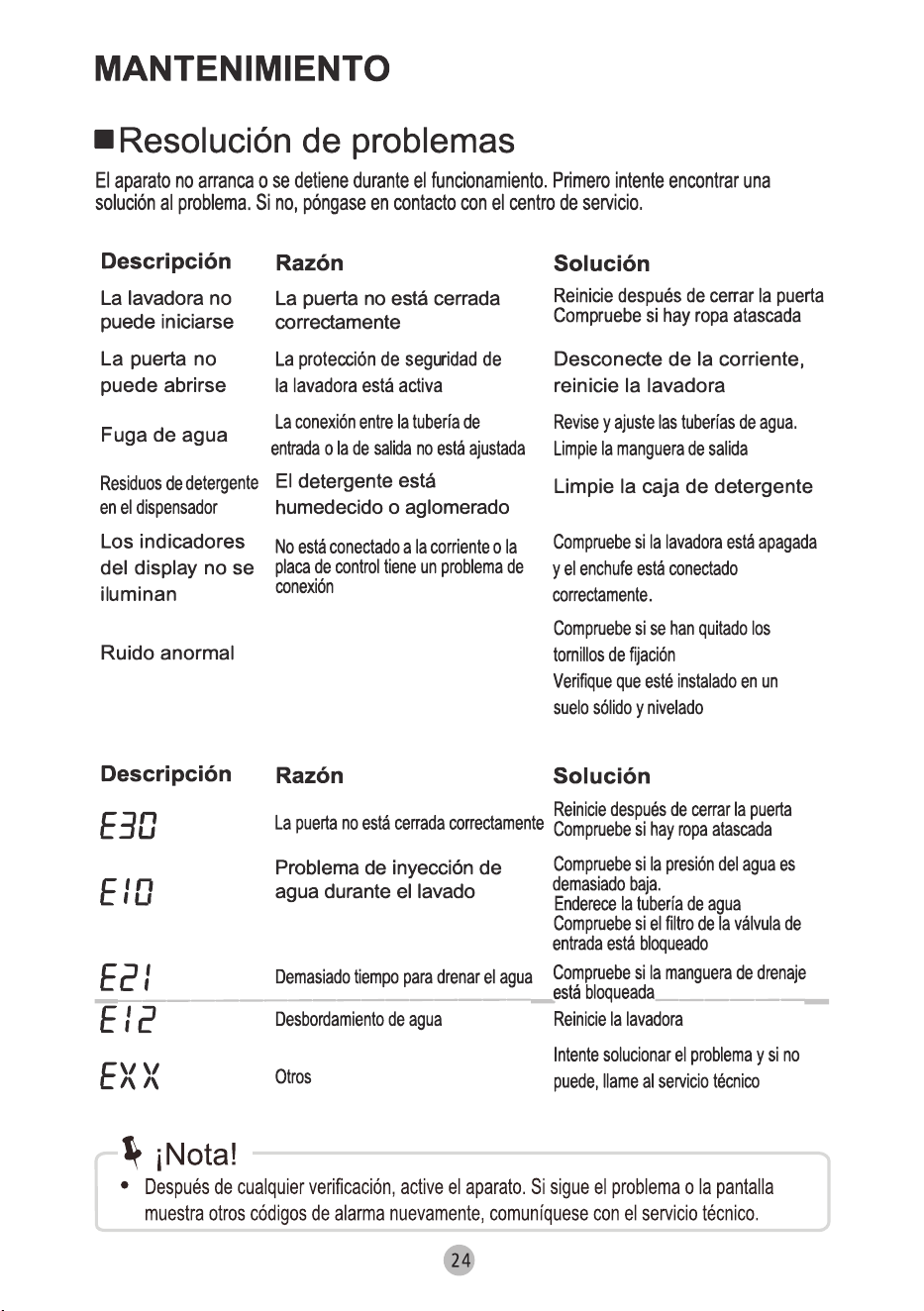

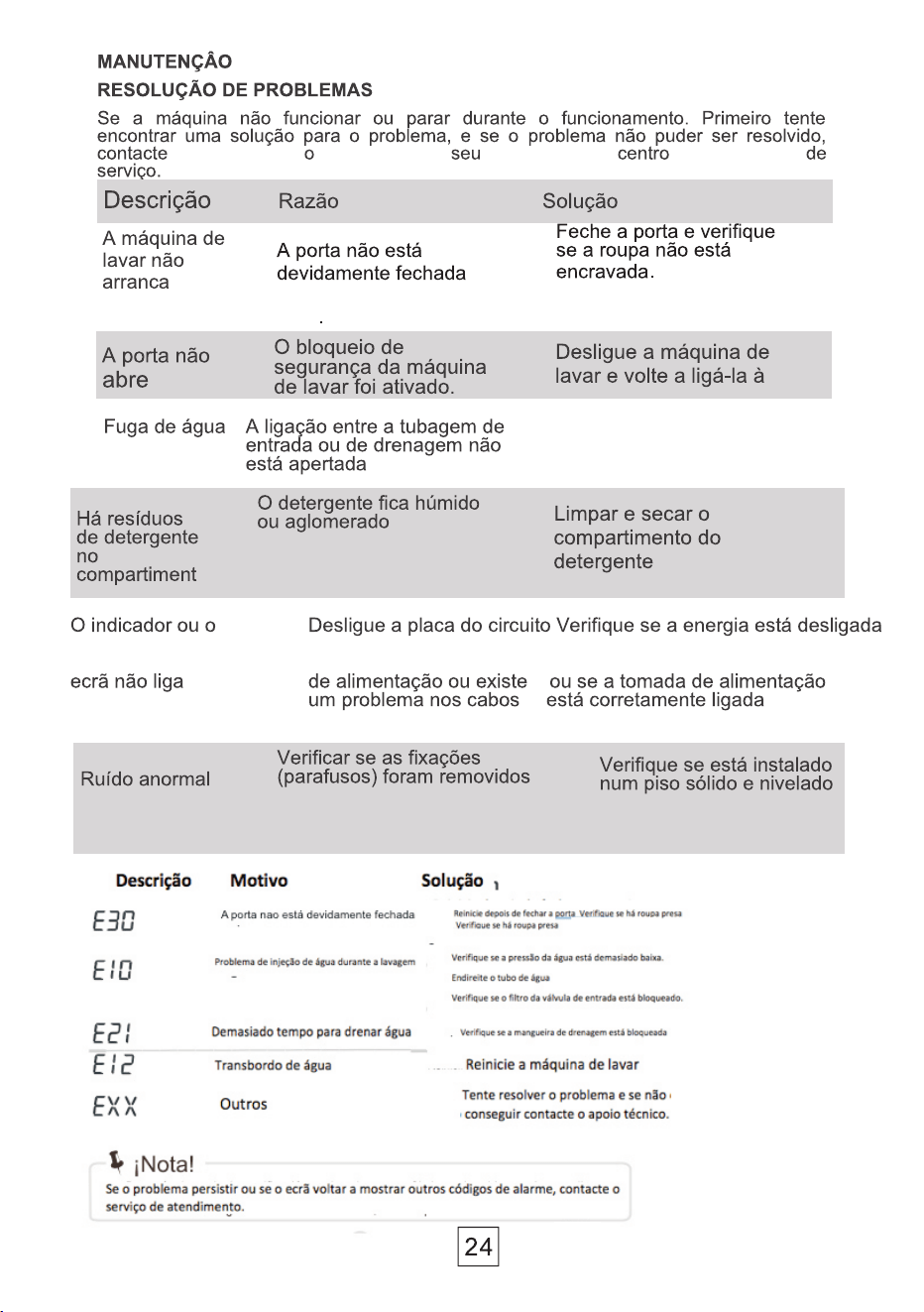

Trouble Shooting
MAINTENANCE
The start of the appliance does not work or it stops during operation.
First try to find a solution to the problem, If not, contact the service centre.
Description
Reason
Solution
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
Door can’t be
opened
Washer's safety
protection design is working
Disconnect the power, restart
the product
Water leakage
The connection between inlet
pipe or outlet hose is not tight
Check and fasten water pipes
Clean up outlet hose
Clean and wipe the detergent
box
Abnormal noise
Check if the fixing (bolts) have
been removed
it’s installed on a solid
and level floor
Check
Indicator or display
does not light
Disconnect the power
PC board or harness has
connection problem
Check if the power is shut
down and the power plug is
connected correctly
Washing machine
cannot start up
Detergent residues
in the box
Detergent is dampened
or agglomerated
Description
Reason
Solution
Check if the water pressure is
too low
Straighten the water pipe
Check if the inlet valve filter is blocked
Check if the drain hose is blocked
Water injecting
problem while
washing
Overtime water draining
Please try again first, call up
service line if there are still
troubles
Others
Water overflow
Restart the washer
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
LED display models:
• or the display
shows other alarm codes
After the check, activate the appliance. If the problem occurs
again, contact the service.
Note!
29

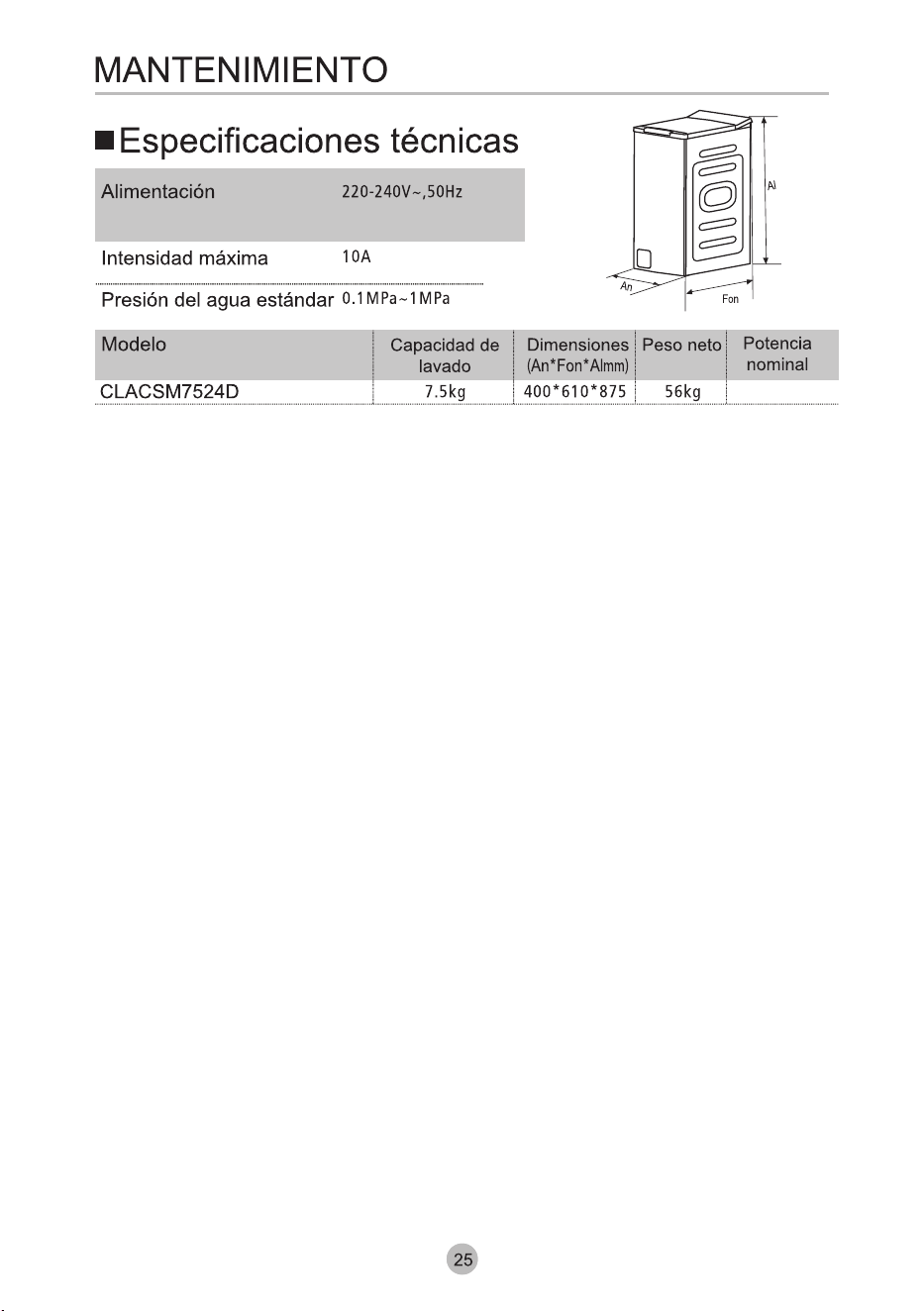

Technical Specifications
MAX.Current
Standard Water Pressure
10A
0.1MPa~1MPa
Power Supply
220-240V~,50Hz
Customer Service
In case of questions please contact our customer service at:
Risk of electric shock
• Never try repair an appliance which is defective of presumed to be defective.
You may put your own and future users' lives in danger.Only authorised specialists are
allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recogniced!
Warning!
！
Spare part for your appliance are available for a minimum of 10 years.
Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see “Maintenance Cleaning the
drain pump filter”)
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door cannot be used as a handle.
Unplug the appliance and close the water inlet tap.
H
W
D
MAINTENANCE
400*610*875
CLACSM7524D
Dimension
(W*D*Hmm)
7.5kg
Rated Power
Net Weight
Washing Capacity
Model
56kg
1900W
30
www.corbero.es
3 years
1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the
hardness of the water.
3)

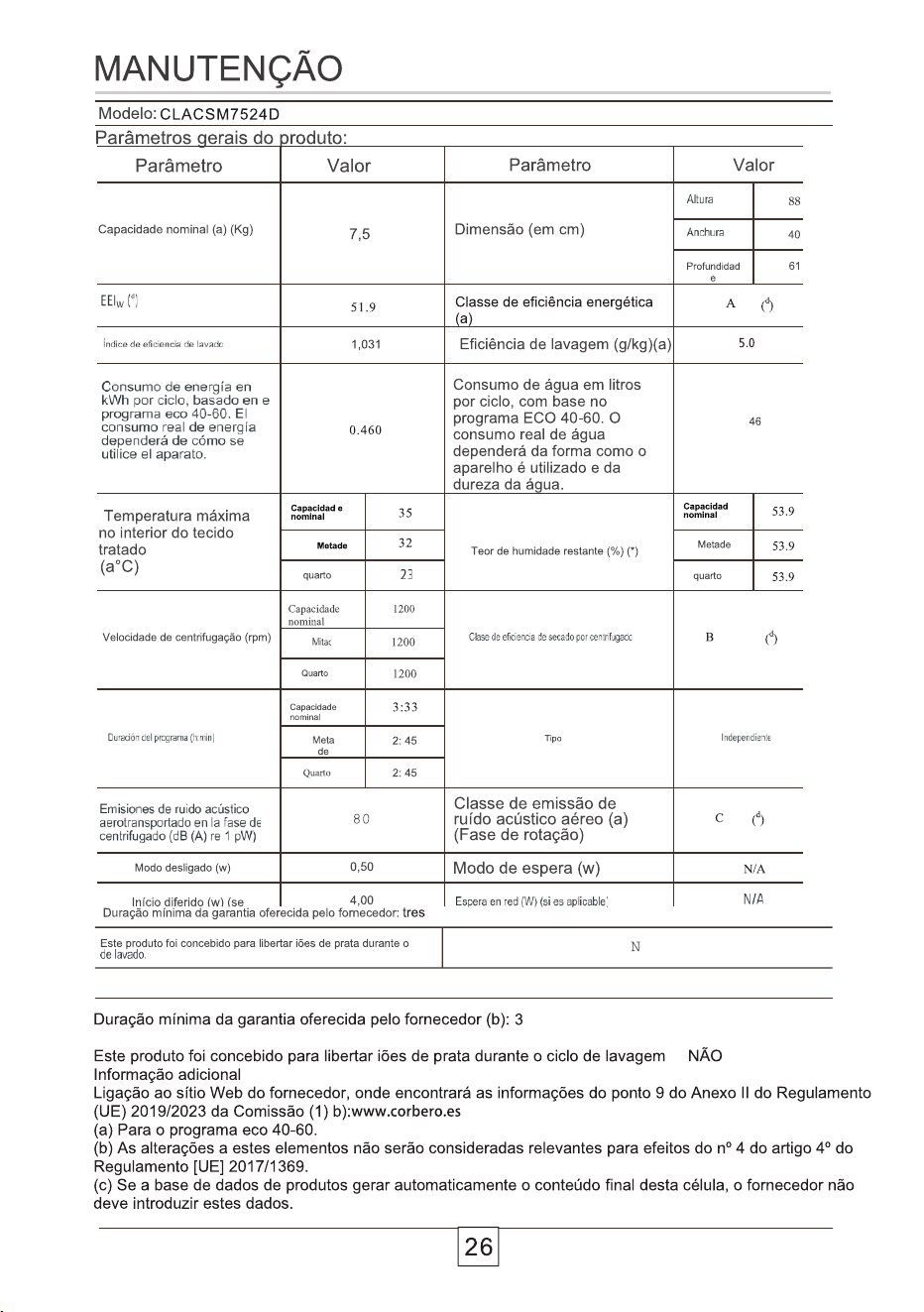

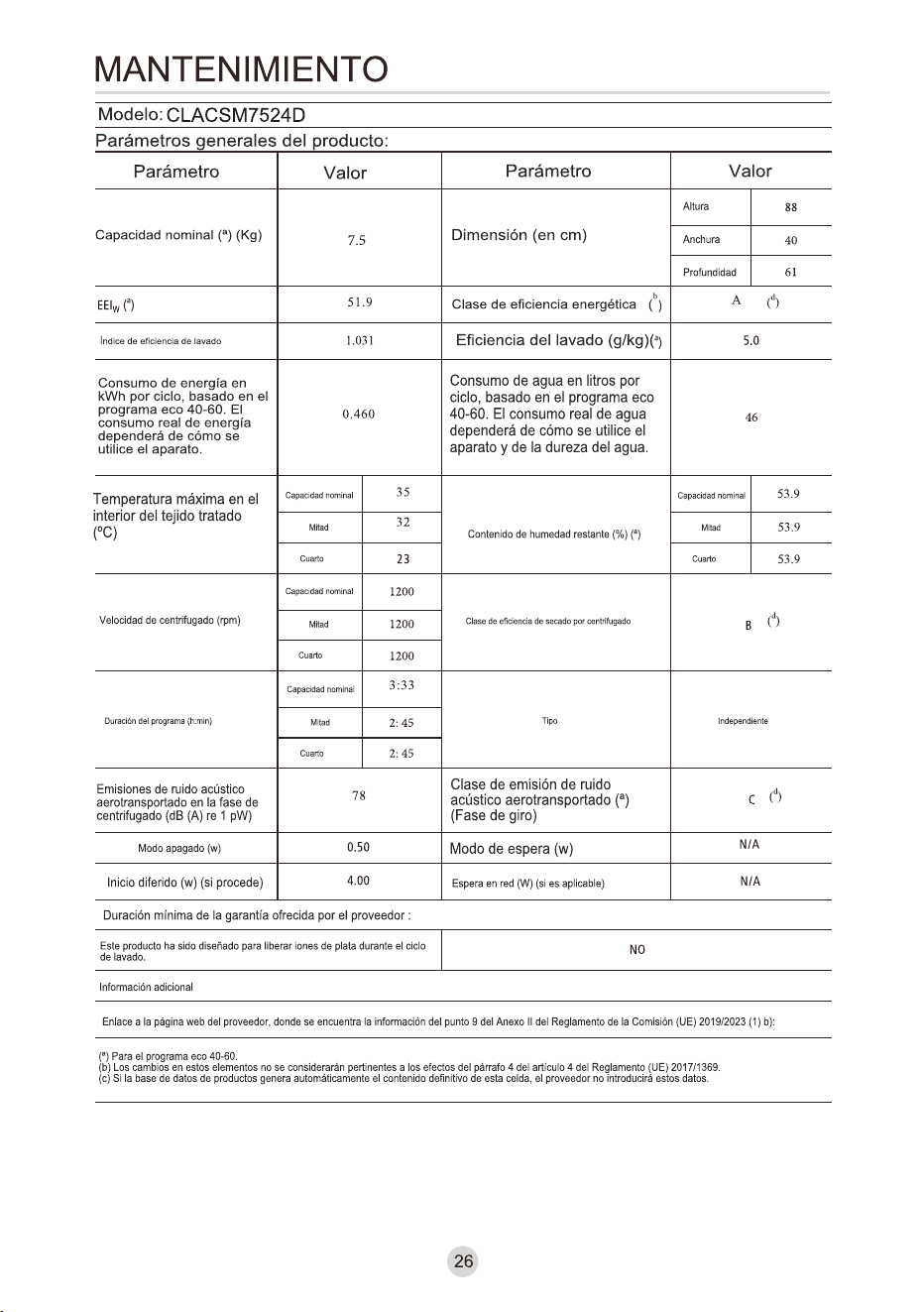

Product Data Sheet concerning (EU) 2019/2014
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to
download the data sheet.
The model identifier for your appliance can be found in the technical specifications
section.
Delivery of the spare parts within 15 working days after having received the order.
MAINTENANCE
32
28
Acoustic
sponge
(Optional)
vapor
Vapor
Vapor
600
Vapor
Vapor
3.5
3.5
3.5
3.5
2:40
2:20
1:20
1:40
0:47
1:01
2:01
1:18
0:12
0:20
1:07
1:47
3:33
0:45
0:15
Vapor
CLACSM7524D
1900W
años
años
27
