CLACSM8523D
8.0
2.0
4.0
8.0
2.0
-
8.0
4.0
4.0
8.0
8.0
8.0
8.0
8.0
2.0
8.0
3:39
3:17
1:37
1:45
1:31
1:01
1:42
1:18
0:12
0:20
1:07
3:48
3:32
0:45
0:15
8.0
2.0
kgkg/8.0kg:4.0kg
/8.0kg:4.0kg
kgkg
7.5kg:2.0kg/8.0kg:2.0kg.
CLACSM8523D
8.0kg
CLACSM8523D
27
28

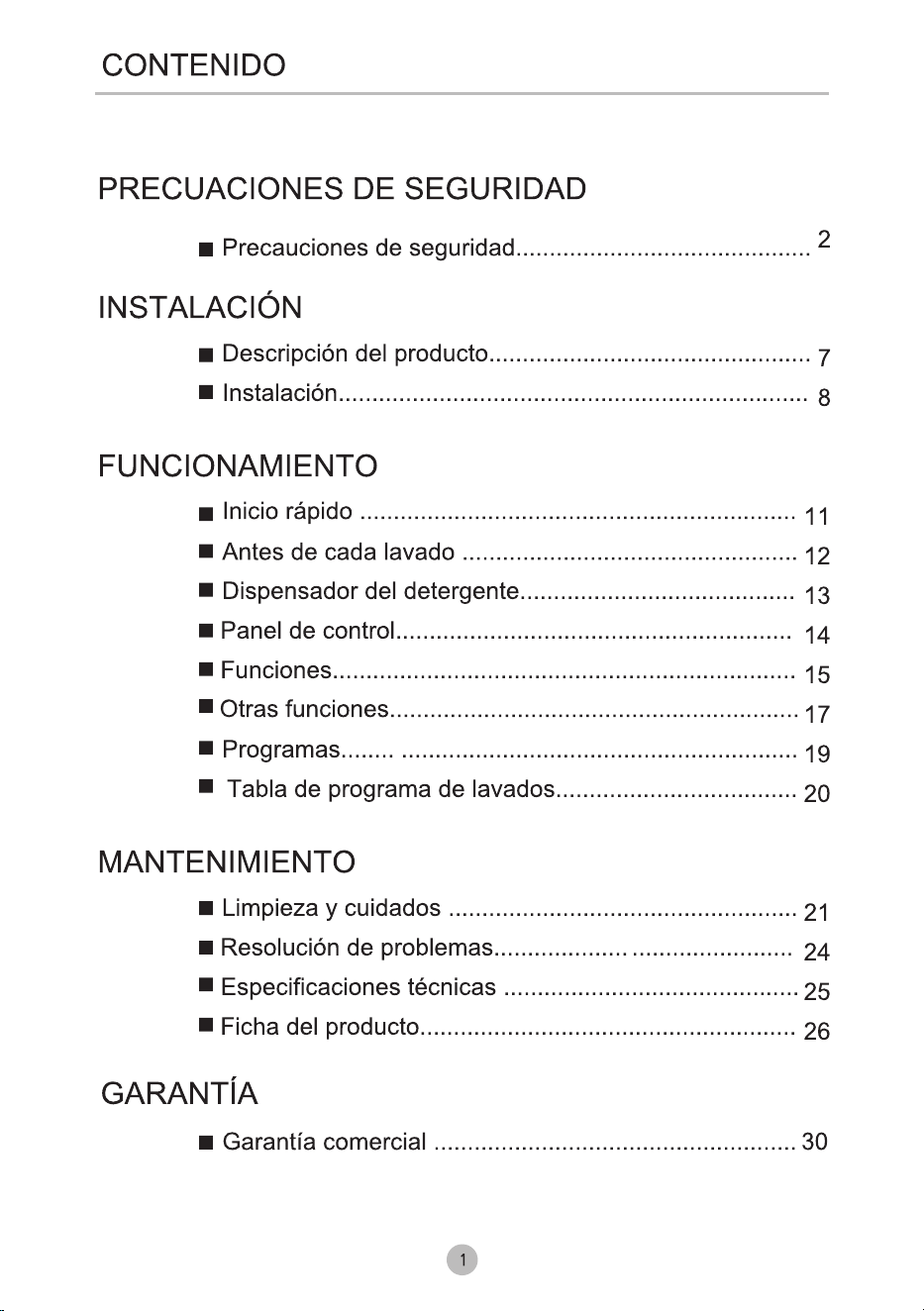

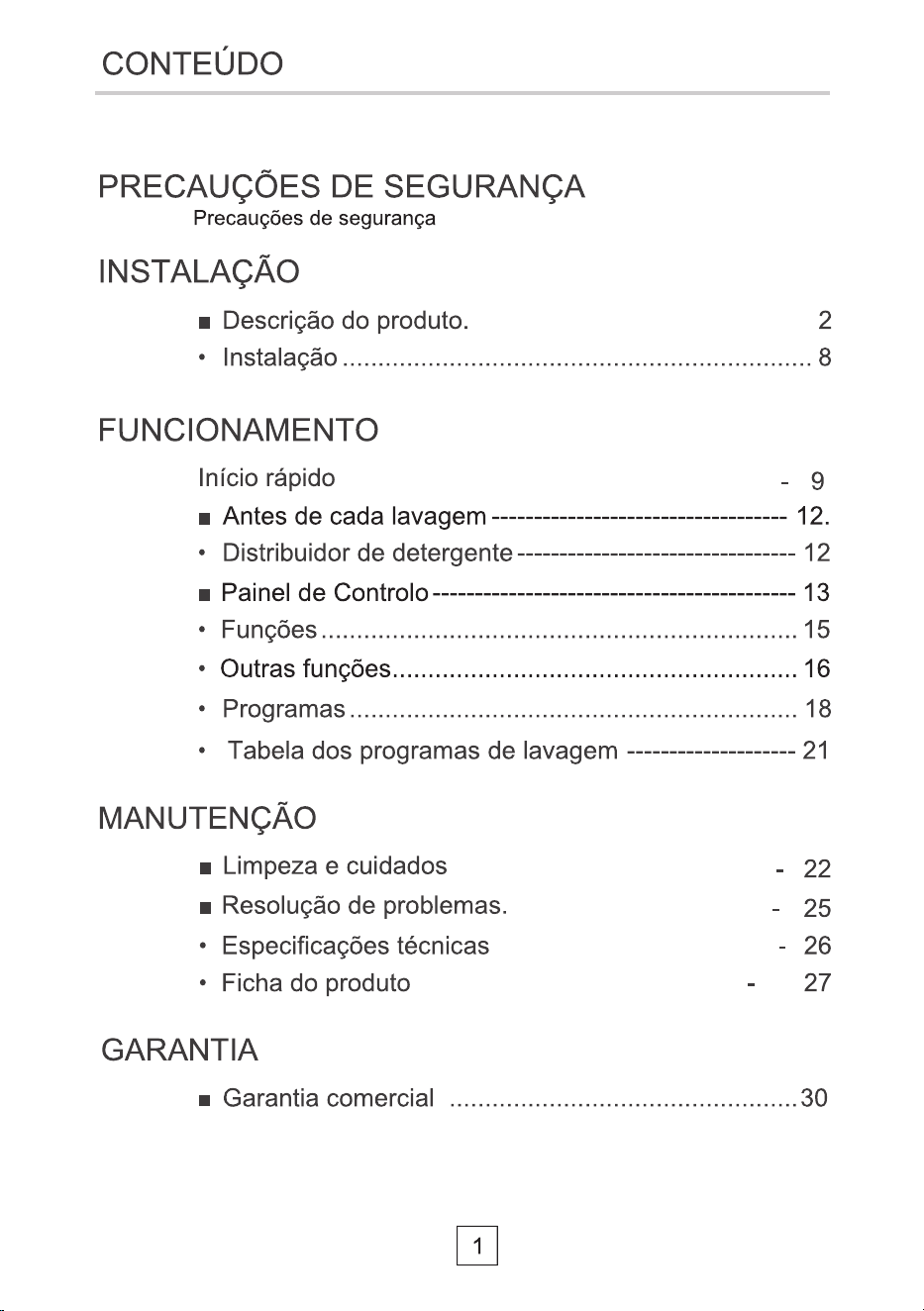

CONTENTS
SAFETY INSTRUCTIONS
Safety Instructions ..................................................
INSTALLATION
Product Description ................................................
Installation ...........................................................
OPERATION

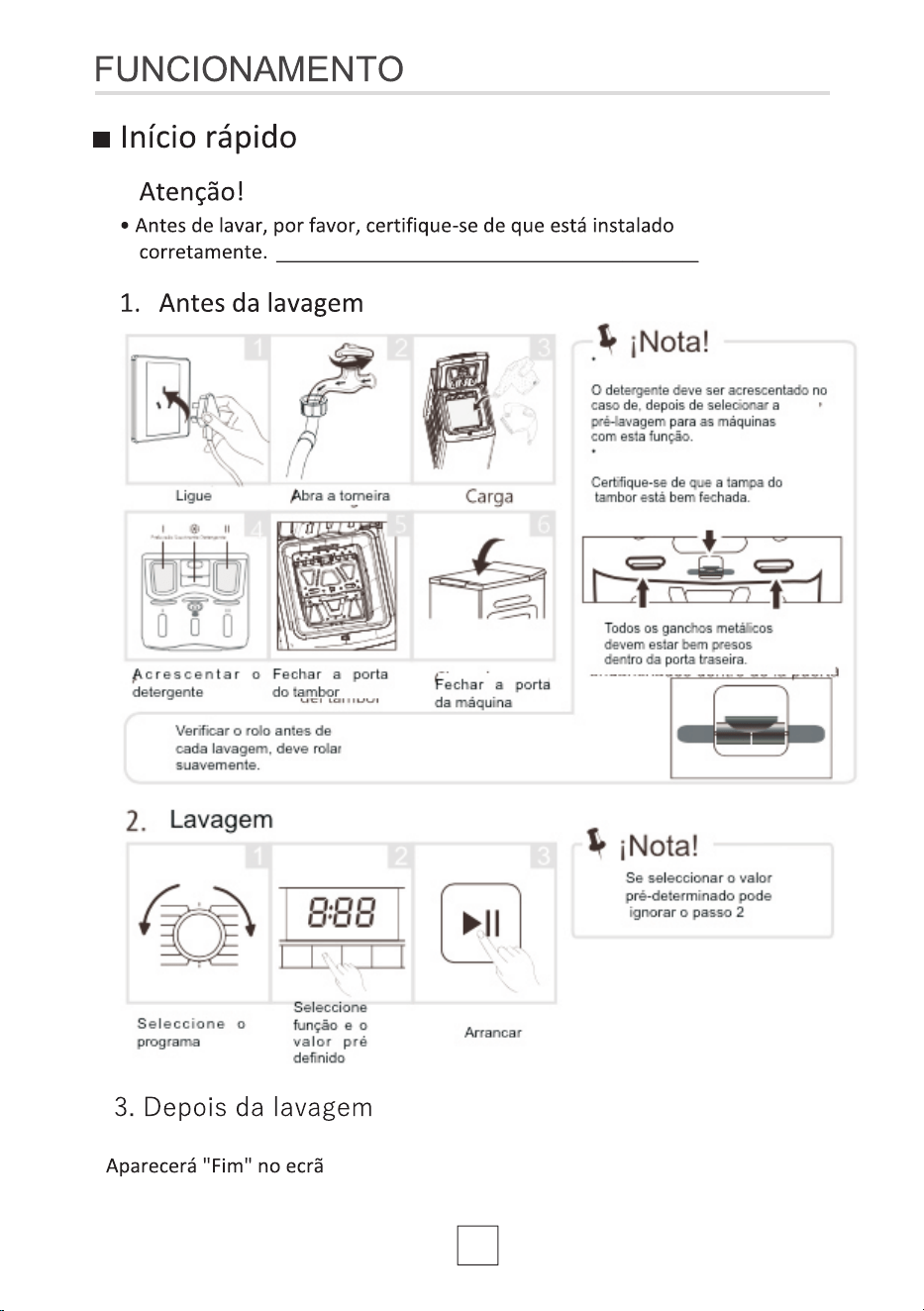

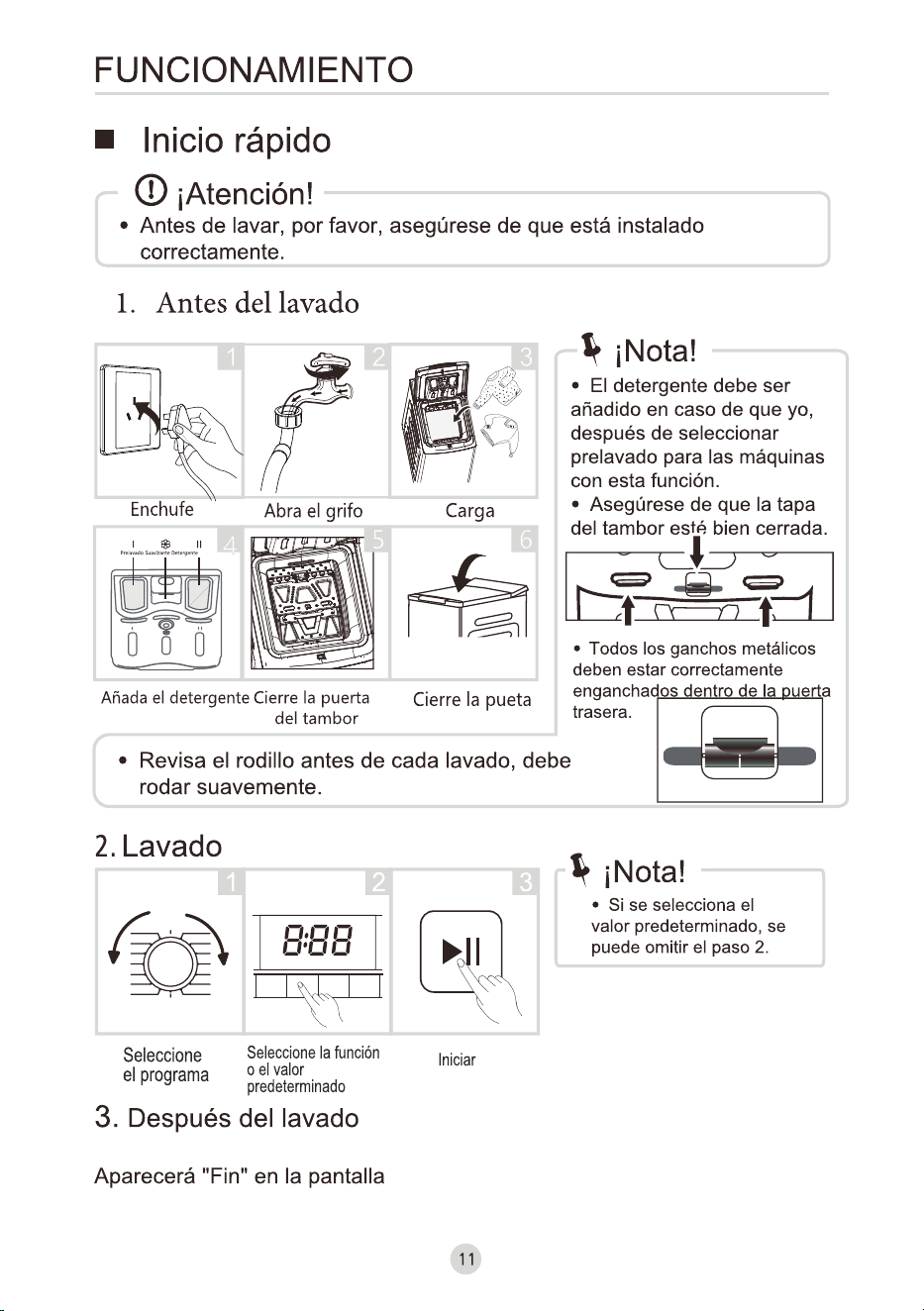

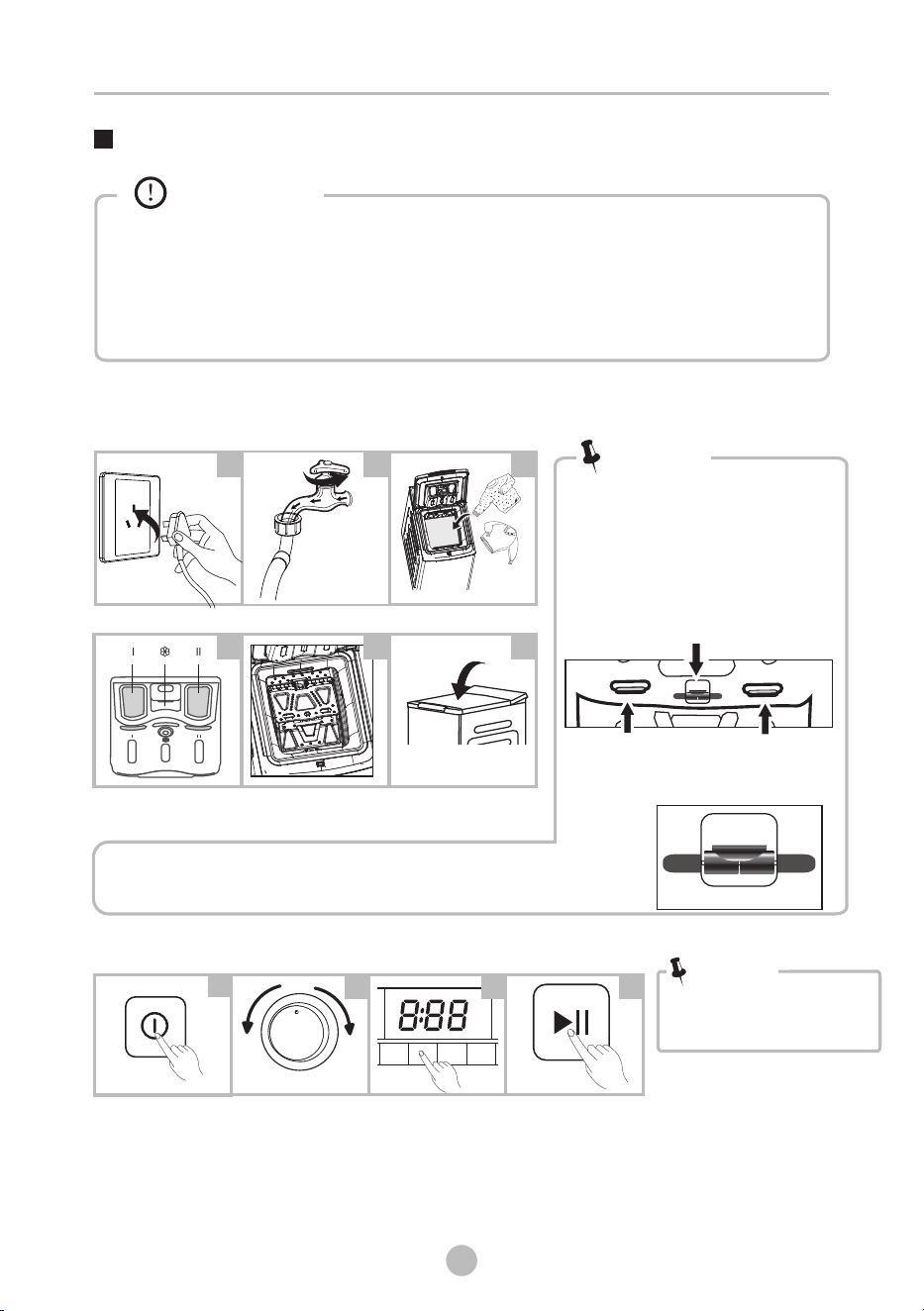

Quick Start .............................................................

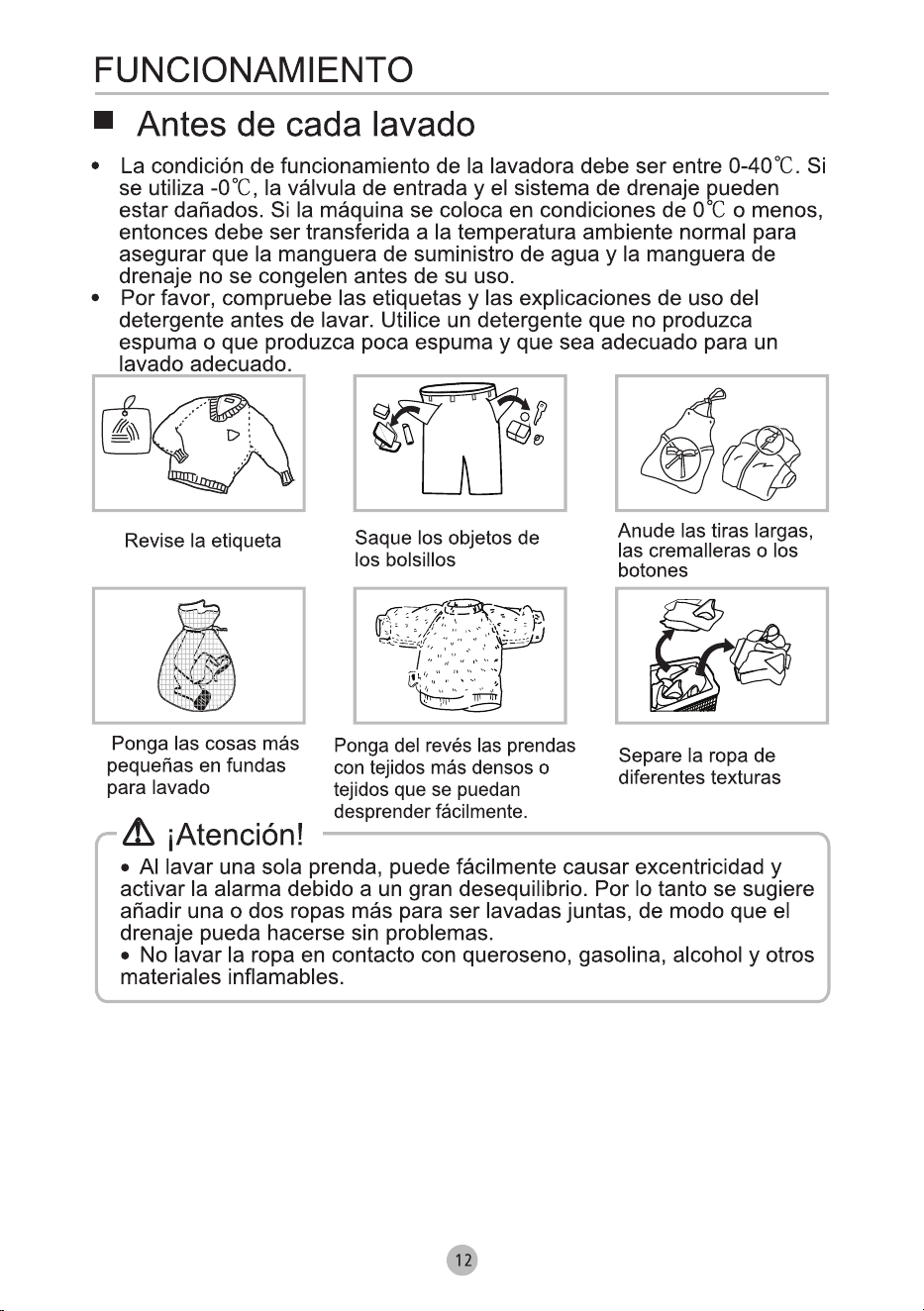

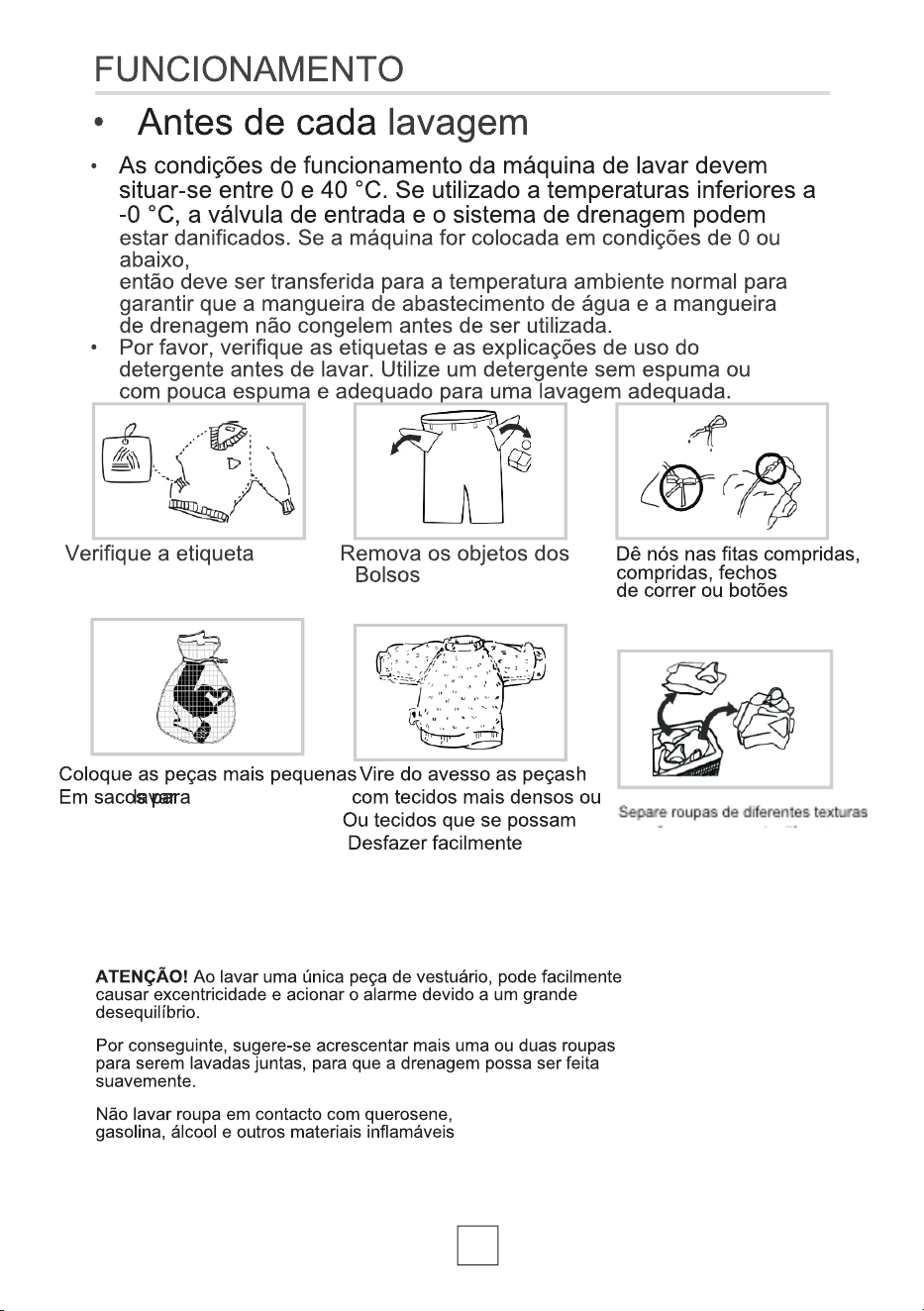

Before Each Washing ..............................................

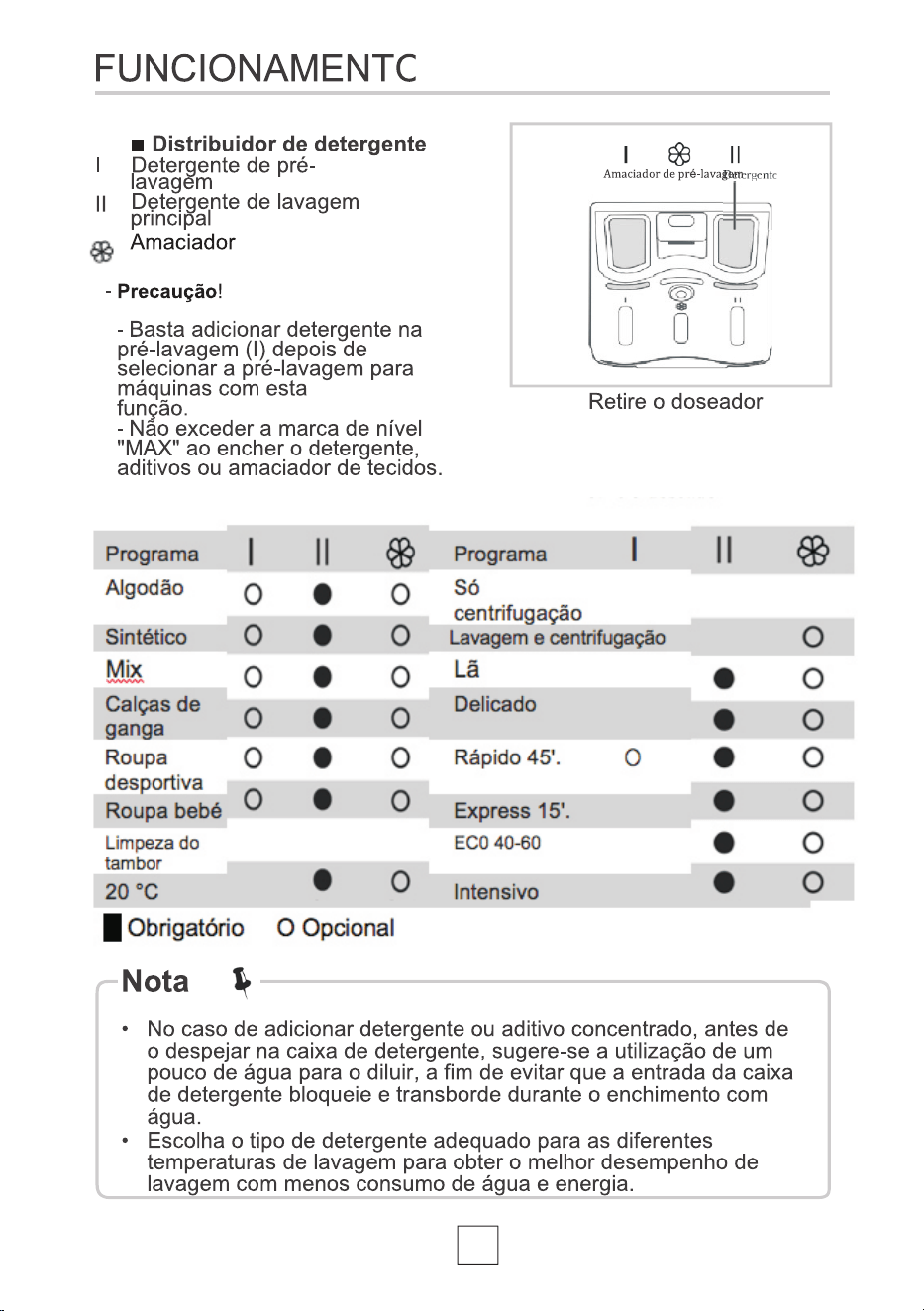

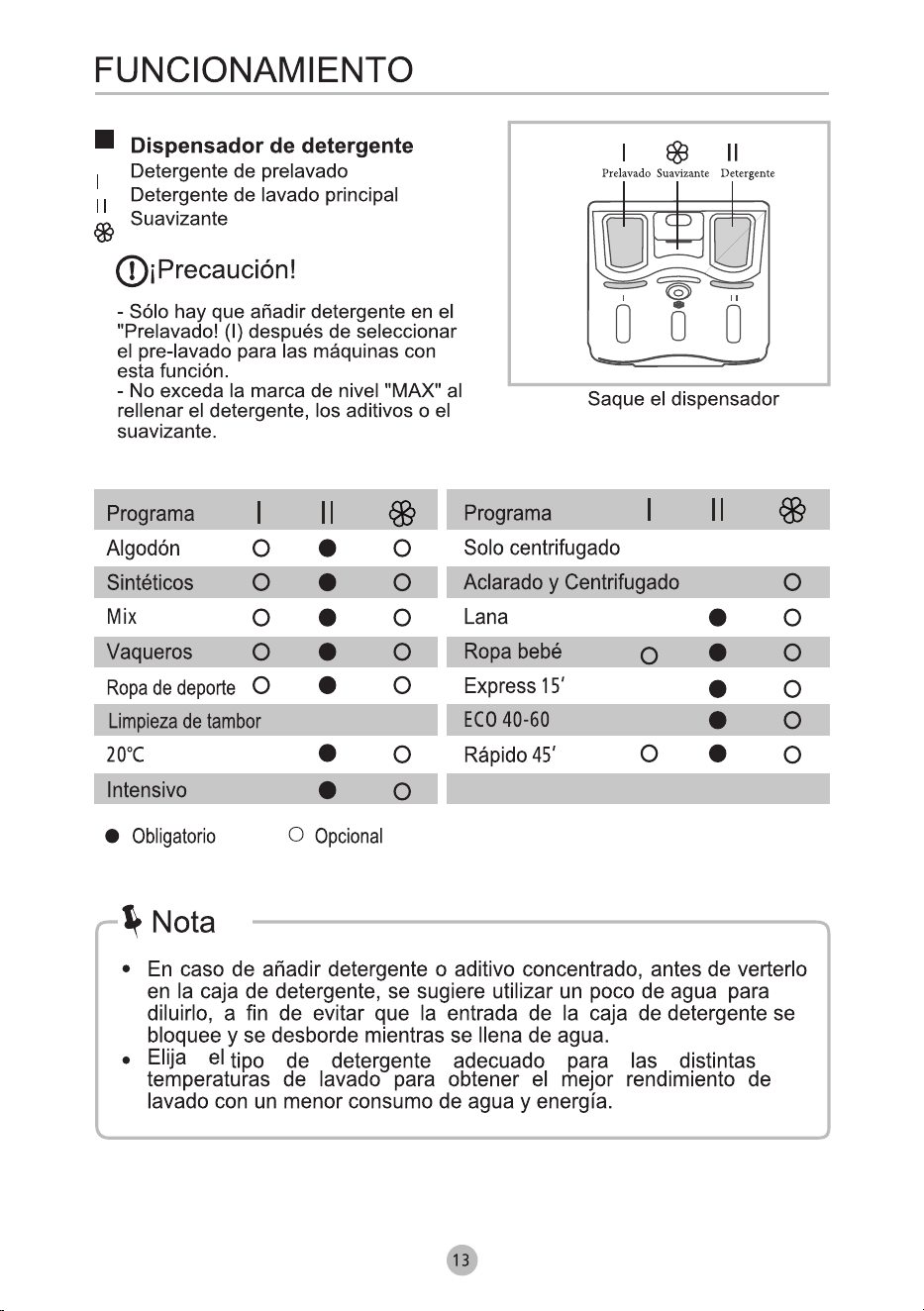

Detergent Dispenser ...............................................

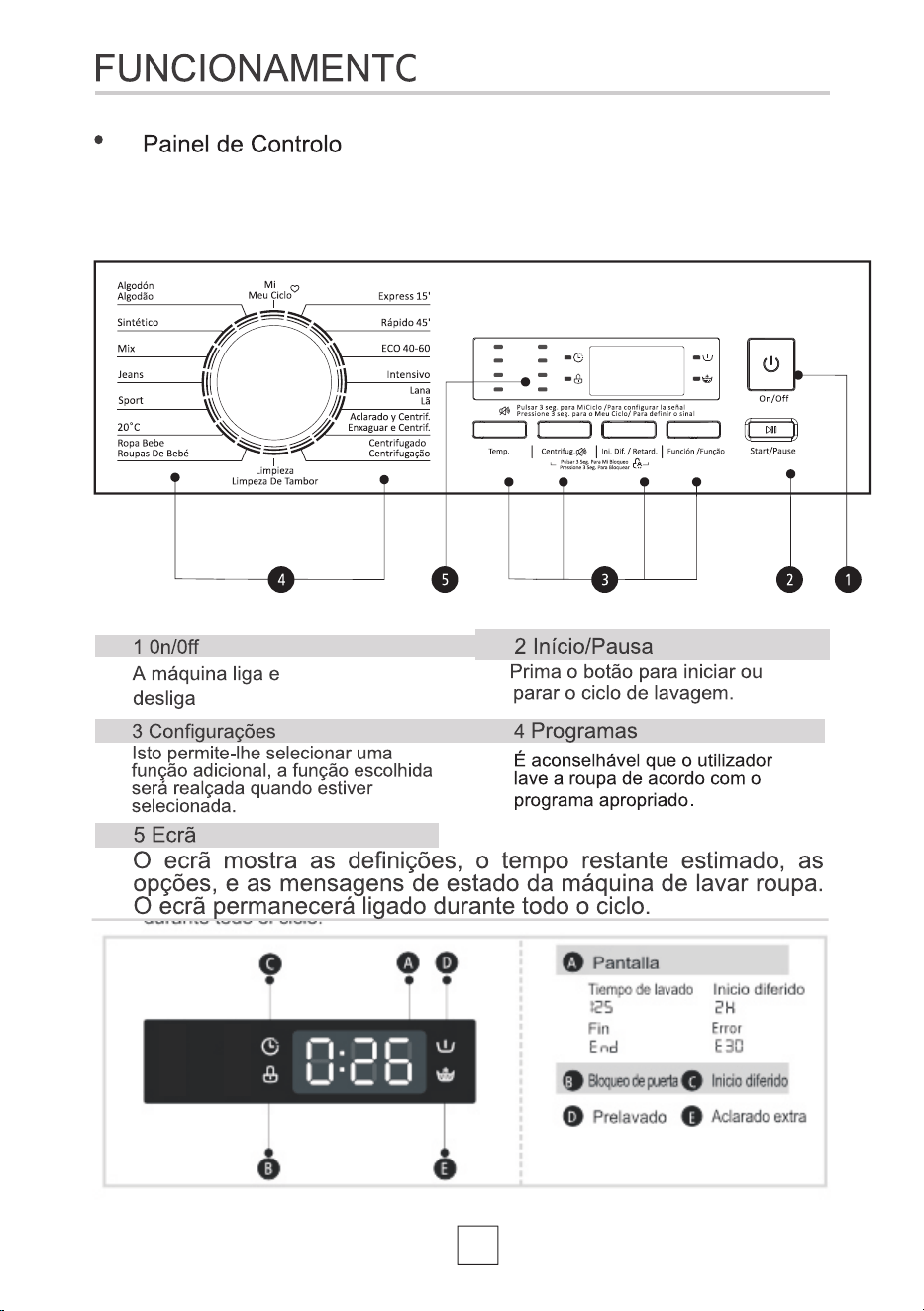

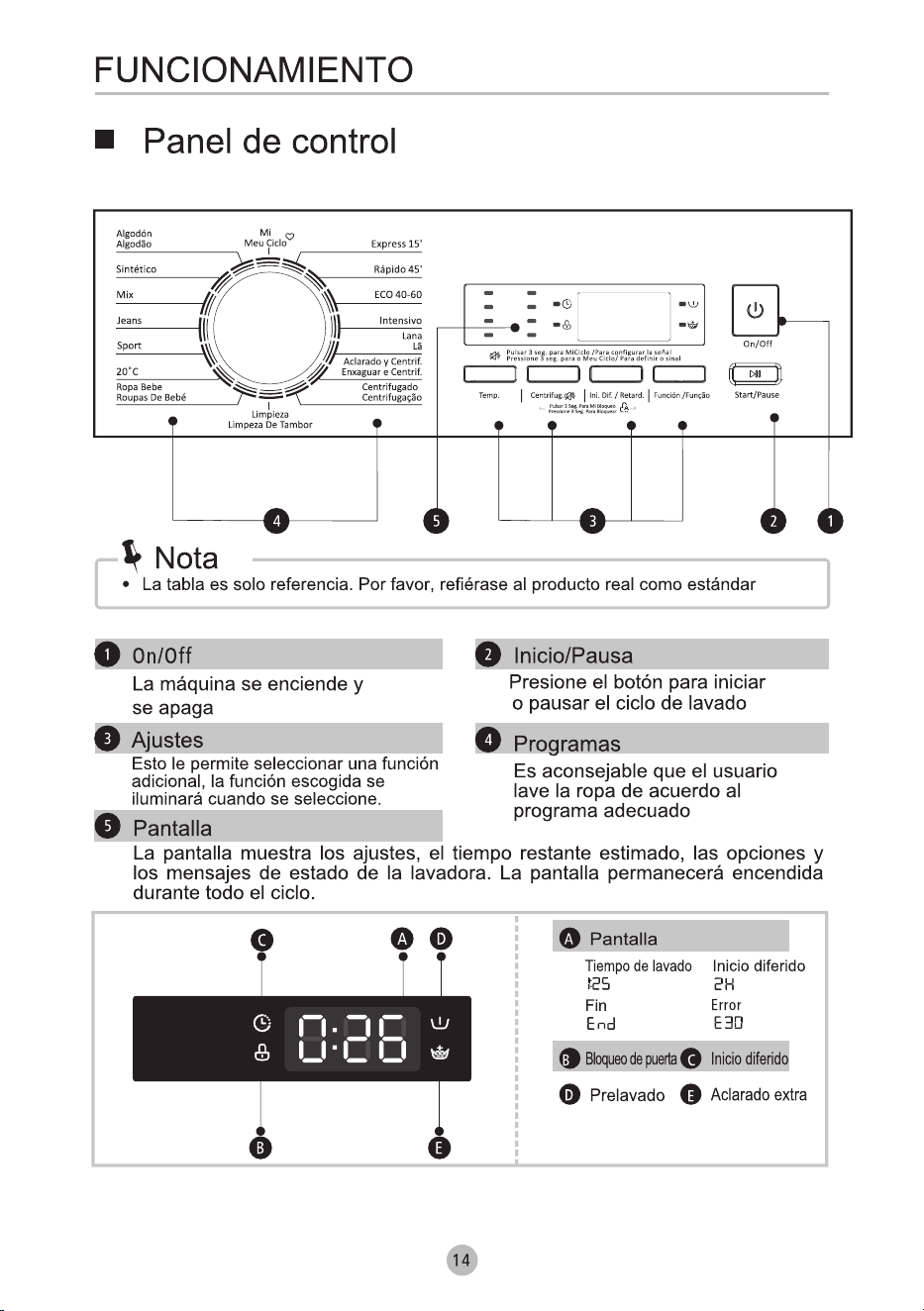

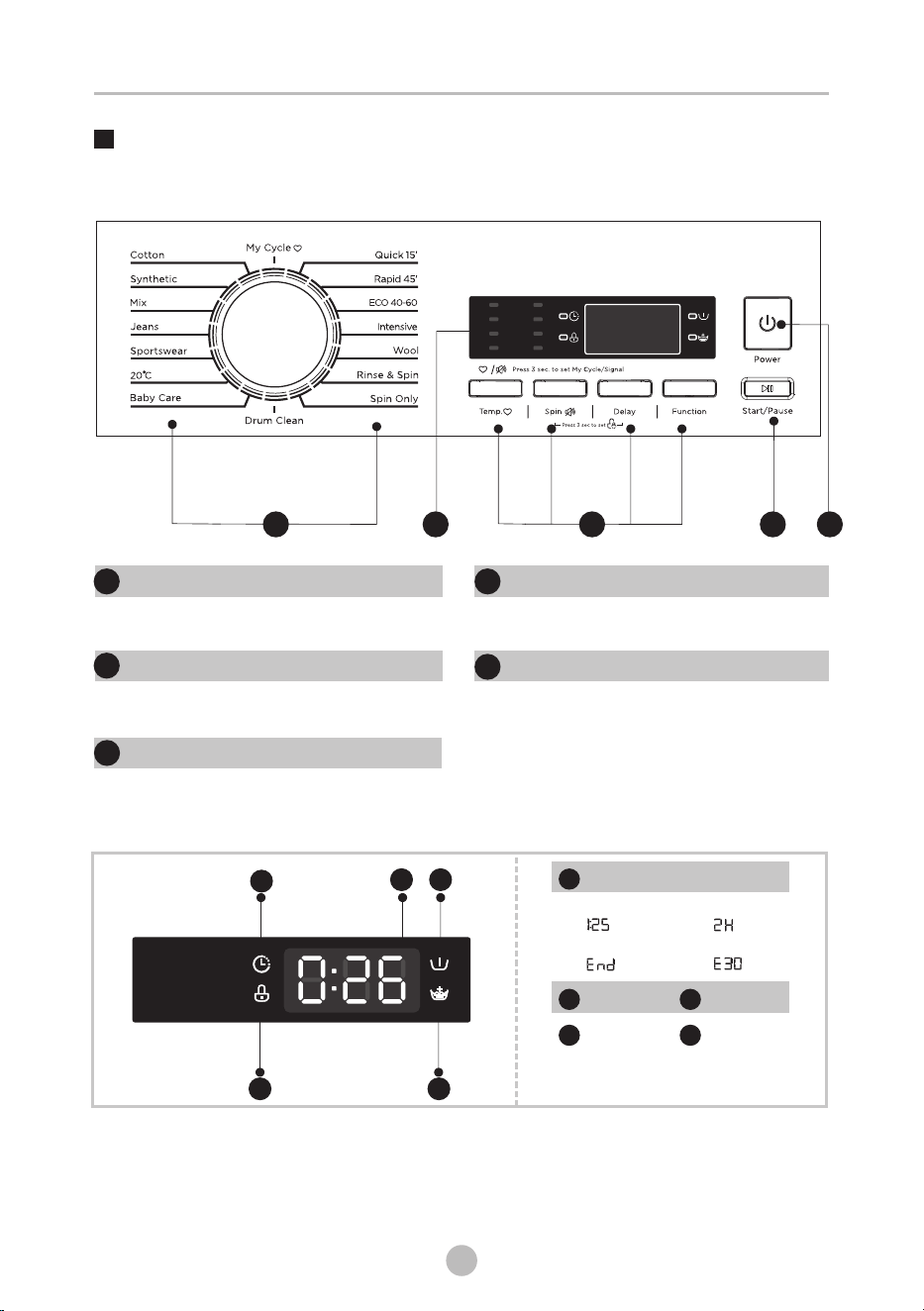

Control Panel .........................................................

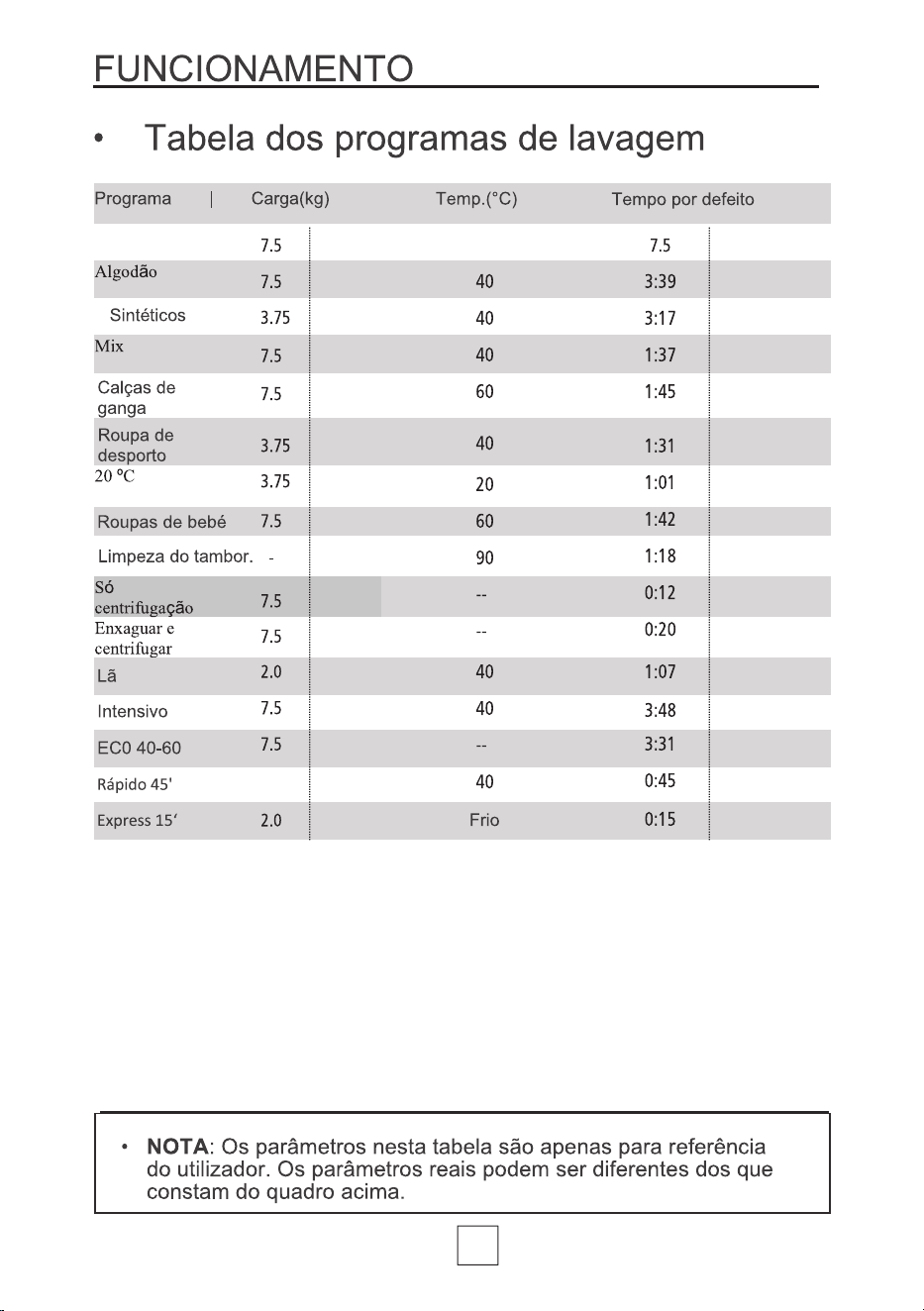

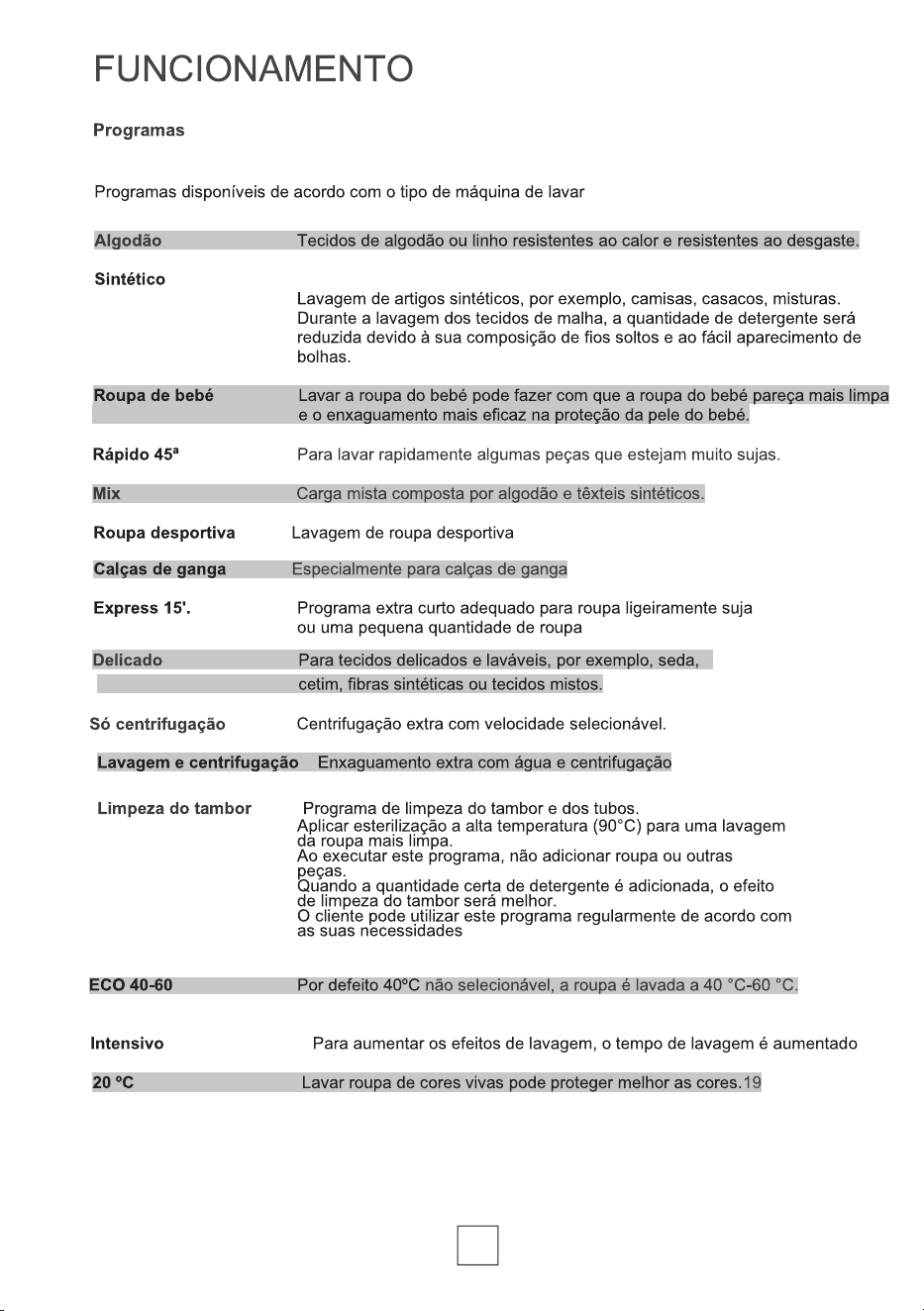

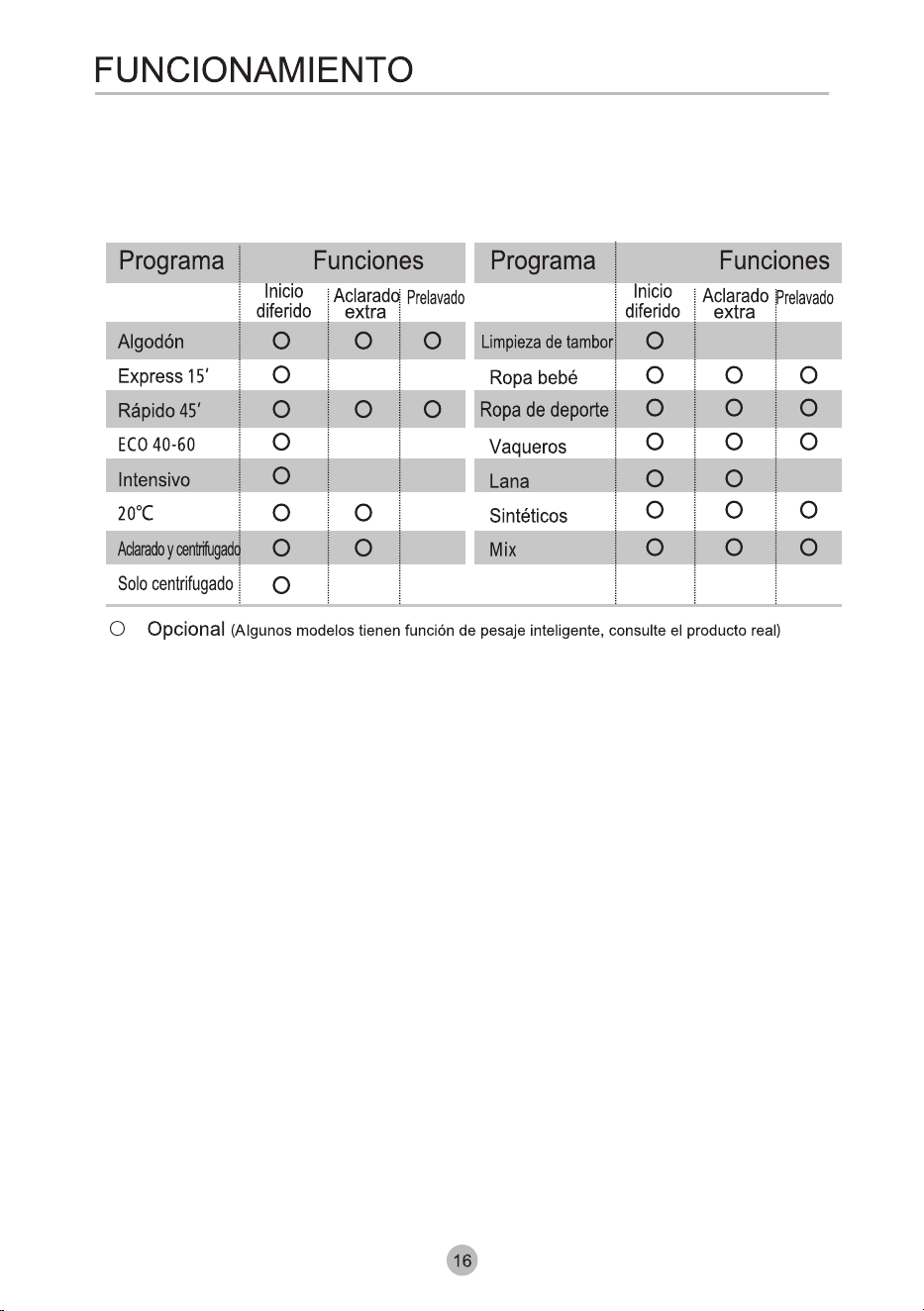

Programmes............................................................

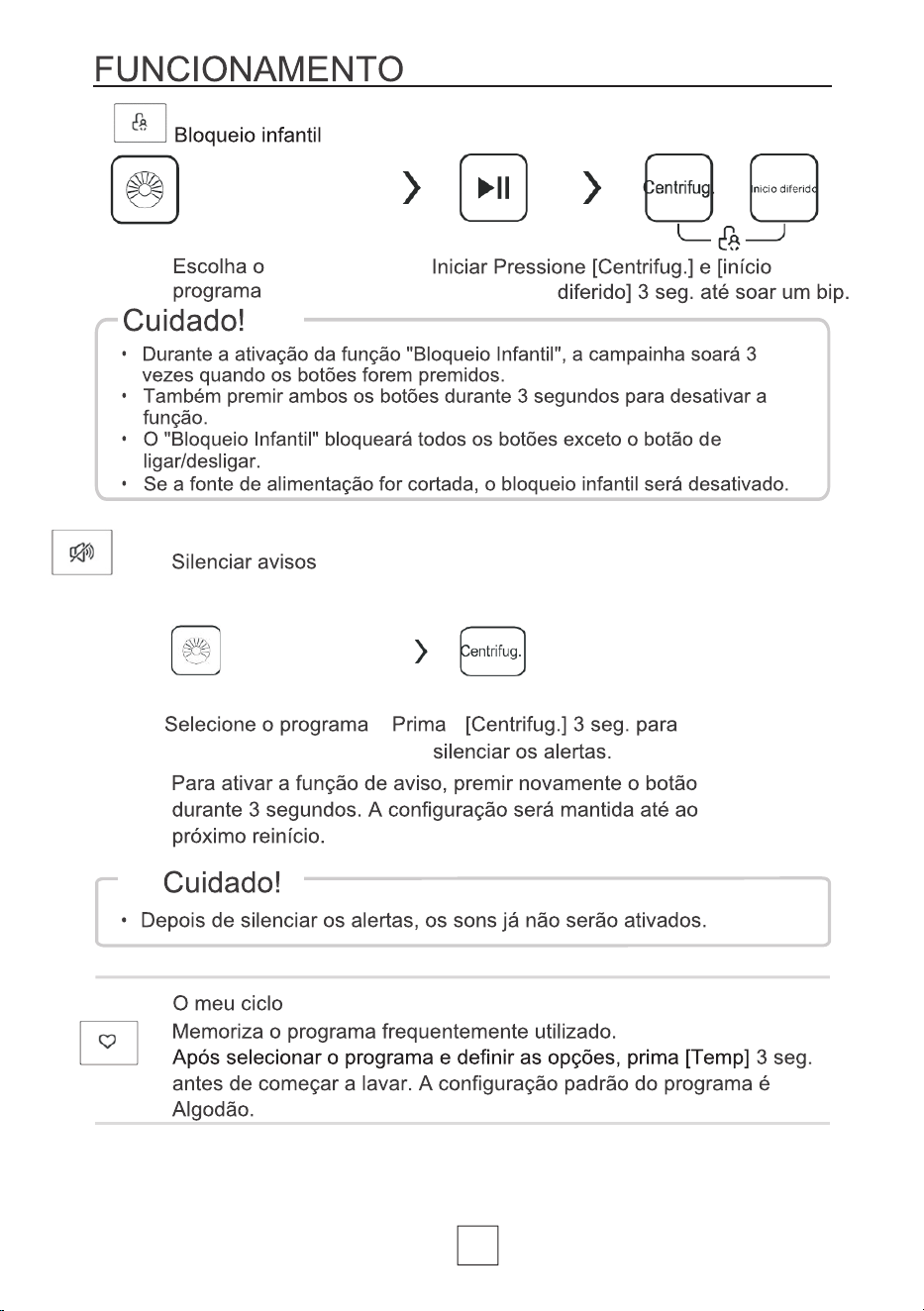

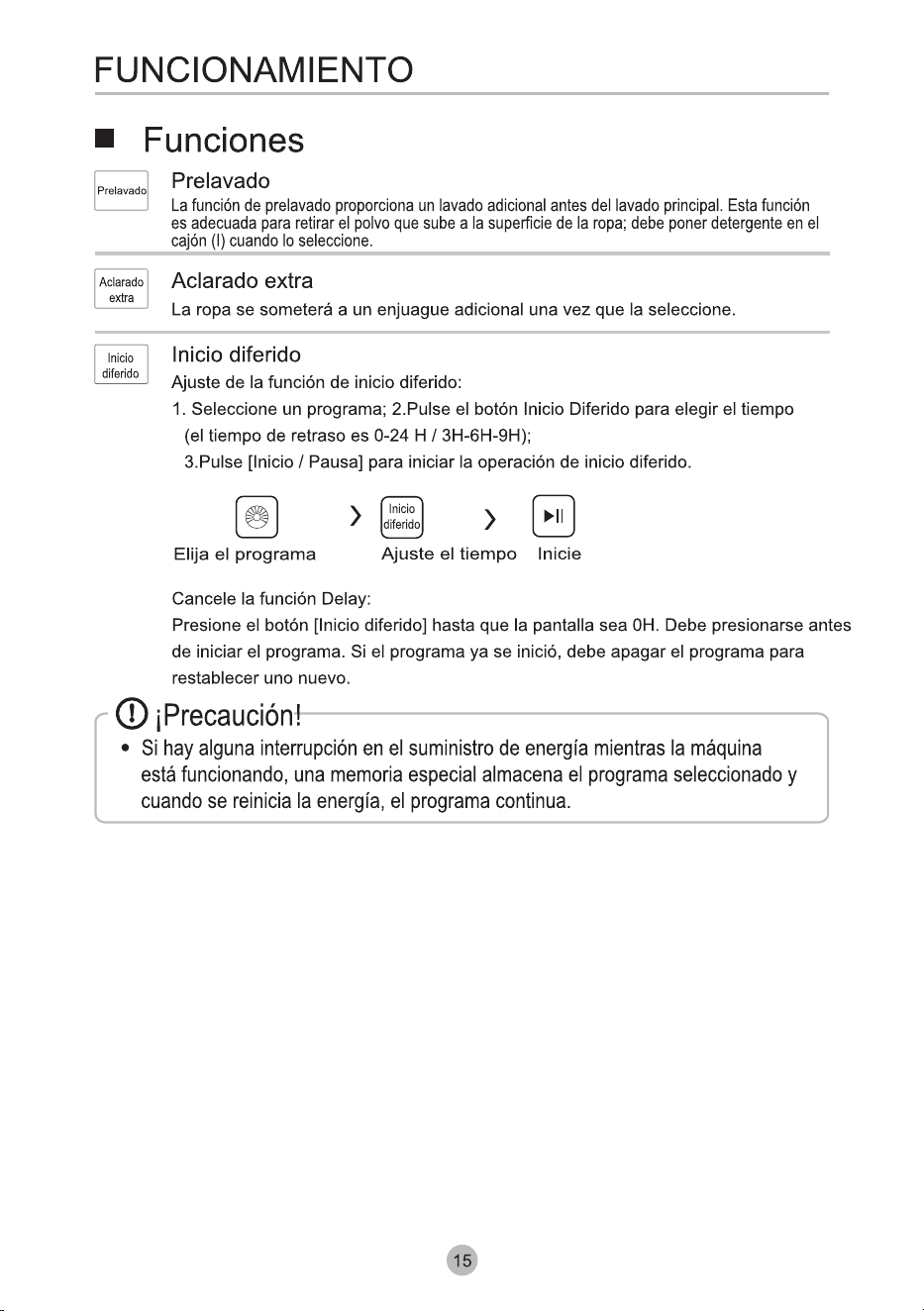

Option....................................................................
MAINTENANCE

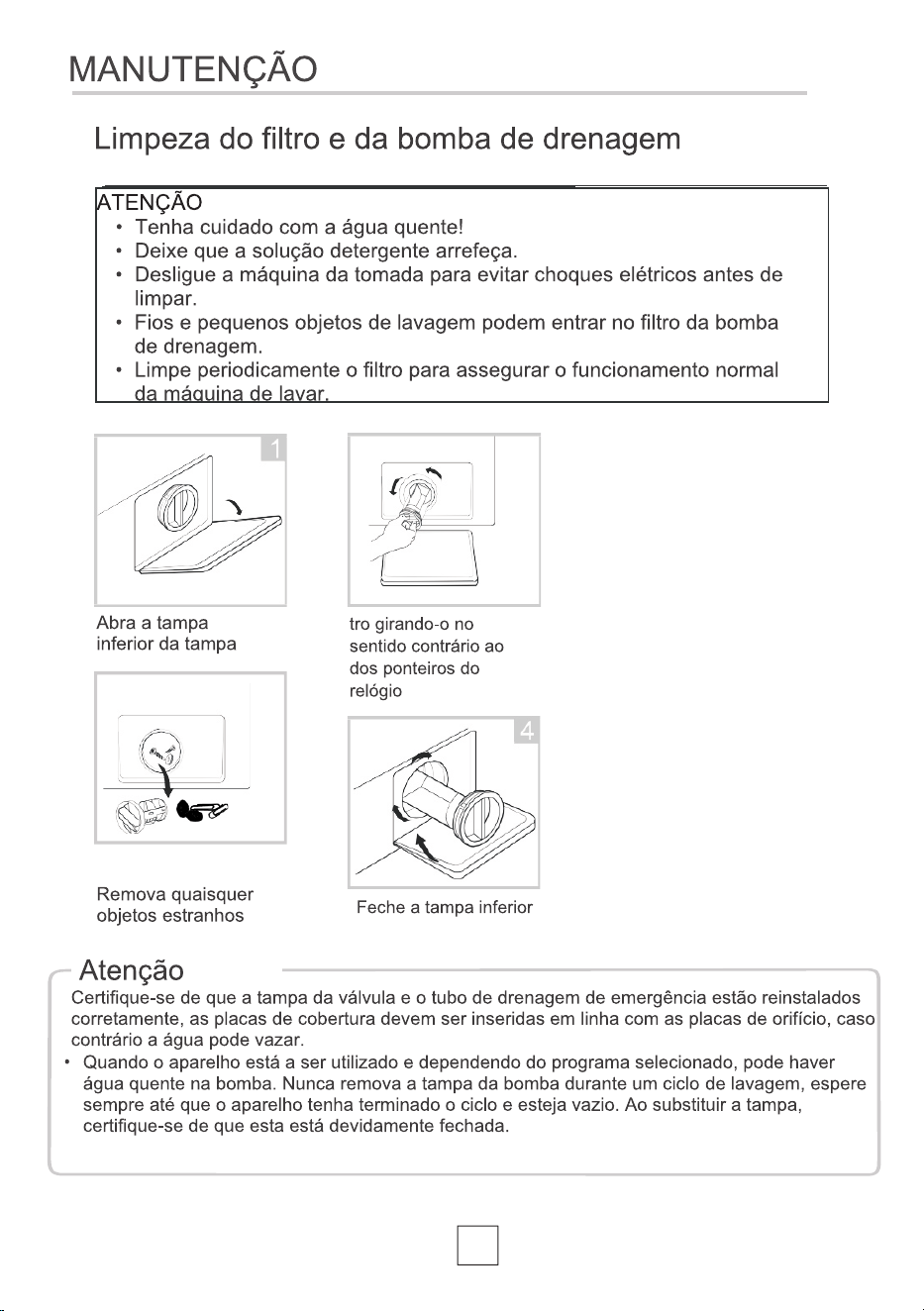

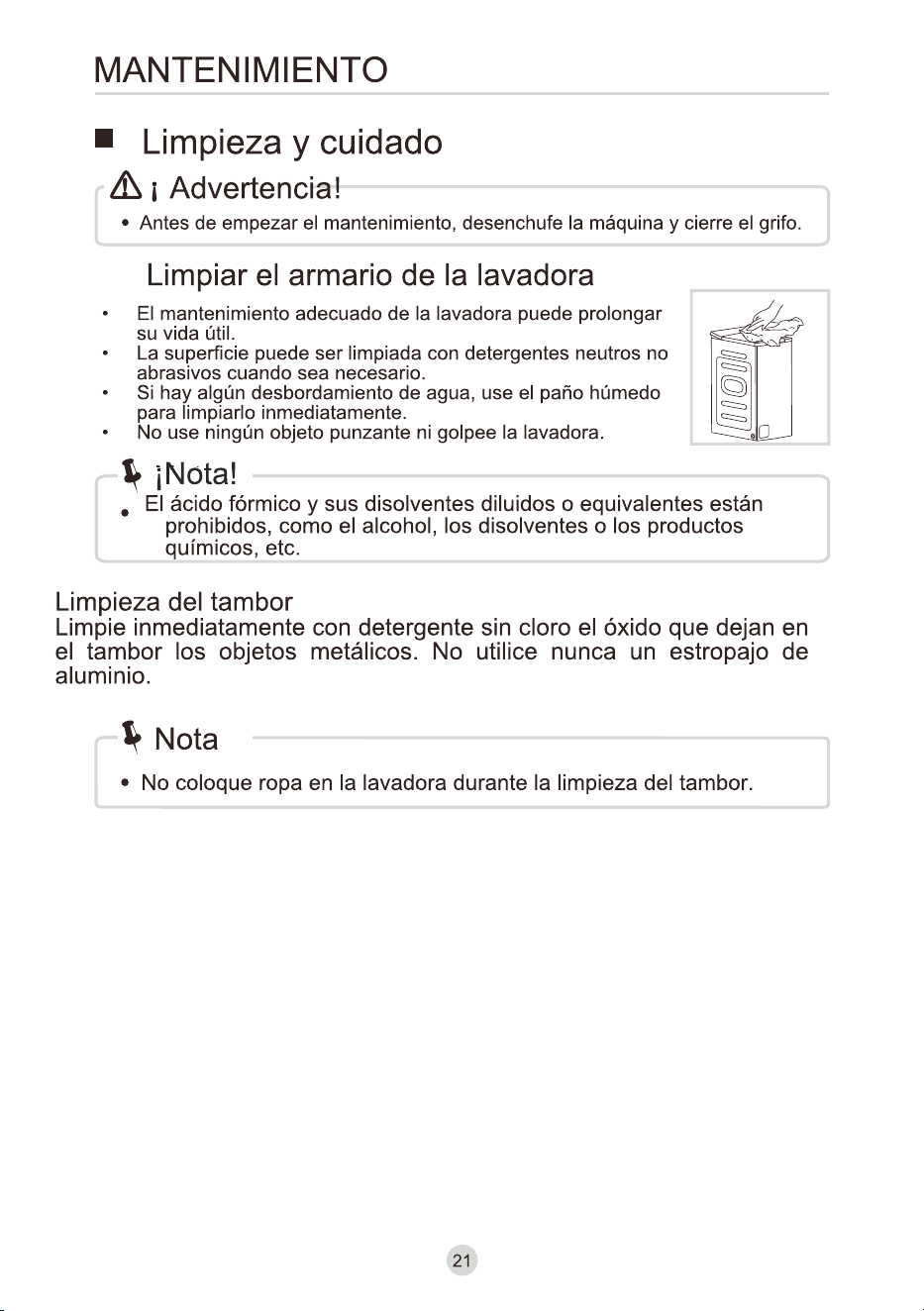

Cleaning and Care .................................................

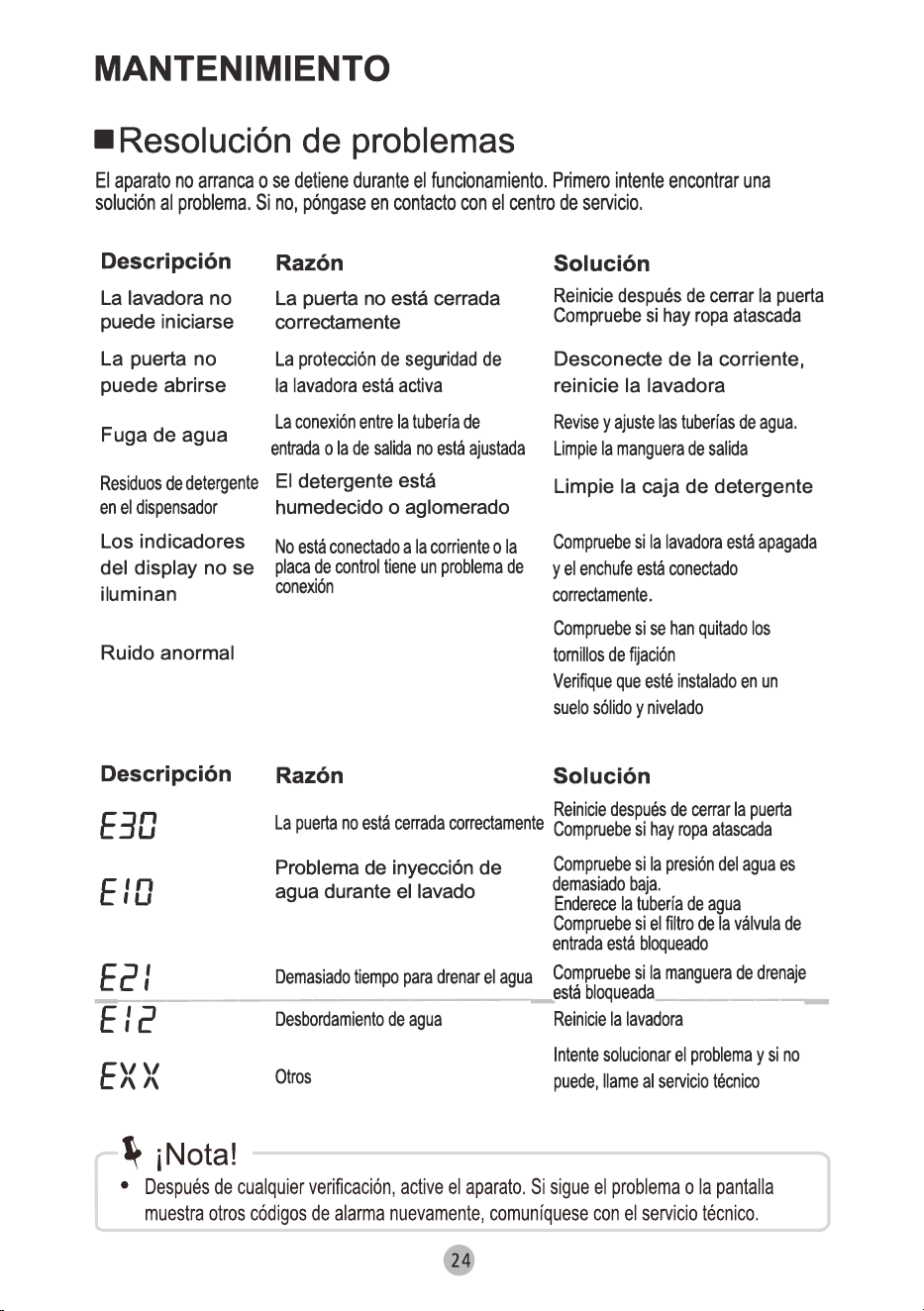

Trouble Shooting ....................................................

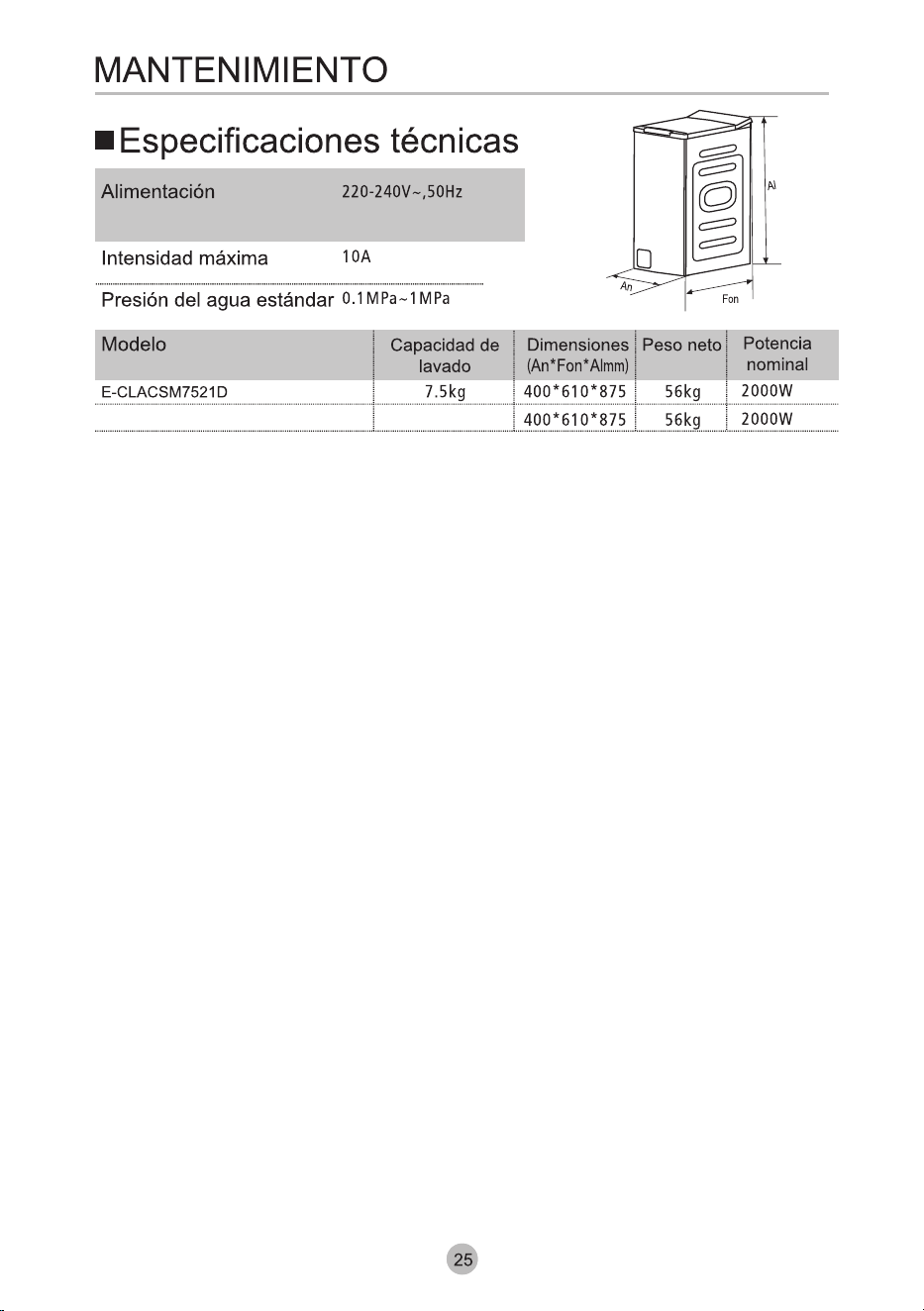

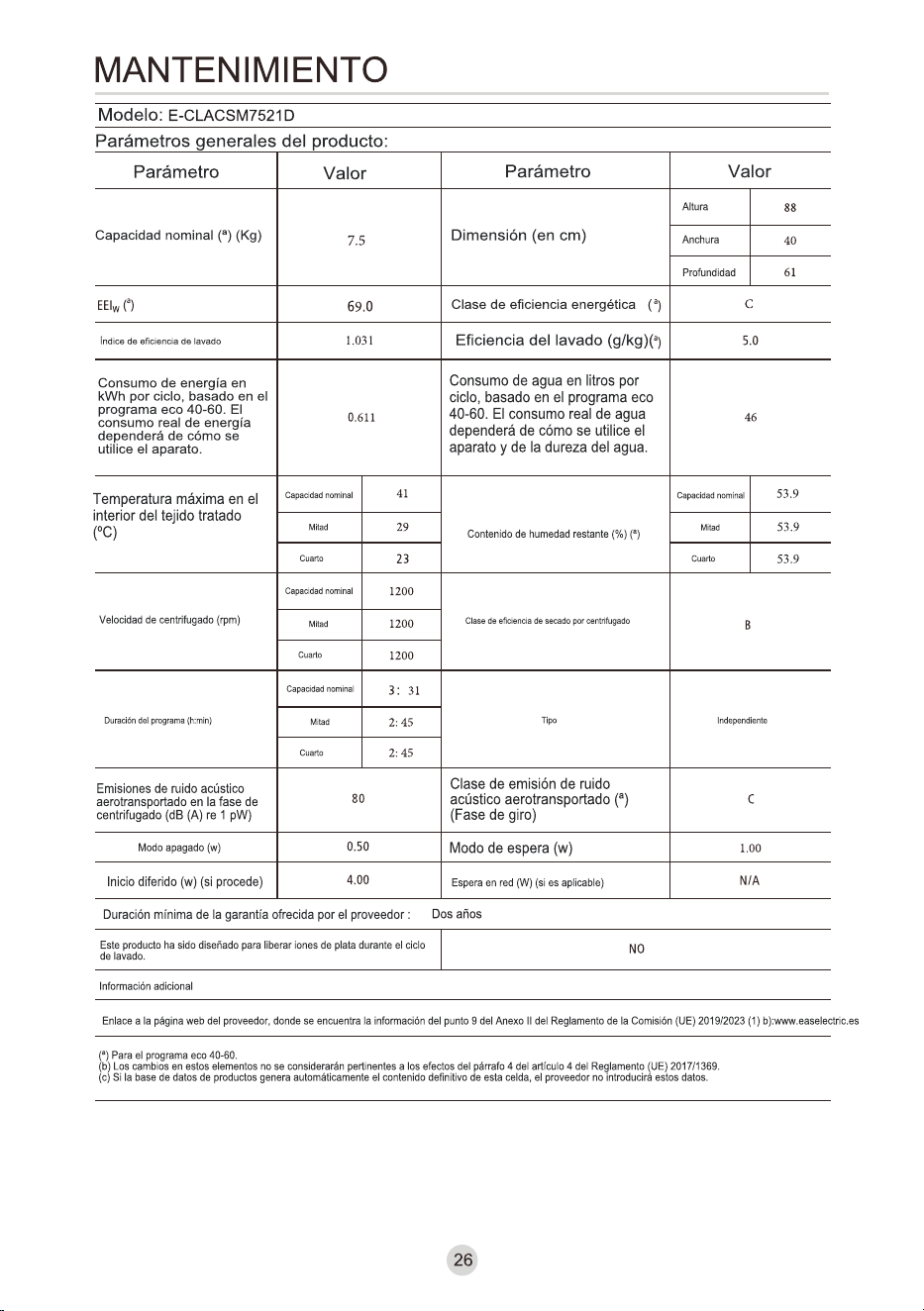

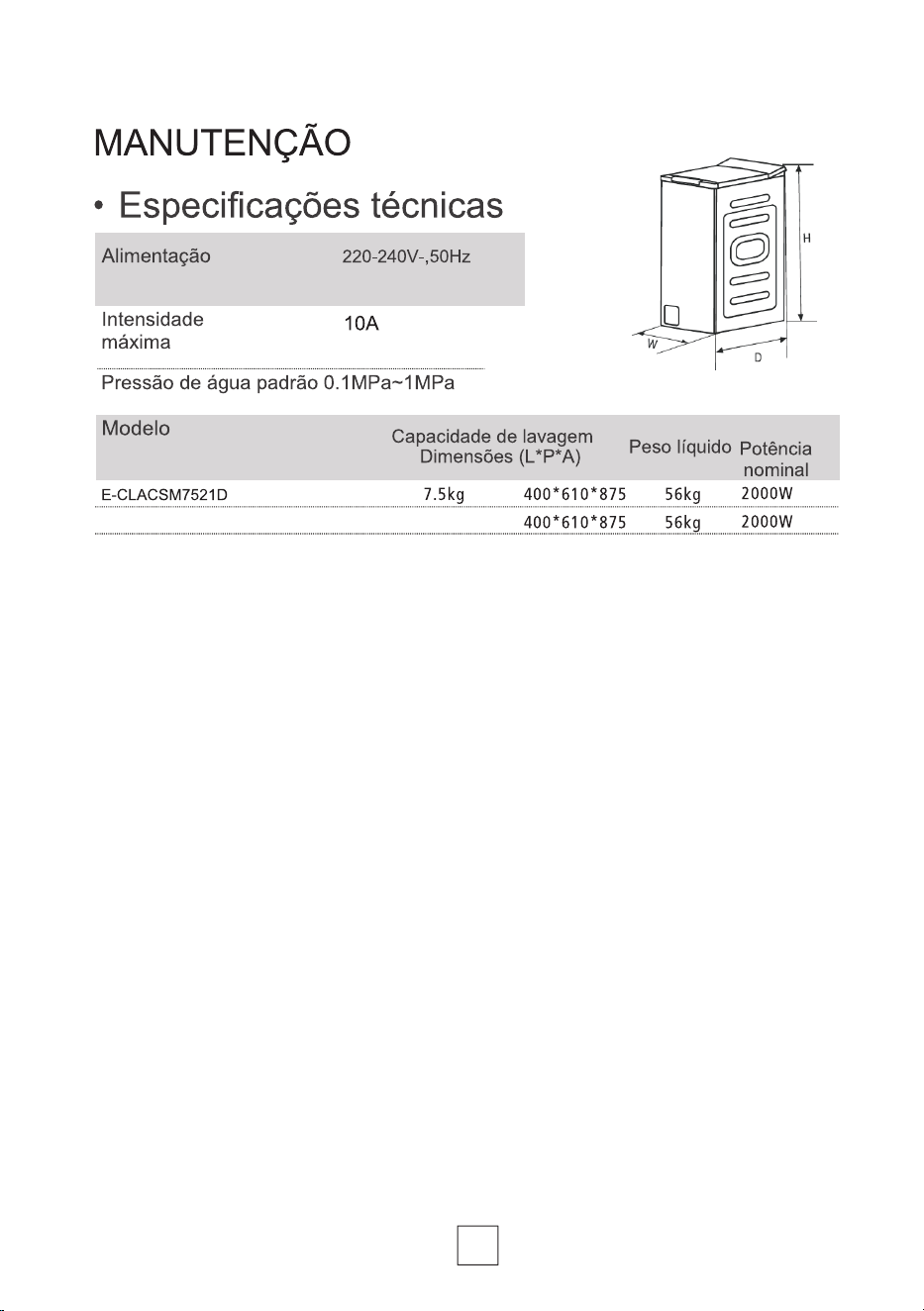

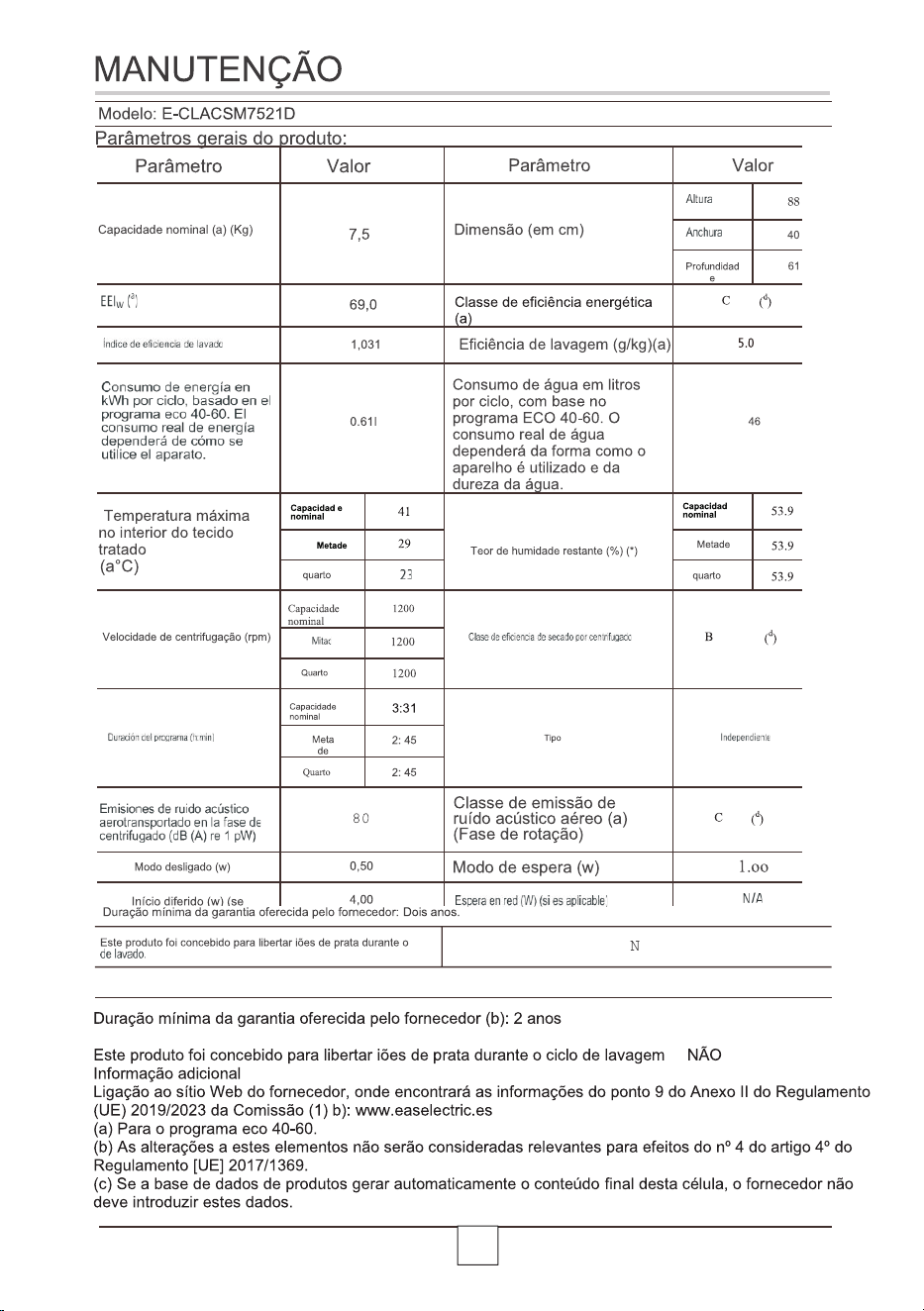

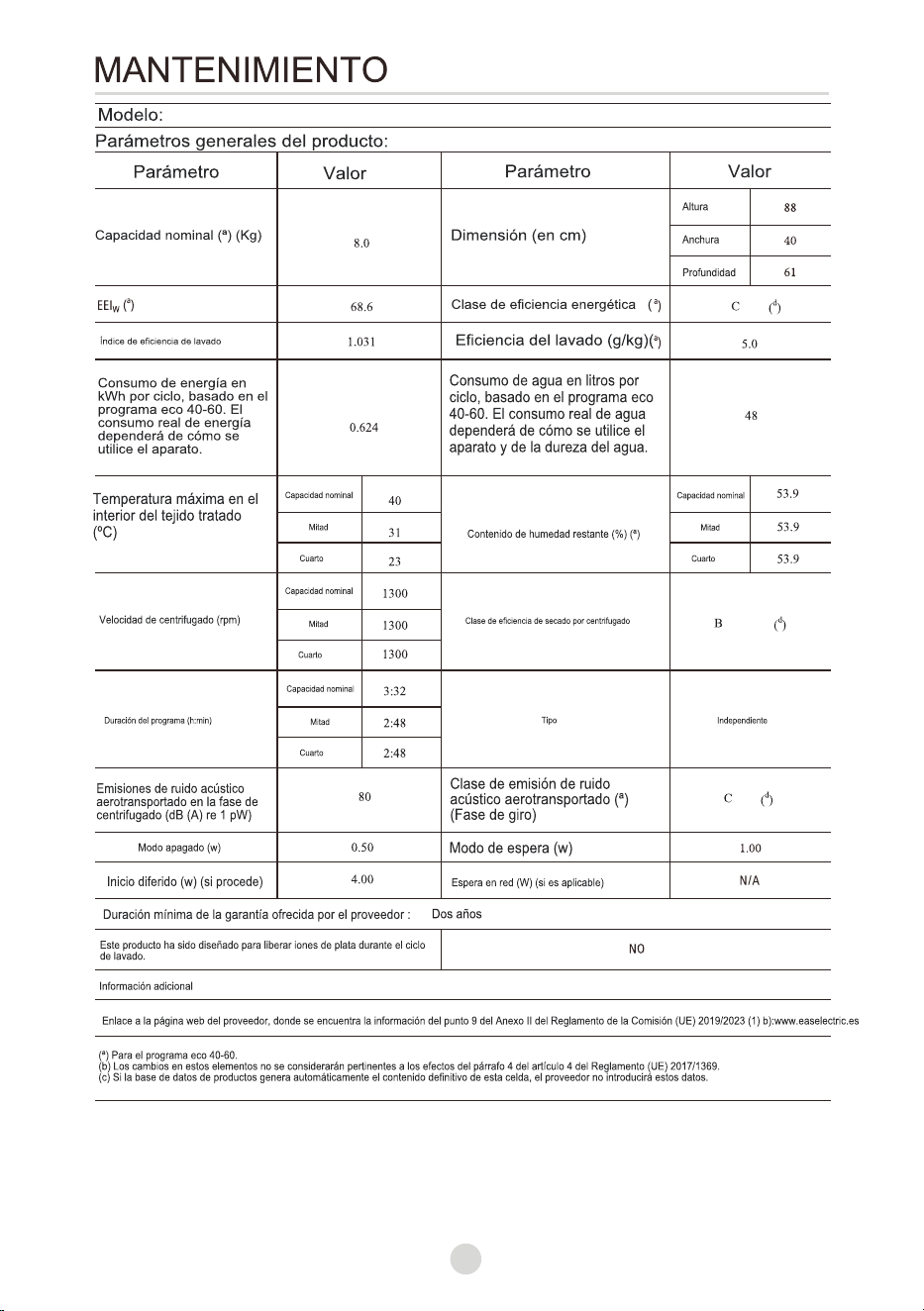

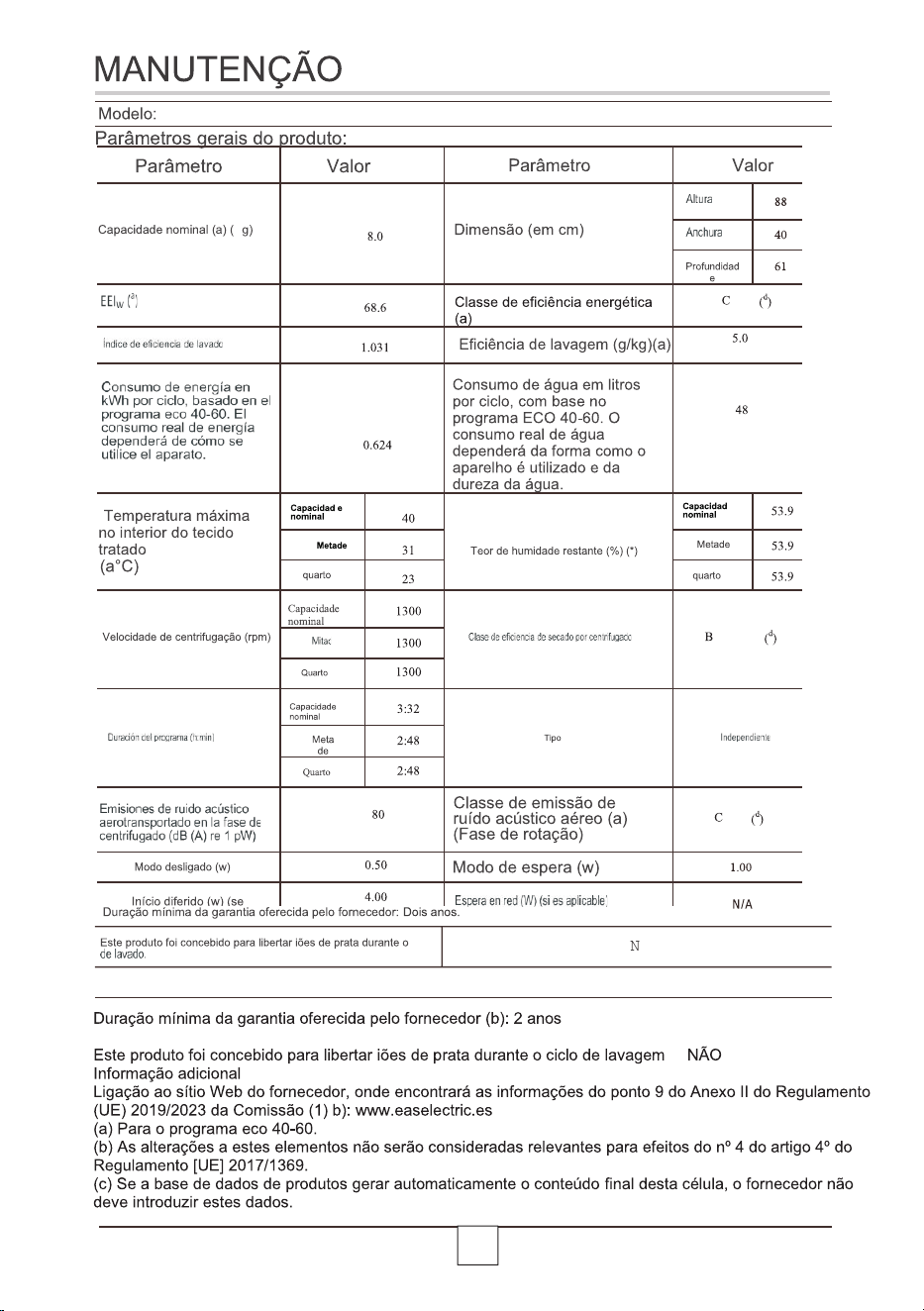

Technical Specifications .........................................

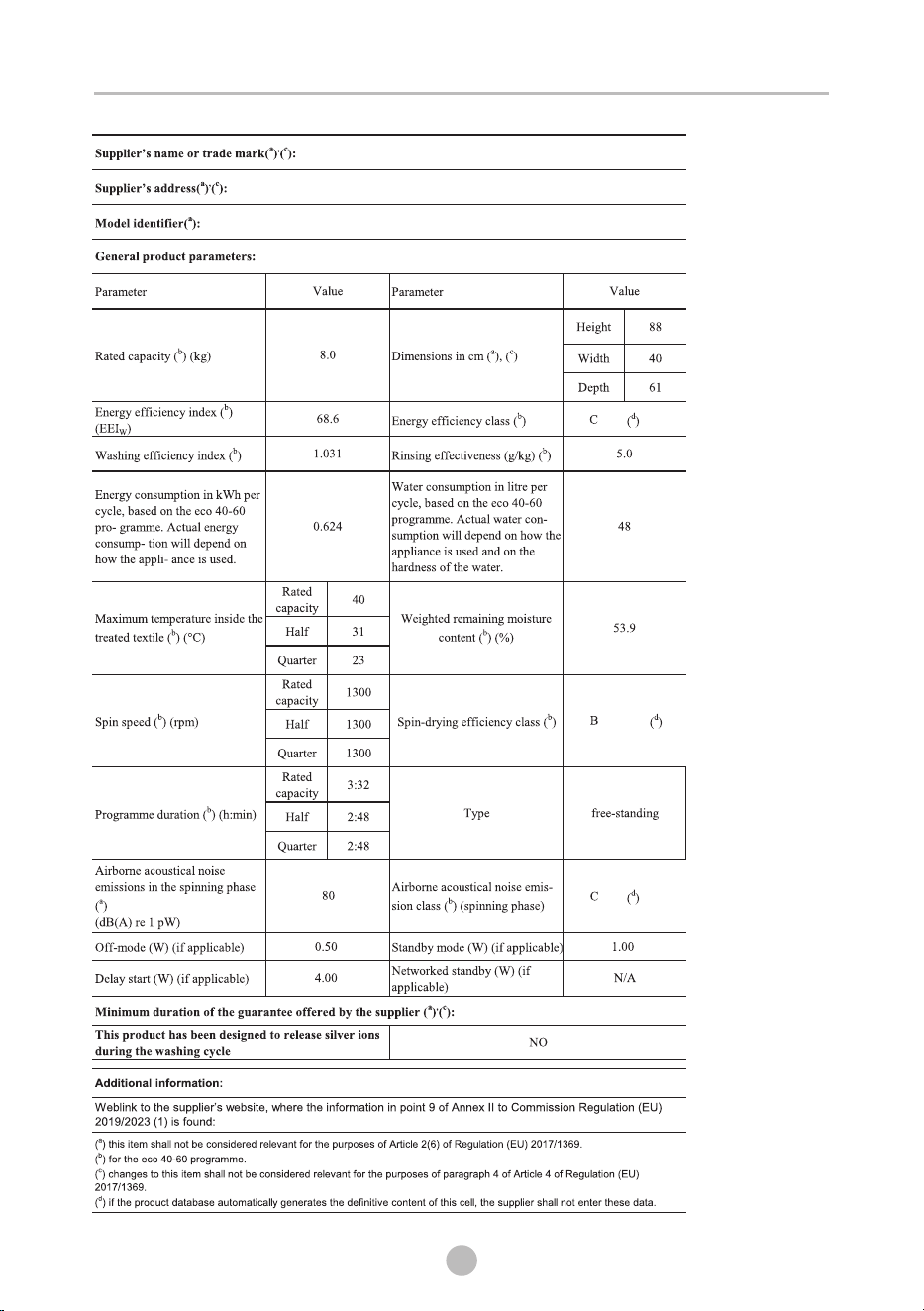

Product Fiche ........................................................
2
9
10
13
14
15
17
19
24
27
30
31
32
1
Please read the following safety information thoroughly and follow it
strictly to minimize the risk of fire or explosion, electric shock and to
prevent property damage, personal injury or loss of life. Failing to follow
these instructions shall void any warranty.
its service agent or similarly qualified persons in order to avoid a hazard.
•If the machine is damaged, it must not be operated unless repaired by
the manufacturer, its service agent or similarly qualified persons.
Risk of electric shock!
•If the supply cord is damaged, it must be replaced by the manufacturer,
ELECTRIC SHOCK HAZARD
SAFETY INSTRUCTIONS

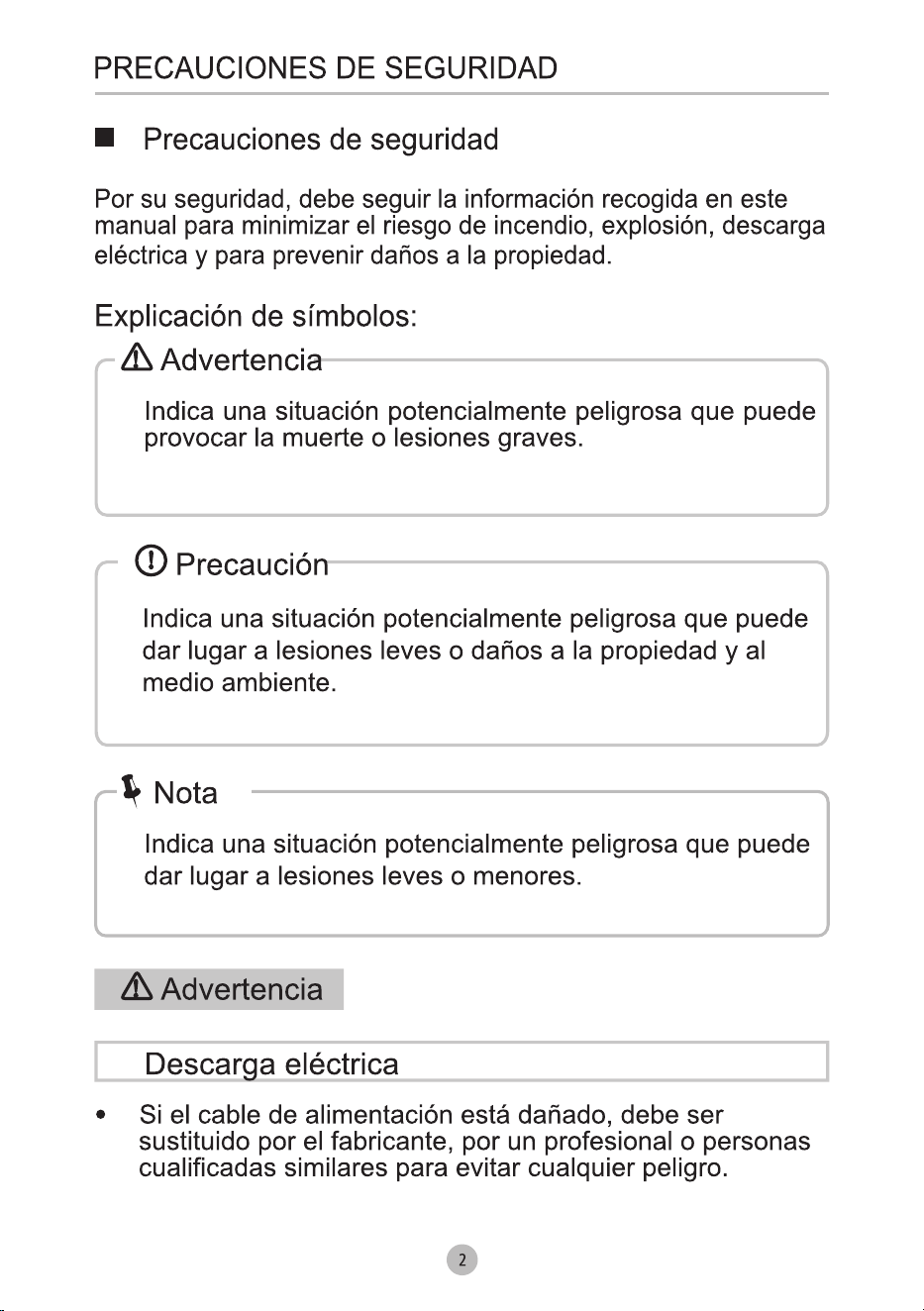

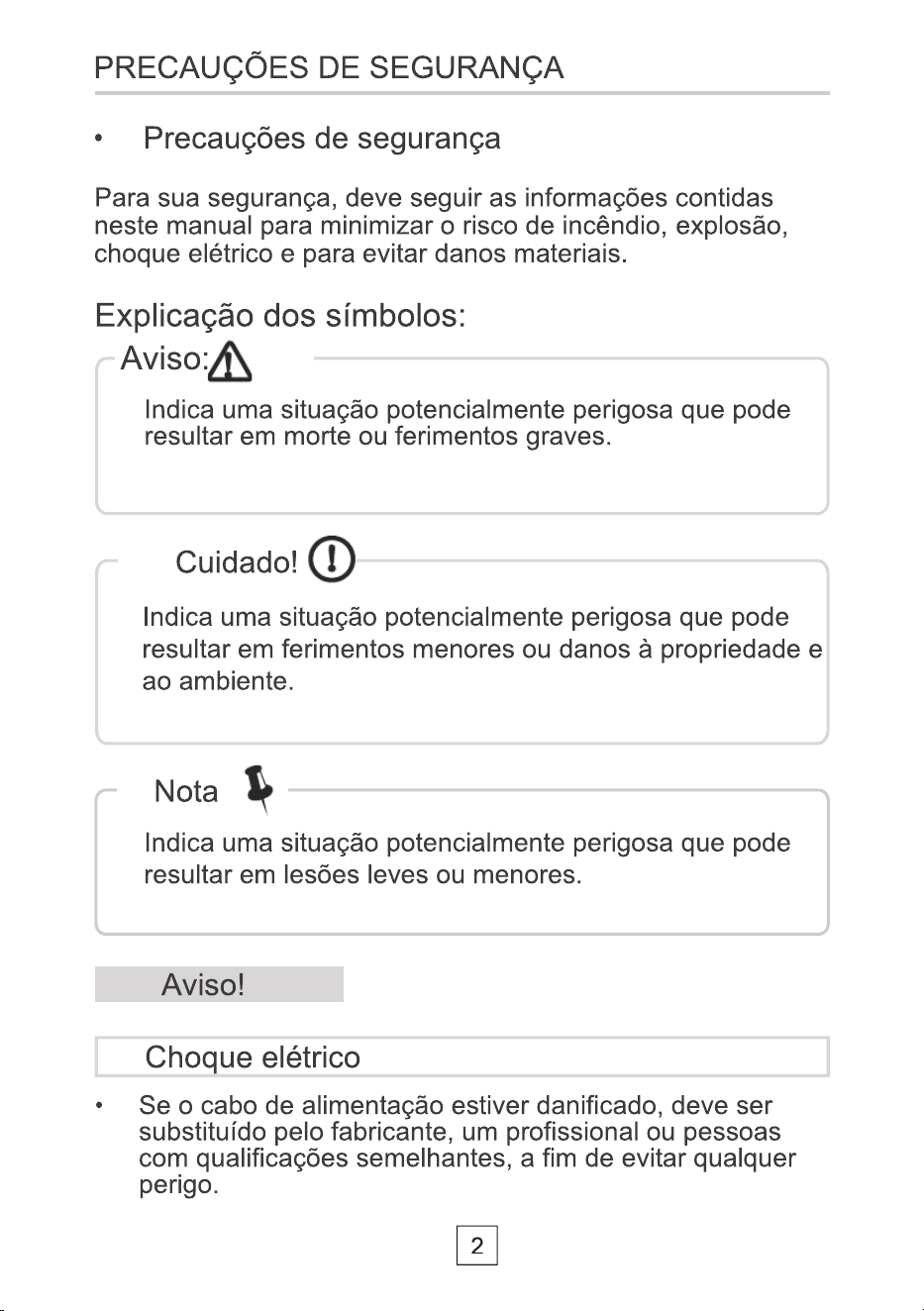

Safety Instructions
a potentially dangerous situation which may result in
death or serious injuries unless it’s avoided.
This combination of symbol and signal word indicates
Warning!
！
a potentially dangerous situation which may result in
slight or minor injuries.
This combination of symbol and signal word indicates
Note!
a potentially dangerous situation which may result in
slight or minor injuries or damage to property and the
environment.
This combination of symbol and signal word indicates
Caution!
Warning!
！
2
SAFETY INSTRUCTIONS

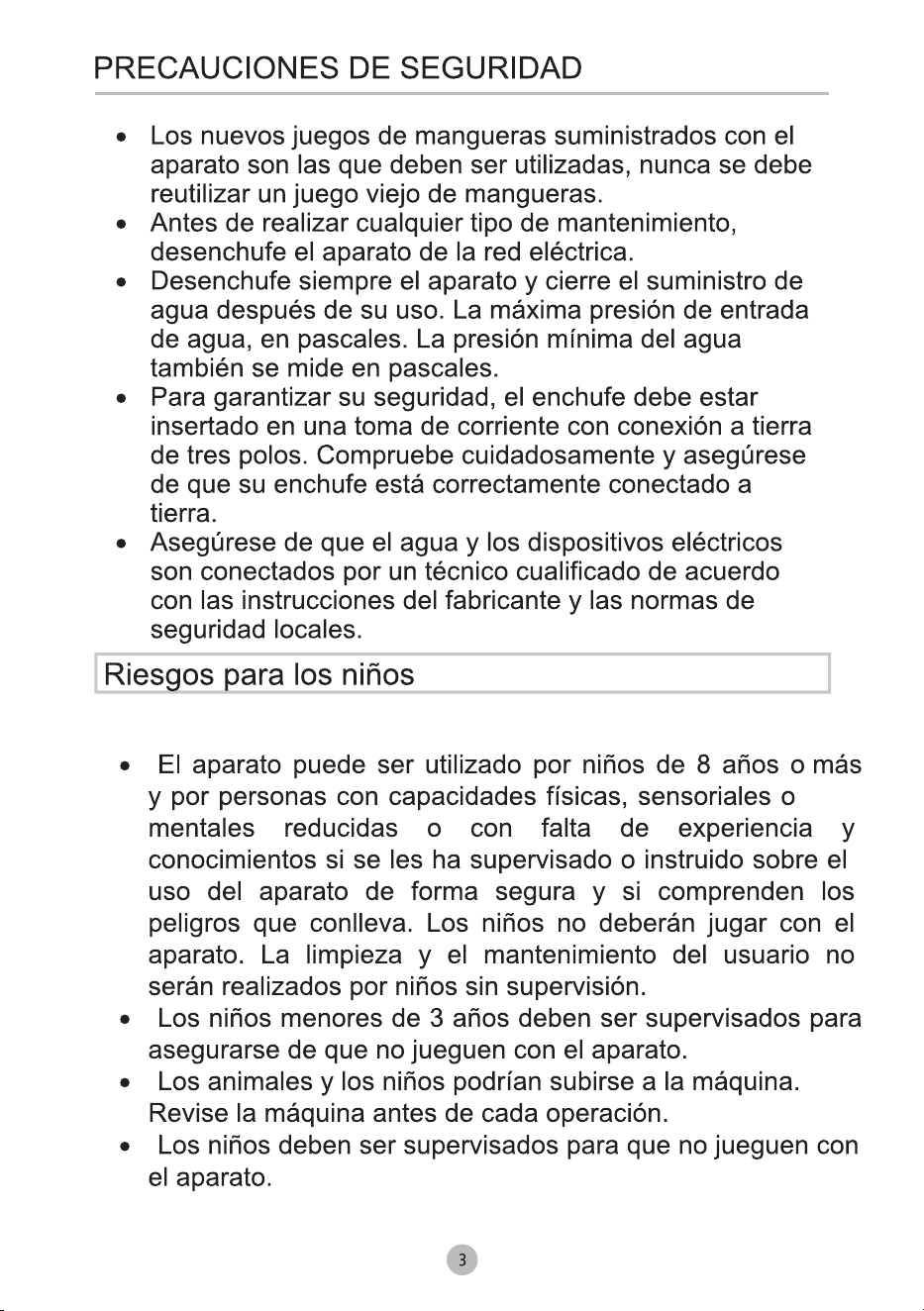

•The appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given
supervision or instruction concerning use of the appliance in a safe
way and understand the hazards involved. Children shall not play
with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
•Children should be supervised that they do not play with the
appliance.
•Children 3 years and under shall be kept away from the appliance
or continuously supervised.
•Animals and children may climb into the machine. Check the
machine before every operation.
•Do not climb or sit on the appliance.
INSTALLATION LOCATION AND SURROUNDING
•All washing and additional substances are to be kept in a safe place
out of the reach of children.
•Do not install the machine on a carpet floor. The obstruction of the
openings by a carpet can damage the machine.
•Keep the appliance clear from heating sources and direct sunlight
to avoid plastic and rubber parts to corrode.
•Do not use the appliance in humid environments or rooms
containing explosive or caustic gas. In case of water leakage or
water splashes let the appliance dry in the open air.
•The appliance must not be installed behind a lockable door, a
sliding door or a door with a hinge on the opposite side to that of the
washing machine.
3
SAFETY INSTRUCTIONS
•Do not operate the machine in rooms with a temperature of below
5°C. This can cause damages to parts of it. If it is unavoidable, make
sure to drain the water completely from the appliance after every

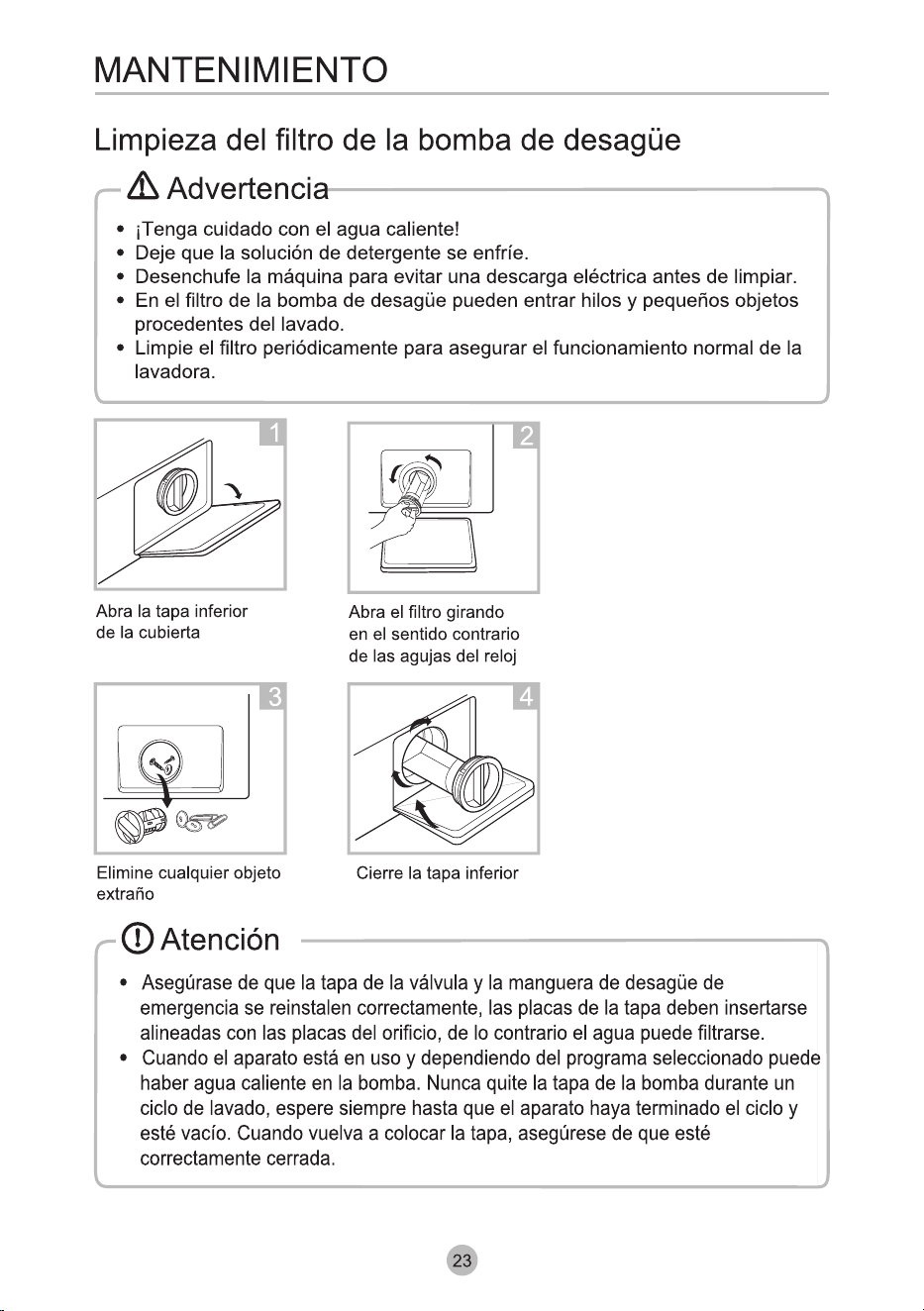

use (see „Maintenance - Cleaning of drain pump filter“) to avoid
damages caused by frost.
•Never use flammable sprays or substances in the immediate
proximity of the appliance.

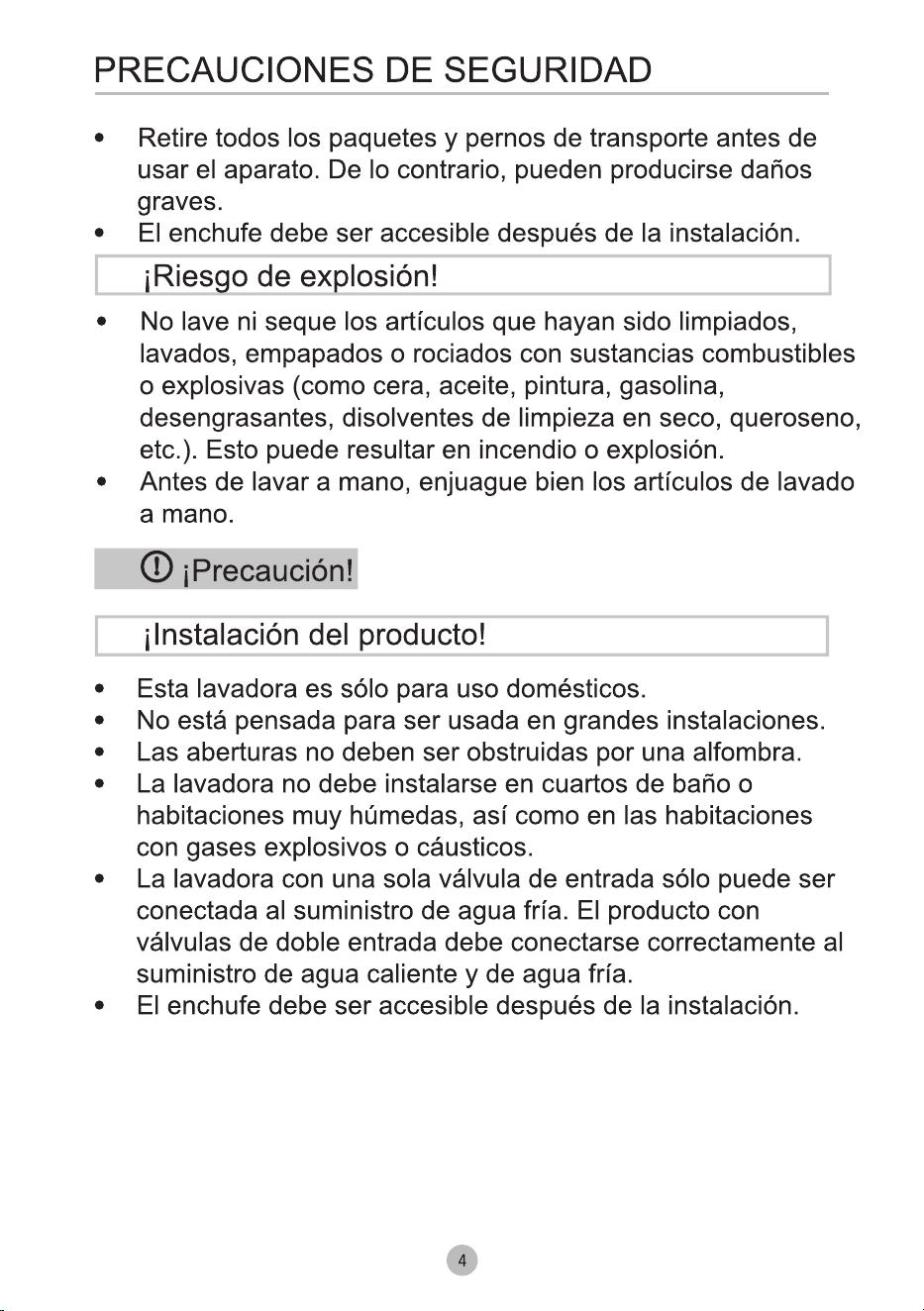

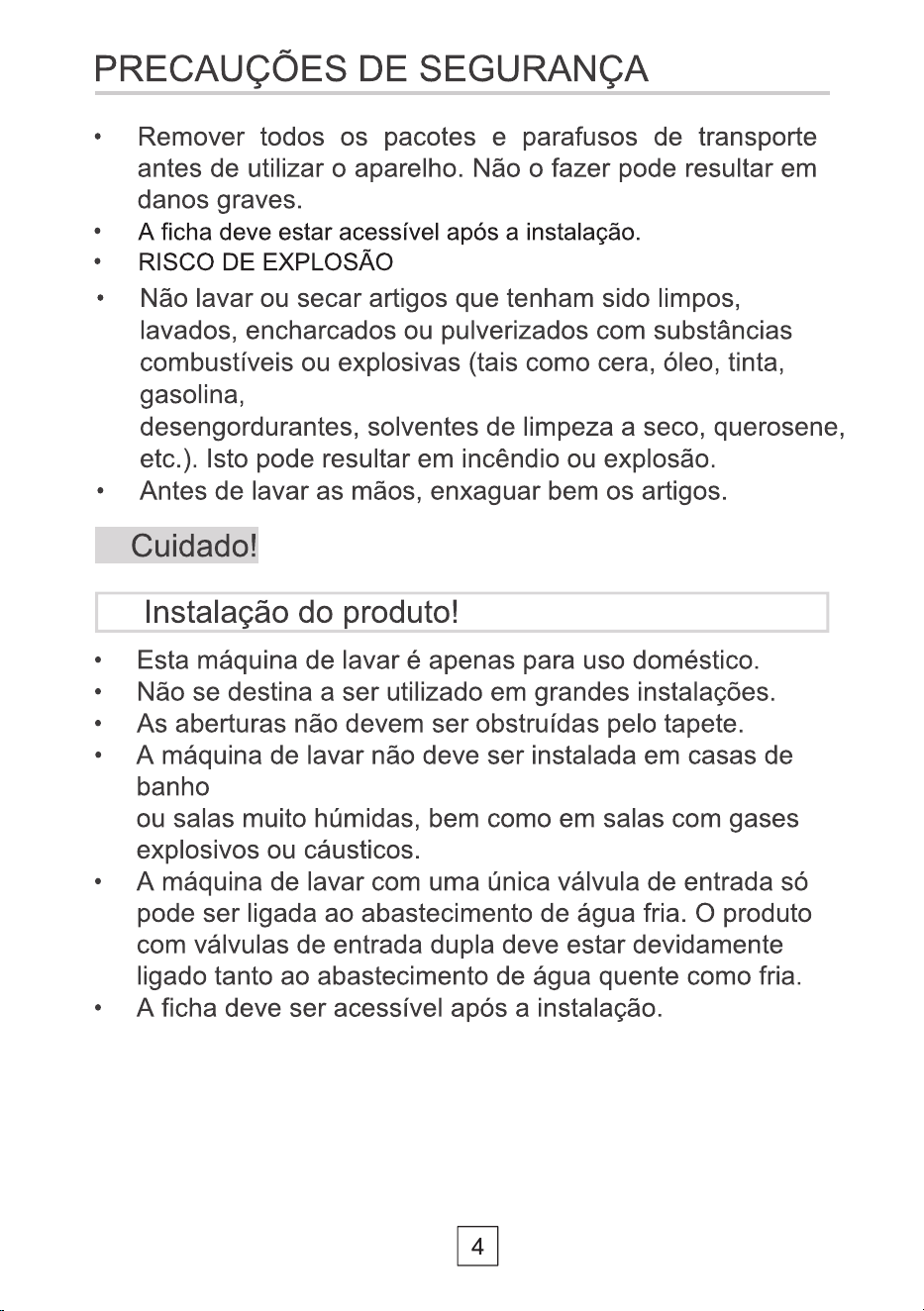

INSTALLATION
•Remove all packaging material and transport bolts before using the
appliance. Otherwise, serious damage may result.
•This appliance is equipped with a single inlet valve and can be
connected to the cold water supply only.
•Mains plug must be accessible after installation.
•Before washing clothes for the first time, the product shall be
operated once throughout all the procedures without any clothes
inside.
•Before using the washing machine, the product shall be calibrated.
•Do not put any excessively heavy objects on the appliance, like
water containers or heating devices.

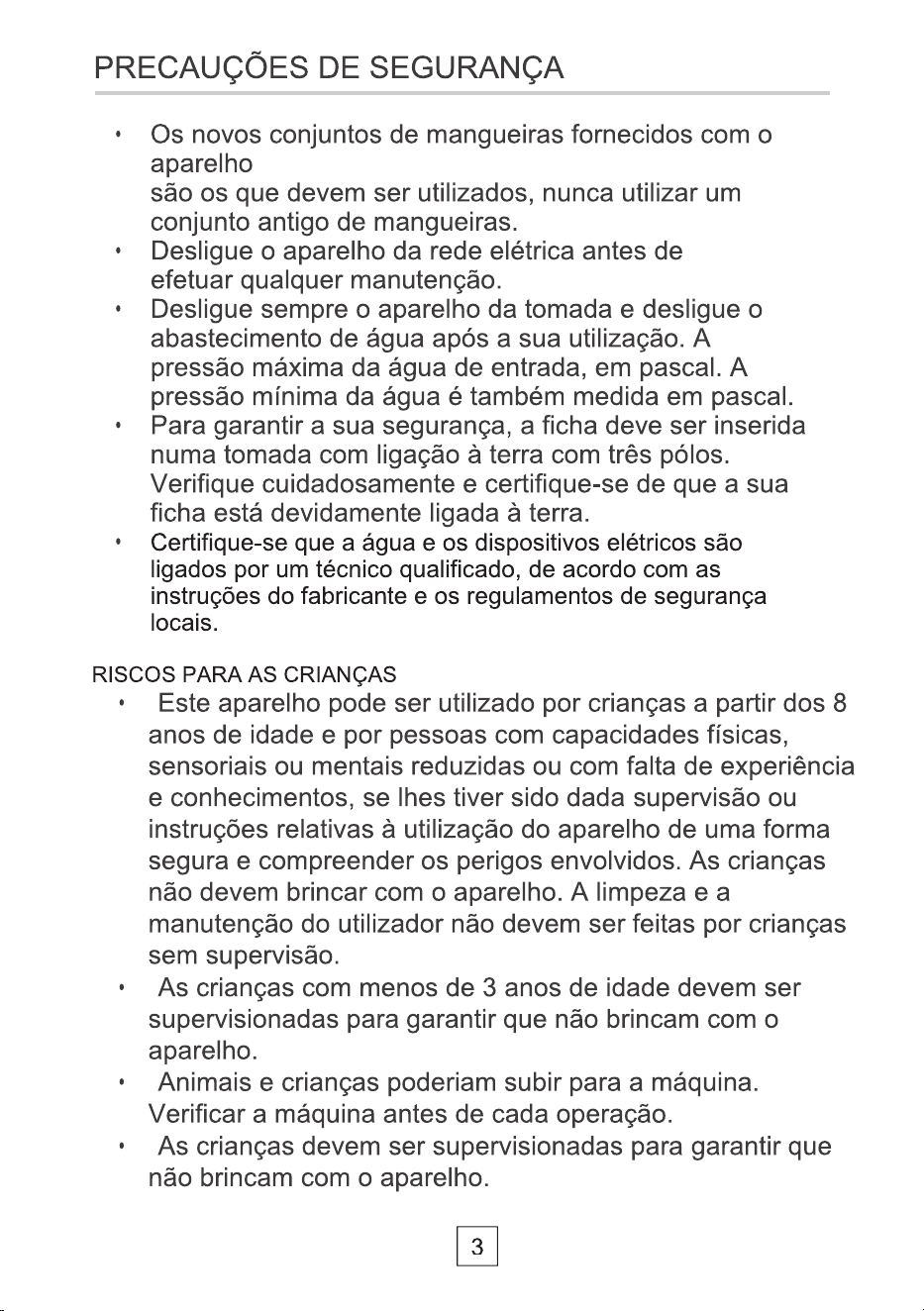

•The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
•Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.1MPa.
ELECTRICAL CONNECTION
•Make sure the supply cable is not trapped by the machine, it can get
damaged.
•Connect the product to a grounded outlet protected by a fuse
complying with the values in the “ Technical specifications“ table.
The grounding installation has to be made by a qualified electrician.
Ensure that the machine is installed in accordance with the local
regulations.
4
SAFETY INSTRUCTIONS
•Water and electrical connections must be carried out by a qualified
technician in accordance with the manufacturer‘s instructions and
local safety regulations.
•Don´t use multiple plugs or extension cords.
•The appliance must not have an external switching device such as a timer or
connected to a circuit that is regularly switched on and off.
•Do not pull the plug out of the mains outlet if there is flammable gas around.
•Never pull out power plug with wet hands.
•Always pull at the plug, not at the cable.
•Always unplug the appliance if it is not being used.
Warning!
！
WATER CONNECTIONS
•Check the connections of the water inlet tubes, the water tap and
the outlet hose for possible problems due to changes of water
pressure. If the connections loosen or leak close the water tap and
get it repaired. Do not use the appliance before the pipes and hoses
are installed properly by qualified persons.
•Glass door may become very hot during the operation. Keep
children and pets far away from the machine while it is operating.
•The water inlet and outlet hoses have to be safely installed and
remain undamaged. Otherwise, water leakage can occur.
•Do not remove the drain pump filter while there is still water in the
appliance. Big quantities of water can leak out, and there is a risk of
scalding due to hot water.
5
SAFETY INSTRUCTIONS

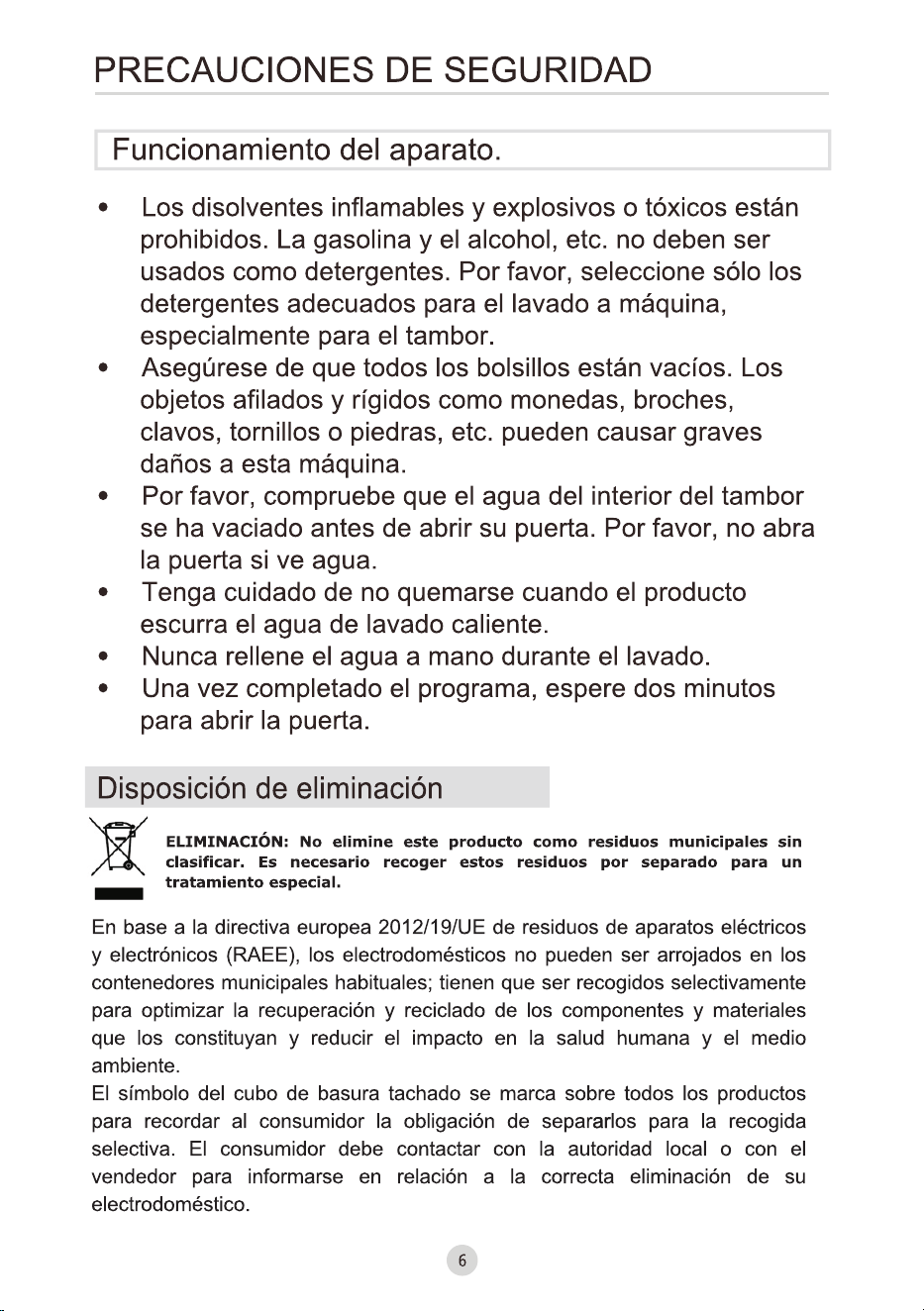

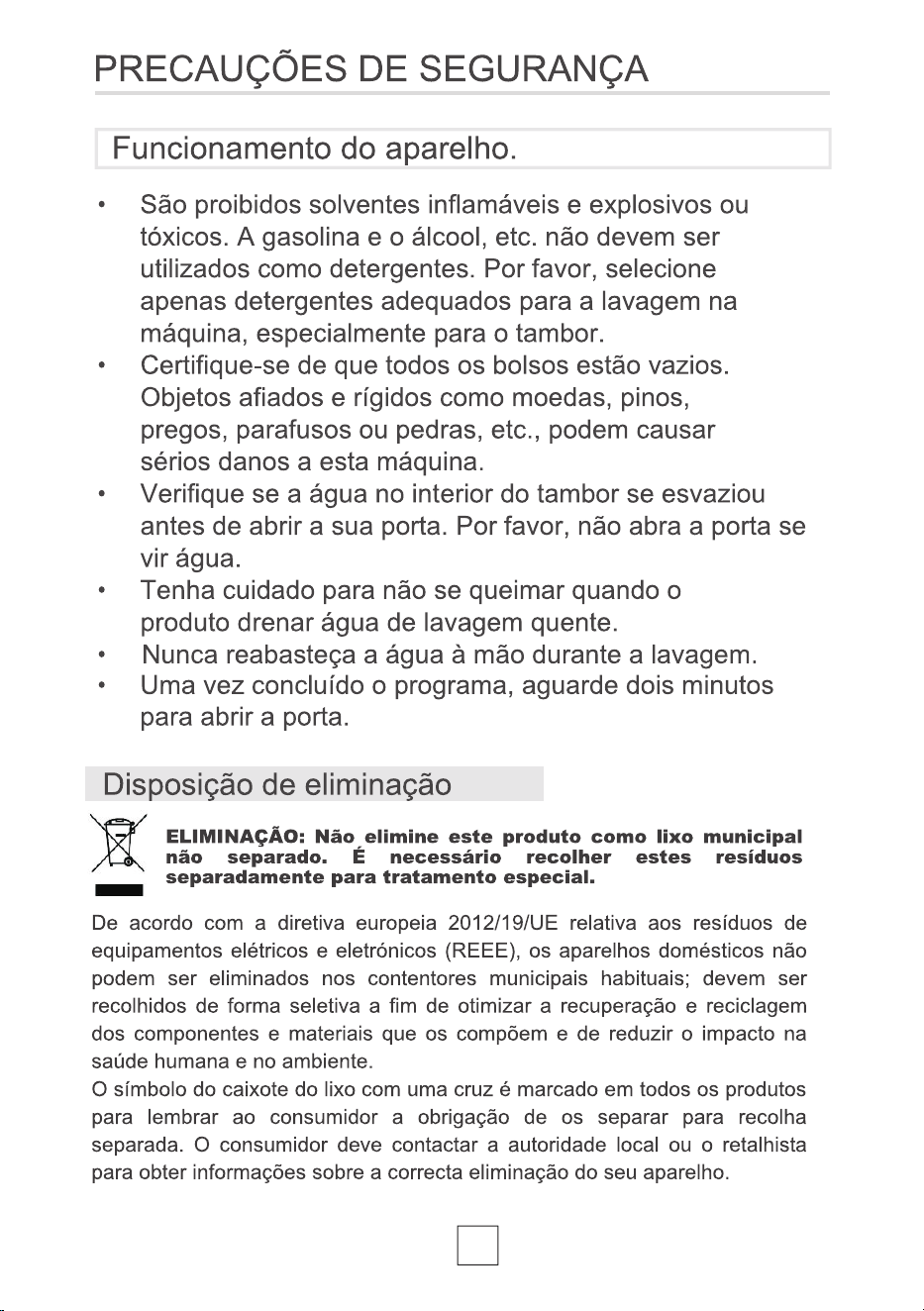

OPERATION AND MAINTENANCE
•Never use any flammable, explosive or toxic solvents. Do not use
gasoline and alcohol etc. as detergents. Only select detergents that
are suitable for machine washing.
•Make sure that all pockets are emptied. Sharp and rigid items such
as coins, brooches, nails, screws, stones etc. may cause serious
damages to this machine.
•Remove all objects from pockets such as lighters and matches
before use the appliance.
•Thoroughly rinse items that have been washed by hand.
•Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax
and wax removers should be washed in hot with an extra amount of
detergent before being dried in the appliance.
•Items containing foam rubber (latex foam), shower caps, water
proof textiles, rubber backed articles and clothes or pillows fitted
with foam rubber pads should not be dried in the machine
•Fabric softeners or similar products should be used as
recommended in their instructions.
•Never try to open the door forcefully. The door will unlock shortly
after the end of a cycle.
•Please do not close the door with excessive force. If it is found
difficult to close the door, please check if the clothes are properly
inserted and distributed.
6
SAFETY INSTRUCTIONS
•Always unplug the appliance and close the water tap before
cleaning and maintenance and after each use.
•Never pour water over the appliance for cleaning purpose. Risk of
electric shock!
•Repairs shall only be carried out by the manufacturer, its service
agent or similarly qualified persons in order to avoid a hazard. The
producer will not be responsible for damages caused by the
intervention of not authorized persons.

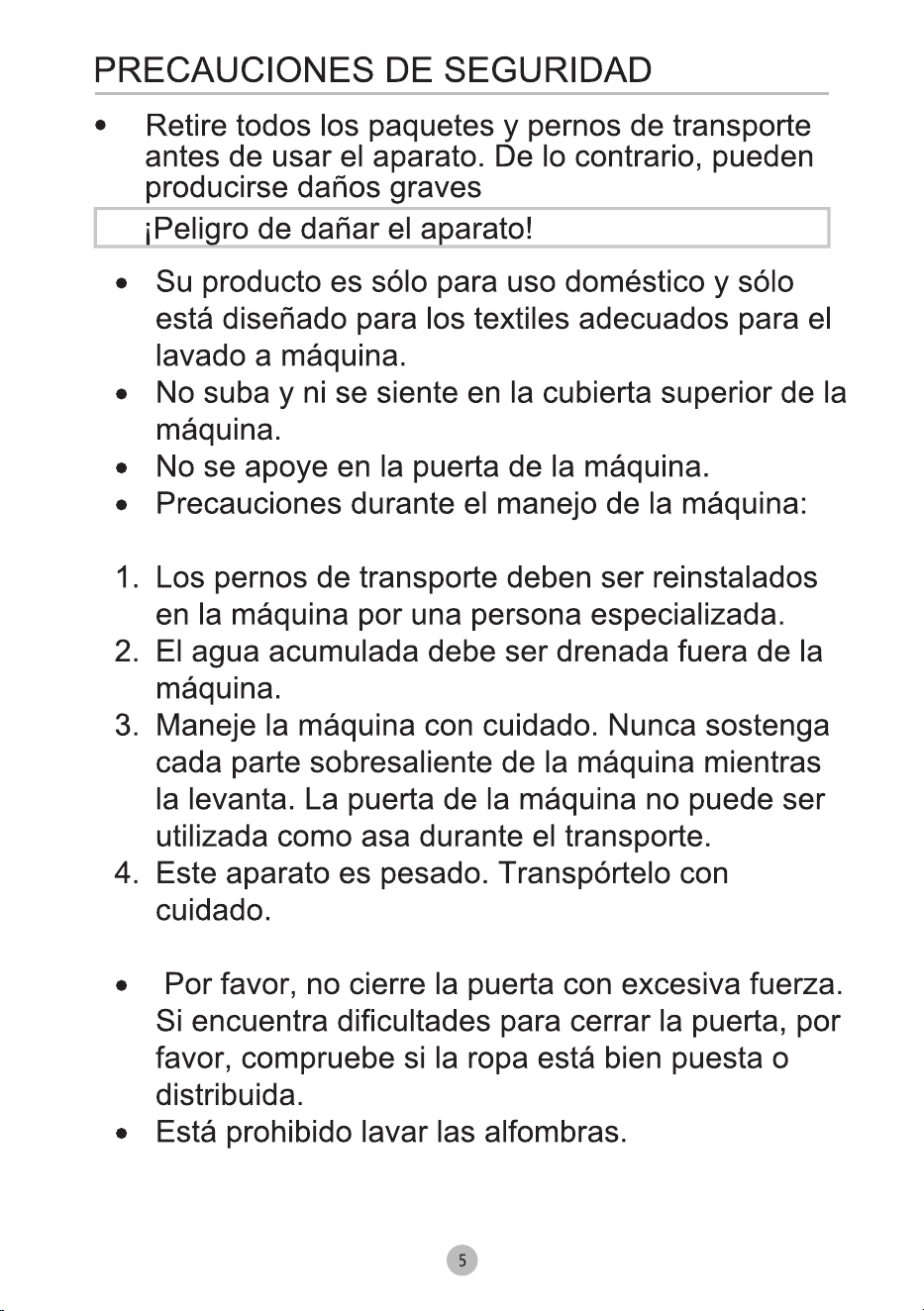

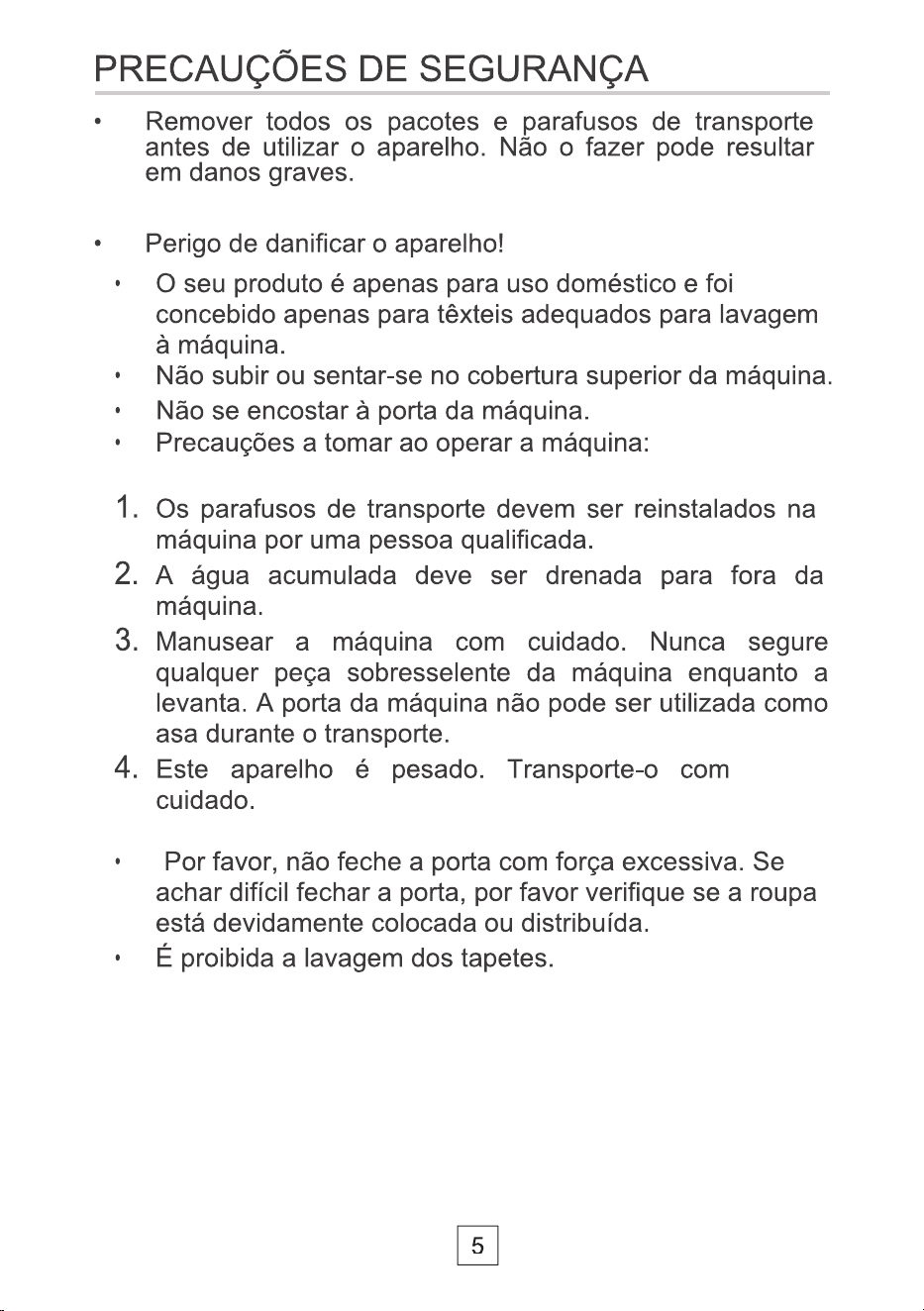

TRANSPORT
•Before Transport:
-Bolts shall be reinstalled to the machine by a specialized person
-Accumulated water shall be drained out of the machine
•This appliance is heavy. Transport with care. Never hold any
protruding part of the machine when lifting. The machine door
cannot be used as a handle.
INTENDED USE
The product is intended only for home use and for textiles in
household amounts suitable for machine washing and drying. This
appliance is for indoor use only and not intended for built in use.
Only use according to these instructions. The appliance is not
intended for commercial use.
Any other use is considered as improper use. The producer is not
responsible for any damage or injuries that may result of it.
•Thisapplianceisintendedtobeusedinhouseholdand similar
applicationssuchas:
-Staffkitchenareasinshops,officesandother workingenvironments;
-Farmhouses;
-Byclientsinhotels,motelsandother residentialtypeenvironments;
-Bedandbreakfasttypeenvironments;
-Areasforcommunaluseinblocksofflatsorin launderettes.
7
SAFETY INSTRUCTIONS
This marking indicates that this product should not be
disposed with other household wastes throughout the
EU.To prevent possible harm to the environment or
human health from uncontrolled waste disposal,recycle
it responsibly to promote the sustainable reuse of
material resources.To return your used device, please use
the collection systems or contact the retailer where the
product was purchased. They return and can take this
product for environmental safe recycling.
Packaging/Old appliance
8
INSTALLATION

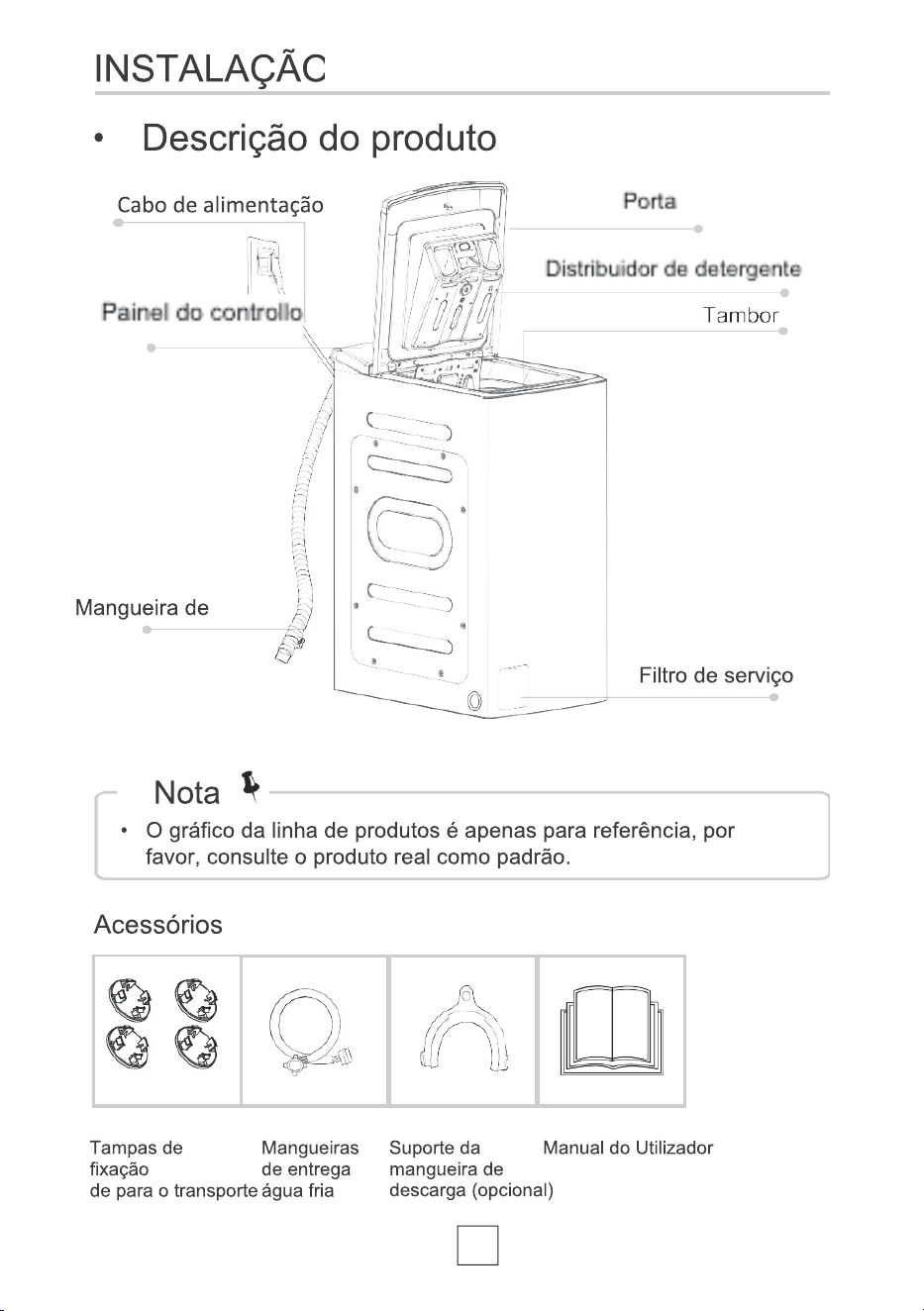

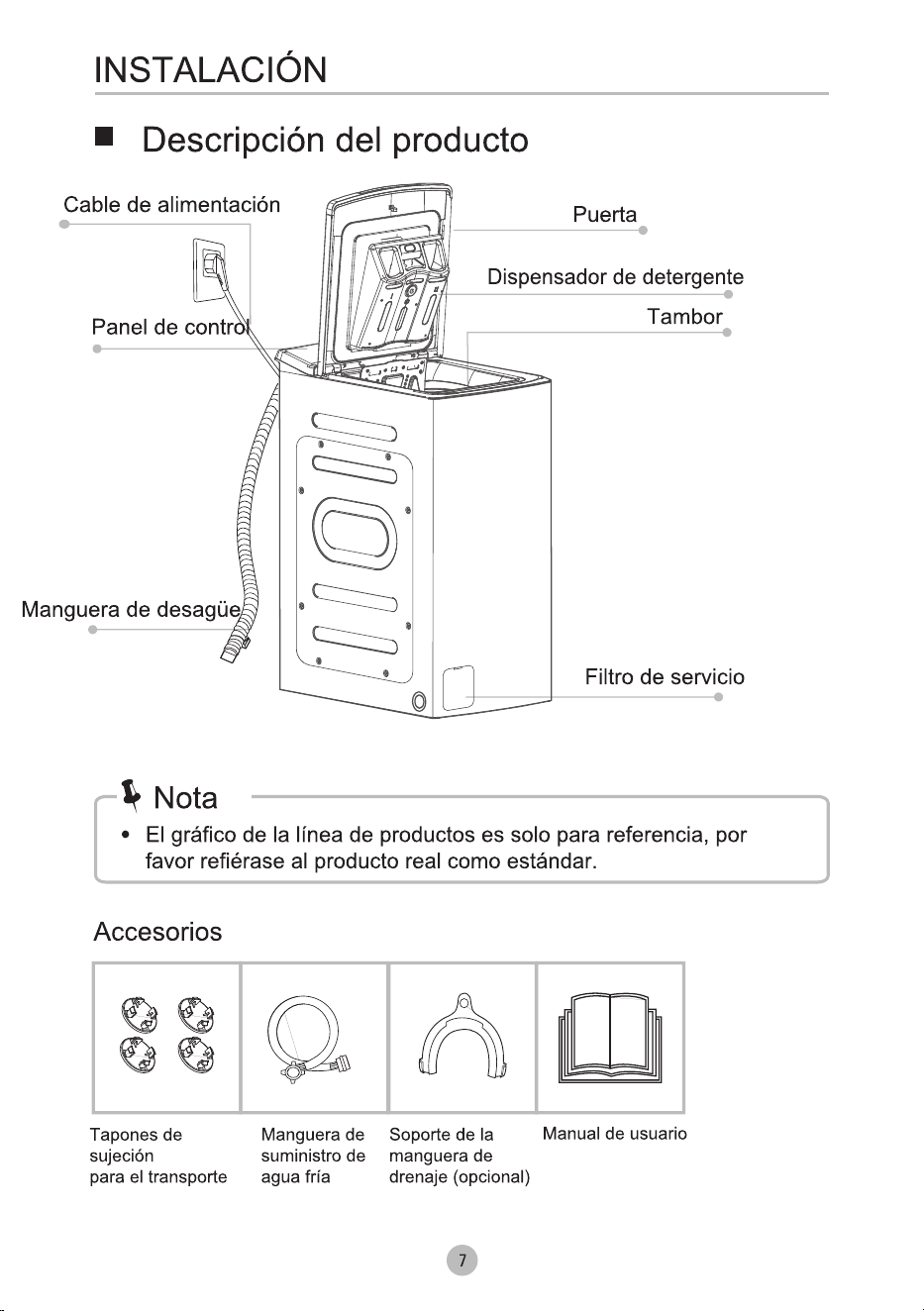

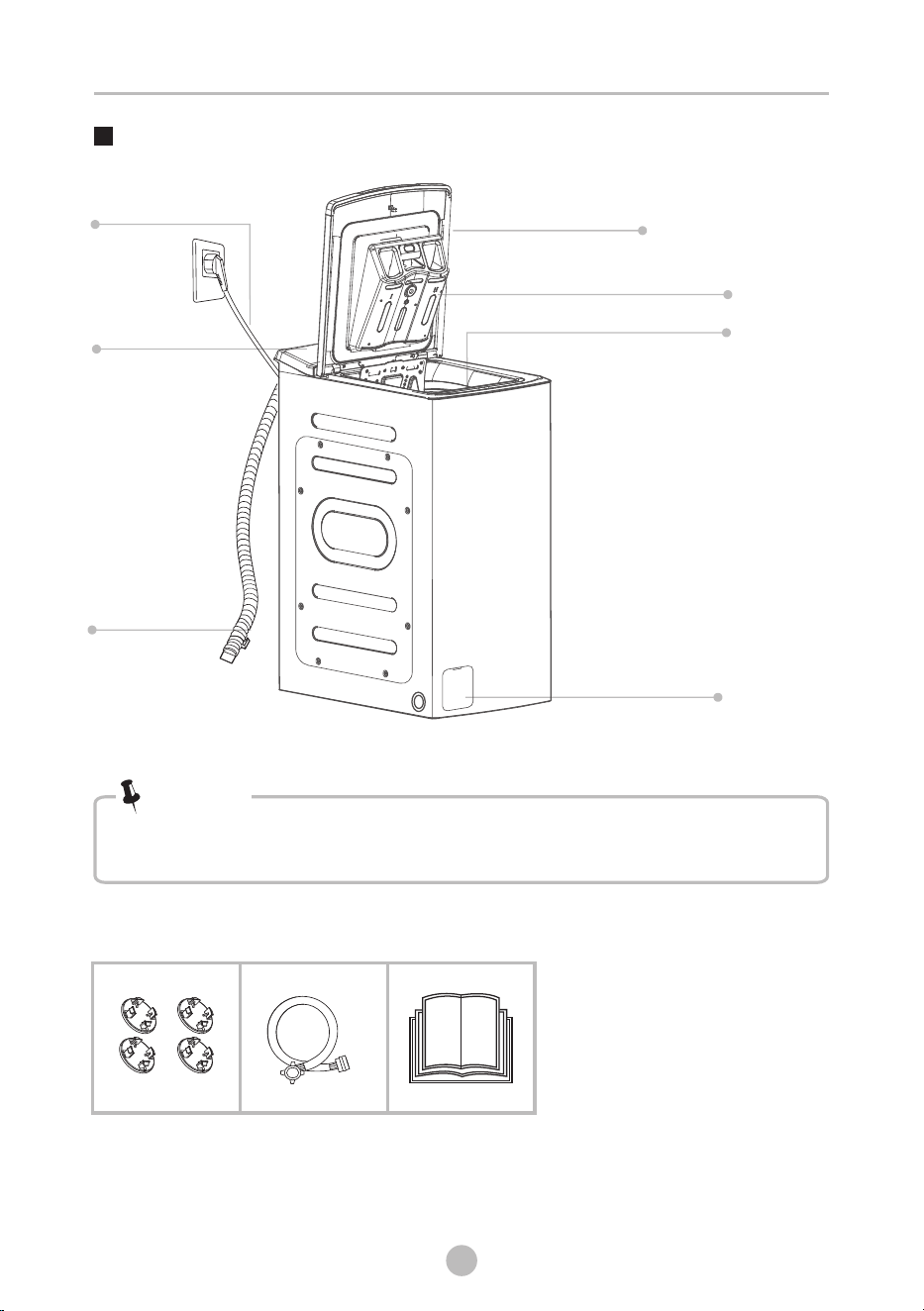

Product Description
Accessories
Transport
plughole
Supply hose
cold water
• The product line chart is for reference only, please refer to real product as
standard.
Note!
Drum
Control panel
Detergent dispenser
Service filter
Door
Drain hose
Owner’s manual
Power supply cord
9
INSTALLATION

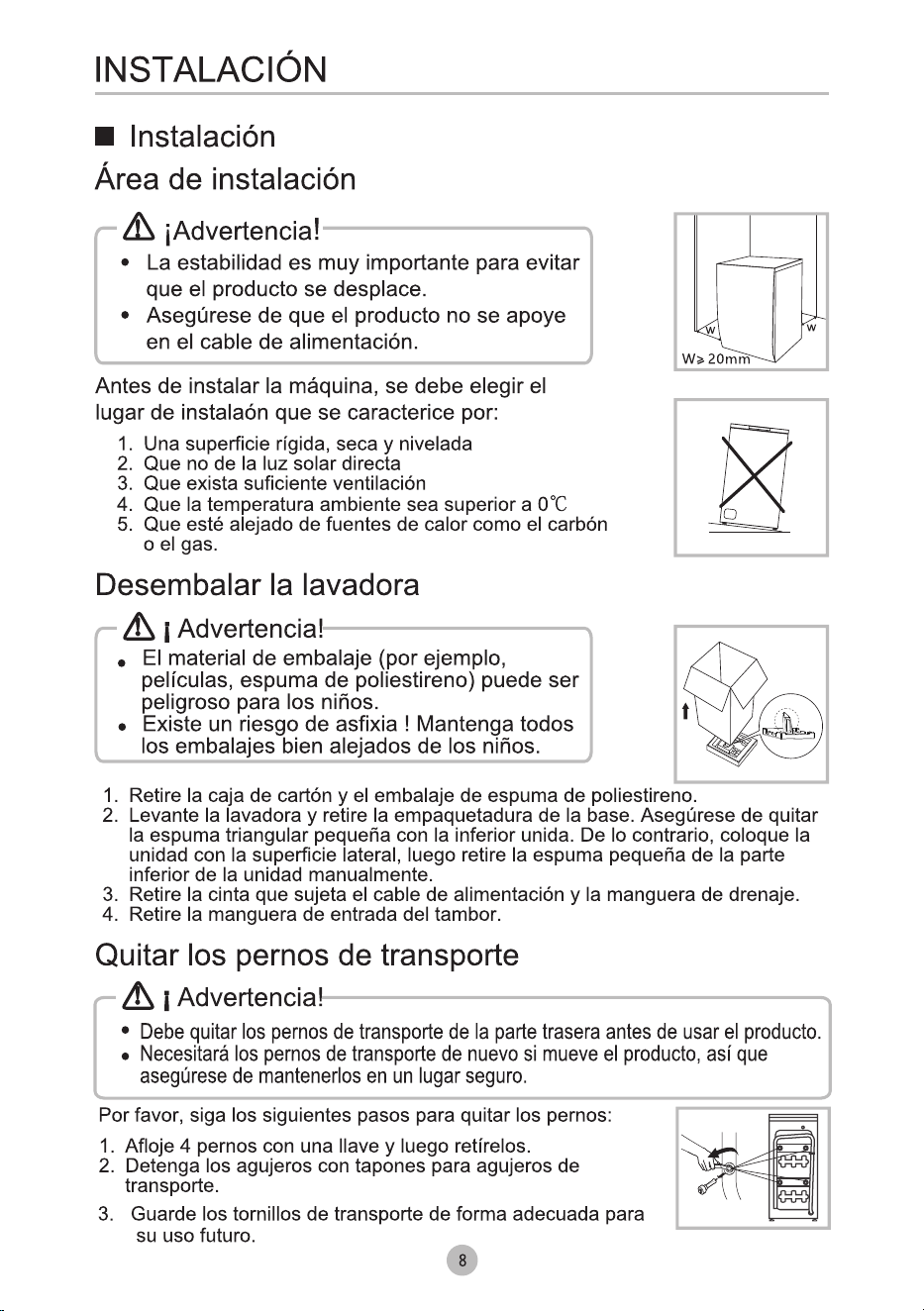

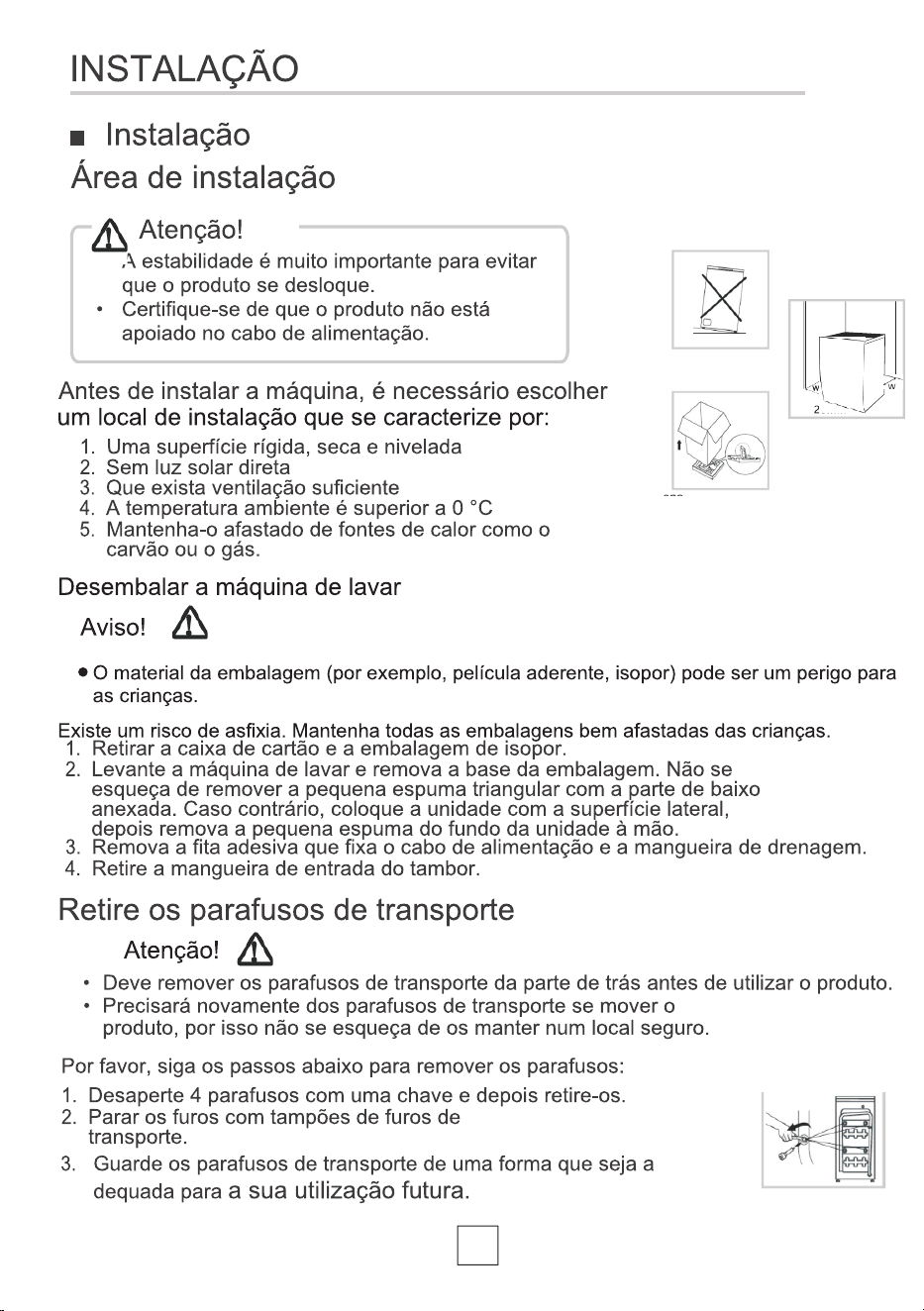

Installation
Before installing the machine, the location characterized
follows shall be selected:
1.Rigid, dry, and level surface
2.Avoid direct sunlight
3.Sufficient ventilation
4.Room temperature is above 0℃
5.Keep far away from the heat resources such as coal or gas.
as

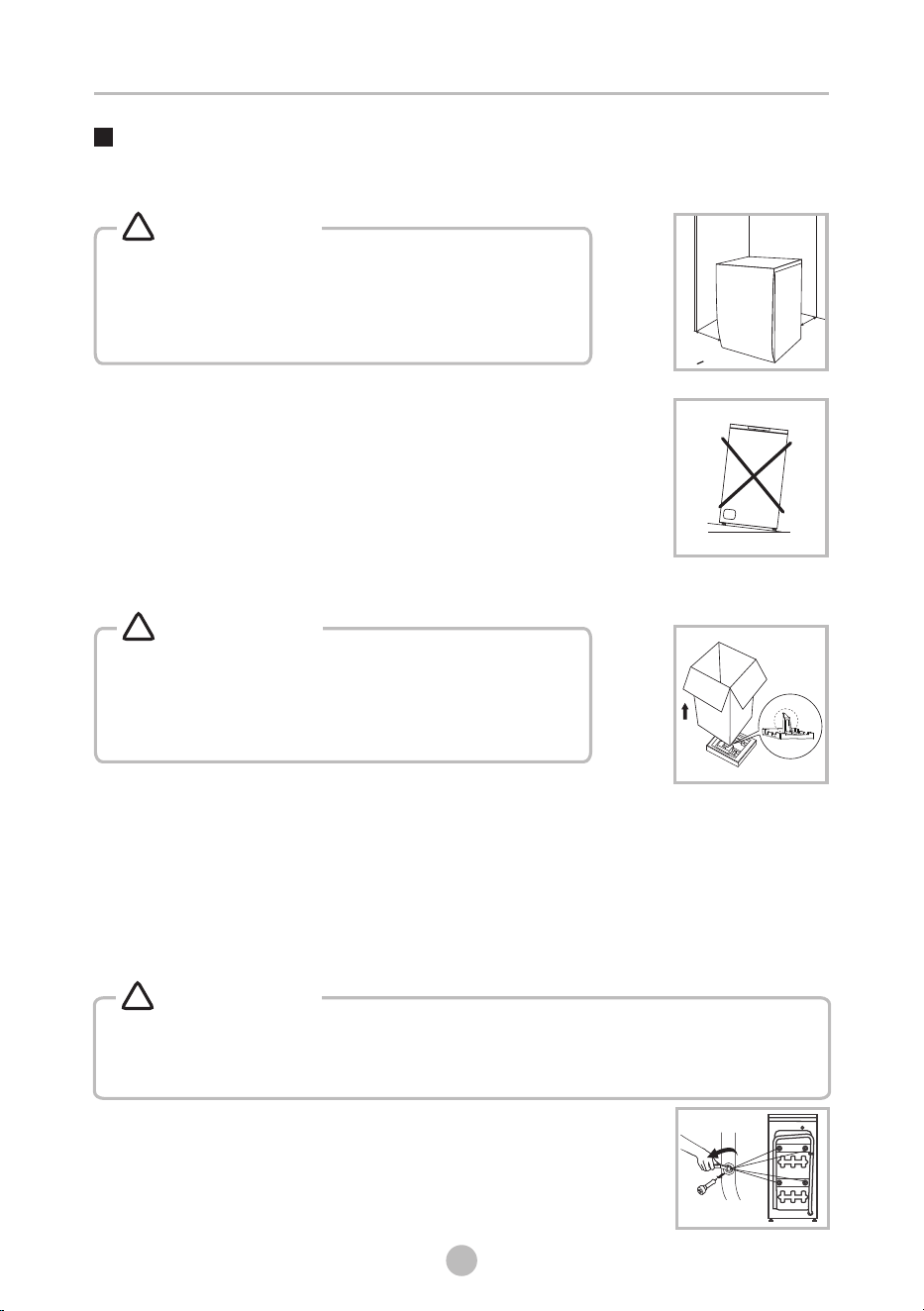

Unpacking the washing machine
1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packing.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.
Make sure the small triangle
foam is removed with the bottom one together. If not, lay the unit down with side
surface, then remove the small foam from the unit bottom manually.
Please take the following steps to remove the bolts:
1.Loosen 4 bolts with spanner and then remove them.
2.Stop the holes with transport hole plugs.
3.Keep the transport bolts properly for future use.
Remove transport bolts
•
•
Stability is important to prevent the product from
wandering!
Make sure that the product should not stand on
the power cord.
Warning!
！
•
•
Packaging material (e.g. Films, Styrofoam) can be
dangerous for children.
There is a risk of suffocation ! Keep all packaging
well away from children.
Warning!
！
•
•product
you
You must remove the transport bolts from the backside before using the product.
You’ll need the transport bolts again if you move the , so make sure
keep them in a safe place.
Warning!
！
w
w
W> 20mm
Installation area
10
INSTALLATION

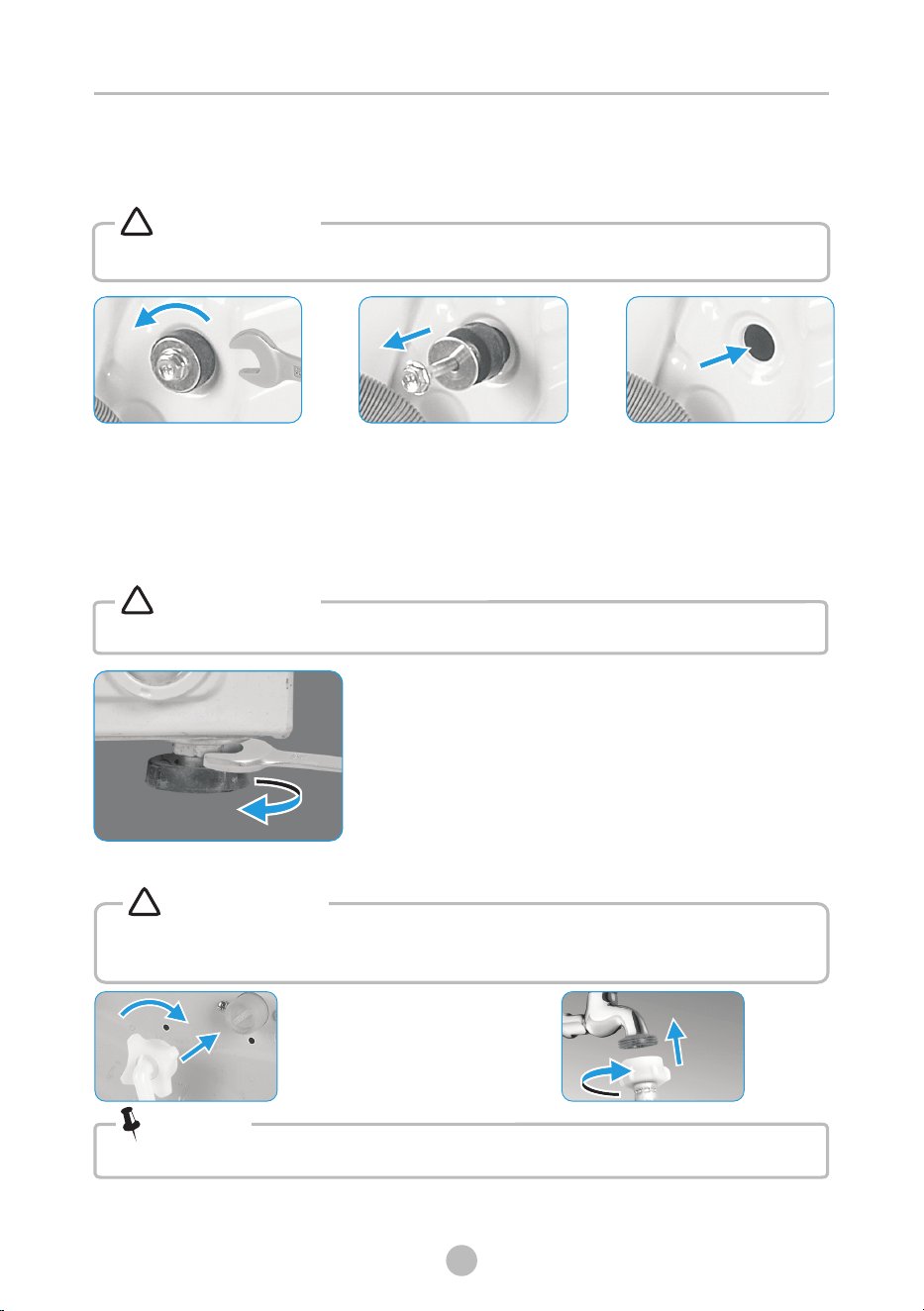

Remove transport bolts
• You must remove the transport bolts from the backside before using the product.
Warning!
！
Loosen the 4 transport
bolts with a spanner.
Remove the bolts
including the rubber parts
and keep them for future
use.
Close the holes using the
cover caps.

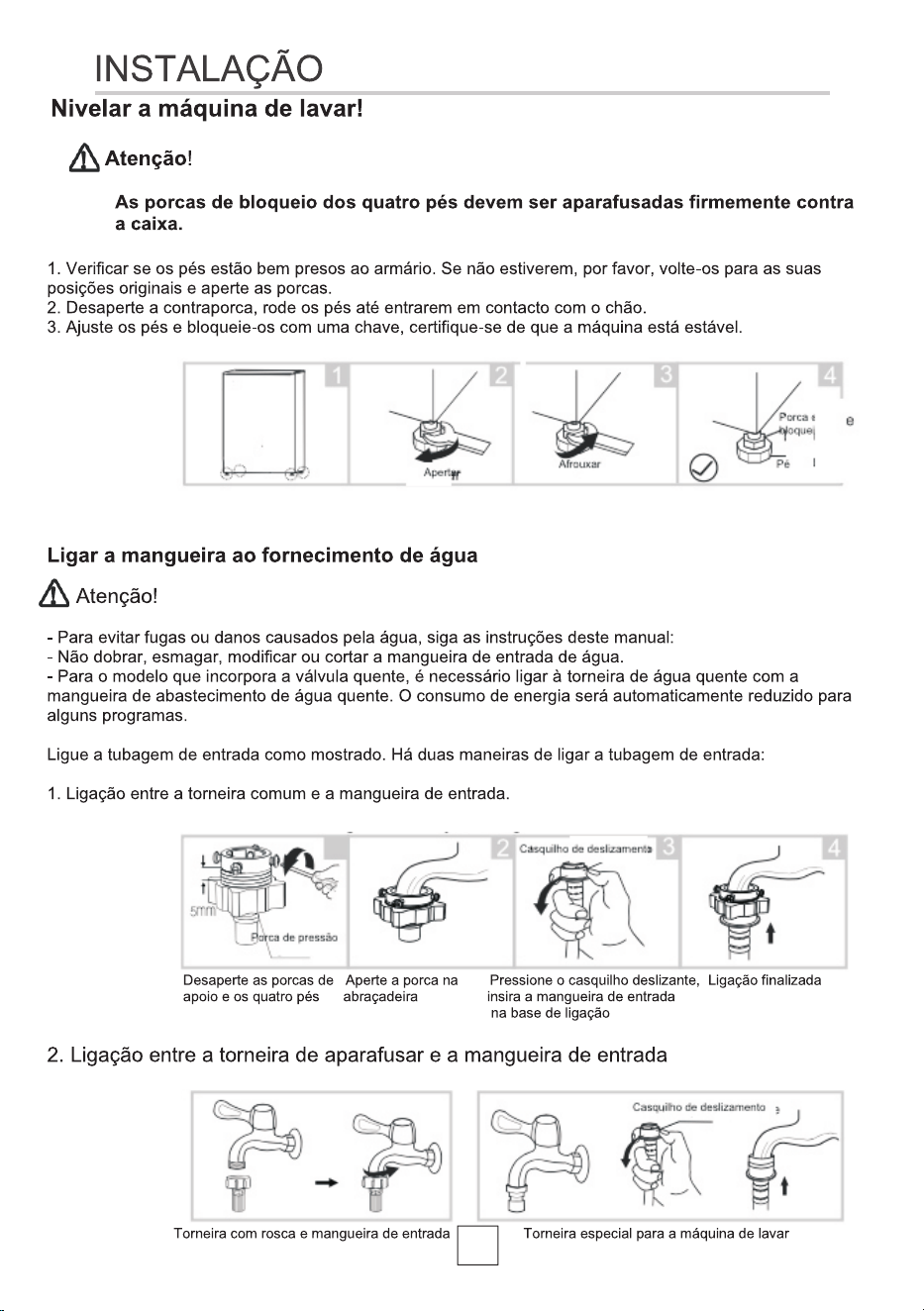

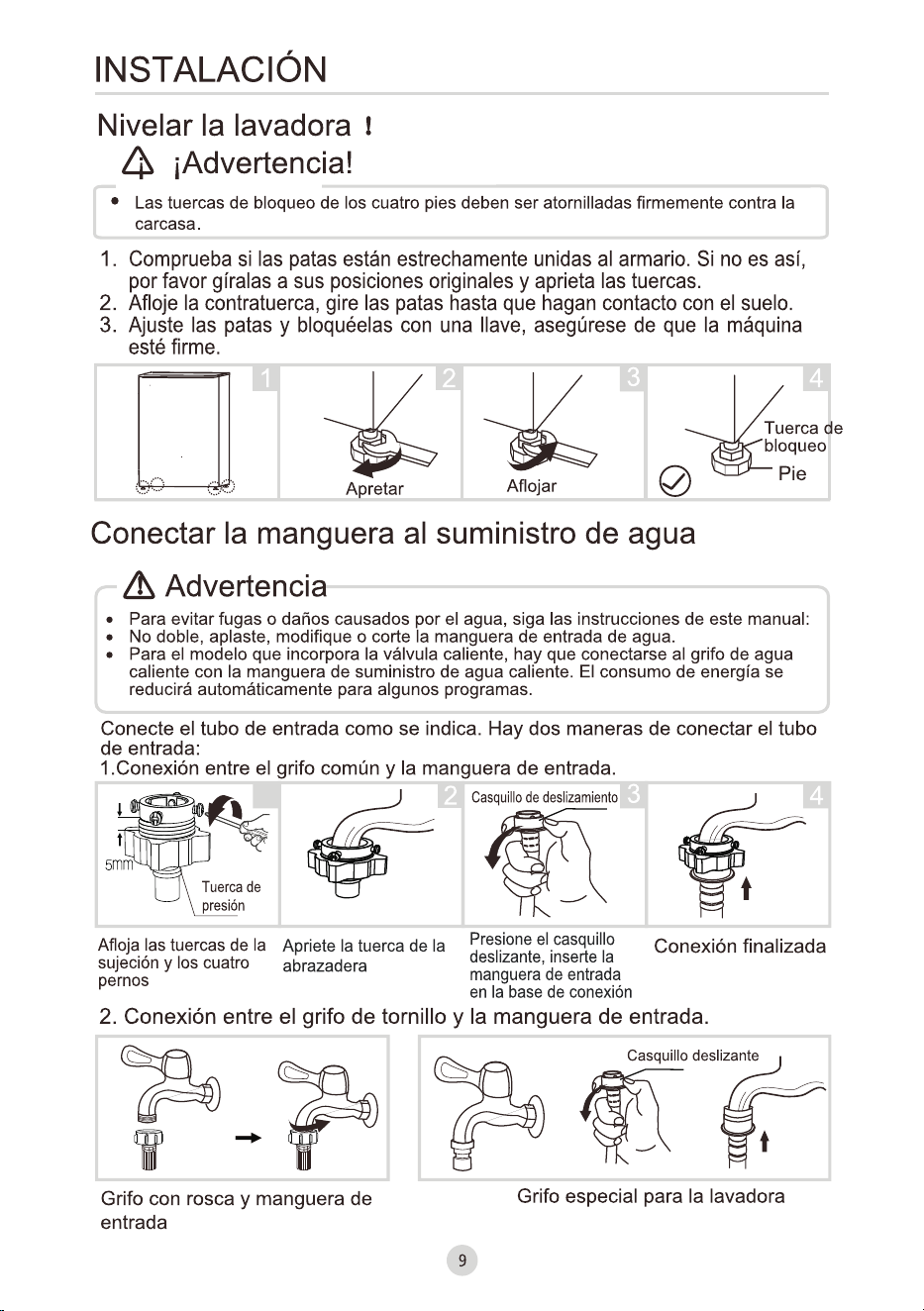

Levelling the washing machine
• The lock nuts on all four feet must be screwed tightly against the housing.
Warning!
！
1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a
spanner. Make sure the machine is level and
steady.
Connect the water supply hose
To prevent leakage or water damage, follow the instructions in this chapter
• Do not kink, crush or modify water inlet hose.
Warning!
！
Connect the water supply hose
to the water inlet valve and a
water tap with cold water as
indicated.
• Connect manually, do not use tools. Check if the connections are tight.
Note!
11
INSTALLATION
Warning!
！

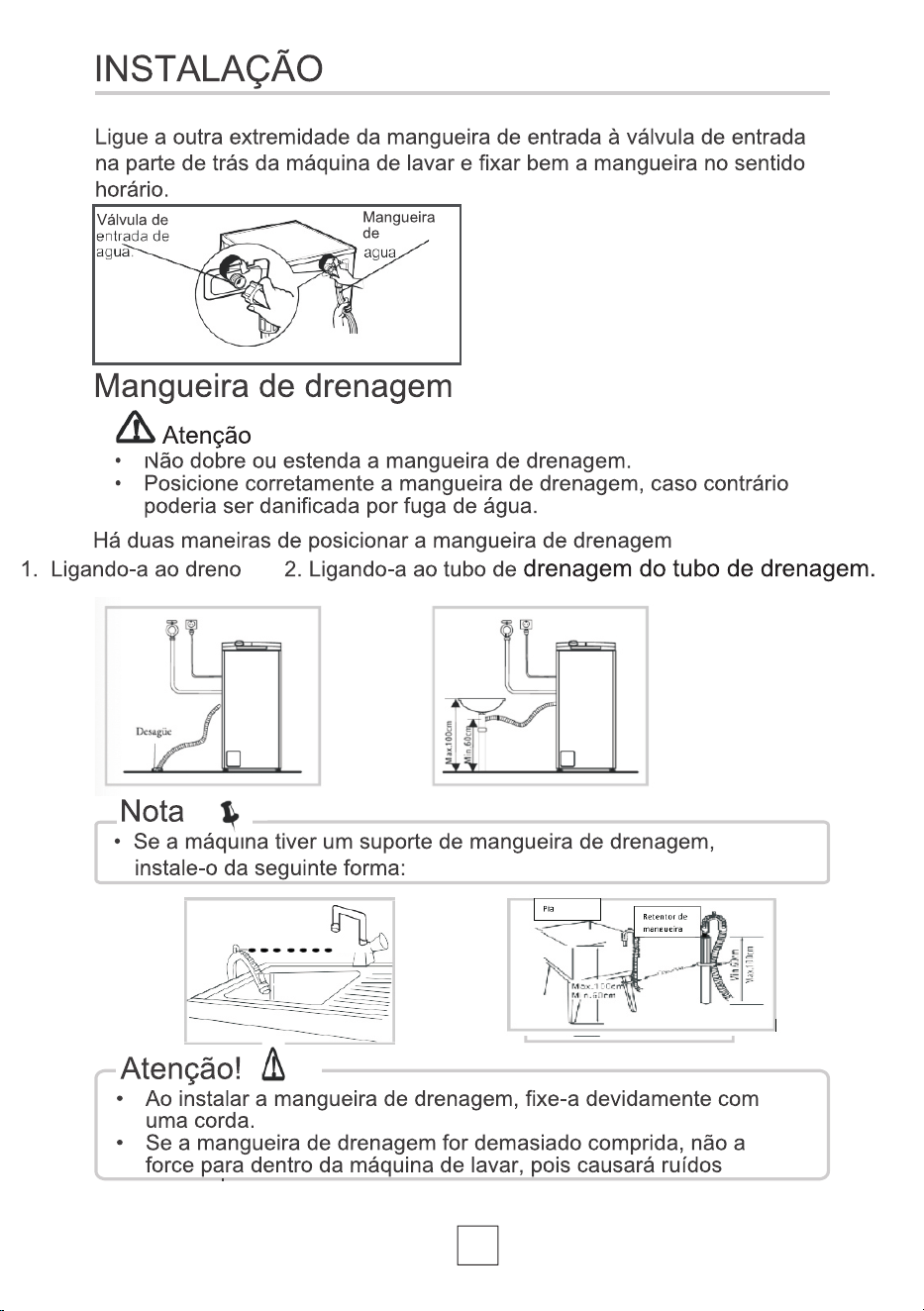

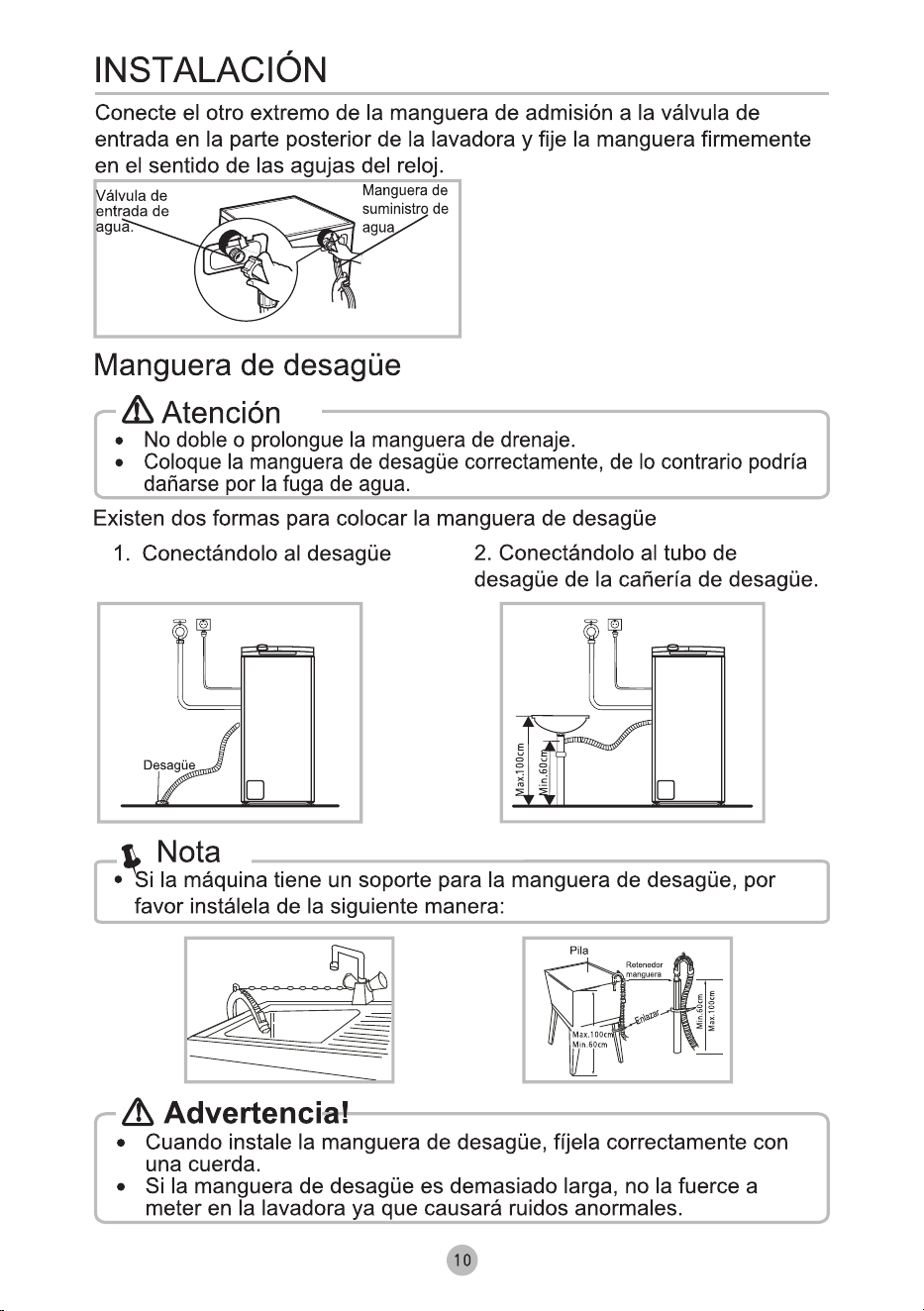

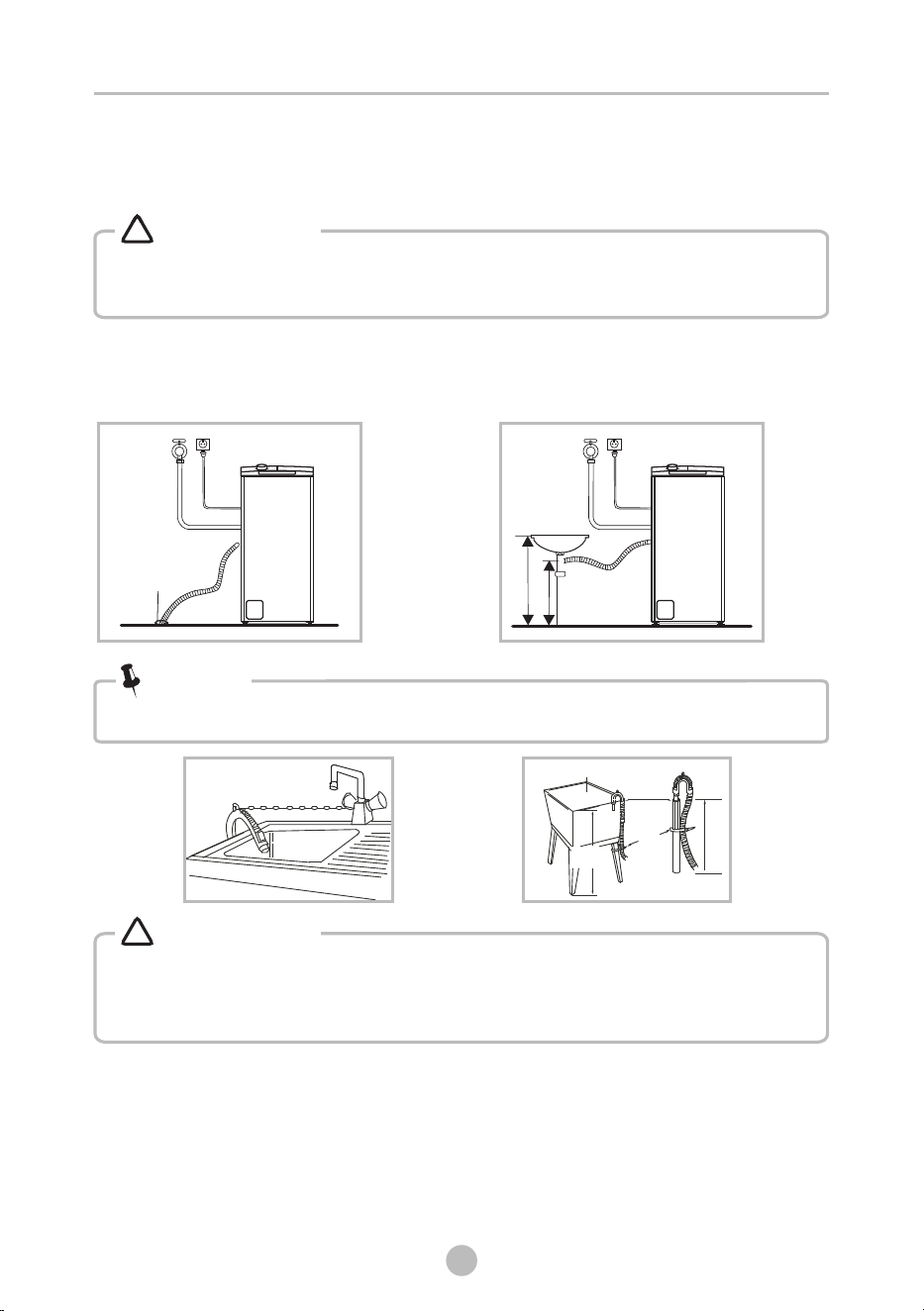

Drain Hose
There are two ways to place the end of drain hose:
1.Put it into the water trough.2.Connect it to the branch drain pipe of
the trough.
•
• If drain hose is too long, do not force it into washing machine as it will cause
abnormal noises.
When installing drain hose, fix it properly with a rope.
•
•Position drain hose properly ,otherwise damage might result of water leakage.
Do not kink or protract the drain hose.
Water
trough
Min
.60cm
10
0cm
Max
.
Trough
Hose Retainer
Bi
nd
Max.100cm
Min.60cm
Min.60cm
Max.100cm
If the machine has • drain hose support, please install it like the following .
Warning!
！
Warning!
！
Note!
12
Quick Start
OPERATION
• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove
any residual water and to neutralize potential odors, it’s recommended to
clean your appliance before first use. For this reason, start the Cotton program
at 60°C without laundry and detergent.
Caution!
1. Before Washing
Open tap
Load
Close
machine door
Plug in
Add detergent
• Detergent need to be added
in "case I “after selecting
pre-washing for machines
with this function.
• Make sure that the drum flaps
are properly locked.
• All metal hooks must be
properly hooked inside the rear
door flap.
123
56
Note!
Prewash
Softener
Main wash
4
Close
drum door
• Check the roller before each laundry ,it must roll smoothly.
2. Washing
Select programme
Select function or
remain default
settings
Press
Start/Pause to
start the program
234
Power On
1
All lights off.
3. After Washing
• If default is selected,
step 2 can be skipped.
Note!
13
• Do not wash or dry articles that have been cleaned in, washed in, soaked in,
or dabbed with combustible or explosive substances like wax, oil, paint,
gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause
alarm due to unbalance. Therefore it is suggested to add one or two more
laundry items to the wash so that spin can be done smoothly.
• The ambient temperature of the washing machine should be 5-40°C. If used under
0°C, the inlet valve and draining system may be damaged. If the machine is
installed under freezing conditions, it should be transferred to normal ambient
temperature to ensure the water supply hose and drain hose can unfreeze before
use.
• Please check your laundry care labels and the detergent use instructions before
wash. Use non-foaming or less-foaming detergent suitable for machine
washing properly.

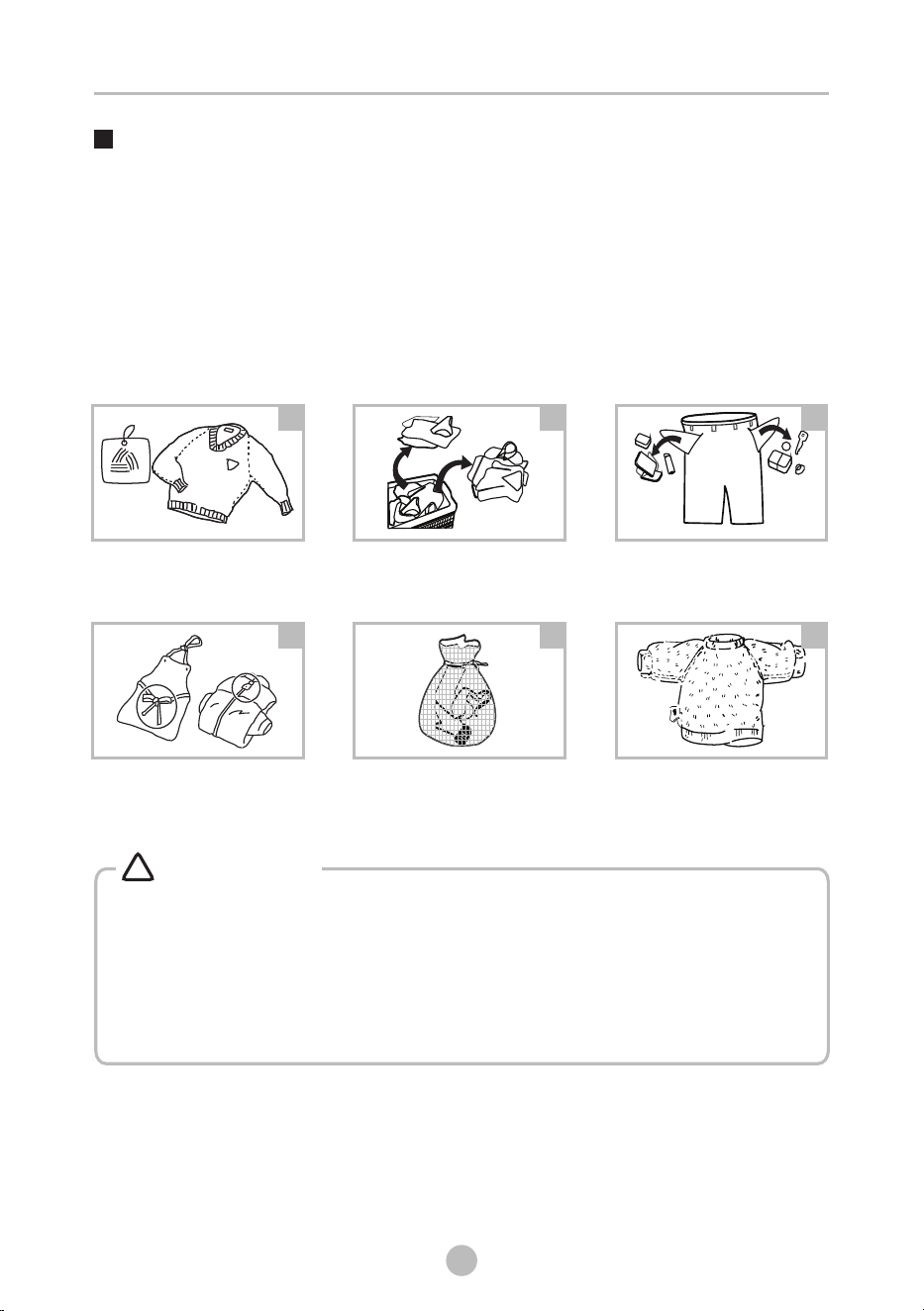

Tie together long textile
strips and belts, close zips
and button
Take all items out of the
pockets
Put small items into a
laundry bag
Check the care label
Before Each Washing
Turn easy-pilling and
long-pile fabric inside out
Sort laundry according to
color and textile type
Warning!
！
OPERATION
123
456
14
OPERATION

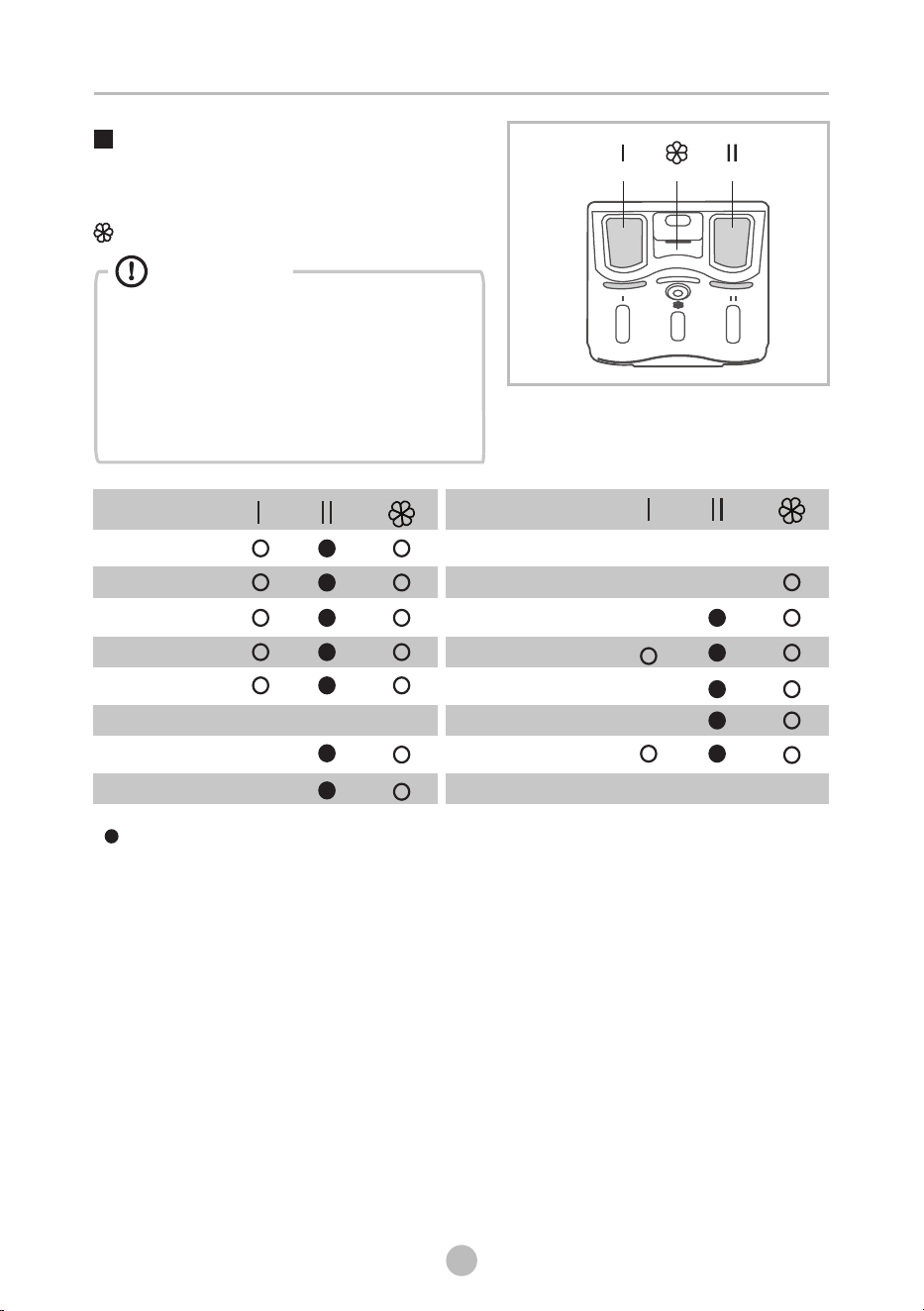

Detergent Dispenser
Pre wash detergent
Main wash detergent
Softener
II
I
Pull out the dispenser
Caution!
• Detergent only need to be added in
"case I “after selecting pre-washing
for machines with this function.
• Do not exceed the “MAX”level mark
when filling in detergent,additives or
softener.
Prewash
Softener
Main wash
Programme
Cotton
Synthetic
Mix
Jeans
Sportswear
Drum Clean
20℃
Intensive
Means must ○ Means optional
Programme
Spin Only
Rinse & Spin
Wool
Baby Care
Quick 15’
ECO 40-60
Rapid 45’
15
Detergent Recommendation
OPERATION
Agglomerating or ropy detergent or additive can be diluted in some water
before pouring it into the detergent dispenser, to avoid its inlet to get blocked
and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing
performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap
water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less
detergent.
• Highly concentrated (compact detergent) requires particularly accurate
dosing.
Following symptoms are a sign of detergent overdosing:
- heavy foam formation
- poor washing and rinsing result
Following symptoms are a sign of detergent underdosing:
- laundry turns grey
- built-up of limescale deposits on the drum, the heating element and/or the
laundry
•
Note!
16
Re commended w ashing
det ergent
Heavy-duty detergent with
bleaching agents and
optical brighteners
Colour detergent without
bleaching agent and optical
brighteners
Color or mild detergent
without optical brighteners
Mild washing detergent
Special wool detergent
Wash cycles
Cotton,ECO 40-60,Mix
Cotton,ECO40-60,Mix
Synthetic
Synthetic
Wool
Washing
t emp.
20/
40/60
2040/
Type of laundry and textile
White laundry made from
boil-proof cotton or linen
Coloured laundry made
from cotton or linen
Coloured laundry made
from easy care fibres or
synthetic materials
Delicate textiles, silk,
viscose
Wool
Cold/20/
40
Cold/20/
40
2040/
OPERATION
Control Panel
Power
Product is on/off.
Start/Pause
Press the button to start or pause the
washing cycle.
Programmes
Available according to the laundry type.
Option
This allows you to select an additional
function and will light when selected.
1
1
3
1
2
4
Display
The display shows the settings, estimated time remaining, options, and status messages
for your washer. The display will remain on through the cycle.
5
5
3
1
2
4
1
1
Door Lock
B
Pre Wash
D
Display
A
Wash Time Delay Time
End
Error
A
C
Delay
C
Extra Rinse
E
BE
D
17

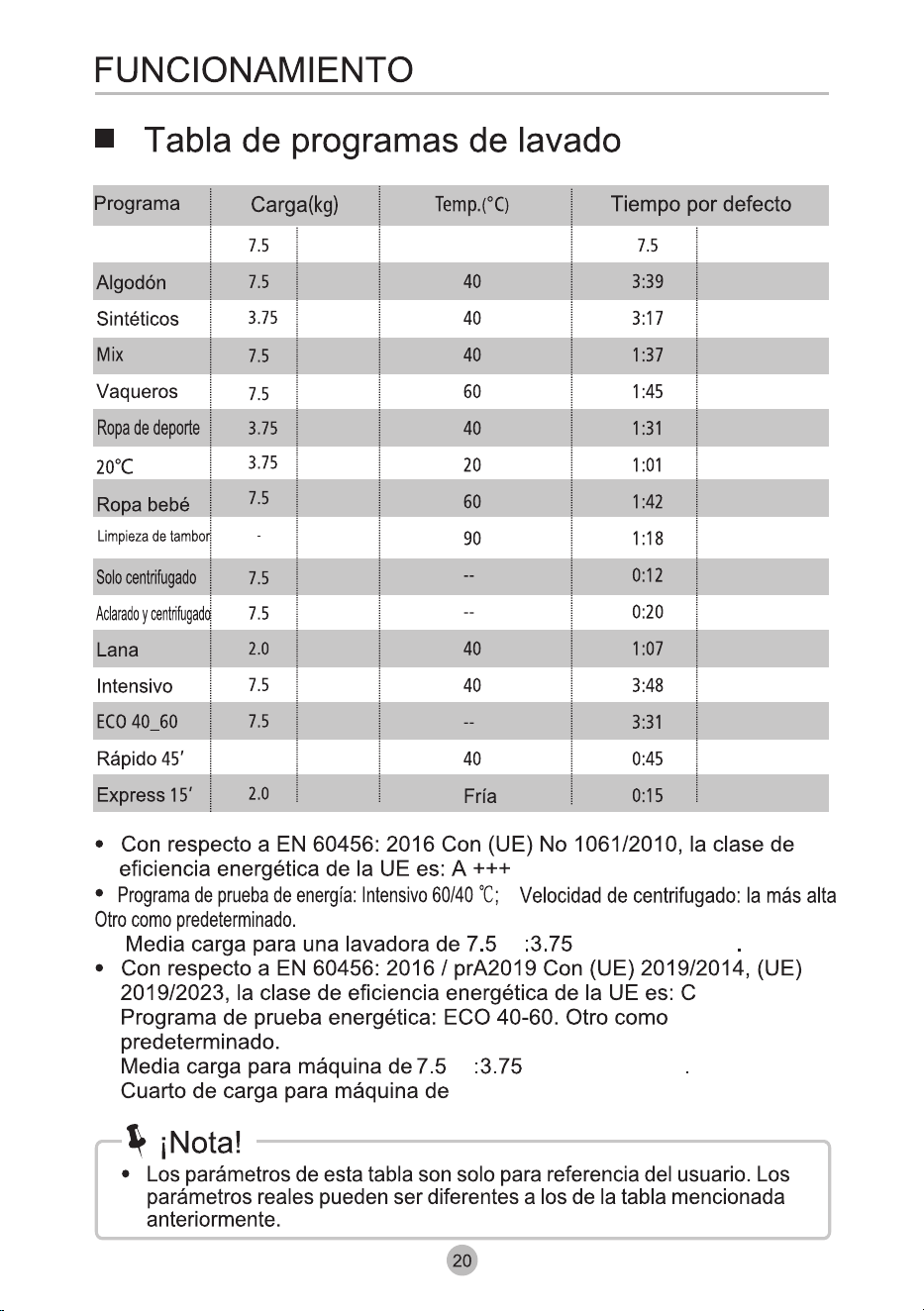

Programme
Load(kg)Display Time
Cotton
Synthetic
Mix
Jeans
Sportwear
20℃
Baby Care
Drum Clean
Spin Only
Rinse & Spin
Wool
Intensive
ECO 40_60
Rapid 45’
Quick 15’
• The parameters in this table are only for user's reference. The actual parameters
maybe different with the parameters in above mentioned table.
Note!
3:39
3:17
1:37
1:45
1:31
1:01
1:42
1:18
0:12
0:20
1:07
3:48
3:31
0:45
0:15
MODEL:E-CLACSM7521D
7.5
2.0
3.75
7.5
2.0
-
7.5
3.75
3.75
7.5
7.5
7.5
7.5
7.5
2.0
7.57.5
OPERATION
Programmes
18
• The above data is for reference only, and the data may change due to different
actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme
are indicative only.
• Concerning to EN 60456:2016 With (EU)No.1061/2010,
The EU energy efficiency class is: A+++
Energy test program: Intensive 60/40Speed:The highest speed;
Other as the default.
Half load for 7.5kg machine:3.75kg.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023,
The EU energy efficiency class is: C
Energy test program: ECO 40-60. Other as the default.
Half load for 7.5kg machine:3.75kg.
Quarter load for 7.5kg machine:2.0kg.
℃;
OPERATION
Programmes
19
E-CLACSM7521D
Programme
Load(kg)Display Time
Cotton
Synthetic
Mix
Jeans
Sportwear
20℃
Baby Care
Drum Clean
Spin Only
Rinse & Spin
Wool
Intensive
ECO 40_60
Rapid 45’
Quick 15’
• The parameters in this table are only for user's reference. The actual parameters
maybe different with the parameters in above mentioned table.
Note!
3:39
3:17
1:37
1:45
1:31
1:01
1:42
1:18
0:12
0:20
1:07
3:48
3:32
0:45
0:15
MODEL:CLACSM8523D
8.0
2.0
4.0
8.0
2.0
-
8.0
4.0
4.0
8.0
8.0
8.0
8.0
8.0
2.0
8.08.0
OPERATION
Programmes
20
• The above data is for reference only, and the data may change due to different
actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme
are indicative only.
• Concerning to EN 60456:2016 With (EU)No.1061/2010,
The EU energy efficiency class is: A+++
Energy test program: Intensive 60/40Speed:The highest speed;
Other as the default.
Half load for 8.0kg machine:4.0kg.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023,
The EU energy efficiency class is: C
Energy test program: ECO 40-60. Other as the default.
Half load for 8.0kg machine:4.0kg.
Quarter load for 8.0kg machine:2.0kg.
℃;
OPERATION
Programmes
21
CLACSM8523D
OPERATION

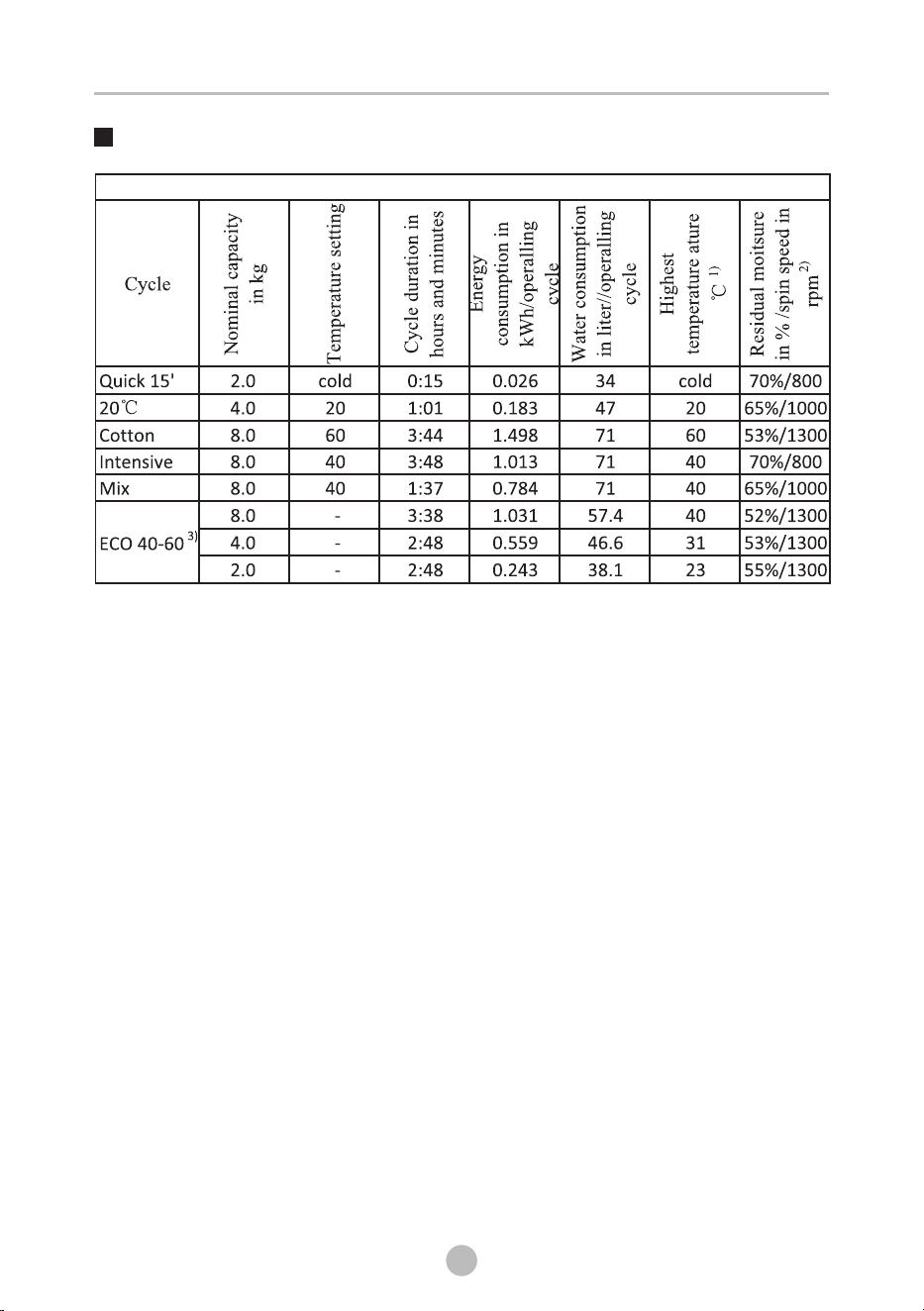

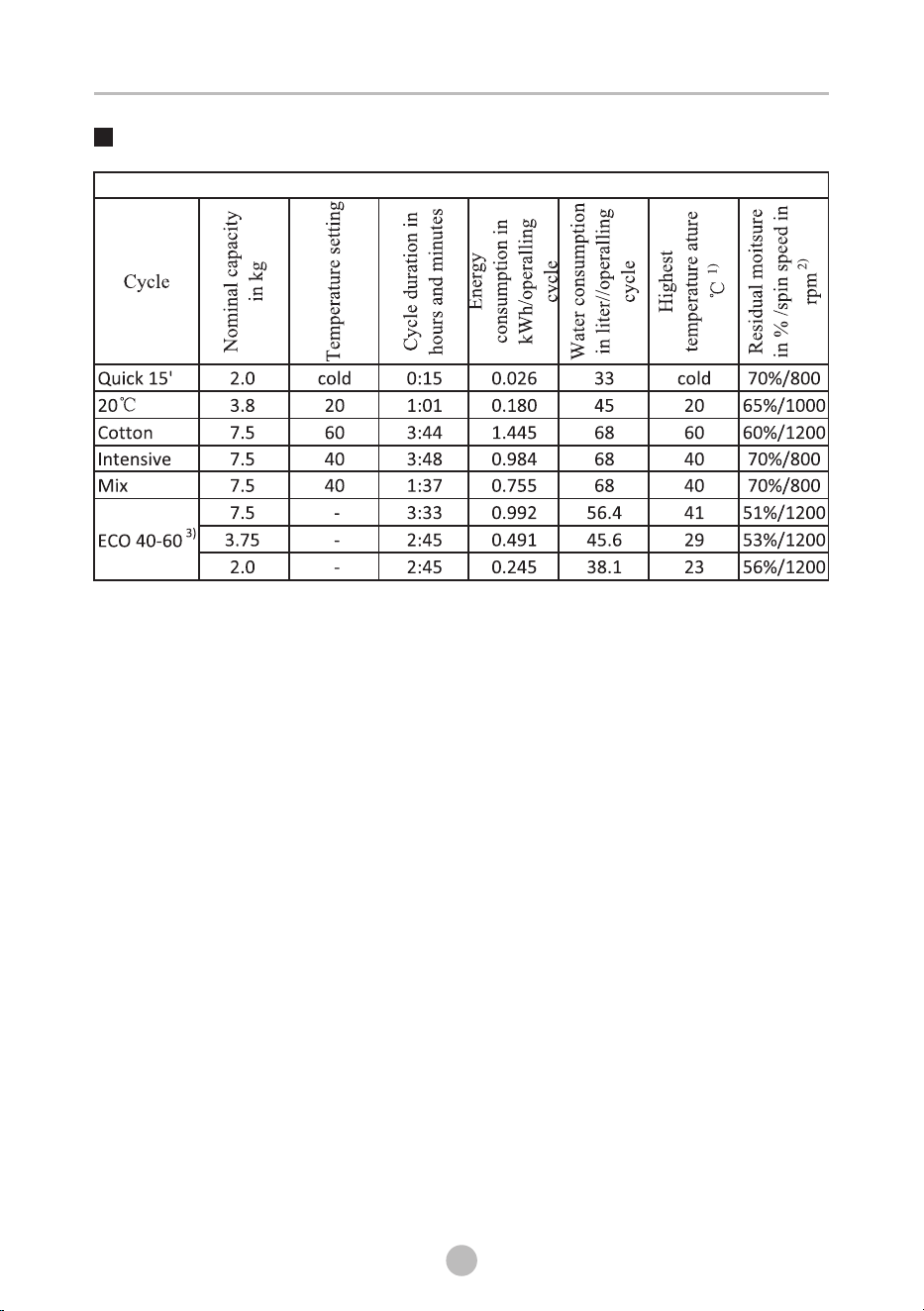

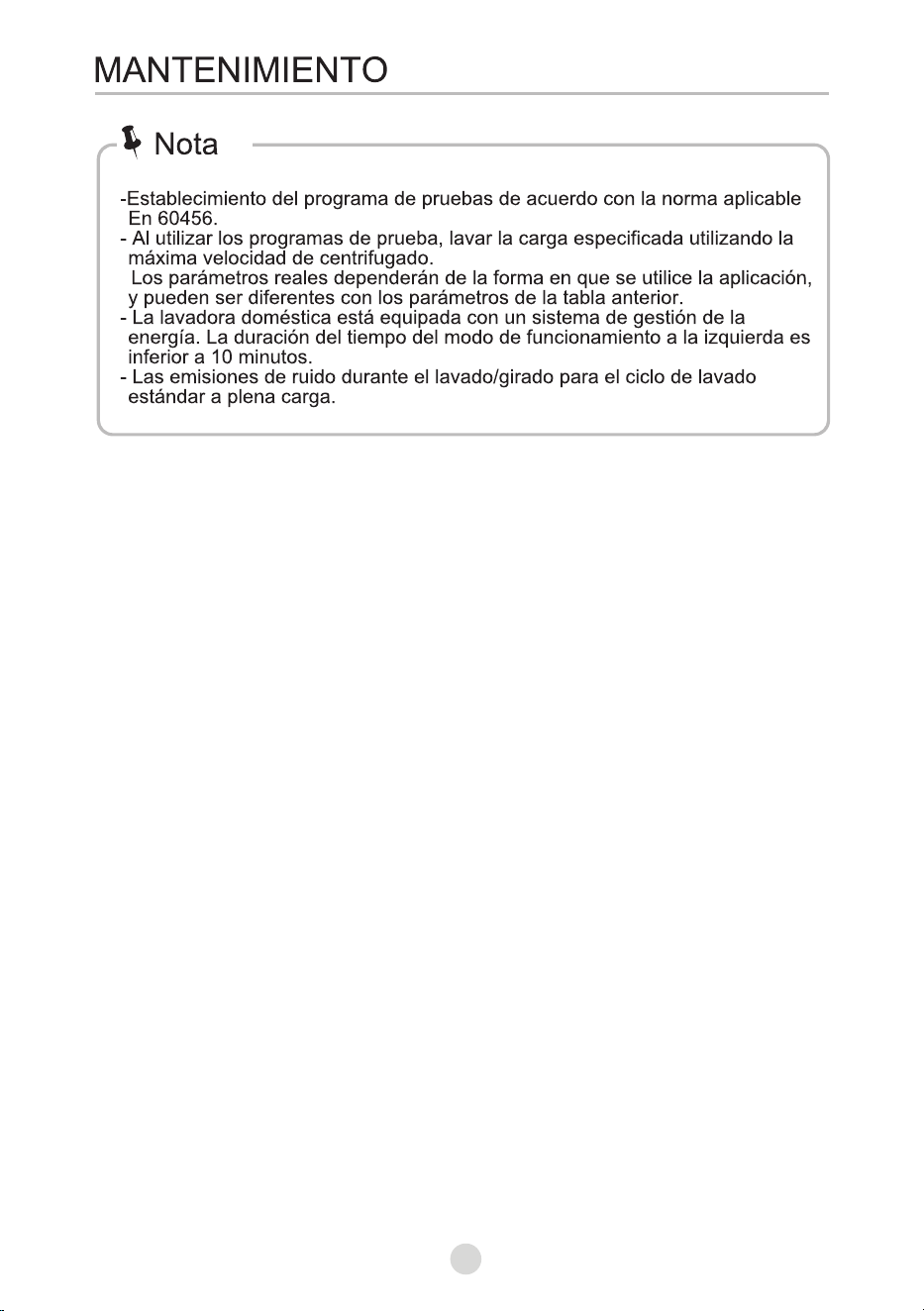

1) The highest temperature reached by the laundry in the wash cycle for at least 5
minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at
which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to
be washable at 40°C or 60°C, together in the same cycle. This programme is used to
assess the compliance with the regulation (EU) 2019/2023.
The most efficient programmes in terms of energy consumption are generally those that
perform at lower temperatures and longer duration.
Loading the household washer up to the capacity indicated for the respective
programmes will contribute to energy and water savings.
Noise and remaining moisture content are influenced by the spinning speed: the higher
the spinning speed in the spinning phase, the higher the noise and the lower the
remaining moisture content.
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme. The machine will continue
the programme when the power supply is re-established.
22
OPERATION
Programmes

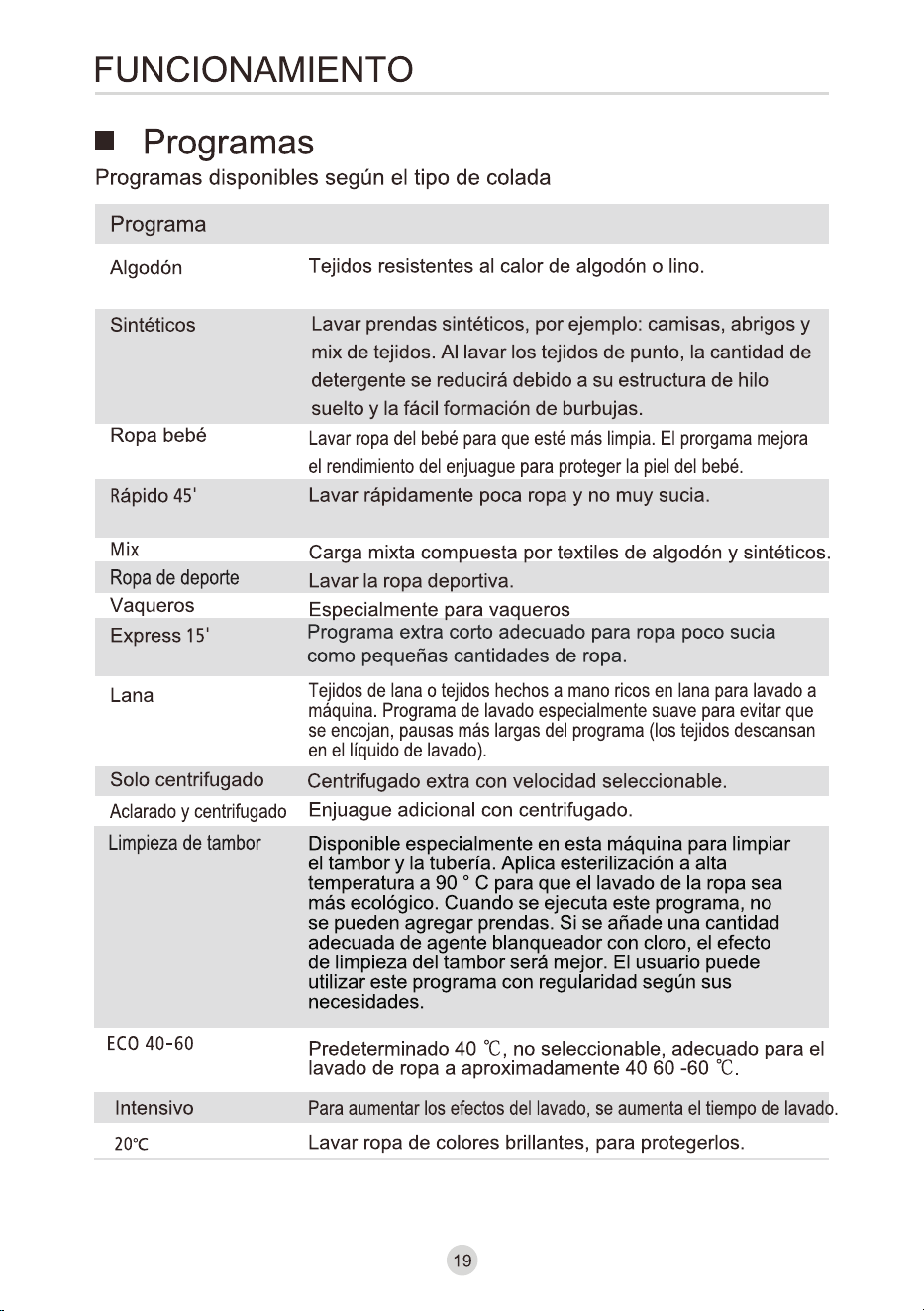

Programmes are available according to the laundry type.
Programmes
Quick 15'
Wool
Mix
Cotton
Hard-wearing textiles, heat-resistant textiles made of cotton or
linen.
Wash synthetic articles, for example: shirts, coats, blending.
While washing the knitting textiles, detergent quantity shall be
reduced due to its loose string construction and easily forming
bubbles.
Washing the baby’s clothes, it can make the baby's wear cleaner
and make the rinse performance better to protect the baby skin.
Washing few and not very dirty clothes quickly.
Mixed load consisting of textiles made of cotton and synthetics.
Washing the activewear.
Specially for jeans.
Extra short programme approx, suitable for lightly soiled
washing as a small amounts of laundry.
Hand or machine-washable wool or richwool textiles.Especially
gentle wash programme to prevent shrinkage, longer
programme pauses (textiles rest in wash liquor).
Extra spin with selectable spin speed.
Extra rinse with spin.
Spin Only
Rinse&Spin
Baby Care
Jeans
Synthetic
Rapid 45'
Sportswear
Drum Clean
Default 40℃,not selectable,suitabale for laundry washing at
about 40℃-60℃.
To increase the washing effects, washing time is increased.
ECO 40-60
Intensive
Specially set in this machine to clean the drum and tube. It
applys 90 °C high temperature sterilization to make the
clothes washing more green. When this programme is
performed, the clothes or other washing cannot be added.
When proper amount of chlorine bleaching agent is put in,
the barrel cleaning effect will be better. The customer can use
this programme regularly according to the need.
20℃
Washing brightly colored clothes, it can protect the colors better .
23
OPERATION

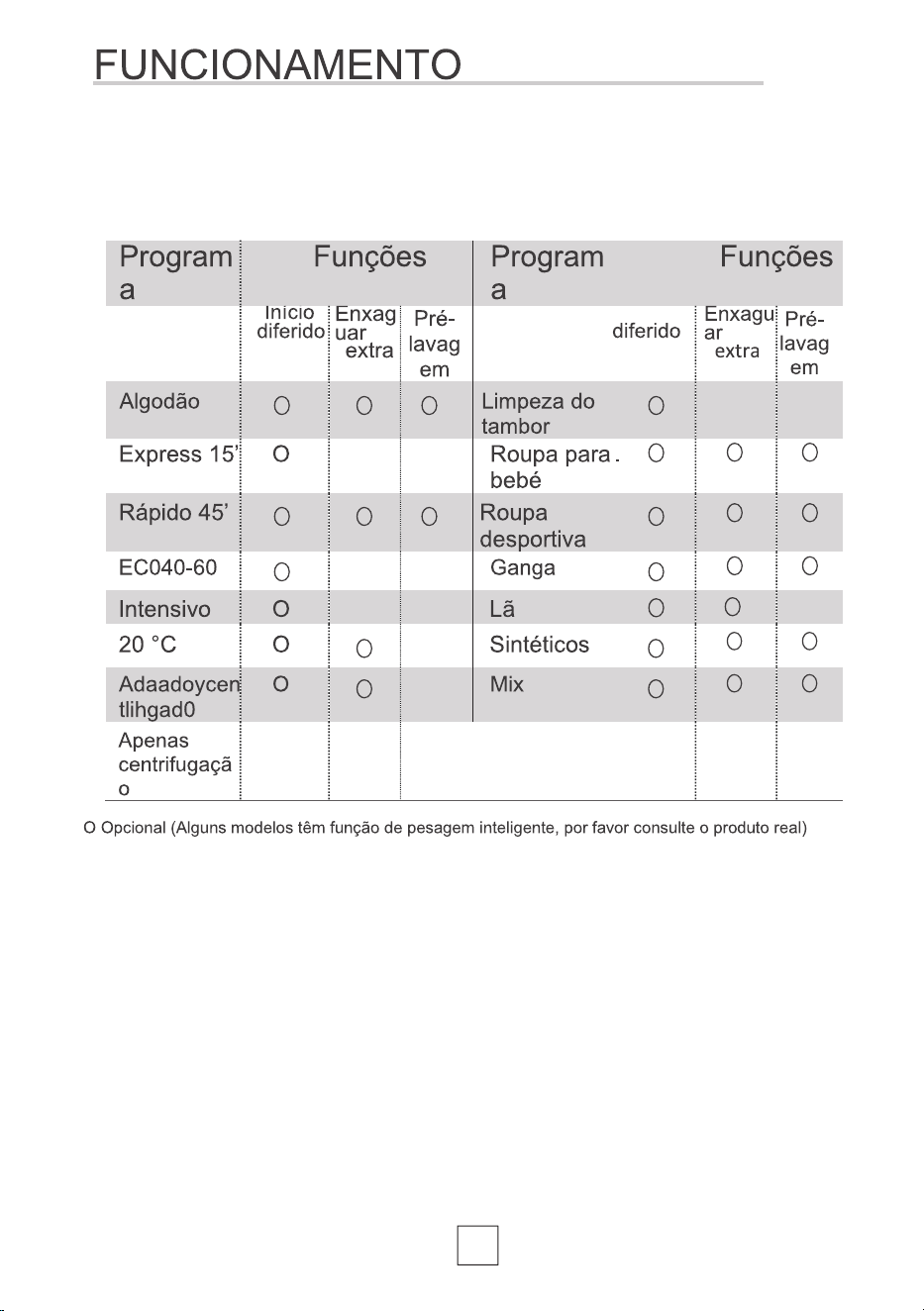

Option
1300
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
Delay
40
40
40
60
40
20
60
90
--
--
40
40
--
40
Cold
Default
Temp.(℃)
Default spin
speed in rpm
Cotton
Synthetic
Mix
Jeans
Sportswear
20℃
Baby Care
Drum Clean
Spin Only
Rinse & Spin
Wool
Intensive
ECO 40_60
Rapid 45’
Quick 15’
For the maximum spin speed, program time, and other details of the
ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an
adjustment is not possible for a cycle.
•
Note!
1200
1200
1200
800
800
800
1000
800
--
800
800
600
800
1200
800
800
1300
1300
800
800
800
1000
800
--
800
1000
600
800
1300
800
800
24
OPERATION

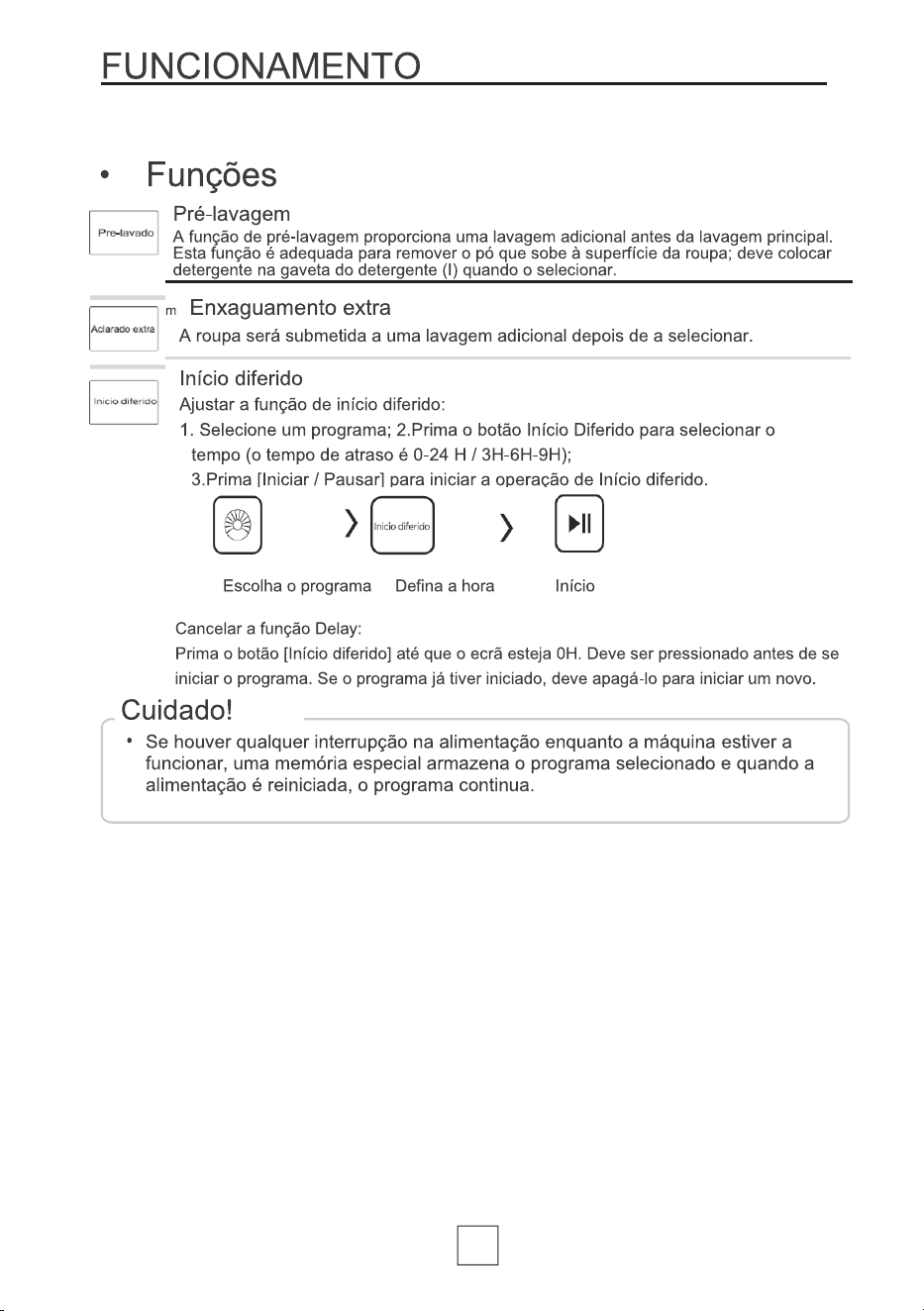

Delay
Set the Delay function:
1. Select a programme; 2.Press the Delay button to choose the time
(the delaying time is 0-24 H/3H-6H-9H);
3.Press [Start/Pause] to commence the delay operation
Choose the Programme
Start
Setting time
Delay
Cancel the Delay function:
Press the [Delay] button until the display be 0H.It should be pressed before starting the
programme. If the programme already started, should switch off programme to reset a new one.
Extra Rinse
The laundry will undergo extra rinse once after you select it.
Caution!
• If there is any break in the power supply while the machine is operating, a
special memory stores the selected programme and when the power is
restarted, the program will continue.
Pre Wash
The Prewash function can get an extra wash before main wash,it is suitable for washing the
dust rises to surface of the clothes;You need to put detergent into the Case (I) when select it.
Pre Wash
Extra Rinse

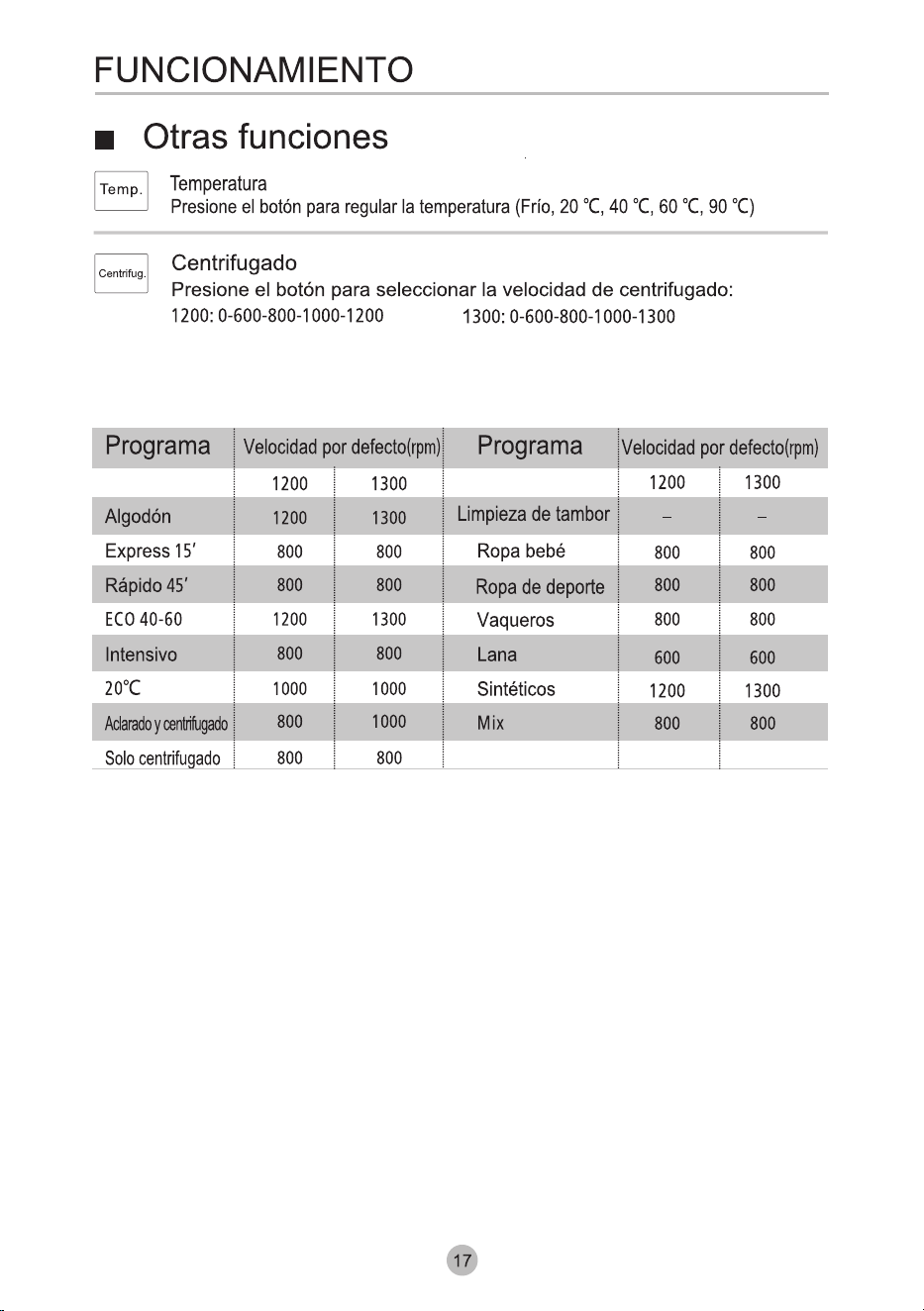

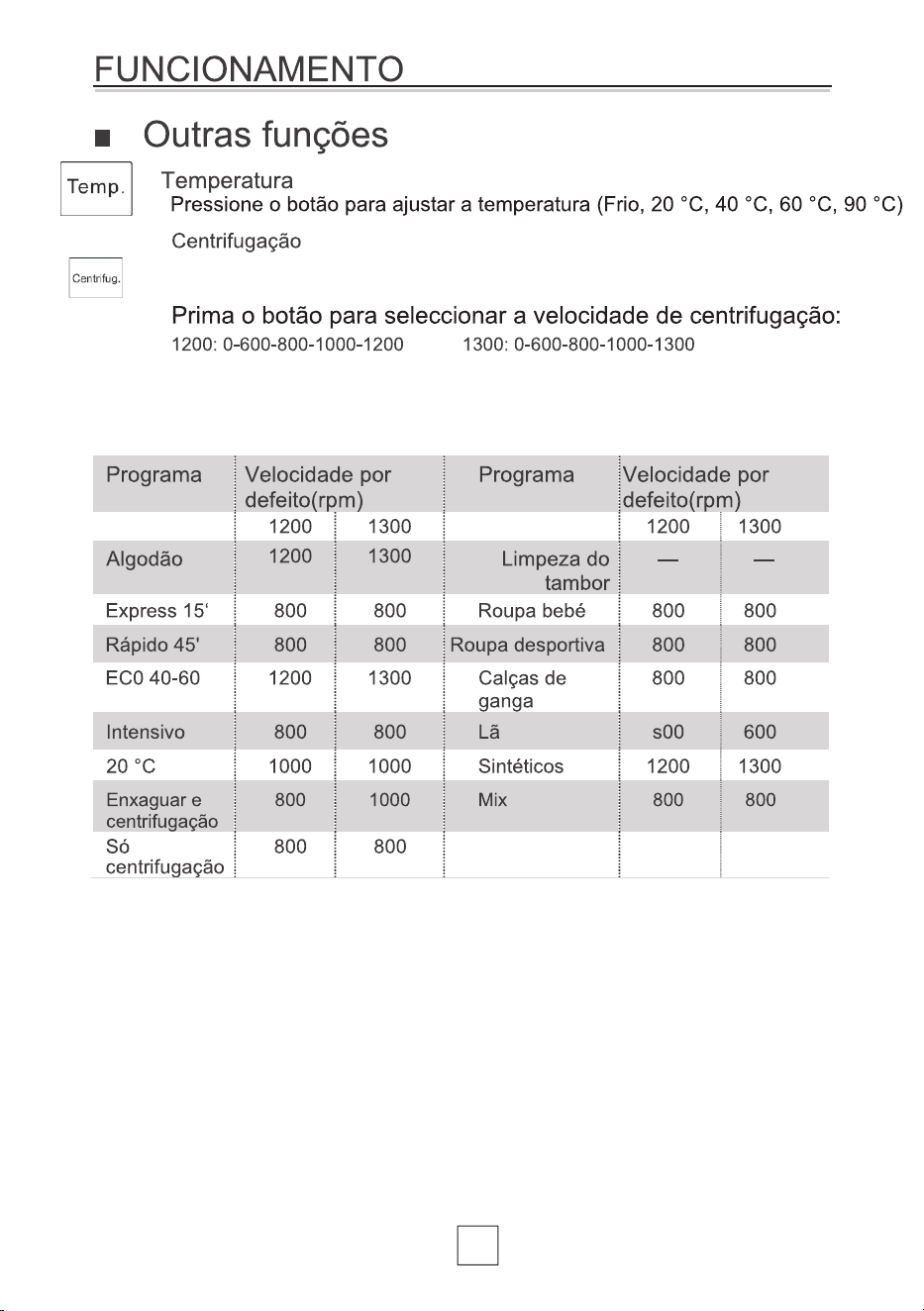

Spin
Press the button to change the speed.
1200: 0-600-800-1000-1200 1300: 0-600-800-1000-1300
Temp.
℃,Press the button to regulate the temperature(Cold,20 40℃,60℃,90℃)
Spin
25

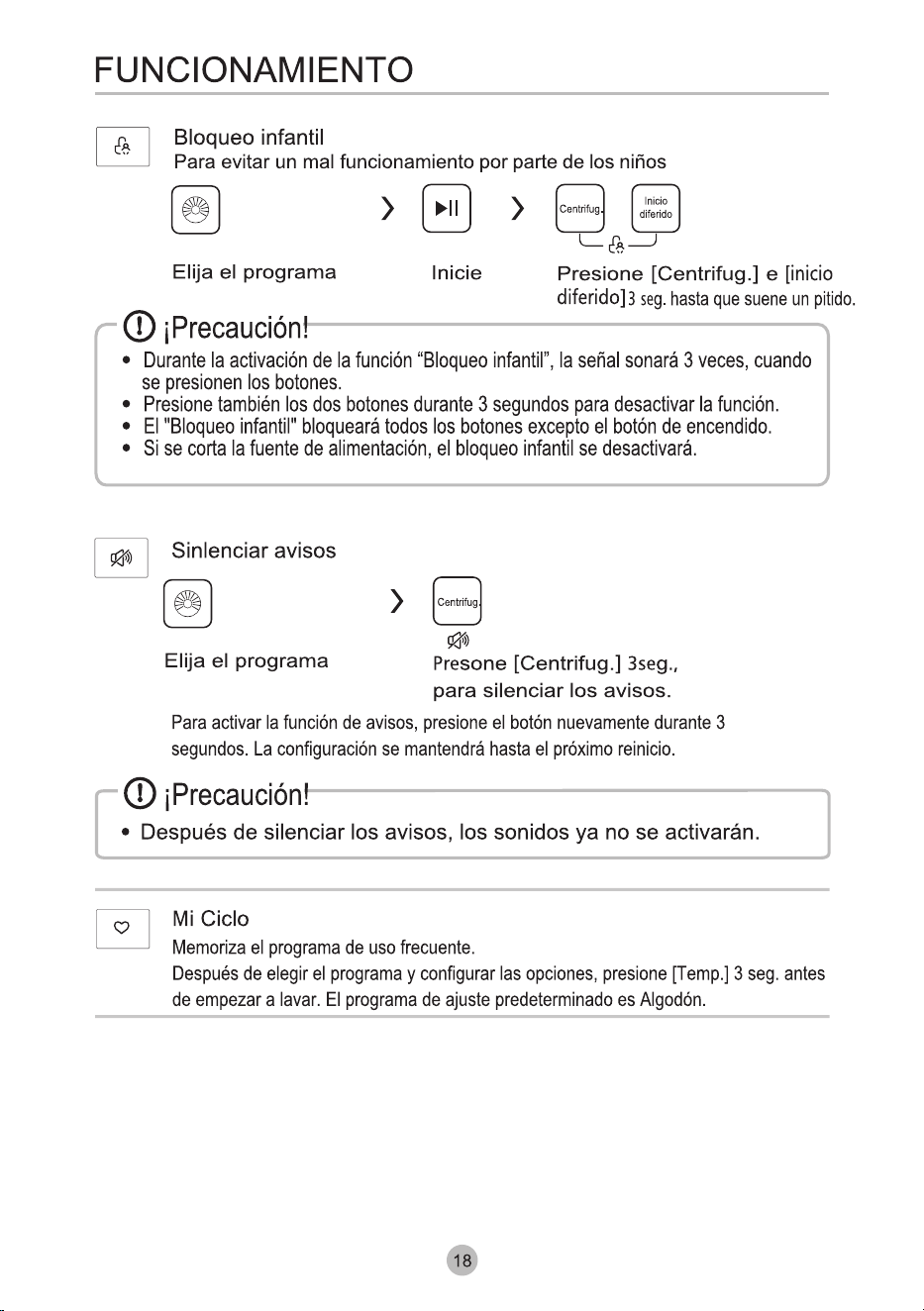

My Cycle
To memory the frequently used programme.
After choosing the programme and setting the options, press [Temp.] 3 sec. before
start to wash.The default setting course is Cotton.
Mute the buzzer
To act the buzzer function, press the button again for 3 seconds. The setting
until the next reset.
will be kept
• MuAfter ting the buzzer function, the sounds will not be activated any more.
Caution!
Press the [Spin]button for 3sec.,
the buzzer is mute.
Spin
Choose the Programme
Cut off the power supply , the kid’s protection is to be released.
• During the “Child Lock”function is activing, the buzzer will beep 3 times,
When the buttons are pressed.
• Press the two button 3sec. also to be released the function.
• The “Child Lock” will lock all buttons except Power button.
•
Caution!
Child Lock
To avoid mis operation by children.
Start
Press [] and []
3 sec. till buzzer beep.
SpinDelay
Spin
Choose the Programme
Delay
OPERATION
26

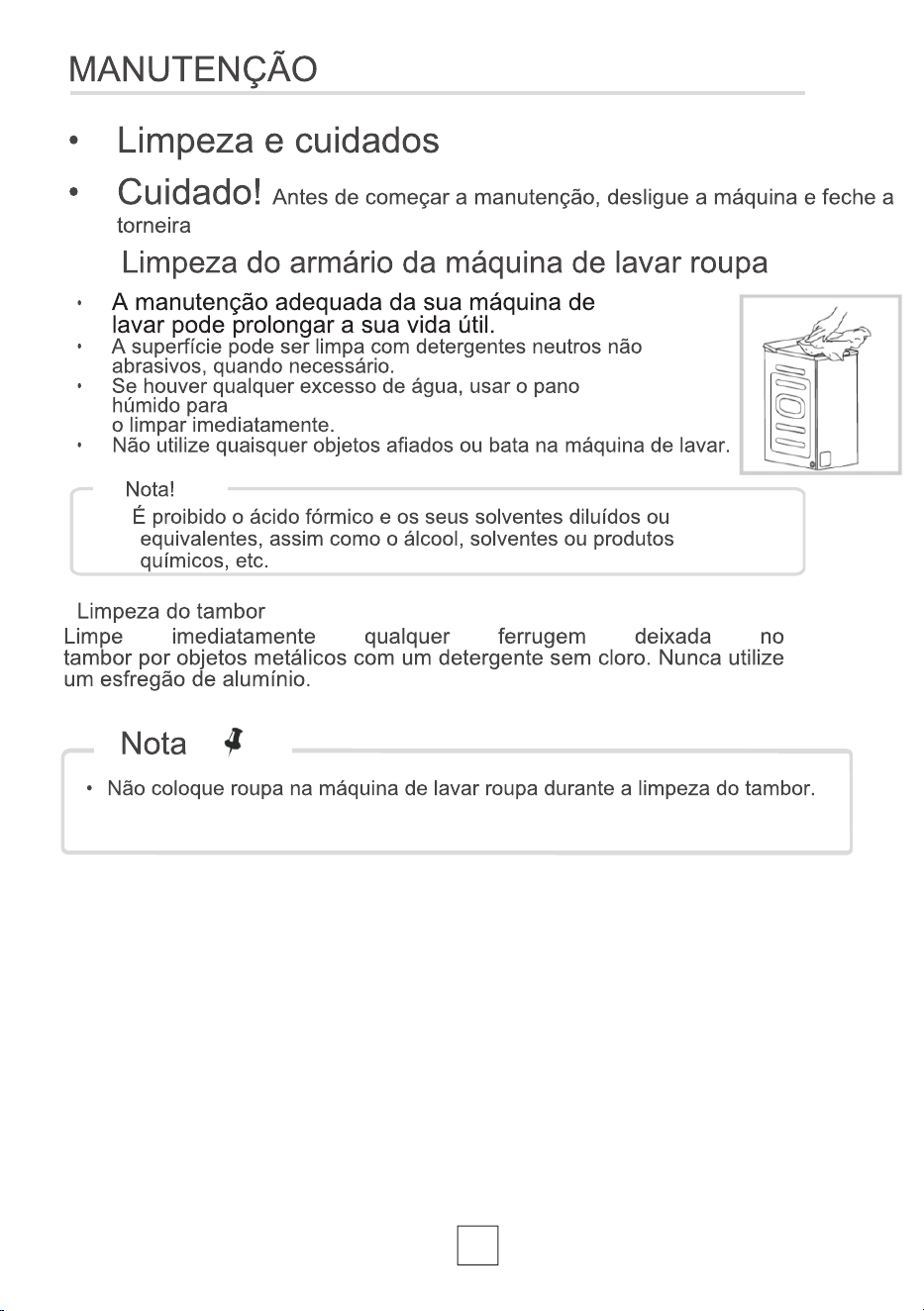

MAINTENANCE
• Before your maintenance starts, please unplug the machine and close the tap.
Cleaning The Cabinet
Cleaning The Drum
Formic acid and its diluted solvents or equivalent are forbidden, such as
solvents or chemical products,etc.
•
alcohol,
• Don’t put laundry in the washing machine during the drum cleaning.
Warning!
！
Note!
Note!
Cleaning and Care
The rusts left inside the drum by the metal articles shall be removed immediately
with chlorine-free detergents.
Never use steel wool.
Proper maintenance on the washing machine can extend its
working life. The surface can be cleaned with diluted
non-abrasive neutral detergents when necessary. If there is
any water overflow, use the wet cloth to wipe it off immediately.
No sharp items are allowed.
27
MAINTENANCE

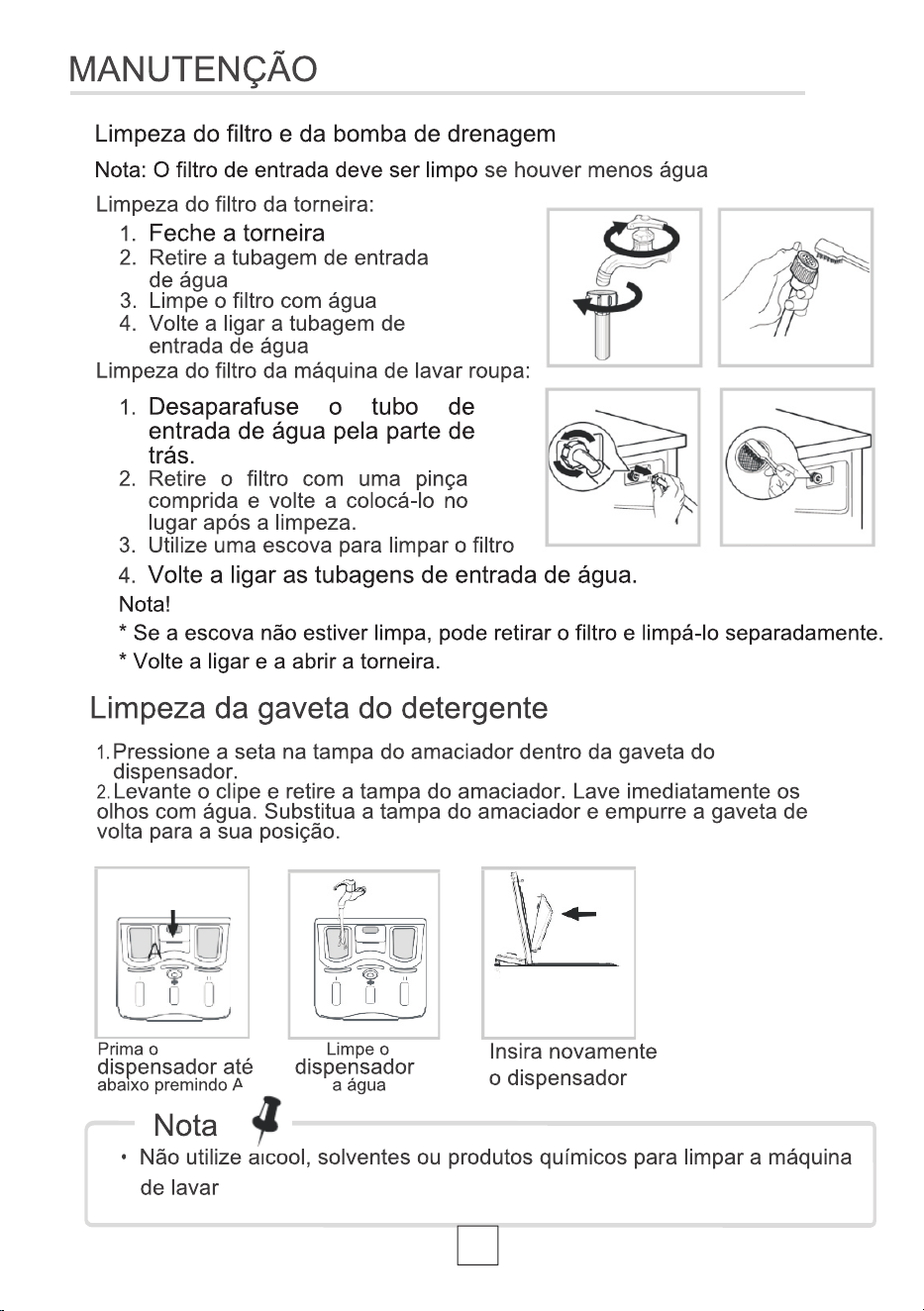

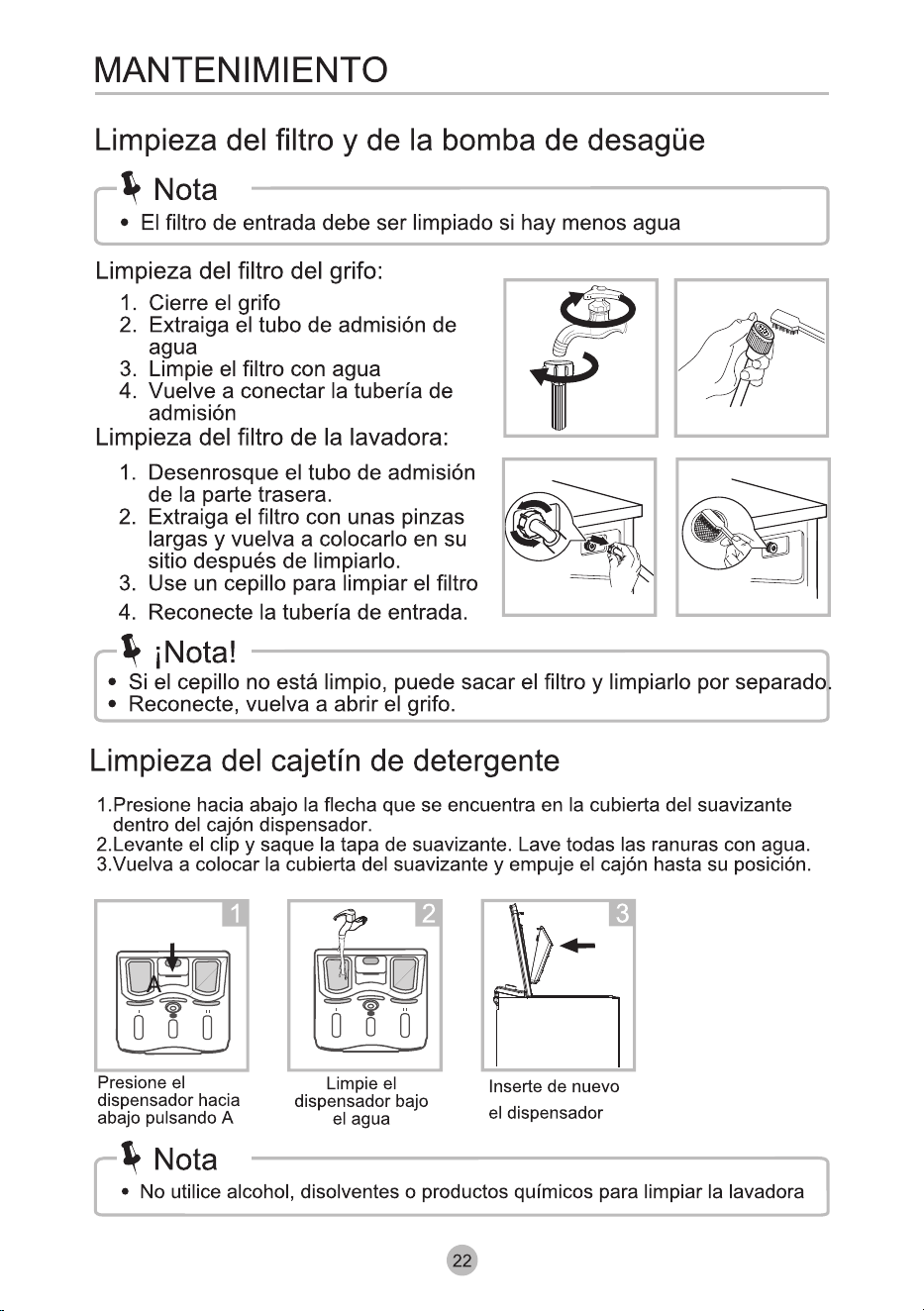

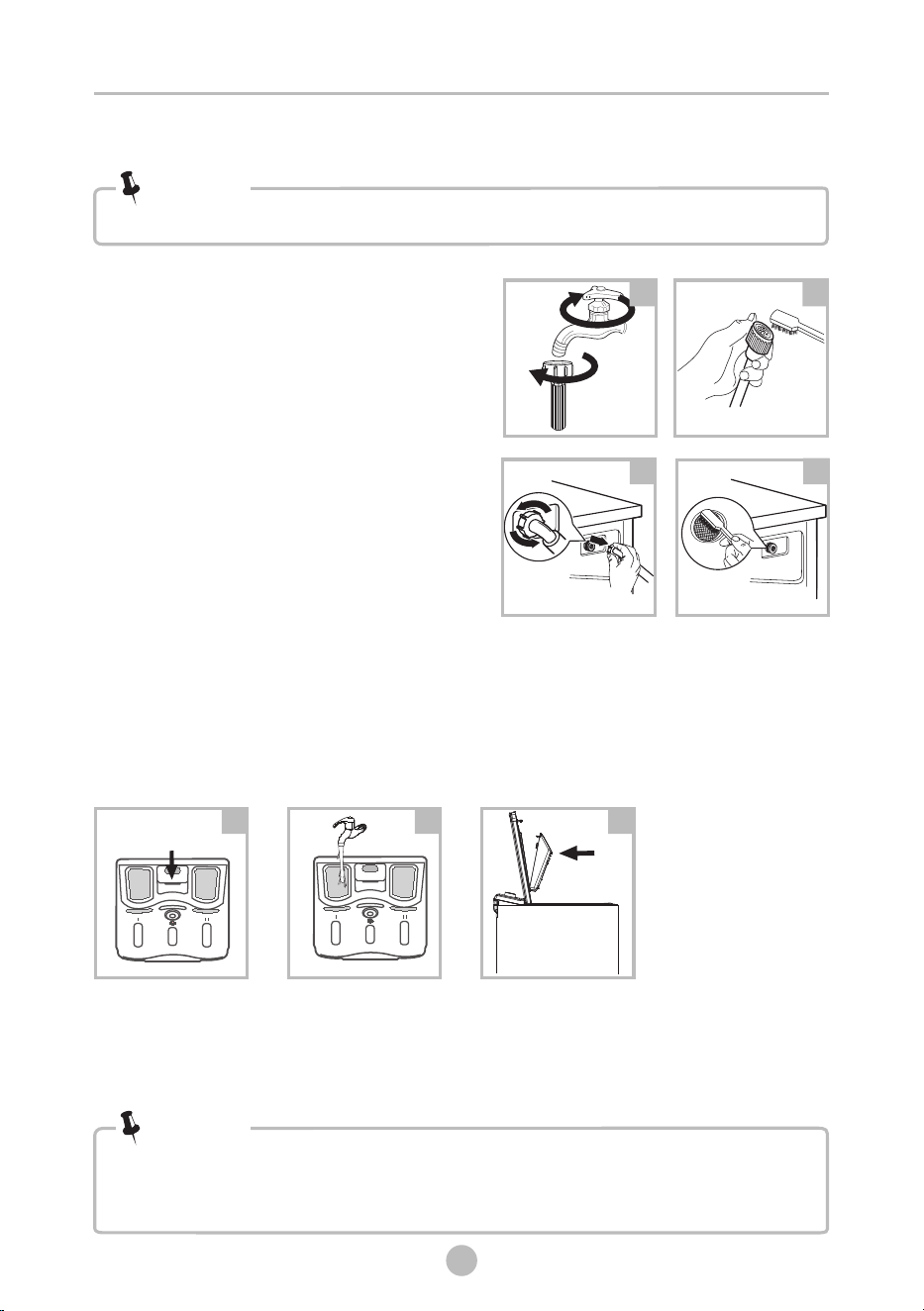

1. Close the tap and remove the water supply
hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the
backside of the machine. Pull out the filter
with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and
reconnect the water supply hose.
6. Clean the Inlet filter every 3 months
to ensure the normal operation of the
appliance.
Cleaning the Inlet Filter
• Diminishing water flow is a sign that the filter need to be cleaned.
Note!
12
34
Clean The Detergent Dispenser
A
Pull out the dispenser
drawer with press the A
Clean the dispenser
drawer under water
Insert the dispenser
drawer
1
2
3
1.Press down the arrow location on softener cover inside the dispenser drawer.
2.Lift the clip up and take out softener cover and wash all grooves with water.
3.Restore the softener cover and push the drawer onto position.
• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the
appliance.
Note!
28
MAINTENANCE

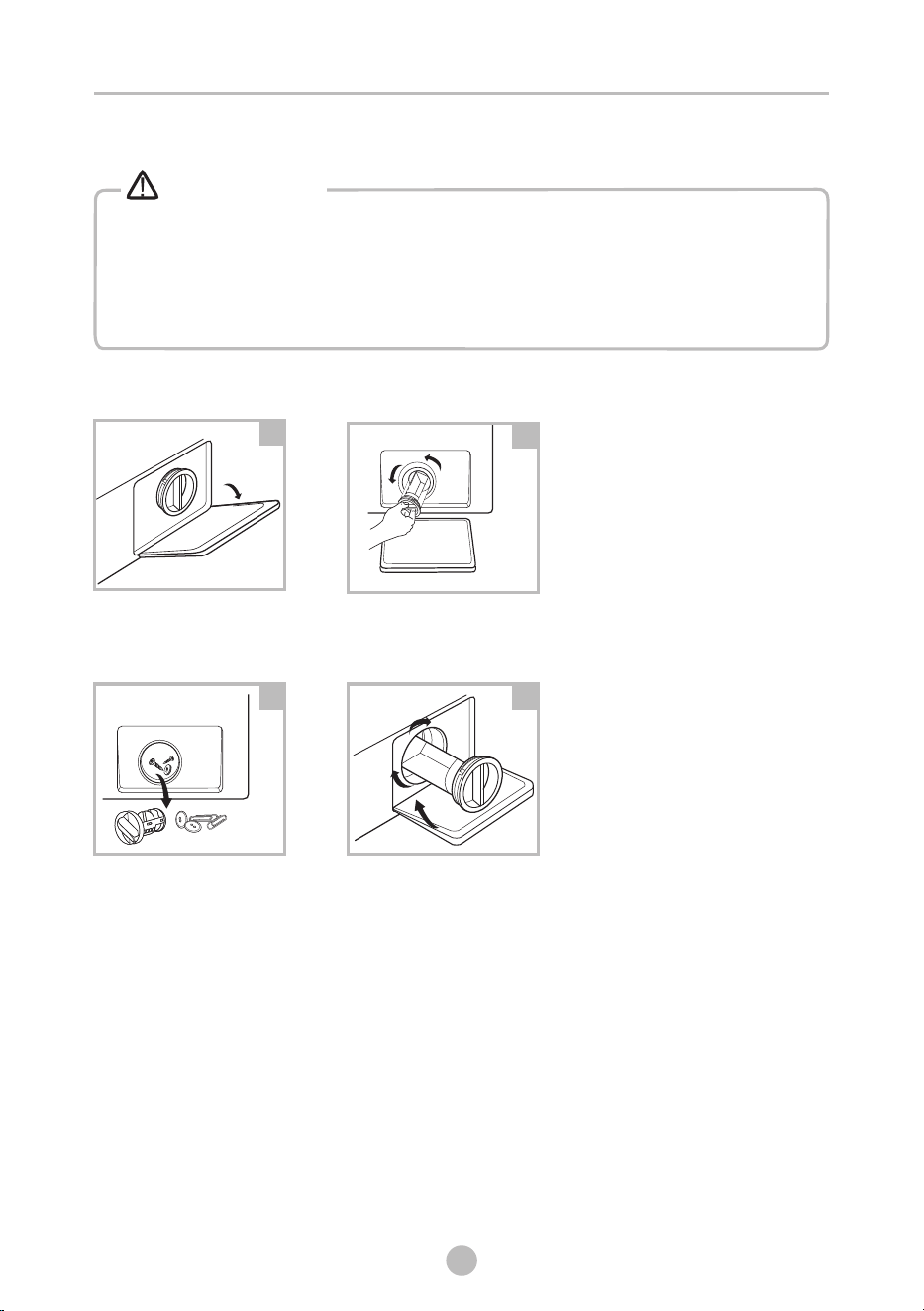

Cleaning the Drain Pump Filter
Open the lower cover cap
Open the filter by turning
to the counter clockwise
Remove extraneous matter
1
Close the lower cover cap
4
3
2
•
and unplug it before cleaning the drain pump filter.
• Be careful of hot water. Allow the water to cool down. Risk of scalding!
• Clean the filter periodically every 3 months to ensure the normal operation of the
appliance.
Make sure that the machine has finished the washing cycle and is empty. Switch it off
Warning!
29

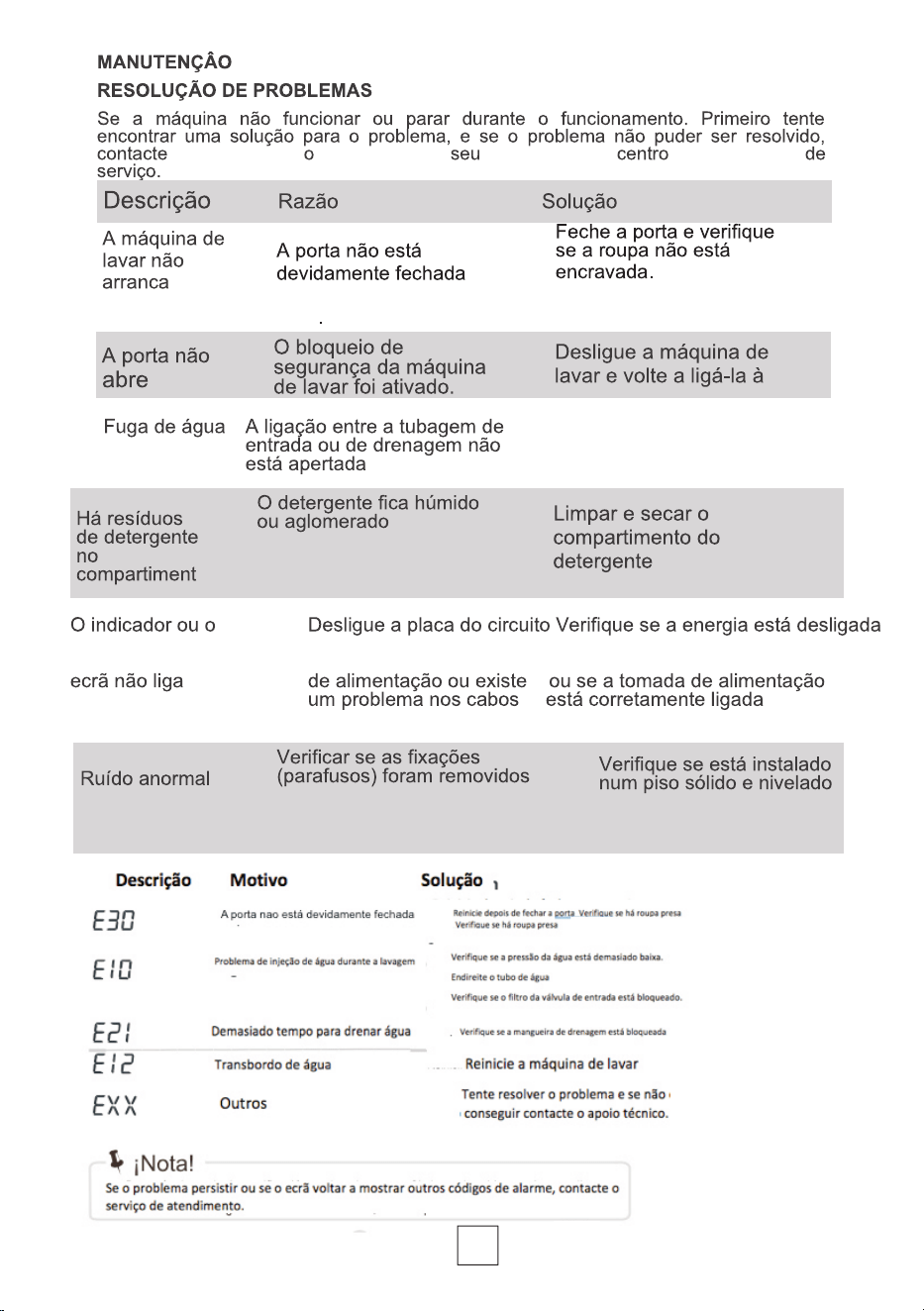

Trouble Shooting
MAINTENANCE
The start of the appliance does not work or it stops during operation.
First try to find a solution to the problem, If not, contact the service centre.
Description
Reason
Solution
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
Door can’t be
opened
Washer's safety
protection design is working
Disconnect the power, restart
the product
Water leakage
The connection between inlet
pipe or outlet hose is not tight
Check and fasten water pipes
Clean up outlet hose
Clean and wipe the detergent
box
Abnormal noise
Check if the fixing (bolts) have
been removed
it’s installed on a solid
and level floor
Check
Indicator or display
does not light
Disconnect the power
PC board or harness has
connection problem
Check if the power is shut
down and the power plug is
connected correctly
Washing machine
cannot start up
Detergent residues
in the box
Detergent is dampened
or agglomerated
Description
Reason
Solution
Check if the water pressure is
too low
Straighten the water pipe
Check if the inlet valve filter is blocked
Check if the drain hose is blocked
Water injecting
problem while
washing
Overtime water draining
Please try again first, call up
service line if there are still
troubles
Others
Water overflow
Restart the washer
Restart after the door is closed
Check if the clothes is stuck
Door is not closed properly
LED display models:
• or the display
shows other alarm codes
After the check, activate the appliance. If the problem occurs
again, contact the service.
Note!
30
Technical Specifications
MAX.Current
Standard Water Pressure
10A
0.1MPa~1MPa
Power Supply
220-240V~,50Hz
Customer service
In case of questions please contact our customer service at:
Risk of electric shock
• Never try repair an appliance which is defective of presumed to be defective.
You may put your own and future users' lives in danger.Only authorised specialists are
allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recogniced!
Warning!
！
Spare part for your appliance are available for a minimum of 10 years.
Transport
IMPORTANT STEPS WHEN MOVING THE APPLIANCE
•
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see “Maintenance Cleaning the
drain pump filter”)
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the
machine when lifting. The machine door cannot be used as a handle.
Unplug the appliance and close the water inlet tap.
H
W
D
MAINTENANCE
400*610*875
400*610*875
E-CLACSM7521D
CLACSM8523D
Dimension
(W*D*Hmm)
7.5kg
8.0kg
Rated Power
Net Weight
Washing Capacity
Model
56kg
56kg
2000W
2000W
31
MAINTENANCE
32
E-CLACSM7521D
MAINTENANCE
33
CLACSM8523D

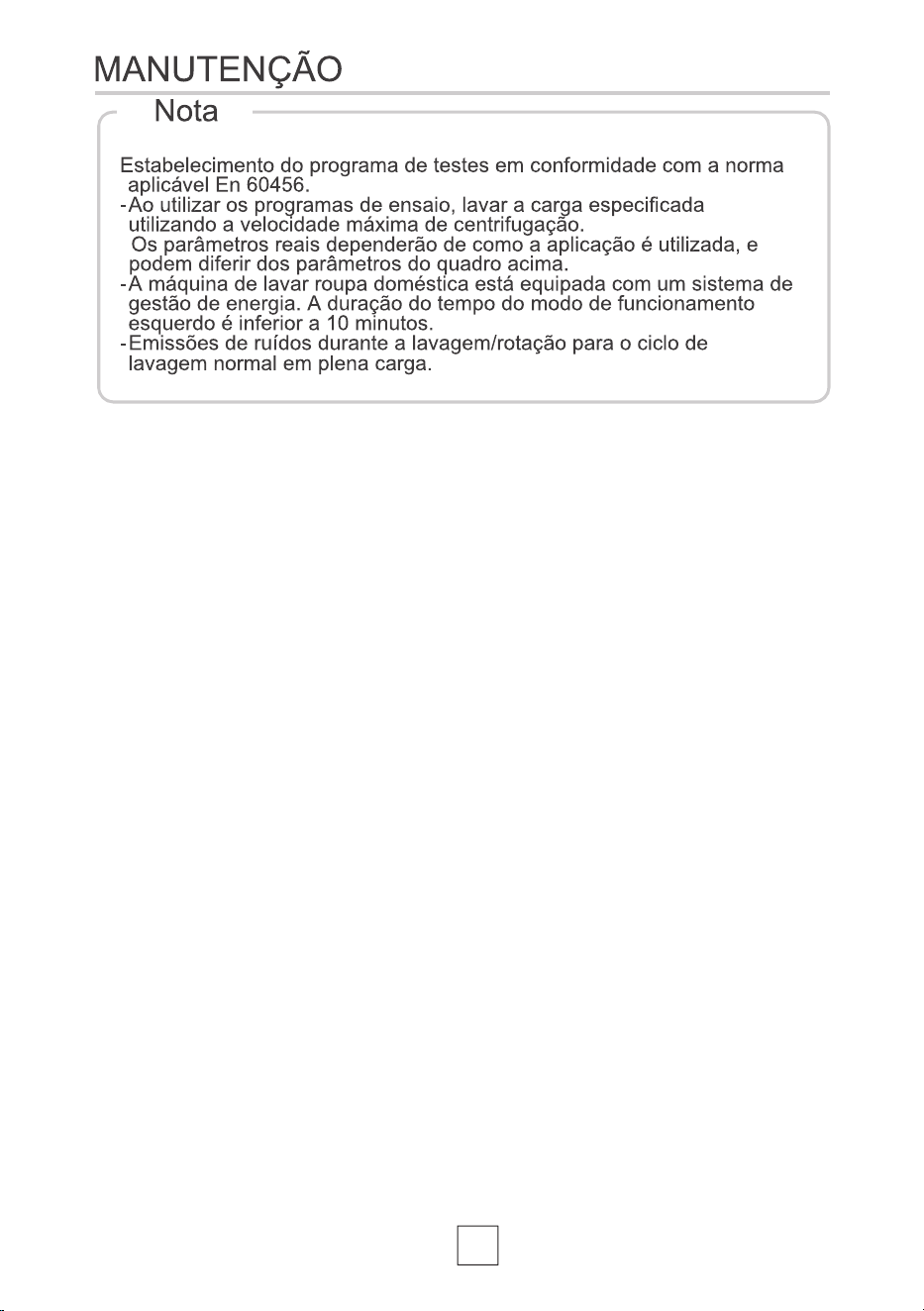

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the
hardness of the water.
3)

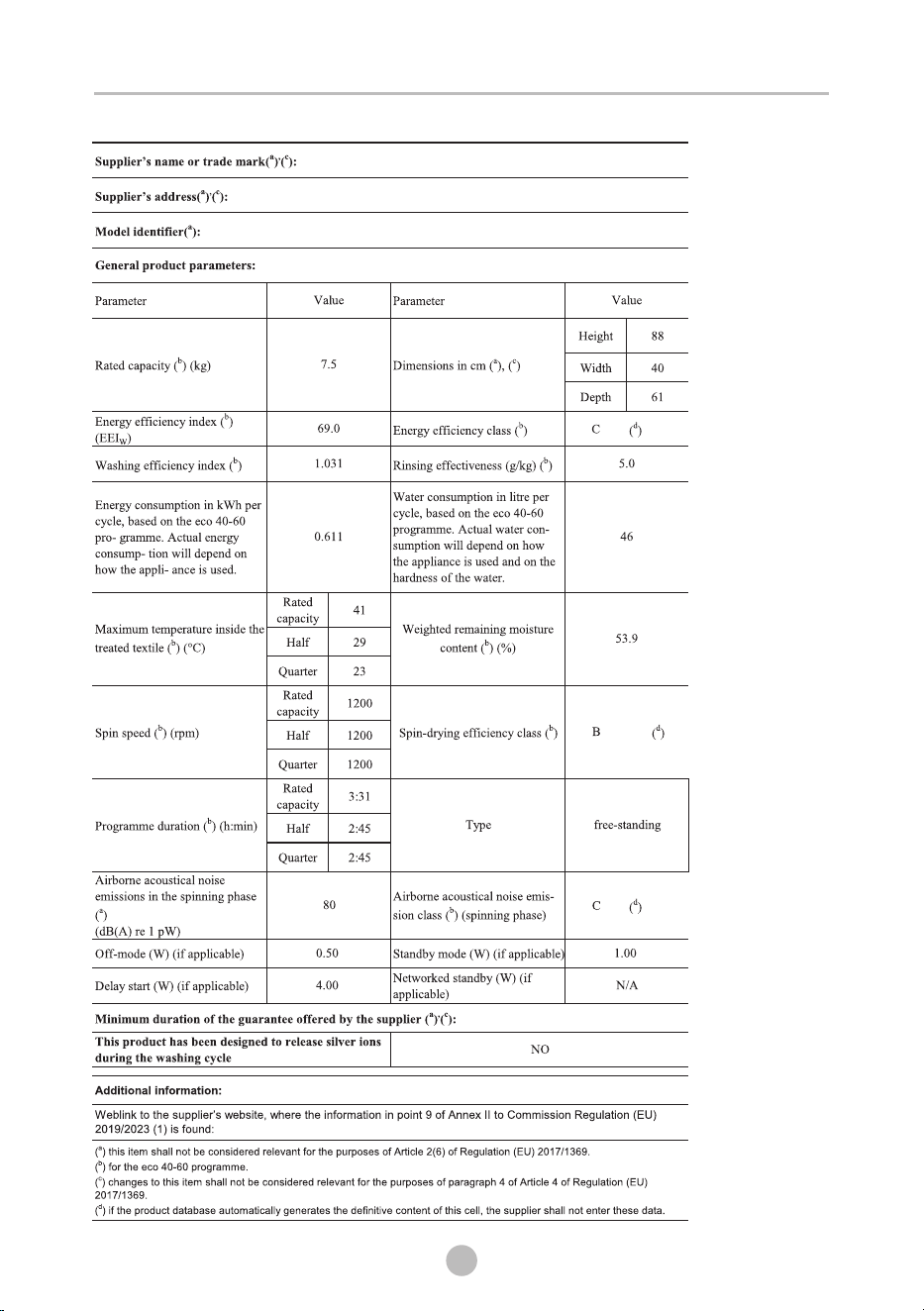

Product Data Sheet concerning (EU) 2019/2014
The product data sheet for your appliance can be found online.
Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to
download the data sheet.
The model identifier for your appliance can be found in the technical specifications
section.
Delivery of the spare parts within 15 working days after having received the order.
MAINTENANCE
34
6
7
8
9
10
11
12
13
14
15
16
17
18
19
8.0
2.0
4.0
8.0
2.0
-
8.0
4.0
4.0
8.0
8.0
8.0
8.0
8.0
2.0
8.0
3:39
3:17
1:37
1:45
8.0
2.0
1:31
1:01
1:42
1:18
0:12
0:20
1:07
3:48
3:32
0:45
0:15
20
21
22
23
24
25
CLACSM8523D
8.0kg
26
27
k
CLACSM8523D
28
CERTIFICADO DE GARANTÍA
Imprescindible la presentación de la factura de compra acompañada del presente certificado de garantía.
Riesgos cubiertos.
Este aparato está garantizado contra cualquier defecto de funcionamiento, siempre que se destine a uso doméstico,
procediéndose a su reparación dentro del plazo de garantía y sólo por la red de SAT autorizados.
Nuestros electrodomésticos Corberó cuentan con la garantía legal del fabricante que cubre cualquier avería o defecto durante36
meses, desde su fecha factura de 1 de enero del 2022. En caso de que fuera necesario, nosotros nos ocupamos de cualquier posible
incidencia siempre que se deba a un componente defectuoso o fallo de fabricación.
Excepciones de garantía.
• Que la fecha del certificado no coincida con la fecha de venta de la factura original.
• Averías producidas por golpe, por caída o cualquier otra causa de fuerza mayor.
• Si el apa
rato ha sido manipulado por personal no autorizado.
• Las averías producidas o derivadas como consecuencia de un uso inadecuado, por defectos de instalación,
por introducir modificaciones en el aparato que alteren su funcionamiento.
• Puestas en marcha, mantenimiento, limpiezas, componentes sujetos a desgaste, lámparas, piezas estéticas,
oxidaciones, plásticos, gomas, carcasas y cristales.
“ESTAS EXCEPCIONES ANULAN LA GARANTÍA, SIENDO LA REPARACIÓN CON CARGO AL CLIENTE”
Periodo amparado en aparatos según ley de garantias en la venta de bienes de consumo Ley vigente es “RD 7/2021”
Horario de atención Lunes a Viernes de 9h00 a 19h00. Teléfono de contacto_ 911 08 08 08 Mail de contacto_ [email protected] web_ www.corbero.es
Dirección de Servicio técnico oficial_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
Sevicio Técnico Oficial: 911 08 08 08
Los hornos microondas (a excepción de los integrables) y los hornos sobremesa en el caso de cualquier incidencia de
funcionamiento, deben de llevarse al servicio técnico más próximo por parte del cliente. No se recojen ni reparan en el
domicilio.
•
Garantía termos eléctricos. Garantía de 3 años incluyendo los costes de desplazamiento y mano de obra que
correspondan de la reparación del producto, teniendo que tener un mantenimiento una vez cada 12 meses.
Especialmente si Ud. ha instalado un aparato a gas, tenga presente como titular de la instalación, la obligatoriedad de
realizar una revisión completa de los equipos, (según Real Decreto 238 / 2013, del 5 Abril. RITE. IT3, M. Lo termos
eléctricos y calderas que incluyen depósitos acumuladores de agua caliente, para que se aplique la prestación de la
Garantía, es obligatorio que el ánodo de magnesio esté operativo y que realice la función de protección
adecuadamente. Para ello es recomendable que el ánodo se revise bianualmente por el Servicio Oficial y sea renovado
cuando fuera necesario. Periodicidad que deberá ser anual en aquellas zonas con aguas críticas (contenido de CaCO3
superiores a 200mg/L, es decir a partir de 20ºfH de dureza). Depósitos sin el correcto estado del ánodo de protección, no
tienen la cobertura de la garantía. Independientemente del tipo de depósito o producto, todas las válvulas de
sobrepresión de calefacción o a.c.s., deberán ser canalizadas para evitar daños en Ia vivienda por descargas de agua. La
garantía del producto no asume los daños causados por Ia no canalización del agua derramada por esta válvula.
•
CERTIFICATE OF GUARANTEE
The presentation of the purchase invoice accompanied by this guarantee certificate is essential.
Covered Risks.
This appliance is guaranteed against any malfunction, provided that it is intended for domestic use, proceeding to its repair within
the warranty period and only by the authorized SAT network.
Our Corberó appliances have the manufacturer's legal warranty that covers any breakdown or defect for 36 months, from the
invoice date of January 1, 2022. If necessary, we take care of any possible incident whenever it is due to a defective component or
manufacturing fault. Warranty Exceptions
Warranty Exceptions
•
That the date of the certificate does not coincide with the date of sale of the original invoice.
•
Faults produced by blow, by fall or any other cause of force majeure.
•
If the device has been manipulated by unauthorized personnel.
•
Faults produced or derived as a consequence of improper use, installation defects, or modifications to the device that
alter its operation.
•
Start-up, maintenance, cleaning, components subject to wear, lamps, aesthetic parts,
oxidation, plastics, rubbers, housings and crystals.
“THESE EXCEPTIONS VOID THE WARRANTY, THE REPAIR BEING CHARGED TO THE CUSTOMER”
Period covered in devices according to the law of guarantees in the sale of consumer goods Current law is “RD 7/2021”
Hours of operation Monday to Friday from9h00 a 19h00. Telephone contact_ 911 08 08 08 Contact email_ [email protected] web_ www.corbero.es
Official Technical Service Address_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
Official Technical Service: 911 08 08 08
Microwave ovens (with the exception of built-in ones) and tabletop ovens in the event of any incident of
operation, they must be taken to the nearest technical service by the customer. They are not collected or repaired at
home.
•
Electric thermos guarantee. 3-year warranty including travel and labor costs that correspond to the repair of the
product, having to have maintenance once every 12 months. Especially if you have installed a gas appliance, keep in
mind as the owner of the installation, the obligation to carry out a complete review of the equipment, (according to
Royal Decree 238 / 2013, of April 5. RITE. IT3, M. Lo thermos electrical and boilers that include hot water storage tanks,
for the benefit of the Guarantee to apply, it is mandatory that the magnesium anode is operational and that it performs
the protection function adequately.For this, it is recommended that the anode be checked biannually by the Official
Service and is renewed when necessary Periodicity that must be annual in those areas with critical waters (CaCO3
content greater than 200mg/L, that is, from 20ºfH of hardness) Deposits without the correct state of the protection
anode are not covered by the warranty Regardless of the type of tank or product, all heating or DHW overpressure
valves must be channeled to avoid damage and n the house due to water discharges. The product warranty does not
cover damages caused by not channeling the water spilled by this valve.
•
CERTIFICADO DE GARANTIA
A apresentação da factura de compra acompanhada deste certificado de garantia é indispensável.
Riscos cobertos.
Este aparelho está garantido contra qualquer avaria, desde que se destine ao uso doméstico, reparando-o dentro do período de
garantia e apenas pela rede SAT autorizada.
Nossos eletrodomésticos Corberó têm garantia legal do fabricante que cobre qualquer avaria ou defeito por 36 meses, a partir da
data da fatura de 1º de janeiro de 2022. Se necessário, cuidamos de qualquer eventual incidente desde que seja devido a um
componente ou fabricação defeituoso falta.
Exceções de garantia.
•
Que a data do certificado não coincida com a data de venda da fatura original.
•
Avarias causadas por pancadas, quedas ou qualquer outra causa de força maior.
•
Se o dispositivo foi adulterado por pessoal não autorizado.
•
Avarias produzidas ou derivadas como resultado de uso indevido, defeitos de instalação, fazendo alterações no
dispositivo que alteram seu funcionamento.
•
Comissionamento, manutenção, limpeza, componentes sujeitos a desgaste, lâmpadas, peças estéticas,
oxidação, plásticos, borrachas, invólucros e vidros.
“ESTAS EXCEÇÕES ANULAM A GARANTIA, SENDO A REPARAÇÃO POR CONTA DO CLIENTE.” Período
abrangido em dispositivos de acordo com a lei de garantias na venda de bens de consumo A lei atual é "Decreto-Lei n.º 84/2021"
Horário de atendimento de segunda a sexta das 9h às 19h. Telefone de contato_ 351 961 789 806 Email de contato_ [email protected]
web_ www.corbero.es Serviço Técnico Oficial Endereço_Vidal i Ribes 8-10 08950 Esplugues de Llobregat Barcelona
Serviço Técnico Oficial: 351 961 789 806
Fornos de microondas (exceto os embutidos) e fornos de mesa em caso de qualquer incidência de
operação, devem ser levados ao serviço técnico mais próximo pelo cliente. Eles não são recolhidos ou reparados em
casa.
•
Garantia térmica elétrica. Garantia de 3 anos incluindo despesas de deslocação e mão-de-obra que correspondam à
reparação do produto, devendo ter manutenção a cada 12 meses. Especialmente se instalou um aparelho a gás, tenha
em atenção como proprietário da instalação, a obrigação de realizar uma revisão completa do equipamento, (de acordo
com o Decreto-Lei n.º 84/2021. Lo thermos eléctricos e caldeiras que incluam acumuladores de água quente, para o
benefício da Garantia a aplicar, é obrigatório que o ânodo de magnésio esteja operacional e que desempenhe a função
de protecção de forma adequada. ser verificado a cada dois anos no Serviço Oficial e renovado quando necessário
Periodicidade que deve ser anual nas áreas com águas críticas (teor de CaCO3 superior a 200mg/L,
ou seja, a partir de 20ºfH de dureza) Depósitos sem o estado correto do ânodo de proteção não estão cobertos pela
garantia Independentemente do tipo de tanque ou produto, todas as válvulas de aquecimento ou de sobrepressão de
água quente sanitária devem ser canalizadas para evitar danos e na casa devido a descargas de água. A garantia do
produto não cobre danos causados pela não canalização da água derramada por esta válvula.
•
