SANDWICH GRILL - MODEL: SACL-85.212.0P225-A
The pictures/drawings are illustrations. All data can be changed without notification.
INSTRUCTION MANUAL
- PLEASE read these instructions carefully before operating this appliance.
SAFETY
-Install your equipment in area well ventilated, to eliminate the gases generated by the
combustion.
-It’s recommended to leave at least 6 inches (15 cm) of free space around the equipment.
-DO NOT install the equipment next to combustible materials.
-The installation has to comply to the safety standards.
OPERATION
-The equipment is supplied with a Gas Tap which can adjust the flame (turn 1/4 to
maximum flame and turn 1/2 to minimum flame).
-Incorporated to the Tap there is a safety device that will let open the gas only if it is
pressed and turned counterclockwise.
-Before using the appliance for the first time, remove the protection coating with a damp cloth,
light the burner and allow griddle to heat for +/- 30 minutes. You will notice some smoke
appearing due to the protection coating burning, which is normal.
- After 30 minutes heating, adjust the gas tap to operating desired temperature and grease
plate, generously with butter or oil. Never allow excess of fat or oil to buildup as this will
result in build-up of carbon on the plates, which should be removed with a scraper.
-Appliance is provided with grease drawer that receives grease and food scraped residues.
-This appliance should be preheated before daily operation. Always allow 15 minutes
preheat time before loading griddle with food to give griddle surface time to saturate.
-To turn off your appliance turn the gas tap knob completely clockwise.
CLEANING PROCEDURE
-Always ensure that the gas taps are in off position before cleaning.
-Try to scrape as much grease and residues from cooking surface as possible while the
unit is still hot.
-After appliance has cooled, clean cooking surface and body using only a damp cloth.
Never use water jet or immerse appliance in water.
-Wipe off appliance with a dry cloth and wait at least half an hour before start operation
again.
AMERICA PARTS & TOOLS, INC
3705 NW, 115th Ave Unit 8
Doral, FL 33178
PH: +1-786-5369960
email: [email protected]

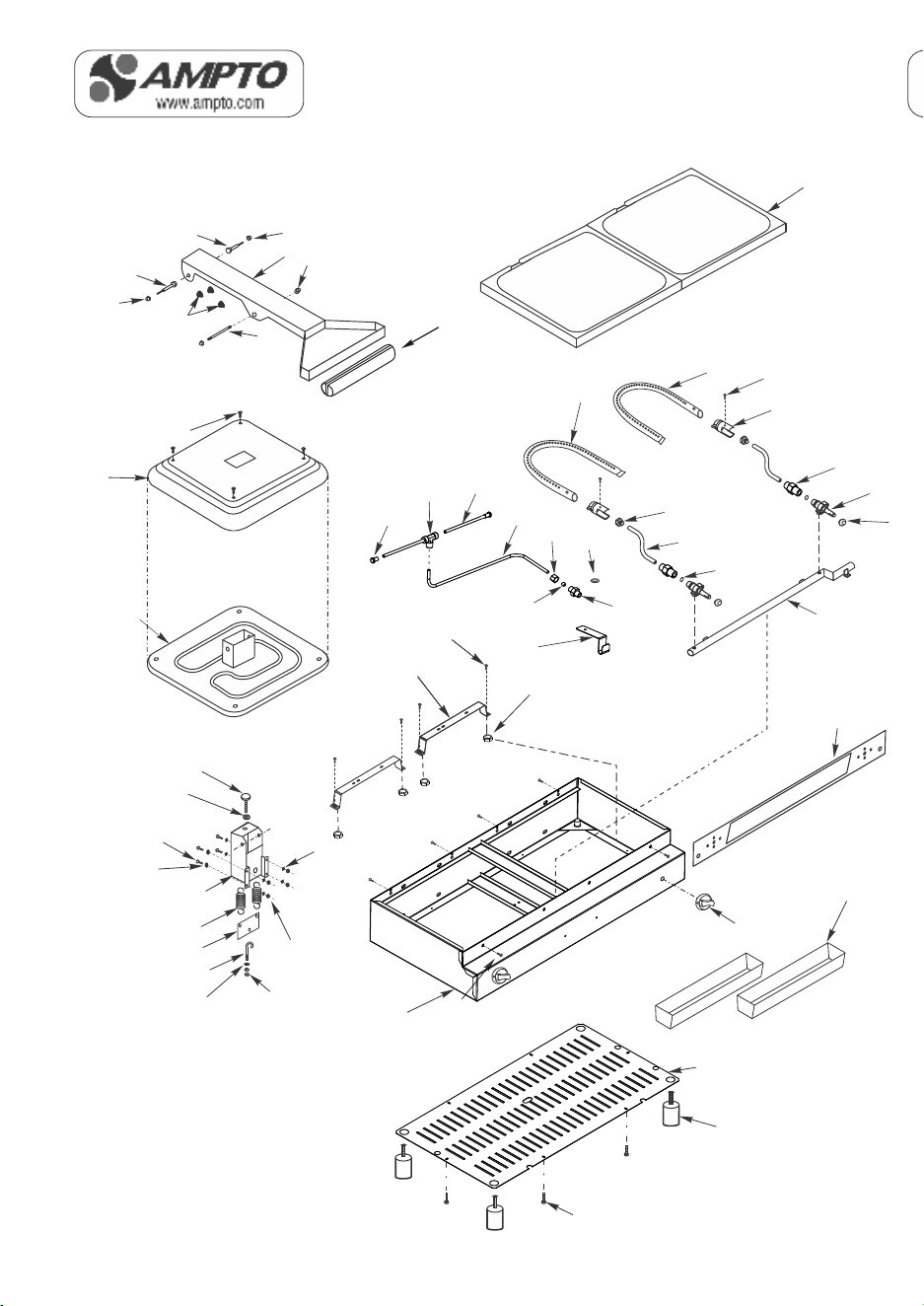

Burner
Nut (1/4”)
Shaft
Arm
Nut 1/4’’
Burner Regulator
Handle
Screw 3/16”
Lid
Spring Support
Washer 1/4”
Screw 3/16”
Spring Regulator
Upper Heating Plate
Lid Regulator
Regulator Locker
Screw 1/4”
Connection 1/8”
Gas Tap
Orifice
Arm Support
Spring
Locker Washer (1/4”)
Gas Pipe
Tube Seal
Buner
Shaft
Screw
Foot
Bottom Cover Plate
Grease Collector
O Ring
Collector Pipe
Buner Suport
Knob
Body
Rubber Protection
Lower Heating Plate
Nut 3/16’’
Nut 1/4’’
Label
Nut
Metal Ring
Pillot Valve
Pillot Burner
‘T’ Connection
Pillot Support
Connection Pipe
Pillot Pipe
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
16.074-3
621
2.646-3
21.868-3
601
16.076-3
15.000-3
570
2.032-3
2.654-3
642
385
2.631-3
40.023-3
2.467-3
2.466-3
332
16.237-3
16.165-3
16.243-3
21.875-3
2.044-3
597
16.333-3
16.217-3
16.164-3
15.024-3
552
1.917-3
16.269-3
17.958-3
510
17.156-3
16.334-3
21.288-3
16.340-3
2.113-3
40.024-3
604
18.004-3
22.900-3
22.008-3
22.009-3
22.010-3
22.012-3
17.160-3
17.232-3
17.161-3
17.162-3
35
32
31
5
21
5
23
22
13
11
15
10
11
17
16
36
30
29
28
7
4
3
2
2
8
9
2
37
27
27
14
6
24
33
18
20
25
19
1
26
28
32
38
34
12
39
34
12
