ELECTRICAL GRIDDLE - MODEL GR3E-81.481.00655-A
-PLEASE read these instructions carefully before operating this appliance.
-The temperature is thermostatically controlled between the range of 50ºC to 300ºC (122ºF
to 572ºF). A signal lamp adjacent to the thermostat indicates when heating element is
energized.
IMPORTANT
-This unit is designed to operate on alternative current (A.C.) only.
-DO NOT CONNECT TO DIRECT CURRENT (D.C.)
-Care should be taken when operating this appliance as HOT SURFACES may cause
burns.
-Ensure that the power supply cord does not come into contact with hot surfaces.
-Do not leave unit in operation without an attendant.
-When not in use for long period unplug the appliance.
INSTALLATION AND OPERATION
-Check if voltage of your power system corresponds to the same specified on the
appliance label.
-Before using the appliance for the first time, remove the protection coating (MEDICINAL
VASELINE) with a damp cloth and turn the control knobs to 300ºC (572ºF), allow griddle
to heat for +/- 30 minutes. You will notice some smoke appearing due to the protection
coating and internal insulation burning, which is normal.
-After 30 minutes heating, turn temperature controls down to operating desired
temperature and grease plate, generously with butter or oil. Never allow excess of fat or
oil to buildup as this will result in build-up of carbon on the plates, which should be
removed with a scraper.
-Appliance is provided with grease drawer that receives grease and food scraped
residues.
-This appliance should be preheated before daily operation. Always allow 15 minutes
preheat time before loading griddle with food to give griddle surface time to saturate.
-To turn off your appliance turn thermostat knobs completely towards left.
CLEANING PROCEDURE
-Always ensure that the appliance is disconnected from the main power supply before
cleaning.
-Try to scrape as much grease and residues from cooking surface as possible while the
unit is still hot.
-After appliance has cooled, clean cooking surface and body using only a damp cloth.
Never use water jet or immerse appliance in water.
-Wipe off appliance with a dry cloth and wait at least half an hour before re-connecting to
main power outlet.
INSTRUCTION MANUAL
The pictures/drawings are illustrations. All data can be changed without notification.
AMERICA PARTS & TOOLS, INC
3705 NW, 115th Ave Unit 8
Doral, FL 33178
PH: +1-786-5369960
email: [email protected]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
566
2.557-3
2.065-3
2.935-3
1.343-3
2.924-3
635
3.706-3
2.943-3
16.739-3
2.092-3
2.085-3
9.415-3
604
2.009-3
385
1.918-3
330
2.009-B
2.013-3
3.506-3
18.035-3
552
329
366
383
594
643
94.060-3
Screw (4,8)
Cooking Plate
Thermostat Bulb Retainer
Heating Element (1900W)
Plate
Heating Element Support
Nut
Insulation
Heating Plate Protection
Body
Cord Connection
Wire Connector
Cord Retainer
Nut (3/16")
Thermostat
Screw (3/16")
Foot
Screw
Knob
Pilot Light
Grease Drawer
Bottom Cover Plate
Screw (3,5)
Special Screw
Screw
Screw
Washer
Washer
Side Gap

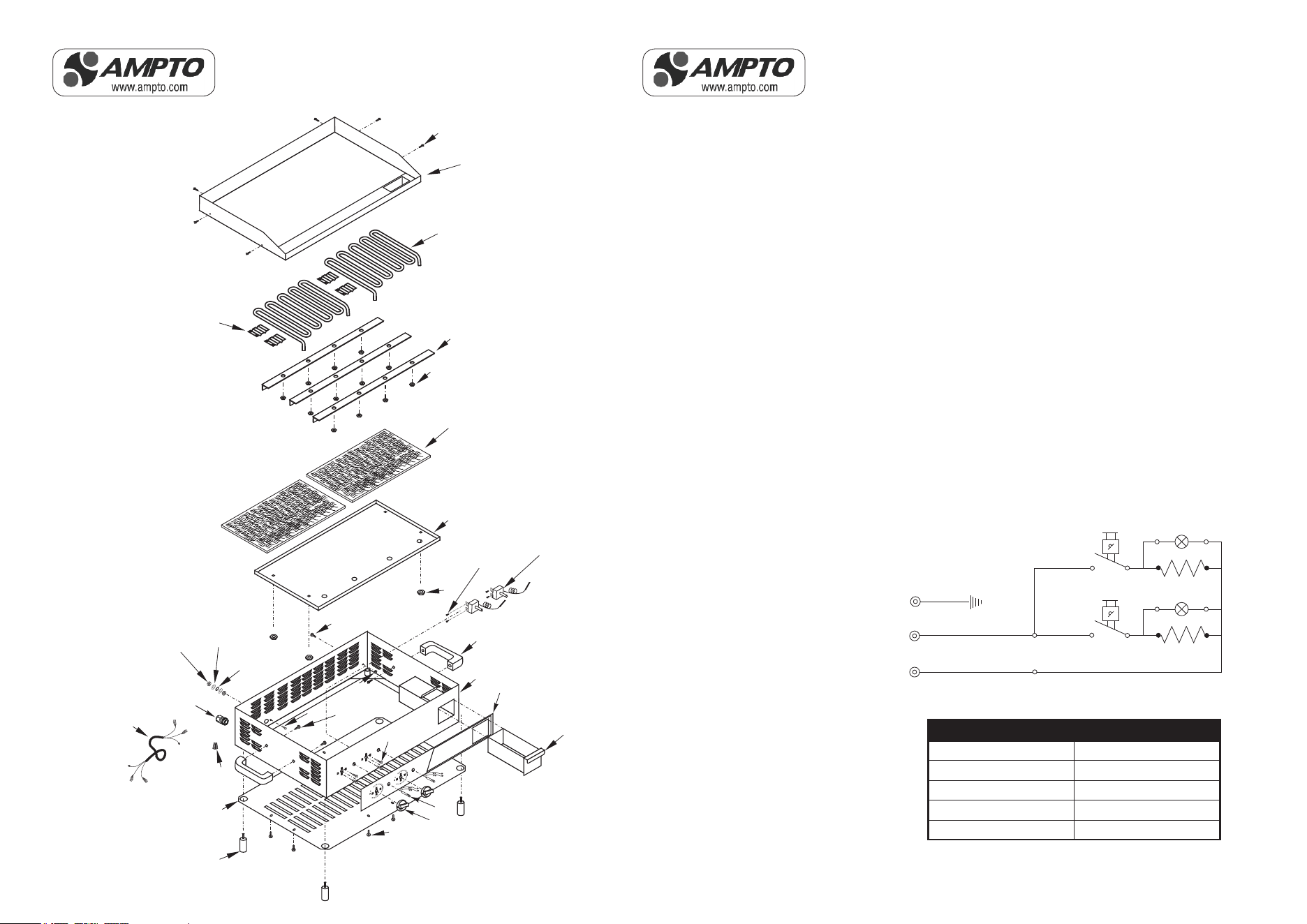

ELECTRICAL GRIDDLE (GR3E) ELECTRICAL GRIDDLE (GR3E)
Item Code Description
Wiring diagram
G
L2
L1
Voltage (V)
Power (W)
Amperage (A)
Weight (kg/lbs)
Dimensions W x H x D (cm/in)
Technical Data
220
4200
19
28.7/63.1
64/25.2 x 36/14.2 x 48/18.9
GR3E-81.481.00655-A
