60cm Freestanding Dishwasher, 14 Place
Settings, 8 Programs, LED Display, Silver
Model No: DH167
Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard,
this product will, if used according to these instructions, and properly maintained, give you years of
trouble free performance.
DH167 Issue 4 01/05/24
2
CONTENTS
• General safety 3
• Electrical safety 4
• Specication 4

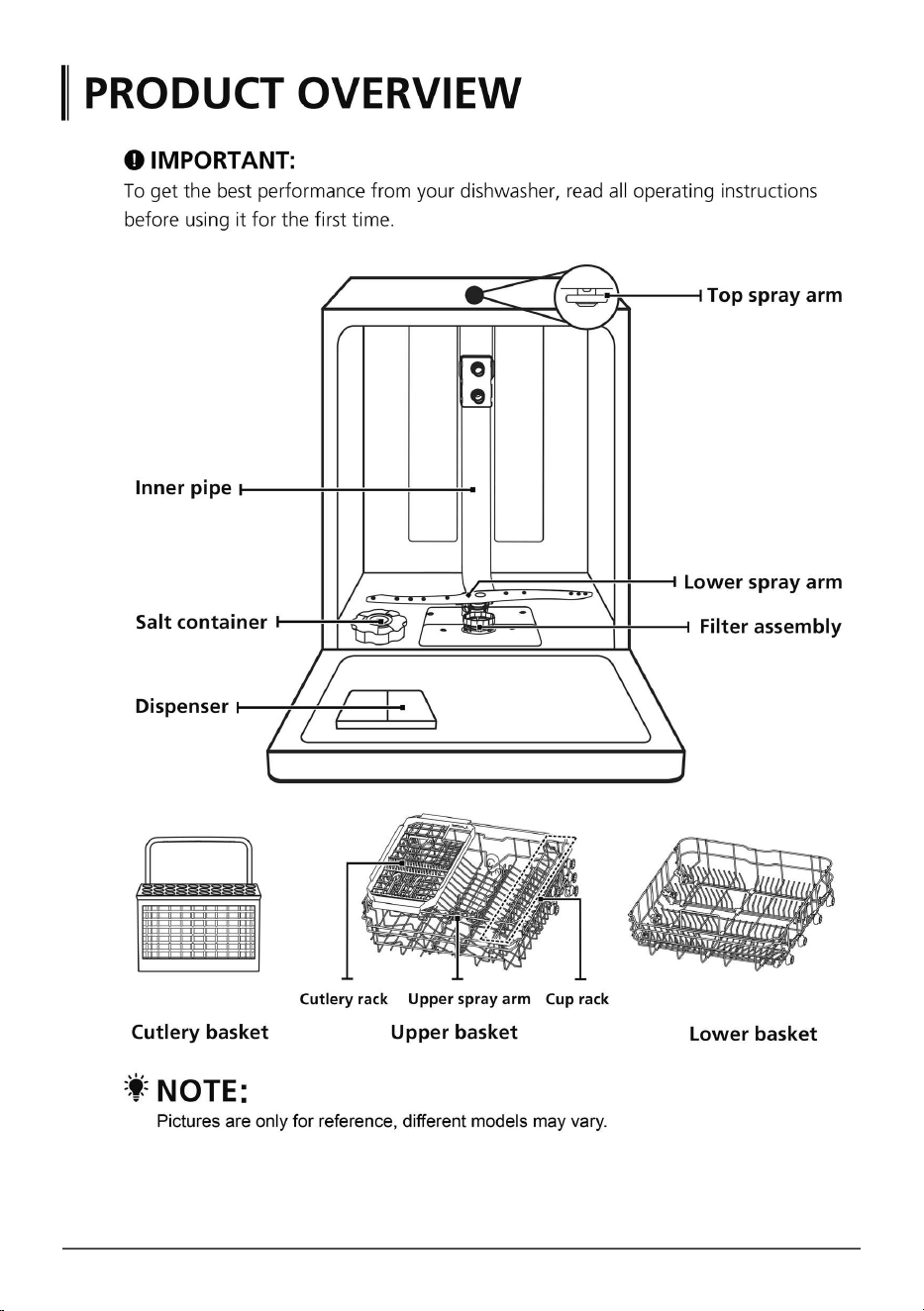

• Product Overview 5

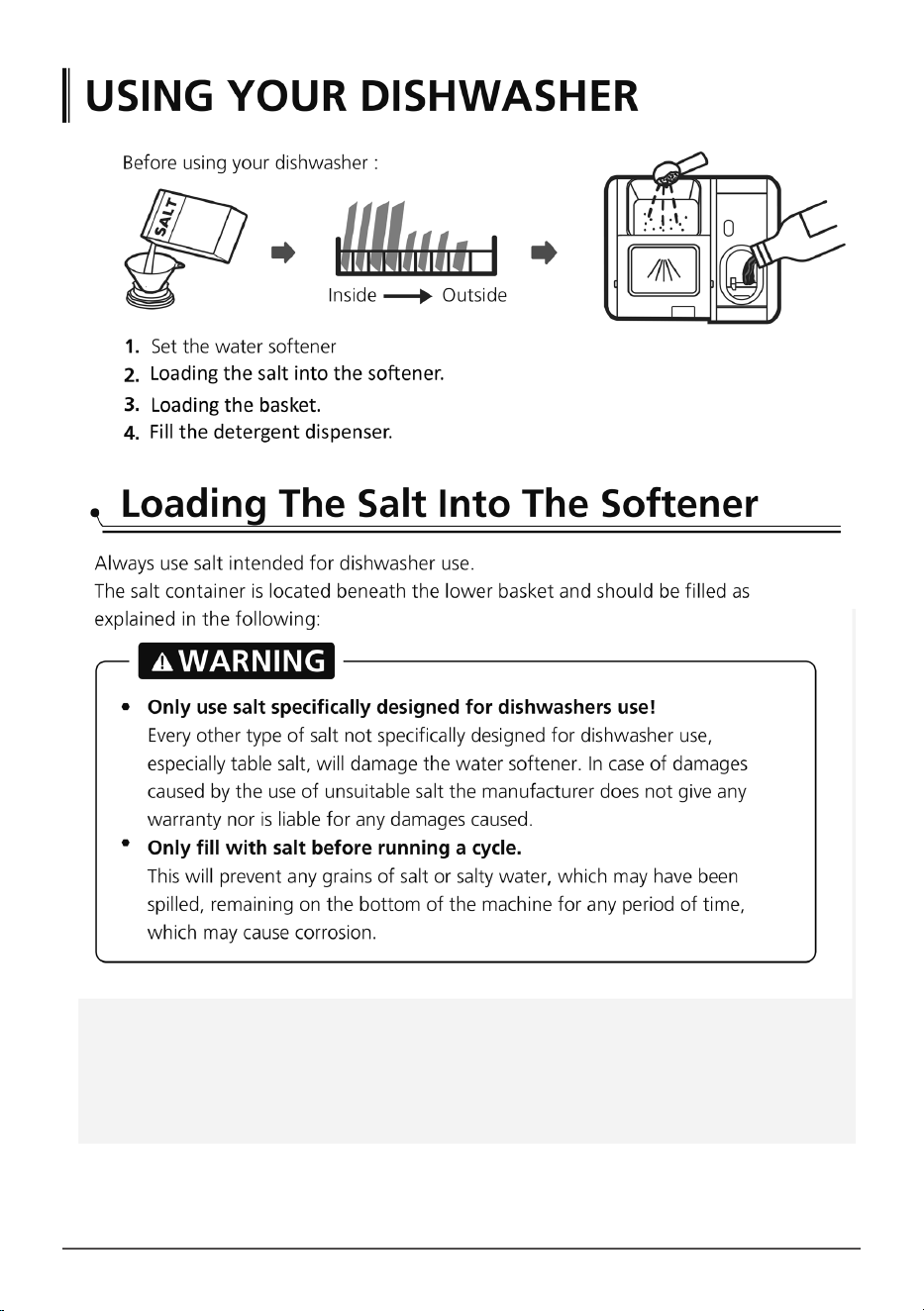

• Using your dishwasher 6

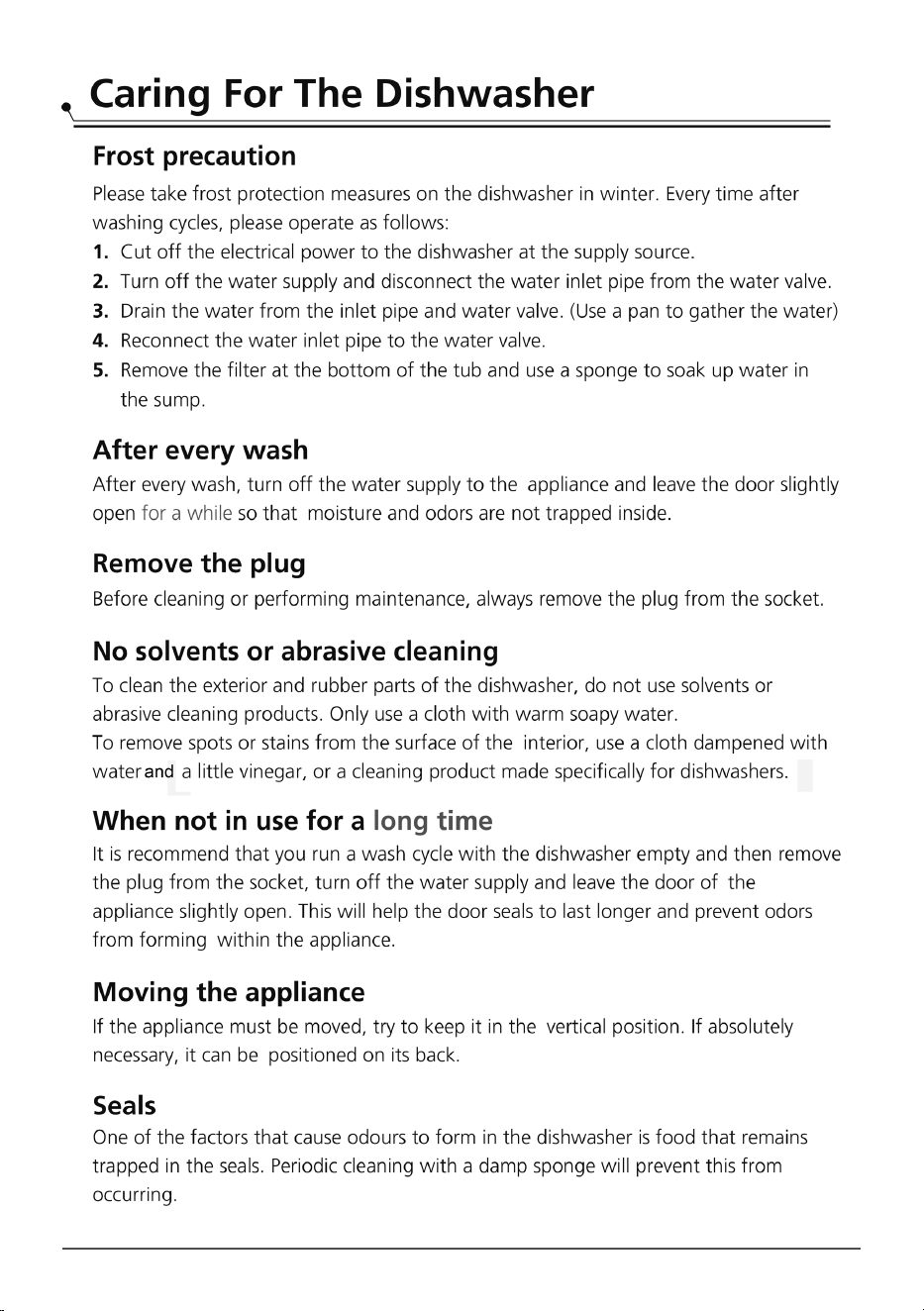

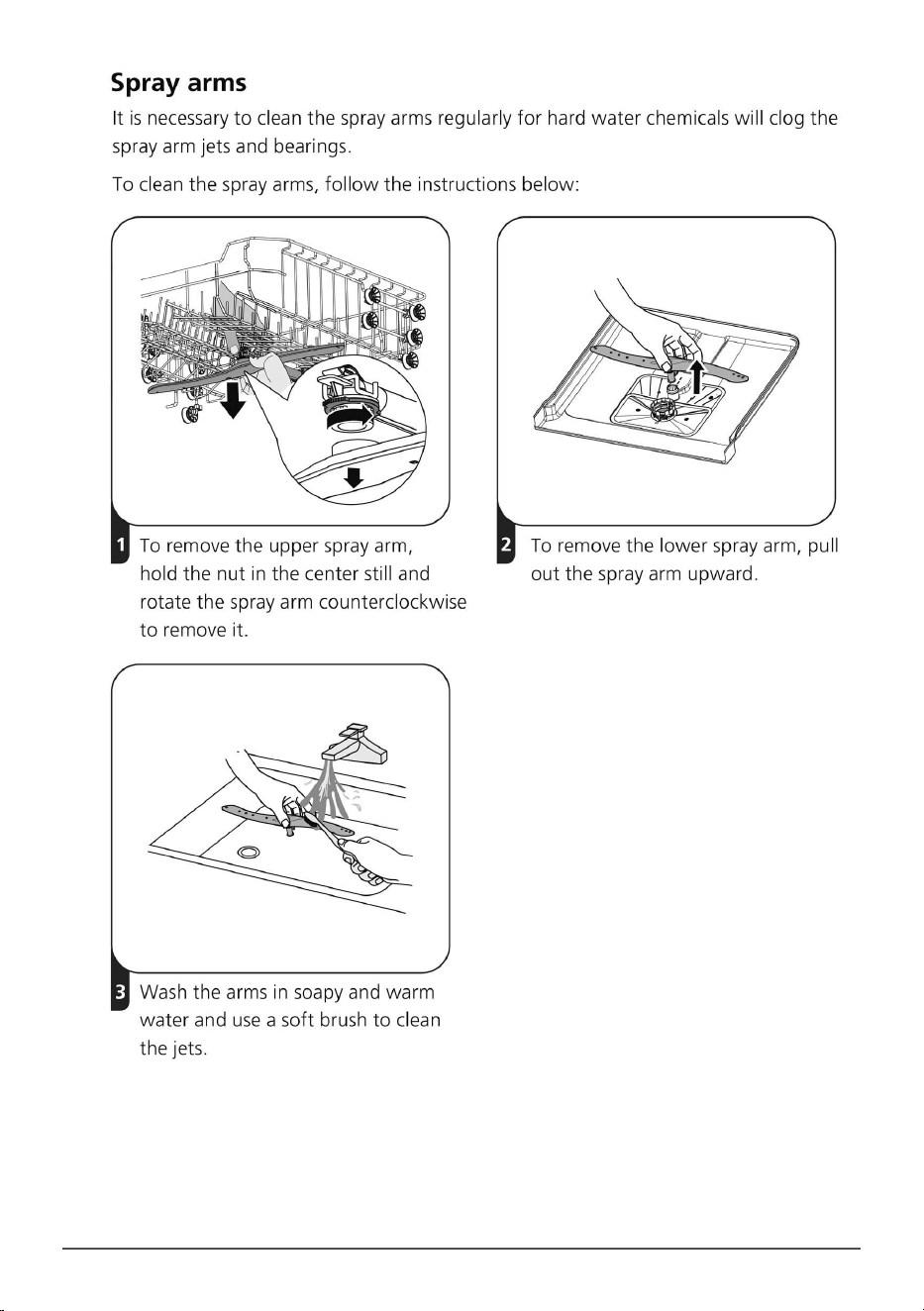

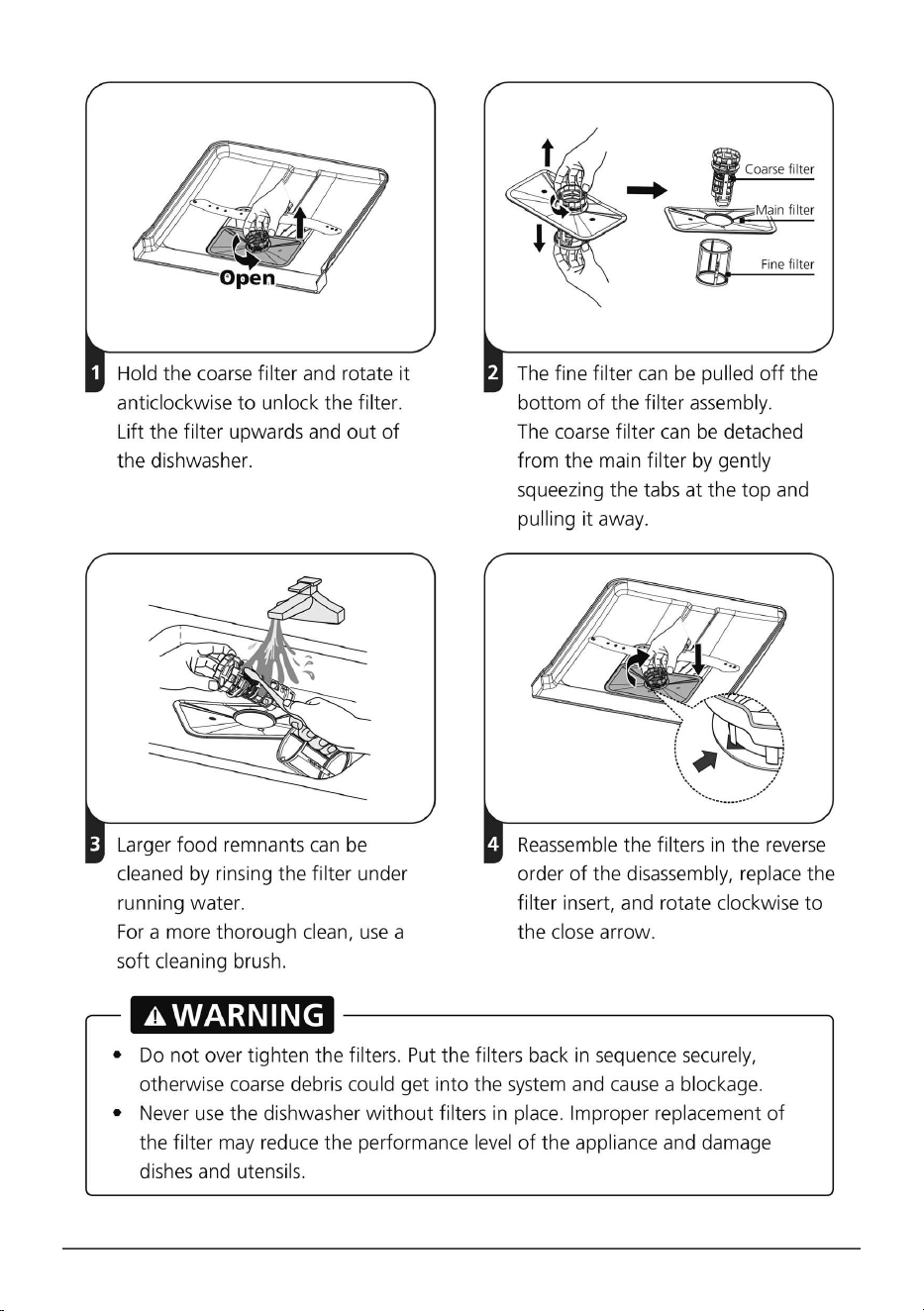

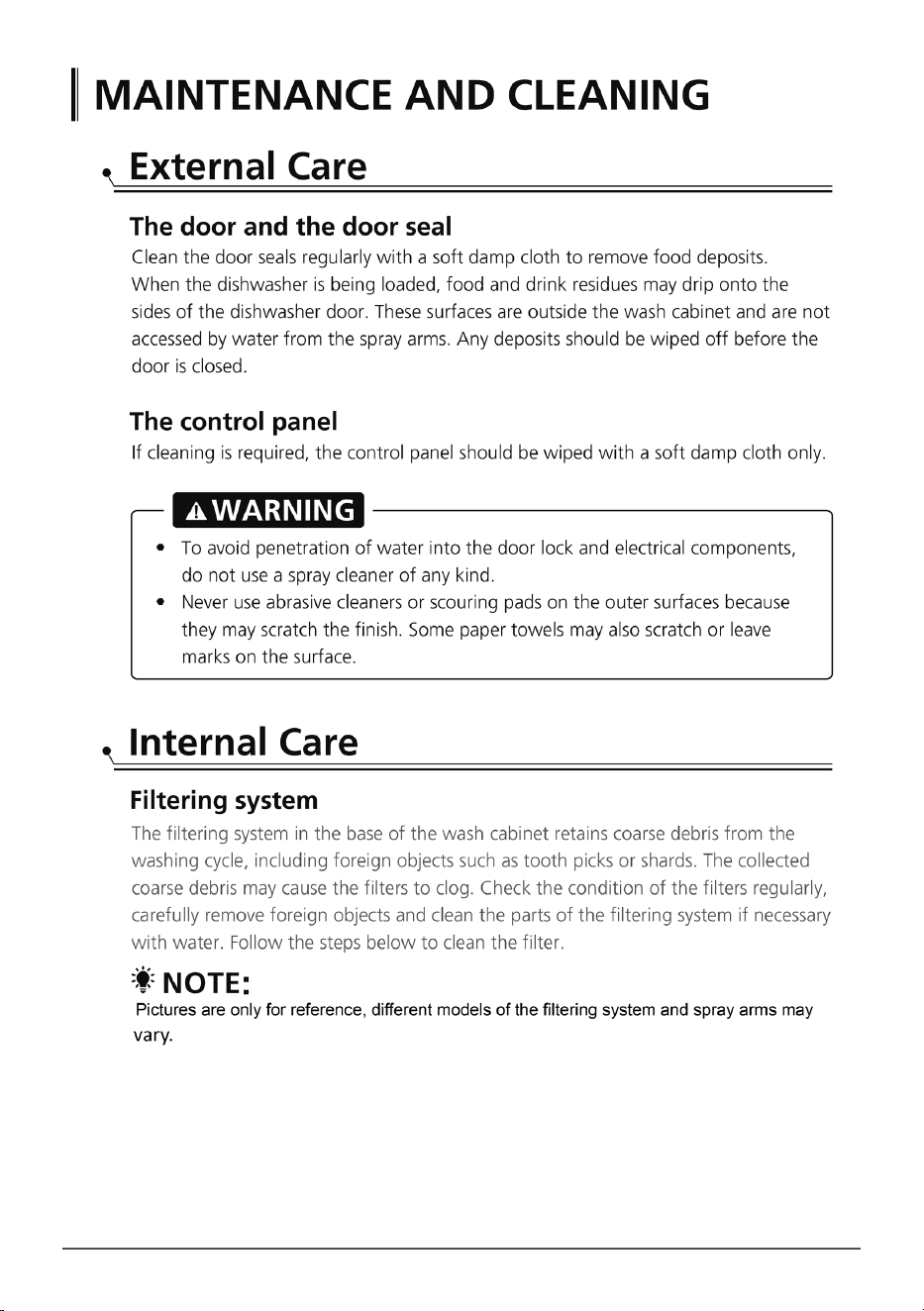

• Maintenance and cleaning 10
• Installation

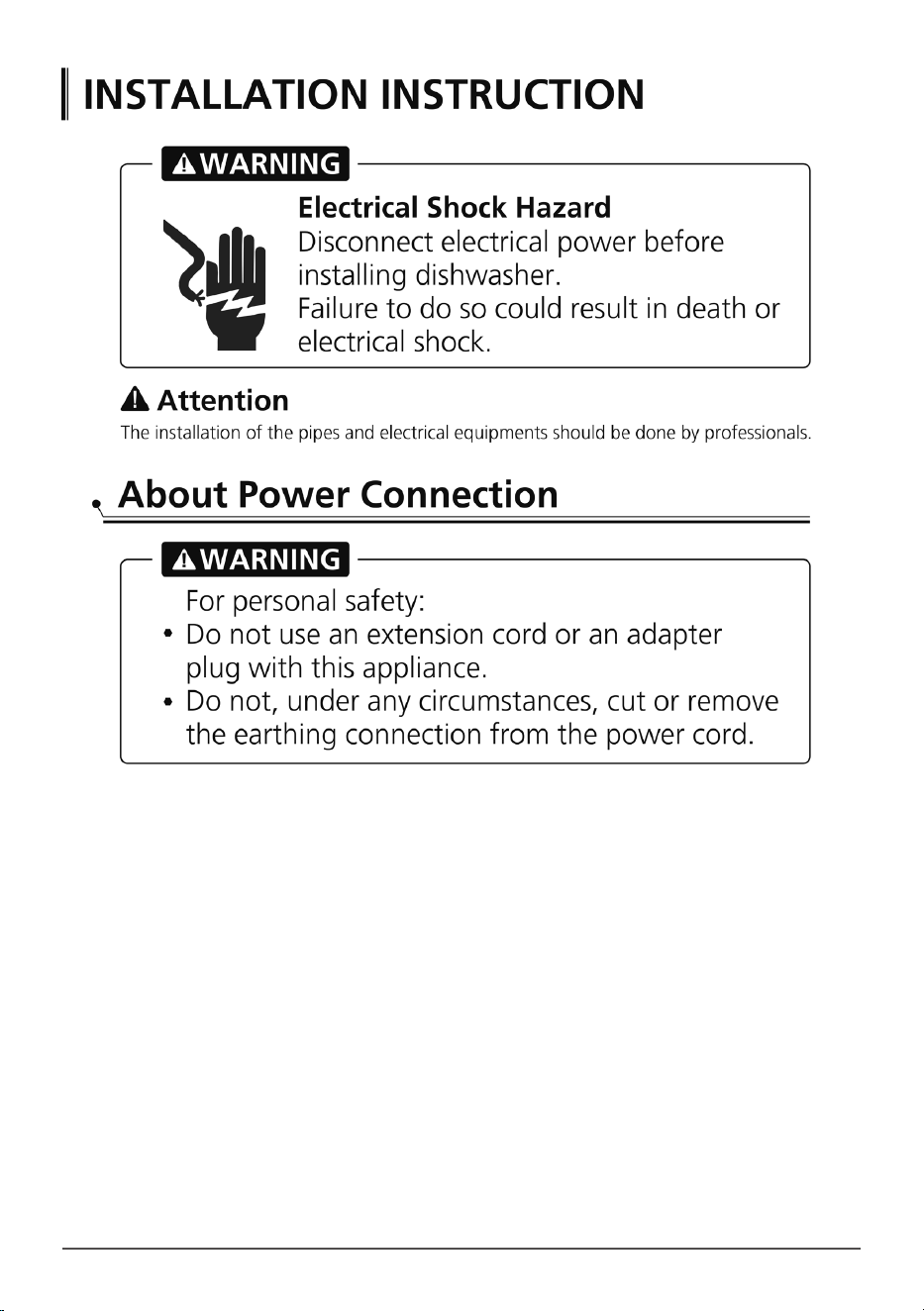

• Power 14

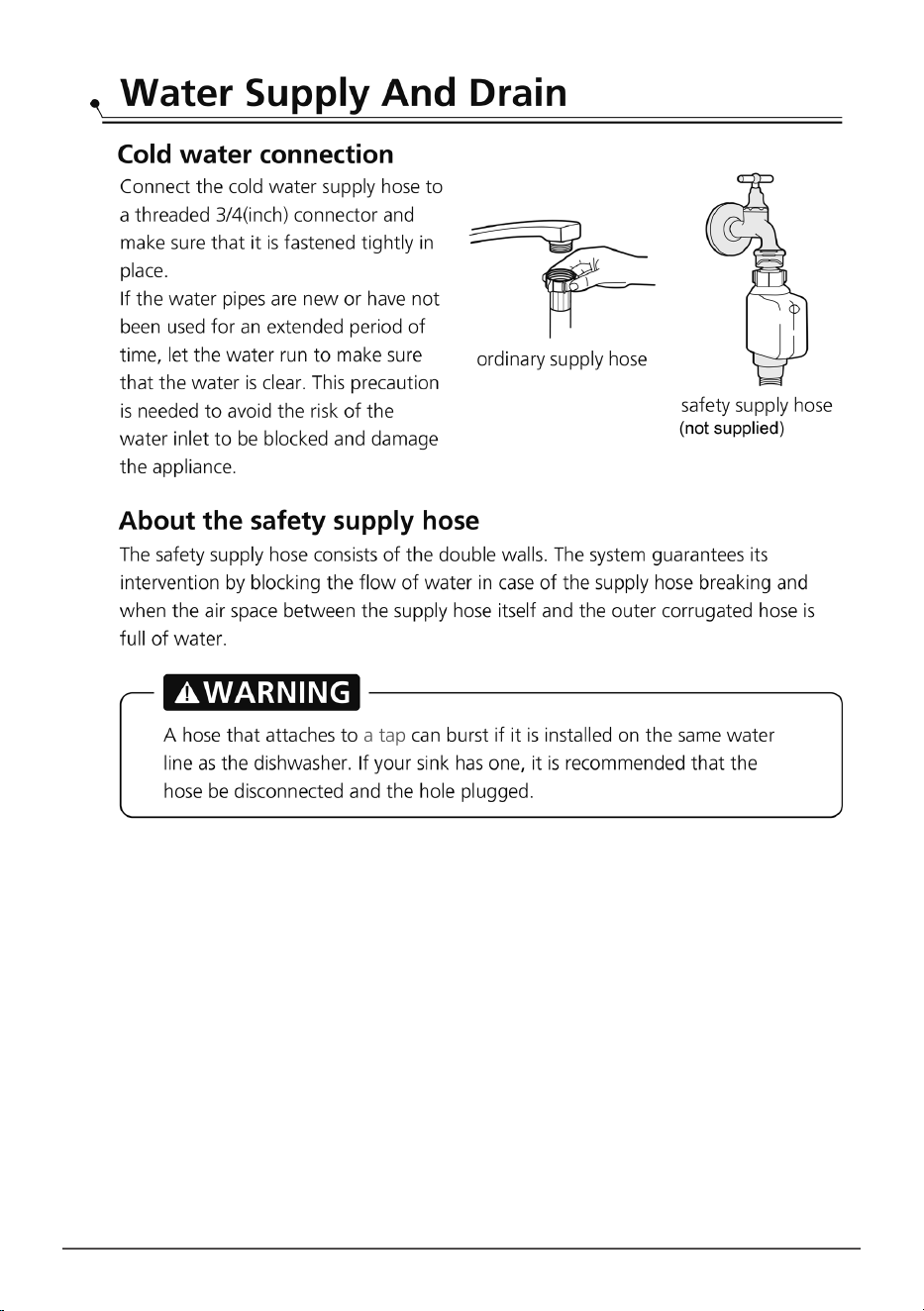

• Water supply and drainage 15

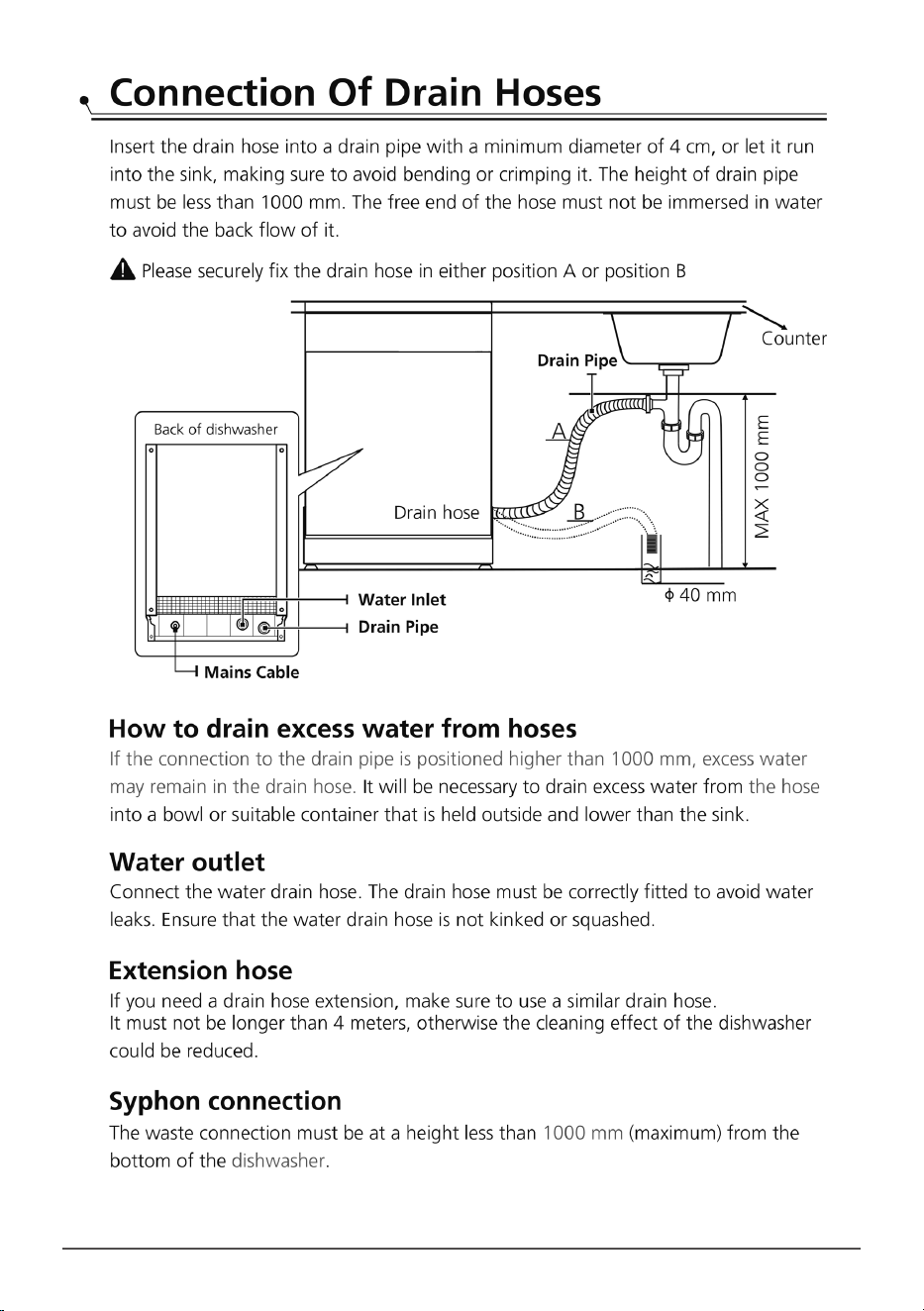

• Connection of drainage hoses 16

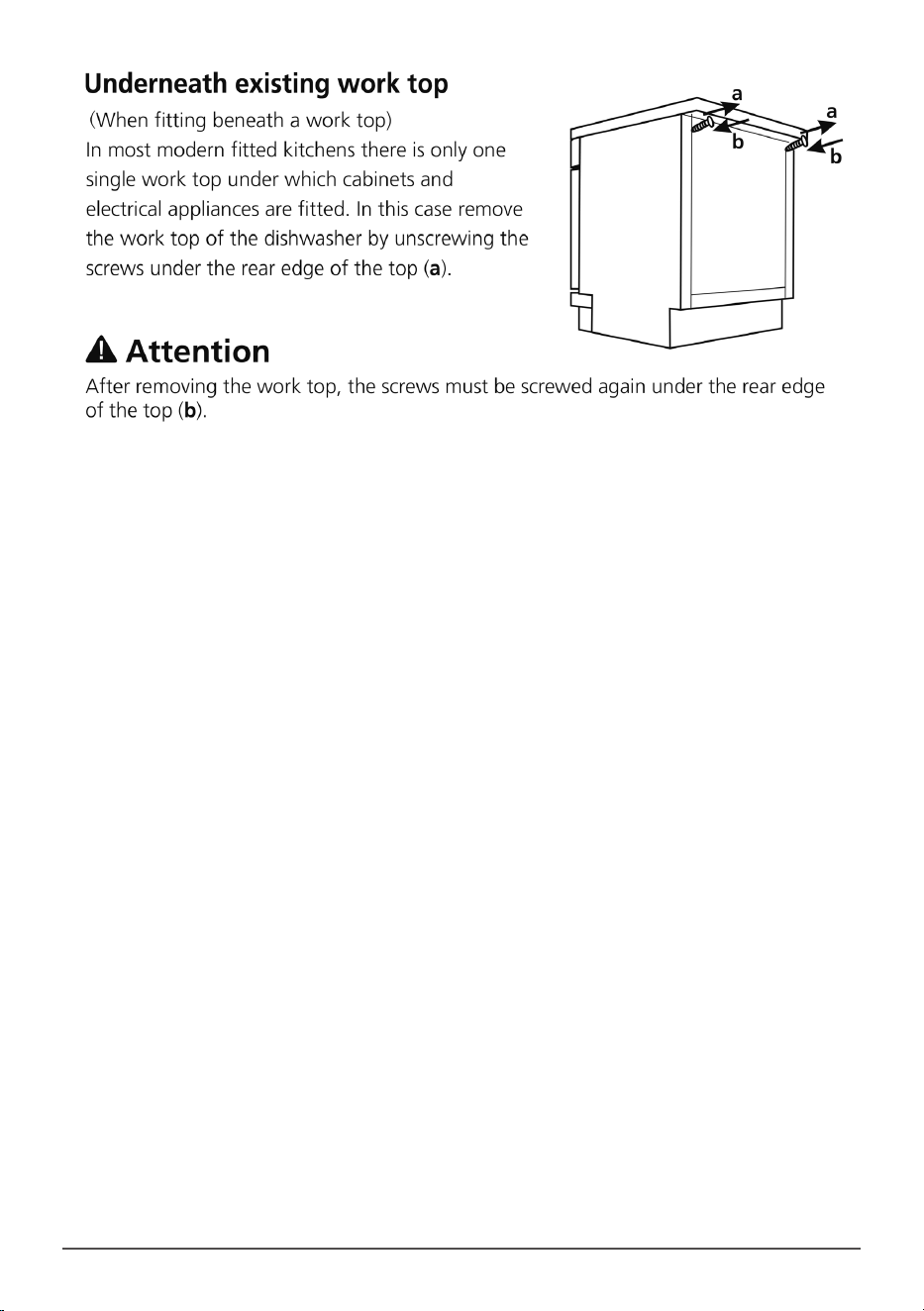

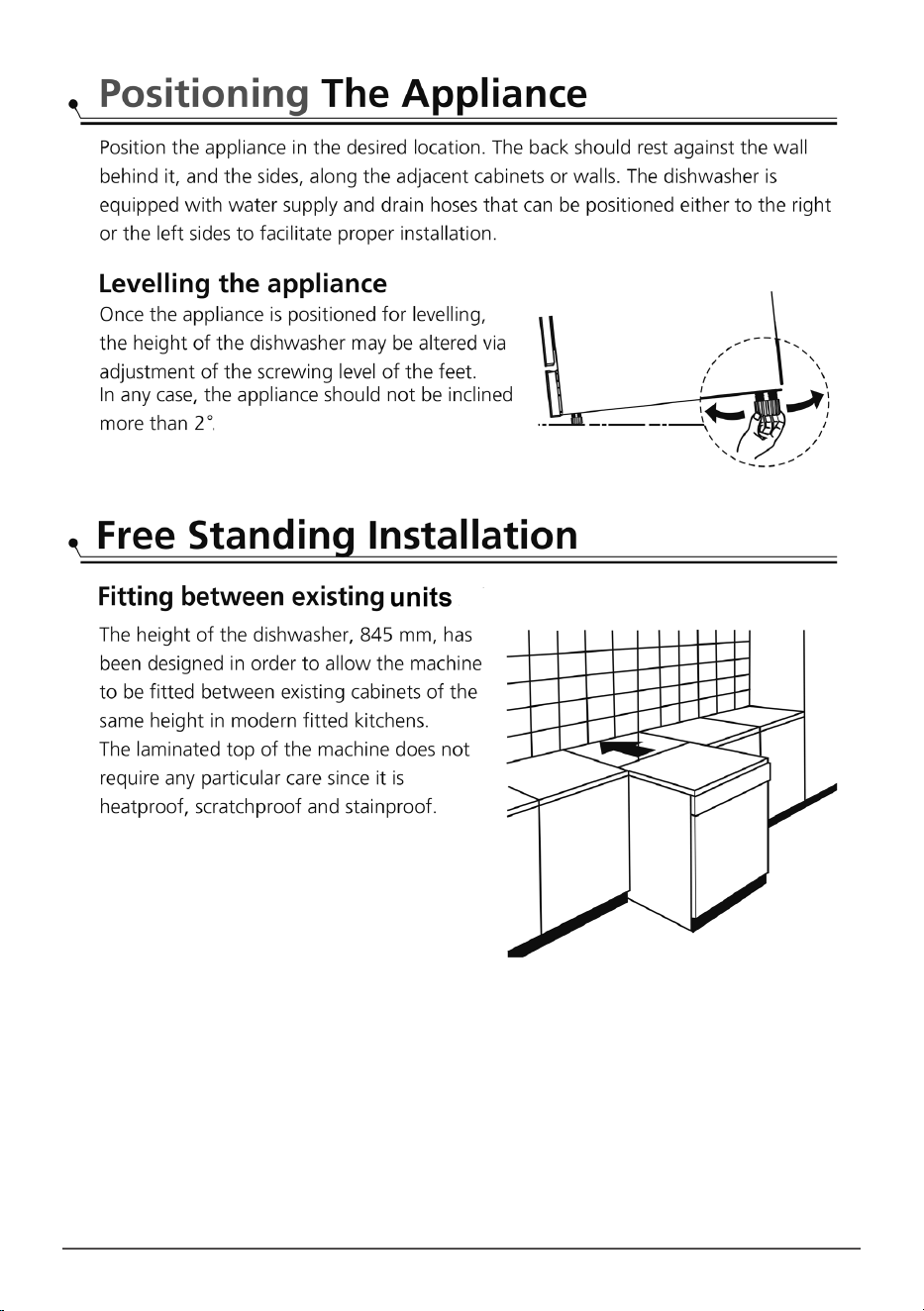

• Positioning 17

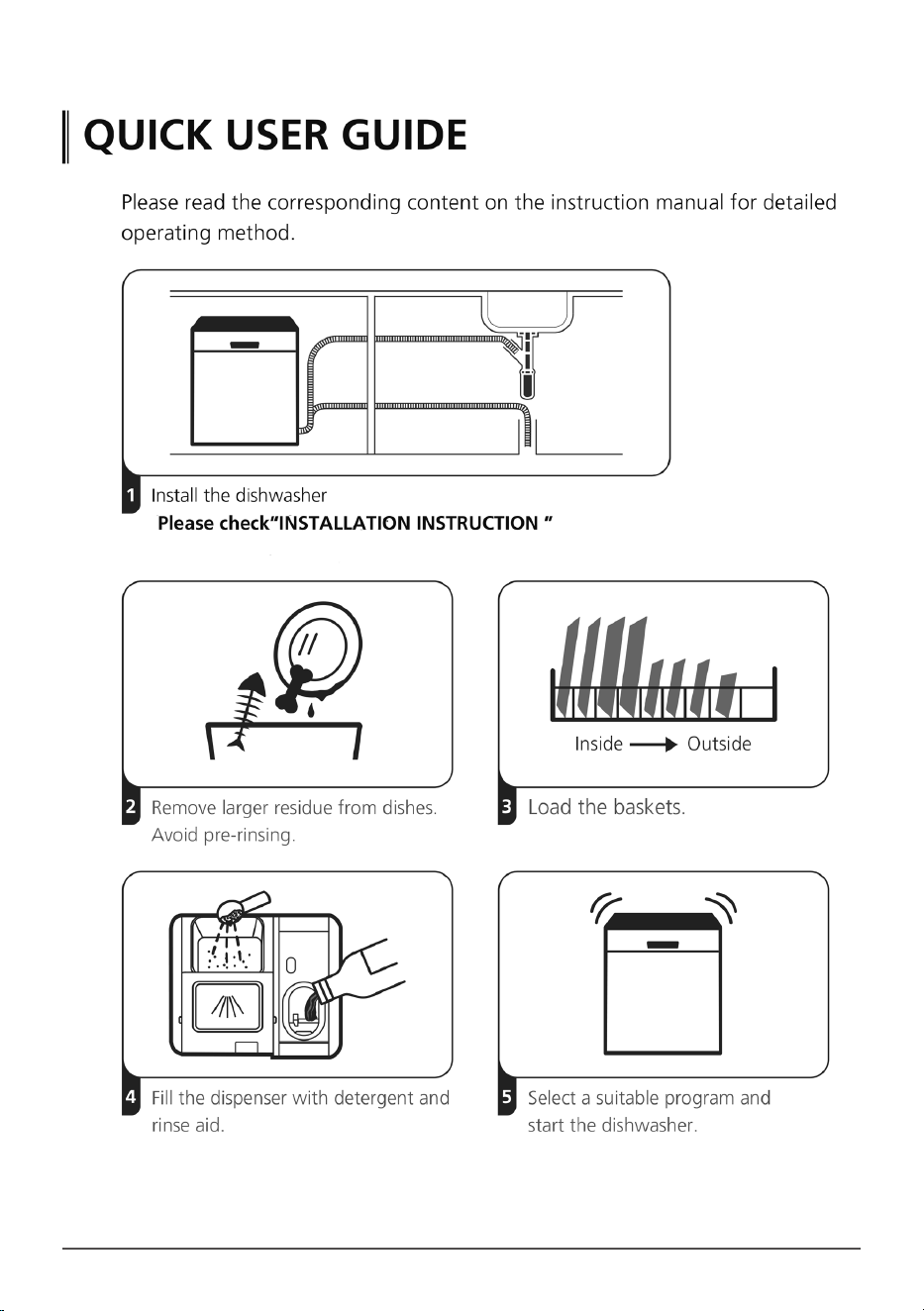

• Quick user guide 19
• Use:

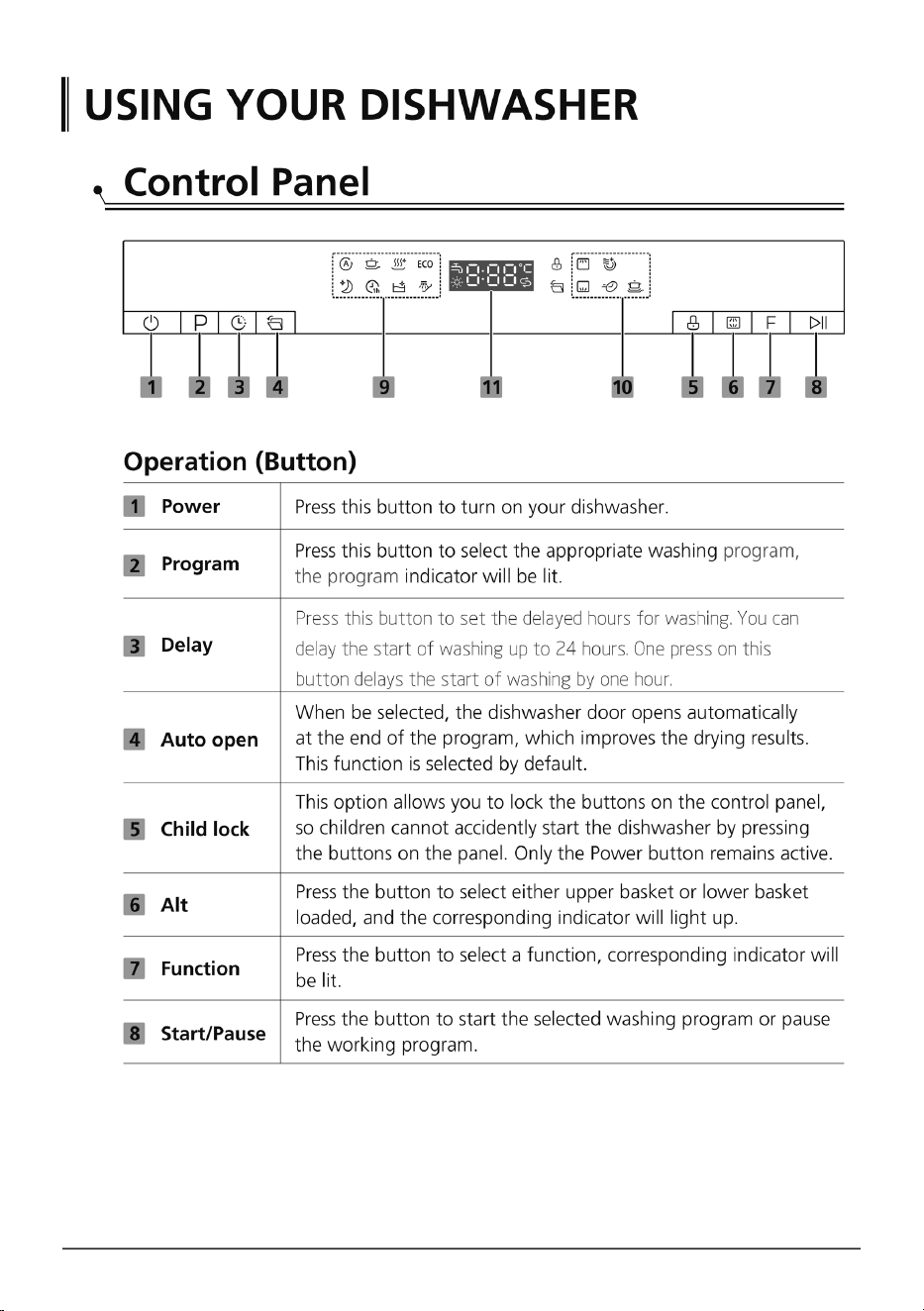

• Control panel 20

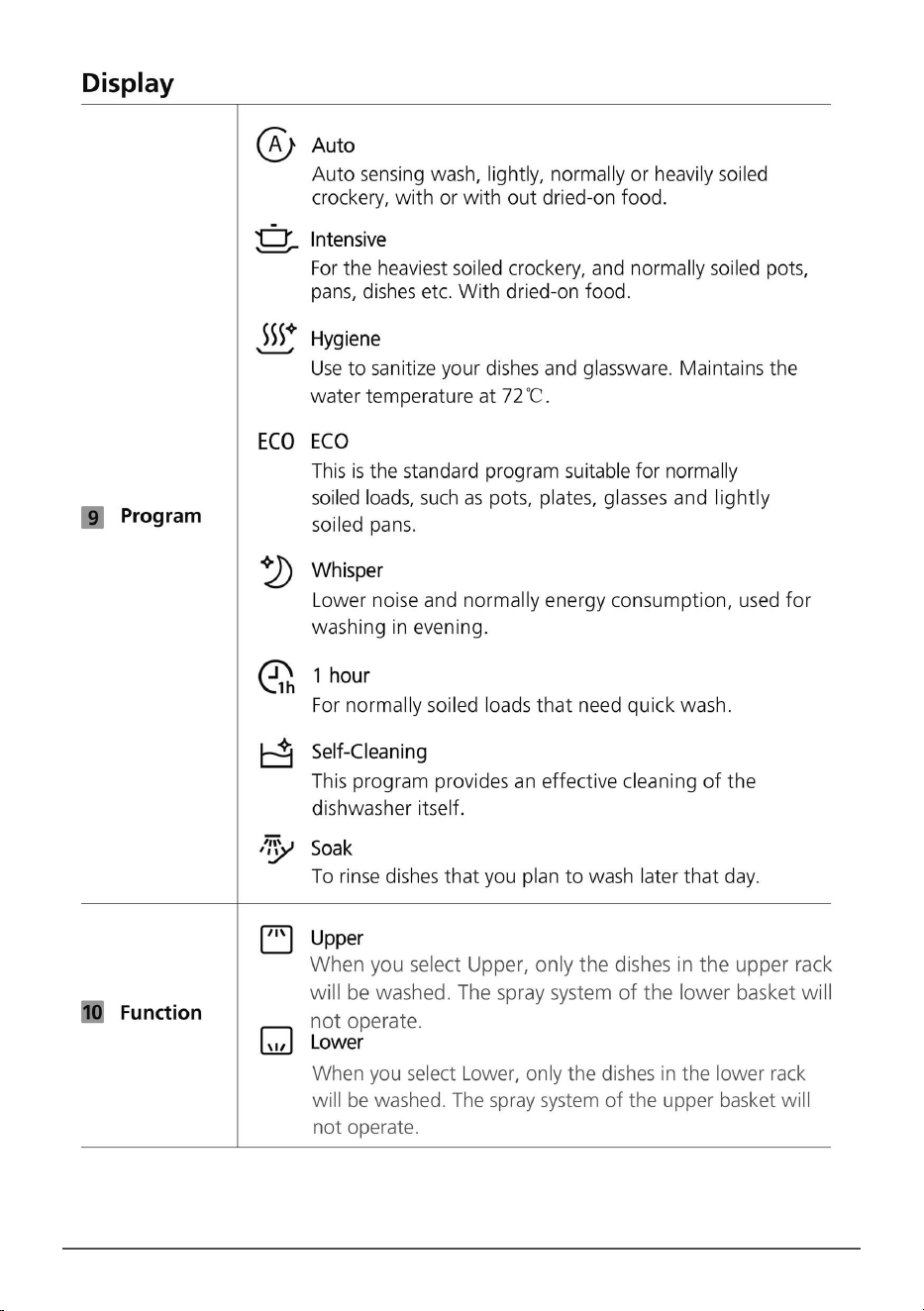

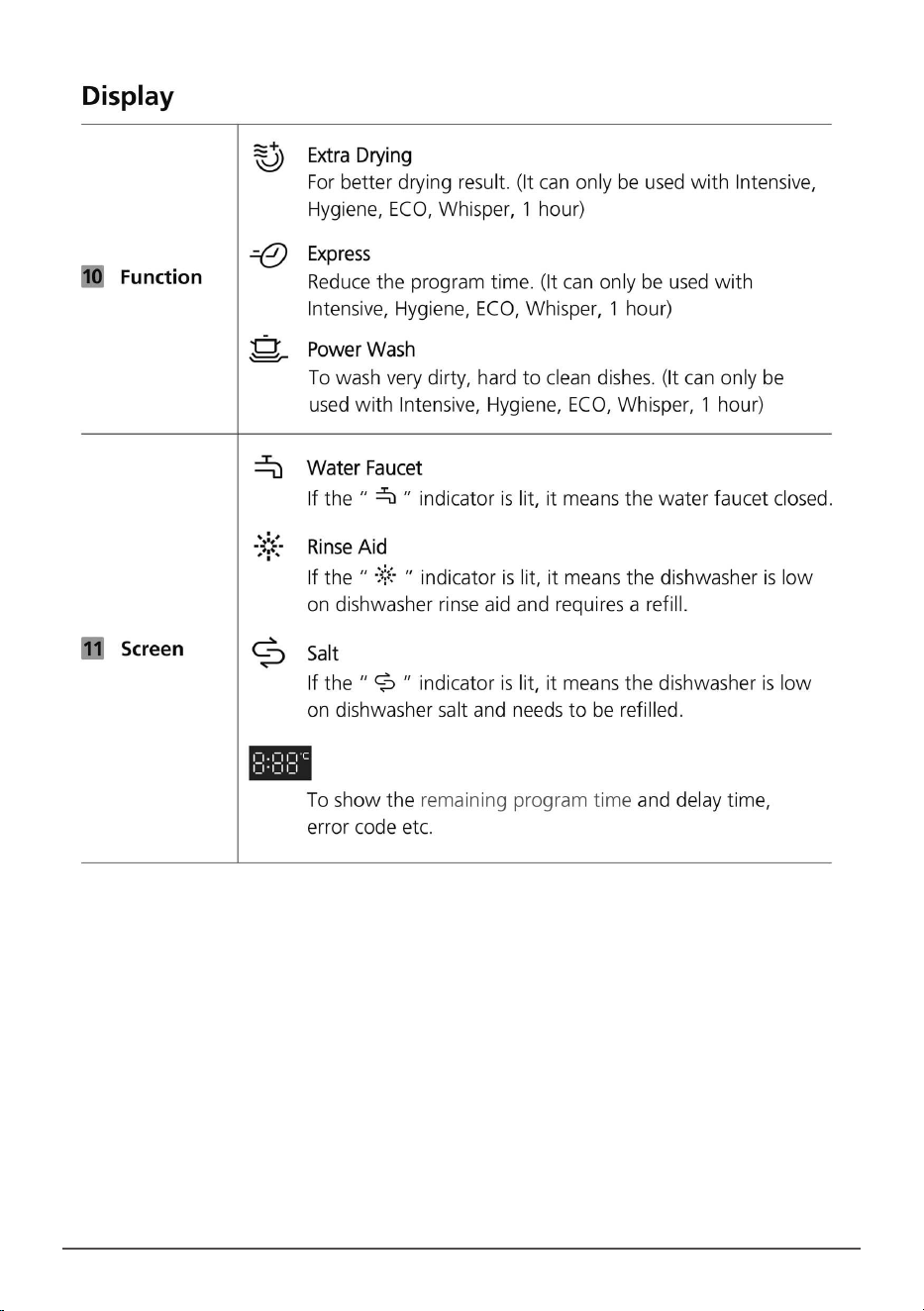

• Display 21

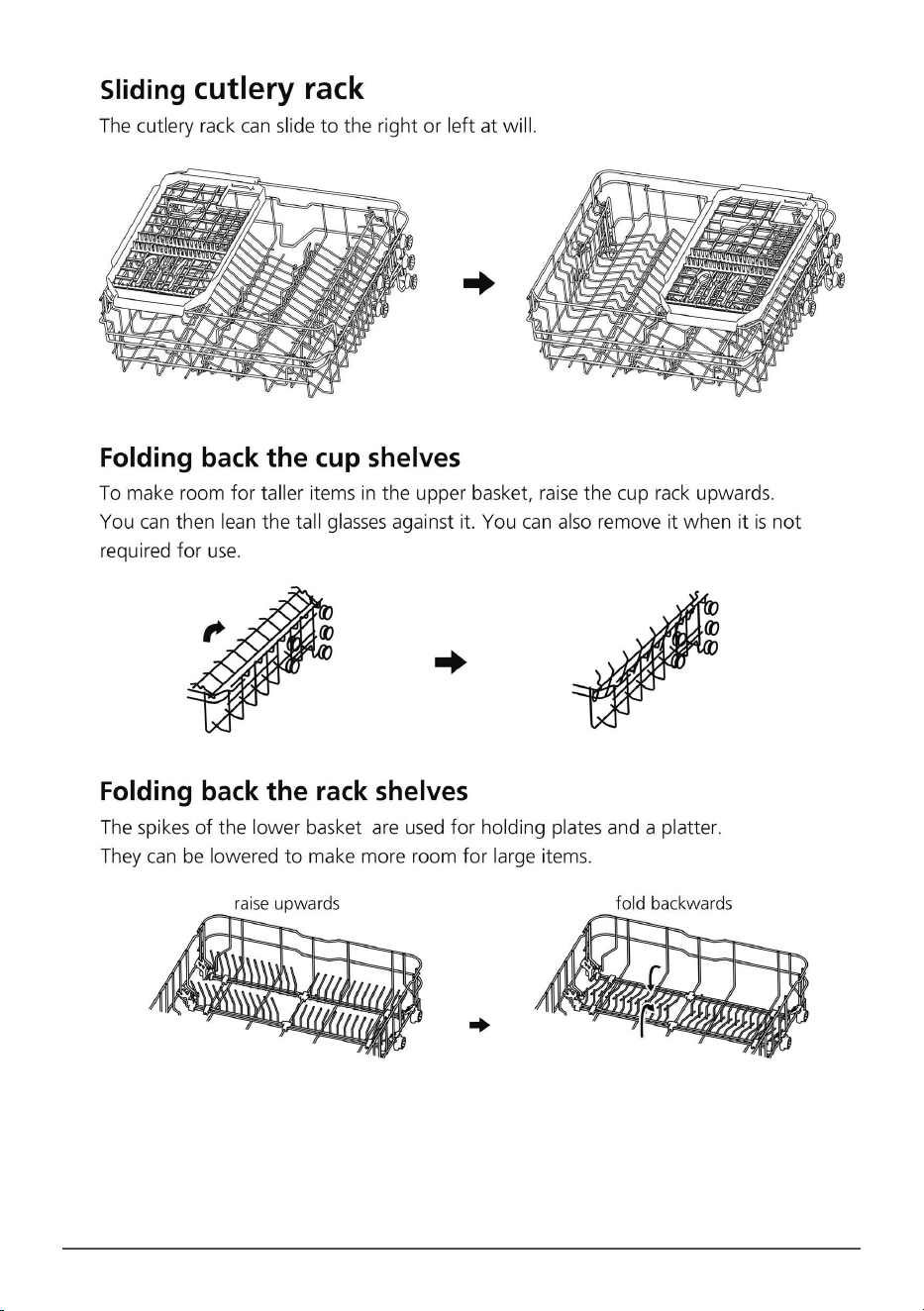

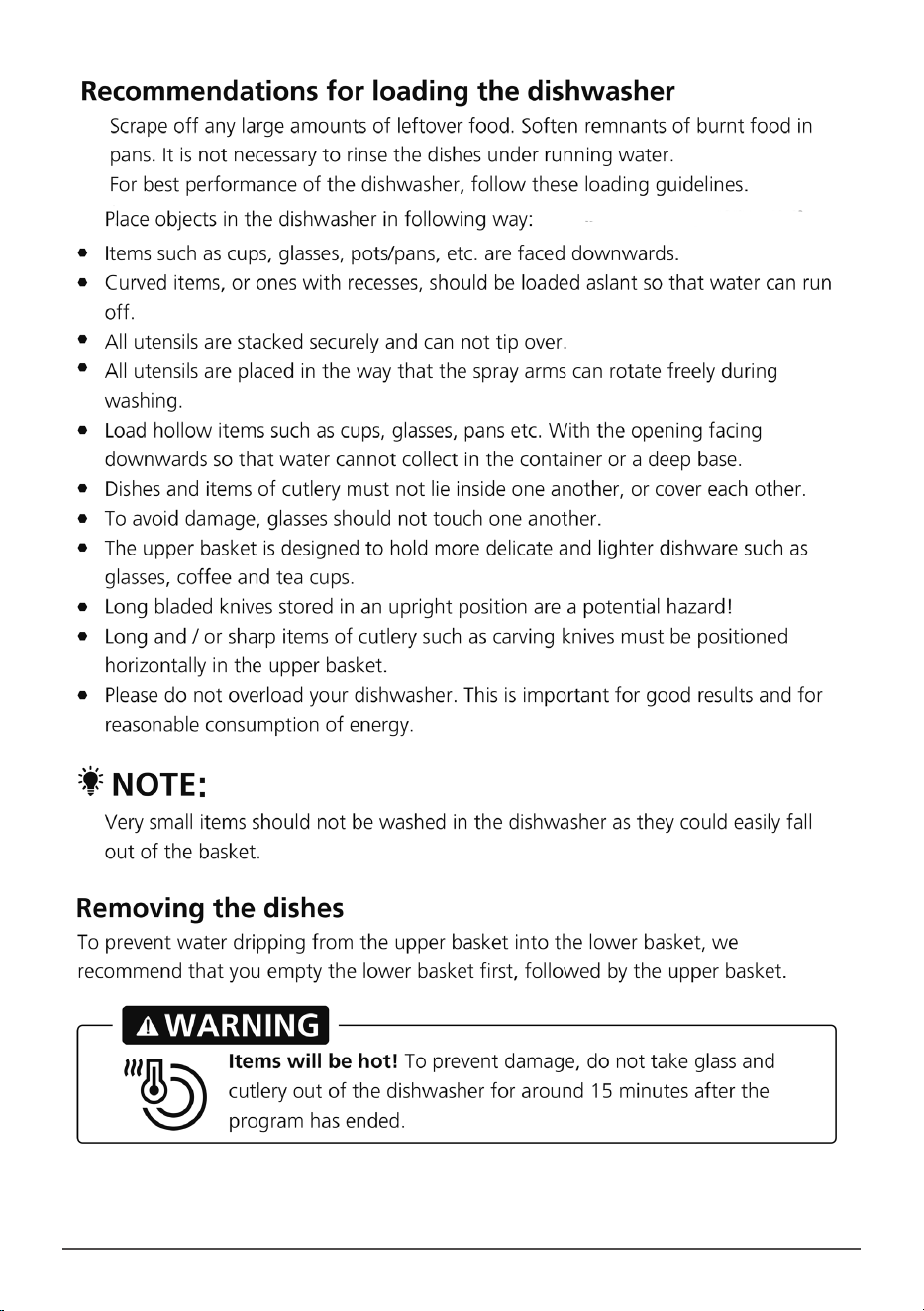

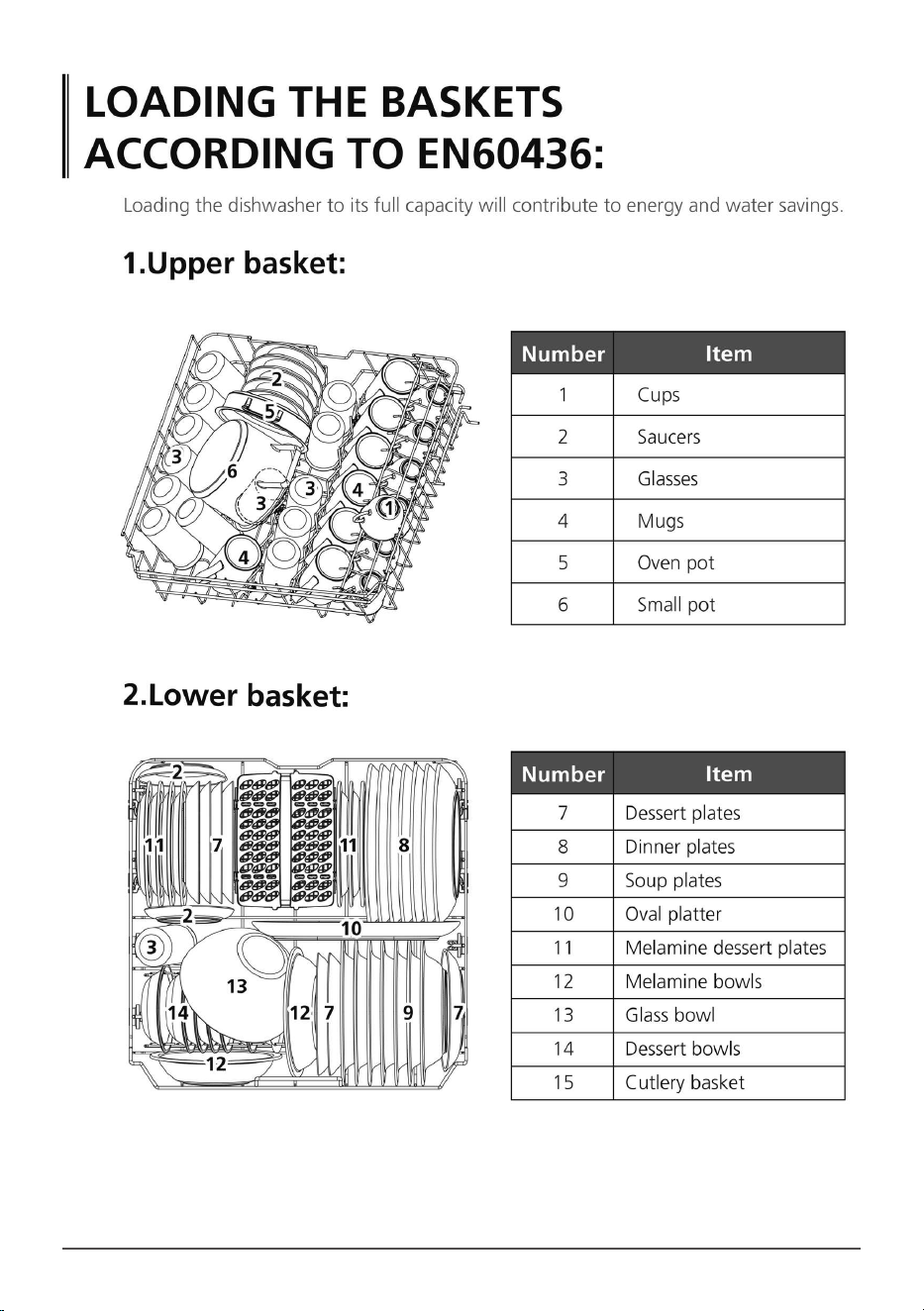

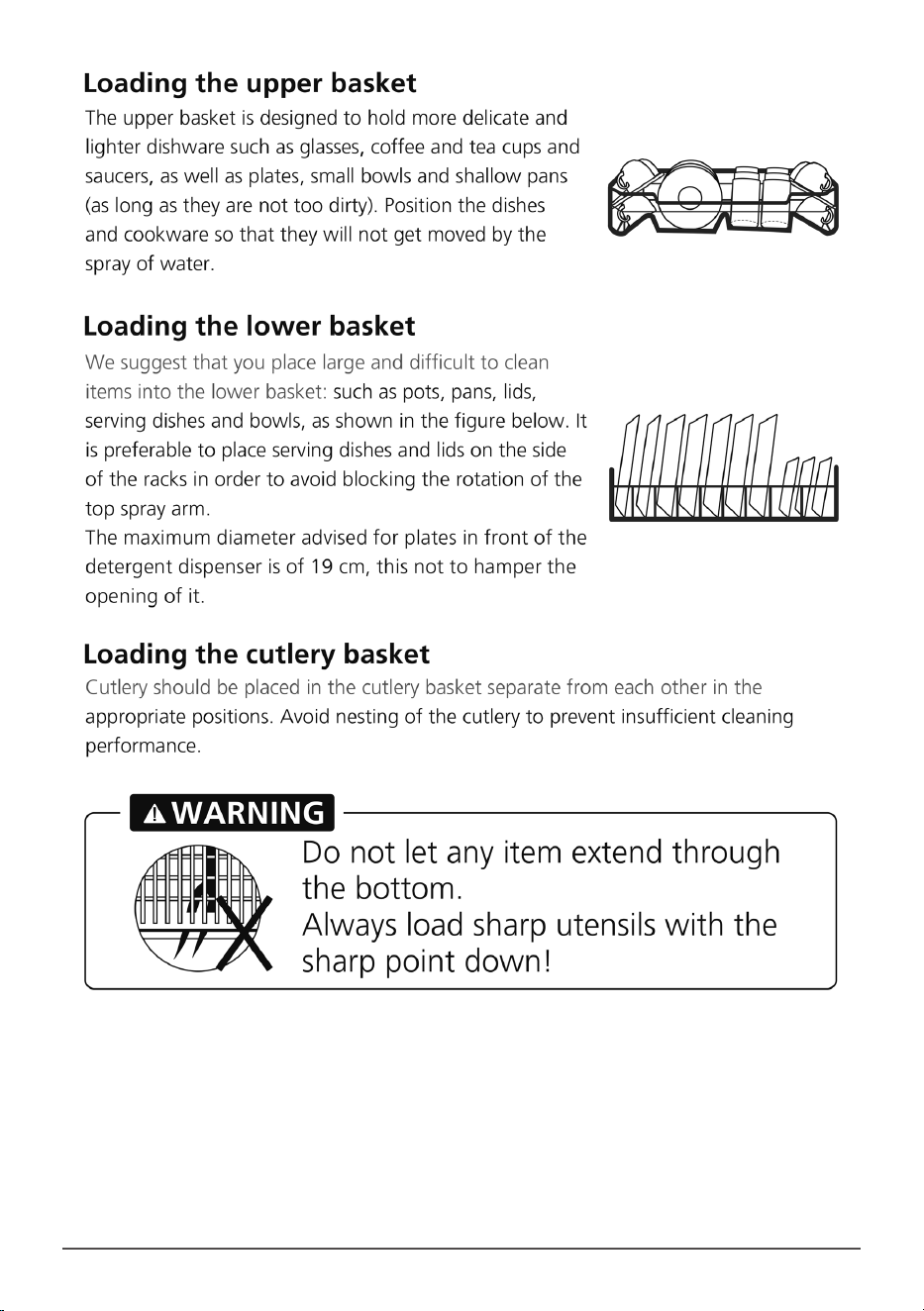

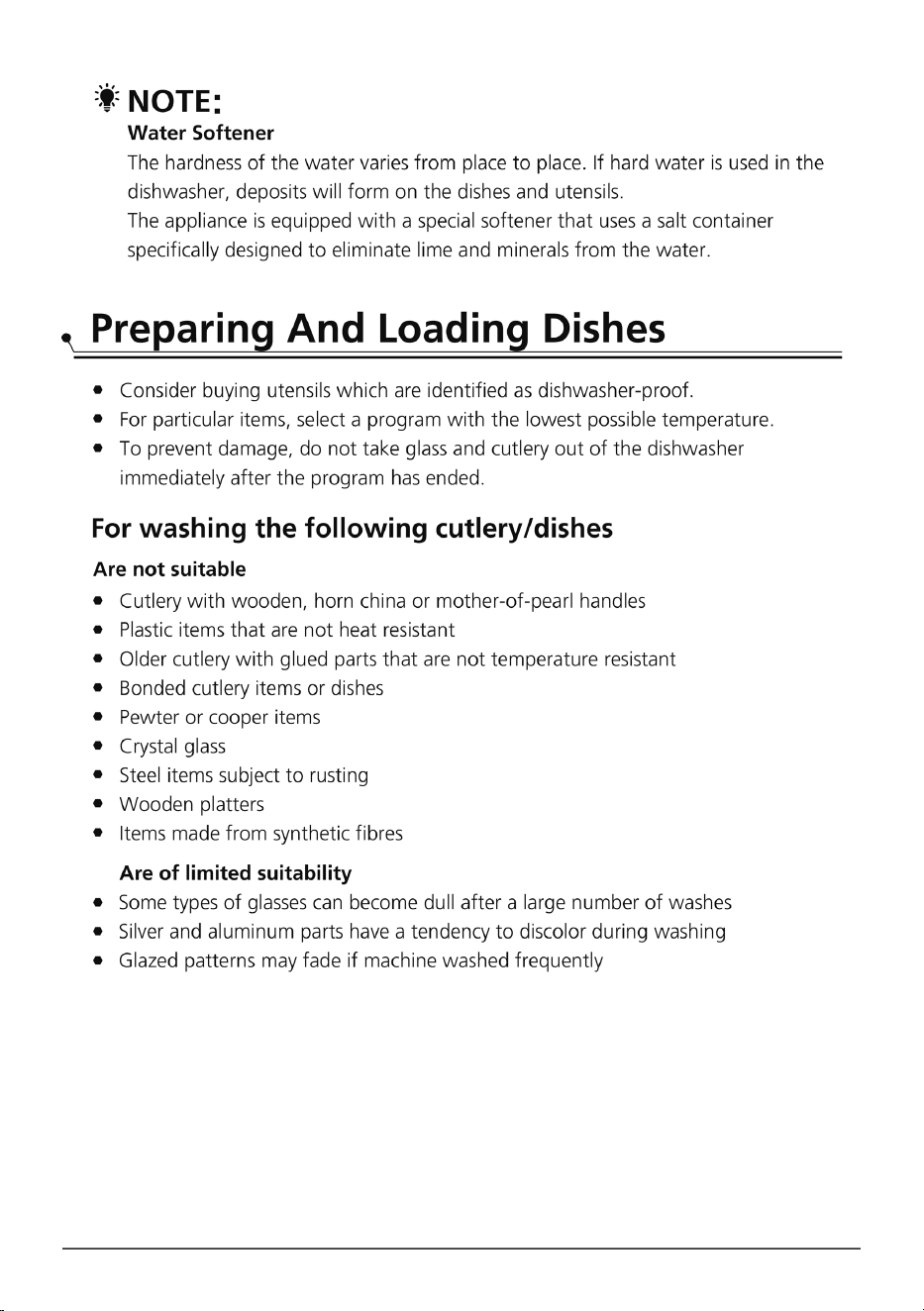

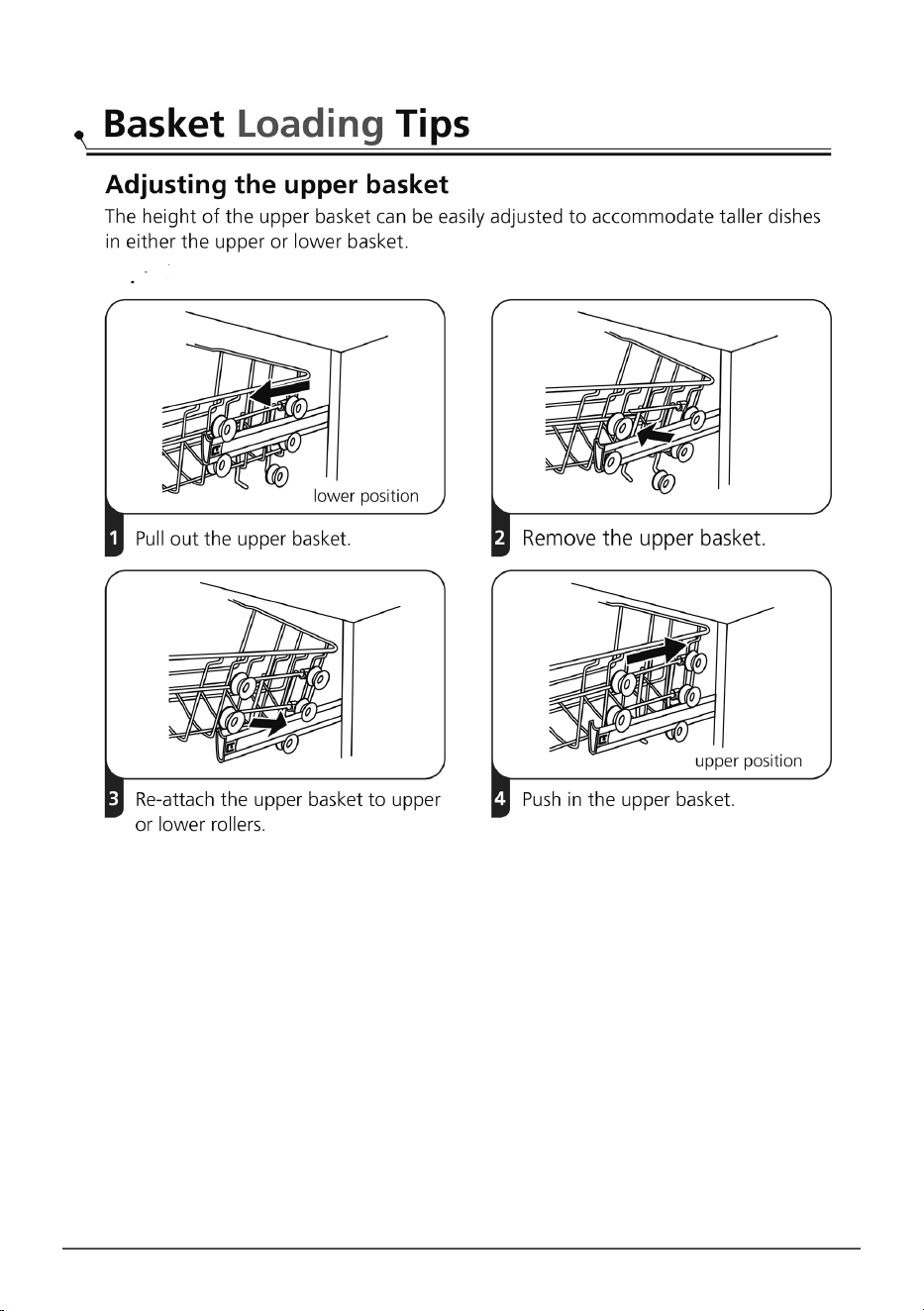

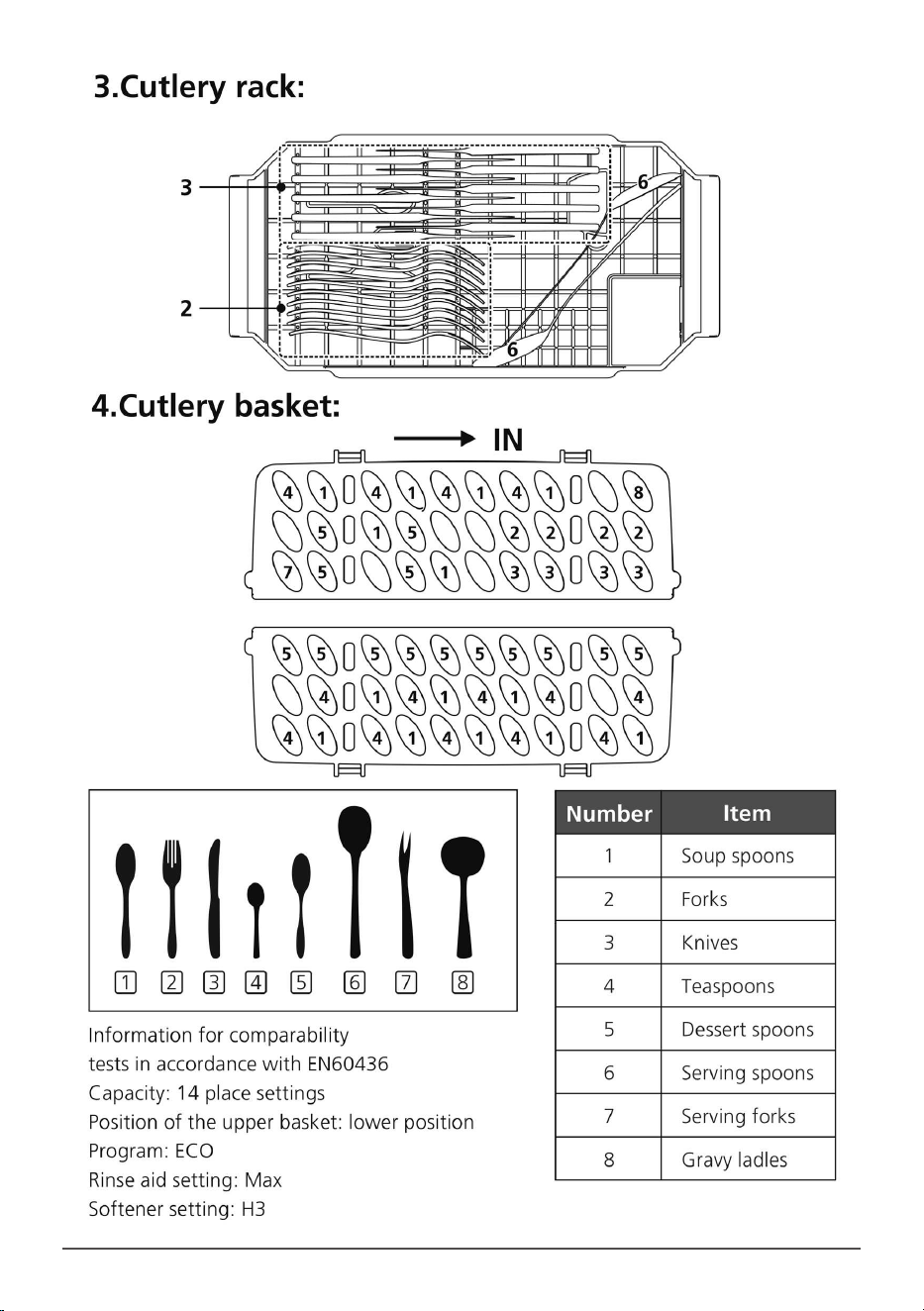

• Loading 23

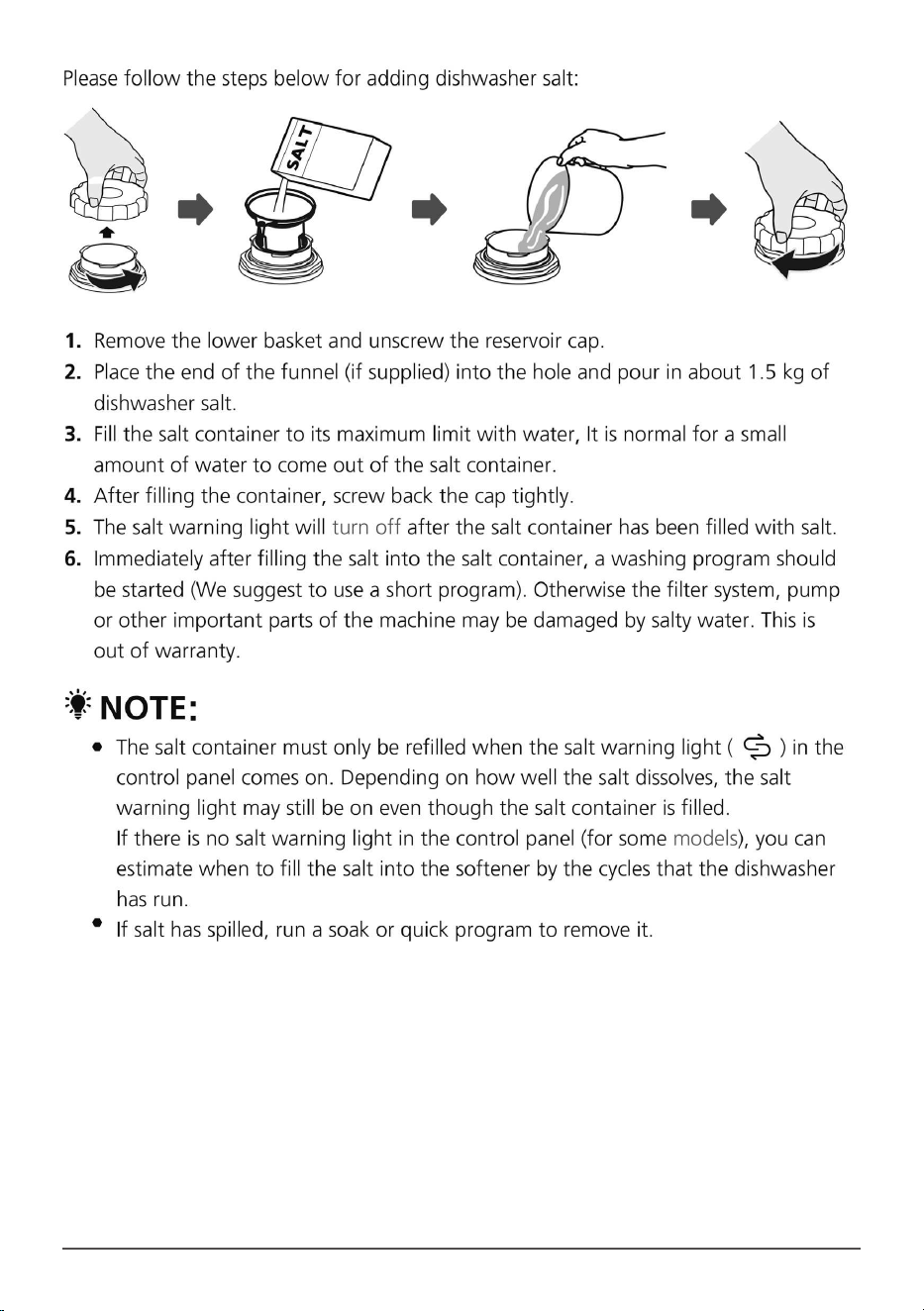

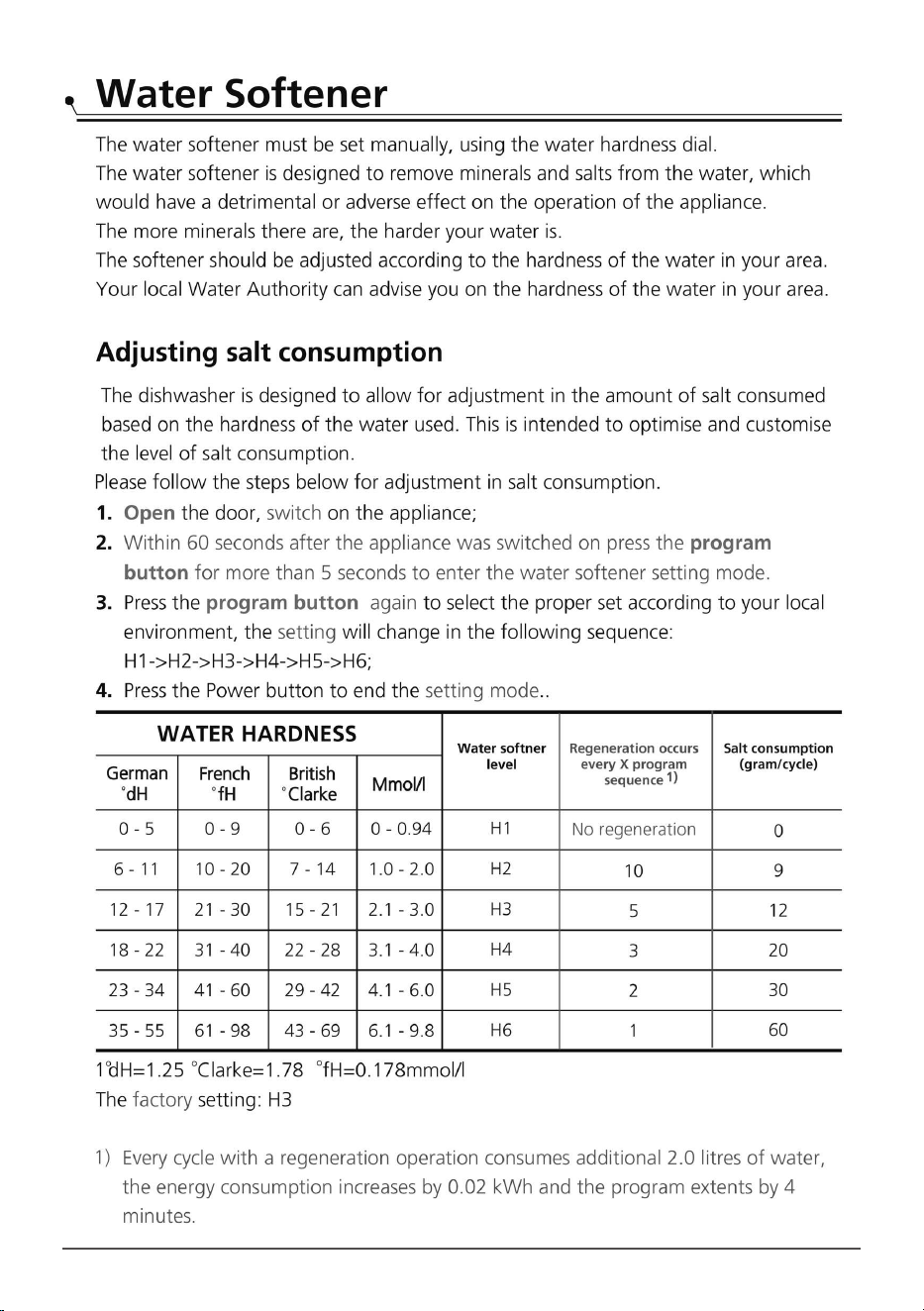

• Water Softener 25

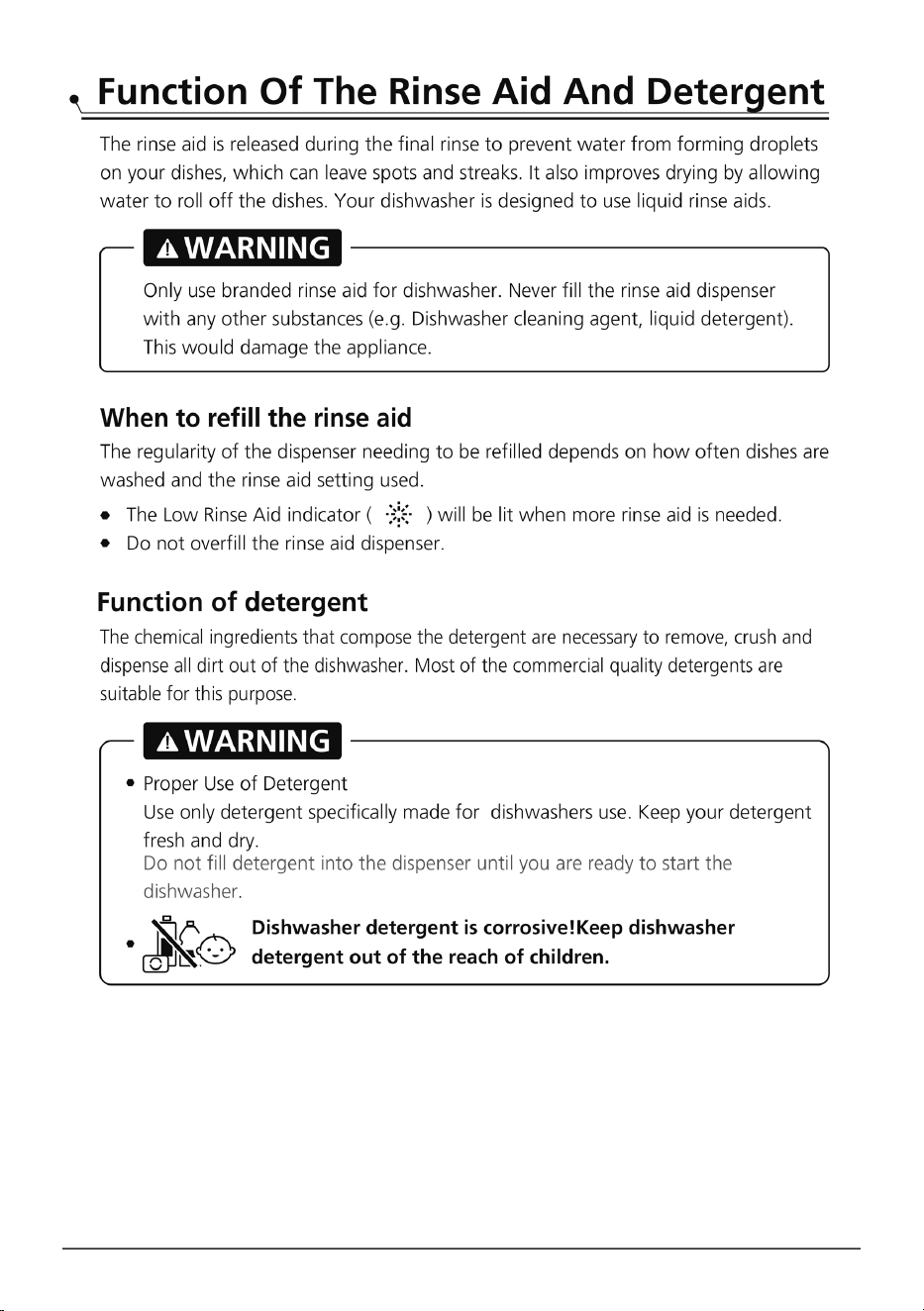

• Function of rinse aid and detergent 29

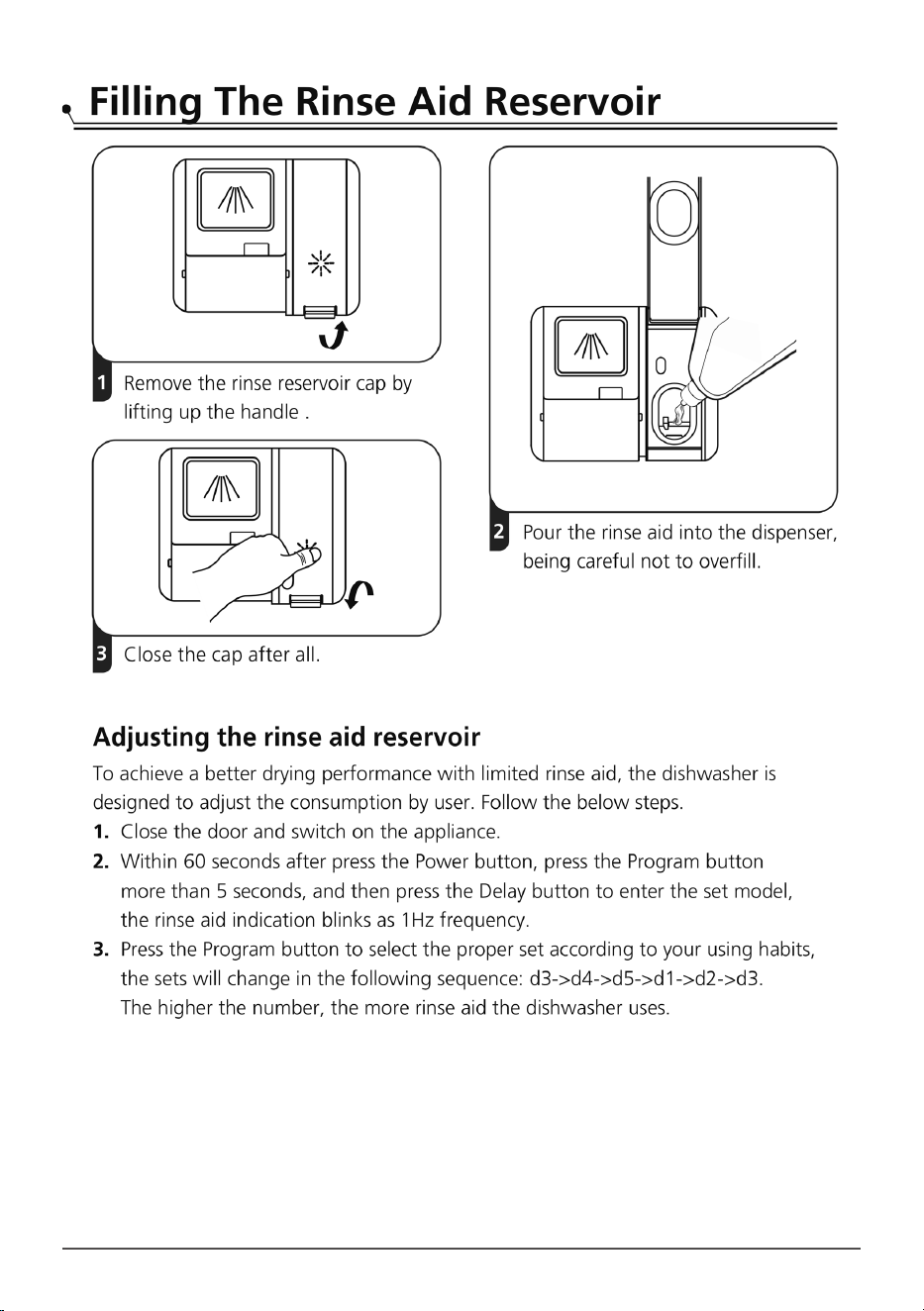

• Filling rinse aid reservoir 30

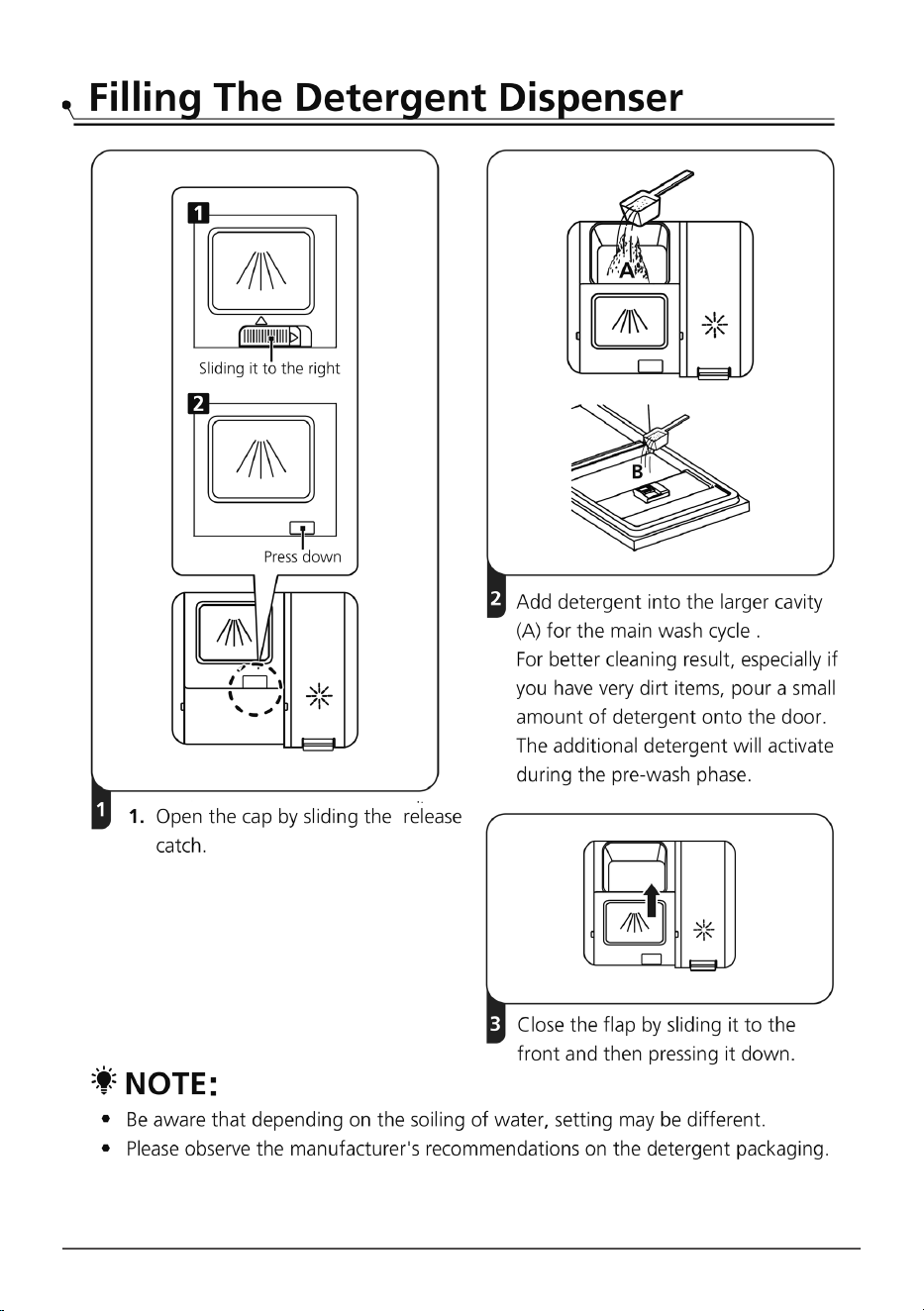

• Filling detergent dispenser 31

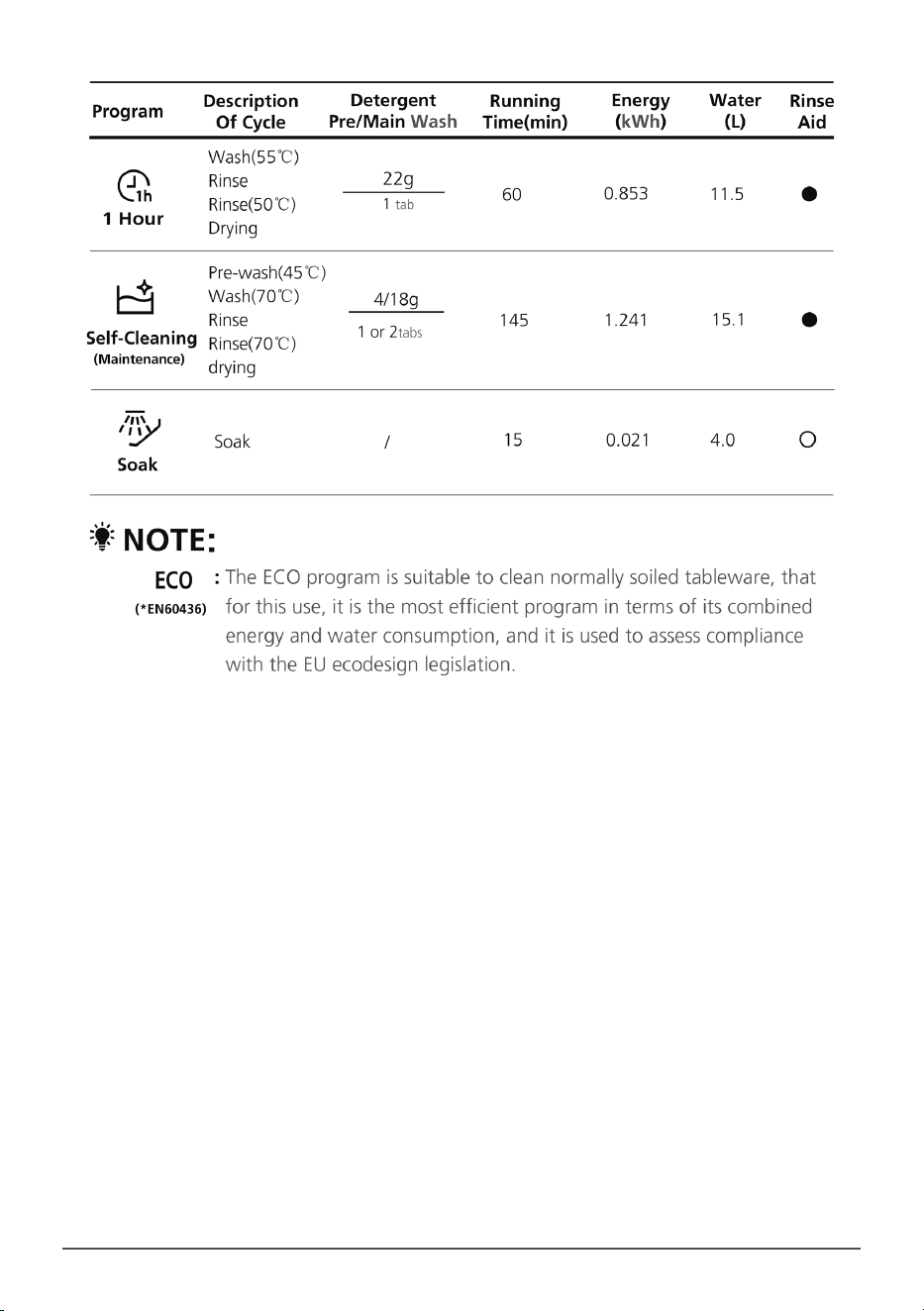

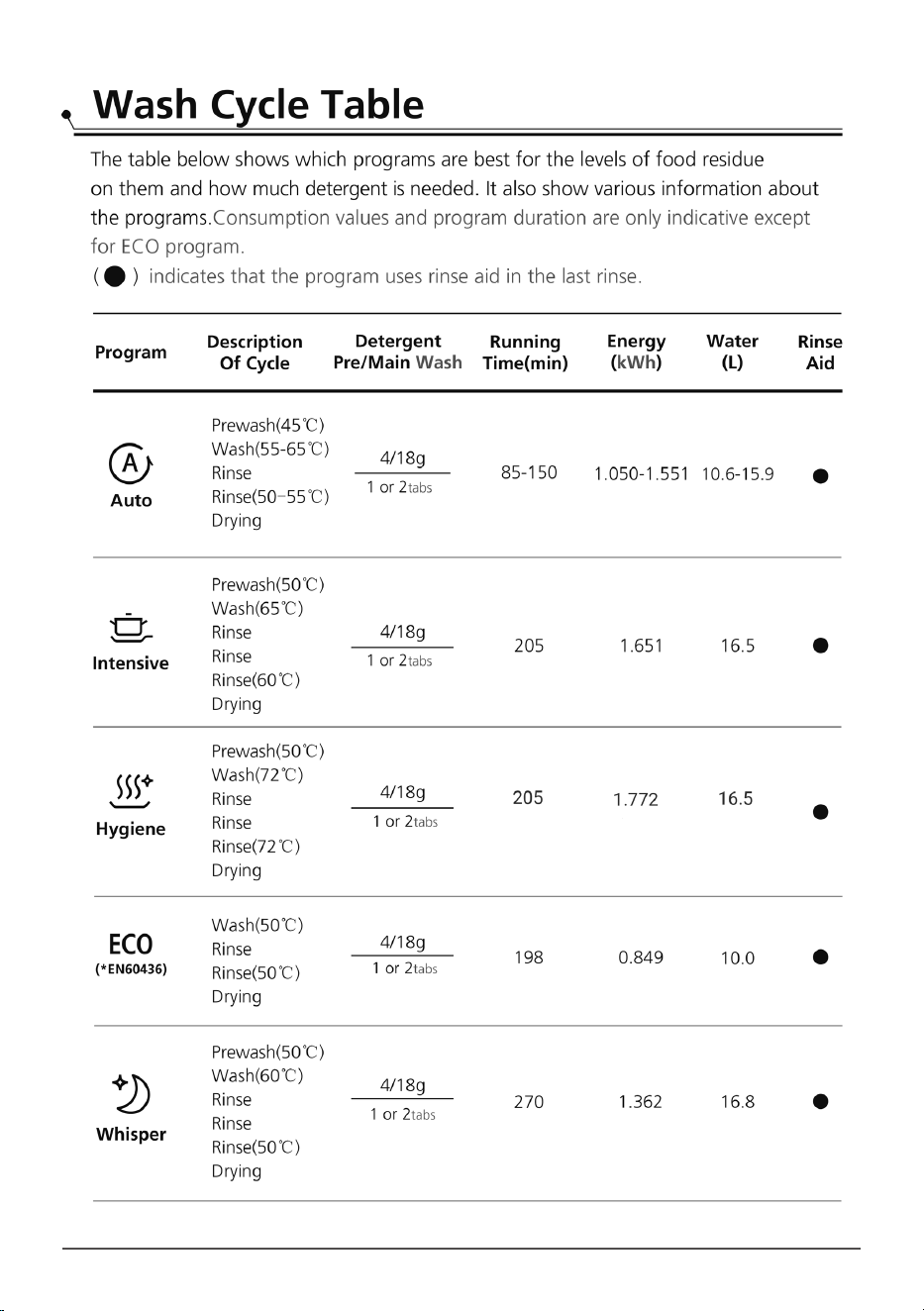

• Wash cycle table 32

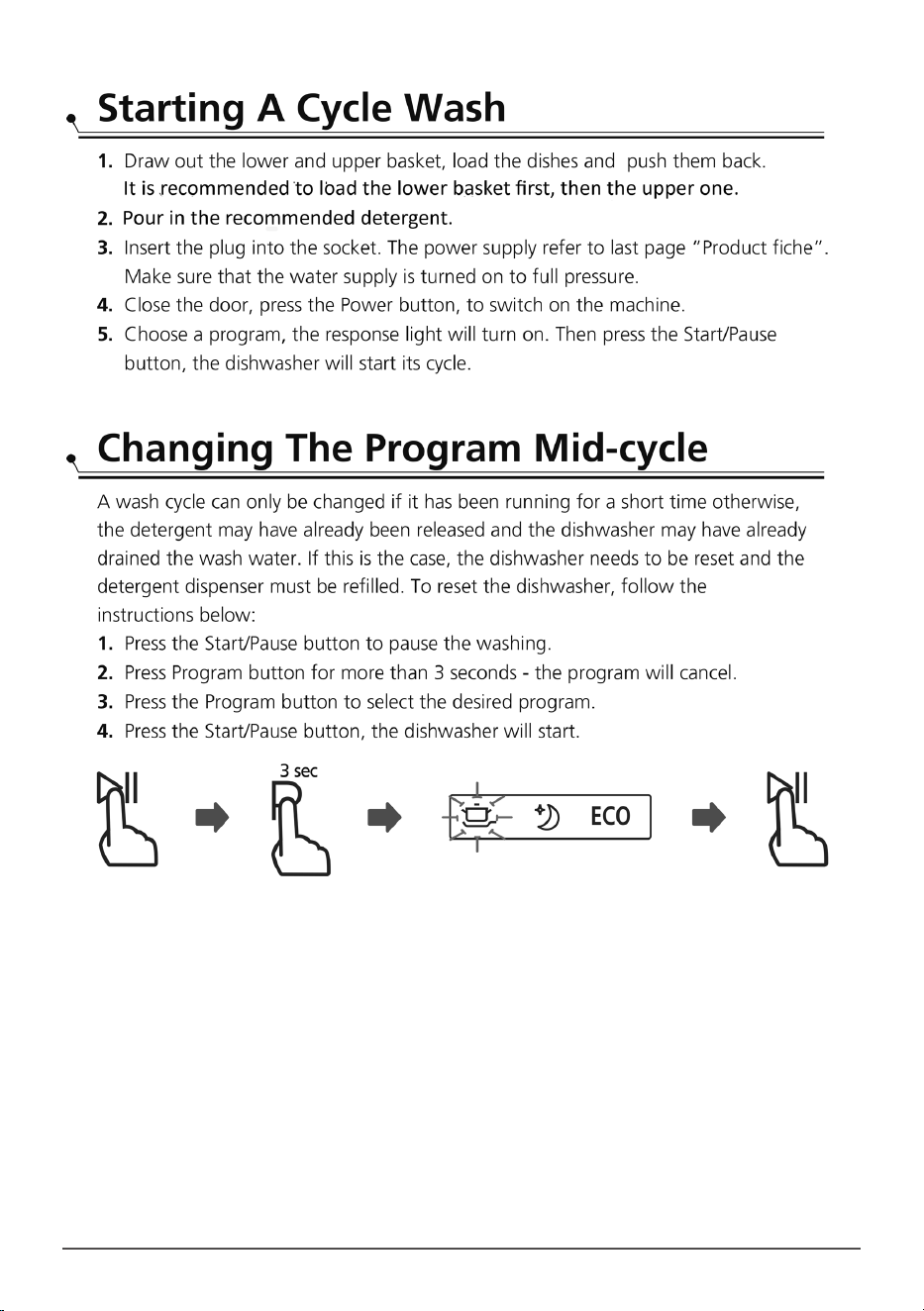

• Starting a programme 34
• Changing the programme mid cycle 34

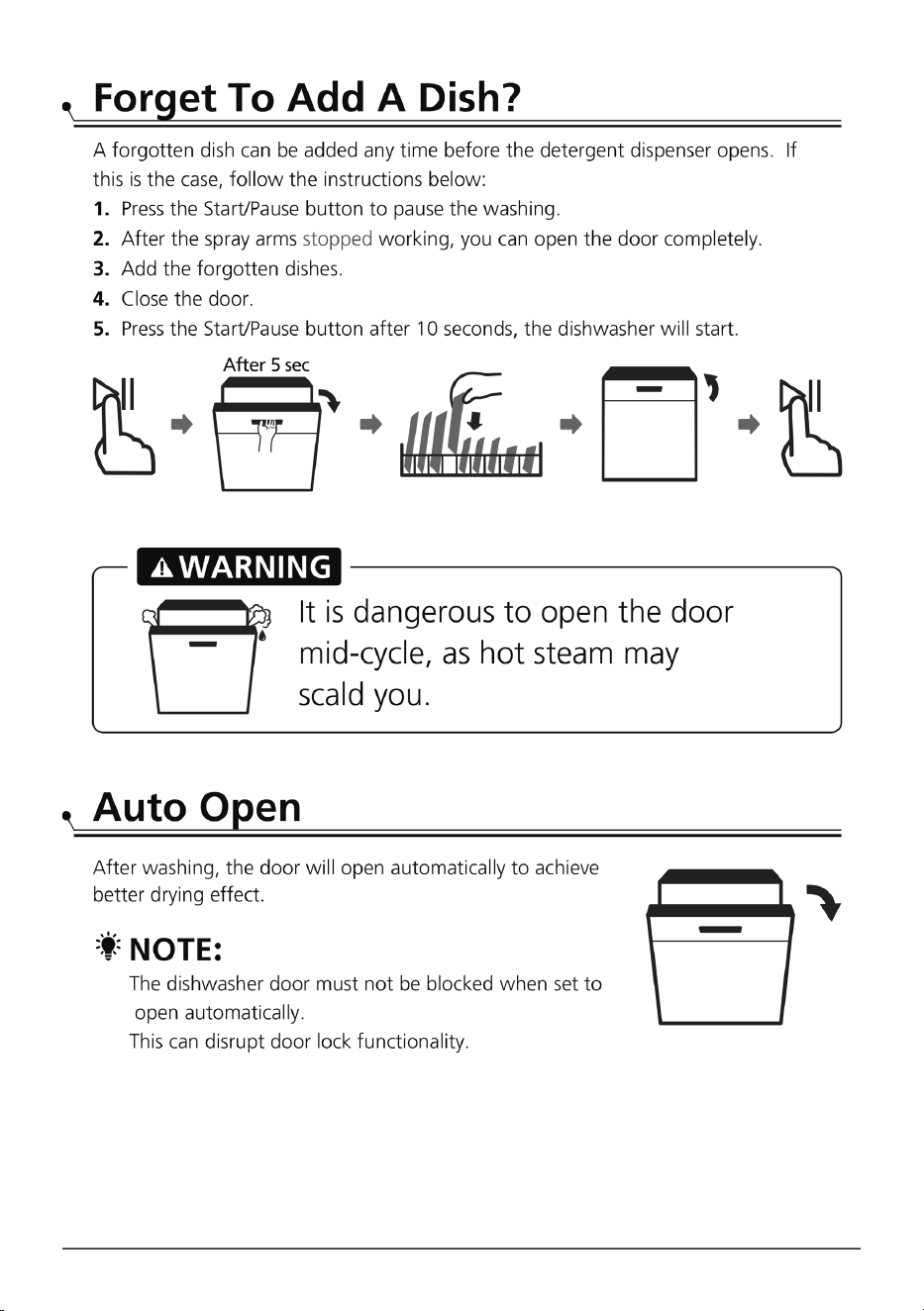

• Forgot to add a dish 35

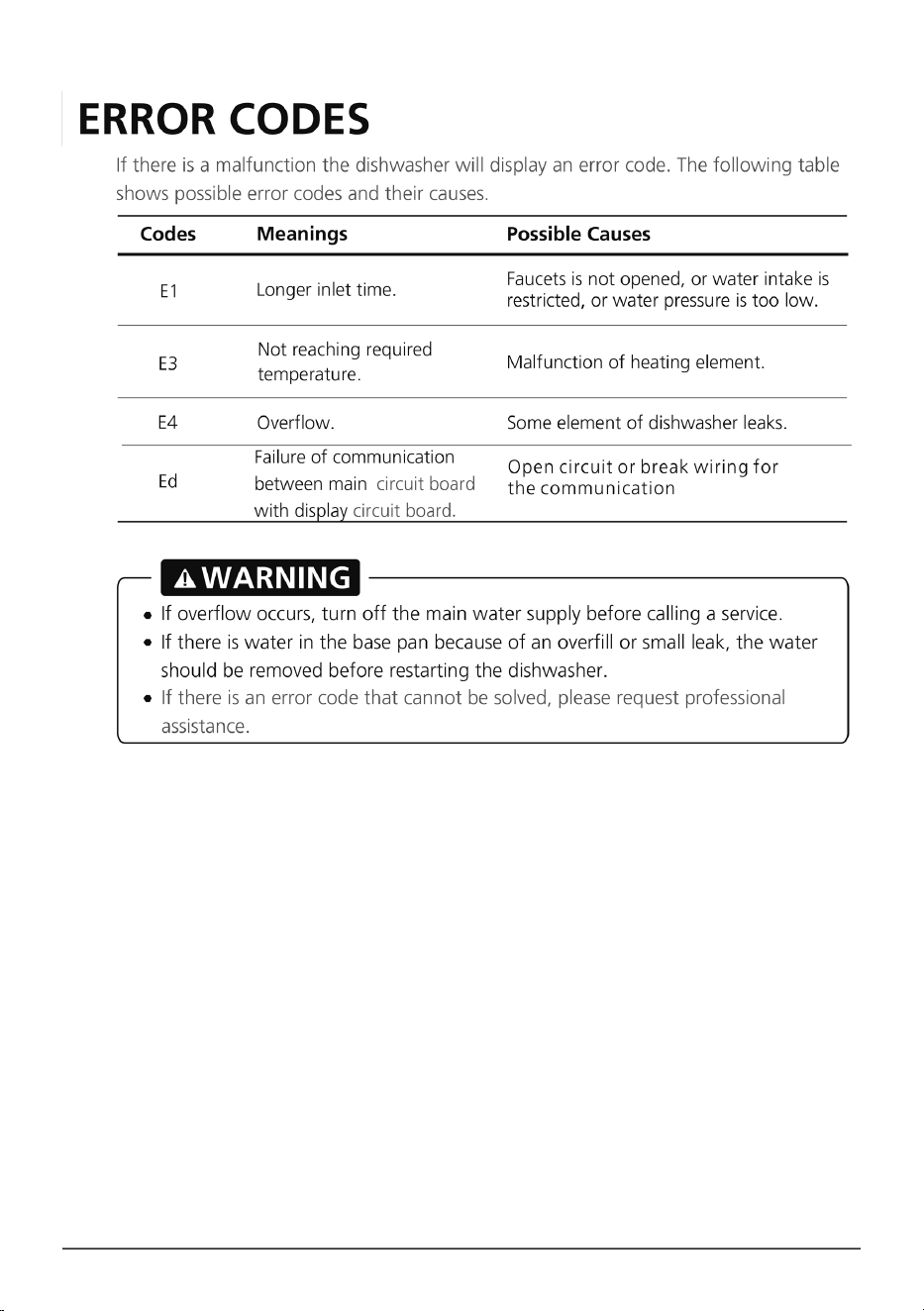

• Error codes 36

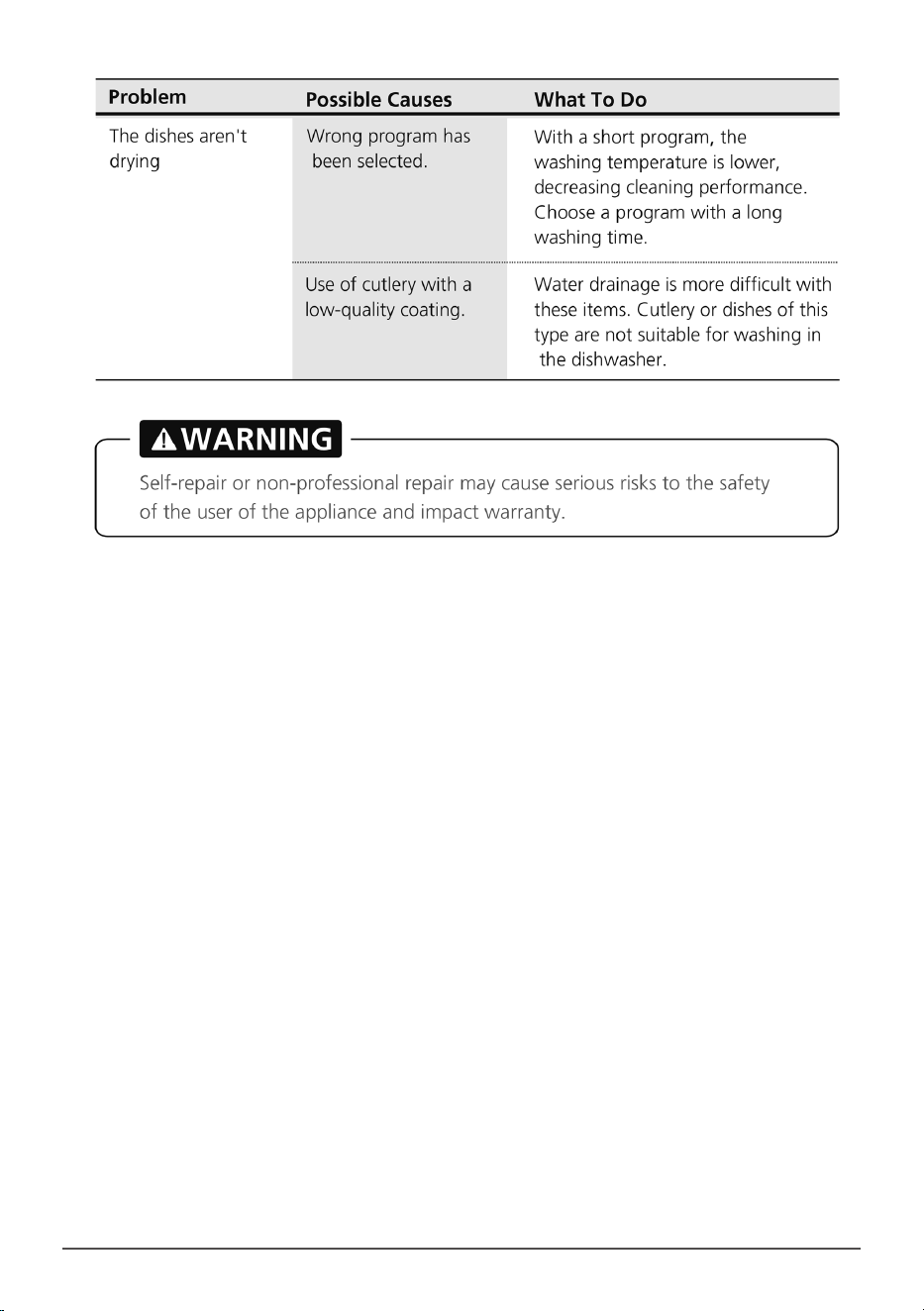

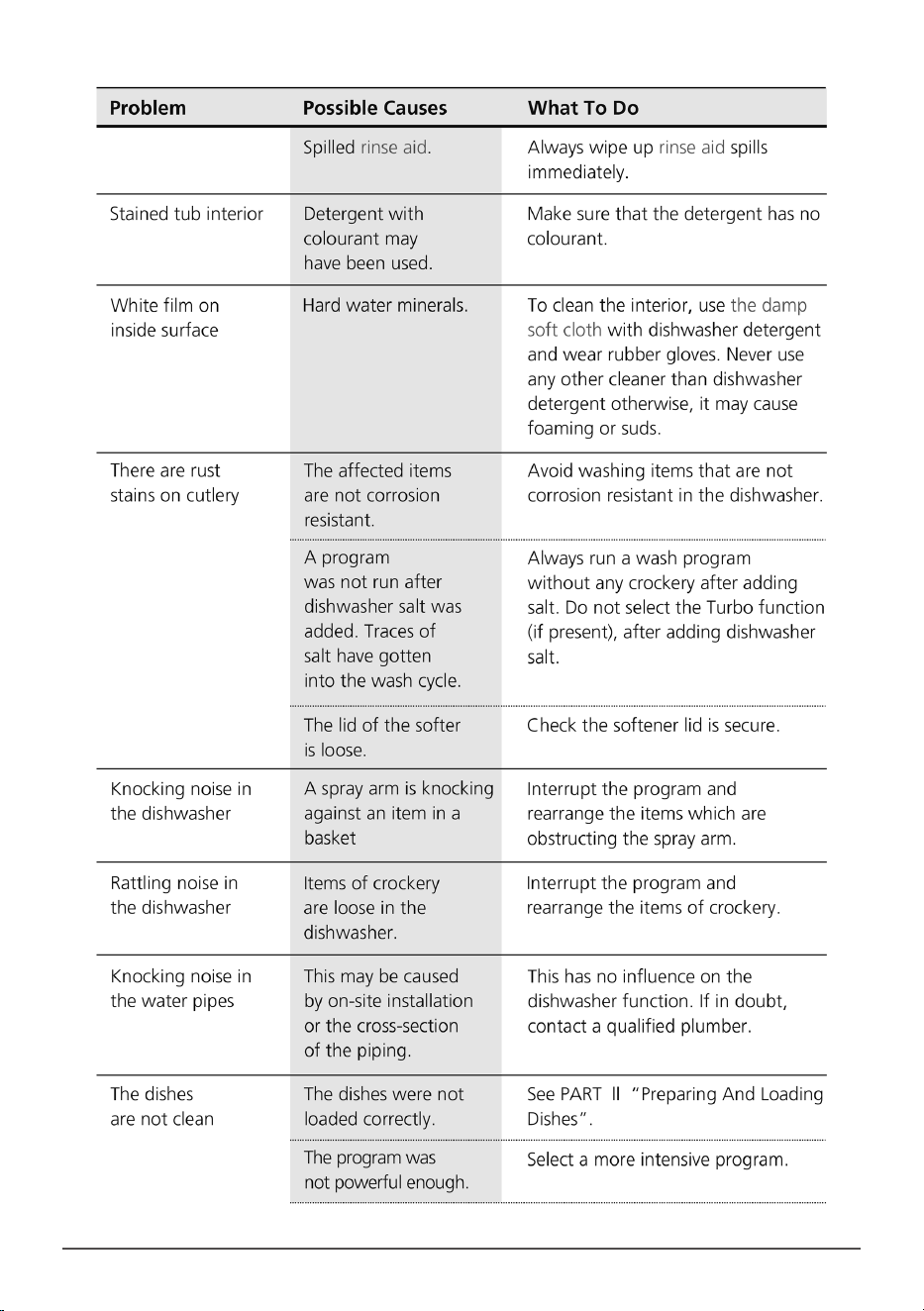

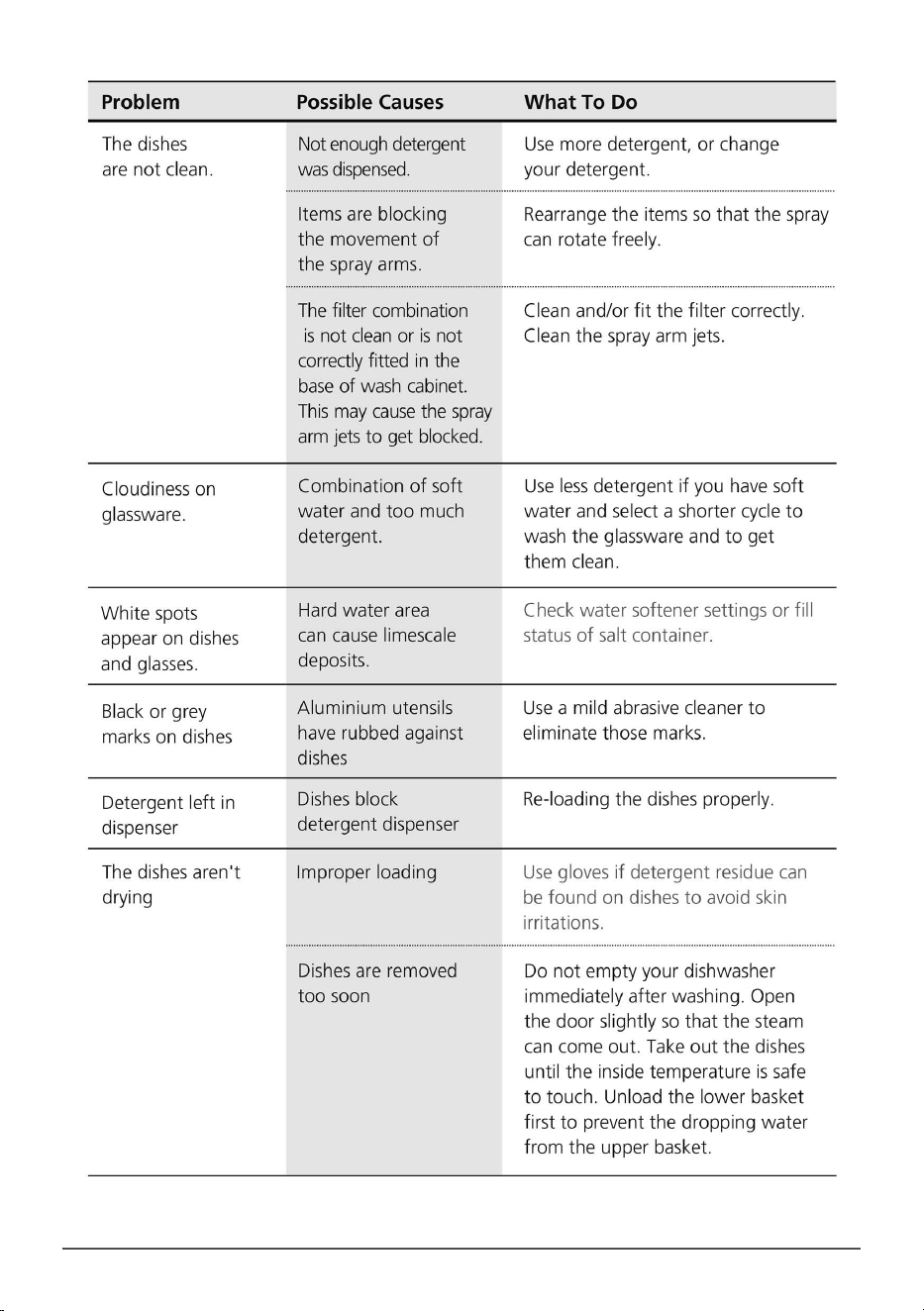

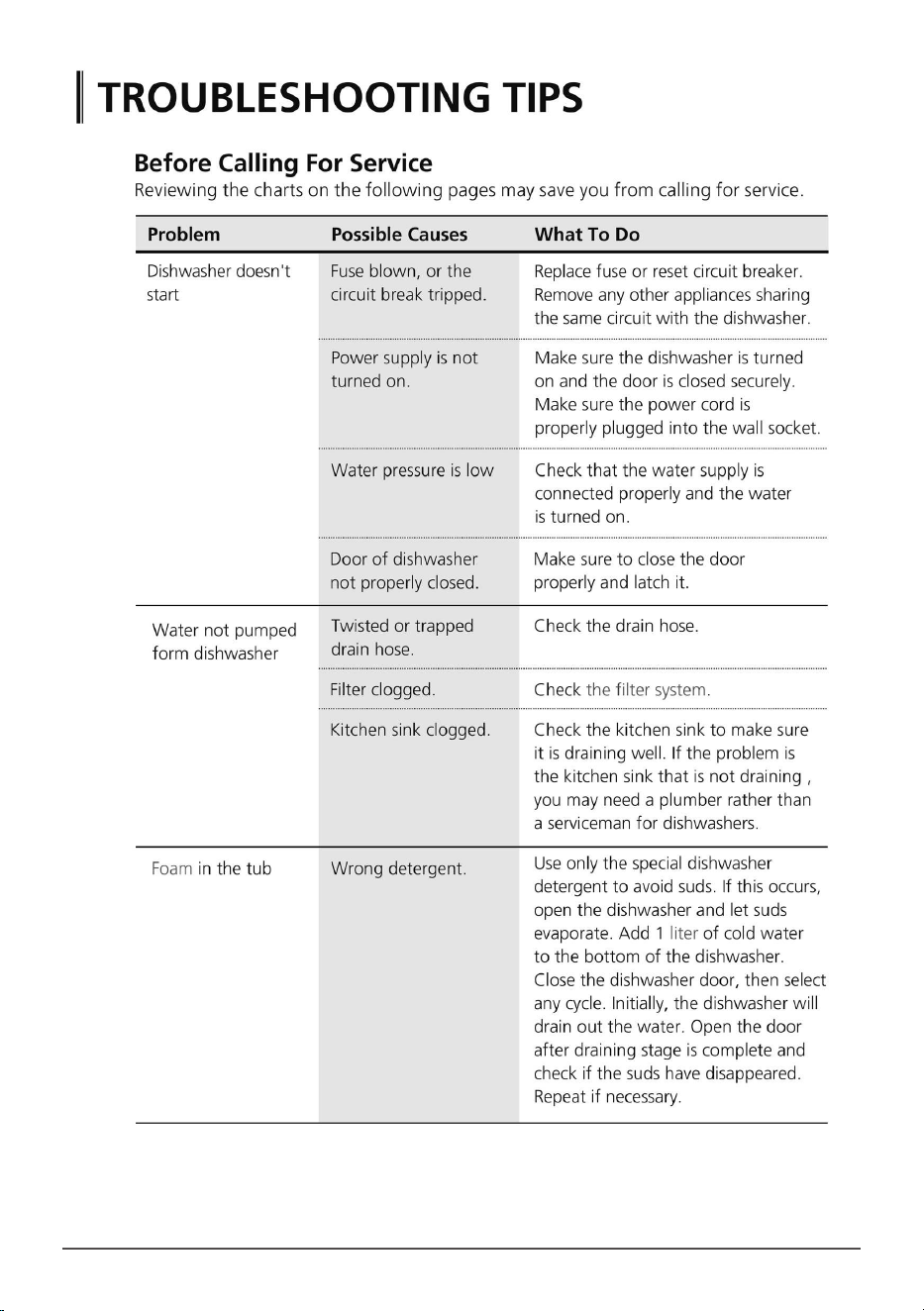

• Troubleshooting 37

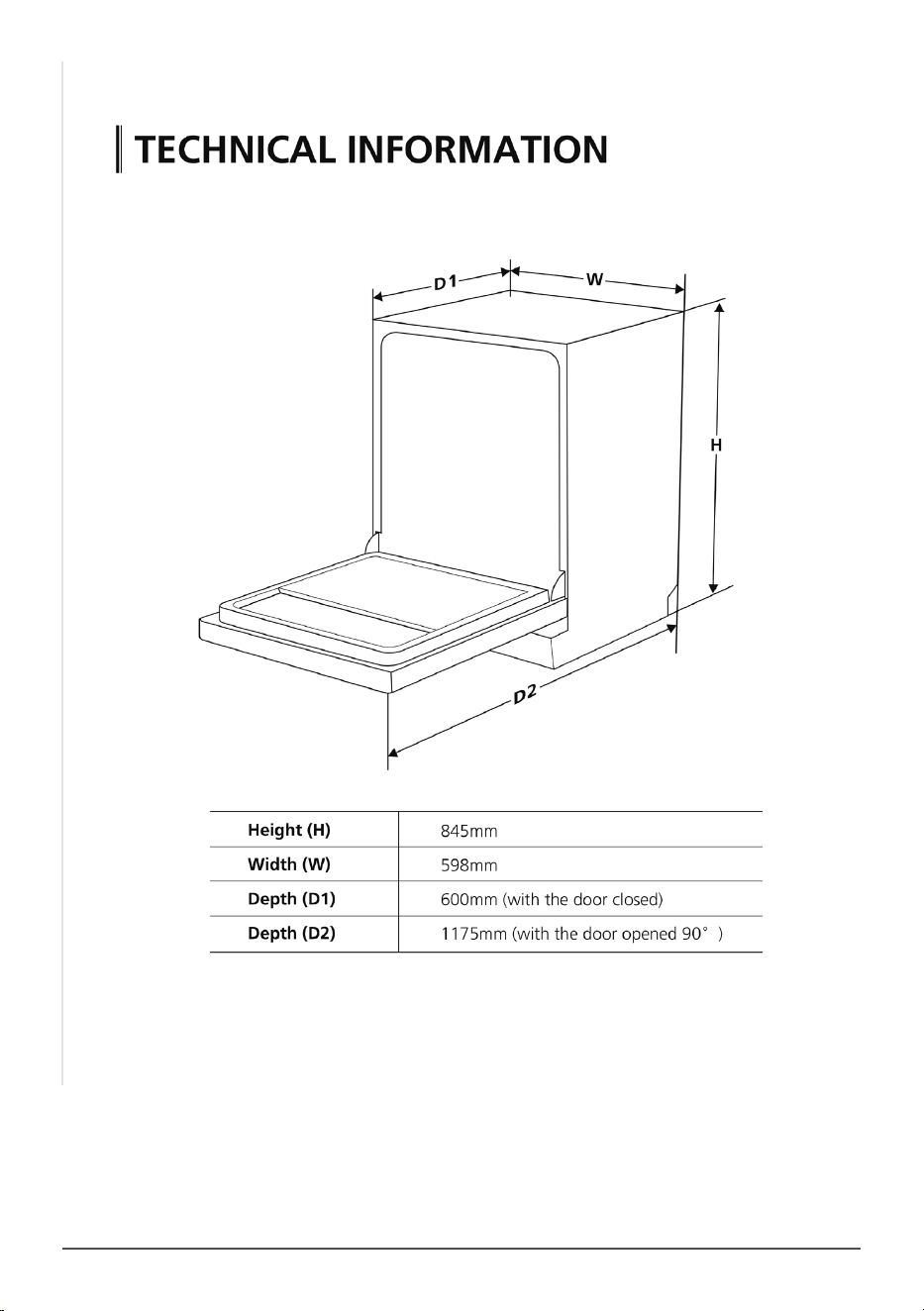

• Technical information 41
• Product information sheet 42
3
• GENERAL SAFETY
• WARNING! When using this dishwasher, follow the precautions listed below.
• WARNING: Ensure the supply cord is not trapped or damaged.
• WARNING: DO NOT locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
• This appliance is intended to be used in household and similar applications such as staff kitchen
areasinshops,ofcesandotherworkingenvironments;holidayhomes,hotelsandotherresidential
settings;andcateringandsimilarnon-retailapplications.
• This appliance can be used by children aged from 8 years and above and persons with reduced
physical, sensory or mental capabilities or lack of knowledge and experience if they have been given
supervision or instruction concerning the use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision (EN60335-1).
• Packaging materials could be dangerous for children.
• DO NOT abuse, sit on or stand on the door or dish rack of the dishwasher
• DO NOT operate this dishwasher unless the unit is fully assembled and all enclosures panels are
fully in place.
• DO NOT open the door whilst the dishwasher is switched on and operating, you are at risk of
scalding from hot water and steam.
• When loading the dishwasher locate sharp items so that are unlikely to damage the door seals.
Knives and other utensils with sharp points must be loaded in the cutlery basket with their points
facing down or placed horizontally on a shelf.
• Some dishwasher detergents have strong alkalinity, they are extremely dangerous if ingested, avoid
contact with skin and eyes and keep children away from the dishwasher when the door is open.
• Always check there is no detergent residue left after the completion of a wash cycle.
• DO NOT wash plastic items unless they are marked dishwasher safe.
• Use only detergents and rinse agents that are recommended for use with automatic dishwashers .
• Never use soap, laundry detergent, or hand washing detergents in this dishwasher.
• DO NOT leave the door of this dishwasher open when the appliance is not in use.
• DO NOT tamper with the appliance or controls.
• If the appliance is moved it is recommended it is installed with new hose sets and NOT reused ones
• In Stand by mode the appliance will switch off automatically after 15 minutes without any user
interaction
• The maximum number of place settings to be washed is 14.
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instructions
Indoor use
only
4
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using.
• Inspect power supply leads, plugs and all electrical connections for wear and damage.
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the
power supply.
• DO NOT use worn or damaged cables, plugs or connectors.
• Ensurethatanyfaultyitemisrepairedorisreplacedimmediatelybyaqualiedelectrician.
• If the cable or plug is damaged during use, switch off the electricity supply and remove from use.
• Ensurethatrepairsarecarriedoutbyaqualiedelectrician.
• Sealey recommend that an RCD (Residual Current Device) is used with all electrical products.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and
thattheplugisttedwiththecorrectfuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• SPECIFICATION
• Model no: DH167
• Dimensions (W x D x H): 600 x 600 x 845mm
• Operating Sound Level: 44dB
• Place settings: 14
• Supply: 230V
• Type: Freestanding
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
Product Information Sheet. Dishwashers
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd.
DELEGATED_ACT EU/2019/2017
MODEL_IDENTIFIER DH167
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS [email protected]
Parameter
Verification tolerances
85
Rated capacity 14.0 60
60
EEI 49.9 D
Cleaning performance index 1.125 1.065
0.849 10.0
Programme duration (h:min) 3.18 Freestanding
Off-mode (W) NA 0.49
Delay start (W) (if applicable) NA NA
Minimum duration of guarantee (years) 1
Suppliers website https://www.dellonda.co.uk/
60cm Freestanding Dishwasher, 14 Place Settings, 8 Programs, LED Display, Silver
Energy consumption in kWh [per cycle],
based on eco programme using cold water
fill.
Water consumption in litres [per cycle],
based on the eco programme
B
Standby mode (W)
Height
Width
Depth
Energy efficiency class
Drying performance index
Standby (W) (if applicable)
Design type
Airborne acoustical noise emissions (dB(a)
re 1 pW
Airborne acoustical noise emission class
44
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Environment Protection, Waste Electrical and Waste
Electronic Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of its useful life, please dispose of in an environmentally friendly way.
Drainanyuids(ifapplicable)intoapprovedcontainers,inaccordancewithlocalwaste
regulations. It is our policy to continually improve products and we reserve the right to alter
data,specicationsandpartswithoutpriornotice.Noliabilityisacceptedforincorrectuse
of this product. Guarantee is 12 months from purchase date, proof of which is required for
any claim.
