45cm Slimline Freestanding Dishwasher, 10
Place Settings, 8 Programs
Model No’s: DH267 DH166
Thank you for purchasing a Baridi product from the Dellonda range. Manufactured to a high standard, this
product will, if used according to these instructions, and properly maintained, give you years of trouble
free performance.
DH267 DH166 Issue 3 02/05/24
2
CONTENTS
• General safety 3
• Electrical safety 4

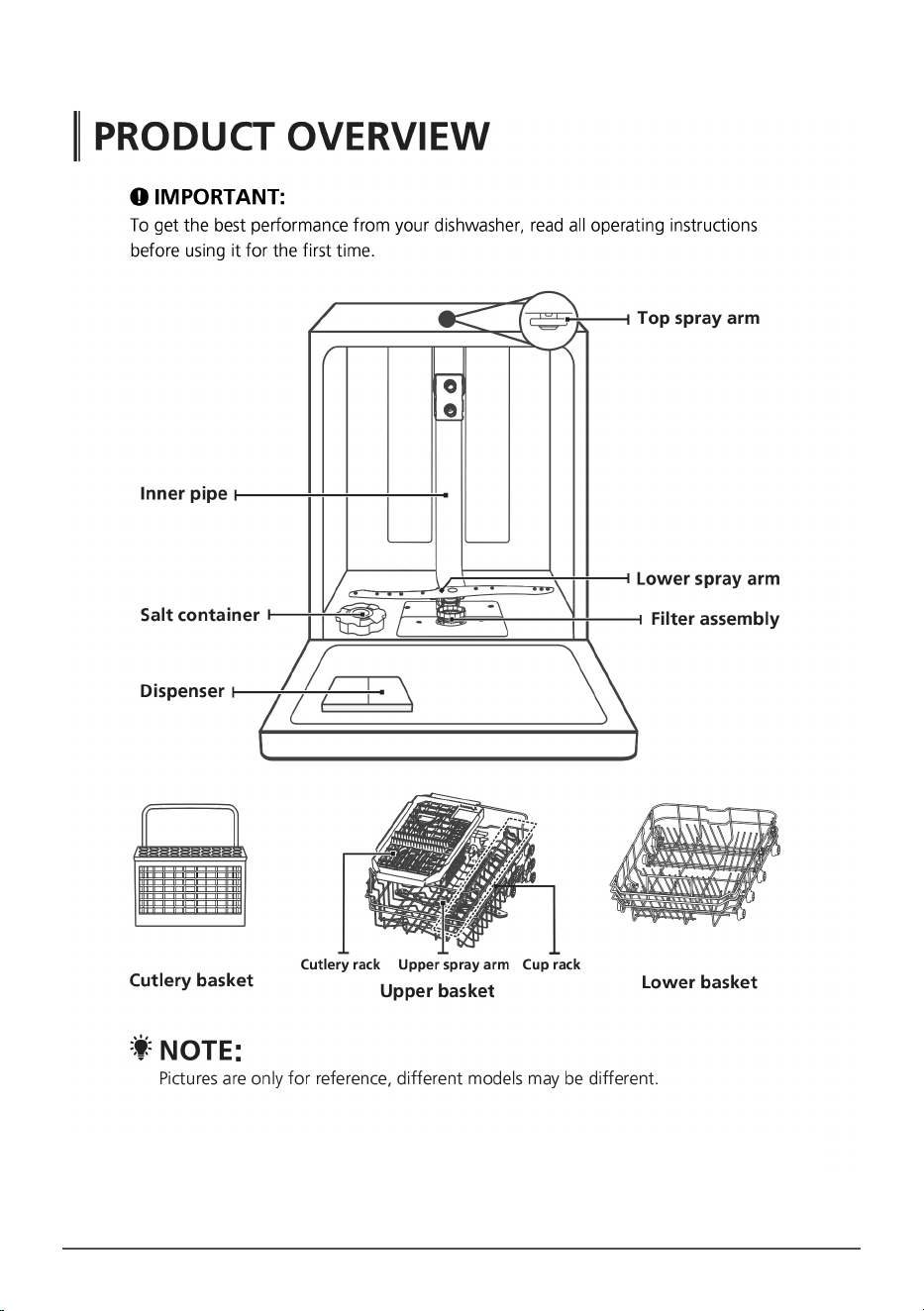

• Product overview 5
• Using

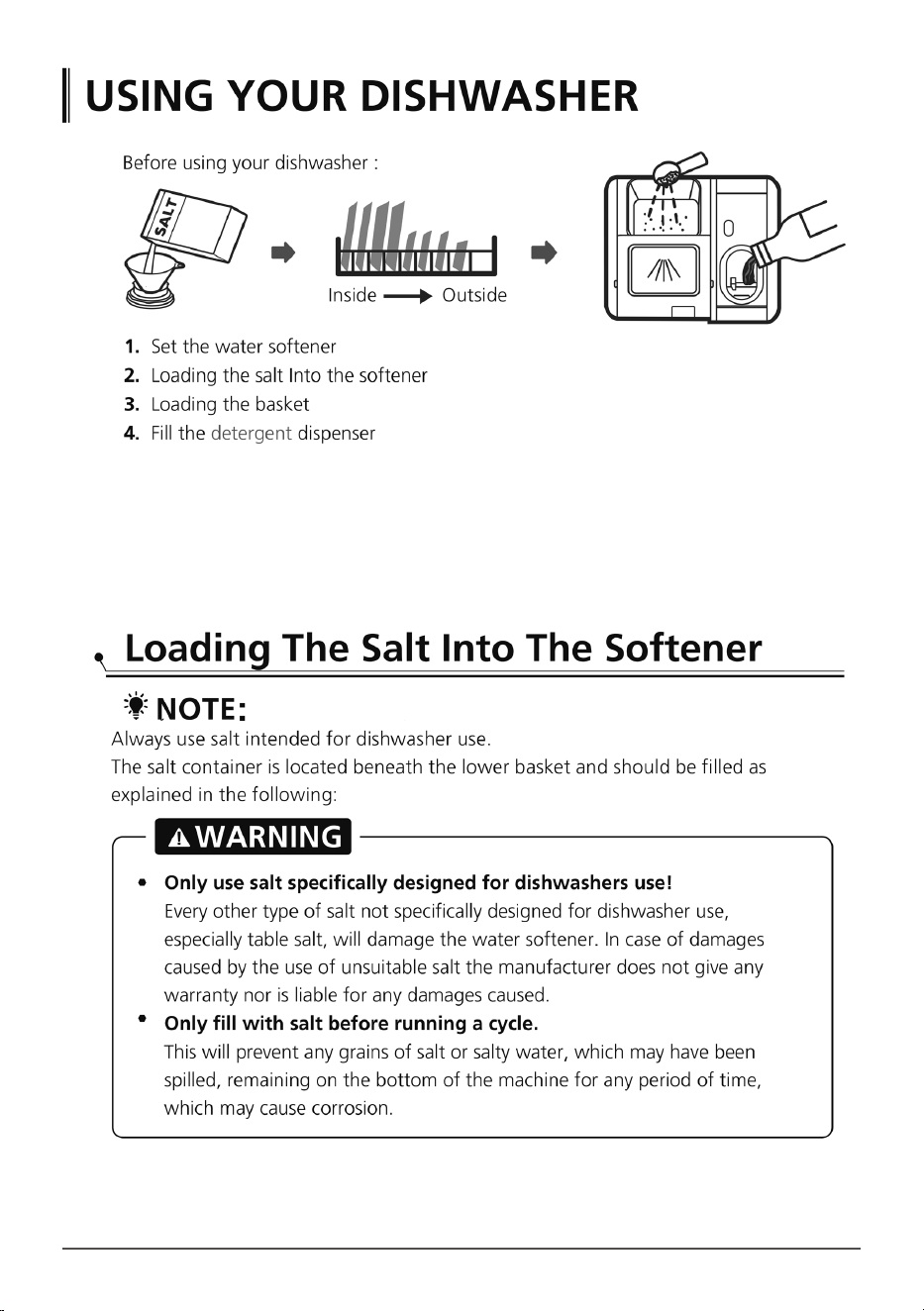

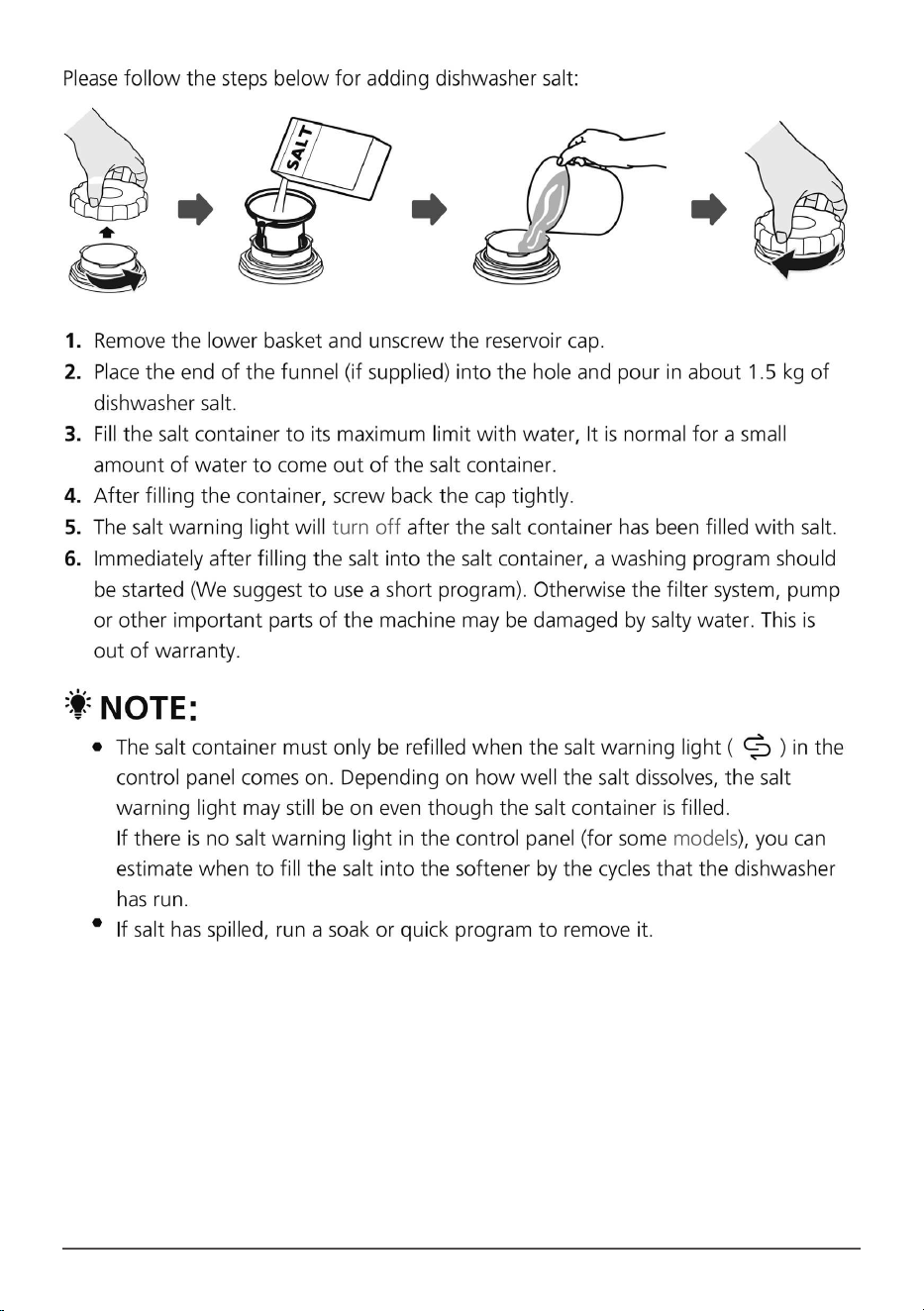

• Loading salt 6

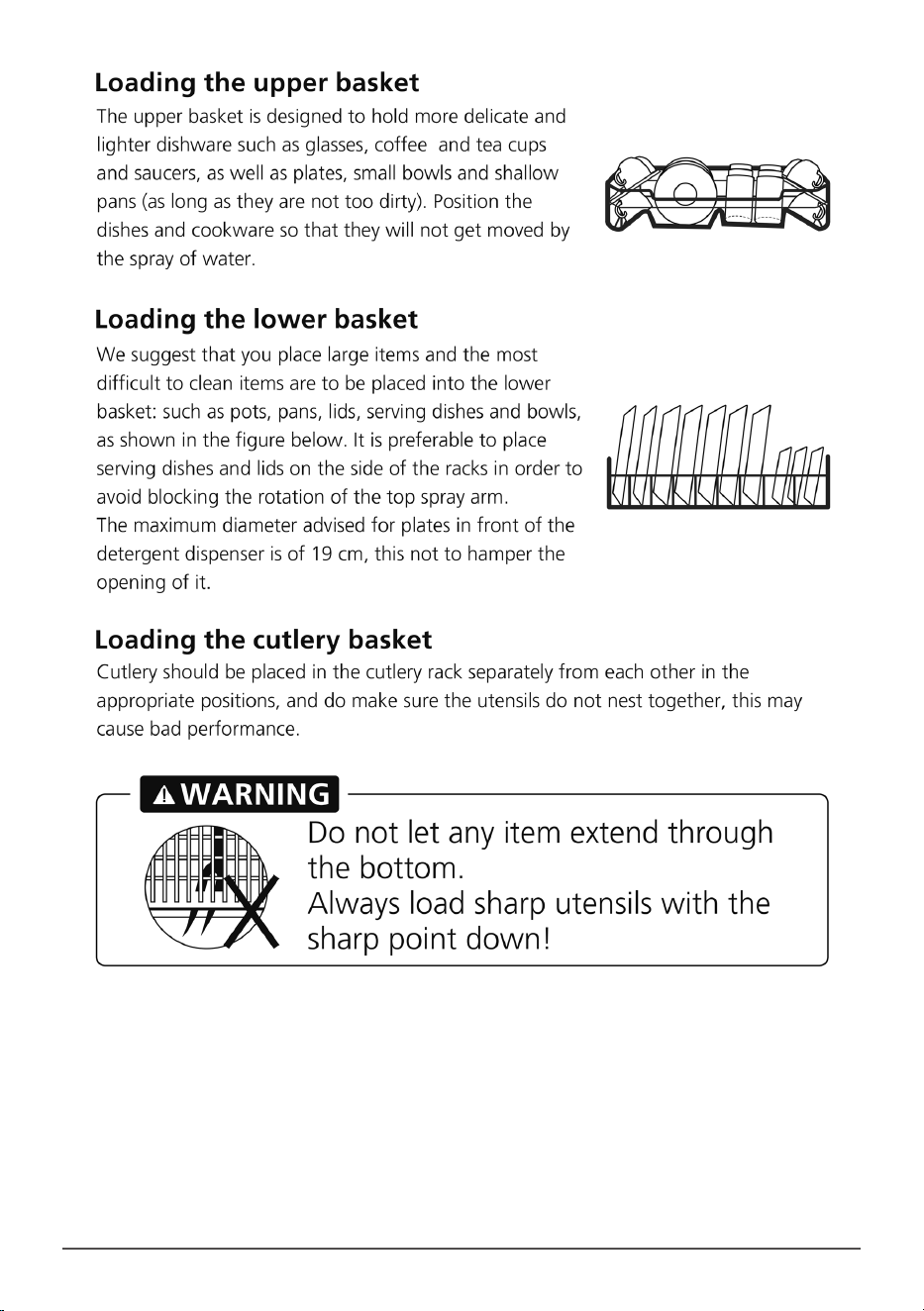

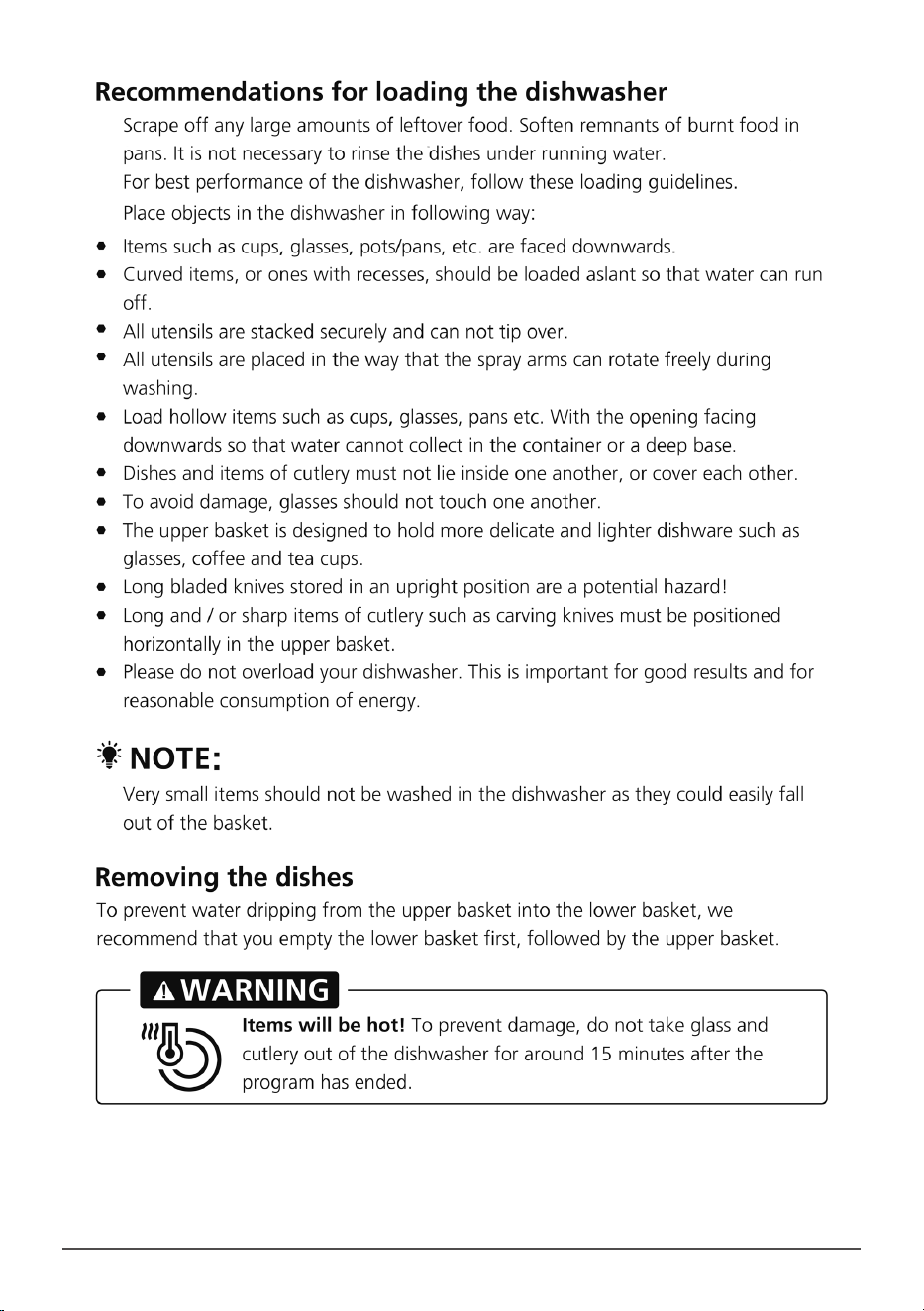

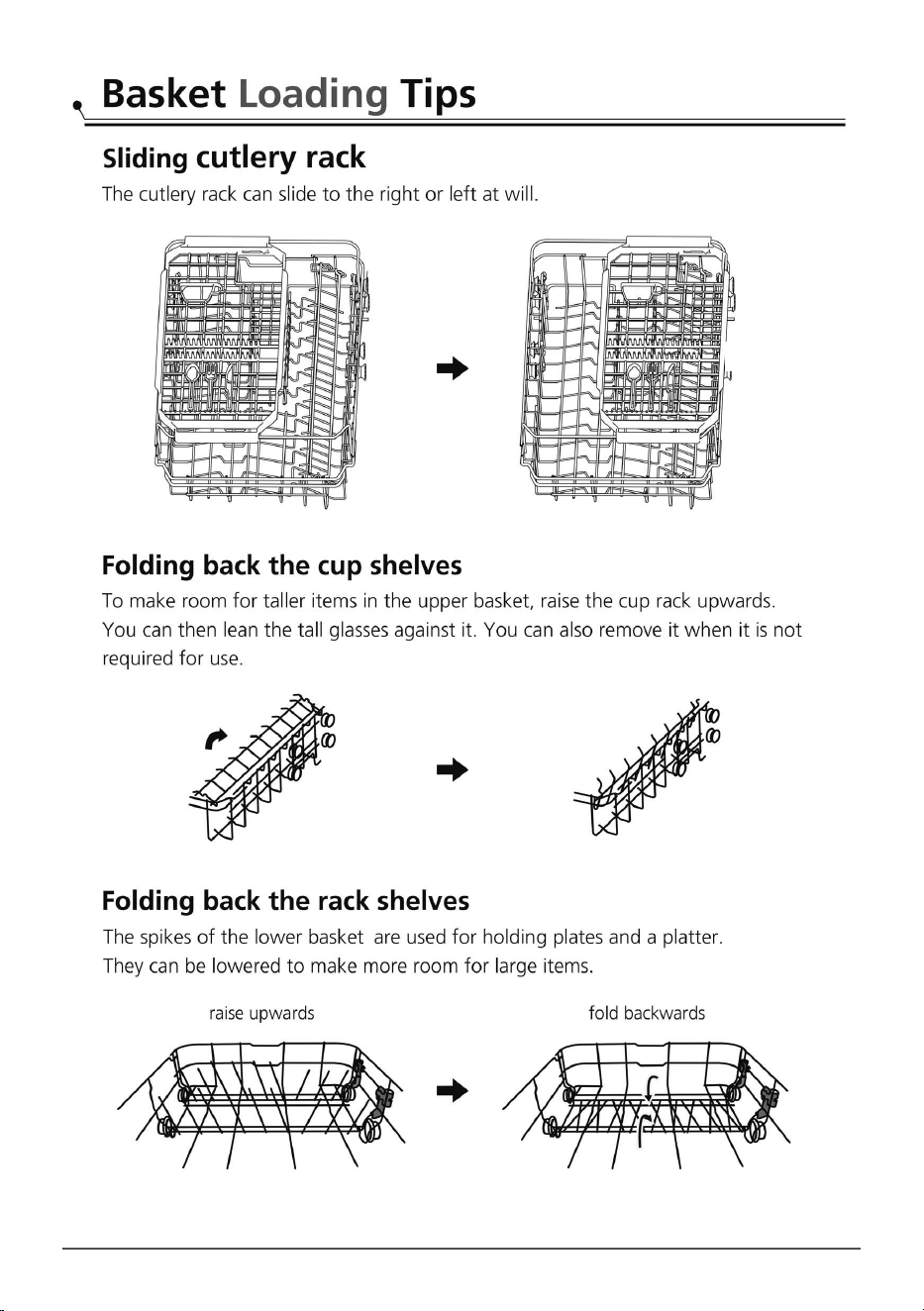

• Basket loading tips 8

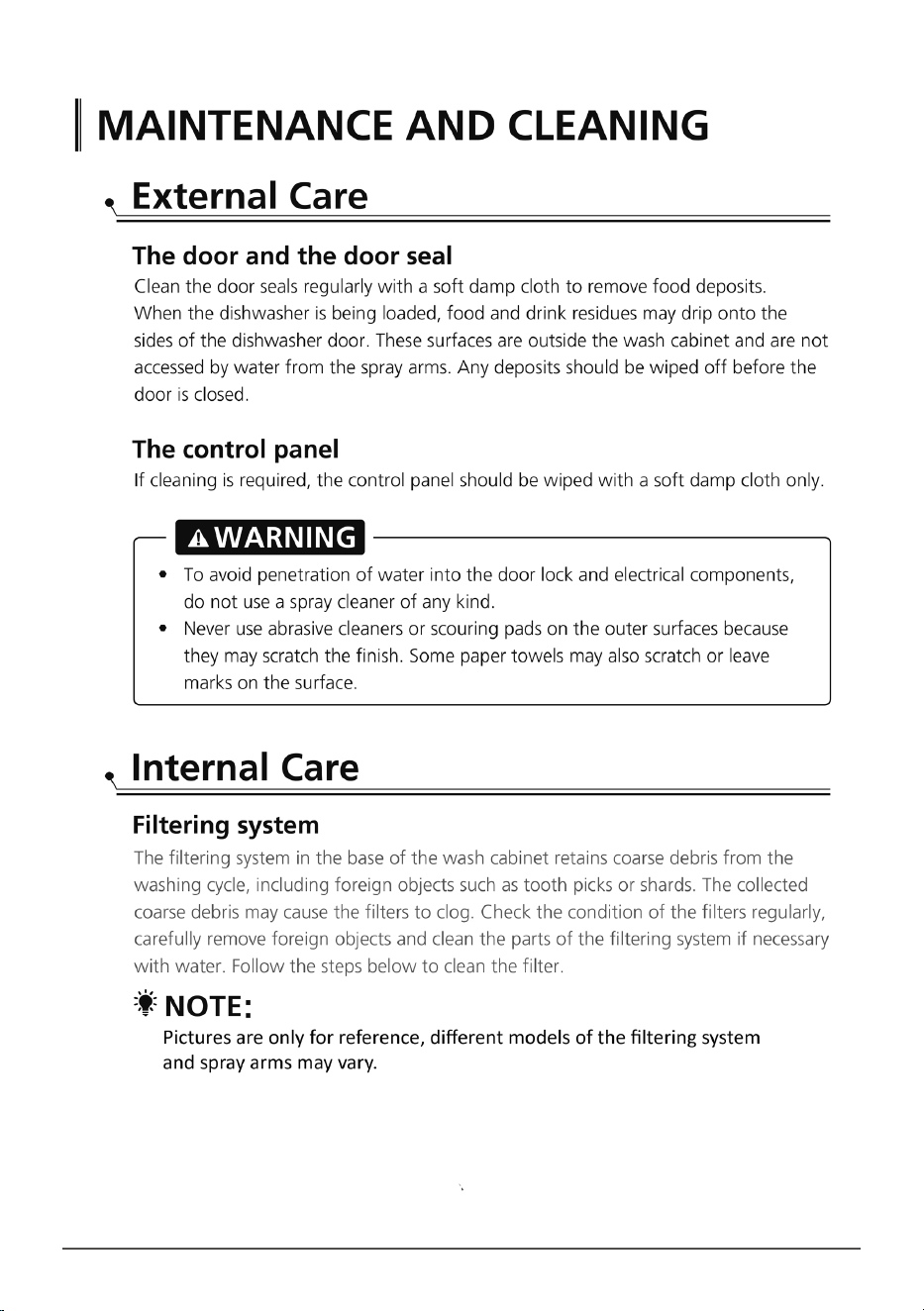

• Maintenance and cleaning
• External care 9

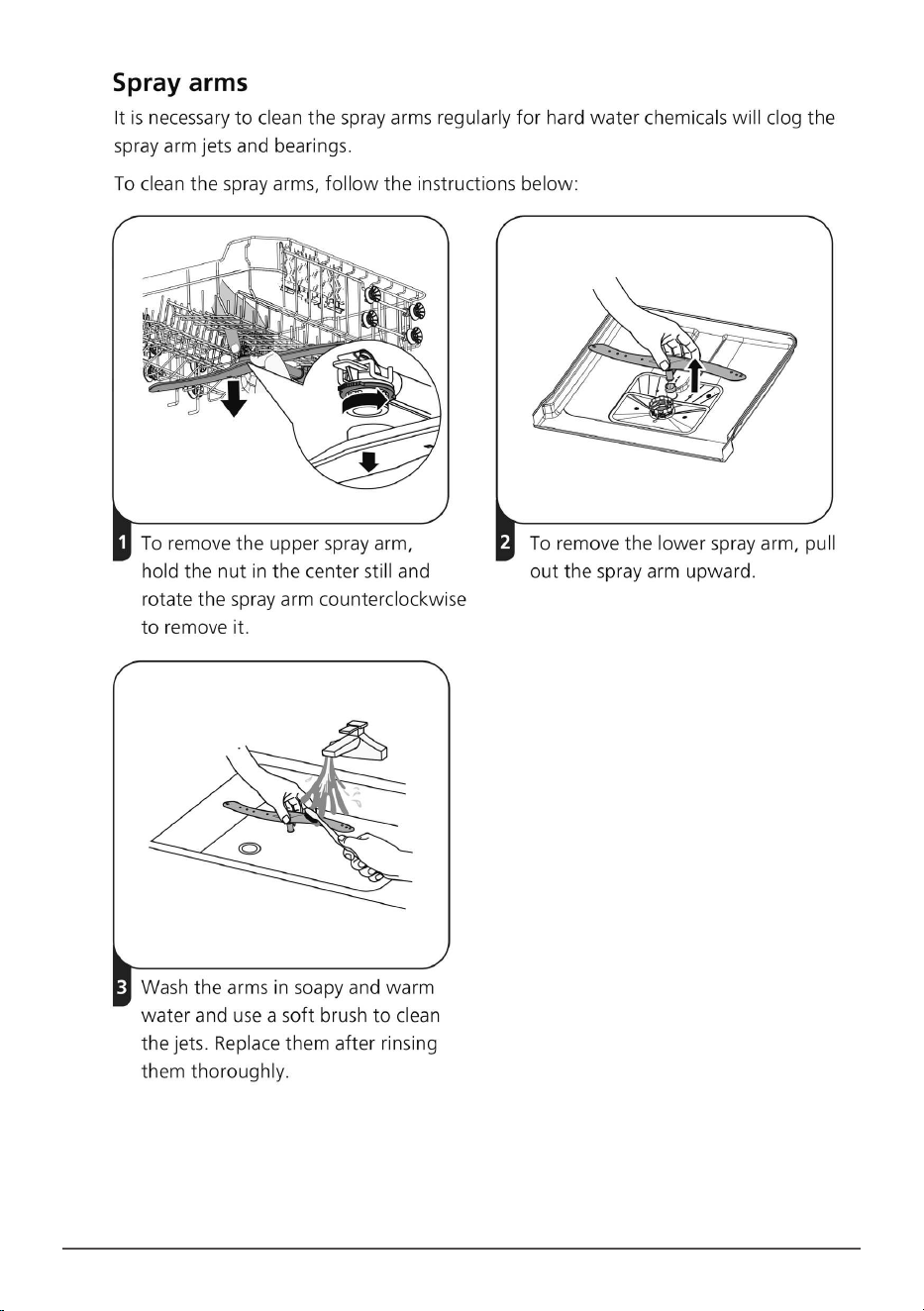

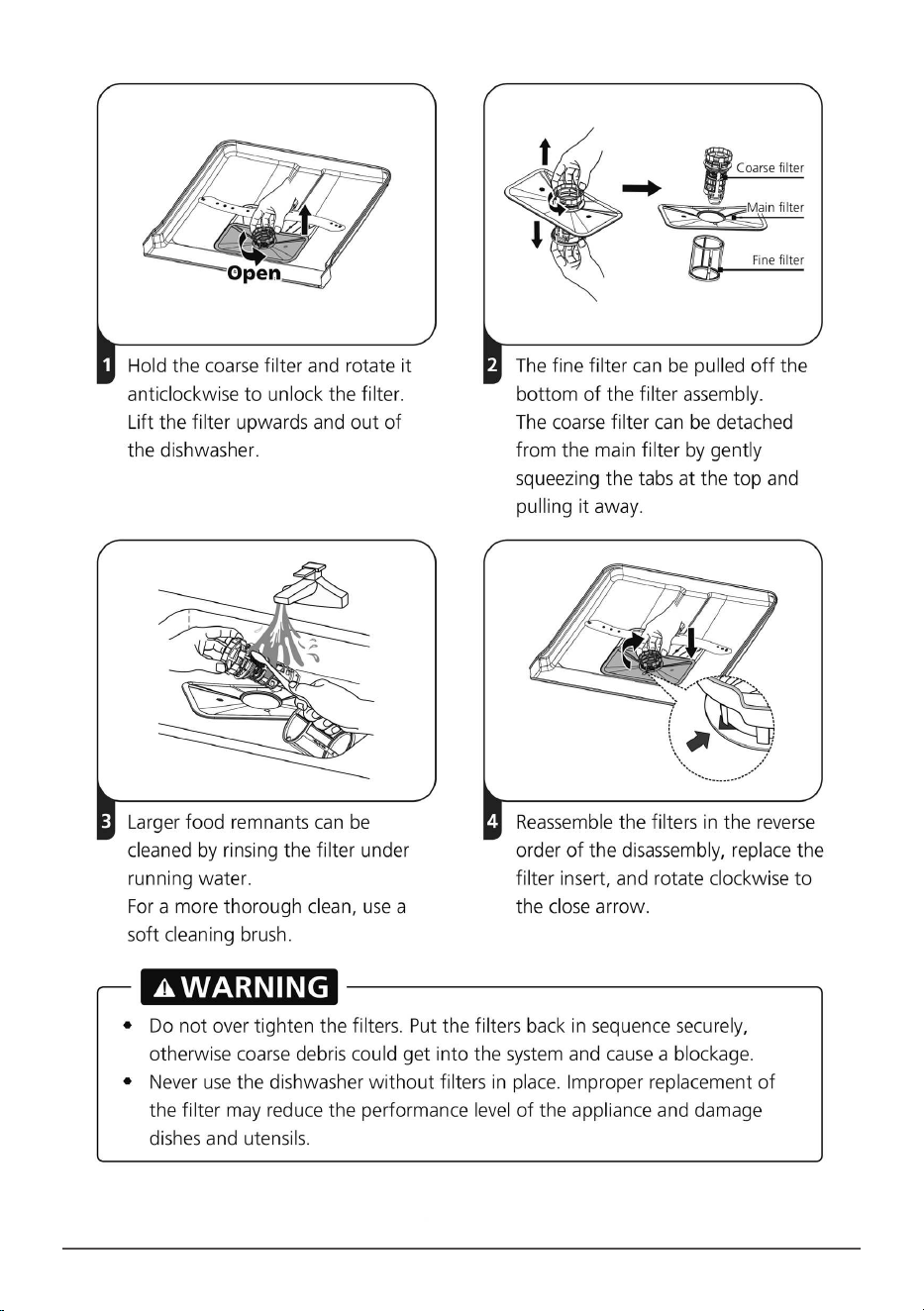

• Internal care 9
• General care 12
• Installation

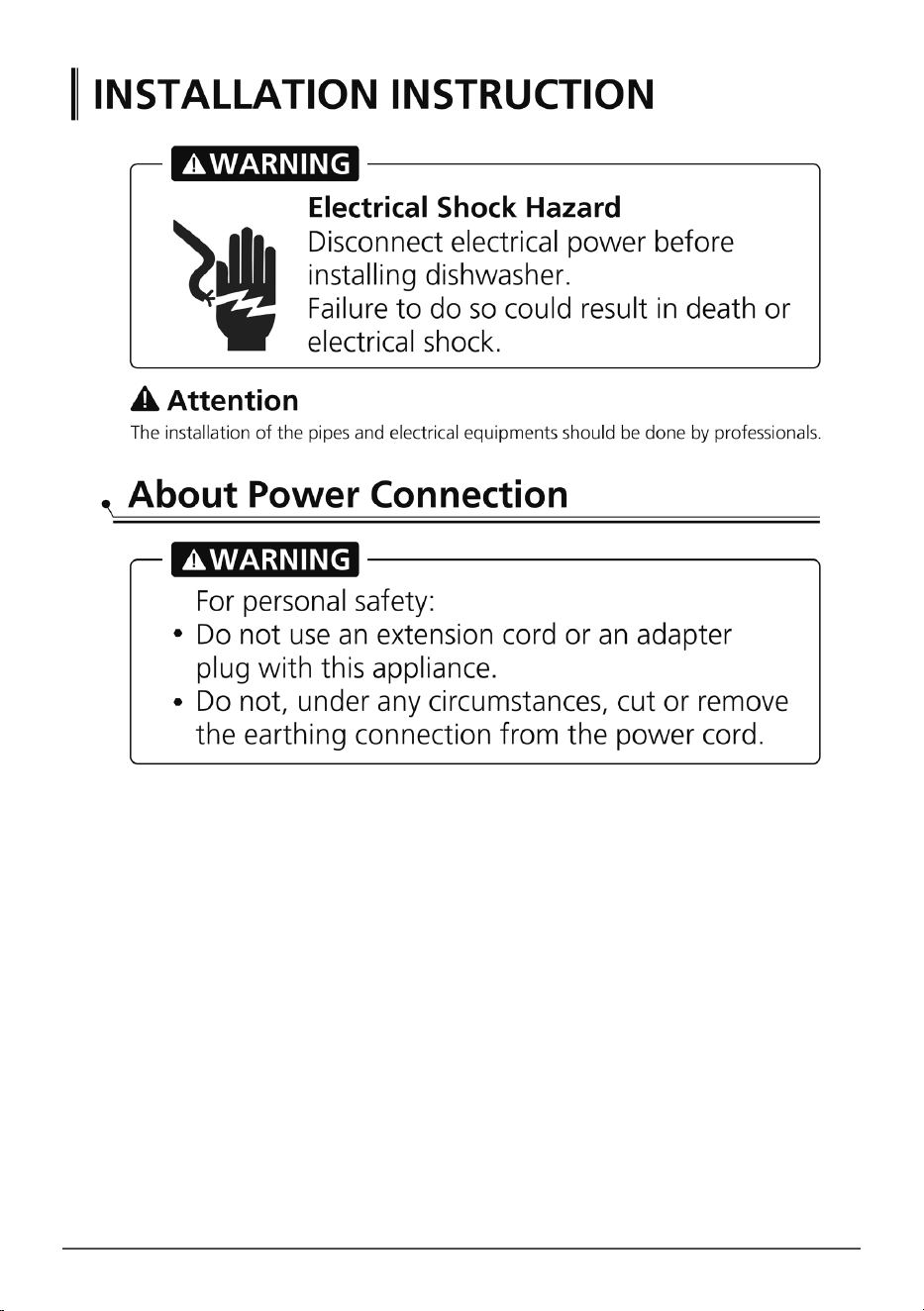

• Power connection 13

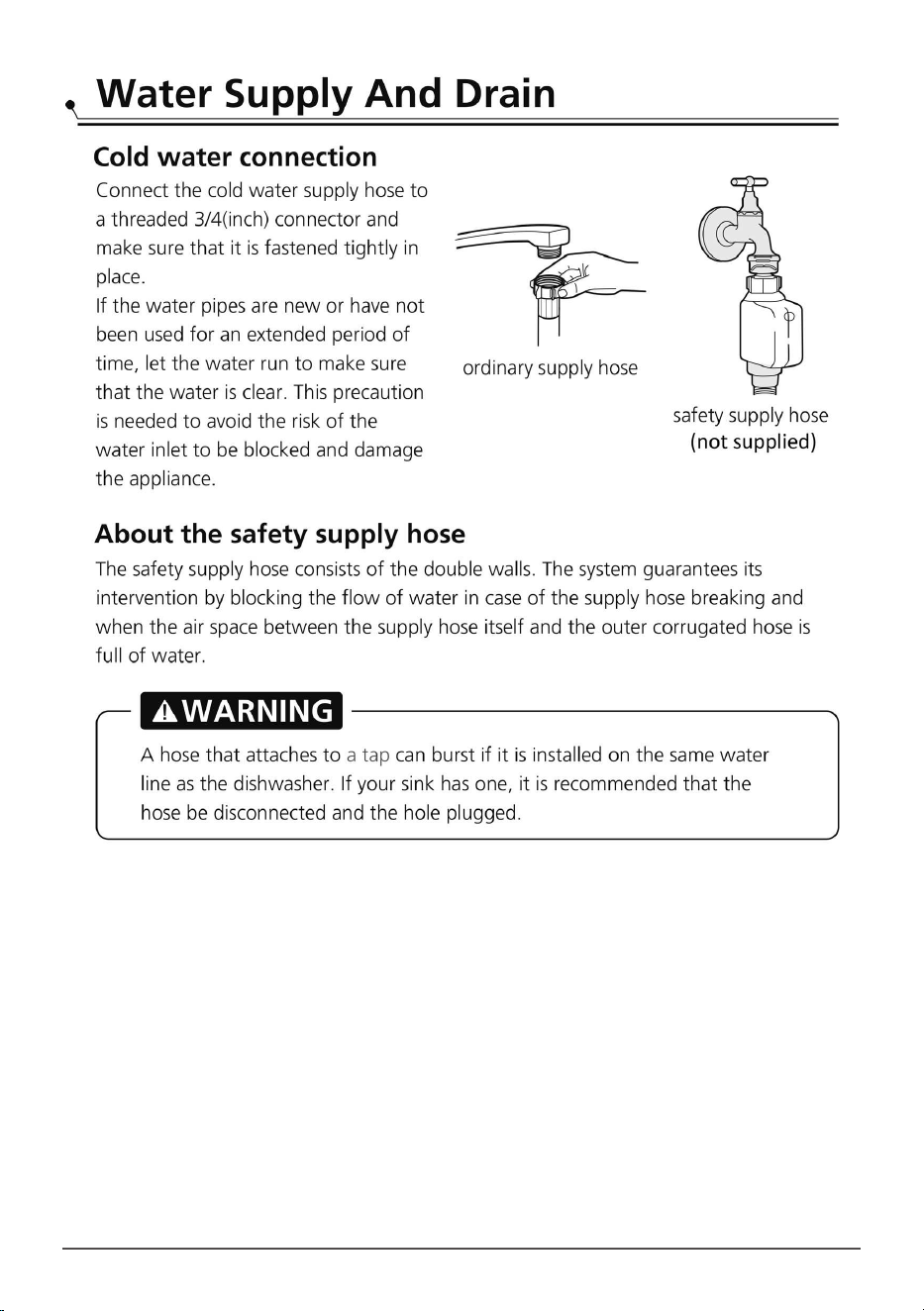

• Water supply and drain 14

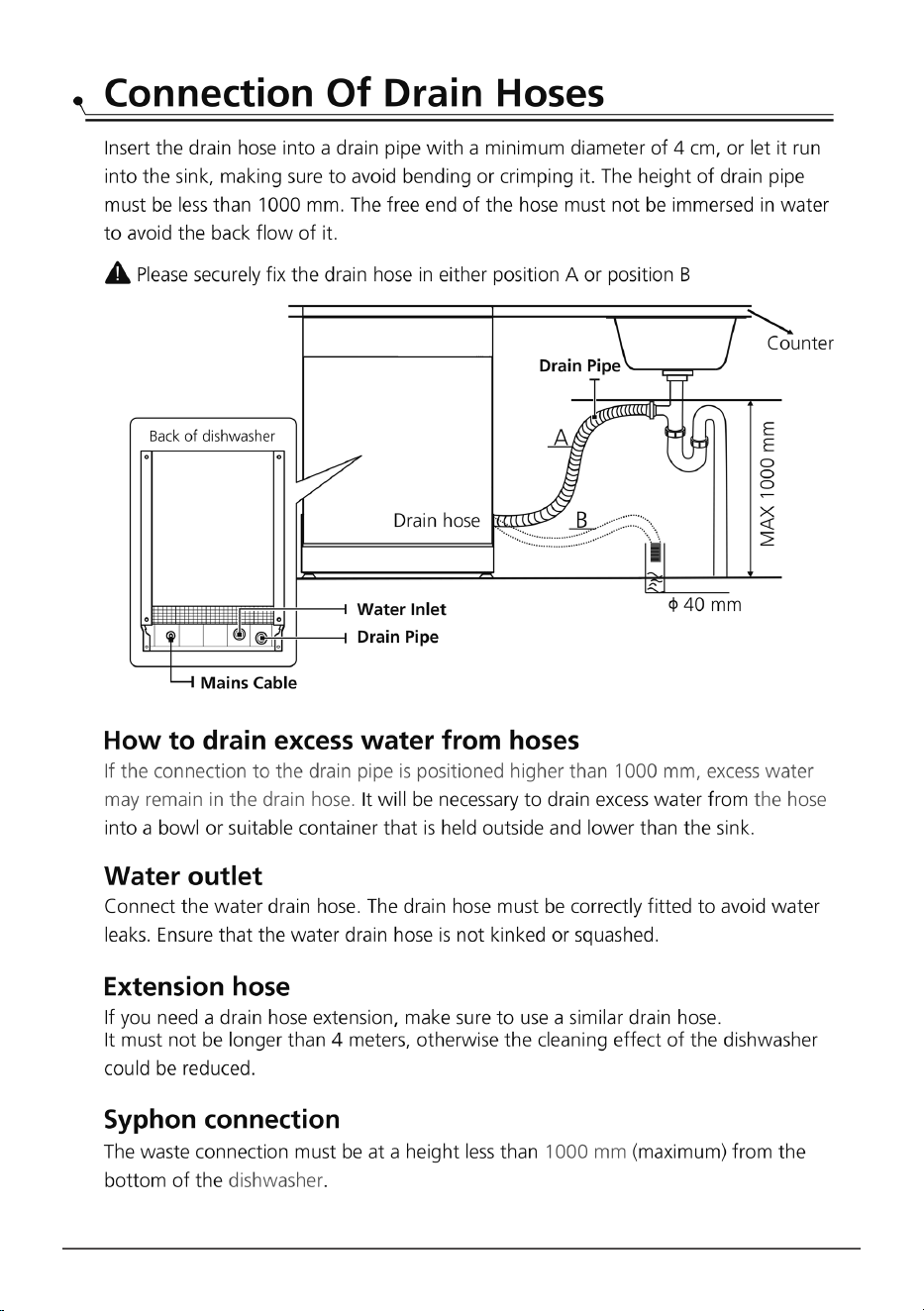

• Connection of drain hoses 15

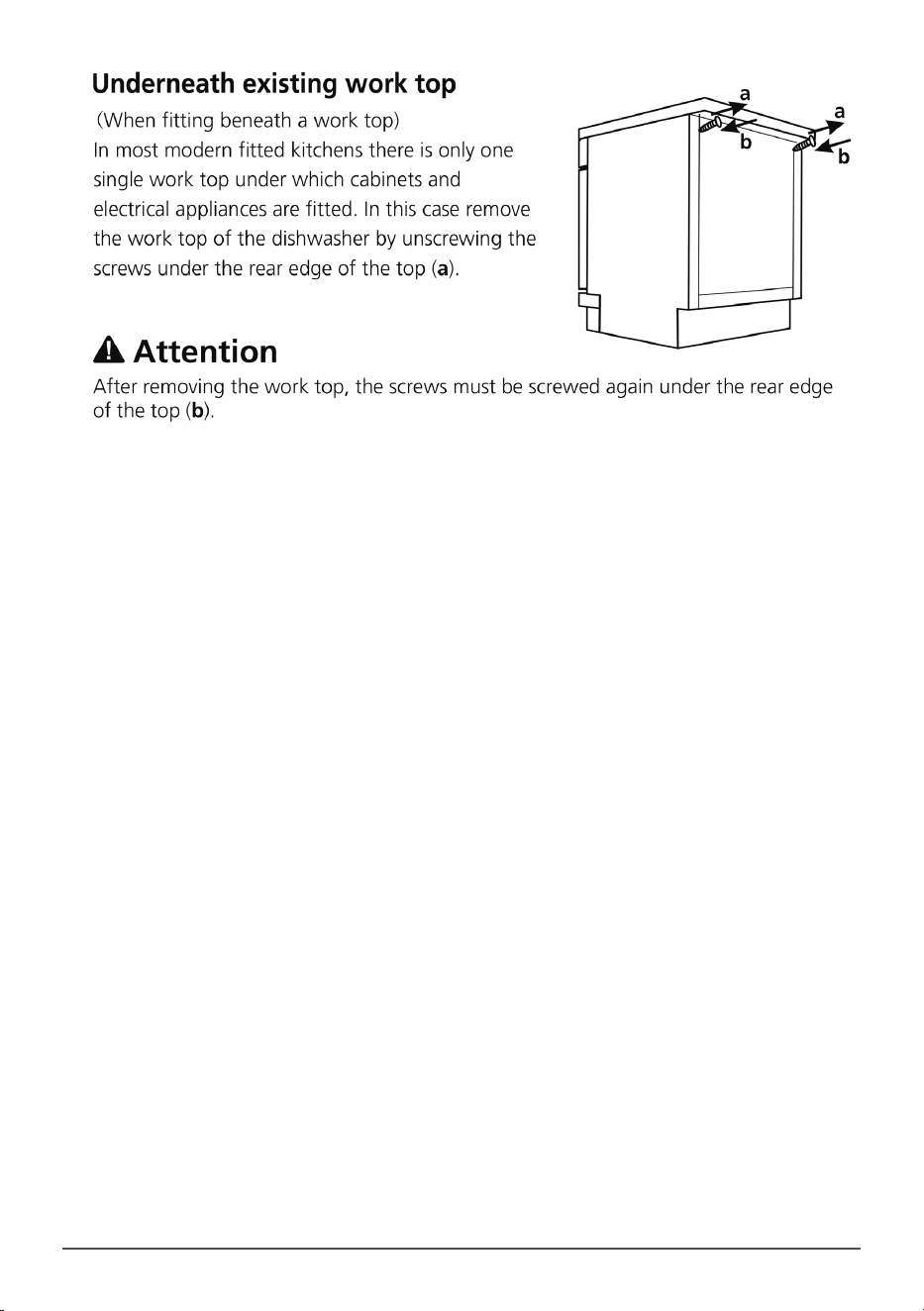

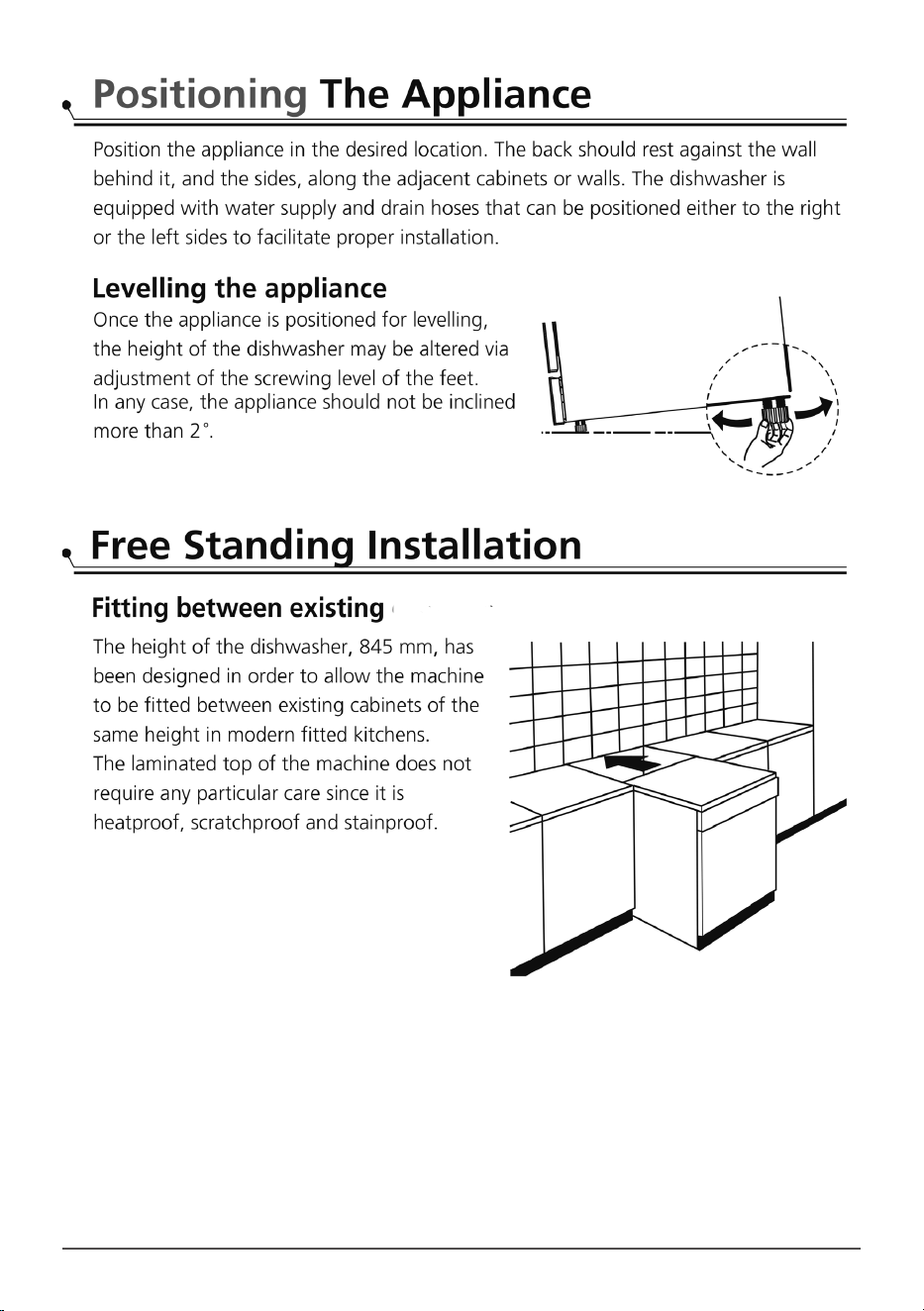

• Positioning 16

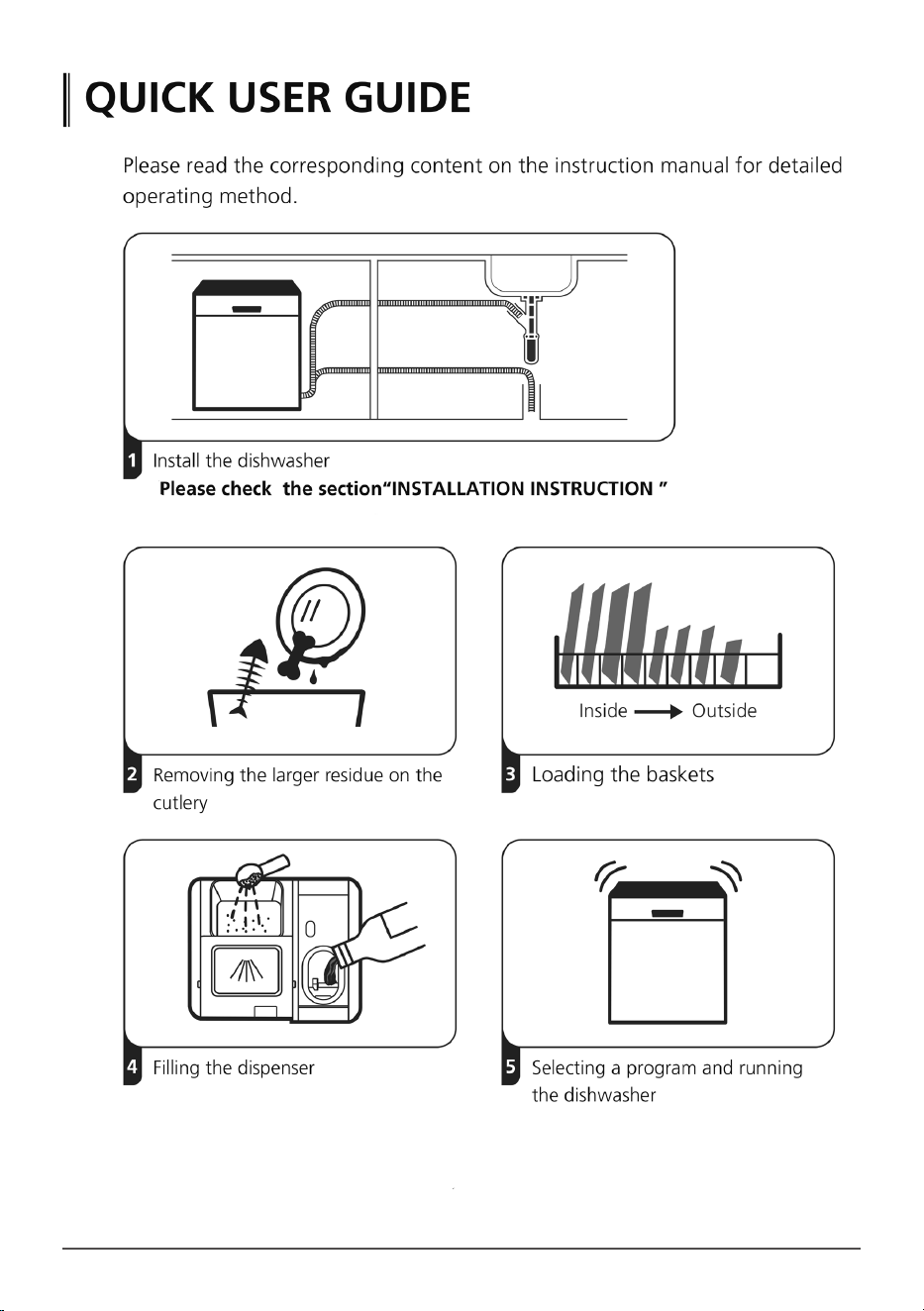

• Quick user guide 18

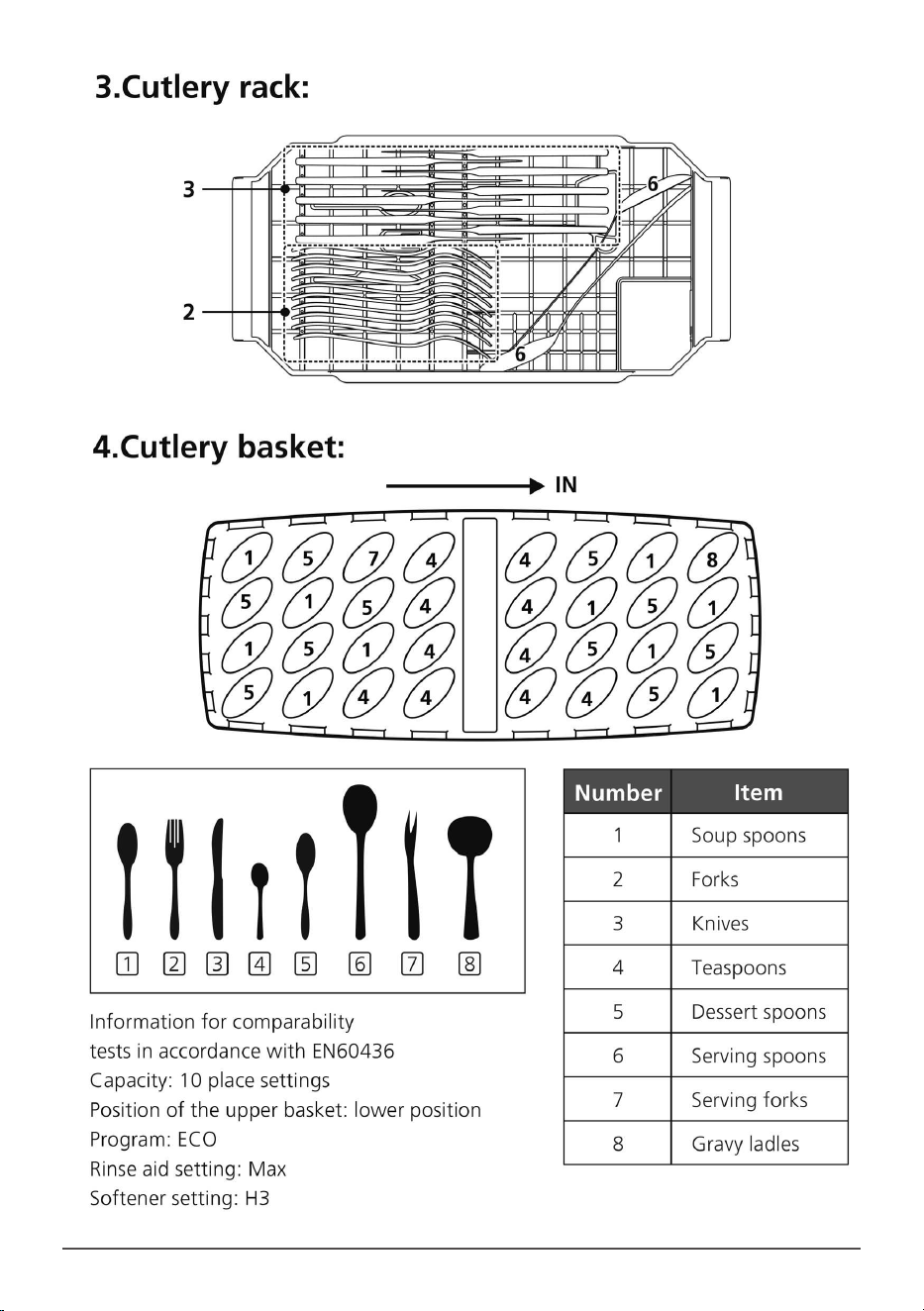

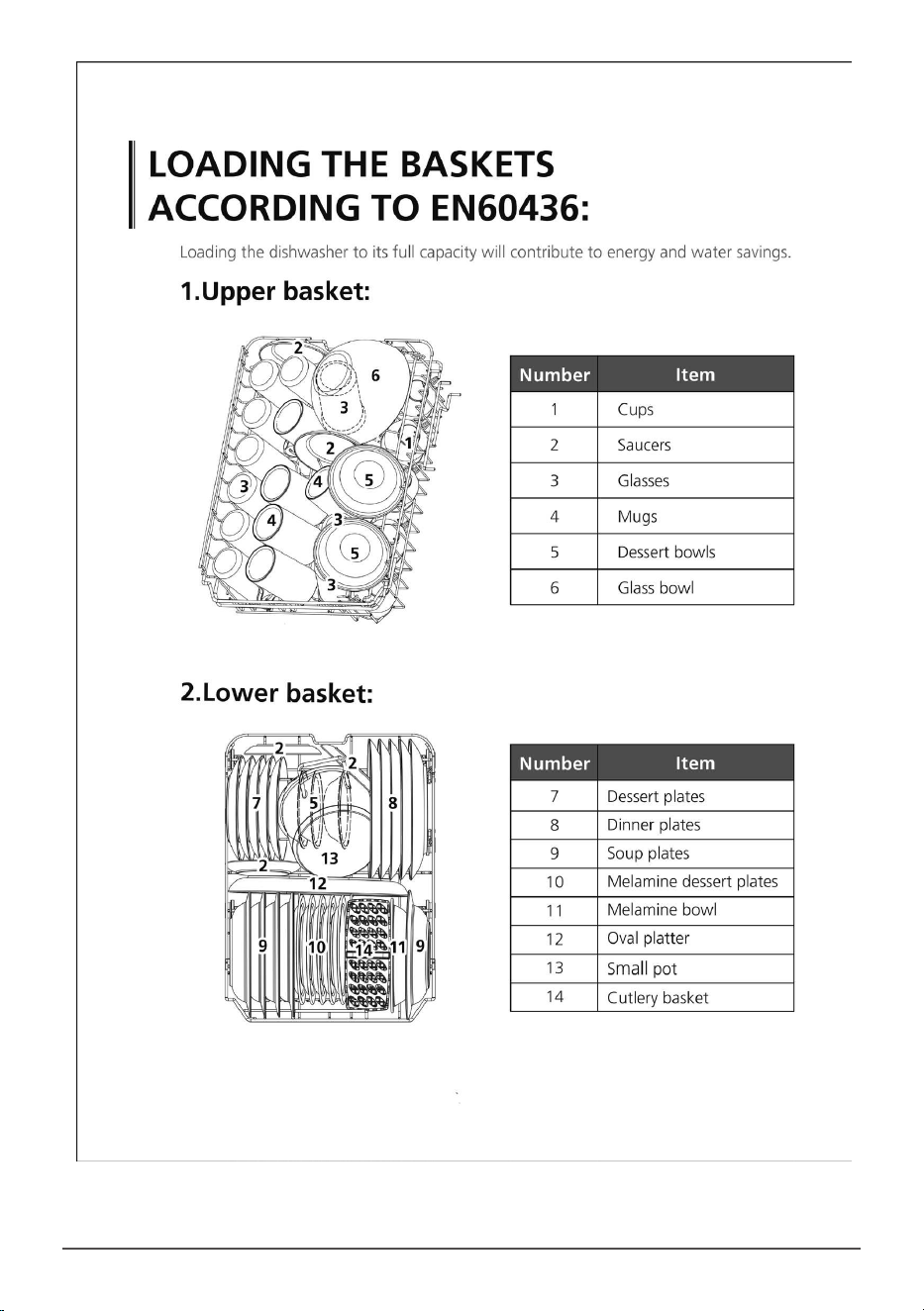

• Loading the baskets 19

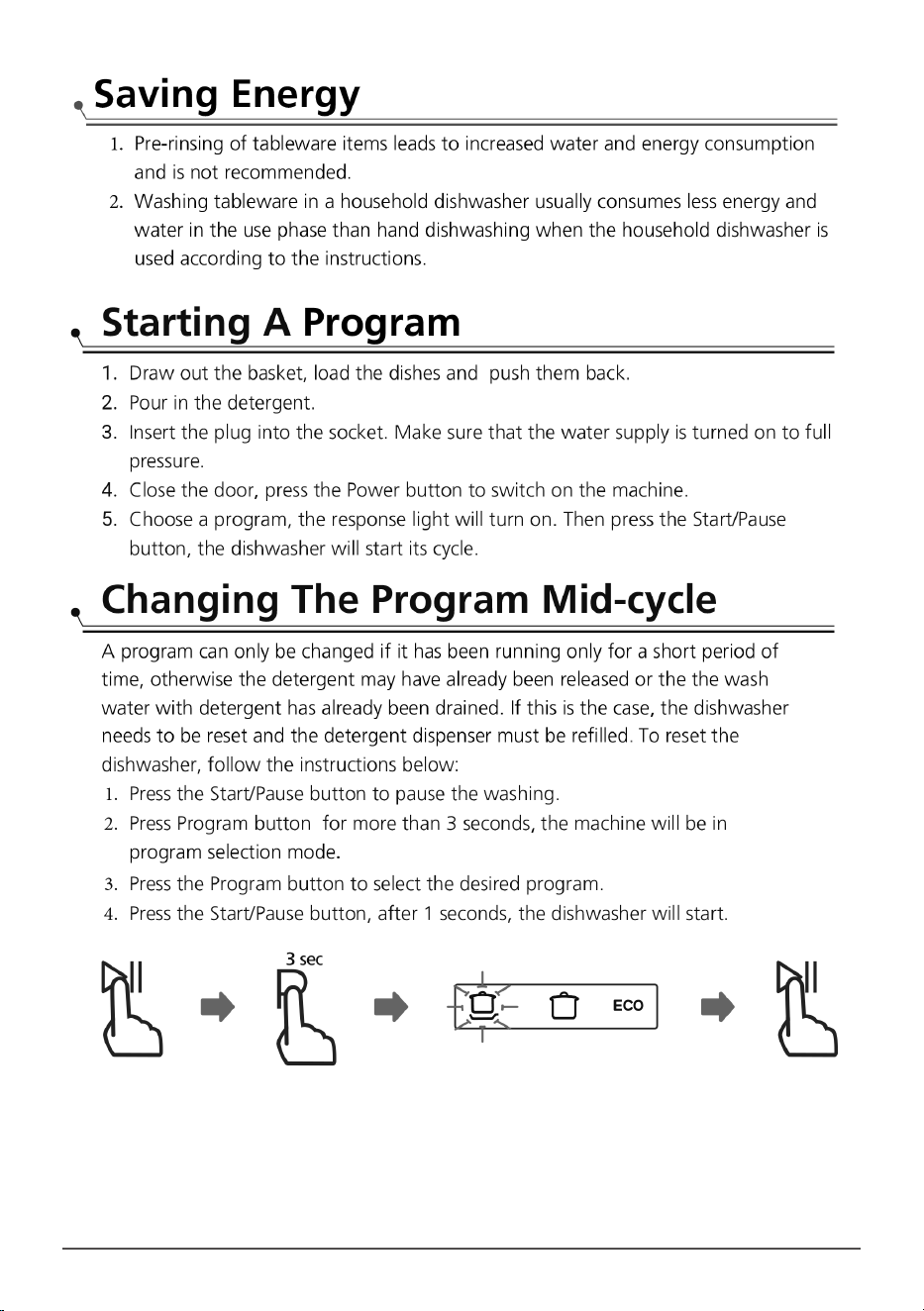

• Saving energy 21
• Starting a program 21
• Changing a programme mid cycle 21
• Forget to a dish? 22

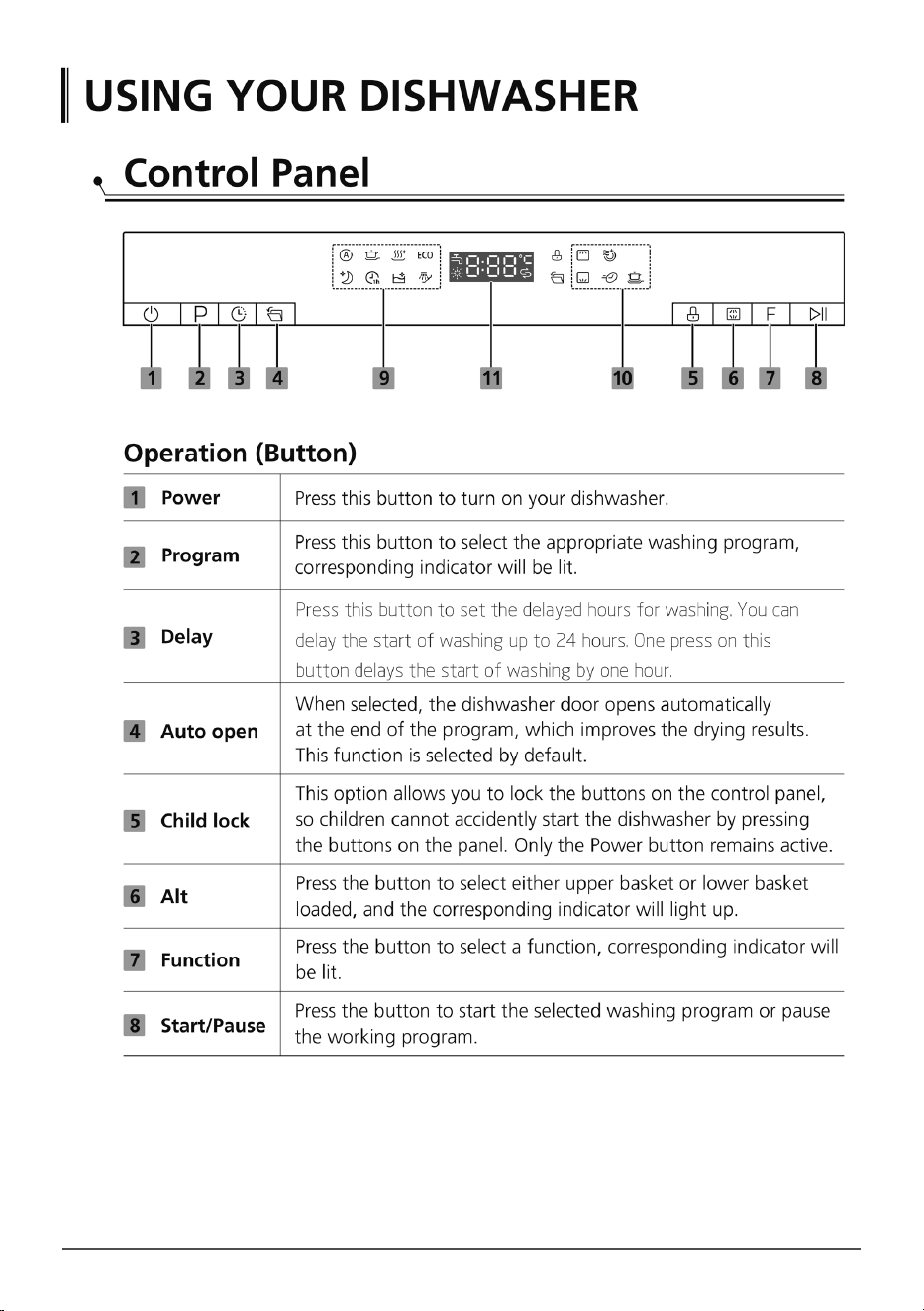

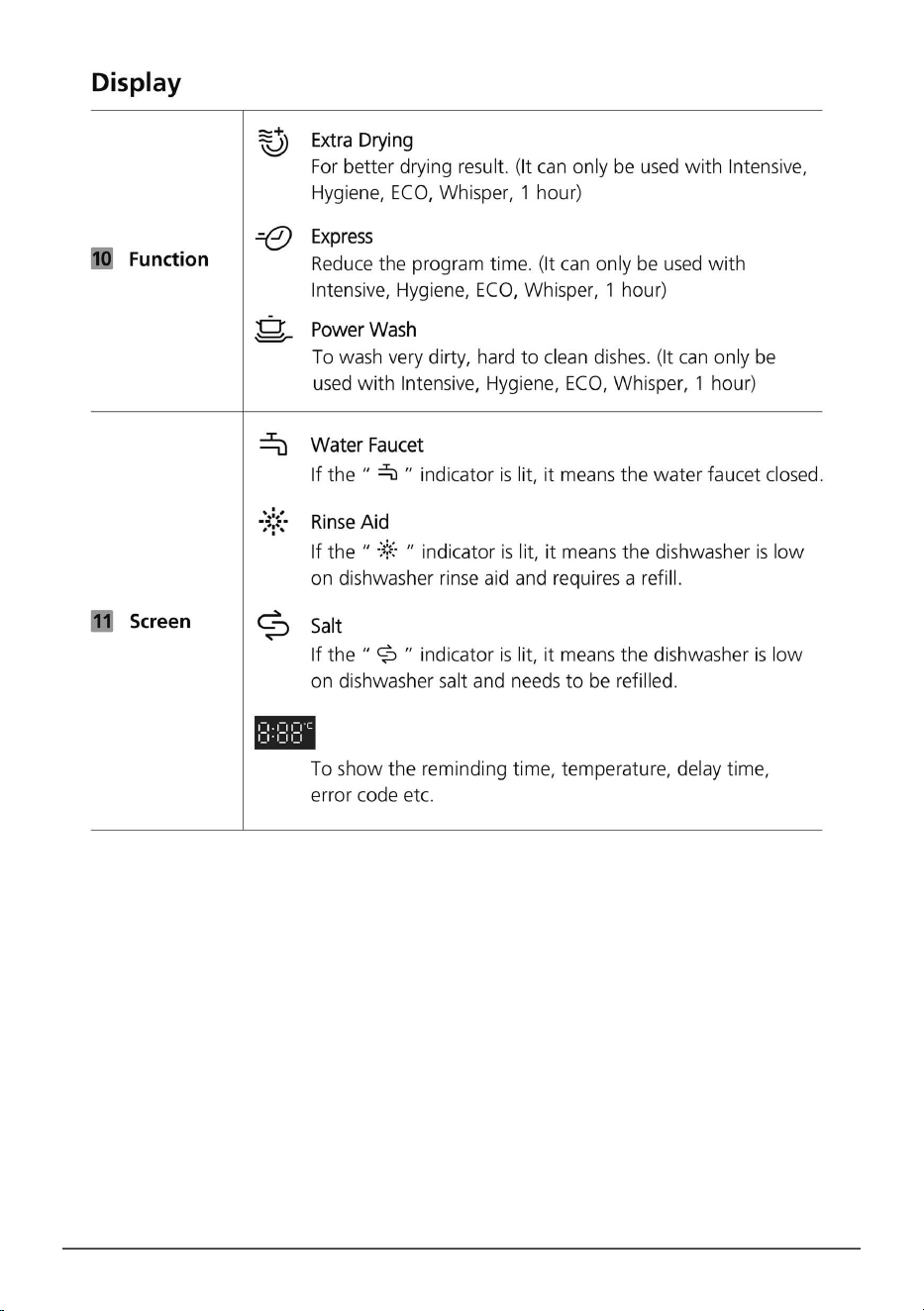

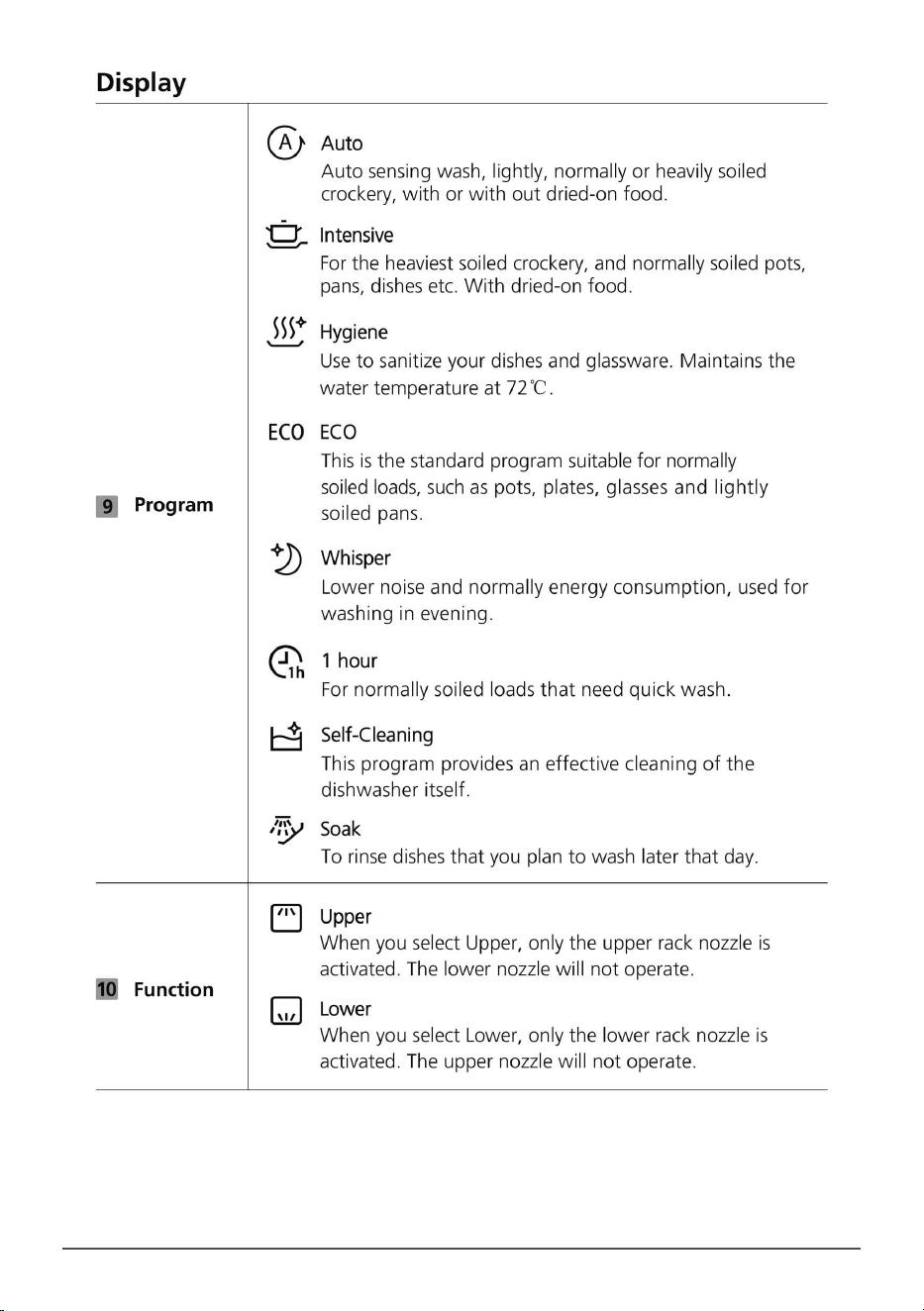

• Control panel 23

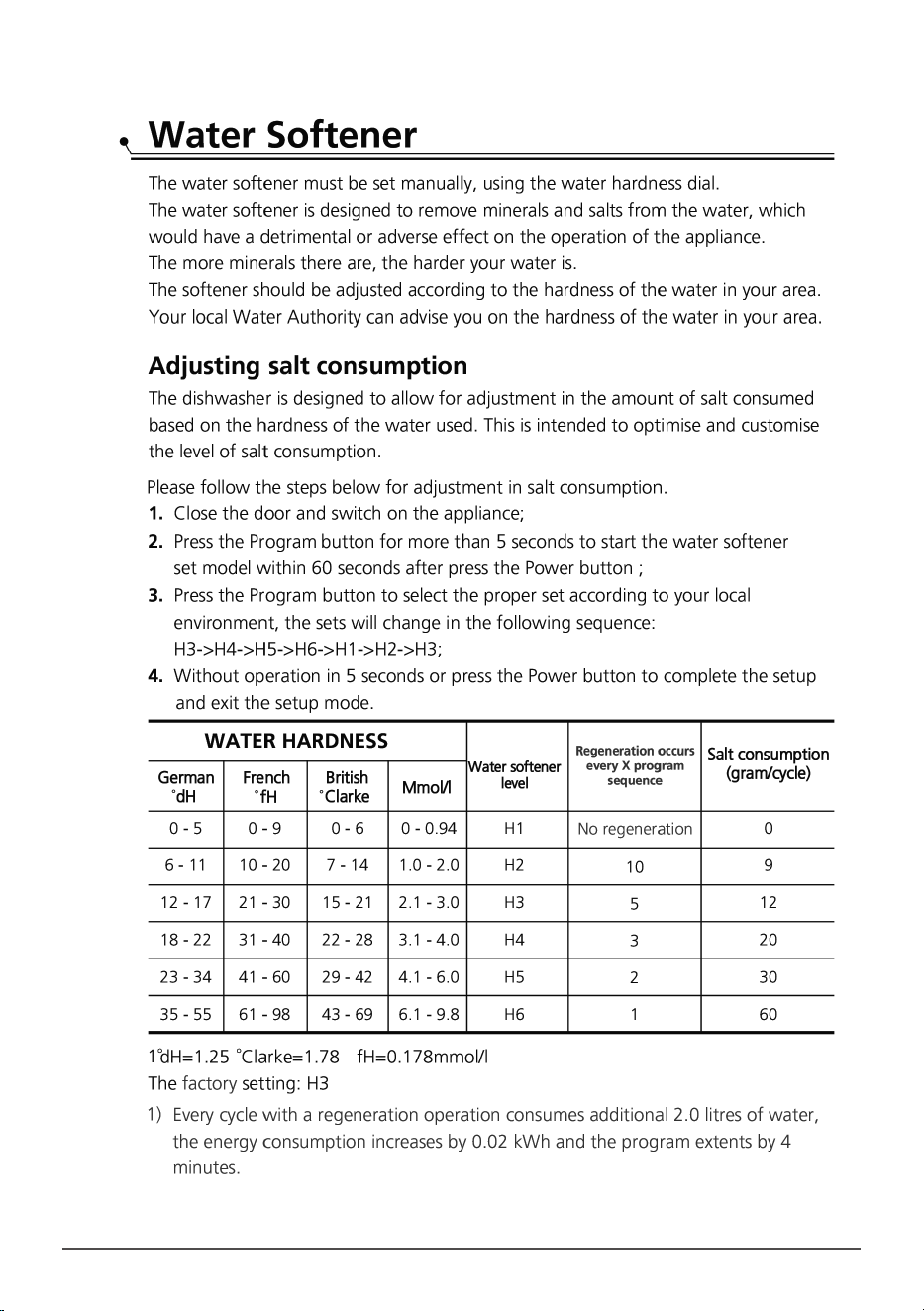

• Water softener 26

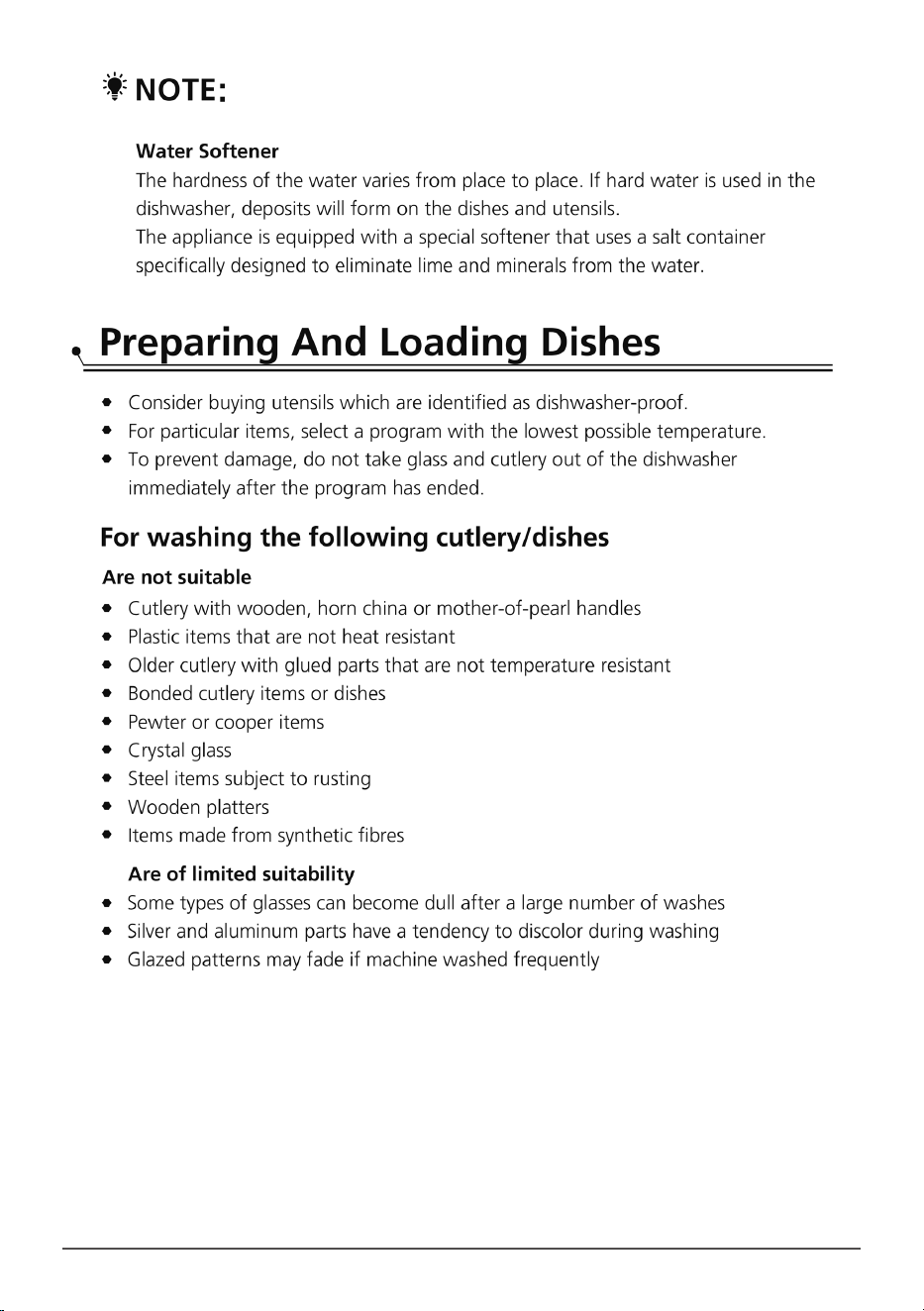

• Preparing and loading dishes 27

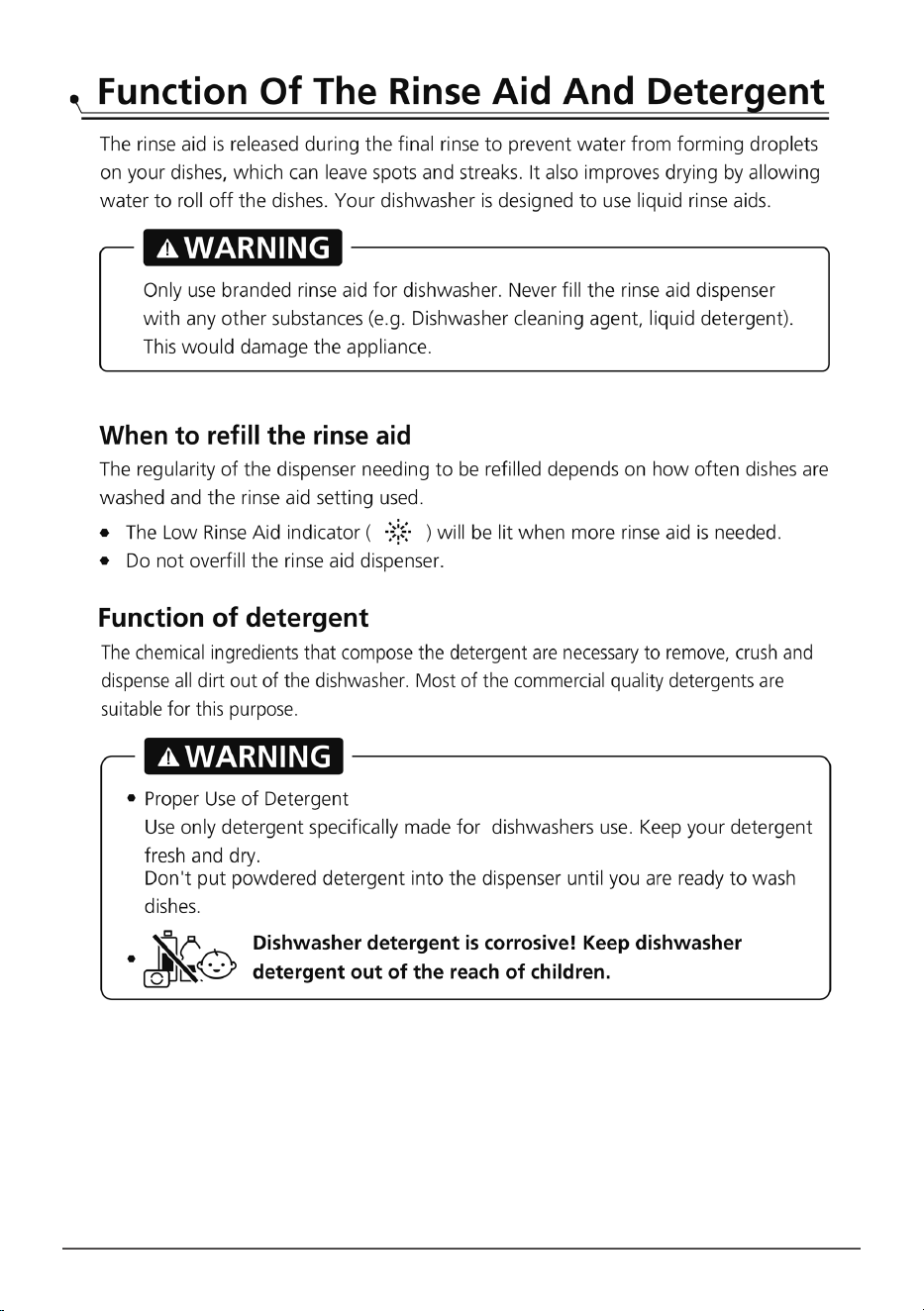

• Function of rinse aid & detergent 30

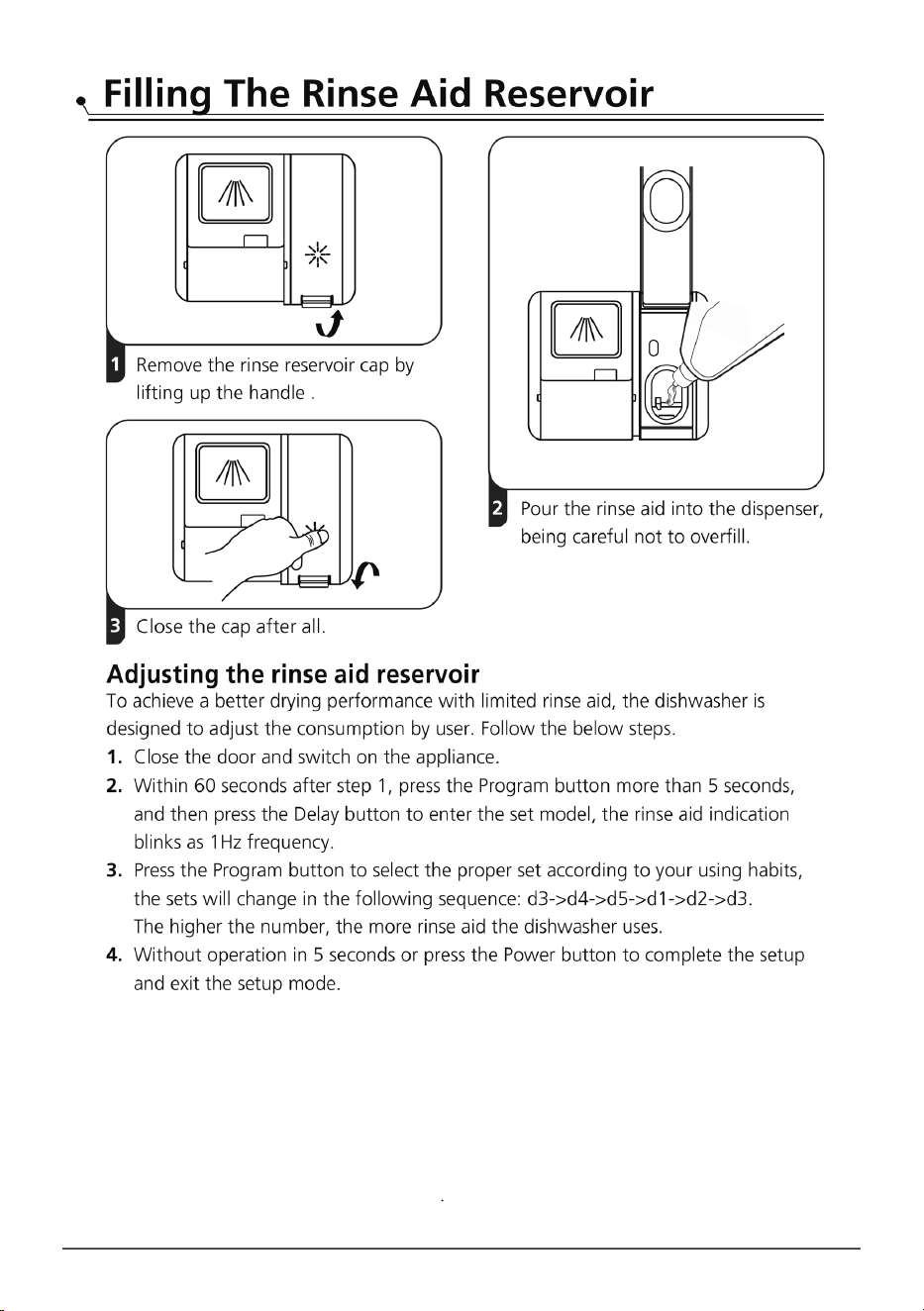

• Filling the rinse aid reservoir 31

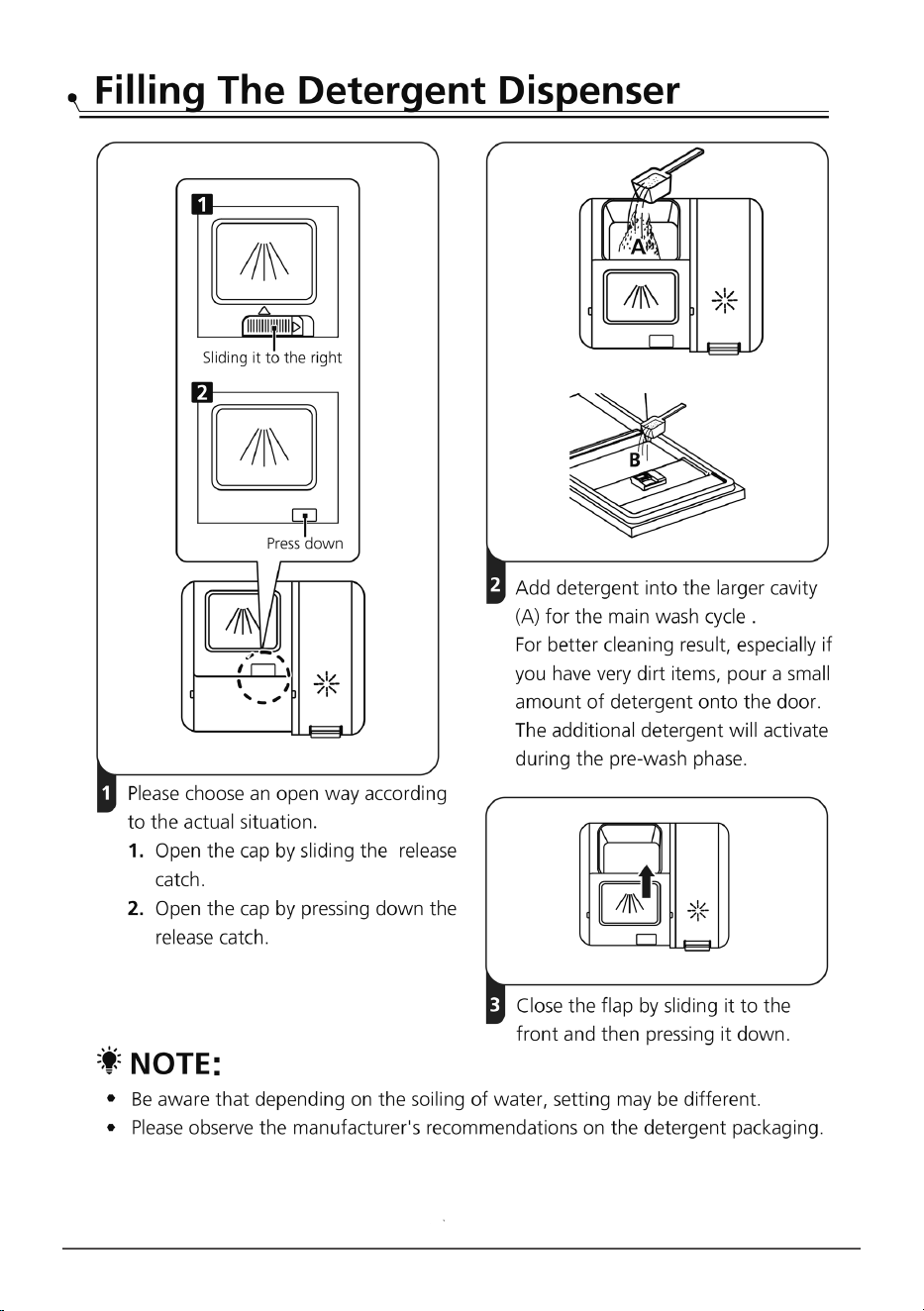

• Filling the detergent dispenser 32

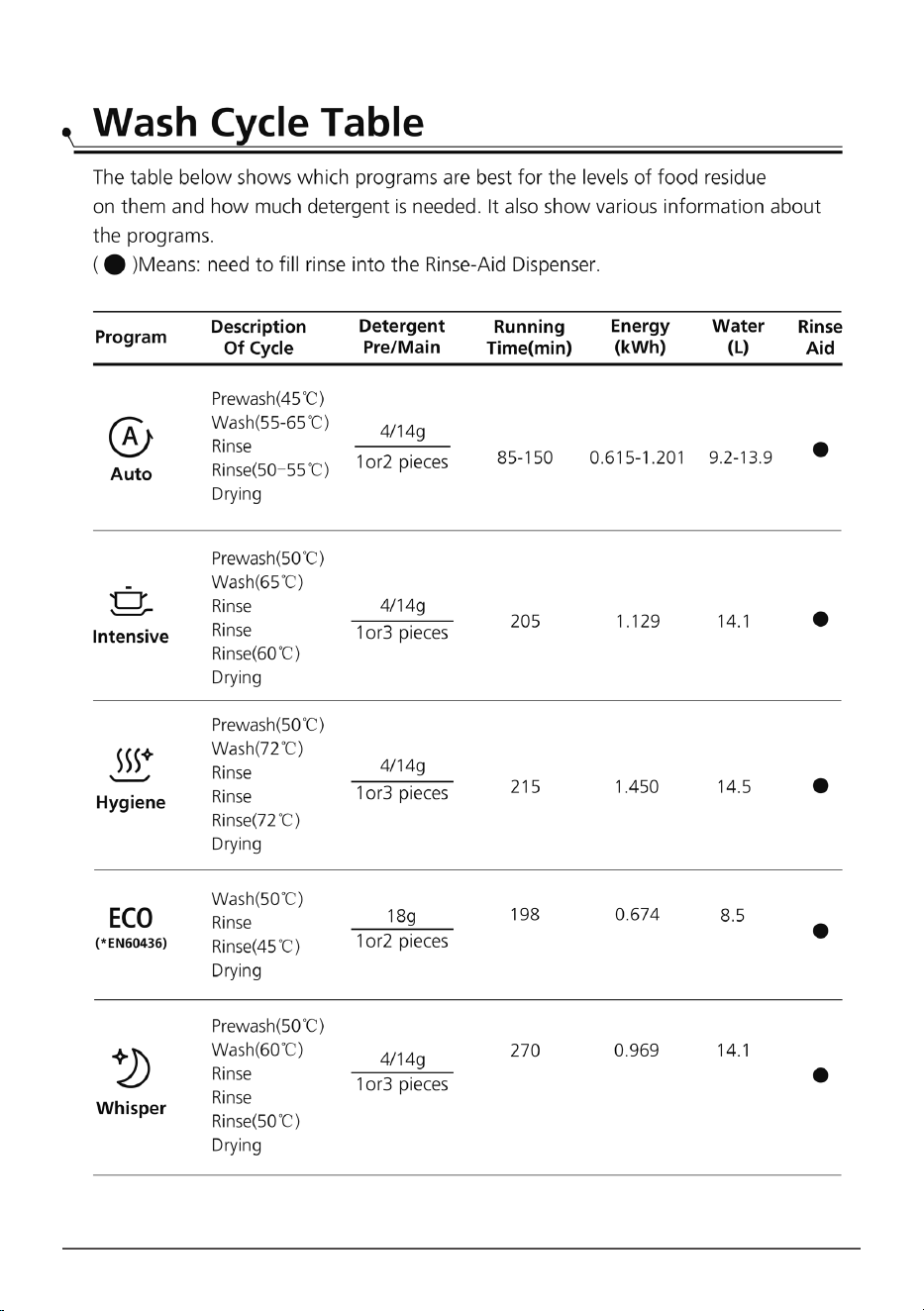

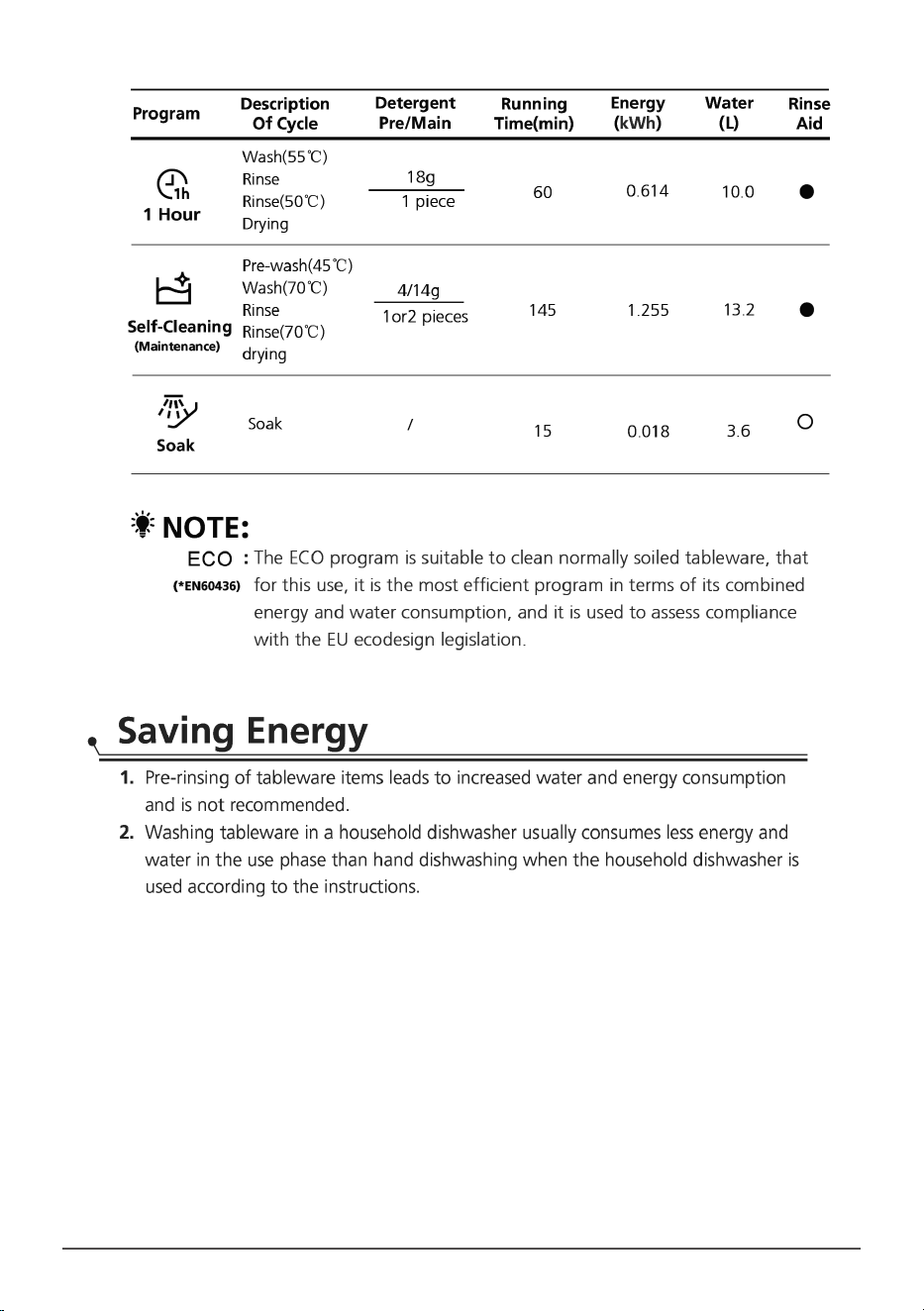

• Wash cycle table 33

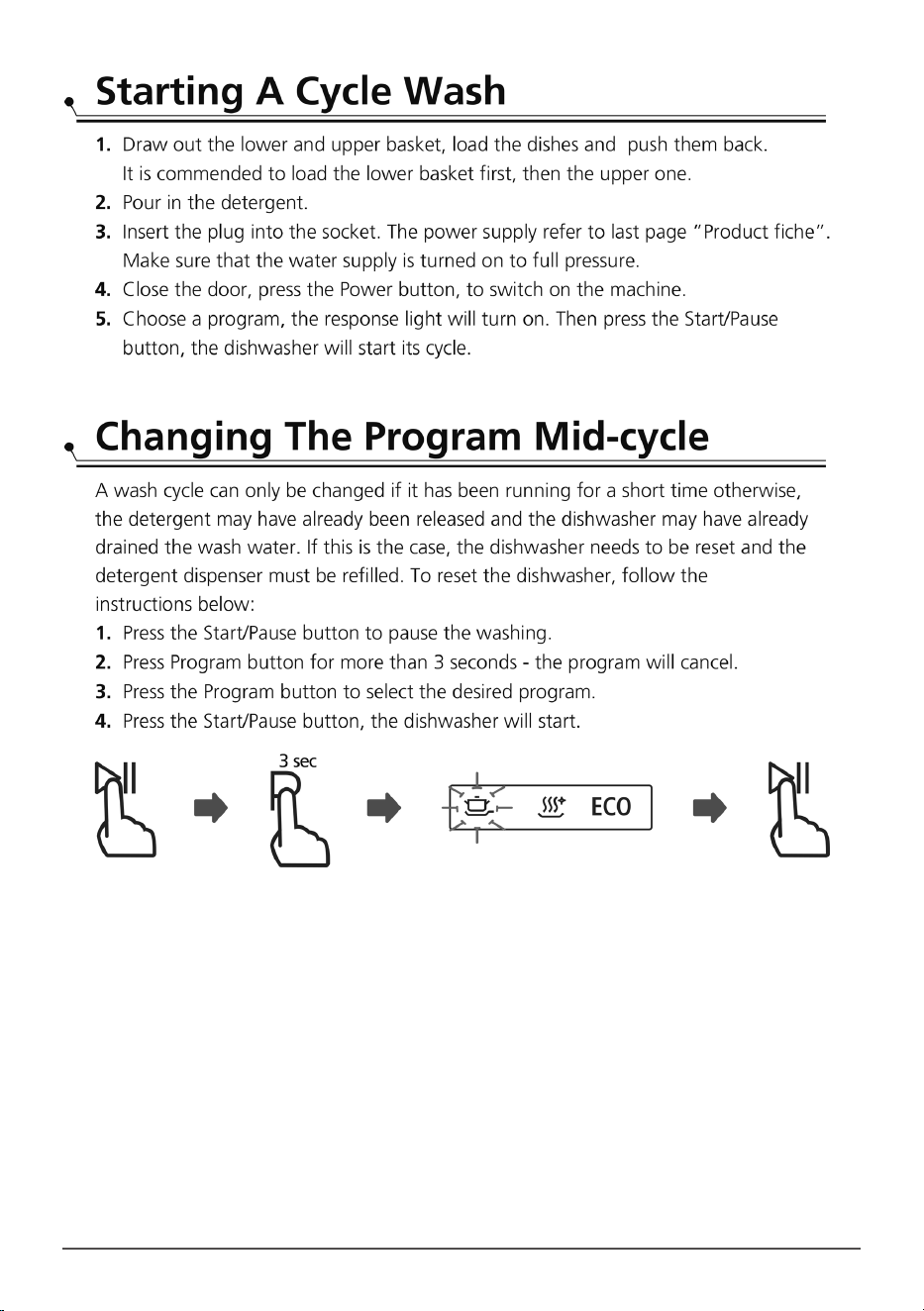

• Starting a cycle wash 35
• Changing the programme mid cycle 35

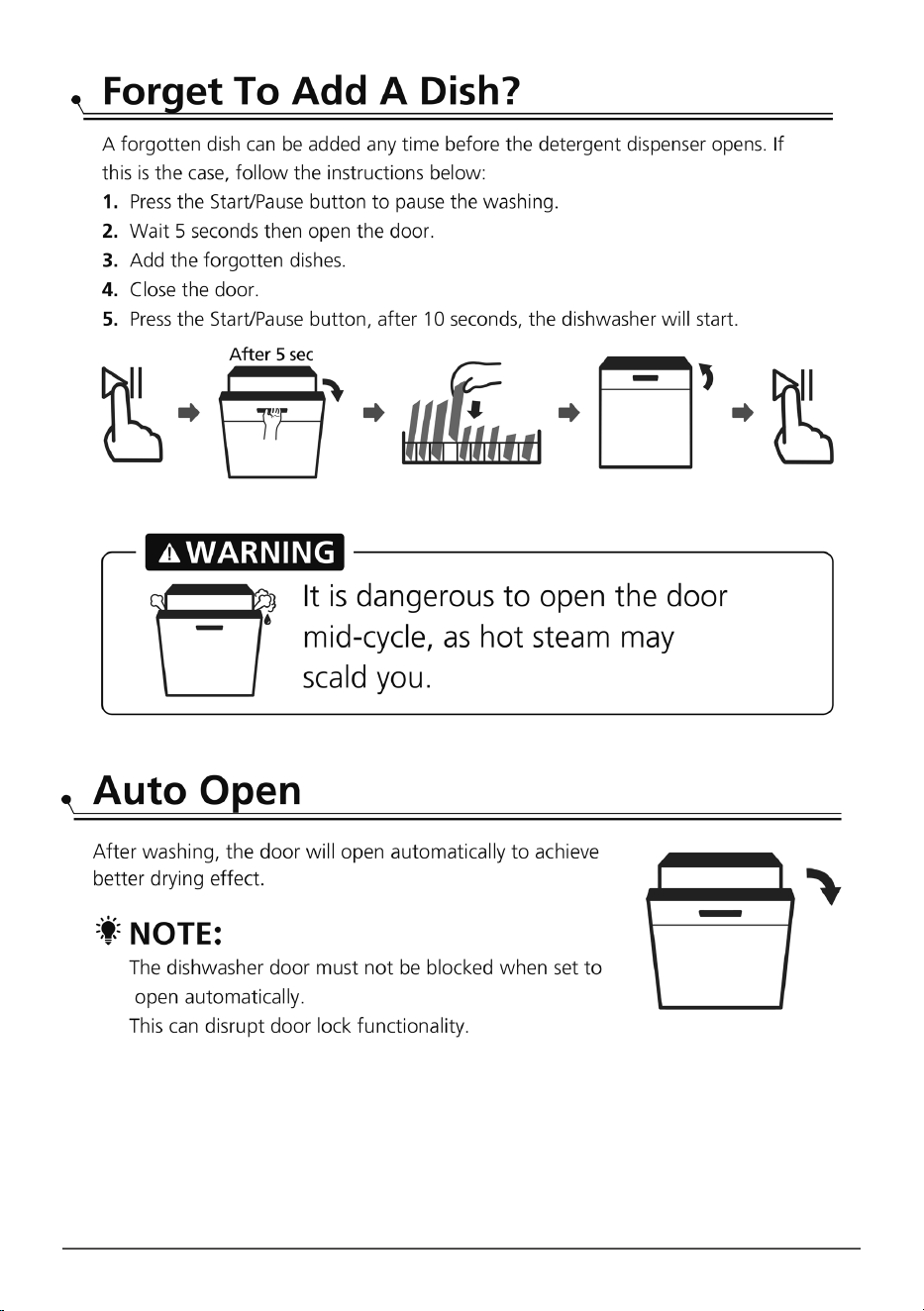

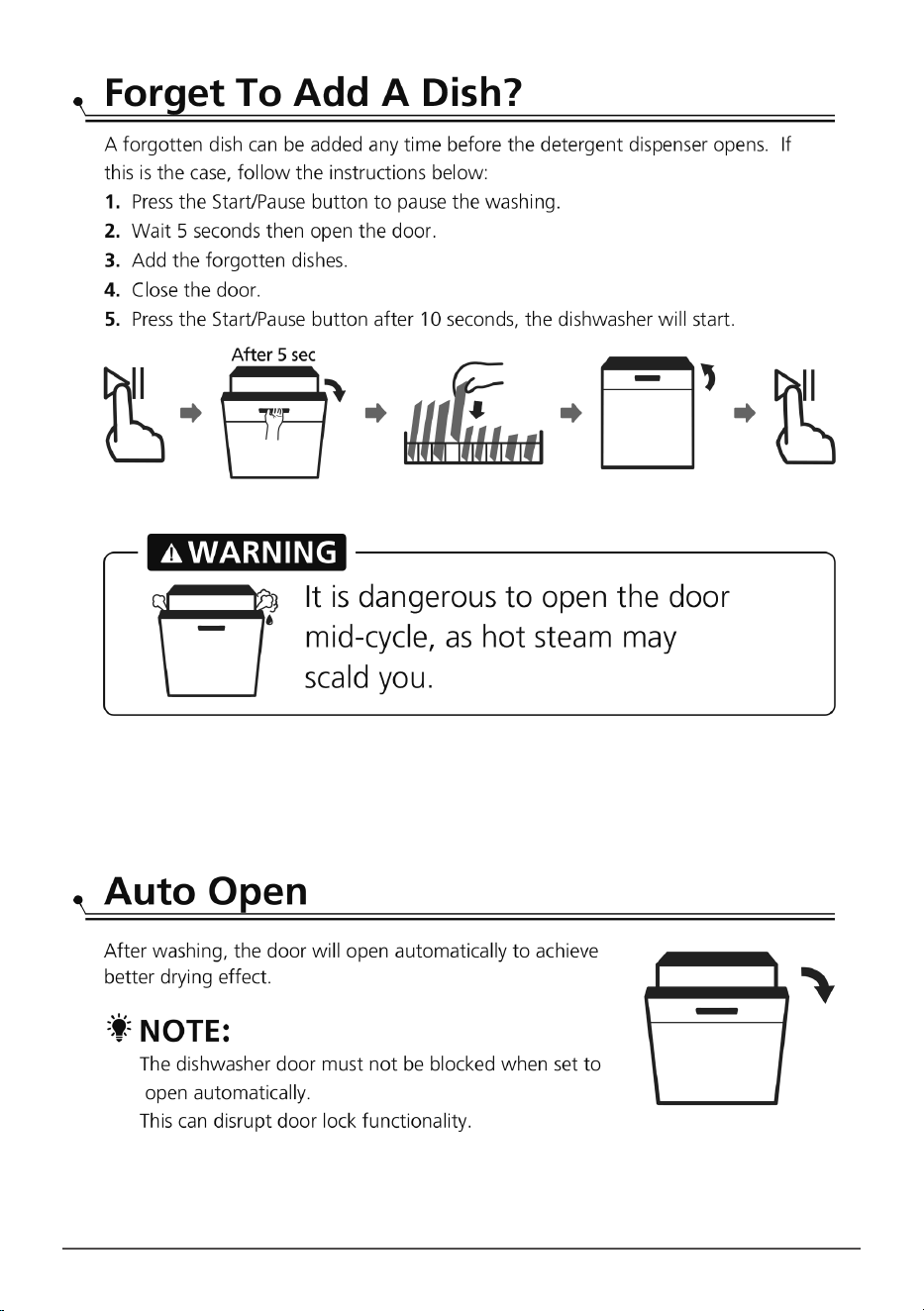

• Forget to add a dish 36

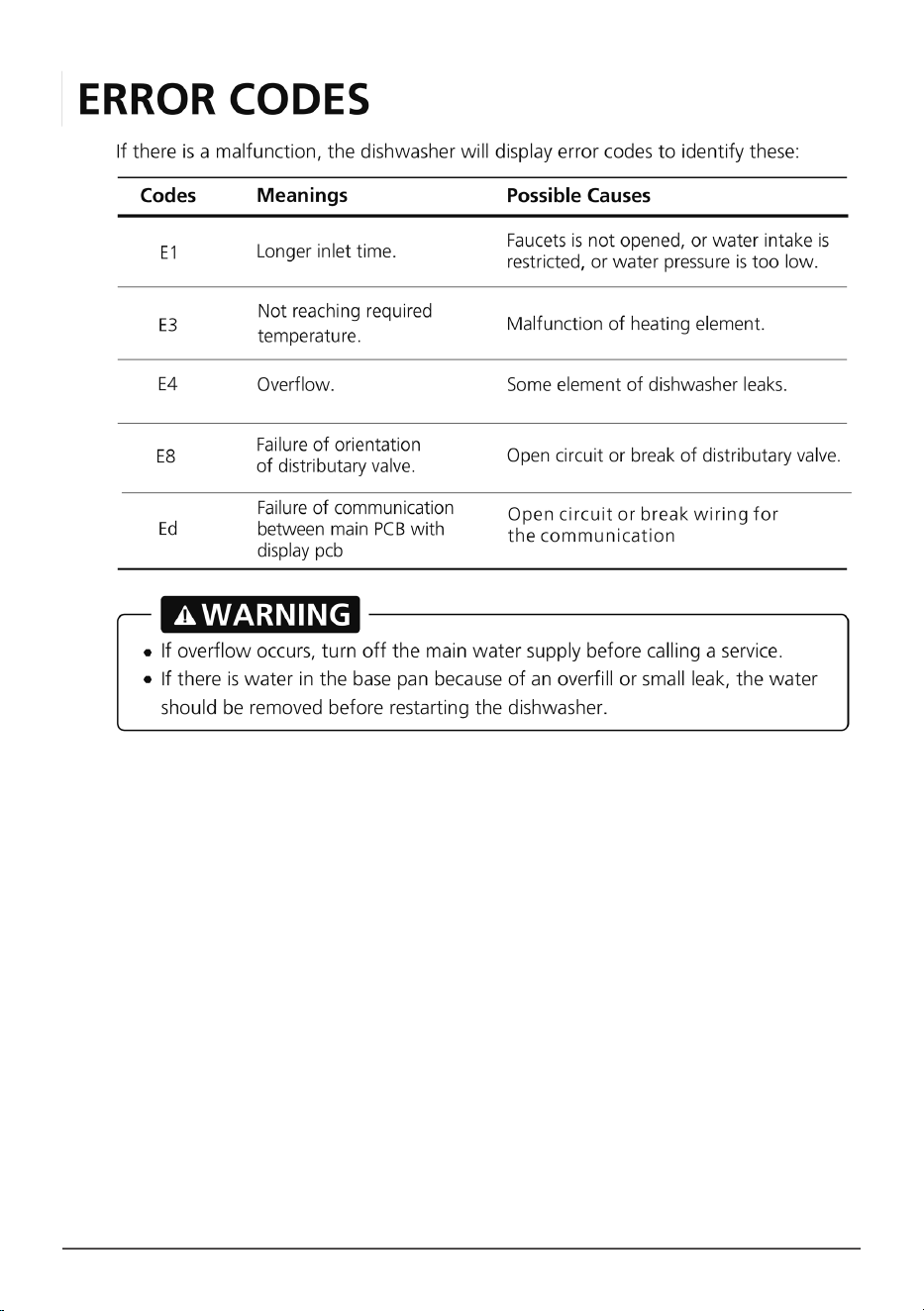

• Error codes 37

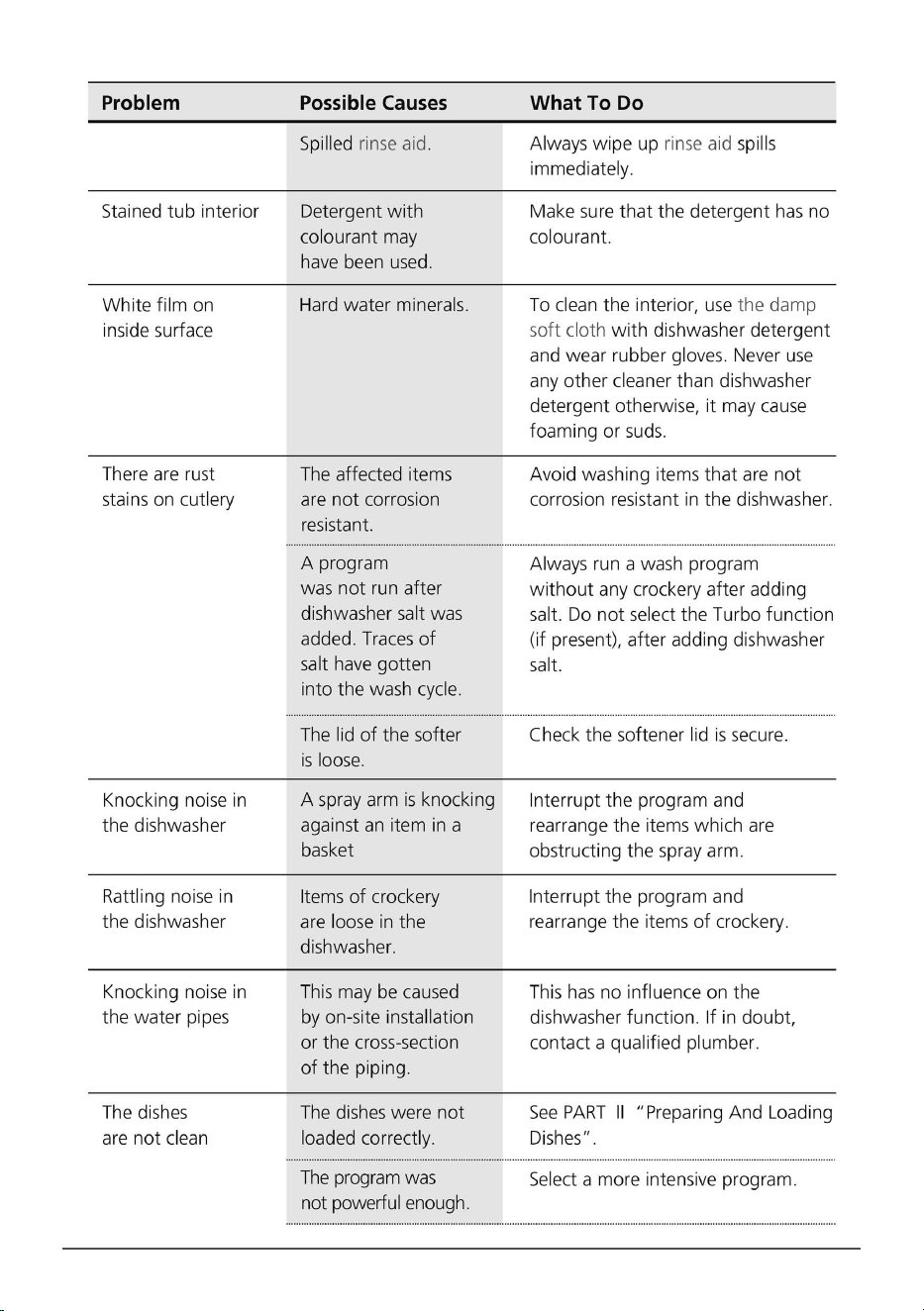

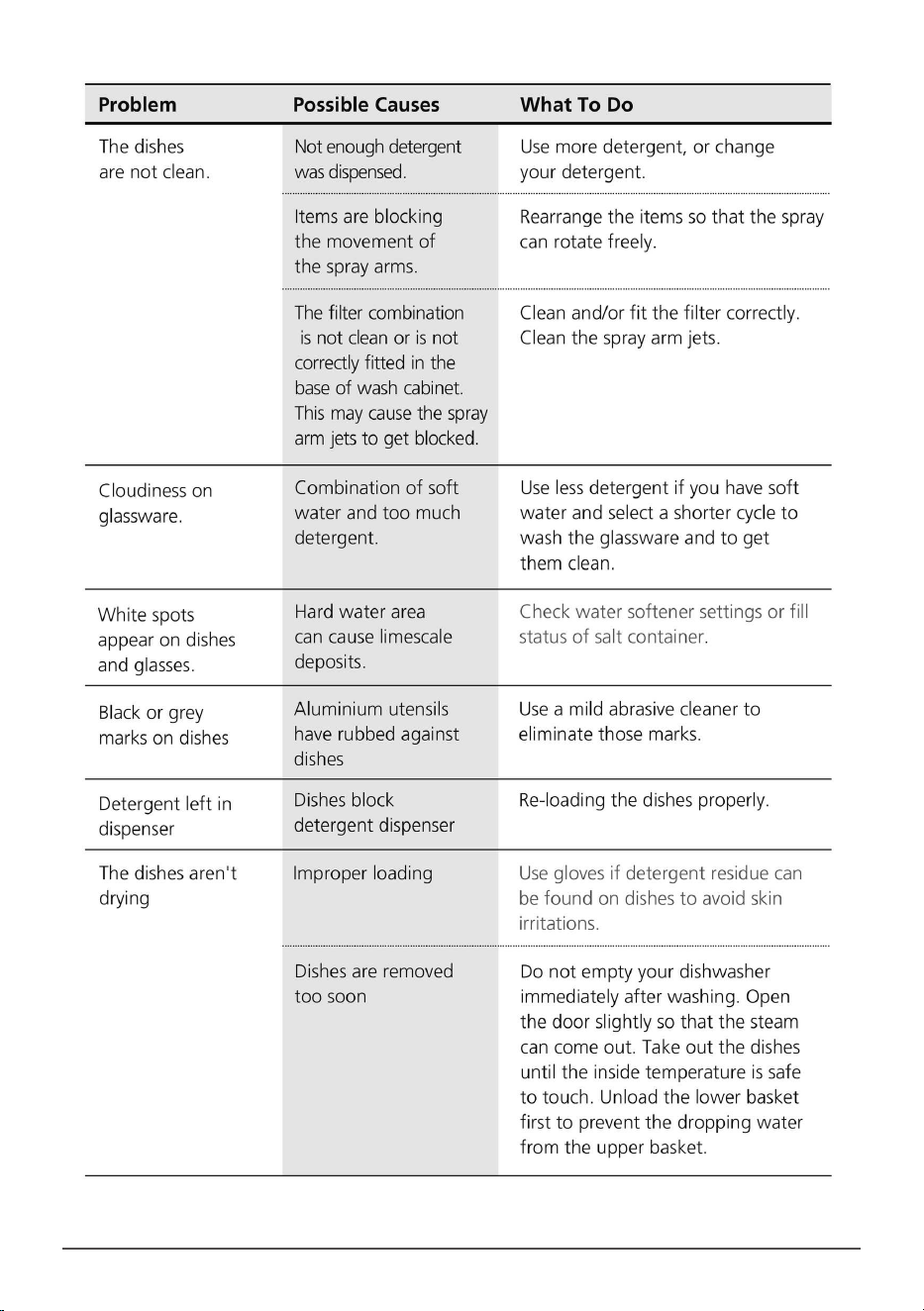

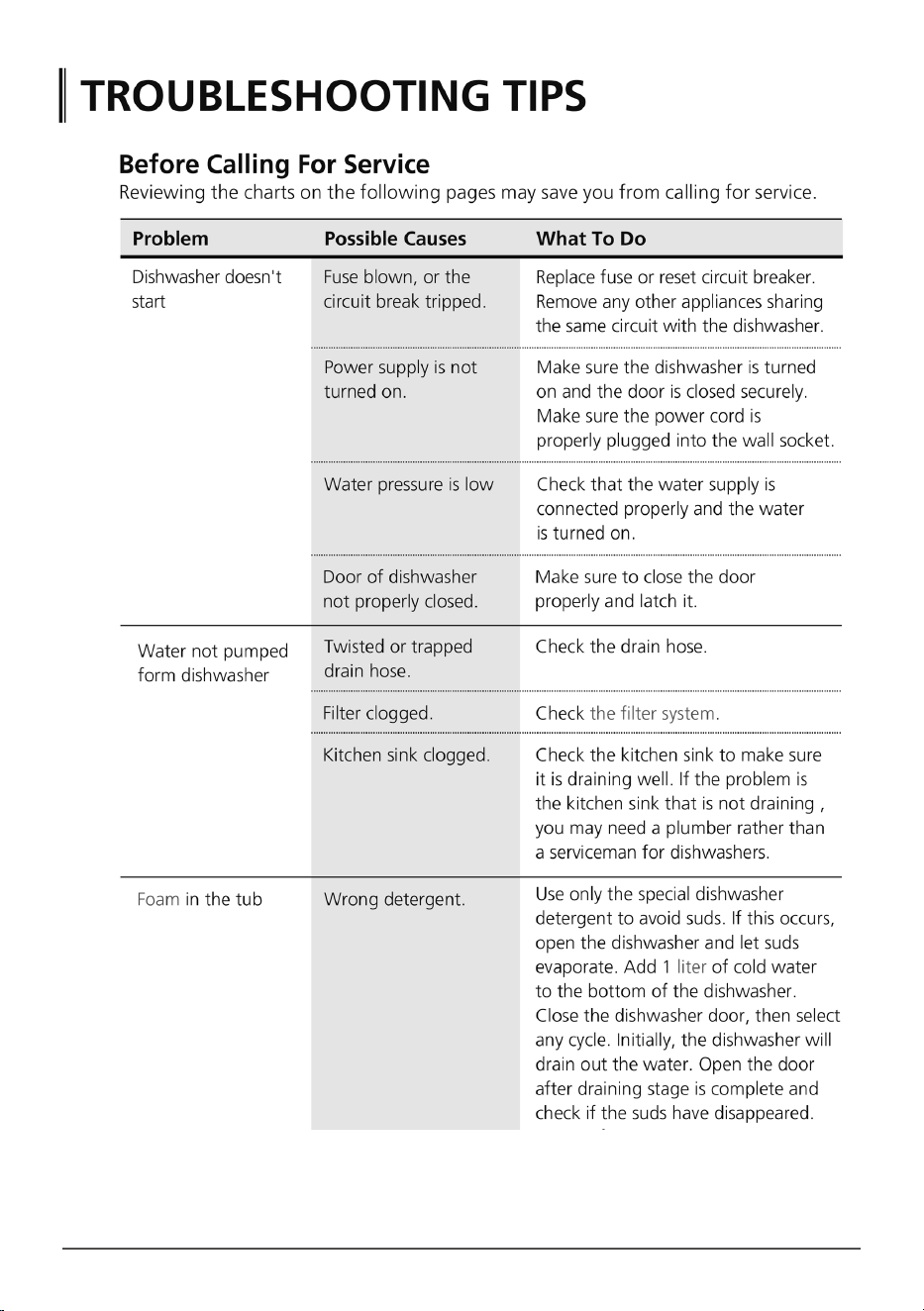

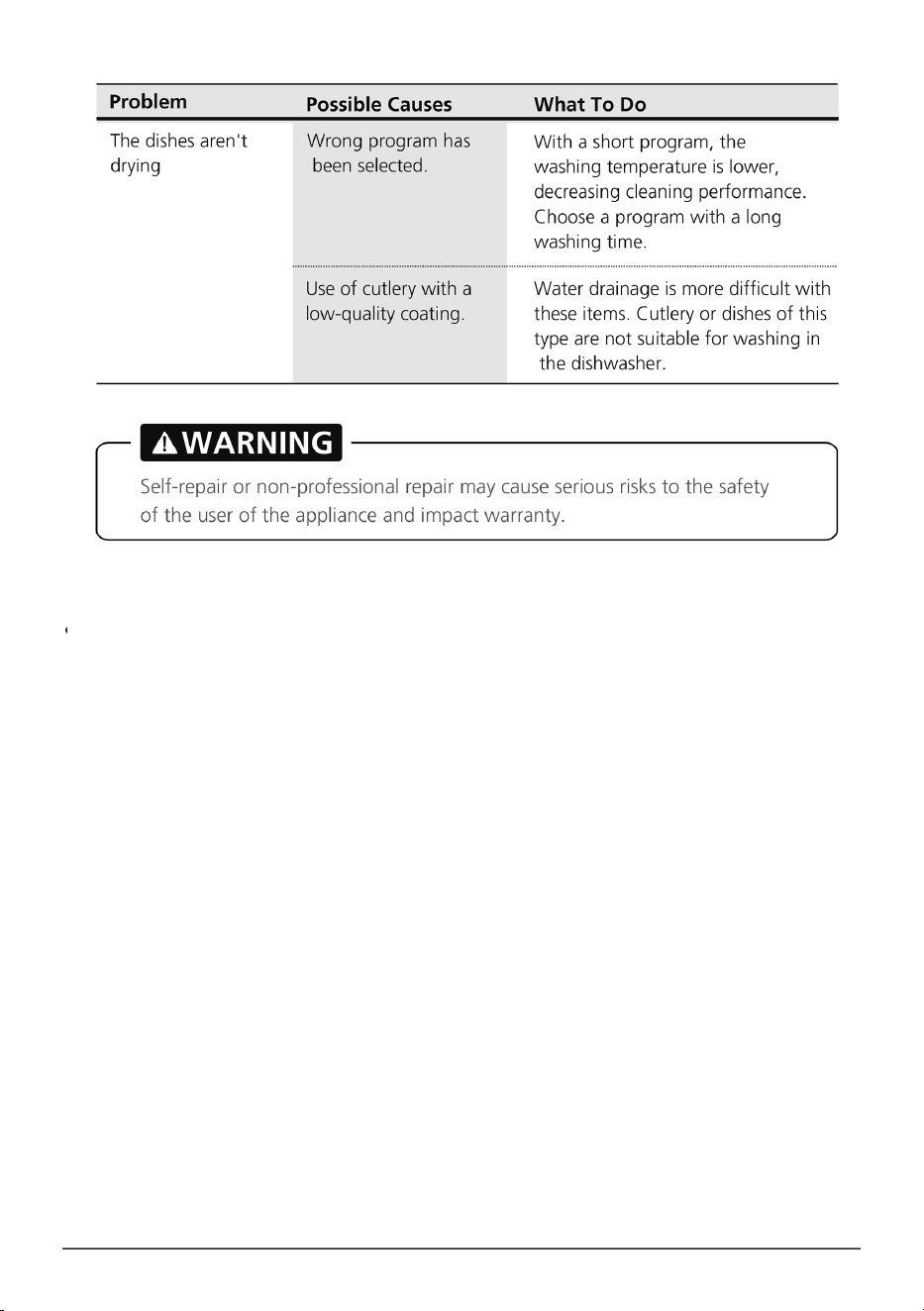

• Trouble shooting tips 38

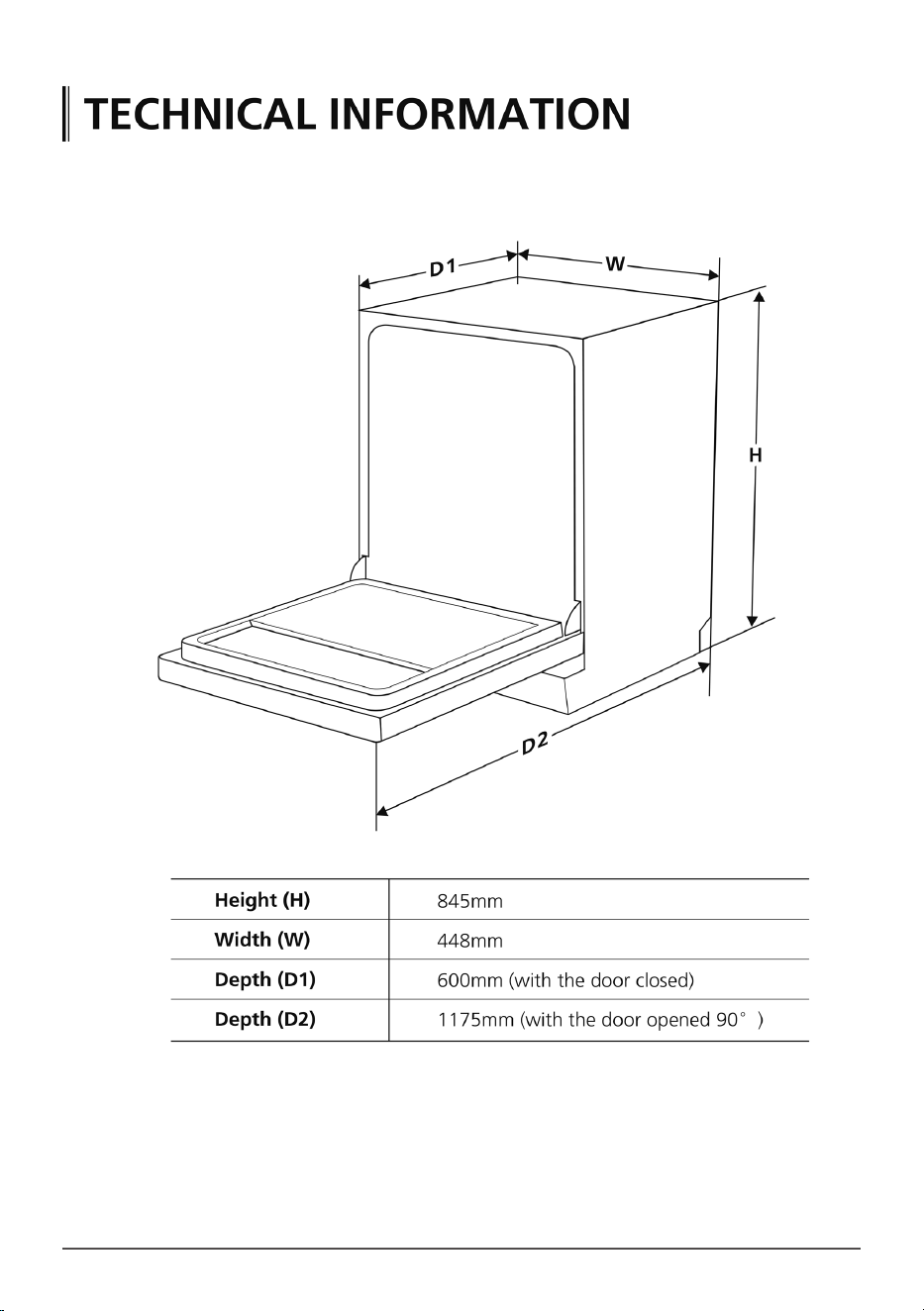

• Technical information 42
• Product information sheet 43
3
• GENERAL SAFETY
• WARNING! When using this dishwasher, follow the precautions listed below.
• Children from age 8 years and above, persons with reduced physical, sensory, or mental capabilities
those with lack of experience and knowledge can use the appliance, if they have been given
supervision or instruction concerning use of the appliance in a safe way to understand the hazards
involved.
• Children shall NOT play with the appliance.
• Cleaning and user maintenance on the appliance shall not be made by children without supervision.
• The appliance shall be disconnected from its power source during service and when replacing parts
and, if that the removal of the plug is foreseen, it shall be clearly indicated that the removal of the
plug has to be such that an operator can check from any of the points to which he has access that
the plug remains removed.
• WARNING! Knives and other utensils with sharp points must be loaded in the basket with their
points down or placed in a horizontal position. When loading the dishwasher locate sharp items so
that are unlikely to damage the door seals.
• The door should not be left in the open position since this could present a tripping hazard.
• This appliance is intended to be used in household and similar applications such as:
–staffkitchenareasinshops,ocesandotherworkingenvironments;
–farmhouses;
–byclientsinhotels,motelsandotherresidentialtypeenvironments;
– bed and breakfast type environments.
• WARNING: Ensure the supply cord is not trapped or damaged.
• WARNING: DO NOT locate multiple portable socket-outlets or portable power supplies at the rear of
the appliance.
• Packaging materials could be dangerous for children.
• DO NOT abuse, sit on or stand on the door or dish rack of the dishwasher.
• DO NOT operate this dishwasher unless the unit is fully assembled and all enclosures panels are
fully in place.
• DO NOT open the door whilst the dishwasher is switched on and operating, you are at risk of
scalding from hot water and steam.
• Some dishwasher detergents have strong alkalinity, they are extremely dangerous if ingested, avoid
contact with skin and eyes and keep children away from the dishwasher when the door is open.
• Always check there is no detergent residue left after the completion of a wash cycle.
• DO NOT wash plastic items unless they are marked dishwasher safe.
• Use only detergents and rinse agents that are recommended for use with automatic dishwashers .
• Never use soap, laundry detergent, or hand washing detergents in this dishwasher.
• DO NOT tamper with the appliance or controls.
Important Information
Please read these instructions carefully and note any safe operational requirements, warnings &
cautions. Use the product correctly and with care for the purpose for which it is intended. Failure
to do so may cause damage and/or personal injury and will invalidate the warranty. Keep these
instructions safe for future use.
Refer to
instructions
Indoor use
only
4
• If the appliance is moved it is recommended it is installed with new hose sets and NOT reused ones
• In Stand by mode the appliance will switch off automatically after 15 minutes without any user
interaction
• The maximum number of place settings to be washed is 10.
• The new hose-sets supplied with the appliance are to be used and old hose-sets should not be
reused.
• ELECTRICAL SAFETY
• WARNING! It is the user’s responsibility to check the following:
• Check all electrical equipment and appliances to ensure that they are safe before using. Inspect
power supply leads, plugs and all electrical connections for wear and damage. Sealey recommend
that an RCD (Residual Current Device) is used with all electrical products.
• Electrical safety information. It is important that the following information is read and understood:
• Ensure that the insulation on all cables and on the appliance is safe before connecting it to the
power supply.
• Regularly inspect power supply cables and plugs for wear or damage and check all connections to
ensure that they are secure.
• Important: Ensure that the voltage rating on the appliance suits the power supply to be used and
thattheplugisttedwiththecorrectfuse.
• DO NOT pull or carry the appliance by the power cable.
• DO NOT pull the plug from the socket by the cable.
• DO NOT usewornordamagedcables,plugsorconnectors.Ensurethatanyfaultyitemisrepairedor
isreplacedimmediatelybyaqualiedelectrician.
• If the cable or plug is damaged during use, switch off the electricity supply. It must then be replaced
bythemanufacturer,itsserviceagentorasimilarlyqualiedpersoninordertoavoidahazard.
• Ensure that repairs are carried out by a qualied electrician.
• SPECIFICATION
Model no: DH267 DH166
Colour: Black Silver
EnergyEciencyClass: D
Energy Rating: D
Nett Weight: 35.5kg
Operating Sound Level: 49dB
Place Settings: 10
Product Depth (Front to Back): 60cm
Product Dimensions (W x D x H): External: 448 x 600 x 845mm
Internal: 370 x 470 x 610mm
Product Height (Floor to Top): 84.5cm
Product Width (Side to Side): 44.5cm
Supply: 230V
Type: Freestanding
5
6
7
8
650g
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
Product Information Sheet. Dishwashers
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd.
DELEGATED_ACT EU/2019/2017
MODEL_IDENTIFIER DH267
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS [email protected]
Parameter
Verification tolerances
845
Rated capacity 10.0 448
600
EEI 49.9 D
Cleaning performance index 1.125 1.065
0.674 8.5
Programme duration (h:min) 3.18 Freestanding
Off-mode (W) NA 0.49
Delay start (W) (if applicable) NA NA
Minimum duration of guarantee (years) 1
Suppliers website https://www.dellonda.co.uk/
Slimline Freestanding Dishwasher, 45cm Wide with 10 Place Settings, 8 Programs & 5
Functions, LED Display, Black
Energy consumption in kWh [per cycle],
based on eco programme using cold water
fill.
Water consumption in litres [per cycle],
based on the eco programme
C
Standby mode (W)
Height
Width
Depth
Energy efficiency class
Drying performance index
Standby (W) (if applicable)
Design type
Airborne acoustical noise emissions (dB(a)
re 1 pW
Airborne acoustical noise emission class
49
Product Information Sheet. Dishwashers
SUPPLIER_NAME_OR_TRADEMARK Dellonda EU Ltd.
DELEGATED_ACT EU/2019/2017
MODEL_IDENTIFIER DH166
ADDRESS
Farney Street, Carrickmacross, Co. Monaghan, A81 PK68 Ireland
PHONE_NUMBER 01284 757 500
EMAIL_ADDRESS [email protected]
Parameter
Verification tolerances
85
Rated capacity 10.0 45
60
EEI 49.9 D
Cleaning performance index 1.125 1.065
0.674 8.5
Programme duration (h:min) 3.18 Freestanding
Off-mode (W) NA 0.49
Delay start (W) (if applicable) NA NA
Minimum duration of guarantee (years) 1
Suppliers website https://www.dellonda.co.uk/
45cm Slimline Freestanding Dishwasher, 10 Place Settings
Energy consumption in kWh [per cycle],
based on eco programme using cold water
fill.
Water consumption in litres [per cycle],
based on the eco programme
C
Standby mode (W)
Height
Width
Depth
Energy efficiency class
Drying performance index
Standby (W) (if applicable)
Design type
Airborne acoustical noise emissions (dB(a)
re 1 pW
Airborne acoustical noise emission class
49
44
Dellonda Limited, Sole UK Distributor of Baridi
Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757575 [email protected] www.dellonda.co.uk
Environment Protection, Waste Electrical and Waste
Electronic Equipment Regulations (WEEE)
Recycle unwanted packaging materials. When this product is no longer required, or has
reached the end of its useful life, please dispose of in an environmentally friendly way.
Drainanyuids(ifapplicable)intoapprovedcontainers,inaccordancewithlocalwaste
regulations. It is our policy to continually improve products and we reserve the right to alter
data,specicationsandpartswithoutpriornotice.Noliabilityisacceptedforincorrectuse
of this product. Guarantee is 12 months from purchase date, proof of which is required for
any claim.
