HYDRAULIC WHEEL SKATE 680KG
MODEL NO: WS680.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
9 Familiarise yourself with this product’s application and limitations, as well as the specific warnings below relating to their use.
9 Ensure the Wheel Skates are in sound condition and good working order. Take action for immediate repair or replacement of damaged
parts. Use genuine parts only. The use of improper parts may be dangerous and will invalidate the warranty.
9 Wheel Skates should only be used in suitable, well lit areas.
9 Wheel Skates must be used in pairs at either the front or rear of the vehicle. They must never be used diagonally.
9 Keep general area clean and tidy and free from obstructions.
9 Use Wheel Skates on level and solid ground, preferably concrete. Avoid tarmacadam as Wheel Skates may sink in.
9 Maintain the Wheel Skates in good condition (use an authorised service agent).
9 Ensure there are no passengers in the vehicle.
9 Ensure the Wheel Skates are free to move and that there are no obstructions in the area of use.
9 When not in use store Wheel Skates in a safe, dry, childproof area.
▲ DANGER: Use the Wheel Skates for manoeuvring or positioning of vehicles in interior situations. They are not designed for use
outdoors.
8 DO NOT start or drive the vehicle whilst it is raised on wheel skates.
8 DO NOT use the Wheel Skates for purposes other than that for which they are intended.
8 DO NOT allow untrained persons to operate the Wheel Skates.
8 DO NOT leave the vehicle unattended whilst it is raised on the Wheel Skates.
8 DO NOT operate the Wheel Skates when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT get the Wheel Skates wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT exceed the rated capacity of the Wheel Skates. Remember that the front of a vehicle is usually heavier than the rear.
8 DO NOT use the Wheel Skates to lift or support a vehicle in order to do work underneath it.
9 Maintain correct balance and footing when moving vehicle. Ensure the floor is not slippery and wear non-slip shoes.
9 Ensure there are no obstructions beneath the vehicle when it is to be lowered.
9 Ensure all non-essential persons keep a safe distance whilst the Wheel Skates are in use.
IMPORTANT - We recommend that at least 2 persons are involved in manoeuvring the vehicle when supported on wheel skates. The
vehicle’s weight provides a large amount of inertia which has to be overcome to get the vehicle moving and more importantly, stopped.
WARNING! The warnings, cautions and instructions discussed in this manual cannot cover all possible conditions and situations
that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator.
2. INTRODUCTION
Steel tube chassis with four Ø100mm nylon castors. Pedal operated hydraulic lifting action with safety locking pin when under load.
Aluminium rollers cradle vehicle’s tyre and are capable of handling up to 240mm profile. Suitable for bodyshops, garages, showrooms
or anywhere an immobile vehicle needs moving on an even surface.
NOTE: Skates sold as singles, but must be used in pairs.
3. SPECIFICATION
Model No: ........................................................ WS680.V2
Capacity: .................................................................680kg
Castor Diameter: ...............................................Ø100 mm
Maximum Opening: ...............................................540mm
Maximum Tyre Width: ........................................... 240mm
4. PREPARATION
4.1. Ensurethattheareawherethevehicleistobemovedisclearofanyobstructions.Theoorsurfaceshouldbesmoothandlevel.
4.2. Takenoteofanyfeaturesintheoorthatmaycatchtheskatewheelssuchasoormountedpoweranddatapoints,roomdivider
tracks,drainagefeatures,ordamagetotheoorsurface.
4.3. Enlistasucientamountofpeopletomovethevehiclesafely.
8 DO NOTattempttomovethevehicleintoanareawherethereisinsucientspacetomanoeuvrethevehiclesafely.
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear safety
footwear
WS680.V2 Issue 2 03/10/23
4.4. IMPORTANT: BEFORE THE FIRST USE OF SKATE PURGE AIR FROM THE HYDRAULIC CIRCUIT.
4.4.1. Before using the skate for the first time, purge the hydraulic circuit in order to eliminate any air, that may have accumulated in the
system during transit, as follows:
1.Open the release valve by turning knob anticlockwise.
2.Pump the pedal up and down 15 to 20 times.
3.Turn the release valve clockwise to close the valve.
4.5. Prior to operation, release the foot pedal from the transit hook by depressing the pedal slightly and moving the hook to one side to
allowthepedaltoriseup(seeg.1).
4.6. Wheel Skates must be used as a pair.
4.7. Attach to the front wheels to swing the front of the vehicle. (DO NOT release the handbrake or remove wheel chocks until both
Skates are attached. Re-engage the handbrake or chock the wheels immediately after the movement has been made.)
4.8. Attach to the back wheels to swing the back of the vehicle. (Ideally the front wheels should be straight.)
4.9. If you intend to use two pairs of skates to move a vehicle in one movement great care should be exercised in order to avoid injury
to persons or property.
5. OPERATION.
Read the safety instructions above.
5.1. FIT SKATE TO WHEEL
5.1.1. Turnthereleasevalveanticlockwise(seeg.2)andremovethelockingpin(seeg.3).
5.1.2. Take hold of each side of the frame and expand the unit until it is wide enough to slide the rollers either side of the tyre. Ensure
that both sets of rollers are centred on the tyre.
5.1.3. Now close the release valve by turning it clockwise (see fig. 2).
5.2. RAISING A WHEEL
5.2.1. Operate the foot pedal lever to commence raising the wheel. (IMPORTANT - Allow the pedal to return through its full travel before
commencing the next stroke.) Continue until the tyre is clear of the ground and you are able to insert the locking pin as shown in
fig’s. 3 & 4.
5.2.2. Raise the second wheel off the ground with the other Skate. Be prepared for any movement the vehicle may make when the second
wheel comes clear of the ground. This is particularly important when using four skates. Providing the ground/floor is level the vehicle
should remain stable. (Read safety precautions in Section 1.)
5.3. MOVING THE VEHICLE.
5.3.1. Ensure that you have asucientamountofpeople to move and control the vehicle. Keep well away from any sloping areas or entry
ramps to the area, however shallow they may appear.
5.3.2. When positioning a vehicle in relation to a wall or feature such as a pillar no persons or objects should be situated between the vehicle
and the feature. Sufficient space should be left between the side of a vehicle and an adjacent wall or feature to allow the Skates to be
withdrawn sideways.
Original Language Version
© Jack Sealey Limited
WS680.V2 Issue 2 03/10/23

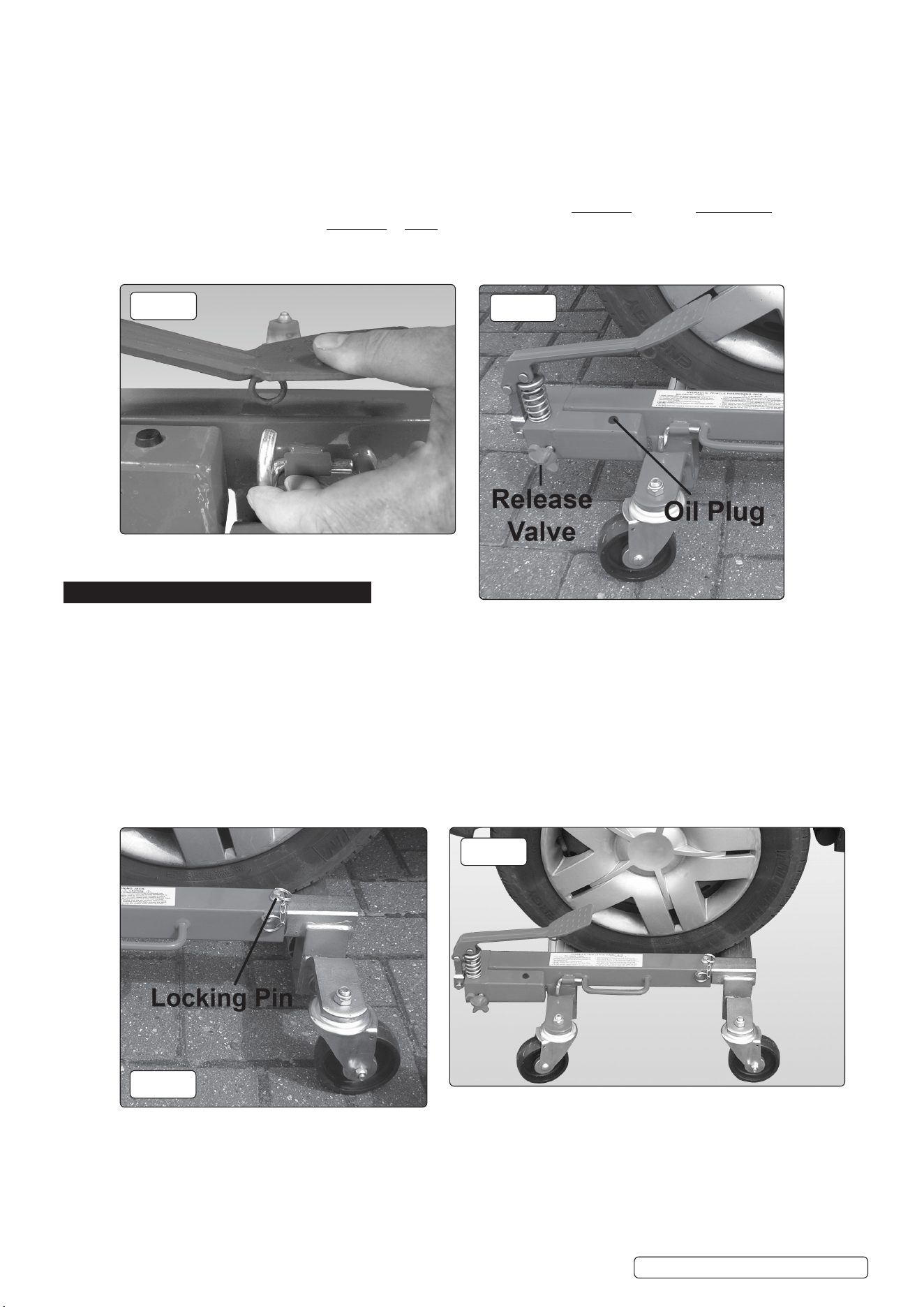

g.1
g.2
g.3
g.4
5.4. LOWERING WHEELS.
5.4.1. Remove the locking pin (see fig.3) and turn the release valve anticlockwise to lower the vehicle until the tyre is on the ground and no
longer exerting pressure on the rollers.
5.5. REMOVING THE SKATE.
5.5.1. Expand the unit sufficiently to clear the tyre and move it away from the wheel.
6. MAINTENANCE
6.1. Periodically lubricate the wheels, rollers and the foot pedal lever pivot with acid free oil. Lightly grease the four faces of the square section
tube.
6.2. When the skate is not in use, store fully closed with the locking pin in place, this will minimise ram and piston corrosion.
6.3. Keep the skate clean. Lubricate all moving parts with acid free oil.
6.4. Before each use, ensure components are in good working order. If any suspect item is found remove skate from service and take
necessary action to remedy the problem.
8 DO NOT use the skate if you believe it has been subjected to an abnormal load or shock load. If in doubt contact your local
service agent. by fully qualified personnel. Contact your local authorised stockist.
6.5. The oil cylinder is a sealed unit and, in principle, should not be accessed. To top up the oil, remove the oil plug (see fig. 2). The oil level
should be just below the oil plug hole.
WARNING! Only a good quality hydraulic Jack oil, such as SEALEY HYDRAULIC JACK OIL must be used, DO NOT use brake fluid.
8 DO NOT overfill as this will render the skate inoperative.
IMPORTANT: NO RESPONSIBILITY IS ACCEPTED FOR INCORRECT USE OF THE SKATE. Hydraulic products are only repaired by
local service agents. We have service/repair agents in all parts of the UK. DO NOT RETURN SKATES TO US. Please telephone 01284
757500 to obtain address and phone number of your local agent. If your skate is under guarantee please contact your stockist.
De-commissioning the skate: If the skate becomes completely unserviceable and requires disposal, draw off the oil into an approved
container and dispose of the skate and the oil according to local regulations.
g.4
WS680.V2 Issue 2 03/10/23
Original Language Version
© Jack Sealey Limited
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 sales@sealey.co.uk www.sealey.co.uk
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment. When the product
becomes completely unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and
dispose of the product and fluids according to local regulations.
