3.7V VACUUM DRILL DUST EXTRACTOR
MODEL NO: DDE01.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
1.1. GENERAL SAFETY
8 DO NOT use this device in direct sunlight.
8 DO NOT allow the dust extractor to get wet.
8 DO NOT allow unqualied persons or children to operate this device.
1.2. LASER SAFETY The DDE01 utilises a Class II laser that emits a low level of visible radiation
(i.e. a wavelength of 650 nanometres) which is safe for the skin but not inherently safe for the eyes.
The Class II emission limit is set at the maximum level for which eye protection is normally aorded
by natural aversion responses to bright light. Accidental eye exposure is therefore normally safe,
although the natural aversion response can be overridden by deliberately staring into the beam,
and can also be inuenced by the use of alcohol or drugs.
8 DO NOT direct the laser beam at any person’s (or animal’s) eyes as eye damage could result.
8 DO NOT operate the laser level when you are tired or under the inuence of alcohol, drugs or
intoxicating medication. Be aware that reections of the laser beam from mirrors or other
shiny surfaces can be as hazardous as direct eye exposure.
2. INTRODUCTION
3.7V Vacuum holds unit to the wall for easy drilling. Suitable for drill bits up to 12mm. Features a horizontal and vertical spirit level for accurate
positioning. Laser light on the bottom for accurate positioning of holes, for example in a sequence or a square. Removable dust collection pod
for easy emptying. Rechargeable Lithium-ion powered.
3. SPECIFICATION
Model No:............................................................. DDE01.V2
Maximum Drilling Diameter: ......................................... 12mm
4. OPERATION
NOTE: The vacuum seal on this product is only suitable for smooth conforming
surfaces.
4.1. DRILLING A HOLE

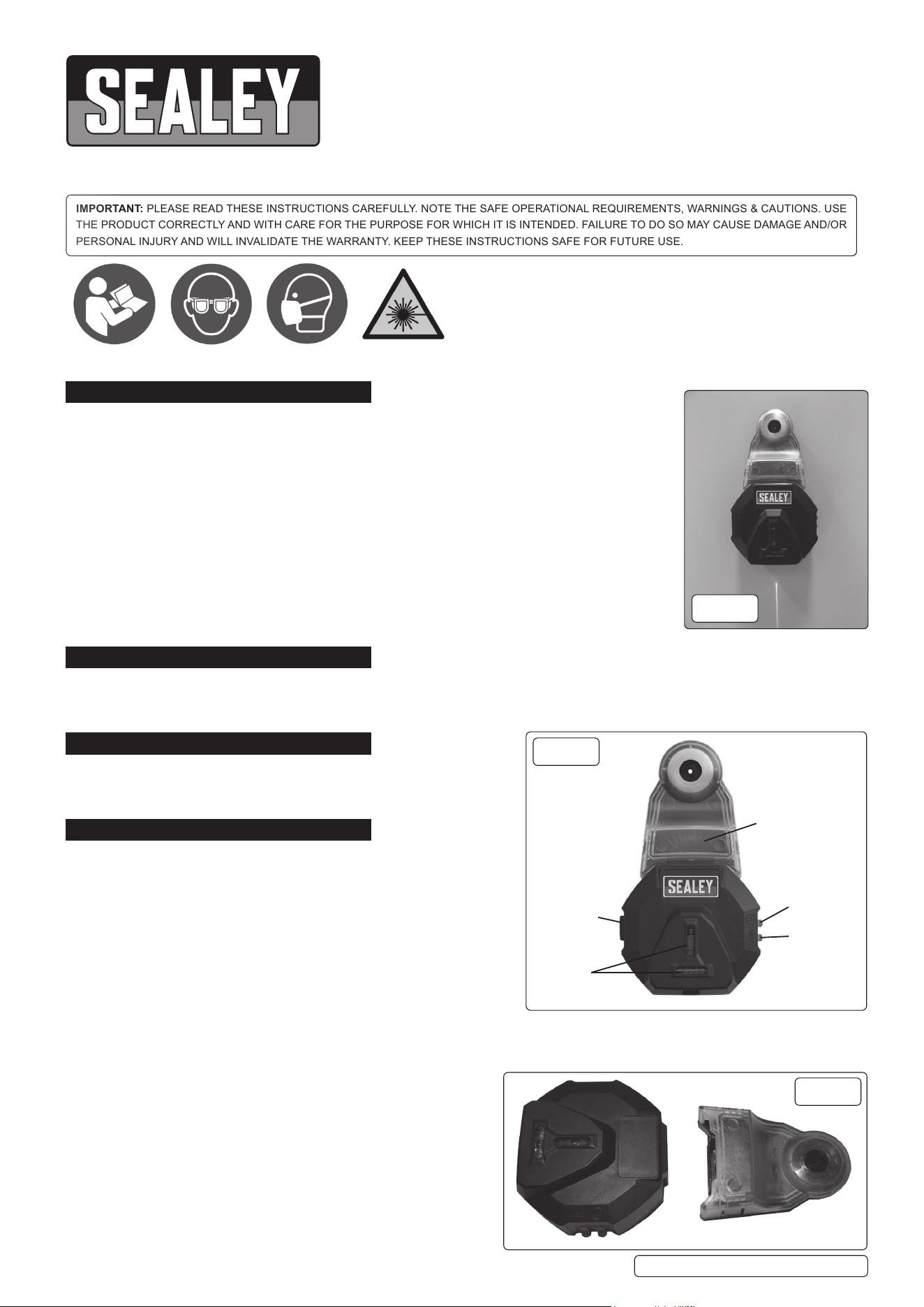

4.1.1. Mark position of hole that you want to drill. If drilling more than one
hole in succession the laser guides can be used to line up with your
markings (g.1).
4.1.2. There is a small gap in the bristles on-top of the device that allow you
to see your prepared markings. Line up your mark with this hole. You
can also use the lasers and spirit levels to help with this.
4.1.3. When happy with your placement turn on the suction (g.2). The device
will now be stuck to the wall. The vacuum can be released using
the button on the side of the body (g.2).
4.2. EMPTYING THE COLLECTOR
4.2.1. The device can be slid apart leaving you with two pieces. The dust
collection pod and the suction device (g.3).
4.2.2. The dust collection pod comes apart by gently pressing the tabs on
the sides. Once apart the dust should be safely disposed of.
NOTE: The dust is collected via gravity and not suction.
4.3. CHARGING THE UNIT

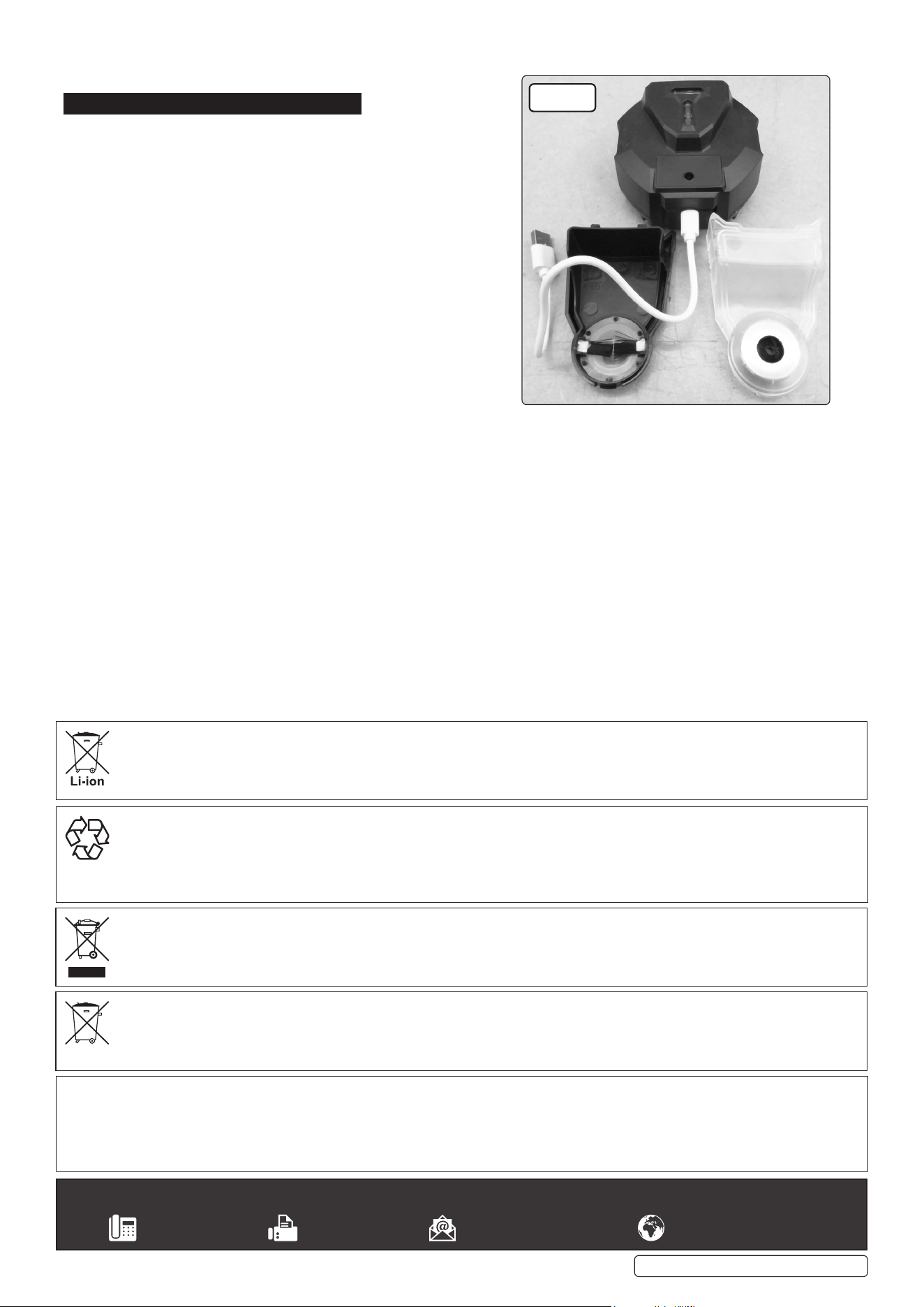

4.3.1. Seperate the dust pod to expose the charging port on the end face
of the unit (g.4).
4.3.2. Connect the USB charge cable to the charge socket on the body.
g.1
Compressor
On/Off
Laser On/Off
Vacuum
Release
Spirit Levels
Dust Collection
Pod
g.2
g.3
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Warning Laser Wear eye
protection
Wear a mask
DDE01.V2 Issue 1 29/03/21
4.3.3. Whilst charging, the LED to the side of the port will show red. Once fully charged this will show green.
5. MAINTENANCE
5.1. Dispose of waste according to local regulations.
5.2. Wipe unit clean with a damp cloth.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
BATTERY REMOVAL: SEE SECTION 4.3
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack
Sealey Ltd Batteries Producer Registration Number (BPRN) is BPRN00705.
DDE01.V2 Issue 1 29/03/21
Original Language Version
© Jack Sealey Limited
BATTERY REMOVAL
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential purchasers of products
containing batteries (as defined within these regulations), that they are registered with Valpak’s registered compliance scheme. Jack
Sealey Ltd’s Batteries Producer Registration Number (BPRN) is BPRN00705.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice. Please note that other versions of this product are available. If you require documentation for alternative versions, please email or call
our technical team on technical@sealey.co.uk or 01284 757505.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
g.4
