Safety information
3
What you need to know about the safety instructions 3
Important safety symbols 3
Important safety precautions 4
Critical installation warnings 5
Installation cautions 6
Critical usage warnings 7
Usage cautions 8
Critical cleaning warnings 8
Installation
9
What’s included 9
Installation requirements 10
Step-by-step installation 11
Before you start
19
Detergent guidelines 19
Smart Check 20
Laundry guidelines 21
Operations
26
Control panel 26
Simple steps to start 28
Cycle overview 29
Special features 30
Maintenance
32
Cleaning 32
Troubleshooting
39
Checkpoints 39
Information codes 43
Specification
46
Specification sheet 46
Untitled-4 2 2023-10-13 11:35:52
English 3
Safety information
Congratulations on your new Samsung washing machine. This manual contains important information
on the installation, use and care of your appliance. Please take some time to read this manual to take full
advantage of your washing machine’s many benefits and features.
What you need to know about the safety instructions
Please read this manual thoroughly to ensure that you know how to safely and efficiently operate the
extensive features and functions of your new appliance. Please store the manual in a safe location close
to the appliance for future reference. Use this appliance only for its intended purpose as described in this
instruction manual.
Warnings and Important Safety Instructions in this manual do not cover all possible conditions and
situations that may occur. It is your responsibility to use common sense, caution and care when installing,
maintaining and operating your washing machine.
Because the following operating instructions cover various models, the characteristics of your washing
machine may differ slightly from those described in this manual and not all warning signs may be
applicable. If you have any questions or concerns, contact your nearest service center or find help and
information online at www.samsung.com.
Important safety symbols
What the icons and signs in this user manual mean:
WARNING
Hazards or unsafe practices that may result in severe personal injury, death and/or property damage.
CAUTION
Hazards or unsafe practices that may result in personal injury and/or property damage.
NOTE
Indicates that a risk of personal injury or material damage exists.
These warning signs are here to prevent injury to yourself and others.
Please follow them explicitly.
After reading this manual, store it in a safe place for future reference.
Read all instructions before using the appliance.
As with any equipment that uses electricity and moving parts, potential hazards exist. To safely operate
this appliance, familiarize yourself with its operation and exercise care when using it.
Untitled-4 3 2023-10-13 11:35:53
Safety information
English4
Important safety precautions
WARNING
To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic
precautions, including the following:
1. This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a person
responsible for their safety.
2. For use in Europe: This appliance can be used by children aged from
8 years and above and persons with reduced physical, sensory or
mental capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
3. Children should be supervised to ensure that they do not play with
the appliance.
4. If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in order
to avoid a hazard.
5. The new hose-sets supplied with the appliance are to be used and
that old hose-sets should not be reused.
Untitled-4 4 2023-10-13 11:35:53
English 5
6. For washing machines having ventilation openings in the base, the
installation instructions shall state that the openings must not be
obstructed by a carpet.
7. For use in Europe: Children of less than 3 years should be kept away
unless continuously supervised.
8. CAUTION: In order to avoid a hazard due to inadvertent resetting of
the thermal cut-out, this appliance must not be supplied through an
external switching device, such as a timer, or connected to a circuit
that is regularly switched on and off by the utility.
9. This appliance is intended to be used in household only and it is not
intended to be used such as:
– staff kitchen areas in shops, offices and other working
environments;
– farm houses;
– by clients in hotels, motels and other residential type
environments;
– bed and breakfast type environments;
– areas for communal use in blocks of flats or in launderettes.
Critical installation warnings
WARNING
The installation of this appliance must be performed by a qualified technician or service company.
• Failure to do so may result in electric shock, fire, an explosion, problems with the product, or injury.
Plug the power cord into a wall socket that meets local electrical specifications. Use the socket for this
appliance only, and do not use an extension cord.
• Sharing a wall socket with other appliances using a power strip or extending the power cord may result
in electric shock or fire.
Untitled-4 5 2023-10-13 11:35:53
Safety information
English6
• Ensure that the power voltage, frequency, and current are the same as those of the product
specifications. Failure to do so may result in electric shock or fire. Plug the power plug into the wall
socket firmly.
Remove all foreign substances such as dust or water from the power plug terminals and contact points
using a dry cloth on a regular basis.
• Unplug the power plug and clean it with a dry cloth.
• Failure to do so may result in electric shock or fire.
• Plug the power plug into the wall socket so that the cord is running towards the floor. If you plug the
power plug into the socket in the opposite direction, the electric wires within the cable may be damaged
and this may result in electric shock or fire.
This appliance must be properly grounded.
Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.
• This may result in electric shock, fire, an explosion, or problems with the product.
• Never plug the power cord into a socket that is not grounded correctly and make sure that it is in
accordance with local and national regulations.
Do not install this appliance near a heater or any inflammable material.
Do not install this appliance in a humid, oily or dusty location, or in a location exposed to direct sunlight or
water (rain drops).
Do not install this appliance in a location exposed to low temperatures.
• Frost may cause the tubes to burst.
Do not use an electric transformer.
• This may result in electric shock or fire.
Do not use a damaged power plug, damaged power cord, or loose wall socket.
• This may result in electric shock or fire.
Do not pull or excessively bend the power cord.
Do not twist or tie the power cord.
Do not hook the power cord over a metal object, place a heavy object on the power cord, insert the power
cord between objects, or push the power cord into the space behind the appliance.
• This may result in electric shock or fire.
This appliance should be positioned so that the power plug, the water supply taps, and the drain pipes are
accessible.
Installation cautions
CAUTION
This appliance should be positioned in such a way that the power plug is easily accessible.
• Failure to do so may result in electric shock or fire due to electric leakage.
Untitled-4 6 2023-10-13 11:35:53
English 7
Critical usage warnings
WARNING
If the appliance is flooded, turn off the water & power supplies immediately and contact your nearest
Samsung Customer Service.
• Do not touch the power plug with wet hands.
• Failure to do so may result in electric shock.
If the appliance generates a strange noise, a burning smell, or smoke, unplug the power plug immediately
and contact your nearest service center.
• Failure to do so may result in electric shock or fire.
In the event of a gas leak (such as propane gas, LP gas, etc.), ventilate immediately without touching the
power plug. Do not touch the appliance or power cord.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
Do not let children play in or on the washing machine. In addition, when disposing of the appliance, remove
the lid.
• If trapped inside the product, children may suffocate to death.
Do not wash items contaminated with gasoline, kerosene, benzene, paint thinner, alcohol or other
inflammable or explosive substances.
• This may result in electric shock, fire, or an explosion.
Do not touch the power plug with wet hands.
• This may result in electric shock.
Do not insert your hand or a metal object under the washing machine while an operation is in progress.
• This may result in injury.
Do not attempt to repair, disassemble, or modify the appliance yourself.
• Do not use a fuse (such as copper, steel wire, etc.) other than a standard fuse.
• When the appliance needs to be repaired or reinstalled, contact your nearest service center.
• Failure to do so may result in electric shock, fire, problems with the product, or injury.
• In this case, the product will not be covered by the standard warranty provided by Samsung and no
responsibility can be attributed to Samsung for malfunctions or damages resulting from doing it.
Unplug the power plug when the appliance is not being used for long periods of time or during a thunder or
lightning storm.
• Failure to do so may result in electric shock or fire.
Do not put your hand into the spinning tub during the spin cycle.
• This may result in injury. If the tub does not stop spinning within 15 seconds after you open the lid,
contact your nearest Samsung Customer Service.
Do not let children (or pets) play in or on your washing machine. The washing machine lid does not open
easily from the inside and children may be seriously injured if trapped inside.
Untitled-4 7 2023-10-13 11:35:53
Safety information
English8
Do not use the water to exceed 50 °C when using the hot water in your washing machine. Plastic parts may
be deformed or damaged, and this may result in electric shock or fire.
Usage cautions
CAUTION
When the washing machine is contaminated by a foreign substance such as detergent, dirt, food waste,
etc., unplug the power plug and clean the washing machine using a damp, soft cloth.
• Failure to do so may result in discoloration, deformation, damage, or rust.
The product you have purchased is designed for domestic use only. Using the product for business purposes
qualifies as a product misuse. In this case, the product will not be covered by the standard warranty
provided by Samsung and no responsibility can be attributed to Samsung for malfunctions or damages
resulting from such misuse.
Do not stand on the appliance or place objects (such as laundry, lighted candles, lighted cigarettes, dishes,
chemicals, metal objects, etc.) on the appliance.
• This may result in electric shock, fire, problems with the product, or injury.
Do not press the buttons using sharp objects such as pins, knifes, fingernails, etc.
• This may result in electric shock or injury.
Critical cleaning warnings
WARNING
Do not clean the appliance by spraying water directly onto it.
Do not use the a strong acidic cleaning agent.
Before cleaning or performing maintenance, unplug the appliance from the wall socket.
• Failure to do so may result in electric shock or fire.
Untitled-4 8 2023-10-13 11:35:53
English 9
Installation
Follow these instructions carefully to ensure proper installation of the washing machine and to prevent
accidents when doing laundry.
What’s included
Make sure all the parts are included in the product package. If you have a problem with the washing
machine or the parts, contact a local Samsung customer centre or the retailer.
07
08
10
11
06
05
04
01
03
02
09

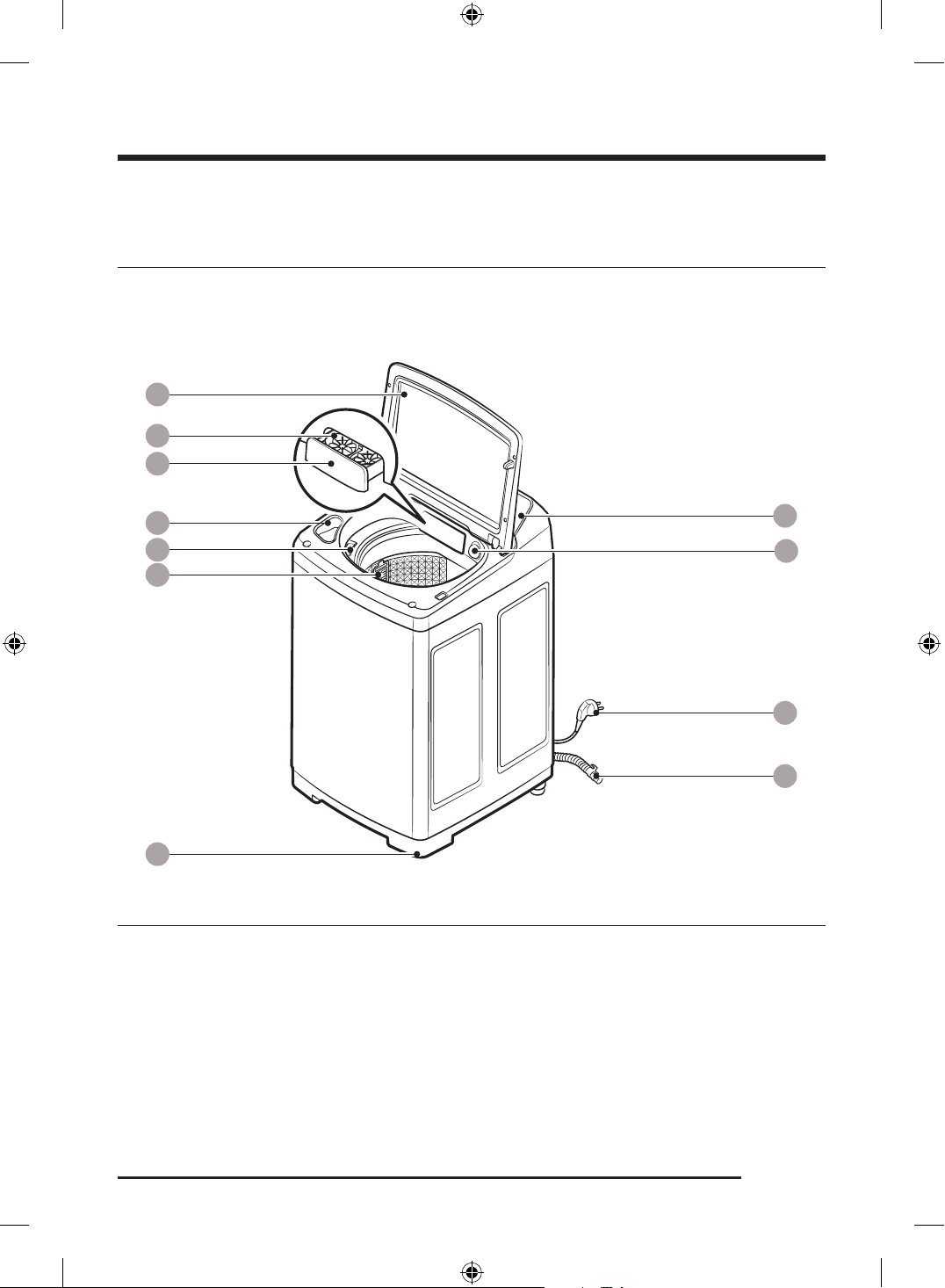

01 Lid 02 Bubble Kit 03 Detergent drawer
04 Bleach compartment 05 Softener compartment 06 Filter
07 Levelling feet 08 Control panel 09 Speed Spray
10 Power cord 11 Drain hose
Untitled-4 9 2023-10-13 11:35:53
Installation
English10
NOTE
• Lid: Make sure to keep the lid closed while the washing machine is operating.
• Filter: This collects lint that builds up from the laundry being washed.
• Levelling feet: Adjust the feet to level the washing machine on a flat floor.
Installation requirements
Electrical supply and grounding
WARNING
• Use an individual branch circuit specific to the washing machine.
• Do NOT use an extension cord.
• Use only the power cord that comes with the washing machine.
• Do NOT connect the ground wire to plastic plumbing, gas lines, or hot water pipes.
• Improperly connected grounding conductors may cause electric shock.
• Do not remove or modify the grounding pin of power cord to reduce the risk of electric hazard.
• Please use the additional grounding wire provided with this appliance if there is no hole for earth pin in
power inlet socket.
Levelling
• To prevent tumbling or noise, install the washing machine on a solid, flat floor without a platform or
bricks.
• Keep the washing machine at 10 cm from each adjacent wall.
Water supply
• Make sure water taps are easily accessible.
• Turn off the taps when the washing machine is not in use.
• Check for any leaks at the water hose fittings on a regular basis.
Drain
• Make sure the drain hose is not clogged.
• We recommend a standpipe in height of 90-100 cm. The drain hose must be connected through
the hose clip to the standpipe, and the standpipe must fully cover the drain hose. The standpipe
specifications mentioned here are only applicable to pump-type models.
Untitled-4 10 2023-10-13 11:35:53
English 11
Step-by-step installation
STEP 1 Select a location
Location requirements:
• Solid, level surface without carpeting or flooring that may obstruct ventilation
• Away from direct sunlight
• Adequate room for ventilation and wiring
• The ambient temperature is always higher than the freezing point (0 ˚C)
• Away from a heat source
Anti-rat panel (applicable models only)
The washing machine comes with the Anti-rat panel
that protects small animals such as rats from entering
the machine.
Insert the panel into the bottom of the machine. To
facilitate the work, slightly lift up the bottom front.
NOTE
• Some models feature the Anti-rat panel that must
be inserted from the rear bottom of the model. For
this model, insert the Anti-rat panel before levelling
the machine. To facilitate the work, slightly lift up the
bottom rear.
• Availability of the Anti-rat panel depends on the
model.
Untitled-4 11 2023-10-13 11:35:53
Installation
English12
STEP 2 Adjust the levelling feet
A
Unpack the product package.
1. Gently slide the washing machine into position.
Excessive force may damage the levelling feet (A).
2. Level the washing machine by manually adjusting
the levelling feet.
B
3. When levelling is complete, tighten the nuts (B) if
provided (some models may not have the nuts).
WARNING
Packaging materials can be dangerous to children. Dispose all packaging material (plastic bags,
polystyrene, etc.) out of children’s reach.
Untitled-4 12 2023-10-13 11:35:53
English 13
STEP 3 Connect the water hose
The provided water hose may differ depending on the model. Please follow the instruction according to the
provided water hose.
Connecting to a threaded water tap (applicable models only)

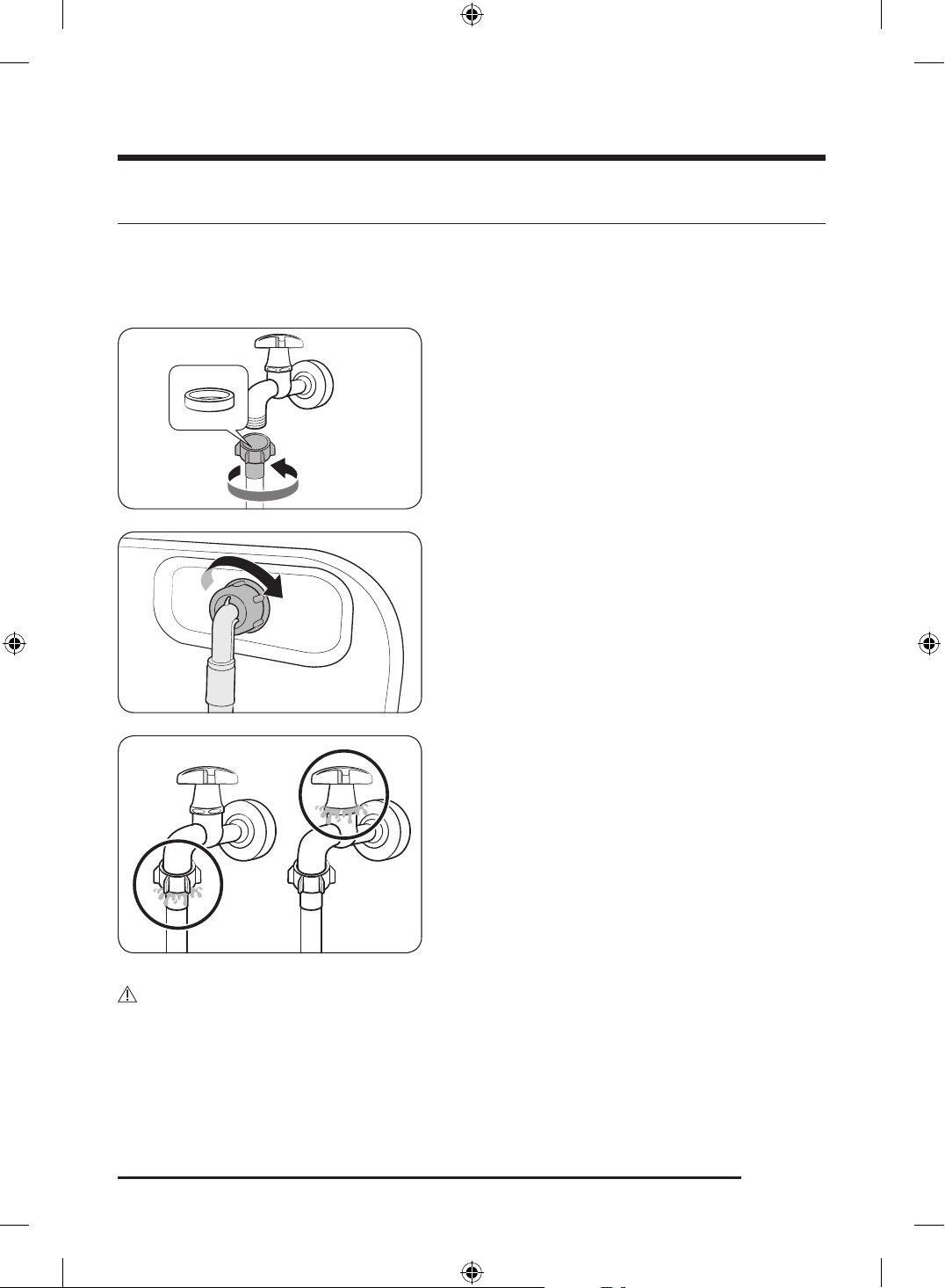

1. Connect the water hose to the water tap, and then
turn the connector clockwise as shown.
2. Connect the other end of the water hose to the inlet
valve on the back of the washing machine. Turn the
hose clockwise to tighten.
3. Open the water tap and check if there are any leaks
around the connection areas. If there are water leaks,
repeat the steps above.
WARNING
If there is a water leak, stop operating the washing machine and disconnect from the electrical supply.
Then, contact a local Samsung service centre in case of a leak from the water hose, or contact a plumbing
technician in case of a leak from the water tap. Otherwise, this may cause electric shock.
Untitled-4 13 2023-10-13 11:35:54
Installation
English14
CAUTION
Do not stretch the water hose by force. If the hose is too short, replace the hose with a longer, high-
pressure hose.

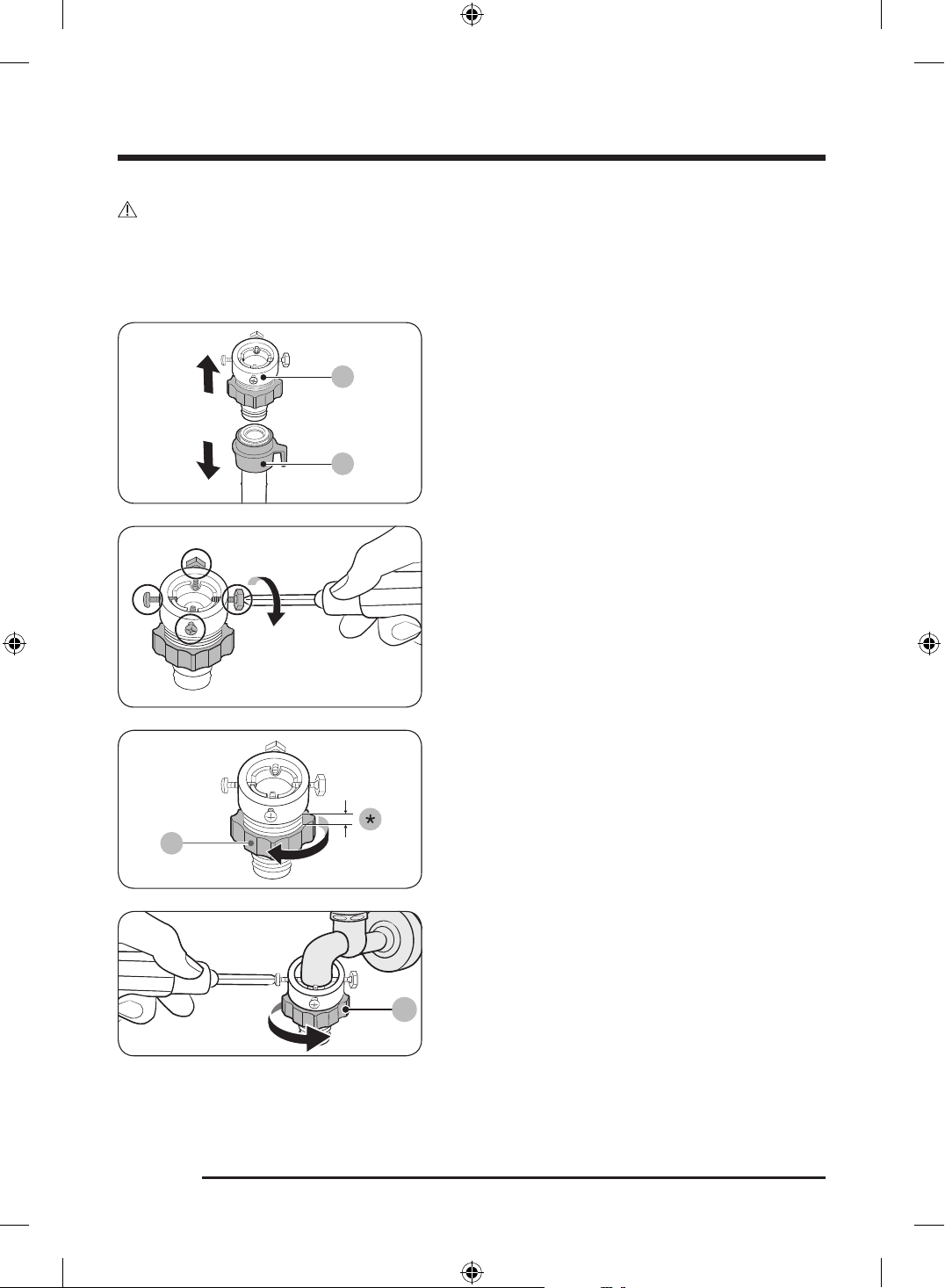

Connecting to a non-threaded water tap (applicable models only)
A
B
1. Remove the adaptor (A) from the water hose (B).
2. Use a Phillips screwdriver to loosen four screws on
the adaptor.
C

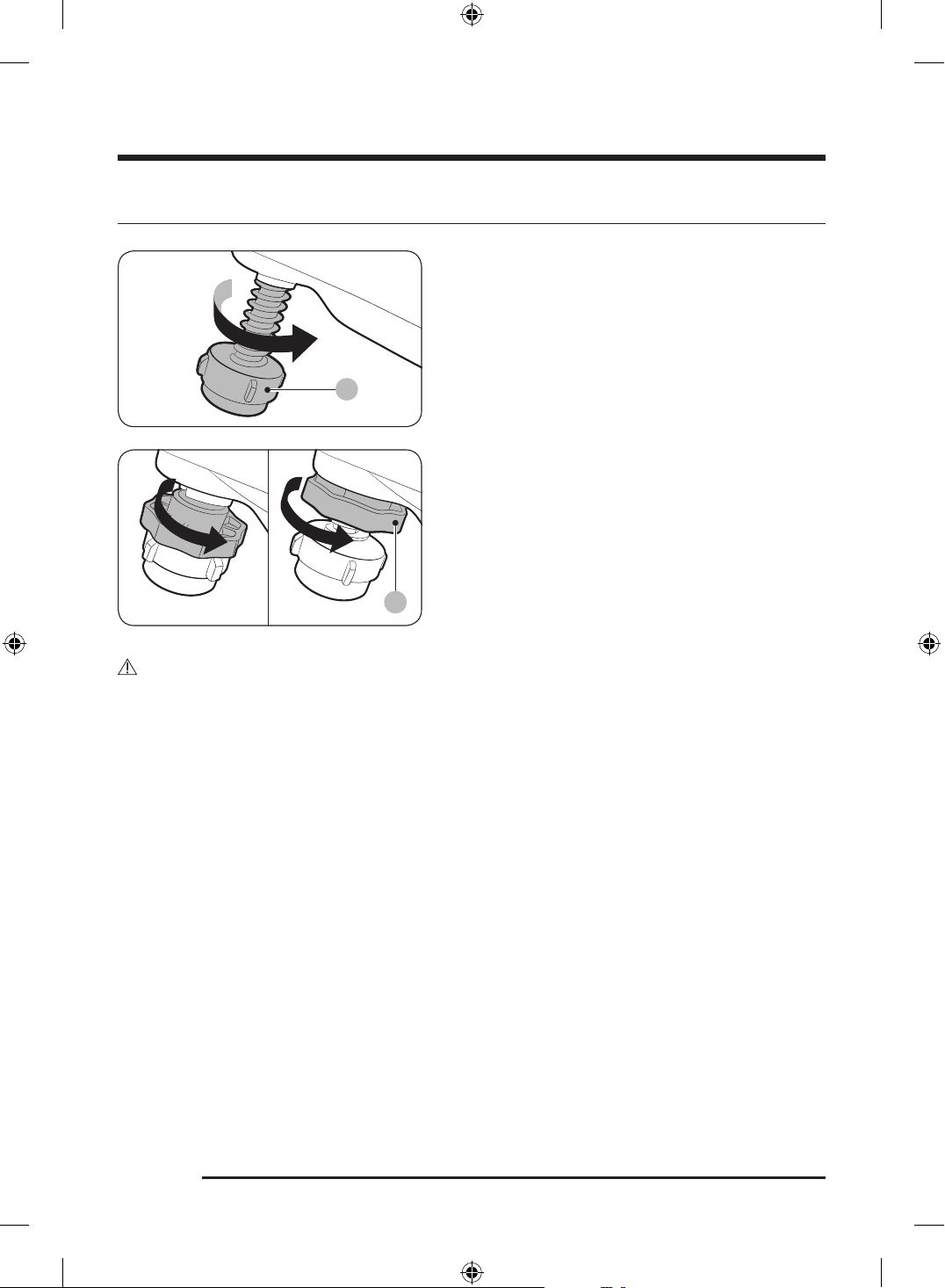

3. Hold the adaptor and turn part (C) in the arrow
direction to loosen it by 5 mm (*).
C
4. Insert the adaptor onto the water tap, and then
tighten the screws while lifting the adaptor.
5. Turn part (C) in the arrow direction to tighten it.
Untitled-4 14 2023-10-13 11:35:54
English 15
D

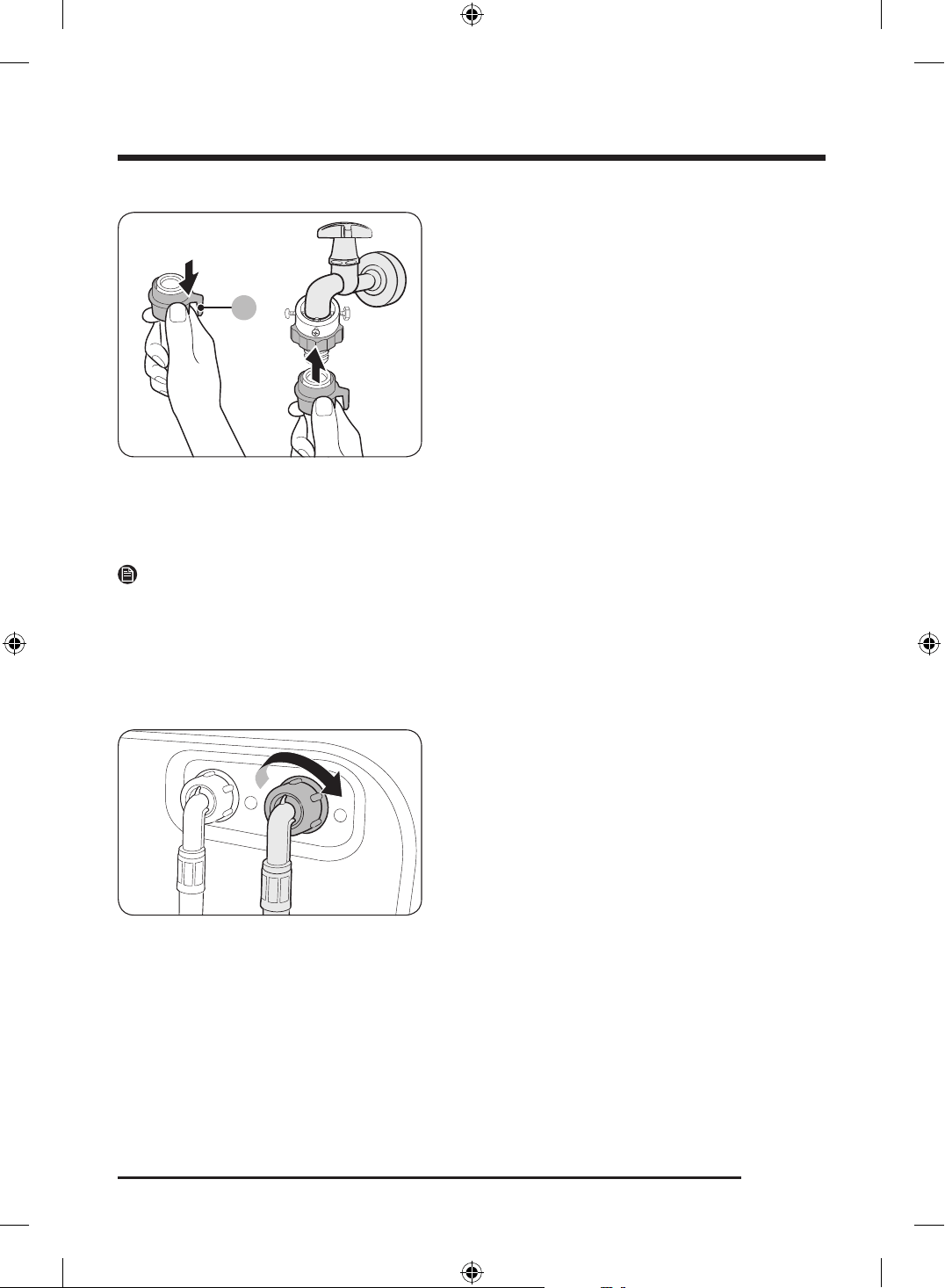

6. While pulling down part (D) on the water hose,
connect the water hose to the adaptor. Then, release
part (D). The hose fits into the adaptor with a clicking
sound.
7. To complete connecting the water hose, see 2
and 3 on the "Connecting to a threaded water tap
(applicable models only)" section.
NOTE
• After connecting the water hose to the adaptor, check if it is connected properly by pulling the water
hose downwards.
• Use a popular type of water taps. If the tap is square-shaped or too big, remove the spacer ring before
inserting the tap into the adaptor.
For models with an additional hot water inlet:
1. Connect the red end of the hot water hose to the hot
water inlet on the back of the machine.
2. Connect the other end of the hot water hose to the
hot water tap.
Untitled-4 15 2023-10-13 11:35:54
Installation
English16

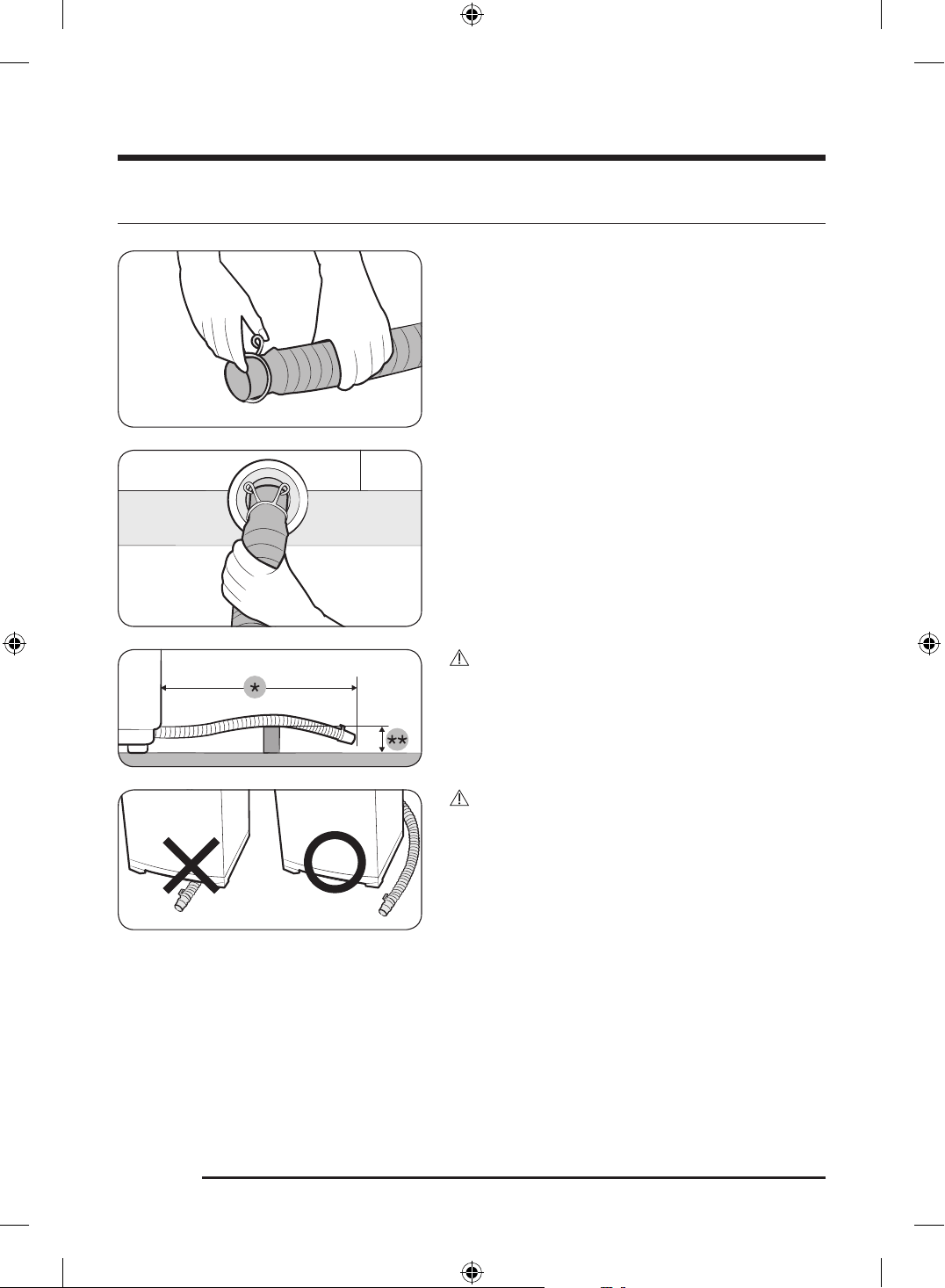

STEP 4 Position the drain hose
General type
1. Press and hold down the joint ring, and insert it into
the drain hose.
2. Insert the drain hose into the drain outlet. Make sure
to connect them firmly using the joint ring. The drain
hose is extensible. Adjust the length of the drain hose
as needed.
CAUTION
• Do not exceed 3 m (*) for the total length of extended
hoses.
• Do not let the drain hose run over doorsills that
protrude 5 cm (**) or more from the floor.
CAUTION
Do not run the drain hose under the bottom of the
machine.
Untitled-4 16 2023-10-13 11:35:54
English 17
A
Pump type (applicable models only)

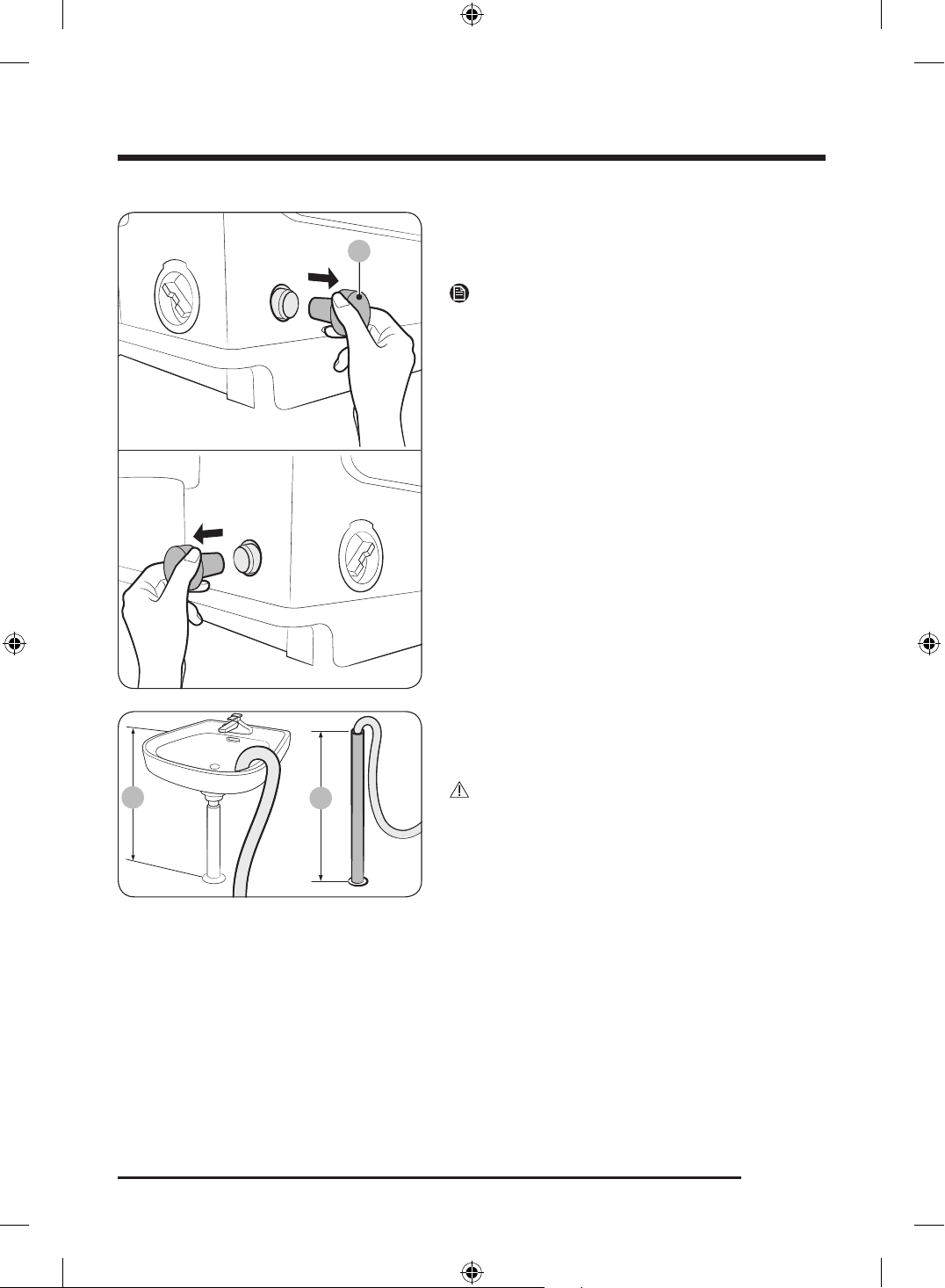

1. Open the hose cap (A), and insert the drain hose.
Tighten the drain hose using the joint ring.
NOTE
• The position (side or rear) of the drain outlet depends
on the model.
• Availability of the hose cap depends on the model.
2. Connect the other end of the drain hose to a
standpipe or basin that is positioned 90-100 cm (*)
from the floor.
WARNING
Make sure the end of the drain hose is not submerged
by water. Otherwise, the washing machine may suffer
serious damage.
Untitled-4 17 2023-10-13 11:35:55
Installation
English18
STEP 5 Power on
Plug the power cord into a wall socket protected by a fuse or circuit breaker. Then, press
Power to turn on
the washing machine.
STEP 6 Calibration Mode
Your Samsung washing machine detects the laundry weight automatically.
For more accurate weight detection, please run Calibration Mode after the installation.
To run Calibration Mode, follow these steps:
1. Remove laundry or any contents in the machine.
2. Press and hold Water Level and Delay End simultaneously for at least 3 seconds when the power is
turned on.
3. Press Start/Pause to activate Calibration Mode.
4. The pulsator rotates clockwise and anticlockwise approximately 1 minute.
5. When Calibration Mode is finished, “0” appears on the display, and the washing machine automatically
turns off. The washing machine is now ready for use.
Untitled-4 18 2023-10-13 11:35:55
English 19

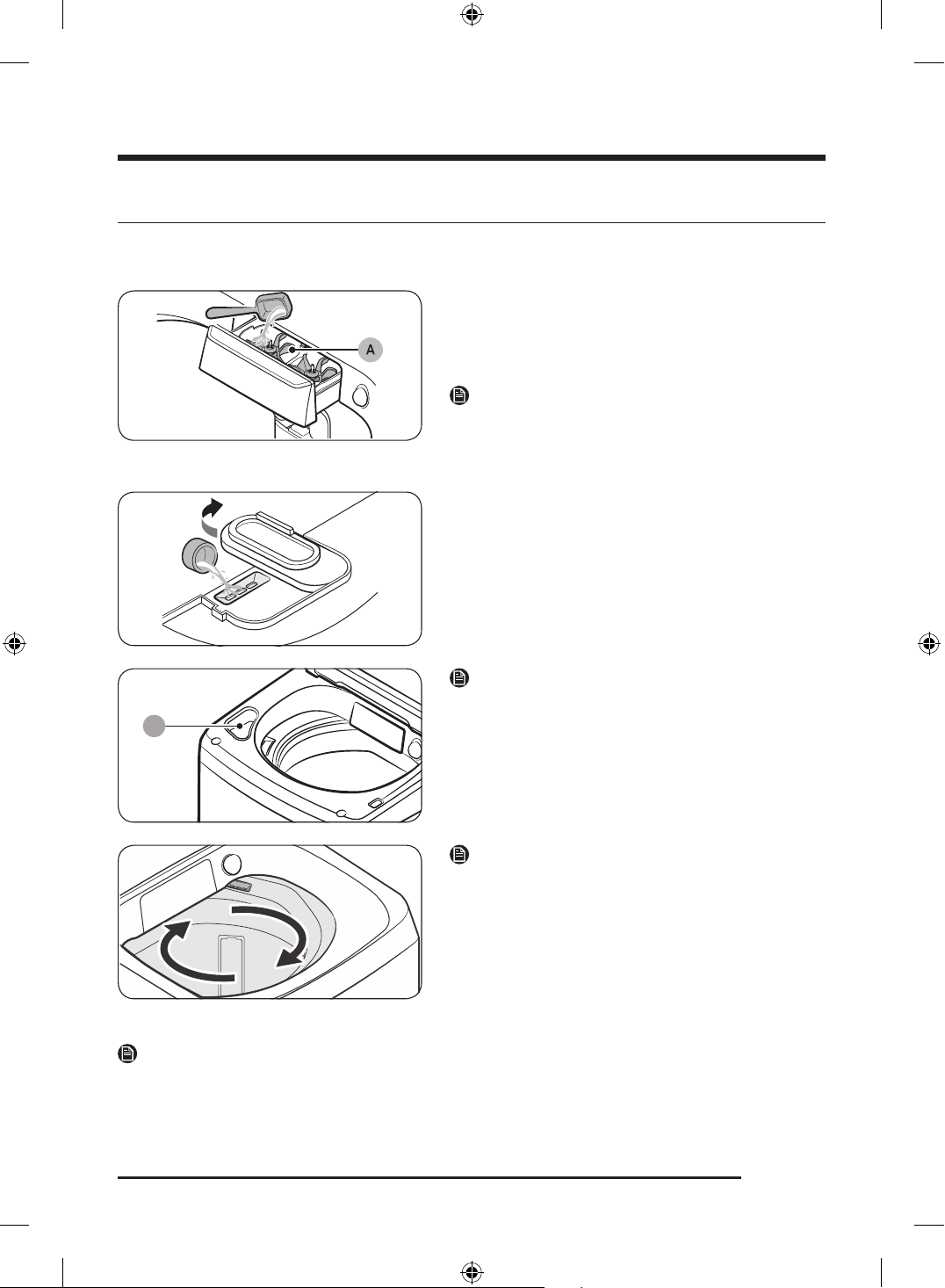

Before you start
Detergent guidelines
To apply detergents
1. Open the lid.
2. Locate the detergent drawer, and slide it open.
3. Apply detergent (liquid or powder) into the detergent
compartment.
NOTE
Do not exceed the max line on the Bubble Kit (A) when
you put detergent (liquid or powder) into the detergent
compartment.
4. Add a recommended amount of fabric softener into
the softener compartment.
B
NOTE
• Bleach compartment (B): Add non-chlorine bleach as
instructed by the manufacturer.
• Do not pour colour-safe bleach into the bleach
compartment.
NOTE
• If you cannot see where the softener compartment is,
reveal it by turning the tub slightly.
• Use the softener compartment only for liquid fabric
softeners.
• Do not leave softener into the softener compartment
for a long time. The softener becomes hardened and
may not dissolve well.
NOTE
• It is normal for a small amount of water to remain in the detergent compartments at the end of the
cycle.
Untitled-4 19 2023-10-13 11:35:55
Before you start
English20
• Do not use liquid fabric softener that is too sticky as it may not mix with the water sufficiently.
Smart Check
To enable this function, you must first download the
Samsung Smart Washer app at the Play Store or the
Apple Store, and install it on a mobile device featuring a camera function.
The Smart Check function has been optimised for Galaxy & iPhone series (applicable models only).

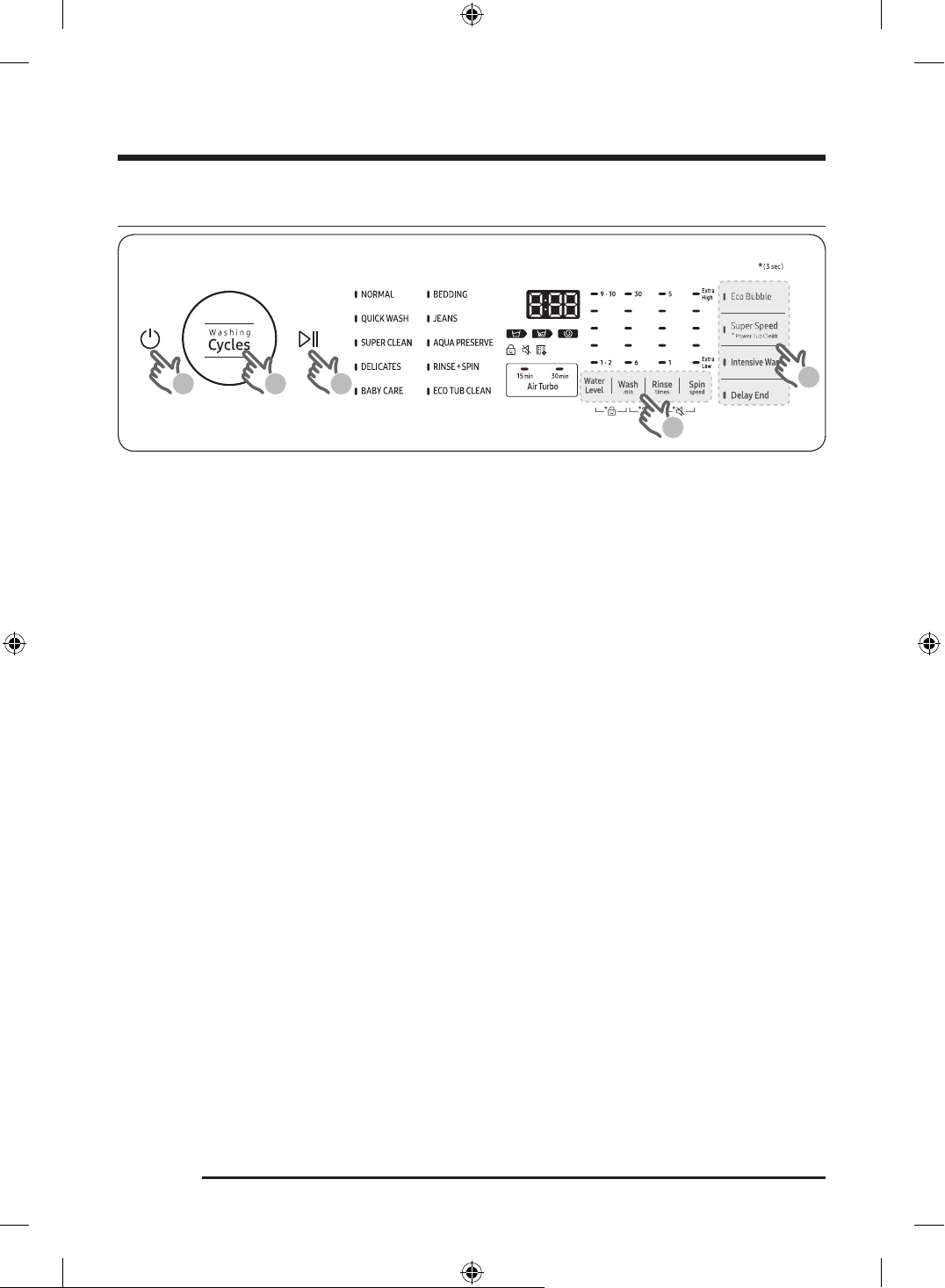

1. Press and hold Wash and Rinse simultaneously for 3 seconds to enter the Smart Check mode.
2. The washing machine starts the self-diagnosis procedure and displays an information code if a problem
is detected.
3. Run the Samsung Smart Washer app on your mobile device, and tap Smart Check.
4. Put the mobile device close to the washing machine’s display so that the mobile device and the washing
machine face each other. Then, the information code will be recognised automatically by the app.
5. When the information code is recognised correctly, the app provides detailed information about the
problem with applicable solutions.
NOTE
• The function name, Smart Check, may differ depending on the language.
• If there is strong reflected light on the washing machine display, the app may fail to recognise the
information code.
• If the app fails to recognise the Smart Check code consecutively, enter the information code manually
onto the app screen.
Untitled-4 20 2023-10-13 11:35:55
English 21
Laundry guidelines
Checkpoints
• Check for stains or dirt. Apply a little detergent to a white towel. Rub the white towel and the dirty
clothes together to transfer the dirt or colour to the white towel.
• Before washing, pre-treat the sleeves, collars, dress hems, and pockets by brushing with detergent.
• Wrinkle-processed clothes made of wool must be specially treated by tightening them with threads
before washing. Remove the threads after washing and drying is complete.
CAUTION
• Do not place or keep blankets in the tub.
• Do not put candles or a heat source in or on the washing machine.
• Do not wash these clothes:
- Neckties, brassieres, jackets, suits, and coats can be easily deformed by shrinking or discolouring on
the surface. These clothes are mostly made of rayon, polynosic, cuff, and/or blended fabric.
- Wrinkle-processed, embossed, or resin processed clothes easily deform merely by soaking in water.
- Clothes that are easily discoloured made from cotton, wool, wrinkled silk, leather wear and
accessories, and leather ornamented clothes and accessories.
- Waterproof sheets, mattresses, or wool quilts, rain covers, fishing jackets and trousers, skiwear,
sleeping bags, diaper covers, sweat suits, vehicle covers for automobiles, bicycles, and motorcycles,
bath rugs, and other waterproof items.
Untitled-4 21 2023-10-13 11:35:55
Before you start
English22
STEP 1 Sort
Sort the laundry according to these criteria:
• Care Label: Sort the laundry into cottons, mixed fibres, synthetics, silks, wools, and rayon.
• Colour: Separate whites from colours.
• Size: Mixing different-sized items together in the tub improves the washing performance.
• Sensitivity: Follow the cloth-specific instructions on the care label of delicate items such as pure, new
woollen items, curtains, and silk items.
NOTE
Make sure to check the care label on the clothing, and sort them accordingly before starting the wash.
STEP 2 Empty pockets
Empty all the pockets of your laundry items, and remove dirt and/or soils from them.
• Metal objects such as coins, pins, and buckles on clothing may damage other laundry items as well as
the tub.
• Turn clothing with buttons and embroideries inside out.
• If pants or jacket zippers are open while washing, the tub may be damaged.
• Zippers should be closed and fixed with a string.
• Clothing with long strings may become entangled with other clothes. Make sure to tie the strings
before washing.
Untitled-4 22 2023-10-13 11:35:55
English 23
STEP 3 Use a laundry net or wash certain items separately
• Brassieres (water washable) must be placed in a laundry net. Metal parts of the brassieres may break
through and tear other laundry items.
• Cashmilon, large volume garments, and lightweight clothes (lace-decorated clothes, lingerie, nylon
stocking, and synthetic fabrics) may float on water during washing and cause problems to the machine.
Use the laundry net or wash them separately.
• Do not wash the laundry net by itself without other laundry. This may cause abnormal vibrations that
could move the washing machine and result in injury.
CAUTION
Make sure to soak inflatable items (such as blankets, and cotton-filled or microfibre quilets) in water before
you run a cycle.
• Inflatable items may cause damage to the laundry or the machine during the wash or drying process.
• Regardless of the size, blankets or quilts are safer and cleaner to wash one item at a time. Two different-
sized blankets in the same load may compromise the drying performance due to unbalanced loads.

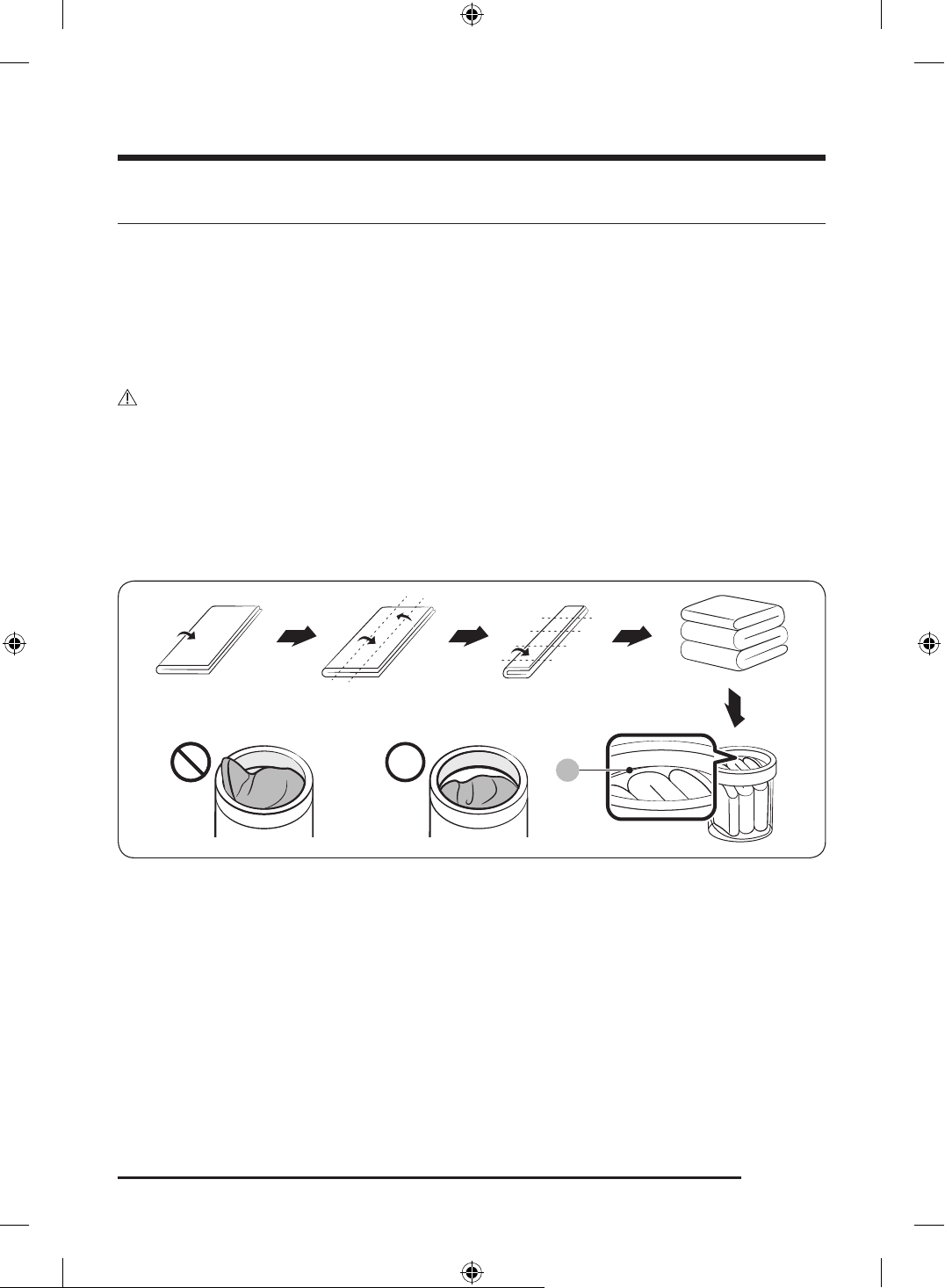

To input a blanket
Fold the blanket as shown, and then put it on the plastic area (A) of the tub before inserting into the tub.
A
Untitled-4 23 2023-10-13 11:35:55
Before you start
English24
STEP 4 Prewash (if necessary)
• To remove stains and dirt on collars, sleeves, hems, and pockets, apply detergent lightly and brush off.
• Use powder or liquid detergents. Do not use soap, as this may remain on the tub after washing.
• Prewash white socks, sleeves, and collars with a little detergent and a brush.
CAUTION
Make sure the laundry is inserted completely.
• Any exposed part of the laundry may cause damage to the machine or the laundry itself, or a water leak.
• Make sure the laundry does not exceed the plastic area (A) in the above figure.
STEP 5 Determine the load capacity
Make sure the laundry does not exceed the plastic area (A) in the figure on page 23. Otherwise, it may
cause the washing machine to not wash properly or cause damage to the machine or the laundry itself, or a
water leak.
NOTE
When washing bedding or bedding covers, the wash time may be lengthened or the spin efficiency may be
reduced. For bedding or bedding covers, the recommended load capacity is 3.5 kg or less.
CAUTION
If the laundry is unbalanced and the “Ub” information code is displayed, redistribute the load. Unbalanced
laundry may reduce the spinning performance and cause damage to the machine or the laundry itself.
Untitled-4 24 2023-10-13 11:35:55
English 25
STEP 6 Apply a proper detergent type
The type of detergent depends on the type of fabric (cotton, synthetic, delicate items, wool), colour,
wash temperature, and degree of soiling. Always use “low suds” laundry detergent, which is designed for
automatic washing machines.
CAUTION
• Use an appropriate amount of detergent. Excess amounts of detergent do not produce much
improvement in washing results but cause damage to the laundry due to deteriorated rinsing
performance.
• Bleach is strong alkali in nature, causing damage to or discolouration of the laundry.
• Use a longer or added rinse cycle when using powder detergent that is very likely to remain on the
laundry and cause bad odours after washing is complete.
• If an excessive amount of detergent is used especially in cold water, the detergent doesn’t dissolve well,
ending up with contaminated laundry, hoses, and/or tub.
• In case of timed washing, do not apply detergent directly to laundry or the tub. The laundry may be
discoloured. Use the detergent drawer.
• When washing wool using the Wool cycle, use only a neutral detergent to avoid discolouring the
laundry.
NOTE
• Follow the detergent manufacturer’s recommendations based on the weight of the laundry, the degree
of soiling, and the hardness of the water in your local area. If you are not sure about the water hardness,
contact a local water authority.
• Do not use detergent that tends to be hardened or solidified. This detergent may remain after the rinse
process, blocking the drain outlet.
Untitled-4 25 2023-10-13 11:35:55
English26
Operations

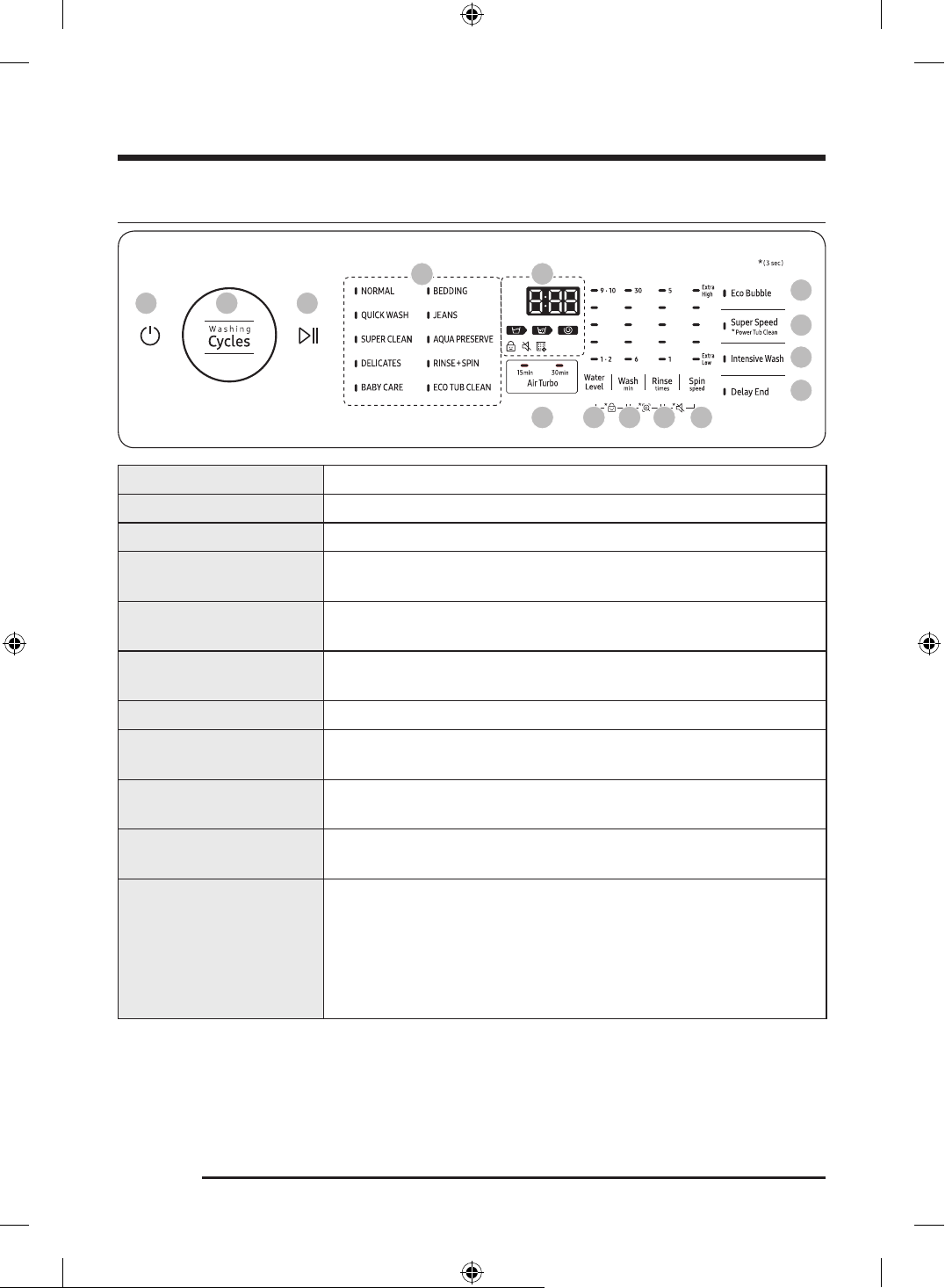

Control panel
12
11
13
14
01 03
04
02
05
06 07 08 09 10
01 Power Press to turn on/off the washing machine.
02 Cycles Press to select the desired cycle.
03 Start/Pause Press to start or pause an operation.
04 Cycle indicators
The indicator next to each wash cycle turns on to indicate the selected
cycle.
05 Display
Displays the current cycle information and estimated time remaining, or
an information code if the washing machine needs to be checked.
06 Air Turbo
Press this button to speed dry your laundry. The Air Turbo function can
only be selected if the Spin option is set.
07 Water Level Press to change the water level manually.
08 Wash
Press to select the wash time manually or press and hold to start wash
cycle only.
09 Rinse
Press to change the number of rinses (maximum 5 rinses) or press and
hold to start rinse cycle only.
10 Spin
Press to select a different spin speed or press and hold to start spin cycle
only.
11 Eco Bubble
Press this button to activate/deactivate the Eco Bubble function.
This function is only available in the NORMAL, BABY CARE or JEANS
cycle.
• The Eco Bubble function helps the detergent penetrate into your
laundry faster and more effectively. It even protects your laundry from
being damaged.
Untitled-4 26 2023-10-13 11:35:56
English 27
12 Super Speed
Press this button if you need to shorten the washing time, applicable
for NORMAL, BABY CARE or JEANS. The shortened time may differ
depending on the selected cycle/load/options.
•
Power Tub Clean: Press and hold Super Speed for 3 seconds. Use this
function if you have not performed the ECO TUB CLEAN cycle or need
more powerful tub cleaning performance. You can add detergent to
clean the tub more thoroughly.
13 Intensive Wash
Press this button when the laundry is heavily soiled and needs to be
washed intensively. The cycle time will be increased if Intensive Wash is
on. This function is only available in the NORMAL, BABY CARE, BEDDING
or AQUA PRESERVE cycle.
14 Delay End
Press to finish the wash at a specified time. To cancel the Delay End
settings, simply turn off the washing machine. You can set the Delay End
time up to 24 hours.
Untitled-4 27 2023-10-13 11:35:56
Operations
English28
Simple steps to start
01 02 05
04
03
1. Press Power to turn on the washing machine.
2. Press Cycles repeatedly until the desired cycle is selected.
3. Change the cycle settings (Water Level, Wash, Rinse, and/or Spin) as necessary.
4. To add an option, press the corresponding button.
5. Press Start/Pause.
To change the cycle during operation
1. Press Start/Pause to pause the operation.
2. Select a different cycle, and repeat steps 3-4 above if necessary.
3. Press Start/Pause again to start the new cycle.
Untitled-4 28 2023-10-13 11:35:56
English 29
Cycle overview
Cycle Description
Max load
(kg)
NORMAL
• For most fabrics including cottons, linens, and normally
soiled items.
Max
QUICK WASH
• For lightly soiled items that you want to finish washing
quickly.
Max
SUPER CLEAN
• Select this if you want to produce powerful cleaning
performance.
Max
DELICATES
• For sheer fabrics, bras, lingerie, silks, and other handwash-
only fabrics. For best results, use liquid detergent.
2.0
BABY CARE
• Featuring a extra rinses to help remove the remaining
detergent effectively.
Max
BEDDING
• For bulky items such as comforters, blankets, and sheets.
• For best results, wash only a single type of bedding.
3.5
JEANS • Suitable for clothes that require a thorough wash. Max
AQUA PRESERVE
• Use this if you want to save the water to use. The water
used in the rinse process will be reused for the next
process.
Max
RINSE+SPIN
• Featuring an additional rinse process after applying fabric
softener to the laundry.
Max
ECO TUB CLEAN
• Select this to clean the tub. The powerful spinning force
removes impurities and bad odours from inside the tub.
• A blinking ECO TUB CLEAN indicator reminds you that it
is time to clean the tub using ECO TUB CLEAN. For details,
see the Cleaning section in this manual.
-
Untitled-4 29 2023-10-13 11:35:56
Operations
English30
Special features
Child Lock
The Child Lock function locks the washing machine lid to prevent children from climbing into and
suffocating inside the tub.
Activating the Child Lock function
Press and hold
Water Level and Wash simultaneously for approximately 3 seconds.
• When you activate the Child Lock function, the Child Lock
indicator blinks.
Using the Child Lock function
If the lid is opened when the Child Lock function is on, “
dC” is displayed and an alarm sounds.
• If the water level in the tub is above the safe water level, “
dC” is displayed on the LED display and the
washing machine starts to drain water by force after 30 seconds.
• If the water level in the tub is above the safe water level and the Child Lock function is turned on while
the lid is open, “CL” is displayed on the LED display, even if the washing machine is turned off, and the
washing machine drains water by force.
• When Child Lock is on and the washing machine is off, if the water in the tub is above the safe water
level and the lid is opened, “CL” is displayed on the LED display. No alarm sounds, but the washing
machine drains the water. When the draining operation finishes, the power automatically turns off
again.
• After the compulsory drain, “CL” blinks at 1 second intervals and the washing machine enters the “CL”
mode. (When the washing machine is in the “CL” mode, only the Power button works.)
• To cancel the “CL” mode, turn the power off and then on again.
• To cancel the “dC” mode, deactivate the Child Lock function. To deactivate the Child Lock function, press
and hold Water Level and Wash simultaneously for at least 3 seconds.
Untitled-4 30 2023-10-13 11:35:56
English 31
Deactivating the Child Lock function
Press and hold both
Water Level and Wash simultaneously for approximately 3 seconds.
• When you deactivate the Child Lock function, the Child Lock
indicator is turned off.
• The Child Lock function prevents children or the infirm from accidently operating the washing machine
and injuring themselves.
WARNING
If a child enters the washing machine, the child may become trapped and suffocate.
CAUTION
• Once you have activated the Child Lock function, it continues working even if the power is turned off.
• Forcing the lid open can result in injury or damage to the product.
NOTE
To add laundry after you have activated the Child Lock function, you must first deactivate the Child Lock
function.
Delay End
You can set the washing machine to finish a cycle later. The hour displayed indicates the time the wash will
finish.
1. Select a cycle. Then, change the cycle settings if necessary.
2. Press Delay End repeatedly until a desired end time is set.
3. Press Start/Pause. The indicator next to the Delay End button turns on, and the timer starts.
4. To cancel Delay End, restart the washing machine by pressing Power.
Real-life case
You want to finish a two-hour cycle 3 hours from now. To do this, add the Delay End option to the current
cycle with a 3-hour setting, and then press
Start/Pause at 2:00 p.m. The washing machine starts operating
at 3:00 p.m. and ends at 5:00 p.m. Provided below is the timeline for this example.
2:00 pm
Set Delay End to 3 hours
3:00 pm
Start
5:00 pm
End
Sound On/Off
You can turn on or off the key. Your setting will remain effective after you restart the machine.
• To mute/unmute the sound, hold down
Rinse and Spin simultaneously for 3 seconds.
Untitled-4 31 2023-10-13 11:35:56
English32
Maintenance
Cleaning
Keep the washing machine clean to prevent deteriorated performance and to preserve its life cycle.
Exterior
• Use a soft cloth to wipe up all detergent, bleach, or other spills as they occur.
• Clean the control panel with a soft, damp cloth. Do not use abrasive powders or cleaning pads. Do not
spray cleaners directly on the panels.
ECO TUB CLEAN
Regularly run this cycle to clean the tub and to remove bacteria from it.
1. Makes sure the tub is completely empty.
2. Press Power to turn on the washing machine.
3. Press Cycles repeatedly until ECO TUB CLEAN is selected. You can also use Delay End with ECO TUB
CLEAN.
4. Press Start/Pause.
NOTE
If the washing machine is installed and used in a humid place, bacteria in the air may adhere to the humid
surface of the tub and foster mould growth, which is harmful to your health. To keep your washing machine
tub clean, use the ECO TUB CLEAN cycle once every 1-2 months (or when the ECO TUB CLEAN indicator
turns on) to clean the tub.
CAUTION
• Only run ECO TUB CLEAN when the tub is completely empty. This may cause damage to the laundry or a
problem with the washing machine.
• Depending on the conditions and surroundings in which the washing machine is used, the degree of
contamination in the tub or the result of the ECO TUB CLEAN cycle may vary. When using the ECO TUB
CLEAN cycle, pour 200 ml of chlorine bleach evenly on the bottom of the tub.
- Excessive use of chlorine bleach may cause product malfunction. Do not mix chlorine bleach with
other substances (such as vinegar, citric and oxygen bleach, etc.)
- Mixing chlorine bleach with these substances can generate harmful gas. When using chlorine
bleach, make sure to ventilate the surrounding area. If you have used the washing machine for a
long time without cleaning the tub or if you are cleaning the tub for the first time, some residue may
remain in the tub after the ECO TUB CLEAN cycle.
• Run an additional RINSE+SPIN cycle to completely remove residue. Though stainless tubs do not rust
easily, they may get rusty in the following cases; if rust should occur, wipe them with neutral detergent
on a sponge or soft cloth.
- If any metallic objects (safety pins, hairpins, etc.) that rust easily are left in the tub for a long time.
- If chlorine bleach is left in the tub for a long time.
- If an excessive amount of chlorine bleach is used in the tub.
Untitled-4 32 2023-10-13 11:35:56
English 33
ECO TUB CLEAN reminder
• The ECO TUB CLEAN indicator reminds you of cleaning the tub when necessary. If you happen to see the
indicator blinking after washing is complete, remove the laundry and run the ECO TUB CLEAN cycle.
• You can ignore this reminder and continue to run cycles normally because this is not a system failure.
However, the reminder remains active for 6 consecutive cycles immediately after each cycle is complete.
• To keep the tub clean, it is recommended to run ECO TUB CLEAN on a regular basis.
Power Tub Clean
Use this function if you have not performed the ECO TUB CLEAN cycle or need more powerful tub cleaning
performance. You can add detergent to clean the tub more thoroughly.
1. Make sure the tub is empty.
2. Press Power to turn on the washing machine.
3. Press and hold Super Speed for 3 seconds.
- Pour 200 ml of chlorine bleach evenly on the bottom of the tub.
4. Press Start/Pause.
WARNING
• Do not put any items in the tub while running the Power Tub Clean cycle. The items may get damaged
or discoloured.
• Depending on the conditions and surroundings in which the washing machine is used, the degree of
contamination in the tub or the result of the Power Tub Clean cycle may vary.
Untitled-4 33 2023-10-13 11:35:56
Maintenance
English34

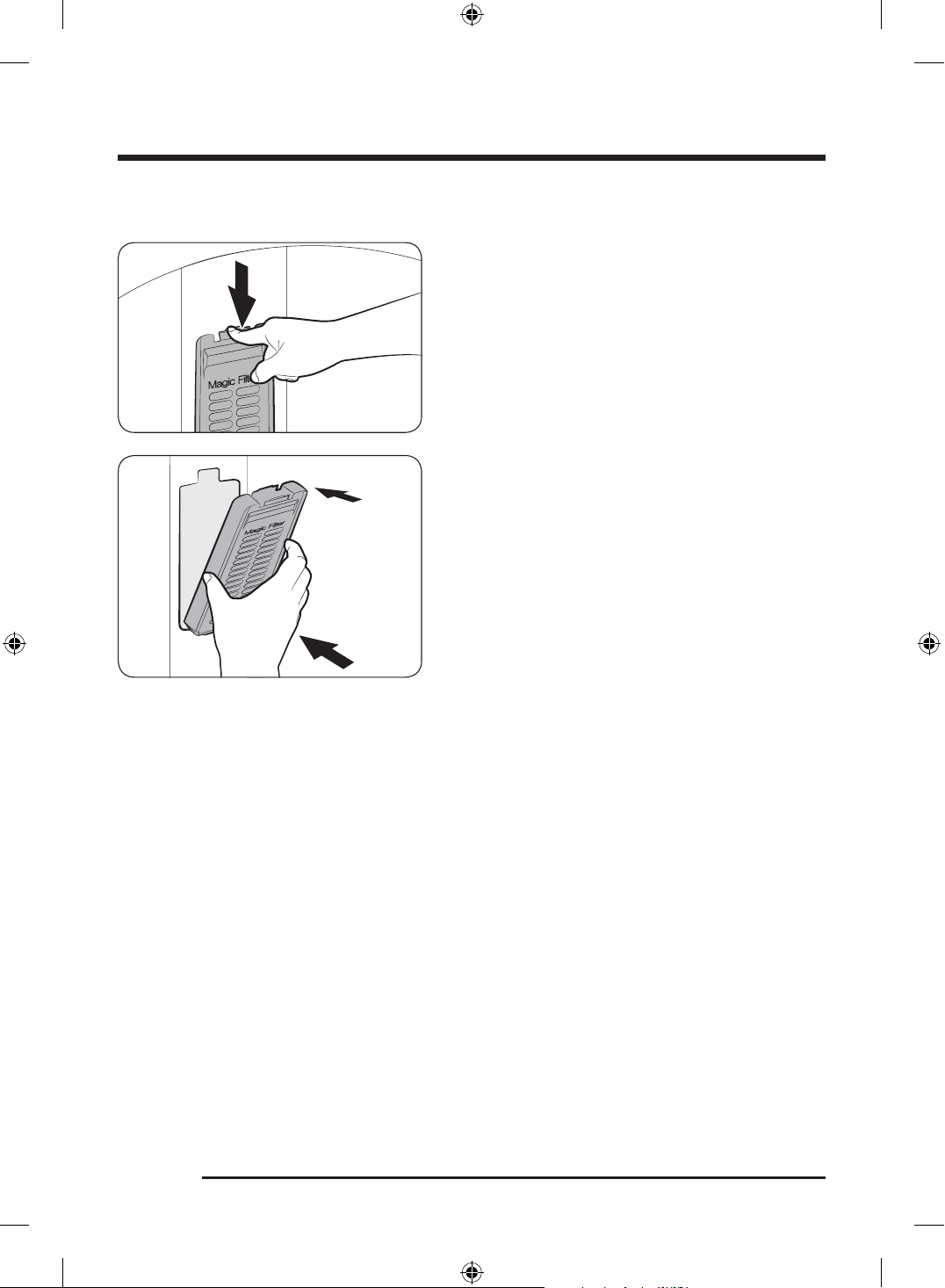

Magic filter
1. Press down the upper area of the filter case to
remove.
2. Unlock the cover, and clean the filter with running
water and a brush.
3. When cleaning is complete, close the cover and
reinsert the filter case to the original position. You
will hear a clicking sound when the filter case fits in.
Untitled-4 34 2023-10-13 11:35:57
English 35

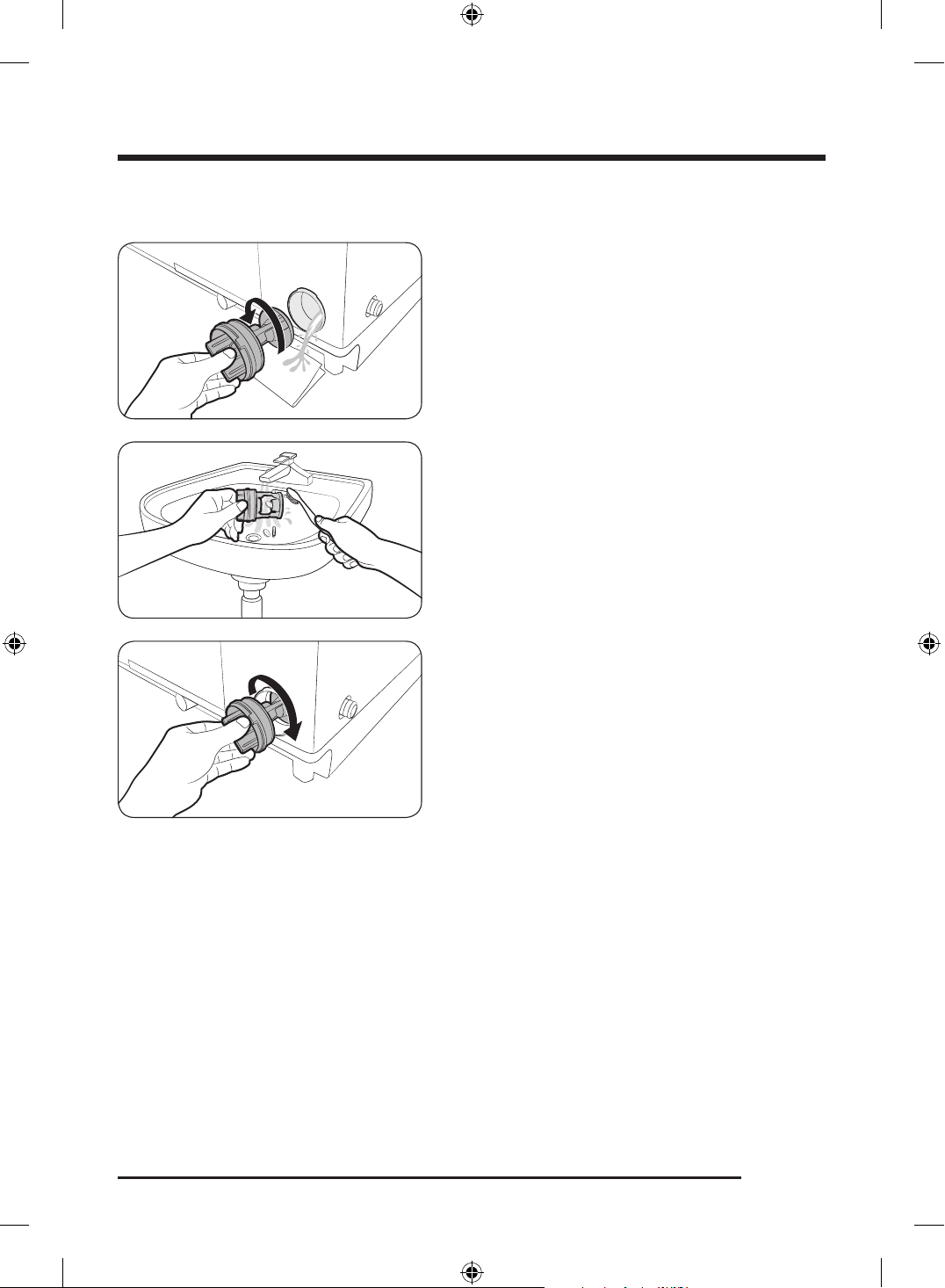

Pump filter (applicable models only)
1. Put a floor-cloth or towel under the Pump filter. Turn
the filter knob anticlockwise to remove.
2. Clean the filter with running water and a soft brush.
3. Reinsert the filter, and turn clockwise until it locks
into position.
Untitled-4 35 2023-10-13 11:35:57
Maintenance
English36

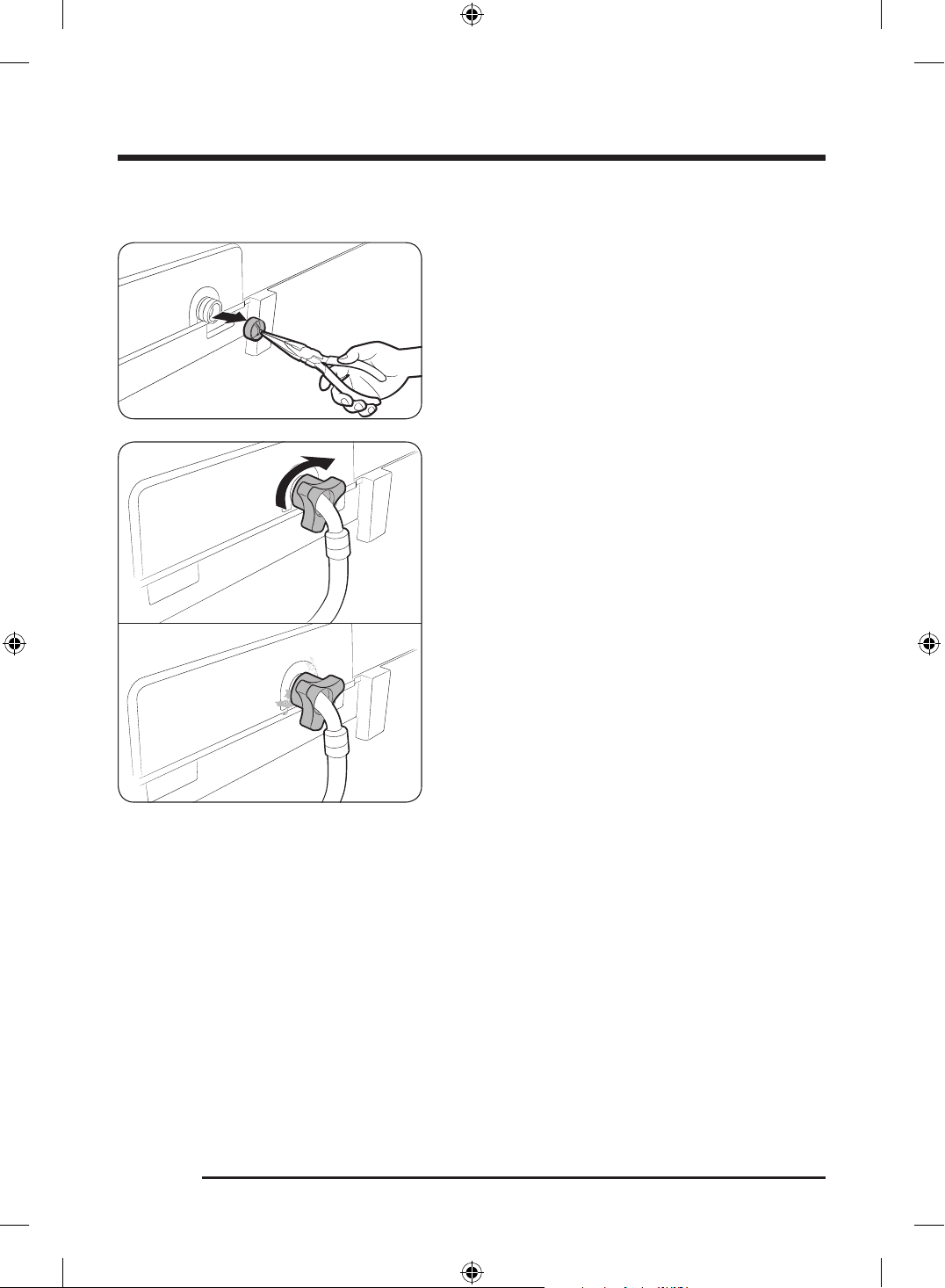

Mesh filter
1. Use pliers to pull out the mesh filter from inside the
water inlet as shown.
2. Use a soft brush to clean the mesh filter with running
water.
3. Reinsert the filter. Make sure it is tightened against
water leaks.
Untitled-4 36 2023-10-13 11:35:57
English 37

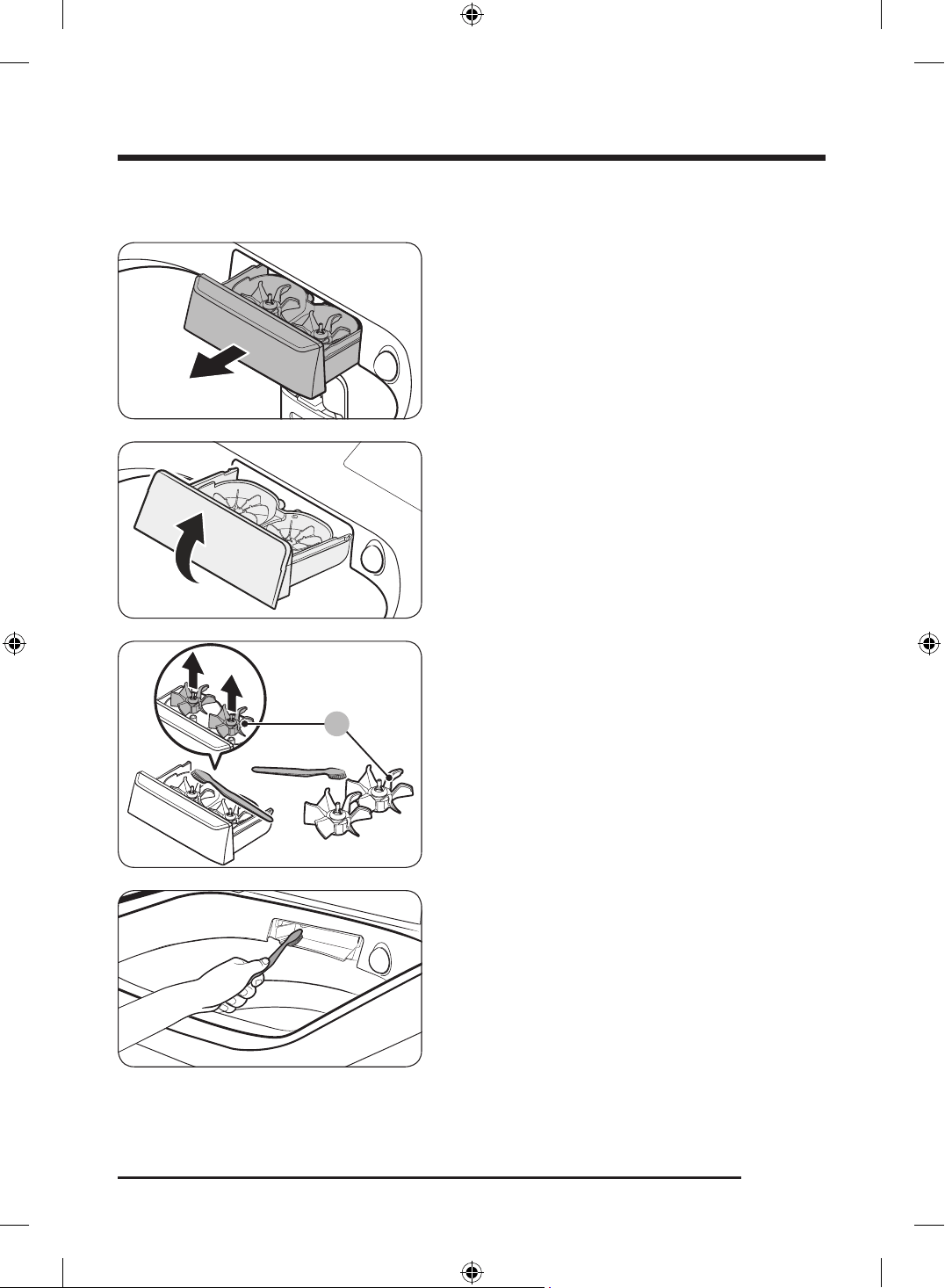

Detergent drawer
1. Fully pull out the detergent drawer.
2. To remove, slightly lift up the front edge of the
drawer, and then pull it.
3. Remove the Bubble Kit (A) from the compartment.
Rinse the Bubble Kit (A) and the drawer in warm
water and clean with a soft brush.
4. Clean the drawer opening thoroughly with a small,
non-metallic brush.
Untitled-4 37 2023-10-13 11:35:57
Maintenance
English38
B
A
5. Return the Bubble Kit to the detergent
compartment. Replace the drawer by placing the
drawer rail (A) on the compartment rail (B) while
tilting the drawer downward.
6. Fully push the drawer back to close.
Untitled-4 38 2023-10-13 11:35:57
English 39
Troubleshooting
Checkpoints
If you encounter a problem with the washing machine, first check the table below and try the suggestions.
Problem Action
Does not turn on.
• Make sure you use rated power for the product.
• Make sure the power cord is completely plugged in.
• Check the fuse or reset the circuit breaker.
Does not start.
• Make sure the lid is closed.
• Make sure the water taps are open.
• Make sure to press Start/Pause (or press and hold Start/Pause for 3
seconds) to start the washing machine.
• Make sure Child Lock is not activated.
• Before the washing machine starts to fill, it will make a series of
clicking noises to check the lid’s lock and does a quick drain. (This
only applies to the models with the lid-locking feature.)
• Was the lid opened during the spinning cycle? Close the lid, and
press Start/Pause (or press and hold Start/Pause for 3 seconds) to
resume. (This only applies to the models without the lid-locking
feature.)
• The machine enters Standby or is in a soaking cycle. Please wait.
• Check the fuse or reset the circuit breaker.
Water is not supplied.
• Make sure you press Start/Pause (or press and hold Start/Pause for 3
seconds) after selecting the water supply.
• Make sure the water taps are open.
• Is the filter net at the water supply hose connector clogged? Clean
the filter net by brushing with a toothbrush.
• Is the water supply cut off? If the water supply is cut off, close the tap
and power off.
• Straighten the water supply hoses.
• Open and close the lid, then press Start/Pause (or press and hold
Start/Pause for 3 seconds).
• If the water pressure is low, it takes longer to start washing.
• If the water level is not as high as necessary or lower than expected,
use the level selector to adjust the water level.
After a cycle, detergent
remains in the automatic
dispenser.
• Make sure the washing machine is running with sufficient water
pressure.
• Make sure the detergent drawer is properly inserted.
• Remove and clean the detergent drawer, and then try again.
Untitled-4 39 2023-10-13 11:35:58
Troubleshooting
English40
Problem Action
Vibrates excessively or
makes noise.
• Make sure the washing machine is set on a level floor. If the floor is
not level, use the levelling feet to adjust the washing machine.
• Make sure the washing machine is not contacting any other object.
• Make sure the laundry load is balanced.
• Make sure the laundry is spread evenly in the washing machine.
Spread out the laundry evenly and start again.
• Make sure the space around the washing machine is free of objects.
• Humming is produced normally during operation.
• Objects such as coins can cause noise. Remove these objects from
the washing machine after washing is complete.
Stops.
• Plug the power cord into a live electrical outlet.
• Check the fuse or reset the circuit breaker.
• Close the lid, and press Start/Pause (or press and hold Start/Pause
for 3 seconds) to start the washing machine. For your safety, the
washing machine will not spin unless the lid is closed. (This only
applies to the models with the lid-locking feature.)
• Before the washing machine starts to fill, it will make a series of
clicking noises to check the lid’s lock and does a quick drain.
• There may be a pause or soak period in the cycle. Wait briefly and the
washing machine may start.
• Make sure the inlet hose screens at the taps are not clogged.
Periodically clean the screens.
• This problem occurs temporarily due to low voltages, and will be
solved when power recovers.
The ECO TUB CLEAN alarm
does not turn off.
• When the machine is diagnosed to be cleaned, the ECO TUB CLEAN
indicator blinks for an hour. This recurs 6 consecutive times until
you run the ECO TUB CLEAN cycle. This is normal, and not a system
failure. To keep the tub clean, it is recommended to run the cycle
once every 1-3 months.
Untitled-4 40 2023-10-13 11:35:58
English 41
Problem Action
Fills with the wrong
temperature water.
• Fully open both water taps.
• Make sure the temperature selection is correct.
• Make sure the hoses are connected to the correct water taps. Flush
water lines.
• Disconnect the hoses and clean the screens. The hose filter screens
may be clogged.
• While the washing machine fills, the water temperature may change
as the automatic temperature control feature checks incoming water
temperature. This is normal.
• While the washing machine fills, you may notice just hot and/or
just cold water going through the dispenser when cold or warm
temperatures are selected. This is a normal function of the automatic
temperature control feature as the washing machine determines the
water temperature.
The lid is locked or will not
open. (This only applies to
the models with the lid-
locking feature.)
• The lid is locked and will not open while the washing machine is
operating. To open the lid, press Start/Pause to pause the operation
first. (If the Child Lock function is activated, you must deactivate the
Child Lock function before pressing Start/Pause.)
Does not drain and/or spin.
• Check the fuse or reset the circuit breaker.
• Make sure the electrical voltage is normal.
• Make sure the washing machine is plugged in.
• Make sure the drain hose is pointed downward. (Natural drain
models only)
• Make sure the drain hose is not clogged.
• Make sure the drain hose is not kinked.
• Straighten the drain hose. If there is a drain restriction, call for
service.
• Close the lid, and press Start/Pause (or press and hold Start/Pause
for 3 seconds). For your safety, the washing machine will not spin
unless the lid is closed.
Load is wet at the end of the
cycle.
• Use the High or Extra High spin speed. (Applicable model only)
• Use high efficiency (HE) detergent to reduce oversudsing.
• Load is too small. Small loads (one or two items) may become
unbalanced and not spin completely.
Untitled-4 41 2023-10-13 11:35:58
Troubleshooting
English42
Problem Action
Leaks water.
• Make sure all hose connections are tight.
• Make sure the water supply hose's rubber packing is in the correct
position. Screw tightly again.
• Make sure the end of the drain hose is correctly inserted and secured
to the drain system.
• Avoid overloading.
• Use high efficiency (HE) detergent to prevent oversudsing.
• Make sure the water supply hose is not kinked.
• If the water supply is too strong, water may leak. Close the water tap
a little.
• Make sure water is not leaking from the water tap. If so, repair the
water tap.
Excessive suds.
• Use high efficiency (HE) detergent to prevent oversudsing.
• Reduce the detergent amount for soft water, small loads, or lightly
soiled loads.
• Non-HE detergent is not recommended.
The spin basket or drain/
supply hose is frozen.
• Use warm water to disconnect the water supply hose and drain hose.
Soak them in warm water.
• Fill the spin basket with warm water, and then wait for about 10
minutes.
• Put a hot towel on the drain hose connector.
• Reconnect the water supply hose and drain hose, and check if water
is supplied properly.
Water drains out
immediately.
• Make sure the drain hose is not clogged, and is hung over the drain
hose hook. Fill the spin basket halfway with water, and try spinning
again.
• Lift the end of the drain hose to prevent water from draining. Fill the
spin basket halfway with water, and then run spinning after releasing
the drain hose.
• Make sure the drain hose is installed correctly. See the installation
section of this user manual and adjust the position of the drain hose
as instructed.
Stains on clothes. • Clean the filter.
Has odours.
• Excessive suds collect in recesses and can cause foul odours.
• Run cleansing cycles to sanitise periodically.
• Dry the washing machine interior after a cycle has finished.
If a problem persists, contact a local Samsung service centre.
Untitled-4 42 2023-10-13 11:35:58
English 43
Information codes
If the washing machine fails to operate, you may see an information code on the display. Check the table
below and try the suggestions.
Code Action
1C
The Water Level sensor is not working properly.
• Check Water Level Sensor wire harness.
• If the information code remains, contact a customer service centre.
NOTE
When the washing machine displays “1C”, the washing machine drains for 3 minutes and
the
Power button is inoperative during this time.
3C
Check the motor for operation.
• Try restarting the cycle.
• If the problem continues, call for service.
4C
Water is not supplied.
• Make sure the water taps are open.
• Make sure the water hoses are not clogged.
• Make sure the water taps are not frozen.
• Make sure the washing machine is operating with sufficient water pressure.
• Make sure that the cold water tap and the hot water tap are properly connected.
• Clean the mesh filter as it may be clogged.
NOTE
When the washing machine displays “4C”, the washing machine drains for 3 minutes and
the Power button is inoperative during this time.
4C2
• Make sure the cold water supply hose is firmly connected to the cold water tap. If it is
connected to the hot water tap, the laundry may be deformed with some cycles.
5C
Water is not draining.
• Make sure the drain hose is not frozen or clogged.
• Make sure the drain hose is positioned correctly, depending on the connection type.
• Clean the debris filter as it may be clogged.
• Make sure the drain hose is straightened all the way to the drain system.
• If the information code remains, contact a customer service centre.
8C
Check the MEMS sensor.
• Power off the washing machine. Wait 2-3 minutes, power on the washing machine,
and then try again.
• If the problem continues, call for service.
Untitled-4 43 2023-10-13 11:35:58
Troubleshooting
English44
Code Action
9C1
The electronic control needs to be checked (Over Voltage Error).
• Check the PCB and wire harness.
• Check if power is supplied properly.
• If the information code remains, contact a customer service centre.
9C2
Low voltage detected.
• Check if the power cord is plugged in.
• If the information code remains, contact a customer service centre.
AC6
Inverter Communication problem.
• Check the Inverter PCB and wire harness.
• If the information code remains, contact a customer service centre.
dC
dC1
The washing machine’s lid is not properly closed.
• Make sure the lid is properly closed.
• Make sure laundry is not caught in the lid.
• If the information code remains, contact a customer service centre.
HC
High temperature heating check.
• If the information code remains, contact a customer service centre.
LC
Check the drain hose.
• Make sure the end of the drain hose is placed on the floor.
• Make sure the drain hose is not clogged.
• If the information code remains, contact a customer service centre.
NOTE
When the washing machine displays “LC”, the washing machine drains for 3 minutes and
the Power button is inoperative during this time.
OC
Water is overflowed.
• Restart after spinning.
• If the information code remains on the display, contact a local Samsung service
centre.
PC
When position of the clutch can't be detected.
• If the information code remains, contact a customer service centre.
PC1
After position of the clutch is detected, if the signal of the clutch hall goes wrong.
• If the information code remains, contact a customer service centre.
Untitled-4 44 2023-10-13 11:35:58
English 45
Code Action
Ub
Spinning does not work.
• Make sure laundry is spread out evenly.
• Make sure the washing machine is on a flat, stable surface.
• Redistribute the load. If only one item of clothing needs washing, such as a bathrobe
or pair of jeans, the final spin result might be unsatisfactory, and an “Ub” check
message will be shown in the display.
If any information code keeps appearing on the screen, contact a local Samsung service centre.
Untitled-4 45 2023-10-13 11:35:58
English46
Specification
Specification sheet
Type
Top loading washing machine
WA80CG4545** WA85CG4545**
Max load capacity (kg) 8.0 8.5
Power consumption
(W)
AC 220-240 V / 50 Hz
400
AC 230 V / 60 Hz
Dimensions (mm) W540 x D577 x H1008
Net weight (kg) 30.0
Water pressure (MPa (kg·f/cm
2
)) 0.05 - 0.78 (0.5 - 8.0)
Spin speed (rpm) 700
Type
Top loading washing machine
WA90C*4545** WA95CG4545** WA10C*4545**
Max load capacity (kg) 9.0 9.5 10.0
Power consumption
(W)
AC 220-240 V / 50 Hz
400
AC 230 V / 60 Hz
Dimensions (mm) W540 x D577 x H1008
Net weight (kg) 30.0
Water pressure (MPa (kg·f/cm
2
)) 0.05 - 0.78 (0.5 - 8.0)
Spin speed (rpm) 700
NOTE
Asterisk (*) means variant model and can be varied (0-9) or (A-Z).
Untitled-4 46 2023-10-13 11:35:58
Memo
Untitled-4 47 2023-10-13 11:35:58
QUESTIONS OR COMMENTS?
COUNTRY CALL OR VISIT US ONLINE AT
MALAYSIA
1800-88-9999 (OTH)
+603-7713 7420 (Overseas contact)
www.samsung.com/my/support
PHILIPPINES
1-800-10-7267864 [ PLDT - Toll Free ]
1-800-8-7267864 [ Globe - Toll Free ]
84222111 [ Landline ]
www.samsung.com/ph/support
PAKISTAN 0800-Samsung (7267864) www.samsung.com/pk/support
DC68-04442K-01
Untitled-4 48 2023-10-13 11:35:58
