JBL STAGE3 627F

Product's Documents

Below are documents related to this product, you can read online or download:
User Manual Specification
Main documentSpecificationQuestions and answersRelateds Products
STAGE3 627F photo

Owners Manual English

This is the main product document for model STAGE3 627F.

The file format is pdf, 46 pages, you can download this manual here .

background
Installation manual
STAGE3 607C
STAGE3 607CF
STAGE3 427
STAGE3 427F
STAGE3 527
STAGE3 527F
STAGE3 627
STAGE3 627F
STAGE3 637F
STAGE3 6427
STAGE3 8627
STAGE3 9637
STAGE3 9637F
background

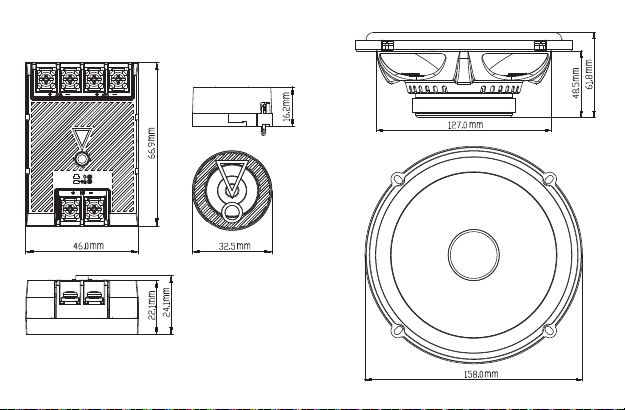

STAGE3 527
STAGE3 607C
background
STAGE3 527
background
STAGE3 527
background
background
Specication

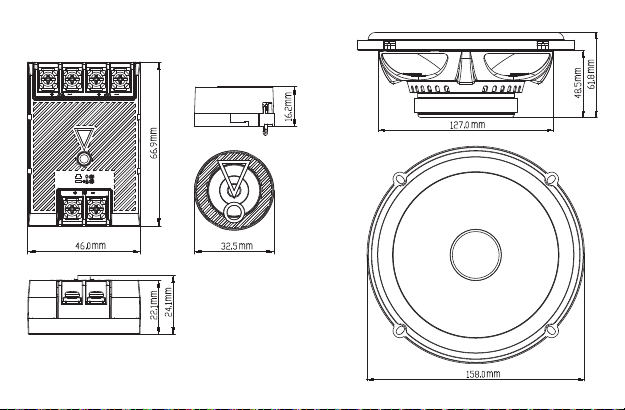

• Type: 6-1/2” (165mm) 2-way
component system car speaker
• Power Handling: 50W RMS, 150W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.316
• DCR (ohms): 2.45
• Mms (g): 14.017
• Sd (cm2): 138.93
• Cms (μm/N): 0.316
• Vas (l): 8.6375
• Fs (Hz): 75.6
• Qes: 1.482
• Qms: 11.842
• Qts: 1.317
• Crossover Point: 5kHz
background
STAGE3 527F
STAGE3 607CF
background
STAGE3 527F
background
STAGE3 527F
background
background
Specication
• Type: 6-1/2” (165mm) 2-way
component system car speaker for
factory upgrade without grille
• Power Handling: 50W RMS, 150W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.316
• DCR (ohms): 2.45
• Mms (g): 14.017
• Sd (cm2): 138.93
• Cms (μm/N): 0.316
• Vas (l): 8.6375
• Fs (Hz): 75.6
• Qes: 1.482
• Qms: 11.842
• Qts: 1.317
• Crossover Point: 5kHz
background

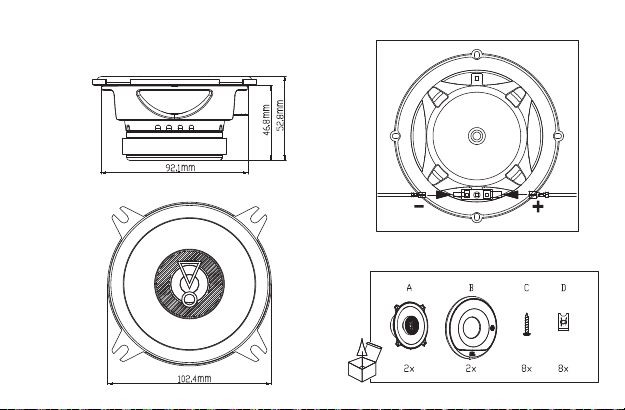

STAGE3 427
STAGE3 427
background
STAGE3 427
background
Specication
• Type: 4” (100mm) 2-way coaxial car
speaker
• Power Handling: 30W RMS, 90W (Peak)
• Sensitivity (@2.83V/1m): 90dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 2.467
• DCR (ohms): 2.74
• Mms (g): 5.501
• Sd (cm2): 63.62
• Cms (μm/N): 0.387
• Vas (l): 2.2146
• Fs (Hz): 109.1
• Qes: 1.698
• Qms: 12.973
• Qts: 1.501
• Crossover Point: 7kHz
background
STAGE3 427F
STAGE3 627F
STAGE3 427F
background
STAGE3 427F
STAGE3 627F
background
Specication
• Type: 4” (100mm) 2-way coaxial car
speaker for factory upgrade without
grille
• Power Handling: 30W RMS, 90W (Peak)
• Sensitivity (@2.83V/1m): 90dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 2.467
• DCR (ohms): 2.74
• Mms (g): 5.501
• Sd (cm2): 63.62
• Cms (μm/N): 0.387
• Vas (l): 2.2146
• Fs (Hz): 109.1
• Qes: 1.698
• Qms: 12.973
• Qts: 1.501
• Crossover Point: 7kHz
background
STAGE3 527
STAGE3 637F
STAGE3 527
background
STAGE3 527
STAGE3 637F
background
Specication

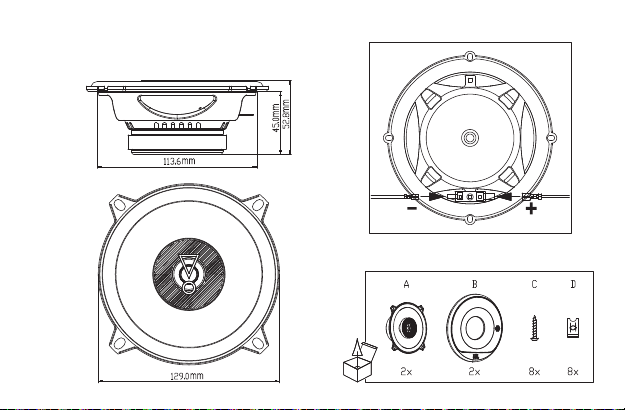

• Type: 5-1/4” (130mm) 2-way coaxial car
speaker
• Power Handling: 40W RMS, 120W (Peak)
• Sensitivity (@2.83V/1m): 91dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.148
• DCR (ohms): 2.61
• Mms (g): 9.81
• Sd (cm2): 102.07
• Cms (μm/N): 0.281
• Vas (l): 4.1374
• Fs (Hz): 95.9
• Qes: 1.555
• Qms: 13.546
• Qts: 1.395
• Crossover Point: 6kHz
background
STAGE3 527F
STAGE3 6427
STAGE3 527F
background
background
Specication
• Type: 5-1/4” (130mm) 2-way coaxial car
speaker for factory upgrade without
grille
• Power Handling: 40W RMS, 120W (Peak)
• Sensitivity (@2.83V/1m): 91dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.148
• DCR (ohms): 2.61
• Mms (g): 9.81
• Sd (cm2): 102.07
• Cms (μm/N): 0.281
• Vas (l): 4.1374
• Fs (Hz): 95.9
• Qes: 1.555
• Qms: 13.546
• Qts: 1.395
• Crossover Point: 6kHz
background
STAGE3 8627
STAGE3 627
STAGE3 627
background
STAGE3 8627
STAGE3 627
background
Specication
• Type: 6-1/2” (160mm) 2-way coaxial car
speaker
• Power Handling: 45W RMS, 135W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.347
• DCR (ohms): 2.43
• Mms (g): 13.661
• Sd (cm2): 138.93
• Cms (μm/N): 0.339
• Vas (l): 9.2635
• Fs (Hz): 73.9
• Qes: 1.377
• Qms: 13.148
• Qts: 1.246
• Crossover Point: 5kHz
background
STAGE3 9637
STAGE3 627F
STAGE3 627F
background
STAGE3 9637
STAGE3 627F
background
Specication
• Type: 6-1/2” (160mm) 2-way coaxial car
speaker for factory upgrade without
grille
• Power Handling: 45W RMS, 135W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.347
• DCR (ohms): 2.43
• Mms (g): 13.661
• Sd (cm2): 138.93
• Cms (μm/N): 0.339
• Vas (l): 9.2635
• Fs (Hz): 73.9
• Qes: 1.377
• Qms: 13.148
• Qts: 1.246
• Crossover Point: 5kHz
background
STAGE3 9637F
STAGE3 637F
STAGE3 637F
background
STAGE3 9637F
STAGE3 637F
background
Specication
• Type: 6-1/2” (165mm) 3-way coaxial
car speaker for factory upgrade without
grille
• Power Handling: 45W RMS, 135W (Peak)
• Sensitivity (@2.83V/1m): 92dB
• Frequency Response: 55Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.347
• DCR (ohms): 2.43
• Mms (g): 13.661
• Sd (cm2): 138.93
• Cms (μm/N): 0.339
• Vas (l): 9.2635
• Fs (Hz): 73.9
• Qes: 1.377
• Qms: 13.148
• Qts: 1.246
• Crossover Point: 5kHz
background

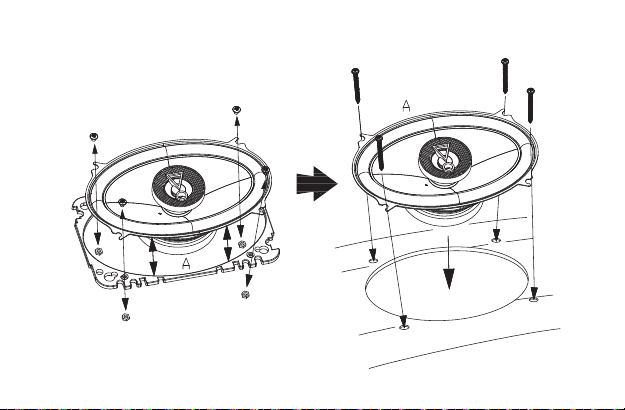

STAGE3 6427
STAGE3 6427
background
STAGE3 6427
background
STAGE3 6427
background
Specication

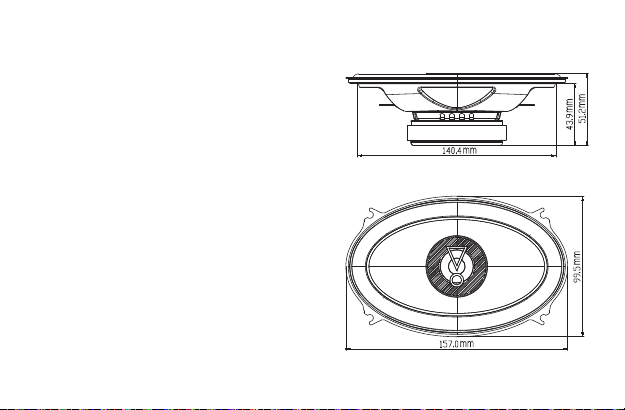

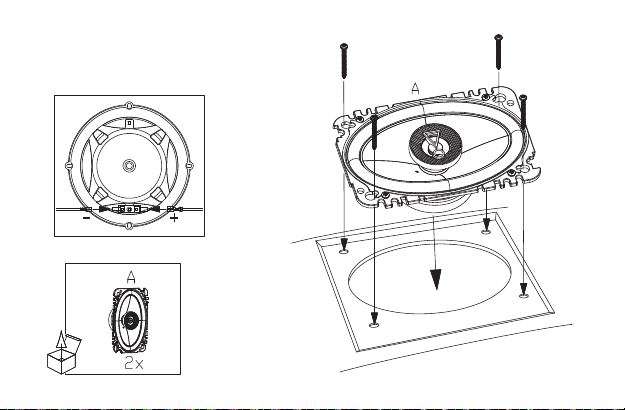

• Type: 4” x6” (100mm x 152mm) 2-way
coaxial car speaker
• Power Handling: 35W RMS, 105W (Peak)
• Sensitivity (@2.83V/1m): 91dB
• Frequency Response: 75Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.146
• DCR (ohms): 2.36
• Mms (g): 8.151
• Sd (cm2): 86.59
• Cms (μm/N): 0.272
• Vas (l): 2.884
• Fs (Hz): 106.9
• Qes: 1.307
• Qms: 13.178
• Qts: 1.189
• Crossover Point: 6kHz
background

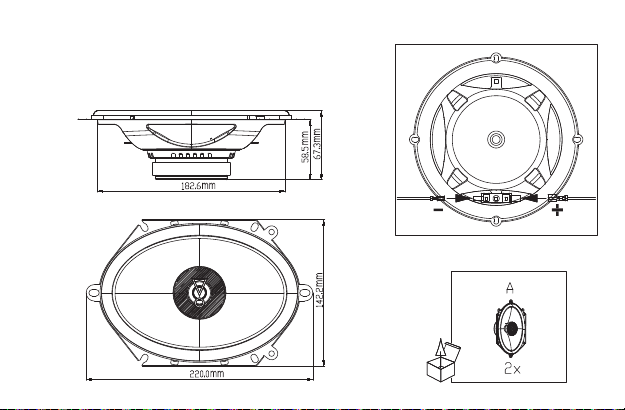

STAGE3 8627
STAGE3 8627
background
STAGE3 8627
background
Specication
• Type: 6” x8” (152mm x 203mm) 2-way
coaxial car speaker
• Power Handling: 50W RMS, 150W (Peak)
• Sensitivity (@2.83V/1m): 93dB
• Frequency Response: 65Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.736
• DCR (ohms): 2.63
• Mms (g): 17.369
• Sd (cm2): 176.71
• Cms (μm/N): 0.396
• Vas (l): 7.7316
• Fs (Hz): 60.7
• Qes: 1.25
• Qms: 11.955
• Qts: 1.132
• Crossover Point: 6kHz
background

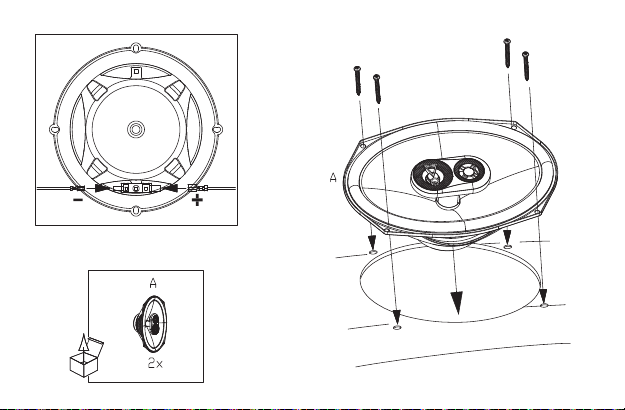

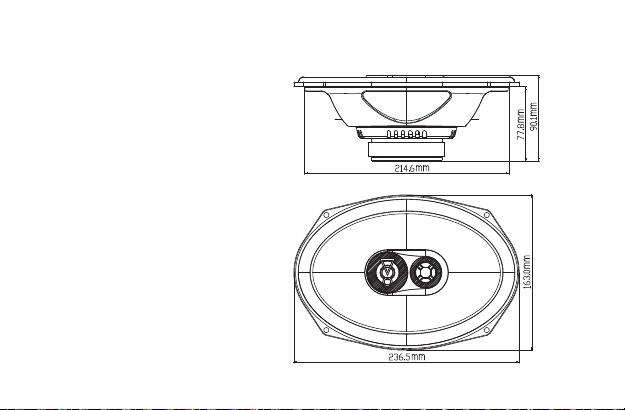

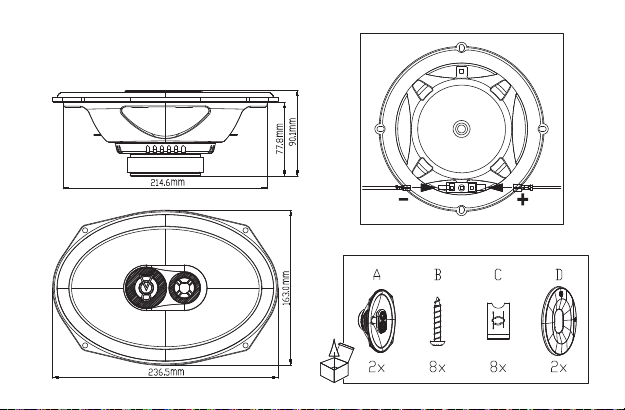

STAGE3 9637
STAGE3 9637
background
STAGE3 9637
background
Specication
• Type: 6” x9” (152mm x 230mm) 3-way
car speaker
• Power Handling: 75W RMS, 225W (Peak)
• Sensitivity (@2.83V/1m): 93dB
• Frequency Response: 50Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.533
• DCR (ohms): 2.34
• Mms (g): 22.973
• Sd (cm2): 237.79
• Cms (μm/N): 0.404
• Vas (l): 32.3563
• Fs (Hz): 52.2
• Qes: 1.413
• Qms: 13.661
• Qts: 1.281
• Crossover Point: 5kHz
background
STAGE3 9637F
STAGE3 9637F
background
STAGE3 9637F
background
Specication
• Type: 6”x9” (152mm x 230mm) 3-way
car speaker for factory upgrade
without grille
• Power Handling: 75W RMS, 225W (Peak)
• Sensitivity (@2.83V/1m): 93dB
• Frequency Response: 50Hz - 20kHz
• Impedance: 3ohms
Thiele-Small Parameters
• BL (Tm): 3.533
• DCR (ohms): 2.34
• Mms (g): 22.973
• Sd (cm2): 237.79
• Cms (μm/N): 0.404
• Vas (l): 32.3563
• Fs (Hz): 52.2
• Qes: 1.413
• Qms: 13.661
• Qts: 1.281
• Crossover Point: 5kHz
background
HARMAN International Industries,
Incorporated, 8500 Balboa
Boulevard, Northridge, CA 91329
USA
© 2018 HARMAN International
Industries, Incorporated. All
rights reserved. JBL is a trademark of HARMAN International
Industries, Incorporated, registered in the United States and/or
other countries.
Features, specifications and appearance are subject to change
without notice.
