User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 Appliance at a glance............................................ 3
1.1 Scope of delivery.......................................................... 3
1.2 Overview of the appliance and equipment.............. 3
1.3 SmartDevice.................................................................. 4
1.4 Appliance range of use............................................... 4
1.5 Conformity..................................................................... 4
2 General safety instructions.................................. 4
3 Functionality of the Touch&Swipe display......... 6
3.1 Navigation and symbol explanation......................... 6
3.2 Menus............................................................................. 6
3.3 Sleep mode................................................................... 7
4 Putting into operation........................................... 7
4.1 Switching on appliance (first use)............................ 7
4.2 Starting the IceMaker for the first time*................. 7
4.3 Starting the EasyTwist-Ice for the first time*......... 8
5 Storage.................................................................. 8
5.1 Information regarding storage................................... 8
5.2 Fridge compartment.................................................... 8
5.3 EasyFresh..................................................................... 8
5.4 Freezer compartment.................................................. 8
5.5 Storage times............................................................... 9
6 Saving energy........................................................ 9
7 Controls................................................................. 9
7.1 Controls and displays.................................................. 9
7.1.1 Status display..............................................................9
7.1.2 Display symbols.......................................................... 9
7.2 Appliance functions..................................................... 9
7.2.1 Notes on the appliance functions............................9
Turn off appliance.....................................................10
7.2.3 Switching temperature zones off and on............. 10
WiFi............................................................................ 10
Temperature............................................................... 11
Temperature unit......................................................12
D-Value.......................................................................12
SuperCool...................................................................12
PowerCool ................................................................ 13
VarioTemp.................................................................. 13
SuperFrost.................................................................14
Start defrosting cycle..............................................14
PartyMode ................................................................ 14
HolidayMode.............................................................. 15
SabbathMode............................................................15
EnergySaver .............................................................16
IceMaker / MaxIce *................................................ 16
IceMaker water supply*.......................................... 17
TubeClean *...............................................................18
CleaningMode...........................................................18
Display brightness...................................................18
Door alarm.................................................................19
Input lock...................................................................19
Language...................................................................19
Device information..................................................20
Software................................................................... 20
Reminder....................................................................20
Demo mode.............................................................. 20
Resetting to factory settings.................................21
7.3 Fault messages............................................................ 21
7.3.1 Warnings.................................................................... 21
7.3.2 Message..................................................................... 22
8 Features................................................................. 22
8.1 Door rack....................................................................... 22
8.2 Shelves.......................................................................... 23
8.3 Dividing shelf................................................................ 23
8.4 VarioSafe ...................................................................... 24
8.5 Drawers.......................................................................... 26
8.6 EasyFresh-Safe cover.................................................. 26
8.7 Adjusting the moisture levels.................................... 27
8.8 Glass shelves................................................................ 27
8.9 EasyTwist-Ice*.............................................................. 27
8.10 IceMaker*...................................................................... 28
8.11 VarioSpace.................................................................... 29
8.12 Butter dish.................................................................... 29
8.13 Egg rack......................................................................... 29
8.14 Bottle holder................................................................. 30
8.15 Freezer pack.................................................................. 30
8.16 Ice cube tray with cover*............................................ 30
8.17 Flexible ice compartment divider*............................ 30
9 Maintenance.......................................................... 31
9.1 FreshAir carbon filter................................................... 31
9.2 Disassembling / assembling pull-out systems...... 31
9.3 Defrosting the appliance............................................ 31
9.4 Cleaning the appliance............................................... 32
10 Customer help....................................................... 35
10.1 Technical specifications............................................. 35
10.2 Operating noises.......................................................... 35
10.3 Technical fault.............................................................. 35
10.4 Customer Service......................................................... 36
10.5 Model plate................................................................... 37
11 Shutting down....................................................... 37
12 Disposal................................................................. 37
12.1 Preparing appliance for disposal.............................. 37
12.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 37
The manufacturer is continually working on the further
development of all types and models. Please be aware that
2 * Depending on model and options
we reserve the right to make changes to the shape, equip‐
ment and technology.
Symbol Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Full instructions on the internet
You can find detailed instructions on the
internet using the QR code on the front
of these instruction or by entering the
service number at
home.liebherr.com/fridge-
manuals.
The service number can be found on the serial
tag:
Fig.Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so differences are possible. Sections that
apply to certain models only are marked with
an asterisk (*).
Instructions and results
Instructions are marked with a
.
Results are marked with a
.
Videos
Videos about the appliances are available on
the YouTube channels of Liebherr-Hausgeräte.
These operating instructions apply to:
CN ... 52.. / 57.. / 77.. (i)
SCN ... 52..
Note
If your appliance has an N in its appliance designation, it is
a NoFrost appliance.
1 Appliance at a glance
1.1 Scope of delivery
Check all parts for transport damage. Contact your
dealer or customer service in the event of complaints.
(see 10.4 Customer Service)
Your new appliance comes with the following parts:
-
Standalone appliance
-
Features (depending on the model)
-
Installation materials (depending on the model)
-
“Quick Start Guide”
-
“Installation Guide”

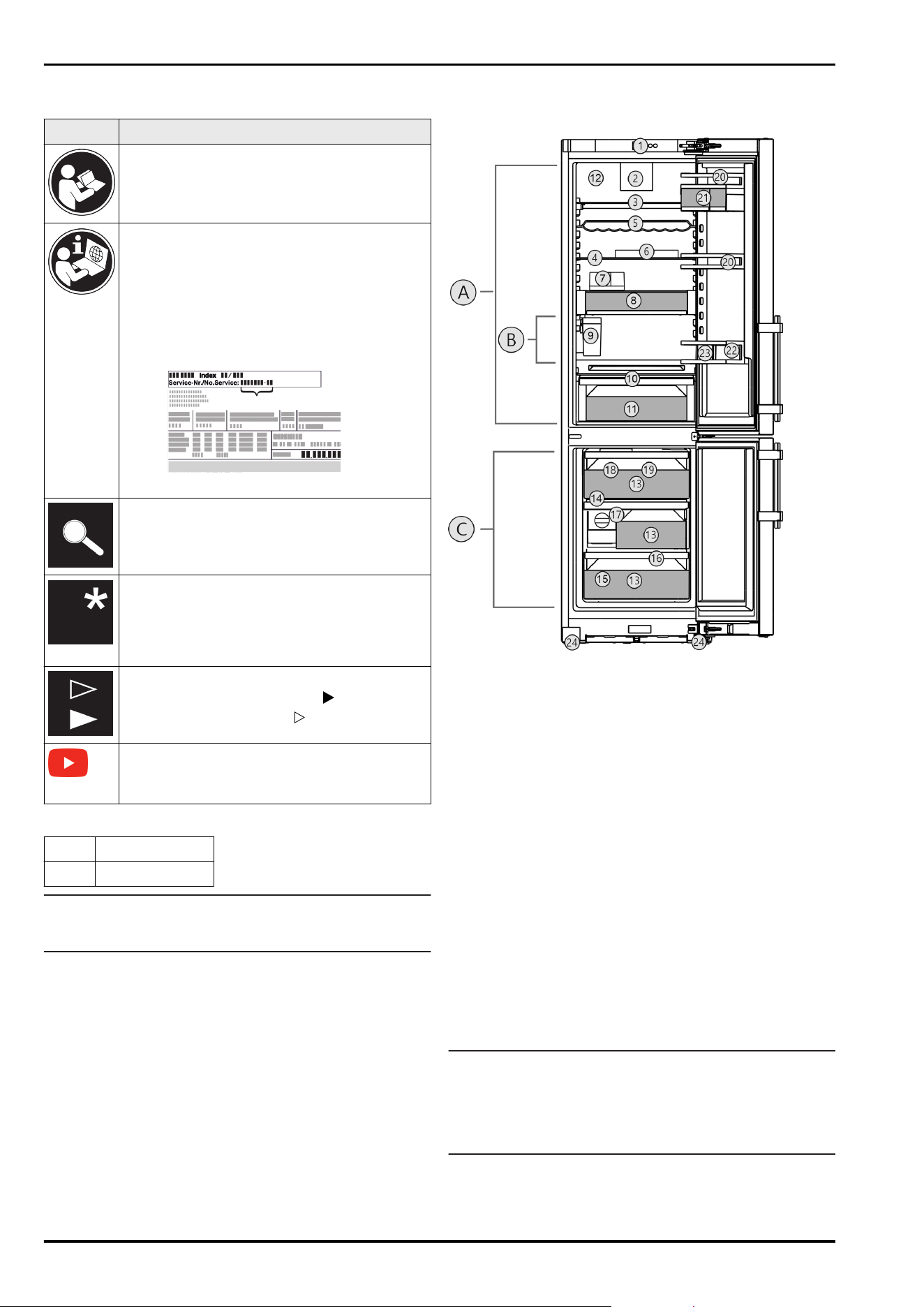

1.2 Overview of the appliance and
equipment
Fig. 1 Example illustration
Temperature range
(A) Fridge compartment (C) Freezer compartment
(B) Coldest zone
Equipment
(1) Controls (13) Freezer compartment
(2) Fan with FreshAir acti‐
vated charcoal filter
(14) VarioSpace
(3) Separable storage
shelf
(15) Serial tag
(4) Storage shelf* (16) Outlet
(5) Bottle shelf (17) EasyTwist-Ice*
(6) Egg tray (18) IceMaker*
(7) Butter dish (19) Cold storage accumula‐
tors
(8) VarioSafe (20) Door shelf
(9) IceMaker water tank* (21) VarioBox
(10) Lid for EasyFresh-Safe (22) Bottle rack
(11) EasyFresh-Safe (23) Bottle holder
(12) Dry rear wall (24) Adjustable feet and the
front, transport castors
at the rear, carrying
handle at the top (rear)
and at the bottom (front)
Note
u
Shelves, drawers and baskets are arranged for optimum
energy efficiency when the appliance is delivered.
Changing how the shelves, for example, are inserted in
the fridge compartment does not have any impact on
energy consumption.
Appliance at a glance
* Depending on model and options 3
1.3 SmartDevice
SmartDevice is the networking solution for your fridge-
freezer.
If your appliance SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your
WiFi. With the SmartDevice app, you can operate your appli‐
ance from a mobile device. Additional functions and setting
options are available in the SmartDevice SmartDevice app.
SmartDevice-
compatible appli‐
ance:
Your appliance is compatible for use
with the SmartDeviceBox. You must
first purchase and install the Smart‐
DeviceBox. In order to connect your
appliance to the WiFi, you need to
download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Purchasing the
SmartDeviceBox
in the Liebherr-
Hausgeräte store:
home.liebherr.com/shop/de/deu/
smartdevicebox.html
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice, you can connect your
appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (seeWiFi) .
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
1.4 Appliance range of use
Intended use
The appliance is only suitable for cooling
food products in a domestic or household-like
environment. This includes, for example, use:
-
in staff kitchens, bed and breakfast estab‐
lishments,
-
by guests in country houses, hotels, motels
and other accommodation,
-
for catering and similar services in the
wholesale trade.
The appliance is not suitable as a built-in
unit.
All other types of use are not permitted.
Foreseeable misuse
The following applications are expressly
forbidden:
-
Storing and refrigerating medicines, blood
plasma, laboratory preparations or similar
substances and products based on the
Medical Device Directive 2007/47/EC
-
Use in areas at risk of explosions
Misusing the appliance may lead to damage
to the goods stored or they may spoil.
Climate classifications
Depending on the climate classification the
appliance is designed to operate in restricted
ambient temperatures. The climate classifica‐
tion applying to your appliance is printed on
the rating plate.
Note
u
Keep to the specified ambient tempera‐
tures in order to guarantee that the appli‐
ance works properly.
Climate clas‐
sification
for ambient temperatures of
SN 10°C to 32°C
N 16°C to 32°C
ST 16°C to 38°C
T 16°C to 43°C
SN-ST 10°C to 38°C
SN-T 10°C to 43°C
1.5 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
2 General safety instructions
Please keep these instructions in a safe place
and pass them on to any subsequent owners.
Read these operating instructions carefully
before use to ensure safe and correct use of
the appliance. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Danger for the user:
-
This device can be used by children and
people with impaired physical, sensory or
mental abilities or with a lack of experi‐
ence and knowledge provided that they
are supervised or have received instruction
in the safe use of this device, and about
the resulting hazards. Children must not
play with this appliance. Cleaning and user
General safety instructions
4 * Depending on model and options
maintenance work must not be carried out
by children without adult supervision. Chil‐
dren aged between 3 and 8 are allowed
to load and unload the appliance. Children
below the age of 3 must be kept away from
the appliance unless they are under contin‐
uous adult supervision.
-
The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer‐
gency. It must not be located in the area
behind the appliance.
-
When disconnecting the appliance from the
supply, always take hold of the plug. Do not
pull the cable.
-
In the event of a fault pull out the mains
plug or deactivate the fuse.
-
Do not damage the mains power cable. Do
not operate the appliance with a defective
mains power cable.
-
If the supply cord is damaged, it must be
replaced by a special cord or assembly
available from the manufacturer or its
service agent.
-
Only customer service or other specially
trained staff may repair or perform other
operations on the appliance.
-
Only assemble, connect and dispose of the
appliance according to the instructions.
-
Special lights, such as LED lights on the
appliance, are used to illuminate the inte‐
rior of the appliance and are not suitable
for room lighting.
Fire hazard:
-
This appliance contains a refrigerant
which is environmentally friendly, but flam‐
mable. Leaking refrigerant may ignite. It
is hazardous for anyone other than an
Authorised Service Person to service this
appliance. In Queensland, the authorised
Service Person MUST hold a Gas Work
Authorisation for hydrocarbon refrigerants,
to carry out Servicing or repairs where the
gas system is being opened or charged.
-
The coolant used (information on the model
plate) is ecofriendly but also flammable.
Any leaking coolant may ignite.
•
Do not damage the refrigerant circuit
pipes.
•
Do not handle ignition sources inside the
appliance.
•
Do not use electrical appliances inside
the appliance (e.g. steam cleaners,
heaters, ice cream makers, etc.).
•
If the refrigerant leaks: remove any naked
flames or ignition sources from the
vicinity of the leakage point. Properly air
the room. Inform customer services.
-
Do not store explosives or sprays using
combustible propellants such as butane,
propane, pentane, etc. in the appliance. To
identify these spray cans, look for the list
of contents printed on the can, or a flame
symbol. Gases possibly escaping may ignite
due to electrical components.
-
Keep burning candles, lamps and other
items with naked flames away from the
appliance so that they do not set the appli‐
ance on fire.
-
WARNING: Keep ventilation openings, in
the appliance enclosure or in the built-in
structure, clear of obstruction.
-
WARNING: Do not use mechanical devices
or other means to accelerate the defrosting
process, other than those recommended by
the manufacturer.
-
WARNING: Do not damage the refrigerant
circuit.
-
Please be sure to store alcoholic drinks
or other packaging containing alcohol in
tightly closed containers. Any alcohol that
leaks out may be ignited by electrical
components.
Danger of tipping and falling:
-
Do not misuse the plinth, drawers, doors
etc. as a step or for support. This applies
particularly to children.
Danger of food poisoning:
-
Do not consume food which has been
stored too long.
Danger of frostbite, numbness and pain:
-
Avoid prolonged skin contact with cold
surfaces or refrigerated/frozen goods or
take protective measures, e.g wear gloves.
-
Do not consume ice cream, water ice or
ice cubes immediately and do not consume
them too cold.
Danger of injury and damage:
-
Hot steam can lead to injury. Do not use
electrical heating or steam cleaning equip‐
ment, open flames or defrosting sprays to
defrost.
-
Do not use sharp implements to remove the
ice.
Risk of crushing:
-
Do not hold the hinge when opening and
closing the door. Fingers may get caught.

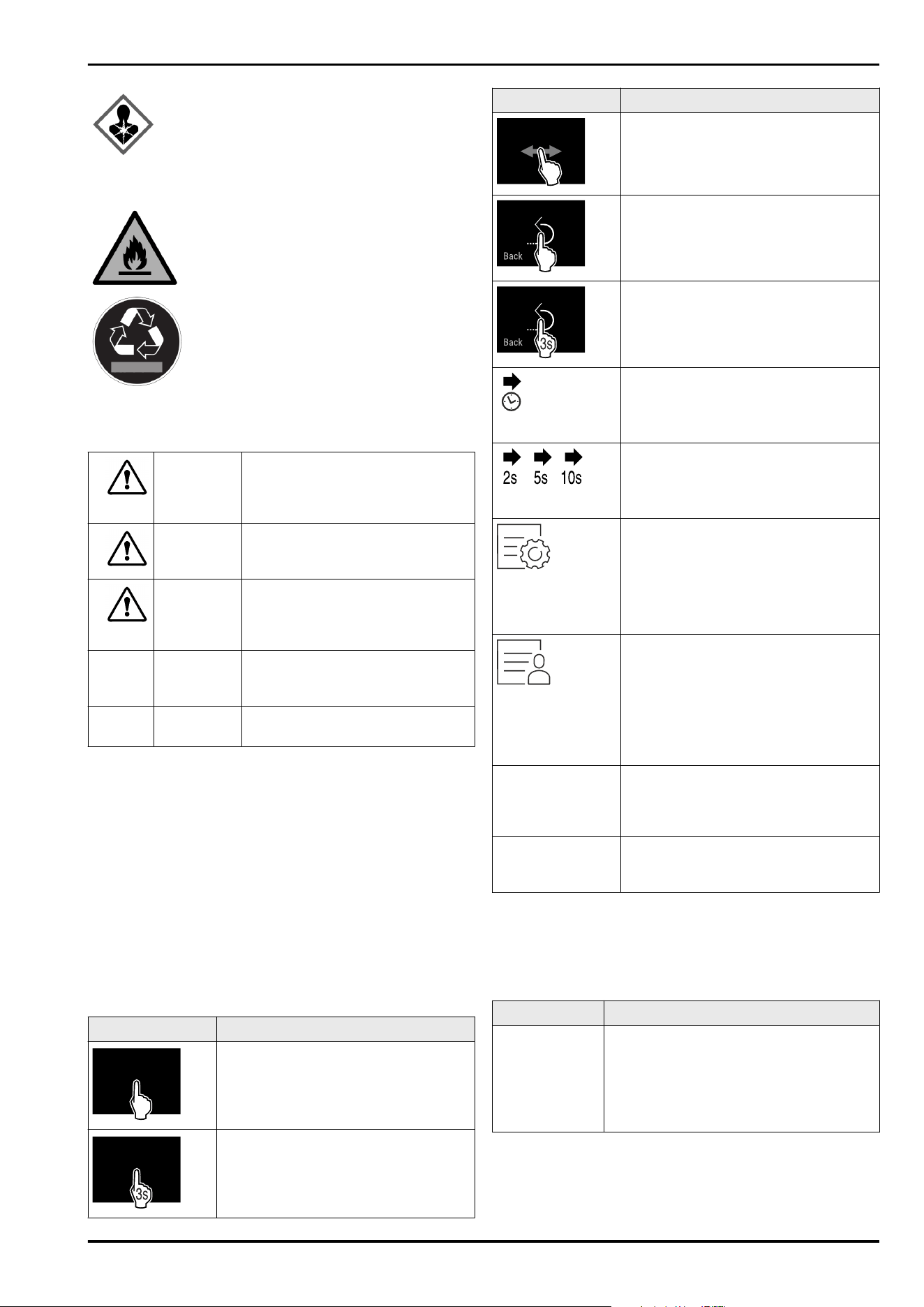

Symbols on the appliance:
General safety instructions
* Depending on model and options 5
This symbol may be located on the
compressor. It relates to the oil in the
compressor and makes reference to the
risk that: Swallowing or inhaling can be
fatal. This advice is only relevant to recy‐
cling. There is no danger in normal opera‐
tion.
This symbol is located on the compressor
and indicates the danger of flammable
materials. Do not remove the sticker.
This or a similar sticker may be located
on the rear of the appliance. This sticker
indicates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This advice is only relevant
to recycling. Do not remove the sticker.
Please note the warning messages and other
specific advice in the other chapters:
DANGER indicates an immediately
hazardous situation which will
lead to death or serious injuries if
it is not avoided.
WARNING indicates a hazardous situation
which may lead to death or serious
injuries if it is not avoided.
CAUTION indicates a hazardous situation
which may lead to minor or
moderate injuries if it is not
avoided.
NOTICE indicates a hazardous situation
which may lead to damage to
property if it is not avoided.
Note indicates useful instructions and
tips.
3 Functionality of the
Touch&Swipe display
You operate your appliance using the Touch & Swipe display.
You select appliance functions in the Touch & Swipe display
(hereafter referred to as display) by tapping them. If you
do not perform any action on the display for 10 seconds,
the display either jumps back to the higher-level menu or
directly to the status display.
3.1 Navigation and symbol explanation
In the illustrations, different symbols are used to navigate
the display. The following table describes these symbols.
Symbol Description
Briefly touch the display:
Activates/deactivates function.
Confirms selection.
Opens submenu.
Touch the display for a specified time
(e.g. 3seconds):
Activates/deactivates function or
value.
Symbol Description
Swipe left or right:
Navigate in the menu.
Briefly touch the Back symbol:
Jumps back one menu level.
Press and hold the Back symbol for
3seconds:
Jumps back to the status display.
Arrow with clock:
It takes more than 10 seconds for the
following message to appear in the
display.
Arrow with a time indication:
It takes the specified amount of time
until the following message appears in
the display.
“Open Settings menu” symbol:
Navigates to the Settings menu and
opens the settings menu.
If necessary: Navigate to the desired
function in the Settings menu.
(see 3.2.1 Opening the Settings menu)
“Open Advanced menu” symbol:
Navigates to the Advanced menu and
opens the advanced menu.
If necessary: Navigate to the desired
function in the Advanced menu.
(see 3.2.2 Opening the expanded
menu)
No action for
10seconds
If you do not perform any action on
the display for 10 seconds, the display
either jumps back to the higher-level
menu or directly to the status display.
Open door and
close it again.
If you open the door and immedi‐
ately close it again, the display jumps
directly back to the status display.
Note: Illustrations of the display are shown in the English
version.
3.2 Menus
The appliance functions are distributed over various menus:
Menu Description
Main menu When you switch the appliance on, you
are automatically in the main menu.
From here you can navigate to the most
important appliance functions, to the
Settings menu and to the Advanced
menu.
Functionality of the Touch&Swipe display
6 * Depending on model and options
Menu Description
Settings menu
The Settings menu contains additional
appliance functions for setting up your
appliance.
Advanced menu The advanced menu contains special
appliance functions for setting up your
appliance. Access to the Advanced menu
is protected by the numerical code 151.

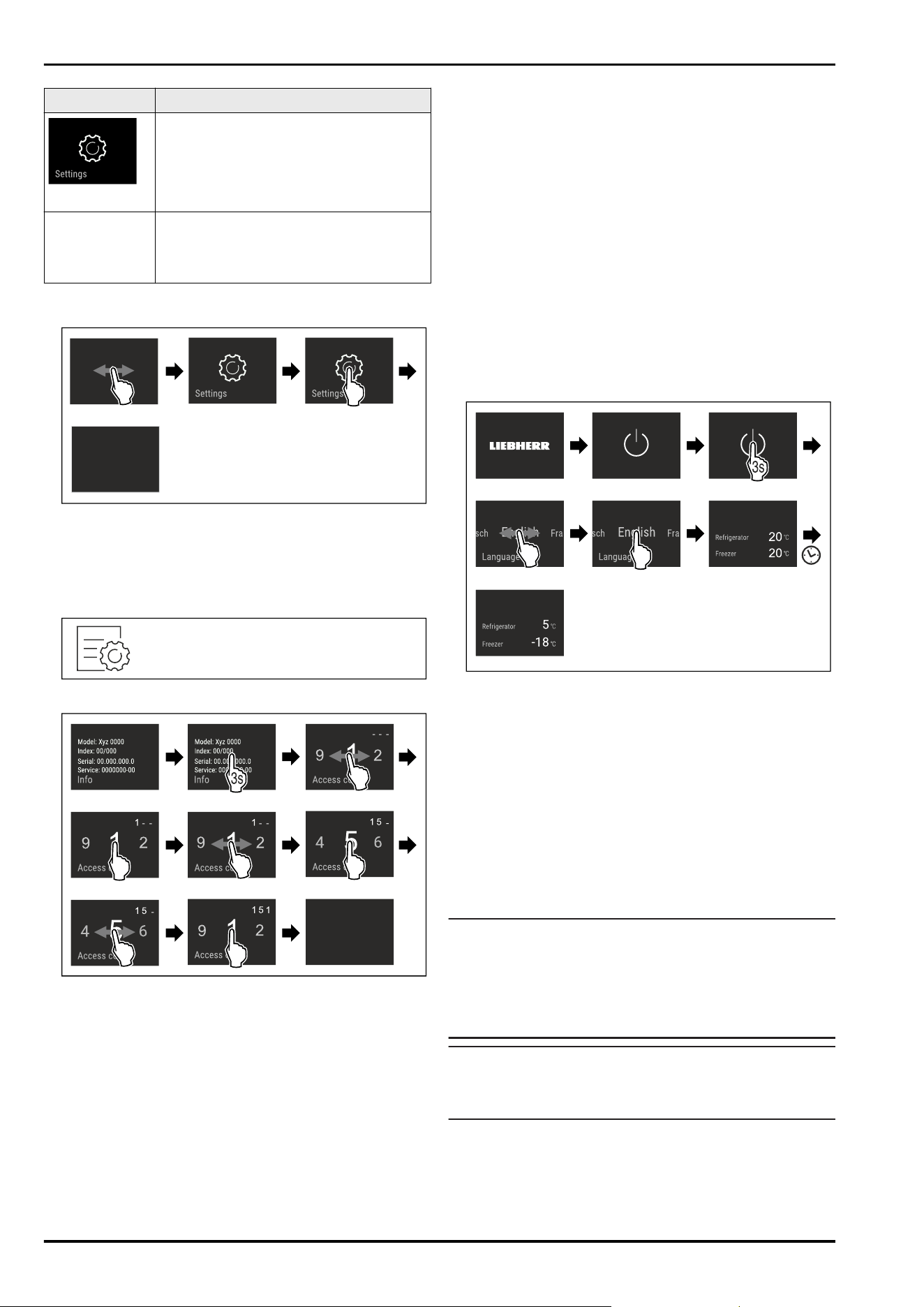

3.2.1 Opening the Settings menu
Fig. 2 Example illustration
u
Carry out action steps according to the illustration.
w
Settings menu is open.
u
If necessary: Navigate to the desired function.
3.2.2 Opening the expanded menu
Fig.3
Fig. 4 Example illustration, access with numerical code 151
u
Carry out action steps according to the illustration.
w
The expanded menu is open.
u
If necessary: Navigate to the desired function.
3.3 Sleep mode
If you do not touch the display for 1 minute, the display
switches to sleep mode. In sleep mode, the display bright‐
ness is dimmed.
3.3.1 Ending sleep mode
u
Touch the display briefly with your finger.
w
Sleep mode is ended.
4 Putting into operation
4.1 Switching on appliance (first use)
Make sure that the following requirements are fulfilled:
q
The appliance has been installed and connected in
accordance with the installation instructions.
q
All adhesive strips, adhesive and protective films and
transport locks are removed from inside and on the appli‐
ance.
q
All marketing leaflets are removed from the drawers.
q
You are familiar with the functionality of the
Touch & Swipe display. (see 3 Functionality of the
Touch&Swipe display)
Switch on the appliance using the Touch&Swipe display:
u
If the display is in sleep mode: Briefly touch the display.
u
Carry out action steps according to the illustration.
Fig. 5 Example illustration
w
The status display appears.
w
The appliance cools to the temperature set at the factory.
w

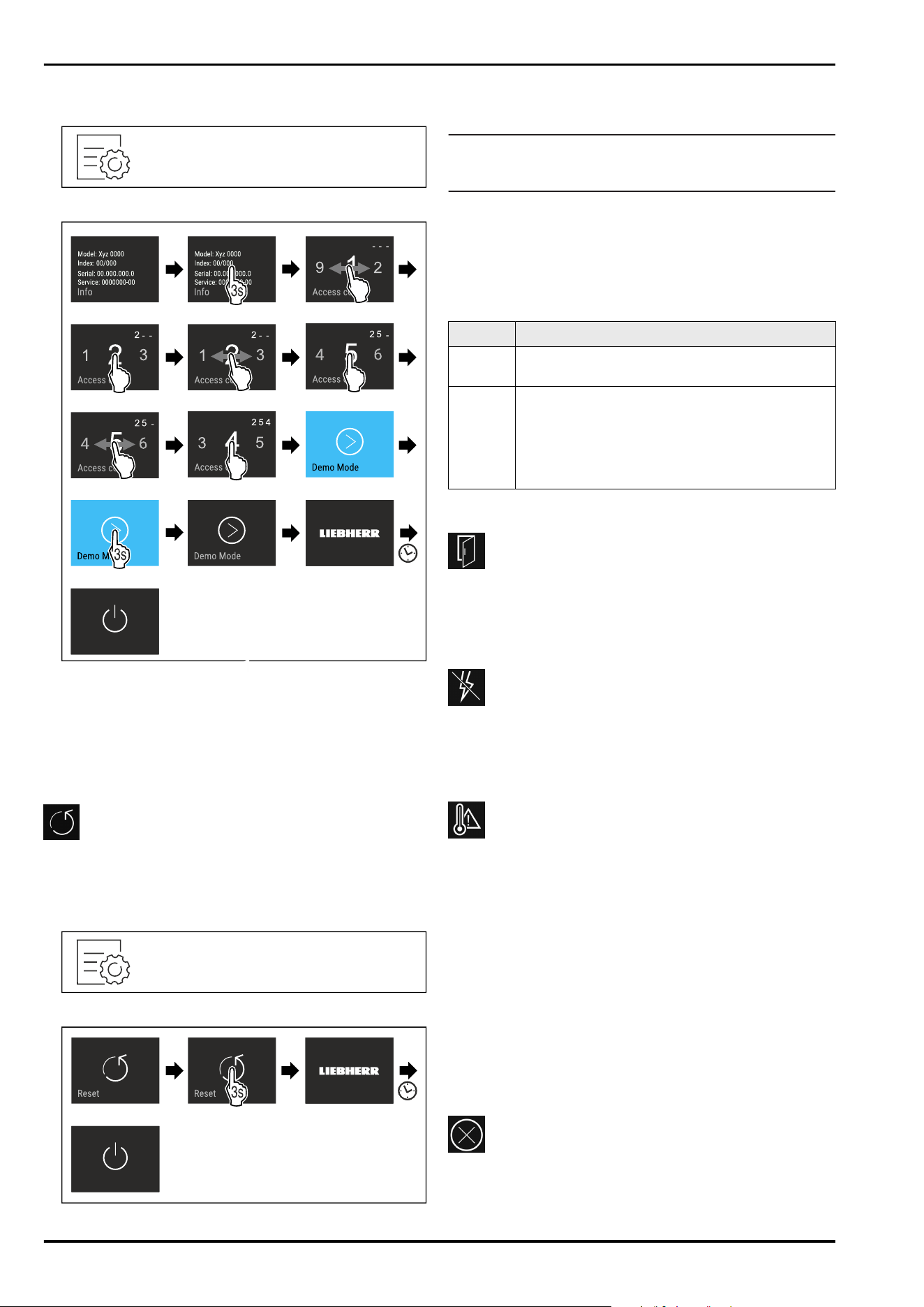

The appliance starts in demo mode (status display with
DEMO appears): If the appliance starts in demo mode,
you can deactivate demo mode within the next 5 minutes.
(seeDemo mode)
More information:
-
Start the IceMaker for the first time. (see 4.2 Starting the
IceMaker for the first time*) *
-
Start the EasyTwist-Ice for the first time. (see 4.3Starting
the EasyTwist-Ice for the first time*) *
-
Start the SmartDevice for the first time. (see 1.3 Smart‐
Device) and (seeWiFi)
Note
The manufacturer recommends:
u
Stock with food: Wait for around 6 hours until the set
temperature is reached.
u
Store frozen foods at -18°C or colder.
u
Observe the notes on storing food. (see 5.1 Information
regarding storage)
Note
Accessories can be purchased from the Liebherr-
Hausgeräte store at home.liebherr.com/shop/de/deu/
zubehor.html.
4.2 Starting the IceMaker for the first
time*
If your appliance is equipped with IceMaker, you must clean
the IceMaker before using it for the first time.
Putting into operation
* Depending on model and options 7
Make sure that the following requirements are fulfilled:
q
The appliance is properly connected.
4.3 Starting the EasyTwist-Ice for the
first time*
If your appliance is equipped with EasyTwist-Ice, you must
clean the EasyTwist-Ice before using it for the first time.
Make sure that the following requirements are fulfilled:
q
The appliance is properly connected.
u
Clean the EasyTwist-Ice. (see 9.4.7 Cleaning the Easy‐
Twist-Ice*)
u
Fill the water tank.
5 Storage
5.1 Information regarding storage
WARNING
Risk of fire
u
Do not use any electrical appliances in the food area of
the appliance unless recommended by the manufacturer.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Always keep air slots clear.
Observe the following specifications for storage:
-
Keep the air vents on the inside of the rear wall free.
-
Keep the air vents on the fan free.
-
In the freezer compartment: Package food properly.
-
Package or cover foods that readily take on or give off
odours or taste in closed containers.
-
Package raw meat or fish in clean, closed containers.
This will prevent meat or fish from touching or dripping
onto other food.
-
Keep liquids in closed containers.
-
Leave space between goods to ensure good air circula‐
tion.
-
Store food according to the instructions on the pack‐
aging.
-
Always observe the best-before date indicated on the
packaging.
Note
Failure to follow these guidelines can lead to foodstuffs
spoiling.
5.2 Fridge compartment
The air circulation in the appliance creates different temper‐
ature zones. You will find the different temperature zones in
the appliance and equipment overview. (see 1.2 Overview of
the appliance and equipment)
5.2.1 Arranging your food properly
u
Upper area and door: Store butter, cheese, tinned food
and tubes.
u
Coldest temperature zone: Store perishable foods such
as pre-cooked meals, meat and lunch meats.
u
Bottom shelf: Store raw meat or fish.
5.3 EasyFresh
EasyFresh is great for non-packaged foods, such as fruit
and vegetables.
The humidity in the compartment depends on the moisture
content of the chilled goods placed in it, and also depends
on how often the compartment is opened. You can regulate
the humidity level. (see 8.7 Adjusting the moisture levels)
5.3.1 Arranging your food properly
u
Store unpackaged fruit and vegetables.
If the humidity is too high:
u
Regulate the humidity. (see 8.7 Adjusting the moisture
levels)
5.4 Freezer compartment
Here, a dry, frosty storage climate is created at -18 °C. The
frosty storage climate is suitable for storing frozen food for
several months, for making ice cubes or freezing fresh food.
5.4.1 Freezing food
Freezing quantity
The maximum amount of fresh food that you can
freeze within 24 hours is specified on the type plate
(see 10.5 Model plate) under “Freezing capacity ... kg/24h”.
To ensure that food quickly freezes through, adhere to the
following quantities per package:
-
Fruit and vegetables up to 1 kg
-
Meat up to 2.5 kg
Freezing food using SuperFrost
Depending on the quantity to be frozen, you can activate
SuperFrost before freezing in order to achieve lower freezing
temperatures. (see SuperFrost)
u
Activate SuperFrost if the amount of food you have to
freeze is more than approx. 2 kg.
The time at which you activate SuperFrost depends on the
amount of food you have to freeze:
Freezing quan‐
tity
Time at which you should activate
SuperFrost
Small amount of
food to freeze
Activate SuperFrost about 6 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Maximum
amount of food
to freeze
Activate SuperFrost about 24 hours
before freezing.
You can place the food in the freezer
as soon as the appliance automatically
deactivates SuperFrost.
Arranging your food properly
CAUTION
Risk of injury from broken glass!
Bottles and cans with beverages can burst during freezing.
This applies in particular to carbonated beverages.
u
Only freeze bottles and cans with beverages if you have
activated the BottleTimer function in the SmartDevice
app.
Storage
8 * Depending on model and options
Freezing quan‐
tity
Arranging your food properly
Small amount of
food to freeze
Place packaged food in the top drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
Maximum
amount of food
to freeze
Distribute packaged groceries
throughout all drawers, but do not place
any groceries in the bottom drawer.
If possible, place groceries at the back
of the drawer near the rear wall.
5.4.2 Defrosting food
WARNING
Risk of food poisoning!
u
Do not re-freeze thawed food.
u
Use defrosted foodstuff as soon as possible.
You can defrost food in several ways:
-
In the fridge compartment
-
In the microwave
-
In the oven/fan-assisted oven
-
At room temperature
u
Take out only as much food as necessary.
5.5 Storage times
Refer to the specified storage times as a guide.
In the case of foods with a minimum shelf life, the date
indicated on the packaging still applies.
5.5.1 Fridge section
Always follow the best-before date stated on the packaging.
5.5.2 Freezer compartment
Recommended storage period for various types of food
Ice cream at -18°C 2 to 6 months
Sausages, ham at -18°C 2 to 3 months
Bread, baked goods at -18°C 2 to 6 months
Game, pork at -18°C 6 to 9 months
Fatty fish at -18°C 2 to 6 months
Lean fish at -18°C 6 to 8 months
Cheese at -18°C 2 to 6 months
Poultry, beef at -18°C 6 to 12 months
Vegetables, fruit at -18°C 6 to 12 months
6 Saving energy
-
Pay attention to good ventilation. Do not cover ventilation
holes or grids.
-
Always keep the fan air slits clear.
-
Do not install the appliance in direct sunlight, next to an
oven, radiator or similar.
-
Energy consumption depends on the installation condi‐
tions, e.g. the ambient temperature (see 1.4 Appliance
range of use) . A warmer ambient temperature can
increase the energy consumption.
-
Open the appliance for as short a time as possible.
-
The lower the temperature is set the higher the energy
consumption.
-
Sort your food:
home.liebherr.com/food.
-
Keep all food properly packed and covered. This prevents
frost from forming.
-
Only take food out for as long as necessary so that it
doesn’t warm up too much.
-
Inserting warm food: allow to cool down to room temper‐
ature first.
-
Thaw frozen food in the refrigerator.
-
For longer periods of absence, use HolidayMode
(see HolidayMode) .
Dust deposits increase energy consump‐
tion:
-
For refrigerators with heat exchangers
dust the metal grid on the back of the
appliance once a year.
7 Controls
7.1 Controls and displays
7.1.1 Status display

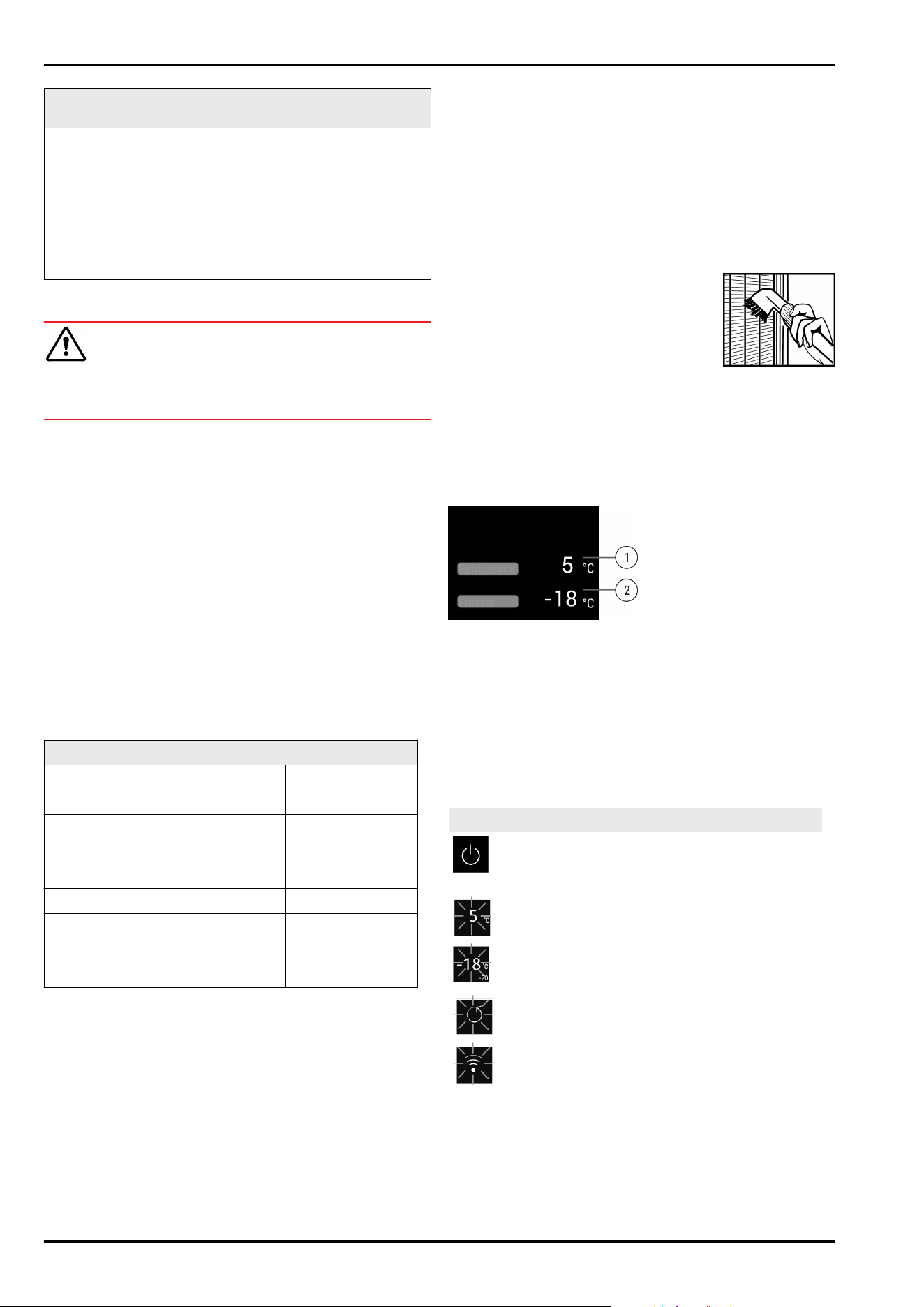

Fig.6
(1) Temperature display of
the fridge section
(2) Freezer compartment
temperature display
The Status display shows the set temperatures and is the
home display. From there, you can navigate to the options
and settings.

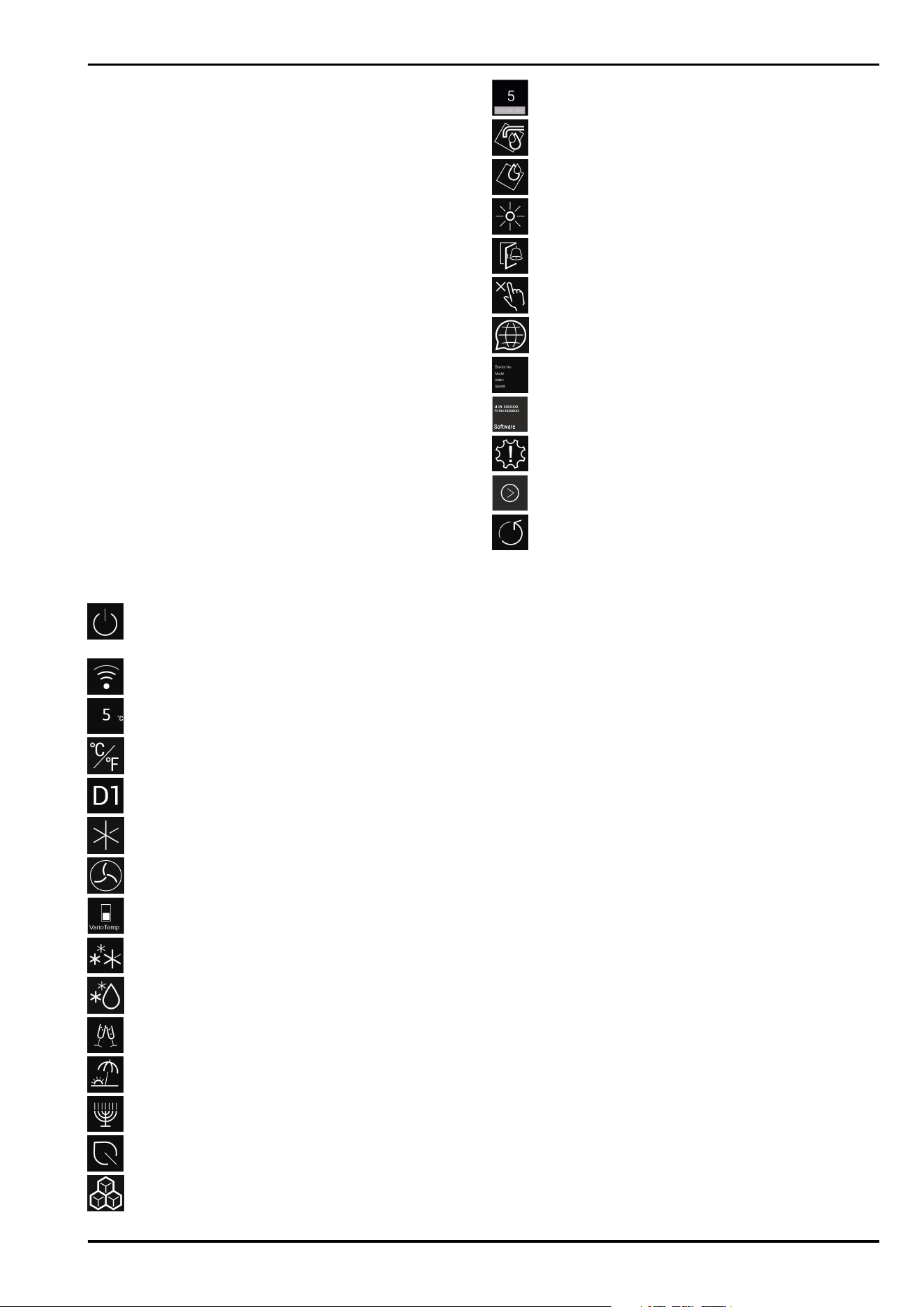

7.1.2 Display symbols
Display symbols provide information on the current appli‐
ance status:
Symbol Appliance status
Standby
The appliance or temperature zone
is switched off.
Flashing number
Appliance is working. Temperature
flashes until the set temperature is
reached.
Flashing symbol
Appliance is working. Setting is
made.
7.2 Appliance functions
7.2.1 Notes on the appliance functions
The appliance functions are set at the factory so that your
appliance is fully functional.
Saving energy
* Depending on model and options 9
Before you alter, activate or deactivate the device functions,
make sure that the following requirements are met:
q
You have read and understood the descriptions of how
the display works.
q
You have familiarised yourself with the operating and
display elements of your appliance.

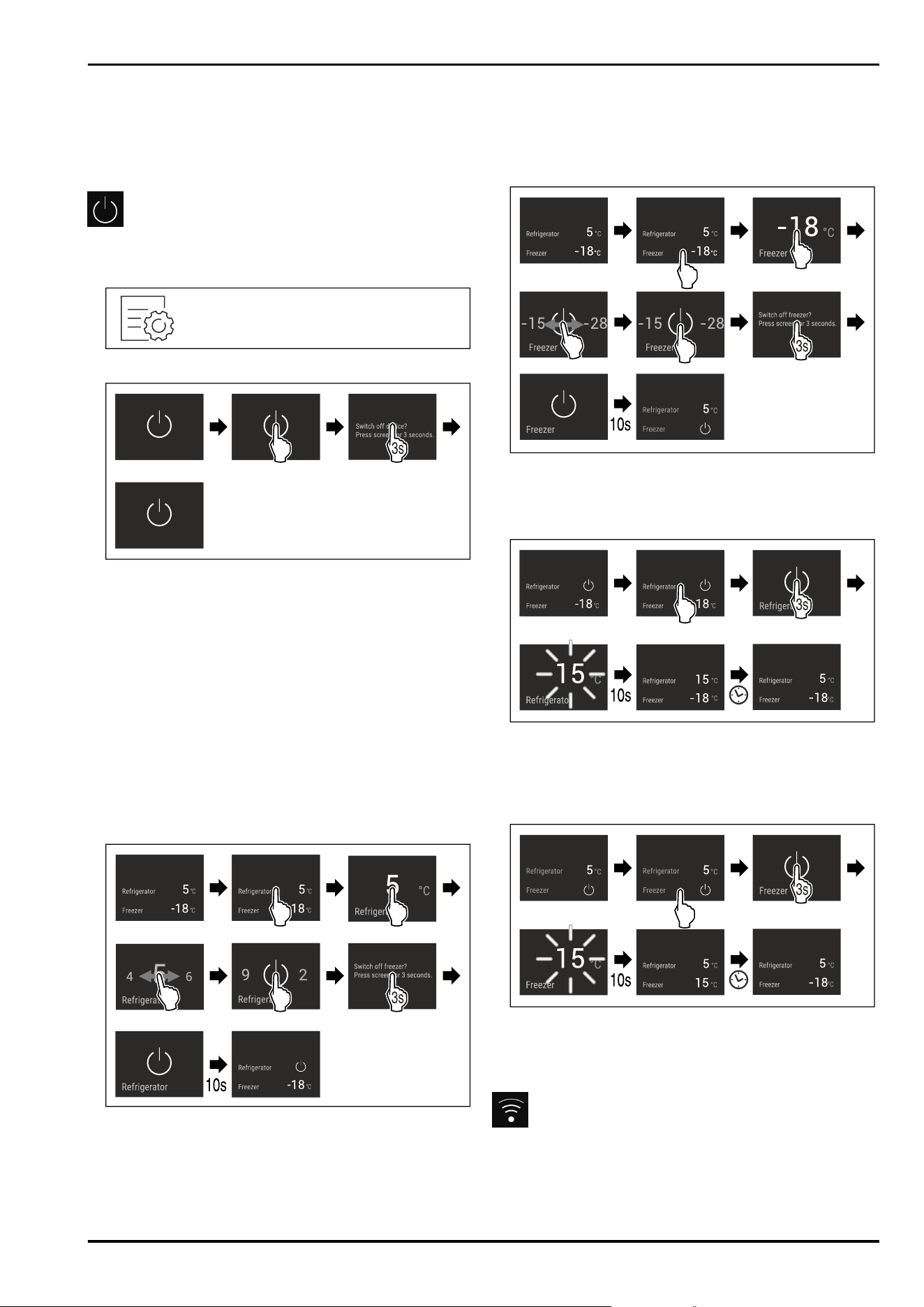

Turn off appliance
This setting turns off the whole appliance.
Switching off the entire appliance
Fig.7
Fig.8
u
Turning off the IceMaker .*
w
Off: Display goes black.
7.2.3 Switching temperature zones off and on
You can switch temperature zones of the appliance off inde‐
pendently.
Application:
-
Cleaning
-
Defrosting
Switching the fridge compartment off
Make sure that the following requirements are fulfilled:
q
Refrigerator compartment has been emptied.
Fig. 9 Example illustration
u
Carry out action steps according to the illustration.
w
Refrigerator compartment is switched off.
Switching the freezer compartment off
Make sure that the following requirements are fulfilled:
q
Freezer compartment has been emptied.
q
IceMaker is deactivated.*
q
EasyTwist-Ice water tank is empty.*
Fig. 10 Example illustration
u
Carry out action steps according to the illustration.
w
Freezer compartment is switched off.
Switching the fridge compartment on
Fig. 11 Example illustration
u
Carry out action steps according to the illustration.
w
Refrigerator compartment is switched on.
w
The appliance cools to the last set temperature.
Switching the freezer compartment on
Fig. 12 Example illustration
u
Carry out action steps according to the illustration.
w
Freezer compartment is switched on.
w
The appliance cools to the last set temperature.

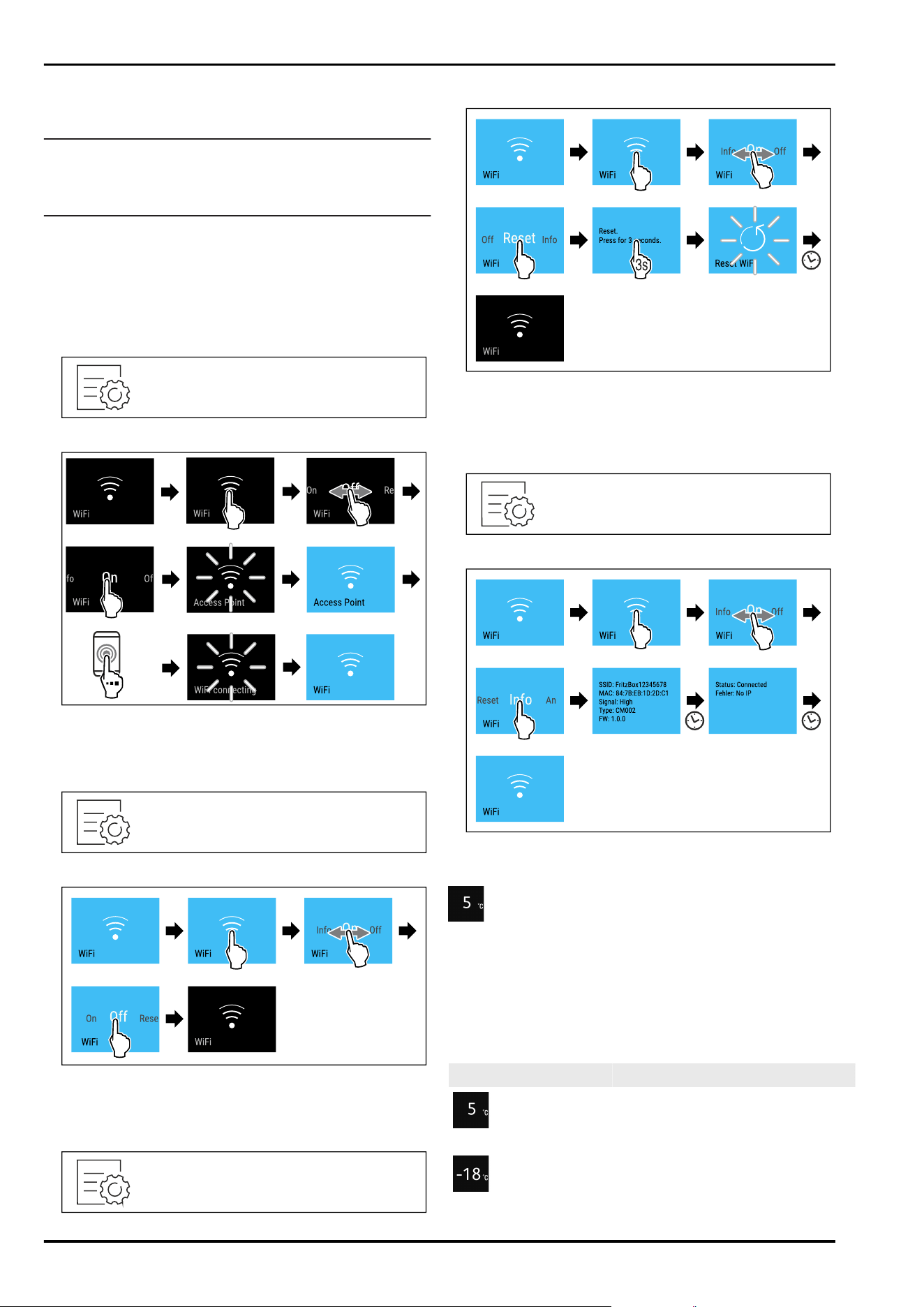

WiFi
Use this function to connect your appliance to WiFi. You can
then operate it via the SmartDevice app on a mobile device.
You can also use this function to disconnect or reset the
WiFi connection.
Controls
10 * Depending on model and options
To connect your device to WiFi, you need the SmartDevi‐
ceBox.
More information on the SmartDevice: (see 1.3 SmartDevice)
Note
The SmartDevice function is not available in the following
countries: Russia, Belarus, Kazakhstan.
You cannot use the SmartDeviceBox.
Establishing the WiFi connection for the first time
Make sure that the following requirements are fulfilled:
q
You have purchased and inserted a SmartDeviceBox.
(see 1.3 SmartDevice)
q
You have installed the SmartDevice app (see
apps.home.liebherr.com).
q
Registration in the SmartDevice app is completed.
Fig.13
Fig. 14
u
Carry out action steps according to the illustration.
w
Connection is established.
Disconnecting from the WiFi
Fig. 15
Fig. 16
u
Carry out action steps according to the illustration.
w
There is no connection.
Resetting the WiFi connection
Fig.17
Fig. 18
u
Carry out action steps according to the illustration.
w
WiFi connection and other WiFi settings are reset to
factory settings.
Showing information about the WiFi connection
Fig. 19
Fig.20
u
Carry out action steps according to the illustration.
Temperature
Use this function to set the temperature.
The temperature depends on the following factors:
-
How often the door is opened
-
How long the door is open for
-
The room temperature of the installation site
-
The type, temperature and amount of food
Temperature zone Recommended setting
Fridge compart‐
ment
5°C
Freezer compart‐
ment
-18°C
Controls
* Depending on model and options 11

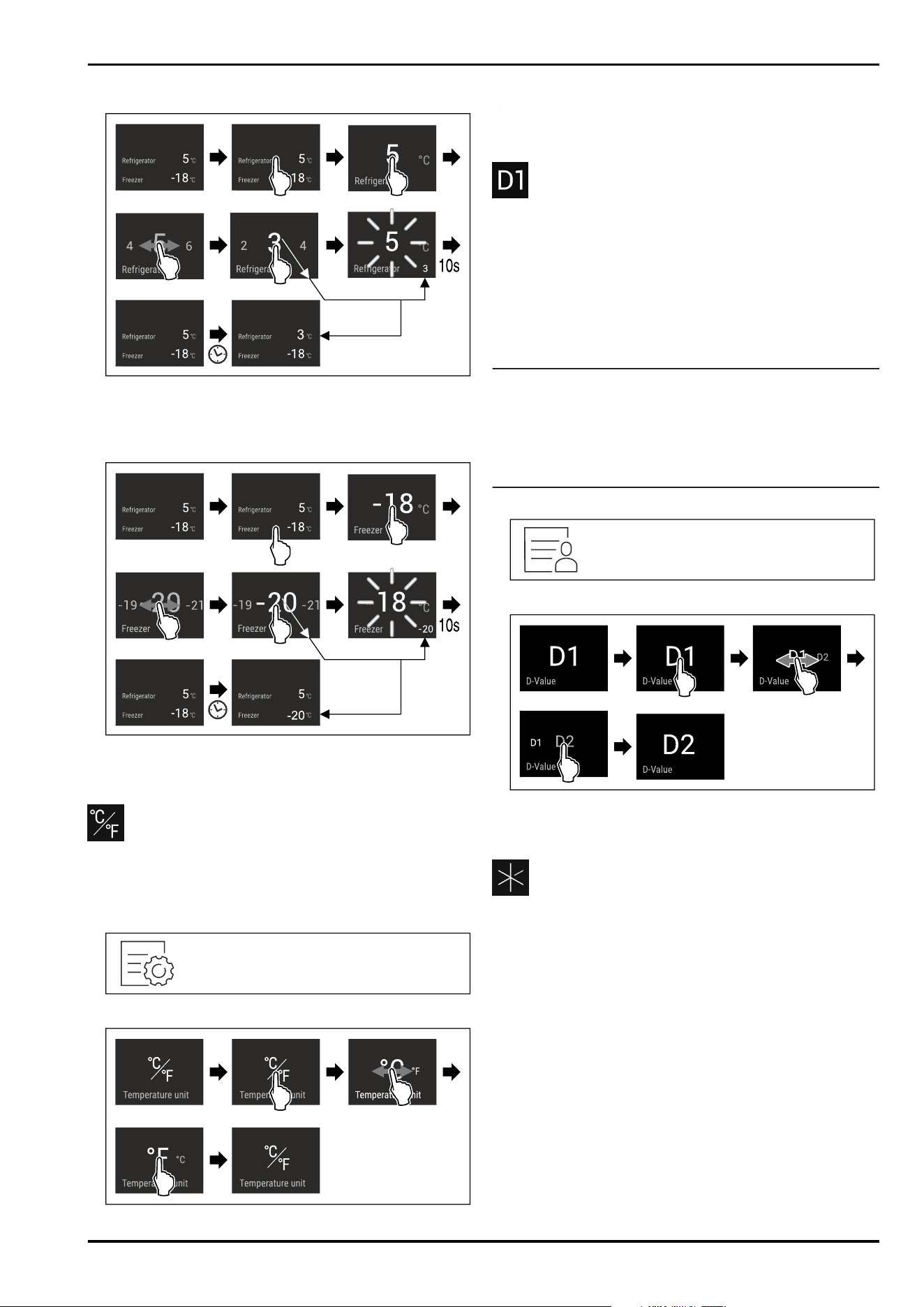

Setting the temperature in the fridge compartment
Fig.21
u
Carry out action steps according to the illustration.
w
Temperature is set.
Setting the temperature in the freezer compartment
Fig.22
u
Carry out action steps according to the illustration.
w
Temperature is set.
Temperature unit
Use this function to set the temperature unit. You can set
degrees Celsius or degrees Fahrenheit as the temperature
unit.
Setting the temperature unit
Fig.23
Fig. 24 Example illustration: Switch from degreesCelsius
to degrees Fahrenheit.
u
Carry out action steps according to the illustration.
w
The temperature unit is set.
D-Value
Use this function to set the D-Value.
The D-Value specifies whether you are operating your fridge
section with a dry rear wall or without a dry rear wall. The
rear wall is installed in the appliance as delivered. The D-
Value is pre-set to D1.
You can remove the rear wall for cleaning.
(see 9.4.5 Cleaning the dry rear panel) In order to operate
the appliance without a rear wall, you must set the D-Value
to D2.
Note
The declared energy consumption was determined without
a dry rear wall. The appliance is fully functional with a dry
rear wall but its energy consumption will be slightly higher.
Liebherr recommends:
u
Operate the appliance with a dry rear wall in order to
prevent visible condensate and the food freezing.
Setting the D-Value
Fig.25
Fig. 26 Example illustration: Switch from D1 to D2.
u
Carry out action steps according to the illustration.
w
The D-Value is set.
SuperCool
This function selects the lowest cooling temperature. This
gives you colder storage temperatures.
This function is relevant to the fridge section Fig.1(A)
Use:
-
Cool large amounts of food quickly.
Activating/deactivating the function
u
Using the fridge section: activate the function when you
add the goods.
u
Activating/deactivating.
The function automatically turns off. The appliance goes
back to normal mode. The temperature adjusts itself to the
set level.
Controls
12 * Depending on model and options

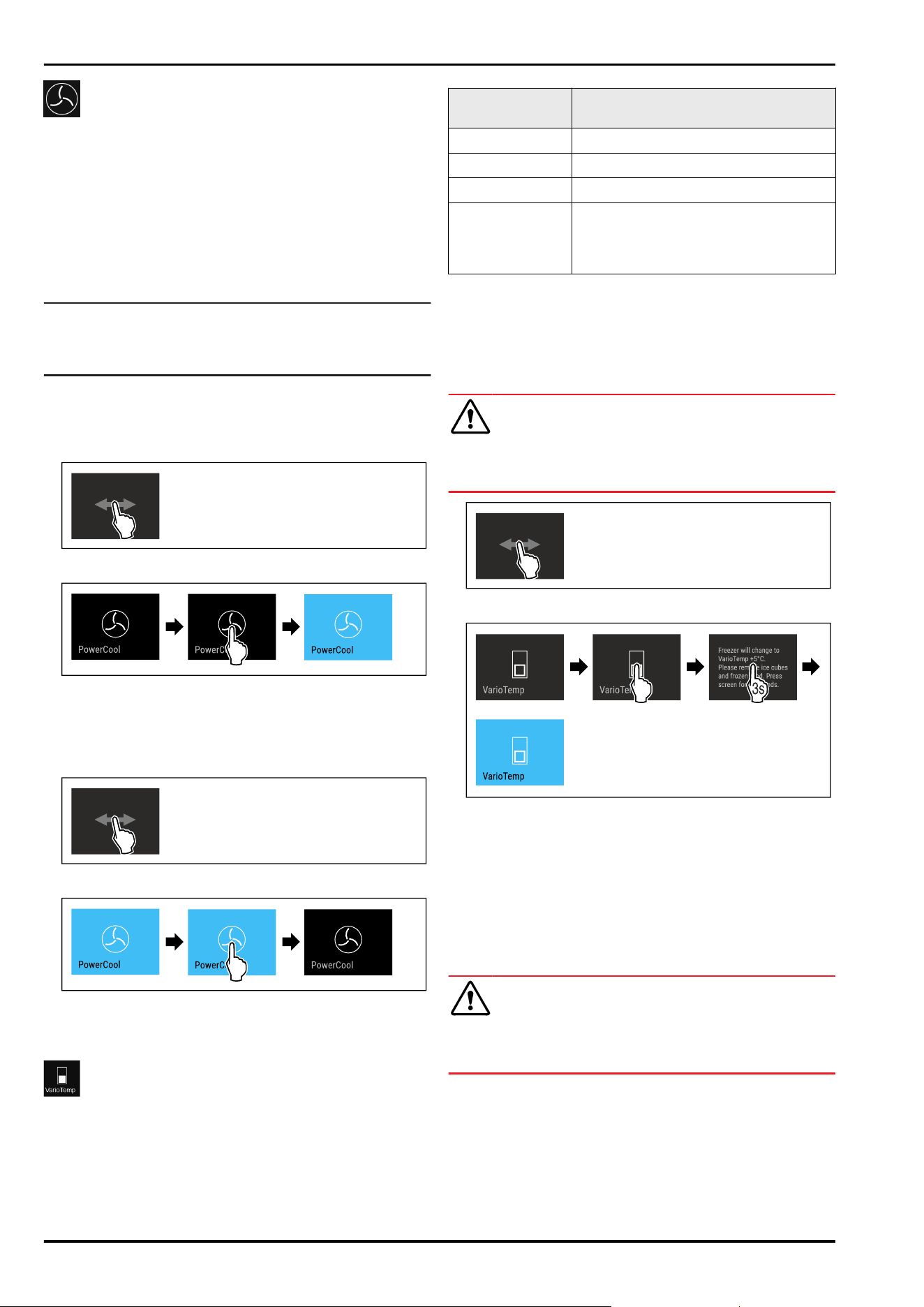

PowerCool
You can use this function to activate or deactivate Power‐
Cool. PowerCool ensures optimised temperature layers for
cooling your food.
The function applies to the fridge section.
Application:
-
At higher room temperatures (as of approx.35°C)
-
At high humidity, e.g. on summer days
-
When storing moist food, in order to prevent condensate
forming in the interior
Note
The fan may also run even if the function is deactivated.
It therefore ensures even temperature distribution in the
appliance.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PowerCool
Fig.27
Fig.28
u
Carry out action steps according to the illustration.
w
PowerCool is activated.
w
The appliance's energy consumption increases slightly.
Deactivating PowerCool
Fig.29
Fig.30
u
Carry out action steps according to the illustration.
w
PowerCool is deactivated.
VarioTemp
This function allows you to use the freezer compartment
as an additional cooling zone. You can set the temperature
from -2 °C to 14 °C. If you activate this function, it may
cause more noise. However, the appliance is still fully func‐
tional.
For storage of foodstuff in the freezer compartment with
the VarioTemp function activated, Liebherr recommends:
Temperature
range
Foodstuff
4°C to 9°C Cooked foods, cheese, preserves
0°C Packaged fruit and vegetables
-2°C Fresh fish and seafood
10°C to 14°C Cold-sensitive foodstuffs such as
sweet potatoes, pumpkin or exotic
fruits, food or drinks that should not be
eaten too cold
Activating VarioTemp
Make sure that the following requirements are fulfilled:*
q
The IceMaker has been cleaned. (see 9.4.7 Cleaning the
EasyTwist-Ice*) *
q
The EasyTwist-Ice has been cleaned. (see 9.4.7 Cleaning
the EasyTwist-Ice*) *
WARNING
Risk of food poisoning!
u
Do not re-freeze thawed food.
u
Use defrosted foodstuff as soon as possible.
Fig.31
Fig.32
u
Carry out steps according to the illustration.
w
VarioTemp is activated.
w
VarioTemp is set to the preselected value.
w
The status display does not show the preset temperature
until it is reached.
Adjusting VarioTemp
Make sure that the following requirements are fulfilled:
q
The VarioTemp is activated. (see Activating VarioTemp)
WARNING
Risk of food poisoning!
u
Do not re-freeze thawed food.
u
Use defrosted foodstuff as soon as possible.
Controls
* Depending on model and options 13

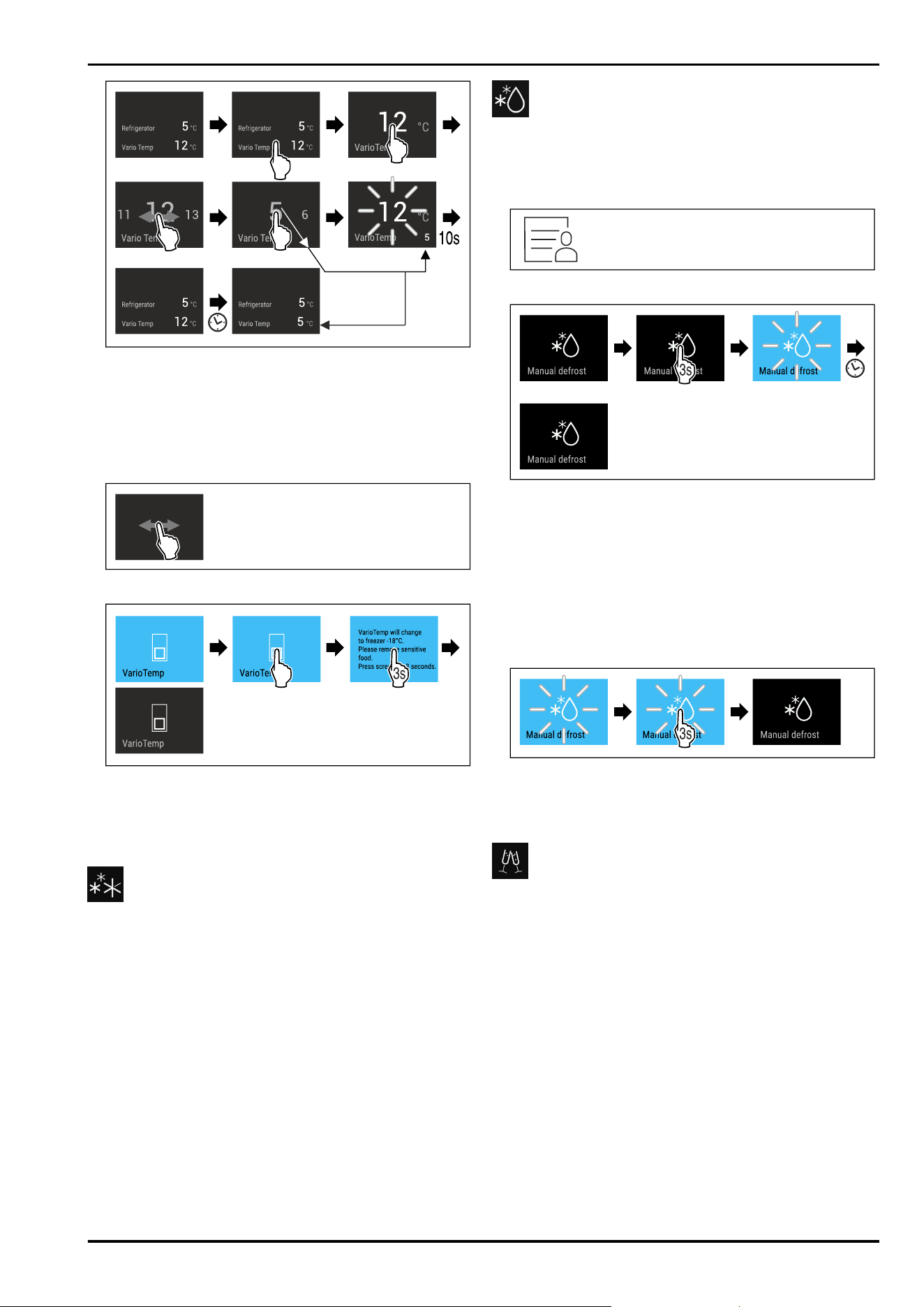

Fig. 33 Example illustration: Change VarioTemp from 12°C
to 5°C for a fridge-freezer combination with EasyFresh.
u
Carry out steps according to the illustration.
w
VarioTemp is adjusted.
w
The status display does not show the new set tempera‐
ture until it is reached.
Deactivating VarioTemp
Fig.34
Fig.35
u
Carry out steps according to the illustration.
w
VarioTemp is deactivated.
w
The freezer compartment is cooled to the preset temper‐
ature.
SuperFrost
This function selects the lowest freezing temperature. This
gives you colder storage temperatures.
This function refers to the freezer section Fig.1(C).
Use:
-
For storing more than 2 kg fresh food every day.
-
Freezing fresh food quickly to the core.
-
Increasing the cold reserves in the stored goods before
defrosting the appliance.
Activating/deactivating the function
With a small amount to freeze:
u
Activate 6 hours before use.
With a maximum amount to freeze:
u
Activate 24 hours before use.
u
Activating/deactivating.
The function automatically turns off. The appliance goes
back to normal mode. The temperature adjusts itself to the
set level.
Start defrosting cycle
Use this function to start the automatic defrosting cycle
manually if it does not start automatically in the event of a
fault.
Starting defrosting cycle
Fig.36
Fig.37
u
Carry out action steps according to the illustration.
w
Defrosting cycle has started: Icon flashes until defrosting
cycle is automatically completed.
w
When defrosting cycle is finished: The device continues
to run in normal mode.
Cancelling defrosting cycle
The defrosting cycle will be stopped automatically. However,
you can also cancel the defrosting cycle at any time during
the defrosting process:
Fig.38
u
Carry out action steps according to the illustration.
w
Defrosting cycle is cancelled.
w
The device continues to run in normal mode.

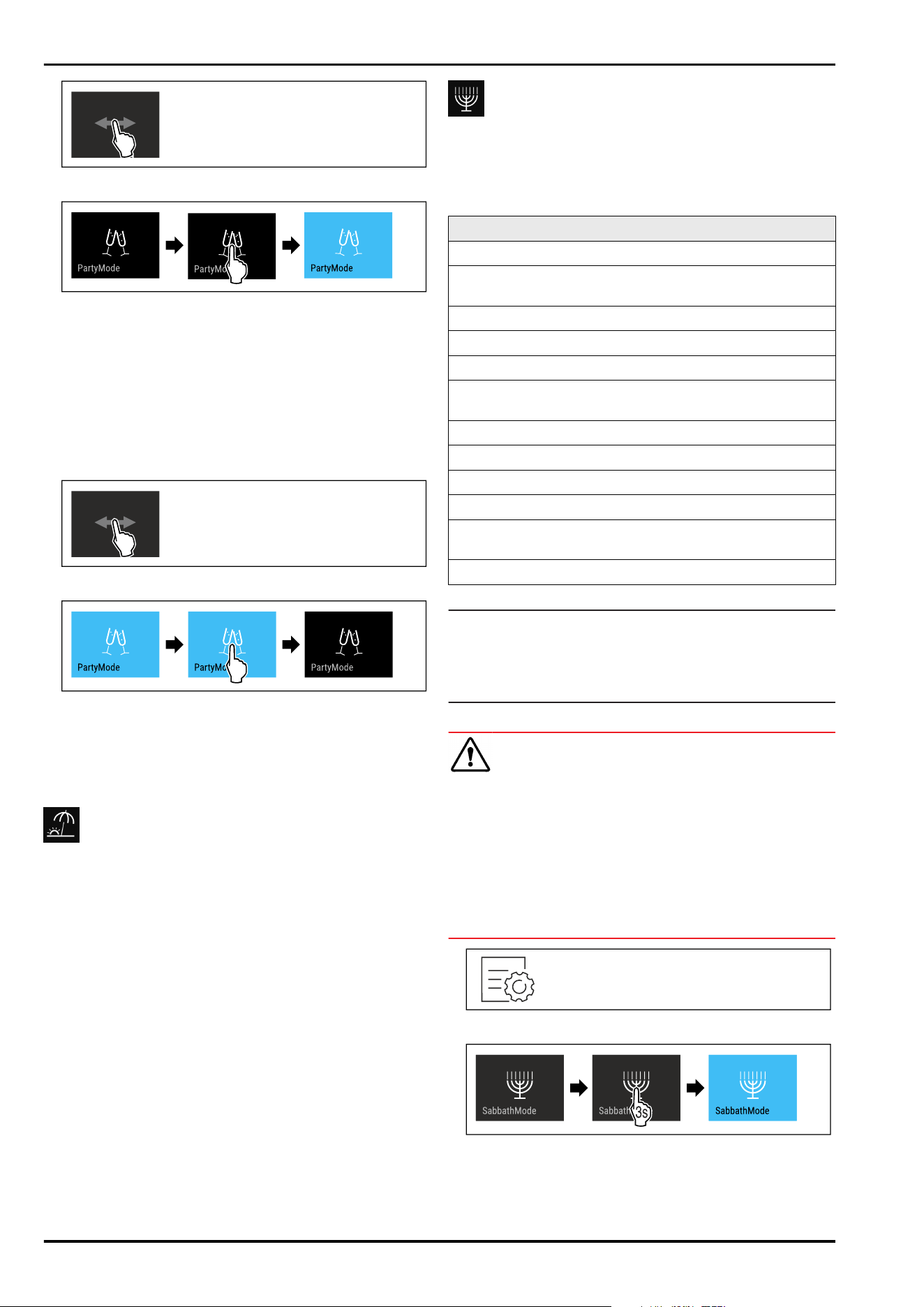

PartyMode
You can use this function to activate or deactivate Party‐
Mode. PartyMode activates various functions that are useful
for a party.
PartyMode activates the following functions:
-
SuperCool (see SuperCool)
-
SuperFrost (see SuperFrost)
-
IceMaker with MaxIce (see IceMaker / MaxIce *) *
You can adjust all listed functions individually and flexibly.
When you deactivate PartyMode, all changes are discarded.
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating PartyMode
Make sure that the following requirements are fulfilled:*
q
The IceMaker has been started. (see 4.2 Starting the
IceMaker for the first time*)
Controls
14 * Depending on model and options
Fig. 39
Fig.40
u
Carry out action steps according to the illustration.
w
PartyMode and the associated functions are activated.
w
The temperature display turns blue.
w
The current temperature flashes until the target tempera‐
ture is reached.
Deactivating PartyMode
The PartyMode is automatically deactivated after
24 seconds. However, you can also deactivate PartyMode
manually at any time:
Fig. 41
Fig. 42
u
Carry out action steps according to the illustration.
w
PartyMode is deactivated.
w
The appliance cools to the temperature set previously:
The current temperature flashes until the target tempera‐
ture is reached.
HolidayMode
This function minimises the energy consumption during
an extended absence. The temperature of the refrigerator
compartment is set to 15 °C and this is displayed on the
status screen when the temperature has been reached.
The set freezer temperature remains unchanged.
This function refers to the fridge section Fig.1(A).
Use:
-
Save energy if you plan to be away for a while.
-
Avoid coming home to bad smells and mould.
Activating/deactivating the function
u
Empty everything from the fridge section.
u
Activating/deactivating .
w
On: Fridge temperature is raised.
w
Off: the previously set temperature is restored.

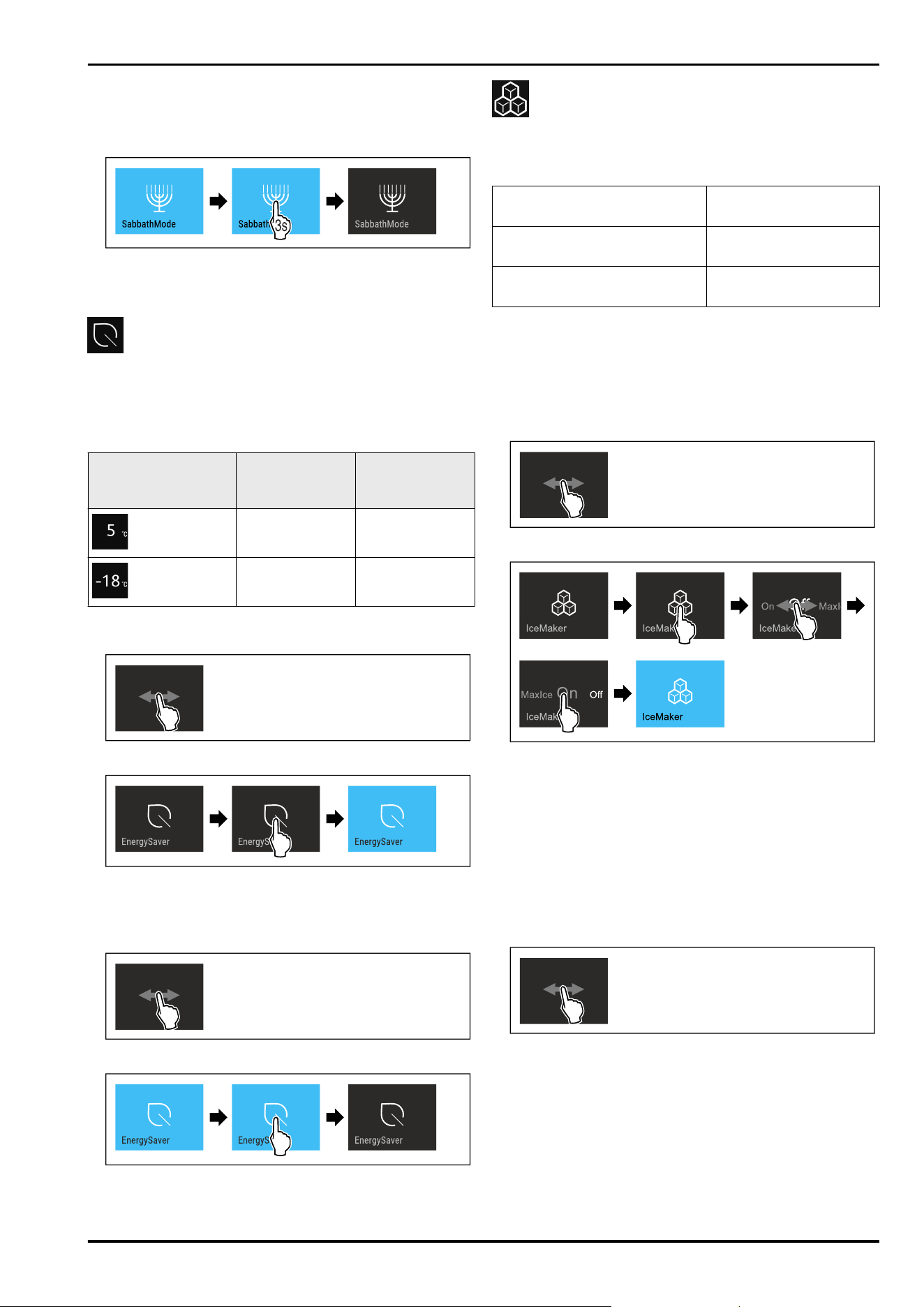

SabbathMode
You can use this function to activate or deactivate
SabbathMode. If you activate this function, some electronic
functions are switched off. As a result, your device meets
the religious requirements for Jewish holidays such as
Sabbath and complies with STAR-K Kosher certification.
Device status when SabbathMode is active
The status display shows SabbathMode permanently.
All functions on the display are locked except for the
Deactivate SabbathMode function.
Active functions remain active.
The display remains bright when you close the door.
The interior lighting is deactivated.
Reminders are not implemented. The set time interval
stops.
Reminders and warnings are not displayed.
There is no door alarm.
There is no temperature alarm.
The IceMaker is switched off.*
The defrosting cycle operates only for the specified time,
without considering the device consumption.
After a power failure, the device returns to SabbathMode.
Device status
Note
This appliance has certification from the “Institute for
Science and Halacha”. (
www.machonhalacha.co.il)
You can find a list of STAR-K-certified appliances at
www.star-k.org/appliances.
Activating SabbathMode
WARNING
Danger of food poisoning from spoiled food!
If you have SabbathMode activated and a power failure
occurs, no message appears in the status display about the
power failure. Once the power is restored, the appliance
continues to operate in SabbathMode. The power failure
may mean that food spoils and the consumption of this food
could lead to food poisoning.
After a power failure:
u
Do not consume food that was frozen and has thawed
out.
Fig.43
Fig.44
u
Carry out action steps according to the illustration.
w
SabbathMode is activated.
w
The status display shows SabbathMode permanently.
Controls
* Depending on model and options 15
Deactivating SabbathMode
The SabbathMode is automatically deactivated after
80 hours. However, you can also deactivate SabbathMode
manually at any time:
Fig.45
u
Carry out action steps according to the illustration.
w
SabbathMode is deactivated.
EnergySaver
You can use this function to activate or deactivate Energy
saving mode. If energy saving mode is activated, the energy
consumption decreases and the temperature in the device
increases. The food remains fresh, but the shelf life is short‐
ened.
Temperature zone Recommended
setting (see
Temperature)
Temperature
with active Ener‐
gySaver
Fridge section
5°C 7°C
Freezer section
-18°C -16°C
Temperatures
Activating EnergySaver
Fig.46
Fig. 47
u
Carry out action steps according to the illustration.
w
Energy saving mode is activated.
Deactivating EnergySaver
Fig.48
Fig. 49
u
Carry out action steps according to the illustration.
w
Energy saving mode is deactivated.
IceMaker / MaxIce *
You can activate or deactivate ice cube production with the
IceMaker function. Use the MaxIce function to increase the
number of ice cubes in the IceMaker.
More information on the
number of ice cubes:
(see 10.1 Technical speci‐
fications)
Further information on the
IceMaker water supply:
(see IceMaker water
supply*)
More information on cleaning
the lines of the IceMaker:
(see TubeClean *)
If the function is active, the device operates at higher
power. As a result, the device's operating noise may be
temporarily louder and energy consumption will increase.
Activating IceMaker
Make sure that the following requirements are fulfilled:
q
IceMaker is put into operation. (see 8.10 IceMaker*)
Fig.50
Fig.51
u
Carry out action steps according to the illustration.
-or-
u
Activate with the SmartDevice app.
w
IceMaker is activated. It can take up to 24 hours for the
IceMaker to produce the first ice cubes.
Activating the IceMaker with MaxIce
If you have not activated the IceMaker function before,
make sure that the following requirements are met:
q
IceMaker is put into operation. (see 8.10 IceMaker*)
Fig.52
Controls
16 * Depending on model and options
Fig.53
u
Carry out action steps according to the illustration.
-or-
u
Activate with the SmartDevice app.
w
The IceMaker is activated with MaxIce.

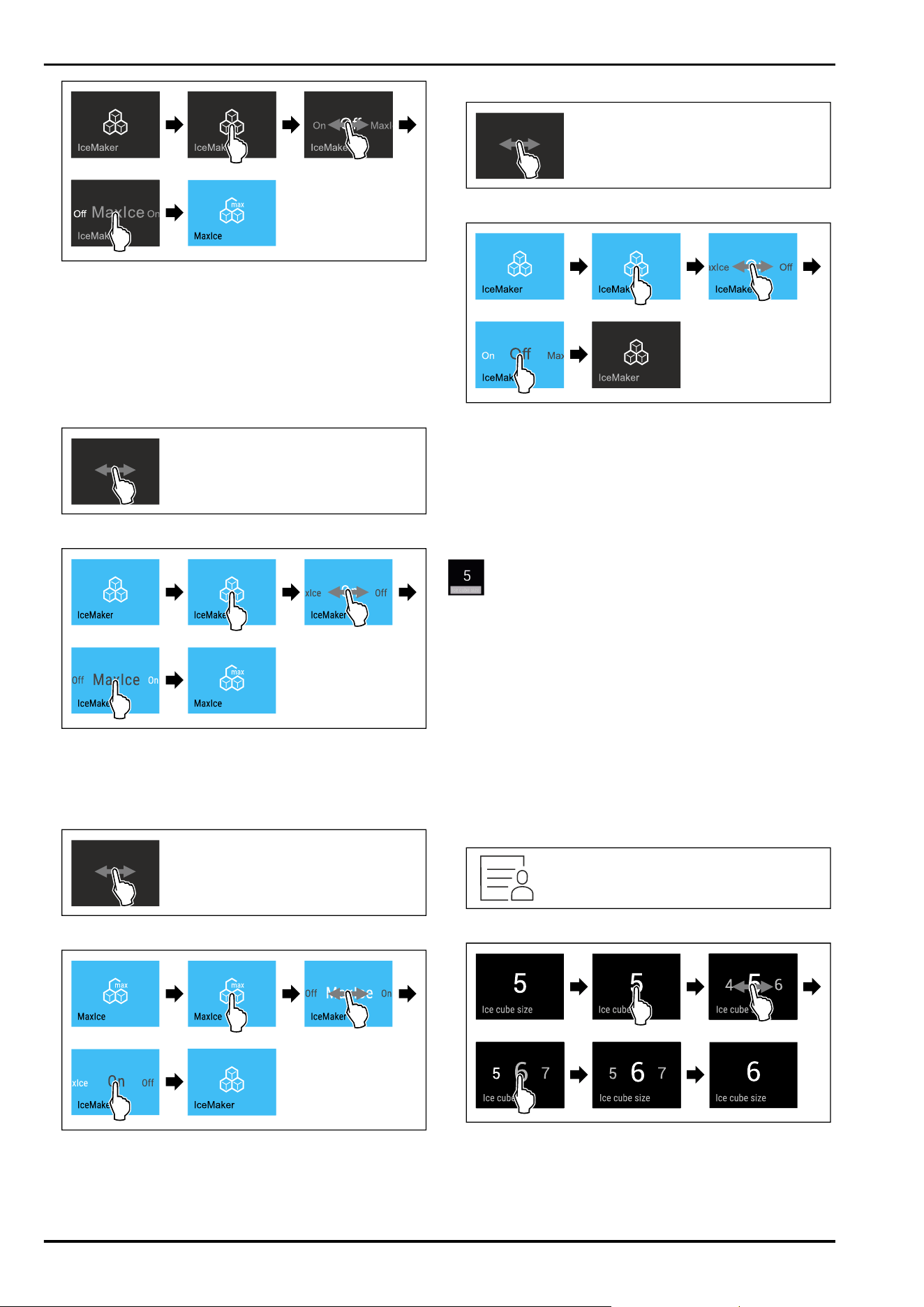

Changing between the IceMaker and MaxIce
If you have activated the IceMaker and would like to change
to MaxIce:
Fig.54
Fig.55
u
Carry out action steps according to the illustration.
w
The IceMaker is activated with MaxIce.
If you have activated MaxIce and would like to change to the
IceMaker:
Fig.56
Fig.57
u
Carry out action steps according to the illustration.
w
IceMaker is activated.
w
MaxIce is deactivated.
Deactivating the IceMaker / MaxIce
Fig.58
Fig. 59 Example illustration of the active IceMaker function
u
Carry out action steps according to the illustration.
-or-
u
Deactivate with the SmartDevice app.
w
IceMaker and MaxIce are deactivated.
w
If ice cubes are currently being made, the system
completes the process.
w
The IceMaker goes off automatically.
IceMaker water supply*
Use this function to set the IceMaker water supply. The
IceMaker water supply regulates the amount of water
supplied. The IceMaker water supply can be changed if the
water supply does not match the water pressure and the ice
cube size dispensed.
The IceMaker water supply is pre-set to value 5 as delivered.
A value from 1 (smallest inflow volume) to 8 (largest inflow
volume) can be selected.
Setting the IceMaker water supply
Make sure that the following requirements are fulfilled:
q
The IceMaker has been started. (see 4.2 Starting the
IceMaker for the first time*)
q
IceMaker is activated. (see IceMaker / MaxIce *)
Fig.60
Fig. 61 Example illustration: Switch from value 5 to value6.
u
Carry out action steps according to the illustration.
w
IceMaker water supply is set.
Controls
* Depending on model and options 17

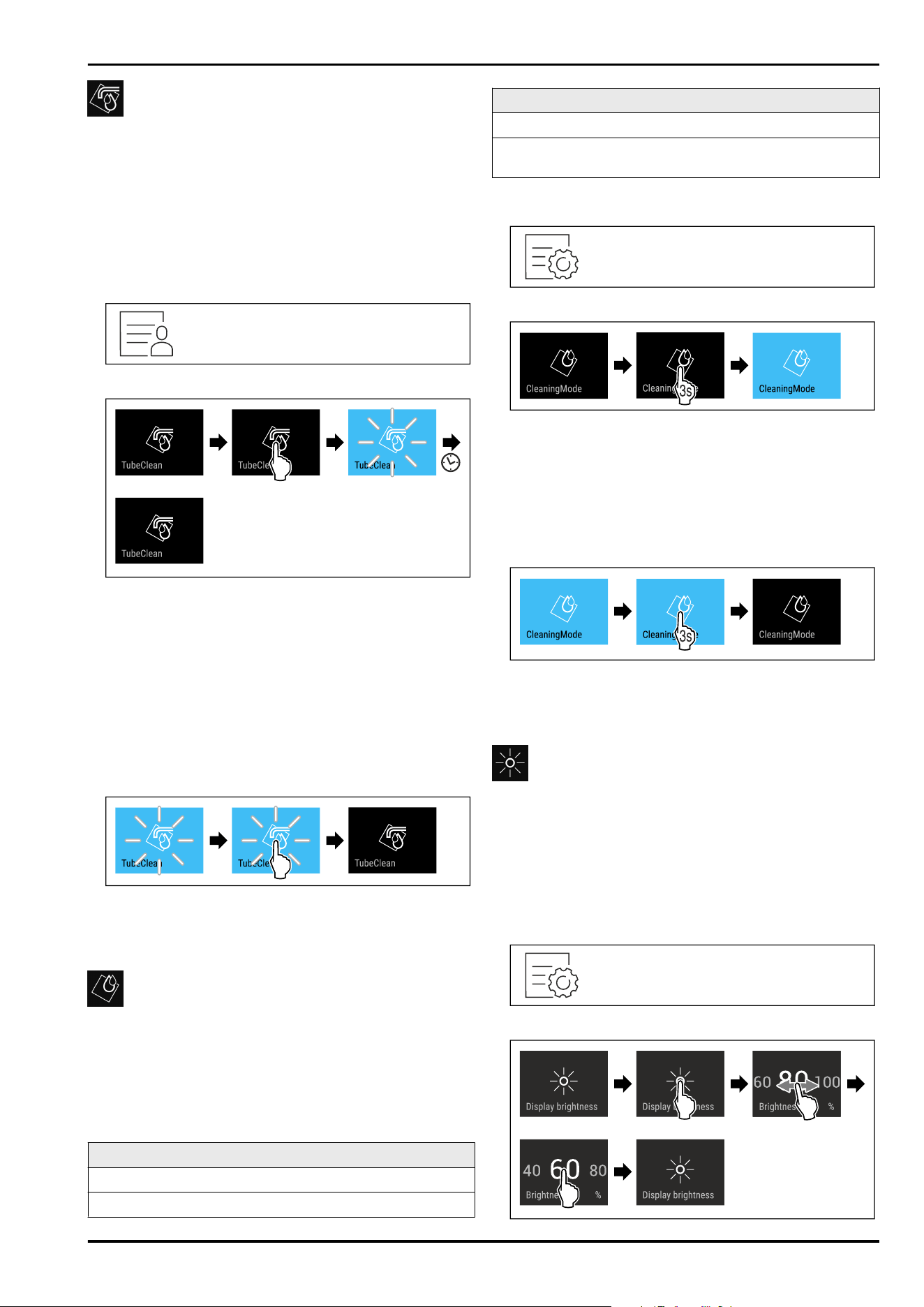

TubeClean *
You can use this function to activate or deactivate Tube‐
Clean. If TubeClean is activated, it cleans the IceMaker lines.
Activating TubeClean
Make sure that the following requirements are fulfilled:
q
IceMaker cleaning is prepared. (see 9.4.8 Cleaning the
IceMaker*)
q
Empty container with a capacity of 1.5 l and with a
maximum height of 10cm is ready.
u
Place the container in the drawer under the IceMaker.
Fig. 62
Fig.63
u
Carry out action steps according to the illustration.
w
TubeClean is activated.
w
The cleaning process has started: Icon flashes until
the cleaning process is automatically completed after
60 minutes.
w
When the cleaning process is complete: The device
continues to run in normal mode.
Deactivating TubeClean
TubeClean is automatically ended after 60 minutes.
However, TubeClean can also be deactivated at any time
during the cleaning process:
Fig.64
u
Carry out action steps according to the illustration.
w
TubeClean is deactivated: Cleaning process is aborted.
w
The device continues to run in normal mode.
CleaningMode
You can use this function to activate or deactivate Cleaning‐
Mode. CleaningMode enables the appliance to be cleaned
conveniently.
This setting applies to the fridge section.
Application:
-
Clean the fridge section. (see 9.4Cleaning the appliance)
Device status when CleaningMode is active
The status display shows CleaningMode permanently.
The fridge section is switched off.
Device status when CleaningMode is active
Interior lighting is activated.
The reminders and warnings are not displayed. No signal
tone sounds.
Device status
Activating CleaningMode
Fig.65
Fig.66
u
Carry out action steps according to the illustration.
w
CleaningMode is activated.
w
The status display shows CleaningMode permanently.
Deactivating CleaningMode
CleaningMode is deactivated automatically after
60 minutes. However, you can also deactivate Cleaning‐
Mode manually at any time:
Fig. 67
u
Carry out action steps according to the illustration.
w
CleaningMode is deactivated.
w
The appliance cools to the temperature set previously.
Display brightness
Use this function to set the display brightness in stages.
You can select the following brightness levels:
-
40%
-
60%
-
80%
-
100 % (pre-setting)
Setting the display brightness
Fig.68
Controls
18 * Depending on model and options
Fig. 69 Example illustration: Switch from 80 % to 60%.
u
Carry out action steps according to the illustration.
w
The display brightness is set.

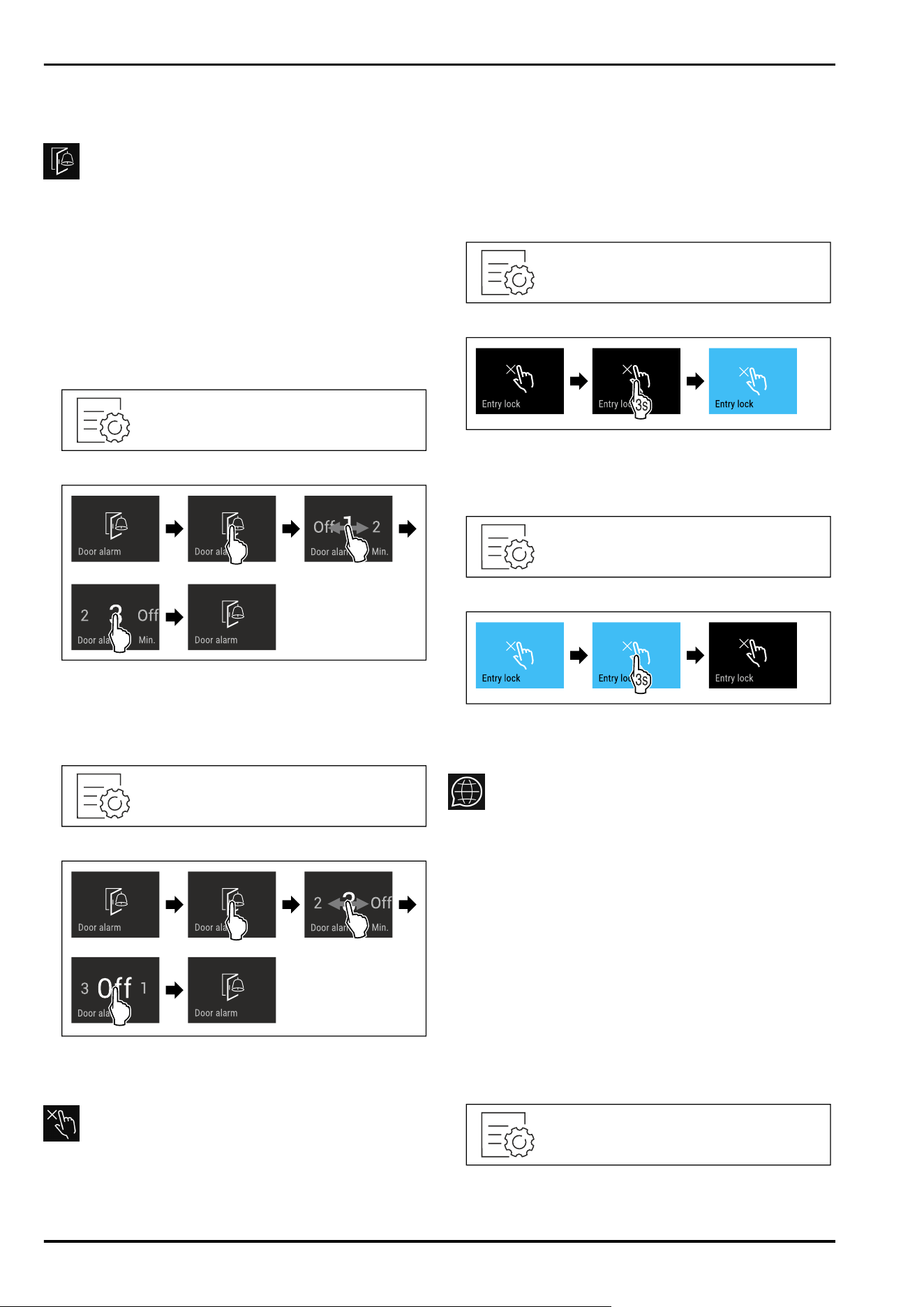

Door alarm
Use this function to activate or deactivate the door alarm.
The door alarm sounds if the door is open for too long. The
door alarm is activated on delivery. You can set how long
the door may be open before the door alarm sounds.
The following values can be set:
-
1 minute
-
2 minutes
-
3 minutes
-
Off
Setting the door alarm
Fig.70
Fig. 71 Example illustration: Change door alarm from
1 minute to 3 minutes.
u
Carry out action steps according to the illustration.
w
The door alarm is set.
Deactivating the door alarm
Fig.73
Fig. 74
u
Carry out action steps according to the illustration.
w
The door alarm is deactivated.
Input lock
You can use this function to activate or deactivate the input
lock. The input lock prevents the appliance being operated
accidentally, e.g. by children.
Application:
-
Avoid unintentional modification of functions.
-
Avoid unintentional switching off of the device.
-
Avoid unintentional temperature setting.
Activating the input lock
If you activate the input lock, you can continue to navigate
in the menus but you cannot select or change other func‐
tions.
Fig.75
Fig. 76
u
Carry out action steps according to the illustration.
w
Input lock is activated.
Deactivating the input lock
Fig.77
Fig.78
u
Carry out action steps according to the illustration.
w
Input lock is deactivated.
Language
Use this function to set the display language.
You can select the following languages:
-
Deutsch
-
English
-
Français
-
Español
-
Italiano
-
Nederlands
-
Čeština
-
Polski
-
Português
-
Русский
-
温度单位

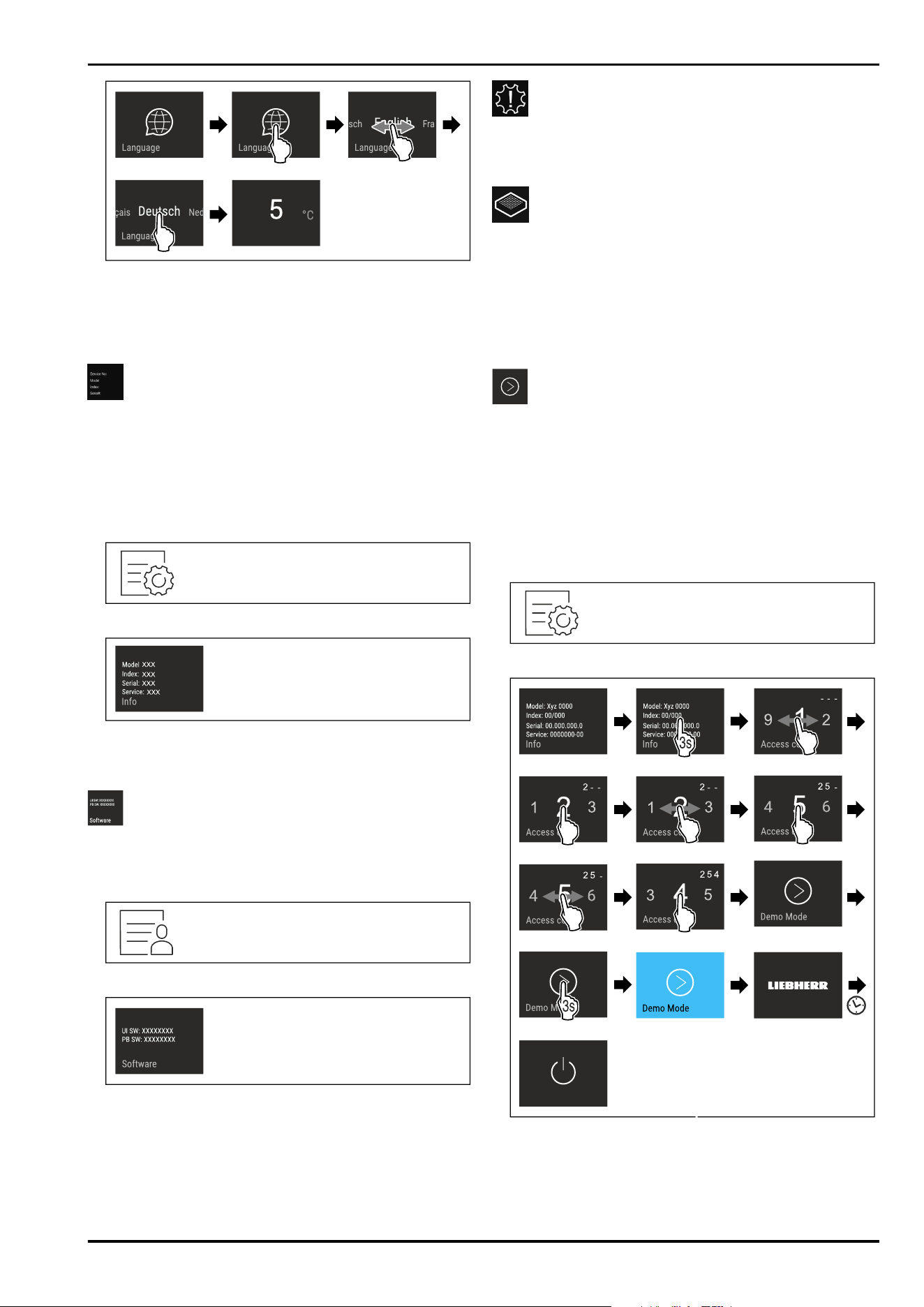

Setting the language
Fig.79
Controls
* Depending on model and options 19
Fig. 80 Example illustration depending on the language
and temperature
u
Carry out action steps according to the illustration.
w
The language is set.
w
The display returns to the status display.
Device information
Use this function to indicate the model name, index, serial
number and service number of your device. You will need
the device information when you contact customer service.
(see 10.4 Customer Service)
This function also opens the Advanced menu. (see 3 Func‐
tionality of the Touch&Swipe display)
Indicating the device information
Fig.81
Fig.82
u
Carry out action steps according to the illustration.
w
Display indicates device information.
Software
Use this function to indicate the software version of your
device.
Indicating the software version
Fig.83
Fig.84
u
Carry out action steps according to the illustration.
w
Display indicates software version.
Reminder
Reminders are given out acoustically by a beep and visually
by a symbol in the display. The signal gets louder until the
alert stops.
Replace FreshAir active carbon filter
This message appears when the air filter needs replacing.
u
Change the air filter every six months.
u
Confirm the message with OK.
w
The service interval resets.
w
The air filter guarantees the air quality in the fridge.
Activating the setting
u
Activating/deactivating .
Demo mode
Demo mode is a special feature for dealers who want to
demonstrate appliance features. If you activate demo mode,
all refrigeration functions are deactivated.
If you switch on your appliance and “Demo” appears in the
status display, then demo mode is already activated.
If you activate and then deactivate demo mode, the appli‐
ance will be reset to factory defaults. (see Resetting to
factory settings)
Activating demo mode
Fig.85
Fig.86
u
Carry out action steps according to the illustration.
w
Demo mode is activated.
w
Appliance is switched off.
u
Switch on the appliance. (see 4.1 Switching on appliance
(first use))
Controls
20 * Depending on model and options
w
“DEMO” appears in the status display.
Deactivating demo mode
Fig. 87
Fig.88
u
Carry out action steps according to the illustration.
w
Demo mode is deactivated.
w
Appliance is switched off.
u
Switch on the appliance. (see 4.1 Switching on appliance
(first use))
w
Appliance is reset to factory settings.
Resetting to factory settings
Use this function to reset all settings to factory defaults.
All settings you have made so far are reset to their original
settings.
Performing a reset
Fig.89
Fig.90
u
Carry out action steps according to the illustration.
w
Device is reset.
w
Device is switched off.
Note
To reset to factory settings in battery mode: Restart is only
possible with mains voltage.
u
Restart the device. (see 4.1 Switching on appliance (first
use))
7.3 Fault messages
Fault messages appear in the display. There are two catego‐
ries of fault message:
Category Meaning
Message Reminder of general procedures. You can carry
out these procedures to eliminate the message.
Warning Appears when there are malfunctions. A signal
sounds in addition to the display. The signal
becomes louder until you acknowledge by
tapping the display. You can eliminate simple
defects yourself. For more serious defects, you
must contact customer service.
7.3.1 Warnings
Close the door
This message appears if the door is open for too long.
You can set how long it takes for this message to appear .
u
Stop alarm: Confirm the message.
-or-
u
Close the door.
Power cut
This message appears if the freezer temperature increased
due to a power cut. After the power is restored, the appli‐
ance continues to work at the set temperature.
u
Stop alarm: Confirm the message.
w
Temperature alert appears (see Temperature alarm) .
Temperature alarm
This message appears if the freezer temperature does not
match the set temperature.
Variations in temperature could be because:
-
Hot, fresh food was inserted.
-
Too much warm room air flowed in when rearranging and
removing food.
-
The power was cut off for a while.
-
The appliance is faulty.
When the fault is eliminated the appliance continues to
work at the set temperature.
u
Confirm the display.
w
The highest temperature is shown.
u
Confirm display again.
w
The status display is displayed.
w
The current temperature is shown.
Error
This message appears if there is a fault with the appliance.
An appliance component indicates a fault.
u
Open the door.
u
Note down the fault code.
Controls
* Depending on model and options 21
u
Confirm the message.
w
The signal tone stops.
w
The status display appears.
u
Close the door.
u
Contact customer service. (see 10.4 Customer Service)
7.3.2 Message
Insert IceMaker drawer*
This message appears if the IceMaker drawer is open.
u
Push in the IceMaker drawer.
w
The message disappears.
w
The IceMaker produces ice cubes.

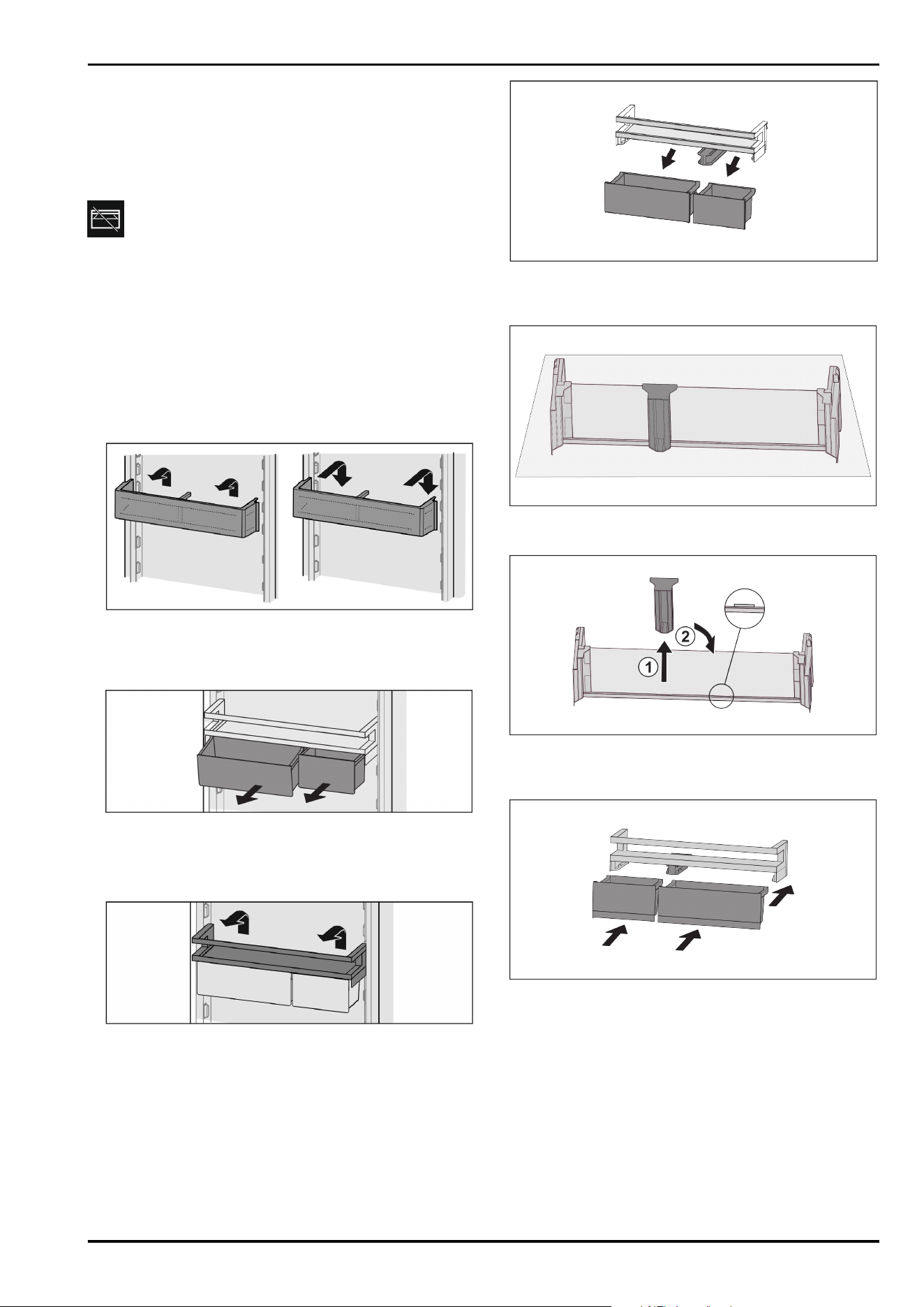

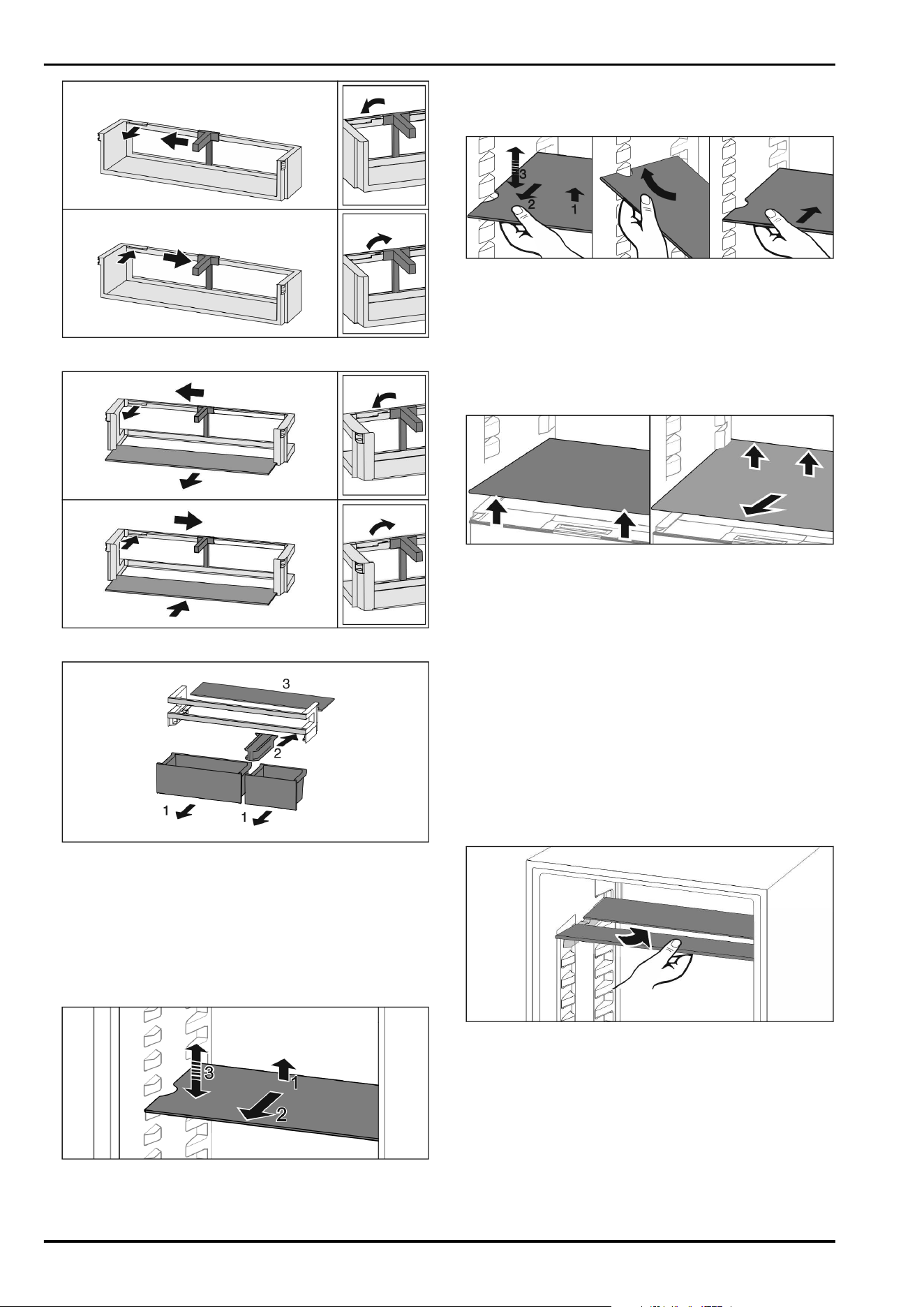

8 Features
8.1 Door rack
8.1.1 Move/remove the door rack
Fig. 91
u
Slide the rack upwards.
u
Pull forwards.
u
Re-insert it in reverse order.
Fig.92
You can use just one or both VarioBoxes. To store oversized
bottles, just suspend one box over the bottle rack.
Move the VarioBox shelf:
Fig. 93
u
Pull it up and out.
u
Put it back in at any position.
Moving the VarioBoxes:
Fig. 94
If the door rack is removed:
u
Remove containers.
Fig.95
u
Place the shelf on the table.
Fig.96
u
Pull off the middle holder Fig.96(1).
u
Insert the middle holder in the second position Fig.96(2).
Fig.97
u
Replace containers.
8.1.2 Disassembling the door rack
The door rack can be taken apart for cleaning.
Features
22 * Depending on model and options
Fig.98
Fig.99
Fig. 100
u
Disassemble the door rack.
8.2 Shelves
8.2.1 Adjusting/removing the shelves
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig. 101
u
Lift the shelf and pull forward.
w
Line up the side runner.
u
Adjust the height of the shelf: Lift or lower it to the
desired height and slide it in.
-or-
Fig. 102
u
Remove the shelf completely: Pull it out to the front.
u
Easier removal: Set the shelf at an angle.
u
Insert the shelf again: Slide it in all the way.
w
The pull-out stoppers point downwards.
w
The pull-out stoppers are behind the front support.
You can also remove the shelf above the EasyFresh
compartments.
Fig. 103
Removing the shelf:
u
Lift the shelf at the front and back.
u
Pull it out towards you.
Do not store any goods on the compartment cover below!
Inserting the shelf:
u
Place the shelf at an angle, sloping down towards the
back.
w
The pull-out stoppers point downwards.
u
Slide the shelf into place.
8.3 Dividing shelf
8.3.1 Using the dividing shelf
The shelves are prevented from being pulled out acciden‐
tally by pull out stops.
Fig. 104
u
Push the dividing shelf underneath as shown.
Features
* Depending on model and options 23
Fig. 105
Adjusting the height:
u
Pull the glass panels out Fig. 105(1) from the front, one at
a time.
u
Release the support rails and click in at the height you
want.
u
Slide in the glass panels one at a time.
w
Flat pull-out stoppers at the front, right behind the
support rails.
w
High pull-out stoppers at the back.
Using both shelves:
u
Hold the glass panel with one hand and pull it to the
front.
w
The glass panel Fig. 105(1) and trim strip are at the front.
w
The stops Fig. 105(3) point down.

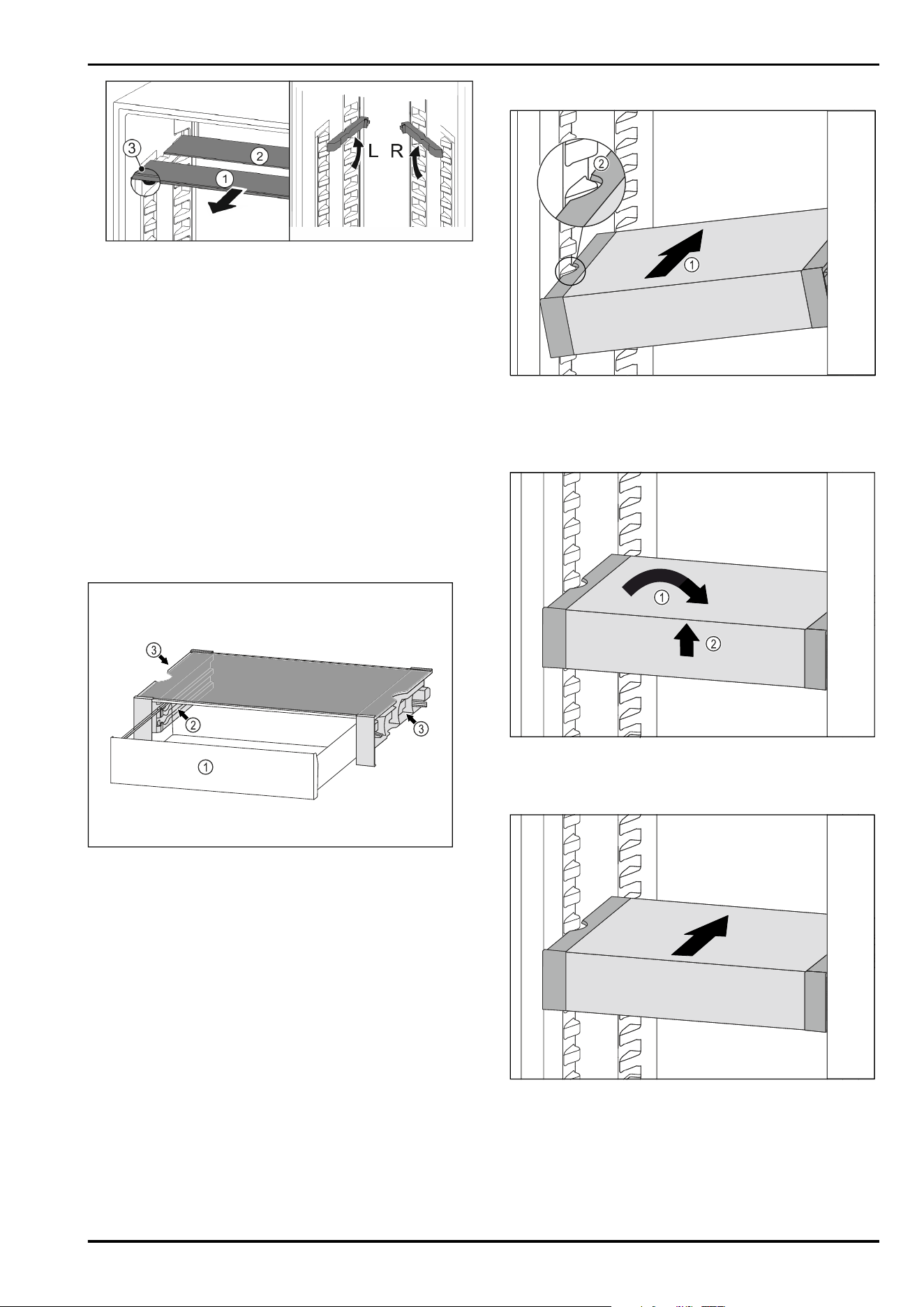

8.4 VarioSafe
The VarioSafe offers space in the refrigerator compartment
for small groceries, packages, tubes and jars, for example.
Fig. 106
(1) VarioSafe drawer (3) Recesses on the left and
right side panel
(2) Side panels with ribs
for VarioSafe drawer
8.4.1 Inserting the VarioSafe
Fig. 107
u
Insert the VarioSafe into the fridge section at an angle
Fig. 107(1) until the recesses in the side Fig. 107(2) of the
VarioSafe are at the level of the support rib in the fridge
section.
Fig. 108
u
Set VarioSafe straight. Fig. 108(1)
u
Lift VarioSafe at the front. Fig. 108(2)
Fig. 109
u
Lift VarioSafe up toward the front.
u
Push VarioSafe in to the rear.
u
Lower VarioSafe.
w
VarioSafe audibly engages.
w
VarioSafe is inserted.
Features
24 * Depending on model and options

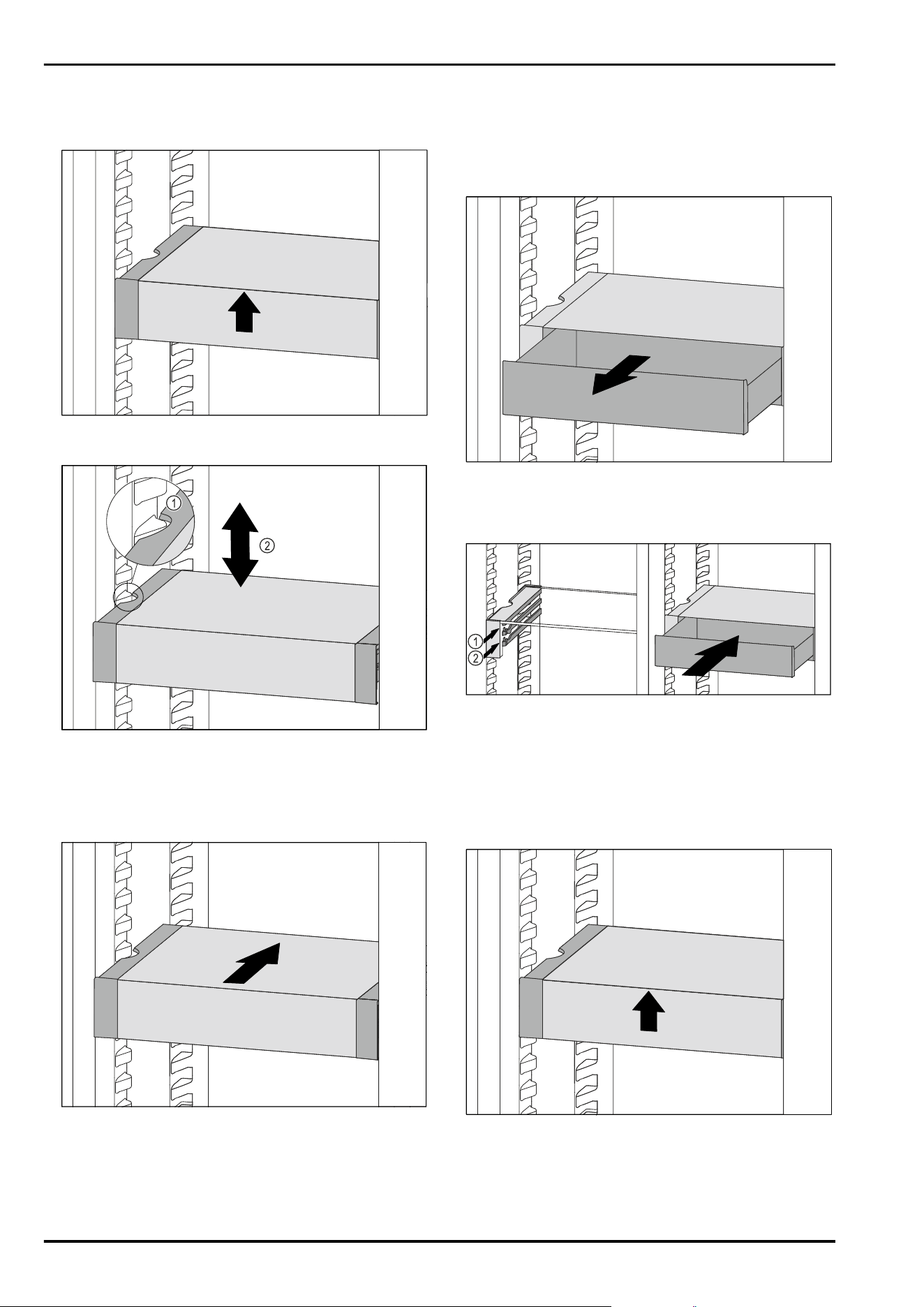

8.4.2 Repositioning the VarioSafe
You can move the VarioSafe as a whole in the refrigerator
compartment.
Fig. 110
u
Lift VarioSafe at the front.
Fig.111
u
Pull VarioSafe forwards until the recesses in the side of
the VarioSafe are at the level of the support rib in the
refrigerator compartment. Fig.111(1)
u
Move VarioSafe up or down in the refrigerator compart‐
ment until the desired height is reached. Fig.111(2)
Fig.112
u
Lift VarioSafe at the front.
u
Push VarioSafe in to the rear.
w
VarioSafe audibly engages.
w
VarioSafe is offset in height.
8.4.3 Moving the VarioSafe drawer
You can use the VarioSafe drawer at two different heights.
If you would like to store taller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the bottom rib. If
you would like to store smaller foodstuffs in the VarioSafe
drawer, slide the VarioSafe drawer in on the top rib.
Fig.113
u
Pull out the VarioSafe drawer as far as it will go.
u
Lift the VarioSafe drawer up at the front.
u
Remove the VarioSafe drawer to the front.
Fig. 114
u
Lift the VarioSafe drawer up at the front.
u
Place the VarioSafe drawer behind the stoppers on
desired rib Fig. 114(1) or Fig. 114(2).
w
VarioSafe drawer is offset in height.

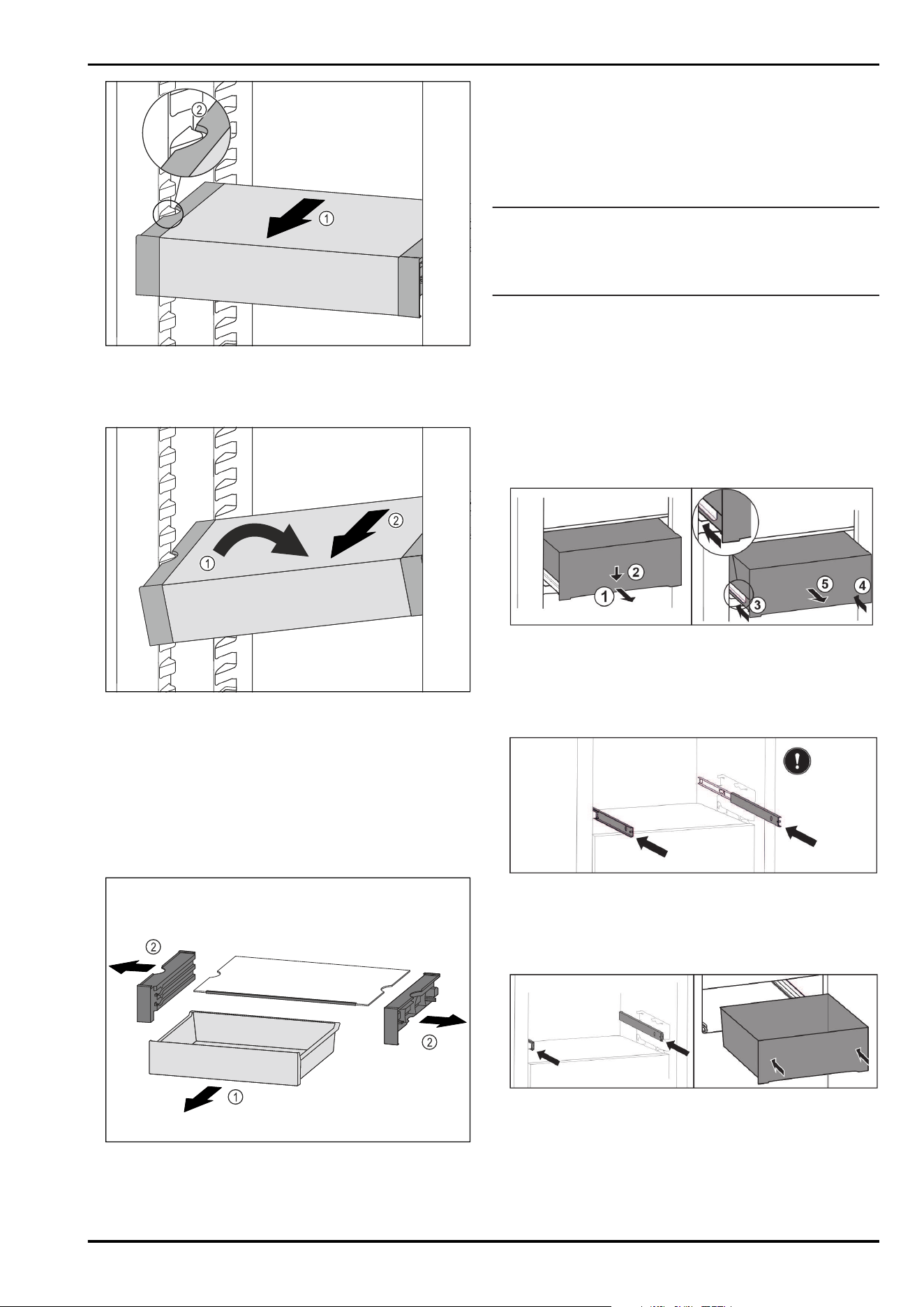

8.4.4 Removing the VarioSafe
You can remove the VarioSafe as a whole.
Fig. 115
u
Lift VarioSafe at the front.
Features
* Depending on model and options 25
Fig. 116
u
Pull VarioSafe forwards Fig. 116 (1) until the recesses in
the side of the VarioSafe are at the level of the support
rib in the fridge section. Fig. 116(2)
Fig.117
u
Set VarioSafe in refrigerator compartment at an angle.
Fig.117(1)
u
Take VarioSafe out to the front. Fig.117(2)
w
VarioSafe is removed.
8.4.5 Disassembling the VarioSafe
You can disassemble the VarioSafe into its individual parts if
you want to clean the VarioSafe or if you need to install or
remove parts.
Fig. 118
u
Remove VarioSafe as a whole. (see 8.4.4 Removing the
VarioSafe )
u
Disassemble VarioSafe according to the illustration.
8.5 Drawers
You can remove the drawers for cleaning.
You can remove the drawers to use VarioSpace.
The way to remove/insert the drawers varies depending
on the pull-out system. Your appliance can contain various
pull-out systems.
Note
The energy consumption increases and the cooling power
goes down if ventilation is not sufficient.
u
Leave the bottom drawer in the appliance!
u
Always leave the fan air vents clear on the back wall!
8.5.1 Drawer on telescopic rails
The drawer runs on extendible rails (telescopic rails). There
are fully extendible telescopic rails and telescopic rails with
partial pull-out. Drawers which are fully extendible can be
pulled out fully from the appliance. Drawers with partial
pull-out cannot be removed fully from the appliance. The
system in your appliance depends on the type of appliance.
Partial pull-out fridge compartment
Removing drawer
Fig. 119
u
Pull out drawer half-way. Fig. 119(1)
u
Push the drawer down at the front. Fig. 119(2)
u
Push the left rail in by about 2cm. Fig. 119(3)
u
Push the right rail in by about 2cm. Fig. 119(4)
u
Remove drawer to the front. Fig. 119(5)
Fig.120
If the rails are not yet fully inserted after removing the
drawer:
u
Push rails in completely.
Inserting drawer
Fig.121
u
Slide rails in.
u
Place drawer on rails.
u
Slide in drawer to the back.
8.6 EasyFresh-Safe cover
You can remove the compartment cover for cleaning.
Features
26 * Depending on model and options
8.6.1 Removing the compartment cover
Fig.122
When the drawers are removed:
u
Pull the lid up at the front to the opening in the retaining
parts Fig.122(1).
u
Lift from the back and pull it up and out Fig.122(2).
8.6.2 Inserting the compartment cover
Fig.123
If the text THIS SIDE UP points upwards:
u
Insert the lip of the cover over the opening of the rear
bracket Fig.123(1) and click into place Fig.123(2).
u
Position the cover where you want it (see 8.7 Adjusting
the moisture levels) .
8.7 Adjusting the moisture levels
You can adjust the moisture in the drawer yourself by
adjusting the compartment cover.
The compartment lid is attached to the drawer and can be
hidden by a shelf or additional drawers.
Fig. 124
Low air humidity
u
Open the drawer.
u
Slide the compartment cover forwards.
w
With the drawer closed: Gap between the cover and the
compartment.
w
The air moisture in the Safe decreases.
High air moisture
u
Open the drawer.
u
Slide the cover back.
w
With the drawer closed: The cover seals the compart‐
ment.
w
The air moisture in the Safe increases.
If there is too much moisture in the compartment:
u
Choose the setting “low air moisture”.
-or-
u
Remove any excess moisture with a cloth.
8.8 Glass shelves
You can remove the glass shelves under the drawers for
cleaning.
You can remove the glass shelves under the drawers to use
VarioSpace.
8.8.1 Removing / inserting the glass shelf
Make sure that the following requirements are fulfilled:
q
Glass shelf under the drawer: The drawer has been
removed. (see 8.5 Drawers)
Removing glass shelf

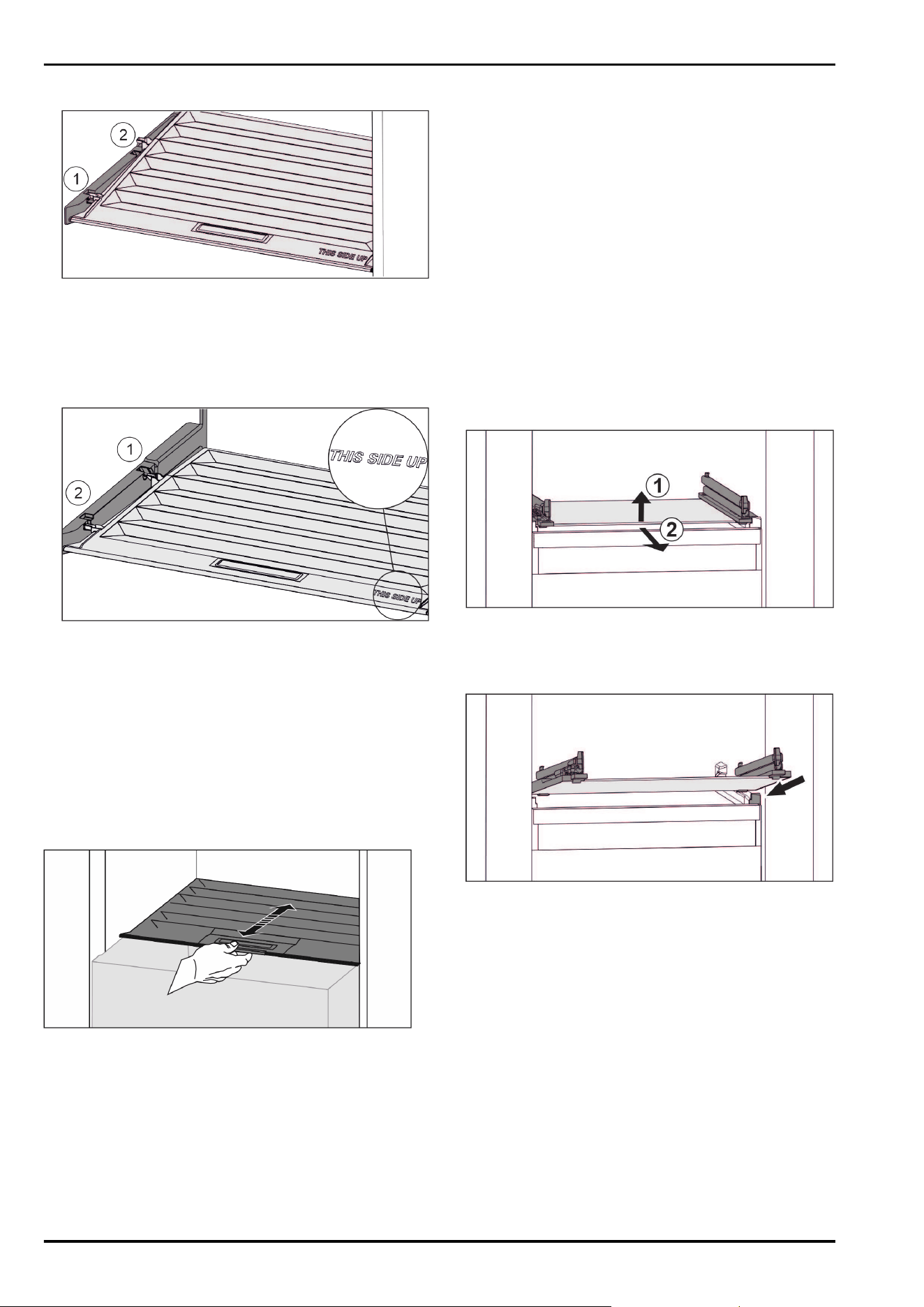

Fig. 125 Example illustration of glass shelf
u
Lift glass shelf at the front. Fig.125(1)
u
Take out glass shelf to the front. Fig.125(2)
Inserting glass shelf
Fig. 126 Example illustration of glass shelf
u
Position glass shelf at an angle behind the stoppers. (see
Fig. 126)
u
Lower glass shelf.
u
Slide in glass shelf to the back.
8.9 EasyTwist-Ice*
With the EasyTwist-Ice you can make enough ice cubes for
the whole household. The EasyTwist-Ice is supplied with
water via a water tank.
Features
* Depending on model and options 27

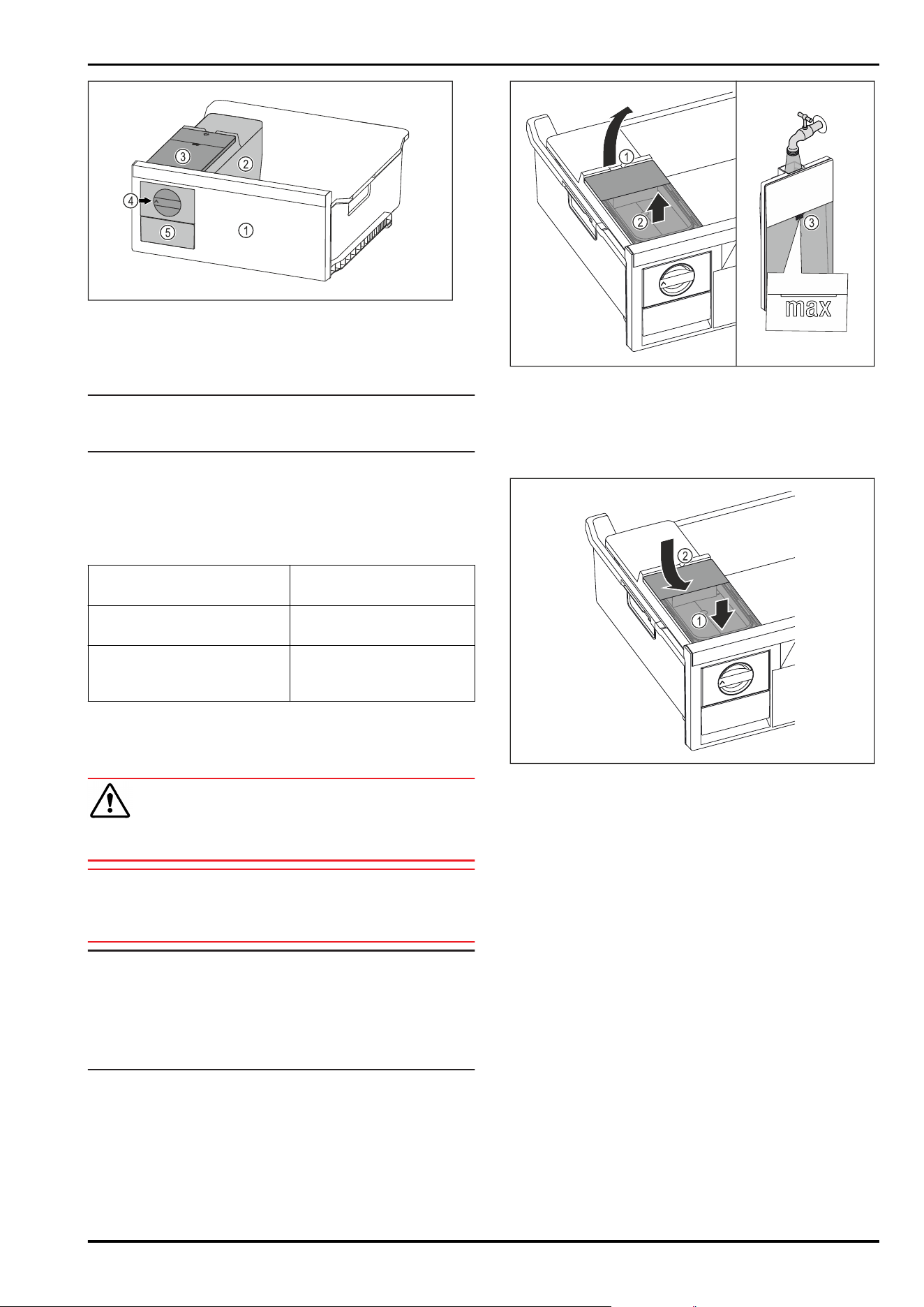

Fig. 127 Example illustration
(1) Freezer drawer with
EasyTwist-Ice
(4) Rotary knob
(2) Body with ice cube tray (5) Ice cube drawer
(3) Water tank
Note
Do not change the position of the freezer drawer with the
EasyTwist-Ice in the appliance.
8.9.1 Making ice cubes
The amount of ice cubes you can make in a given period of
time with the EasyTwist-Ice depends on the freezer temper‐
ature of the appliance. The lower the temperature in the
appliance, the more ice cubes you can make.
Maximum number of ice
cubes in the ice cube tray:
20 ice cubes
Maximum capacity of the ice
cube drawer:
40 ice cubes (equivalent to
two ice cube batches)
More information about the
time needed for ice cube
production:
(see 10.1 Technical specifi‐
cations)
Make sure that the following requirements are fulfilled:
q
Components of the EasyTwist-Ice have been cleaned.
Filling the water tank
WARNING
Risk of poisoning due to contaminated water!
u
Only fill the water tank with potable water.
NOTICE
Sugar-content liquids!
Damage to EasyTwist-Ice.
u
Only fill with cold drinking water.
Note
Using filtered, decarbonised water ensures the best-tasting
drinking water for your ice cubes.
This water quality can be achieved using a table water filter
of the kind available in trade retail outlets.
u
Always fill the water tank only with filtered, decarbonised
drinking water.
Fig.128
u
Pull out freezer drawer as far as it will go.
u
Lift the water tank at the recess Fig.128(1).
u
Remove the water tank by lifting it upwards. Fig.128(2)
u
Fill the water tank with drinking water up to the mark
Fig.128(3).
Fig.129
u
Position the water tank at the front. Fig.129(1)
u
Lower the water tank at the rear. Fig.129(2)
u
Slide in the freezer drawer.
Releasing the ice cubes
Make sure that the following requirements are fulfilled:
q
The required time for the production of ice cubes has
been observed. (see 10.1 Technical specifications)
q
Freezer drawer is fully inserted.
q
Ice cube drawer is fully inserted.
u
Turn the rotary knob Fig. 127 (4) clockwise as far as it will
go.
w
Ice cubes fall from the ice cube tray into the ice cube
drawer Fig.127(5).
If all the ice cubes do not come out of the ice cube tray:
u
Turn the rotary knob clockwise several times to the stop.
8.10 IceMaker*
The IceMaker will produce ice cubes for household use only.
Ensure that the following conditions are met:
-
IceMaker is cleaned (see9 Maintenance) .
-
IceMaker drawer is cleaned.
-
IceMaker drawer is fully inserted.
Features
28 * Depending on model and options
8.10.1 Producing ice cubes
The volume depends on the freezing temperature. The
colder the temperature, the more ice cubes the system can
produce in a certain time period.
After the IceMaker is turned on for the first time, it can take
up to 24 hours for the first ice cubes to be made.
u
Activate the IceMaker function .
u
To make a high number of ice cubes: Activate the MaxIce
function .
u
To make a high number of ice cubes: Move the divider in
the IceMaker drawer or remove it completely.*
u
Distribute the ice cubes evenly in the drawer to increase
the capacity.
u
Closing the drawer: IceMaker starts making ice cubes
again automatically.
Note
When a certain level is reached in the IceMaker drawer, it
stops producing ice cubes. The IceMaker does not fill the
drawer all the way to the top.
8.10.2 Using the drawer with the IceMaker
deactivated
If you deactivate the IceMaker, then you can use the entire
IceMaker drawer as a freezer drawer.
u
Deactivate IceMaker. (see Deactivating the IceMaker /
MaxIce )

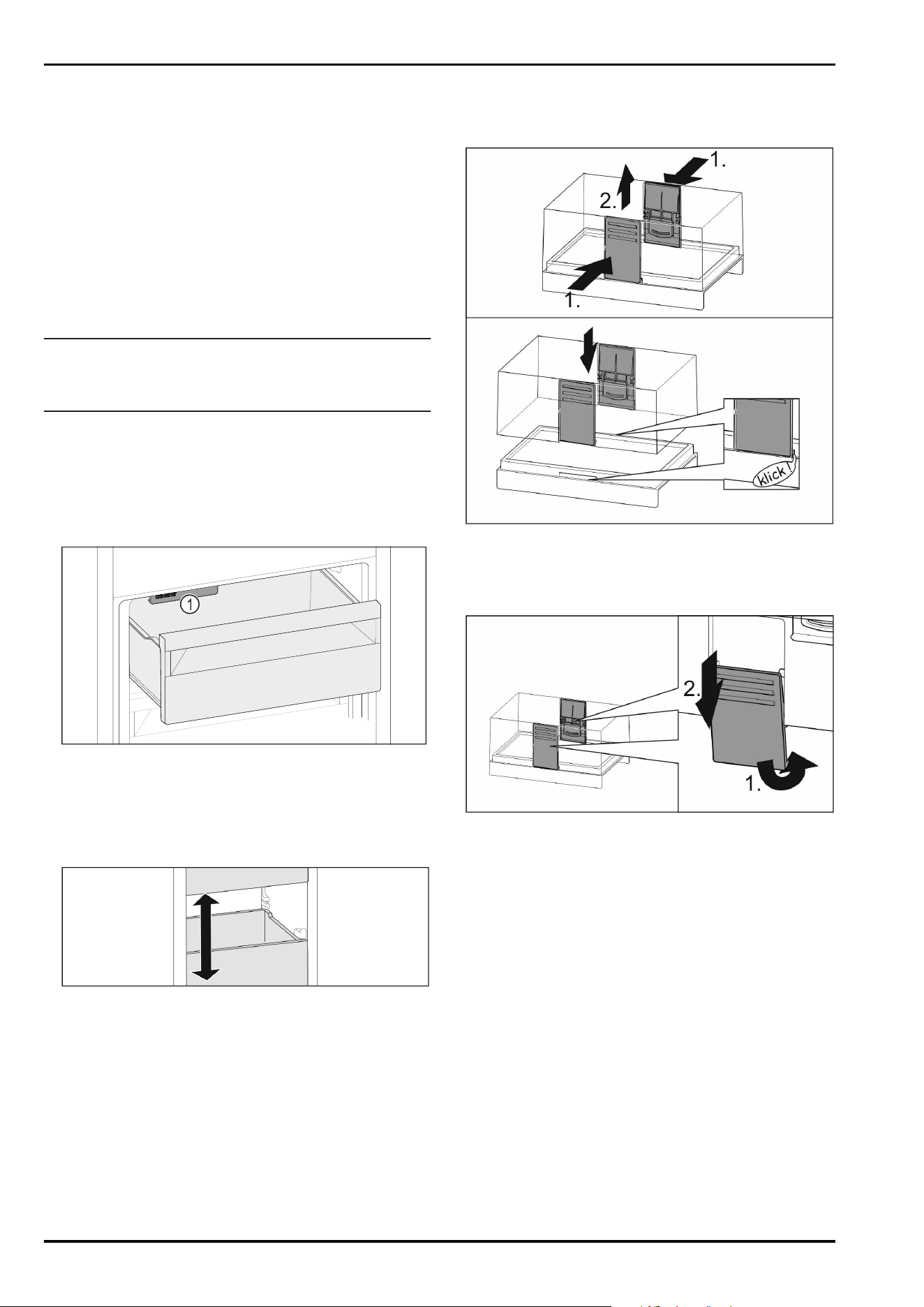

Fig.130
u
Place food in drawer.
If you put food in the left side of the drawer:
u
Watch out for the IceMaker Fig.130(1).
8.11 VarioSpace
Fig.131
You can remove drawers and glass panels from your appli‐
ance. This provides more room for large food items such as
poultry, joints of meat, large game, and tall baked products.
You can then freeze these items whole for later preparation.
u
Note the weight limits on the drawers and glass panels
(see 10.1 Technical specifications) .
8.12 Butter dish
8.12.1 Opening/closing the butter dish
Fig.132
8.12.2 Dismantling the butter dish
You can take the butter dish apart for cleaning.
Fig.133
u
Disassembling the butter dish.
8.13 Egg rack
You can pull out and turn the egg rack. You can use both
sides of the egg rack so you can label specifics like the
purchase date.
Features
* Depending on model and options 29
8.13.1 Using the egg rack

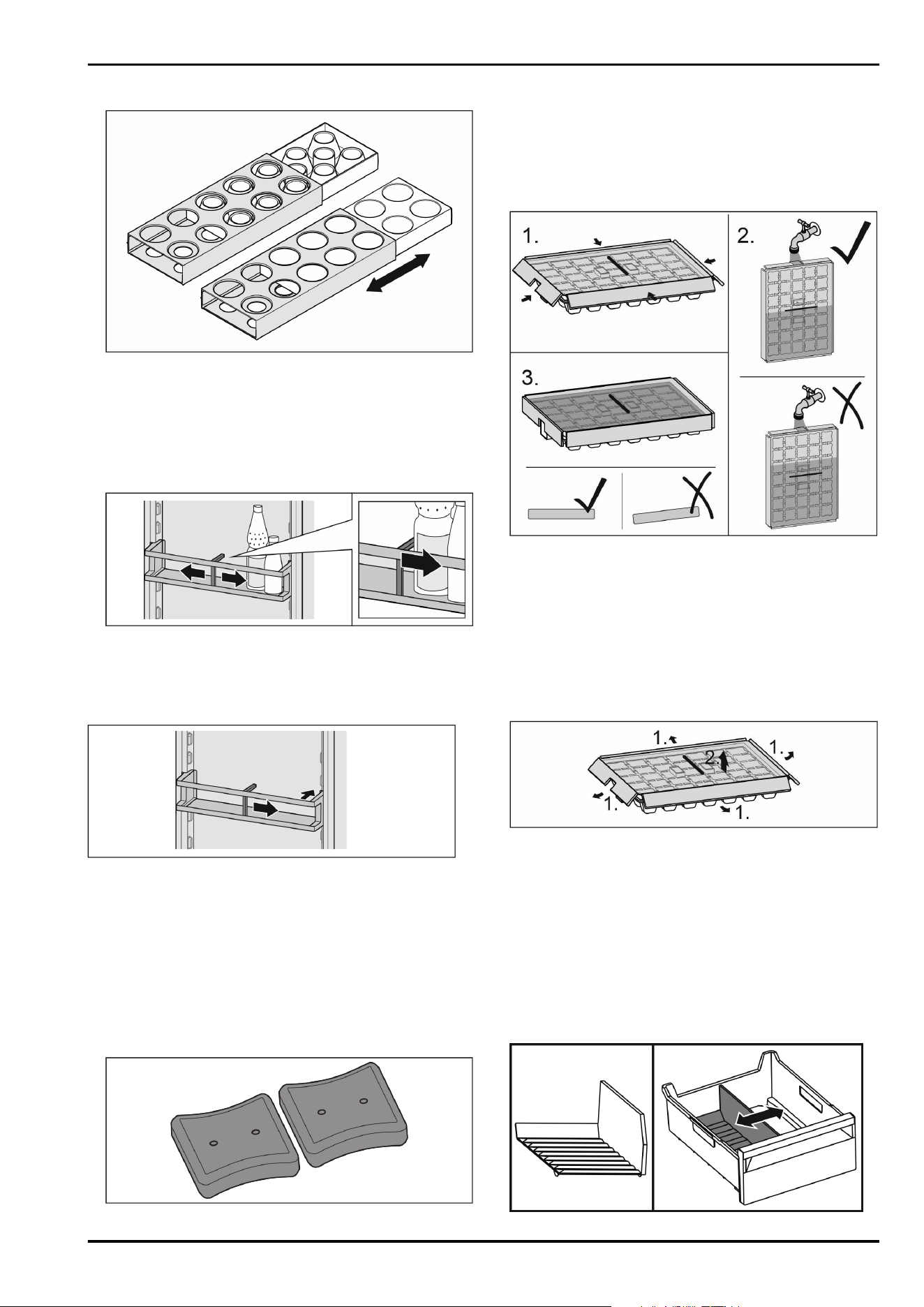

Fig.134
u
Top layer: for storing hen eggs.
u
Bottom layer: for storing quail eggs.
8.14 Bottle holder
8.14.1 Using the bottle holder
Fig.135
u
Push the bottle holder onto the bottles.
w
The bottles are prevented from falling over.
8.14.2 Removing the bottle holder
Fig.136
u
Move the bottle holder all the way to the right.
u
Push the bottle holder to the back to remove.
8.15 Freezer pack
Freezer packs prevent the temperature rising too quickly
should there be a power cut.
The freezer packs are in the drawer.
8.15.1 Using the freezer pack
Fig.137
When the freezer packs are fully frozen:
u
Place on the frozen goods in the top, front part of the
freezer.
8.16 Ice cube tray with cover*
8.16.1 Using the ice cube tray
Fig.138
When the water is frozen:
u
Hold ice cube tray under hot water for a short time.
u
Remove the lid.
u
Gently turn the ends of the ice cube tray in opposite
directions.
u
Release the ice cubes.
8.16.2 Dismantling the ice cube tray
You can take the ice cube tray apart for cleaning.
Fig. 139
u
Disassembling the ice cube tray.
8.17 Flexible ice compartment divider*
The IceMaker’s ice cube drawer has a flexible ice compart‐
ment divider. This allows you to store larger quantities of ice
cubes or additional food items as needed. You can move or
remove the ice compartment divider.
8.17.1 Moving in the flexible ice compartment
divider
Features
30 * Depending on model and options
Fig. 140 Example illustration of the ice compartment
divider
u
Move the ice compartment divider to the desired position.
8.17.2 Removing the flexible ice compartment
divider
Make sure that the following requirements are fulfilled:
q
Ice cube drawer is removed. (see 8.5 Drawers)

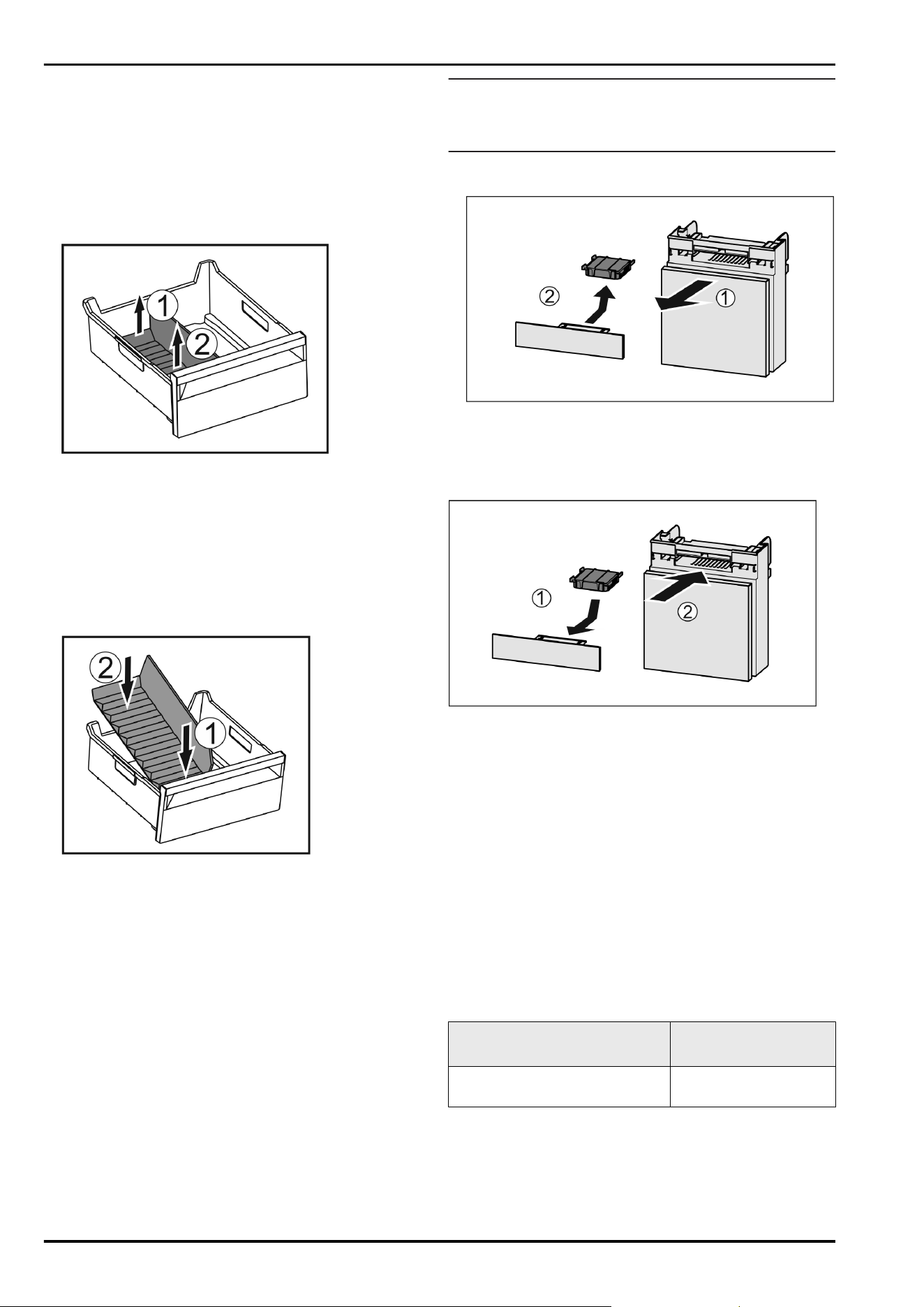

Fig. 141
u
Lift the rear part of the ice compartment divider.
Fig. 141(1)
u
Remove the ice compartment divider upwards. Fig. 141(2)
8.17.3 Putting in the flexible ice compartment
divider
Make sure that the following requirements are fulfilled:
q
Ice cube drawer is removed. (see 8.5 Drawers)
Fig. 142
u
Insert the front part of the ice compartment divider.
Fig. 142(1)
u
Lower the rear part of the ice compartment divider to the
drawer bottom. Fig. 142(2)
9 Maintenance
9.1 FreshAir carbon filter
The FreshAir carbon filter is in the compartment above the
fan.
It guarantees the best air quality.
q
Replace the carbon filter every 6 months.
When the reminder is set, a message on the display
prompts you to change it.
q
The carbon filter can be disposed of with the regular
household waste.
Note
FreshAir activated charcoal filters can be purchased
from the Liebherr-Hausgeräte store at
home.liebherr.com/
shop/de/deu/zubehor.html.
9.1.1 Removing the FreshAir carbon filter
Fig. 143
u
Pull out the compartment Fig. 143(1).
u
Remove the carbon filter Fig. 143(2).
9.1.2 Inserting the FreshAir carbon filter
Fig. 144
u
Insert the carbon filter as shown in the diagram
Fig. 144(1).
w
The carbon filter clicks into place.
If the carbon filter is pointing downwards:
u
Push the compartment in Fig. 144(2).
w
The carbon filter is now ready for use.
9.2 Disassembling / assembling pull-
out systems
9.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system can be disassembled/
cannot be disassembled
Partial pull-out fridge compart‐
ment
cannot be disassembled
9.3 Defrosting the appliance
9.3.1 Defrosting the fridge compartment
Defrosting is performed automatically. The water from the
thawing process drains through the outlet and evaporates.
Maintenance
* Depending on model and options 31
u
Clean the drain opening regularly (see 9.4 Cleaning the
appliance) .
9.3.2 Defrosting the freezer compartment with
NoFrost
Defrosting is performed automatically with the NoFrost
system. The moisture is deposited on the evaporator, is peri‐
odically defrosted and evaporates.
The appliance does not need to be defrosted.
9.4 Cleaning the appliance
9.4.1 Ready
WARNING
Danger of electric shock!
u
Remove the refrigerator connector or interrupt the power
supply.
WARNING
Risk of fire
u
Do not damage the refrigeration circuit.
u
Empty the appliance.
u
Remove mains connector.
-or-
u
Activate CleaningMode. (seeCleaningMode)
9.4.2 Clean the housing
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
WARNING
Risk of injury and damage as a result of hot steam!
Hot steam can lead to burns and can damage the surfaces.
u
Do not use any steam cleaners!
u
Wipe the housing down with soft, clean cloth. If very
dirty, use lukewarm water with a neutral cleaner. Glass
surfaces can also be cleaned with glass cleaner.
9.4.3 Cleaning the mosquito screen
u
Clean the mosquito screens regularly with a vacuum
cleaner.
u
Remove stubborn stains with a soft cloth.
9.4.4 Cleaning the interior
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
u
Plastic surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Metal surfaces: clean by hand with a soft clean cloth,
lukewarm water and a little detergent.
u
Drain hole: remove deposits using a thin item (for
example a cotton bud).

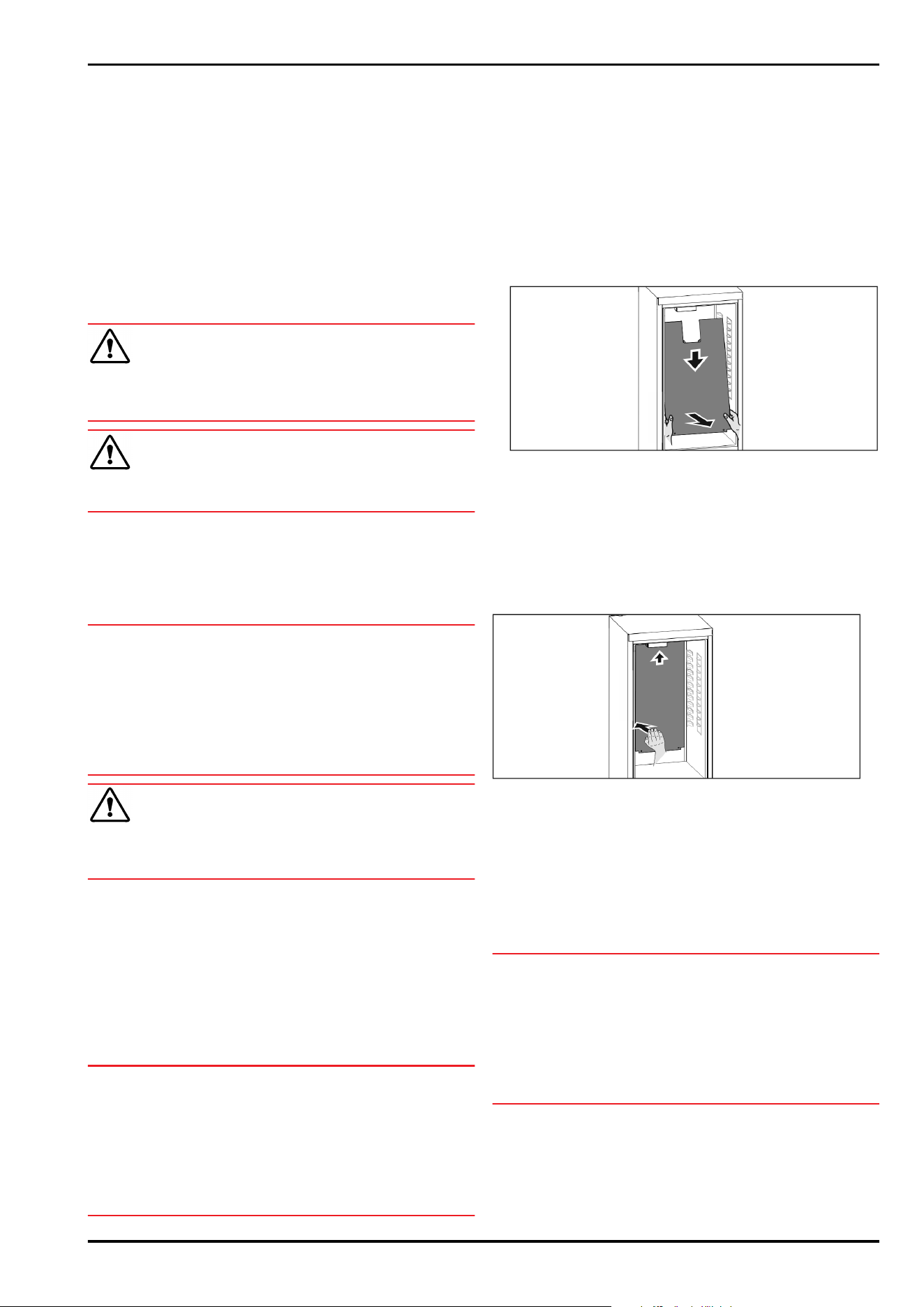

9.4.5 Cleaning the dry rear panel
You can remove the dry rear panel for cleaning.
Removing the rear panel
u
Remove all equipment parts.
Fig. 145
u
Hold the rear panel with both hands at the bottom and
pull downward vigorously at the same time.
u
Pull the rear panel out to the front by the bottom end.
w
The rear panel has been removed.
If you want to continue operating the appliance with the
rear panel removed:
u
Set the D-Value to D2. (see D-Value)
Inserting the rear panel
Fig. 146
u
Make sure the appliance is completely empty.
u
Slide in the rear panel from below to the top.
u
Press back vigorously on the left-hand side of the rear
panel.
w
The rear panel clicks into place.
u
Insert the equipment parts.
u
Set the D-Value to D1. (see D-Value)
9.4.6 Clean the components
NOTICE
Improper cleaning!
Damage to the appliance.
u
Only use soft cleaning cloths and ph-neutral all-purpose
cleaners.
u
Do not uses abrasive sponges or steel wool which may
cause scratches.
u
Do not use any sharp or abrasive cleaning agents, nor
any that contain sand, chloride or acid.
Clean with a soft, clean cloth, lukewarm water and some
detergent:
- Door rack
- VarioSafe
- EasyFresh-Safe cover
- Drawer
Maintenance
32 * Depending on model and options
Please note: Do not remove the magnet on the drawer.
The magnet ensures the functionality of the IceMaker.*
- Divider in the IceMaker drawer*
- Components of the EasyTwist-Ice*
Clean with a damp cloth:
- Retractable rails
Please note: The grease in the tracks is used for lubrica‐
tion and must not be removed!
Wash in the dishwasher up to 60°C:
- Door rack
- VarioBox
- Bottle rack
- Shelf
- Dividing shelf
- Holder of the dividing shelf
- Egg rack
- Butter dish
- Ice cube tray*
- Ice cube scoop*
u
To disassemble components: see the relevant section.
u
Clean the components.
9.4.7 Cleaning the EasyTwist-Ice*
Clean the EasyTwist-Ice in the following situations:
-
First use
-
Not using for more than 48 hours
-
When cleaning is required

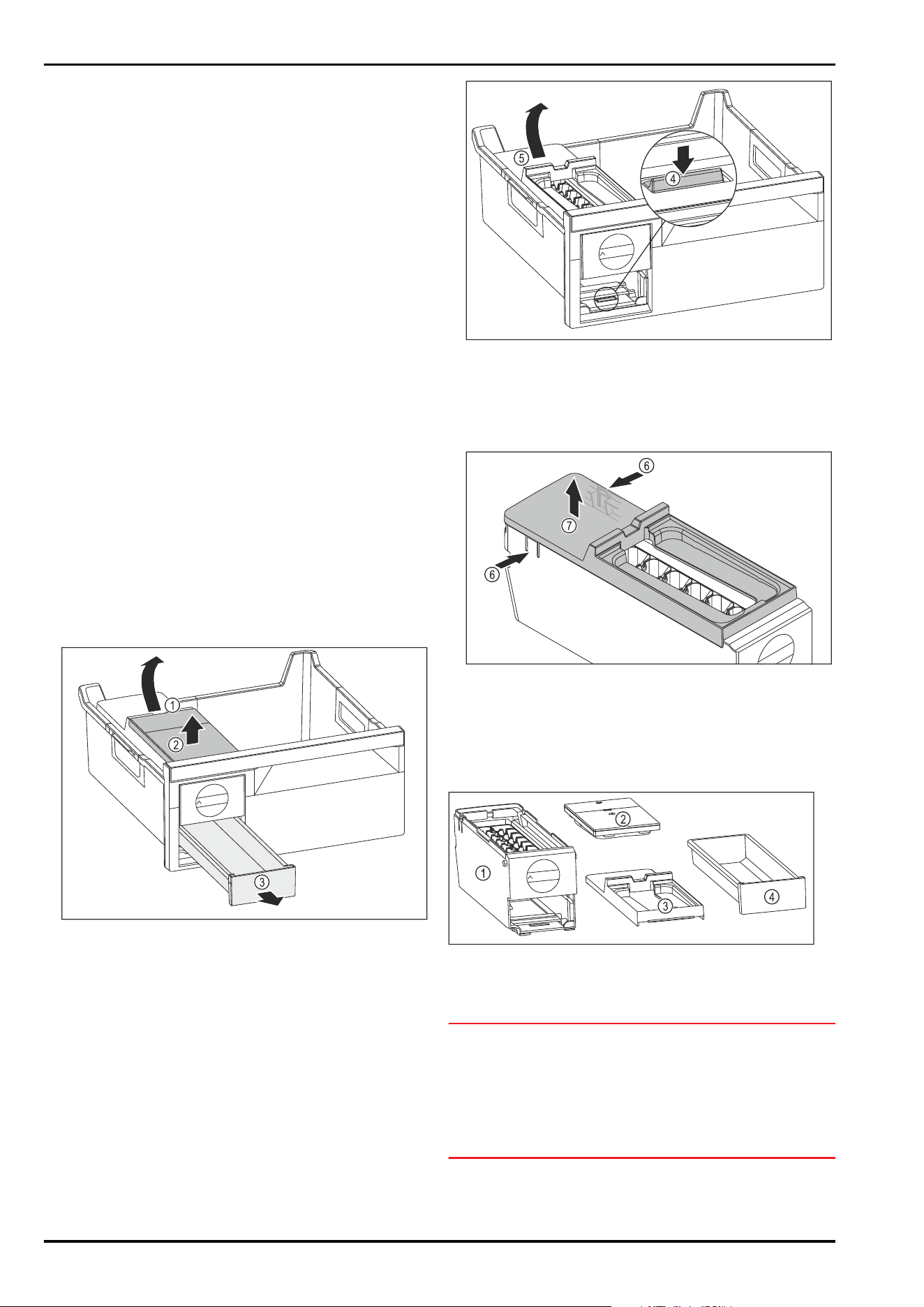

Dismantling the EasyTwist-Ice
Make sure that the following requirements are fulfilled:
q
The drawer has been removed. (see 8.5 Drawers)
q
The drawer is placed on a table.
Fig. 147
u
Removing the water tank: Lift the water tank by the
recess Fig. 147(1).
u
Remove the water tank Fig. 147(2) upwards.
u
Remove the ice cube drawer Fig. 147(3) to the front.
Fig. 148
u
Removing the EasyTwist-Ice body: Use your finger to
push the tab Fig. 148(4) down and use your other hand to
lift the EasyTwist-Ice body Fig. 148 (5) from behind at the
same time.
u
Remove the EasyTwist-Ice body from the freezer drawer.
Fig. 149
u
Removing the EasyTwist-Ice body cover: Push the tabs
Fig. 149 (6) on both sides of the EasyTwist-Ice body with
one hand.
u
Use the other hand to remove the cover Fig. 149 (7)
upwards.
w
EasyTwist-Ice is dismantled into four parts. (see Fig. 150)
Fig. 150 Components of the EasyTwist-Ice
(1) EasyTwist-Ice body
with ice cube tray
(3) Cover
(2) Water tank (4) Ice cube drawer
NOTICE
Risk of damage due to improper dismantling!
Equipment breaking, jumping and cracking. If you dismantle
the EasyTwist-Ice body further, you may damage the rotary
knob or other parts of the EasyTwist-Ice body.
u
Only dismantle the EasyTwist-Ice into the components
shown. (see Fig. 150)
u
Clean the EasyTwist-Ice body Fig. 150(1) as a whole.
Maintenance
* Depending on model and options 33
Cleaning the EasyTwist-Ice
Make sure that the following requirements are fulfilled:
q
The EasyTwist-Ice is dismantled. (see Dismantling the
EasyTwist-Ice)
u
Clean the ice cube drawer, water tank, cover and Easy‐
Twist-Ice body with warm water and a little detergent.
u
Dry all cleaned components thoroughly with a dry cloth.
w
The EasyTwist-Ice is clean.

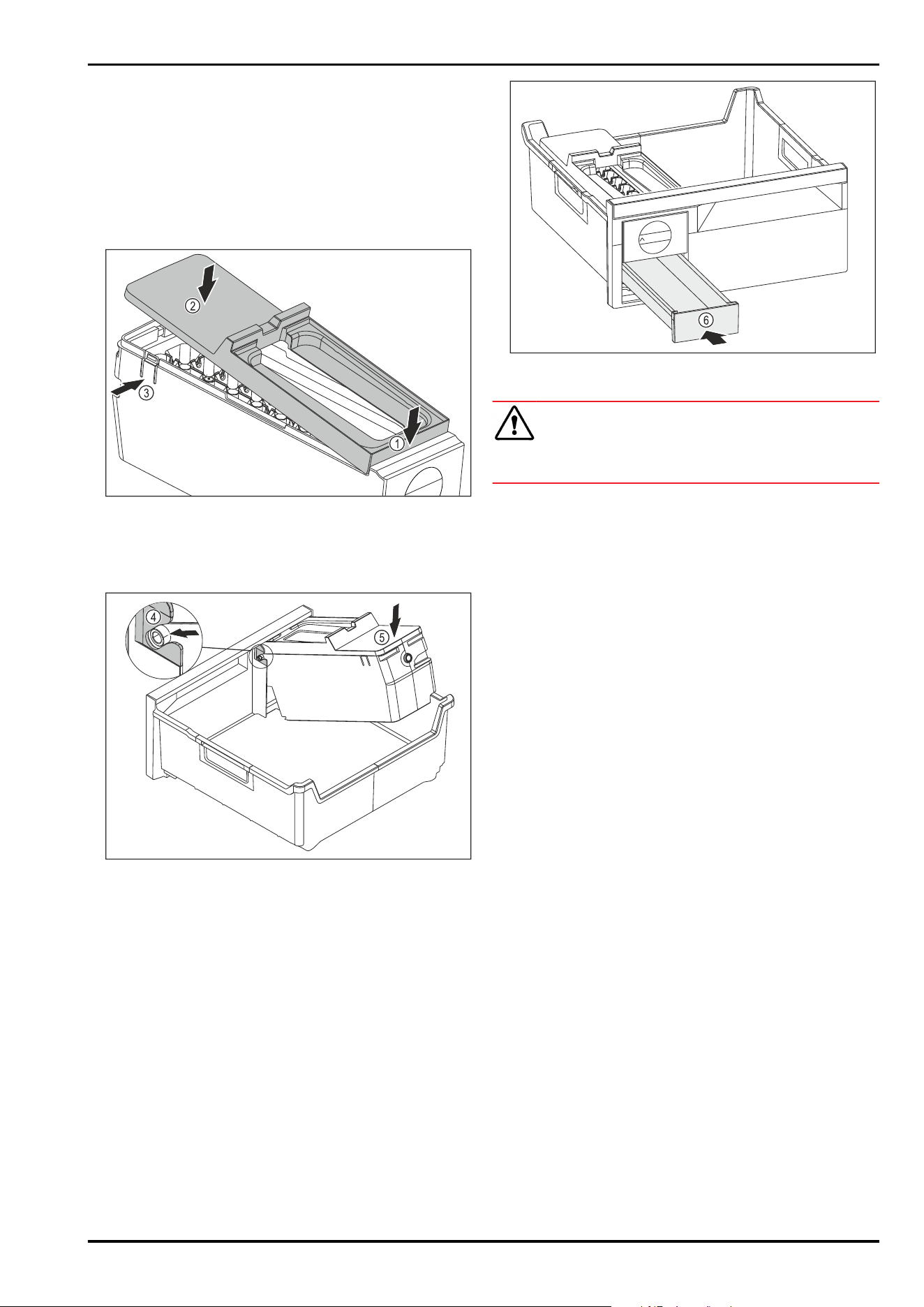

Installing the EasyTwist-Ice
Fig. 151
u
Installing the EasyTwist-Ice body cover: Place the cover
on the front. Fig. 151(1)
u
Lower the cover at the rear. Fig. 151(2)
w
The cover locks into both tabs Fig. 151(3) audibly.
Fig. 152
u
Installing the EasyTwist-Ice body: Push the axes for the
EasyTwist-Ice body into the guides Fig. 152(4).
u
Press the EasyTwist-Ice body Fig. 152 (5) down at the
back.
w
The EasyTwist-Ice body locks in audibly.
Fig. 153
u
Insert the ice cube drawer Fig. 153(6).
WARNING
Risk of poisoning due to contaminated water!
u
Only fill the water tank with potable water.
u
Fill the water tank with water.
u
Insert the water tank.
u
Insert the drawer. (see 8.5 Drawers)
If you are using unfiltered water:
u
Dispose of ice cubes that were produced 24 hours after
initial ice cube production.
-or-
If you are using filtered water:
u
Dispose of ice cubes that were produced 48 hours after
initial ice cube production.
9.4.8 Cleaning the IceMaker*
There are various options for cleaning the IceMaker.
Cleaning is required in the following cases:
q
Initial operation
Ensure that the following conditions are met:
q
IceMaker drawer is emptied.
q
IceMaker drawer is in place.
q
The IceMaker is activated.
First use or after a long period of non-use
Clean the IceMaker with the TubeClean function.
u
Put an empty 1.5 l vessel (max. height 10 cm) in the
drawer under the IceMaker.
u
Activate the TubeClean function.
w
The rinse process is prepared (max. 60 min.): Symbol
flashes.
w
Water pipes are rinsed: Symbol flashes.
w
Rinsing process is complete: Function turns off automati‐
cally.
u
Remove the IceMaker drawer and remove the container.
u
Clean the IceMaker drawer with warm water and a little
detergent.
u
Push the IceMaker drawer in.
w
The system starts making ice cubes automatically.
u
Dispose of any ice cubes that were made 24 hours after
the first ice cubes.
If cleaning is required
Clean the IceMaker by hand.
u
Remove the IceMaker drawer and clean with warm water
and a little detergent.
u
Push the IceMaker drawer in.
w
The system starts making ice cubes automatically.
Maintenance
34 * Depending on model and options
9.4.9 After cleaning
u
Wipe the appliance and the components dry.
u
Connect and switch on the appliance.
u
Activate SuperFrost (see 7.2Appliance functions) .
The temperature is cold enough:
u
Place the food inside.
u
Repeat cleaning regularly.
10 Customer help
10.1 Technical specifications
Temperature range
Cooling 2°C to 9°C
Freeze -26°C to -15°C
Maximum freezing quantity/24h
Freezer compart‐
ment
See “Freezing capacity …/24 h” on
the type plate
Ice cube production with IceMaker*
Ice cube produc‐
tion/24h
At a temperature of -18 °C: 1.2 kg of
ice cubes
Maximum ice cube
production/24h
With the MaxIce function on: 1.5 kg of
ice cubes
Ice cube production with EasyTwist-Ice*
Time required at -18°C approx. 5.5 h
Time required with SuperFrost activated approx. 3h
Time required to reach various temperatures with Vario‐
Temp
Initial tempera‐
ture
Target tempera‐
ture
Time required to
reach target temper‐
ature
-18°C 0°C >8 h
-18°C 8°C >12 h
8°C 14°C >6 h
14°C -18°C >4 h
10.2 Operating noises
The appliance makes different noises when it is on.
-
At higher temperatures the appliance uses less energy
but works for longer. It is quieter.
-
At lower temperatures the food is cooled faster. It is
louder.
Examples:
•
Functions on (see 7.2Appliance functions)
•
Fan running
•
Food recently added
•
High ambient temperature
•
Door open for a while
Noise Possible cause Type of noise
Bubbling and
splashing
Coolant flowing
into the cooling
circuit.
Normal operating
noise
Hissing Coolant sprays
into the cooling
circuit.
Normal operating
noise
Humming The appliance
is cooling. The
volume depends
on the cooling
output.
Normal operating
noise
Suction noises Soft-closing door
is being opened
and closed.
Normal operating
noise
Humming and
rustling
The fan is running. Normal operating
noise
Clicking Components are
switched on and
off.
Normal switching
noise
Rattling or
humming
Valves or flaps are
working.
Normal switching
noise
Noise Possible
cause
Type of noise Lifting
Vibration Improper
setup
Defective
noise
Level the
appliance
using the
adjustable
feet.
Rattling Components,
items inside
the appliance
Defective
noise
Secure
components.
Leave
enough
space
between the
items.
10.3 Technical fault
Your appliance is designed and built to ensure it works reli‐
ably and has a long service life. In the unlikely event that
a fault occurs during operation, please check whether it is
due to an operating error. If so, you will be charged for the
callout and repair costs even if it falls within the warranty
period.
You can fix the following faults yourself.
10.3.1 Appliance function
Defect Cause Remedy
The appliance is
not working.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The power plug is not properly
plugged into the socket.
u
Check the power plug.
→ There is something wrong with the
power outlet fuse.
u
Check the fuse.
Customer help
* Depending on model and options 35
Defect Cause Remedy
→ Power cut
u
Keep the appliance closed.
u
Protecting food: Lay freezer packs on top of the food or
use another freezer if the power is off for a prolonged
period.
u
Do not re-freeze defrosted food,
→ The appliance plug does not fit the
appliance properly.
u
Check the appliance plug.
Temperature is not
cold enough.
→ The appliance door is not closed
properly.
u
Close the appliance door.
→ Not enough ventilation.
u
Keep ventilation grille clear, and clean it.
→ The ambient temperature is too
high.
u
Problem solution: (see1.4 Appliance range of use)
→ The appliance was opened too
many times or for too long.
u
Wait to see if the required temperature corrects itself.
If not, contact Customer Service. (see 10.4 Customer
Service)
→ Too much fresh food was placed
inside without SuperFrost.
u
Solution: (see SuperFrost)
→ The temperature is set incorrectly.
u
Turn down the temperature and check after 24 hours.
→ The appliance is too close to a heat
source (oven, radiator, etc).
u
Move the appliance or the heat source.
The door seal is
defective or needs
to be replaced for
another reason.
→ The door seal can be replaced. It
can be replaced without the need
for special tools.
u
Contact Customer Service. (see 10.4 Customer Service)
The appliance
builds up too much
ice or condensa‐
tion.
→ The door seal may have slipped out
of its groove.
u
Check that the door seal is well fitted in the groove.
The appliance is
hot to touch on the
outside*.
→ The heat of the refrigeration circuit
is used to avoid condensation.
u
This is normal.
10.3.2 Features
Defect Cause Remedy
The IceMaker is
not producing ice
cubes.*
→ The IceMaker is not on.
u
Activate the IceMaker.
→ The drawer of the IceMakers is not
connected properly.
u
Push the drawer in correctly.
The internal light
does not come on.
→ The appliance is not switched on.
u
Switch the appliance on.
→ The door was open for longer than
15 minutes.
u
Interior lighting turns off automatically after approx. 15
min. with the door open.
→ The LED interior light is faulty or
the lid is damaged.
u
Contact Customer Service. (see 10.4 Customer Service)
10.4 Customer Service
First check whether you can rectify the fault yourself
(see 10 Customer help) . If you cannot rectify the problem,
contact Customer Service.
You can find the address at home.liebherr.com/service.
Customer help
36 * Depending on model and options

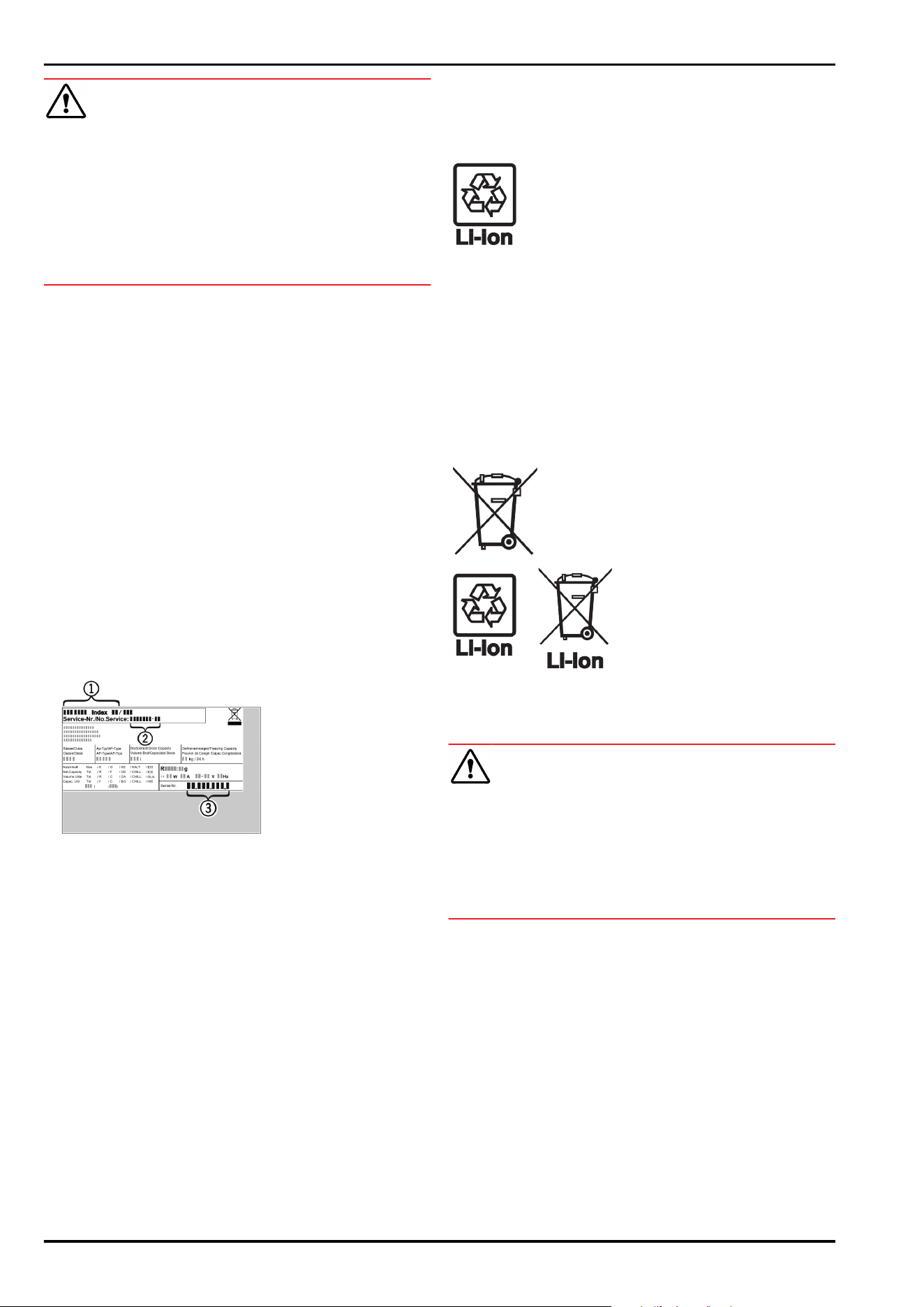

WARNING
Unprofessional repair!
Injuries.
u
Have any repairs and action - not expressly specified -
on the appliance and mains cable carried out by service
personnel only. (see9 Maintenance)
u
A damaged mains cable may only be replaced by the
manufacturer, the manufacturer’s Customer Service or a
similarly qualified person.
u
In the case of appliances with an IEC connector, the
change may be made by the customer.
10.4.1 Contacting Customer Service
Make sure that the following appliance information is avail‐
able:
q
Appliance name (model and index)
q
Service no. (Service)
q
Serial no. (S no.)
u
Call up the appliance information via the display.
-or-
u
Refer to the type plate for appliance information.
(see 10.5 Model plate)
u
Note down the appliance information.
u
Notify customer service: Report errors and the appliance
information.
w
This will help us to provide you with a faster, more accu‐
rate service.
u
Follow further instructions from Customer Service.
10.5 Model plate
The model plate is behind the drawers on the inside of the
appliance.
Fig. 154
(1) Appliance description (3) Serial no.
(2) Service no.
u
Note the data on the model plate.
11 Shutting down
u
Empty the appliance.
u
Deactivate IceMaker. (see Deactivating the IceMaker /
MaxIce ) *
u
Switch off appliance. (see Turn off appliance)
u
Remove mains connector.
u
Remove appliance connector if required: Remove and
move from left to right at the same time.
u
Clean appliance. (see 9.4Cleaning the appliance)
u
Leave the door open, so that no unpleasant odours arise.
12 Disposal
12.1 Preparing appliance for disposal
Liebherr uses batteries in some of its appli‐
ances. In the EU, for environmental reasons,
legislation obliges the end user to remove
these batteries before disposing of old appli‐
ances. If your appliance contains batteries, a
corresponding notice is attached.
Lamps If you can remove the lamps yourself without
destroying them, also remove these before
disposal.
u
Take the appliance out of operation.
u
Appliances with batteries: remove the batteries. For
description, see Maintenance chapter.
u
If possible: remove lamps without destroying them.
12.2 Disposing of the appliance in an
environmentally friendly manner
The appliance still contains
valuable materials and must
be disposed of separately from
unsorted municipal waste.
Dispose of batteries separately
from the old appliance. To do
this, you can return the batteries
free of charge to retailers as
well as recycling centres and
collection centres for recyclable
materials.
Lamps Dispose of removed lamps
via the respective collection
systems.
WARNING
Leaking coolant and oil!
Fire. The coolant contained in the appliance is eco-friendly,
but also flammable. The oil contained in the appliance
is flammable. Escaping coolant and oil can ignite if the
concentration is high enough and in contact with an
external heat source.
u
Do not damage the pipelines of the coolant circuit and
the compressor.
u
Transport the appliance without damaging it.
u
Dispose of batteries, lamps and the appliance according
to the above specifications.
Shutting down
* Depending on model and options 37
home.liebherr.com/fridge-manuals
fridge/freezer
Issue date: 20240202
Part number index:7086383-00
Liebherr-Hausgeräte Marica EOOD
Bezirk Plovdiv
4202 Radinovo
Bulgarien
