Parking Lines (Green) On - Cut (Default)
Mirror Image (White) On - Cut (Default)
GND (Black)
VIDEO
Switched +12V (Red)
User Manual
Front Facing Camera
PCAM-10FF-N
Introduction
Key Features
1/4” CMOS Sensor
Operates at 0.5 LUX
7 IR LEDs
IP67 Rated
170 Degree Viewing Angle
Selectable Image (mirrored/non-mirrored)
Parking Lines (Selectable)
Box Contents
Camera
Mounting Bracket
Wiring Harness
Manual

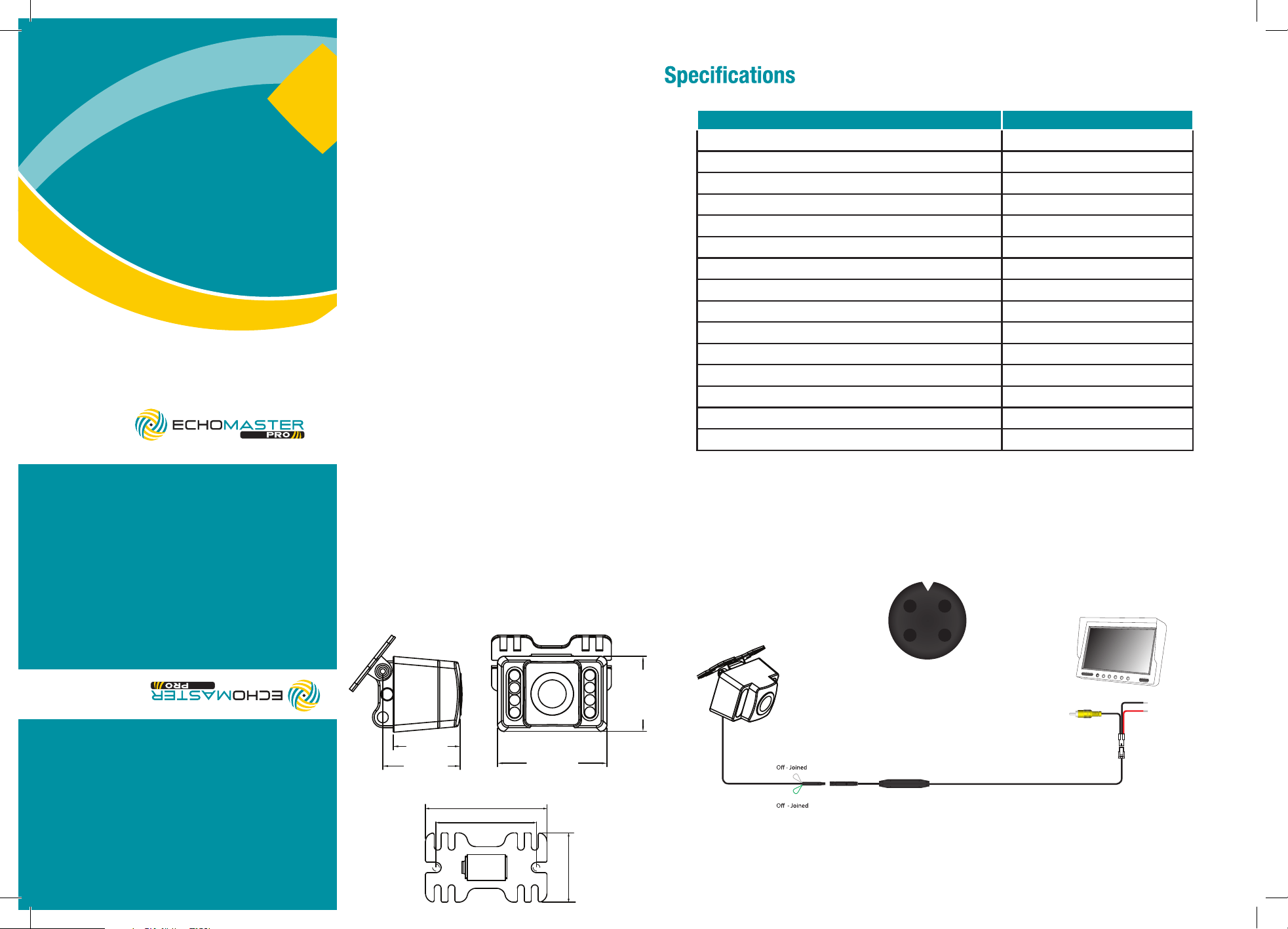

Wiring Diagram & Pin Out
Dimensions (mm/in)
PCAM-10FF-N
Sensor Type
1/4” CMOS
LEDs
7
Illumination
0 LUX
Viewing Angle
170 degrees
Mirror Image
YES
Normal View
YES
Water/Debris-Proof
IP67
Audio
NO
Power Supply
9-16V DC
Current
<150mA
Working Temperature
-30ºC - +70ºC
Dimensions (mm)
D 22.5 (0.9) x W 32 (1.3) x H 22 (0.9)
System
NTSC
TV Lines
420
Resolution
648 x 488
Thank you for purchasing your EchoMaster Pro
automotive camera.
This manual covers the following part numbers:
PCAM-10FF-N
EchoMaster Pro cameras are designed to improve safety
during driving by providing high quality images of surrounding
areas and obstacles in the
vicinity of the vehicle. They will
also improve vehicle maneuvering capability by displaying
blind spots not normally visible to the driver.
Please ensure you read and understand all aspects of
Camera. Choose a suitable mounting place dependent on
the application. Ensure that there are no wiring harnesses or
hoses/pipes located behind this panel before drilling.
+12V
GND
1 2
43
Video
email - [email protected] (US)
email - [email protected] (Europe)
15500 Lightwave Drive, Suite 202
Clearwater, Florida 33760
Woolmer Way, Bordon, Hampshire,
GU35 9QE, United Kingdom
EchoMaster is a Power Brand of AAMP Global
EchoMaster.com
4800mm / 189in.
this manual before tting or using your EchoMaster Pro
32.00/1.3
22.00/0.9
35.00
20.00
29.00
19.5/0.8
22.5/0.9
