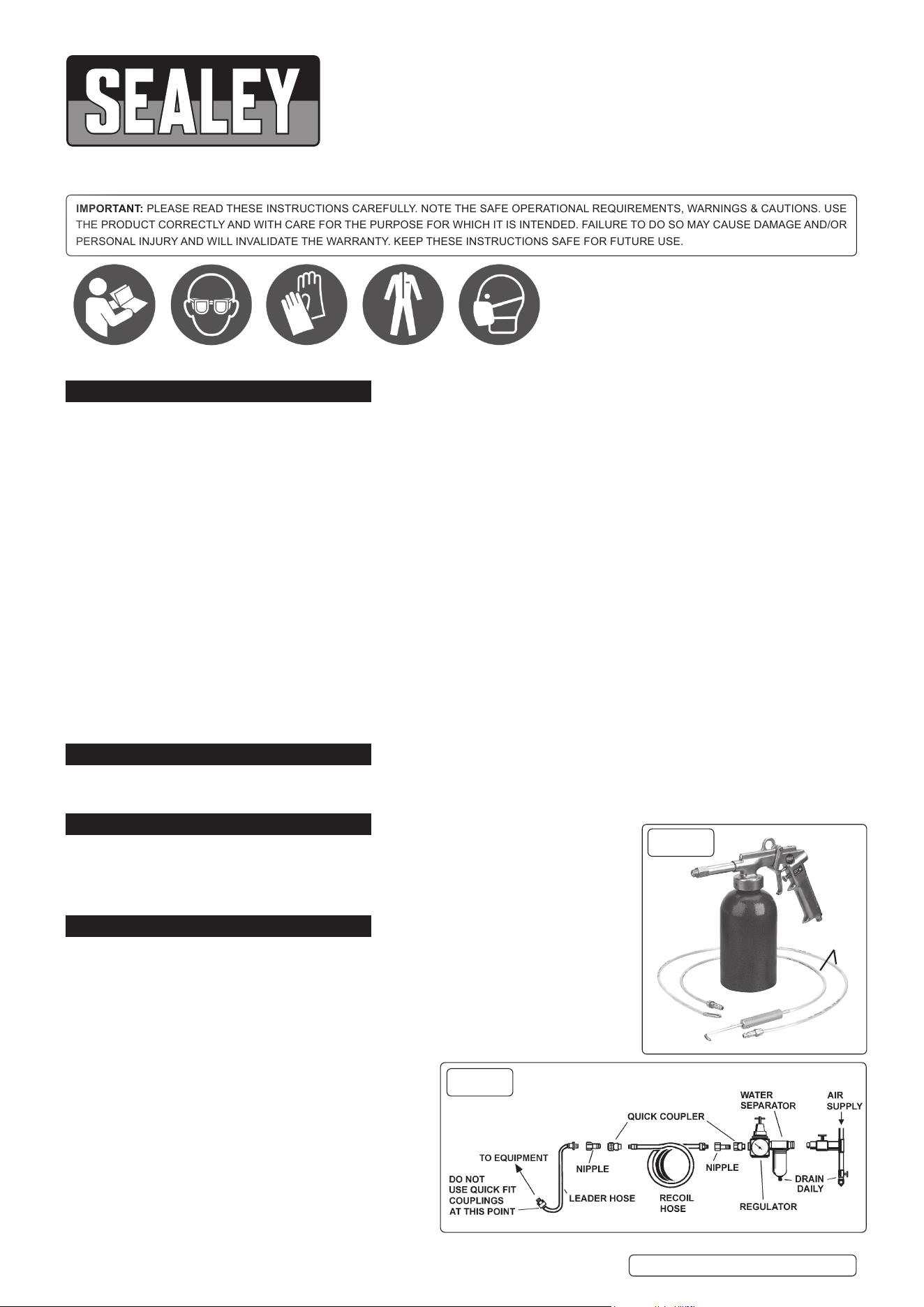

AIR OPERATED WAX INJECTOR KIT
MODEL NO: SG18.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Disconnect the gun from the air supply before changing accessories, servicing or performing any maintenance.
9 Maintain the gun in good condition. Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be
dangerous and will invalidate the warranty.
9 Keep the gun clean and rinse out nozzle, quick-release coupling and suction pipes with thinner after use.
WARNING! If the gun components become blocked there is a danger of excessive pressure build-up causing the canister to burst.
9 Locate the gun in a suitable work area. Keep area clean and tidy and free from unrelated materials and ensure that there is adequate
lighting.
9 Removeillttingclothing.Removeties,watches,rings,andotherloosejewellery,andcontainlonghair.
9 Keep children and unauthorised persons away from the work area.
9 Whennotinuseensurethattheairsupplyisturnedoandthegunisdisconnected.
9 Avoid unintentional operation.
9 Ensure that wax manufacturer’s instructions are carefully followed.
8 DO NOT place attachments close to your face (especially eyes, ears, etc.).
8 DO NOT carry by the air hose, or yank the hose or the gun from the air supply.
8 DO NOT use the gun for any purpose other than for which it is designed and DO NOTllwithanyotheruidorliquid.
8 DO NOT operate the gun if it is damaged.
8 DO NOT direct air from the air hose at yourself or others.
9 Always wear suitable safety protection when using this equipment. For a full range of goggles, visors, gloves and ear defenders, plus
other personal safety equipment. Please refer to the Safety Products section of our catalogue.
9 When not in use, disconnect from the air supply and store in a safe, dry, childproof area.
2. INTRODUCTION
Designed for the application of wax rust inhibitor. Supplied with a selection of lances to enable the wax to be sprayed into body cavities through
small access points.
3. SPECIFICATION
MODEL NO: ........................................................... SG18.V3
Air Consumption: ......................................................... 15cfm
Air Inlet Size: .............................................................1/4”BSP
Recommended Air Pressure: ................................... 60-90psi
4. AIR SUPPLY
4.1. Recommended hook-up.
4.2. Ensurethattheairvalveisinthe“o”positionbeforeconnectingtotheairsupply.
WARNING! Ensure air supply does not exceed specified figure (see above). Too high an
air pressure and unclean air will shorten the product life due to excessive wear, and may be
dangerouscausingpossibledamageand/orpersonalinjury.
4.3. Drain the compressor air supply tank daily. Water in the air line will damage equipment and
will invalidate your warranty.
4.4. Clean the compressor air inlet filter screen weekly.
4.5. Line pressure should be increased to compensate for
unusually long air hoses (over 8 metres). The minimum
hose bore should be 10mm and fittings must have similar
inside dimensions.
4.6. Keep hoses away from heat, oil and sharp edges. Check
hoses for wear, and make certain that connectors are
secure.
g.1
g.2
SG18.V3Issue113/01/20
Original Language Version
© Jack Sealey Limited
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear protective
clothing
Wear a mask
1
g.1

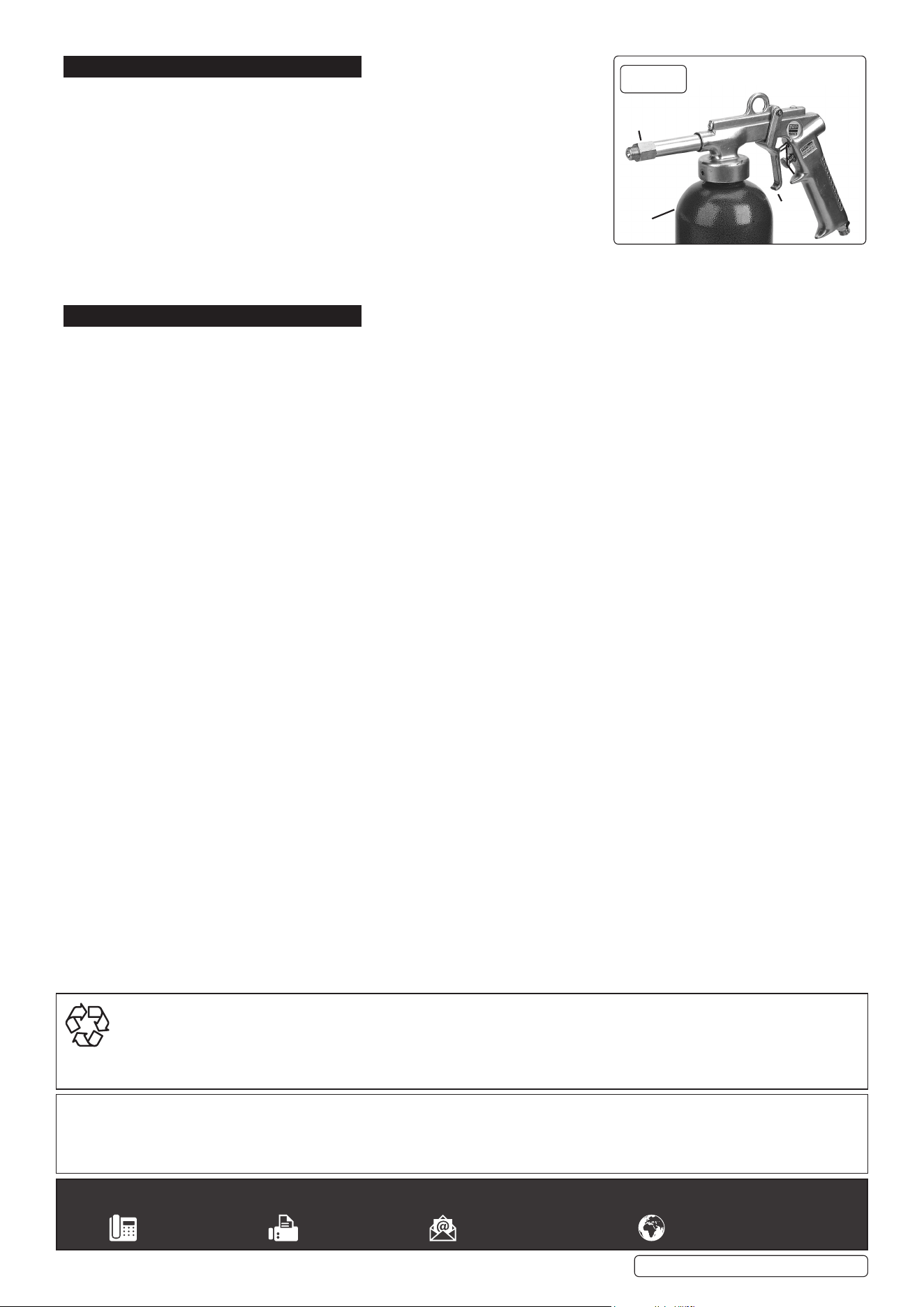

5. OPERATION
5.1. Take the container of wax rust inhibitor and read and act on the instructions.
5.2. PREPARING GUN FOR USE
5.2.1. Unscrewthegunfromthecanister.Pourthewaxintothecanister(g.3.C)andthen
securely replace the gun.
5.2.2. Attach the gun to the compressed air system, see Section 4. DO NOTexceedspecied
deliverypressure,seeSpecicationsection4.
5.2.3. Aimthenozzleofthegunintoasafeareaanddepressthetrigger(g.3.B)tocheckthe
waxow.Adjustthetriggerstop(g.3.A)togivetherequiredspread.
5.3. EXTENSION PROBES
5.3.1. TheSG18issuppliedwithtwoextensionprobes(g.1.1)whichmaybeusedtospray
into cavities, between panels, inside doors etc.
5.3.2. Totaprobe,screwthequickconnectunionprovided(partno:SG18.V2-35)ontothegunnozzle(g.3.D).
5.3.3. Chose the appropriate probe and connect it to the quick connect union.
6. MAINTENANCE
WARNING! Ensure you remove the gun from the air supply before attempting any maintenance. It is very important to keep the gun
and components clean to ensure free passage of wax.
6.1. After use, clean all items, especially probes, with solvent and allow to dry before storage.
B A
C
D
g.3
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
01284 757500 01284 703534 sales@sealey.co.uk www.sealey.co.uk
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty:Guaranteeis12monthsfrompurchasedate,proofofwhichisrequiredforanyclaim.
