INSTRUCTIONS FOR
UNDERBODY COATING SPRAY GUN
AIR OPERATED DELUXE MODEL
MODEL NO: SG16.V4
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Disconnect the gun from the air supply before changing accessories, servicing or performing any maintenance.
9 Maintain the gun in good condition. Replace or repair damaged parts. Use recommended parts only. Non-authorised parts may be
dangerous and will invalidate the warranty.
9 Keep the gun clean and rinse out the nozzle/injection probe and pipes with thinners after use.
WARNING! If the gun components become blocked there is a danger of excessive pressure building up in the unit, causing the
canister to burst.
9 Wear the appropriate approved personal protective equipment when using the gun. A full range of personal protective equipment is
available from your Sealey dealer.
9 Locate the gun in a suitable, well ventilated area, keep area clean, tidy and free from unrelated materials and ensure there is
adequate lighting.
9 Ensure that a vehicle that has been jacked up is adequately supported with axle stands.
9 Removeillttingclothing.Removeties,watches,ringsandotherloosejewelleryandcontainlonghair.
9 Keep children and unauthorised persons away from the working area.
9 Avoid unintentional operation.
9 Ensure the coating/wax manufacturer’s instructions are carefully adhered too.
8 DO NOT hold the gun or attachments close to your face (especially eyes, ears, etc.) and DO NOT point the gun or air hose at other
persons or animals.
8 DO NOT carry by the air hose, or pull the hose or the gun from the air supply.
8 DO NOTusethegunforanypurposeotherthanforwhichitisdesignedanddonotllwithanyotheruid.
8 DO NOT operate the gun if damaged.
9 When not in use, disconnect from the air supply and store in a safe, dry, childproof area.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that
may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
2. INTRODUCTION
Features air control valve, making it suitable for various applications. Supplied with canister and wax injection probe.
3. SPECIFICATION
Model no: ................................................................SG16.V4
Air pressure: ............................................................60-115psi
Air consumption: ..................................................... 10-13cfm
Air inlet size:..............................................................1/4”BSP
4. CONTENTS

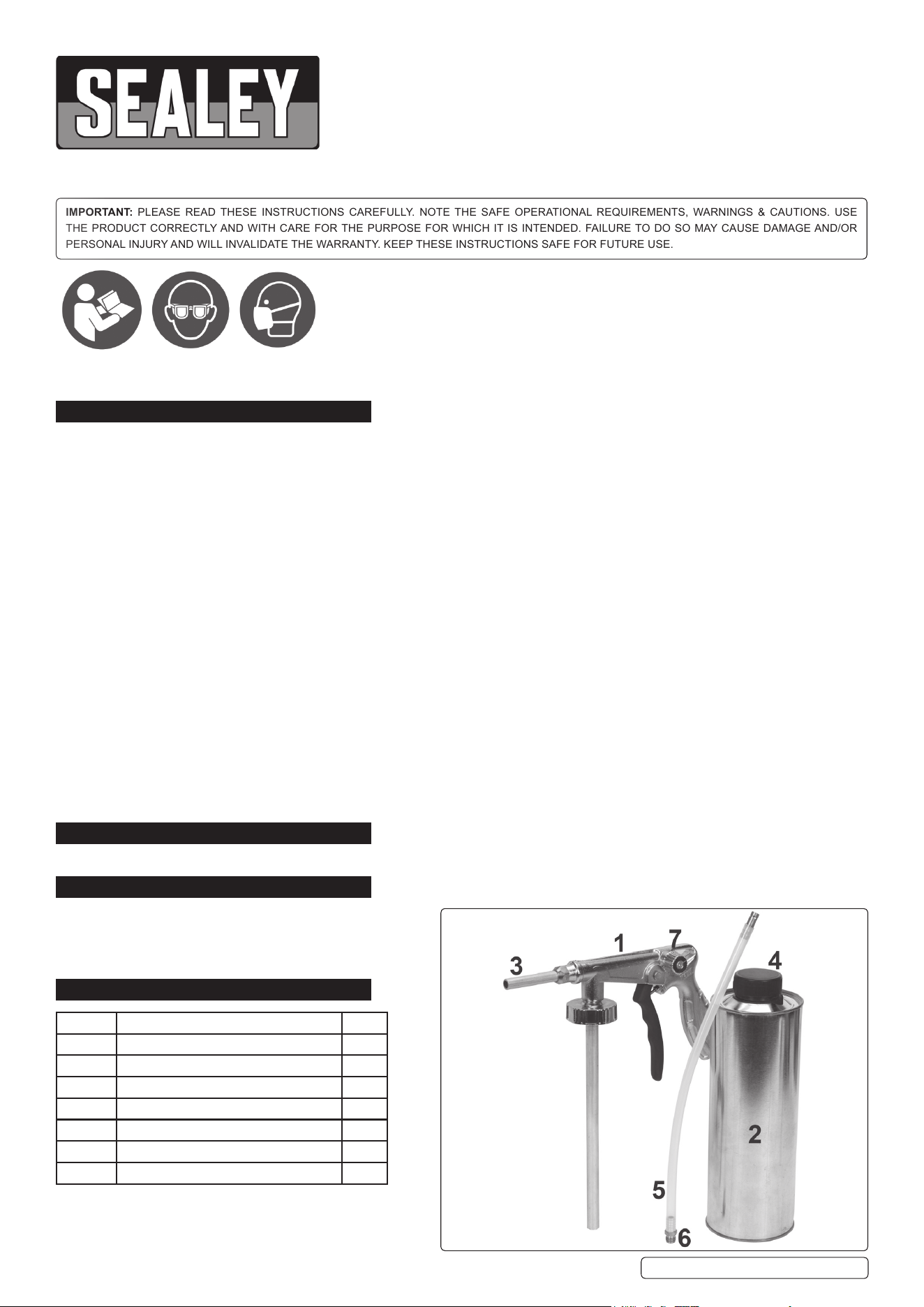

Item No Description Qty
1 Gun 1
2 Canister 1
3 Nozzle 1
4 Canister Cap 1
5 Injection Probe 1
6 Hose Fitting 1
7 Air control valve 1
SG16.V4| Issue 1 15/09/16
Original Language Version
© Jack Sealey Limited
Refer to the
instruction
manual
Wear eye
protection
Wear a mask
5. OPERATION
5.1. Coupling
5.1.1. . Ensure the air valve is in the “off” position before connecting to the air supply.
5.1.2. An air pressure of no more than 8bar (115psi) and an air volume of 10cfm will be required.
WARNING! Ensure the air supply does not exceed 8bar (115psi). Too high a pressure will shorten the product life and may
be dangerous, causing damage and/or personal injury.
5.1.3. Drain the air supply tank daily. Water in the air line will damage the gun.
5.1.4. Clean the air inlet filter screen weekly.
5.1.5. For recommended hook-up, see fig.1.
5.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8 meters). The minimum hose diameter should
be 1/4” internal diameter and fittings must have compatible dimensions.
5.1.7. Keep hoses away from heat, oil and sharp edges. Check hoses for wear, and make certain that all connections are secure.
WARNING! Ensure you read, understand and apply
the safety instructions in Section 1 and follow the
manufacturer’s instructions on the underseal/wax
container.
5.2. Preparing the gun for use.
5.2.1. Pour the underseal/wax into the SG16.V4 canister,
screwthecanisterontothegun,(g.2.A).
5.2.2. Attachnozzle(g.2.C)tothegun.Ensurethatthe
nozzleisnotscrewedtoofarintothegunasthiswillaffecttheefciencyofthedelivery.Tightenthenozzlelocknut.
5.2.3. Ensure the air supply is regulated to no more than 8bar (115psi) and then attach the air hose to the gun.
5.2.4. Adjusttheaircontrolvalvetoachievethedesiredowofmaterialbeingapplied.
5.2.5. Aim the nozzle of the gun into a safe area and depress the gun trigger to check for correct operation. It may be necessary to adjust
the position of the nozzle in the gun to achieve the most effective delivery.
5.3. Using the injection probe
5.3.1. TheSG16.V4issuppliedwithaninjectionprobe(g.2.D)for use with wax.Theexibleinjectionprobeenableswaxtobesprayed
into cavities, between panels and inside doors etc.
5.3.2. Theinjectionprobe(g.2.D)isinterchangeablewiththenozzle(g.2.C)onthegun.Removethelocknutfromthenozzleandattach
ittotheinjectionprobe.Ensurethattheinjectionprobeisnotscrewedtoofarintothegunasthiswillaffecttheefciencyofthe
delivery.Tightenthelocknuttoholdtheinjectionprobeinpositionandattachthecanister(g.2.A)tothegun.
5.3.3. Ensure the air supply is regulated to no more than 8bar (115psi) and then attach the air hose to the gun.
5.3.4. Adjusttheaircontrolvalvetoachievethedesiredowofmaterialbeingapplied.
5.3.5. Aim the injection probe into a safe area and depress the gun trigger to check for correct operation. It may be necessary to adjust the
position of the injection probe in the gun to achieve the most effective delivery.
6. MAINTENANCE
WARNING! Ensure the gun is disconnected from the air supply before attempting any maintenance. It is very important to keep the
gun and components clean to ensure free passage for the underseal/wax.
6.1. After use clean all items thoroughly, especially the probe, with a suitable cleaning agent and allow to dry before storage.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
Sole UK Distributor, Sealey Group.
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk.
IP32 7AR
www.sealey.co.uk
sales@sealey.co.uk
01284 757500
01284 703534
Web

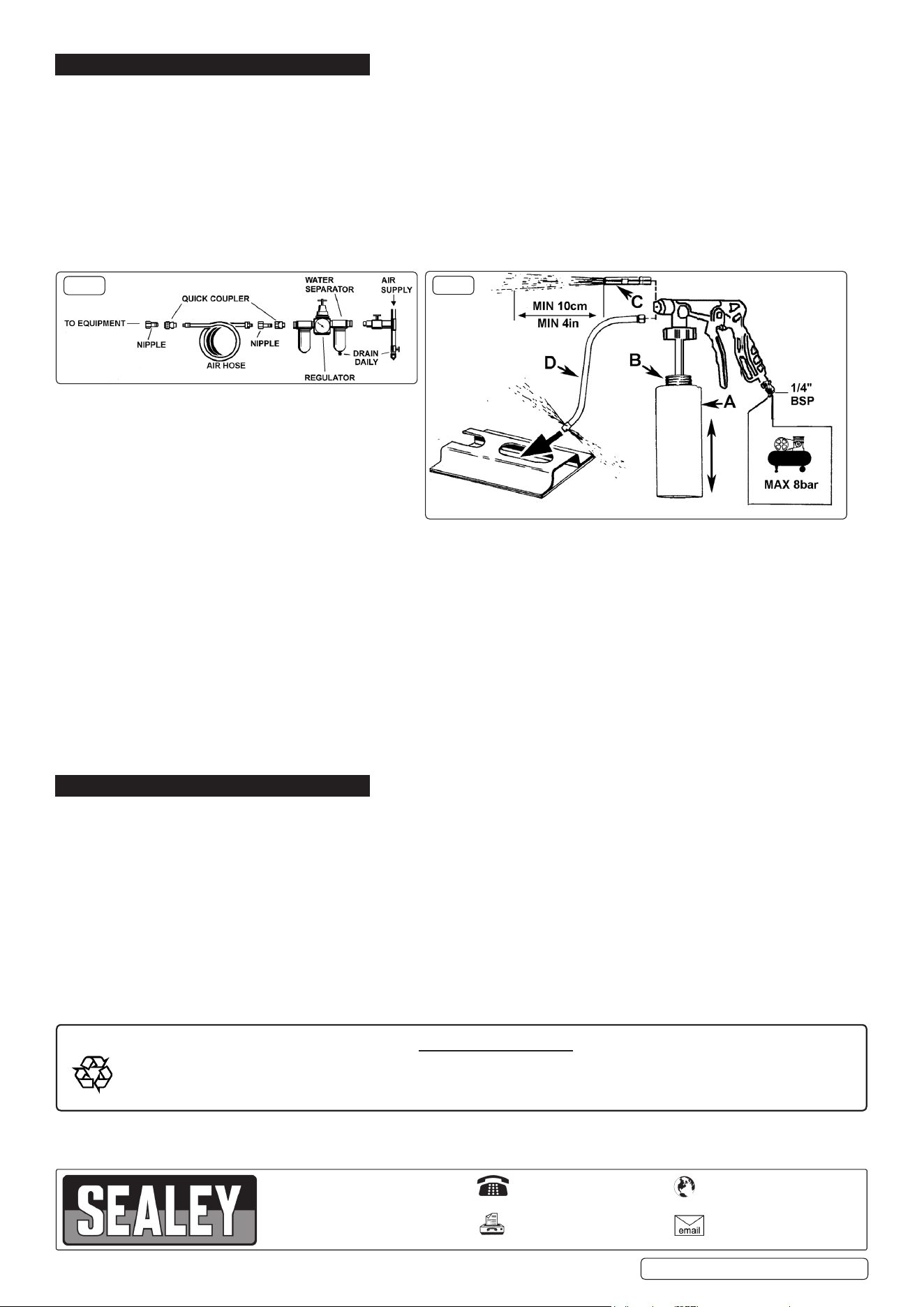

fig.1
fig.2
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted,
taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
SG16.V4| Issue 1 15/09/16
Original Language Version
© Jack Sealey Limited
