Ashley AP5622-W 170 lb. Hopper 2,200 sq. Ft. Pellet Stove User Manual

* All Pictures In This Manual Are For Illustrative Purposes Only. Actual Product May Vary.

THIS MANUAL IS SUBJECT TO CHANGE WITHOUT NOTICE.

Owner’s Instruction and Operation Manual

U.S. Environmental Protection Agency

Certied to comply with 2020 particulate

emissions standards.

SAFETY NOTICE: If this heater is not properly installed, a house re may result.

For your safety, follow the installation instructions. Never use make-shift

compromises during the installation of this heater. Contact local building or

re ofcials about permits, restrictions and installation requirements in your

area. NEVER OPERATE THIS PRODUCT WHILE UNATTENDED.

CAUTION! Please read this entire manual before you install or use your new room

heater. Failure to follow instructions may result in property damage, bodily injury,

or even death. Improper Installation Could Void Your Warranty!

Save These Instructions In A Safe Place For Future Reference.

CALIFORNIA PROPOSITION 65 WARNING:

This product can expose you to chemicals including carbon

monoxide, which is known to the State of California to cause

cancer, birth defects, and/or other reproductive harm. For

more information, go to www.P65warnings.ca.gov

Model Number:

854000F-1904N

AP5622-W

Report Number: F22-782

Certied to ASTM E1509-2022 and CAN/ULC

S627:2023; Complies to CAN ICES-3(B)/NMB-3(B);

Contains IC:23243-WBR1DIPEX

Mobile Home / Transportable Building Approved

Your pellet stove has been safety tested and listed to ASTM E1509-2022 and CAN/ULC S627:2023. This manual

describes the installation and operation of the Ashley AP5622-W pellet stove. This heater meets the 2020

U.S. Environmental Protection Agency’s emission limits for wood-heaters sold after May 15, 2020. Under

specic EPA test conditions burning wood pellet fuel this heater has been shown to deliver heat at a rate of

13,640 to 32,591 Btu/hr. This heater achieved a particulate emissions rate of 1.5 g/hr when tested to method

ASTM E 2779 / EPA Method 28R and 76% efciency.

INTRODUCTION

WARNING:

IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A MANNER

INCONSISTENT WITH THE OPERATING INSTRUCTIONS IN THE OWNER’S MANUAL.

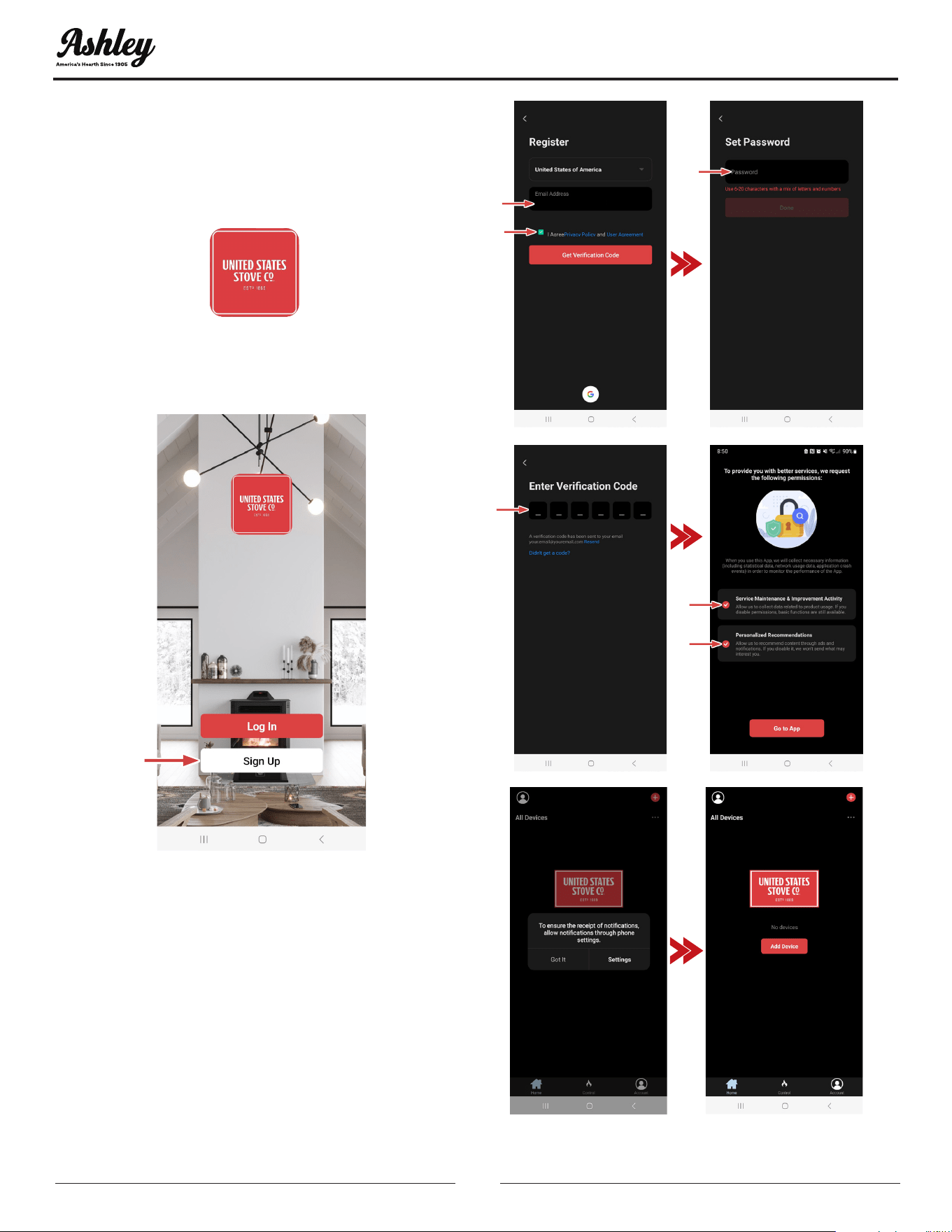

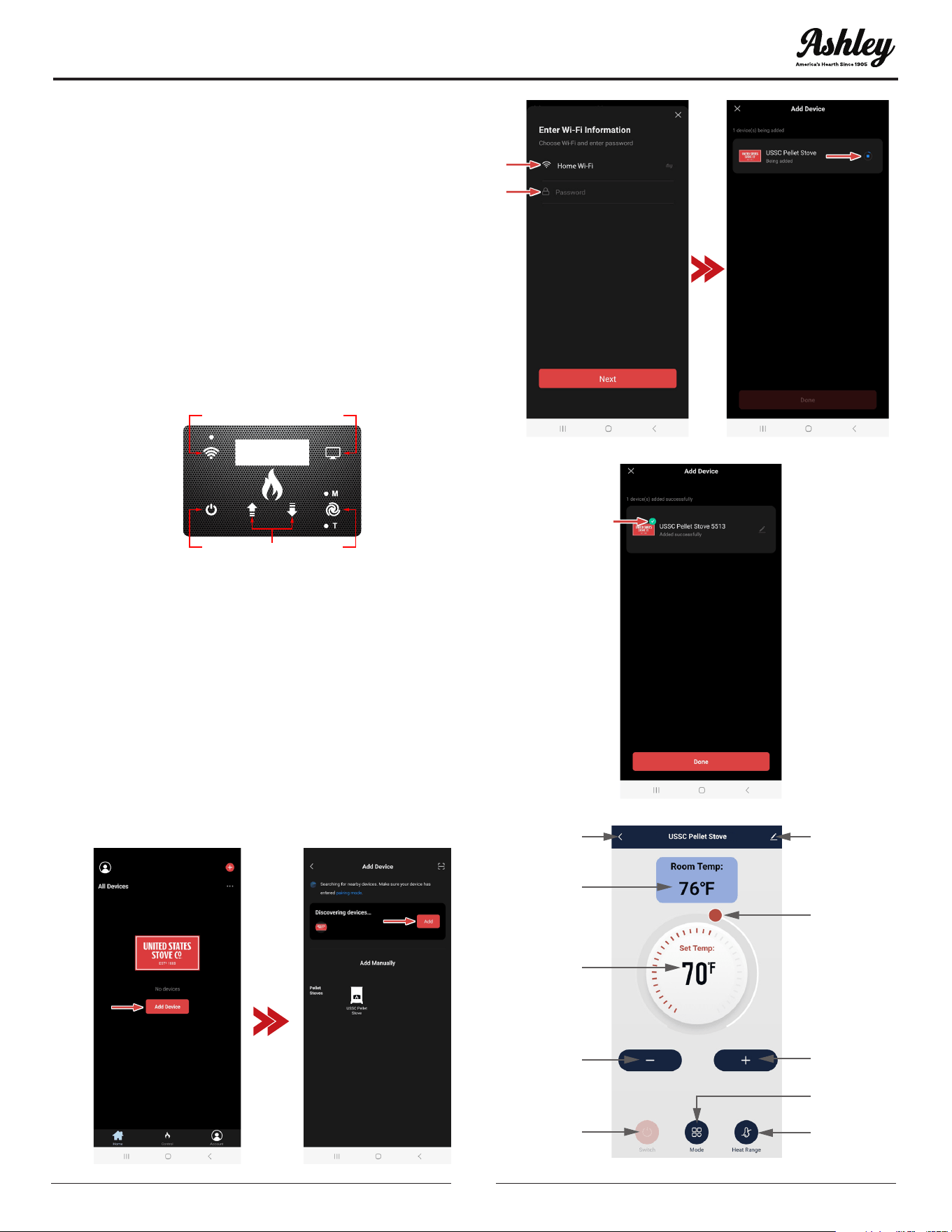

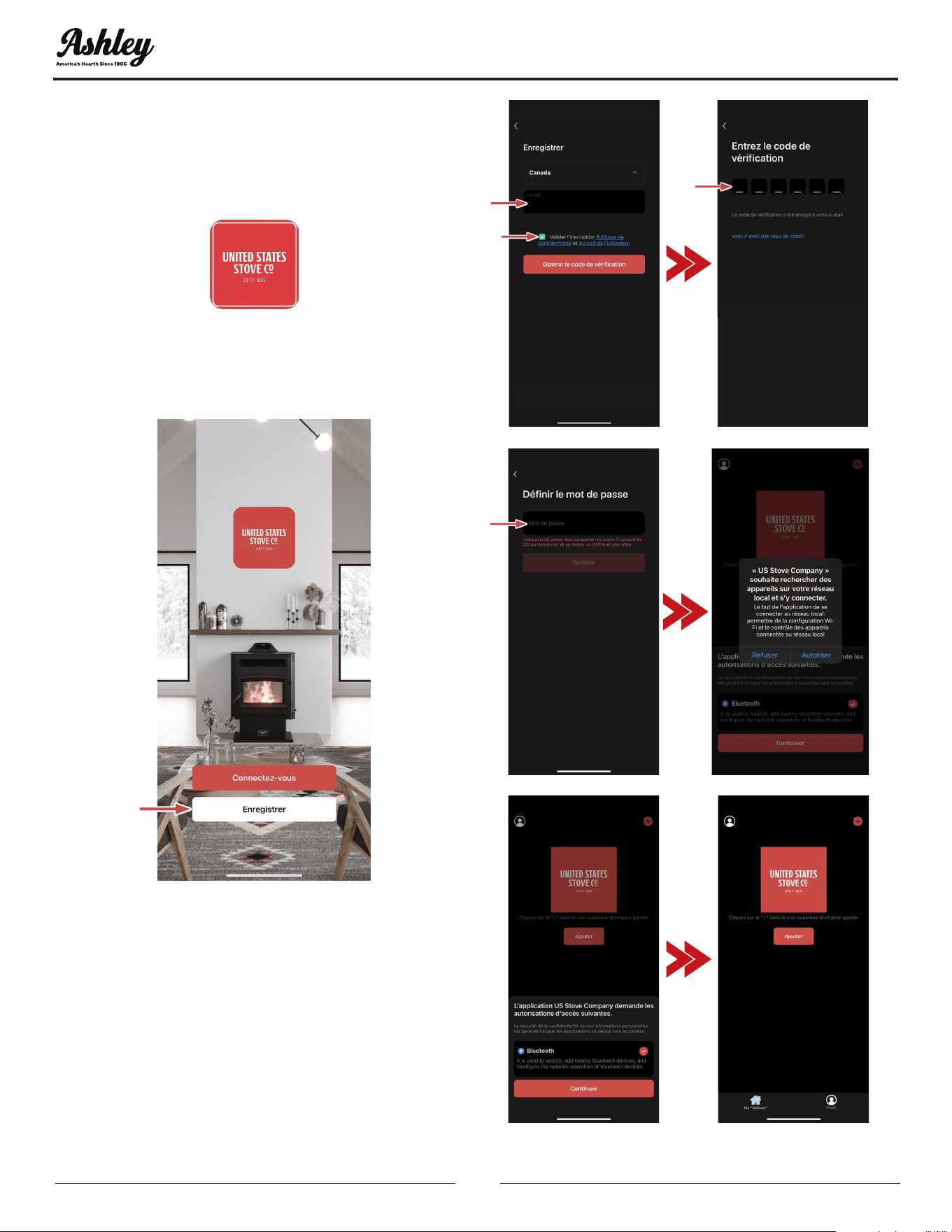

Note: To enable WiFi or Bluetooth®

connectivity for your stove, download the

US Stove Co. App. The US Stove Co. app

allows you to operate and monitor your

stove. The App is available for both iOS and

Android and can be found by searching for

the following: US Stove Company Heating

Made Simple.

Heating Specications

Fuel Burn Rate*

2.1 to 5 lbs/hr (0.97 to

2.26 kg/hr)

* Pellet size may affect the actual rate of fuel

feed, burn times, and hopper capacity. Fuel feed

rates may vary by as much as 20%. Use PFI listed

fuel for best results.

Burn Time (lowest setting) 80 hrs.

Hopper Capacity *up tp 170lbs. (77kg)

Flue Size 3” or 4”

Electrical Specications

Electrical Rating 110-120 Volts AC, 60 HZ, 3.0 Amps

Watts (operational) 175 (approx.)

Watts (igniter running) 425 (approx.)

Dimensions

Overall: Height x Width x Depth 40” (1003mm) x 26” (660mm) x 30” (762mm)

Floor To Exhaust Pipe Center 6.28” (160 mm)

Floor To Fresh Air Intake Center 7.34” (187 mm)

For Customer Service, please call:

1-800-750-2723 Ext 5050 or;

Text to 423-301-5624 or;

Email us at:

customerservice@usstove.com

Note: Register your product by using your smart

phone with the QR code. Save your receipts with

your records for any warranty claims.

You can also register your product online at

www.usstove.com/support/product-registration

/ OR by downloading the US Stove Company

app available for iOS and Android.

INSTALLATION CHECKLIST

Your Wood Stove should be installed by a qualied installer only. An NFI qualied Installer can be found at

www.ncertied.org/public/nd-an-n-pro/

CUSTOMER SERVICE

1-800-750-2723 ext 5050

Text to 423-301-5624

Email to: Customerservice@usstove.com

COMMISSIONING CHECKLIST

This checklist is to be completed in full by the qualied person who installs this unit. Keep this page for

future reference.

Failure to install and commission according to the manufacturer’s instructions and complete this checklist

will invalidate the warranty.

Please Print

Customer Name: Telephone Number:

Address:

Model:

Serial Number:

Installation Company Name: Phone Number:

Installation Technician’s Name: License Number:

DESCRIPTION OF WORK

Location of installed appliance: _________________________________________________________________________

Venting System: New Venting System Yes No If yes, Brand __________________________________

If no, Date of inspection of existing venting system: ______________________________________________________

COMMISSIONING

Conrm Hearth Pad Installation as per Installation Instructions ..............................................................................................

Conrm proper placement of internal parts ...........................................................................................................................................

Check soundness of door gasket and door seals .................................................................................................................................

Conrm clearances to combustibles as per installation instructions in this manual .................................................

Check the operations of the air controls ....................................................................................................................................................

Conrm the venting system is secure and sealed ...............................................................................................................................

Conrm the stove starts and operates properly ....................................................................................................................................

Check to ensure a CO alarm is installed as per local building codes and is functional .............................................

Explain the safe operation, proper fuel usage, cleaning, and routine maintenance requirements .................

Declaration of Completion: As the qualied person responsible for the work described above, I conrm that

the appliance as associated work has been installed as per manufacturer’s instructions and following any

applicable building and installation codes.

Signed: ___________________________________Print Name: ______________________________ Date: _____________

Home Owner: RETAIN THIS INFORMATION FOR FUTURE REFERENCE

FOR CUSTOMER SERVICE CALL: 800-750-2723 EXT 5050

TOP CONTROL MOUNT INSTALLATION

1. Pull the factory installed 5 Pin Main Wiring

Harness, 7 Pin Com Cabel, and 4 Pin Wiring

Harness, (not shown) out of the top of the stove.

5 Pin Main Wiring Harness

7 Pin Com Cable

2. Unpack the top mount controls and ensure that

all wires are securely attached.

3. Connect the factory installed 5 Pin Main Wiring

Harness to the top right-hand corner of the

control panel. Connect the factory installed

7 Pin Com Cabel to the control panel directly

below the 5 Pin Main Wiring Harness. Connect

the 4 Pin Wiring Harness to the bottom left-

hand corner of the control panel.

7 Pin Com Cable4 Pin Fuel Sensor

5 Pin Main Wiring Harness

4. Secure the control panel to the top of the stove

with two sheet metal screws.

INSTALLATION

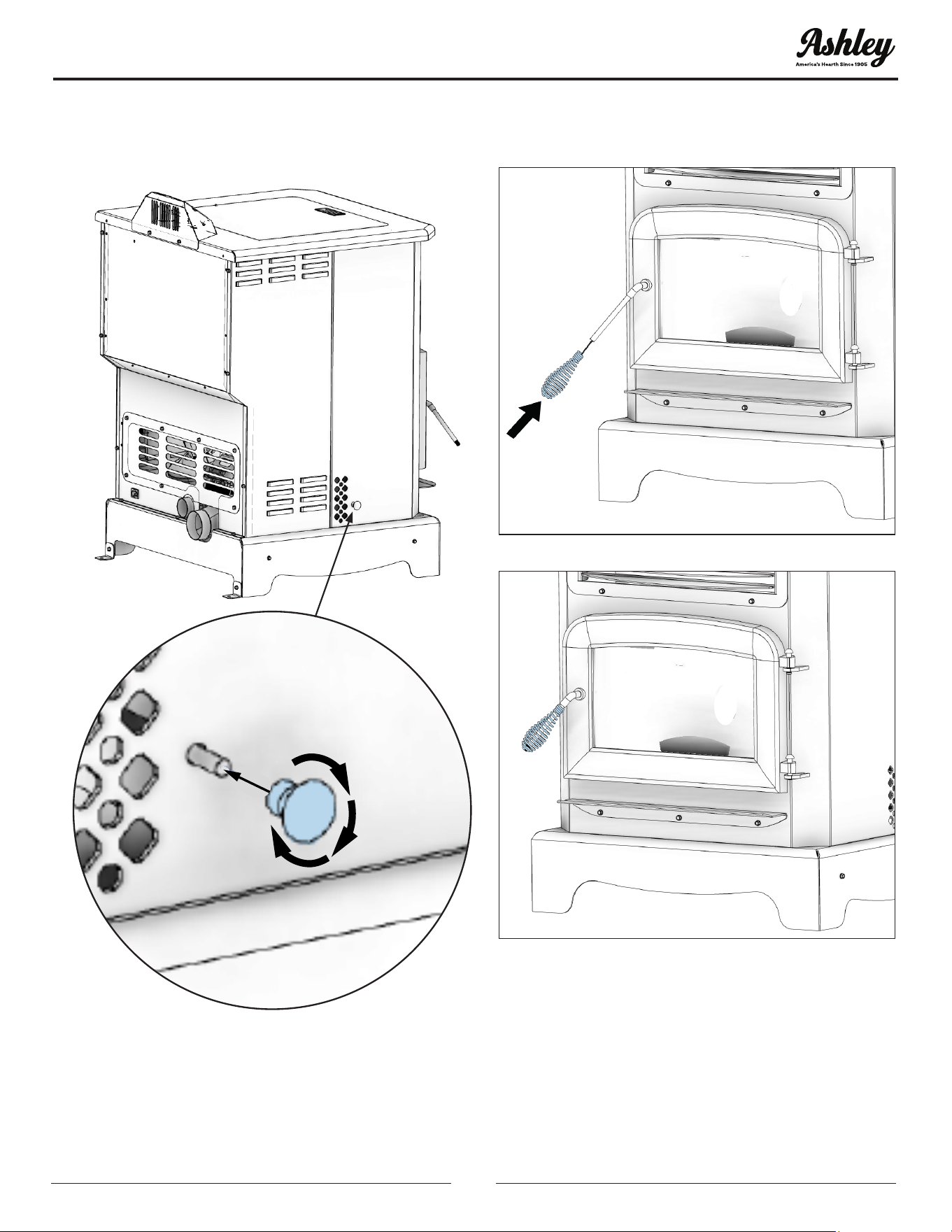

DAMPER HANDLE INSTALLATION

Twist the damper knob clockwise onto the damper

rod.

DOOR HANDLE INSTALLATION

Screw the spring handle onto the handle rod.

INSTALLATION

SAFETY NOTICE

• IF THIS STOVE IS NOT PROPERLY INSTALLED,

A HOUSE FIRE MAY RESULT. TO REDUCE THE

RISK OF FIRE, FOLLOW THE INSTALLATION

INSTRUCTIONS.

• CONTACT YOUR LOCAL BUILDING OFFICIALS

TO OBTAIN A PERMIT AND INFORMATION

ON ANY ADDITIONAL INSTALLATION

RESTRICTIONS OR INSPECTION

REQUIREMENTS IN YOUR AREA.

• DO NOT PLACE CLOTHING OR OTHER

FLAMMABLE ITEMS ON OR NEAR THIS

STOVE.

• NEVER USE GASOLINE, GASOLINE-TYPE

LANTERN FUEL, KEROSENE, CHARCOAL

LIGHTER FLUID, OR SIMILAR LIQUIDS TO

START OR ’FRESHEN UP’ A FIRE IN THIS

STOVE. KEEP ALL SUCH LIQUIDS WELL

AWAY FROM THE STOVE WHILE IT IS IN USE.

• THIS APPLIANCE IS A FREESTANDING

HEATER. IT IS NOT INTENDED TO BE

ATTACHED TO ANY TYPE OF DUCTING. IT

IS NOT A FURNACE. DO NOT CONNECT THIS

UNIT TO ANY AIR DISTRIBUTION DUCT OR

SYSTEM. THIS APPLIANCE IS NOT INTENDED

FOR COMMERCIAL USE.

• INSTALL VENT AT CLEARANCES SPECIFIED

BY THE VENT MANUFACTURER.

• DO NOT INSTALL A FLUE DAMPER IN THE

EXHAUST VENTING SYSTEM OF THIS UNIT.

• YOUR STOVE REQUIRES PERIODIC

MAINTENANCE AND CLEANING (SEE

”MAINTENANCE”). FAILURE TO MAINTAIN

YOUR STOVE MAY LEAD TO IMPROPER

AND/OR UNSAFE OPERATION.

• A POWER SURGE PROTECTOR IS REQUIRED.

THIS UNIT MUST BE PLUGGED INTO A 110

- 120V, 60 HZ GROUNDED ELECTRICAL

OUTLET. DO NOT USE AN ADAPTER

PLUG OR SEVER THE GROUNDING PLUG.

DO NOT ROUTE THE ELECTRICAL CORD

UNDERNEATH, IN FRONT OF, OR OVER

THE HEATER. DO NOT ROUTE THE CORD IN

FOOT TRAFFIC AREAS OR PINCH THE CORD

UNDER FURNITURE.

CAUTION:

BURNING FUEL CREATES CARBON MONOXIDE

AND CAN BE HAZARDOUS TO YOUR HEALTH

IF NOT PROPERLY VENTED.

ATTENTION:

• A WORKING SMOKE DETECTOR MUST BE

INSTALLED IN THE SAME ROOM AS THIS

PRODUCT.

• INSTALL A SMOKE DETECTOR ON EACH

FLOOR OF YOUR HOME; INCASE OF

ACCIDENTAL FIRE FROM ANY CAUSE IT

CAN PROVIDE TIME FOR ESCAPE.

• THE SMOKE DETECTOR MUST BE INSTALLED

AT LEAST 15 FEET (4,57 M) FROM THE

APPLIANCE IN ORDER TO PREVENT UNDUE

TRIGGERING OF THE DETECTOR WHEN

RELOADING.

CAUTION:

• USE OF OUTSIDE AIR IS NOT REQUIRED FOR

THIS UNIT.

• DO NOT UNPLUG THE STOVE IF YOU

SUSPECT A MALFUNCTION. TURN THE ON/

OFF SWITCH TO ”OFF’ AND CONTACT YOUR

DEALER.

• THE HEATER WILL NOT OPERATE DURING

A POWER OUTAGE. IF A POWER OUTAGE

DOES OCCUR, CHECK THE HEATER FOR

SMOKE SPILLAGE AND OPEN A WINDOW IF

ANY SMOKE SPILLS INTO THE ROOM.

• NEVER BLOCK FREE AIRFLOW THROUGH

THE OPEN VENTS OF THE UNIT.

Your heater should be installed by a qualied NFI

(US) or WETT (Canada) technician. To nd the

nearest qualied installer, go to:

https://ncertied.org,

https://www.wettinc.ca/

INSTALLATION

INSTALLATION OPTIONS

Freestanding Unit - supported by pedestal/legs

and placed on a non-combustible oor surface

in compliance with clearance requirements for a

freestanding stove installation.

Alcove Unit - supported by pedestal/legs and

placed on a non-combustible oor surface in

compliance with clearance requirements for an

alcove installation.

IMPROPER INSTALLATION

The use of other components other than stated

herein could cause bodily harm, heater damage,

and void your warranty. The manufacturer will not

be held responsible for damage caused by the

malfunction of a stove due to improper venting or

installation.

AIR INTAKE & EXHAUST LOCATIONS

7.34”

(187 mm)

6.28”

(160 mm)

Exhaust

Pipe

Fresh Air

Intake

FLOOR PROTECTION

This unit must be installed on a non-combustible

oor surface. If a oor pad is used, it should be

certied or equal.

USA - The oor pad or non-combustible surface

should be large enough to extend a minimum of

6” (153 mm) in front, 6” (153 mm) on each side, and

1” (26 mm) behind the stove. Floor protection must

extend under and 2” (51 mm) to each side of the

chimney tee for an interior vertical installation. A

Floor Protector of 1” (26 mm) thick is recommended

for this installation.

Canada - Floor protector must comply with CAN/

ULC standards. Must extend 18” (458mm) past the

front and 8” (203mm) beyond each side of unit.

A Rear (through wall) 1” 25 mm

B Side

USA 6” 152 mm

CAN 8” 203mm

C Front

USA 6” 152 mm

CAN 18” 458mm

D Rear (interior vertical) 2” 50 mm

CLEARANCES

Your pellet stove has been tested and listed

for installation in residential, mobile home/

transportable building, and alcove applications

in accordance with the clearances given in this

manual. NOTE: The distance on the side of your

pellet stove may need to be greater than the

minimum required clearance for suitable access to

the control panel. For safety reasons, please adhere

to the installation clearances and restrictions. Any

reduction in clearance to combustibles may only be

done by means approved by a regulatory authority.

PARALLEL

E Backwall to unit 9.5” 241 mm

F Sidewall to ue 13” 330 mm

Sidewall to top

edge of unit

8” 203 mm

H Backwall to ue 3” 76.2 mm

CORNER J

Adjacent wall to

unit

8” 203 mm

ALCOVE K Alcove depth 36” 914 mm

OUTSIDE AIR SUPPLY (OPTIONAL, UNLESS

INSTALLING IN A MOBILE HOME/TRANSPORTABLE

BUILDING)

Depending on your location and home

construction, outside air may be necessary for

optimal performance. Your stove is approved to be

installed with an outside air intake (69FAK) which

is necessary for a mobile home/transportable

building. You can purchase the 69FAK through your

heater dealer. Installation instructions are supplied

with the air intake kit.

ATTENTION:

DO NOT VENT UNDER ANY PORCH, DECK,

AWNING, OR IN ANY SEMI ENCLOSED OR

ROOFED AREA. DOING SO MAY RESULT IN

UNPREDICTABLE AIRFLOW AT THE VENT

CAP UNDER CERTAIN CONDITIONS AND CAN

AFFECT THE PERFORMANCE OF YOUR STOVE,

AS WELL AS, OTHER UNFORESEEABLE ISSUES.

SECURING APPLIANCE TO THE FLOOR

Use the designated holes to secure the unit to the

oor.

Fresh Air

Intake

Exhaust

Pipe

WARNING! DO NOT INSTALL IN SLEEPING

ROOM.

CAUTION! THE STRUCTURAL INTEGRITY

OF THE MOBILE HOME/TRANSPORTABLE

BUILDING FLOOR, WALL, AND CEILING/ROOF

MUST BE MAINTAINED.

WHEN INSTALLED IN A MOBILE HOME/

TRANSPORTABLE BUILDING, THE STOVE

MUST BE GROUNDED DIRECTLY TO THE STEEL

CHASSIS AND BOLTED TO THE FLOOR.

In addition to the previously detailed installation

requirements, mobile home/transportable building

installations must meet the following requirements:

• This stove must be securely fastened to the oor

of the mobile home/transportable building using

two 1/4” lag bolts that are long enough to go

through both a hearth pad, if used, and the oor

of the home.

• The heater must be electrically grounded to the

steel chassis of the mobile home/transportable

building with 8 GA copper wire using a serrated

or star washer to penetrate paint or protective

coating to ensure grounding.

• Vent must be 3 or 4-inch “PL” Vent and must

extend a minimum or 36” (914 mm) above the roof

line of the mobile home/transportable building

and must be installed using a certied ceiling re

stop and rain cap.

• When moving your mobile home/transportable

building, all exterior venting must be removed

while the mobile home/transportable building is

being relocated. After relocation, all venting must

be reinstalled and securely fastened.

INSTALLATION

• Outside Air is mandatory for mobile home/

transportable building installation. See Outside

Air Supply section and your dealer for purchasing.

• Check with your local building ofcials as other

codes may apply.

VENTING REQUIREMENTS

A compatible appliance adapter is required for the

proper venting installation of this unit. Purchase the

appropriate appliance adapter from your preferred

venting company prior to starting the ventilation

process.

WARNING:

• INSTALL VENT AT CLEARANCES SPECIFIED

BY THE VENT MANUFACTURER.

• DO NOT CONNECT THE PELLET VENT TO A

VENT SERVING ANY OTHER APPLIANCE OR

STOVE.

• DO NOT INSTALL A FLUE DAMPER IN THE

EXHAUST VENTING SYSTEM OF THIS UNIT.

The following installation guidelines must be

followed to ensure conformity with both the safety

listing of this stove and to local building codes. Do

not use makeshift methods or compromise in the

installation.

IMPORTANT:

THIS UNIT IS EQUIPPED WITH A NEGATIVE

DRAFT SYSTEM THAT PULLS AIR THROUGH

THE BURN POT AND PUSHES THE EXHAUST

OUT OF THE DWELLING. IF THIS UNIT IS

CONNECTED TO A FLUE SYSTEM OTHER THAN

THE WAY EXPLAINED IN THIS MANUAL, IT

WILL NOT FUNCTION PROPERLY.

MAXIMUM VENTING DISTANCE

Installation MUST include at least 3-feet of vertical

pipe outside the home. This will create some natural

draft to reduce the possibility of smoke or odor

during appliance shutdown and keep exhaust from

causing a nuisance or hazard by exposing people

or shrubs to high temperatures. The maximum

recommend vertical venting height is 12-feet for

3-inch type “PL” vent. Total length of horizontal

vent must not exceed 4-feet. This could cause back

pressure. Use no more than 180 degrees of elbows

(two 90-degree elbows, or two 45-degree and one

90-degree elbow, etc.) to maintain adequate draft.

IMPORTANCE OF PROPER DRAFT

Draft is the force which moves air from the

appliance up through the chimney. The amount of

draft in your chimney depends on the length of the

chimney, local geography, nearby obstructions and

other factors. Too much draft may cause excessive

temperatures in the appliance. Inadequate

draft may cause backpufng into the room and

‘plugging’ of the chimney. Inadequate draft will

cause the appliance to leak smoke into the room

through appliance and chimney connector joints.

An uncontrollable burn or excessive temperature

indicates excessive draft. Take into account the

chimney’s location to ensure it is not too close

to neighbours or in a valley which may cause

unhealthy or nuisance conditions.

PELLET VENT TYPE

A certied 3-inch or 4-inch type “PL” pellet vent

exhaust system must be used for installation and

attached to the pipe connector provided on the

back of the stove (use a 3-inch to 4-inch adapter

for 4-inch pipe). The connection at the back of

the stove must be sealed using Hi-Temp RTV. Use

a 4-inch vent if the vent height is over 12-feet or if

the installation is over 2,500 feet above sea level.

We recommend the use of Simpson Dura-Vent® or

Metal-Fab® pipe (if you use other pipes, consult your

local building codes and/or building inspectors). Do

not use Type-B Gas Vent pipe or galvanized pipe

with this unit. The pellet vent pipe is designed to

disassemble for cleaning and should be checked

several times during the burning season. The pellet

vent pipe is not furnished with the unit and must

be purchased separately.

PELLET VENT INSTALLATION

The installation must include a clean-out tee to

enable collection of y ash and to permit periodic

cleaning of the exhaust system. 90-degree elbows

accumulate y ash and soot thereby reducing

INSTALLATION

exhaust ow and performance of the stove. Each

elbow or tee reduces draft potential by 30% to 50%.

All joints in the vent system must be fastened by

at least 3 screws, and all joints must be sealed with

Hi-Temp RTV silicone sealant to be airtight. The

area where the vent pipe penetrates to the exterior

of the home must be sealed with silicone or other

means to maintain the vapor barrier between the

exterior and the interior of the home. Vent surfaces

can get hot enough to cause burns if touched by

children. Noncombustible shielding or guards may

be required.

PELLET VENT TERMINATION

Do not terminate the vent in an enclosed or semi-

enclosed area, such as; carport, garage, attic,

crawl space, under a sun deck or porch, narrow

walkway, or any other location that can build up

a concentration of fumes. Termination in one of

these areas can also lead to unpredictable pressure

situations with the appliance, and could result

in improper performance and/or malfunction.

The termination must exhaust above the outside

air inlet elevation. The termination must not be

located where it will become plugged by snow or

other materials. Do not terminate the venting into

an existing steel or masonry chimney.

VENT TERMINATION CLEARANCES

A. Minimum 4-foot (1.22m) clearance below or

beside any door or window that opens.

B. Minimum 1-foot (0.3m) clearance above any

door or window that opens.

C. Minimum 3-foot (0.91m) clearance from any

adjacent building.

D. Minimum 7-foot (2.13m) clearance from any

grade when adjacent to public walkways.

E. Minimum 2-foot (0.61m) clearance above any

grass, plants, or other combustible materials.

F. Minimum 3-foot (0.91m) clearance from an

forced air intake of any appliance.

G. Minimum 2-foot (0.61m) clearance below eves

or overhang.

H. Minimum 1-foot (0.3m) clearance horizontally

from combustible wall.

I. Must be a minimum of 3 foot (0.91m) above the

roof and 2 foot (0.61m) above the highest point

or the roof within 10 feet (3.05m).

Determining where to install your new pellet stove

heater. To get the most efcient use of re-circulated

heat, you should consider a room that is centrally

located within your home. Choose a room that

is large and open. It is Extremely Important to

maintain proper clearances from any combustible

surfaces or materials in the room where your heater

will be located. You can nd proper clearance

measurements in this manual and on the rating

label of your pellet stove. The pellet stove can be

vented through an exterior wall or into an existing

masonry or metal chimney if “PL” vent pipe is used

throughout existing chimney. Venting can pass

through the ceiling and roof if approved pipe is

used. Where passage through a wall, or partition of

combustible construction is desired, the installation

must conform to CAN/CSA-B365.

WARNING:

• DO NOT OBTAIN COMBUSTION AIR FROM

THE ATTIC, GARAGE OR ANY OTHER

UNVENTILATED AREA. YOU MAY OBTAIN

COMBUSTION AIR FROM A VENTILATED

CRAWL SPACE.

• DO NOT INSTALL A FLUE DAMPER IN THE

EXHAUST VENTING SYSTEM OF THIS UNIT.

• DO NOT CONNECT THIS UNIT TO A CHIMNEY

FLUE SERVING ANOTHER HEATER, FURNACE

OR APPLIANCE.

• INSTALL VENT AT CLEARANCES SPECIFIED

BY THE VENT MANUFACTURER.

• ONLY USE APPROVED MATERIAL FOR

INSTALLATION, FAILURE TO DO SO MAY

RESULT IN PROPERTY DAMAGE, BODILY

INJURY, OR EVEN DEATH.

INSTALLATION

This appliance is certied for use with listed 3 inch

or 4 inch “PL” pellet venting products. The use of

other components other than stated herein could

cause bodily harm, heater damage, and void your

warranty.

HORIZONTAL EXHAUST VENT

INSTALLATION

1. Locate your pellet stove in a location which

meets the requirements of this manual, but

in an area where it does not interfere with the

house framing, wiring, etc.

2. Install a non-combustible hearth pad

underneath the pellet stove. This pad should

extend at least 6” (152 mm) in front of the unit.

3. Place the pellet stove approximately 15” (381

mm) away from the interior wall.

4. Locate the center of the exhaust pipe of your

unit. This point should then be extended to

the interior wall of your house. Once you have

located the center point, on the interior wall, cut

a 7” (175 mm) diameter hole through the wall.

5. The next step is to install the wall thimble, refer

to the instructions which come with the wall

thimble for this step.

6. Install the appropriate length of exhaust vent

pipe into the wall thimble. See steps 11 and 12

when determining the correct length of exhaust

vent to use.

7. Outside Fresh Air is Mandatory when

installing this pellet stove room heater

in airtight homes and mobile home/

transportable buildings. Be sure that the

outside air vent has an approved cap on it

to prevent rodents from entering. Be sure

to install in location that won’t become

blocked with snow, etc.

8. Connect the exhaust vent pipe to the exhaust

outlet of your pellet stove.

9. Secure all vent joint connections with 3 screws.

Seal the exhaust vent joint connections with

high temperature silicone sealant.

10. Push the unit straight back to the interior

wall, being sure to maintain the minimum

clearances to combustibles 2” (51 mm) to the

back of the unit. Seal the annular space of the

wall thimble and around the vent pipe with

high temperature silicone sealant.

11. The exhaust vent pipe must extend at least 12”

(300 mm) out past the exterior wall. Seal the

annular space of the wall thimble and around

the vent pipe with high temperature silicone

sealant.

12. Install an approved horizontal termination cap or

if necessary install a 90° elbow and appropriate

length of vertical venting. An approved vertical

vent cap is recommended.

THROUGH THE WALL INSTALLATION

(RECOMMENDED INSTALLATION)

Non-Combustable

Floor Pad

Clean-Out

Cover

Tee

Wall

Thimble

Pipe

Adapter

Exhaust Motor

Adapter

3’-0” (min) Vertical Pipe

Support

Bracket

Termination

Cap

90° Elbow

TO STOVE

Canadian installations must conform to CAN/

CSA-B365. To vent the unit through the wall,

connect the pipe adapter to the exhaust motor

adapter. If the exhaust adapter is at least 18” (457

mm) above ground level, a straight section of

pellet vent pipe can be used through the wall.

Your heater dealer should be able to provide you

with a kit that will handle most of this installation,

which will include a wall thimble that will allow

the proper clearance through a combustible

wall. Once outside the structure, a 3” (76 mm)

clearance should be maintained from the outside

wall and a clean out tee should be placed on the

INSTALLATION

pipe with a 90-degree turn away from the house.

At this point, a 3ft (0.91m) (minimum) section of

pipe should be added with a horizontal cap, which

would complete the installation. A support bracket

should be placed just below the termination cap

or one every 4ft (1.22m) to make the system more

stable. If you live in an area that has heavy snowfall,

it is recommended that the installation be taller

than 3ft (0.91m) to get above the snowdrift line.

This same installation can be used if your heater is

below ground level by simply adding the clean-out

section and vertical pipe inside until ground level is

reached. With this installation you have to be aware

of the snowdrift line, dead grass, and leaves. We

recommend a 3ft (0.91m) minimum vertical rise on

the inside or outside of the house. The “through the

wall” installation is the least expensive and simplest

installation. Never terminate the end vent under a

deck, in an alcove, under a window, or between two

windows. We recommend Simpson Dura-Vent® or

Metal-Fab® kits.

THROUGH THE ROOF/CEILING

INSTALLATION

• When venting the heater through the ceiling, the

pipe is connected the same as through the wall,

except the clean-out tee is always on the inside

of the house, and a 3” (76 mm) adapter is added

before the clean-out tee.

• You must use the proper ceiling support

anges and roof ashing (supplied by the pipe

manufacturer; follow the pipe manufacturer’s

directions). It is important to note that if your

vertical run of pipe is more than 12ft (3.7m), the

pellet vent pipe size should be increased to 4” (102

mm) in diameter.

• Do not exceed more than 4ft (1.22m) of pipe on a

horizontal run and use as few elbows as possible. If

an offset is required, it is better to install 45-degree

elbows rather than 90-degree elbows.

WARNING:

YOU MAY WANT TO LOCATE ANY UTILITIES

OR OBSTACLES INSIDE THE WALL BEFORE

ATTEMPTING THIS INSTALL. MAKE SURE TO

KEEP IN MIND YOUR UNIT’S CLEARANCE

REQUIREMENTS.

1. Mark the area and then cut the wall for vent

installation if needed.

2. Install the wall thimble as specied by the

manufacturer (wall thimble sold separately)

3. Install venting.

VENTING YOUR PELLET STOVE INTO

AN EXISTING CLASS A 6” CHIMNEY

SYSTEM

IMPORTANT:

IF YOU ARE INSTALLING YOUR PELLET STOVE

AS A REPLACEMENT TO AN EXISTING WOOD

STOVE, YOU CAN INSTALL YOUR PELLET

STOVE USING THE EXISTING CLASS A 6”

VENTING SYSTEM.

1. You must have the existing chimney system

cleaned and/or inspected by a qualied chimney

sweep before proceeding with the installation

of your pellet stove.

2. To the right is an example of an installation

using part number 860001, 3-6” transition into

6” connector pipe (the illustration is only an

example). Please conform to any local building

codes or regulations having jurisdiction before

you have a qualied installer proceed with this

installation

Existing Class ‘A’

6” Chimney System

3” PL Vent

Clean Out Tee

Support

Bracket

Ceiling

Support

3” to 6” Pipe

Adapter

TO STOVE

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

OPERATION INSTRUCTIONS

HOW YOUR HEATER WORKS

Your pellet heater operates on a timer based auger

fuel feed system, that is controlled by a digital circuit

board. The fuel is delivered from the auger into a

burn pot, which is the vessel where the combustion

process takes place. Based upon the heat ranges

(1-5), the heater will feed the appropriate amount

of fuel to reach a set temperature range. Note that

the amount of heat produced by the heater is

proportional to the rate of the fuel that is burned.

Your heater is equipped with an automatic ignition

system that should ignite the fuel within 5-10

minutes from pressing the ON button. As pellets

fall into the burn pot and ignite, outside air is drawn

in to feed the re by a combustion blower. The post

combustion gases are then pulled through the heat

exchanger as they are traveling out the exhaust. As

the heater warms up, room air is circulated around

the heat exchanger by means of a room air blower,

distributing warm air into the room. Because a

forced draft pressure is required for the combustion

process inside your heater, it is extremely important

that the exhaust system be properly maintained.

And, that when operating your heater, you make

sure that the viewing and combustion doors are

properly closed and/or sealed.

CONTROL PANEL OVERVIEW

Turning the heater ON/OFF, as well as adjustments

for the fuel feed rate is performed by pressing the

appropriate button(s) on the control panel.

ON/OFF (Power)

• Pressing the “ON” button on the control panel will

begin the start-up sequence for the heater. Fuel

will begin to feed through the auger feed system

then ignite after approx. 5 minutes.

• Pressing the “OFF” button on the control panel

will cause the heater to enter its shut-down

sequence. The fuel feed system will stop pulling

fuel from the hopper and, once the re goes out

and the heater cools down, the fans will stop

running.

HEAT RANGE

• Pressing the “Heat Range” arrows, up or down,

will adjust the amount of fuel being delivered to

the burn pot.

• The exhaust blower will start. Note that this

appliance pulses the exhaust blower in order to

achieve the proper air to fuel ratio, and to also aid

in the cleaning of the burn pot.

• Once the heater reaches a set temperature, the

room fan will come on.

WIFI

• Press the “WIFI” button to begin pairing the unit

to your phone.

DISPLAY

• Pressing the “Display” button toggles the

display between the heat range and the room

temperature.

MODE

• Use the “Mode” button to switch between (M)

manual mode and (T) thermostat mode.

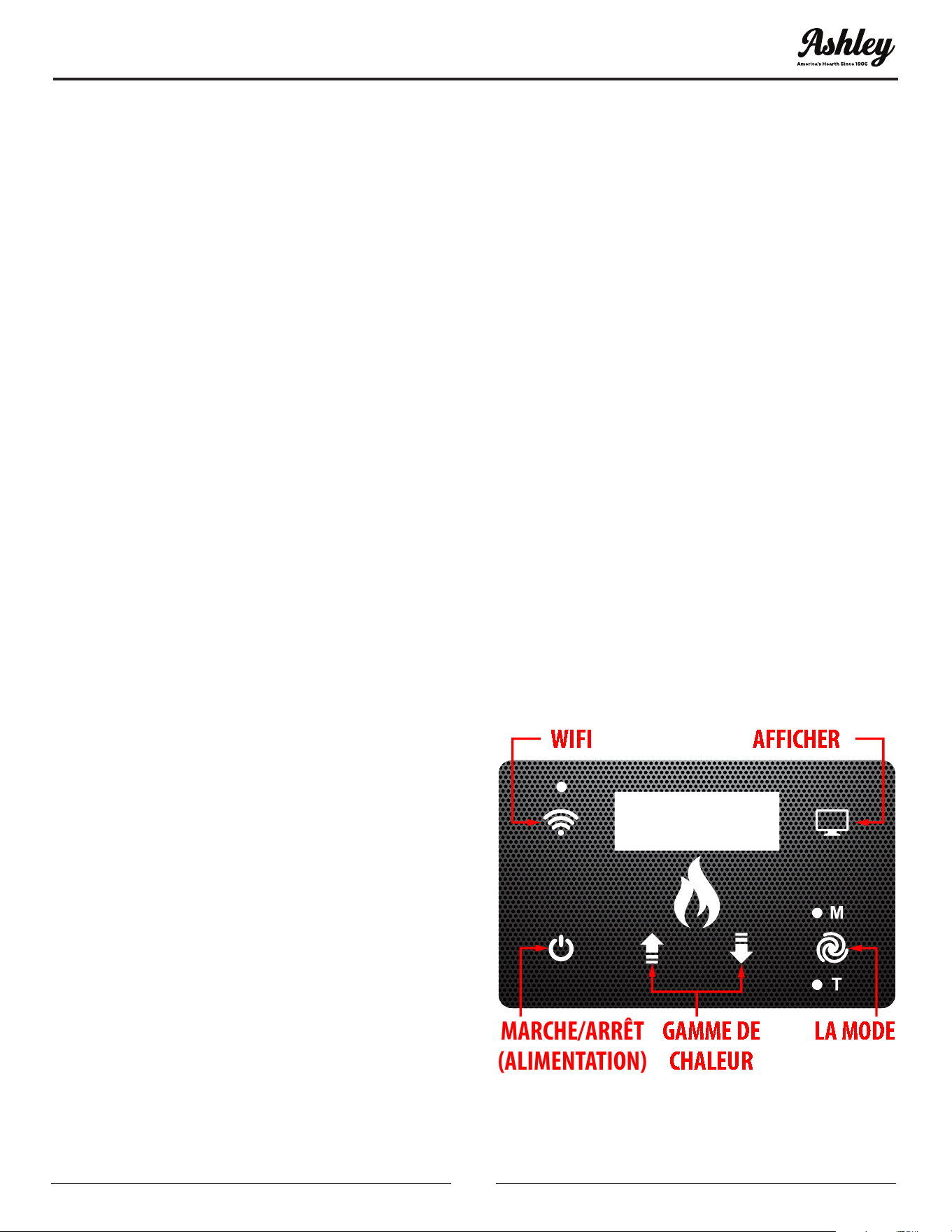

WIFI DISPLAY

ON/OFF

(POWER)

HEAT

RANGE

MODE

WARNING:

• DO NOT USE CHEMICALS OR FLUIDS TO

START THE FIRE - NEVER USE GASOLINE,

GASOLINE-TYPE LANTERN FUEL,

KEROSENE, CHARCOAL LIGHTER FLUID, OR

SIMILAR LIQUIDS TO START OR “FRESHEN

UP” A FIRE IN THIS STOVE. KEEP ALL SUCH

LIQUIDS WELL AWAY FROM THE STOVE

WHILE IT IS IN USE.

• HOT WHILE IN OPERATION. KEEP

CHILDREN, CLOTHING AND FURNITURE

AWAY. CONTACT MAY CAUSE SKIN BURNS.

This heater is designed to burn only PFI Premium

grade pellets. DO NOT BURN:

1. Garbage;

2. Lawn clippings or yard waste;

3. Materials containing rubber, including tires;

4. Materials containing plastic;

5. Waste petroleum products, paints or paint

thinners, or asphalt products;

6. Materials containing asbestos;

7. Construction or demolition debris;

8. Railroad ties or pressure-treated wood;

9. Manure or animal remains;

10. Salt water driftwood or other previously salt

water saturated materials;

11. Unseasoned wood; or

12. Paper products, cardboard, plywood, or

particleboard. The prohibition against burning

these materials does not prohibit the use of re

starters made from paper, cardboard, saw dust,

wax and similar substances for the purpose of

starting a re in an affected wood heater.

Burning these materials may result in release of

toxic fumes or render the heater ineffective and

cause smoke.

PROPER FUEL

ATTENTION:

THIS APPLIANCE IS DESIGNED FOR THE USE

OF PELLETIZED FUEL THAT MEET OR EXCEED

THE STANDARD SET BY THE PELLET FUEL

INSTITUTE (PFI).

Your pellet stove is designed to burn premium

hardwood pellets that comply with the Pellet Fuels

Institute (PFI) standard (minimum of 40 lbs density

per cubic ft, 1/4” to 5/16” diameter, length no greater

than 1.5”, not less than 8,200 BTU/lb, moisture under

8% by weight, ash under 1% by weight, and salt

under 300 parts per million). Pellets that are soft,

contain excessive amounts of loose sawdust, have

been, or are wet, will result in reduced performance.

Store your pellets in a dry place. DO NOT store the

fuel within the installation clearances of the unit

or within the space required for refuelling and ash

removal. Doing so could result in a house re. Do

not over re or use volatile fuels or combustibles,

doing so may cause a personal and property

damage hazards.

THIS STOVE IS APPROVED FOR BURNING

PELLETIZED WOOD FUEL ONLY ! Factory-approved

pellets are those 1/4” or 5/16” in diameter and not

over 1” long. Longer or thicker pellets sometimes

bridge the auger ights, which prevents proper

pellet feed. Burning wood in forms other than

pellets is not permitted. It will violate the building

codes for which the stove has been approved and

will void all warranties. The design incorporates

automatic feed of the pellet fuel into the re at

a carefully prescribed rate. Any additional fuel

introduced by hand will not increase heat output

but may seriously impair the stoves performance

by generating considerable smoke. Do not burn

wet pellets. The stove’s performance depends

heavily on the quality of your pellet fuel. Avoid pellet

brands that display these characteristics:

• Excess Fines – “Fines” is a term describing crushed

pellets or loose material that looks like sawdust or

sand. Pellets can be screened before being placed

in hopper to remove most nes.

• Binders – Some pellets are produced with

materials to hold the together, or “bind” them.

• High ash content – Poor quality pellets will often

create smoke and dirty glass. They will create a

need for more frequent maintenance. You will

have to empty the burn pot plus vacuum the

entire system more often. Poor quality pellets

could damage the auger. We cannot accept

responsibility for damage due to poor quality

pellet.

OPERATION INSTRUCTIONS

CAUTION:

• KEEP FOREIGN OBJECTS OUT OF THE

HOPPER.

• THE MOVING PARTS OF THIS STOVE ARE

PROPELLED BY HIGH TORQUE ELECTRIC

MOTORS. KEEP ALL BODY PARTS AWAY

FROM THE AUGER WHILE THE STOVE IS

PLUGGED INTO AN ELECTRICAL OUTLET.

THESE MOVING PARTS MAY BEGIN TO

MOVE AT ANY TIME WHILE THE STOVE IS

PLUGGED IN.

PRE-START-UP CHECK

Remove burn pot, making sure it is clean and none

of the air holes are plugged. Clean the rebox, and

then reinstall burn pot. Clean door glass if necessary

(a dry cloth or paper towel is usually sufcient).

Never use abrasive cleaners on the glass or door.

Check fuel in the hopper, and rell if necessary.

BUILDING A FIRE

Never use a grate or other means of supporting

the fuel. Use only the burn pot supplied with this

heater. Hopper lid must be closed in order for the

unit to feed pellets. During the start-up period:

• Make sure the burn pot is free of pellets.

• DO NOT open the viewing door.

• DO NOT add pellets to the burn pot by hand.

NOTE: During the rst few res, your stove will

emit an odor as the high-temperature paint cures

or becomes seasoned to the metal. Maintaining

smaller res will minimize this. Avoid placing items

on the stovetop during this period because the paint

could be affected. Attempts to achieve heat output

rates that exceed heater design specications can

result in permanent damage to the heater.

OPTIMAL OPERATION

This pellet stove has been certied by the US EPA

to meet strict 2020 guidelines. To Insure this unit

produces the optimal minimal emissions, it is

critical to follow the following guidelines. To achieve

a “high burn” your stove should be set on setting

5 with the damper open. To achieve a “medium

burn” your stove should be set on setting 3 with

the damper 50% open. To achieve a “low burn” your

stove should be set on setting 1with the damper

closed. If the door is opened while the stove is in

operation it must be closed within 30 seconds or

the stove will shut down. If the stove shuts down

push the “On/Off” button to re-start your stove. The

stove will have to fully shut down and turn off before

you will be able to restart the stove.

DAMPER SETTINGS

Fully Open

Fully Closed

IGNITOR

1. Fill the hopper and clean the burn pot.

2. Press the “On/Off” button.

3. Set the heat range/temperature. Manual Mode-

Press the “Display Button” to see the current

heat range. Use the up and down arrows to

adjust the heat range. T-stat Mode - Press the

“Display Button” to see the current temperature

setting. Use the up and down arrows to adjust

the temperature as needed.

If the re doesn’t start in 12 minutes, press “On/Off”,

wait a few minutes, clear the burn pot, and start the

procedure again.

OPERATION INSTRUCTIONS

OPENING DOOR

CAUTION:

• DO NOT OPERATE YOUR STOVE WITH

THE VIEWING DOOR OPEN. THE AUGER

WILL NOT FEED PELLETS UNDER THESE

CIRCUMSTANCES AND A SAFETY CONCERN

MAY ARISE FROM SPARKS OR FUMES

ENTERING THE ROOM.

• THE DOOR MUST BE CLOSED AND SEALED

DURING OPERATION.

If the door is opened while the stove is in operation

it must be closed within 30 seconds or the stove

will shut down. If the stove shuts down push the

“On/Off” button to re-start your stove. The stove will

have to fully shut down and turn off before you will

be able to restart the stove.

ROOM AIR FAN

When starting your stove the Room Air Fan will not

come on until the stove’s heat exchanger warms up.

This usually takes about 10 minutes from start-up.

IF STOVE RUNS OUT OF PELLETS

This stove is tted with a fuel level sensor that, when

connected to WiFi and detects a low fuel level, will

cause the display on the stove to ash and send a

notication to the accompanying app.

FUEL LEVEL

SENSOR

The re goes out and the auger motor and blowers

will run until the stove cools. This will take 30 minutes

or longer depending on the heat remaining in

the appliance. After the stove components stop

running all lights on the display will go out and the

two digit display will show “E3”

REFUELLING

CAUTION:

• THE HOPPER AND STOVE TOP WILL BE

HOT DURING OPERATION; THEREFORE,

YOU SHOULD ALWAYS USE SOME TYPE

OF HAND PROTECTION WHEN REFUELING

YOUR STOVE.

• DO NOT TOUCH THE HOT SURFACES OF

THE STOVE. EDUCATE ALL CHILDREN ON

THE DANGERS OF A HIGH-TEMPERATURE

STOVE. YOUNG CHILDREN SHOULD BE

SUPERVISED WHEN THEY ARE IN THE SAME

ROOM AS THE STOVE.

• NEVER PLACE YOUR HAND NEAR THE

AUGER WHILE THE STOVE IS IN OPERATION.

• WE RECOMMEND THAT YOU NOT LET THE

HOPPER DROP BELOW 1/4 FULL.

WARNING:

• KEEP HOPPER LID CLOSED AT ALL TIMES

EXCEPT WHEN REFILLING.

• DO NOT OVERFILL HOPPER.

TAMPER WARNING

This wood heater has a manufacturer-set minimum

low burn rate that must not be altered. It is against

federal regulations to alter this setting or otherwise

operate this wood heater in a manner inconsistent

with operating instructions in this manual.

SHUTDOWN PROCEDURE

WARNING:

NEVER SHUT DOWN THIS UNIT BY UNPLUGGING

IT FROM THE POWER SOURCE.

Turning your stove off is a matter of pressing the

“POWER” button on the display board. The auger

motor will stop, and the blowers will continue to

operate until the internal rebox temperatures

have fallen to a preset level.

1. Your stove is equipped with a high temperature

thermodisc. This unit has a manual reset

thermodisc. This safety switch has two functions.

A. To recognize an overheat situation in the stove

and shut down the fuel feed or auger system.

OPERATION INSTRUCTIONS

B. In case of a malfunctioning convection

blower, the high-temperature thermodisc will

automatically shut down the auger, preventing

the stove from overheating.

NOTE: On some units, once tripped, like a circuit

breaker, the reset button will have to be pushed

before restarting your stove. On other units the

thermodisc has no reset button and will reset

itself once the stove has cooled. The manufacturer

recommends that you call your dealer if this occurs

as this may indicate a more serious problem. A

service call may be required.

2. If the combustion blower fails, an air pressure

switch will automatically shut down the auger.

NOTE: Opening the stove door for more than

30 seconds during operation will cause enough

pressure change to activate the air switch, shutting

the fuel feed off. The stove will shut down and show

“E2” on the two digit display. The stove has to fully

shut down before restarting.

INTERIOR CHAMBERS

• Burn Pot - Periodically remove and clean the burn

pot and the area inside the burn pot housing. In

particular, it is advisable to clean out the holes in

the burn pot to remove any build up that may

prevent air from moving through the burn pot

freely.

• Heat Exchanger - There are two clean out plates

that need to be removed in order to clean the y

ash out of the heat exchanger. Open the door to

access the cleanouts located inside the rebox,

one on each side of the burnpot. The clean outs

are secured to the rebox with (2) 5/16” screws

each. Remove the clean outs and vacuum out

any accumulated ash. This should be done at

least once per month or more frequently if large

amounts of ash are noticed while cleaning or if

the stove does not seem to be burning properly.

Over time ash or dust may accumulate on the blades

of the circulation & exhaust fans. The fans should

be inspected, periodically, and if any accumulation

is present vacuumed clean as the ash or dust can

impede the fans performance. It is also possible

that creosote may accumulate in the exhaust fan

therefore, this must be brushed clean. The exhaust

fan can be found behind the left side panel (facing

the front of the heater), the circulation fan can

be found behind the right side panel. To access

the igniter, remove the air inlet tube and cover (2

screws). The auger motor is located in the center

rear of the unit. Note: When cleaning, take care not

to damage the fan blades.

If a vacuum is used to clean your stove, we suggest

using the AV15E AshVac vacuum. The AV15E AshVac

is designed for ash removal. Some regular vacuum

cleaner (i.e. shop vacs) may leak ash into the room.

DO NOT VACUUM HOT ASH.

WARNING:

FAILURE TO PROPERLY MAINTENANCE

THE CLEAN OUTS WILL RESULT IN POOR

PERFORMANCE OF THIS STOVE.

Clean-Out Plates

OPERATION INSTRUCTIONS

APP SETUP

This stove can be monitored and controlled by

using the US Stove Company app which is available

for iOS or Android devices through the app store.

1. Download the US Stove Company app.

2. Open the app and select “Sign Up”. Note: You

will only need to go through the sign-up process

when using the app for the rst time.

3. Follow the on-screen instructions.

• Enter your email and agree to the Privacy Policy

and User Agreement.

• Make a password that is 6-20 characters with a

mix of letters and numbers.

• Enter the 6 digit verication code that was sent to

the previously entered email address.

• Provide access to the two permissions requested.

• Allow notications through the phones settings.

• The app is ready to add the unit.

your[email protected]

OPERATION INSTRUCTIONS

APP CONNECTION & OPERATION

1. Open the app. After the initial “Sign Up” process

has been completed, the app opens, by default

to the “Add Device” screen.

2. Make sure that your device and stove connect

to the same Wi-Fi network.

3. Make sure the stove is plugged into an electrical

outlet and can be powered on.

4. There is a red ashing indicator light located

above the congure button. Note: When the

indicator light is ashing the unit is ready to be

paired. When the indicator light is solid the unit

has successfully paired.

WIFI DISPLAY

ON/OFF

(POWER)

HEAT

RANGE

MODE

5. Select “Add Device”. Note: Access to location

and Bluetooth is required while using the app.

6. A screen with “Discovering Devices” will come

up. Press the “Add” button.

7. Enter the Wi-Fi information.

8. The blue circle indicates the device is in the

process of being added.

9. Once the unit has been successfully added a

green check mark will appear. The app and unit

are now ready for use.

Device Select

Screen

Stove Setting

Current Room

Temperature

Device Name &

Device Sharing

Settings

Increase

Temperature

Setpoint

Heat Range

Mode

Temperature

Adjuster

Decrease

Temperature

Setpoint

Power ON/OFF

NEVER OPERATE THIS PRODUCT WHILE UNATTENDED

CAUTION:

• FAILURE TO CLEAN AND MAINTAIN THIS

UNIT AS INDICATED CAN RESULT IN POOR

PERFORMANCE, SAFETY HAZARDS, FIRE,

AND EVEN DEATH.

• NEVER PERFORM ANY INSPECTIONS,

CLEANING, OR MAINTENANCE ON A HOT

STOVE.

• DISCONNECT THE POWER CORD BEFORE

PERFORMING ANY MAINTENANCE! NOTE:

TURNING THE ON/OFF SWITCH TO ”OFF”

DOES NOT DISCONNECT ALL POWER TO

THE ELECTRICAL COMPONENTS OF THE

STOVE.

• DO NOT OPERATE STOVE WITH BROKEN

GLASS, LEAKAGE OF FLUE GAS MAY RESULT.

• ATTEMPTS TO ACHIEVE HEAT OUTPUT

RATES THAT EXCEED HEATER DESIGN

SPECIFICATIONS CAN RESULT IN

PERMANENT DAMAGE TO THE HEATER.

CREOSOTE FORMATION, INSPECTION,

& REMOVAL

CAUTION:

THE EXHAUST SYSTEM SHOULD BE CHECKED

MONTHLY DURING THE BURNING SEASON FOR

ANY BUILD-UP OF SOOT OR CREOSOTE.

When any wood is burned slowly, it produces tar

and other organic vapors, which combine with

expelled moisture to form creosote. The creosote

vapors condense in the relatively cool chimney

ue or a newly started re or from a slow-burning

re. As a result, creosote residue accumulates

on the ue lining. When ignited, this creosote

makes an extremely hot re, which may damage

the chimney or even destroy the house. Despite

their high efciency, pellet stoves can accumulate

creosote under certain conditions. The chimney

connector and chimney should be inspected by

a qualied person annually or per ton of pellets

to determine if a creosote or y ash build-up has

occurred. If creosote has accumulated, it should

be removed to reduce the risk of a chimney re.

Inspect the system at the stove connection and

at the chimney top. Cooler surfaces tend to build

creosote deposits quicker, so it is important to

check the chimney from the top as well as from the

bottom. The creosote should be removed with a

brush specically designed for the type of chimney

in use. A qualied chimney sweep can perform this

service. It is also recommended that before each

heating season the entire system be professionally

inspected, cleaned and, if necessary, repaired. To

clean the chimney, disconnect the vent from the

stove.

FLY ASH

This accumulates in the horizontal portion of an

exhaust run. Though non-combustible, it may

impede the normal exhaust ow. It should therefore

be periodically removed.

ASH REMOVAL & DISPOSAL

CAUTION:

ALLOW THE STOVE TO COOL BEFORE

PERFORMING ANY MAINTENANCE OR

CLEANING. ASHES MUST BE DISPOSED IN A

METAL CONTAINER WITH A TIGHT FITTING

LID. THE CLOSED CONTAINER OF ASHES

SHOULD BE PLACED ON A NON-COMBUSTIBLE

SURFACE OR ON THE GROUND, WELL AWAY

FROM ALL COMBUSTIBLE MATERIALS,

PENDING FINAL DISPOSAL.

Remove the ashes periodically to avoid unnecessary

ash build up. Remove ashes when unit has cooled.

Ashes should be placed in a metal container with a

tight tting lid. The closed container of ashes should

be placed on a noncombustible oor or on the

ground, well away from all combustible materials,

pending nal disposal. If the ashes are disposed

of by burial in soil or otherwise locally dispersed,

they should be retained in the closed container

until all embers have been thoroughly cooled. The

container shall not be used for other trash or waste

disposal. If combined with combustible substances,

ashes and embers may ignite.

SMOKE & CO MONITORS

Burning wood naturally produces smoke and

carbon monoxide(CO) emissions. CO is a poisonous

gas when exposed to elevated concentrations

MAINTENANCE

for extended periods of time. While the modern

combustion systems in heaters drastically reduce

the amount of CO emitted out the chimney,

exposure to the gases in closed or conned areas

can be dangerous. Make sure you stove gaskets

and chimney joints are in good working order and

sealing properly to ensure unintended exposure. It

is recommended that you use both smoke and CO

monitors in areas having the potential to generate

CO.

CHECK & CLEAN THE HOPPER

Check the hopper periodically to determine if there

is any sawdust (nes) that is building up in the feed

system or pellets that are sticking to the hopper

surface. Clean as needed.

DOOR & GLASS GASKETS

Inspect the main door and glass window gaskets

periodically. The main door may need to be removed

to have frayed, broken, or compacted gaskets

replaced by your authorized dealer. This unit’s door

uses a 3/4” diameter rope gasket.

BLOWER MOTORS

Clean the air holes on the motors of both the

exhaust and distribution blowers annually. Remove

the exhaust blower from the exhaust duct and

clean out the internal fan blades as part of your fall

start-up. If you have indoor pets your power motors

should be inspected monthly to make sure they

are free of animal hair build up. Animal hair build

up in blowers can result in poor performance or

unforeseen safety hazards.

PAINTED SURFACES

Painted surfaces may be wiped down with a damp

cloth. If scratches appear, or you wish to renew your

paint, contact your authorized dealer to obtain a

can of suitable high-temperature paint.

GLASS

We recommend using a high-quality glass cleaner.

Should a buildup of creosote or carbon accumulate,

you may wish to use 000 steel wool and water to

clean the glass. DO NOT use abrasive cleaners. DO

NOT perform the cleaning while the glass is HOT.

Do not attempt to operate the unit with broken

glass. Replacement glass may be purchased from

your U.S. Stove dealer. If the glass is broken, follow

these removal procedures:

1. Once the heater has cooled, remove the door

from the heater.

2. Remove the rope gasket from the door followed

by the nuts holding the glass retainer in place.

3. While wearing gloves, carefully remove any

loose pieces of glass from the door frame.

4. Replace the glass and gasket, making sure the

gasket runs the full perimeter of the glass edge.

5. Re-install the retainer and eight nuts and rope

gasket using high-temperature silicone to

adhere the gasket to the door.

6. Never use substitute materials for the glass.

DO NOT abuse the door glass by striking, slamming,

or similar trauma. Do not operate the stove with the

glass removed, cracked, or broken.

FALL START UP

Prior to starting the rst re of the heating season,

check the outside area around the exhaust and air

intake systems for obstructions. Clean and remove

any y ash from the exhaust venting system. Clean

any screens on the exhaust system and on the

outside air intake pipe. Turn all of the controls on

and make sure that they are working properly. This

is also a good time to give the entire stove a good

cleaning throughout.

SPRING SHUTDOWN

After the last burn in the spring, remove any

remaining pellets from the hopper and the auger

feed system. Scoop out the pellets and then run

the auger until the hopper is empty and pellets

stop owing (this can be done by pressing the “ON”

button with the viewing door open). Vacuum out

the hopper. Thoroughly clean the burn pot, and

rebox. It may be desirable to spray the inside of

the cleaned hopper with an aerosol silicone spray

if your stove is in a high humidity area. The exhaust

system should be thoroughly cleaned.

MAINTENANCE

MAINTENANCE SCHEDULE

Use the following as a guide under average use

conditions. Gaskets around door and door glass

should be inspected and repaired or replaced when

necessary.

Daily Weekly

Monthly or

as needed

Burn Pot Stirred Empty

Combustion

Chamber

Brushed

Ashes Check Empty

Interior

Chambers

Vacuumed

Combustion

Blower Blades

Vacuumed

/ Brushed

Convection

Blower Impeller

Vacuumed

/ Brushed

Vent System Cleaned

Gaskets Inspected

Glass Wiped Cleaned

Hopper (end of

season)

Empty &

Vacuumed

HOW TO ORDER REPAIR PARTS

INSTRUCTIONS SPECIFIC FOR CANADIAN

INSTALLATIONS

Do not obstruct the space under the heater and do

not obstruct the combustion air openings.

Refer to the chimney manufacturer’s instructions

for disassembling the chimney/venting for

transportation of a transportable building.

The parts or materials to be employed for ember

protectors and the minimum areas to be covered

and their relation to the space heater, as well as

the notice: “In Canada, to comply with CSA B365,

Installation Code for Solid-Fuel-Burning Appliances

and Equipment, any combustible covering beneath

the appliance and/or within the area extending

horizontally at least 450 mm (18 in) beyond the

appliance on any side equipped with a door, and at

least 200 mm (8 in) beyond the appliance on other

sides, shall be protected by a continuous, durable,

non-combustible pad that will provide ember

protection. The 450 mm (18 in) ember protection

required on any side with a door shall extend for the

full width of the appliance plus the 200 mm (8in)

required on each side of the appliance without a

door. Where an appliance is installed less than

200mm (8 in) from a wall, the ember pad need only

extend to the base of the wall. An ember pad shall

not be placed on top of a carpet unless the pad is

structurally supported to prevent displacement

and distortion.

If this appliance is installed in a transportable

building, removal of the chimney/venting is

required for transportation of the building.

DO NOT INSTALL IN AN ALCOVE

DO NOT INSTALL IN ANY FIREPLACE

For Parts Assistance, Call 800-750-2723 ext 5051 or Email: parts@usstove.com , or order

at www.myreplacementparts.com

The information in this owner’s manual is specic to your unit. When ordering replacement parts the

information in this manual will help to ensure the correct items are ordered. Before contacting customer

service write down the model number and the serial number of this unit. That information can be found on

the certication label attached to the back of the unit. Other information that may be needed would be the

part number and part description of the item(s) in question. Part numbers and descriptions can be found

in the “Repair Parts” section of this manual. Once this information has been gathered you can contact

customer service by phone 1-800-750-2723 Ext 5051 or Email parts@usstove.com.

Model Information

Model Number

Serial Number

TROUBLESHOOTING GUIDE

When your stove acts out of the ordinary, the rst reaction is to call for help. This guide may save time and

money by enabling you to solve simple problems yourself. Problems encountered are often the result of

only ve factors: 1) poor fuel; 2) poor operation or maintenance; 3) poor installation; 4) component failure; 5)

factory defect. You can usually solve those problems related to 1 and 2. Customer service can solve problems

relating to 3, 4 and 5. Refer to diagrams in the “Repair Parts” section to help locate indicated parts. For the

sake of troubleshooting and using this guide to assist you, you should look at your heat level setting to see

which light is ashing.

• Disconnect the power cord before performing any maintenance! NOTE: Turning the ON/OFF Switch to

”OFF” does not disconnect all power to the electrical components of the stove.

• Never try to repair or replace any part of the stove unless instructions for doing so are given in this manual.

All other work should be done by a trained technician.

Display “E1”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and

tripping the internal temperature shutoff.

Clean any dust off of the windings and fan blade. If oiling

the blower does not help, the blower may be bad.

The stove is being left on the highest setting

for extended periods of time.

If operating the heater on the highest heat setting, the

room temperature could increase enough and lead

to potential overheating situations. If this happens try

operating at a lower heat setting.

Fuel other than wood pellets is being burned

in the stove.

This pellet stove is designed and tested to use wood pellets.

Check for signs of fuel other than wood pellets. No other

types of fuel have been approved for this pellet stove. If

there are signs of other types of fuel being used, stop using

them immediately.

Power surge or brown out situation.

A power surge, spike, or voltage drop could cause the high

limit switch to trip. Check to see if a surge protector is being

used on the stove. If not, recommend one to the customer.

High Limit Switch is malfunctioning.

If the other items check out OK, replace the high limit

switch.

ATTENTION: THIS WOOD HEATER NEEDS PERIODIC INSPECTION AND REPAIR FOR PROPER

OPERATION. IT IS AGAINST FEDERAL REGULATIONS TO OPERATE THIS WOOD HEATER IN A

MANNER INCONSISTENT WITH OPERATING INSTRUCTIONS IN THIS MANUAL.

Display is Flashing

The low fuel sensor has tripped. Pellet level is low, rell hopper.

TROUBLESHOOTING GUIDE

Display “E2”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Airow switch hose or stove attachment

pipes for hose are blocked.

Unhook air hose from the air switch and blow through it.

If air ows freely, the hose and tube are ne. If air will not

ow throw the hose, use a wire coat hanger to clear the

blockage.

The air inlet, burnpot, interior combustion

air chambers, combustion blower, or

exhaust pipe are blocked with ash or foreign

material.

Follow all cleaning procedures in the maintenance section

of the owner’s manual.

The rebox is not properly sealed.

Make sure the door is closed and that the gasket is in good

shape.

Vent pipe is incorrectly installed.

Check to make sure vent pipe installation meets criteria in

owner’s manual.

The airow switch wire connections are bad.

Check the connectors that attach the gray wires to the air

switch.

Combustion blower failure.

With the stove on, check to see if the combustion blower is

running. If it is not, you will need to check for power going

to the combustion blower. It should be a full current. If

there is power, the blower is bad. If there is not, make sure

the control board is sending power to the air switch.

Control board not sending power to

combustion blower.

If there is no current going to the combustion blower, check

all wire connections. If all wires are properly connected,

you have a bad control board.

Control board not sending power to air

switch.

There should be a 5-volt current (approximately) going to

the air switch after the stove has been on for 30 seconds.

Air switch has failed.

To test the air switch, you will need to disconnect the air

hose from the body of the stove. With the other end still

attached to the air switch, very gently suck on the loose end

of the hose (you may want to remove the hose entirely off

the stove and the air switch rst and make sure it is clear).

If you hear a click, the air switch is working. BE CAREFUL

TOO MUCH VACUUM CAN DAMAGE THE AIR SWITCH.

TROUBLESHOOTING GUIDE

Display “E3”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The hopper is out of pellets Rell the hopper.

The air dampener is too far open for a low

feed setting

If on the low setting, you may need to close the dampener

all the way.

The burnpot holes are blocked. Remove the burnpot and thoroughly clean it.

The air inlet, the interior chambers, or

exhaust system has a partial blockage.

Follow all cleaning procedures in the maintenance section

of the owner's manual

The hopper safety switch has failed or

hopper is open.

When operating the unit, be sure the hopper lid is closed so

that the hopper safety switch will activate. Check the wires

leading from the hopper safety switch to the control panel

and auger motor for secure connections. Use a continuity

tester to test the hopper safety switch; replace if necessary.

The auger shaft is jammed.

"Start by emptying the hopper. Then remove the auger

motor by removing the auger pin, then remove the two

bolts that hold the auger bracket to the auger tube. The

auger bracket will now be able to be removed form the

auger tube. Remove the two bolts on the side of the auger

tube to remove the lower bearing of the auger. Pull the

auger out of the tube to free the jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to

run the unit. If the motor will turn the shaft is jammed on

something. If the motor will not turn, the motor is bad.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting

the two wires and connecting them with a short piece

of wire. Then plug the stove back up. If the stove comes

on and works, you need to replace the POF thermodisc.

This is for testing only. DO NOT LEAVE THE THERMODISC

BYPASSED. Your blowers will never shut off and if the re

went out the auger will continue to feed pellets until the

hopper is empty if you leave the POF thermodisc bypassed.

The control board is not sending power to

the POF thermodisc or other auger system

components.

There should be a 5-volt (approximately) current going

to the POF thermodisc after the stove has been on for 10

minutes.

TROUBLESHOOTING GUIDE

Display “E4”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The air inlet, burnpot, interior combustion

air chambers, combustion blower, or

exhaust pipe are blocked with ash or foreign

material.

Follow all cleaning procedures in the maintenance section

of the owner’s manual.

The Proof of Fire (POF) thermodisc has came

unplugged

Check the (POF) thermodisc to see if the wires are

connected properly.

The Proof of Fire (POF) thermodisc has

malfunctioned.

Temporarily bypass the POF thermodisc by disconnecting

the two wires and connecting them with a short piece

of wire. Then plug the stove back up. If the stove comes

on and works, you need to replace the POF thermodisc.

This is for testing only. DO NOT LEAVE THE THERMODISC

BYPASSED. Your blowers will never shut off and if the re

went out the auger will continue to feed pellets until the

hopper is empty if you leave the POF thermodisc bypassed.

The hopper is out of Pellets. Rell the hopper.

The hopper safety switch has failed or

hopper is open.

When operating the unit, be sure the hopper lid is closed so

that the hopper safety switch will activate. Check the wires

leading from the hopper safety switch to the control panel

and auger motor for secure connections. Use a continuity

tester to test the hopper safety switch; replace if necessary.

The auger shaft is jammed.

Start by emptying the hopper. Then remove the auger

motor by removing the auger pin. Remove the auger shaft

inspection plate in the hopper so that you can see the

auger shaft. Gently lift the auger shaft straight up so that

the end of the auger shaft comes up out of the bottom

auger bushing. Next, remove the two nuts that hold the

top auger biscuit in. Then rotate the bottom end of the

auger shaft up towards you until you can lift the shaft out

of the stove. After you have removed the shaft, inspect it

for bent ights, burrs, or broken welds. Remove any foreign

material that might have caused the jam. Also, check the

auger tube for signs of damage such as burrs, rough spots,

or grooves cut into the metal that could have caused a jam.

The auger motor has failed.

Remove the auger motor from the auger shaft and try to

run the unit. If the motor will turn the shaft is jammed on

something. If the motor will not turn, the motor is bad.

Display “E5”

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The stove automatically ashes "E5"

when turned on

The T-stat sensor has come unplugged form the control board.

Check to see if the sensor is unplugged. If the sensor is not

unplugged then the sensor is damaged or has a short. If the

sensor is damaged or has a short it will need to be replaced.

TROUBLESHOOTING GUIDE

Stove Feeds Pellets, But Will Not Ignite

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Air damper open too far for ignition.

In some situations it may be necessary to have the damper

completely closed for ignition to take place. After there is

a ame, the damper can then be adjusted for the desired

feed setting.

Blockage in igniter tube or inlet for igniter

tube.

Find the igniter housing on the backside of the rewall.

The air intake hole is a small hole located on bottom side of

the housing. Make sure it is clear. Also, look from the front

of the stove to make sure there is not any debris around

the igniter element inside of the igniter housing.

The burnpot is not pushed completely to

the rear of the rebox.

Make sure that the air intake collar on the burnpot is

touching the rear wall of the rebox.

Bad igniter element.

Put power directly to the igniter element. Watch the tip

of the igniter from the front of the stove. After about 2

minutes the tip should glow. If it does not, the element is

bad.

The control board is not sending power to

the igniter.

Check the voltage going to the igniter during startup. It

should be a full current. If the voltage is lower than full

current, check the wiring. If the wiring checks out good,

the board is bad.

Smoke Smell Coming Back Into The Home

Possible Causes Possible Remedies: (Unplug stove rst when possible)

There is a leak in the vent pipe system.

Inspect all vent pipe connections. Make sure they are

sealed with RTV silicone that has a temperature rating on

500 degree F or higher. Also, seal joints with UL-181-AP foil

tape. Also, make sure the square to round adapter piece

on the combustion blower has been properly sealed with

the same RTV.

The gasket on the combustion blower has

gone bad.

Inspect both gaskets on the combustion blower to make

sure they are in good shape.

Because it is a wood-burning device, your pellet heater may emit a faint wood-burning odor. If this

increases beyond normal, or if you notice an unusual soot build-up on walls or furniture, check your

exhaust system carefully for leaks. All joints should be properly sealed. Also clean your stove, following

instructions in “MAINTENANCE”. If problem persists, contact customer service.

Convection Blower Shuts Off And Comes Back On

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower is overheating and

tripping the internal temperature shutoff.

Clean any dust off of the windings and fan blades. If

cleaning the blower does not help, the blower may be bad.

Circuit board malfunction.

Test the current going to the convection blower. If there

is power being sent to the blower when it is shut off, then

the control board is ne. If there is NOT power being sent

to the blower when it shuts off during operation, then you

have a bad control board.

TROUBLESHOOTING GUIDE

Stove Will Not Feed Pellets, But Fuel Feed Light Comes On As Designed

Possible Causes Possible Remedies: (Unplug stove rst when possible)

High limit switch has

tripped or is defective.

Wait for the stove to cool for about 30 - 45 minutes. Locate the High Limit

thermodisc and press the reset button on the back of it. If the heater will not

restart, check the thermodisc to see if it’s bad. To test if the thermodisc is bad,

you can bypass it as described previously for the POF thermodisc.

Bad Auger Motor.

Remove the auger motor from the auger shaft and try to run the unit. If the

motor will turn the shaft is jammed on something. If the motor will not turn, the

motor is bad.

Auger Jam

Start by emptying the hopper. Then remove the auger motor by removing the

auger pin. Remove the auger shaft inspection plate in the hopper so that you can

see the auger shaft. Gently lift the auger shaft straight up so that the end of the

auger shaft comes up out of the bottom auger bushing. Next, remove the two

nuts that hold the top auger biscuit in. Then rotate the bottom end of the auger

shaft up towards you until you can lift the shaft out of the stove. After you have

removed the shaft, inspect it for bent ights, burrs, or broken welds. Remove any

foreign material that might have caused the jam. Also, check the auger tube for

signs of damage such as burrs, rough spots, or grooves cut into the metal that

could have caused a jam.

Loose wire or

connector.

Check all wires and connectors that connector to the auger motor, high limit

switch, and the Molex connector.

Bad control board.

If the fuse is good, the wires and connectors check out good, and the high limit

switch did not trip, test for power going to the auger motor. If there is not a full

current going to the auger motor when the fuel feed light is on, you have a bad

control board.

Glass “Soot’s” Up At A Very Fast Rate

Flame Is Lazy, Dark, And Has Black Tips

After Stove Has Been On For A While, The Burnpot Overlls

Possible Causes Possible Remedies: (Unplug stove rst when possible)

Stove or vent pipe is dirty, which restricts

airow through the burnpot.

Follow all cleaning procedure in the maintenance section

of the owner’s manual.

Vent pipe installed improperly.

Check to make sure the vent pipe has been installed

according to the criteria in the owner’s manual.

Burnpot holes are blocked. Remove the burnpot and thoroughly clean it.

Blockage in air intake pipe.

Visually inspect the air intake pipe that leads into the

burnpot for foreign material.

Combustion blower is not spinning fast

enough.

Test the RPM on the blower after the blades have been

cleaned. The RPM should be approximately 3000 RPM.

Bad Pellets. (Applies to GLASS “SOOT’S” UP

AT A VERY FAST RATE Only)

The brand of pellets or the batch of pellets that are being

used may be of poor quality. If possible, try a different

brand of pellets. You might also want to try a brand

that is made from a different type of wood (softwood vs.

hardwood). Different woods have different characteristics

when being burned.

High Limit Switch Keeps Tripping

Possible Causes Possible Remedies: (Unplug stove rst when possible)

The convection blower

is overheating and

tripping the internal

temperature shutoff.

Clean any dust off of the windings and fan blades. If oiling the blower does not

help, the blower may be bad.

The stove is being left

on the highest setting

for extended periods

of time.

If operating the heater on the highest heat setting, the room temperature could

increase enough and lead to potential overheating situations. If this happens, try

operating at a lower heat setting.

Fuel other than

wood pellets is being

burned in the stove.

This pellet stove is designed and tested to use wood pellets. Check for signs of

fuel other than wood pellets. No other types of fuel have been approved for this

pellet stove. If there are signs of other types of fuel being used, stop using them

immediately.

Power surge or brown

out situation.

A power surge, spike, or voltage drop could cause the high limit switch to trip.

Check to see if a surge protector is being used on the stove. If not, recommend

one to the consumer.

High limit switch is

malfunctioning.

If the other items check out okay, replace the high limit switch.

TROUBLESHOOTING GUIDE

WIRING DIAGRAM

CORRECT WRONG

ENSURE THE WIRES ARE CONNECTED

TO THE BOTTOM TWO PRONGS OF

THE HOPPER SWITCH AS SHOWN.







































































































Key Part # Description Qty

1 88174

Glass Gasket - Flat

(3/16T x 3/8W)

2 893159 Clear Glass 1

3 88324 1” Rope Gasket 1

4 893629 Burnpot Assembly 1

5 80455 High Temp Snapdisc 1

6 80914 WiFi PCBA 1

7 88351 Channel Gasket 1

8 88118 Ignitor Flange Gasket 1

9 80869 Ceramic Ignitor 1

10 80549 Pressure Switch 1

11 80867 Distribution Blower 1

12 88106 Distribution Blower Gasket 1

13 80866

Drive Motor

(1.5 RPM CCW)

Key Part # Description Qty

14 80915 RTD Temperature Probe 1

15 88100 Exhaust Blower Gasket 1

16 80868 Exhaust Blower 1

17 80491 Microswitch 1

18 893241-US Door Handle Kit 1

80917

Power Receptacle w/ EMC

Filter

80462 Power Receptacle 1

20 80461 Power Supply Cord 1

21 80938 Sensor, Hopper Fuel Level 1

REPAIR PARTS

IN ORDER TO MAINTAIN WARRANTY, COMPONENTS MUST BE REPLACED USING USSC PARTS

PURCHASED THROUGH YOUR DEALER OR DIRECTLY FROM USSC. USE OF THIRD PARTY

COMPONENTS WILL VOID THE WARRANTY.

To order parts:

Call 1-800-750-2723 Ext 5051 or

Email to: parts@usstove.com

It is recommended that your heating system is serviced regularly and that the appropriate Service Interval

Record is completed.

SERVICE PROVIDER

Before completing the appropriate Service Record below, please ensure you have carried out the service

as described in the manufacturer’s instructions. Always use the manufacturer's specied spare part when

replacement is necessary.

Service 01 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 03 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 05 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 07 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 02 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 04 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 06 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

Service 08 Date: _____________________

Engineer Name: _______________________________

License No.: ____________________________________

Company: _____________________________________

Telephone No.: _________________________________

Stove Inspected: Chimney Swept:

Items Replaced: _______________________________

SERVICE RECORD

NOTES

AP5622-W

Signaler Le Numéro: F22-782

Certié selon la norme ASTM E1509-2022

et Certié CAN/ULC S627:2023; Conforme à

CAN ICES-3(B)/NMB-3(B); Contient IC:23243-

WBR1DIPEX

Maisons mobiles/bâtiments portatifs approuvé

Numéro De Modèle:

* Toutes les images de ce manuel sont à des ns d’illustration uniquement. Le produit réel peut varier.

CE MANUEL EST SUJET À MODIFICATION SANS PRÉAVIS.

Manuel d’instructions et d’utilisation du propriétaire

AGENCE AMÉRICAINE DE PROTECTION

DE L’ENVIRONNEMENT

Certié conforme aux normes d’émissions

de particules 2020.

AVIS DE SÉCURITÉ: Si ce radiateur n’est pas correctement installé, un incendie

peut en résulter. Pour votre sécurité, suivez les instructions d’installation. N’utilisez

jamais de compromis de fortune lors de l’installation de ce radiateur. Contactez les

responsables locaux du bâtiment ou des pompiers pour connaître les permis, les

restrictions et les exigences d’installation dans votre région. NE JAMAIS UTILISER CE

PRODUIT SANS SURVEILLANCE.

MISE EN GARDE! Veuillez lire l’intégralité de ce manuel avant d’installer ou d’utiliser

votre nouveau radiateur. Le non-respect des instructions peut entraîner des dommages

matériels, des blessures corporelles ou même la mort. Une installation incorrecte pourrait

annuler votre garantie!

Conservez ces instructions dans un endroit sûr pour référence ultérieure.

AVERTISSEMENT SUR LA PROPOSITION 65 DE LA

CALIFORNIE:

Ce produit peut vous exposer à des produits chimiques,

y compris le monoxyde de carbone, qui est connu dans

l’État de Californie pour provoquer le cancer, des anomalies

congénitales et / ou d’autres troubles de la reproduction.

Pour plus d’informations, visitez www.P65warnings.ca.gov

LISTE DE CONTRÔLE D’INSTALLATION

Votre poêle à bois ne doit être installé que par un installateur qualié. Un installateur qualié NFI est disponible à

l’adresse www.ncertied.org/public/nd-an-n-pro/

SERVICE CLIENTS

1-800-750-2723 poste 5050

Texte au 423-301-5624

E-mail à: customerservice@usstove.com

LISTE DE CONTRÔLE DE MISE EN SERVICE

Cette liste de contrôle doit être remplie intégralement par la personne qualiée qui installe cet appareil. Conservez

cette page pour référence future.

Le fait de ne pas installer et mettre en service selon les instructions du fabricant et de remplir cette liste de contrôle

annulera la garantie.

S’il te plaît imprime

Nom du client: Numéro de téléphone:

Adresse:

Modèle:

Numéro de série:

Nom de la société d’installation: Numéro de téléphone:

Nom du technicien d’installation: Numéro de licence:

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé: ___________________________________________________________________________________________

Système de ventilation: nouveau système de ventilation Oui Non Si oui, marque ____________________________________

Si non, date d’inspection du système de ventilation existant: ___________________________________________________________________

MISE EN SERVICE

Confirmer l’installation du tapis de foyer conformément aux instructions d’installation ...............................................................................

Confirmer le bon placement des pièces internes ..........................................................................................................................................................

Vérifier la solidité du joint de porte et des joints de porte ..........................................................................................................................................

Confirmer les dégagements aux combustibles selon les instructions d’installation de ce manuel ..............................................................

Vérifier le fonctionnement des commandes pneumatiques .....................................................................................................................................

Confirmez que le système de ventilation est sécurisé et scellé ...............................................................................................................................

Confirmer que le poêle démarre et fonctionne correctement ..................................................................................................................................

Assurez-vous qu’un avertisseur de CO est installé conformément aux codes du bâtiment locaux et qu’il est fonctionnel .................

Expliquer le fonctionnement en toute sécurité, l’utilisation appropriée du carburant, le nettoyage et les exigences d’entretien de

routine.........................................................................................................................................................................................................................................

Déclaration d’achèvement: En tant que personne qualifiée responsable des travaux décrits ci-dessus, je confirme que l’appareil

en tant que travail associé a été installé selon les instructions du fabricant et en suivant les codes de construction et d’installation

applicables.

Signé: _______________________________________ Nom en lettres moulées: _________________________________ Date: ________________

Propriétaire du domicile: CONSERVEZ CETTE INFORMATION POUR RÉFÉRENCE FUTURE

Votre poêle à granulés a été testé pour la sécurité et homologué selon ASTM E1509-2022 et CAN/ULC S627:2023. Ce

manuel décrit l’installation et le fonctionnement du poêle à granulés Ashley AP5622-W. Cet appareil de chauffage

respecte les limites d’émission de l’Agence américaine de protection de l’environnement 2020 pour les appareils de

chauffage au bois vendus après le 15 mai 2020. Dans des conditions de test spéciques de l’EPA brûlant des granulés

de bois, il a été démontré que cet appareil de chauffage fournit de la chaleur à un taux de 13 640 à 32 591 Btu/h. Cet

appareil de chauffage a atteint un taux d’émission de particules de 1,5 g/h lorsqu’il a été testé selon la méthode ASTM

E 2779 / EPA Method 28R et une efcacité de 76 %.

AVERTISSEMENT:

IL EST CONTRAIRE À LA RÉGLEMENTATION FÉDÉRALE D’UTILISER CE POÊLE À BOIS D’UNE MANIÈRE

INCOMPATIBLE AVEC LES INSTRUCTIONS D’UTILISATION DU MANUEL DU PROPRIÉTAIRE.

INTRODUCTION

Remarque: Pour activer la connectivité WiFi

ou Bluetooth® pour votre poêle, téléchargez

l’application US Stove Co. L’application US

Stove Co. vous permet de faire fonctionner

et de surveiller votre poêle. L’application est

disponible pour iOS et Android et peut être

trouvée en recherchant ce qui suit : US Stove

Company Heating Made Simple.

Spécications De Chauffage

Brûler le combustible de tarif *

2,1 à 5 lb/h (0,97 à 2,26

kg/h)

* La taille des granulés peut affecter le

débit réel d’alimentation en carburant,

les durées de combustion et la capacité

de la trémie. Les débits d’alimentation

en carburant peuvent varier jusqu’à 20 %.

Utilisez du carburant homologué PFI pour

de meilleurs résultats.

Temps de combustion (réglage le plus bas) 80 hrs.

Capacité de la trémie *jusqu’à 170lbs. (77kg)

Taille du conduit de fumée 3 po ou 4 po

Spécications Électriques

Note électrique 110-120 volts, 60 HZ, 30 Amps

Watts (opérationnel) 175 (approx.)

Watts (allumeur en marche) 425 (approx.)

Dimensions

Hauteur x Largeur x Profondeur 40 po (1003 mm) x 26 po (660 mm) x 30 po (762 mm)

Du sol au centre du tuyau d’échappement 6,28 po (160 mm)

Du sol au centre d’admission d’air frais 7,34 po (187 mm)

Pour le service client, veuillez appeler:

1-800-750-2723 poste 5050 ou;

Texte au 423-301-5624 ou;

Écrivez-nous à:

customerservice@usstove.com

Remarque: Enregistrez votre produit en utilisant votre

téléphone intelligent avec le code QR. Conservez vos

reçus avec vos dossiers pour toute réclamation au titre de

la garantie.

Vous pouvez également enregistrer votre produit en

ligne sur www.usstove.com/support/product-registration

/ OU en téléchargeant l’application US Stove Company

disponible pour iOS et Android.

LISTE DE CONTRÔLE D’INSTALLATION

Votre poêle à bois ne doit être installé que par un installateur qualié. Un installateur qualié NFI est disponible à

l’adresse www.ncertied.org/public/nd-an-n-pro/

SERVICE CLIENTS

1-800-750-2723 poste 5050

Texte au 423-301-5624

E-mail à: customerservice@usstove.com

LISTE DE CONTRÔLE DE MISE EN SERVICE

Cette liste de contrôle doit être remplie intégralement par la personne qualiée qui installe cet appareil. Conservez

cette page pour référence future.

Le fait de ne pas installer et mettre en service selon les instructions du fabricant et de remplir cette liste de contrôle

annulera la garantie.

S’il te plaît imprime

Nom du client: Numéro de téléphone:

Adresse:

Modèle:

Numéro de série:

Nom de la société d’installation: Numéro de téléphone:

Nom du technicien d’installation: Numéro de licence:

DESCRIPTION DU TRAVAIL

Emplacement de l’appareil installé: ___________________________________________________________________________________________

Système de ventilation: nouveau système de ventilation

Oui Non Si oui, marque ____________________________________
