Fluke IRR1-SOL
Irradiance Meter
Users Manual
5237649, September 2020
© 2020 Fluke Corporation. All rights reserved.
Specications are subject to change without notice.
All product names are trademarks of their respective companies.
Introduction
The Fluke IRR1-SOL Irradiance Meter (the Meter) provides digital read-outs
related to photovoltaic (PV) panels. Measures and reads:

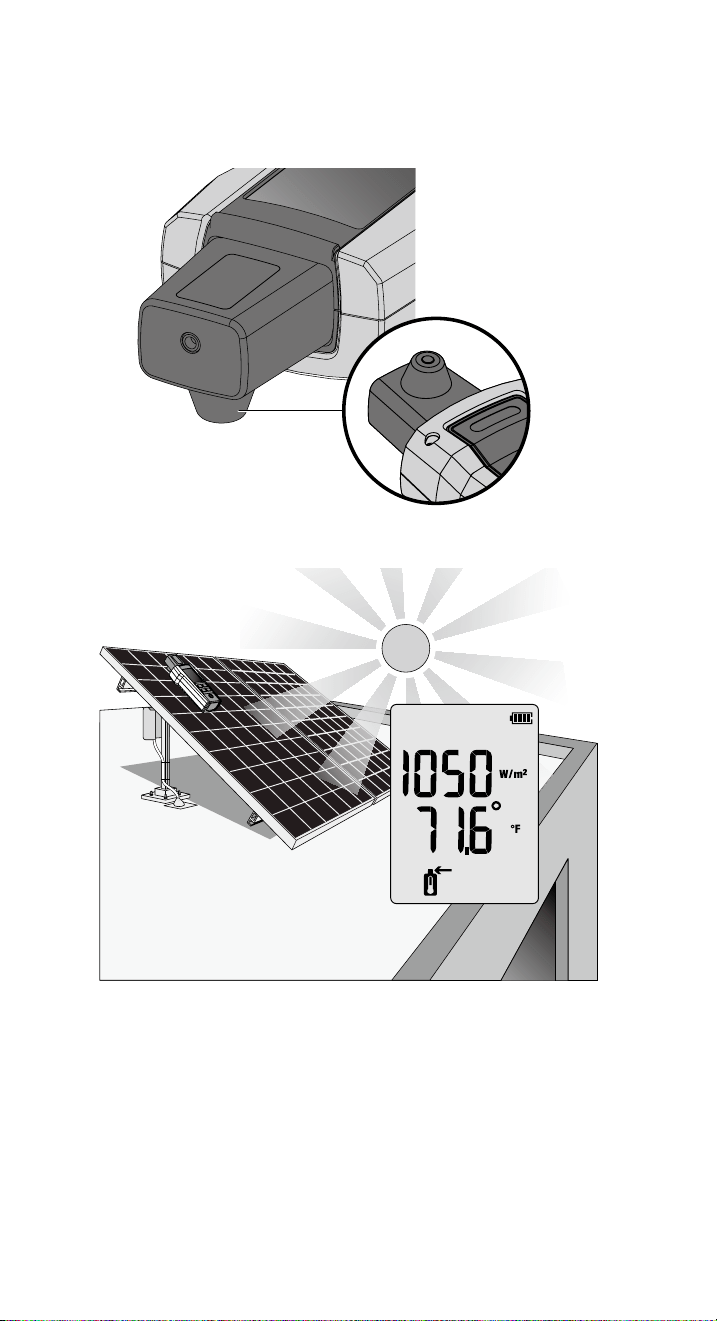

• Solar irradiation (W/m
2
) on the surface of a photovoltaic (PV) panel

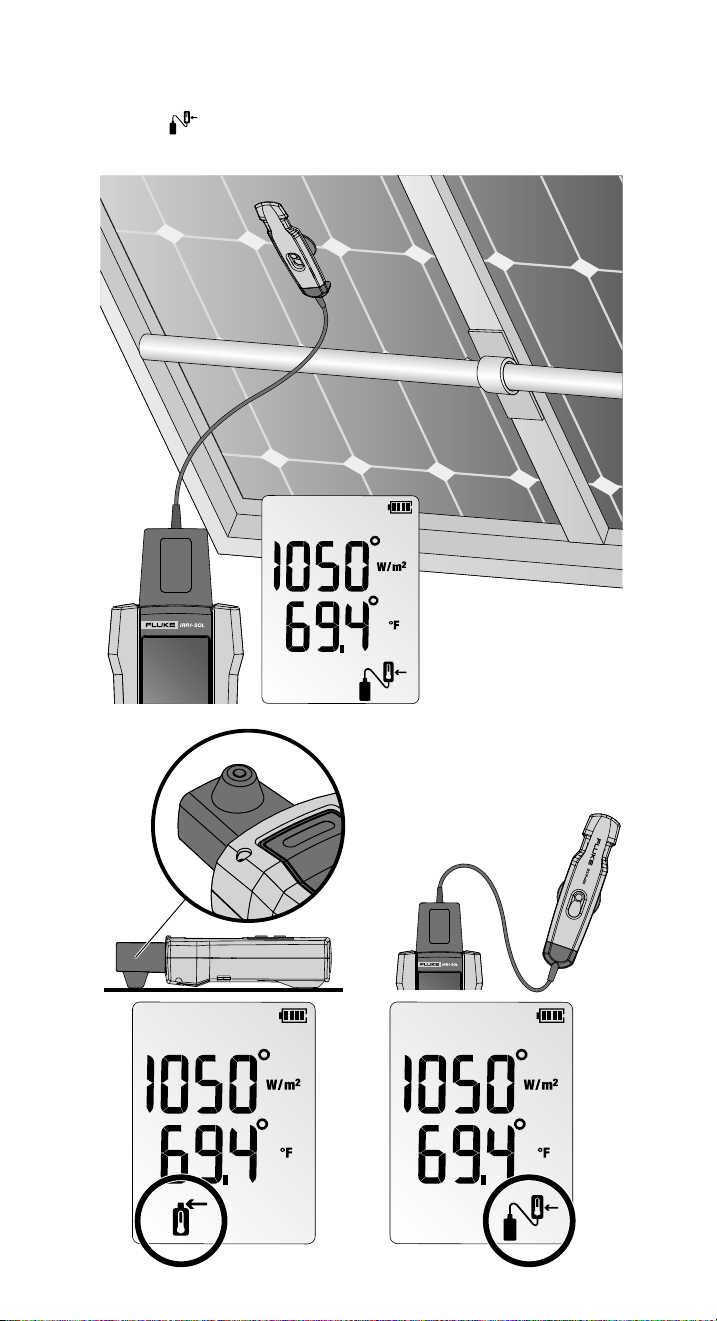

• Temperature (°F or °C) on the surface of a photovoltaic (PV) panel

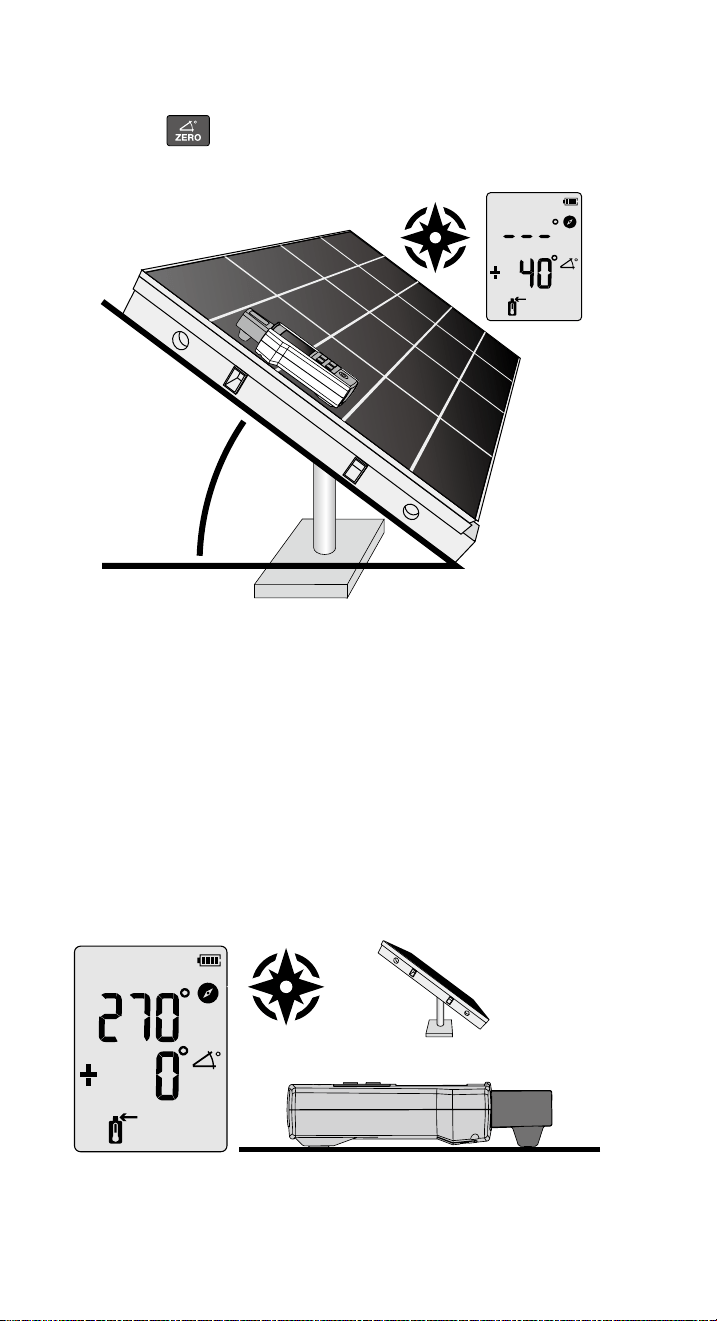

• Inclination (degrees) of a photovoltaic (PV) panel
• Cardinal degrees with the compass function
The read-outs provided by the Meter help determine optimum positioning of the
photovoltaic (PV) panel for best performance.
Kit Components
The product contains the following items:
1 FLK-IRR1-SOL/001 Solar Irradiance Meter
1 FLK-80PR-IRR External Temperature Probe with Suction Cup
1 C250 Carrying Case with Shoulder Strap

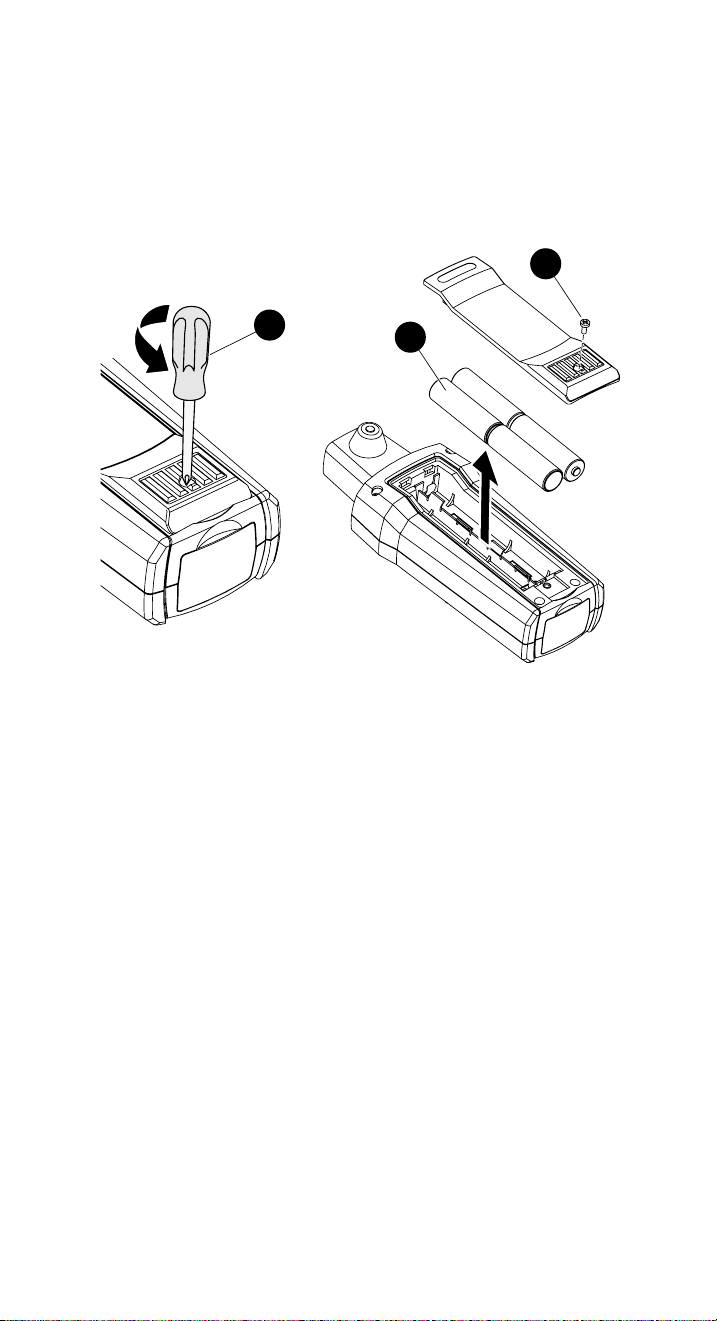

4 AA Alkaline Batteries
1 User Manual
