To receive news, exclusive deals, OTA or
firmware updates, warranty information and
more please register your product at
8
CONNECTION
alsupport@sakar.com
HYDRABLAST2.0
ITEM: IMW1302
QUICK START GUIDE
20
EVERYTHINGPROOF
Wireless Speaker
1.
1 HydraBlast2.0 EVERYTHINGPROOF Wireless Speaker
1 USB-C Charging Cable
1 Carabiner Clip
1 Mount
1 Quick Start Guide
IN T H E BOX
The speaker has a strong magnet on the bottom for mounting to
ferromagnetic metal surfaces such as on a fridge, ATV, golf cart etc.
There is also a ¼" threaded mounting insert on the bottom for
standard mounts. See website for details.
USB-C Charging Cable Carabiner Clip
Quick Start G uideMount
HydraBlast2.0 EVERYTHINGPRO OF
Wireless Speaker
A CLOS ER LOO K
Volume Down/Previous Track
Reset
USB-C Charging
Port
Power/Play/Pause Button
Volume Up/Next Track
Color Change Button
Link Button (Party Sync)
Answer/End Calls/Voice Assistant
LED Indicator Light
External USB Port
Qi charging
2.
Magnet for mounting to suitable metal surface
CH A RG I NG
3.
1. To charge the speaker, insert the USB-C end of the supplied
USB-A – C cable into the charging port on the right side.
2. Insert the USB-A end of the supplied cable into a suitable
USB-A charging port.
3. When charging the indicator LED will be red. When fully
charged the LED will turn off.
(red) = Charging
( off) = Charging Complete
(White) = Charging
Wireless Charging mode
Place a Qi compatible device on the wireless charging pad to charge it.
* Make sure that your device is positioned correctly on your charging pad.
* Make sure that there are no other objects on the charging pad.
* Make sure to remove any phone covers before using the wireless charging.
* When using Qi charging if the volume is >50% it will be automatically
reduced to 50% to conserve battery.
BLU E TO OTH PA I RI N G
4.
connected
AL HydraBlast 2.0
Bluetooth Connection:
Go to the Bluetooth page in the settings
app on your phone. Make sure Bluetooth
is ON before connecting to the available
device ‘AL HydraBlast 2.0 .’
Pairing Mode
Blue Flashing LED
Paired
Blue Solid LED
Once paired the speaker will
automatically reconnect to any
nearby paired devices the next
time it is turned on.
To disconnect a currently paired
device and connect another simply
either forget the speaker in your
Bluetooth Settings, turn off Bluetooth
on the connected phone/tablet or press
and hold the button on the speaker for 5S.
This will cause the speaker to drop the connection and go to
pairing mode.
PRESS & HOLD
2S
SP E AK ER CO NTR OL S
5.
Controlling Music
-
+
+
Volume Up
Volume Down
Play/Pause
Answer & End Call
SHORT PRESS
ON/OFF
Next Track
Previous Track
Reject Incoming Call
PRESS & HOLD 2S
-
MO R E CO N TR O LS
6.
Party Sync
Turn on the Primary speaker and connect it to
your Bluetooth compatible device as normal.
Start playing some music to this speaker.
Now short press its Link button. Its LED will
go green with very short flashes off indicating
it is broadcasting as the Party Primary.
Turn on the secondary speaker but don’t connect
anything to it just short press the Link button on
that speaker. It will be a Party Secondary and will
start looking for the Primary.
The Secondary will connect to the Primary and its
LED go solid green. They will now play in sync. You
can connect more secondarys by turning them on
and short pressing their Link buttons.
Note the Secondary LEDs return to Flashing Green if
playback is paused on the Primary (Party Sync is Idle).
To exit Party Sync short press the Link button on
each speaker you wish to disconnect.
Multi color light modes
Briefly press the button to cycle round the different light
modes. 11 modes are available:
1 . Fade between colors 7 . Fire mode vertical
2. Pulse to music, step changing 8. Fading colors left to right
color 9. Circle Rainbow color
3. Single color (use App to change) 10. Fire mode horizontal
4. Bargraph with color step from 1 1. Bargraph with color step from
right/bottom when hanging center
5. Circle and back and forth 12. Off
6. Bargraph with color step from bottom
Voice Assistant
Short press the button to activate Voice Assistant on the connected
phone/tablet.
Reset
A Reset will erase all settings. To perform a Reset, press & hold
the button for 10 seconds. The speaker will reset and power off.
PRESS & HOLD FOR 2S
AND PAIR AS USUAL
Primary
PRESS TO
TO ACTIVATE PRIMARY
Primary
PRESS TO
TO ACTIVATE SECONDARY
Secondary
Flashing G ree n = Secondary Co nne cting / Idle
Solid Gree n = Sec ondary Conne cte d /Playing

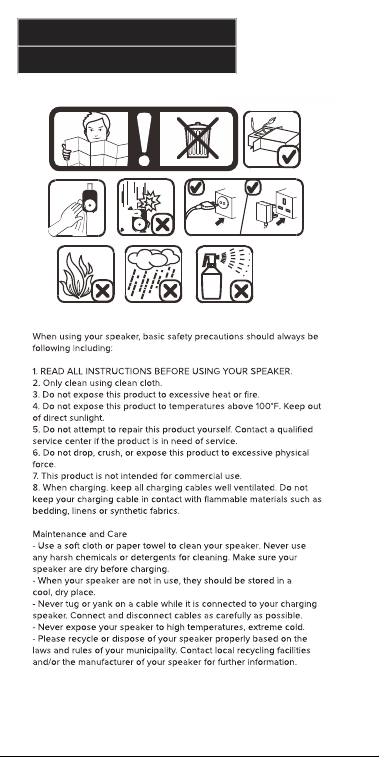

SA F ET Y PR EC AU T IONS
7.
SPECIFICATIONS
8.
Power input: 5V 2A
USB output : 5V 0.5A
Wireless output: 5W
Battery Type: Lithium-ion Battery
Play Time: Approximately 20 Hours*
(At 50% Volume position)
WARNING!
Sealing flap must be fully closed to maintain
waterproof rating.
FC C S TAT E ME NT
9.
Keep manual and all relevant
information for future reference.
Having trouble?
We’re here to help!
Call us 24/7 at 1-855-292-4087
Email us at alsupport@sakar.com or
visit us at alteclansing.com
FCC Statement
This equipment complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
( 1 ) This device may not cause harmful interference, and
(2) This device must accept any interference received, Including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for
help.
FCC Radiation Exposure Statement:
Bluetooth:
The device has been evaluated to meet general RF exposure
requirement.
The device can be used in the portable exposure condition without
restriction.
Wireless Charger:
The equipment complies with FCC Radiation exposure limits set
forth for uncontrolled environment.
This equipment should be installed and operated with minimum
distance 20cm between the radiator and your body.
Warning:
To assure continued compliance, any changes or modifications
not expressly approved by the party. Responsible for compliance
could void the user’s authority to operate this equipment.
WA R RAN TY CA RD
10.
This warranty covers the original consumer purchaser only and is not
transferable.
This warranty covers products that fail to function properly UNDER NORMAL
USAGE, due to defects in material or workmanship. Your product will be
repaired or replaced at no charge for parts or labor for a period of one year.
What Is Not Covered by Warranty:
Damages or malfunctions not resulting from defects in material or workmanship
and damages or malfunctions from other than normal use, including but limited
to, repair by unauthorized parties, tampering, modification or accident.
To Obtain Warranty Service and Troubleshooting Information:
Call 1-855-292-4087, email alsupport@sakar.com, or visit our website at
www.alteclansing.com.
To receive Warranty service along with the name and address of an authorized
product service center, the original consumer purchaser must contact us for
problem determination and service procedures. Proof of purchase in the form of
a bill of sale or receipted invoice, evidencing that the Product is within the
applicable Warranty period(s), MUST be presented in order to obtain the
requested service. It is your responsibility to properly package and send any
defective products along with a dated copy of proof of purchase, a written
explanation of the problem, and a valid return address to the authorized service
center at your expense. Do not include any other items or accessories with the
defective product. Any products received by the authorized service center that
are not covered by warranty will be returned unrepaired.
NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT
LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE, OTHER THAN THOSE EXPRESSLY DESCRIBED
ABOVE SHALL APPLY. DISTRIBUTOR FURTHER DISCLAIMS ALL WARRANTIES
AFTER THE EXPRESS WARRANTY PERIOD STATED ABOVE. NO OTHER
EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR
ENTITY WITH RESPECT TO THE PRODUCT SHALL BE BINDING ON
DISTRIBUTOR. REPAIR, REPLACEMENT, OR REFUND OF THE ORIGINAL
PURCHASE PRICE - AT DISTRIBUTOR’S SOLE DISCRETION -ARE THE
EXCLUSIVE REMEDIES OF THE CONSUMER. IN NO EVENT WILL DISTRIBUTOR,
ITS MANUFACTURERS, OR SAKAR INT. BE LIABLE FOR ANY INCIDENTAL,
DIRECT, INDIRECT, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES
(SUCH AS, BUT NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS,
BUSINESS, SAVINGS, DATA OR RECORDS) CAUSED BY THE USE, MISUSE OR
INABILITY TO USE THE PRODUCT. EXCEPT AS STATED HEREIN, NO OTHER
WARRANTIES SHALL APPLY. NOTWITHSTANDING THE FOREGOING,
CONSUMER’S RECOVERY AGAINST DISTRIBUTOR SHALL NOT EXCEED THE
PURCHASE PRICE OF THE PRODUCT SOLD BY DISTRIBUTOR. THIS
WARRANTY SHALL NOT EXTEND TO ANYONE OTHER THAN THE ORIGINAL
CONSUMER WHO PURCHASED THE PRODUCT AND IS NOT TRANSFERABLE.
Some countries, states or provinces do not allow the exclusion or limitation of
incidental or consequential damages or allow limitations on warranties, so
limitation or exclusions may not apply to you. This warranty gives you specific
legal rights, and you may have other rights that vary from state to state or
province to province. Contact your authorized retailer to determine if another
warranty applies. This product is manufactured, distributed and sold by SAKAR
International, Inc. All other trademarks are the property of the respective owner,
who has not sponsored, endorsed or approved this product.
WA R RAN TY
10.
The Bluetooth® word mark and logos are registered trademarks owned by
license. Other trademarks and trade names are those of their respective
owners.
Altec Lansing
195 Carter Drive
Edison, NJ 08817
IMW1302V-240202
