PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance and
its accessible parts become
very hot. Keep children well
away from the appliance.
• Protect hands with heat resistant
gloves during use.
• Never try to put out a fire or
flames with water: Turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may only be
used by children aged 8 years
and over, and by people of
reduced physical, sensory or
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
• Children must not play with the
appliance.
• Keep children under the age of
eight at a safe distance unless
they are constantly supervised.
• Keep children under the age of
8 away from the appliance
when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• Be aware of how rapidly the
cooking zones heat up. Do not
place empty pans on the heat.
Danger of overheating.
• Activate the controls lock when
you have children or pets which
PRECAUTIONS - 2391477A401/A
e
could reach the hob.
• Do not touch or clean the hob
surface during operation or
when the residual heat
indicator lights are still on.
• After use, switch off the plates.
Never rely solely on the
cookware detector.
• Supervise children carefully as
they cannot readily see the
residual heat indication. After
use the cooking zones remain
hot for a certain period of time
even if they have been turned
off. Keep children away from
the cooking zones.
• The cooking process must
always kept under control. A
short cooking process must be
continuously monitored.
• WARNING: Cooking foods
containing fat and/or oil
without monitoring them can be
dangerous and can cause a
fire.
• Fats and oils can catch fire if
they overheat. Do not leave the
appliance unattended while
preparing foods containing oils
or fats. If fats or oils catch fire,
never put water on them. Place
the lid on the pan and turn off
the relevant cooking zone.
• Do not use the Booster and/or
the Double Booster functions (if
present) to heat fats or oils. Fire
hazard.
• Do not place metal objects,
such as dishes or cutlery, on the
surface of the hob during
cooking as they may overheat.
• Do not cook foods in closed
tins or containers or plastic
containers.
• Do not use magnetic tins.
• Do not use trivets or other items
between the bottom of the pan
and the glass ceramic surface.
Danger of burns.
• Do not insert pointed metal
objects (cutlery or utensils) into
the slots in the appliance.
• Do not use or store flammable
materials near the appliance or
directly underneath the hob.
• Switch off the appliance
immediately after use.
• Do not pull the cable to unplug
the appliance (if present).
• DO NOT USE AEROSOLS IN
THE VICINITY OF THIS
APPLIANCE WHILST IT IS IN
USE.
• DO NOT MODIFY THIS
APPLIANCE.
• Always wear personal
protective equipment (PPE)
before carrying out any work
on the appliance (installation,
maintenance, positioning or
moving).
• Do not clean the appliance if it
is still hot or in operation.
• After use the cooking zones
remain hot for a certain period
of time after they have been
turned off. Do not touch the hob
surfaces.
24 - PRECAUTIONS 91477A401/A
• Before performing any work on
the appliance, switch off the
power supply.
• Do not try to repair the
appliance yourself or without
the assistance of a qualified
technician.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• If cracks or fissures form, or if
the glass ceramic cooking
surface breaks, turn off the
appliance immediately.
Disconnect the power supply
and call Technical Support.
• People who have pacemakers
or other similar devices fitted
must make sure that the
operation of these devices is
not affected by the induction
field, the frequency range of
which is between 20 and 50
kHz.
• In conformity with the provisions
regarding electromagnetic
compatibility, the
electromagnetic induction
cooking hob comes under
group 2 and class B (EN
55011).
Risk of damaging the appliance
• Do not use abrasive or
corrosive detergents (e.g.
scouring powders, stain
removers and metallic
sponges) on glass parts.
• Use wooden or plastic utensils.
• Do not sit on the appliance.
• Do not use the glass ceramic
cooking surface as a support
surface.
• Do not use the appliance as a
support surface.
• Do not obstruct ventilation
openings and heat dispersal
slots.
• Do not use the hob if the
pyrolytic cycle is taking place
inside any oven installed
below.
• Do not use steam jets to clean
the appliance.
• Never leave the appliance
unattended during cooking
operations where fats or oils
could be released, as these
could then heat up and catch
fire. Be very careful.
• Fire hazard: Never leave
objects on the cooking
surfaces.
• DO NOT FOR ANY REASON
USE THE APPLIANCE AS A
SPACE HEATER.
• Cooking vessels or griddle
plates should be placed inside
the perimeter of the hob.
• All pans must have smooth, flat
bottoms.
• If any liquid does boil over or
spill, remove the excess from
the hob.
• Take care not to spill acid
substances such as lemon juice
PRECAUTIONS - 2591477A401/A
e
or vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt or
catch fire (paper, plastic or
aluminium foil) on the
appliance while it is in use.
• Place the cookware directly on
the glass ceramic surface.
• Do not put empty pans or frying
pans on switched on cooking
zones.
• Do not use rough or abrasive
materials or sharp metal
scrapers.
• The glass ceramic surface is
highly resistant to impact.
However, prevent hard, solid
objects from falling on the
cooking surface as they may
cause it to break.
• Do not use cleaning products
containing chlorine, ammonia
or bleach on parts made of
steel or that have metallic
surface finishes (e.g. anodizing,
nickel- or chromium-plating).
• This appliance is not intended
to be operated by means of
external timer or separate
remote control system.
• To prevent scratching the glass
surface, avoid sliding pots
across it. Lift them and place
them gently where needed
instead.
Installation
• THIS APPLIANCE MUST NOT
BE INSTALLED IN BOATS OR
CARAVANS.
• This appliance must not be
installed on a dishwasher.
• Position the appliance into the
cabinet cut-out with the help of
a second person.
• Check that the carcase has the
required openings.
• Check that the carcase material
is heat resistant.
• Installation and servicing should
be carried out by qualified
personnel in accordance with
current standards.
• Have the electrical connection
performed by authorised
technical personnel.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables that can withstand
temperatures of at least 90°C.
• Run the power cable in the rear
part of the unit. Make sure that
it does not come into contact
with the lower part of the hob
or a built-in oven below it.
• Be careful when connecting
additional electrical
appliances. Connection cables
must not come into contact with
hot cooking zones.
• The tightening torque of the
screws of the terminal supply
wires must be 1.2 - 1.5 Nm.
26 - PRECAUTIONS 91477A401/A
• Do not attach the appliance
too tightly to the unit as this
could cause damage during
use or partially obstruct the heat
dispersal slots.
• The power cable must only be
installed or replaced by a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to arrange
for it to be replaced in order to
avoid possible hazards.
• Always use any necessary/
required personal protective
equipment (PPE) before
performing any work on the
appliance (installation,
maintenance, positioning or
movement).
• Before performing any work on
the appliance, switch off the
power supply.
• Allow the appliance to be
disconnected after installation,
via an accessible plug or a
switch in the case of a fixed
connection.
• Fit the power line with an all-
pole circuit breaker with a
contact separation distance
sufficient to provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• If the electrical supply is
restricted, means of all-pole
disconnection must be
accessible and incorporated in
the fixed wiring in accordance
with the wiring rules.
• This appliance can be used up
to a maximum altitude of 2,000
metres above sea level.
• Do not set the hob at a power
higher than that supported by
the electrical system.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use is
considered inappropriate. It
cannot be used:
• in employee kitchens, shops,
offices and other working
environments.
• in farms/farmhouses.
• by guests in hotels, motels and
residential environments.
• In bed and breakfast
accommodation.
This user manual
• This user manual is an integral part of the
appliance and must therefore be kept in its
entirety and within the user's reach for the
whole working life of the appliance.
• Read this user manual carefully before using
the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it should
be kept in mind that the appliance may be
equipped with an updated version of the
system, and as such, all that appears on the
display may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in the
PRECAUTIONS - 2791477A401/A
e
user manual;
• tampering with any part of the appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical data,
serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances in
quantities sufficient to be considered hazardous
to health and the environment, in accordance
with current European directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and electronic
equipment waste, or return it to the retailer
when purchasing an equivalent product, on
a one for one basis.
Our appliances are packaged in non-polluting
and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
To save energy
• The diameter of the base of the pan must not
extend beyond the lines printed on the glass
ceramic surface.
• Pans must not be placed outside the
perimeter of the hob or on the display.
• When buying a pan, check whether the
diameter indicated is that of the base or the
top of the pan, as the top is almost always
larger than the base.
• When preparing dishes with long cooking
times, you can save time and energy by
using a pressure cooker, which also helps to
retain vitamins contained in the food.
• Make sure that the pressure cooker contains
enough liquid as, if there is not enough and
it overheats, this may cause damage to both
the pressure cooker and the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity of
food to be cooked. A large, half-empty
saucepan leads to a waste of energy.
Information on power consumption in
off/stand-by mode
Technical data on the appliance's power
consumption in off/stand-by mode can be
found at www.smeg.com under the page
corresponding to the product in question.
How to read the user manual
This user manual uses the following reading
conventions:
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part of it
unattended.
• Do not let children play with the plastic
bags.
Under certain circumstances, if the hob
and the oven are used at the same time,
the maximum power limit of the
electrical system might be exceeded.
Warning/Caution
Information/Advice
28 - DESCRIPTION 91477A401/A
DESCRIPTION
General description
1 Left cooking zone
2 Rear right cooking zone
3 Front right cooking zone
4 Control panel
*Power levels are approximate and may vary according to the pan used or the settings made.
Control panel
1 Timer key
2 Cooking zone buttons
3 Pause function button
4 Warm function button
5 Control lock button
6 On/Off button
22
11
33
44
Zone
Dimensions H x L
(mm)
Pan Ø
minimum (mm)
Pan Ø
recommended
(mm)
Max. power draw
(W)*
Power draw in boo-
ster function (W) *
1 280 x 280 110 280 2700 3600
2 210 x 210 110 210 1500 2000
3 145 x 145 90 145 1200 1600
5
12
3
4
6
USE - 2991477A401/A
e
Advantages of induction cooking
• Energy saving thanks to the direct
transmission of energy to the pan (suitable
magnetisable cookware is required)
compared to traditional electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the hob.
• High level of energy transmitted from the
induction cooking zone to the base of the
pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of the
pan; foods which overflow do not stick.
Power control
The hob is fitted with a power control module
that optimises/limits consumption. If the overall
set power level exceeds the maximum limit
permitted, the electronic circuit board will
automatically manage the power supplied by
the hot plates. The module tries to maintain the
maximum deliverable power levels. If the
symbol appears it indicates that it is no longer
possible to increase the power level for a
specific cooking zone.
USE
Preliminary operations
• Remove any protective film from the outside
or inside of the appliance, including any
accessories (if present).
• Remove any labels (apart from the technical
data plate).
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with magnetic
properties and a sufficiently large base.
Suitable cookware:
• Enamelled steel cookware with thick bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel, ferritic
stainless steel and aluminium with a special
base.
Unsuitable cookware:
• Copper, stainless steel, aluminium, fireproof
glass, wood, ceramic and terracotta
cookware.
Basic functions
First power connection
At the first power connection or after power has
been switched back on after a power failure, an
automatic control is carried out. This control turns
on the indicator lights and the displays for a few
seconds. After that, the controls lock function is
activated automatically, signalled by the lighting
up of controls lock indicator light. Press the
button for at least 2 seconds to switch on the
appliance.
Switching on and off
Press the button to turn the appliance on. To
turn off the appliance, press the button until
three beeps sound.
Using the hob
Switching the cooking zones on
After switching on the appliance:
1. Position a pan (suitable for induction
cooking and not empty) on the cooking
zone you wish to use.
The appliance is equipped with an
induction generator for each cooking
zone. Each generator located under the
glass ceramic cooking surface creates
an electromagnetic field which induces
a thermal current in the base of the pan.
This means the heat is no longer
transmitted from the hob to the pan but
created directly inside the pan by the
inductive current.
Priority is given to the first zone that is set
in chronological order.
The power control module does not
affect the total power consumption of
the appliance.
See General safety instructions.
30 - USE 91477A401/A
2. Select the zone by pressing the
corresponding or button.
Adjusting the cooking zones
After selecting a cooking zone, use the
and buttons to scroll through the power
levels. Press and hold these buttons for fast
scrolling. The display of the zone being used
will indicate the selected power level.
Switching the cooking zones off
To switch off one zone:
1. Select it by pressing the or button.
2. Use buttons and until the level is
set .
Pan detection indication
Once a zone has been activated / selected, if
the symbol appears on the display, it means
the pan is unsuitable.
The symbol is also displayed if there is no
pan present or if it is removed.
Object on the hob indicator
With the hob on, when any object is placed on
the control panel for more than 10 seconds, or if
dirt or water is present:
• If only one button detects the object, the
symbols and appear alternately.
• If more than one button detects the object,
the symbols and appear
alternately.
After 10 seconds, if the objects are not
removed, the appliance automatically switches
off.
Summary table of power levels
The power can be adjusted to various levels.
The table below shows the levels suitable for
various types of cooking.
Booster function
The Booster function allows you to heat a pan at
maximum power for a limited amount of time. It
can be used to bring a large amount of water to
the boil rapidly.
After selecting a zone:
1. Set the power level to 9.
2. Press the button again; the symbol
will be shown on the display.
To deactivate the Booster function, simply
decrease the power level of the cooking zone
or switch off the appliance.
To switch off all of the cooking zones at
the same time, simply switch the
appliance off using the button.
Intermediate power levels (1.5, 2.5 and
3.5) are indicated by an LED that lights
up near the value of the zone being set
(eg. corresponds to 1.5).
Use only cookware with a perfectly flat
bottom which is suitable for induction
hot plates. Using pans with an irregular
bottom could
jeopardise the efficiency of the heating
system and prevent the pan from being
detected on the hot plate.
Make sure that the pans do not cover
the control panel.
A beep will sound every 30 seconds.
Power level Suitable for:
0 OFF position
1, 1.5, 2, 2.5
Cooking small quantities of food
(minimum power)
3, 3.5, 4 Cooking
5, 6
Cooking large quantities of food,
roasting larger portions
7, 8 Roasting, slow frying with flour
9 Roasting
P
Bringing large quantities of water to
a boil (maximum power, see “Boo-
ster function”)
See General safety instructions.
The Booster function remains active for
a maximum of 10 minutes, after which
the power level of the zone returns to 9.
USE - 3191477A401/A
e
Timed cooking
This function is used to program the automatic
switch-off of each cooking zone at the end of a
period of time set by the user.
1. Place a pan on a cooking zone and select
a zone power level.
2. Use the and buttons above the text
to select the desired time.
• Above the text the flashing symbol
is displayed.
• An LED starts flashing depending on which
zone has been selected.
3. Once the required time has been set, timed
cooking starts. 5 seconds after the last
button was pressed, the timer setting is
deselected and the previously selected
zone is no longer selected.
4. The display stops flashing.
5. When the time has elapsed, the selected
zone switches off and its display shows the
symbol alternating with the symbol.
The timer display shows the flashing
symbol and the LED pertaining to the
previously selected zone flashes
.
Deactivating timed cooking
To deactivate timed cooking, select the relevant
zone and press the timer buttons and
together.
Autonomous timer
This function is used to set a timer which will
sound a buzzer at the end of the set time. It does
not stop the operation of the cooking zones but
rather informs the user when the set minutes have
run out.
After having switched on the hob, without
having selected any zone:
1. Press the or button above the
message
2. The timer display shows .
3. Use the and buttons to select the
desired time; press and hold the buttons for
fast forward.
Modifying and deactivating the minute
minder timer
Use the and buttons to change the
countdown or to reset the timer. Resetting the
timer results in its deactivation.
Controls lock
This is useful when cleaning the appliance and
to prevent functions being modified by mistake.
To activate the controls Lock:
This function cannot be set together with
the minute minder timer.
A maximum of 1 hours and 39 minutes
can be set for the timer.
At the end of the function, a beep
lasting 1 minute sounds; to stop it, press
any button on the hob.
• This function can be activated on
multiple cooking zones at the same
time.
• For faster increase/decrease, hold
down the or button.
• If the button is pressed with a
timer value of “0”, the value “99” is
automatically set. If the button is
pressed with a timer value of “99”,
the value “0” is automatically set.
If more than one timed cooking is set,
the LED of the one that finishes first
flashes.
The timer can be set from 1 minute to 99
minutes.
Using the minute minder does not
stop the operation of the cooking zones
but rather informs the user when the set
minutes have run out.
This feature is designed to lock all the
hob controls.
It is always active when the hob is
switched on.
It locks all buttons apart from this one
and the ON/OFF button.
32 - USE 91477A401/A
1. Press the button for at least one
second.
2. The LED on the display lights up to indicate
that the function has been activated.
To disable the Controls lock, press the
button for at least one second.
Pause function
This function pauses the operation of all the
cooking zones, including any timers.
To activate the Pause function:
1. With at least one cooking zone active, press
the button.
2. A beep signals the start of the function.
3. Animation of the symbol appears on the
displays of all cooking zones and the LED
starts flashing.
4. All buttons will be locked.
To deactivate the Pause function:
1. Press the button.
2. A beep will signal the end of the function.
3. The Pause function has now been
deactivated and the previously set functions
are restored.
Rapid heating
This function allows you to quickly heat the pan
and thus the food for a short period of time.
After selecting a cooking zone and setting the
power level:
1. Hold down the and button in the
desired zone for a few seconds.
2. The zone display shows the symbol
alternating with the selected power level.
3. After the heating time has elapsed, the
cooking zone reverts to the previously
selected power level.
This function can be deactivated by selecting a
lower power level to that set previously or by
switching off the appliance.
Keep warm
To activate the keep warm function, after
selecting a zone, press the button, the
symbol appears.
To deactivate the function:
• After selecting a zone, press the or
button, the zone power is set to 1.
• Press the button, the zone power is set
to 1.
• Switch off the appliance.
When the function is active, pressing
any
button will cause the controls lock
button to flash to indicate that the
controls
lock function is active.
The Pause function can be maintained
for a maximum of 10 minutes, after
which the appliance switches off.
During the pause function, only the
ON/OFF button or the pause button
can be pressed.
This function is not available for the
Booster function or if the power set is 0
or 9.
When the function is active, if the power
of the selected zone is increased, the
rapid heating time is updated
according to the level set (see table
below).
Power level
Rapid preheating time
(seconds)
0 Not available
140
1.5 60
270
2.5 100
3 120
3.5 150
4 180
5 260
6 430
7 120
8 195
9 Not available
P Not available
This function allows you to keep food
warm at the desired temperature.
CLEANING AND MAINTENANCE - 3391477A401/A
e
Safety functions
Limiting the cooking duration
The appliance has an automatic device which
limits the duration of use.
If the cooking zone settings of the pan are not
changed, the maximum duration of operation
depends on the power level selected.
When the time limitation device is activated, the
heating of the pan is switched off.
Residual heat indicator
When switching off the cooking zones, if they
have a temperature above a certain safety
threshold, the symbol will appear on the
relevant display. When the temperature falls
below this threshold, the symbol
disappears.
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble cooling
down if the room temperature is high.
When certain safety thresholds are reached,
one or more cooking zones are switched off. If
the internal temperature is very high, the
appliance automatically switches off.
Error warnings
In the event of a malfunction or abnormal
operation, the display shows a message
containing the code associated with the error.
Error codes always begin with the letter “F”
followed by a digit or letter (e.g. “Ft or F4”).
Errors coded as:
•“Fc”
•“Ft”
•“FE”
Indicate an overheating of the appliance or part
of it, so the appliance must be switched off
immediately, all pans removed and allowed to
cool down.
If these errors persist or different ones are
displayed, the code should be noted and the
Technical Support should be contacted.
CLEANING AND MAINTENANCE
Cleaning the glass ceramic hob
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let them
cool first.
Ordinary daily cleaning
Always and only use specific products that do
not contain abrasives or chlorine-based acids.
Pour the product onto a damp cloth and wipe
the surface, rinse thoroughly and dry with a soft
cloth or a microfibre cloth.
Weekly cleaning
Clean and maintain the hob once a week using
an ordinary glass ceramic cleaning product.
Always follow the manufacturer’s instructions.
The silicon in these products creates a
protective, water-repellent membrane which
See General safety instructions.
Power level
Maximum cooking duration
(hours)
110
1.5 5
25
2.5 5
35
3.5 4
44
53
62
72
82
91.5
Residual heat indicators are not to be
considered as error codes.
See General safety instructions.
In case of stubborn dirt, clean when
cold using a damp kitchen sponge and
neutral detergent; then dry with a
microfibre cloth.
34 - INSTALLATION 91477A401/A
also resists dirt. All marks stay on the membrane
and can therefore be removed easily. After
cleaning, dry the surface with a clean cloth.
Make sure that there is no detergent left on the
cooking surface as it might undergo an
aggressive reaction when heated up and could
modify the structure of the cooking surface.
Food stains or residues
Light coloured marks from pans with aluminium
bases can be easily cleaned off with a cloth
moistened in vinegar. Remove any burnt-on
residues after cooking; then rinse with water and
dry thoroughly with a clean cloth. Dirt, which
may have fallen on the hob while cleaning
lettuce or potatoes, can scratch the hob when
moving pans. Consequently, remove any dirt
from the cooking surface immediately. Changes
in colour do not affect the operation and
stability of the glass. These are not alterations to
the material of the hob but just residues which
have not been removed and have then
carbonised. Shiny surfaces can form due to the
bases of pans, especially aluminium ones,
rubbing on the surface, and due to the use of
unsuitable detergents. They are difficult to
remove using conventional cleaning products. It
may be necessary to repeat the cleaning
process several times. Use of corrosive
detergents or rubbing of pan bases can wear
away the decoration on the hob over time and
contribute to the formation of stains.
What to do if...
The hob does not work:
• Make sure that the hob is connected and
that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown. In
this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not tripped.
In this case, reset the circuit breaker.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature is
not too high or too low.
• Make sure that the hob is properly
ventilated and that the air inlets are
unobstructed.
• Use cookware that is certified and tested for
induction cooking.
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled out
of the pan and use a larger cooking vessel,
if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and contact
Technical Support.
INSTALLATION
Electrical connection
General information
Check the mains characteristics against the data
indicated on the plate.
The identification plate bearing the technical
data, serial number and brand name is visibly
positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer than
the other wires.
The appliance can work in the following modes:
We recommend the use of cleaning
products distributed by the
manufacturer.
After cleaning, dry the appliance
thoroughly to prevent any water or
detergent from interfering with its
operation or creating unsightly marks.
See General safety instructions.
380-415 V 3N~
5 x 2.5 mm ²
five-core cable
1 2
INSTALLATION - 3591477A401/A
e
The diagram below illustrates the power supply
terminal from below, with no cables connected.
Fixed connection
Fit the power line with an all-pole circuit breaker
with a contact separation distance sufficient to
provide complete disconnection in category III
overvoltage conditions, pursuant to installation
regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
Power limitation menu
The following procedure allows access to the
menu to change the appliance’s power output.
1. Hold down the button to unlock the
commands.
2. Press buttons and at the same time,
above the word and button .
A buzzer will sound and the display will show
.
The power is now shown on the displays, the
number on the left indicates thousands of watts
while the number on the right shows hundreds
(Eg. 2.8 corresponds to 2800).
3. Use buttons and to change the
value.
To exit from the menu and save the new settings:
4. Press buttons and at the same time,
above the word and button .
If everything has been completed successfully,
the device restarts, LEDs appear on all the
buttons on the hob; it can now be used as
normal but with the power limitation set.
If no buttons are pressed within a time limit, the
220-240 V 1N~
3 x 4 mm ²
three-core cable
The values indicated refer to the cross-
section of the internal lead.
The power cables are sized taking into
account the coincidence factor (in
compliance with standard EN 60335-
2-6).
Use the supplied jumper for each
connection, if any
1
• By default, the appliance is limited
to 7.2 kW.
• Once a limitation is set, if it is
exceeded, a sound is emitted and
the zone display shows the symbol
alternating with the maximum
level that can be set.
The limitation can only be set during the
first 30 seconds after switching on the
appliance.
The command lock function must be
deactivated.
36 - INSTALLATION 91477A401/A
settings are not saved.
Section cut from the countertop
Safety instructions for positioning and
installation
• Installation can be carried out on various
materials such as masonry, metal, solid
wood or plastic laminated wood as long as
they are heat resistant (>90°C).
• Veneers, adhesives or plastic coatings on
adjacent furniture should be temperature-
resistant (>90°C), otherwise they might
warp over time.
• If the piece of furniture does not have the
required recess opening, either it will have
to be cut or masonry work carried out by a
competent technician.
• The minimum clearance between exhaust
hoods and the cooking surface must be at
least the distance indicated in the exhaust
hood installation instructions.
• The minimum clearances must also be
respected for the edges of the hob on the
back as indicated in the assembly
instructions.
• If the appliance is to be installed above an
oven, the oven must be fitted with a cooling
fan.

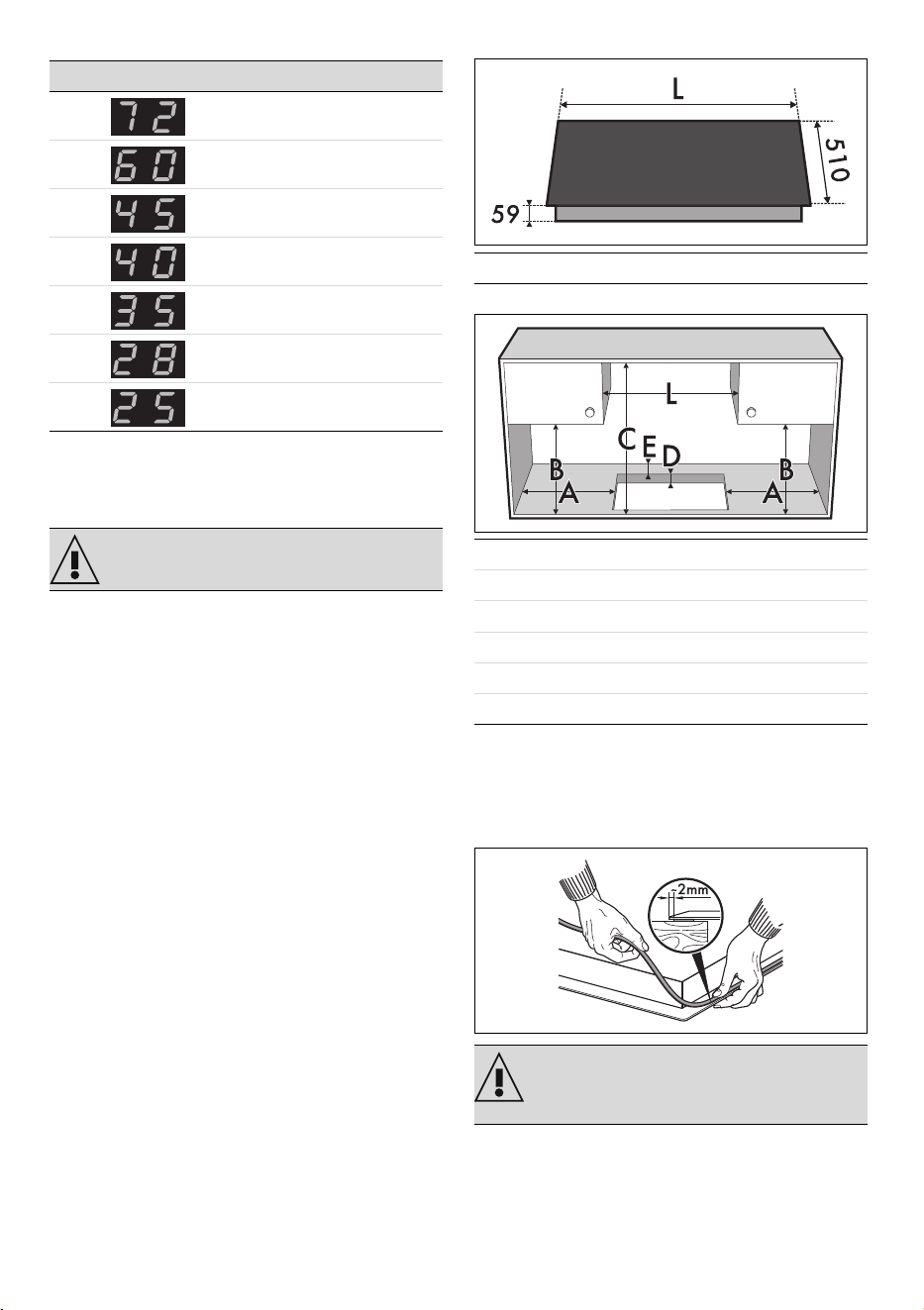

Appliance overall dimensions (mm)
Built-in cabinet dimensions (mm)
Hob seal

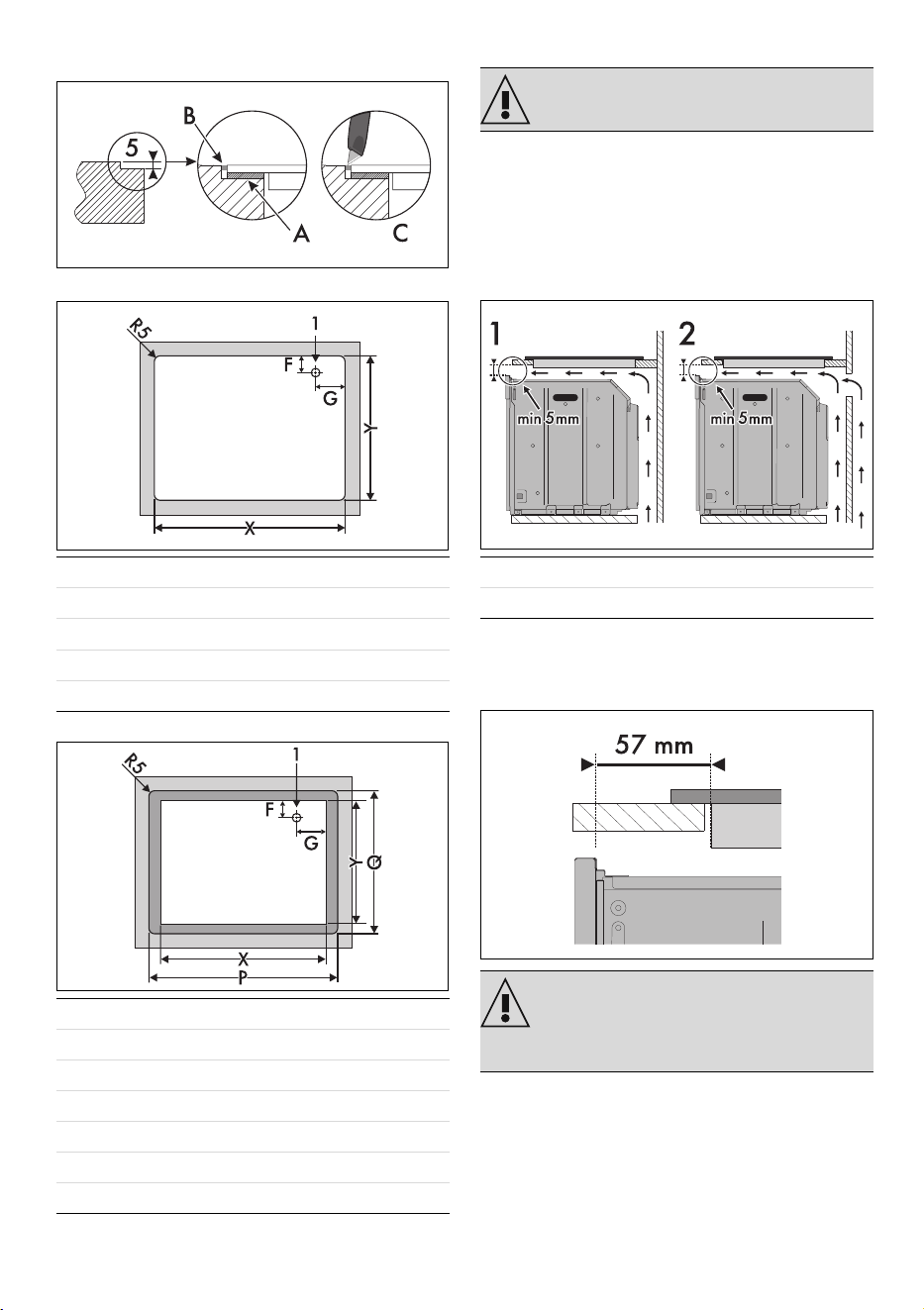

To prevent leakage of liquid between the frame
of the hob and the countertop, place the
adhesive seal provided along the entire outer
edge of the hob before assembly.
In the case of flush mounting, after placing the
adhesive seal (A) on the glass surface and after
positioning and securing the hob, fill the edges
with insulating silicone (B) and wipe off any
excess. If for any reason the hob needs to be
Power display Power in kW
7.2
6.0
4.5
4.0
3.5
2.8
2.5
See General safety instructions.
L 600
Amin. 50
B min. 460
C min. 750
D 30 - 50
Emin. 50
L min. 600
Do not use silicone to secure the hob.
This would make it impossible to remove
the hob without damaging it.
INSTALLATION - 3791477A401/A
e
removed, cut the silicone using a cutter before
attempting to remove it (C).
Semi-flush mounting (mm)
Flush Mounting (mm)
Mounting
Over built-in oven unit
The clearance between the hob and the kitchen
units or other built-in appliances must be enough
to ensure sufficient ventilation and air discharge.
If installed above an oven, a space must be left
between the bottom of the hob and the top of
the appliance installed below.
It is also necessary to maintain a distance of
approximately 57 mm from the front panel of the
oven to the front of the appliance, as shown in
the figure below.
On an empty kitchen
If there are other pieces of furniture under the
hob, a double-layer wooden base must be
installed at least 20 mm from the bottom of the
hob to avoid any accidental contact. It must
only be possible to remove the double-layer
X 555 - 560
Y 478 - 482
F88
G317
1 Electrical connection
X 555 - 560
Y482
P603
Q513
F88
G317
1 Electrical connection
See General safety instructions.
1 Opens on bottom
2 Opens on bottom and back
To ensure proper ventilation, a space of
at least 20 mm must be left between the
bottom of the hob and the oven
underneath.
38 - INSTALLATION 91477A401/A
base using suitable equipment.
Fastening to the built-in cabinet
It has to be secured to the cabinet using front
and back screws:
1. Remove the screws from the holes indicated
in the figure below.

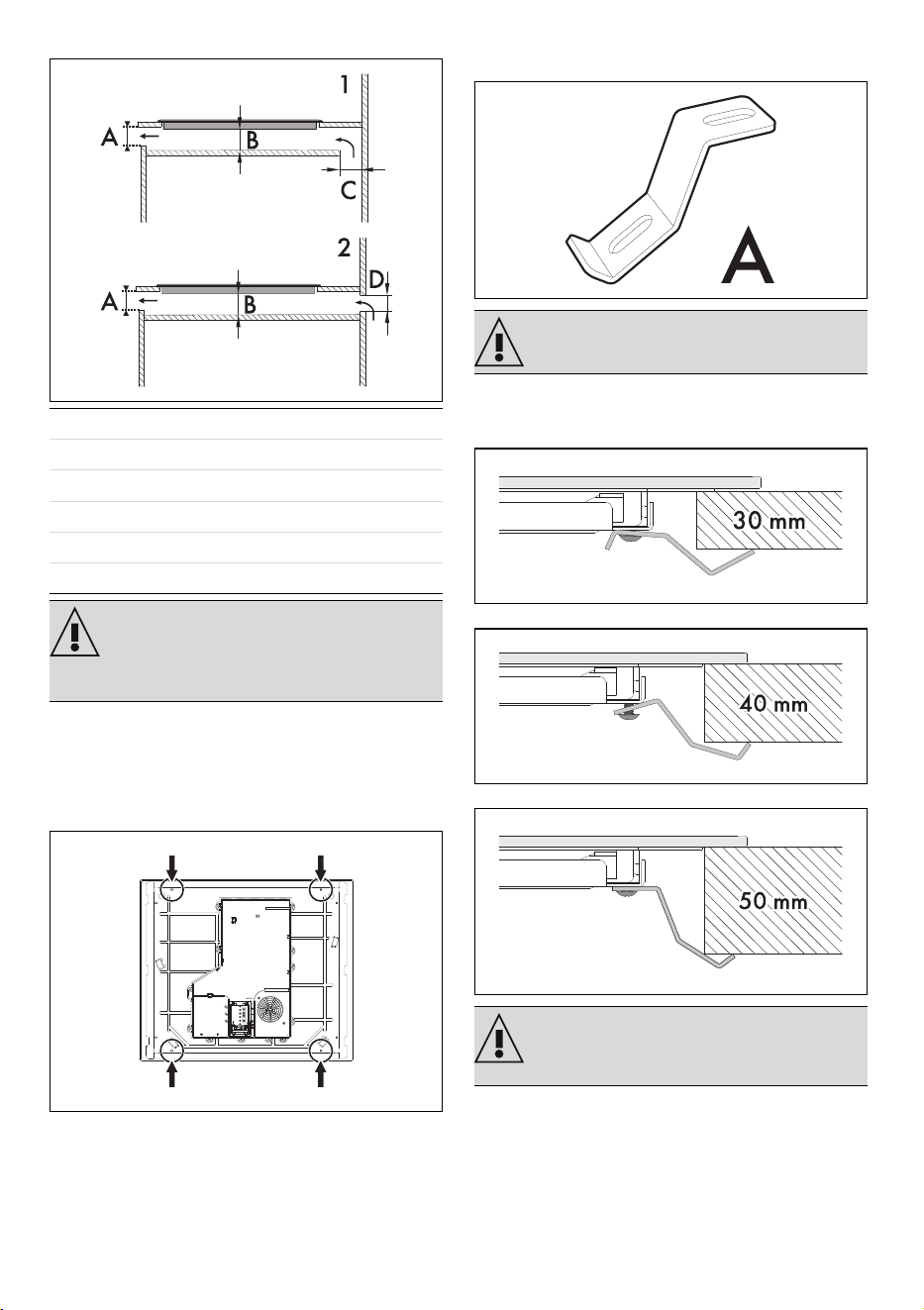

2. Fasten the fixing brackets (A) into the holes
marked using the screws that were removed
in order to correctly fix the hob to the
structure.
The fixing brackets should be installed differently
according to the thickness of the countertop.
• Countertop thickness 30 mm:
• Countertop thickness 40 mm:
• Countertop thickness 50 mm:
Instructions for the installer
• If you use a plug (if present) to connect to
the power supply, the plug must be
accessible after installation.
• Do not bend or trap the power cable.
• The appliance must be installed according
1 Opens on bottom
2 Opens on back
Amin. 5mm
Bmin., 20mm
C min. 30 mm - max. 50 mm
D min. 30 mm - max. 50 mm
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with sharp
or hot parts.
If tightened too much the glass may be
strained and crack.
In the case of countertops of less than
30 mm, an additional spacer should be
used between the bracket and the top.
INSTALLATION - 3991477A401/A
e
to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
