20 - PRECAUTIONS 91477A308/H
PRECAUTIONS 20
General safety instructions 20
Installation 23
Appliance purpose 24
This user manual 25
Manufacturer’s liability 25
Identification plate 25
Disposal 25
To save energy 25
Information on power consumption in off/stand-
by mode 25
How to read the user manual 25
DESCRIPTION 26
General description 26
Control panel 27
USE 27
Preliminary operations 27
Basic functions 28
Using the hob 28
Additional functions 29
Safety features 29
Error notifications 30
CLEANING AND MAINTENANCE 30
Cleaning the glass ceramic hob 30
What to do if... 30
INSTALLATION 31

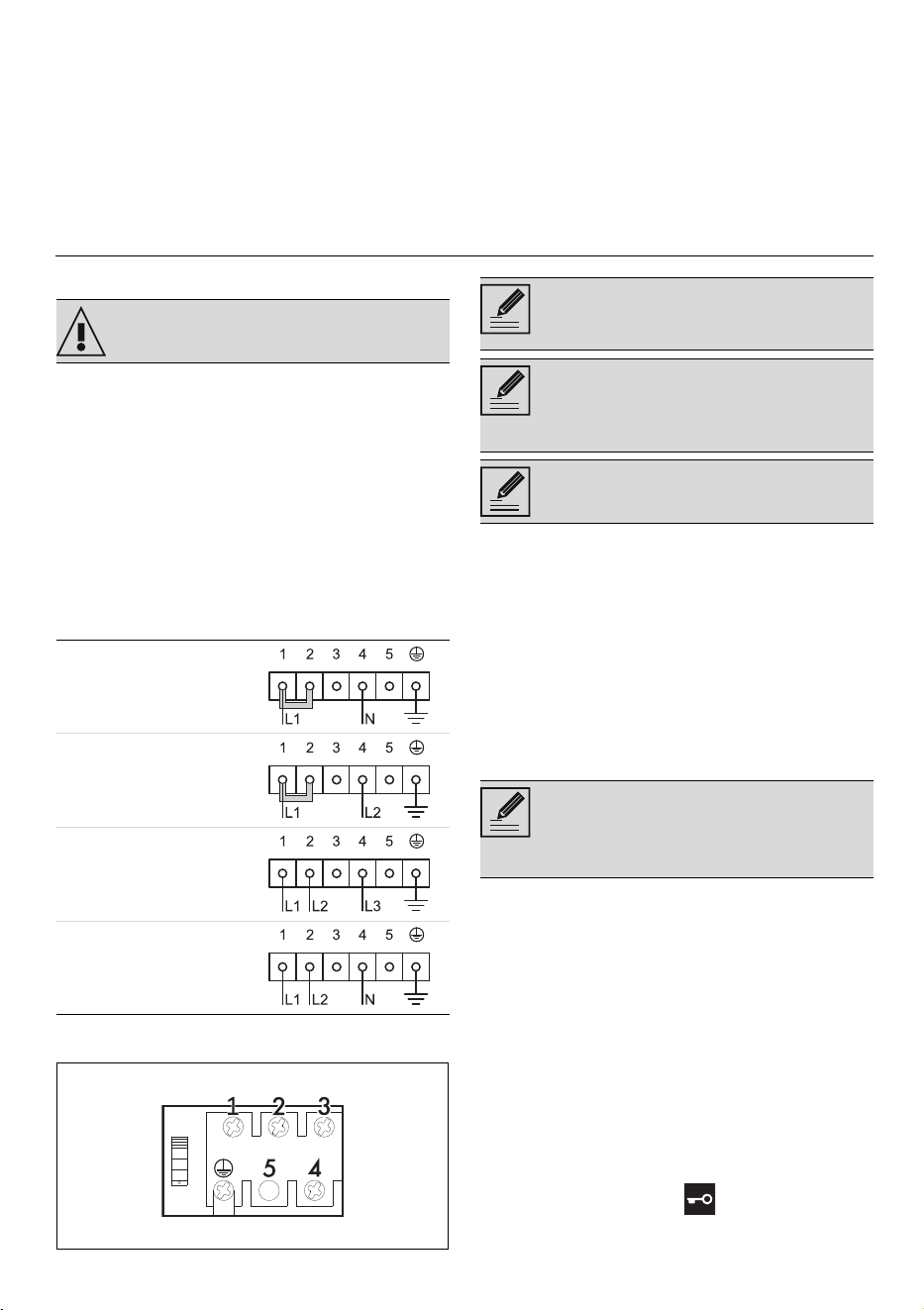

Electrical connection 31
Power limitation menu 31

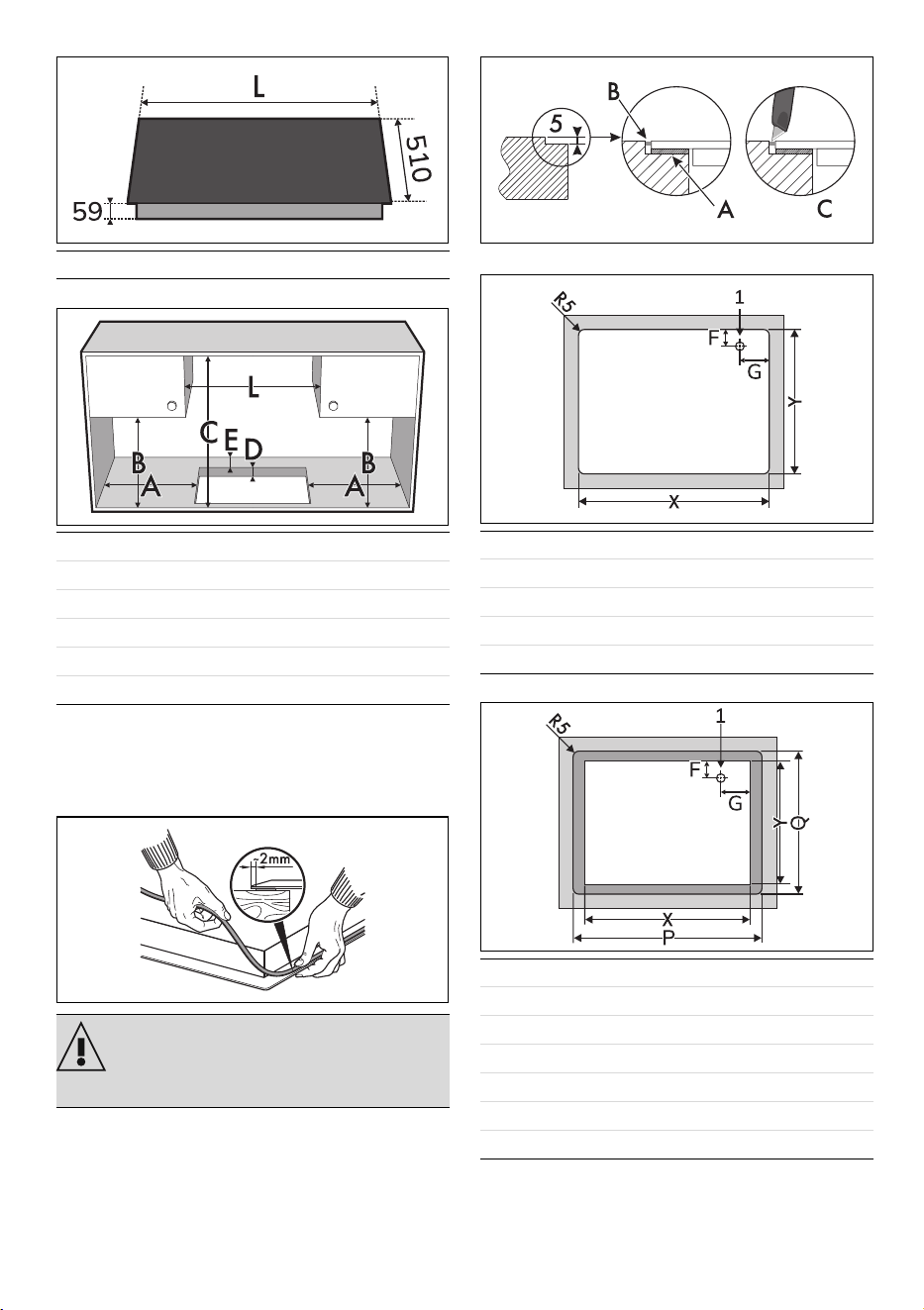

Section cut from the countertop 32
Mounting 34

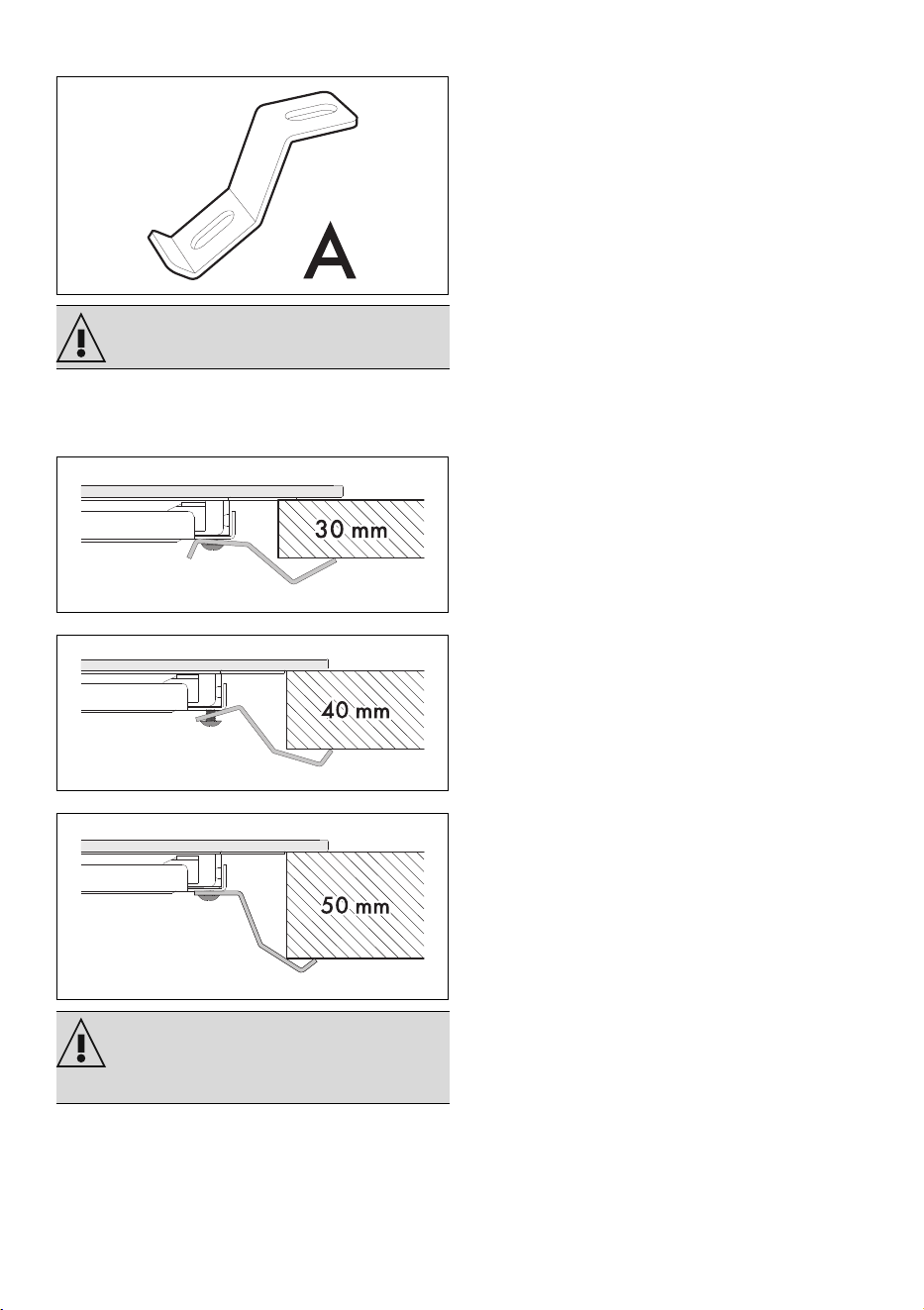

Fastening to the built-in cabinet 34

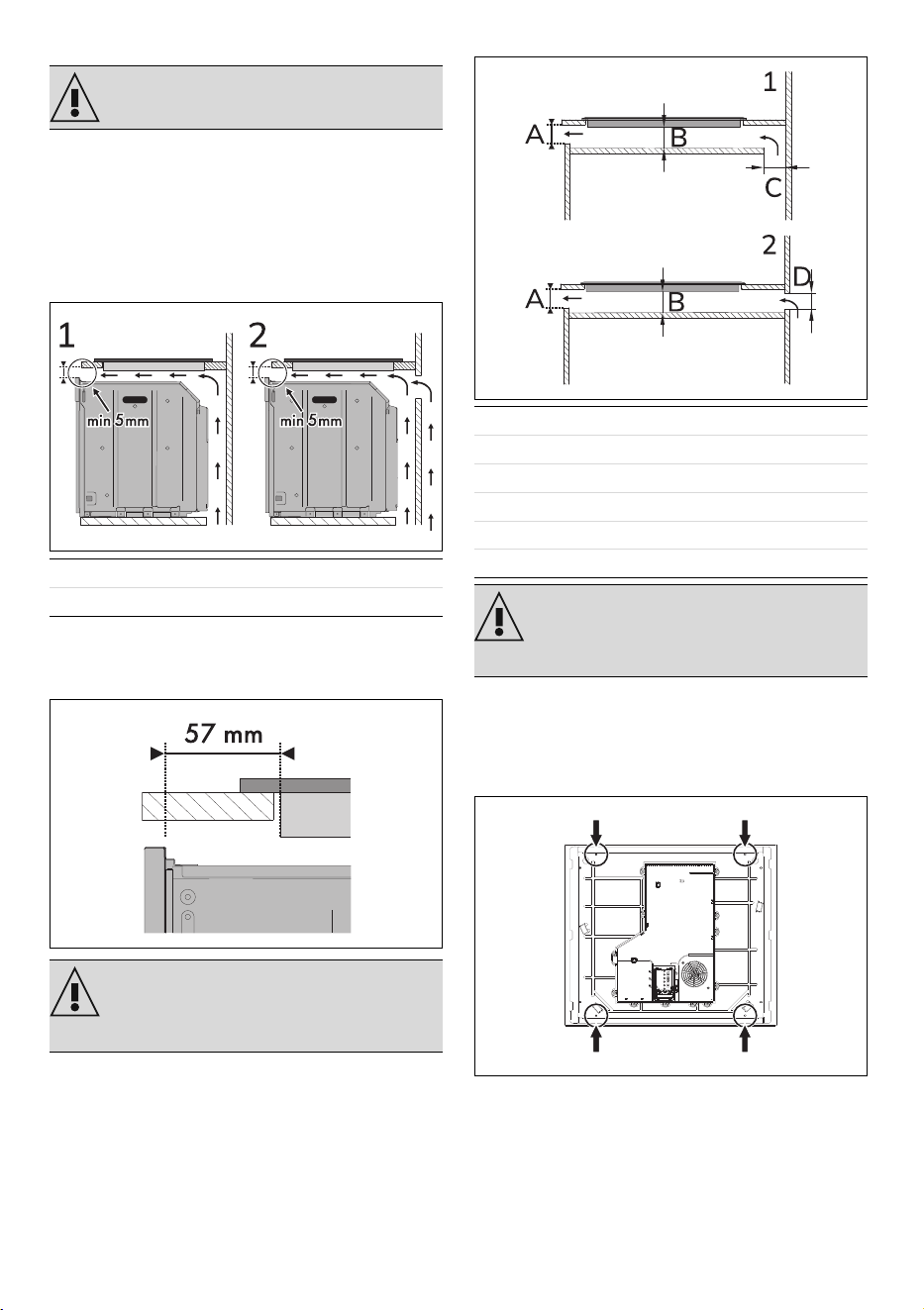

Instructions for the installer 35
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance’s aesthetic and functional qualities. For further information on the
product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance
and its accessible parts
become very hot. Keep
children well away from the
appliance.
• Protect hands with heat
resistant gloves during use.
• Never try to put out a fire or
flames with water: Turn off
the appliance and smother
the flames with a fire
blanket or other appropriate
cover.
• This appliance may only be
used by children aged 8
years and over, and by
people of reduced physical,
sensory or mental capacity,
or lacking in experience in
the use of electrical
appliances, provided that
they are supervised or have
been given instructions on
the safe use of the
appliance and of the
hazards associated with it.
• Children must not play with
the appliance.
• Keep children under the age
of eight at a safe distance
unless they are constantly
supervised.
• Keep children under the age
of 8 away from the
appliance when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• Be aware of how rapidly
the cooking zones heat up.
Do not place empty pans on
the heat. Danger of
PRECAUTIONS - 2191477A308/H
e
overheating.
• Activate the controls lock
when you have children or
pets which could reach the
hob.
• Do not touch or clean the
hob surface during
operation or when the
residual heat indicator
lights are still on.
• After use, switch off the
plates. Never rely solely on
the cookware detector.
• Supervise children carefully
as they cannot readily see
the residual heat indication.
After use the cooking zones
remain hot for a certain
period of time even if they
have been turned off. Keep
children away from the
cooking zones.
• The cooking process must
always kept under control.
A short cooking process
must be continuously
monitored.
• WARNING: Cooking foods
containing fat and/or oil
without monitoring them
can be dangerous and can
cause a fire.
• Fats and oils can catch fire
if they overheat. Do not
leave the appliance
unattended while preparing
foods containing oils or fats.
If fats or oils catch fire,
never put water on them.
Place the lid on the pan and
turn off the relevant cooking
zone.
• Do not use the Booster and/
or the Double Booster
functions (if present) to heat
fats or oils. Fire hazard.
• Do not place metal objects,
such as dishes or cutlery, on
the surface of the hob
during cooking as they may
overheat.
• Do not cook foods in closed
tins or containers or plastic
containers.
• Do not use magnetic tins.
• Do not use trivets or other
items between the bottom
of the pan and the glass
ceramic surface. Danger of
burns.
• Do not insert pointed metal
objects (cutlery or utensils)
into the slots in the
appliance.
• Do not use or store
flammable materials near
the appliance or directly
underneath the hob.
• Switch off the appliance
immediately after use.
• Do not pull the cable to
unplug the appliance (if
present).
• DO NOT USE AEROSOLS
IN THE VICINITY OF THIS
APPLIANCE WHILST IT IS
IN USE.
•DO NOT MODIFY THIS
APPLIANCE.
• Always wear personal
protective equipment (PPE)
before carrying out any
work on the appliance
(installation, maintenance,
22 - PRECAUTIONS 91477A308/H
positioning or moving).
• Do not clean the appliance
if it is still hot or in
operation.
• After use the cooking zones
remain hot for a certain
period of time after they
have been turned off. Do
not touch the hob surfaces.
• Before performing any work
on the appliance, switch off
the power supply.
• Do not try to repair the
appliance yourself or
without the assistance of a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to
arrange for it to be replaced
in order to avoid possible
hazards.
• If cracks or fissures form, or
if the glass ceramic cooking
surface breaks, turn off the
appliance immediately.
Disconnect the power
supply and call Technical
Support.
•People who have
pacemakers or other similar
devices fitted must make
sure that the operation of
these devices is not
affected by the induction
field, the frequency range of
which is between 20 and
50 kHz.
Risk of damaging the appliance
• Do not use abrasive or
corrosive detergents (e.g.
scouring powders, stain
removers and metallic
sponges) on glass parts.
• Use wooden or plastic
utensils.
• Do not sit on the appliance.
• Do not use the glass
ceramic cooking surface as
a support surface.
• Do not use the appliance as
a support surface.
• Do not obstruct ventilation
openings and heat
dispersal slots.
• Do not use the hob if the
pyrolytic cycle is taking
place inside any oven
installed below.
• Do not use steam jets to
clean the appliance.
• Never leave the appliance
unattended during cooking
operations where fats or
oils could be released, as
these could then heat up
and catch fire. Be very
careful.
• Fire hazard: Never leave
objects on the cooking
surfaces.
• DO NOT FOR ANY
REASON USE THE
APPLIANCE AS A SPACE
HEATER.
• Cooking vessels or griddle
plates should be placed
inside the perimeter of the
hob.
• All pans must have smooth,
flat bottoms.
• If any liquid does boil over
or spill, remove the excess
PRECAUTIONS - 2391477A308/H
e
from the hob.
• Take care not to spill acid
substances such as lemon
juice or vinegar on the hob.
• Do not spill sugar or sweet
mixtures on the hob during
cooking.
• Do not place materials or
substances that could melt
or catch fire (paper, plastic
or aluminium foil) on the
appliance while it is in use.
• Place the cookware directly
on the glass ceramic
surface.
• Do not put empty pans or
frying pans on switched on
cooking zones.
• Do not use rough or
abrasive materials or sharp
metal scrapers.
• The glass ceramic surface
is highly resistant to impact.
However, prevent hard,
solid objects from falling on
the cooking surface as they
may cause it to break.
• Do not use cleaning
products containing
chlorine, ammonia or
bleach on parts made of
steel or that have metallic
surface finishes (e.g.
anodizing, nickel- or
chromium-plating).
• This appliance is not
intended to be operated by
means of external timer or
separate remote control
system.
• To prevent scratching the
glass surface, avoid sliding
pots across it. Lift them and
place them gently where
needed instead.
Installation
• THIS APPLIANCE MUST
NOT BE INSTALLED IN A
BOAT OR CARAVAN.
• This appliance must not be
installed above a
dishwasher unless the
instructions provided in the
“INSTALLATION” chapter
are complied with.
• Position the appliance into
the cabinet cut-out with the
help of a second person.
• Check that the cabinet has
the required slots.
• Check that the cabinet
material is heat resistant.
• Installation and servicing
should be carried out by
qualified personnel in
accordance with current
standards.
• Have the electrical
connection performed by
authorised technical
personnel.
• The appliance must be
connected to earth in
compliance with electrical
system safety standards.
• Use cables that can
withstand temperatures of
at least 90°C.
• Run the power cable in the
rear part of the unit. Make
sure that it does not come
into contact with the lower
part of the hob or a built-in
oven below it.
24 - PRECAUTIONS 91477A308/H
• Be careful when connecting
additional electrical
appliances. Connection
cables must not come into
contact with hot cooking
zones.
• The tightening torque of the
screws of the terminal
supply wires must be 1.2-
1.5 Nm.
• Do not attach the appliance
too tightly to the unit as this
could cause damage during
use or partially obstruct the
heat dispersal slots.
• The power cable must only
be installed or replaced by a
qualified technician.
• If the power cable becomes
damaged, contact technical
support immediately to
arrange for it to be replaced
in order to avoid possible
hazards.
• Always use any necessary/
required personal
protective equipment (PPE)
before performing any work
on the appliance
(installation, maintenance,
positioning or movement).
• Before performing any work
on the appliance, switch off
the main power supply.
• Allow the appliance to be
disconnected after
installation, via an
accessible plug or a switch
in the case of a fixed
connection.
• Fit the power line with an
all-pole circuit breaker with
a contact separation
distance sufficient to
provide complete
disconnection in category III
overvoltage conditions,
pursuant to installation
regulations.
• If access to the electrical
power supply is limited,
means of disconnection of
all poles must be accessible
and incorporated into the
fixed wiring in accordance
with the wiring regulations.
• This appliance can be used
up to a maximum altitude of
2,000 metres above sea
level.
• Do not set the hob at a
power higher than that
supported by the electrical
system.
Appliance purpose
This appliance is intended for
cooking food in the home
environment. Every other use
is considered improper. It
must also not be used:
• In kitchen areas provided
for employees in shops,
offices and other work
environments.
• in farms/farmhouses.
• By guests in hotels, motels
and other types of
residential environments.
• In bed and breakfasts.
This appliance may only
be installed and used
indoors.
PRECAUTIONS - 2591477A308/H
e
This user manual
• This user manual is an integral part of
the appliance and must therefore be
kept in its entirety and within the user's
reach for the whole working life of the
appliance.
• Read this user manual carefully before
using the appliance.
• The explanations in this manual include
images, which describe all that regularly
appears on the display. However, it
should be kept in mind that the
appliance may be equipped with an
updated version of the system, and as
such, all that appears on the display
may differ from those in the manual.
Manufacturer’s liability
The manufacturer declines all liability for
damage to persons or property caused by:
• use of the appliance other than that
specified;
• failure to comply with the instructions in
the user manual;
• tampering with any part of the
appliance;
• use of non-original spare parts.
Identification plate
The identification plate bears the technical
data, serial number and brand name of the
appliance. Do not remove the identification
plate for any reason.
Disposal
This appliance conforms to the WEEE
European directive (2012/19/EU) and
must be disposed of separately from
other waste at the end of its service life.
The appliance does not contain substances
in quantities sufficient to be considered
hazardous to health and the environment,
in accordance with current European
directives.
To dispose of the appliance:
• Cut the power cable and remove it.
• Deliver the appliance to the appropriate
recycling centre for electrical and
electronic equipment waste, or return it
to the retailer when purchasing an
equivalent product, on a one for one
basis.
Our appliances are packaged in non-
polluting and recyclable materials.
• Deliver the packing materials to the
appropriate recycling centre.
To save e ne r gy
• The diameter of the base of the pan
must not extend beyond the lines
printed on the glass ceramic surface.
• Pans must not be placed outside the
perimeter of the hob or on the display.
• When buying a pan, check whether the
diameter indicated is that of the base or
the top of the pan, as the top is almost
always larger than the base.
• When preparing dishes with long
cooking times, you can save time and
energy by using a pressure cooker,
which also helps to retain vitamins
contained in the food.
• Make sure that the pressure cooker
contains enough liquid as, if there is not
enough and it overheats, this may cause
damage to both the pressure cooker and
the cooking zone.
• If possible, always cover pans with a
suitable lid.
• Choose a pan suitable for the quantity
of food to be cooked. A large, half-
empty saucepan leads to a waste of
energy.
Information on power
consumption in off/stand-by
mode
Technical data on the appliance's power
consumption in off/stand-by mode can be
found at www.smeg.com under the page
corresponding to the product in question.
How to read the user manual
This user manual uses the following reading
Power voltage
Danger of electrocution
• Disconnect the mains power supply.
• Unplug the appliance.
Plastic packaging
Danger of suffocation
• Do not leave the packaging or any part
of it unattended.
• Do not let children play with the plastic
bags.
Under certain circumstances, if the
hob and the oven are used at the
same time, the maximum power
limit of the electrical system might
be exceeded.
26 - DESCRIPTION 91477A308/H
conventions:
DESCRIPTION
General description
1 Front left cooking zone
2 Rear right-hand cooking zone
3 Front right cooking zone
4 Control panel
*Power levels are approximate and may vary according to the pan used or the settings
made.
Warning/Caution
Information/Advice
Zone
Dimensions H x L
(mm)
Pan Ø
minimum (mm)
Pan Ø
recommended
(mm)
Max. power draw
(W)*
Power draw in
booster function
(W) *
1 280 x 280 110 - 130 280 2700 3600
2 180 x 180 110 - 130 180 1500 2000
3 145 x 145 90 - 110 145 1200 1600
USE - 2791477A308/H
e
Control panel
1 Cooking zones selection area
2 Cooking zone display
3 Value increase button
4 Value decrease button
5 Control lock button
6 Controls lock indicator light
7 ON/OFF button
Advantages of induction cooking
• Energy saving thanks to the direct
transmission of energy to the pan
(suitable magnetisable cookware is
required) compared to traditional
electric cooking.
• Improved safety as the energy is only
transmitted to the pan placed on the
hob.
• High level of energy transmitted from
the induction cooking zone to the base
of the pan.
• Rapid heating speed.
• Reduced danger of burns as the cooking
surface is only heated under the base of
the pan; foods which overflow do not
stick.
Power control
The hob is fitted with a power control
module that optimises/limits consumption. If
the overall set power level exceeds the
maximum limit permitted, the electronic
circuit board will automatically manage the
power supplied by the hot plates. The
module tries to maintain the maximum
deliverable power levels. If the symbol
appears it indicates that it is no longer
possible to increase the power level for a
specific cooking zone.
USE
Preliminary operations
• Remove any protective film from the
outside or inside of the appliance,
including any accessories (if present).
• Remove any labels (apart from the
technical data plate).
The appliance is equipped with an
induction generator for each cooking
zone. Each generator located under
the glass ceramic cooking surface
creates an electromagnetic field
which induces a thermal current in
the base of the pan. This means the
heat is no longer transmitted from
the hob to the pan but created
directly inside the pan by the
inductive current.
Priority is given to the first zone that
is set in chronological order.
The power control module does not
affect the total power consumption
of the appliance.
See General safety instructions.
28 - USE 91477A308/H
Cookware suitable for use in induction
cooking
Cookware used on the induction cooking
surface must be made of metal, with
magnetic properties and a sufficiently large
base.
Suitable cookware:
• Enamelled steel cookware with thick
bases.
• Cast iron cookware with an enamelled
base.
• Cookware in multilayer stainless steel,
ferritic stainless steel and aluminium
with a special base.
Unsuitable cookware:
• Copper, stainless steel, aluminium,
fireproof glass, wood, ceramic and
terracotta cookware.
Basic functions
First power connection
At the first power connection or after power
has been switched back on after a power
failure, an automatic control is carried out.
This control turns on the indicator lights and
the displays for a few seconds. After that,
the controls lock function is activated
automatically, signalled by the lighting up of
controls lock indicator light. Press the
button for at least 2 seconds to switch on
the appliance.
Switching on and off
Press the button to turn the appliance
on. To turn off the appliance, press the
button until three beeps sound.
Using the hob
Switching on the cooking zones
After switching on the display:
1. Select the cooking zone to be activated
using the appropriate selection buttons
(e.g.: front right cooking zone).
2. Use the and buttons to select
power levels from 1 to 9 or enable the
Booster function.
Switching off the cooking zones
1. Select the cooking zone to deactivate.
2. Use the button to reset the power
level to 0 (zero).
If a vessel not suitable for induction cooking
is used on an active zone or there is no
vessel, the zone will not deliver power and
its display will show the symbol
alternating with the power level number.
Power level table
The power in the cooking zones can be
adjusted to various levels. In the table
below you will find instructions for the
different types of cooking.
Booster function
The Booster function allows you to heat a
pan at maximum power for a limited
amount of time. It can be used to bring a
large amount of water to the boil rapidly.
After selecting a zone:
1. Set the power level to 9.
2. Press the button again; the
symbol will be shown on the display.
To deactivate the Booster function, simply
decrease the power level of the cooking
• Hold the button down for at
least 2 seconds to switch off all
cooking zones at the same time.
• A zone can be switched off
quickly by pressing the and
buttons at the same time.
Power level Suitable for:
0OFF setting
from 1 to 2
Cooking small amounts of food
(minimum power)
from 3 to 4 Cooking
from 5 to 6
Cooking large quantities of food,
roasting larger portions
from 7 to 8 Roasting, slow frying with flour
9Roasting
P
Bring a large amount of water to
the boil (maximum power, see
"Booster function")
See General safety instructions.
The Booster function remains active
for a maximum of 10 minutes, after
which the power level of the zone
returns to 9.
USE - 2991477A308/H
e
zone or switch off the appliance.
Additional functions
Timed cooking
This function is used to program the
automatic switch-off of each cooking zone
at the end of a period of time set by the user
(from 1 to 99 minutes).
To set a timed cooking:
1. Select any cooking zone using the
specific buttons.
2. Select a power level (from 1 to 9).
3. Press the select cooking zone button
again; a beep will be emitted to confirm.
The symbol will appear on the display
of the selected zone, while will
appear on the displays of the adjacent
zones.
4. Use the and buttons to select
the minutes (pressing continuously
allows you to advance quickly).
5. Press any select cooking zone button or
wait 10 seconds to start the timer.
The display of the timed zone now shows
the previously set power level with a dot at
the lower right (e.g.: ).
At the end of the timed cooking, the cooking
zone is switched off, the display shows
flashing and beeps are emitted. Press any
button to stop the buzzer.
Modifying or deactivating timed cooking
1. Select a timed zone.
2. Press the zone selection button again to
display the remaining time.
3. Use the and buttons to modify
or reset the countdown. Resetting the
countdown disables the timed cooking.
Controls lock
This function allows the buttons of the
control panel to be locked. This function can
be activated either when the unit is
switched on or off.
To activate the controls lock when the
appliance is switched on:
1. Press the button for at least 1
second.
2. When the controls lock indicator light is
switched on, the controls are locked
(except for the and buttons).
To deactivate the controls lock, press the
button for at least 1 second and check
that the indicator light above is off.
Safety features
Limiting the cooking duration
The appliance has an automatic device that
limits the duration of use.
If the cooking settings for a pan are not
changed, the maximum operation time for
each zone depends on the power level
selected.
Heating is switched off when the device for
limiting the duration of use is activated.
Residual heat indicators
When the cooking zones are switched off, if
they have a temperature above a certain
safety threshold, the symbol will appear
on the display. When the temperature falls
below this threshold, the symbol
disappears.
Protection from overheating
If the hob is used on full power for a long
period, the electronics will have trouble
cooling down if the room temperature is
high.
When certain safety thresholds are
reached, on or more cooking zones are
deactivated. At the end, if the internal
temperature is very high, the appliance is
switched off automatically.
The timer cannot be activated if the
power level of the selected zone is
zero (0).
If one of the front zones has been
selected, the digits of the
countdown will appear on the
displays of the rear zones and vice
versa.
A power failure will not deactivate
the controls lock.
See General safety instructions.
Power level Maximum cooking time
1 - 8 10 hours
93 hours
Booster (P) 10 minutes
30 - CLEANING AND MAINTENANCE 91477A308/H
Error notifications
If the appliance malfunctions or operates
incorrectly, the code associated with the
error appears on the displays of the cooking
zones.
Errors associated with overheating of the
appliance or one of its parts can only be
solved by allowing it to cool down and are
coded as “C”, “c” and “Fc”.
If these errors persist or different errors
appear, note down the code and contact
Technical Support.
CLEANING AND MAINTENANCE
Cleaning the glass ceramic hob
Cleaning the surfaces
To keep the surfaces in good condition, they
should be cleaned regularly after use. Let
them cool first.
Ordinary daily cleaning
Always and only use specific products that
do not contain abrasives or chlorine-based
acids. Pour the product onto a damp cloth
and wipe the surface, rinse thoroughly and
dry with a soft cloth or a microfibre cloth.
Weekly cleaning
Clean and maintain the hob once a week
using an ordinary glass ceramic cleaning
product. Always follow the manufacturer’s
instructions. The silicon in these products
creates a protective, water-repellent
membrane which also resists dirt. All marks
stay on the membrane and can therefore be
removed easily. After cleaning, dry the
surface with a clean cloth. Make sure that
there is no detergent left on the cooking
surface as it might undergo an aggressive
reaction when heated up and could modify
the structure of the cooking surface.
Food stains or residues
Light coloured marks from pans with
aluminium bases can be easily cleaned off
with a cloth moistened in vinegar. Remove
any burnt-on residues after cooking; then
rinse with water and dry thoroughly with a
clean cloth. Dirt, which may have fallen on
the hob while cleaning lettuce or potatoes,
can scratch the hob when moving pans.
Consequently, remove any dirt from the
cooking surface immediately. Changes in
colour do not affect the operation and
stability of the glass. These are not
alterations to the material of the hob but
just residues which have not been removed
and have then carbonised. Shiny surfaces
can form due to the bases of pans,
especially aluminium ones, rubbing on the
surface, and due to the use of unsuitable
detergents. They are difficult to remove
using conventional cleaning products. It
may be necessary to repeat the cleaning
process several times. Use of corrosive
detergents or rubbing of pan bases can
wear away the decoration on the hob over
time and contribute to the formation of
stains.
What to do if...
The hob does not work:
• Make sure that the hob is connected and
that the main switch is turned on.
• Make sure that there is no power failure.
• Make sure that the fuse has not blown.
In this case replace the fuse.
• Make sure that the circuit breaker of the
residential electrical system has not
tripped. In this case, reset the circuit
breaker.
The cooking results are unsatisfactory:
• Make sure that the cooking temperature
is not too high or too low.
• Make sure that the hob is properly
ventilated and that the air inlets are
unobstructed.
• Use cookware that is certified and
tested for induction cooking.
Residual heat indicators are not to
be considered as error codes.
See General safety instructions.
In case of stubborn dirt, clean when
cold using a damp kitchen sponge
and neutral detergent; then dry with
a microfibre cloth.
We recommend the use of cleaning
products distributed by the
manufacturer.
After cleaning, dry the appliance
thoroughly to prevent any water or
detergent from interfering with its
operation or creating unsightly
marks.
INSTALLATION - 3191477A308/H
e
The hob smokes:
• Let the hob cool down and clean it once
cooking is complete.
• Make sure that the food has not spilled
out of the pan and use a larger cooking
vessel, if needed.
The fuses blow or the circuit breaker of the
residential electrical system trips
repeatedly.
• Call Technical Support or an electrician.
There are cracks or fissures in the hob:
• Turn off the appliance immediately,
disconnect the power supply and
contact Technical Support.
INSTALLATION
Electrical connection
General information
Check the mains characteristics against the
data indicated on the plate.
The identification plate bearing the
technical data, serial number and brand
name is visibly positioned on the appliance.
Do not remove this plate for any reason.
The appliance must be connected to ground
using a wire that is at least 20 mm longer
than the other wires.
The appliance can work in the following
modes:
The diagram below illustrates the terminal
from below, with no cables connected.
Fixed connection
Fit the power line with an all-pole circuit
breaker with a contact separation distance
sufficient to provide complete disconnection
in category III overvoltage conditions,
pursuant to installation regulations.
For the Australian/New Zealand market:
The circuit breaker incorporated in the fixed
connection must comply with AS/NZS 3000.
Power limitation menu
High power regime
The following procedure allows you to
access the menu in order to modify the
power supplied by the appliance. Values
between 7.2 and 2.8 kW can be selected:
1. Switch off all the plates before
proceeding.
2. Disconnect the appliance from the
mains power supply.
3. Reconnect the appliance to the mains
power supply.
Carry out the following procedure within 30
seconds of the appliance being
reconnected:
4. Press and hold the button to unlock
the controls.
See General safety instructions.
220-240 V 1N~
3 x 6 mm ²
three-core cable
220-240 V 2~
3 x 6 mm ²
three-core cable
220-240 V 3~
4 x 2.5 mm ²
four-core cable
380-415 V 2N~
4 x 2.5 mm ²
four-core cable
The values indicated refer to the
cross-section of the internal
conductor.
The aforementioned power cables
are sized taking into account the
coincidence factor (in compliance
with standard EN 60335-2-6).
Use the supplied jumper for each
connection, if any
• Access to this menu is restricted
to the installer.
• The appliance is factory set to a
maximum power of 7.2 kW.
32 - INSTALLATION 91477A308/H
5. Press the following combination of
buttons:
A beep will be emitted and the current
power level will be shown on the display:
“72”, corresponds to 7.2 kW.
6. Use the and buttons to change
the value of the available options.
• To save the changes, enter the same
key combination used to access the
menu. The appliance will switch off and
you will have to switch it on again in
order to use it with the new power
setting.
• If you do not wish to save the changes,
simply do not use the display for at least
60 seconds, until it switches off.
Low power regime
1. Follow the instructions described above
as far as point 4.
2. Press the and buttons to access
the menu.
A beep will be emitted and “28”,
corresponding to 2.8 kW, will appear on the
display.
3. Use the and buttons to change
the value of the available options.
• Press the and buttons at the
same time to save the changes. The
appliance will switch off and you will
have to switch it on again in order to use
it with the new power setting.
• If you do not wish to save the changes,
simply do not use the display for at least
60 seconds, until it switches off.
Section cut from the countertop
Safety instructions for positioning and
installation
• Installation can be carried out on various
materials such as masonry, metal, solid
wood or plastic laminated wood as long
as they are heat resistant (>90°C).
• Veneers, adhesives or plastic coatings
on adjacent furniture should be
temperature-resistant (>90°C),
otherwise they might warp over time.
• If the piece of furniture does not have
the required recess opening, either it will
have to be cut or masonry work carried
out by a competent technician.
• The minimum clearance between
exhaust hoods and the cooking surface
must be at least the distance indicated
in the exhaust hood installation
instructions.
• The minimum clearances must also be
respected for the edges of the hob on
the back as indicated in the assembly
instructions.
• If the appliance is to be installed above
an oven, the oven must be fitted with a
cooling fan.
High power regime
Power shown on dis-
play
Power in kW
7.2 - default value
6.0
3.4
2.8
Low power regime
Power shown on dis-
play
Power in kW
2.8 - default value
2.2
1.6
1.0
See General safety instructions.
High power regime
Power shown on dis-
play
Power in kW
INSTALLATION - 3391477A308/H
e
Appliance overall dimensions (mm)
Built-in cabinet dimensions (mm)
Hob seal
To prevent leakage of liquid between the
frame of the hob and the countertop, place
the adhesive seal provided along the entire
outer edge of the hob before assembly.
In the case of flush mounting, after placing
the adhesive seal (A) on the glass surface
and after positioning and securing the hob,
fill the edges with insulating silicone (B) and
wipe off any excess. If for any reason the
hob needs to be removed, cut the silicone
using a cutter before attempting to remove
it (C).
Semi-flush mounting (mm)
Flush Mounting (mm)
L 600
Amin. 50
B min. 460
C min. 750
D 30 - 50
Emin. 50
L min. 600
Do not use silicone to secure the
hob. This would make it impossible
to remove the hob without
damaging it.
X 555 - 560
Y 478 - 482
F88
G 317
1 Electrical connection
X 555 - 560
Y 482
P 603
Q 513
F88
G 317
1 Electrical connection
34 - INSTALLATION 91477A308/H
Mounting
Over built-in oven unit
The clearance between the hob and the
kitchen units or other built-in appliances
must be enough to ensure sufficient
ventilation and air discharge. If installed
above an oven, a space must be left
between the bottom of the hob and the top
of the appliance installed below.
It is also necessary to maintain a distance of
approximately 57 mm from the front panel
of the oven to the front of the appliance, as
shown in the figure below.
On an empty kitchen
If there are other pieces of furniture under
the hob, a double-layer wooden base must
be installed at least 20 mm from the bottom
of the hob to avoid any accidental contact. It
must only be possible to remove the
double-layer base using suitable
equipment.
Fastening to the built-in cabinet
It has to be secured to the cabinet using
front and back screws:
1. Remove the screws from the holes
indicated in the figure below.
2. Fasten the fixing brackets (A) into the
holes marked using the screws that
See General safety instructions.
1 Opens on bottom
2 Opens on bottom and back
To ensure proper ventilation, a
space of at least 20 mm must be left
between the bottom of the hob and
the oven underneath.
1 Opens on bottom
2Opens on back
Amin. 5mm
Bmin., 20mm
C min. 30 mm - max. 50 mm
D min. 30 mm - max. 50 mm
Failure to install the double-layer
wooden base exposes the user to
possible accidental contact with
sharp or hot parts.
INSTALLATION - 3591477A308/H
e
were removed in order to correctly fix
the hob to the structure.
The fixing brackets should be installed
differently according to the thickness of the
countertop.
• Countertop thickness 30 mm:
• Countertop thickness 40 mm:
• Countertop thickness 50 mm:
Instructions for the installer
• If you use a plug (if present) to connect
to the power supply, the plug must be
accessible after installation.
• Do not bend or trap the power cable.
• The appliance must be installed
according to the installation diagrams.
• If the appliance does not work correctly
after having carried out all the checks,
contact your local Authorised Service
Centre.
• Once the appliance has been installed,
please explain to the user how to use it
correctly.
If tightened too much the glass may
be strained and crack.
In the case of countertops of less
than 30 mm, an additional spacer
should be used between the bracket
and the top.
