Geevon Water Flow Meter
FML-04
______________________________
USER MANUAL

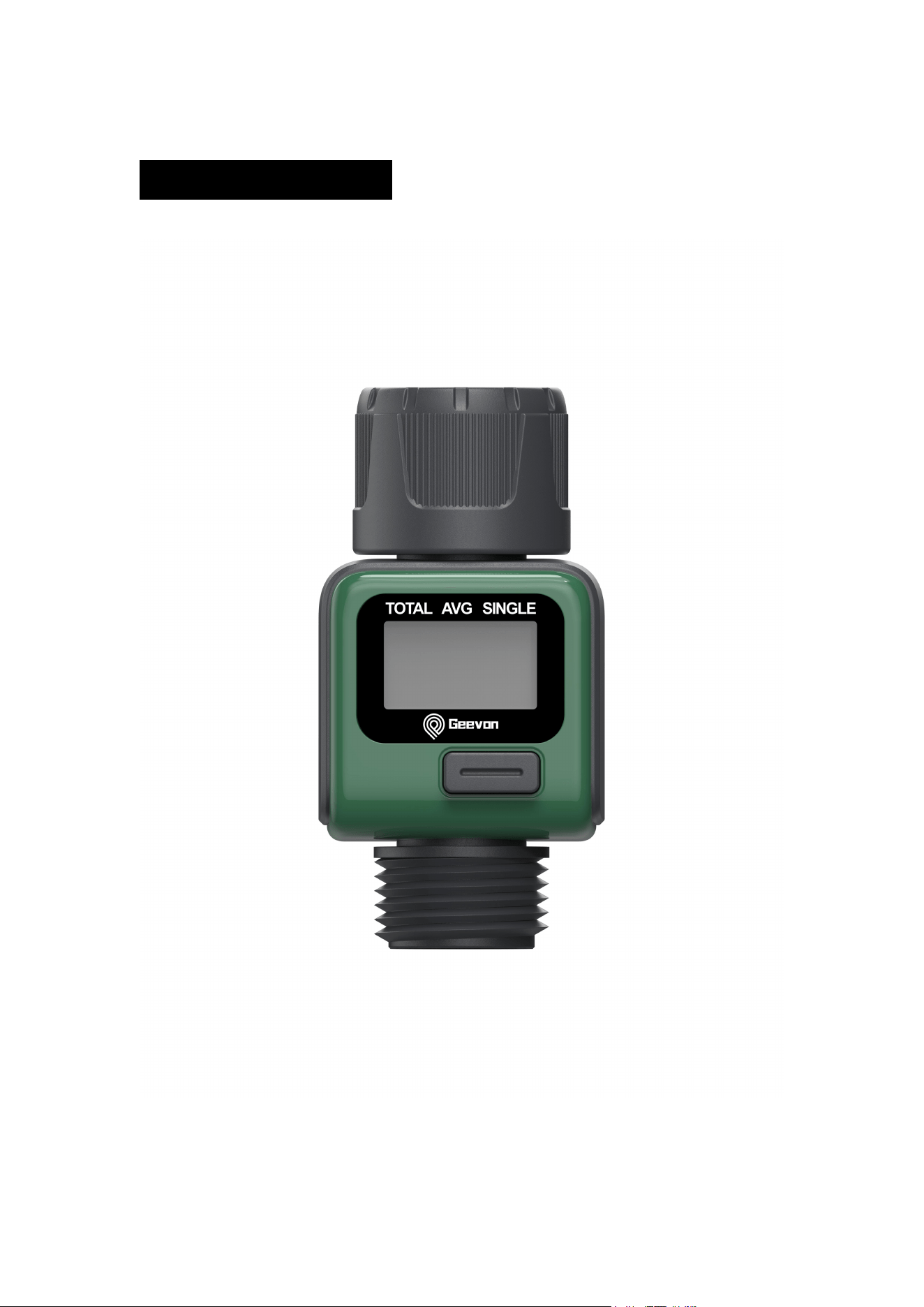

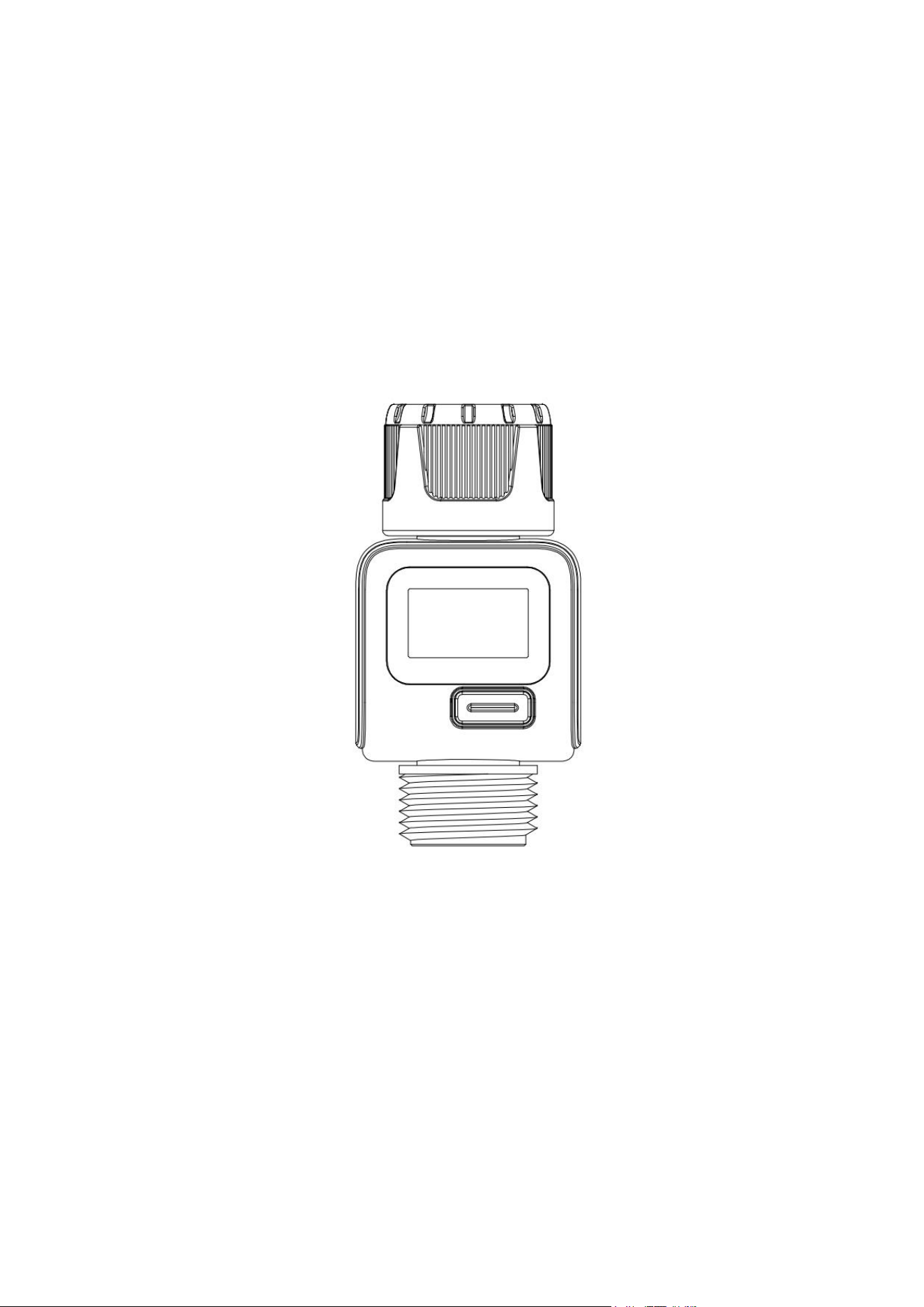

PRODUCT OVERVIEW
SPECIFICATIONS
Waterproof
IPX6
Water Flow Rate
1-45.5L/Min (12.0GAL/Min)
Max Water Consumption
99999L/99999GAL
Working Pressure
0.5-10.0Bar
Max Flow
45.5L/Min or 12.0GAL/Min
Measurement Tolerance
±5%
Water Temperature
3℃ - 65℃
Suitable for
Sprinkler, 3/4 inch standard faucet,hose
* When the maximum flow rate exceeds 45.5L/Min or 12.0GAL/Min, LCD displays HHHHH.
QUICK INSTALLATION
OPERATIONS

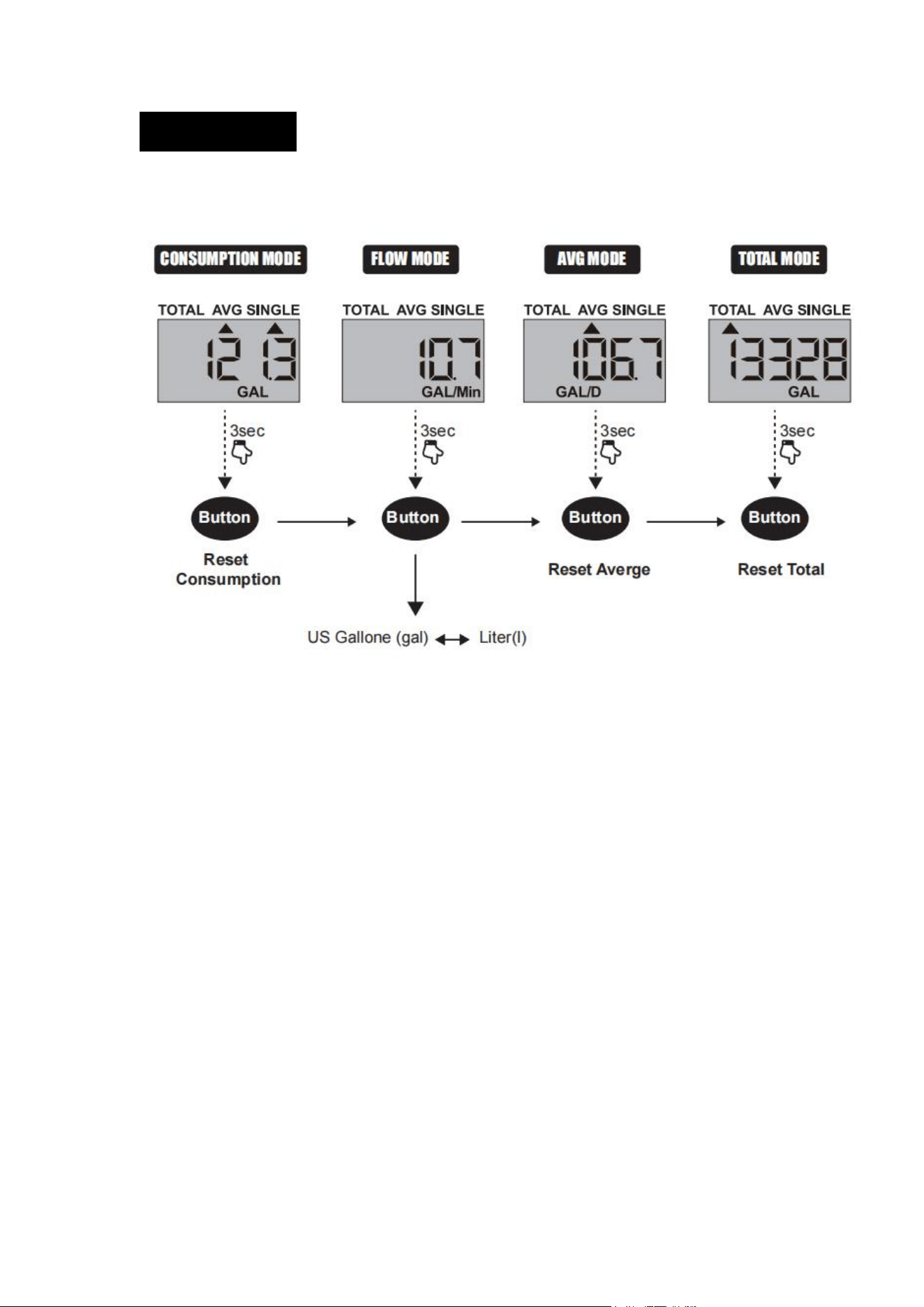

4 MEASUREMENT MODE
Press the button directly, the display switches to next display mode.
a）Consumption Mode: Measure the single water consumption.
Press the button shows last time water usage.
Hold the button 3 seconds to reset the consumption.
At next watering, the display starts at 0 again.
b）Flow Mode: Shows the current flow in GAL/Min or L/Min.
c）AVG Mode: Display the daily average water consumption for
the last 7 days.
d）Total Mode: Water quantity is measured up to the reset.
OTHER FUNCTIONS
Switch L & GAL: Under FLOW MODE, press and hold the button
for 3sec to switch the L/Min or GAL/Min.
Reset: Hold the button in Consumption/Average/Total mode for
3sec, the display will reset to 0.
Standby: No display (Without any operation or flow longer than
1min).
Low Battery Indication:Please change battery when the
symbol appears.
CAUTIONS!
Only open the product in dry condition.
Only for freshwater of water measurement in the outdoor use.
QUICK INSTALLATION & PRECAUTIONS
