Hoshizaki
Number: 71363
Issued: 4-24-2015
“A Superior Degree
of Reliability”
www.hoshizaki.com
Models
URC-5F
URC-9F
URC-14F
URC-22F
URC-23F
Condenser Units
Hoshizaki America, Inc.
PARTS LIST
2
CONTENTS
Auxiliary Codes ...................................................................................................................... 3
Note About Ordering Parts .................................................................................................... 4
A. Condenser Unit ................................................................................................................. 5
B. Accessories ....................................................................................................................... 9
3
Auxiliary Codes
URC-5F
R-5 April 2006
S-5 January 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
B-0 October 2012
C-0 January 2013
D-0 January 2014
D-1 August 2014
E-0 January 2015
URC-9F
R-5 July 2006
S-5 May 2007
T-5 January 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
B-0 October 2012
C-0 January 2013
D-0 January 2014
D-1 April 2014
E-0 January 2015
URC-14F
Q-5 October 2005
R-5 February 2006
S-5 January 2007
T-5 January 2008
T-6 May 2008
T-7 November 2008
U-5 January 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
B-0 October 2012
C-0 January 2013
D-0 January 2014
D-1 April 2014
E-0 January 2015
URC-22F
U-5 March 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
B-0 October 2012
C-0 January 2013
C-1 August 2013
D-0 January 2014
E-0 January 2015
URC-23F
T-5 May 2008
U-5 November 2009
V-5 January 2010
A-5 January 2011
B-5 January 2012
B-0 October 2012
C-0 January 2013
C-1 October 2013
D-0 January 2014
D-1 October 2014
E-0 January 2015
4
Auxiliary Code Breakdown
Auxiliary Codes "-5"
The auxiliary code is the rst two characters in the serial number. The rst character
indicates the year. Years progress or regress in alphabetical order. The series runs from
"A" through "V" and the letters "I" and "O" are skipped. The second character indicates
signicant part changes within a year. Base is "5" and this number advances for each
change.
Auxiliary Codes "-0"
The auxiliary code is the rst two characters in the serial number. The rst character indi-
cates the year. Years progress or regress in alphabetical order. The series runs from "A"
through "V" and the letters "I" and "O" are skipped. The second character indicates signi-
cant part changes within a year. Base is "0" and this number advances for each change.
Note About Ordering Parts
Most assemblies cannot be ordered as complete units; parts in the assemblies generally
must be ordered separately.
5
A. Condenser Unit
URC-5F, URC-9F
1/2
R-5 to E-0
1
2
3
4
5
6
7
8
9
10
URC-5F and URC-9F
6

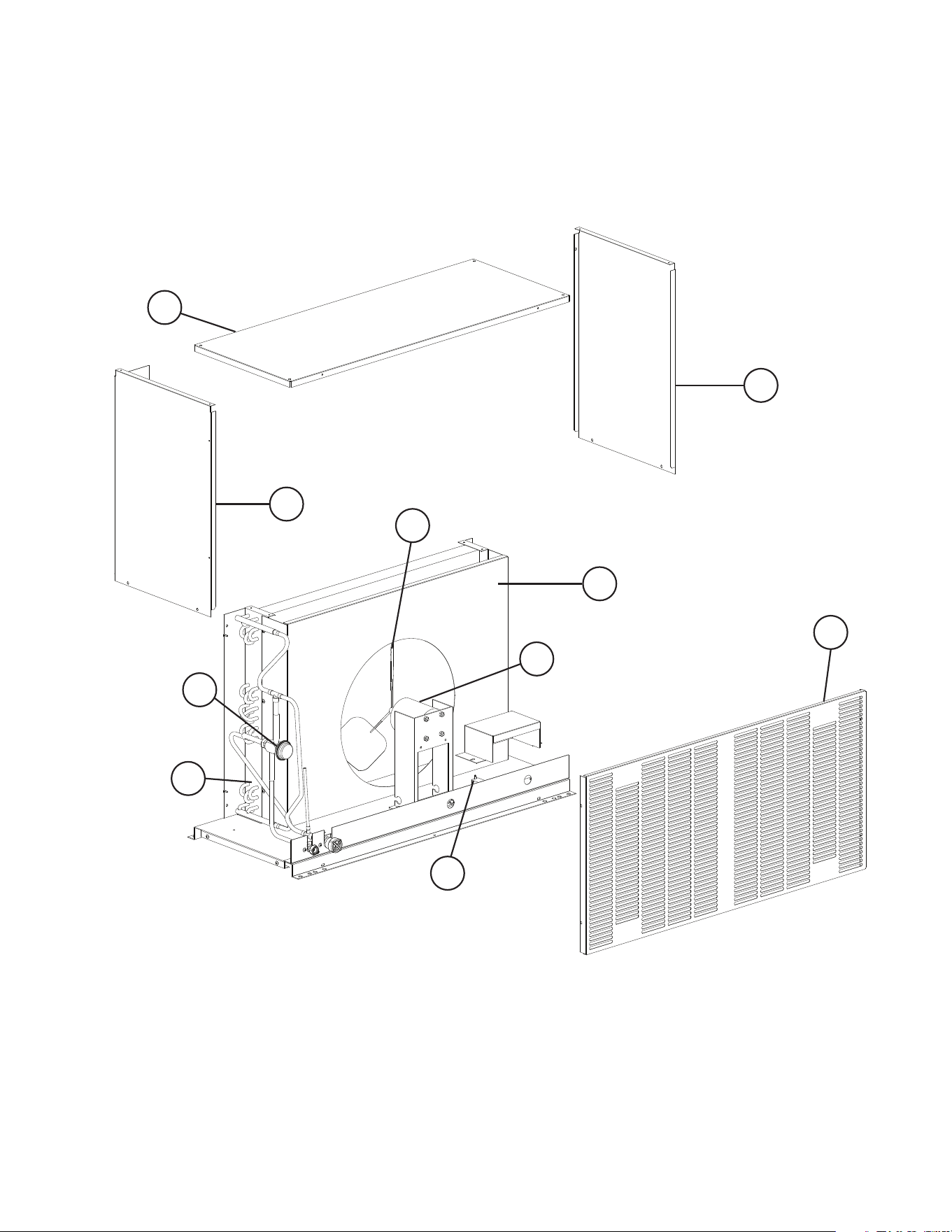

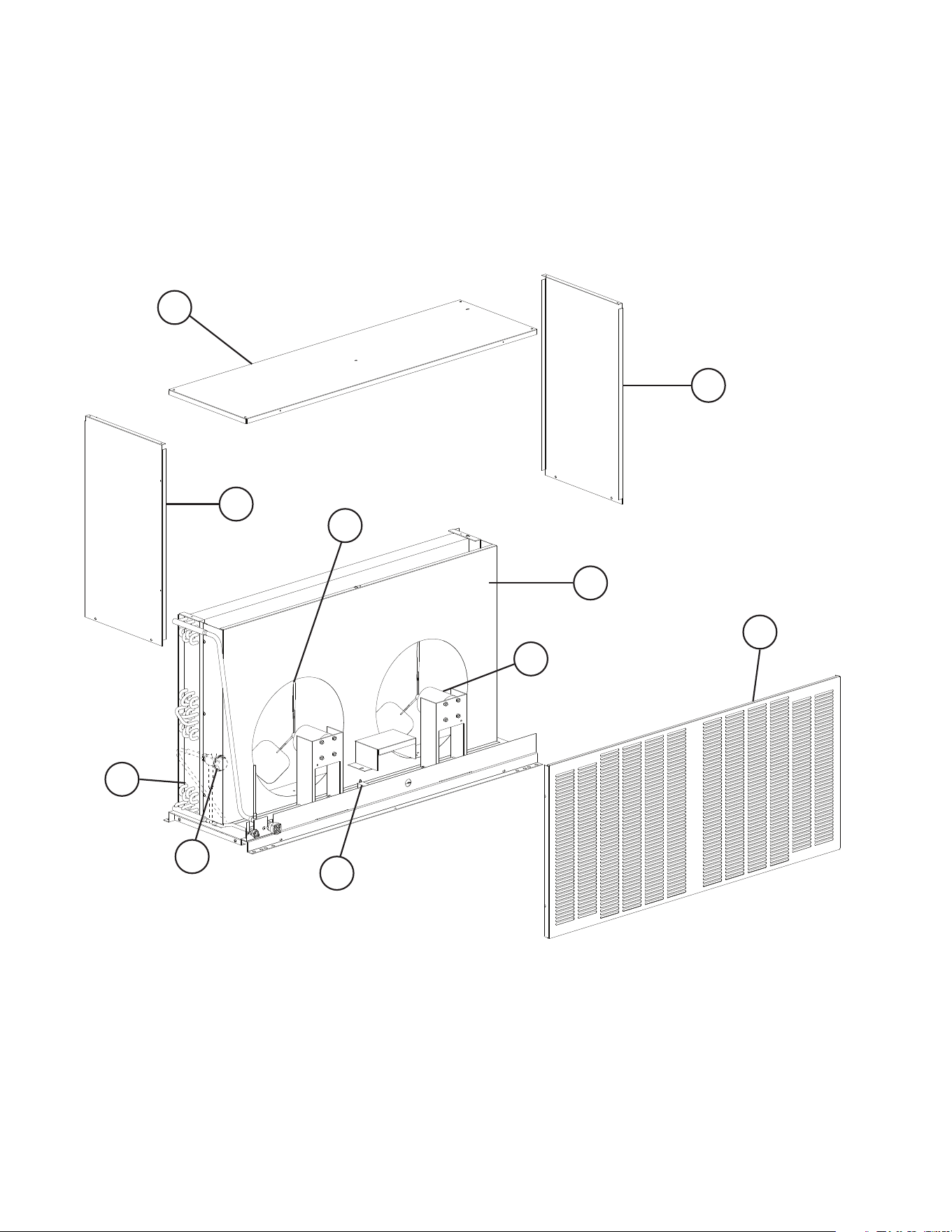

A. Condenser Unit
URC-14F, URC-22F, URC-23F
2/2
Q-5 to E-0
1
2
3
4
5
6
7
8
9
URC-14F. URC-22F and URC-23F
10
7
Title: A. Condenser Unit Model: URC-_F
Index
No. Description
Material or Model
Number Part Number
Required Number
Q-5
to
C-0
C-1
(H)
C-1
(K) D-0
D-1
(D)
D-1
(H) E-0
1 Condenser URC-5F 216519-02 1 1 1 1 1 1 1
URC-9F 1A1231-01 1 1 1 1 1 1 1
URC-14F 104777-02 1 1 1 1 1 1 1
URC-22F 104918-02 1 1 1 1 1 1 1
URC-23F 1A1048-01 1 1 1 1 -
1A3506-01 1 1 1
2 Shroud URC-5F 216522-01 1 1 1 1 1 -
2A7228-01 1 1
URC-9F 2A3869-01 1 1 1 1 -
2A7152-01 1 1 1
URC-14F 324150G02 1 1 1 1 -
3A7881-01 1 1 1
URC-22F 325010G01 1 1 1 1 1 1 -
3A8629-01 1
URC-23F 325010G02 1 1 -
2A7185-01 1 1 1 1 1
3 Fan Motor URC-5F
URC-9F
4A3201-01 1 1 1 1 1 1 1
URC-14F
URC-22F
URC-23F
2 2 2 2 2 2 2
4 Fan Blade URC-5F
URC-9F
4A1493-01 1 1 1 1 1 1 1
URC-14F
URC-22F
URC-23F
2 2 2 2 2 2 2
5 Capacitor
10.0MFD,
250VAC
URC-5F
URC-9F
443192-01 1 1 1 1 1 1 1
URC-14F
URC-22F
URC-23F
2 2 2 2 2 2 2
6 Louver Panel URC-5F 216521-01 1 1 1 1 1 1 1
URC-9F 2A7139-01 1 1 1 1 1 1 1
URC-14F 213968-01 1 1 1 1 -
2A7139-01 1 1 1
URC-22F 325014G02 1 -
2A7110-01 1 1 1 1 1 1
URC-23F 325014G02 1 -
2A7110-01 1 1 1 1 1
7 Right Side Panel URC-5F 2A1884-01 1 1 1 1 1 1 1
URC-9F
URC-14F
2A1914-01 1 1 1 1 1 1 1
URC-22F
URC-23F
2A1926-01 1 1 1 1 1 1 1
8
Title: A. Condenser Unit Model: URC-_F
Index
No. Description
Material or Model
Number Part Number
Required Number
Q-5
to
C-0
C-1
(H)
C-1
(K) D-0
D-1
(D)
D-1
(H) E-0
8 Left Side Panel URC-5F 2A1885-01 1 1 1 1 1 1 1
URC-9F 2A1914-01 1 1 1 1 -
2A7153-01 1 1 1
URC-14F 2A1915-01 1 1 1 1 1 1 1
URC-22F
URC-23F
2A1925-01 1 1 1 1 1 1 1
9 Top Panel URC-5F 2A0897-01 1 1 1 1 1 1 1
UCR-9F 2A3889-01 1 1 1 1 -
2A7142-01 1 1 1
URC-14F 2A0900-01 1 1 1 1 -
2A7142-01 1 1 1
URC-22F 326137G02 1 -
3A7841-01 1 1 1 1 1 -
3A7977-01 1
URC-23F 3A3489G01 1 1 -
3A7977-01 1 1 1 1 1
10 Headmaster (Condensing
Pressure Regulator - C.P.R.)
URC-5F
URC-9F
URC-14F
URC-22F
4A0229-01 1 1 1 1 1 1 1
9

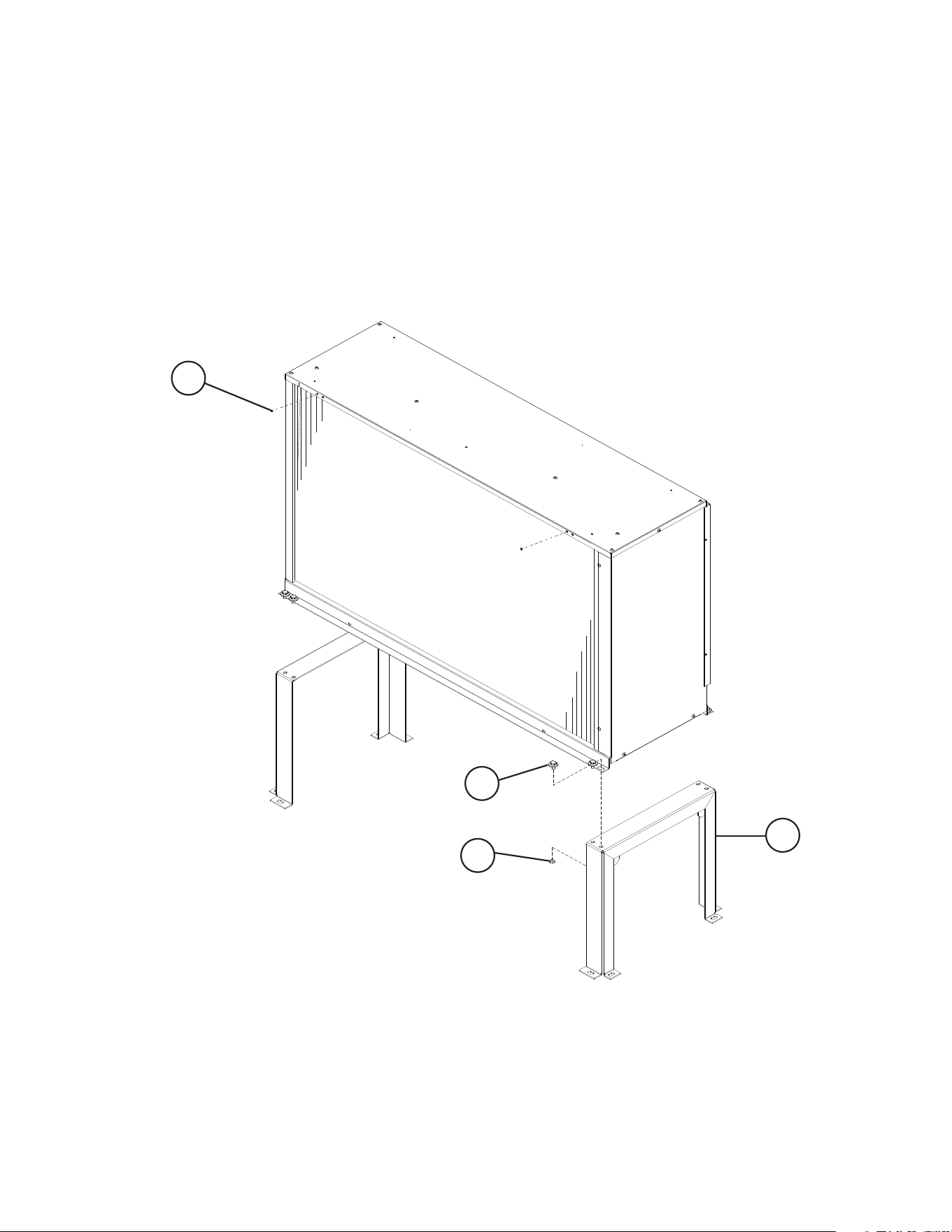

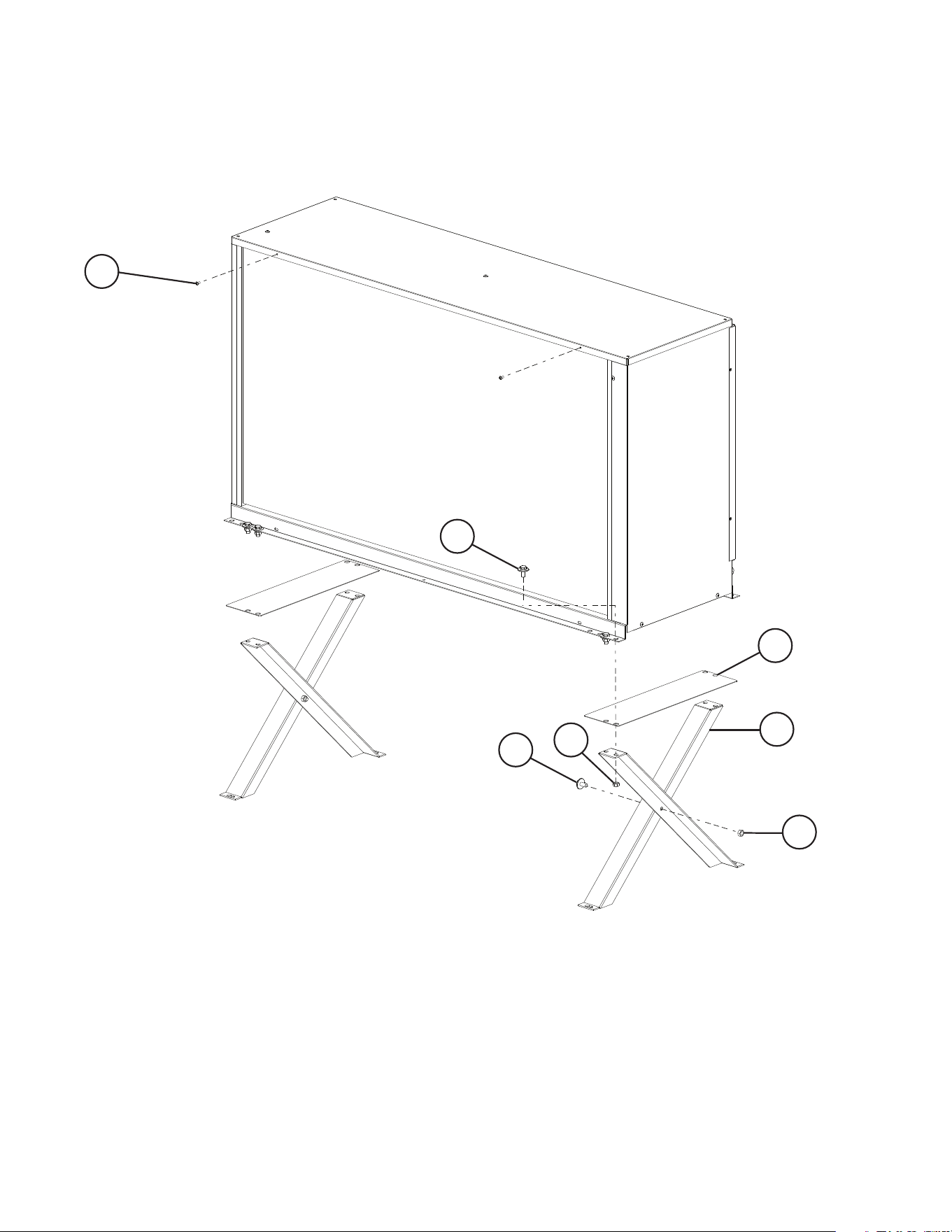

B. Accessories
URC-_F
1/2
Q-5 to C-0
1
1a
1b
2
10
B. Accessories
URC-_F
2/2
C-1 to E-0
1
2
1a
1a
1b
1b
3
11
Title: B. Accessories Model: URC-_F
Index
No. Description
Material or
Model Number Part Number
Required Number
Q-5
to
C-0
C-1
(H)
C-1
(K) D-0
D-1
(D)
D-1
(H) E-0
1 Leg URC-5F 3A1704G01 2 2 2 2 2 -
3A7823-01 4 4
URC-9F
URC-14F
3A1704G01 2 2 2 2 -
3A7823-01 4 4 4
URC-22F 3A1704G01 2 -
3A7823-01 4 4 4 4 4 4
URC-23F 3A1704G01 2 2 -
3A7823-01 4 4 4 4 4
1a Hex Head Bolt W/Washer 8×20. SS 7B0230820 10 10 10 10 10 10 10
1b Hex Nut M8, SS 7N11-0800 10 10 10 10 10 10 10
2 T2 Screw 4×8, SS 7P32-0408 4 4 4 4 4 4 4
3 Plate URC-5F 3A3872-01 2 2
URC-9F 2 2 2
URC-14F 2 2 2
URC-22F 2 2 2 2 2 2
URC-23F 2 2 2 2 2
