Altus ATL1010W 10kg Top Load Washing Machine User Manual

FULLY AUTOMATIC WASHING MACHINE

Operation Manual

It is most important that this instruction book should be retained with the

appliance for future reference. Should the appliance be sold or transferred

to another owner, or should you move house and leave the appliance, always

ensure the book is supplied with the appliance in order that the new owner

can get to know the functioning of the appliance and the relevant warnings.

These warnings have been provided in the interest of safety. You must read

them carefully before installing or using the appliance.

ATL1010W

10.0kg

Specification

Before using

Parts name.......................................

Cautions...........................................

Installation and adjustment................. 4

How to use drain hose..........................

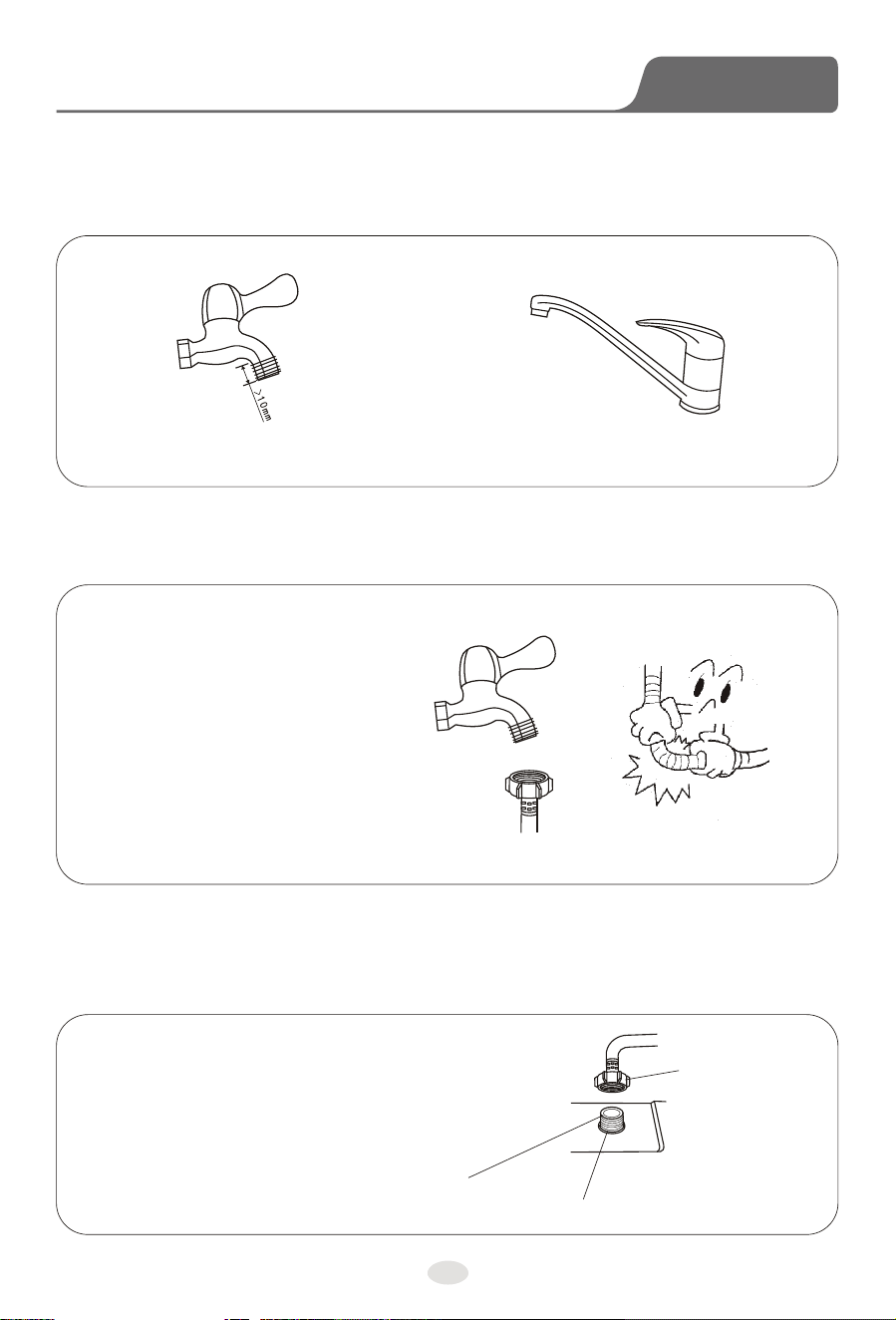

Water inlet installation.......................

Operation

Preparation before operation ..............

Load

clothes...................................

Use of detergent...............................

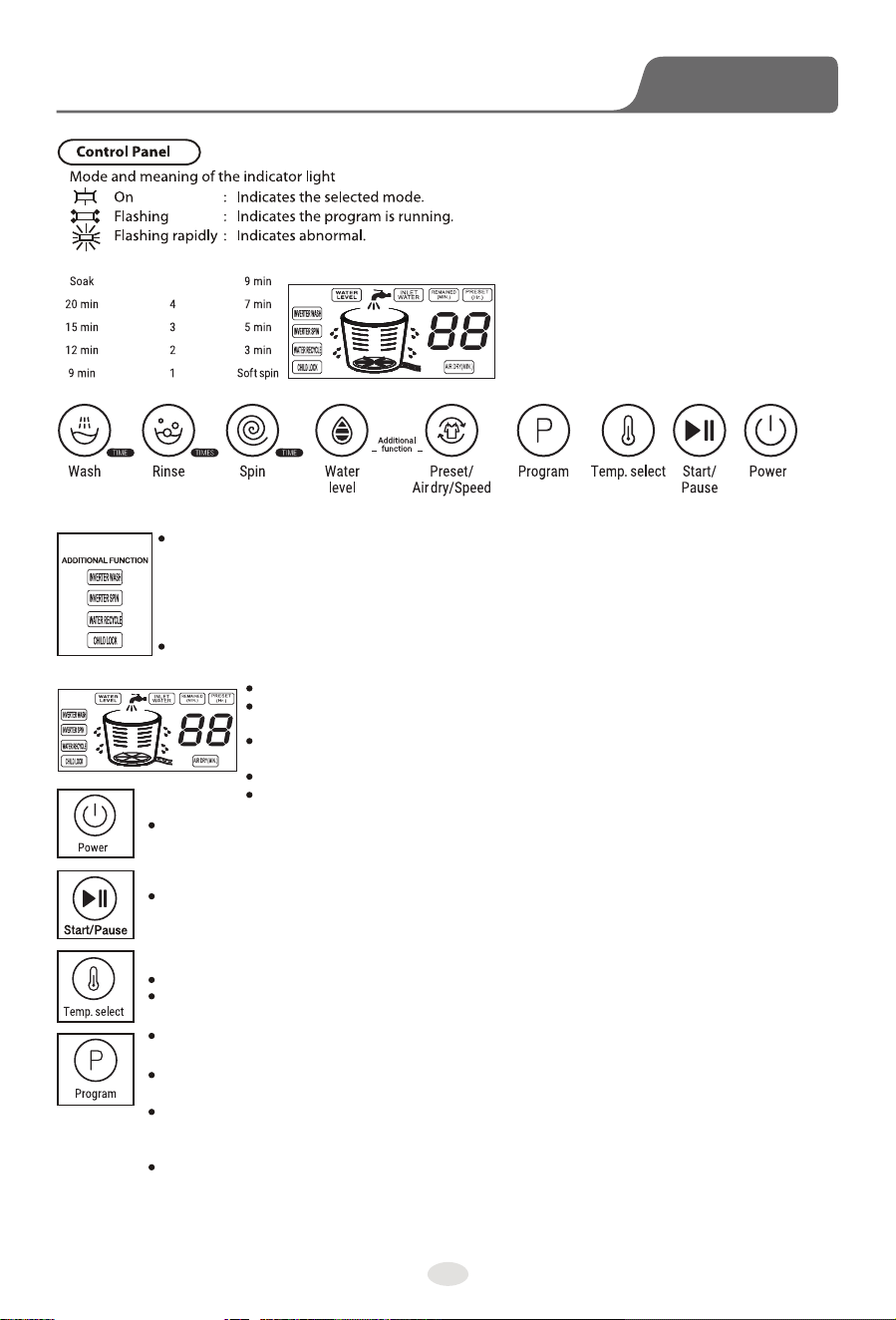

Control panel instructions..................

Program...........................................

Maintenance....................................

Other functions.................................

Specification....................................

Contents

Troubleshooting................................

Others

220-240V~ 50Hz

Rated voltage and

frequency

Rated capacity of wash

and spin

Water level/water volume

(about)

Inlet pressure

ATL1010WModel

Rated input power

Weight

Product Dimensions

Wash：400W spin：340W

0.05MPa-0.85MPa

10.0kg

10/97L 9/85L 8/76L 7/67L

6/59L 5/53L 4/47L 3/41L

2/36L 1/31L

About 52.5kg

W665mm D675mm H1060mm

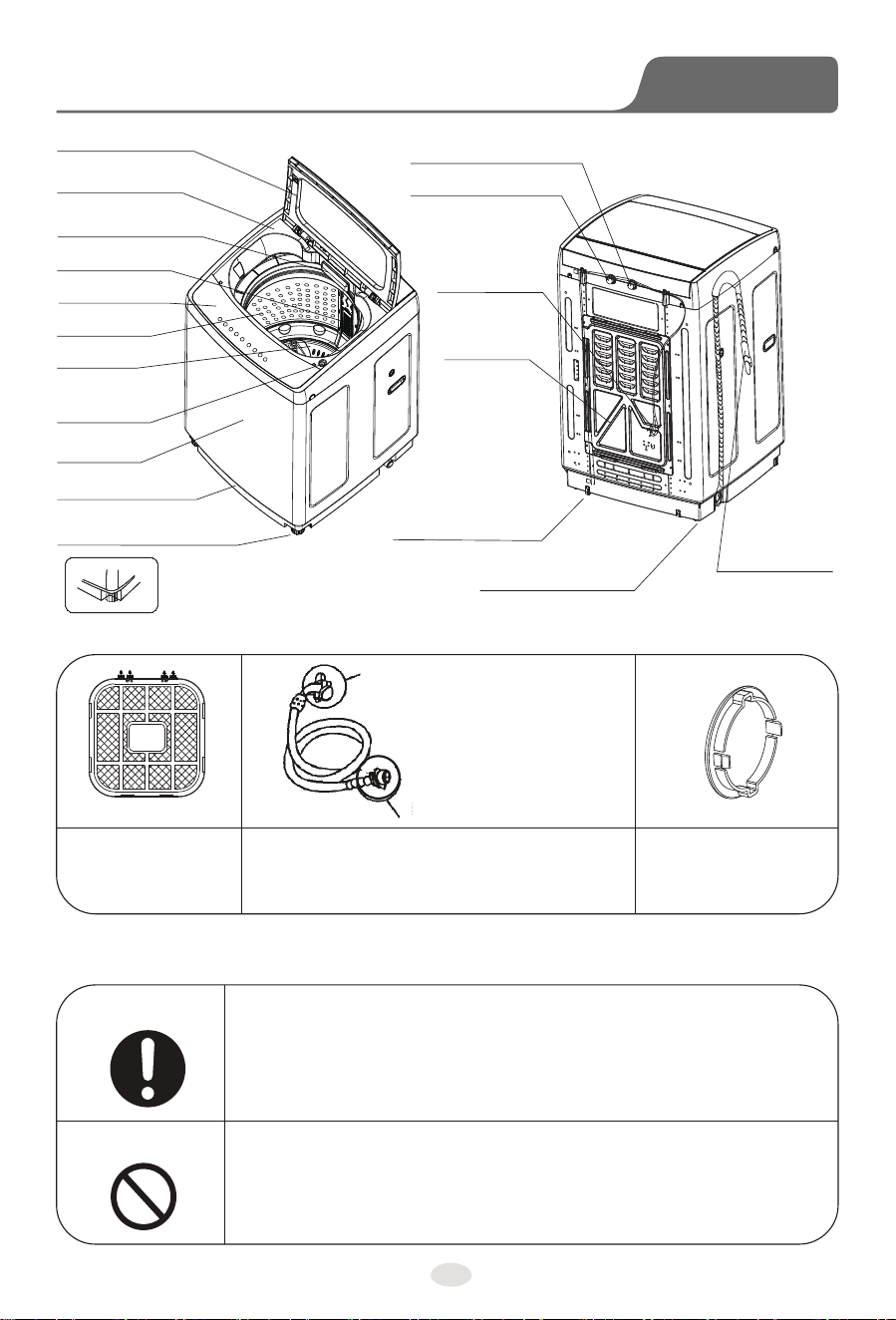

Other functions Parts name

Before using

Pay special attention to the warning symbols. There

may be serious risks to personal body safety or

damages to the washing machine if not follow.

Please stop doing the contents with this symbol,

otherwise it will damage the appliance or injure your

personal body.

Warning symbols

Forbidden symbols

Symbol definition

The end connect to

the appliance

Bottom cover

(1pc)

Water inlet hose (2pc)

Outfall stopper

(1pcs)

Top lid

Hot Water inlet valve

Cold Water inlet valve

Power cord

Back cover

Foot wheel(2pcs)

Fixing foot(2pcs)

Drain Hose

Top frame

Detergent box

Lint filter

Control panel

Inner tub

Pulsator

balancing

apparatus

Body

Base

Adjustable foot

Accessories

The end connect to

water inlet hose connector

Abnormal display

Display Explanation

Troubleshooting

The top lid is opened

when preset is started

Close the top lid and clear the alarm

The top lid open when

spinning

Close the top lid and clear the al arm

Spin is not balanced

Open the top lid, place the clothes

equally, then close it and clear the alarm

After inflow of water for 40

minute, it still does not

reach to the water level set

Water Level sensor is

abnormal

inverter signal

communication wrong

Cut off the power supply and contact an

Authorised Service Agent to assist

child-lock light flashing

The top lid is opened

after setting child-lock

Close the top lid and clear the alarm

After draining for 7 minutes,

it still does not reach to the

minimum of water level

During spinning, if the clothes are not placed equally in the tub, it would cause violent vibration.

This machine has imbalance adjustment function, and the vibration testing system will supervise

the running. Once vibration is beyond certain level, the adjustment system will start automatically

to adjust the imbalance.

2.Imbalance adjustment

3.Power supply is cut off automatically

a) If you did not start the program in 10 minutes after pressing the power supply button, the power

supply will be cut off automatically.

b) After the washing is finished, alarm buzzes and the power supply will cut off automatically.

4.Child lock function

a) When child lock function is set, all the buttons will be locked including POWER. If the top lid is

opened during the washing machine working, the washing will be stopped and give an alarm. But

if you can close the top lid in 5 seconds, the alarm will stop and the washing machine will continue

working. If cannot close the top lid in 5 seconds, the washing machine will begin draining if there is

water in the inner tub, even closing the top lid is not valid. During the draining, alarm will buzz every

10 seconds, when the water in the inner tub is about 5cm higher, alarm will buzz every 10 minutes.

When the draining is finished, the washing machine will be in the state of waiting, if close the top lid,

the washing machine is unlocked and start working as previous setting.

b) Once child lock is set, if top lid is opened over 5 seconds during washing or rinse(there is water in

the inner tub), washing machine will drain and alarm will buzz. If you unlock the function during

draining, the washing machine will add water to water level set and continue working.

5.Water recycle function

6.Inverter washing function

When water recycle function is set, after the last rinse finished, the washing machine will not drain

and spin.SPIN and WATER RECYCLE indicator light will be flashing and alarm will be given,the

washing machine will stop working (if nobody operate, the alarm will be given every 10 minutes,

in 1 hour, power supply will be cut off automatically). When press START/PAUSE, WATER RECYCLE

indicator light is on and the washing machine begin to drain and spin, the user can reuse the water.

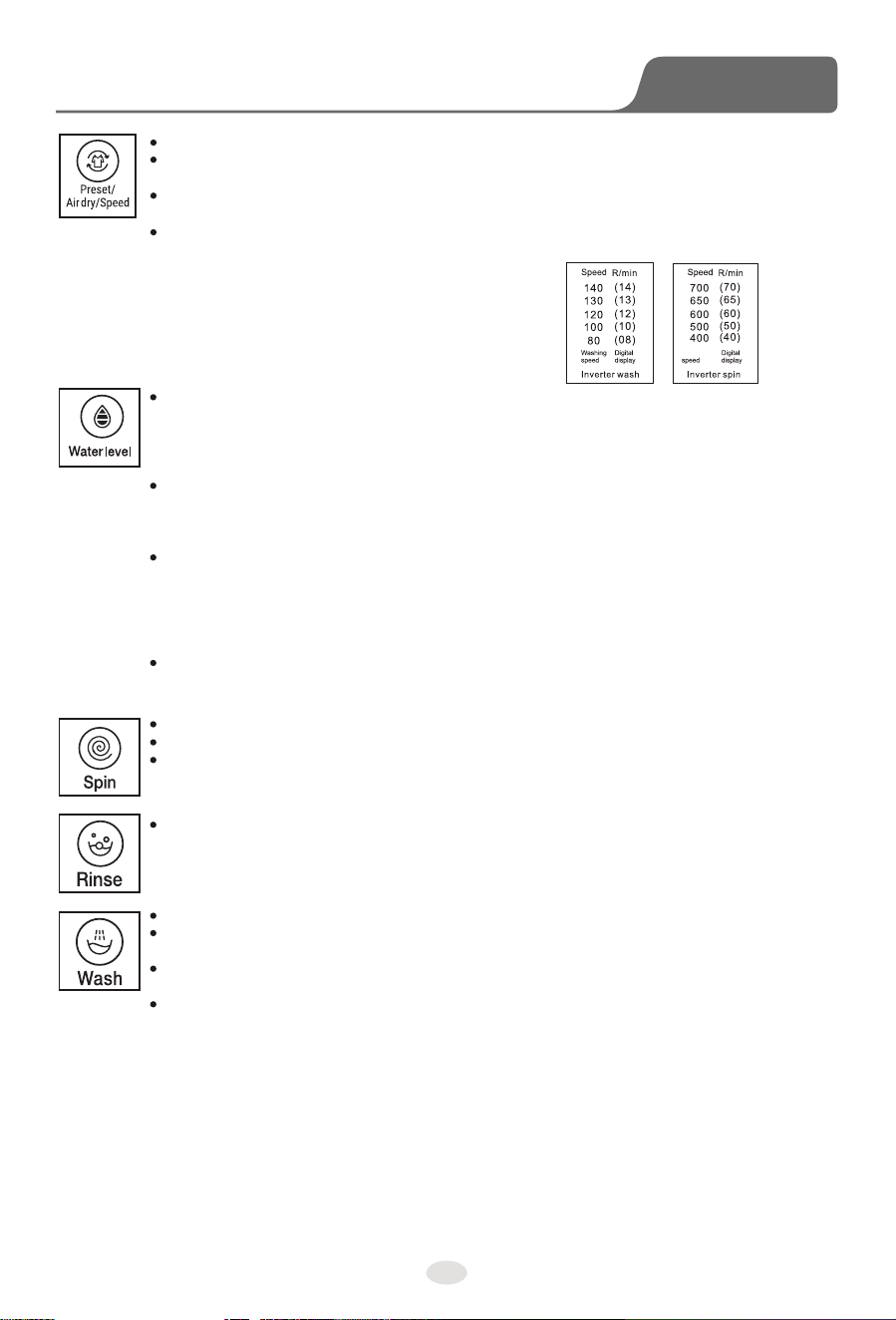

Direct Drive motor is used on this machine. At the beginning of start, If you want to choose a different

washing speed and spinning speed on the initial state, pressing"WATER LEVEL" button and press

" PRESET/AIR DRY/SPEED" button, choose inverter wash and inverter spin (This function is only

applicable to "COTTON" and "HEAVY" program). And then press " PRESET/AIR DRY/SPEED"

button, choose different washing speed and spinning speed to suit different clothes and achieve better

washing and spinning

Please refer to Page 14 &15 for

troubleshooting

Please refer to Page 14 &15 for

troubleshooting

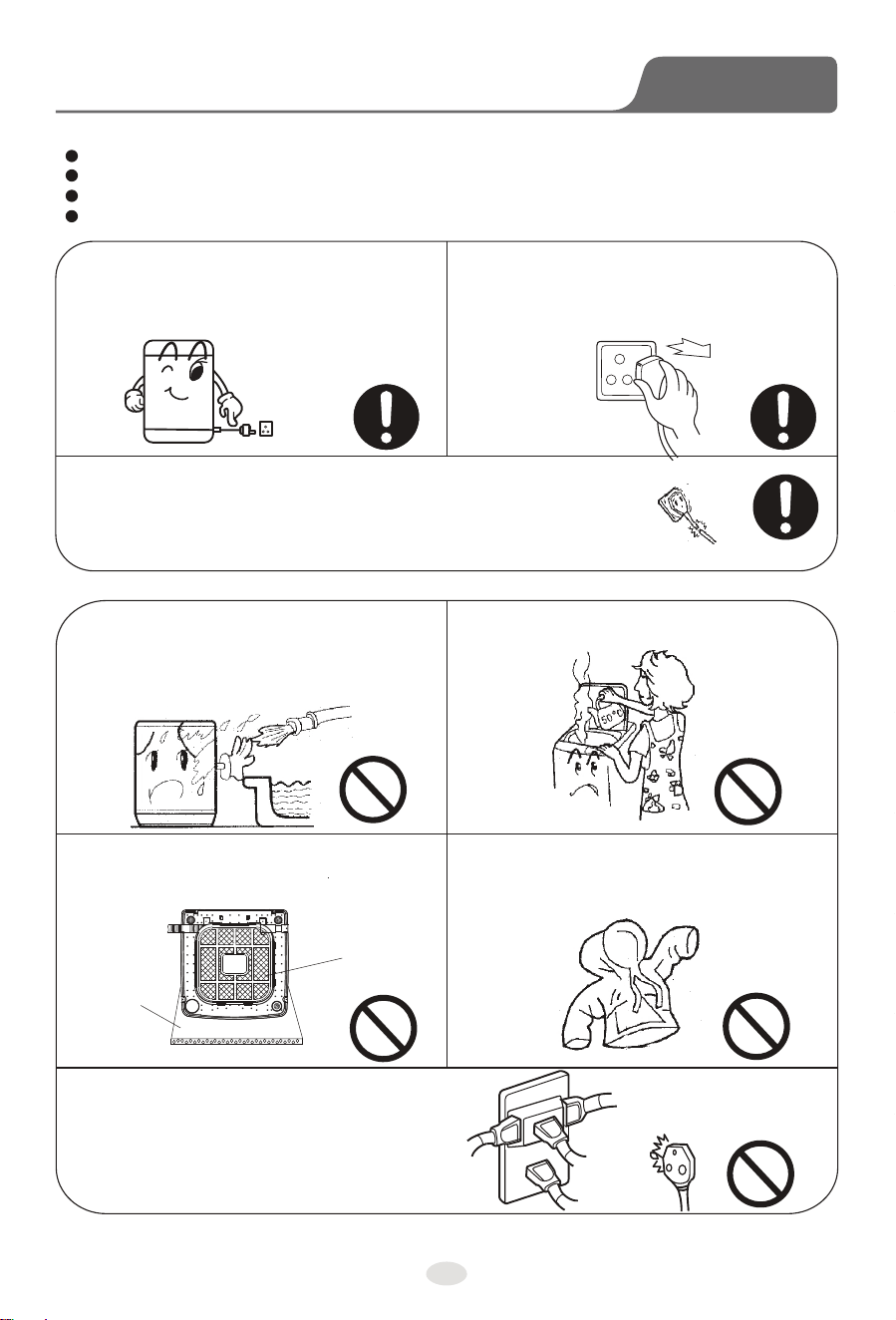

Cautions

Before using Troubleshooting

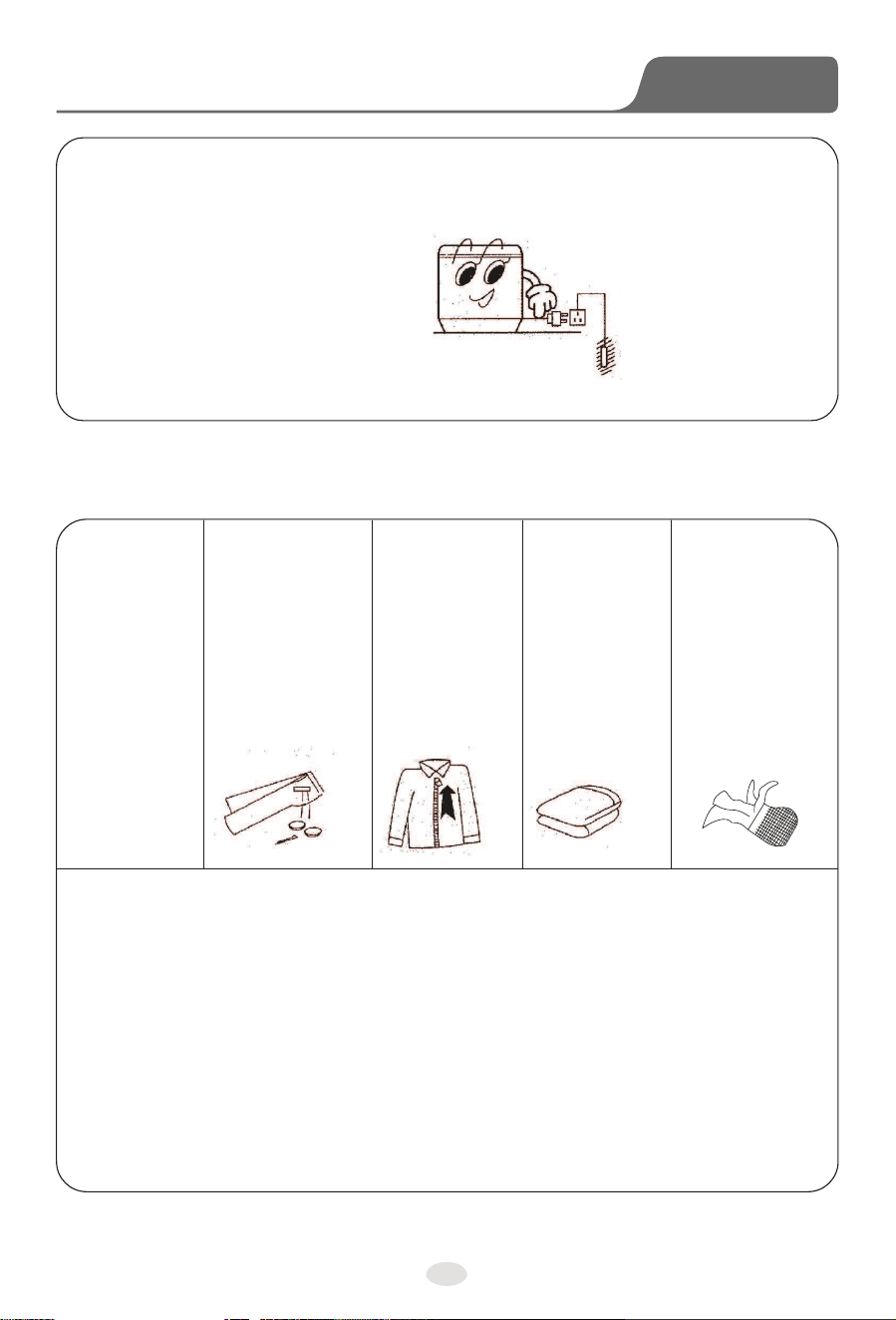

Please insert the plug into the power socket

with rated voltage 220-240V A/C.

Always unplug the appliance and turn off the

water when the power is cut, moving or

cleaning the washing machine, or it is not in

use. Do not insert or pull off the plug with wet

hand.

This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments;

Farm houses;

By clients in hotels, motels and other residential type environments;

Bed and Breakfast type environments

Do not make the electric cable bended, stretched, twisted, strapped or

changed, pressed or nipped. If the supply cord is damaged, it must be

replaced by the manufacturer,its service agent or similarly qualified

persons in order to avoid a hazard. The pin of the plug must remain

clean. Please clean it carefully with dry cloth if it is dirty.

Do not use water hotter than 50℃

Do not install the washing machine in bathroom

or damp places. Do not wash the machine with

water, do not put wet clothes on the control

panel film.

If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

Ventilation holes

at the bottom

Soft item

Do not wash raincoat, bike cover, feather dress

and waterproof clothes, which will caused the

washing machine to have abnormal vibrations

during spinning.

Do not share the same socket with other electric

appliances. Do not use the damaged plug or loose

socket.

Notes ：If there is still a fault after the above checks, please pull out the plug and

contact the Authorised Service Agent right away. It is dangerous to repair

this product by yourself.

Normal

Close the top lid

Insert the plug tightly

Check the socket or change to another socket

Press power switch

Check power supply

Install the inlet hose again

Tighten the connector of the machine

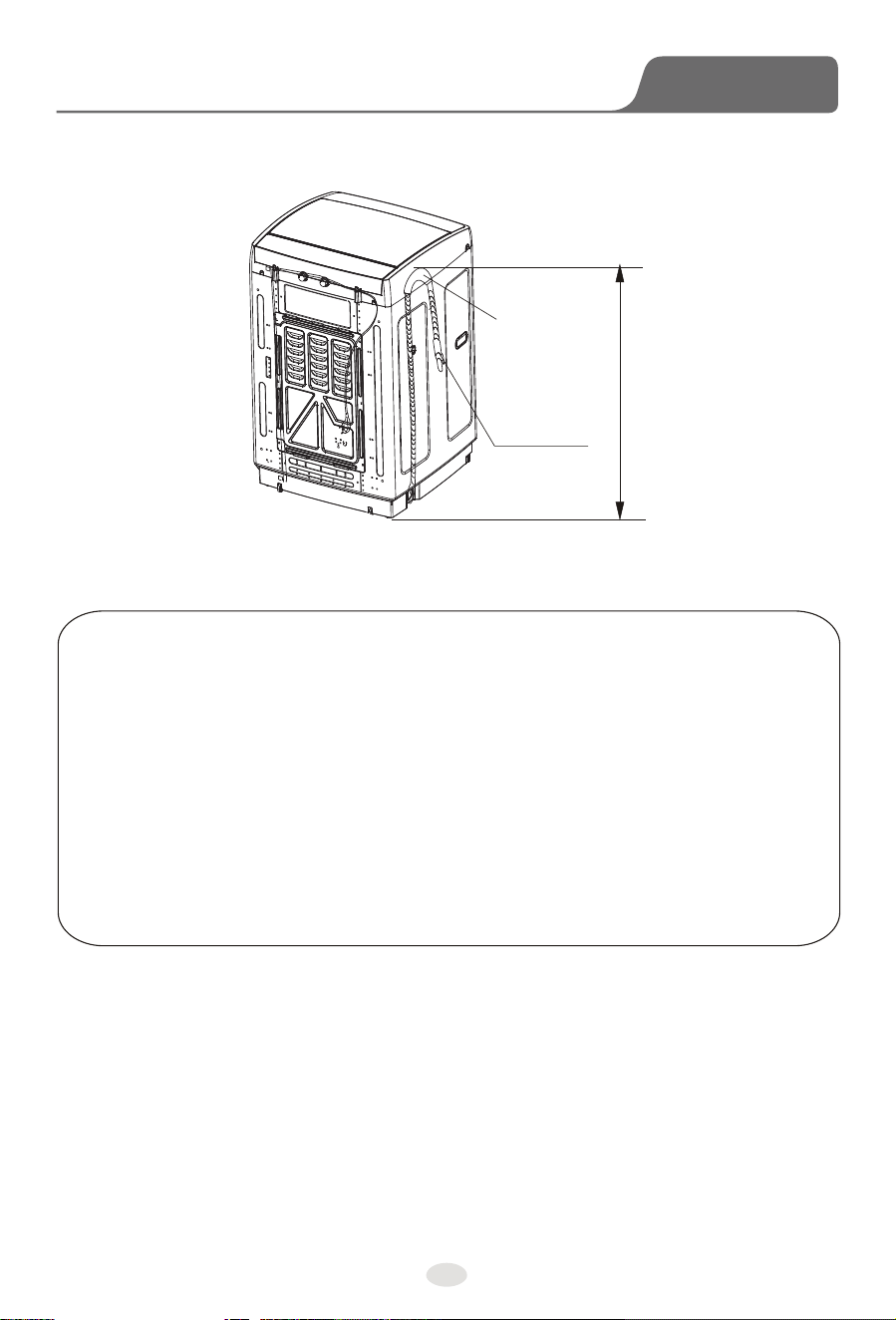

The height of the drain hose should be less than 1.2m

Straighten or clean the drain hose

Restart when water supply is resumed

Open the tap

Clean the filter according to before "clean inlet gate"

The machine is adjusting automatically

Troubleshooting

Cautions

Troubleshooting

Before using

Control panel has no display

Plug is not inserted tightly

No electricity in the socket

Power switch is not turned on

Power supply is cut off

Inlet hose leaks

Inlet hose connector(connecting with the tap)is not fixed tightly

Inlet hose and washing machine connector is loose

Before contacting the technicians, please make the following checks:

Issue Possible reason

It does not drain

Water outlet of drain hose is higher than 1.2m

Drain Hose is bent or blocked

No inflow of water

No water supply

Tap is not open

Inlet hose gets blocked

Spin stops and water inflow

begins during spin program

Clothes is too much or too little or the

machine is not stable

Press the program button to

select SPIN, but It does not spin

Top lid was not closed when drain is finished

Top lid was open when drain is started

The spin is intermittent when spin

starts

Balance the clothes to reach to the best spin effect

First time use, some water flows

out from the drain hose

The remaining water from factory’s testing

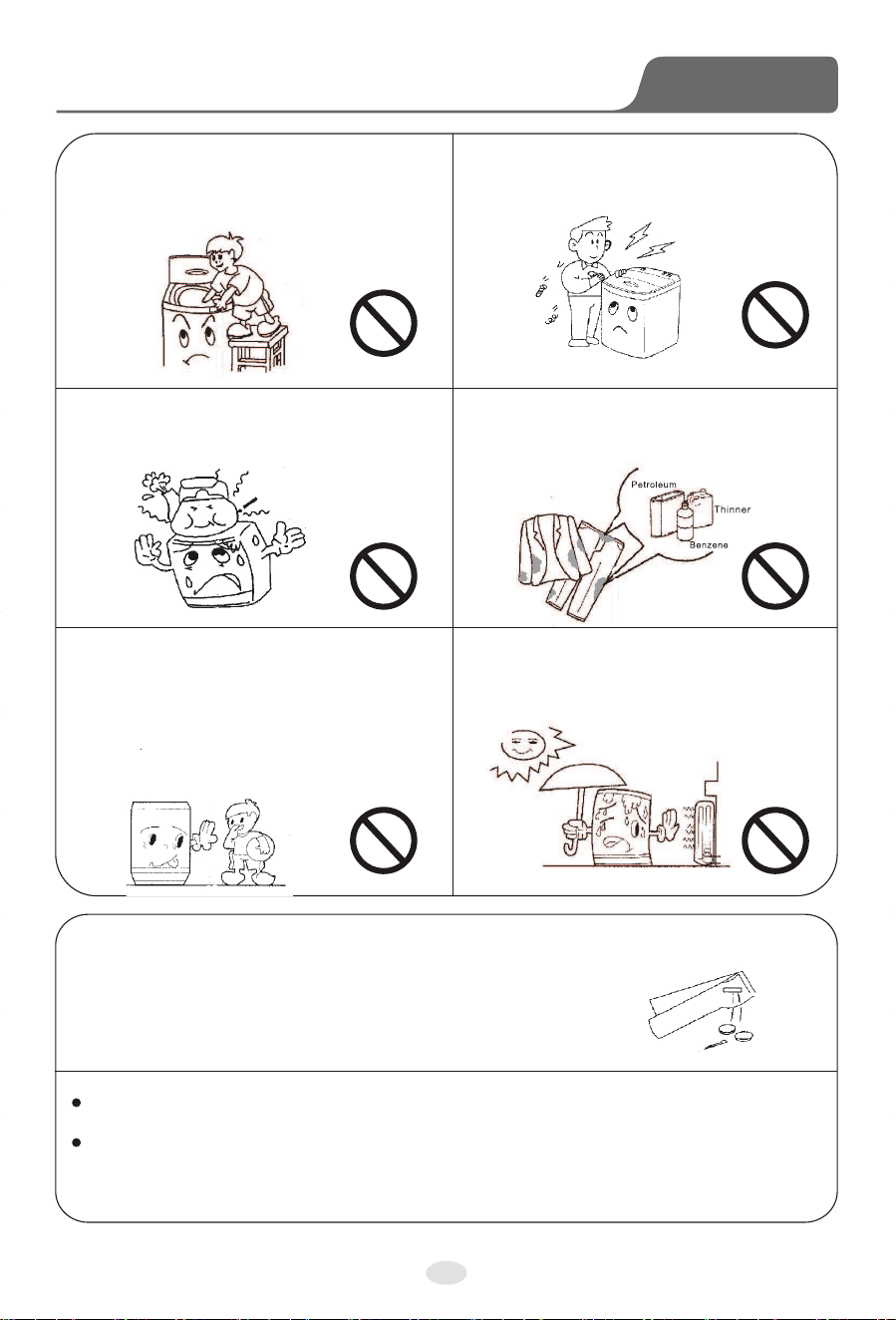

Do not put hands into the working machine.

It is dangerous even if the speed is very slow.

Take special care of the children, and forbid

them to climb on the washing machine.

It is dangerous to alter the specifications or

attempt to modify this product in any way.

Do not overload the appliance or put any hot

goods(such as the kettle with hot water)on the

washing machine.

Garments which have been in contact with

volatile petroleum products should not be

machine washed.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by

a person responsible for their safety.

Children should be supervised to ensure that they

do not play with the appliance.

Keep the appliance away from direct

sunlight and heat sources like the heater.

14 3

Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material

can cause extensive damage and must not be placed into the machine.

Before washing, please ensure the tap is open

and the inlet hose is installed properly.

It is suggested to use low foam washing powder.

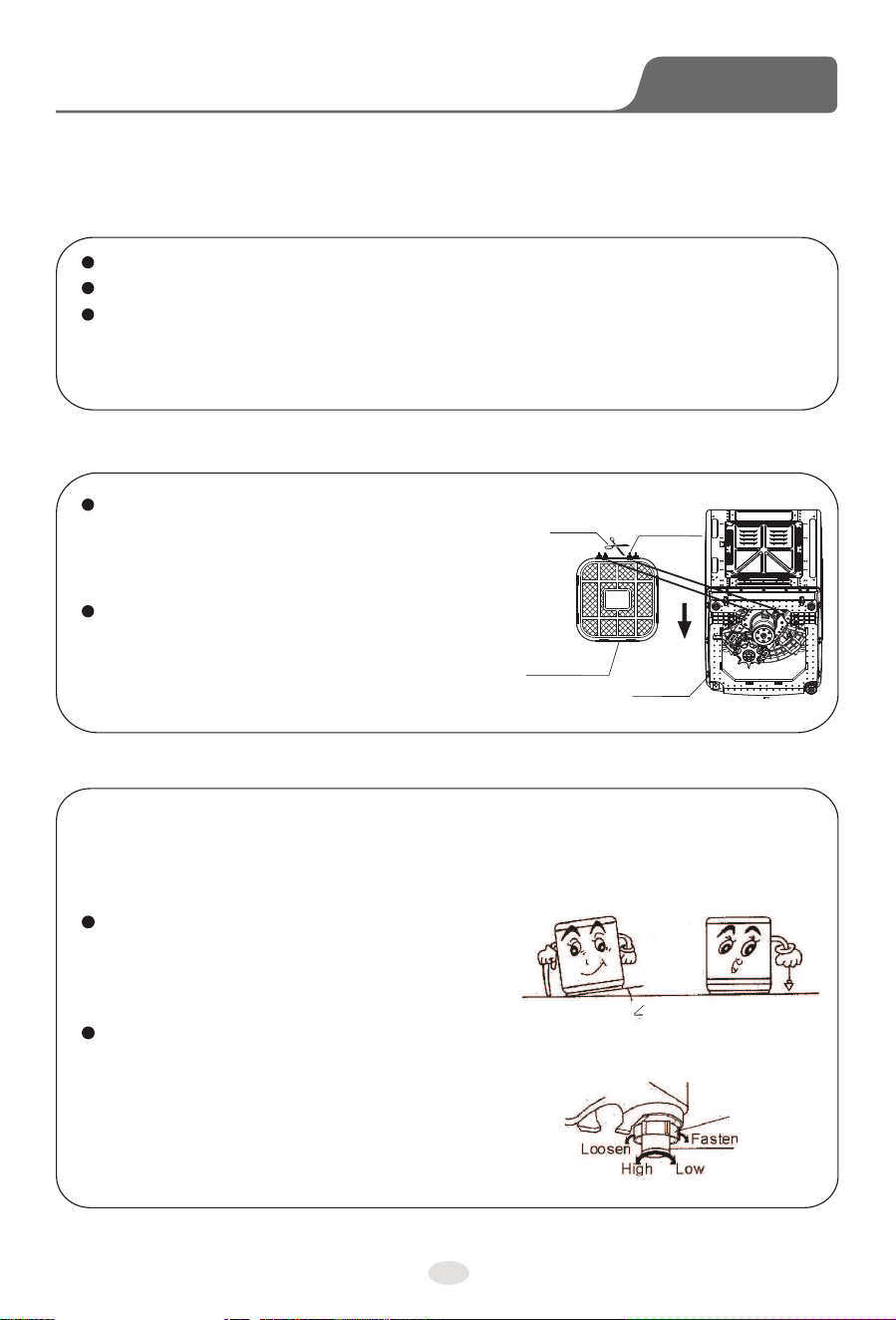

Installation and adjustment

Maintenance

Operation

Before using

Please install and adjust the machine according to the requirements of the manual.

Correct operation is very important for your safety.

Unpacking

Unpack the carton and take out the bottom cover.

Open the top lid of washing machine and take out all of the accessories.

Remove all wrappers, including the polystyrene base.

You are advised to keep all the packaging for reuse in case the machine is to be

transported again.

Positioning

The distance between the washing machine and the wall should be more than 50mm,

and the maximum allowed angle of the shank base of the machine is 1°.

The slanting or rough ground may cause operating stopped or unstable, please adjust it

with the following methods:

Horizontal checking

Use a spirit level to check the level of your machine.

Observe the water bubble in balancing apparatus

is in red circle or not. In red circle, it is horizontal.

Adjust the adjustable foot

1) Lift up the adjustable foot gently, loosen the adjustable nut

and twist the adjustable foot.

2) Fasten the nut after adjustment.

3) Set the machine flat, and observe again. If the water bubble

is not in red circle, repeat the above procedure, till the water

bubble is in red circle.

Installing the bottom cover

Let the back of washing machine incline forward,

make the side of bottom cover with sticker description

back to washing machine, insert to the bottom of

washing machine along the direction of arrow.

Remove two fixing clamp by scissors, insert to the

accordingly holes black lines indicating ( gently pull

fixing clamp should not be pulled out ), make the

bottom cover fixed on the base.

Fixing clampScissors

Bottom cover

The base

1°

Adjustable nut

Adjustable

foot

4 13

Maintenance methods

1. After using the machine, you are advised to turn off the water taps. (if necessary, pull out

the inlet hose).

2. Do not keep water in tub for a long time. When washing is finished, drain it right away.

3. Once you have finished using the machine, you are advised to unplug it.

4. Put the electric cable and the drain hose in order.

5. Wipe the water on the surface and in the tub with soft cloth and keep the top lid opened for a

while. It helps to prevent mold and smell forming inside the appliance.

If the water in the inner tub has possibility to freeze, please follow as below:

a) In winter, any remaining water may freeze and can cause the washing machine trouble,

please take off the water inlet hose and drain out the water in the hose and inner tub.

b) If the water freeze, please don't operate the washing machine. Put 40℃ hot water in the tub,

the hot water should submerge the pulsator, after a few minutes, rotate the pulsator by hand

gently, then you can operate the washing machine.

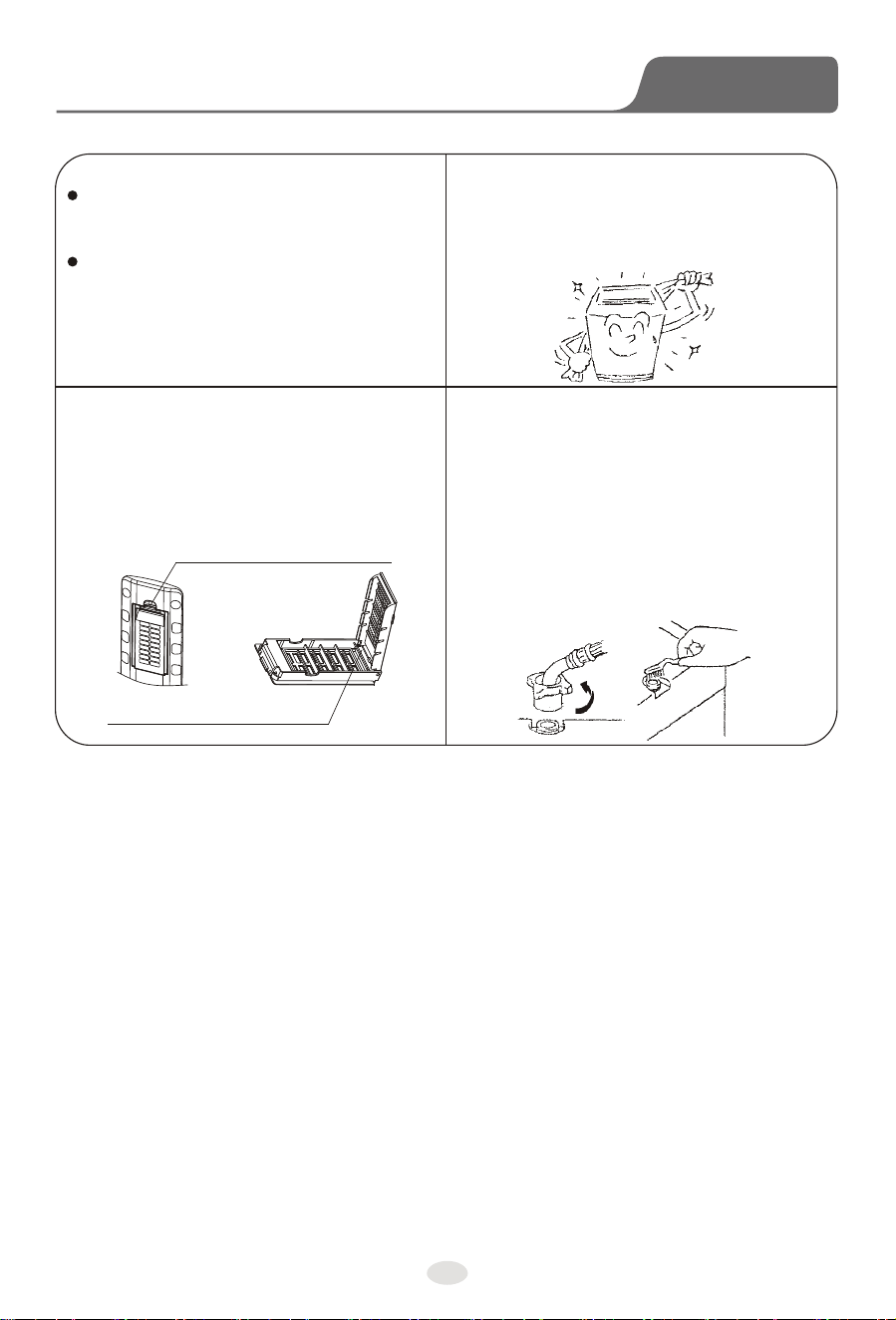

1. pull out magic filter

2. open the box and clean it

3. close it and reinstall it

4. check if the lint block part is in good

condition

Magic filter cleaning

press this part and pull out

to take out the magic filter

lint block part (black rubber)

After the end of the programme

Clean the lint filter

The machine stops automatically, and

music buzzer will remind you to take out

the clothes or start again.

Once you have finished using the machine,

you are advised to unplug it and turn off the

water taps to avoid unexpected leak or fire.

External cleaning

Clean the exterior cabinet of the appliance with

soft cloth. Do not use cleanser, volatile chemical

materials to clean the machine, which will

damage plastic parts and the surface.

It is possible that the inlet filter net can be blocked by

the dust, please clean it according to the following

steps:

1. Close the tap and turn on the power switch.

2. Start the washing machine for 5 seconds(make

the water in the inlet hose flows to the tub), and

cut off the power supply.

3. Pull off the inlet hose, remove and clean the inlet

valve and the inlet net, and install again.

Program

How to use drain hose

Program Operation

Before using

12 5

1.the drain hose must be hanged during use, the height should

be no more than 1.2m to avoid leakage or stop. If drain a

long time, the machine will stop running.

2.You can adjust the situation of the elbow bend pipe to

change the height of the drain hose.

3.Do not make an extension to drain hose to ensure proper

draining of water.

drain hose

Elbow

Less than 1.2m

Cycle

Cottons

Heavy

Description

You can wash your lightly soiled cotton and linen laundry (sheets,

bedlinen, towels, bathrobes, underwear etc.) in this programme. Wash

and soak time could be set according to the soil level of the clothes.

You can wash your heavily soiled durable cotton laundry in this

programme.

For sheer fabrics, bras, lingerie (silk), and other handwash-only fabrics.

You can wash your normally soiled durable cotton laundry in this

programme with the most energy and water efficient way.

Use this program to wash your lightly soiled garments such as

sportswear quickly. Recommended for up to 2kg.

Use this program to wash your daily laundry made of various cotton

and easy care fabrics. Recommended for up to 6 kg

You can wash your woollen clothes in this programme.

Delicates

Cottons Eco*

Quick

Woollens

Baby Care

Daily

Air Dry

Drum Clean

For baby's clothes.

Select this program to clean the tub and the drum. The powerful spinning

removes the detergent residue and dirt from inside the tub and drum.

Select this to dry the tub and the drum. The powerful spinning removes

moisture inside the tub to avoid mould formation.

*Energy label programme (AS/NZS 2040)

Water inlet installation

Control panel instructions

Program Operation

Before using

6 11

Caution: When installing the washing machine, please use the new hose assembly along

with the washing machine, old hose assembly should not be re-used.

Tap selection

Check the connection between inlet

hose connector and the tap

Connect the inlet hose with the washing machine

1. Swing the inlet hose gently to confirm if it is

fastened.

2. After installation,open the tap and check if

it leaks.

3. Do not bend the inlet hose with overstrain.

4. Before each usage,check the connection

between inlet hose connector and the tap.

Make sure they are firmly fitted to prevent

dropping from improper installation position.

1. Do not take off the water absorption cushion. Please

check if the cushion is dropped or damaged before

each usage. If it is, contact an Authorised Service

Agent or qualified professional immediately.

2. Put the inlet hose nut on the inlet valve connector.

3. Fasten the inlet hose nut and swing it gently to make

sure if it is suitable.

Inlet valve connector

Inlet hose nut

Water absorption cushion

Suitable tap

The front end should be longer than 10mm. The tap exit end

face should be flat and smooth, if not file it to avoid leakage.

Not suitable tap

At the beginning of start, if with FUZZY logic and do not select water level, the digital

timer shows“- -”. At this time, before press START/PAUSE, If select COTTONS or

HEAVY, with fuzzy logic. When select COTTONS ECO, no fuzzy logic, the water level

is “6”；When select QUICK, no fuzzy logic, water level is “2”. If no WASH process,

no fuzzy logic.

At the beginning of start, press WATER LEVEL to select water level, at this time, no

fuzzy logic function, you can select appropriate water level. According to your

clothes quantity.1-2 is low water level, 3-6 is middle water level,7-10 is high water l

evel.

During wash (including rinse), if need to add water, press WATER LEVEL button to

add water, un-press will stop adding. Or PAUSE the washing machine and press

WATER LEVEL to select higher water level, then press START/PAUSE button, The

washing machine Will add the water to setting level automatically and continue

working. If your resetting water level is lower than present water level, the lower

water Level will valid in next water inlet.

Automatically add water: during SOAK, WASH and RINSE process, if the washing

machine check the water level is lower than setting water level, The washing machine

will pause and add water to setting water level automatically.

DIY (Do it yourself) program---- you can set spin time.

At the beginning of start, the spin time setting is "7 minutes".

At the beginning of start, you can press "SPIN" to set spin process only, press "SPIN"

again to set spin time.

DIY (Do it yourself) program---- you can set rinse times.

At the beginning of start, the rinse times setting is "2 times".

DIY (Do it yourself) program---- you can choose soak function and wash time.

Pressing "WASH" button for 2 seconds to choose soak function, pressing for 2

seconds again to cancel soak function.

Under "COTTONS", " HEAVY" programs to choose soak function, the soak is before

wash.

At the beginning of start, the wash time is "15 minutes".

To start, press POWER button, the machine is in the state of beginning of start:

1.If there is no water in inner tub, washing machine is in "FUZZY" condition, washing time is

"15 minutes", rinse time is "2 times", spin time is "7 minutes", water level and preset are

displayed "--", program is "COTTONS" If press "START/PAUSE" button (or press "PROGRAM"

to select "HEAVY" ), the washing machine will start to sense and automatically sense the

weight of clothes and set water level.

2.If there is water in inner tub, the washing machine is not in "FUZZY" condition, washing time is

"15minutes", rinse time is "2 times", spin time is "7 minutes", water level is "7", program is

"COTTONS", digital time displays the time to finish washing.

At the beginning of start, press this button to select preset time from 2-24 hours.

If want to cancel preset time, press "POWER" to make the washing machine in

waiting state.

If need to select air dry, please press "PROGRAM" button to select airy dry, then

press this button to set air dry time.

At the beginning of start, pressing "WATER LEVEL" button and press " PRESET

/AIR DRY/SPEED" button and choose inverter wash

or inverter spin, and press it again,

then you can choose washing speed or

spin speed. This function is only applicable

to "COTTONS" and "HEAVY" program.

digital screen display the corresponding

rotational speed as follows:

Spin

Control panel instructions

Program Operation

10 7

Preparation before operation

Operation

Preparation before washing

1. Connect the inlet hose and open the tap.

2. This appliance must be earthed. Confirm

the socket is earthed reliably and insert the

power plug. The earth terminal should not

link to gas pipeline, tap pipeline etc.

3. Hang up the drain hose.

Warning: the temperature of the water should be less than 50℃！

Before washing the clothes, please pay attention to the

followings:

Make sure if

there is special

requirements for

the clothes

Before washing,

empty all pockets of

small objects which

may have been left

inside(coins, keys,

screws etc.) .

Knot the long

band, fasten the

buttons and close

the zippers.

Do not overload

the machine.

Load the laundry

loosely alternating

large items with

small ones.

Sort the laundry

according to the

type of fabric,

color-fastness and

how dirty it is. Put

thin clothes,

woollens and such

prone to wear and

tear clothes into

washing bag.

A. Make sure the clothes are washable.

B. It is essential to wash new coloured items separately when washing for the first time. White

items should not be washed with coloured items.

C. Please emerge the non-absorbable clothes by hand.

D. Some stains such as fruit, wine, grass, rust etc. are difficult to remove and should be treated

before washing with specific products, which can be found in most household shops. In some

cases it may help to soak the stain before washing with a special pre-soak product or

biological detergent.

E. Overturn the nap fabric and long floss clothes before putting them into the machine.

F. Do not put the clothes polluted by chemicals into the machine directly.

G.Very small item(handkerchiefs, ribbons, socks etc) should be washed in a washing bag or a

pillow case.

To switch on the Washing Machine to working state or waiting state.

Select one program form COTTONS, HEAVY, DELICATES, COTTONS ECO, QUICK,

WOOLLENS,BABY CARE, DAILY, DRUM CLEAN and AIR DRY.

If choose "COTTONS ECO" program, the wash time is "20 minutes", spin times is

"4", spin time is "9 minutes".

If choose "QUICK" program, the wash time is "9 minutes", spin times is "1", spin

time is"3 minutes", you can cancel one of the process (but if you choose "SOAK",

the wash time can not be cancelled).

If no selection is selected, the process will start with the COTTONS program when

the"START/PAUSE" button is pressed.

After selecting the PROGRAM, PROCESS and WATER LEVEL, press this button

to start. Press this button to pause during working, press again to continue.

Press "TEMP. SELECT" to select "HOT" 、"COLD" or "WARM" water for wash.

During the rinse process, it will inlet cold water.

At the beginning of start, pressing "WATER LEVEL", at the same time press

"PRESET/AIR DRY/SPEED", you can select WATER RECYCLE, INVERTER

WASH,INVERTER SPIN. Only both RINSE and SPIN are selected, WATER

RECYCLE can be selected. When you choose INVERTER WASH, INVERTER

SPIN, and press " PRESET/AIR DRY/SPEED" to choose a different washing speed

and spin.

During working, press "WATER LEVEL" and "PRESET/AIR DRY/SPEED" to set

CHILD LOCK, press again to unlock this function.

During delay start, the screen will display the selected time in hours.

If selecting AIR DRY, the Digtal Timer displays air dry time, unit is

Minutes.

When washing, the the Digital Timer shows the remaining time of

washing,unit is Minutes

When trouble encountered, the Digital Timer shows trouble code.

When it is ON and if with Fuzzy logic,the Digital Timer shows"--".

Cottons

Heavy

Delicates

Cottons Eco

Quick

Woollens

Baby Care

Daily

Drum Clean

Air Dry

Hot

Cold

Warm

Use of detergent

Operation

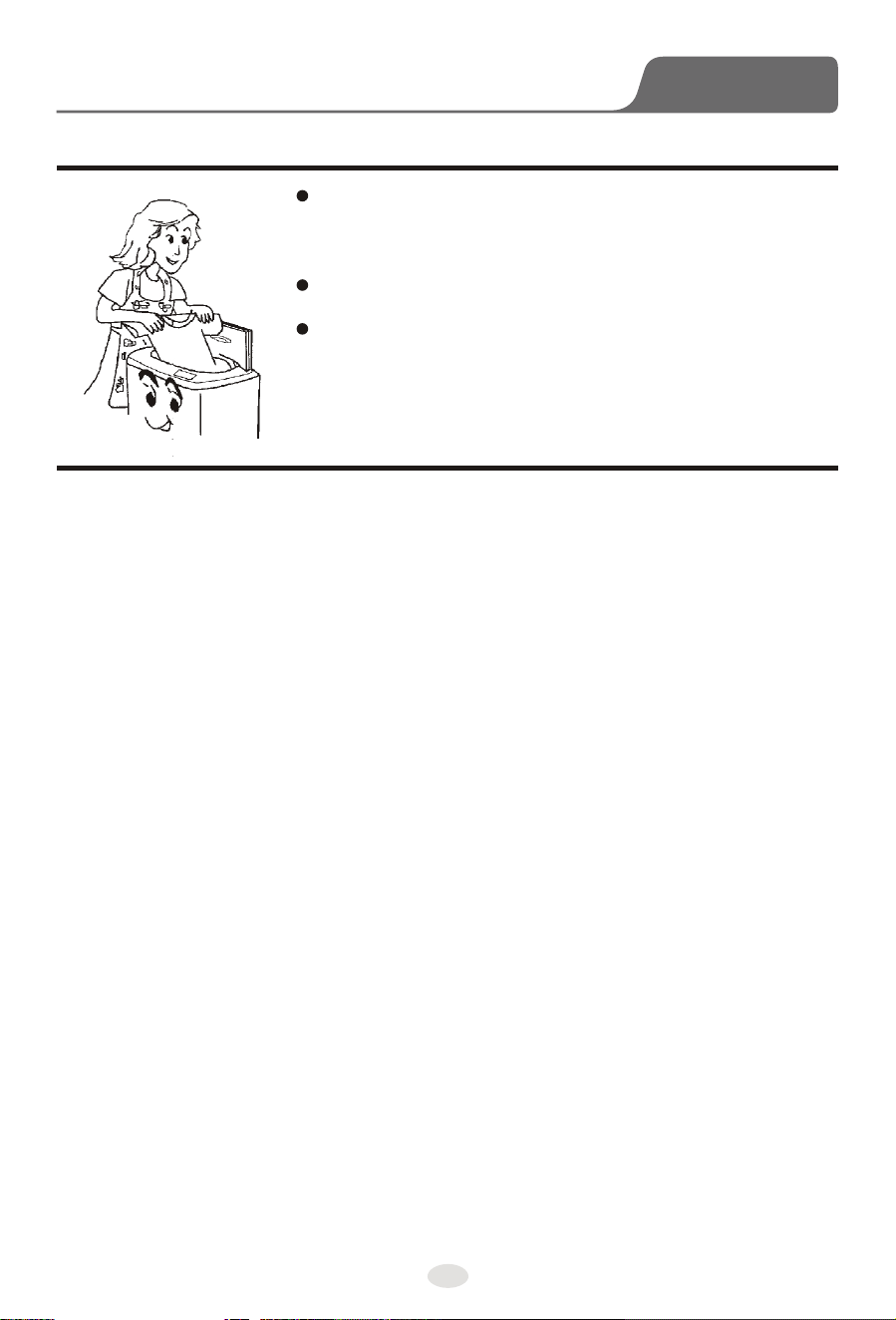

Load clothes

Operation

The capacity of washing and spinning of the machine refers

to the largest weight of the standard clothes under dry

condition. Washing quantity shall be lower than the rated

capacity. The maximum capacity of this machine is 10.0kg.

Different thickness, size and type of the clothes will

influence the actual washing capacity.

Do not select high water level when clothes are less than

1.5kg to avoid water splashing.

8 9

Use of detergent

Alternative ways to use the liquid

Detergent / washing powder

How to use softener

How to use bleach

The machine automatically adds the softener to the

inner tub during the last "rinse" process.

Please put the required liquid

Detergent / washing powder in the

detergent box and softener in

softener box evenly

Softener box

Detergent box

Fill water to the selected level,

dilute the bleach in the container,

and pour it slowly into the washing

tub.

Do not use bleach for coloured or

figured clothes as they are prone

to lose colours.

Do not put bleach to clothes

directly.

Refer to the manual for the usage

and quantity of the bleach.

Please dissolve powder bleach

before use.

Remarks：avoid splashing of water and waste of washing powder, water level should not be

too high if clothes are too small.

Dissolve in the machine directly（not suitable

for preset program）

1. Low water level.

2. Add the washing powder, and run for 30 seconds

to dissolve it completely.

3. Put laundries in and select suitable water level.

The instant dissolving of the washing powder

1. Prepare warm water of 30℃ in a container.

2. Pour the powder while stirring to fully dissolve it.

Washing powder with poor quality or not used

for a long period may get blocked, please clean

the detergent box in time.

Use of detergent

Operation

Load clothes

Operation

The capacity of washing and spinning of the machine refers

to the largest weight of the standard clothes under dry

condition. Washing quantity shall be lower than the rated

capacity. The maximum capacity of this machine is 10.0kg.

Different thickness, size and type of the clothes will

influence the actual washing capacity.

Do not select high water level when clothes are less than

1.5kg to avoid water splashing.

8 9

Use of detergent

Alternative ways to use the liquid

Detergent / washing powder

How to use softener

How to use bleach

The machine automatically adds the softener to the

inner tub during the last "rinse" process.

Please put the required liquid

Detergent / washing powder in the

detergent box and softener in

softener box evenly

Softener box

Detergent box

Fill water to the selected level,

dilute the bleach in the container,

and pour it slowly into the washing

tub.

Do not use bleach for coloured or

figured clothes as they are prone

to lose colours.

Do not put bleach to clothes

directly.

Refer to the manual for the usage

and quantity of the bleach.

Please dissolve powder bleach

before use.

Remarks：avoid splashing of water and waste of washing powder, water level should not be

too high if clothes are too small.

Dissolve in the machine directly（not suitable

for preset program）

1. Low water level.

2. Add the washing powder, and run for 30 seconds

to dissolve it completely.

3. Put laundries in and select suitable water level.

The instant dissolving of the washing powder

1. Prepare warm water of 30℃ in a container.

2. Pour the powder while stirring to fully dissolve it.

Washing powder with poor quality or not used

for a long period may get blocked, please clean

the detergent box in time.

Control panel instructions

Program Operation

10 7

Preparation before operation

Operation

Preparation before washing

1. Connect the inlet hose and open the tap.

2. This appliance must be earthed. Confirm

the socket is earthed reliably and insert the

power plug. The earth terminal should not

link to gas pipeline, tap pipeline etc.

3. Hang up the drain hose.

Warning: the temperature of the water should be less than 50℃！

Before washing the clothes, please pay attention to the

followings:

Make sure if

there is special

requirements for

the clothes

Before washing,

empty all pockets of

small objects which

may have been left

inside(coins, keys,

screws etc.) .

Knot the long

band, fasten the

buttons and close

the zippers.

Do not overload

the machine.

Load the laundry

loosely alternating

large items with

small ones.

Sort the laundry

according to the

type of fabric,

color-fastness and

how dirty it is. Put

thin clothes,

woollens and such

prone to wear and

tear clothes into

washing bag.

A. Make sure the clothes are washable.

B. It is essential to wash new coloured items separately when washing for the first time. White

items should not be washed with coloured items.

C. Please emerge the non-absorbable clothes by hand.

D. Some stains such as fruit, wine, grass, rust etc. are difficult to remove and should be treated

before washing with specific products, which can be found in most household shops. In some

cases it may help to soak the stain before washing with a special pre-soak product or

biological detergent.

E. Overturn the nap fabric and long floss clothes before putting them into the machine.

F. Do not put the clothes polluted by chemicals into the machine directly.

G.Very small item(handkerchiefs, ribbons, socks etc) should be washed in a washing bag or a

pillow case.

To switch on the Washing Machine to working state or waiting state.

Select one program form COTTONS, HEAVY, DELICATES, COTTONS ECO, QUICK,

WOOLLENS,BABY CARE, DAILY, DRUM CLEAN and AIR DRY.

If choose "COTTONS ECO" program, the wash time is "20 minutes", spin times is

"4", spin time is "9 minutes".

If choose "QUICK" program, the wash time is "9 minutes", spin times is "1", spin

time is"3 minutes", you can cancel one of the process (but if you choose "SOAK",

the wash time can not be cancelled).

If no selection is selected, the process will start with the COTTONS program when

the"START/PAUSE" button is pressed.

After selecting the PROGRAM, PROCESS and WATER LEVEL, press this button

to start. Press this button to pause during working, press again to continue.

Press "TEMP. SELECT" to select "HOT" 、"COLD" or "WARM" water for wash.

During the rinse process, it will inlet cold water.

At the beginning of start, pressing "WATER LEVEL", at the same time press

"PRESET/AIR DRY/SPEED", you can select WATER RECYCLE, INVERTER

WASH,INVERTER SPIN. Only both RINSE and SPIN are selected, WATER

RECYCLE can be selected. When you choose INVERTER WASH, INVERTER

SPIN, and press " PRESET/AIR DRY/SPEED" to choose a different washing speed

and spin.

During working, press "WATER LEVEL" and "PRESET/AIR DRY/SPEED" to set

CHILD LOCK, press again to unlock this function.

During delay start, the screen will display the selected time in hours.

If selecting AIR DRY, the Digtal Timer displays air dry time, unit is

Minutes.

When washing, the the Digital Timer shows the remaining time of

washing,unit is Minutes

When trouble encountered, the Digital Timer shows trouble code.

When it is ON and if with Fuzzy logic,the Digital Timer shows"--".

Cottons

Heavy

Delicates

Cottons Eco

Quick

Woollens

Baby Care

Daily

Drum Clean

Air Dry

Hot

Cold

Warm

Water inlet installation

Control panel instructions

Program Operation

Before using

6 11

Caution: When installing the washing machine, please use the new hose assembly along

with the washing machine, old hose assembly should not be re-used.

Tap selection

Check the connection between inlet

hose connector and the tap

Connect the inlet hose with the washing machine

1. Swing the inlet hose gently to confirm if it is

fastened.

2. After installation,open the tap and check if

it leaks.

3. Do not bend the inlet hose with overstrain.

4. Before each usage,check the connection

between inlet hose connector and the tap.

Make sure they are firmly fitted to prevent

dropping from improper installation position.

1. Do not take off the water absorption cushion. Please

check if the cushion is dropped or damaged before

each usage. If it is, contact an Authorised Service

Agent or qualified professional immediately.

2. Put the inlet hose nut on the inlet valve connector.

3. Fasten the inlet hose nut and swing it gently to make

sure if it is suitable.

Inlet valve connector

Inlet hose nut

Water absorption cushion

Suitable tap

The front end should be longer than 10mm. The tap exit end

face should be flat and smooth, if not file it to avoid leakage.

Not suitable tap

At the beginning of start, if with FUZZY logic and do not select water level, the digital

timer shows“- -”. At this time, before press START/PAUSE, If select COTTONS or

HEAVY, with fuzzy logic. When select COTTONS ECO, no fuzzy logic, the water level

is “6”；When select QUICK, no fuzzy logic, water level is “2”. If no WASH process,

no fuzzy logic.

At the beginning of start, press WATER LEVEL to select water level, at this time, no

fuzzy logic function, you can select appropriate water level. According to your

clothes quantity.1-2 is low water level, 3-6 is middle water level,7-10 is high water l

evel.

During wash (including rinse), if need to add water, press WATER LEVEL button to

add water, un-press will stop adding. Or PAUSE the washing machine and press

WATER LEVEL to select higher water level, then press START/PAUSE button, The

washing machine Will add the water to setting level automatically and continue

working. If your resetting water level is lower than present water level, the lower

water Level will valid in next water inlet.

Automatically add water: during SOAK, WASH and RINSE process, if the washing

machine check the water level is lower than setting water level, The washing machine

will pause and add water to setting water level automatically.

DIY (Do it yourself) program---- you can set spin time.

At the beginning of start, the spin time setting is "7 minutes".

At the beginning of start, you can press "SPIN" to set spin process only, press "SPIN"

again to set spin time.

DIY (Do it yourself) program---- you can set rinse times.

At the beginning of start, the rinse times setting is "2 times".

DIY (Do it yourself) program---- you can choose soak function and wash time.

Pressing "WASH" button for 2 seconds to choose soak function, pressing for 2

seconds again to cancel soak function.

Under "COTTONS", " HEAVY" programs to choose soak function, the soak is before

wash.

At the beginning of start, the wash time is "15 minutes".

To start, press POWER button, the machine is in the state of beginning of start:

1.If there is no water in inner tub, washing machine is in "FUZZY" condition, washing time is

"15 minutes", rinse time is "2 times", spin time is "7 minutes", water level and preset are

displayed "--", program is "COTTONS" If press "START/PAUSE" button (or press "PROGRAM"

to select "HEAVY" ), the washing machine will start to sense and automatically sense the

weight of clothes and set water level.

2.If there is water in inner tub, the washing machine is not in "FUZZY" condition, washing time is

"15minutes", rinse time is "2 times", spin time is "7 minutes", water level is "7", program is

"COTTONS", digital time displays the time to finish washing.

At the beginning of start, press this button to select preset time from 2-24 hours.

If want to cancel preset time, press "POWER" to make the washing machine in

waiting state.

If need to select air dry, please press "PROGRAM" button to select airy dry, then

press this button to set air dry time.

At the beginning of start, pressing "WATER LEVEL" button and press " PRESET

/AIR DRY/SPEED" button and choose inverter wash

or inverter spin, and press it again,

then you can choose washing speed or

spin speed. This function is only applicable

to "COTTONS" and "HEAVY" program.

digital screen display the corresponding

rotational speed as follows:

Spin

Program

How to use drain hose

Program Operation

Before using

12 5

1.the drain hose must be hanged during use, the height should

be no more than 1.2m to avoid leakage or stop. If drain a

long time, the machine will stop running.

2.You can adjust the situation of the elbow bend pipe to

change the height of the drain hose.

3.Do not make an extension to drain hose to ensure proper

draining of water.

drain hose

Elbow

Less than 1.2m

Cycle

Cottons

Heavy

Description

You can wash your lightly soiled cotton and linen laundry (sheets,

bedlinen, towels, bathrobes, underwear etc.) in this programme. Wash

and soak time could be set according to the soil level of the clothes.

You can wash your heavily soiled durable cotton laundry in this

programme.

For sheer fabrics, bras, lingerie (silk), and other handwash-only fabrics.

You can wash your normally soiled durable cotton laundry in this

programme with the most energy and water efficient way.

Use this program to wash your lightly soiled garments such as

sportswear quickly. Recommended for up to 2kg.

Use this program to wash your daily laundry made of various cotton

and easy care fabrics. Recommended for up to 6 kg

You can wash your woollen clothes in this programme.

Delicates

Cottons Eco*

Quick

Woollens

Baby Care

Daily

Air Dry

Drum Clean

For baby's clothes.

Select this program to clean the tub and the drum. The powerful spinning

removes the detergent residue and dirt from inside the tub and drum.

Select this to dry the tub and the drum. The powerful spinning removes

moisture inside the tub to avoid mould formation.

*Energy label programme (AS/NZS 2040)

Installation and adjustment

Maintenance

Operation

Before using

Please install and adjust the machine according to the requirements of the manual.

Correct operation is very important for your safety.

Unpacking

Unpack the carton and take out the bottom cover.

Open the top lid of washing machine and take out all of the accessories.

Remove all wrappers, including the polystyrene base.

You are advised to keep all the packaging for reuse in case the machine is to be

transported again.

Positioning

The distance between the washing machine and the wall should be more than 50mm,

and the maximum allowed angle of the shank base of the machine is 1°.

The slanting or rough ground may cause operating stopped or unstable, please adjust it

with the following methods:

Horizontal checking

Use a spirit level to check the level of your machine.

Observe the water bubble in balancing apparatus

is in red circle or not. In red circle, it is horizontal.

Adjust the adjustable foot

1) Lift up the adjustable foot gently, loosen the adjustable nut

and twist the adjustable foot.

2) Fasten the nut after adjustment.

3) Set the machine flat, and observe again. If the water bubble

is not in red circle, repeat the above procedure, till the water

bubble is in red circle.

Installing the bottom cover

Let the back of washing machine incline forward,

make the side of bottom cover with sticker description

back to washing machine, insert to the bottom of

washing machine along the direction of arrow.

Remove two fixing clamp by scissors, insert to the

accordingly holes black lines indicating ( gently pull

fixing clamp should not be pulled out ), make the

bottom cover fixed on the base.

Fixing clampScissors

Bottom cover

The base

1°

Adjustable nut

Adjustable

foot

4 13

Maintenance methods

1. After using the machine, you are advised to turn off the water taps. (if necessary, pull out

the inlet hose).

2. Do not keep water in tub for a long time. When washing is finished, drain it right away.

3. Once you have finished using the machine, you are advised to unplug it.

4. Put the electric cable and the drain hose in order.

5. Wipe the water on the surface and in the tub with soft cloth and keep the top lid opened for a

while. It helps to prevent mold and smell forming inside the appliance.

If the water in the inner tub has possibility to freeze, please follow as below:

a) In winter, any remaining water may freeze and can cause the washing machine trouble,

please take off the water inlet hose and drain out the water in the hose and inner tub.

b) If the water freeze, please don't operate the washing machine. Put 40℃ hot water in the tub,

the hot water should submerge the pulsator, after a few minutes, rotate the pulsator by hand

gently, then you can operate the washing machine.

1. pull out magic filter

2. open the box and clean it

3. close it and reinstall it

4. check if the lint block part is in good

condition

Magic filter cleaning

press this part and pull out

to take out the magic filter

lint block part (black rubber)

After the end of the programme

Clean the lint filter

The machine stops automatically, and

music buzzer will remind you to take out

the clothes or start again.

Once you have finished using the machine,

you are advised to unplug it and turn off the

water taps to avoid unexpected leak or fire.

External cleaning

Clean the exterior cabinet of the appliance with

soft cloth. Do not use cleanser, volatile chemical

materials to clean the machine, which will

damage plastic parts and the surface.

It is possible that the inlet filter net can be blocked by

the dust, please clean it according to the following

steps:

1. Close the tap and turn on the power switch.

2. Start the washing machine for 5 seconds(make

the water in the inlet hose flows to the tub), and

cut off the power supply.

3. Pull off the inlet hose, remove and clean the inlet

valve and the inlet net, and install again.

Cautions

Troubleshooting

Before using

Control panel has no display

Plug is not inserted tightly

No electricity in the socket

Power switch is not turned on

Power supply is cut off

Inlet hose leaks

Inlet hose connector(connecting with the tap)is not fixed tightly

Inlet hose and washing machine connector is loose

Before contacting the technicians, please make the following checks:

Issue Possible reason

It does not drain

Water outlet of drain hose is higher than 1.2m

Drain Hose is bent or blocked

No inflow of water

No water supply

Tap is not open

Inlet hose gets blocked

Spin stops and water inflow

begins during spin program

Clothes is too much or too little or the

machine is not stable

Press the program button to

select SPIN, but It does not spin

Top lid was not closed when drain is finished

Top lid was open when drain is started

The spin is intermittent when spin

starts

Balance the clothes to reach to the best spin effect

First time use, some water flows

out from the drain hose

The remaining water from factory’s testing

Do not put hands into the working machine.

It is dangerous even if the speed is very slow.

Take special care of the children, and forbid

them to climb on the washing machine.

It is dangerous to alter the specifications or

attempt to modify this product in any way.

Do not overload the appliance or put any hot

goods(such as the kettle with hot water)on the

washing machine.

Garments which have been in contact with

volatile petroleum products should not be

machine washed.

This appliance is not intended for use by persons

(including children) with reduced physical, sensory

or mental capabilities, or lack of experience and

knowledge, unless they have been given supervision

or instruction concerning use of the appliance by

a person responsible for their safety.

Children should be supervised to ensure that they

do not play with the appliance.

Keep the appliance away from direct

sunlight and heat sources like the heater.

14 3

Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp material

can cause extensive damage and must not be placed into the machine.

Before washing, please ensure the tap is open

and the inlet hose is installed properly.

It is suggested to use low foam washing powder.

Cautions

Before using Troubleshooting

Please insert the plug into the power socket

with rated voltage 220-240V A/C.

Always unplug the appliance and turn off the

water when the power is cut, moving or

cleaning the washing machine, or it is not in

use. Do not insert or pull off the plug with wet

hand.

This appliance is intended to be used in household and similar applications such as:

Staff kitchen areas in shops, offices and other working environments;

Farm houses;

By clients in hotels, motels and other residential type environments;

Bed and Breakfast type environments

Do not make the electric cable bended, stretched, twisted, strapped or

changed, pressed or nipped. If the supply cord is damaged, it must be

replaced by the manufacturer,its service agent or similarly qualified

persons in order to avoid a hazard. The pin of the plug must remain

clean. Please clean it carefully with dry cloth if it is dirty.

Do not use water hotter than 50℃

Do not install the washing machine in bathroom

or damp places. Do not wash the machine with

water, do not put wet clothes on the control

panel film.

If the machine is situated on a carpeted floor,

please adjust the feet in order to allow air to

circulate freely.

Ventilation holes

at the bottom

Soft item

Do not wash raincoat, bike cover, feather dress

and waterproof clothes, which will caused the

washing machine to have abnormal vibrations

during spinning.

Do not share the same socket with other electric

appliances. Do not use the damaged plug or loose

socket.

Notes ：If there is still a fault after the above checks, please pull out the plug and

contact the Authorised Service Agent right away. It is dangerous to repair

this product by yourself.

Normal

Close the top lid

Insert the plug tightly

Check the socket or change to another socket

Press power switch

Check power supply

Install the inlet hose again

Tighten the connector of the machine

The height of the drain hose should be less than 1.2m

Straighten or clean the drain hose

Restart when water supply is resumed

Open the tap

Clean the filter according to before "clean inlet gate"

The machine is adjusting automatically

Troubleshooting
