English
GTO 609c
6-1/2" two-way car audio
component system
GTO 609c TweeTer
BL (T.m)
3.85 –
DCR (ohms)
2.22 2.30
Mms (g)
14.20 –
Sd (cm
2
)
122.7 –
Cms (µm/N)
257 –
Vas (liters)
5.44 –
Fs (Hz)
83.3 –
Qes
1.11 –
Qms
7.27 –
Qts
0.97 –
Thiele-Small ParameTerS
GTO 609c TweeTer
Type
6-1/2" (160mm)
two-way component system
1" (25mm)
component tweeter
Power handling, continuous average
90W 50W
Power handling, peak
360W 150W
Frequency response
50Hz – 21kHz 2.5Hz – 21kHz
Nominal impedance
2 ohms 2 ohms
Sensitivity (2.83V/m)
92dB 92dB
SPeciFicaTiONS

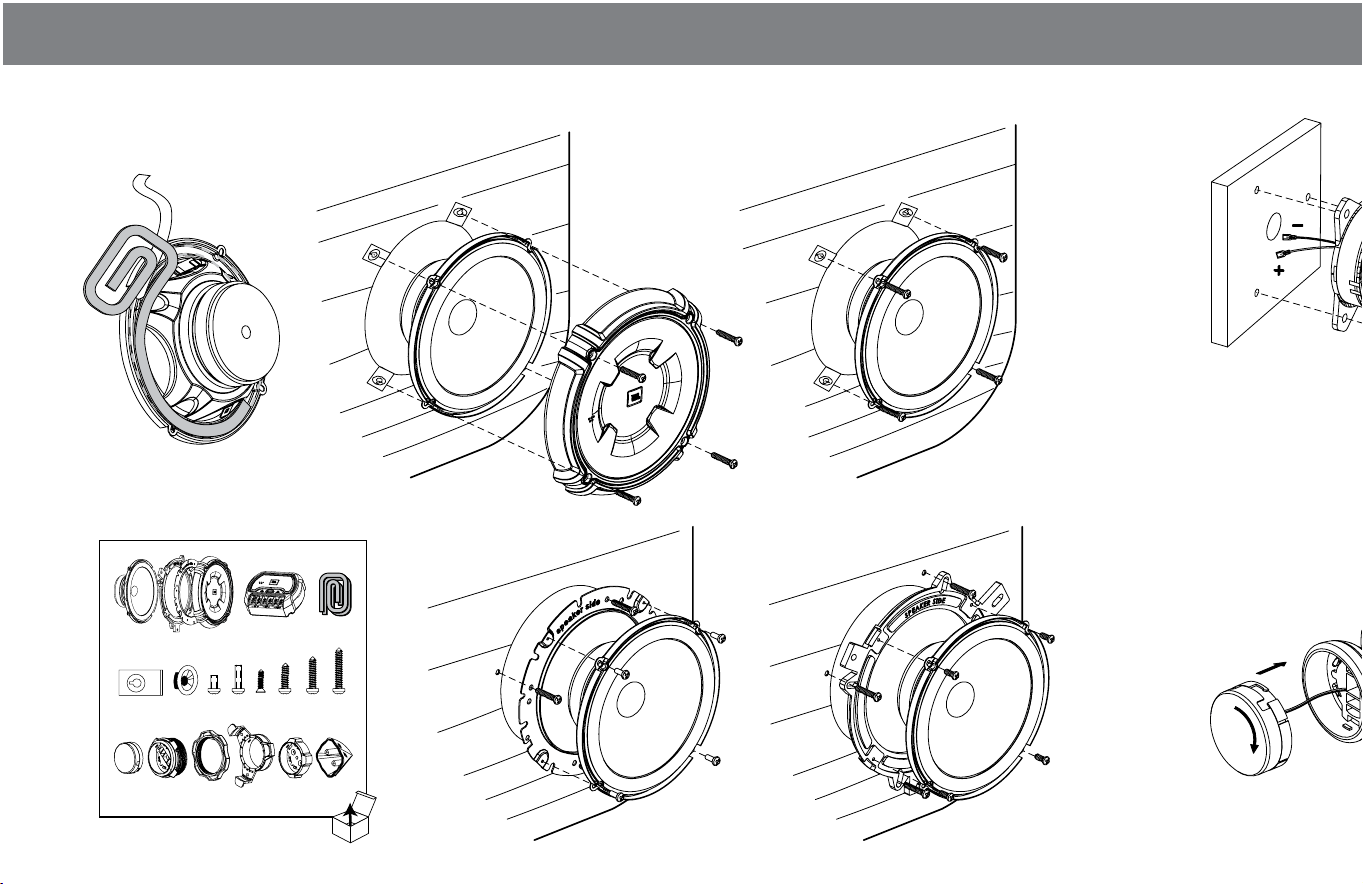

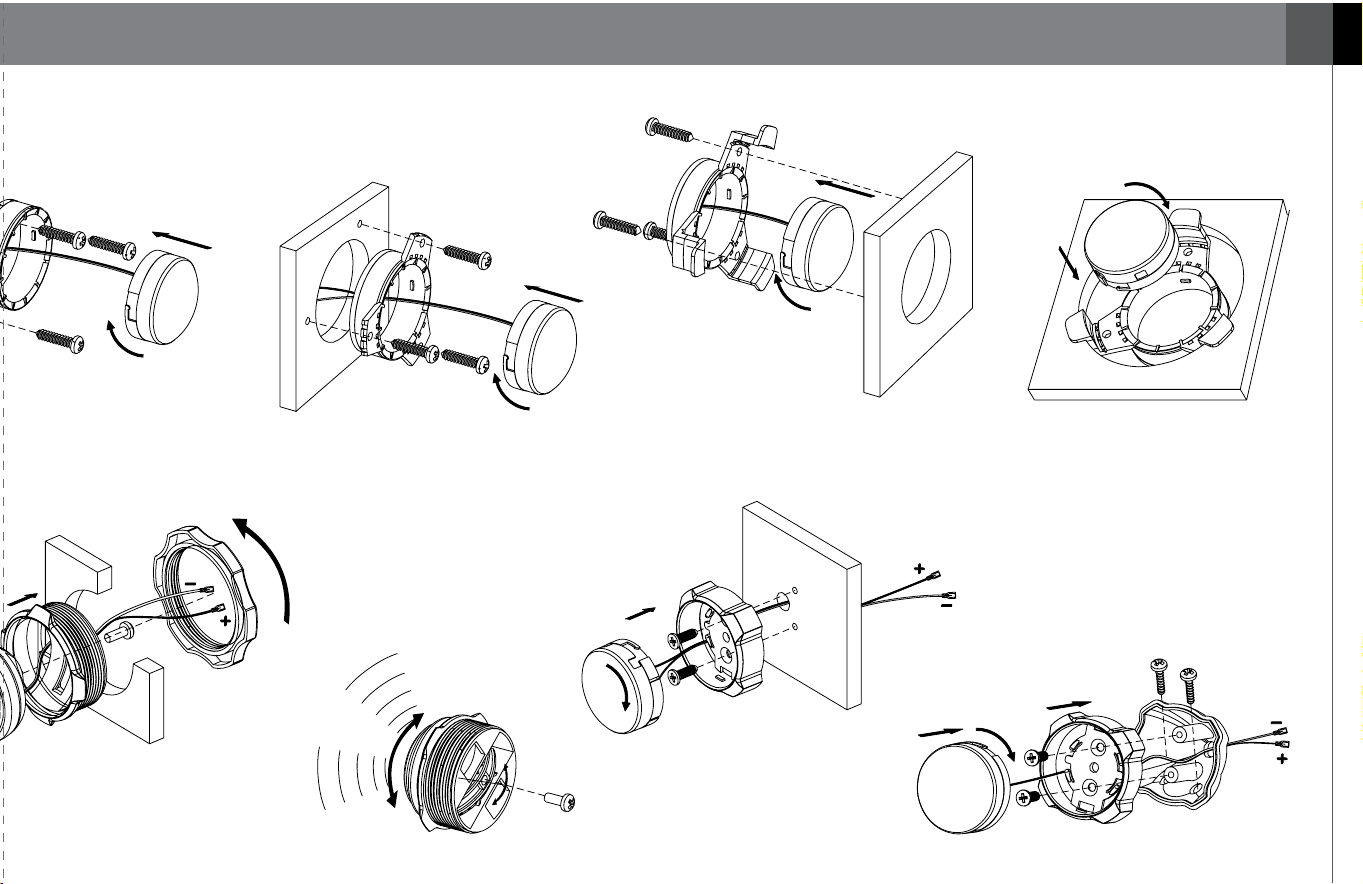

iNSTallaTiON maNUal
HARMAN Consumer, Inc.
8500 Balboa Boulevard, Northridge, CA 91329 USA
© 2011 HARMAN International Industries, Incorporated. All rights reserved.
JBL and Grand Touring are trademarks of HARMAN International Industries, Incorporated, registered in the United
States and/or other countries. Features, specications and appearance are subject to change without notice.
Part #950-0354-001 Rev. A www.jbl.com
GENERAL CARE: The loudspeaker grilles may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grilles
or the speaker cones.
WARRANTY: Grand Touring
®
Series speakers are warranted against defects. The duration of the speaker’s warranty depends
on the laws in the country in which it was purchased. Your local JBL
®
car audio retailer can help you determine the length of your
warranty. To register your product, please visit www.jbl.com.

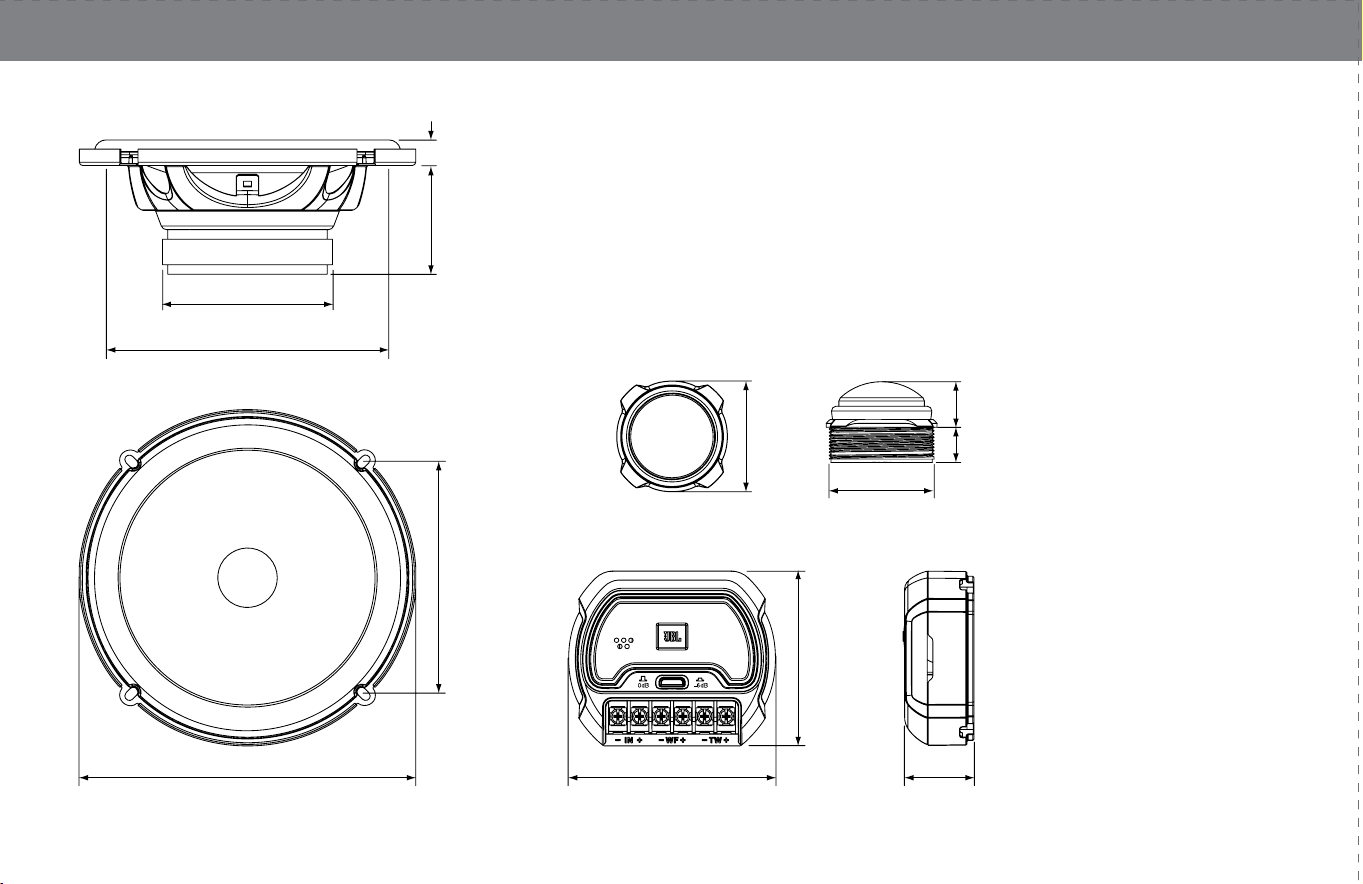

dimeNSiONS
3-1/8"
(80mm)
2-1/16"
(52mm)
1/2"
(12mm)
5-1/4"
(133mm)
6-1/4"
(159mm)
3-9/16"
(91mm)
4-5/16"
(111mm)
2"
(50mm)
3"
(76mm)
13/16"
(20mm)
11/16"
(16mm)
1-3/16"
(30mm)
