6 Series Video Intercom Villa Door Staon
User Manual
Legal Informaon
©2020 Hangzhou Hikvision Digital Technology Co., Ltd. All rights reserved.
About this Manual
The Manual includes instrucons for using and managing the Product. Pictures, charts, images and
all other informaon hereinaer are for descripon and explanaon only. The informaon
contained in the Manual is subject to change, without noce, due to rmware updates or other
reasons. Please nd the latest version of this Manual at the Hikvision website ( hps://
www.hikvision.com/ ).
Please use this Manual with the guidance and assistance of professionals trained in supporng the
Product.
Trademarks
and other Hikvision's trademarks and logos are the properes of
Hikvision in various jurisdicons.
Other trademarks and logos menoned are the properes of their respecve owners.
Disclaimer
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, THIS MANUAL AND THE PRODUCT
DESCRIBED, WITH ITS HARDWARE, SOFTWARE AND FIRMWARE, ARE PROVIDED “AS IS” AND “WITH
ALL FAULTS AND ERRORS”. HIKVISION MAKES NO WARRANTIES, EXPRESS OR IMPLIED, INCLUDING
WITHOUT LIMITATION, MERCHANTABILITY, SATISFACTORY QUALITY, OR FITNESS FOR A PARTICULAR
PURPOSE. THE USE OF THE PRODUCT BY YOU IS AT YOUR OWN RISK. IN NO EVENT WILL HIKVISION
BE LIABLE TO YOU FOR ANY SPECIAL, CONSEQUENTIAL, INCIDENTAL, OR INDIRECT DAMAGES,
INCLUDING, AMONG OTHERS, DAMAGES FOR LOSS OF BUSINESS PROFITS, BUSINESS
INTERRUPTION, OR LOSS OF DATA, CORRUPTION OF SYSTEMS, OR LOSS OF DOCUMENTATION,
WHETHER BASED ON BREACH OF CONTRACT, TORT (INCLUDING NEGLIGENCE), PRODUCT LIABILITY,
OR OTHERWISE, IN CONNECTION WITH THE USE OF THE PRODUCT, EVEN IF HIKVISION HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES OR LOSS.
YOU ACKNOWLEDGE THAT THE NATURE OF INTERNET PROVIDES FOR INHERENT SECURITY RISKS,
AND HIKVISION SHALL NOT TAKE ANY RESPONSIBILITIES FOR ABNORMAL OPERATION, PRIVACY
LEAKAGE OR OTHER DAMAGES RESULTING FROM CYBER-ATTACK, HACKER ATTACK, VIRUS
INSPECTION, OR OTHER INTERNET SECURITY RISKS; HOWEVER, HIKVISION WILL PROVIDE TIMELY
TECHNICAL SUPPORT IF REQUIRED.
YOU AGREE TO USE THIS PRODUCT IN COMPLIANCE WITH ALL APPLICABLE LAWS, AND YOU ARE
SOLELY RESPONSIBLE FOR ENSURING THAT YOUR USE CONFORMS TO THE APPLICABLE LAW.
ESPECIALLY, YOU ARE RESPONSIBLE, FOR USING THIS PRODUCT IN A MANNER THAT DOES NOT
INFRINGE ON THE RIGHTS OF THIRD PARTIES, INCLUDING WITHOUT LIMITATION, RIGHTS OF
PUBLICITY, INTELLECTUAL PROPERTY RIGHTS, OR DATA PROTECTION AND OTHER PRIVACY RIGHTS.
YOU SHALL NOT USE THIS PRODUCT FOR ANY PROHIBITED END-USES, INCLUDING THE
6 Series Video Intercom Villa Door Staon User Manual
i
DEVELOPMENT OR PRODUCTION OF WEAPONS OF MASS DESTRUCTION, THE DEVELOPMENT OR
PRODUCTION OF CHEMICAL OR BIOLOGICAL WEAPONS, ANY ACTIVITIES IN THE CONTEXT RELATED
TO ANY NUCLEAR EXPLOSIVE OR UNSAFE NUCLEAR FUEL-CYCLE, OR IN SUPPORT OF HUMAN
RIGHTS ABUSES.
IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER
PREVAILS.
6 Series Video Intercom Villa Door Staon User Manual
ii
Symbol Convenons
The symbols that may be found in this document are dened as follows.
Symbol Descripon
Danger
Indicates a hazardous situaon which, if not avoided, will or could
result in death or serious injury.
Cauon
Indicates a potenally hazardous situaon which, if not avoided, could
result in equipment damage, data loss, performance degradaon, or
unexpected results.
Note
Provides addional informaon to emphasize or supplement
important points of the main text.
6 Series Video Intercom Villa Door Staon User Manual
iii
Safety Instrucon
Warning
●
All the electronic operaon should be strictly compliance with the electrical safety regulaons,
re prevenon regulaons and other related regulaons in your local region.
●
Please use the power adapter, which is provided by normal company. The power consumpon
cannot be less than the required value.
●
Do not connect several devices to one power adapter as adapter overload may cause over-heat
or re hazard.
●
Please make sure that the power has been disconnected before you wire, install or dismantle the
device.
●
When the product is installed on wall or ceiling, the device shall be rmly xed.
●
If smoke, odors or noise rise from the device, turn o the power at once and unplug the power
cable, and then please contact the service center.
●
If the product does not work properly, please contact your dealer or the nearest service center.
Never aempt to disassemble the device yourself. (We shall not assume any responsibility for
problems caused by unauthorized repair or maintenance.)
Cauon
●
Do not drop the device or subject it to physical shock, and do not expose it to high
electromagnesm radiaon. Avoid the equipment installaon on vibraons surface or places
subject to shock (ignorance can cause equipment damage).
●
Do not place the device in extremely hot (refer to the specicaon of the device for the detailed
operang temperature), cold, dusty or damp locaons, and do not expose it to high
electromagnec radiaon.
●
The device cover for indoor use shall be kept from rain and moisture.
●
Exposing the equipment to direct sun light, low venlaon or heat source such as heater or
radiator is forbidden (ignorance can cause re danger).
●
Do not aim the device at the sun or extra bright places. A blooming or smear may occur
otherwise (which is not a malfuncon however), and aecng the endurance of sensor at the
same me.
●
Please use the provided glove when open up the device cover, avoid direct contact with the
device cover, because the acidic sweat of the ngers may erode the surface coang of the device
cover.
●
Please use a so and dry cloth when clean inside and outside surfaces of the device cover, do
not use alkaline detergents.
●
Please keep all wrappers aer unpack them for future use. In case of any failure occurred, you
need to return the device to the factory with the original wrapper. Transportaon without the
original wrapper may result in damage on the device and lead to addional costs.
6 Series Video Intercom Villa Door Staon User Manual
iv
●
Improper use or replacement of the baery may result in hazard of explosion. Replace with the
same or equivalent type only. Dispose of used baeries according to the instrucons provided by
the baery manufacturer.
●
Input voltage should meet both the SELV and the Limited Power Source according to 60950-1
standard.
●
The power supply must conform to LPS. The recommended adaptor models and manufacturers
are shown as below. Use the aached adapter, and do not change the adaptor randomly.
Model Manufacturer Standard
ADS-24S-12 1224GPCN SHENZHEN HONOR ELECTRONIC
CO.,LTD
CEE
G0549-240-050 SHENZHEN GOSPELL DIGITAL
TECHNOLOGY CO.,LTD
CEE
TS-A018-120015Ec SHENZHEN TRANSIN TECHNOLOGIES
CO., LTD
CEE
6 Series Video Intercom Villa Door Staon User Manual
v
Regulatory Informaon
FCC Informaon
Please take aenon that changes or modicaon not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment.
FCC compliance: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protecon against harmful interference in a residenal installaon. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instrucons, may cause harmful interference to radio communicaons. However, there is
no guarantee that interference will not occur in a parcular installaon. If this equipment does
cause harmful interference to radio or television recepon, which can be determined by turning
the equipment o and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
—Reorient or relocate the receiving antenna.
—Increase the separaon between the equipment and receiver.
—Connect the equipment into an outlet on a circuit dierent from that to which the receiver is
connected.
—Consult the dealer or an experienced radio/TV technician for help
FCC Condions
This device complies with part 15 of the FCC Rules. Operaon is subject to the following two
condions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operaon.
6 Series Video Intercom Villa Door Staon User Manual
vi
EU Conformity Statement
This product and - if applicable - the supplied accessories too are marked with "CE"
and comply therefore with the applicable harmonized European standards listed
under the EMC Direcve 2014/30/EU, the RoHS Direcve 2011/65/EU
2012/19/EU (WEEE direcve): Products marked with this symbol cannot be disposed
of as unsorted municipal waste in the European Union. For proper recycling, return
this product to your local supplier upon the purchase of equivalent new equipment,
or dispose of it at designated collecon points. For more informaon see:
www.recyclethis.info
2006/66/EC (baery direcve): This product contains a baery that cannot be
disposed of as unsorted municipal waste in the European Union. See the product
documentaon for specic baery informaon. The baery is marked with this
symbol, which may include leering to indicate cadmium (Cd), lead (Pb), or mercury
(Hg). For proper recycling, return the baery to your supplier or to a designated
collecon point. For more informaon see:www.recyclethis.info
Industry Canada ICES-003 Compliance
This device meets the CAN ICES-3 (B)/NMB-3(B) standards requirements.
This device complies with Industry Canada licence-exempt RSS standard(s). Operaon is subject to
the following two condions:
1. this device may not cause interference, and
2. this device must accept any interference, including interference that may cause undesired
operaon of the device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radioexempts de licence. L'exploitaon est autorisée aux deux condions suivantes :
1. l'appareil ne doit pas produire de brouillage, et
2. l'ulisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage
est suscepble d'en compromere le fonconnement.
Under Industry Canada regulaons, this radio transmier may only operate using an antenna of a
type and maximum (or lesser) gain approved for the transmier by Industry Canada. To reduce
potenal radio interference to other users, the antenna type and its gain should be so chosen that
the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communicaon.
Conformément à la réglementaon d'Industrie Canada, le présent émeeur radio peut fonconner
avec une antenne d'un type et d'un gain maximal (ou inférieur) approuvé pour l'émeeur par
Industrie Canada. Dans le but de réduire les risques de brouillage radioélectrique à l'intenon des
autres ulisateurs, il faut choisir le type d'antenne et son gain de sorte que la puissance isotrope
6 Series Video Intercom Villa Door Staon User Manual
vii
rayonnée équivalente (p.i.r.e.) ne dépasse pas l'intensité nécessaire à l'établissement d'une
communicaon sasfaisante.
This equipment should be installed and operated with a minimum distance 20cm between the
radiator and your body.
Cet équipement doit être installé et ulisé à une distance minimale de 20 cm entre le radiateur et
votre corps.
6 Series Video Intercom Villa Door Staon User Manual
viii
Contents
Chapter 1 Appearance ................................................................................................................ 1
Chapter 2 Terminal and Wiring Descripon ................................................................................. 3
2.1 Terminal Descripon .............................................................................................................. 3
2.2 Wiring Descripon ................................................................................................................. 4

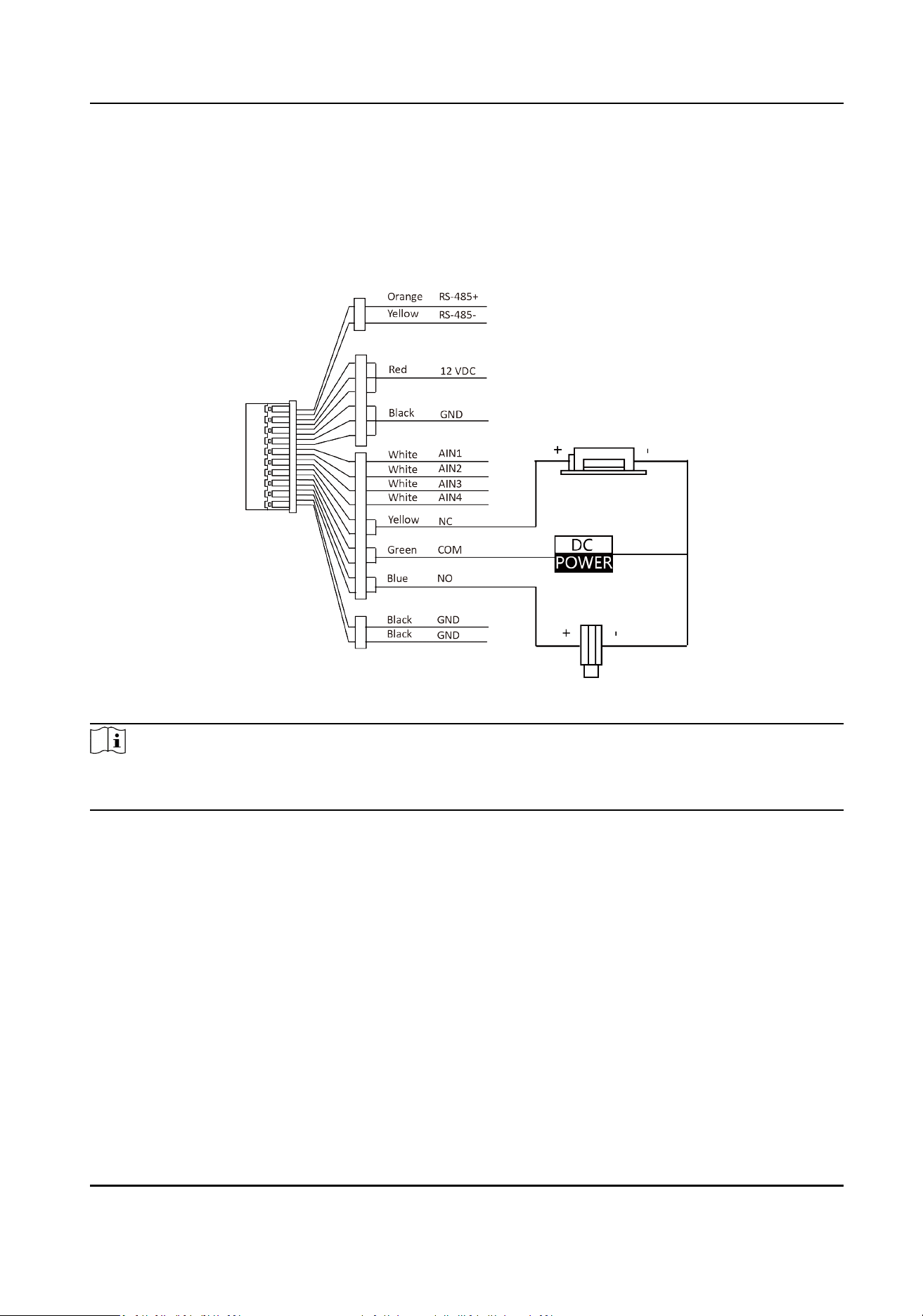

2.2.1 Door Lock Wiring .......................................................................................................... 4

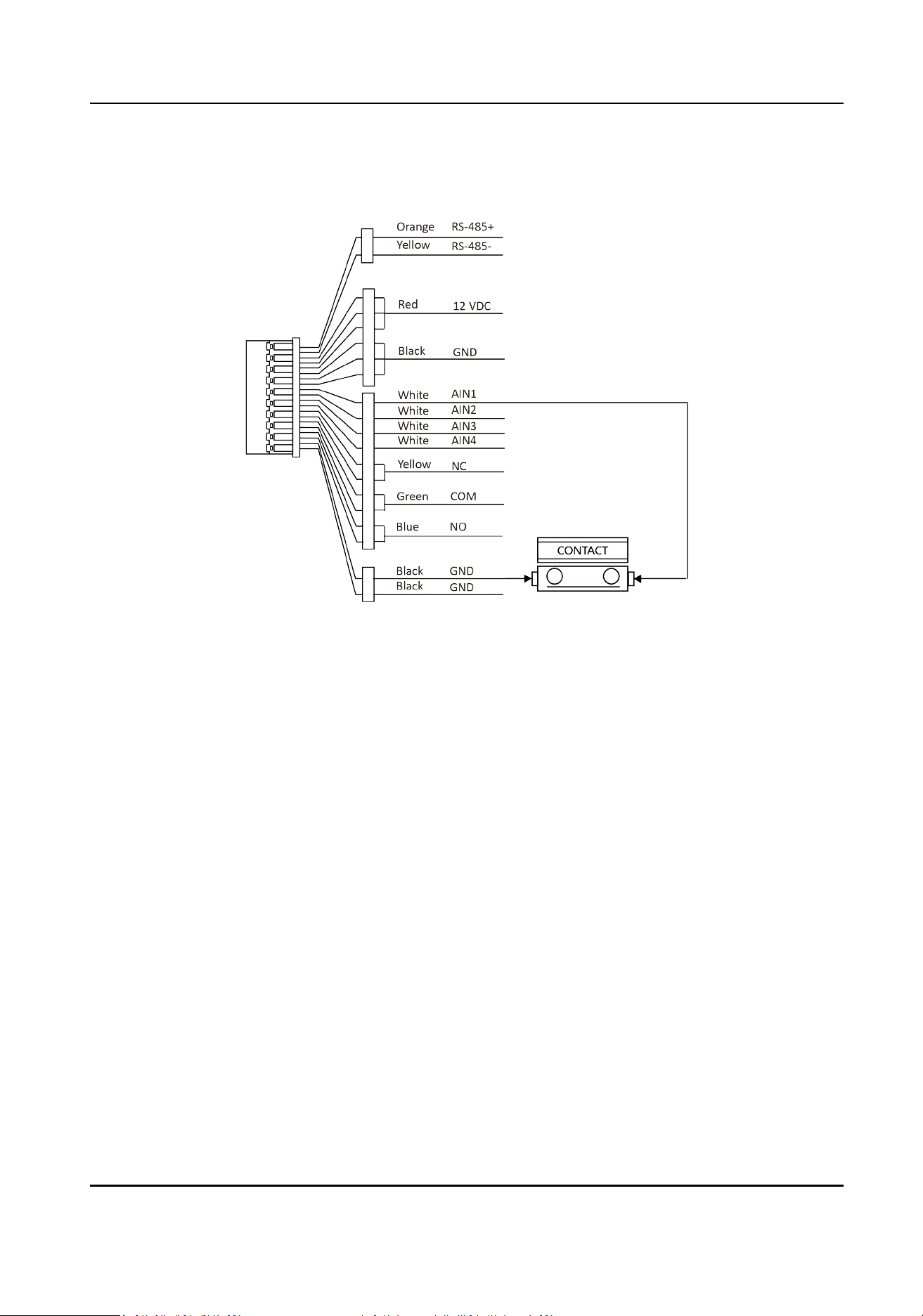

2.2.2 Door Contact Wiring ..................................................................................................... 5

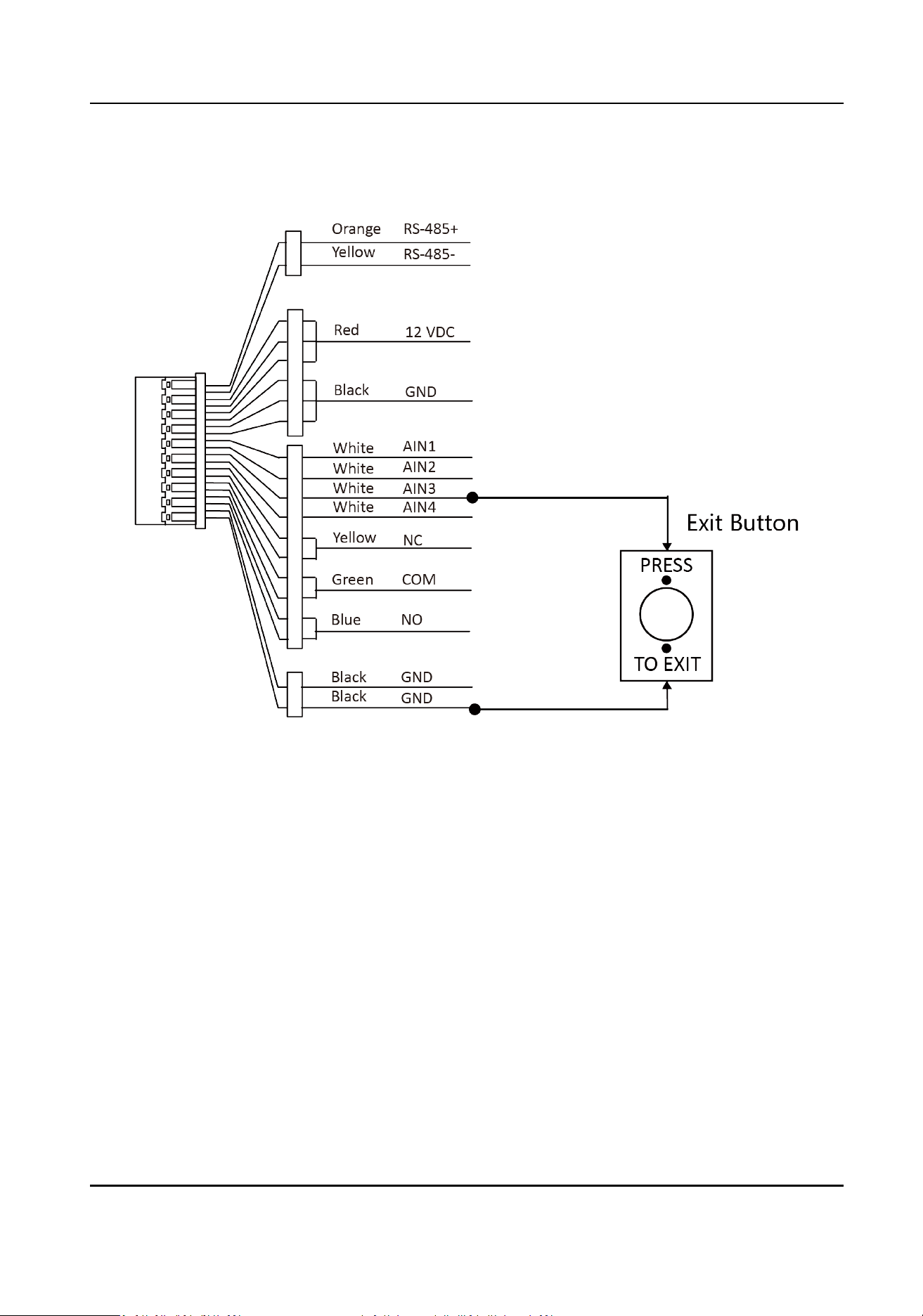

2.2.3 Exit Buon Wiring ......................................................................................................... 6

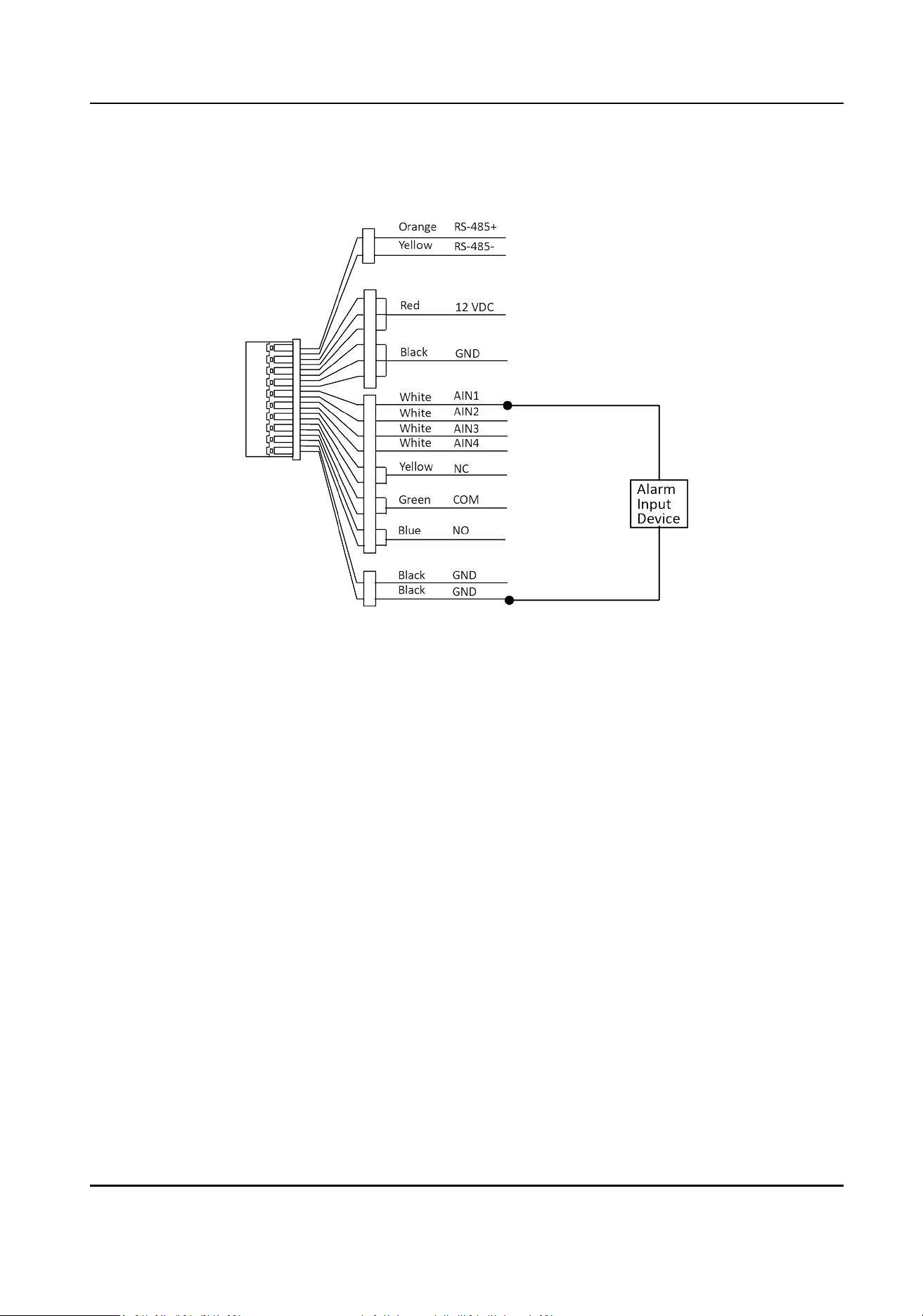

2.2.4 Alarm Input Device Wiring ............................................................................................ 7
Chapter 3 Installaon ................................................................................................................. 8
3.1 Accessory Introducon .......................................................................................................... 8

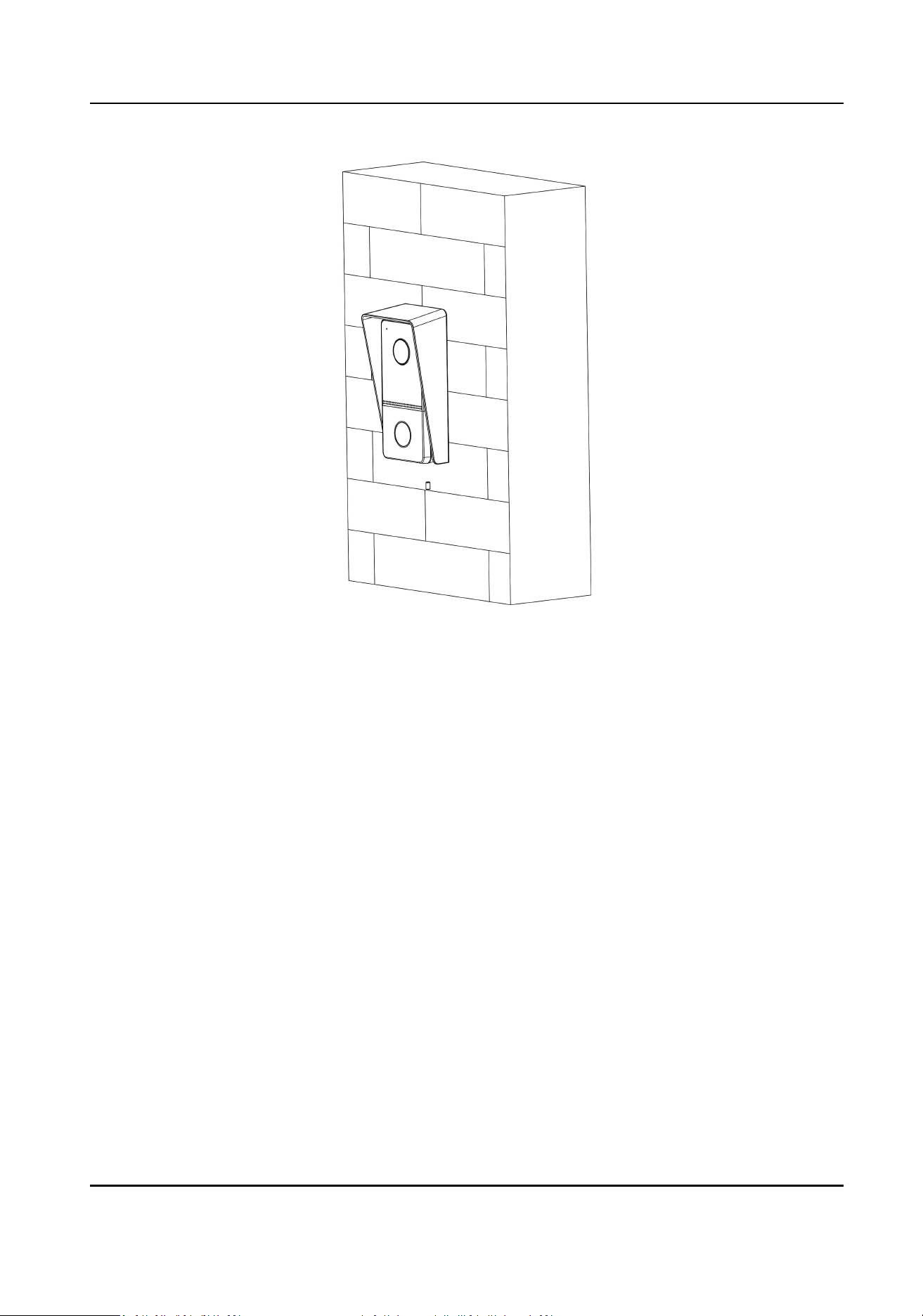

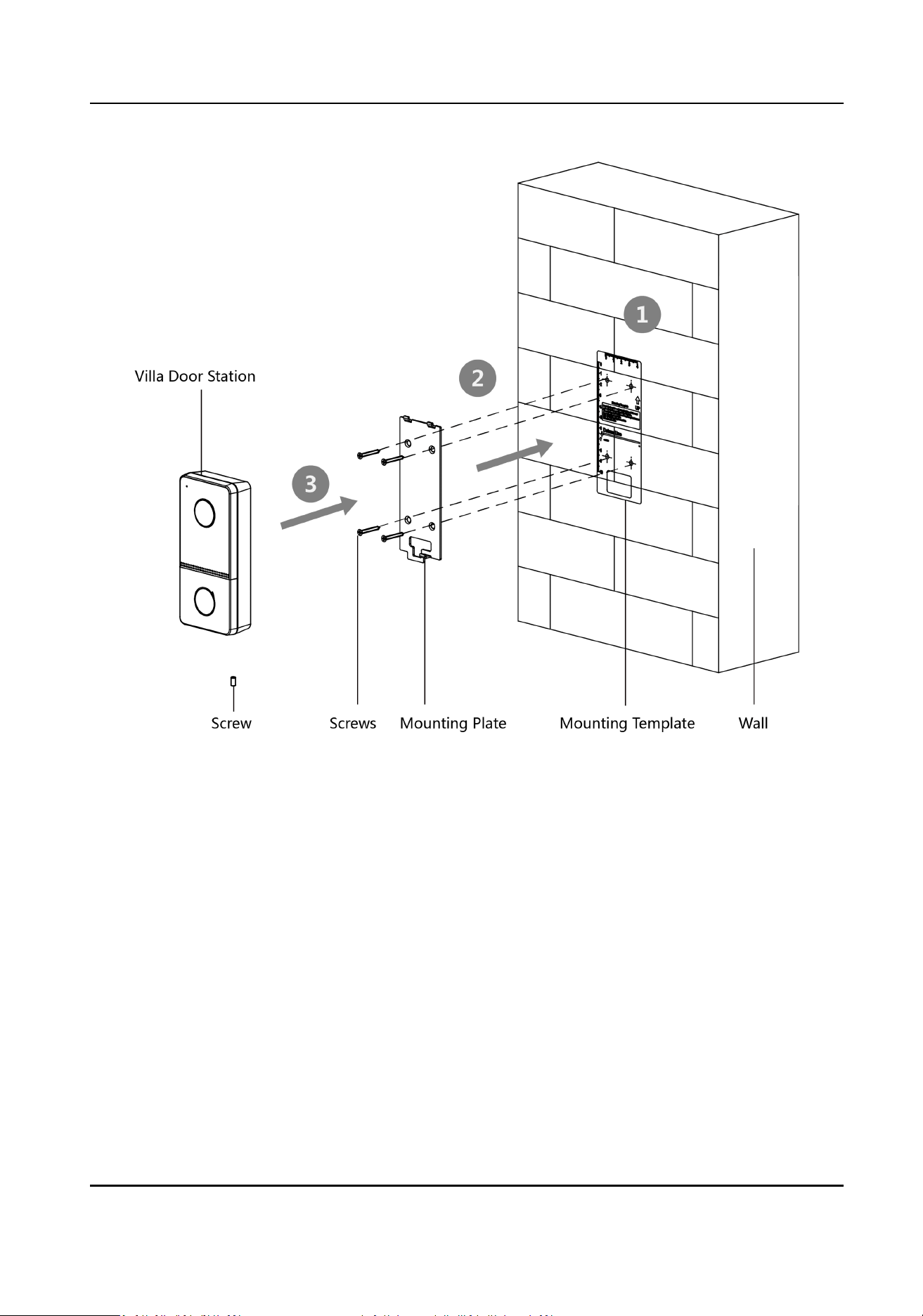

3.2 Surface Mounng without Protecve Shield ......................................................................... 9

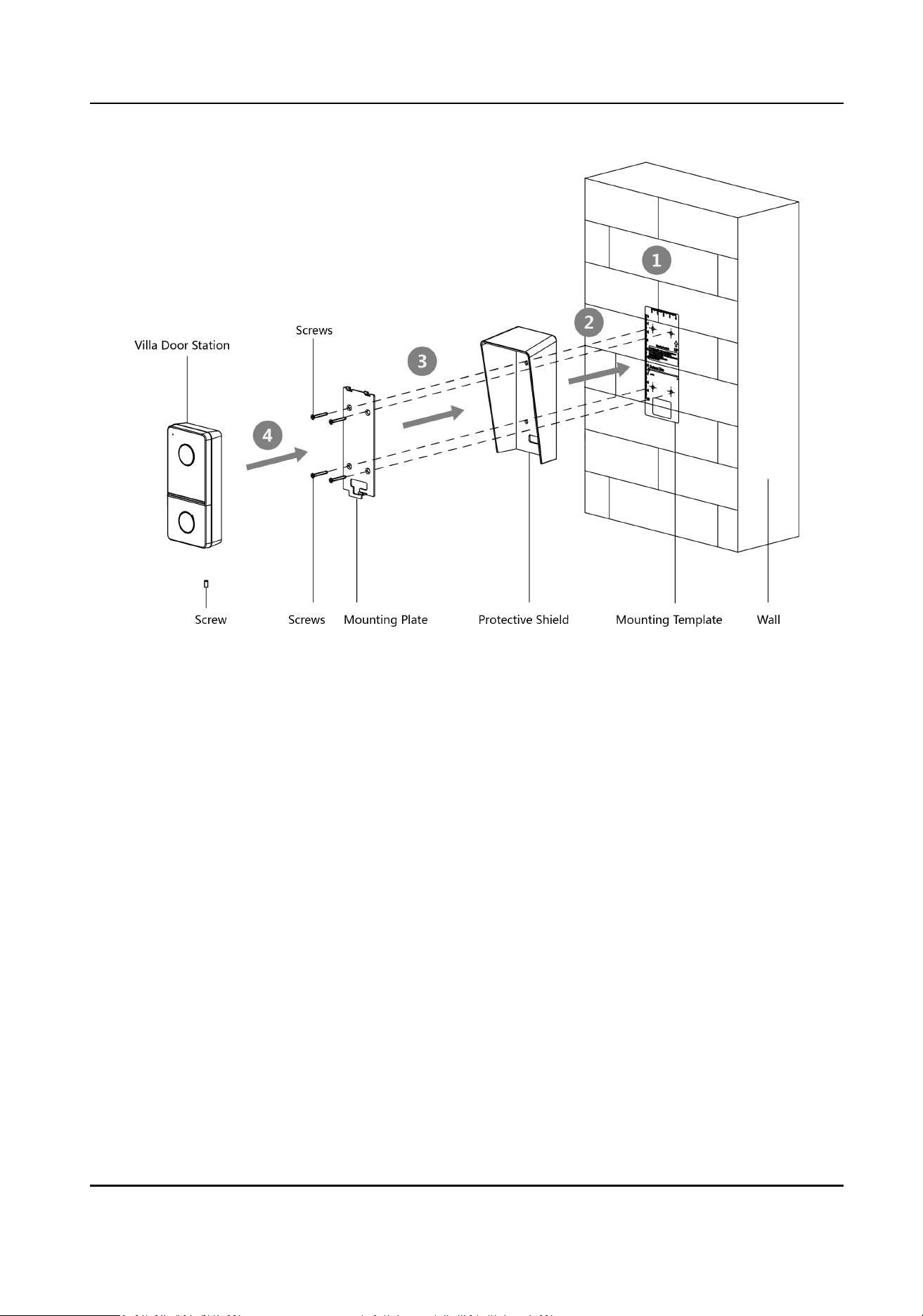

3.3 Surface Mounng with Protecve Shield ............................................................................. 12
Chapter 4 Acvaon ................................................................................................................. 16
4.1 Acvate Device via Web ....................................................................................................... 16
4.2 Acvate Device via Client Soware ...................................................................................... 16

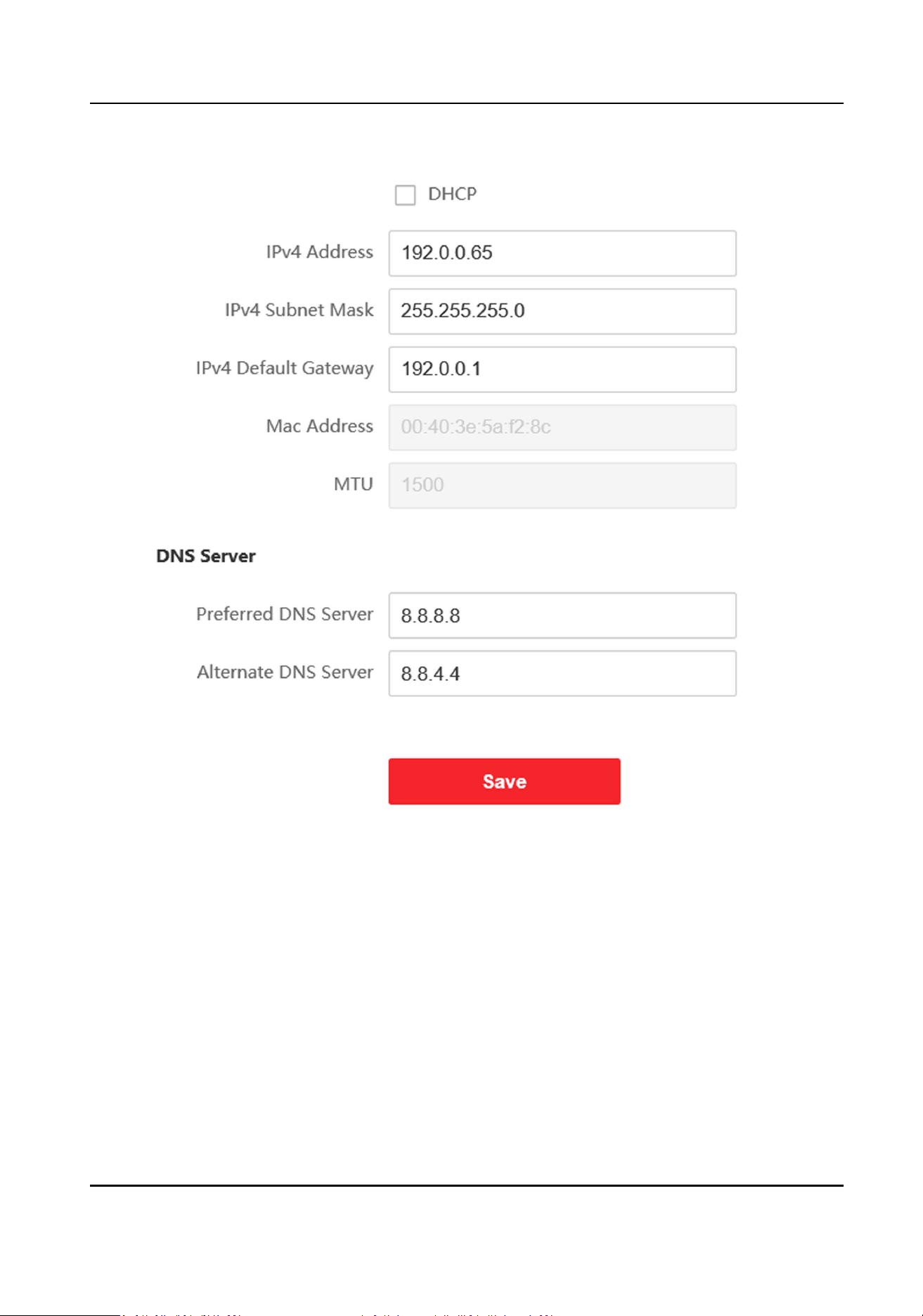

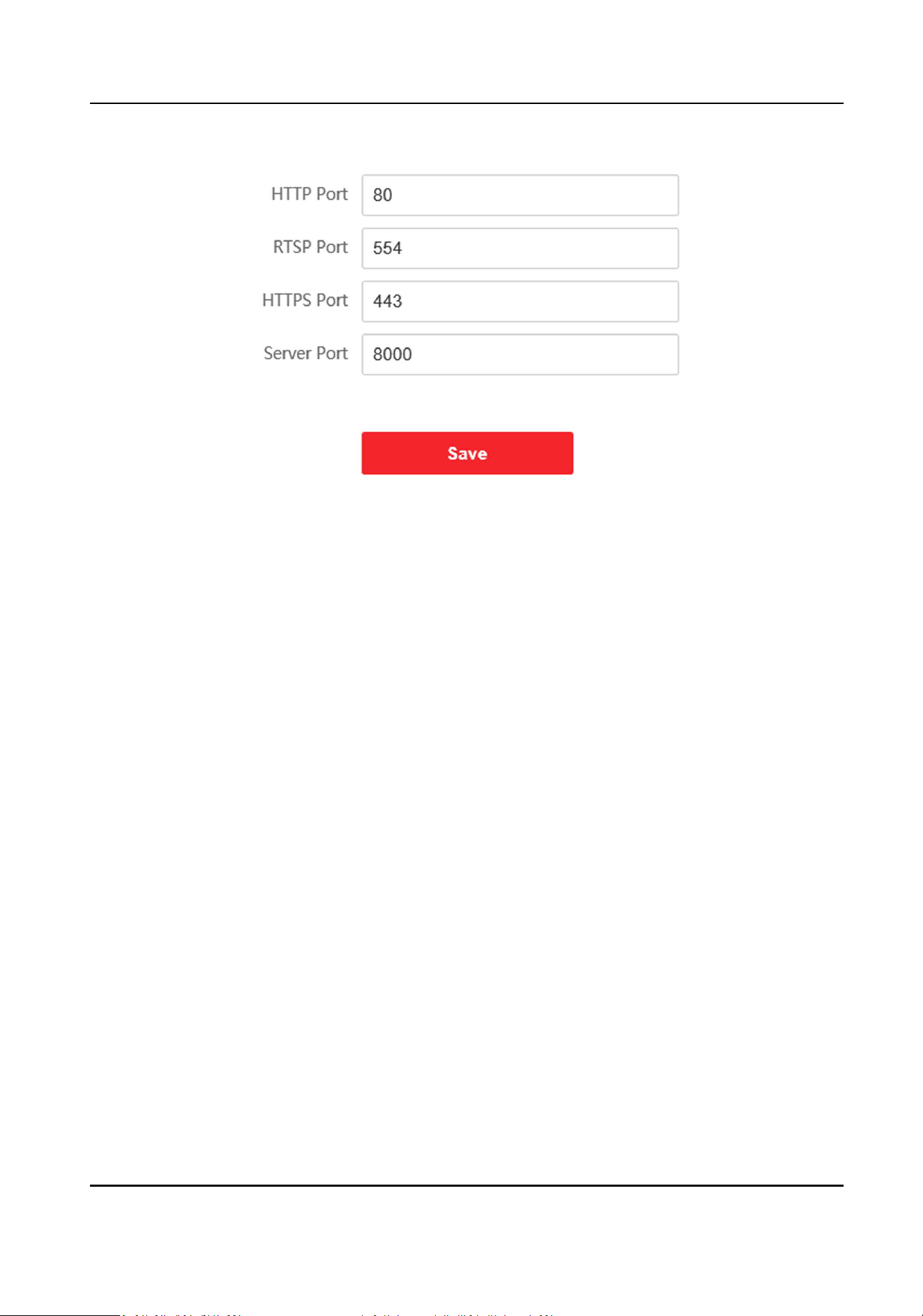

4.3 Edit Network Parameters ..................................................................................................... 17
Chapter 5 Remote Conguraon via Web ................................................................................. 18

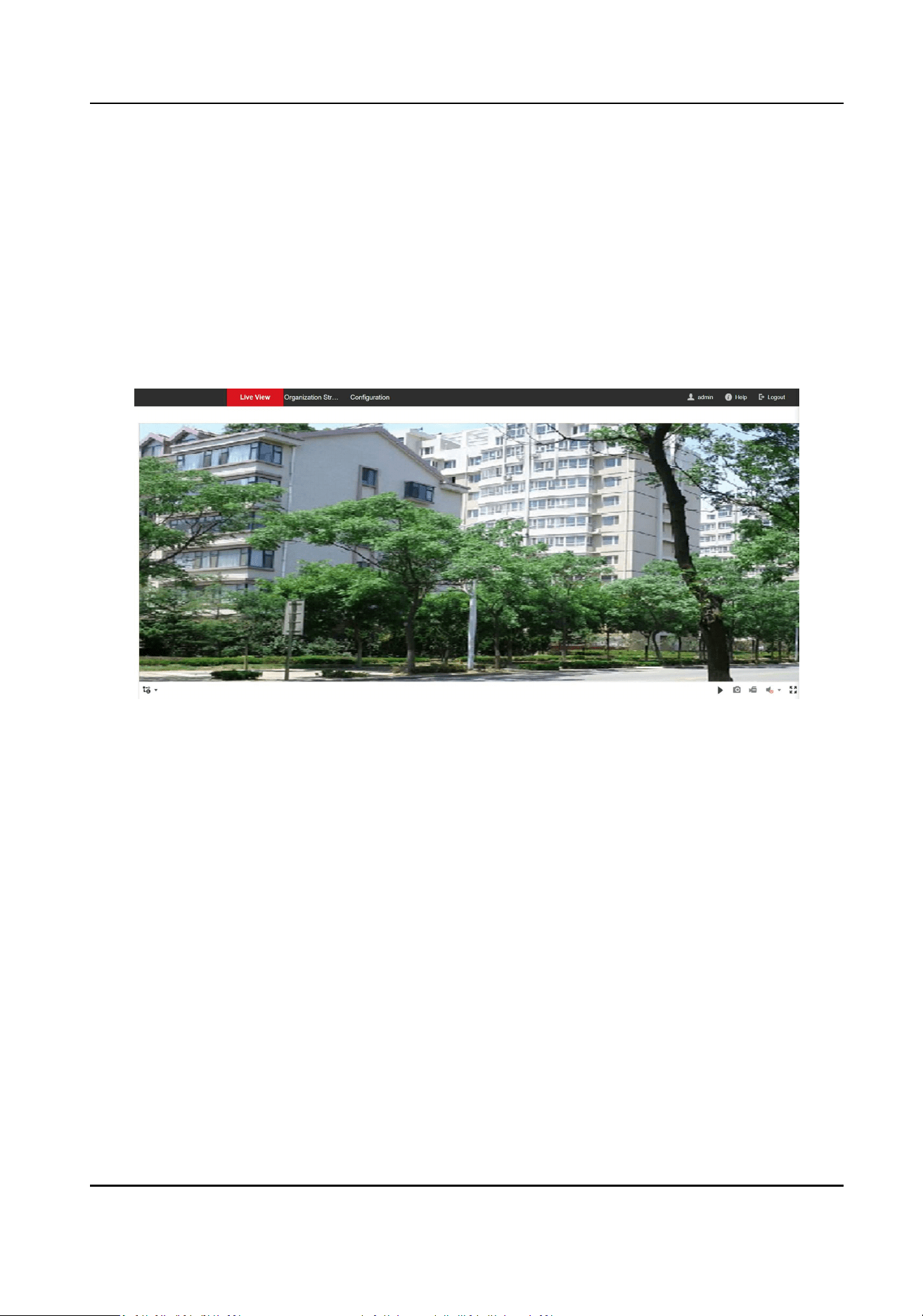

5.1 Live View .............................................................................................................................. 18
5.2 User Management ............................................................................................................... 18
5.3 Device Management ............................................................................................................ 19
5.4 Parameters Sengs ............................................................................................................. 20
5.4.1 Local Parameters Sengs ........................................................................................... 20
5.4.2 System Sengs ........................................................................................................... 22
5.4.3 Network Sengs ......................................................................................................... 24
5.4.4 Video & Audio Sengs ............................................................................................... 29
5.4.5 Image Sengs ............................................................................................................. 32
6 Series Video Intercom Villa Door Staon User Manual
ix
5.4.6 Event Sengs .............................................................................................................. 35
5.4.7 Schedule Sengs ........................................................................................................ 39
5.4.8 Intercom Sengs ........................................................................................................ 40
5.4.9 Access Control Sengs ............................................................................................... 43
Chapter 6 Conguraon via Client Soware ............................................................................. 47
6.1 Device Management ............................................................................................................ 47
6.1.1 Add Online Device ....................................................................................................... 47
6.1.2 Add Device by IP Address ............................................................................................ 49
6.1.3 Add Device by IP Segment .......................................................................................... 49
6.2 Live View via Door Staon ................................................................................................... 49
6.3 Organizaon Management .................................................................................................. 49
6.3.1 Add Organizaon ........................................................................................................ 49
6.3.2 Modify and Delete Organizaon ................................................................................. 50
6.4 Person Management ............................................................................................................ 50
6.4.1 Add Person .................................................................................................................. 50
6.4.2 Modify and Delete Person .......................................................................................... 51
6.4.3 Change Person to Other Organizaon ........................................................................ 51
6.4.4 Import and Export Person Informaon ....................................................................... 52
6.4.5 Get Person Informaon from Device .......................................................................... 52
6.4.6 Issue Card in Batch ...................................................................................................... 53
6.4.7 Permission Sengs ..................................................................................................... 56
6.5 Video Intercom Sengs ....................................................................................................... 56
6.5.1 Receive Call from Door Staon ................................................................................... 57
6.5.2 Release Noce ............................................................................................................ 57
6.5.3 Search Video Intercom Informaon ............................................................................ 58
6.5.4 Upload Armed Informaon ......................................................................................... 59
Appendix A. Communicaon Matrix and Device Command ...................................................... 60
6 Series Video Intercom Villa Door Staon User Manual
x
Chapter 1 Appearance
Front Panel and Rear Panel
Here takes DS-KV6113-WPE1 for example.
Figure 1-1 Front Panel and Rear Panel
Table 1-1 Descripon
No. Descripon
1 Microphone
2 Camera
3 Indicator
Unlock (Green)/ Call (Orange)/ Communicate
(White)
6 Series Video Intercom Villa Door Staon User Manual
1
No. Descripon
4 Buon
5 Card Reading Area
6 Loudspeaker
7 Terminals
8 Debugging Port
9 TAMPER
10 Set Screw
Boom Panel
Figure 1-2 Boom Panel
Table 1-2 Descripon
No. Descripon
11 TF Card Slot (Reserved)
12 Network Interface
6 Series Video Intercom Villa Door Staon User Manual
2
Chapter 2 Terminal and Wiring Descripon
2.1 Terminal Descripon
Figure 2-1 Terminal Descripon
Note
RS-485 terminal is not supported.
6 Series Video Intercom Villa Door Staon User Manual
3
2.2 Wiring Descripon
2.2.1 Door Lock Wiring
Figure 2-2 Door Lock Wiring
Note
Terminal NC/COM is set as default for accessing magnec lock/electric bolt; terminal NO/COM is
set as default for accessing electric strike.
6 Series Video Intercom Villa Door Staon User Manual
4
2.2.2 Door Contact Wiring
Figure 2-3 Door Contact Wiring
6 Series Video Intercom Villa Door Staon User Manual
5
2.2.3 Exit Buon Wiring
Figure 2-4 Exit Boon Wiring
6 Series Video Intercom Villa Door Staon User Manual
6
2.2.4 Alarm Input Device Wiring
Figure 2-5 Alarm Input Device Wiring
6 Series Video Intercom Villa Door Staon User Manual
7
Chapter 3 Installaon
Note
●
Make sure the device in the package is in good condion and all the assembly parts are included.
●
Make sure your power supply matches your door staon.
●
Make sure all the related equipment is power-o during the installaon.
●
Check the product specicaon for the installaon environment.
3.1 Accessory Introducon
Figure 3-1 Accessory Introducon
6 Series Video Intercom Villa Door Staon User Manual
8
Note
The dimension of the mounng plate is 102.58 mm × 39.24 mm × 6.2 mm.
3.2 Surface Mounng without Protecve Shield
Before You Start
●
Tools that you need to prepare for installaon: Drill (ø2.846) and gradienter.
●
Purchase the protecve shield before installaon.
Steps
1.
Sck the mounng template on the wall. Drill screw holes according to the mounng template.
Remove the template from the wall.
6 Series Video Intercom Villa Door Staon User Manual
9
Figure 3-2 Mounng Template
2.
Secure the mounng plate on the wall with 4 supplied screws according to the screw holes.
3.
Install the villa door staon to the mounng plate. Fix the device on the mounng plate with the
set screw.
Note
Apply silicone sealant among the cable wiring area to keep the raindrop from entering.
6 Series Video Intercom Villa Door Staon User Manual
10
Figure 3-3 Apply Silicone Sealant
6 Series Video Intercom Villa Door Staon User Manual
11
Figure 3-4 Surface Mounng without Protecve Shield
3.3 Surface Mounng with Protecve Shield
Before You Start
●
Tools that you need to prepare for installaon: Drill (ø2.846) and gradienter.
●
Purchase the protecve shield before installaon.
●
If installing outdoors, you are advised to install the device with protecve shield.
Steps
1.
Sck the mounng template on the wall. Drill screw holes according to the mounng template.
Remove the template from the wall.
6 Series Video Intercom Villa Door Staon User Manual
12
Figure 3-5 Mounng Template
2.
Align the protecve shield with the mounng template.
3.
Secure the mounng plate and protecve shield on the wall with 4 supplied screws according to
the screw holes.
4.
Install the villa door staon to the mounng plate. Fix the device on the mounng plate with the
set screw.
6 Series Video Intercom Villa Door Staon User Manual
13
Figure 3-6 Surface Mounng with Protecve Shield
6 Series Video Intercom Villa Door Staon User Manual
14
Figure 3-7 Finished View
6 Series Video Intercom Villa Door Staon User Manual
15
Chapter 4 Acvaon
4.1 Acvate Device via Web
You are required to acvate the device rst by seng a strong password for it before you can use
the device.
Default parameters of the door staon are as follows:
●
Default IP Address: 192.0.0.65.
●
Default Port No.: 8000.
●
Default User Name: admin
Steps
1.
Power on the device, and connect the device to the network.
2.
Enter the IP address into the address bar of the web browser, and click Enter to enter the
acvaon page.
Note
The computer and the device should belong to the same subnet.
3.
Create and enter a password into the password eld.
4.
Conrm the password.
5.
Click OK to acvate the device.
4.2 Acvate Device via Client Soware
You can only congure and operate the door staon aer creang a password for the device
acvaon.
Default parameters of door staon are as follows:
●
Default IP Address: 192.0.0.65.
●
Default Port No.: 8000.
●
Default User Name: admin.
Steps
1.
Run the client soware, click Maintenance and Management → Device Management → Device
to enter the page.
2.
Click Online Device.
3.
Select an inacvated device and click Acvate.
4.
Create a password, and conrm the password.
6 Series Video Intercom Villa Door Staon User Manual
16
Note
We highly recommend you to create a strong password of your own choosing (using a minimum
of 8 characters, including at least three kinds of following categories: upper case leers, lower
case leers, numbers, and special characters) in order to increase the security of your product.
And we recommend you change your password regularly, especially in the high security system,
changing the password monthly or weekly can beer protect your product.
5.
Click OK to acvate the device.
Note
●
When the device is not acvated, the basic operaon and remote operaon of device cannot
be performed.
●
You can hold the Ctrl or Shi key to select mulple devices in the online devices, and click the
Acvate buon to acvate devices in batch.
4.3 Edit Network Parameters
To operate and congure the device via LAN (Local Area Network), you need connect the device in
the same subnet with your PC. You can edit network parameters via iVMS-4200 client soware.
Steps
1.
Select an online acvated device and click the Modify Nenfo.
2.
Edit the device IP address and gateway address to the same subnet with your computer.
3.
Enter the password and click OK to save the network parameters modicaon.
Note
●
The default port No. is 8000.
●
The default IP address of the door staon is 192.0.0.65.
●
Aer eding the network parameters of device, you should add the devices to the device list
again.
6 Series Video Intercom Villa Door Staon User Manual
17
Chapter 5 Remote Conguraon via Web
5.1 Live View
In the browser address bar, enter the IP address of the device, and press the Enter key to enter the
login page.
Enter the user name and password and click Login to enter the Live View page. Or you can click
Live View to enter the page.
Figure 5-1 Live View
●
You can start/stop live view, capture, record, audio on/o, two-way audio, etc.
●
The stream type can be set as main stream or sub stream.
●
For IE (Internet Explorer) users, the device support two-way audio communicaon.
5.2 User Management
You can add, delete or search the informaon of the user.
Click User to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
18
Figure 5-2 User Management
●
Click Add and enter the Name, Floor No. and Room No. to add.
●
Click Edit to modify the informaon of the user.
●
Check the box of the user and click Delete to delete the selected user.
●
Enter the keyword and click search icon. The informaon will display in the list.
Note
User management funcon may vary with dierent models. Please refer to the actual product.
5.3 Device Management
You can manage the linked device on the page.
Click Device Management to enter the sengs page.
Figure 5-3 Device Management
6 Series Video Intercom Villa Door Staon User Manual
19
Add Device
●
Click Add to add the indoor staon or sub door staon. Enter the parameters and click OK to
add.
●
Click Import. Enter the informaon of the device in the template to import devices in batch.
Export
Click Export to export the informaon to the PC.
Delete
Select the device and click Delete to remove the selected device from the list.
Refresh
Click Refresh to get the device informaon.
Oponal: Set Device Informaon.
●
Click to edit device informaon.
●
Click to delete device informaon from the list.
●
Select Status and Device Type to search devices.
5.4 Parameters Sengs
Click Conguraon to set the parameters of the device.
Remote conguraon in iVMS-4200 and Batch Conguraon Tool is the same as that in Web. Here
takes the conguraon in web for example.
Note
Run the browser, click → Internet Opons → Security to disable the Protected Mode.
5.4.1 Local Parameters Sengs
You can congure the parameters of the live view, record les and captured pictures. The record
les and captured pictures are the ones you record and capture by using the web browser. You can
also set and view the saving paths of the captured pictures and recorded videos on the PC that
running the web browser.
6 Series Video Intercom Villa Door Staon User Manual
20
Figure 5-4 Local Parameters
Live View Parameters
Stream Type
Set the stream type as Main Stream or Sub-stream.
Play Performance
Set the live view performance to Shortest Delay, Balanced or Fluent.
Auto Start Live View
Check Yes to enable the funcon.
Image Format
Select the image format for picture capture.
Click Save to enable the sengs.
Record File Parameters
Record File Size
Select the packed size of the manually recorded and downloaded video les to 256M, 512M or
1G. Aer the selecon, the maximum record le size is the value you selected.
Save record les to
Set the saving path for the manually recorded video les.
6 Series Video Intercom Villa Door Staon User Manual
21
Click Save to enable the sengs.
Picture and Clip Sengs
Save snapshots in live view to
Set the saving path of the manually captured pictures in live view mode.
Note
You can click Browse to change the directory for saving the clips and pictures, and click Open to
open the set folder of clips and picture saving.
Click Save to enable the sengs.
5.4.2 System Sengs
Follow the instrucons below to congure the system sengs, include System Sengs,
Maintenance, Security, and User Management, etc.
Click System to enter the sengs page.
Basic Informaon
Click System Sengs → Basic Informaon to enter the sengs page. On the page, you can edit
Device Name and Device No. Set the Language and System Type according to your needs.
Click Save to enable the sengs.
Time Sengs
Click System Sengs → Time Sengs to enter the sengs page. Select the Time Zone of your
locaon from the drop-down list.
●
Enable NTP, set the Server Address, NTP Port and Interval.
●
Enable Manual Time Sync., set the me manually or check the Sync. with computer me.
Click Save to enable the sengs.
DST
Click System Sengs → DST to check Enable DST. Set the parameters according to your needs and
click Save to enable the sengs.
About
Click System Sengs → About and click Open Source Soware Licenses to view the details.
Maintenance
Click Maintenance → Upgrade & Maintenance to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
22
Figure 5-5 Maintenance
●
Reboot: Click Reboot to reboot the device.
●
Restore
Click Restore to reset all the parameters, except the IP parameters and user informaon, to
the default sengs.
Default
Click Default to restore all parameters to default sengs.
●
Export parameters:
1. Select Device Parameters, and click Export to pop up the dialog box.
2. Set and conrm the encrypon password.
3. Click OK to export parameters.
●
Import Cong. File:
1. Click browse icon to select the conguraon le.
2. Click Import and enter the encrypon password to import.
●
Upgrade: Click browse icon to select the upgrade le.
Note
The upgrading process will last 1 to 10 minutes, do not power o during the upgrading. The
device reboots automacally aer upgrading.
Security Service
Click Security → Security Service to enter the sengs page. On the page, you can enable SSH
according to your actual needs.
Click Save to enable the sengs.
User Management
Click User Management to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
23
Administrator can edit the permission for the users.
Note
We highly recommend you to create a strong password of your own choosing (using a minimum of
8 characters, including at least three kinds of following categories: upper case leers, lower case
leers, numbers, and special characters) in order to increase the security of your product. And we
recommend you change your password regularly, especially in the high security system, changing
the password monthly or weekly can beer protect your product.
Online Users
Click User Management → Online Users to enter the page.
Figure 5-6 Online Users
Click Refresh to get the present informaon.
Arming/Disarming Informaon
Click User Management → Arming/Disarming Informaon to view the informaon. Click Refresh
to get the present informaon.
5.4.3 Network Sengs
TCP/IP Sengs
TCP/IP sengs must be properly congured before you operate the device over network. The
device supports IPv4.
Steps
1.
Click Network → Basic Sengs → TCP/IP to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
24
Figure 5-7 TCP/IP Sengs
2.
Congure the network parameters.
-
Check DHCP, the device will get the parameters automacally.
-
Set the IPv4 Address, IPv4 Subnet Mask and IPv4 Default Gateway manually.
3.
Congure the corresponding DNS server parameters.
4.
Click Save to enable the sengs.
Port Sengs
Steps
1.
Click Network → Basic Sengs → Port to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
25
Figure 5-8 Port Sengs
2.
Set the ports of the device.
HTTP Port
The default port number is 80, and it can be changed to any port No. which is not occupied.
HTTPS Port
The default port number is 443, and it can be changed to any port No. which is not occupied.
RTSP Port
The default port number is 554.
Server Port
The default server port number is 8000, and it can be changed to any port No. ranges from
2000 to 65535.
3.
Click Save to enable the sengs.
SIP Seng
Steps
1.
Click Network → Basic Sengs → SIP to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
26
Figure 5-9 SIP Sengs
2.
Check Enable VOIP Gateway.
3.
Congure the SIP parameters.
4.
Click Save to enable the sengs.
FTP Sengs
Steps
1.
Click Network → Advanced → FTP to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
27
Figure 5-10 FTP Sengs
6 Series Video Intercom Villa Door Staon User Manual
28
2.
Check Enable FTP.
3.
Select Server Type.
4.
Input the Server IP Address and Port.
5.
Congure the FTP Sengs, and the user name and password are required for the server login.
6.
Set the Directory Structure, Parent Directory and Child Directory.
7.
Set the picture naming rules.
8.
Click Save to enable the sengs.
Plaorm Access
Plaorm access provides you an opon to manage the devices via plaorm.
Steps
1.
Click Network → Advanced Sengs → Plaorm Access to enter the sengs page.
2.
Check the checkbox of Enable to enable the funcon.
3.
Select the Plaorm Access Mode.
Note
Hik-Connect is an applicaon for mobile devices. With the App, you can view live image of the
device, receive alarm nocaon and so on.
4.
Create a Stream Encrypon/Encrypon for the device.
Note
6 to 12 leers (a to z, A to Z) or numbers (0 to 9), case sensive. You are recommended to use a
combinaon of no less than 8 leers or numbers.
5.
Click Save to enable the sengs.
5.4.4 Video & Audio Sengs
Video Parameters
Steps
1.
Click Video/Audio → Video to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
29
Figure 5-11 Video Parameters
2.
Select the Stream Type.
3.
Congure the video parameters.
Stream Type
Select the stream type to main stream or sub stream.
Video Type
Select the stream type to video stream, or video & audio composite stream. The audio signal
will be recorded only when the Video Type is Video & Audio.
Resoluon
Select the resoluon of the video output.
Bitrate Type
Select the bitrate type to constant or variable.
Video Quality
When bitrate type is selected as Variable, 6 levels of video quality are selectable.
Frame Rate
6 Series Video Intercom Villa Door Staon User Manual
30
Set the frame rate. The frame rate is to describe the frequency at which the video stream is
updated and it is measured by frames per second (fps). A higher frame rate is advantageous
when there is movement in the video stream, as it maintains image quality throughout.
Max. Bitrate
Set the max. bitrate from 32 to 16384 Kbps. The higher value corresponds to the higher video
quality, but the beer bandwidth is required.
Video Encoding
The device supports H.264.
I Frame Interval
Set I Frame Interval from 1 to 400.
4.
Click Save to save the sengs.
Audio Parameters
Steps
1.
Click Video/Audio → Audio to enter the sengs page.
Figure 5-12 Audio Sengs
2.
Congure the stream type and the audio encoding type.
Stream Type
Select the stream type to main stream or sub stream.
Audio Encoding
The device support G.711ulaw and G.711 alaw.
3.
Adjust the Input Volume, Output Volume and Speak Volume.
6 Series Video Intercom Villa Door Staon User Manual
31
Note
Available range of volume: 0 to 10.
4.
Click Save to save the sengs.
5.4.5 Image Sengs
Display Sengs
Congure the image adjustment, backlight sengs and other parameters in display sengs.
Steps
1.
Click Image → Display Sengs to enter the display sengs page.
Figure 5-13 Display Sengs
2.
Select the Format.
3.
Set the display parameters.
WDR
Wide Dynamic Range can be used when there is a high contrast of the bright area and the
dark area of the scene.
Brightness
Brightness describes bright of the image, which ranges from 1 to 100.
Contrast
Contrast describes the contrast of the image, which ranges from 1 to 100.
6 Series Video Intercom Villa Door Staon User Manual
32
Saturaon
Saturaon describes the colorfulness of the image color, which ranges from 1 to 100.
Sharpness
Sharpness describes the edge contrast of the image, which ranges from 1 to 100.
4.
Set the Day/Night Mode.
Figure 5-14 Day/Night Mode
-
Set Day Mode or Night Mode manually.
-
Set the mode as Auto and edit the sensivity according to your needs.
-
Set the mode as Scheduled-Switch. Set the start me and end me.
Note
Dayme is from congured start me to congured me. The rest of the me is set as night by
default.
5.
Set the backlight parameters.
6 Series Video Intercom Villa Door Staon User Manual
33
Figure 5-15 Backlight
1) Check the checkbox to enable BLC.
2) Select BLC Area.
6.
Click Save to enable the sengs.
OSD Sengs
You can customize the camera name, me/date format, display mode, and OSD size displayed on
the live view.
Steps
1.
Click Image → OSD Sengs to enter the sengs page.
2.
Check the corresponding checkbox to select the display of camera name, date or week if
required.
3.
Edit the Camera Name.
4.
Select from the drop-down list to set the Time Format and Date Format.
5.
Adjust the OSD posion.
6.
Click Save to enable the sengs.
Target Cropping
Steps
1.
Click Image → Crop to enter the page.
2.
Check Enable Target Cropping to enable the funcon.
3.
Click
to capture photo.
4.
Click to start recording.
6 Series Video Intercom Villa Door Staon User Manual
34
5.
Select Cropping Resoluon.
6.
Click Save.
Note
●
You can select Cropping Resoluon as 704*576, 1280*720, or 1920*1080.
●
You can zoom in or zoom out the image by selecng Cropping Resoluon aer clicking Save.
5.4.6 Event Sengs
Moon Detecon
Moon detecon detects the moving objects in the congured security area, and a series of
acons can be taken when the alarm is triggered.
Steps
1.
Click Event → Moon to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
35
Figure 5-16 Moon Detecon
2.
Slide Enable Moon Detecon to enable the funcon.
3.
Click Draw Area. Click and drag the mouse on the live video to draw a moon detecon area.
Click Save to save the sengs.
Clear Area Click X to clear all of the areas.
Adjust Sensivity Move the slider to set the sensivity of the detecon.
4.
Click Arming Schedule to edit the arming schedule.
6 Series Video Intercom Villa Door Staon User Manual
36
5.
Click on the me bar and drag the mouse to select the me period. Click Save to save the
sengs.
Delete Schedule Click Delete to delete the current arming schedule.
6.
Click Linkage Method to enable the linkages.
Nofy Security Center
Send an excepon or alarm signal to the remote management soware when an event
occurs.
7.
Click Save to enable the sengs.
Event Linkage
Steps
1.
Click Event → Basic Event → Event Linkage to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
37
Figure 5-17 Event Linkage
6 Series Video Intercom Villa Door Staon User Manual
38
2.
Select the Major Type as Device Event or Door Event.
3.
Select the type of the Normal Linkage for the event.
4.
Click Save to enable the sengs.
5.4.7 Schedule Sengs
You can create call schedule, or else the device will call indoor staon all day by default.
Steps
1.
Click Schedule → Video Intercom → Call Schedule .
2.
Click the next row below Enable Indoor Staon All Day by Default.
3.
Enter Schedule Name.
4.
Select Call Type.
5.
Set Weekly Schedule.
1) Click Weekly Schedule.
Figure 5-18 Weekly Schedule
2) Drag mouse to set the schedule according to the actual needs.
3) Oponal: Click the copy icon to copy the schedule to other days according to the actual
needs.
4) Click Save.
6.
Set Holiday Schedule.
1) Click Holiday Schedule.
6 Series Video Intercom Villa Door Staon User Manual
39
Figure 5-19 Holiday Schedule
2) Click Add.
3) Set Start Time and End Time.
4) Select Call Type.
5) Drag mouse to set the schedule according to the actual needs.
6) Click OK.
7) You can edit or delete the schedule according to the actual needs.
8) Click Save.
Note
The holiday schedule have higher priority than weekly schedule when you set the two
schedule at the same me.
5.4.8 Intercom Sengs
Device No. Sengs
Steps
1.
Click Device No. to enter the page.
6 Series Video Intercom Villa Door Staon User Manual
40
Figure 5-20 Villa Door Staon No. Sengs
2.
Select the device type from the drop-down list, and set the corresponding informaon including
Building No., Floor No., Door Staon No., Community No. and Unit No.
Note
When you select Doorphone as Device Type, only Community No., Building No. and Unit No.
can be set.
3.
Click Save to enable the device number conguraon.
Note
●
For main door staon (D series or V series), the No. is 0.
●
For sub door staon (D series or V series), the No. cannot be 0. The No.of sub door staon
ranges from 1 to 99.
●
For each villa or building, at least one main door staon (D series or V series) should be
congured, and one sub door staons (D series or V series) can be customized.
●
For one main door staon (D series or V series), up to 8 sub door staons can be congured.
Linked Network Sengs
Steps
1.
Go to Intercom → Session Sengs to enter the sengs page.
2.
Set Register Number and Registraon Password.
3.
Set Main Staon IP and VideoIntercom Server IP.
6 Series Video Intercom Villa Door Staon User Manual
41
4.
Enable Protocol 1.0.
5.
Click Save to enable the sengs.
Time Parameters
Go to Intercom → Time Parameters to enter the page.
Congure Max. Call Duraon, Max. Message Duraon, Max. Ring Duraon, and click Save.
Note
●
Max. call duraon between the module indoor staon and client ranges from 90 s to 120 s. The
call will end automacally when the actual calling duraon is longer than the congured one.
●
Max. message duraon ranges from 30 s to 60 s. The message will end automacally when the
actual message duraon is longer than the congured one.
●
Max. ring duraon refers to the maximum duraon of the module indoor staon when it is
called without being accepted. Max. ring duraon ranges from 65 s to 255 s.
Ring-Back Tone Sengs
Click Intercom → Ringbacktone Sengs to enter the sengs page.
Click Add to select the ring tone from PC.
Note
Available Audio Format: WAV、AAC, Size: Less than 600 KB, Sample Rate: 8000Hz, Mono.
Press Buon to Call
Steps
1.
Go to Intercom → Press Buon to Call to enter the sengs page.
Figure 5-21 Press Buon to Call
2.
Edit room No. in the buon sengs and select Link Time Schedule.
6 Series Video Intercom Villa Door Staon User Manual
42
Note
●
The number of buons may vary with dierent models. Please refer to the actual product.
●
The schedule sengs refers to Schedule Sengs for details.
3.
Click Save to enable the sengs.
Number Sengs
Link the room No. and SIP numbers.
Click Number Sengs to enter the page.
Figure 5-22 Number Sengs
Click Add, set the Room No. and SIP numbers in the pop-up dialog box.
5.4.9 Access Control Sengs
Door Parameters
Steps
1.
Click Access Control → Door Parameters to enter the sengs page.
6 Series Video Intercom Villa Door Staon User Manual
43
Figure 5-23 Door Parameters
2.
Select the door and edit the door name.
3.
Edit Open Duraon.
4.
Set door contact status.
5.
Click Save to enable the sengs.
Elevator Control
Before You Start
●
Make sure your door staon is in the mode of main door staon. Only the main door staon
support elevator control funcon.
●
Make sure your door staon has been connected to the elevator controller via RS-485 wire if you
want to use RS-485 interface.
Steps
1.
Click Access Control → Elevator Control to enter the corresponding conguraon page.
6 Series Video Intercom Villa Door Staon User Manual
44
Figure 5-24 Elevator Control
2.
Check to enable elevator control funcon.
3.
Select an Elevator No., and select an elevator controller type for the elevator.
4.
Set the Negave Floor.
5.
Select the Interface Type as RS-485 or Network Interface. And enable the elevator control.
-
If you select RS-485, make sure you have connected the door staon to the elevator controller
with RS-485 wire.
-
If you select Network interface, enter the elevator controller's IP address, port No., user
name, and password.
6.
Click Save to enable the sengs.
6 Series Video Intercom Villa Door Staon User Manual
45
Note
●
Up to 4 elevator controllers can be connected to one door staon.
●
Up to 10 negave oors can be added.
●
Make sure the interface types of elevator controllers, which are connected to the same door
staon are consistent.
6 Series Video Intercom Villa Door Staon User Manual
46
Chapter 6 Conguraon via Client Soware
6.1 Device Management
Device management includes device acvaon, adding device, eding device, and deleng device,
and so on.
Aer running the iVMS-4200, video intercom devices should be added to the client soware for
remote conguraon and management.
6.1.1 Add Online Device
Before You Start
Make sure the device to be added is in the same subnet with your computer. Otherwise, please
edit network parameters rst.
Steps
1.
Click Online Device to select an acve online device.
2.
Click Add.
3.
Enter corresponding informaon, and click Add.
6 Series Video Intercom Villa Door Staon User Manual
47
Figure 6-1 Add to the Client
6 Series Video Intercom Villa Door Staon User Manual
48
6.1.2 Add Device by IP Address
Steps
1.
Click +Add to pop up the adding devices dialog box.
2.
Select IP/Domain as Adding Mode.
3.
Enter corresponding informaon.
4.
Click Add.
6.1.3 Add Device by IP Segment
You can add many devices at once whose IP addresses are among the IP segment.
Steps
1.
Click +Add to pop up the dialog box.
2.
Select IP Segment as Adding Mode.
3.
Enter corresponding informaon, and click Add.
6.2 Live View via Door Staon
Steps
1.
On the main page of the client soware, click Main View to enter the Live View page.
2.
In the le list of the window, double-click the device IP or click the play icon to live view.
3.
Oponal: On the Live View page, control-click and select Capture to get the picture of the live
view.
6.3 Organizaon Management
On the main page of the Client Soware, click PersonalManagement to enter the
conguraon page.
6.3.1 Add Organizaon
Steps
1.
In the organizaon list on the le, click +Add.
2.
Enter the Organizaon Name as desired.
3.
Click OK to save the adding.
4.
Oponal: You can add mulple levels of organizaons according to the actual needs.
1) You can add mulple levels of organizaons according to the actual needs.
2) Then the added organizaon will be the sub-organizaon of the upper-level organizaon.
6 Series Video Intercom Villa Door Staon User Manual
49
Note
Up to 10 levels of organizaons can be created.
6.3.2 Modify and Delete Organizaon
You can select the added organizaon and click to modify its name.
You can select an organizaon, and click X buon to delete it.
Note
●
The lower-level organizaons will be deleted as well if you delete an organizaon.
●
Make sure there is no person added under the organizaon, or the organizaon cannot be
deleted.
6.4 Person Management
Aer adding the organizaon, you can add person to the organizaon and manage the added
person such as issuing cards in batch, imporng and exporng person's informaon in batch, etc.
Note
●
Up to 2,000 persons can be added.
●
Up to 5 cards can be added to each person.
6.4.1 Add Person
Person informaon is necessary for the video intercom system. And when you set linked device for
the person, the intercom between intercom devices can be realized.
Steps
1.
Select an organizaon in the organizaon list and click Add on the Person panel to pop up the
adding person dialog.
Note
The Person No. will be generated automacally and is editable.
2.
Set basic person informaon.
1) Enter basic informaon: name, tel, birthday details, eecve period and email address.
Note
The length of person name should be less than 15 characters.
2) Click Add face to upload the photo.
6 Series Video Intercom Villa Door Staon User Manual
50
Note
The picture should be in *.jpg format.
Click Upload Select the person picture from the local PC to upload it to the
client.
Click Take Phone Take the person's photo with the PC camera.
Click Remote Collecon Take the person's photo with the collecon device.
3.
Issue the card for the person.
1) Click Credenal → Card .
2) Click + to pop up the Add Card dialog.
3) Select Normal Card as Card Type.
4) Enter the Card No.
5) Click Read and the card(s) will be issued to the person.
4.
Link the device to the person.
1) Set the linked devices.
Linked Device
You can bind the indoor staon to the person.
Note
If you select Analog Indoor Staon in the Linked Device, the Door Staon eld will display
and you are required to select the door staon to communicate with the analog indoor
staon.
Room No.
You can enter the room No. of the person.
2) Click OK to save the sengs.
5.
Click Add to save the sengs.
6.4.2 Modify and Delete Person
Select the person and click Edit to open the eding person dialog.
To delete the person, select a person and click Delete to delete it.
Note
If a card is issued to the current person, the linkage will be invalid aer the person is deleted.
6.4.3 Change Person to Other Organizaon
You can move the person to another organizaon if needed.
6 Series Video Intercom Villa Door Staon User Manual
51
Steps
1.
Select the person in the list and click Change Organizaon.
2.
Select the organizaon to move the person to.
3.
Click OK to save the sengs.
6.4.4 Import and Export Person Informaon
The person informaon can be imported and exported in batch.
Steps
1.
Exporng Person: You can export the added persons' informaon in Excel format to the local PC.
1) Aer adding the person, you can click Export Person to pop up the following dialog.
2) Click ... to select the path of saving the exported Excel le.
3) Check the checkboxes to select the person informaon to export.
4) Click OK to start exporng.
2.
Imporng Person: You can import the Excel le with persons informaon in batch from the local
PC.
1) Click Import Person.
2) You can click Download Template for Imporng Person to download the template rst.
3) Input the person informaon to the downloaded template.
4) Click ... to select the Excel le with person informaon.
5) Click OK to start imporng.
6.4.5 Get Person Informaon from Device
If the added device has been congured with person informaon (including person details,
ngerprint, issued card informaon), you can get the person informaon from the device and
import to the client for further operaon.
Steps
Note
This funcon is only supported by the device the connecon mothod of which is TCP/IP when
adding the device.
1.
In the organizaon list on the le, click to select an organizaon to import the persons.
2.
Click Get from Device to pop up the dialog box.
3.
The added device will be displayed.
4.
Click to select the device and then click Get to start geng the person informaon from the
device.
6 Series Video Intercom Villa Door Staon User Manual
52
Note
●
The person informaon, including person details, person's ngerprint informaon (if
congured), and the linked card (if congured), will be imported to the selected organizaon.
●
If the person name stored in the device is empty, the person name will be lled with the
issued card No. aer imporng to the client.
6.4.6 Issue Card in Batch
You can issue mulple cards for the person with no card issued in batch.
Steps
1.
Click Batch Issue Cards to enter the dialog page. All the added person with no card issued will
display in the Person(s) with No Card Issued list.
6 Series Video Intercom Villa Door Staon User Manual
53
Figure 6-2 Issue Card in Batch
2.
Click Sengs.
6 Series Video Intercom Villa Door Staon User Manual
54
Figure 6-3 Card Sengs
3.
Select Card Type and Card No. Type.
4.
Click OK to save the sengs.
Result
Aer issuing the card to the person, the person and card informaon will display in the Person(s)
with Card Issued list.
6 Series Video Intercom Villa Door Staon User Manual
55
6.4.7 Permission Sengs
Add Permissions
Steps
1.
On the main page, click AccessControlInfo → Access Group to enter the page.
2.
Click +Add to pop up the adding dialog box.
3.
Congure the parameters.
1) Enter the Name of the permission.
2) Select the Template of the schedule.
3) Check the person to Selected according to your needs.
4) Check the device to Selected according to your needs.
4.
Click Save.
5.
Check the permission and click Apply All to Device.
The status of the permission displays as Applied.
6.
Oponal: Click Applying Status to check the details.
Modify/Delete Permissions
On the page of the permission sengs, click to edit the parameters of the permission.
Select one or more permissions, click Delete to remove the permissions.
6.5 Video Intercom Sengs
The Video Intercom Management module provides the funcon of video intercom, checking call
logs and managing noce via the iVMS-4200 Client Soware.
Note
For the user with access control module permissions, the user can enter the Access Control
module and manage video intercom and search informaon.
You should add the device to the soware and congure the person to link the device in Access
Control module before your conguraon remotely.
On the main page, click AccessControlInfo → Video Intercom → Video Intercom on the le
bar to enter the Video Intercom page.
6 Series Video Intercom Villa Door Staon User Manual
56
6.5.1 Receive Call from Door Staon
Steps
1.
Select the client soware in the page to start calling the client and an incoming call dialog will
pop up in the client soware.
2.
Click Answer to answer the call. Or click Hang Up to decline the call.
3.
Aer you answer the call, you will enter the In Call page.
Adjust the Volume of
Loudspeaker
Click
to adjust the volume of loudspeaker.
Hang Up Click Hang Up to hang up.
Adjust the Volume of
Microphone
Click
to adjust the volume of microphone.
Unlock Remotely For door staon, you can click
to open the door
remotely.
Note
●
One video intercom device can only connect with one client soware.
●
The maximum ring duraon can be set from 15s to 60s via the Remote Conguraon of the
video intercom device.
●
The maximum speaking duraon between indoor staon and iVMS-4200 can be set from 120s
to 600s via the Remote Conguraon of indoor staon.
●
The maximum speaking duraon between door staon and iVMS-4200 can be set from 90s to
120s via the Remote Conguraon of door staon.
6.5.2 Release Noce
You can create dierent types of noces and send them to the residents. Four noce types are
available, including Adversing, Property, Alarm and Noce Informaon.
Before You Start
Make sure the person has been added to the client.
Steps
1.
On the video intercom sengs page, click Noce to enter the page.
2.
Click +Add to pop up the adding dialog box.
3.
Select the person according to your needs.
4.
Edit the Subject, Type and Informaon.
5.
Click View to select the picture.
6.
Click Send.
6 Series Video Intercom Villa Door Staon User Manual
57
Note
●
Up to 63 characters are allowed in the Subject eld.
●
Up to 6 pictures in the JPGE format can be added to one noce. And the maximum size of one
picture is 512KB.
●
Up to 1023 characters are allowed in the Informaon eld.
6.5.3 Search Video Intercom Informaon
Search Call Logs
Steps
1.
On the Video Intercom page, click Call Log to enter the page.
Figure 6-4 Search Call Logs
2.
Set the search condions, including call status, device type, start me and end me.
Call Status
Click ˅ to unfold the drop-down list and select the call status as Dialed, Received or Missed.
Or select All to search logs with all statuses.
Device Type
6 Series Video Intercom Villa Door Staon User Manual
58
Click ˅ to unfold the drop-down list and select the device type as Indoor Staon, Door
Staon, Outer Door Staon or Analog Indoor Staon. Or select All Devices to search logs
with all device types.
Start Time/End Time
Click the me icon to specify the start me and end me of a me period to search the logs.
Reset the Sengs Click Reset to reset all the congured search condions.
3.
Click Search and all the matched call logs will display on this page.
4.
Oponal: Check the detailed informaon of searched call logs, such as call status, ring/speaking
duraon, device name, resident organizaon, etc.
5.
Oponal: Input keywords in the Search eld to lter the desired log.
6.
Oponal: Click Export to export the call logs to your PC.
Search Noce
Steps
1.
On the Video Intercom page, click Noce to enter the page.
2.
Set the search condions, including noce type, start me and end me.
Type
Select Adversing Informaon, Property Informaon, Alarm Informaon or Noce
Informaon as Type according to your needs.
Start Time/End Time
Click the me icon to specify the start me and end me of a me period to search the logs.
Reset the Sengs Click Reset to reset all the congured search condiions.
3.
Click Search and the matched noce will display on this page.
4.
Oponal: Click Export to export the noces to your PC.
6.5.4 Upload Armed Informaon
Steps
1.
On the main page, click upper right → Tool → DeviceGuard to enter the page.
2.
Enable to arm or disarm the device.
Note
●
While device has been added to the client soware, the device armed by default.
●
When the device is armed, the alarm logs upload to the client soware automacally.
●
Click Alarm Applicaon → Event Search to search the alarm logs.
3.
Oponal: Click Arm All or Disarm All to arm or disarm all the device.
6 Series Video Intercom Villa Door Staon User Manual
59
Appendix A. Communicaon Matrix and Device
Command
Communicaon Matrix
Scan the following QR code to get the device communicaon matrix.
Note that the matrix contains all communicaon ports of Hikvision access control and video
intercom devices.
Figure A-1 QR Code of Communicaon Matrix
Device Command
Scan the following QR code to get the device common serial port commands.
Note that the command list contains all commonly used serial ports commands for all Hikvision
access control and video intercom devices.
Figure A-2 Device Command
6 Series Video Intercom Villa Door Staon User Manual
60
UD20205B-A
