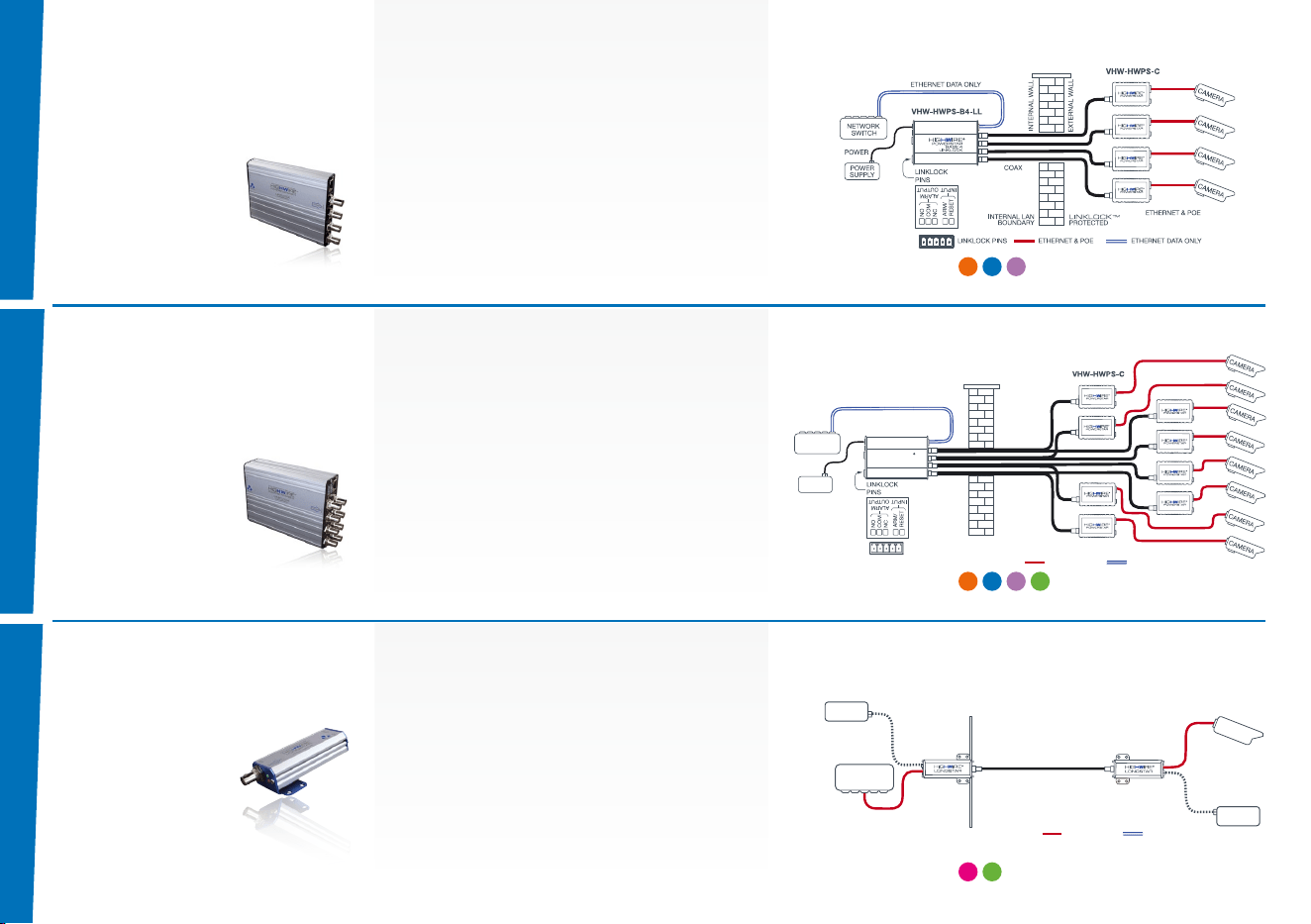

VHW-HWPS-C2
QUICK START GUIDE

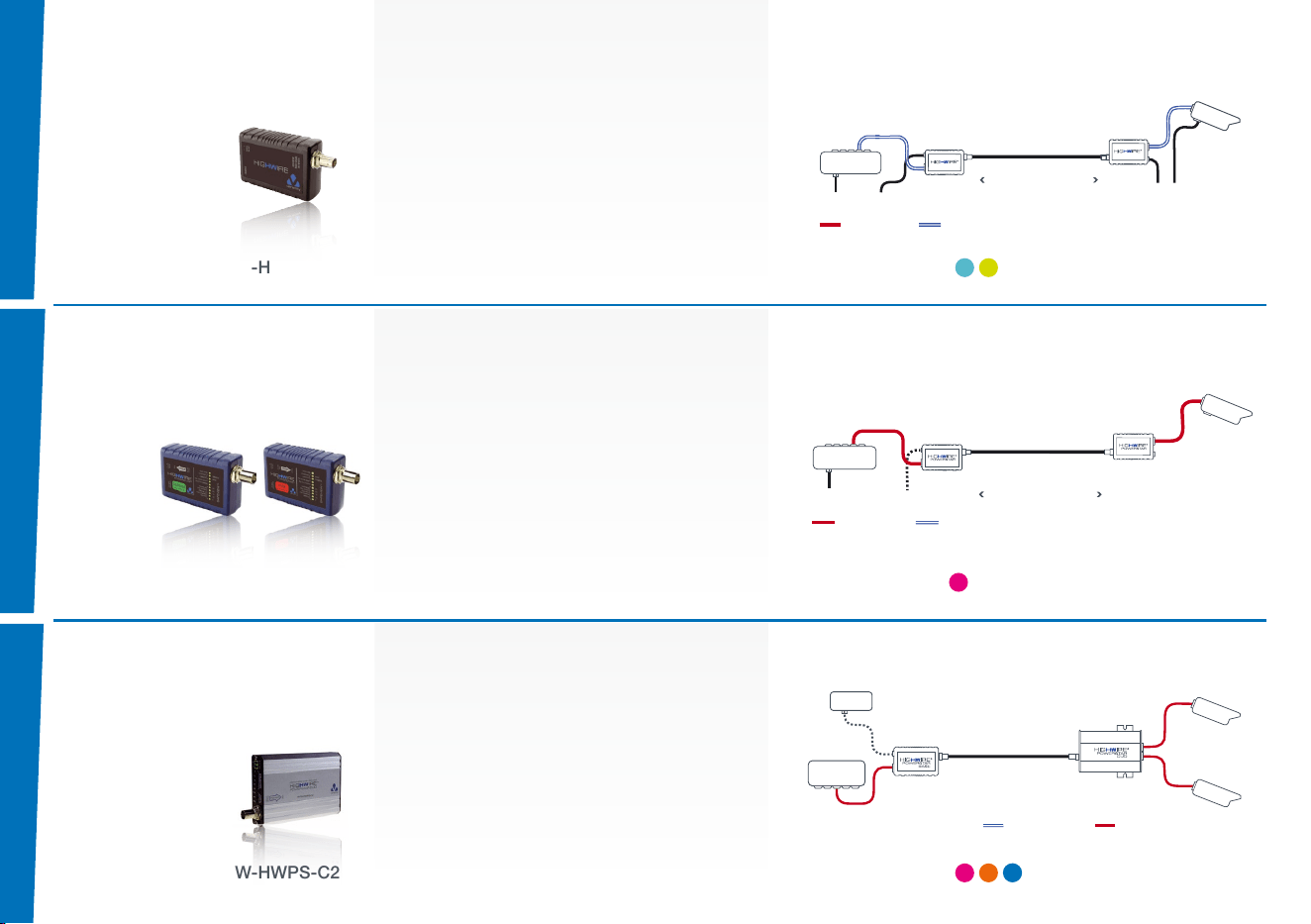

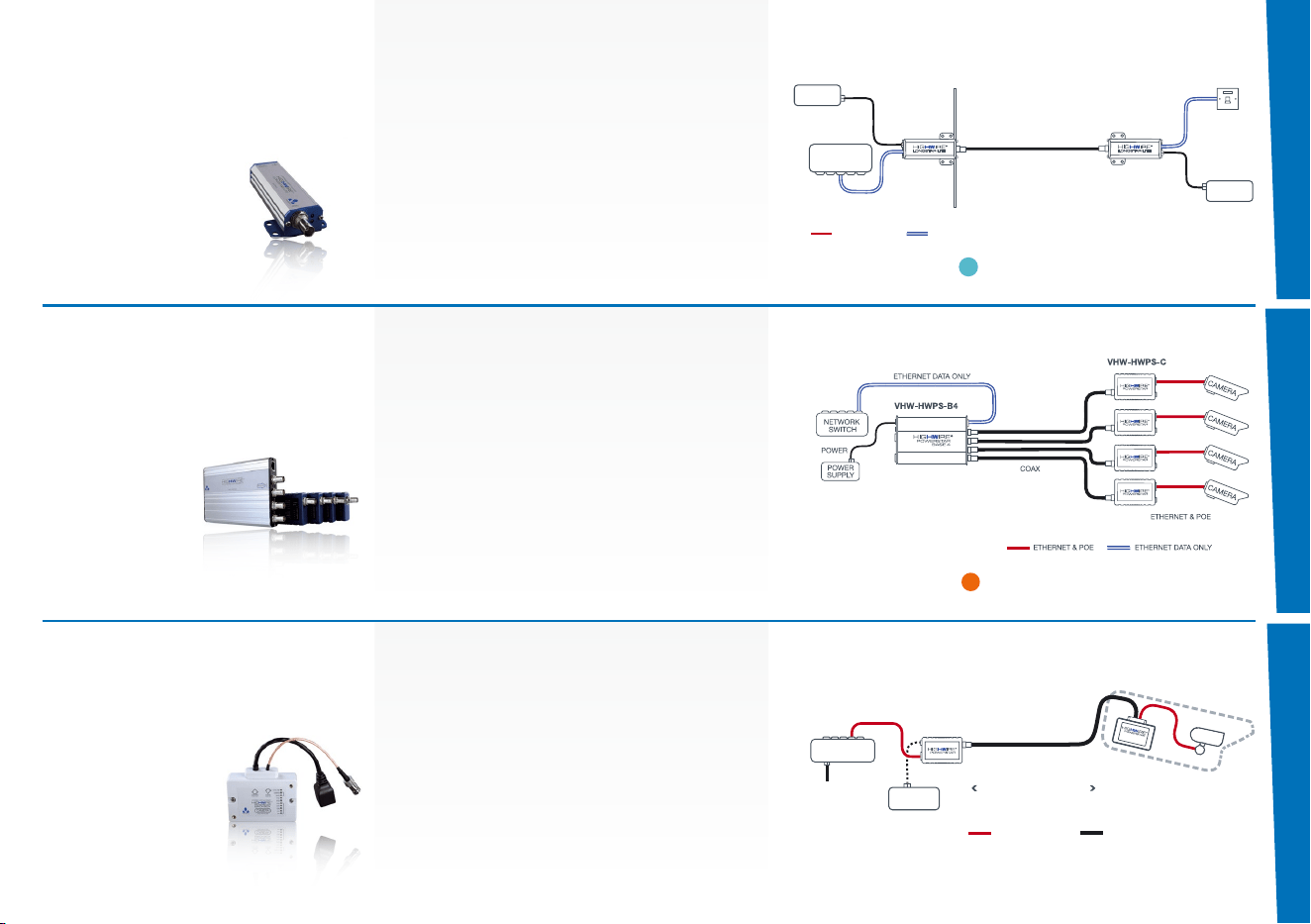

2 PORT ETHERNET OVER COAX ADAPTOR
LED FUNCTION
RJ45 Yellow On = link
Blink = activity
RJ45 Green On = POE detected
and enabled
RJ45 Ethernet 10/100Base-Tx
and POE connectors (auto speed,
duplex, crossover, POE/POE Plus)
CONNECTIONS & LEDS
LED
COAX LINK
COAX NET
COAX PWR
(Power)
POE POWER
BUDGET
FUNCTION
Coax data
connection
Base side network
connection
POE over coax
status
Total camera
power budget
GREEN
Blink = no link
On = 100Mbps
On = link
Blink = activity
On = enabled
by Base unit
On = available
5W blink = <5W
ORANGE
Loss of data
n/a
n/a
Approaching
power limit
RED
Severe
Loss of data
10Base-T
(not supported)
Blink = error code
Power limit
exceeded
BNC Connector (for connection to any 75ohm
coaxial cable)

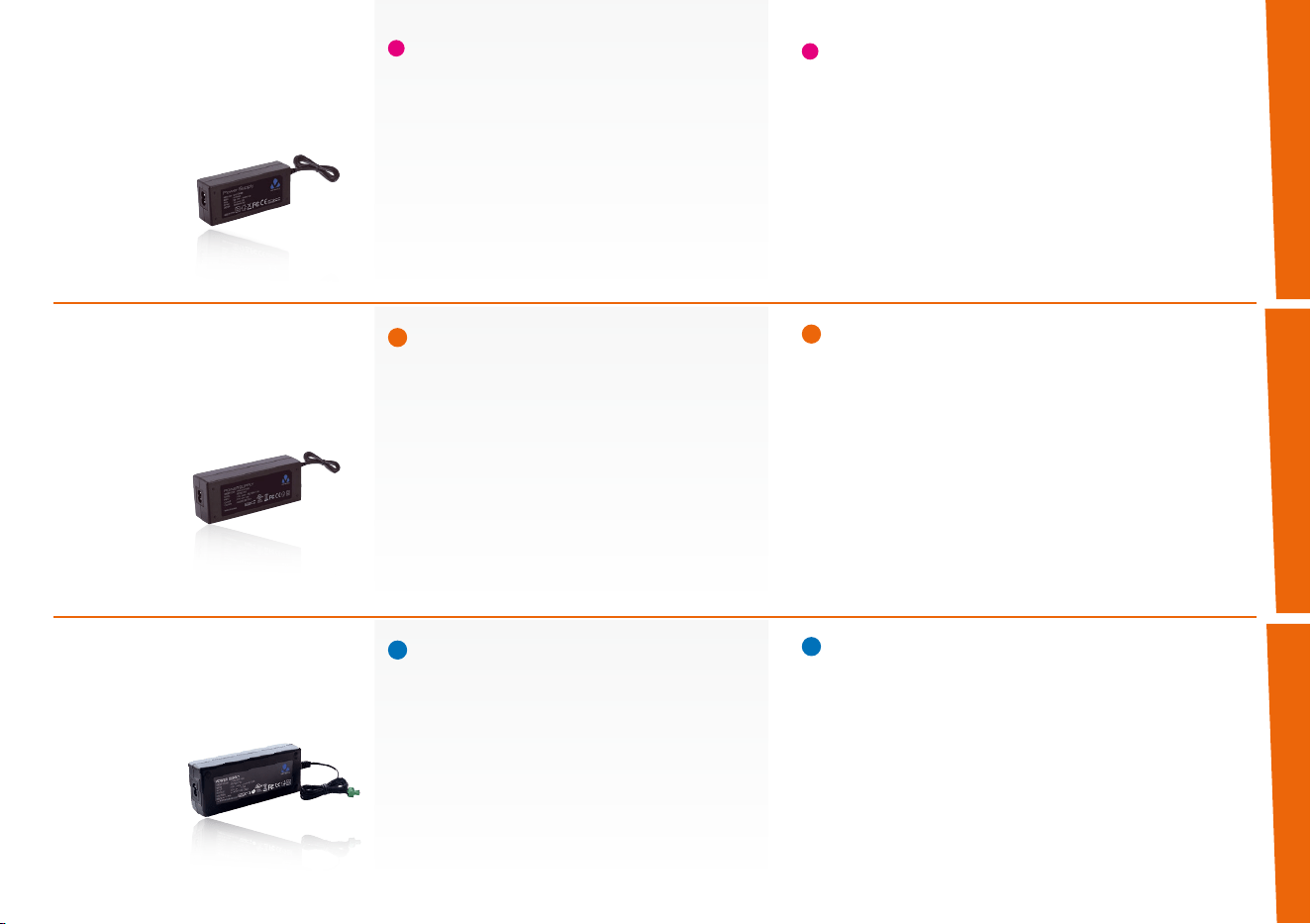

Power Connector Optional (Connect to a Veracity
57V power supply only - in polarity shown)
We, Veracity UK Ltd, of Prestwick International
Aerospace Park, 4 Dow Road, Prestwick, KA9 2TU,
UK declare under our sole responsibility that the
product:
VHW-HWPS-C2 HIGHWIRE Powerstar Duo
is in conformity with the essential requirements
and other relevant requirements of the EMC
Directive (2014/30/EU)
The products are in conformity with the following
standards:
EN 55022:2010
EN 55024:2010
Responsible person:
Alastair McLeod, Group CEO
Issued: 7th Dec 2015, Prestwick,
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated
in a commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the
interference at his own expense.
© Veracity UK Ltd 2016 QSGWV1.4 UK
HIGHWIRE POWERSTAR DUO is a trademark of Veracity UK Ltd
CONNECTIONS & LEDS
DECLARATIONS OF
CONFORMIT Y
