VCS-4P1-MOB
QUICK START GUIDE
LOW VOLTAGE 802.3AT POE SWITCH
4 network ports with 802.3at POE
1 data-only port
12V DC / 24V DC Power Input
| All ports support 10Base-T/100Base-TX
Ethernet with auto-negotiation & auto-crossover.
| POE is automatically detected and enabled
to compliant devices.
| POE is delivered on the Ethernet data pairs
for compatibility with 4-pin external connectors
(e.g. M12). Cables should be secured
appropriately to prevent vibration.
CONNECTIONS DIMENSIONSLEDS
CAMSWITCH
4 MOBILE
| Width 110mm (131mm inc. clips)
| Depth 108mm (inc. DC connector)
| Height 40mm
| Weight 290g
We, Veracity UK Ltd, of Prestwick International
Aerospace Park, 4 Dow Road, Prestwick, KA9 2TU,
UK declare under our sole responsibility that the product:
VCS-4P1-MOB CAMSWITCH 4 Mobile
is in conformity with the essential requirements and other
relevant requirements of the latest EMC Directive. The
latest Declaration of Conformity can be downloaded from
www.veracityglobal.com
Surge Protection
All Veracity products have been independently tested to
verify their resilience to the stringent immunity levels of
international standards. Users should note that no
electronic equipment can be guaranteed to be completely
protected at levels beyond the defined standard;
therefore product warranty cannot include damage to
products which has been caused by surges exceeding
those of the standards specified, for example lightning
strike activity.
It is the user’s responsibility to implement relevant surge
protection measures, as appropriate to the installation.
This may include the fitting of additional surge protection
devices where required.
FCC CERTIFICATION
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated
in a commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
© Veracity UK Ltd 2019
QSG WV1.5EN
CAMSWITCH 4 and 8 Mobile are trademarks of Veracity UK Ltd
LED FUNCTION
Green On = POE detected and enabled
On = Power good (non-POE port)
Yellow On = Ethernet Link
Flash = Ethernet Activity
110 mm
40 mm
121 mm
80mm
100 mm
103 mm
DECLARATION OF
CONFORMIT Y
VCS-4P1-MOB
QUICK START GUIDE
LOW VOLTAGE 802.3AT POE SWITCH
4 network ports with 802.3at POE
1 data-only port
12V DC / 24V DC Power Input
| All ports support 10Base-T/100Base-TX
Ethernet with auto-negotiation & auto-crossover.
| POE is automatically detected and enabled
to compliant devices.
| POE is delivered on the Ethernet data pairs
for compatibility with 4-pin external connectors
(e.g. M12). Cables should be secured
appropriately to prevent vibration.
CONNECTIONS DIMENSIONSLEDS
CAMSWITCH
4 MOBILE
| Width 110mm (131mm inc. clips)
| Depth 108mm (inc. DC connector)
| Height 40mm
| Weight 290g
We, Veracity UK Ltd, of Prestwick International
Aerospace Park, 4 Dow Road, Prestwick, KA9 2TU,
UK declare under our sole responsibility that the product:
VCS-4P1-MOB CAMSWITCH 4 Mobile
is in conformity with the essential requirements and other
relevant requirements of the latest EMC Directive. The
latest Declaration of Conformity can be downloaded from
www.veracityglobal.com
Surge Protection
All Veracity products have been independently tested to
verify their resilience to the stringent immunity levels of
international standards. Users should note that no
electronic equipment can be guaranteed to be completely
protected at levels beyond the defined standard;
therefore product warranty cannot include damage to
products which has been caused by surges exceeding
those of the standards specified, for example lightning
strike activity.
It is the user’s responsibility to implement relevant surge
protection measures, as appropriate to the installation.
This may include the fitting of additional surge protection
devices where required.
FCC CERTIFICATION
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
NOTE: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated
in a commercial environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to
correct the interference at his own expense.
© Veracity UK Ltd 2019
QSG WV1.5EN
CAMSWITCH 4 and 8 Mobile are trademarks of Veracity UK Ltd
LED FUNCTION
Green On = POE detected and enabled
On = Power good (non-POE port)
Yellow On = Ethernet Link
Flash = Ethernet Activity
110 mm
40 mm
121 mm
80mm
100 mm
103 mm
DECLARATION OF
CONFORMIT Y

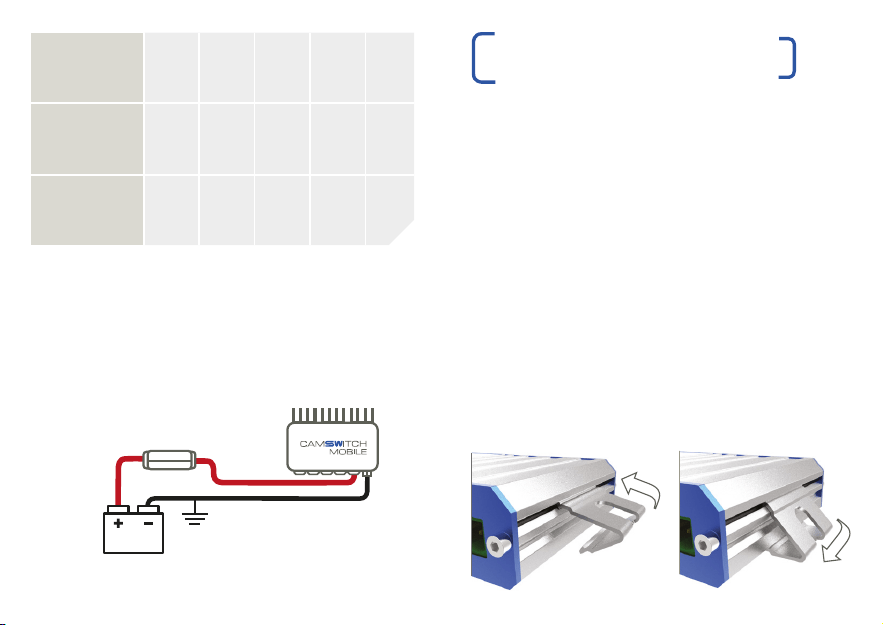

POWER
No
BUDGET
80W 60W 40W 20W POE
Fuse
Rating (12V) 10A 7.5A 5A 3A 2A
Fuse
Rating (24V) 5A 4A 3A 2A 2A
Note that the POE voltage is not isolated from the
DC supply. CAMSWITCH Mobile is intended for
use with IEEE-compliant (individually isolated) POE
and Ethernet devices within a closed system.
| CAMSWITCH 4 Mobile delivers a network connection and optional POE to 4 cameras.
POE is converted to IEEE 802.3af / 802.3at levels from a 12V or 24V DC supply.
APPLICATION DIAGRAM
DC POWERED
POWER BUDGET
WALL MOUNT CLIPS
| The enclosed mounting clips can be clipped
where required along the side of the unit to
permit surface mounting.
| Up to M5 screws can be used at 122mm
separation.
| Consult the power chart if ventilation
is restricted.
| To mount the unit securely to a flat surface,
fit the easy to use clips as shown.
CAMSWITCH 4 Mobile can operate from an 8.5V
to 40V DC supply, and steps this up to a steady
POE voltage internally.
The power supply or battery and wiring must
be appropriately rated and fused for the current
required. Recommended fuse ratings (slow blow
type) are shown in the Power Budget Table:
CAMSWITCH 4 Mobile can deliver up to 80 watts
of total camera power at its rated ambient
temperature of 50°C.
To calculate the power budget required, add up
the power draw in watts of all POE devices, as
given in their datasheets. (Power classes are not
used, and cable losses are already accounted for).
Note that the enclosure may become hot in
operation. Restricted access to the product is
recommended.

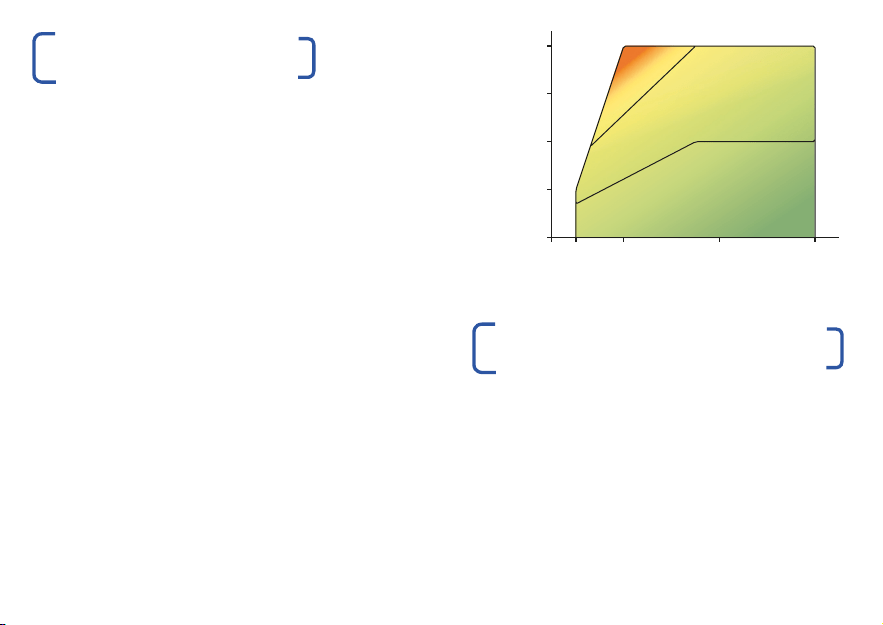

The graph opposite shows the approximate
temperature rise with moderate ventilation.
Note that restricted ventilation and space can lead
to significantly increased ambient temperature.
If the input voltage drops below 12V (for example
during engine cranking) the power budget should
be reduced as shown on the graph, down to 50
watts at the minimum 8.5V DC input.
8.51 22 44 0
40
50
60
70
80
INPUT VOLTAGE ( VOLTS DC )
OUTPUT POWER ( WATTS )
30º above ambient
20º above ambien
t
1. Insert
2. Click
FUSE
12/24V DC
POWER CONNECTIONS
12/24V DC
POWER
VCS-4P1-MOB
ALL CABLES UP TO 100M
CAT5e OR BETTER
ETHERNET WITH POE
ETHERNET DATA ONLY
UP TO 4 POE OR
NON-POE DEVICES
